Steering Wheel

Adjusting Position

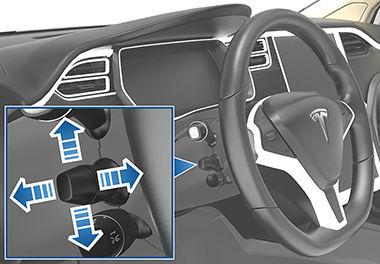

Adjust the steering wheel to the desired driving position by moving the control on the left side of the steering column. Using this control, you can move the steering wheel forward and backward and up and down.

Warning: Do not make adjustments while driving.

Adjusting Sensitivity

You can adjust the feel and sensitivity of the steering system to suit your personal preference: 1. On the touchscreen, touch Controls. 2. Choose a steering option: • Comfort - Reduces the effort required to turn the wheel. In town, Model X feels easier to drive and park. • Standard - Tesla believes that this setting offers the best handling and response in most conditions. • Sport - Increases the effort required to turn the wheel. When driving at higher speeds, Model X feels more responsive. The only way to really know which option you like best is to try them.

Using Left Steering Wheel Buttons

Use the buttons on the left side of the steering wheel to change radio stations, control the media player’s volume, and to choose what displays on the left side of the instrument panel (whenever the Navigation app is not displaying instructions). 1. Next

If you are listening to local or satellite radio and you have defined more than one radio preset, press to play the next preset in the radio band that is currently playing. If you have not defined more than one preset, press to go to the next available frequency. If you are listening to Internet radio, or to an audio file on a connected Bluetooth or USB device, press to skip to the next song or station.

If you have more than one favorite defined, press and hold to cycle through favorites. 2. Scroll Wheel

• To adjust the media volume, roll up or down.

Note: The scroll wheel adjusts the volume for media, navigation instructions and phone calls based on what is currently in use. As you adjust volume, the instrument panel displays the volume level and whether you are adjusting volume for media, navigation or phone. • To mute the media volume, or to pause/play an audio file, tap the scroll wheel.

• To choose what displays on the left side of the instrument panel, press the scroll wheel briefly until the available options are displayed. Roll the scroll wheel to choose Empty, Car Status, Clock, Media, Energy or Trips, etc. When the option you want is highlighted, tap the scroll wheel. Note: The option you choose to display using the left scroll wheel is retained until you manually change it. It is also saved in your driver profile. Note: Car status displays information such as status of doors and trunks, and on newer model vehicles, the tire pressure measurements. • To restart the touchscreen, hold both scroll wheel buttons for approximately 5 seconds. See Restarting the Touchscreen on page 48. 3. Previous

Same as described above for Next, except it skips to the previous song or station. If you have more than one favorite defined, press and hold to cycle through favorites. Note: Regardless of how you customize the left side of the instrument panel, it automatically changes to display navigation instructions (if applicable), or to let you know if a door or trunk is open when Model X is in a driving gear.

Using Right Steering Wheel Buttons

Use the buttons on the right side of the steering wheel to access call options while on a phone call, to choose what displays on the right side of the instrument panel, to adjust Model X features, and to use voice commands. Note: Whenever you receive or make a phone call, the right side of the instrument panel automatically displays call options to help you easily handle phone calls on your Bluetoothconnected phone. 1. Press to use a voice command to call a contact, navigate, or listen to Internet music. When you hear the tone, speak your command. Press again to end the voice command, or simply stop speaking.

For details, see Using Voice Commands on page 46. 2. Scroll Wheel

• During a phone call, touch the scroll wheel to display call options that allow you to perform an action on the call. • Roll the wheel to adjust the most recently used feature from the feature list (see Menu button). • To choose what displays on the right side of the instrument panel, press the scroll wheel briefly until the available options are displayed. Roll the scroll wheel to choose Empty, Car Status, Clock, Media, Energy or Trips, etc. When the option you want is highlighted, tap the scroll wheel. Note: Car status displays information such as status of doors and trunks, and on newer model vehicles, the tire pressure measurements. Note: The option you choose to display using the right scroll wheel is retained until you manually change it. It is also saved in your driver profile. • To restart the touchscreen, hold both scroll wheel buttons for approximately 5 seconds. See Restarting the Touchscreen on page 48. 3. Menu button

Press to display a menu that allows you to control the following Model X features: • Temperature. Roll the wheel to change the driver side temperature, or press the wheel to turn the climate control system on and off.

• Fan Speed. Roll the wheel to adjust the speed of the fan used to cool or heat the cabin. • Display Brightness. Roll the wheel to change the brightness level of the displays, or press the wheel to restore default settings. • Recent Calls. If your phone is paired to Model X, roll the wheel to view your recent calls. Press the wheel to call the contact that's displayed. To pair your phone, see Pairing a Bluetooth Phone on page 136. • Contacts. If your phone is paired to Model X, use the scroll wheel to navigate to contacts in your phone. Your contacts are listed alphabetically by their last name. To pair your phone, see Pairing a Bluetooth Phone on page 136. Press the menu button again to close the feature list.

Using Voice Commands

You can use voice commands to call a contact, navigate to a location, or listen to Internet music. Tap the voice button on the upper right side of the steering wheel to initiate a voice command. When you hear the tone, speak your command. As you speak, the instrument panel displays an interpretation of your command. (It also displays tips to remind you of the type of commands you can speak.) When you finish speaking the command, tap the voice button again or simply wait. • To call a contact on your Bluetoothconnected phone, say “Call” or “Dial”, followed by the contact’s first and/or last name(s). For example, “Call Joe” or “Call

Joe Smith”. • To search for, or navigate to, a location, say “Where is”, “Drive to”, or “Navigate to”, followed by an address, business name, business category, or landmark. For example, “Where is Stanford University?”,

“Drive to Tesla in Palo Alto”, or “Navigate to Starbucks on Homestead in Cupertino”.

If you have defined a navigation address for your home or work locations, you can use a voice command to navigate there by saying "Navigate home" or "Navigate to work". • To listen to an Internet music service, say

“Listen to” or “Play”, followed by the name of the song, album, artist, or combination.

To improve voice recognition accuracy, provide multiple cues in your command, such as artist plus song (for example,

“Listen to Yellow Brick Road” or “Play

Yellow Brick Road by Elton John”).

Heated Steering Wheel

If Model X is equipped with the optional cold weather package, you can access a control that instantly warms up the steering wheel by touching Controls > Cold Weather > Heated Wheel. When turned on, a heater in the steering wheel provides radiant heat that keeps the steering wheel at a comfortable temperature.

Horn

To sound the horn, press the center pad on the steering wheel.
