HEATER CONNECTIONS
from 2016 Crusader Challenger Salt Series 5.7L Catanium CES Operation And Maintenance Manual - PDF DOWNL
WATER OUT
Remove plug from intake manifold and install proper barbed fitting. The plug is located toward the front of the intake (belt end) on the even cylinder side.
WATER RETURN
Remove plug from circulation pump and install proper barbed fitting. The plug is located on the side of the circulation pump.

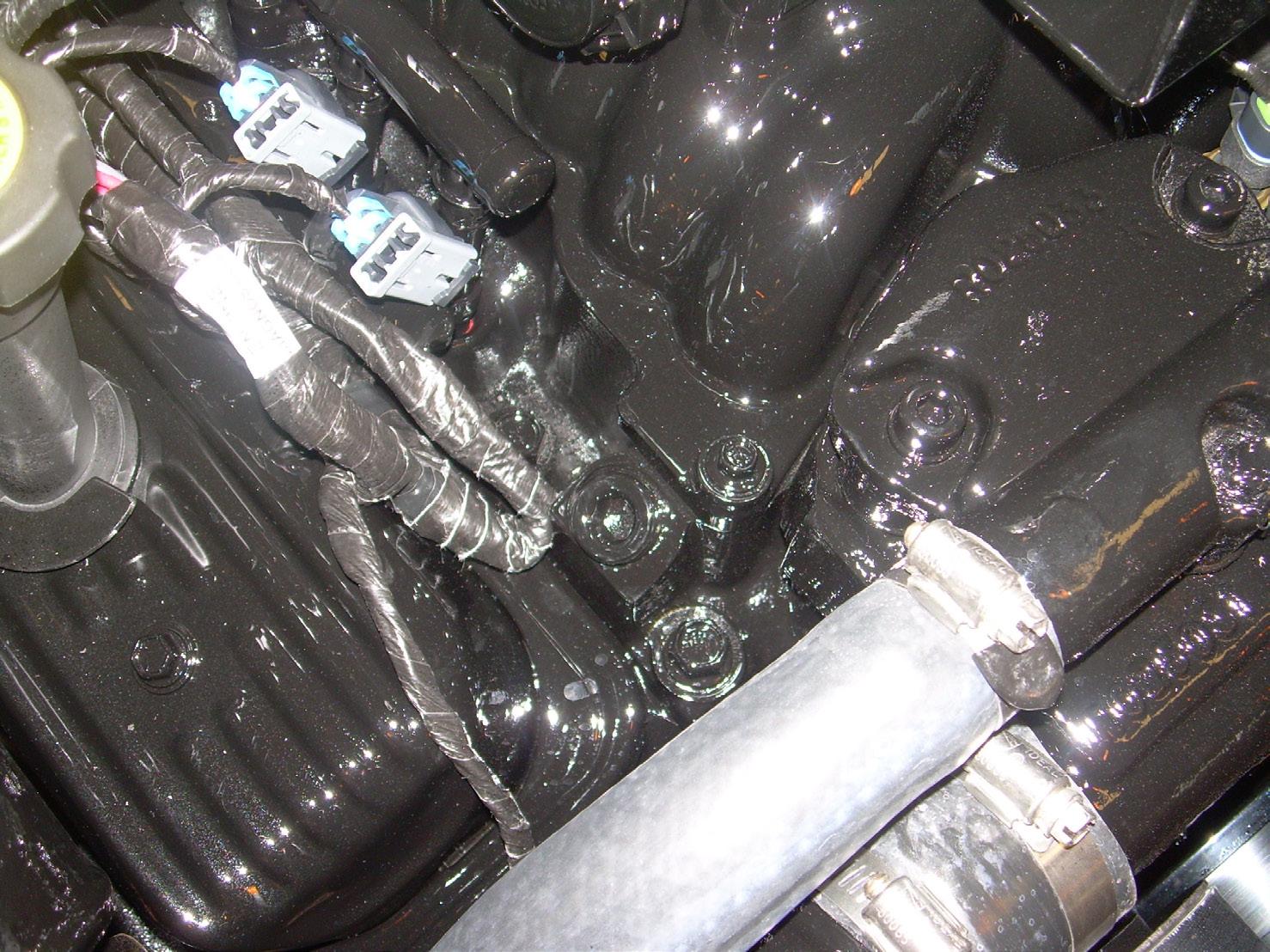

Figure 16-1 5.7L Applications
Figure 16-2 6.0L Applications
