A-5510/A-6910 Roadranger Valve

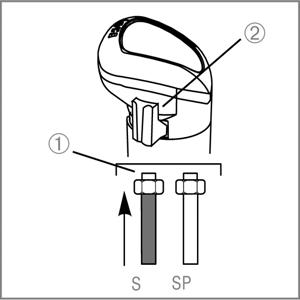

Constant air pressure is supplied from the slave valve to the Roadranger valve “S” port (1).

For LO range 1, 3, 5 gear positions (gear select button in the rearward position (2), the button prevents air from passing through the Roadranger valve.

For LO range 2, 4, 6 gear positions (gear select button in the forward position (2), air flows out the roadranger “SP” port.

For HI range 7, 9 gear position (gear select button in the rearward position (2), air is again prevented from passing through the Roadranger valve.

For HI range, 8 and 10 gear positions (gear select button in the forward (2) air flows out the roadranger valve “SP” port.
