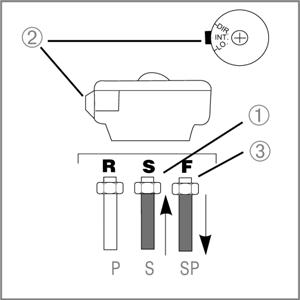

Three Position Selector Valve
Constant air pressure is supplied from the slave valve to the Roadranger valve “S” port (1).
For LO range (selector button in the “LO” position (2), the air is stopped from passing through the selector valve.
For Intermediate range (selector button in the “INT” position (2),air flows out the “SP” port (3).
For HI range (selector button in the “DIR” position 2), air flows out the “P” port (3) and the “SP” port (4).
