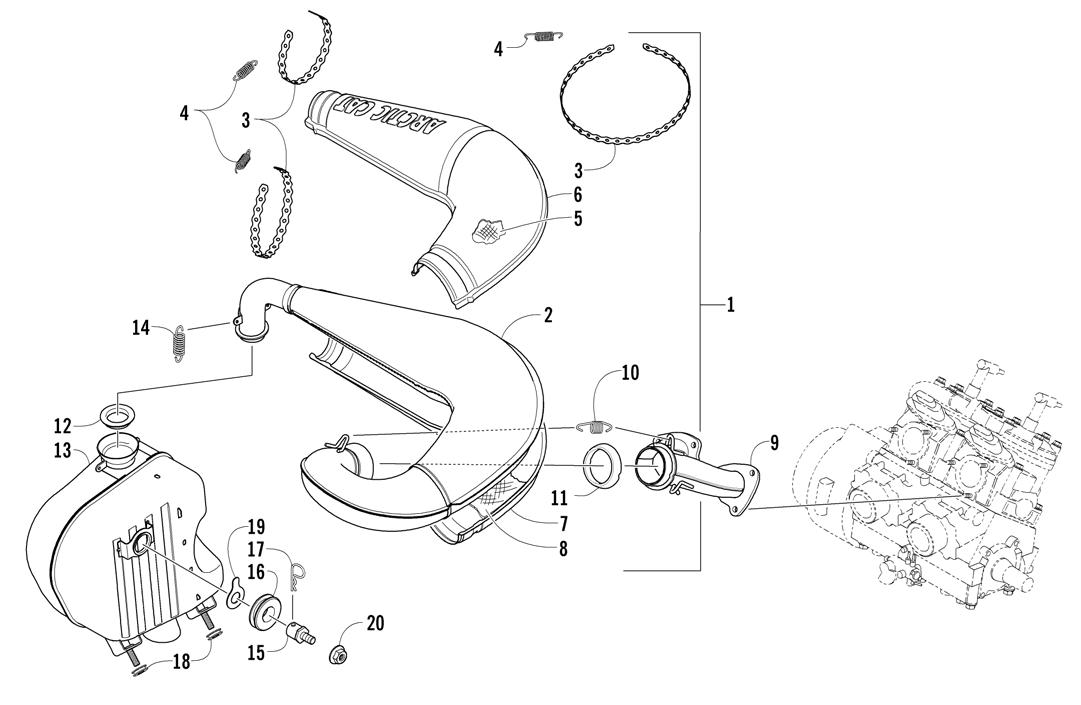

EXHAUST ASSEMBLY

0740-778

1 1712-237 1 Chamber, Expansion - Assembly (inc. 2-8) 2 1712-236 1 ‹ Chamber, Expansion 3 0624-526 AR ‹ Tie, Perforated Band - 5 ft 0624-541 AR ‹ Tie, Perforated Band - 25 ft 4 1612-178 3 ‹ Spring, Exhaust 5 1612-590 1 ‹ Packing, Expansion Chamber - Upper 6 1612-574 1 ‹ Cover, Expansion Chamber - Upper 7 1612-804 1 ‹ Cover, Expansion Chamber - Lower 8 1612-805 1 ‹ Packing, Expansion Chamber - Lower 9 1712-104 1 Manifold, Exhaust 10 0612-820 3 Spring, Exhaust 11 1612-014 1 Gasket, Exhaust 12 1612-323 1 Gasket, Exhaust - Tailpipe 13 1712-175 1 Resonator 14 0612-471 3 Spring, Extension 15 1623-374 1 Pin, Mounting - Resonator 16 1623-375 1 Grommet 17 1623-379 1 Clip, Hairpin 18 1612-873 2 Grommet 19 1612-927 1 Washer, Tab 20 8047-486 1 Nut, Lock
