–Unscrew nuts -arrows- and remove bracket -1-.

Note

Differenttypesofbracketsarefitteddependingonversion.

Arteon 2018 ➤ , Polo 2018 ➤ , T-Roc 2018 ➤ , Tiguan 2016 ➤ , Tiguan RU ... 4-cyl. direct injection engine (2.0 l, 4 V, EA 888 gen III BZ, turbocharger, chain drive) - Edition 02.2019

–Unclip wire guide -1- upwards -arrows-, and push it slightly to one side.

–Support engine in its installation position ⇒ page 39

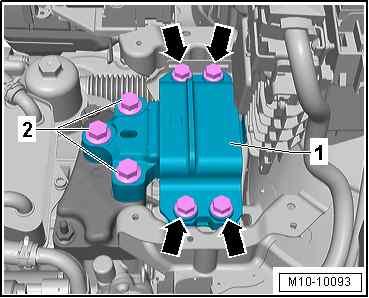

–Unscrew bolts -2-. Then unscrew bolts -arrows-, and remove gearbox mounting -1-.

Installing

Install in reverse order of removal, observing the following:

Note

♦ Renewboltsthataretightenedwithturningfurtherangle.

♦ Gearboxsupportandsupportarmofgearboxmountingmust beperfectlyparalleltoeachotherbeforescrewinginbolts.If necessary,liftgearboxatrearusingtrolleyjack.

–Tighten gearbox mounting on longitudinal member.

– Lift gearbox with spindle of support bracket until gearbox sup‐port makes contact with support arm of gearbox mounting.

– Startboltsbyhand.Ensuretonotscrewintheboltsatanangle while doing so.

–Checking adjustment of assembly mountings ⇒ page 53

– When the bolts are tightened to specified torque, remove sup‐port bracket - 10 - 222 A- from engine.

Specified torques

♦ ⇒ “2.1 Assembly overview - assembly mountings”, page 34

♦ Battery; Assembly overview - battery ⇒ Electrical system; Rep. gr. 27 ; Battery; Assembly overview - battery

Arteon 2018 ➤ , Polo 2018 ➤ , T-Roc 2018 ➤ , Tiguan 2016 ➤ , Tiguan RU ... 4-cyl. direct injection engine (2.0 l, 4 V, EA 888 gen III BZ, turbocharger, chain drive) - Edition 02.2019

2.4 Removing and installing pendulum sup‐port

⇒ “2.4.1 Removing and installing pendulum support, Tiguan, Ar‐teon, T-Roc”, page 38

⇒ “2.4.2 Removing and installing pendulum support, Polo”, page 38

2.4.1 Removing and installing pendulum sup‐port, Tiguan, Arteon, T-Roc

Removing

–Remove noise insulation ⇒ General body repairs, exterior; Rep. gr. 66 ; Noise insulation; Assembly overview - noise in‐sulation .

–Unscrew bolts -1, 2 and 3-, and remove pendulum support.

Installing

Install in reverse order of removal, observing the following:

Specified torques

Stage Bolts Specified torque/turning further angle

1. -2, 3- 60 Nm

2. -1- 130 Nm

3. -1 … 3- Turn 90° further

♦ Noise insulation; Assembly overview - noise insulation ⇒ General body repairs, exterior; Rep. gr. 66 ; Noise insulation; Assembly overview - noise insulation

2.4.2 Removing and installing pendulum sup‐port, Polo

Removing

–Remove noise insulation ⇒ General body repairs, exterior; Rep. gr. 66 ; Noise insulation; Assembly overview - noise in‐sulation .

–Unscrew bolts -1- and -2-, and remove pendulum support.

Installing

Install in reverse order of removal, observing the following:

Specified torques

Stage Bolts Specified torque/turning further angle

1. -1- 50 Nm

2. -2- 130 Nm

3. -1 … 2- Turn 90° further

♦ Noise insulation; Assembly overview - noise insulation ⇒ General body repairs, exterior; Rep. gr. 66 ; Noise insulation; Assembly overview - noise insulation

Arteon 2018 ➤ , Polo 2018 ➤ , T-Roc 2018 ➤ , Tiguan 2016 ➤ , Tiguan RU ... 4-cyl. direct injection engine (2.0 l, 4 V, EA 888 gen III BZ, turbocharger, chain drive) - Edition 02.2019

2.5Supporting engine in installation posi‐tion

⇒ “2.5.1 Supporting engine in installation position, Tiguan”, page 39

⇒ “2.5.2 Supporting engine in installation position, Arteon”, page 42

⇒ “2.5.3 Supporting engine in installation position, T-Roc”, page 46

⇒ “2.5.4 Supporting engine in installation position, Polo”, page 49

2.5.1Supporting engine in installation position, Tiguan

Arteon 2018 ➤ , Polo 2018 ➤ , T-Roc 2018 ➤ , Tiguan 2016 ➤ , Tiguan RU ... 4-cyl. direct injection engine (2.0 l, 4 V, EA 888 gen III BZ, turbocharger, chain drive) - Edition 02.2019

Special tools and workshop equipment required

♦ Support - 10 - 222 A-

♦ Hook - 10-222A/10-

♦ Adapter - 10-222A/28-

♦ Adapter - 10-222A/28-2-

♦ 2 x Adapter - 10 - 222 A /29-

♦ 2 × -T40091/1- and -T40091/3- from engine support basic set - T40091-

Arteon 2018 ➤ , Polo 2018 ➤ , T-Roc 2018 ➤ , Tiguan 2016 ➤ , Tiguan RU ... 4-cyl. direct injection engine (2.0 l, 4 V, EA 888 gen III BZ, turbocharger, chain drive) - Edition 02.2019

♦ 2 × swivel joints - T40093/3- from engine support supplemen‐tary set - T40093-

♦ Shackle - 10 - 222 A /12-

Supporting engine

–Remove engine cover panel ⇒ page 55

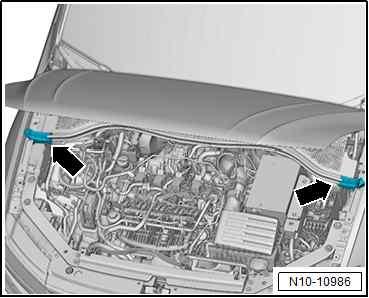

–Remove foam elements -arrows- on left and right for plenum chamber seal.

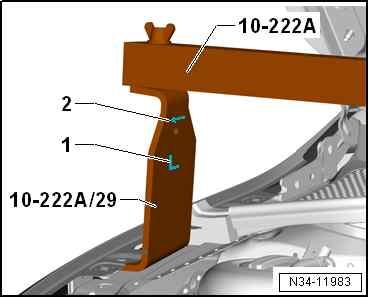

– On both sides of vehicle, insert adapters - 10 - 222 A /29- be‐tween wing and sheet metal for mounting wing underneath it.

Installation position:

♦ Supportbracket-10-222A-isset-upbehindgasstrutforbon‐net.

♦ Adapter “L” = -1- is inserted on “right” of vehicle.

♦ Adapter “R” (not seen here) is inserted on “left” of vehicle.

♦ Arrow -2- always points in direction of travel.

–Push 2 × swivel joints - T40091/3- onto support bracket10-222 A- .

–Secure support bracket - 10-222 A- to adapters - 10 - 222 A / 29- .

– Unscrewbolts-arrows-forlockcarrierbracketonleftandright.

Arteon 2018 ➤ , Polo 2018 ➤ , T-Roc 2018 ➤ , Tiguan 2016 ➤ , Tiguan RU ... 4-cyl. direct injection engine (2.0 l, 4 V, EA 888 gen III BZ, turbocharger, chain drive) - Edition 02.2019

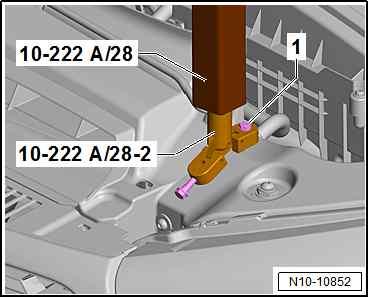

–Unscrew lower supports from adapters - 10 - 222 A /28- and replace them with adapters -10-222 A /28-2- .

–Unscrew bolts -arrows- for securing support bracket to lock carrier from adapter - 10-222 A /28-2- .

–Bolt adapter - 10-222 A /28-2- to lock carrier using securing bolt -1-. Specified torque: 8 Nm.

–Set-up square tubes - T40091/1- with one spindle each as shown.

–Engage spindles in support eyes of engine. Use shackle - 10 - 222 A /12- if necessary.

–Take up weight of engine/gearbox assembly using spindles .

2.5.2Supporting engine in installation posi‐tion, Arteon
