Welcome to Edition 20 of the Oak Book, a comprehensive selection of products, expertly sourced and processed, to meet the demands of your construction, joinery and design needs.
At Hewins, we understand the crucial role that oak plays in elevating the quality and character of your work. Our commitment to becoming the supplier of choice for oak in construction ensures that each piece of oak you see in this book not only meets the highest standards of quality, but is also backed up with our expert knowledge and service.
We look forward to being a part of your journey toward creating exceptional spaces that stand the test of time.
Oak. One of the world’s most beautiful and versatile materials.
From barrels to battleships, oak has graced many of the greatest moments and places in history.
Today, with man-made materials at large as never before, oak remains unique - one of the most durable, versatile and prestigious materials available, adding its own charm and status to any application.
European Oak (Quercus robur) is a large, long-lived deciduous tree, widely distributed throughout Europe: from Northern Spain to Southern Scandinavia, and from Northern Ireland to Eastern Europe.
The heartwood is dense and tight-grained, making it well suited to many building and joinery applications where strength and durability are important. Oak's durability is due to a high tannin content, providing a high level of resistance to insect and fungal attacks. With this excellent durability it can be used in many exposed exterior uses, as well as internally.

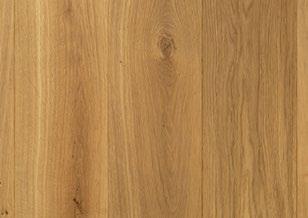

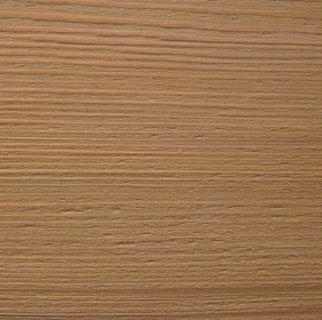

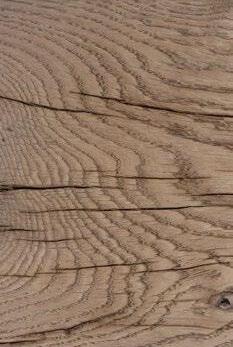

With its golden-brown colour and distictive grain pattern, the appearance of oak has been admired and esteemed for centuries. One very unique feature is the medullary rays: ribbons of cells running from the inside of the plant to the outside. This is particularly noticeable on timber faces that are cut at a parallel to the centre of the tree.

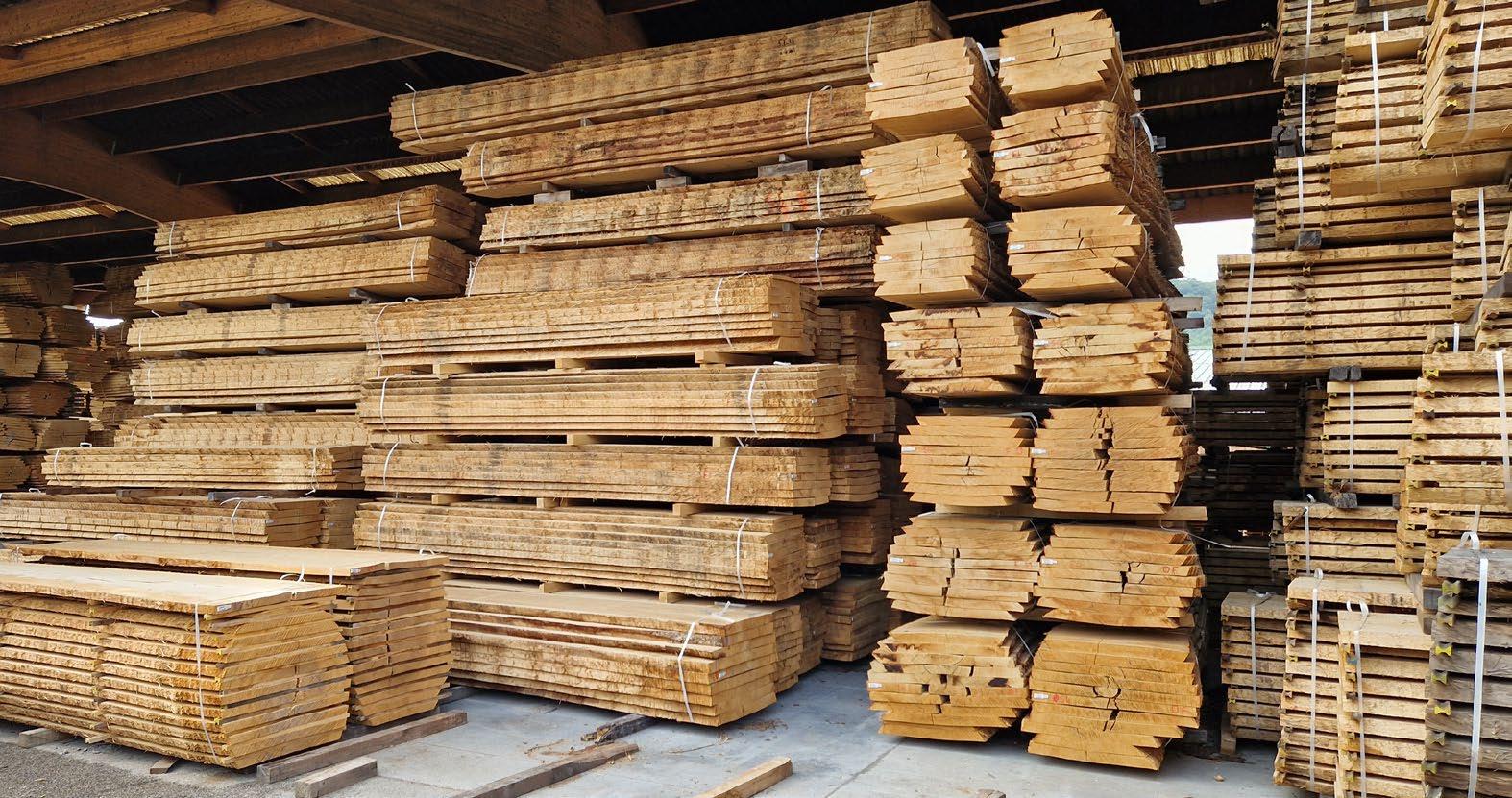

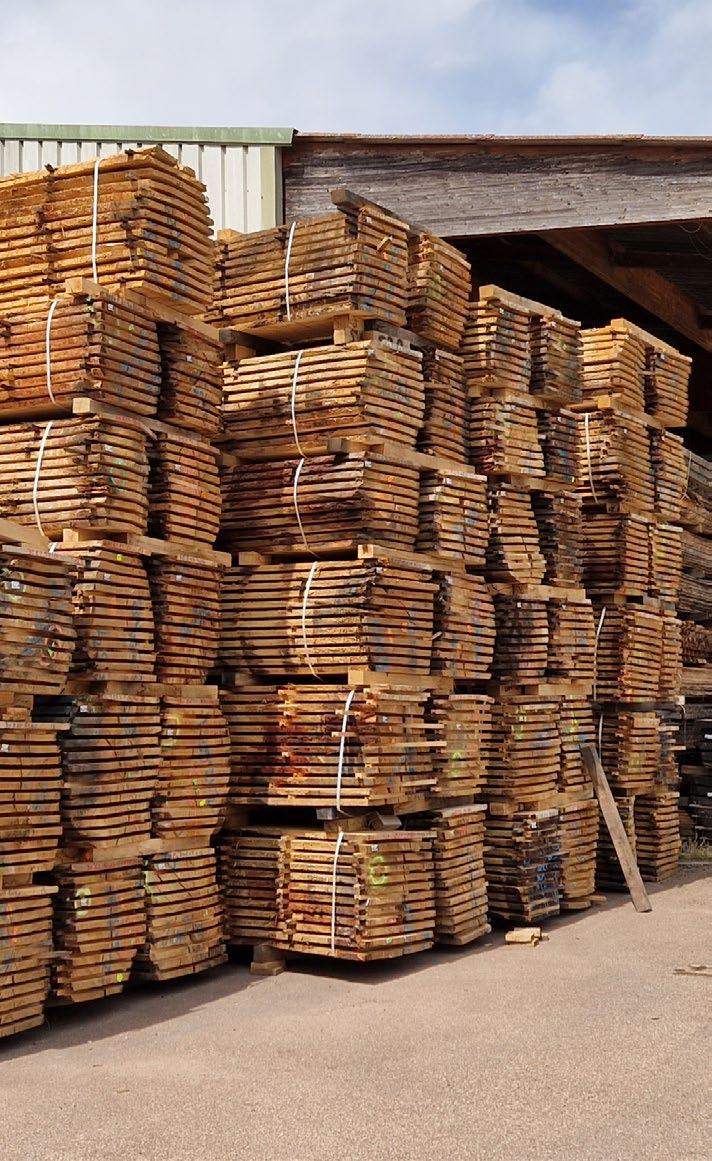

With strong trading relationships throughout France and other sustainably managed areas of Europe, we are committed to preserving this timeless natural resource.
Oak is a totally sustainable resource.
Forestry management schemes such as FSC® and PEFC are well established throughout Europe and beyond, ensuring that European Oak remains an entirely renewable resource.
For example, France established a controlled forest management system in 1827 and now has a staggering 524 million cubic metres of standing oak with an annual harvest of around 2.5 million cubic metres.
As a result of this foresight, some of the world's finest oak is sourced from French forests.
Hewins has held FSC® and PEFC certification since 2006.
Our team
When you deal with Hewins Oak, you are working with a team who are focused on achieving the very best results in your project.

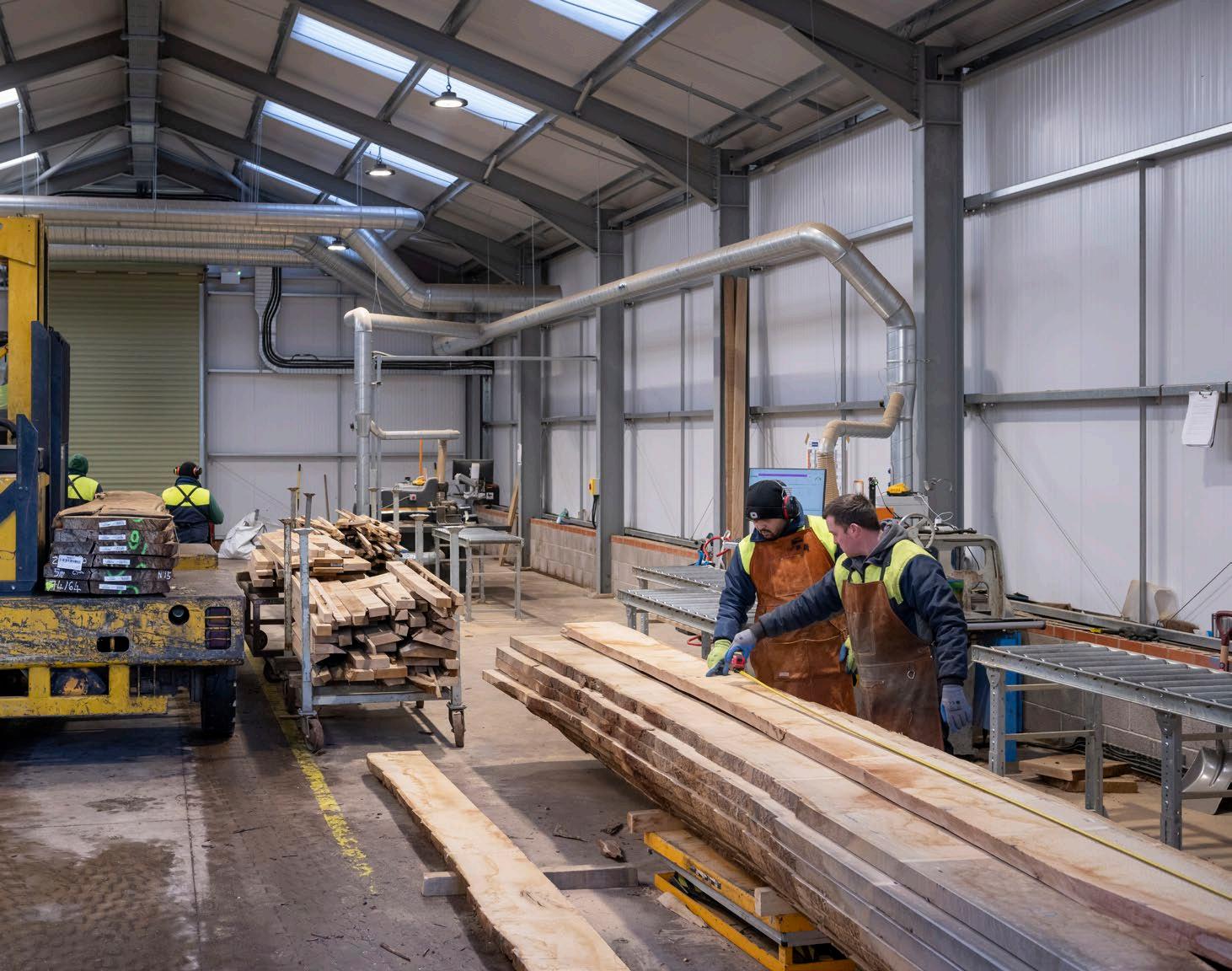

From our Sales team discussing your requirements, through to our Production teams working to achieve the right quality while minimising wastage.

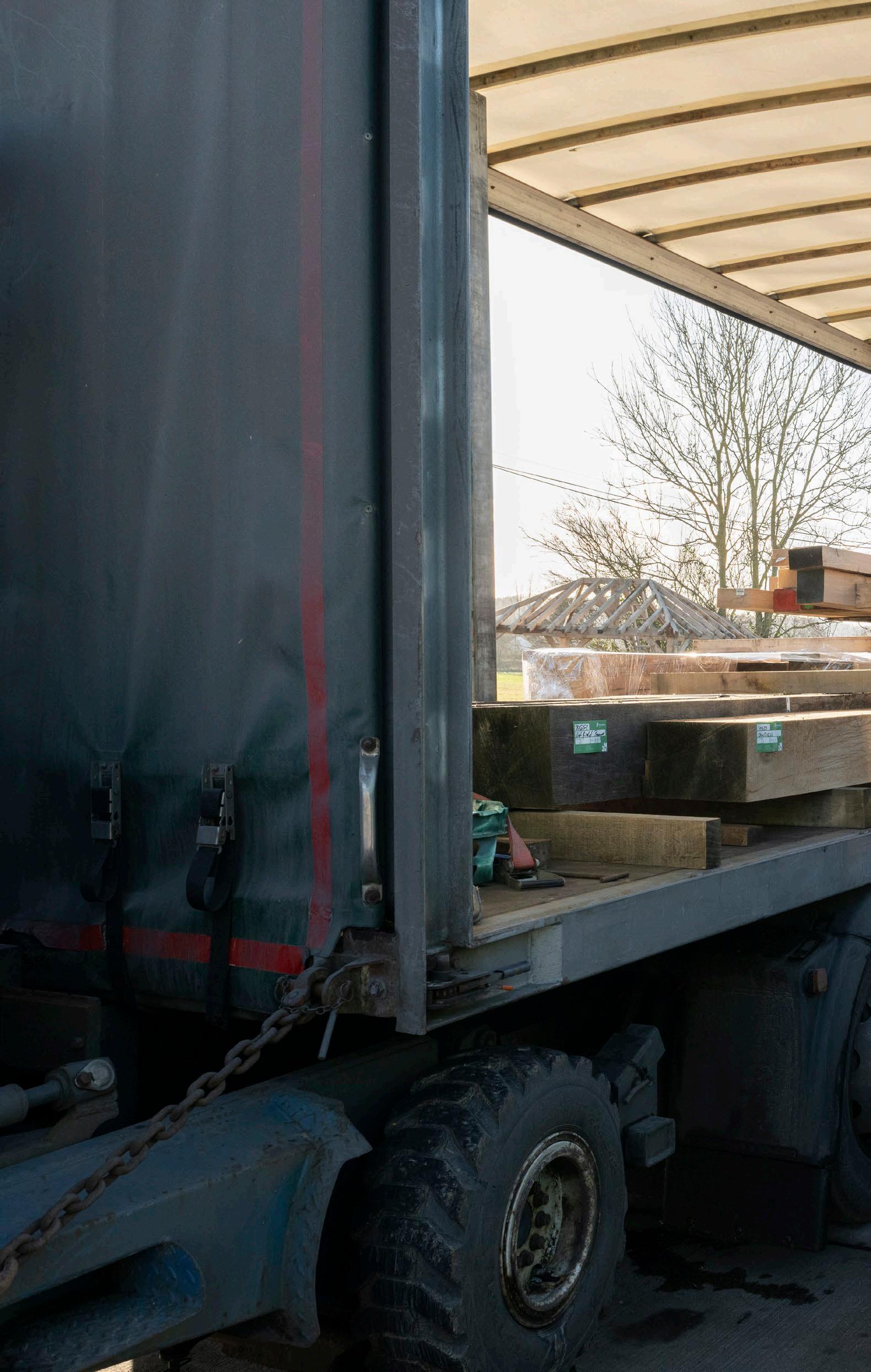

It's then over to our Despatch & Logistics teams to confirm delivery with you and make sure it arrives safe and sound.
Overleaf are some members from the team who you may come across when dealing with Hewins!
Henry Bourne Key Account Manager
Ben Rabbetts Business Development
Alastair Rubie
Managing Director
Declan Roy Key Account Manager
Haydn Gibbs Customer Services
Jon Rubie Director
Rory Brown BDM
Sarah Westaway Finance Manager
Alex Hooper General Manager
Jason Corke Sales Coordinator
Kirsty King Invoicing Administrator
Caitlin Rubie Key Account Manager
Our mission To give confidence in using Oak by providing expert advice, correctly specified products & good, honest, on time, quality service.
We believe in having a clearly defined mission to give us fresh purpose every day.
When you deal with Hewins, you are working with a team who are focused on achieving the very best results in your oak project.
“Quality is never an accident; it is always the result of high intention, sincere effort, intelligent direction and skilful execution.”
Our values
Reliability
Expertise
Accountability
Longevity
What do we value most at Hewins?
We took time out to consider it as a team. Simple and understandable, these values form the foundation of our company.
It’s about being REAL - that’s our culture. We are what we say we are, we do what we say we do.

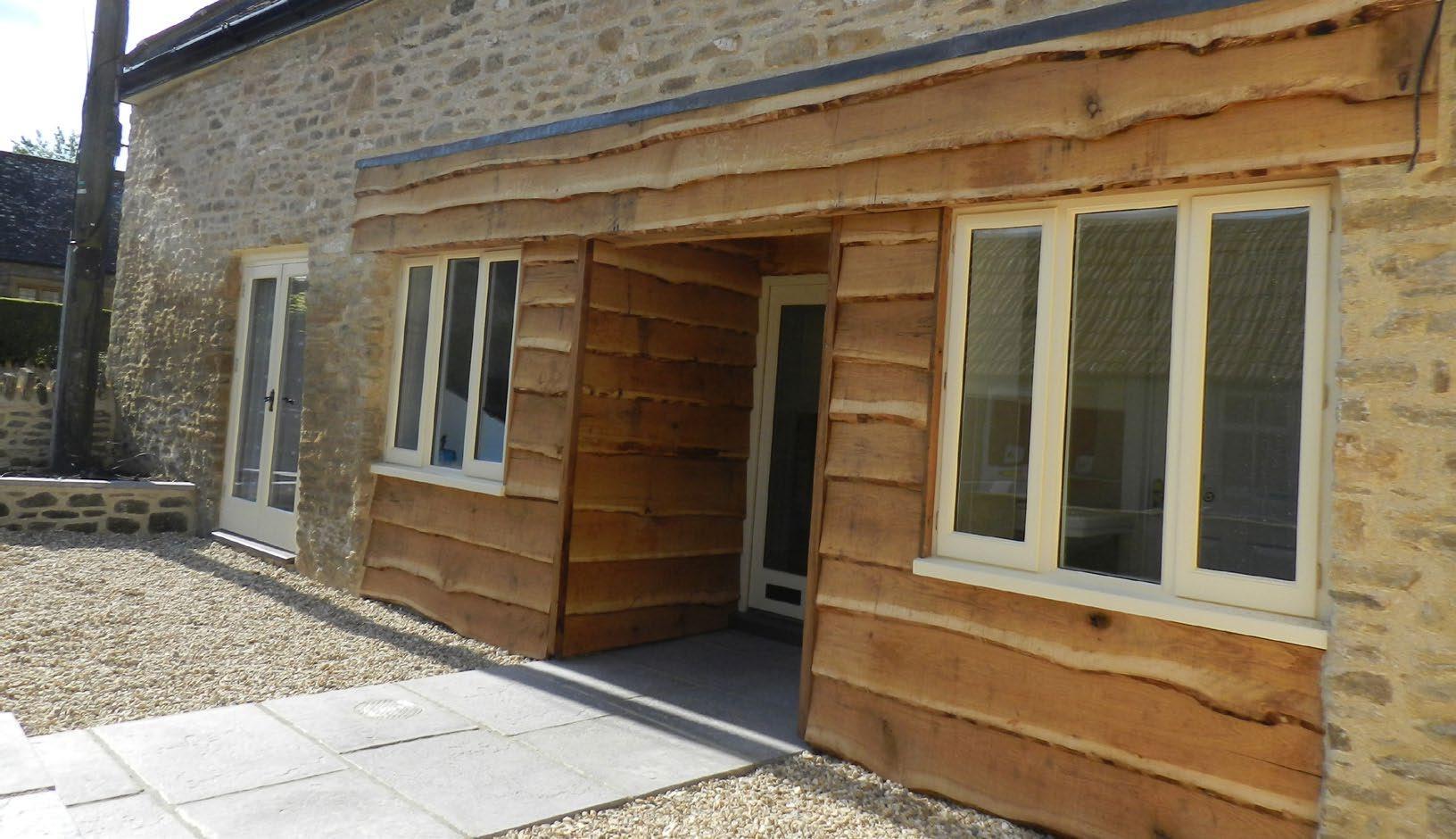

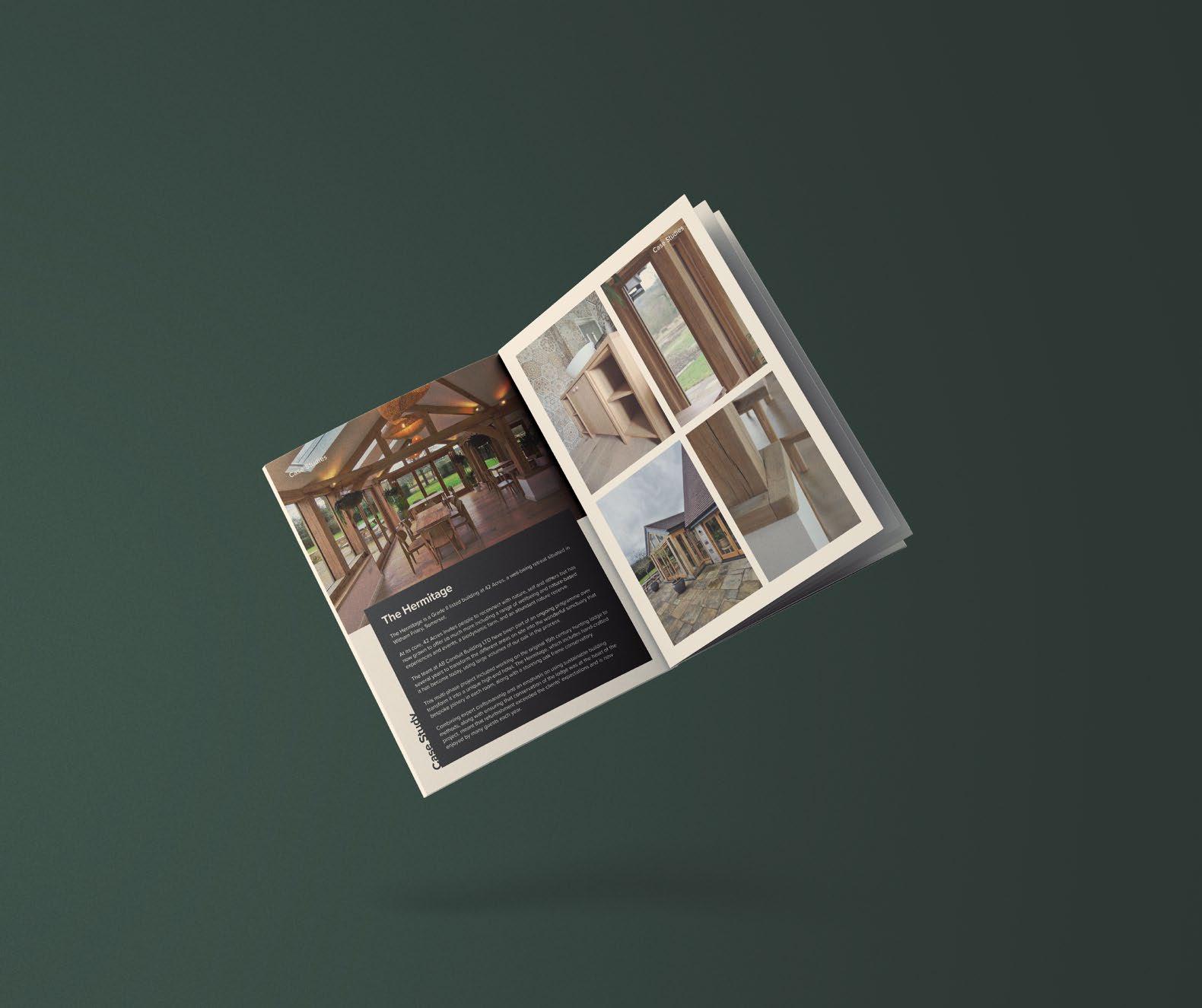

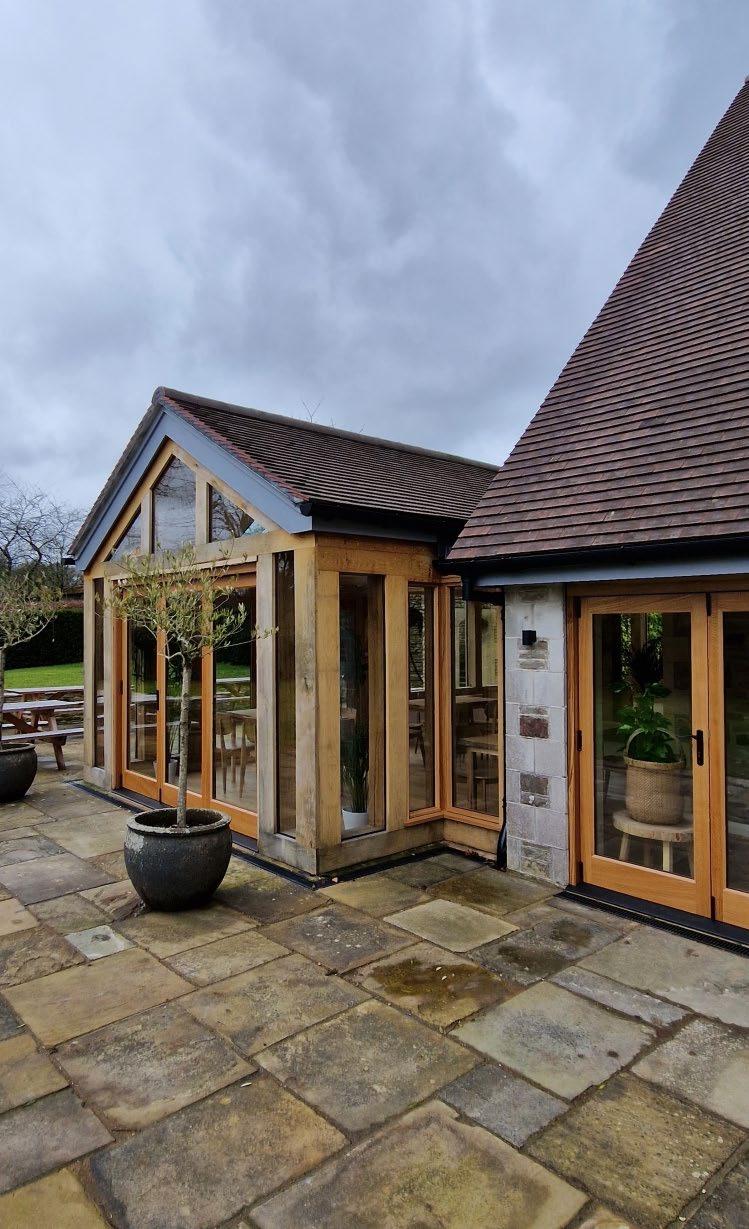

The Hermitage

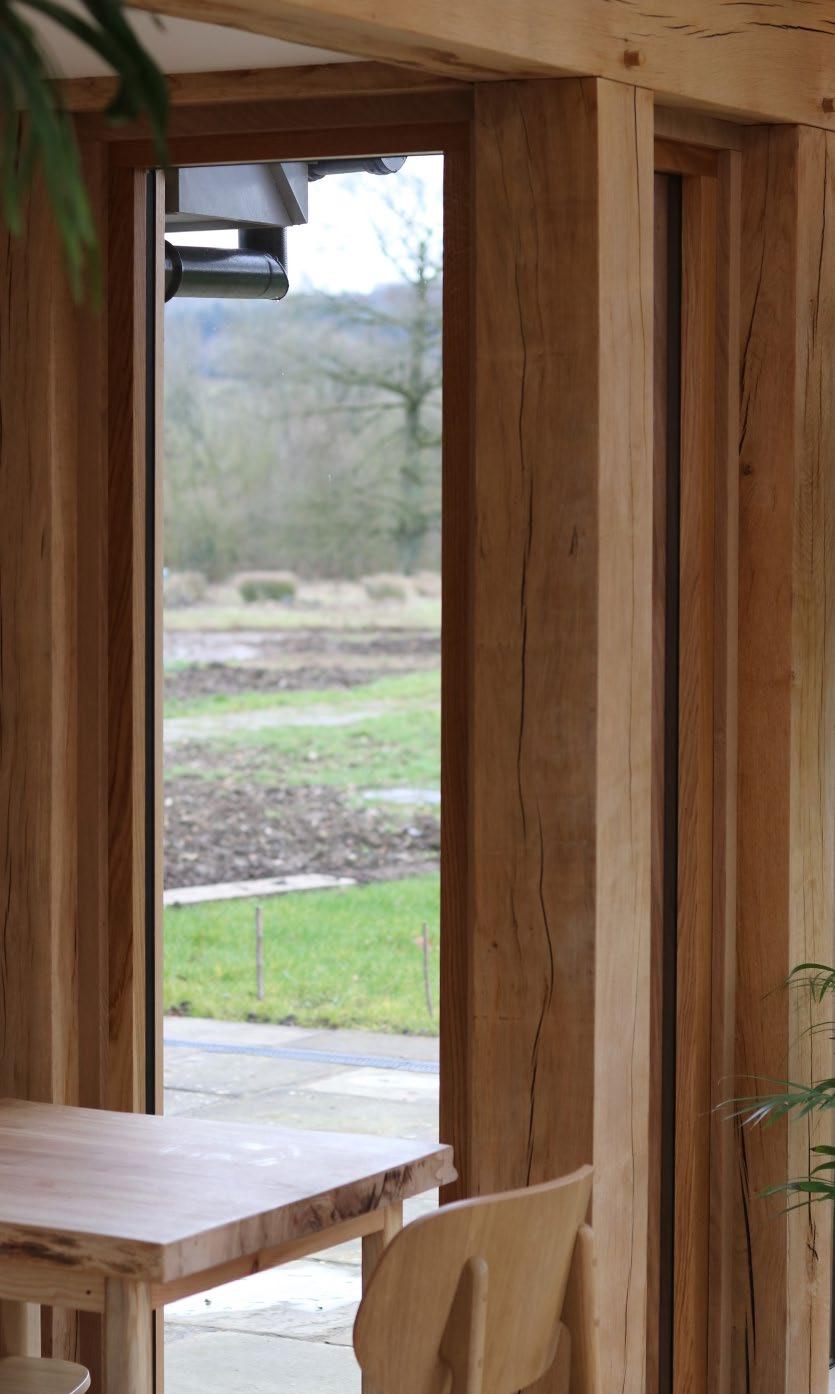

The Hermitage is a Grade II listed building at 42 Acres, a well-being retreat situated in Witham Friary, Somerset.
The team at AB Conduit Building LTD have been part of an ongoing programme over several years to transform the different areas on site into the wonderful sanctuary that it has become today, using large volumes of our oak in the process.
This multi-phase project included working on the original 15th century hunting lodge to transform it into a unique high-end hotel, The Hermitage, which includes hand-crafted bespoke joinery in each room, along with a stunning oak frame conservatory.
Case Study
Combining expert craftsmanship and an emphasis on using sustainable building methods, along with ensuring that conservation of the lodge was at the heart of the project, meant that refurbishment exceeded the clients’ expectations and is now enjoyed by many guests each year.

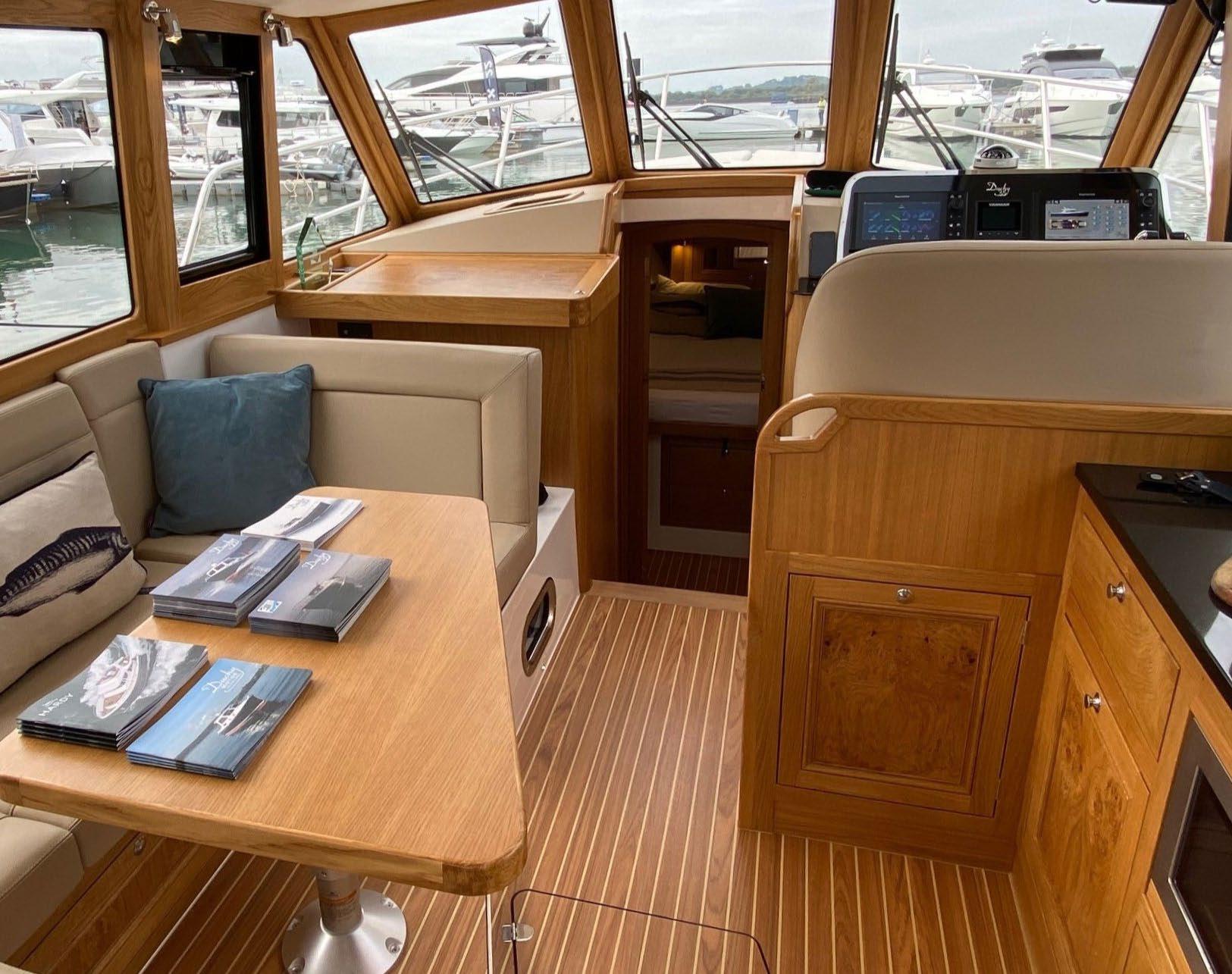

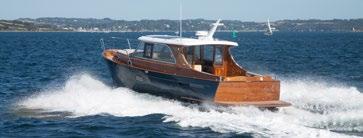

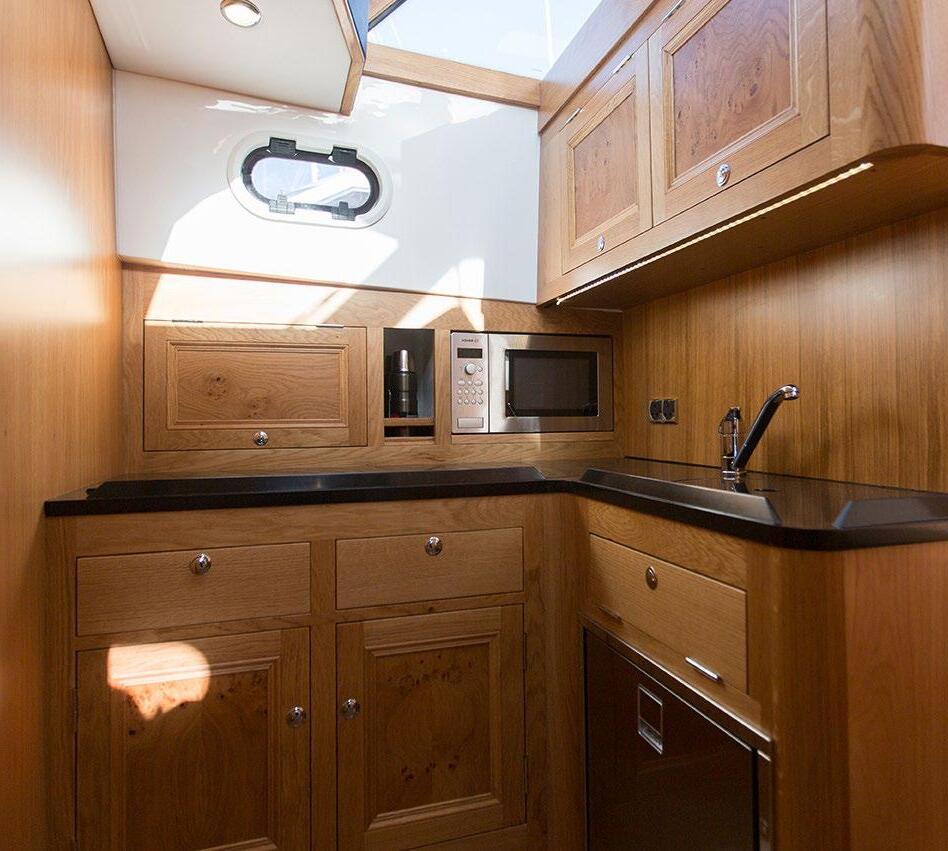

Duchy 35 Motor Launch Case Study
Cockwells design and custom-build superyacht tenders and motor yachts of the highest quality, creating the Duchy 35 specifically for cruising and relaxing in style.
This vessel has a spacious cockpit and expansive saloon, galley and shower compartment, beautifully showcasing the bespoke, interior joinery where our oak is used.

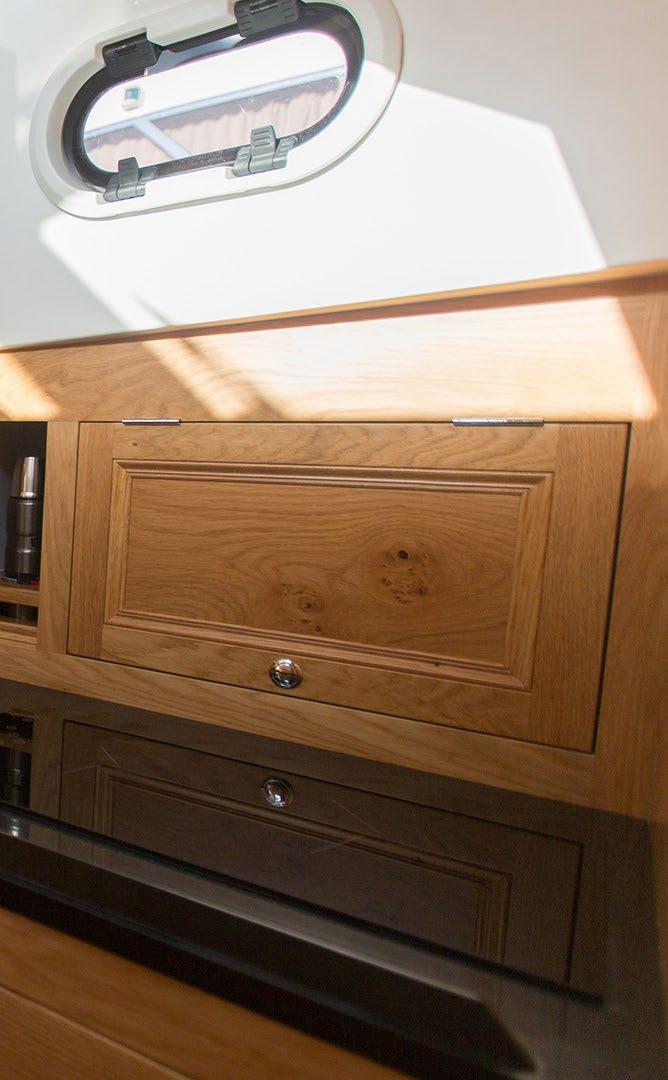

Oak is one of the most popular choices in the interior thanks to its rich and warm appearance. Prominent grain patterns add elegance and beauty to interior spaces, and its classic and timeless appeal complements almost every theme found on yachts.
Another reason for selecting oak is because of its exceptional strength and durability, meaning it can withstand the rigors of the marine environment, including the constant exposure to moisture, saltwater, and sunlight.
Photos: Cockwells

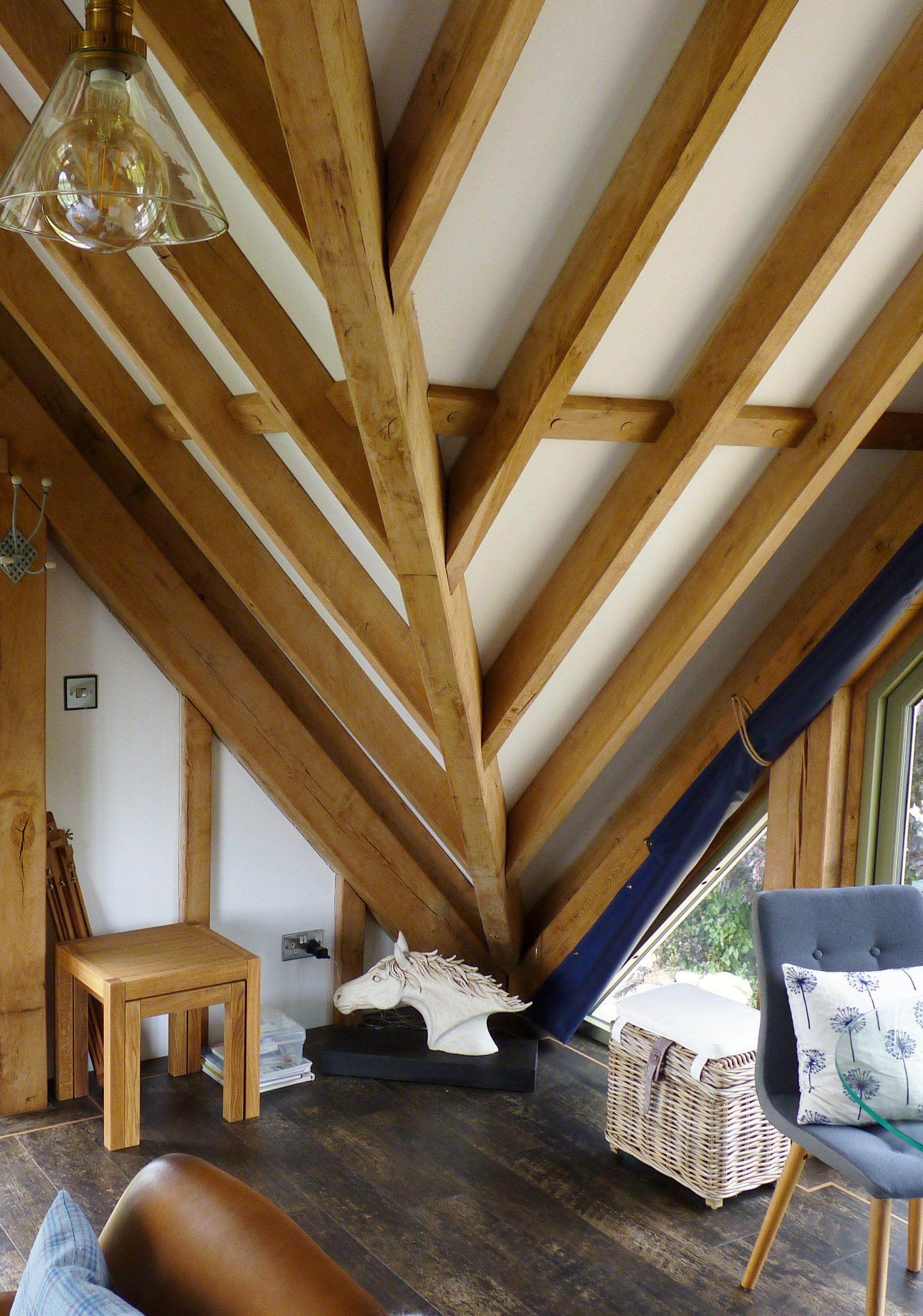

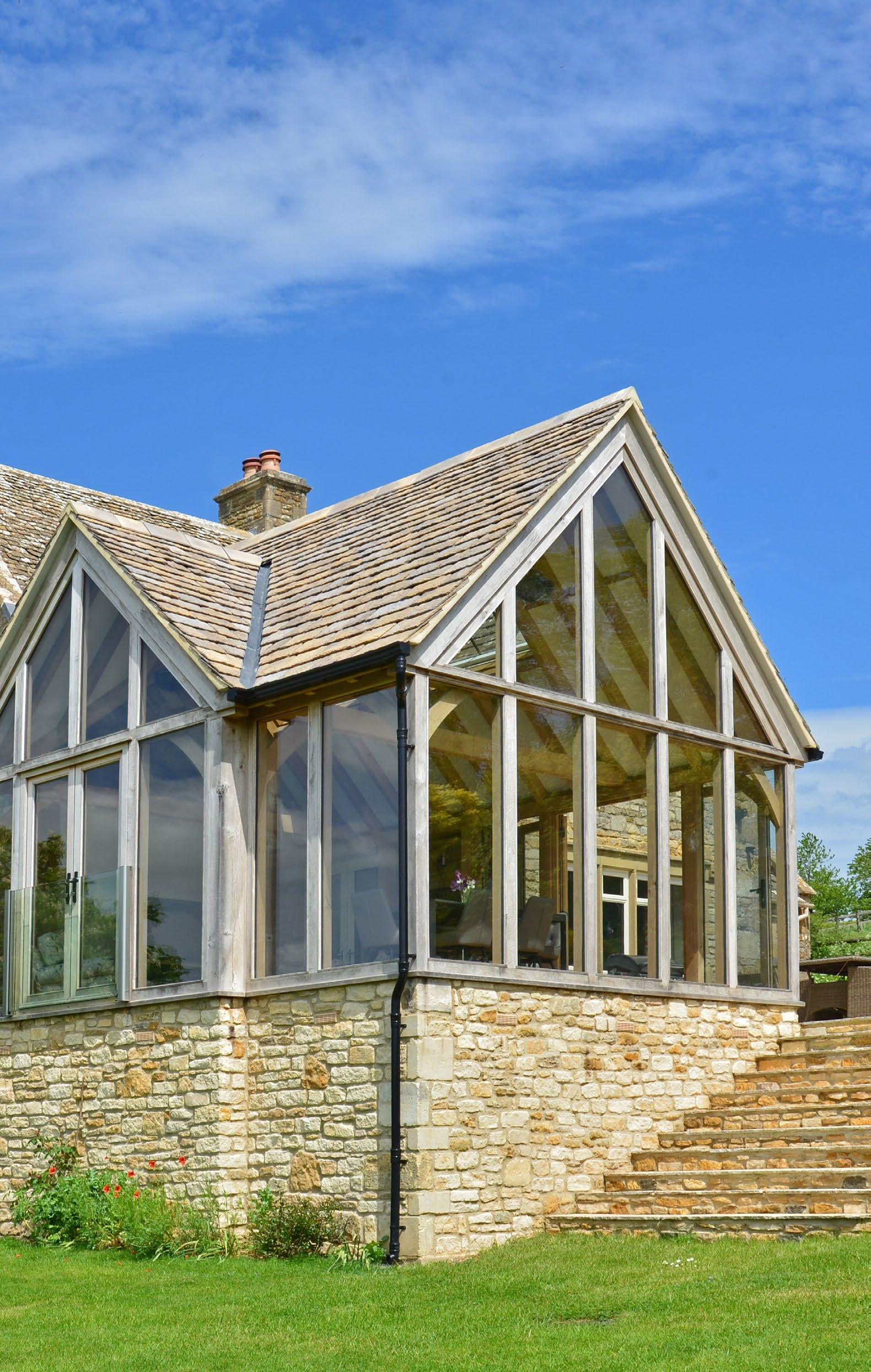

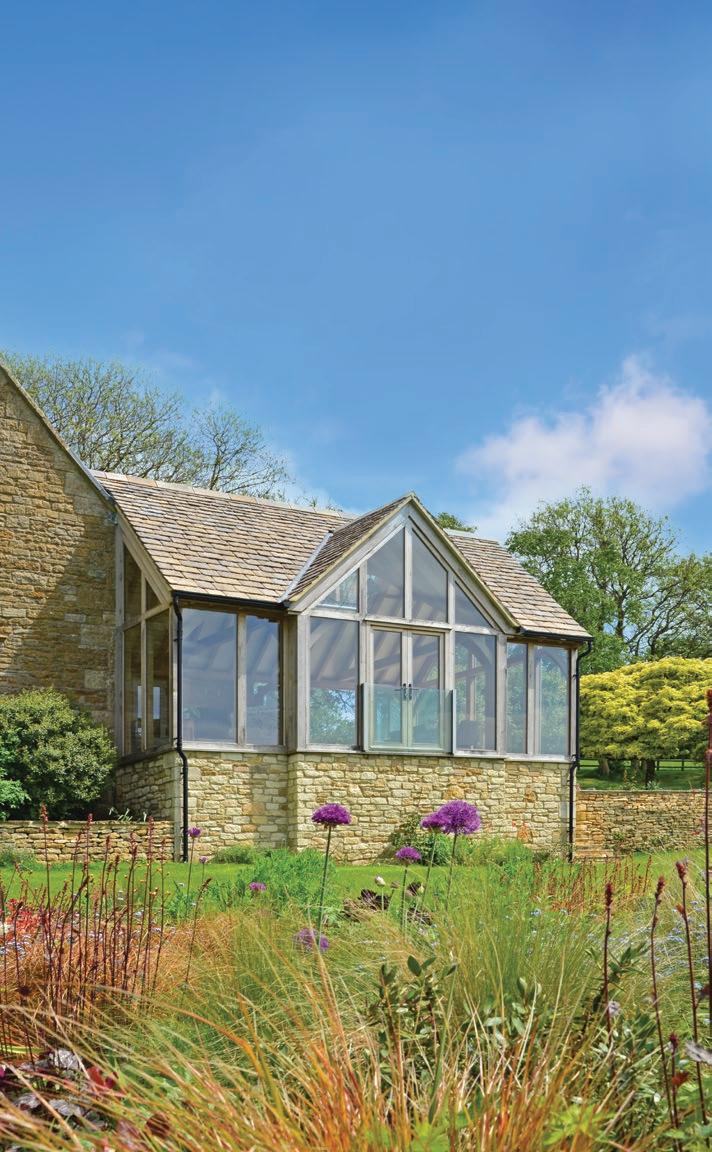

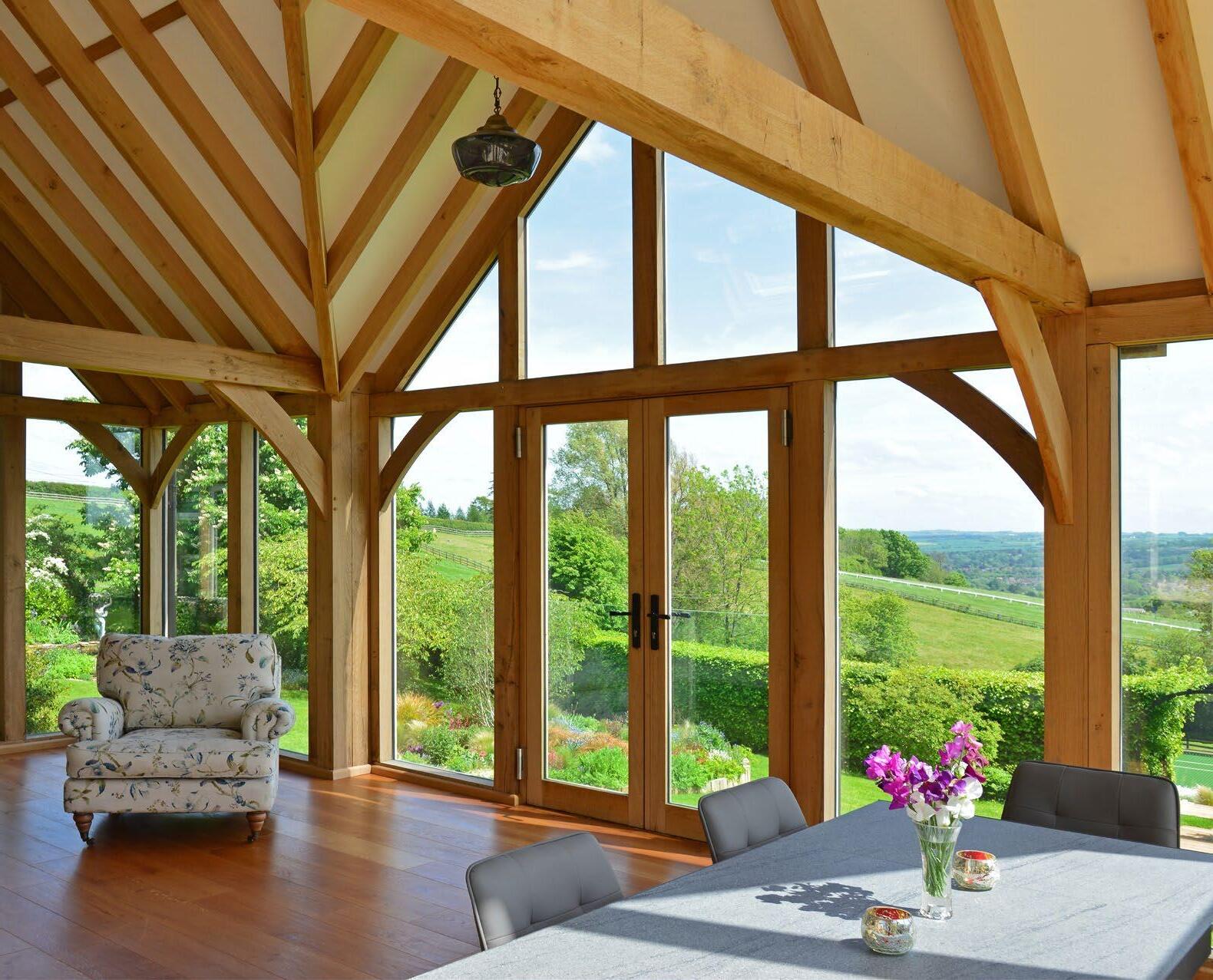

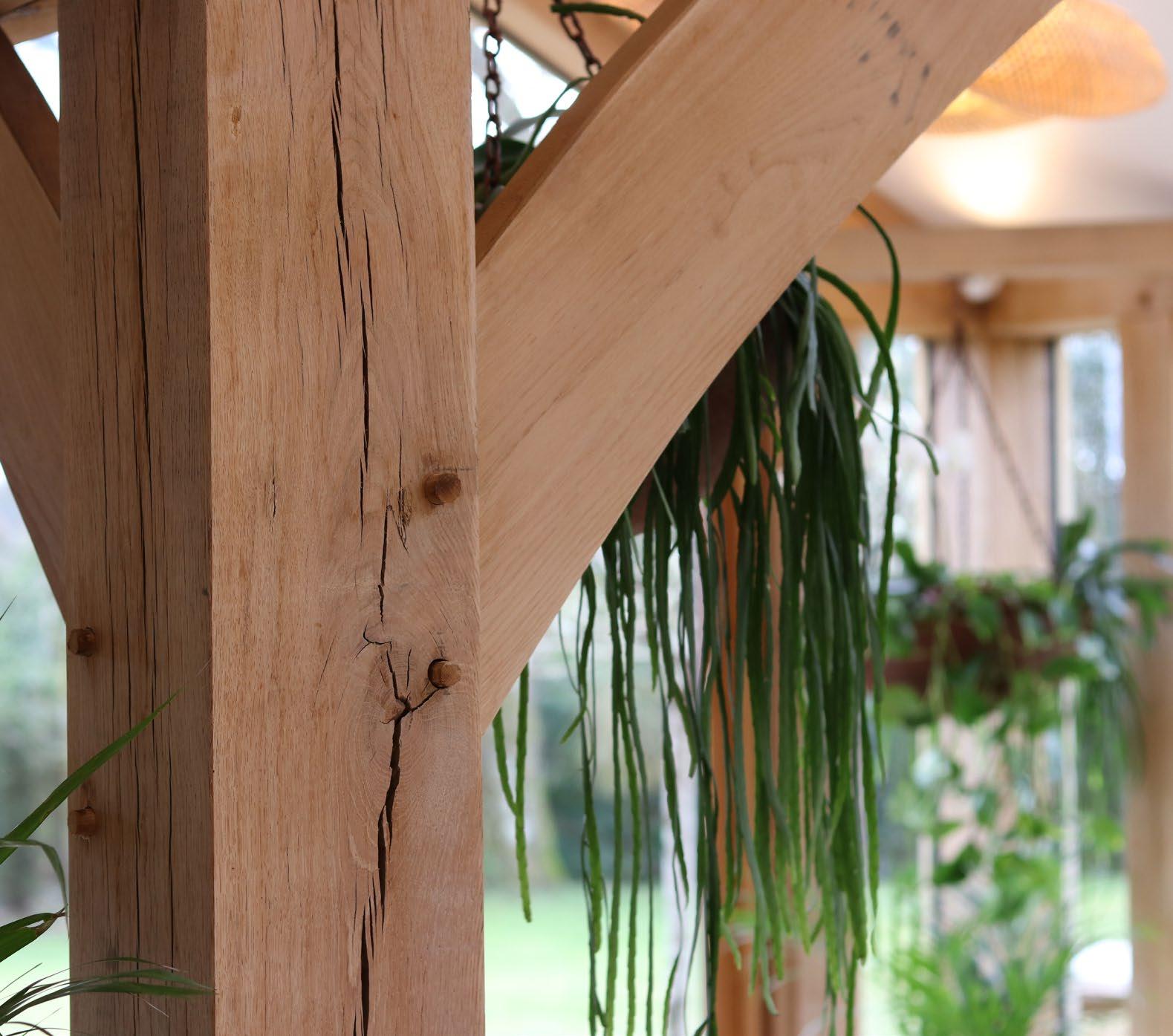

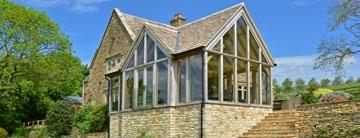

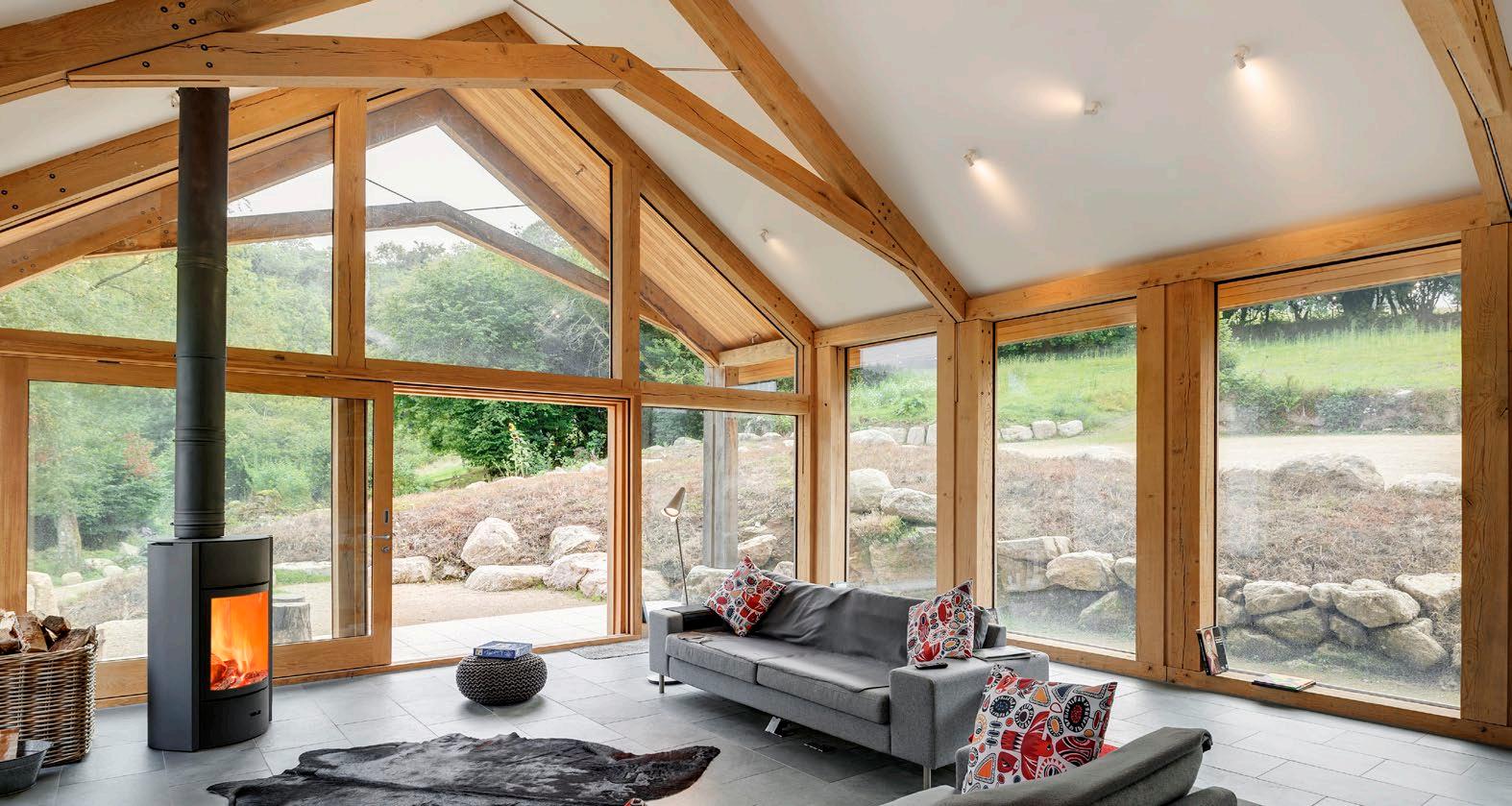

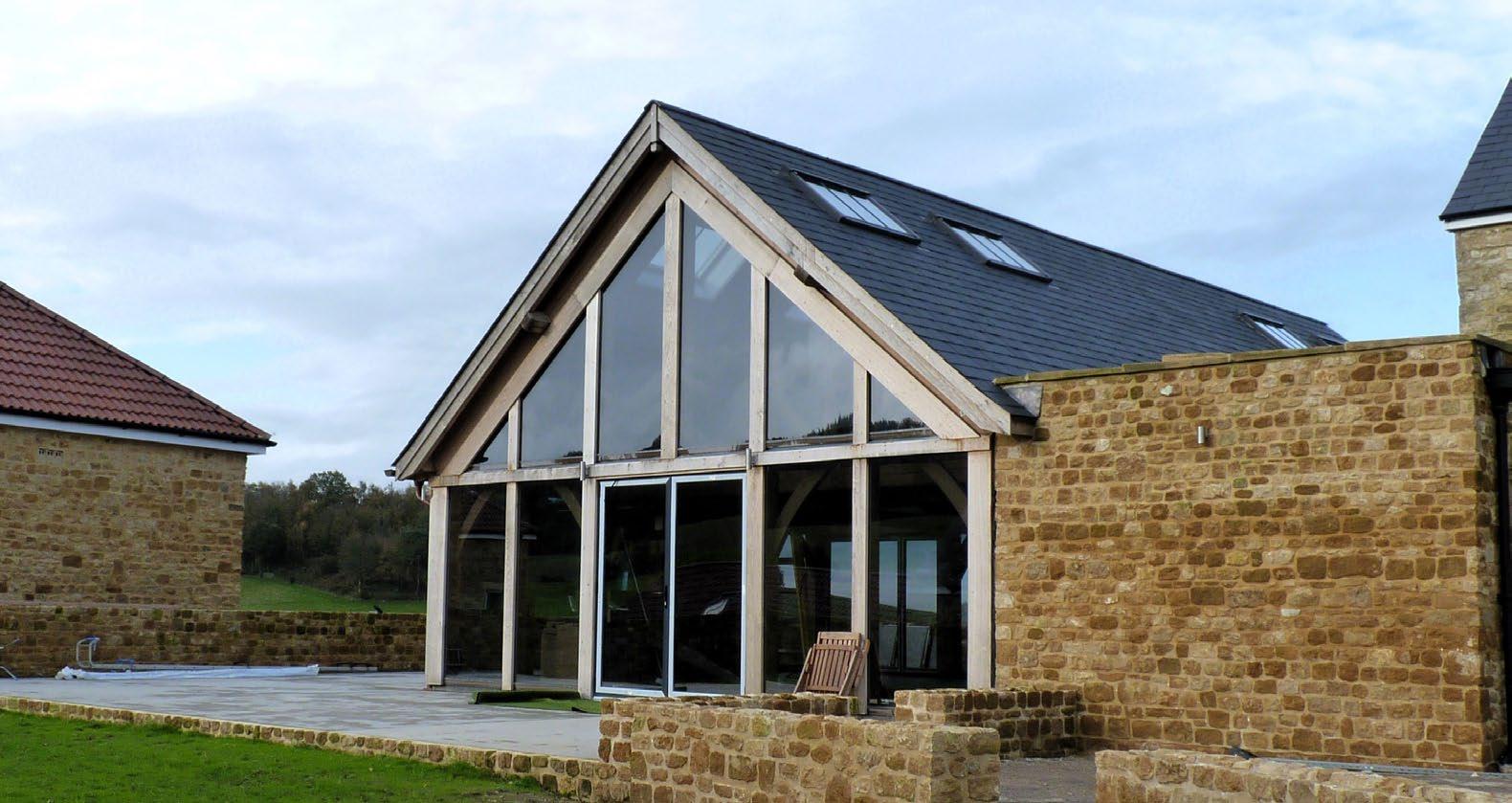

Cotswolds Garden Room
This oak garden room is a striking example of a bespoke design, with twin feature gables echoing the architecture of the original building, transforming the living space in this property and opening up panoramic views of the scenic local countryside.
David Salisbury liaised closely with the local Planning Officer, to ensure their design would complement the host property and remain in-keeping with the original building, whilst working closely with Hewins on the timber specification.
Case Study
The new bespoke structure is a substantial increase in size on the smaller lean-to conservatory it replaced, and now sits as a stunning garden room, rounded off with Cotswold Stone roof slates and large gable ends on two elevations.
The large glazed gables allow light to flood into the room and the full height glass panels taken all the way to the floor, provide outstanding views across the local area.
Photos: David Salisbury
Structural
Beams, posts & lintels
Premium Grade

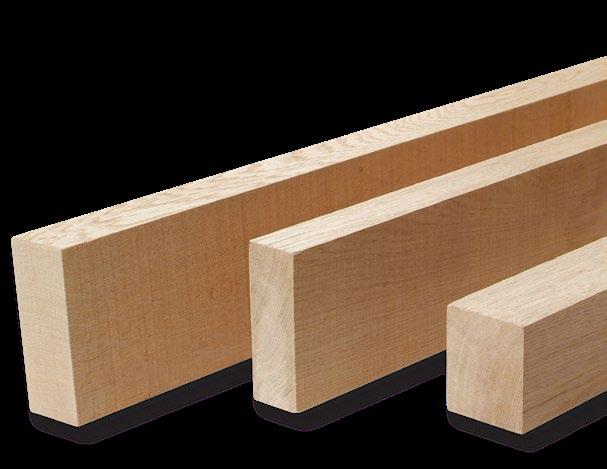

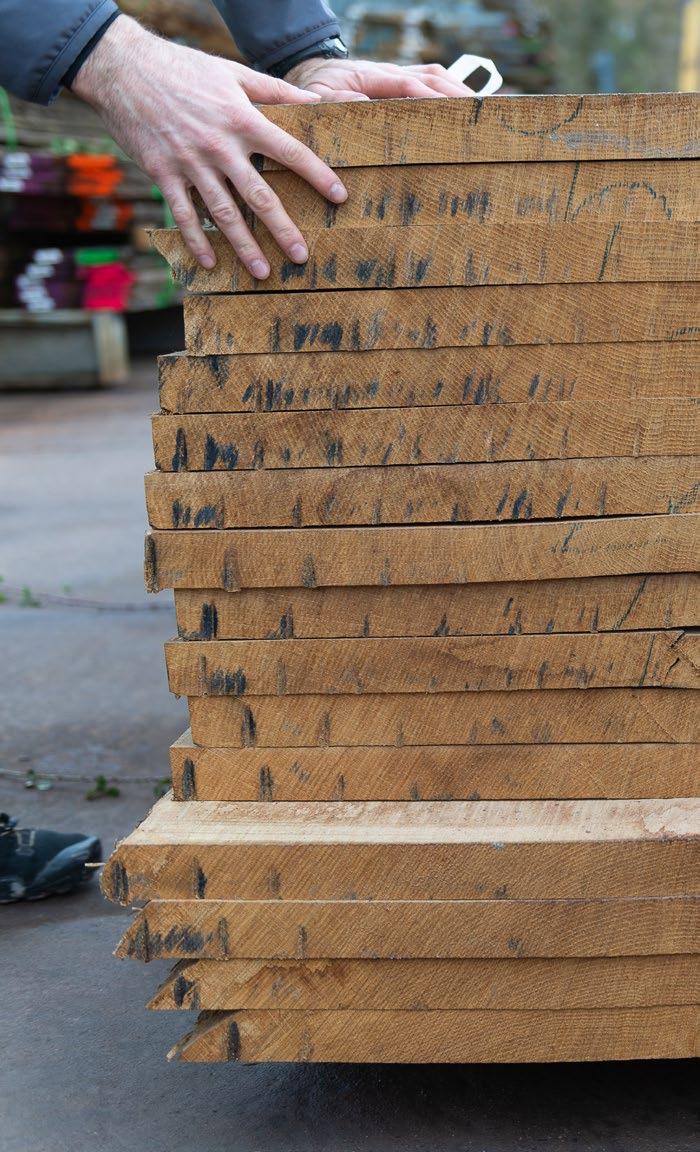

Fresh Sawn Oak
Premium Grade, as the name suggests, provides clear sections with limited natural features, ideal for projects where appearance is critical such as traditional frames. Sawn fresh from the log, giving a fine sawn finish, the timber will naturally shrink and fissure over time as it dries and settles in situ, weathering to a silver/grey colour.
■ Grade overview - A mix of 85% QPA and 15% QP1 approximately. Mostly clear sections with some smaller knots up to 33% of a face, allowance of sapwood up to 15% of a face and limited heart shaking. Some pieces of each batch are allowed to have larger knots, greater sapwood and other small defects.
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
Varying, 40-70%
Not applicable
Fine sawn
Planed finish available
1200kg/m³ approx.
Thickness
1.4 - 2.9
3.0 - 3.9
5.0 - 5.9
6.0 - 6.9 N/A
7.0 - 8.5 N/A
All prices shown are per m3. Pricing is for widths of 101-300mm only.
Larger sections/longer lengths not listed may be available, contact our sales team for a specific quote.
Got your cutting list handy?
Turn the page for linear metre prices on a range of standard sectionsa quicker way to price up your project.
Structural
Premium Grade Fresh Sawn Oak (cont.)
Thick
1.4 - 2.9m 3.0 - 3.9m 4.0 - 4.9m 100
Thick
Thick
Thick
Thick
1.4 - 2.9m 3.0 - 3.9m 4.0 - 4.9m 100
Thick
Thick
Size not listed?
Use the nearest larger section or call us for a specific quote.

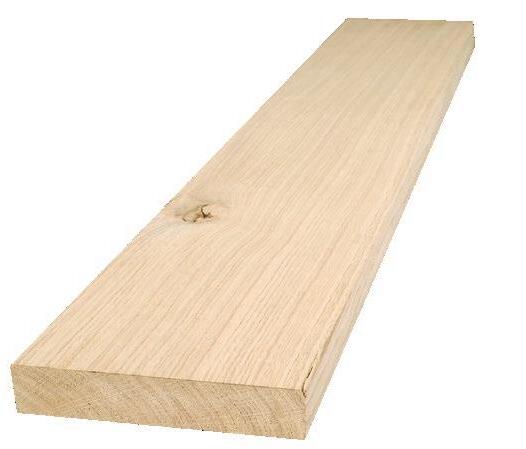

First Grade Fresh Sawn Oak
First Grade is our standard grade for use in general building, garage frames and other applications where varied natural features are desired or of no significance. Sawn fresh from the log, giving a fine sawn finish, the timber will naturally shrink and fissure over time as it dries and settles in situ, weathering to a silver/grey colour.
■ Grade overview - European grade QP1; largely clear sections with some tolerance of knots and other natural defects. Sapwood up to 15% of the face, and limited wane is permitted to the edges. Some heart trace is possible on two faces, and the occasional dead knot is allowed. Full grading rules are available on request.
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
Varying, 40-70%
Not applicable
Fine sawn
Planed finish available
1200kg/m 3 approx.
Thickness
1.4 - 2.9
3.0 - 3.9
4.0 - 4.9
5.0 - 5.9
7.0 - 8.5
All prices shown are per m3. Pricing is for widths of 101-300mm only.
Larger sections/longer lengths not listed may be available, contact our sales team for a specific quote.
Got your cutting list handy?
Turn the page for linear metre prices on a range of standard sectionsa quicker way to price up your project.
Structural
First Grade Fresh Sawn Oak (cont.)
Thick
1.4 - 2.9m 3.0 - 3.9m 4.0 - 4.9m
Thick
Thick
Thick
1.4 - 2.9m 3.0 - 3.9m 4.0 - 4.9m 100
First Grade Fresh Sawn Oak (cont.)
Thick
Thick
Size not listed?
Use the nearest larger section or call us for a specific quote.

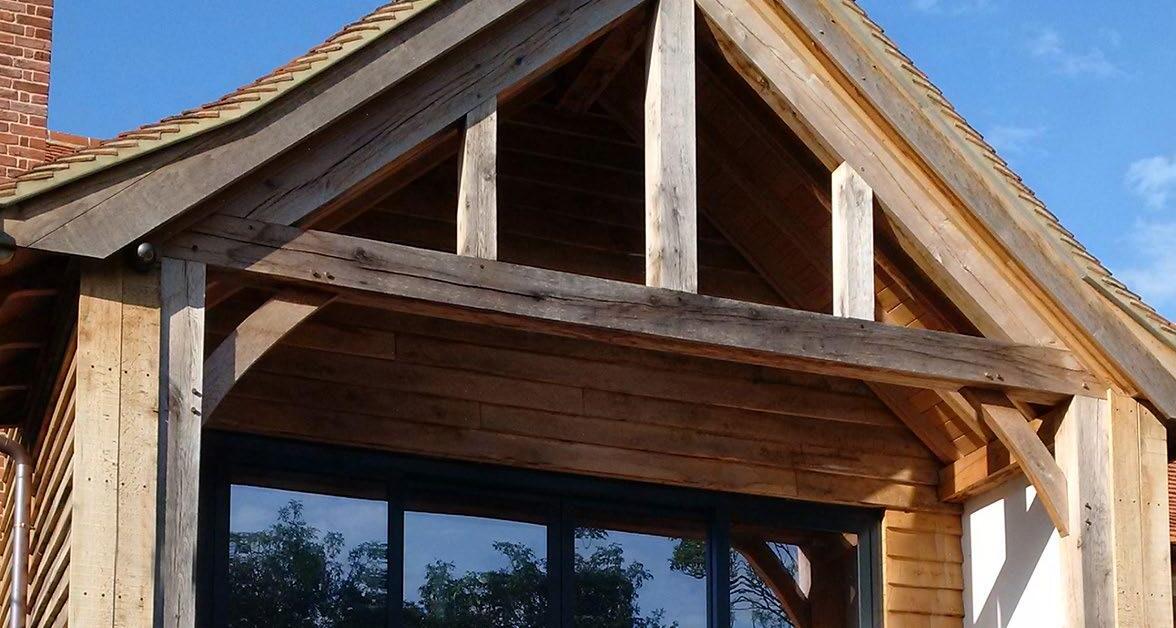

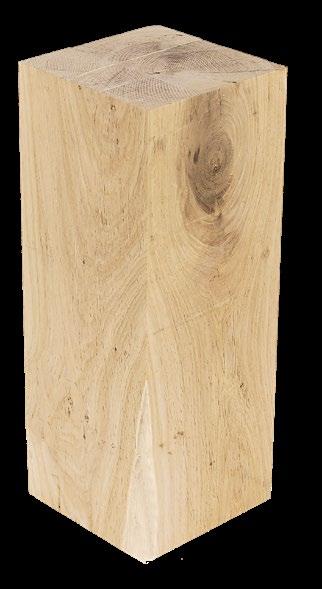

Beams

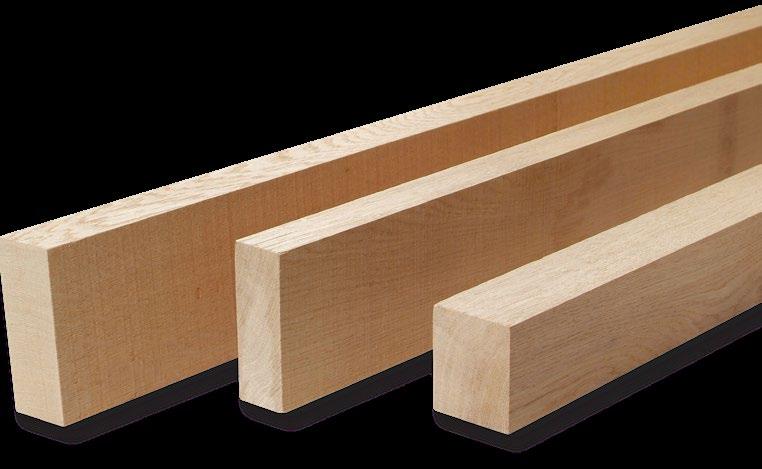

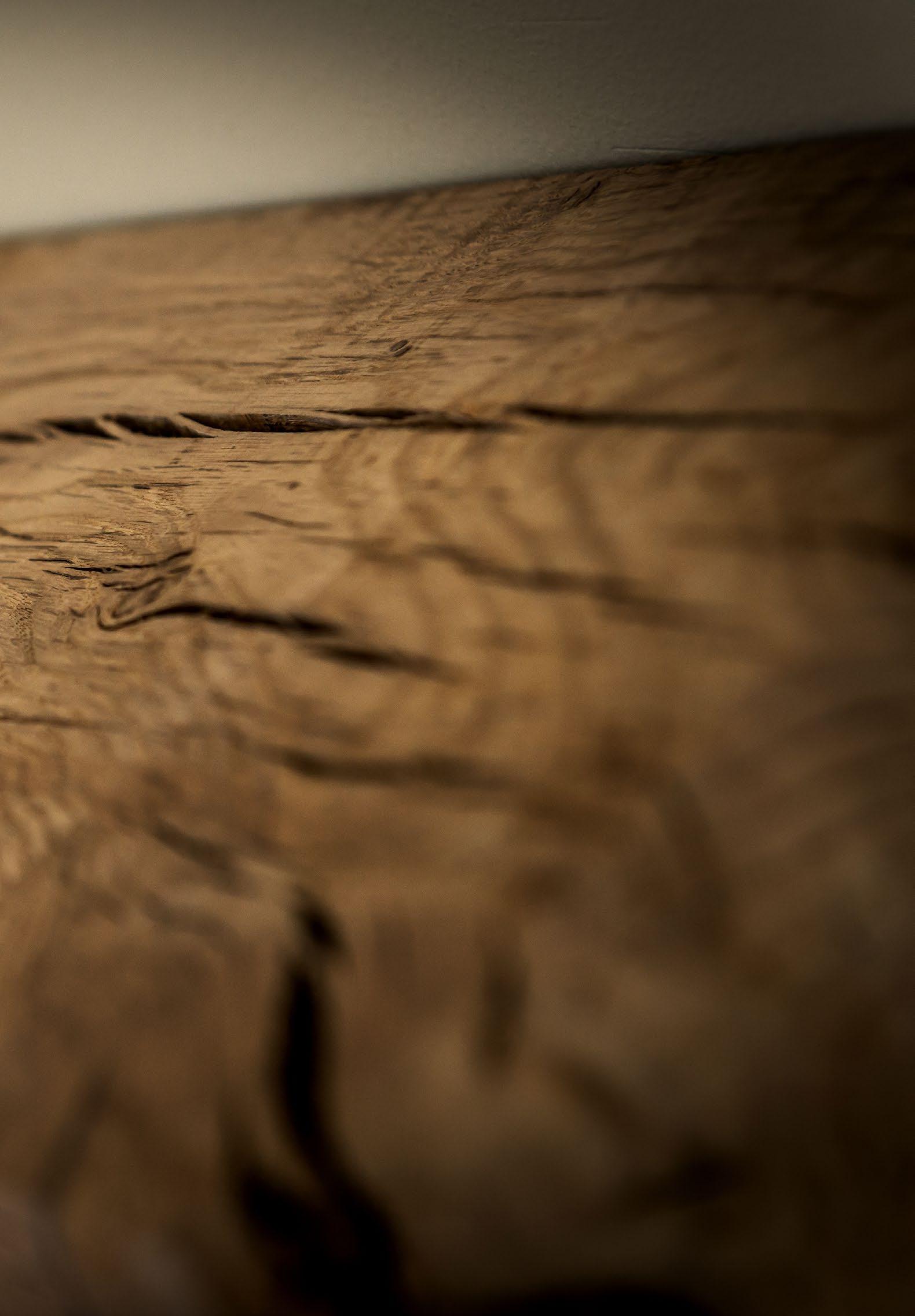

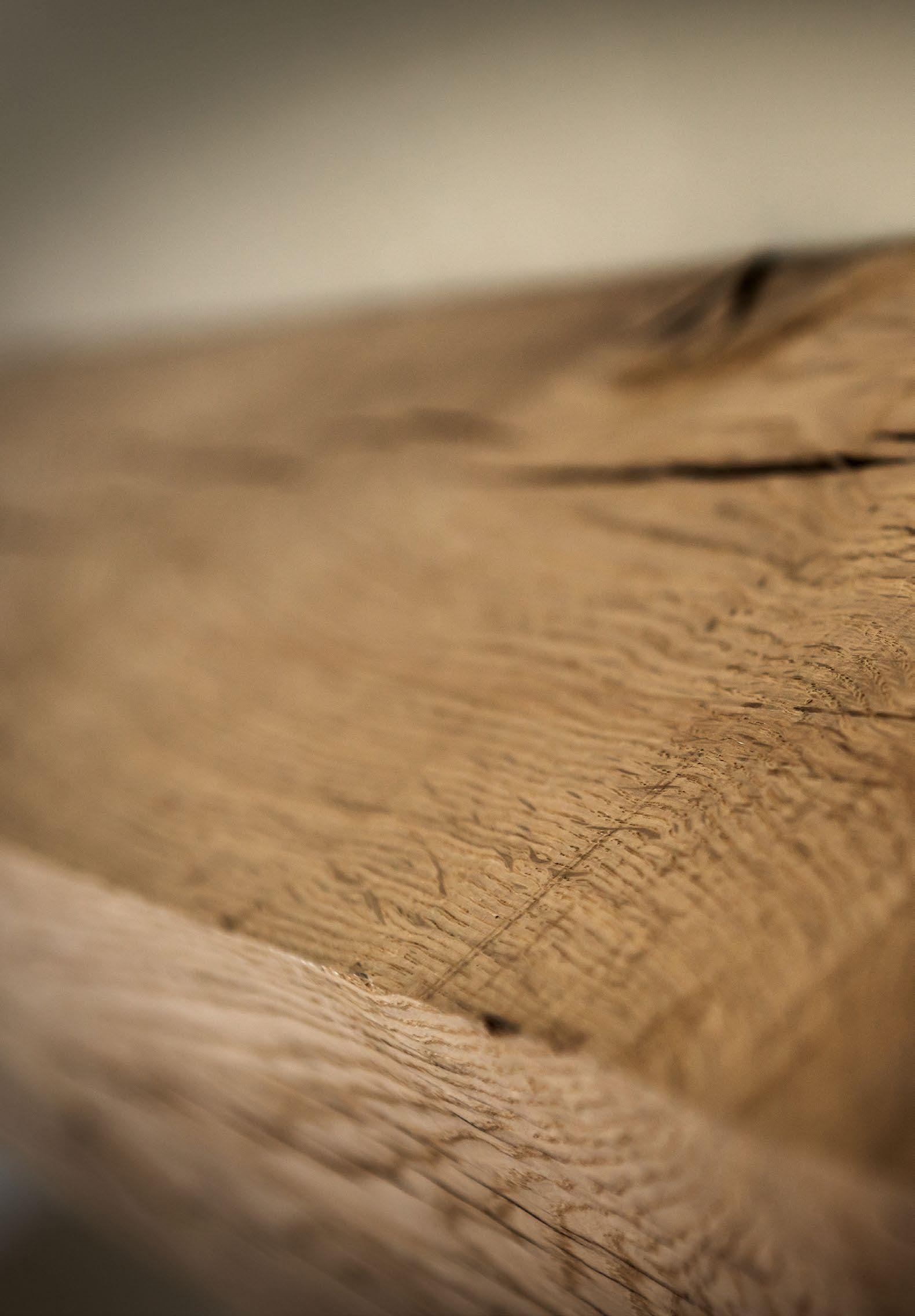

Seasoned Oak
Ideal for applications where movement must be kept to a minimum, but the quality of joinery timber is not required - or where a weathered/aged look is desired. The beams are air dried in square sections for 1 to 3 years (on average) and can then be sawn to other sections as required. 75mm is the minimum thickness the beams can be sawn to whilst still maintaining structural soundness. These beams have a rustic appearance which needs to be taken into account when specifying this product.
■ Grade overview - Naturally seasoned. Contains knots, sap content and other features. Drying splits and shakes develop during the seasoning process and can be quite substantial, especially on larger sections. Providing the beam is structurally sound, these are not considered a defect. Seasoned beams are not recommended as suitable for joinery applications.
Natural Machined
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
Varying, 30-50%
Dependant on dimensions required
Fine sawn, weathered
900kg/m 3 approx
Standard Sections (mm)
Lengths available up to 8.50m. Beams are dried in square sections (see table above), but can also be resawn to almost any size over 100mm.
Structurally Graded Fresh Sawn / Air Dried Oak
Beams can be graded for their strength and load-bearing capacity by examining the straightness of their grain, and the position and size of knots and other features.
We can provide strength graded Fresh Sawn and Seasoned beams to British Standard 5756 strength classes. These are THB and THA for sections over 20,000mm² and TH1 and TH2 for sections under 20,000mm². In most sections and lengths, THB equates to D30 and, TH2 to D24. (D30 and D24 are European grades).
TH1 and THA are very demanding on the technical qualities of oak, and are difficult to achieve, so we would advise trying to work with THB and TH2 to avoid disappointment. It is important to note that seasoned beams can only be graded to THB or TH2.
Our in-house graders inspect each beam carefully and provide a certificate of the beam’s strength grade. As the beams are inspected for their structural strength, not their visual appearance, Fresh Sawn Structurally Graded beams may still contain knots and other features, and Seasoned Structurally Graded Beams may still have a rustic appearance that contains splits.
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
Varying, 30-70%
Not applicable
Fine sawn
1200kg/m 3 approx.

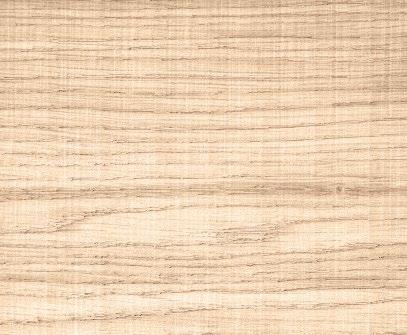

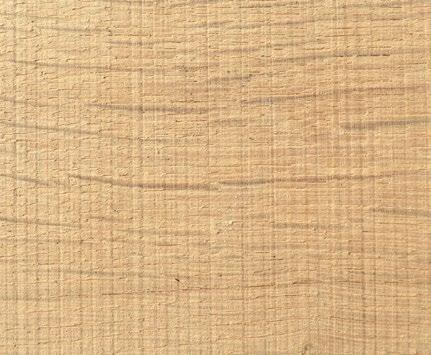

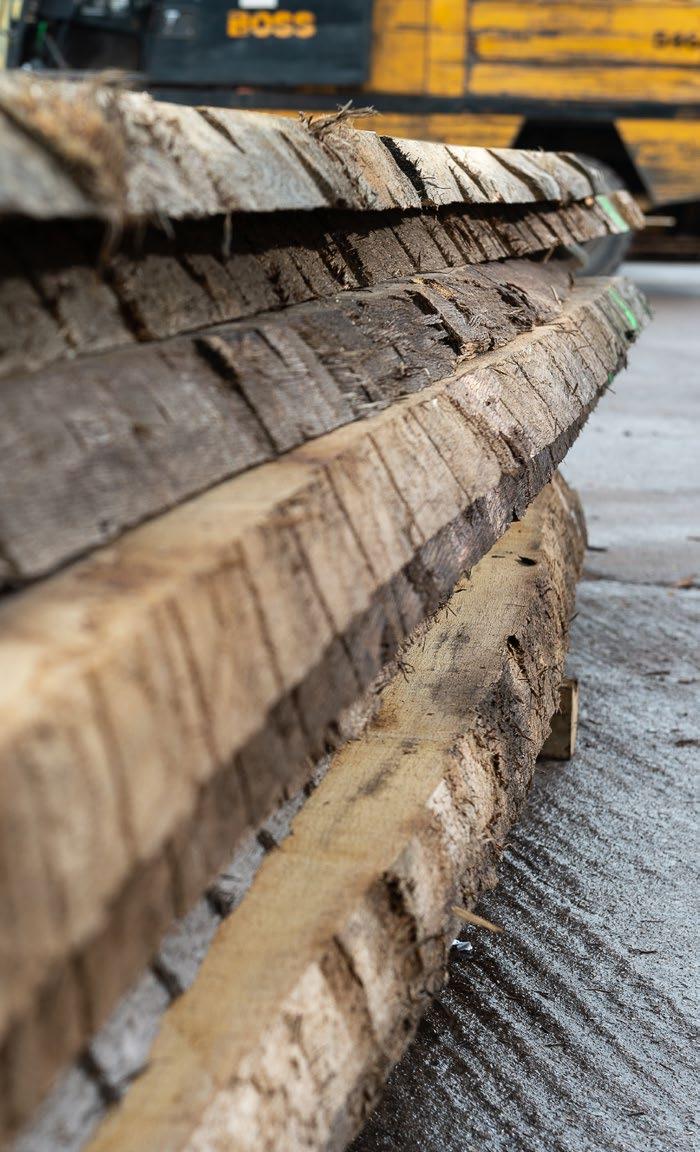

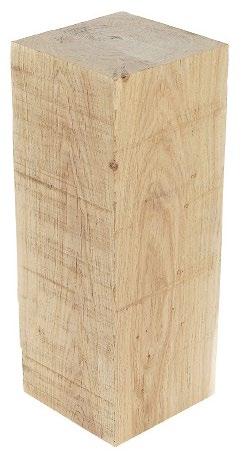

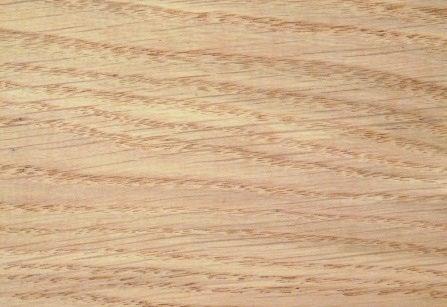

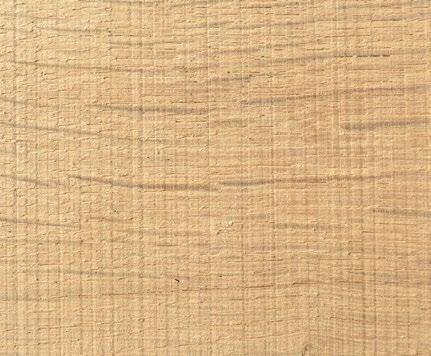

This image shows Green/Fresh Sawn oak
BS 5756 2007 Strength Class Sections (mm²) Corresponding
THA >20,000 D40 AOA* POA* THB >20,000 D30 Available POA* TH1 >20,000 D30 AOA* POA* TH2 >20,000 D24 Available POA*
Detailed strength class criteria is available. This guide is not authoritative. It is important to seek professional advice when specifying strength classes, because each system has different criteria and requirements.
*POA: price on application. *AOA: available on application. Contact our sales team for a specific quote.

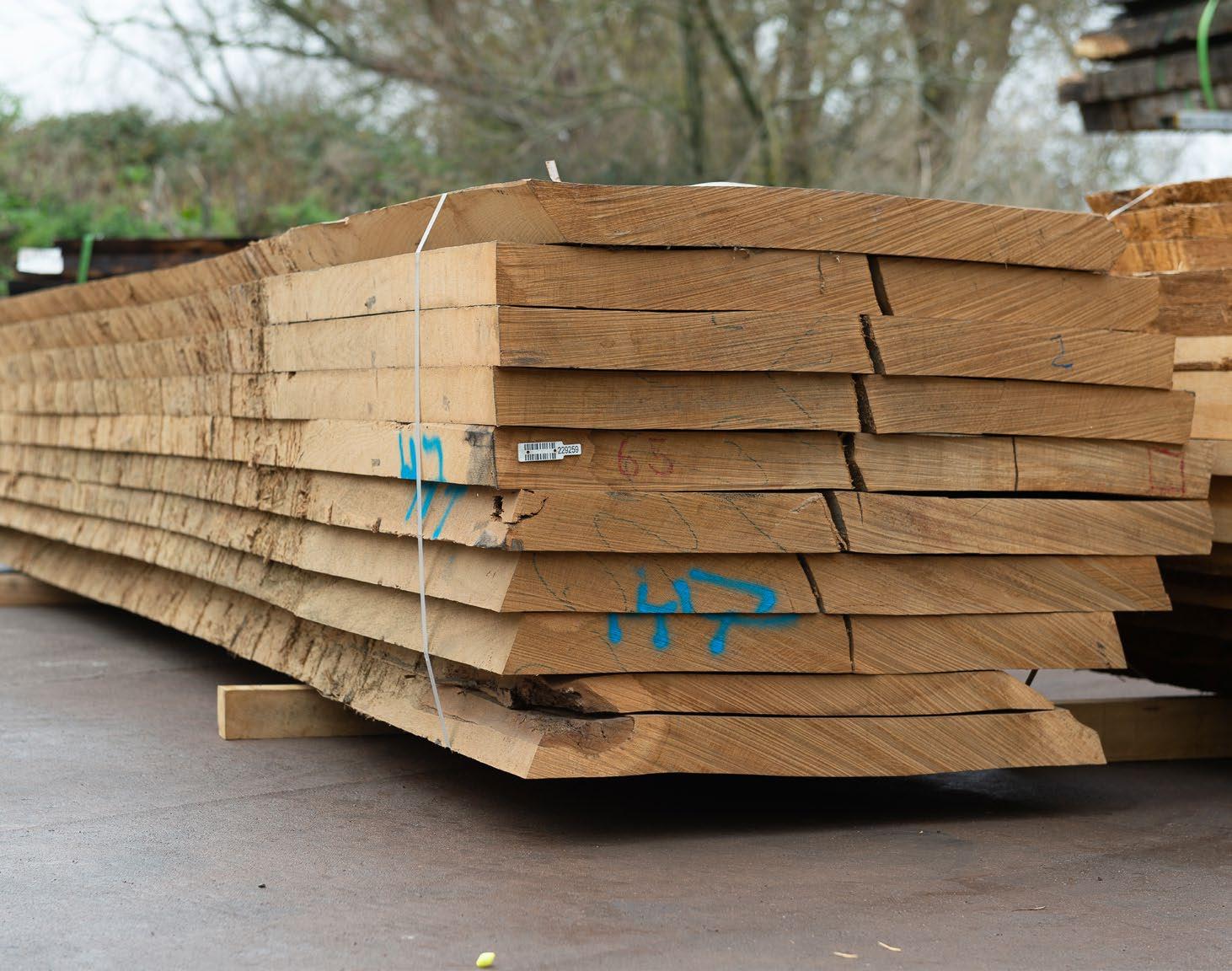

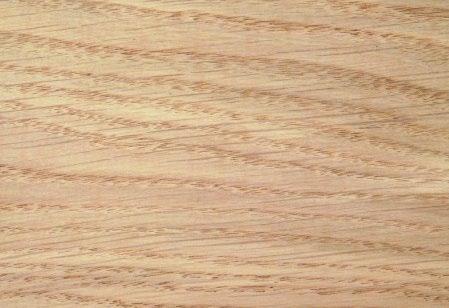

This image shows Green/Fresh Sawn oak

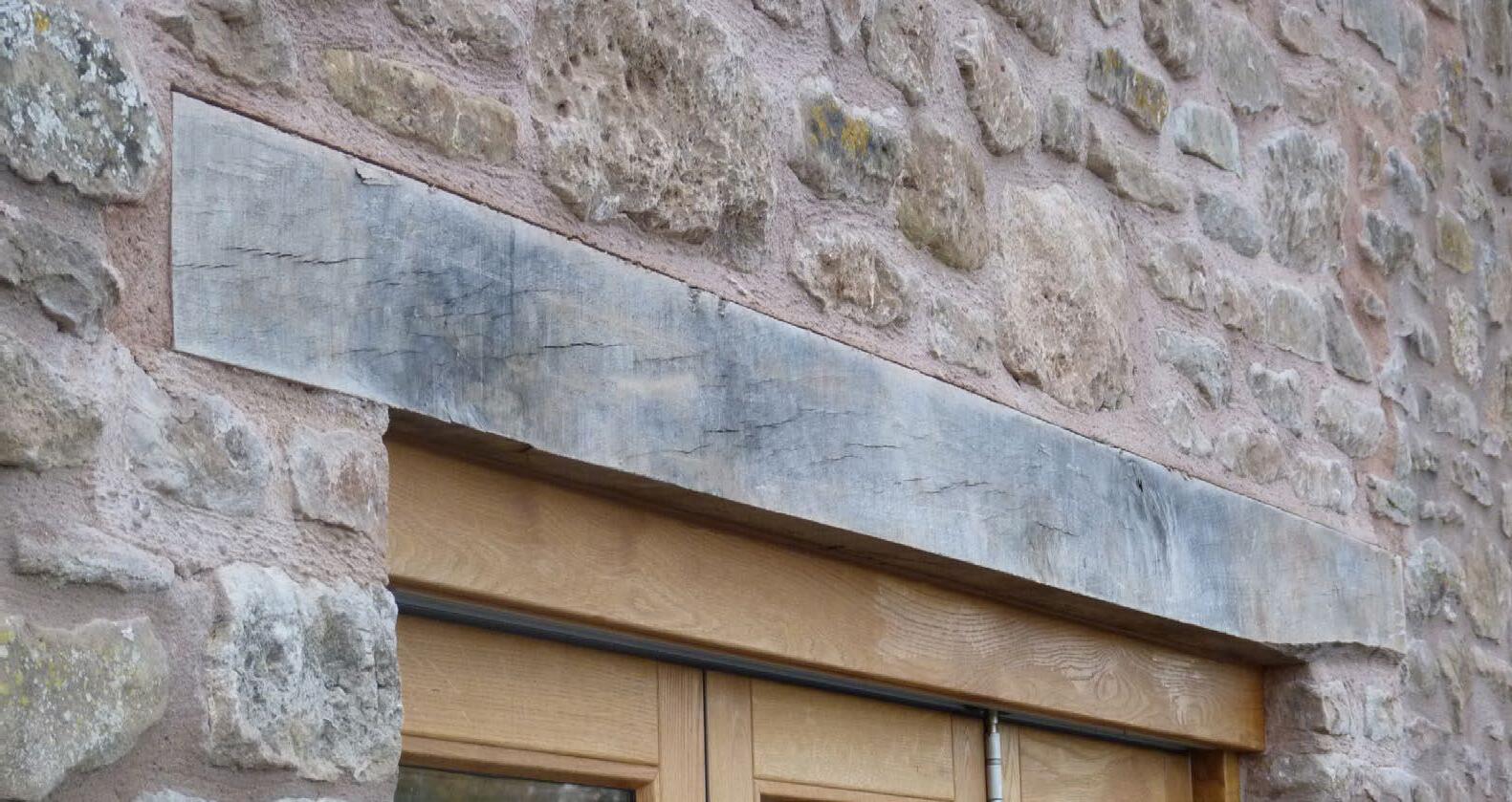

Lintels
Seasoned Oak
Suitable for internal or external use, where the genuine look and feel of a traditional oak beam is desired. Through the drying process, the beams develop splits across the surface and deeper shakes to the heart which give an aged look - perfectly suited to period properties. Each lintel is graded to TH2 structural grade to ensure that it is structurally sound. The lintel sections can be used for a variety of other purposes, such as mantelpieces, beams and ceiling joists.
■ Grade overview - Our Seasoned Lintels are structurally sound to TH2 grade, and may contain knots, sap and other natural features. Drying splits and shakes develop during the seasoning process and can be quite substantialespecially on larger sections. Provided the beam is structurally sound, these are not considered a defect.
Machined Not applicable
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
Varying, 30-50%
Fine sawn, weathered
900kg/m 3 approx
■ Contact our sales team for a specific quote on this product.
Lintels... why seasoned?
Where oak is being built into brick/block work, we recommend seasoned oak over fresh sawn. Due to the seasoning process, most of the natural shrinkage and movement has already occurred, significantly reducing the likelihood of the lintel shrinking or moving in situ.

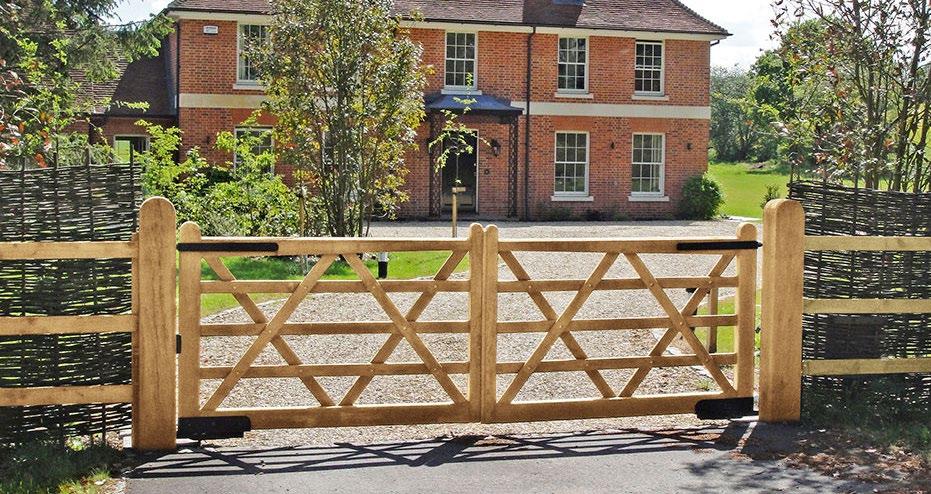

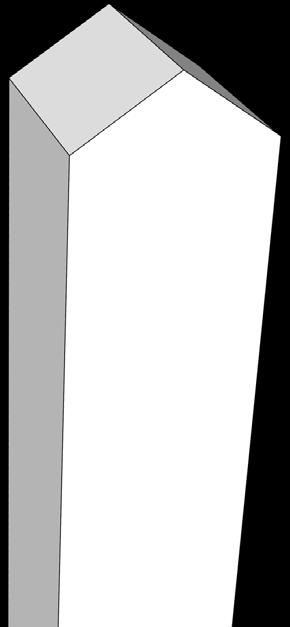

Gateposts Fresh Sawn Oak
Adding style and grandeur to any entryway, our Fresh Sawn Oak Gateposts are available with either a 2 or 4 way weathertop or rounded top. Sawn fresh from the log with a fine sawn finish, the timber will naturally shrink and fissures develop over time as it dries and settles in situ, weathering to a silver/grey colour.
■ Grade overview - European grade QPA. The sections in this grade will have predominantly sharp arrises. Sap will be minimal, up to 15% of a face and sound knots will be under 50% of the width. A more detailed grade overview is available on request.
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
Varying, 40-70%
Not applicable
Fine sawn or planed
1200kg/m 3 approx.
■ Contact our sales team for a specific quote on this product.
■ Our most popular sizes are: 150x150mm, 175x175mm and 200x200mm. Rounded

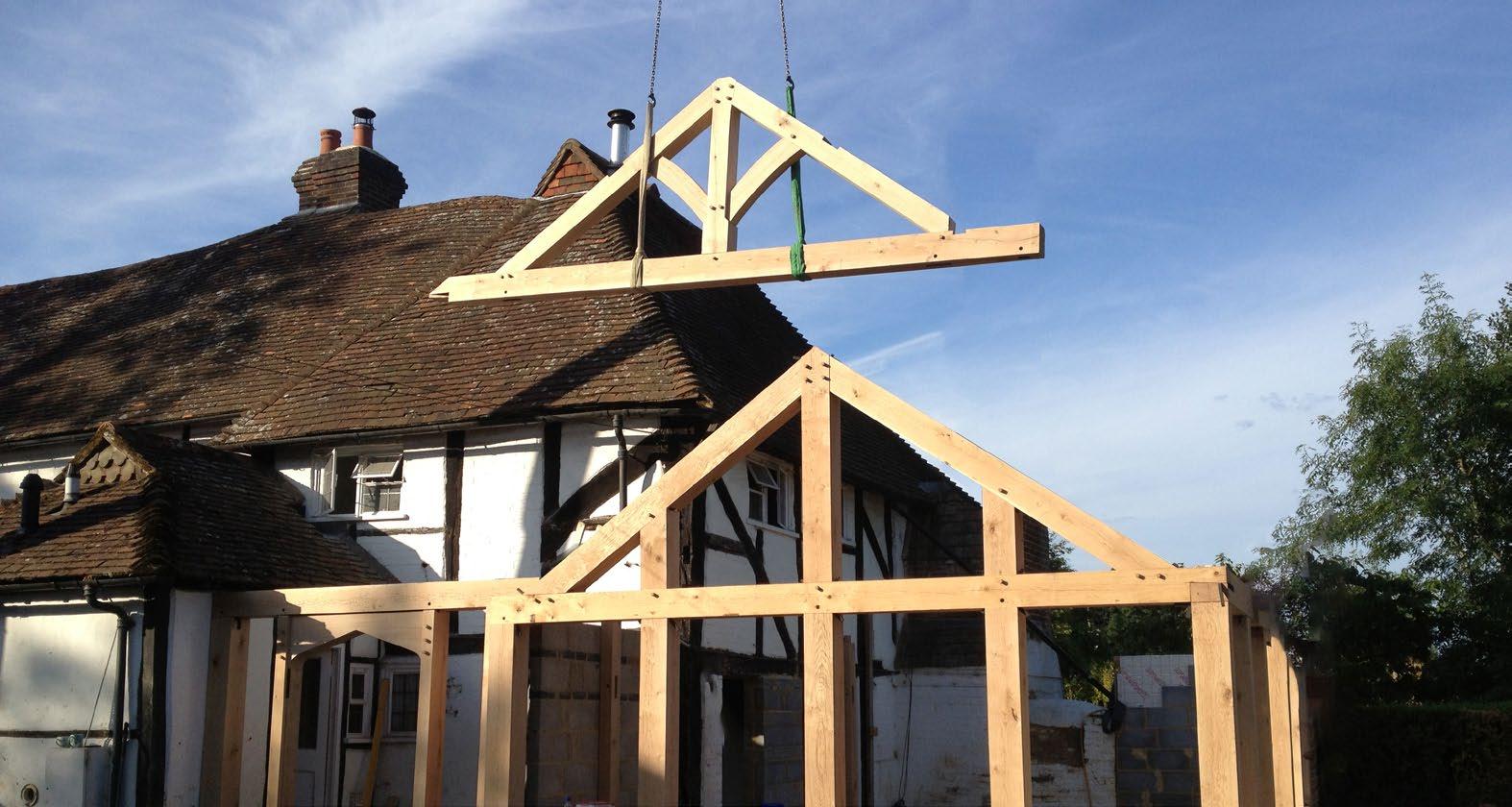

Trusses Fresh Sawn Oak
Hewins Oak trusses are produced to your bespoke dimensions and designs. Each truss is supplied as a kit of components ready to be assembled on site and lifted into position. Each truss design needs to be designed by a certified structural engineer to ensure that the sections of oak used are appropriately sizes for the weight the truss will carry. We can assist with contacting structural engineers and getting trusses designed and specified.
Our trusses are made with European Oak and come with mortise and tenon joints predrilled to take supplied oak dowels. They are available in a planed or sawn finish. Trusses are supplied ready to assemble and simply require slotting together and the dowels inserting on site.
■ Grade overview - European grade QP1; largely clear sections with some tolerance of knots and other natural defects. Sapwood up to 15% of the face, and limited wane is permitted to the edges. Some heart trace is possible on two faces, and the occasional dead knot is allowed. Full grading rules are available on request.
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
■ Prices
Varying, 40-70%
Not applicable
Planed, fine or sanded finish with micro-bevel on corners
1200kg/m 3 approx.
Available on application
■ We can manufacture all styles of truss including King post, Queen post, braced, interrupted tie-beam, sling, cruck and collar tie.
■ Contact our sales team for a specific quote.
Structurally sound?
It is the responsibility of the customer to ensure that trusses are suitable for the specific structural requirements of the project. Each type of oak truss requires structural calculations prior to manufacture, which can be sourced by the customer or arranged through Hewins.
Truss designs must be approved by a structural engineer, and a copy of the structural report seen before we can begin manufacture.

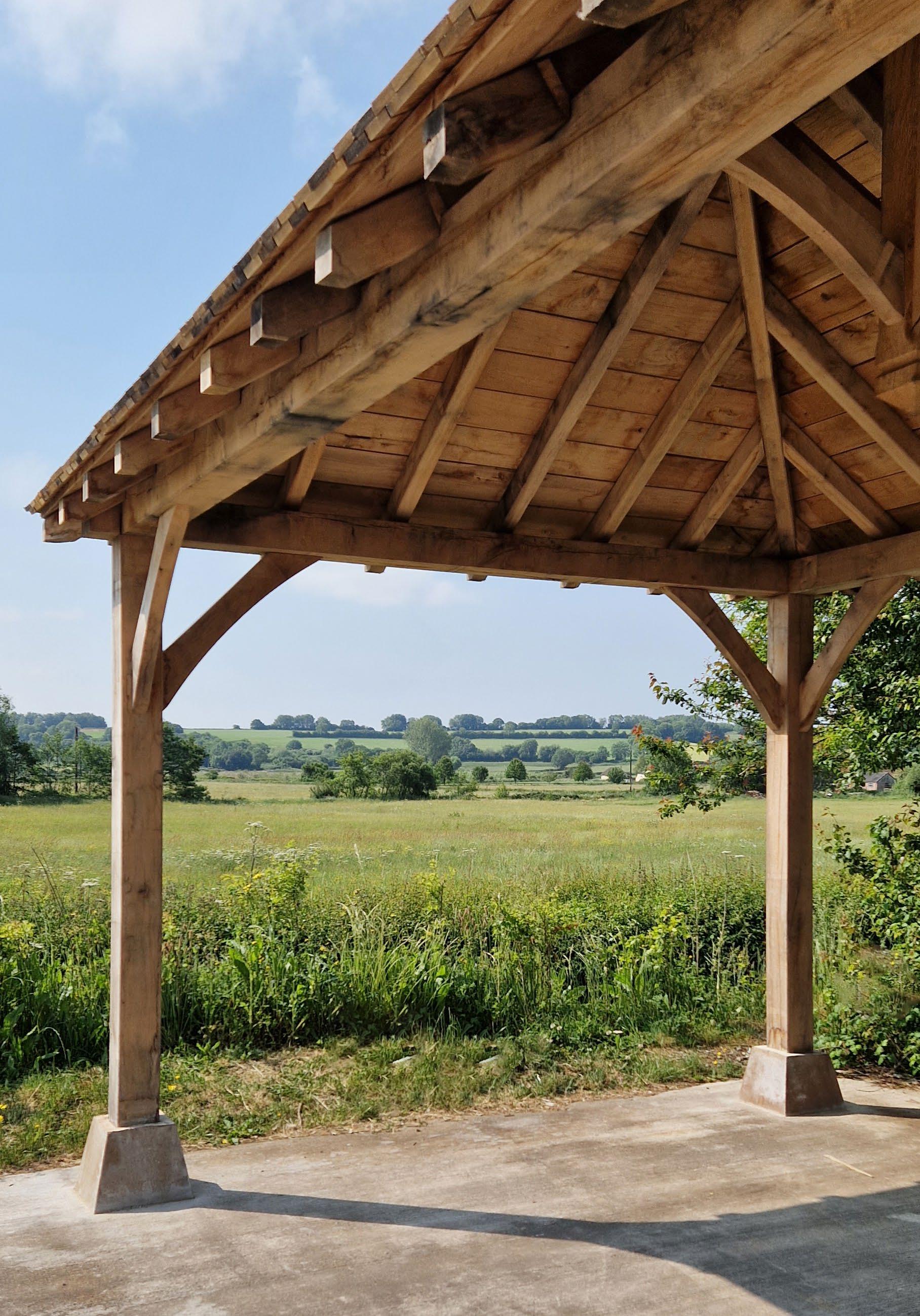

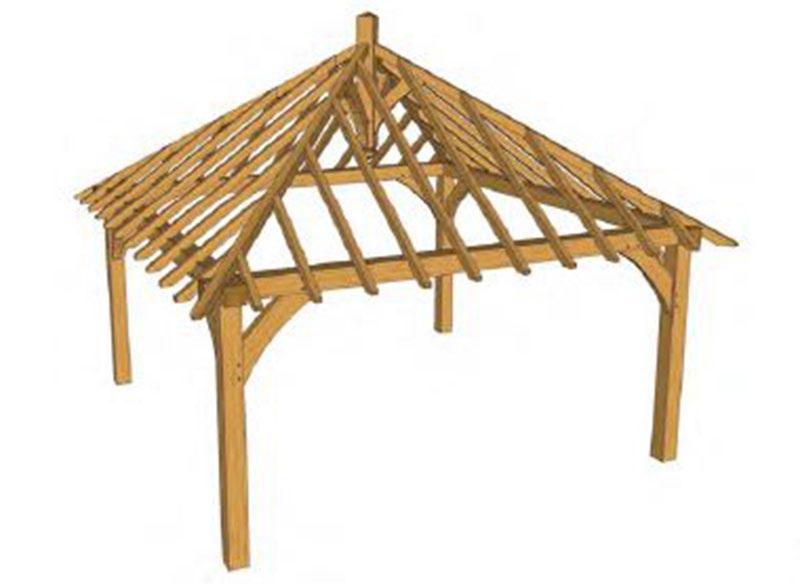

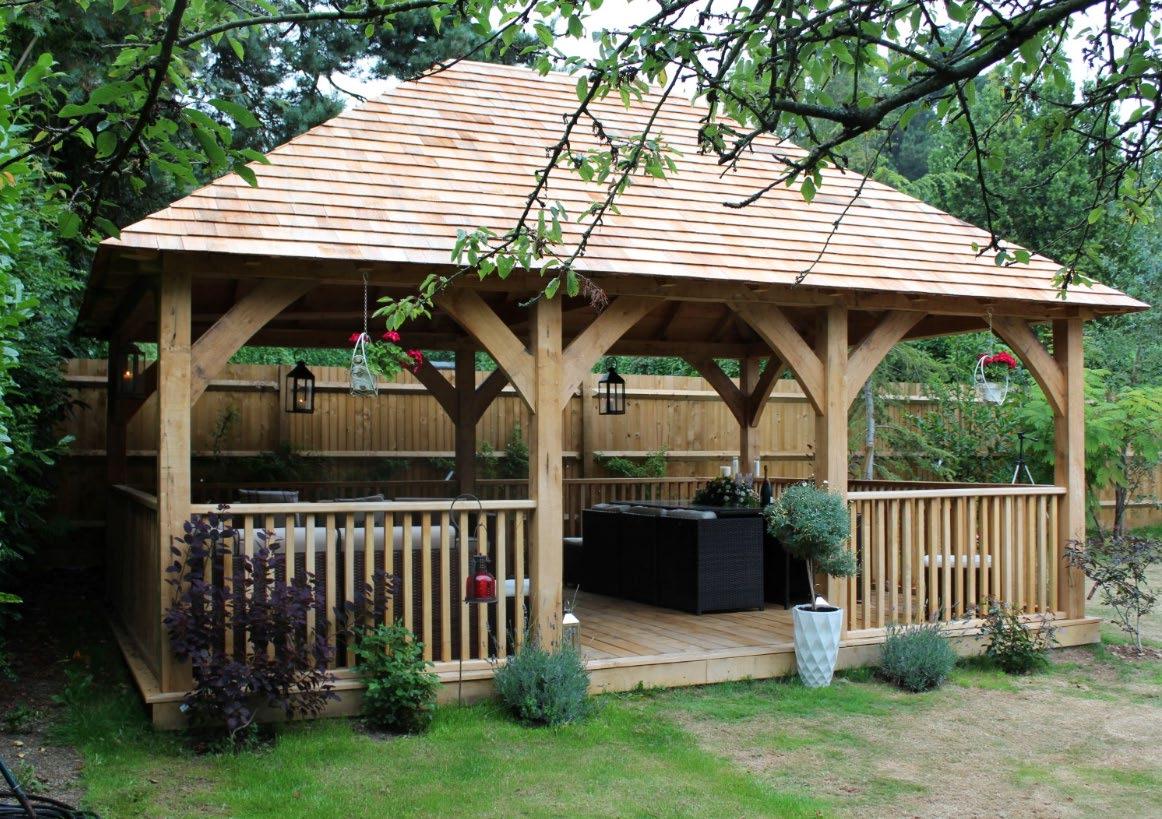

Gazebo Kits Fresh Sawn Oak
Hewins Oak Gazebo Kits provide a simple way of adding the status and appeal of a genuine oak frame to your home. Sawn from sustainably grown First Grade oak (p.28), the frame members are carefully machined and fully prepared for assembly, incorporating classic joint designs and features. Planed to a smooth finish, the frame can be left untreated and will weather naturally to a silver/grey, or can be oiled at the time of install to maintain the classic golden tone, though this will require regular upkeep. Oak dowel pegs are included in the kit. Our team will be glad to go over the options with you and discuss how you intend to clad and finish the frame. We recommend an experienced carpenter erects the frame.
■ Grade overview - European grade QP1; largely clear sections with some tolerance of knots and other natural defects. Sapwood up to 15% of the face, and limited wane is permitted to the edges. Some heart trace is possible on two faces, and the occasional dead knot is allowed. Full grading rules are available on request.
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
■ Prices
Varying, 40-70%
Not applicable
Planed finish with micro-bevel on corners
1200kg/m 3 approx.
Available on application
Gazebo Kits
Fresh Sawn Oak
Compton
2.4 W 2.40m D 2.40m H 3.35m
3.3 W 3.35m D 3.35m H 3.90m
3.7 W 3.70m D 3.70m H 3.70m 4.5 W 4.50m D 3.00m H 3.14m
145 W 4.00m D 4.00m H 3.78m
195 W 4.00m D 4.00m H 3.80m
Looking for something a little different? Contact us for further options or to discuss a bespoke design.
Hinton

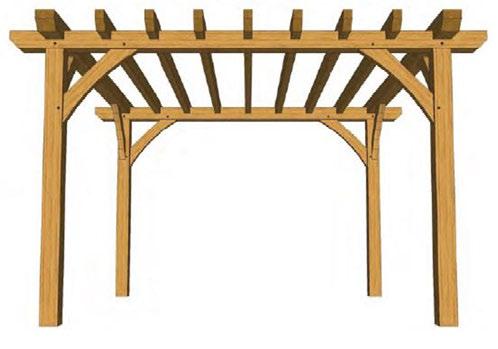

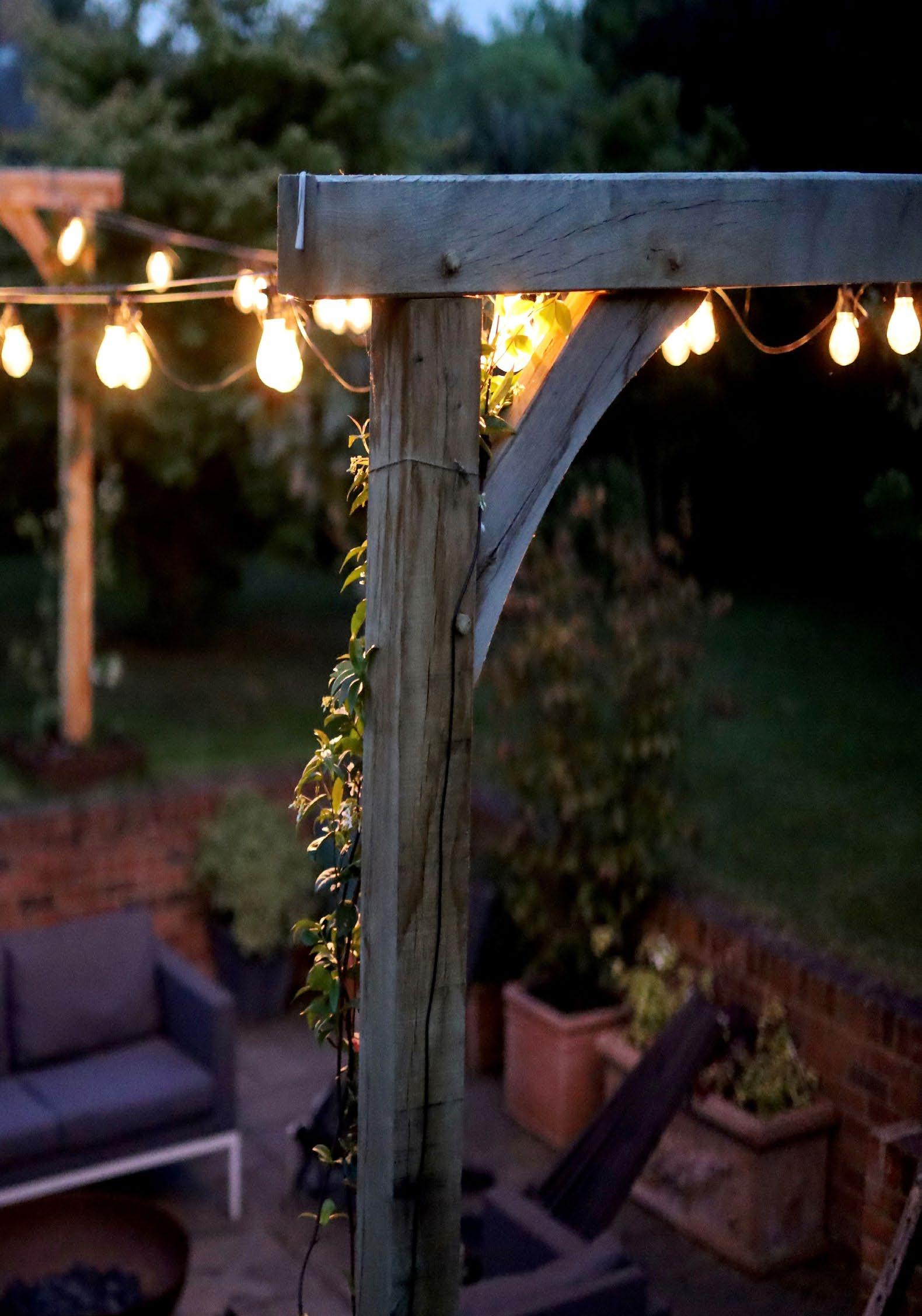

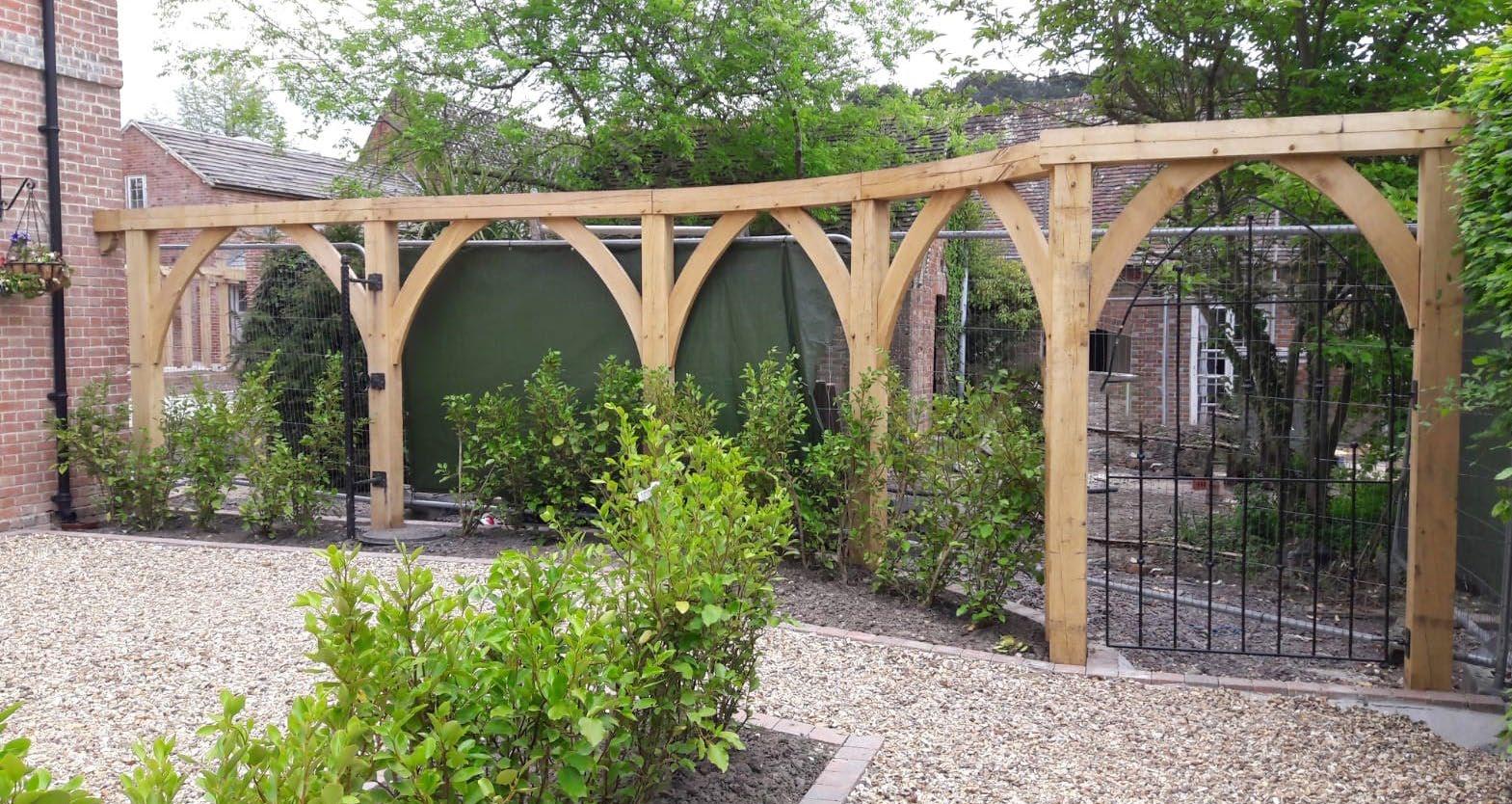

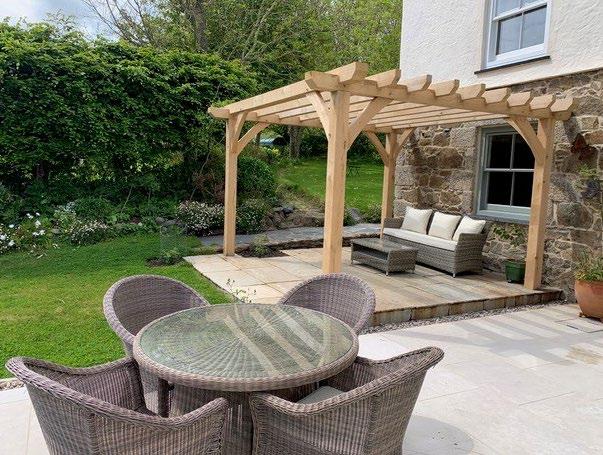

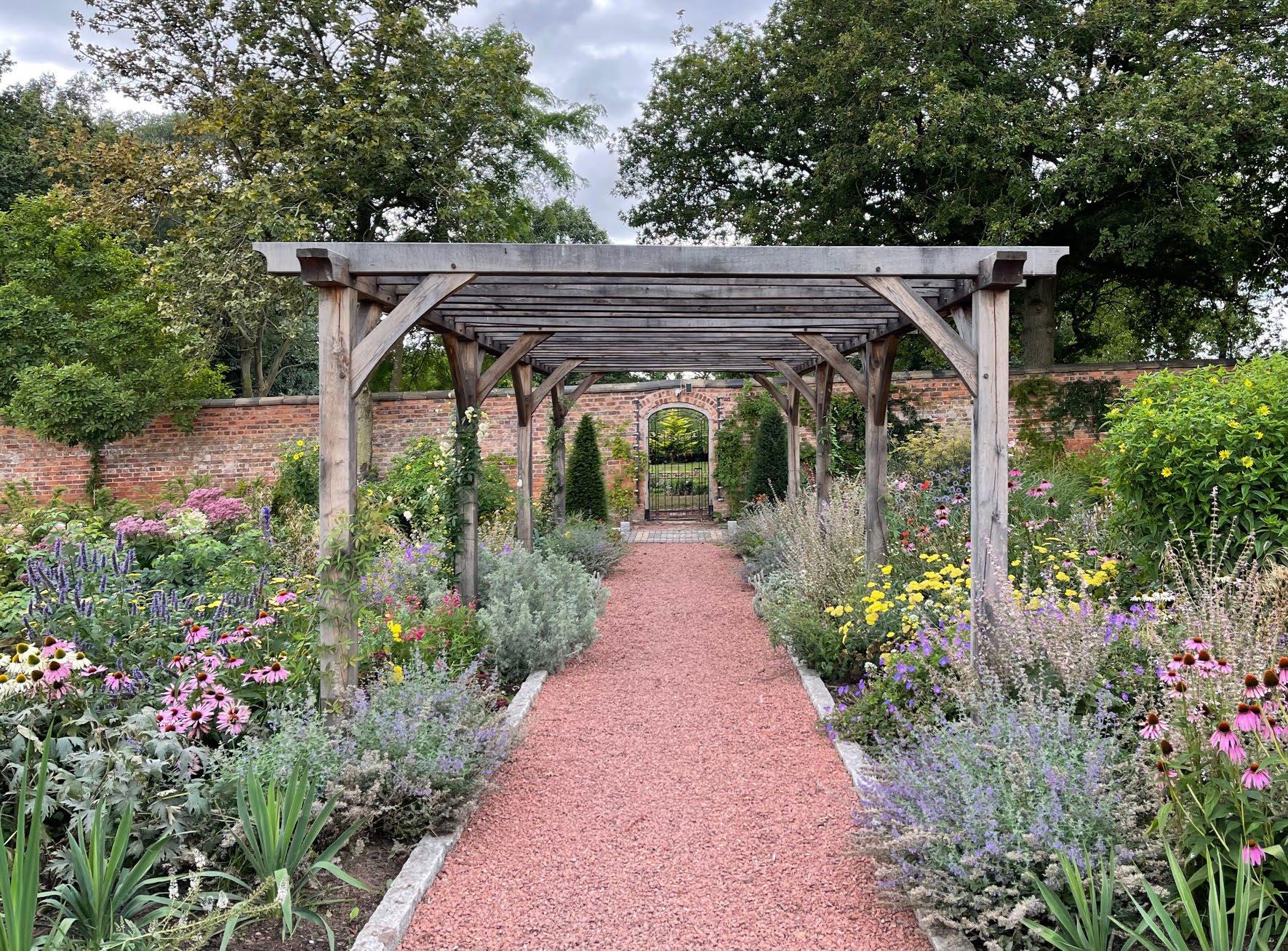

Pergola Kits Fresh Sawn Oak
Hewins Oak Pergola Kits provide a simple way of adding the status and appeal of a genuine oak frame to your home. Sawn from sustainably grown First Grade Oak (p.28), the frame members are carefully machined and fully prepared for assembly, incorporating classic joint designs and features. Planed to a smooth finish, the frame can be left untreated and will weather naturally to a silver/grey, or can be oiled at the time of install to maintain the classic golden tone, though this will require regular upkeep. Oak dowel pegs are included in the kit. Our team will be glad to go over the options with you and discuss how you intend to clad and finish the frame. We recommend an experienced carpenter erects the frame.
■ Grade overview - European grade QP1; largely clear sections with some tolerance of knots and other natural defects. Sapwood up to 15% of the face, and limited wane is permitted to the edges. Some heart trace is possible on two faces, and the occasional dead knot is allowed. Full grading rules are available on request.
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
■ Prices
Varying, 40-70%
Not applicable
Planed finish with micro-bevel on corners
1200kg/m 3 approx.
Available on application
Pergola Kits
Fresh Sawn Oak
Atherstone Sculpted rafter ends
1 Bay W 3.30m D 3.30m H 2.45m
2 Bay W 3.30m D 6.46m H 2.45m
3 Bay W 3.30m D 9.61m H 2.45m
4 Bay W 3.30m D 12.77m H 2.45m
Durville
Chamfered rafter ends
1 Bay W 3.30m D 3.30m H 2.45m
2 Bay W 3.30m D 6.46m H 2.45m
3 Bay W 3.30m D 9.61m H 2.45m
4 Bay W 3.30m D 12.77m H 2.45m
Garden Rose Arch
Enhance your garden with this simple yet stylish Rose Arch, adding status to lawn areas and flower gardens alike.

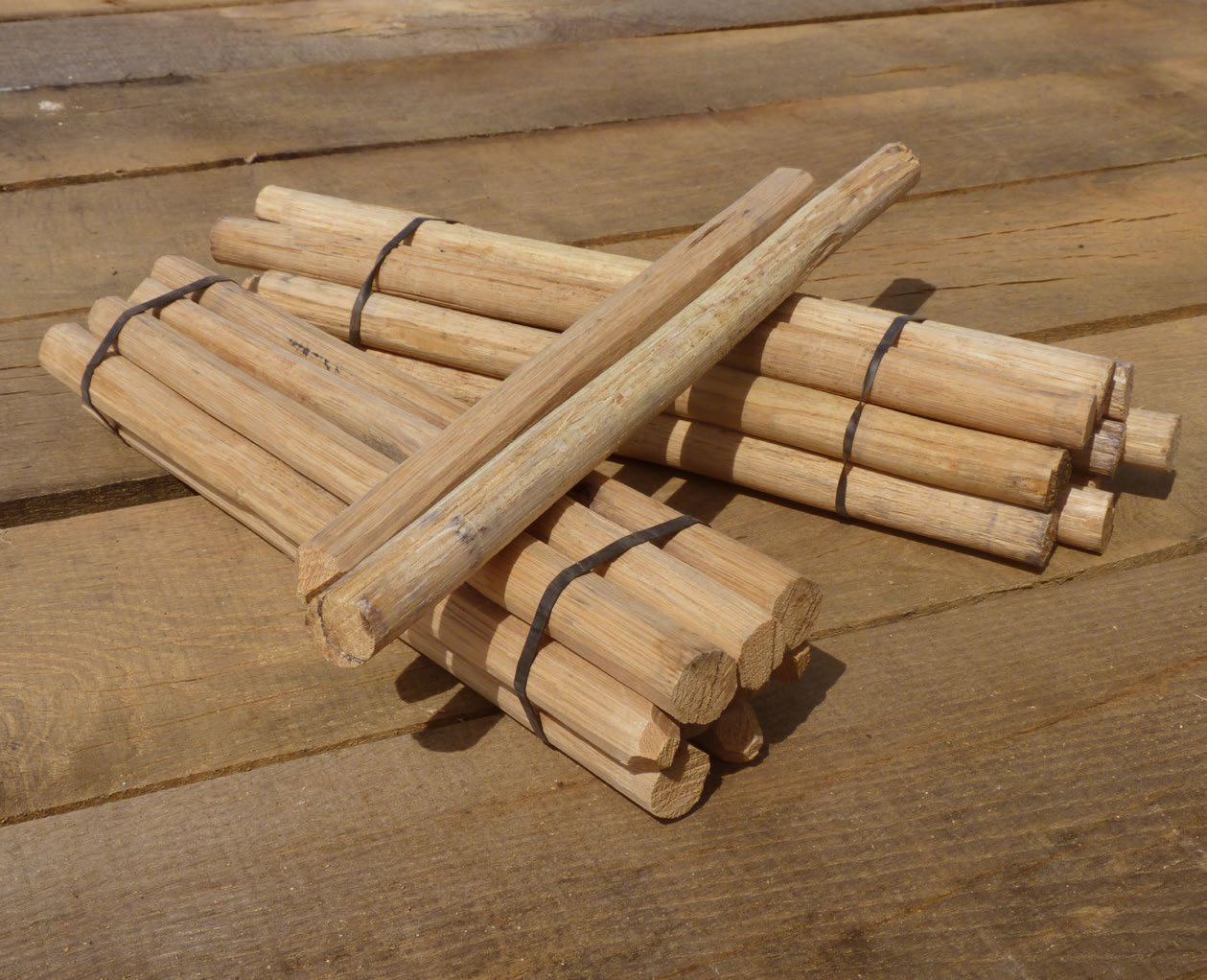

Pre-machined for easy assembly; this requires no more than 6 oak pegs (provided) to put it together. The posts must be set in concrete 600mm into the ground.
W 1.50 metres (to outside of posts)
H 2.42 metres (above ground)
Looking for something a little different? Contact us for further options or to discuss a bespoke design.

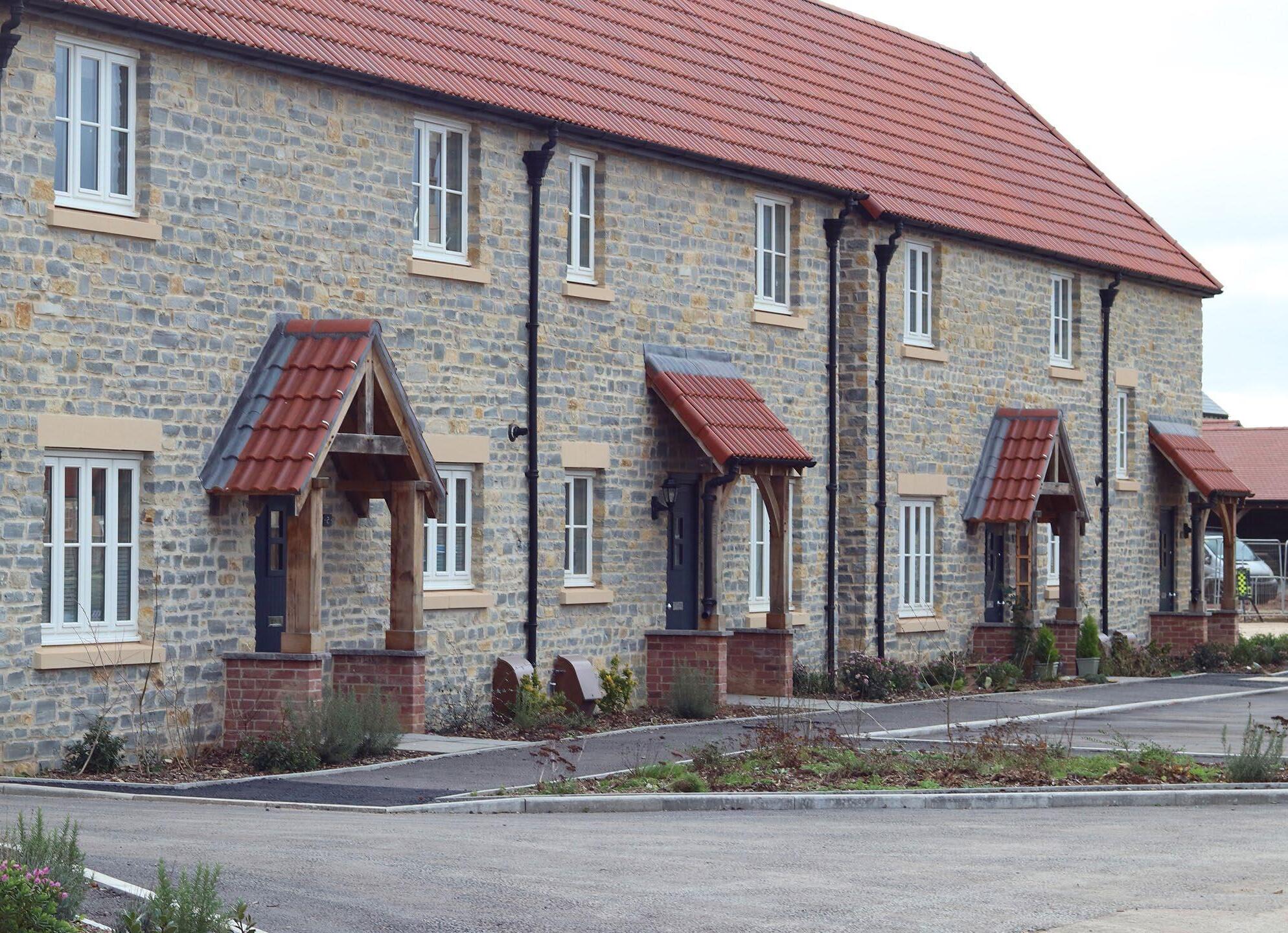

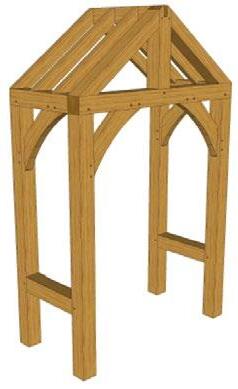

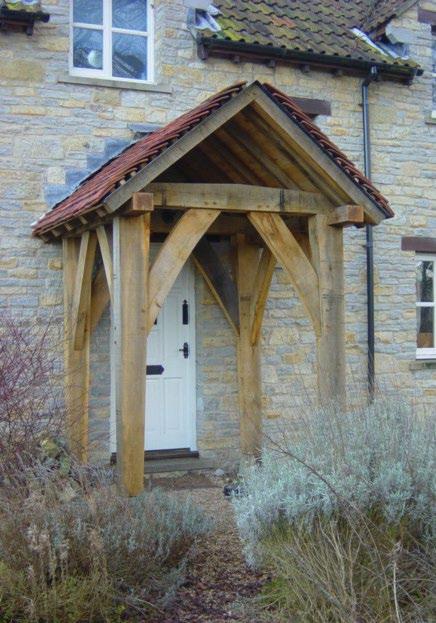

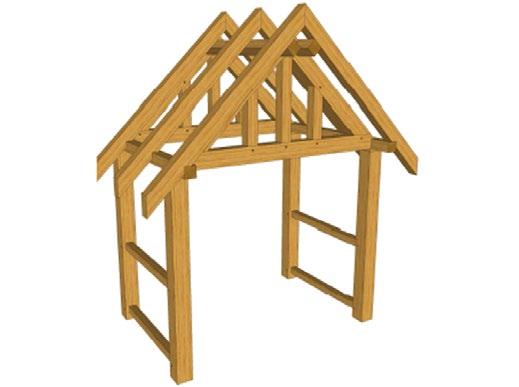

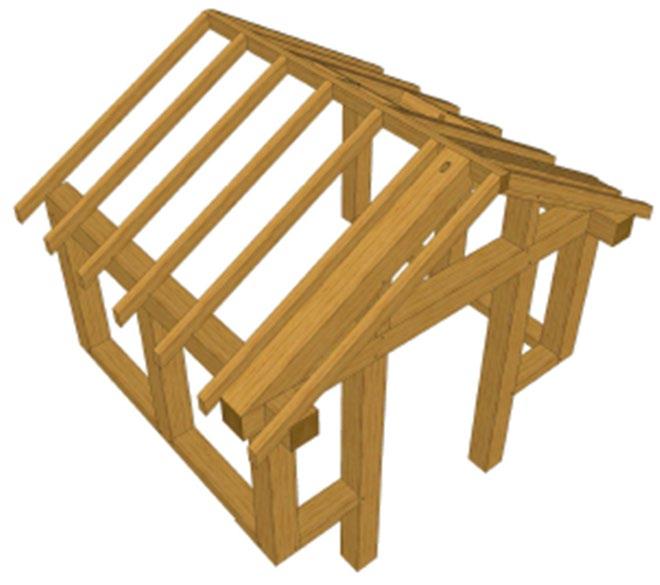

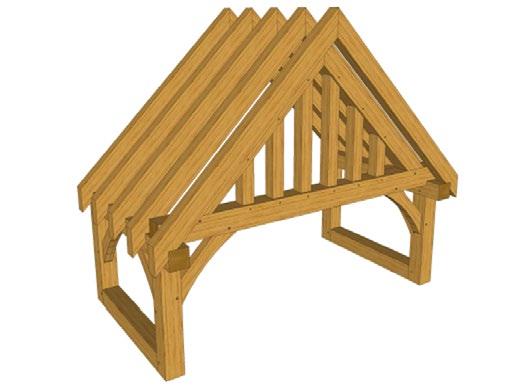

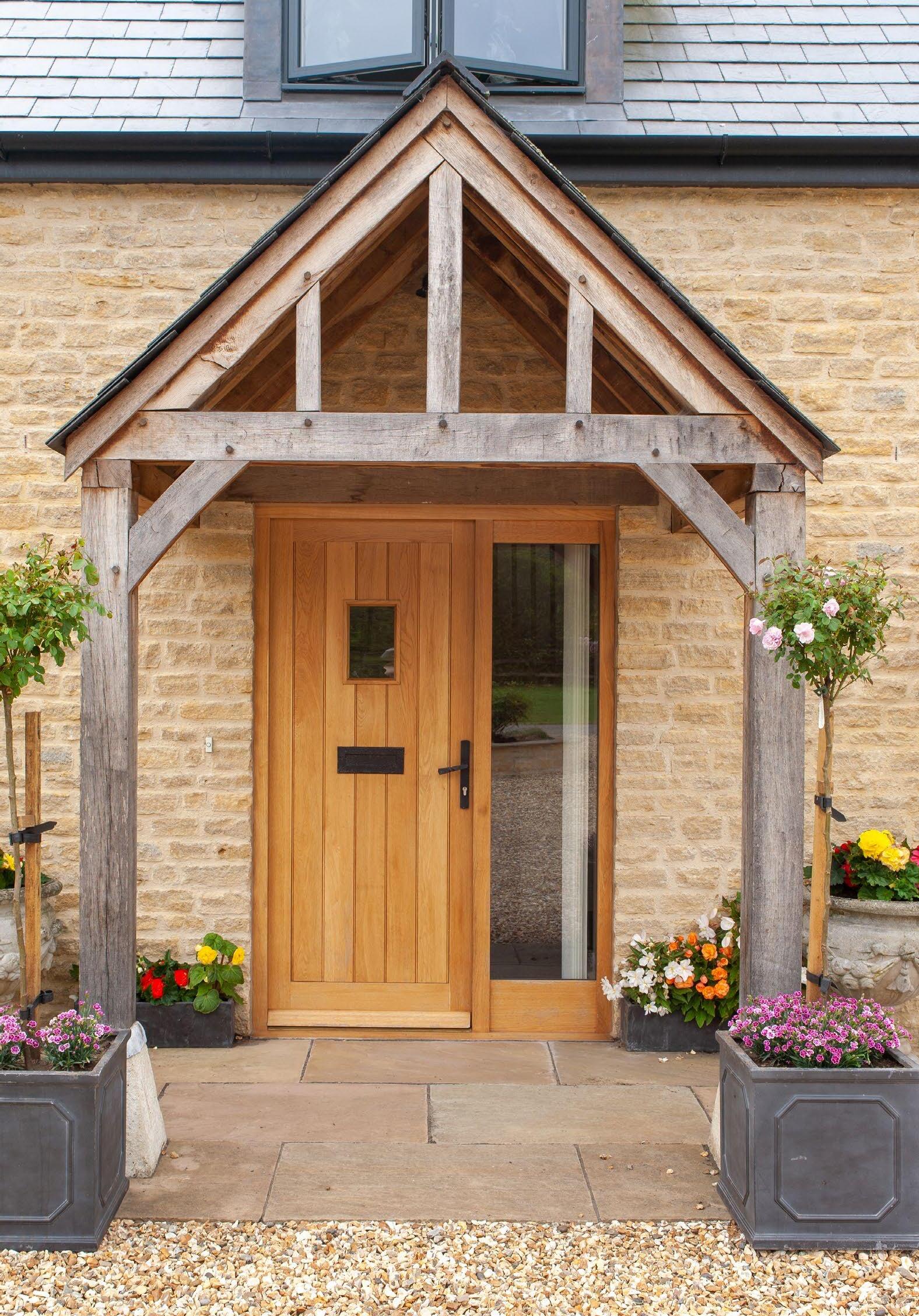

Porch Kits Fresh Sawn Oak
Hewins Oak Porch Kits provide a simple way of adding the status and appeal of a genuine Oak frame to your home. Sawn from sustainably grown First Grade Oak (p.28), the frame members are carefully machined and fully prepared for assembly, incorporating classic joint designs and features. Planed to a smooth finish, the frame can be left untreated and will weather naturally to a silver/grey, or can be oiled at the time of install to maintain the classic golden tone, though this will require regular upkeep. Oak dowel pegs are included in the kit. Our team will be glad to go over the options with you and discuss how you intend to clad and finish the frame. We recommend an experienced carpenter erects the frame.
■ Grade overview - European grade QP1; largely clear sections with some tolerance of knots and other natural defects. Sapwood up to 15% of the face, and limited wane is permitted to the edges. Some heart trace is possible on two faces, and the occasional dead knot is allowed. Full grading rules are available on request.
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
■ Prices
Varying, 40-70%
Not applicable
Planed finish with micro-bevel on corners
1200kg/m 3 approx.
Available on application
Porch Kits
Fresh Sawn Oak
W 2.80m D 1.50m H 2.60m
W 2.00m D 1.00m H 3.30m
W 3.00m D 2.04m H 2.10m
W 2.26m D 1.48m H 3.16m
W 3.02m D 2.67m H 3.24m
Barrington
Hambridge
Ilton
Kingsbury
Stapleton

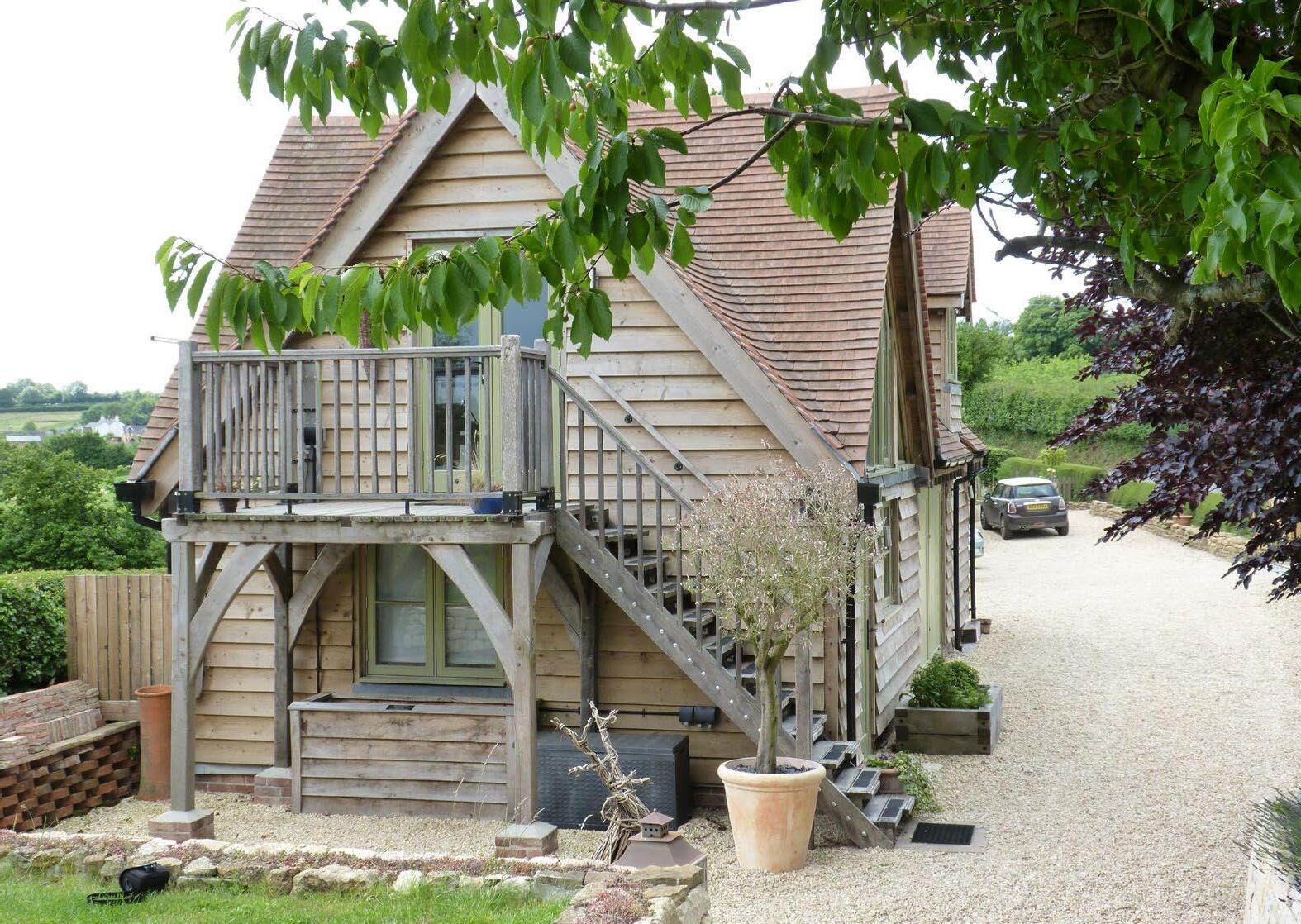

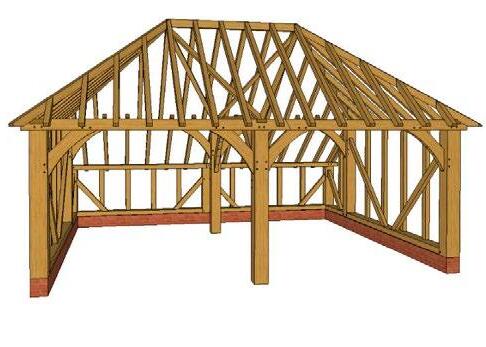

Garage Kits Fresh Sawn Oak
Hewins Oak Garage Kits provide a simple, affordable way of bringing the status and genuine appeal of an Oak frame to your home.
Sawn from sustainably grown European Oak, the frame members are carefully machined and fully prepared for assembly, incorporating classic joint designs and features.
Our wde range of traditional designs provides for many tastes and varied situations, though we can also work with modifications to these, or even completely bespoke designs.
■ Grade overview - European grade QP1; largely clear sections with some tolerance of knots and other natural defects. Sapwood up to 15% of the face, and limited wane is permitted to the edges. Some heart trace is possible on two faces, and the occasional dead knot is allowed. Full grading rules are available on request.
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
■ Prices
Varying, 40-70%
Not applicable
Planed finish with micro-bevel on corners
1200kg/m 3 approx.
Available on application
Garage Kits
Fresh Sawn Oak
Broadwindsor
1 Bay W 3.115m D 5.00m H 3.37m
2 Bay W 6.00m D 5.00m H 3.66m
3 Bay W 8.886m D 5.00m H 3.66m
4 Bay W 12.215m D 6.00m H 3.66m
Burford
1 Bay W 3.32m D 6.00m H 3.77m
2 Bay W 6.23m D 6.00m H 5.73m
3 Bay W 9.23m D 6.00m H 5.73m
4 Bay W 12.215m D 6.00m H 5.73m
Chantemarle
1 Bay W 3.115m D 5.00m H 3.66m
2 Bay W 6.00m D 5.00m H 3.66m
3 Bay W 8.89m D 5.00m H 3.66m
4 Bay W 12.215m D 6.00m H 3.66m
Fordscroft
1 Bay W 3.32m D 6.00m H 3.75m
2 Bay W 6.23m D 6.00m H 5.765m
3 Bay W 9.23m D 6.00m H 5.765m
4 Bay W 12.215m D 6.00m H 5.765m
Looking for something a little different? Contact us for further options or to discuss a bespoke design.
Exteriors
Cladding & decking

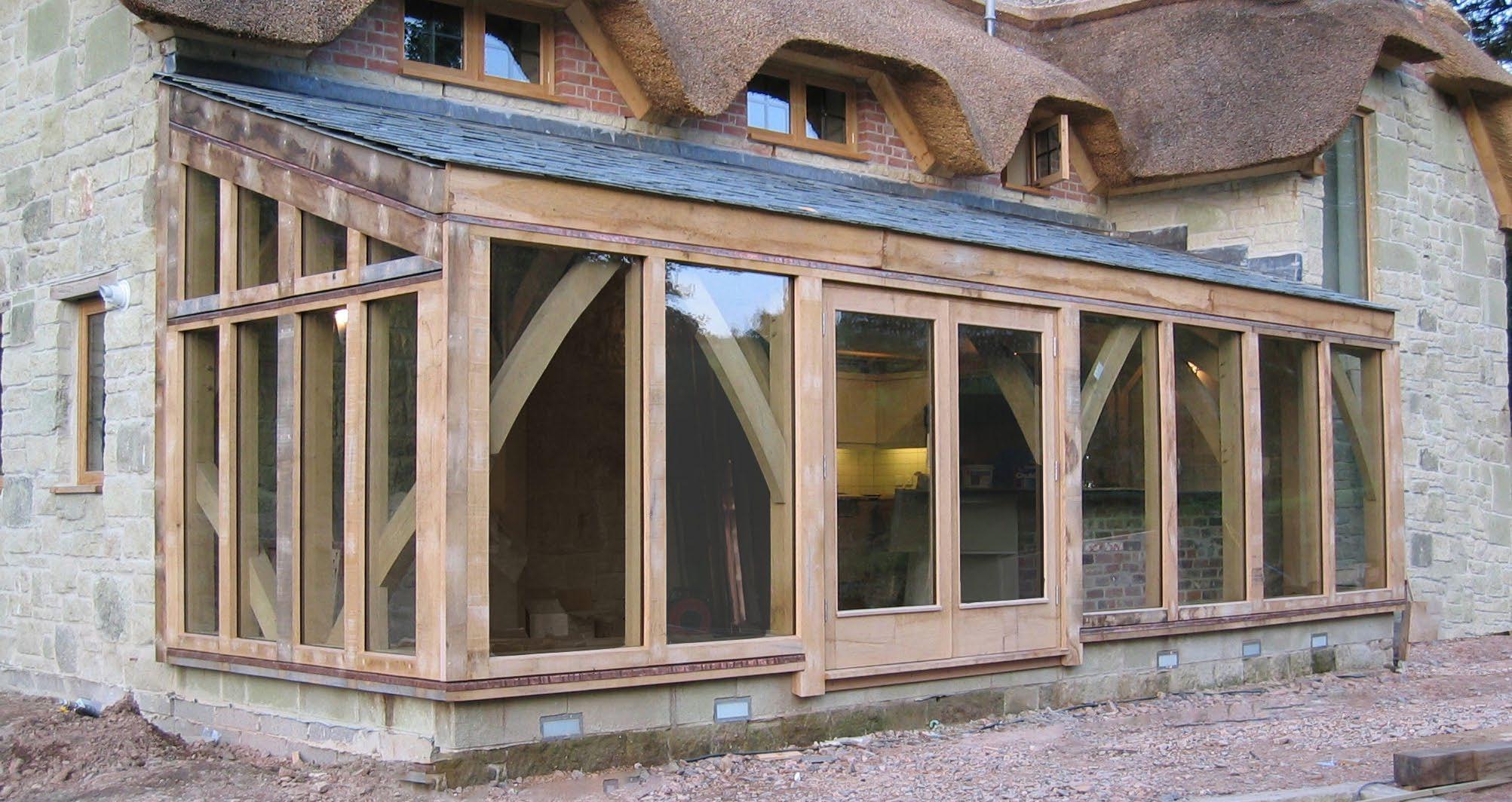

Face Glazing Boards
Air Dried Oak

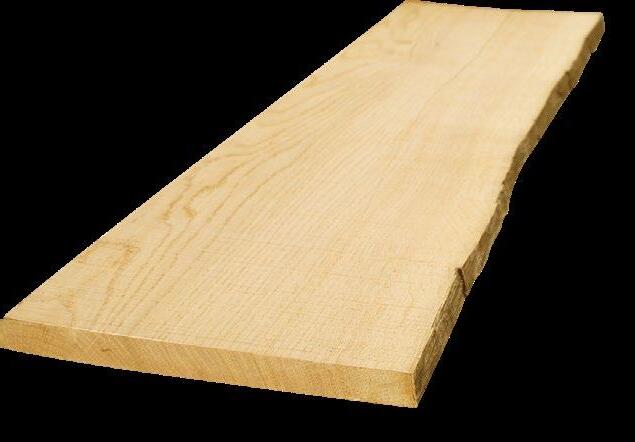

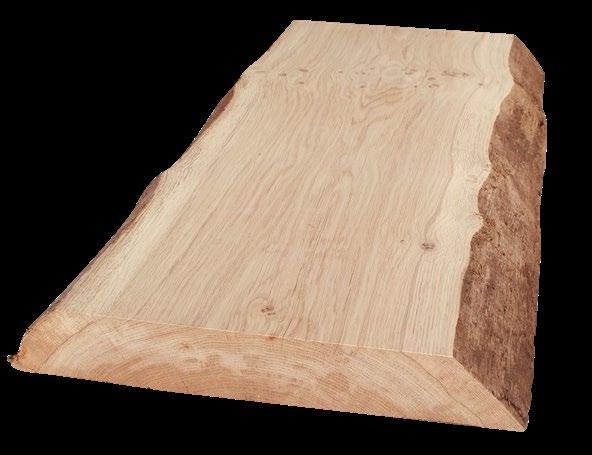

For use with direct glazing to oak frames, our Face Glazing Boards are carefully machined on all faces to provide a good seal, while replicating the look of the internal frame to the exterior. Available with either a planed or fine sawn outer face to suit the finish of the frame.
■ Grade overview - Produced from Air Dried Prime Grade Waney Edge Boards (p. 118)
■ Wastage allowance
■ Fixing method
■ Supplied finish
■ Recommended finish
Dependant on application

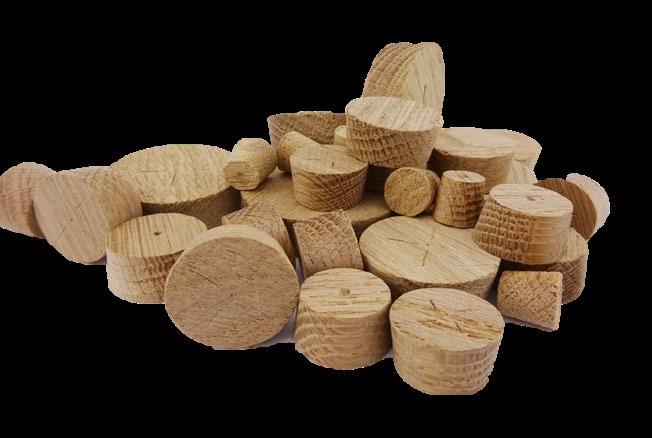

Stainless steel screw & plug to packer material
Planed back face and edges, with either fine sawn or planed front face
Can be left natural, or sealed with protective oil or similar product, though this will require regular maintenance
Contact our sales team for a specific quote.
■ Thickness
■ Lengths Width (mm)
33mm. Other thicknesses available on request
2.0 - 4.0m
Fascia & Barge Boards
Air Dried Oak
Produced from Joinery Grade Air Dried Oak board stock, Hewins Fascia and Barge boards provide both a stable and genuine option for finishing property exteriors the traditional way. Planed to a smooth finish, these can be left untreated and will weather naturally to a silver/grey, or can be oiled at the time of install to maintain the classic golden tone - though this will require regular maintenance.
■ Grade overview - Produced from Air Dried Joinery Grade Stock (p. 120) including some knots and other natural features.
■ Fixing method
Stainless steel screw & plug to packer material
■ Supplied finish
■ Recommended finish Planed, unfinished Can be left natural, or sealed with protective oil or similar product, though this will require regular maintenance
Other widths and thicknesses may be available on request, contact our sales team for a specific quote.

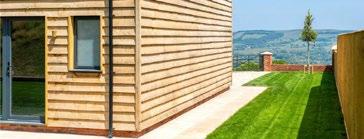

Weather Boards
Fresh Sawn Oak

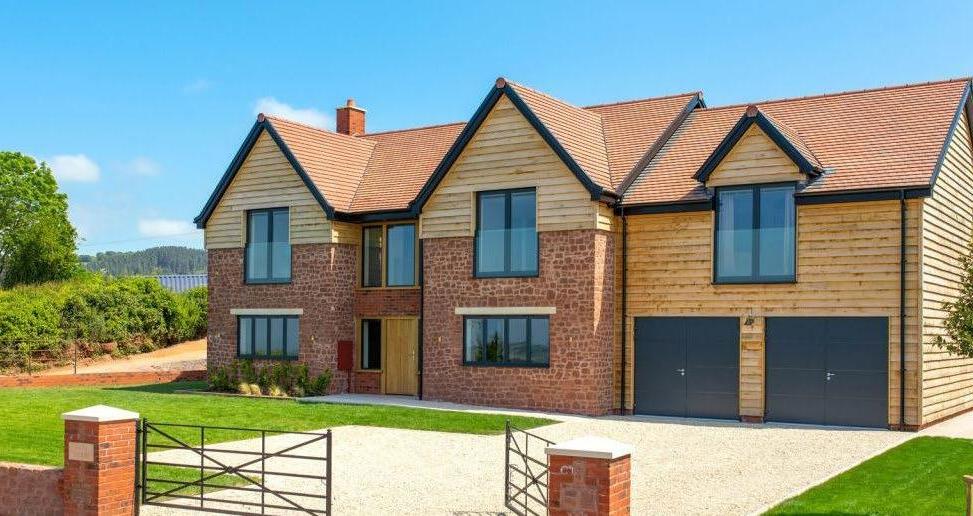

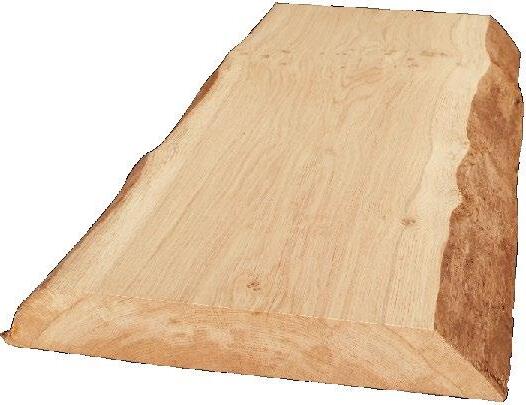

The varied and wide widths of waney edge Weather Boards provides a very traditional, rustic look, whilst maintaining a very durable barrier against the elements. Sawn fresh from the log, the boards have a fine sawn finish and will shrink slightly as the timber naturally dries and settles in situ, weathering to a silver/grey colour.
■ Grade overview - First Grade (p. 28). Largely clear sections with some tolerance of knots and other natural features. Some heart trace and the occasional dead knot is allowed.
■ Overlap required
■ Wastage allowance
■ Supplied finish
■ Recommended finish
50mm, allowing for varying board width and shrinkage
We recommend 10%
Fine sawn
Can be left natural, or sealed with protective oil or similar product, though this will require regular maintenance
Other thicknesses may be available on request, contact our sales team for a specific quote.
■ Widths
■ Lengths
Varying; average 200 - 250mm (face width 150 - 200mm)
2.0 - 4.0m random
Fixing Tips
Correct methods of overlapping and fixing oak boarding and cladding are critical to both its look and its function. Check out our fixing tips on page 72.

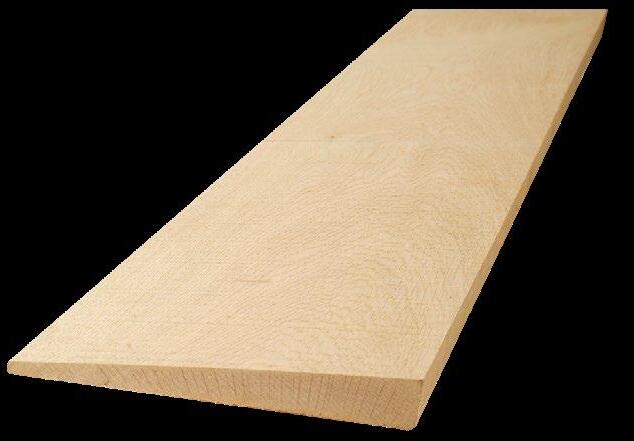

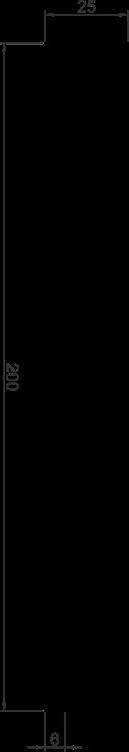

Feather Edge Fresh Sawn Oak
The clean lines of Feather Edge cladding combined with the distinctive grain of oak, add beauty and prestige to both period and modern properties alike - providing a very durable barrier against the elements. Carefully sawn to ensure a consistent thickness, the boards have a fine sawn finish and will shrink slightly as the timber naturally dries and settles in situ, weathering to a silver/grey colour.
■ Grade overview - 150: European grade QF2-3X; clear sections with some small knots allowed - a prime grade cladding. 200: European grade QP1; largely clear sections with some tolerance of knots and other natural features.
■ Overlap required
■ Wastage allowance
■ Supplied finish
■ Recommended finish
25 - 50mm
We recommend 10%
Fine sawn
Can be left natural, or sealed with protective oil or similar product, although this will require regular maintenance
Standard Sections (mm)
150 (120 face) x 17 > 6
per LM
per M2
200 (160 face) x 25 > 6 £7.66 £47.88
Other thicknesses may be available on request, contact our sales team for a specific quote.
■ Lengths
Up to 4.2m
■ This profile is also available in a number of other timber species, see page 68 for more information.
Fixing Tips
Correct methods of overlapping and fixing oak boarding and cladding are critical to both its look and its function. Check out our fixing tips on page 72.
TGV Air Dried Oak
Carefully machined from our well-seasoned stock to maximise stability and consistency, our TGV Boarding is a perfect fit for many applications, such as gates, garage doors and wall cladding. If left untreated, the timber will weather to a silver/grey colour. There are a number of finishes available to preserve the original colouring which are effective, so long as they are maintained.
■ Grade overview - Produced from Joinery Grade stock (p. 134) including some knots and defects.
■ Wastage allowance
■ Supplied finish
■ Recommended finish
■ Density
We recommend 10%
Planed, unfinished
Can be left natural, or sealed with protective oil or similar product, though this will require regular maintenance
800kg/m³ approx.
Width (mm) £ per LM £ per M2 140 face £11.67 £83.38
Other widths and thicknesses available on request, contact our sales team for a specific quote.
■ Thickness
20mm
■ Lengths
2.0 - 2.4m random
■ This profile is also available in a number of other timber species, see page 68 for more information.
Fixing Tips
Correct methods of overlapping and fixing oak boarding and cladding are critical to both its look and its function. Check out our fixing tips on page 72

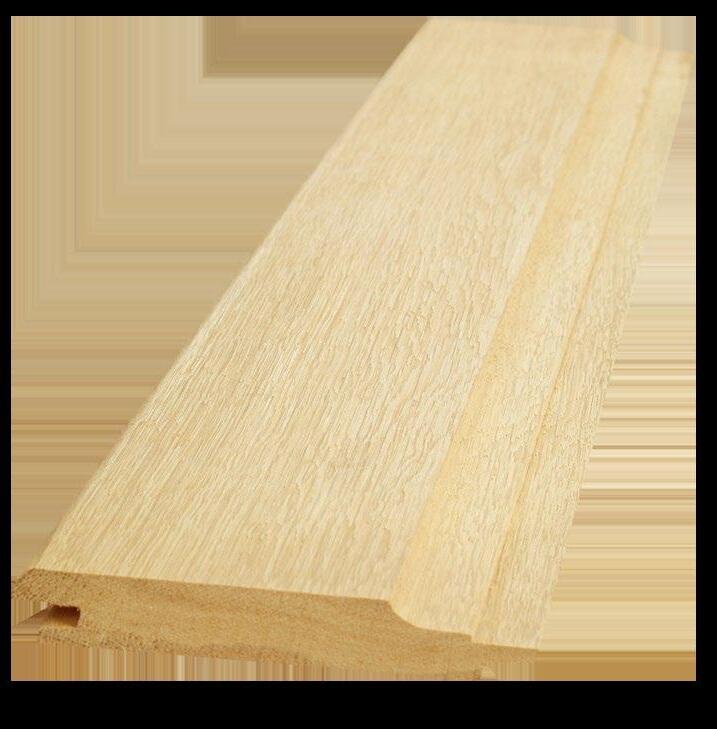

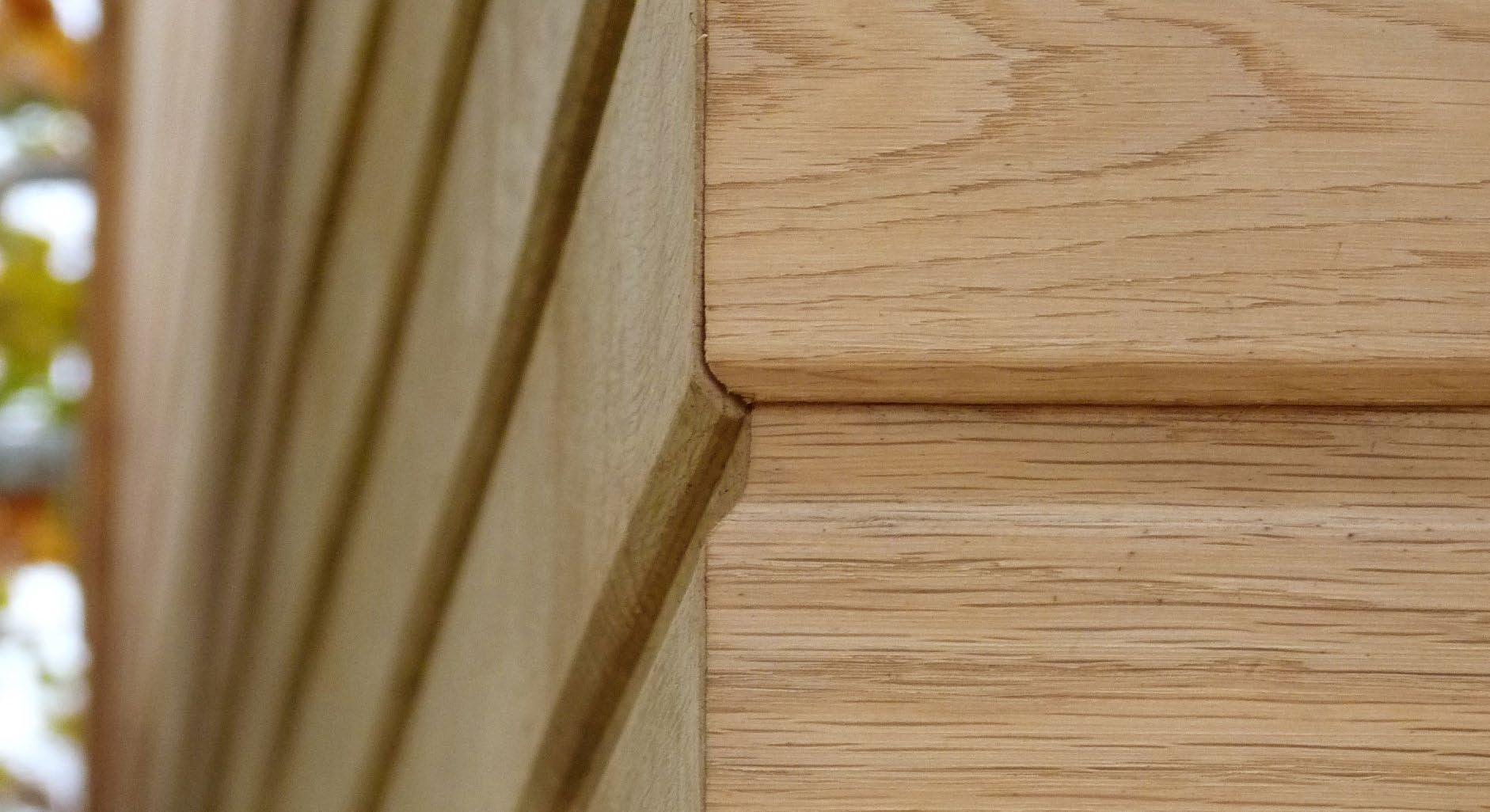

Shiplap Air Dried Oak
With a smooth planed profile, our Shiplap Cladding creates a sharp yet subtle look wherever it is applied. Carefully machined from well-seasoned stock to maximise stability and consistency, our Shiplap Cladding also boasts a unique profile to allow for seasonal movement. If left untreated, the timber will weather to a silver/grey colour. There are a number of finishes available to preserve the original colouring which are effective, so long as they are maintained.
■ Grade overview - Produced from Joinery Grade stock (p. 120) including some knots and defects.
■ Overlap required
■ Wastage allowance
■ Supplied finish
■ Recommended finish
■ Density
Dependant on profileShiplap is interlocking
We recommend 10%
Planed, unfinished
Can be left natural, or sealed with protective oil or similar product, though this will require regular maintenance
800kg/m³ approx.
per M2 145 (129 face)
Other widths and thicknesses available on request, contact our sales team for a specific quote. Width (mm)
■ Thickness
■ Lengths
2.0 - 2.4m random
■ This profile is also available in a number of other timber species, see page 68 for more information.
Fixing Tips
Correct methods of overlapping and fixing oak boarding and cladding are critical to both its look and its function. Check out our fixing tips on page 72. 20mm
Softwood Cladding Profiles & species
Wooden cladding is becoming an increasingly popular choice for both residential and commercial buildings. The natural beauty of the material is undoubtedly a factor, but that’s not the only benefit of using this versatile product.
Whether your project is of a contemporary or traditional type, choosing to specify timber adds warmth and character, accentuating the aesthetic of any design. The natural origins of timber mean that each board comes with a subtly unique figuring and, depending on the species, different knot shapes and patterns.
Our range of softwood species can cater to any style requirement, and are available in a variety of standard profiles, as well as any bespoke profile up to 300mm wide.
Added extras
Feather Edge HC10
Secret TGV HC30
Vertical Chamfer HC41
TGV
HC20
Halflap Chamfer HC40
Vertical Square HC42
Rainshield 30o/45o
HC60
Our range of cladding can be produced with additional finishes, coatings and treatments to meet the aesthetic needs and/or necessary regulations of your project. Request a copy of our complete cladding brochure today!

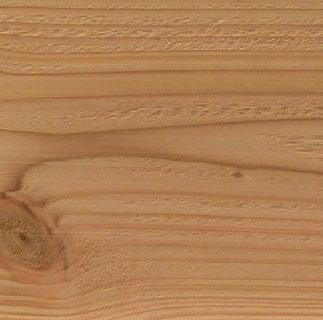

British Larch
British Larch provides a good quality cladding at a good price. It is lively with knots and features and will naturally weather to an attractive silver/grey colour, more consistent than other species. This cladding will last for 20–30 years in average external conditions.

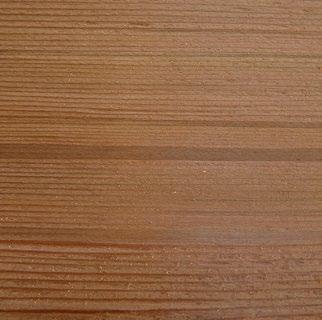

Canadian Western Red Cedar
A very stable natural timber, having very little movement or cupping tendencies. This high quality timber is slowly grown, resulting in a very straight grain with very few knots. It comes in a whole range of colours, varying from orange hues right through to a reddish-brown, giving greater depth across boards and a clear, flawless finish.
British Western Red Cedar
A more economical choice to its foreign cousin, boasting a more consistent, pale-red colour with varied grain and character for a more natural look. It is less dense and contains more knots than Canadian, but weathers more evenly and has a considerably lower carbon impact product due to it being locally grown.
Douglas Fir
A stable wood that maintains its shape and appearance over time, even when exposed to changes in temperature and humidity. With a warm, rich colour and distinctive grain pattern, it adds texture and interest to a surface and is also resistant to decay, rot and insect infestations.
Sweet Chestnut
Sweet Chestnut resembles Oak in appearance, but tends to offer greater stability and is lighter in weight. Durable and hard-wearing, it provides a beautiful finish, adding character and charm to any project. The golden color is similar to oak, but the grain is more pronounced, occasionally accompanied by darker mineral streaks.

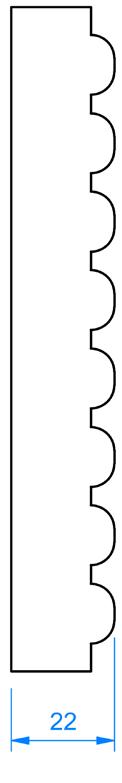

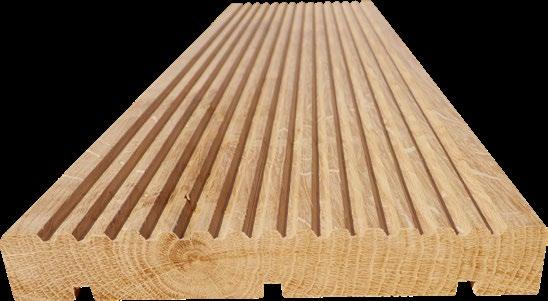

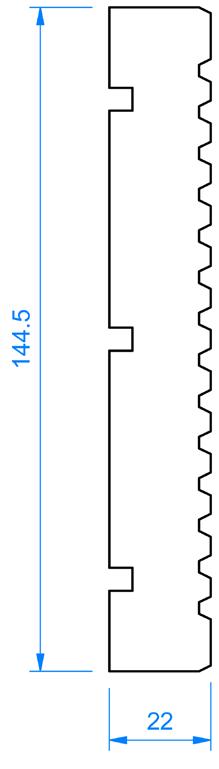

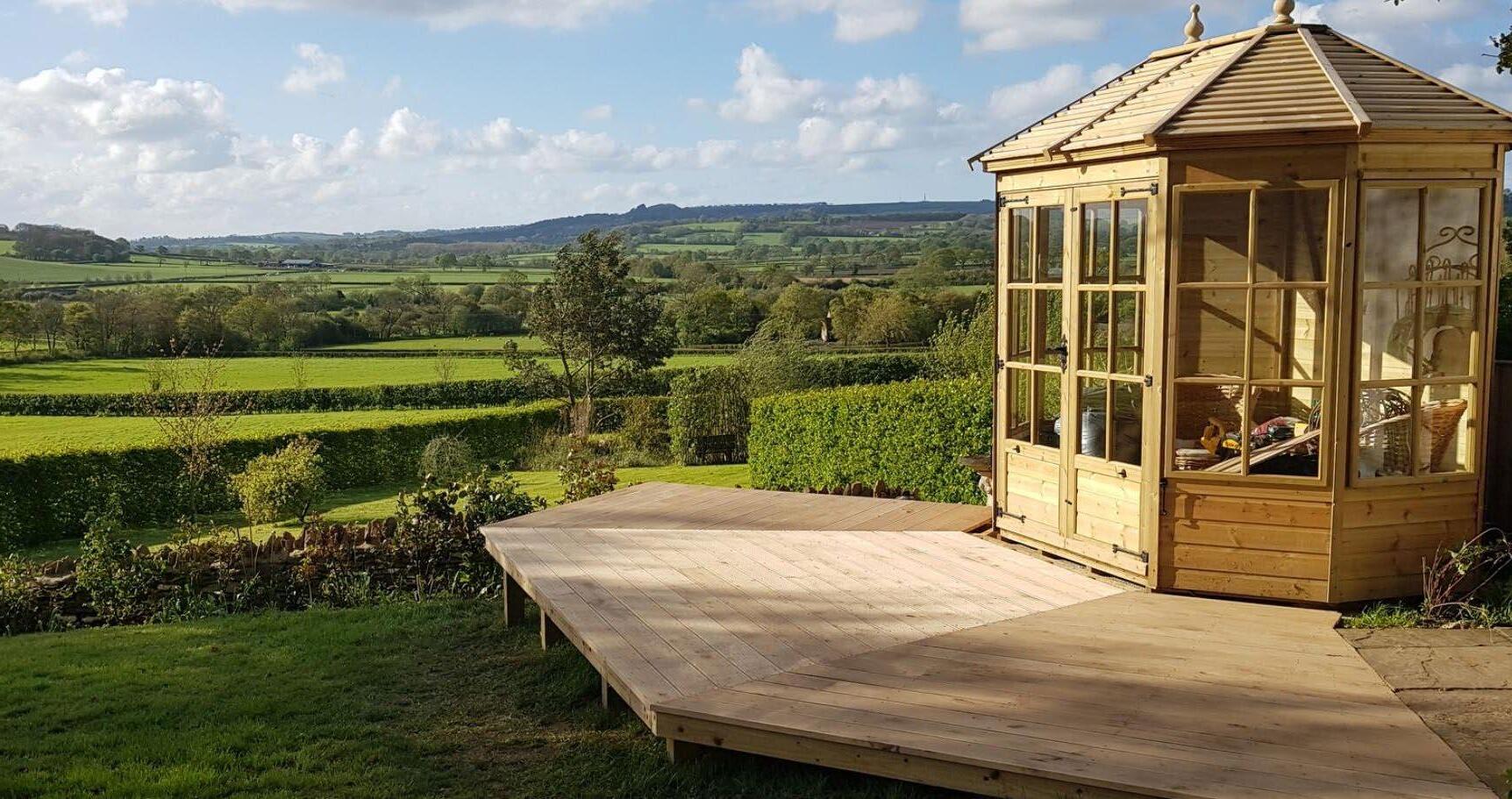

Grooved/Reeded Decking
Air Dried Oak
Hewins Oak Decking boards are produced from naturally seasoned oak planks to produce stable, long lasting decking installations. The natural strength and durability of oak makes it an ideal timber for external uses such as decking, with drainage grooves providing an aesthetically pleasing look, and also assisting with channelling water away from the surface. The decking can be treated with a protective oil such as Owatrol Deks Olje D1 (p. 133), and over time will weather to an attractive silver/grey colour.
■ Grade overview - Produced from Joinery Grade stock (p. 120) including some knots and defects.
■ Supplied finish
■ Density
■ Recommended finish
Planed/machined smooth
800kg/m ³ approx.
Can be left natural, or sealed with protective oil or similar product, though this will require regular maintenance
144.5 (Grooved)
Contact our sales team for a specific quote.
■ Thickness
22mm
■ Lengths
2.1 - 2.4m random
Fixing Tips
Correct methods of fixing oak decking are critical to both its look and its function. Check out our fixing tips on p. 73.
üFixing Tips Oak Cladding & Decking
Cladding
■ Get it up quick - Fresh sawn oak naturally shrinks and moves as it dries. Once you receive the boarding, installation should follow within a few days. Before the install, ensure the boards are kept neatly stacked on even ground, and out of direct sunlight.
■ Fix it right & fix it tight - Cladding boards should be fixed approximately every 400mm. Air dried cladding should be installed with 2 fixings spaced towards each edge. Fresh sawn Feather Edge and Weather Boards can be fixed by selecting the boards so that the heart is facing away from the building. Then place 1 fixing 10mm above the top of the board below. This method allows for shrinkage as the product dries out. Fresh sawn cladding can also be fixed with 2 fixings (like air dried cladding) - this holds the cladding flat, but does not allow for natural shrinkage to the same extent. The length of the fixings you use should be a minimum of 2.4 x the thickness of the cladding. You must use stainless steel fixings when fixing oak, otherwise the acidic tannin will react with normal steel, stain the timber and corrode the fixings. We recommend Carpenters Mate screws (p. 127).
■ Mind the gap - Overlap is essential to allow for natural shrinkage and movement. Once sawn, the drying process starts - so by the time fixing of the boards takes place, the width may already have reduced slightly. Ensure you still allow the recommended overlap for further shrinkage after fitting. When installing air dried cladding such as Shiplap or TGV Boarding, it is important to leave a gap of at least 3mm to allow for the seasonal movement between each board. You can do this by putting a packer under the board as you fit it. Once fixed, remove the packer and place it on top, ready for the next board.
Decking
■ Stay on deck - Wooden decking is a popular product, but has a reputation of becoming slippery over time. This can be minimised by installing the decking with a slight fall on it, in line with the length of the boards. This improves the drainage and will cause rainwater to naturally run off the deck.
■ Fix it right - The length of fixings you use should penetrate into the support bearer by at least 30mm, and provide a good, strong fixing. You must use stainless steel screws when using oak, as otherwise the acidic tannin in the oak will react with the mild steel, stain the decking and corrode the fixings. We recommend Carpenters Mate screws (p. 127), which are made from marine grade stainless steel, and will provide a strong fixing.
■ Mind the gap - It is very important to install the decking boards with at least a 9mm gap between them. This will be wide enough to allow for the seasonal movement of the boards, and ensure that water can effectively drain away.
Want to discuss your project? Give us a call today on 01460 241777.
Interiors
Flooring, skirting, linings & architrave

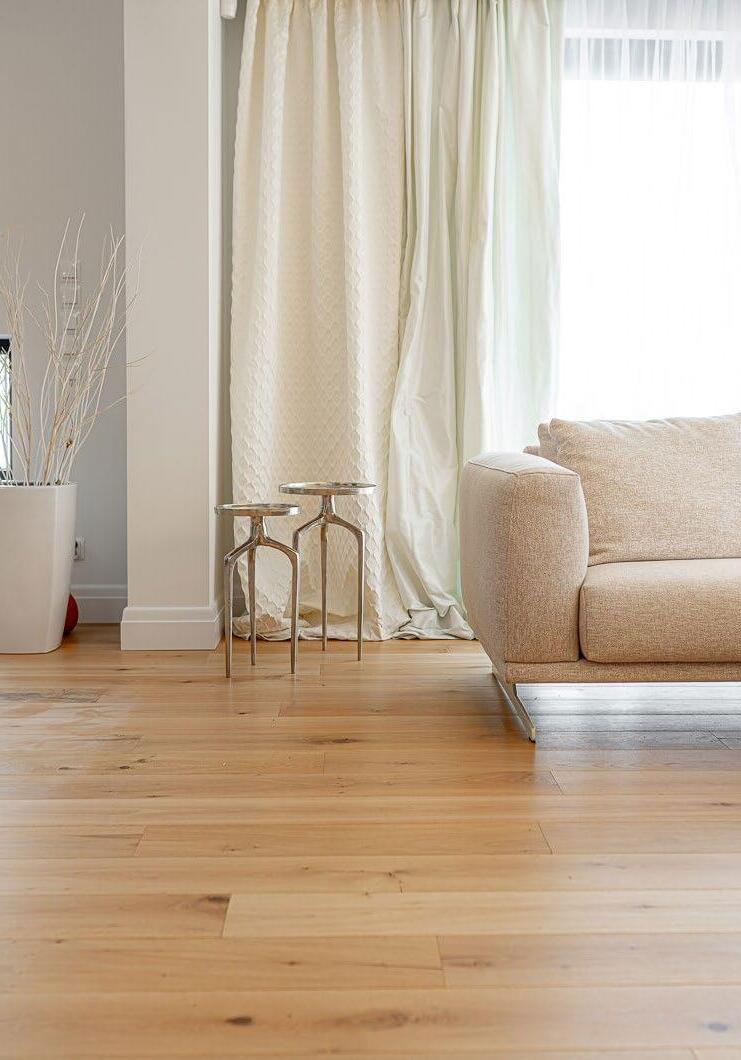

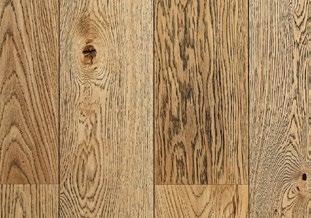

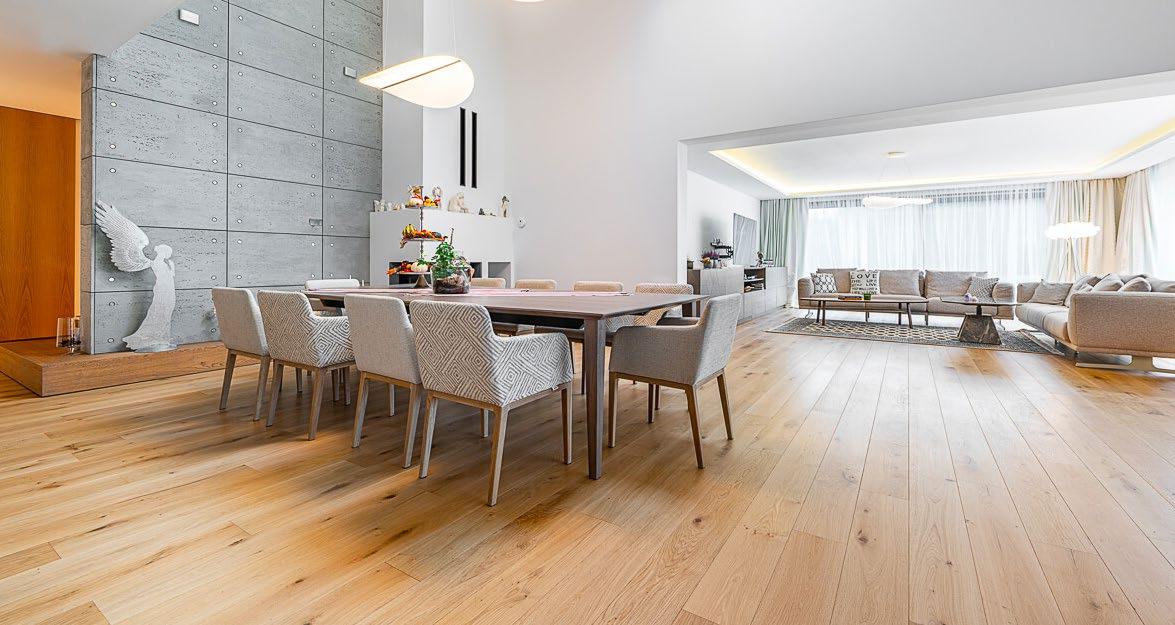

Solid Oak Floorboards
Oxford 21mm Unfinished
Engineered Oak Floorboards
Estrato 20mm Unfinished
Estrato 20mm Brushed & Oiled
Estrato 15mm Brushed & Oiled
Interiors

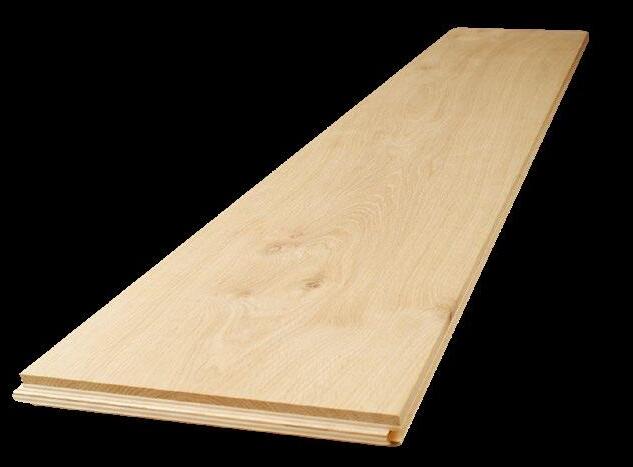

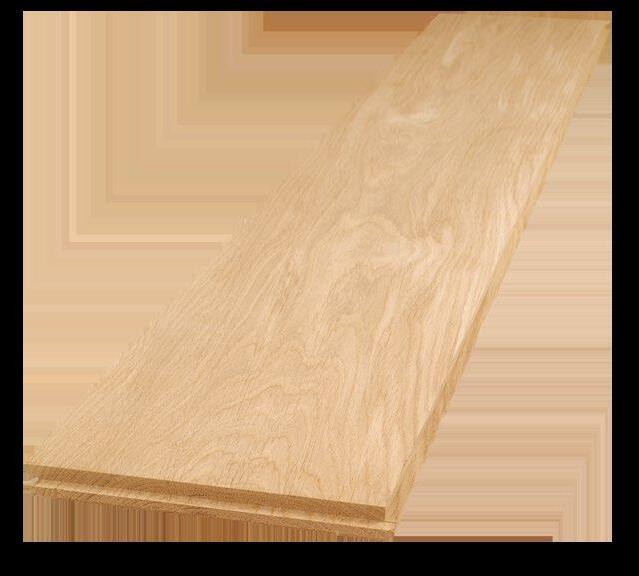

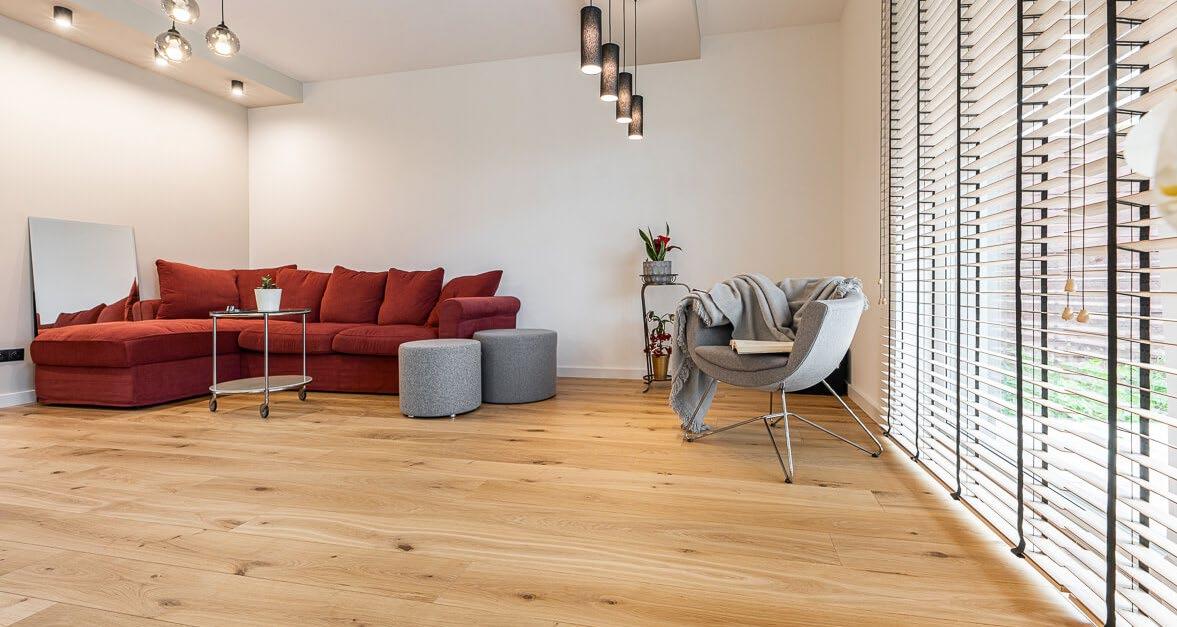

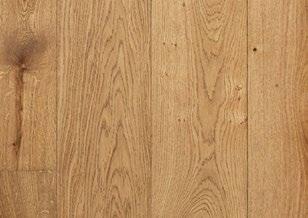

Oxford Floorboards
21mm Solid Oak
Filled & Sanded, Unfinished
The Oxford quite literally offers the best of both worlds: long length boards combined with a range of impressive widths to create a genuine yet bespoke floor of your choice, while giving the benefits of a modern flooring board at its best - exceptionally well machined for tight joins and ease of laying.
■ Grade
■ Edge detail
■ Supplied finish
■ Wastage allowance
■ Underfloor heating
Rustic/Character Grade
Square shoulders
Tongue & groove sides and ends
Unfinished
We recommend 10%
Not suitable
(mm)
M² 160 £70.89 180
200
■ Thickness
■ Lengths
21mm
1.8 – 2.5m random Length not specifiable
£73.93
£75.49
■ Wider widths available on request.
Fixing Tips
Correct methods of laying and fixing oak flooring are critical to both its look and function. Check out our fixing tips on p. 94.

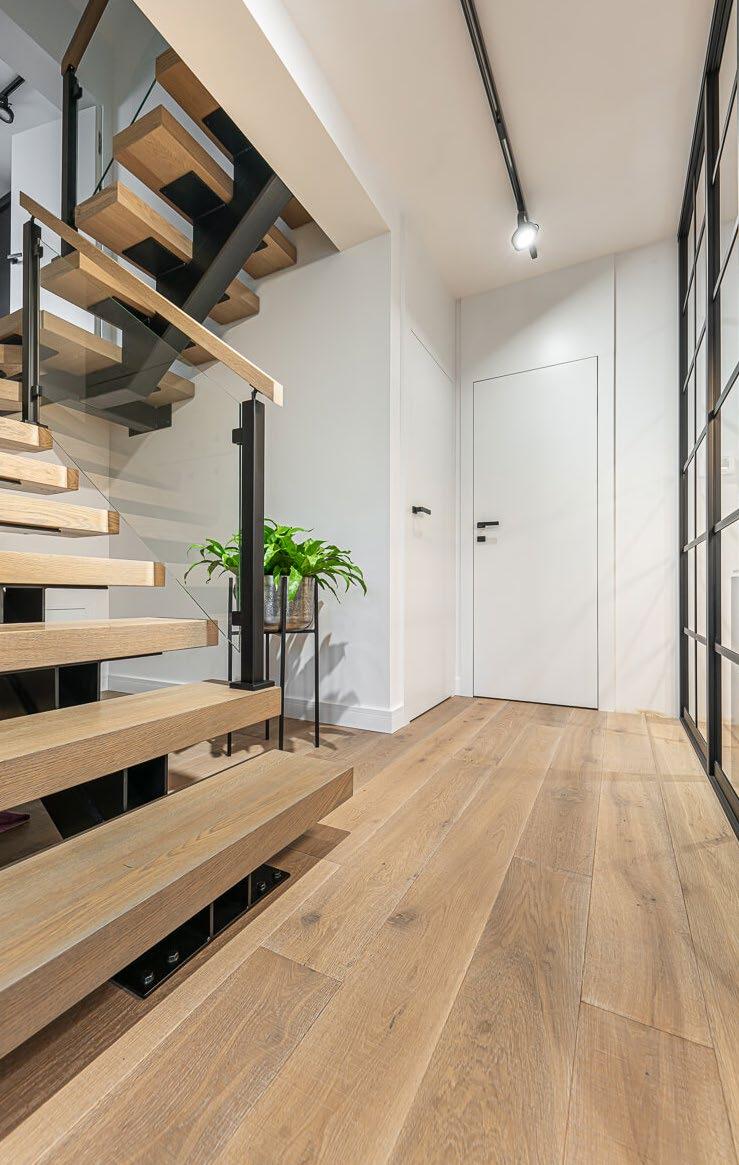

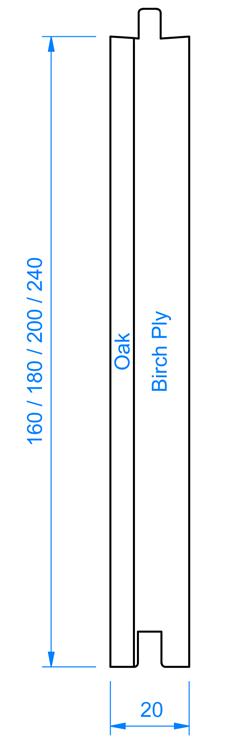

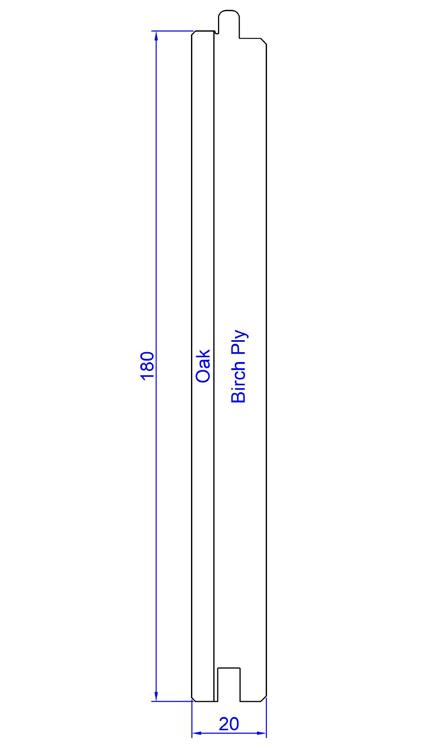

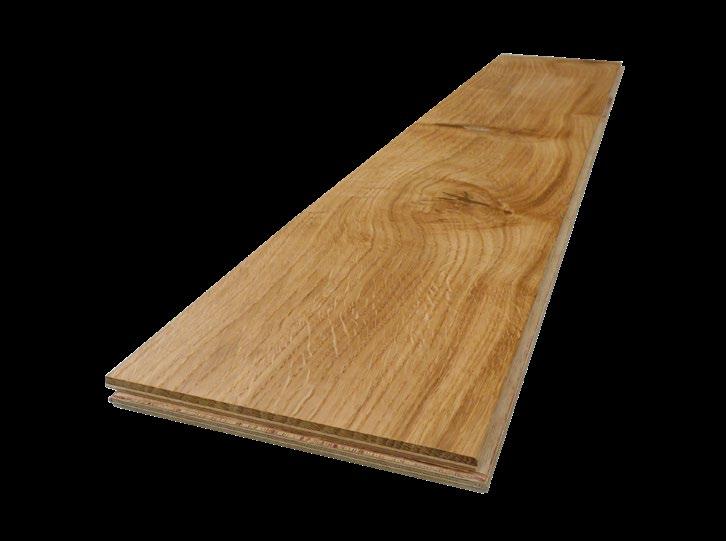

Estrato Floorboards
20mm Engineered Oak
Filled & Sanded, Unfinished
Estrato engineered floorboards provide an easy to lay, very stable alternative to a solid floor. With a 6mm solid oak wear layer and square shoulders to minimise joint lines, Estrato has the look, feel and longevity of a solid floor. The boards are completely re-sandable should you ever wish to renew the finish. Suitable for use with underfloor heating providing it is fully bonded to the substrate.
■ Grade
■ Edge detail
■ Supplied finish
■ Wastage allowance
■ Underfloor heating
Character Grade
Square shoulder
Tongue & groove sides & ends
Sanded, unfinished
We recommend 10%
Suitable. Boards must be fully stuck down
■ Thickness
20mm
■ Lengths
1.0 – 2.4m random (average 2.0m)
Length not specifiable
Fixing Tips
Correct methods of laying and fixing oak flooring are critical to both its look and function. Check out our fixing tips on p. 94.
Estrato Floorboards 20mm Engineered Oak
Brushed & Oiled
The same high quality engineered flooring with 3 coats of UV cured Hardwax Oil applied to create a hard, long lasting and beautiful finish from the word go! Prefinished flooring can be fitted and used immediately - no sanding, no finishing and no waiting! The 6mm solid oak wear layer has a micro bevel on the edges - essential to allow for the oil to finish to an edge. Suitable for use with underfloor heating providing it is fully bonded to the substrate.
■ Grade
■ Edge detail
■ Supplied finish
■ Wastage allowance
■ Underfloor heating
Character Grade
Micro-bevel
Tongue & groove sides & ends
Brushed & oiled
We recommend 10%
Suitable. Boards must be fully stuck down
Width (mm)
180
■ Thickness
20mm
■ Lengths
1.0 – 2.4m random (average 2.0m)
Length not specifiable
£ per M²
£74.85
Fixing Tips
Correct methods of laying and fixing oak flooring are critical to both its look and function. Check out our fixing tips on p. 94.
Estrato Floorboards
15mm
Engineered Oak
Brushed & Oiled
Estrato engineered 15mm oak flooring allows the beauty of wooden flooring without having to raise the floor level, as it is similar to the thickness of most carpets. Quality is not comprised however - it is constructed with a 4mm solid European Oak wear layer bonded to European produced plywood beneath. The flooring is then finished with 3 coats of UV cured hardwax oil to provide a durable, long lasting and easily maintained finish.
■ Grade
■ Edge detail
■ Supplied finish
■ Wastage allowance
■ Underfloor heating
Character Grade
Micro-bevel
Tongue & groove sides & ends
Brushed & oiled
We recommend 10%
Suitable. Boards must be fully stuck down
£ per M²
■ Thickness
15mm
■ Lengths
1.0 – 2.4m random (average 2.0m)
Length not specifiable
Fixing Tips
Correct methods of laying and fixing oak flooring are critical to both its look and function. Check out our fixing tips on p. 94.

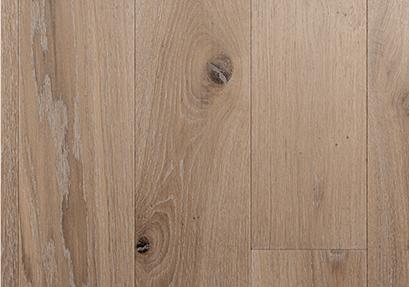

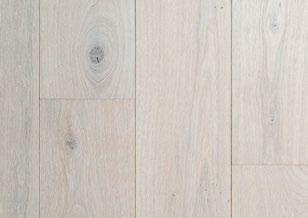

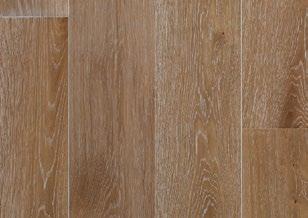

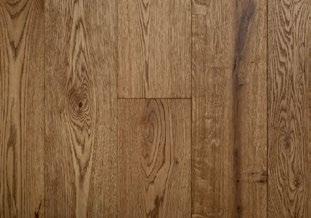

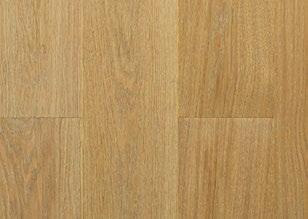

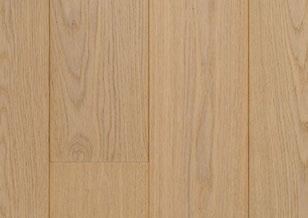

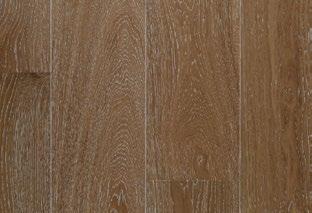

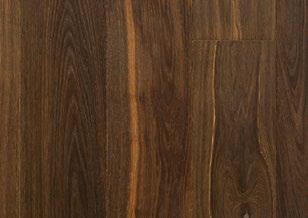

Estrato Flooring Colour options
As well as our standard options, we also offer a range of different colours to suit any interior. Contact us for further information and pricing on these varieties.
Madrid Malaga
Malmo Nice
Bordeaux
Breda
Imperia Kaprun
Tilburg Venlo
Verona
Odessa Oslo Porto San Remo
Door Linings
Solid Oak
Produced in-house from our Joinery Grade board stocks, Hewins Solid Oak Door Linings are supplied untrenched and planed all round, ready for final trimming to length on site. Available in single and double opening sets, door stop included.
Standard sizes are listed below. Bespoke sizes can be produced as required.
■ Grade
■ Set consisting
■ Supplied finish
Light character
Single | 2 x 2.1m, 1 x 1.0m
Double | 2 x 2.1m, 1 x 2.0m
Planed all round, unfinished
Sections (standard) (mm)
130 x 25
130 x 25
130 x 32
130 x 32 Double
£204.23
25 x 12 Doorstop Included
1.0 – 2.1m ■ Lengths

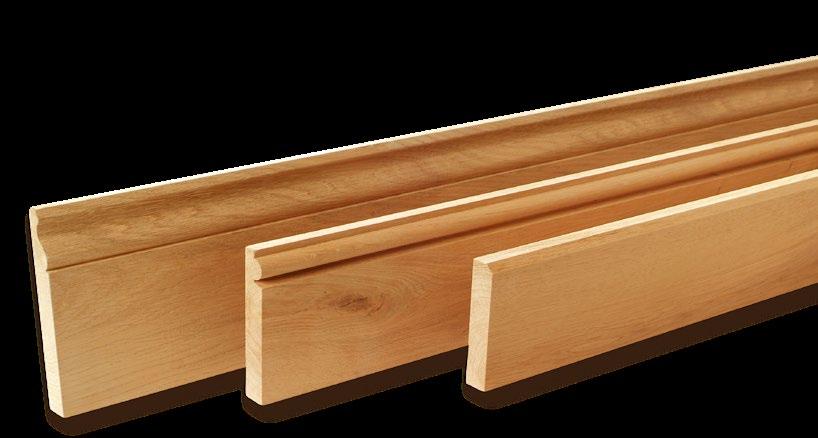

Skirting Boards
Solid Oak
Machined in-house from Joinery
Grade board stocks, Hewins solid oak
Skirting creates the solidarity and grandeur long associated with oak interiors. Traditional and contemporary profiles available as standard, bespoke profiles produced on request.
■ Grade
■ Supplied finish
Light character
Machined, unfinished
Ogee
Torus Chamfer
Bullnose Square
x 20

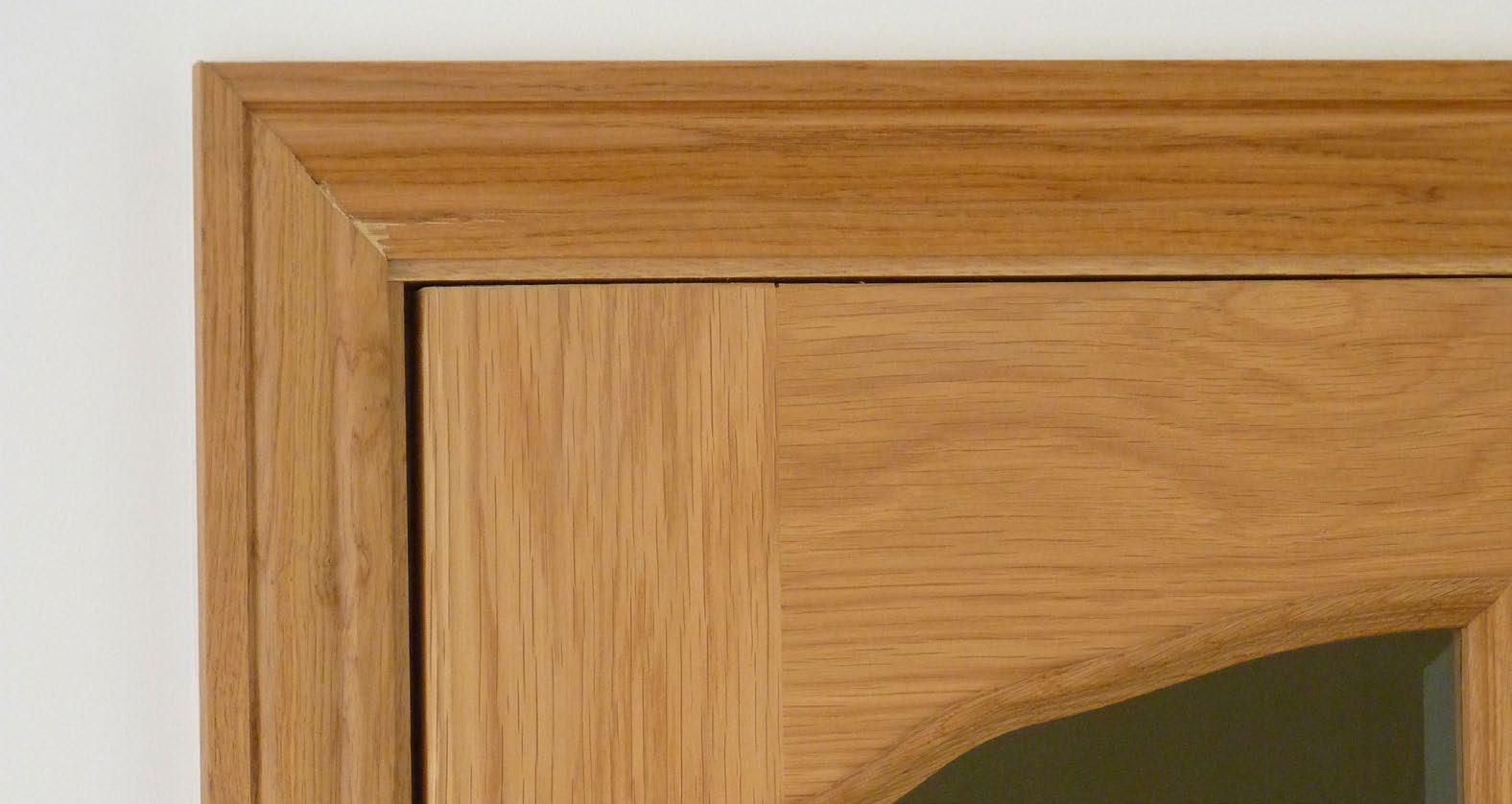

Architrave
Solid Oak
Machined in-house from Joinery
Grade board stocks, Hewins solid oak architrave creates the solidarity and grandeur long associated with oak interiors. Traditional and contemporary profiles available as standard, bespoke profiles produced on request.
Light character
Machined, unfinished ■ Grade ■ Supplied finish
Ogee Torus Chamfer
Bullnose Square
Sections (standard) (mm)
■ Lengths
£ per LM

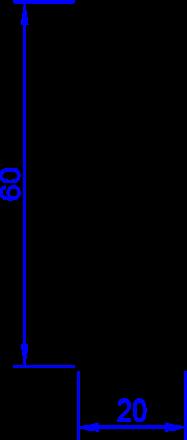

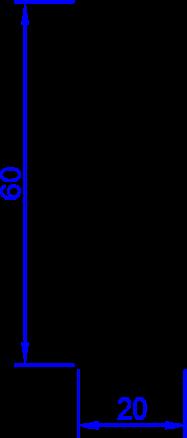

All profiles 60 x 20 £7.79

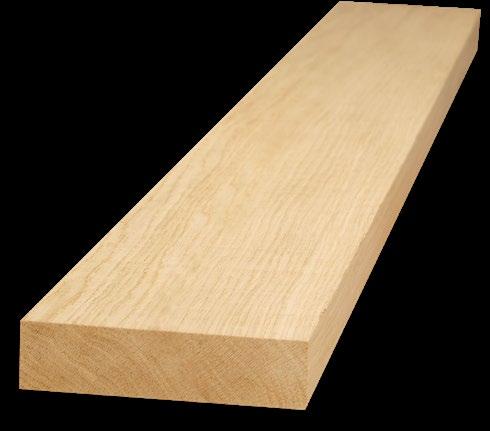

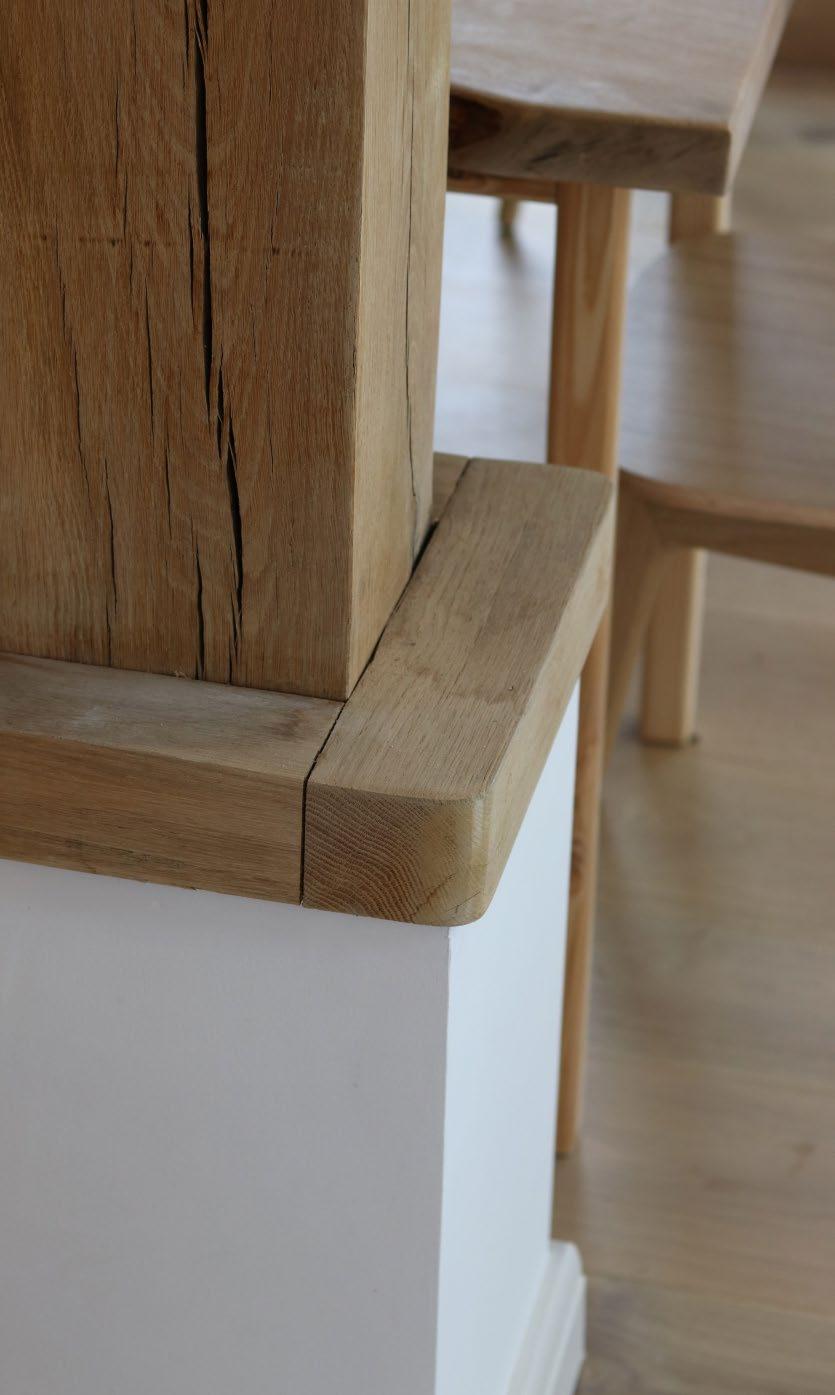

Window Boards
Solid Oak Interiors
Oak window boards are a pleasing finishing touch, adding timeless style and status.
Machined to a 25mm or 30mm thickness, they are available in either square or bullnose profile (to the front edge only) and are supplied slightly overlength for final trimming and finishing on site. Besides the standard sizes & profiles listed, we can produce to a custom size or moulding if required. We recommend joining two or more boards to create widths over 250mm to avoid cupping, particularly with thinner thicknesses.
■ Grade
■ Supplied finish
Rounded Edge
■ Standard profiles
Light character
Planed, moulded front edge, unfinished
Bull Nose / Rounded Edge / Square Edge
Bull Nose Square Edge
Rounded Edged / Bullnosed
■ Bespoke profiles available on request, contact us for a specific quote.
üFixing Tips Flooring
Solid & Engineered Flooring
■ Is the sub floor dry? - Rising moisture from the ground has to be stopped from reaching the flooring, otherwise the flooring will swell up and the installation could fail. Check that the subfloor has a damp proof membrane in it, and that the floor is dry enough. You can do this by testing the floor for its relative humidity (RH). This must not exceed 70% RH. If you are in any doubt, we recommend that you install an extra DPM, using Marldon Rapid DPM MXS140 (p. 152). If you are installing on to joists with an air gap below, ensure that the void under the floor is ventilated.
■ Allowing for movement - Wooden flooring is a natural product - it swells when it absorbs moisture, and shrinks when it dries out. For example, during summer time (when we open more doors and windows) flooring tends to increase its moisture content and swell slightly. During winter (when we close the windows and put the heating on) wooden flooring will tend to shrink slightly.
You must leave a gap of 12-15mm all the way around the flooring to allow for expansion. This needs to be at all points - around pipes, architraves and doorways etc. This gap is normally hidden under skirting boards or a trim.

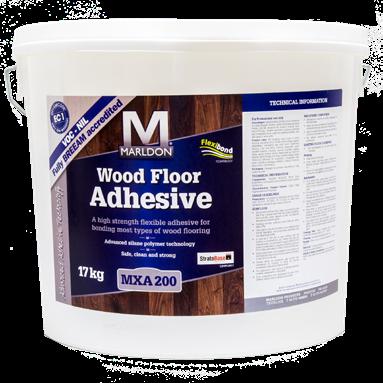

■ Fixing the flooring - When fixing the flooring to a concrete screed, we would recommend gluing the flooring with Marldon MXA200 Adhesive (p. 130). This is a flexible adhesive that allows for the natural movement of the flooring, and can be stuck directly to the Marldon Rapid DPM MXS140 (p. 152).
When fixing flooring to joists, traditional nailing is acceptable. You can purchase very narrow flooring screws which also hold the flooring well.
When fixing the flooring over underfloor heating, it is essential that the heating pipes are held away from the flooring, or 75mm inside the screed. The flooring must never exceed 23°c at any point. Always turn the heating on / off gradually each year, as this gives the flooring time to adjust to the change.
■ Finishing the flooring - There are two main finishes for flooring: oil and lacquer. Both have different features:-
Oil – soaks into the wood and gives a natural finish. However, it does leave the grain slightly open, which can collect dirt in walkways etc. If it is scratched, it is very easy to repair - simply wipe in some more oil.
Lacquer – This forms a layer on top of the floor, and gives a clean finish. It fills up the grain so it doesn’t get dirt in the grain. However, if it is scratched, it can be difficult to repair.
Check out our recommended adhesives & finishes on pages 152 - 157.
Joinery
Planks, boards & sawn sections
Sawn To Size
Sawn to Size Air Dried Oak
Prime & Joinery Grade
Proven to bring real efficiency and labour savings to your joinery process, our Sawn to Size product is designed to make producing oak joinery predictable and streamlined. Selected from our extensive board stocks and cut directly to your final sawn sizes, our experienced team check each piece for quality and straightness at each stage, finally marking it up with the dimensions/your coding for easy reference.
Seasoned naturally to achieve a moisture content relative to the outdoor environment, Air Dried is well suited to external applications such as gates, exposed external doors and balustrades. Due to the controlled and gradual seasoning process, air dried boards can be produced in Prime Grade up to 120mm thick, providing unrivalled quality for larger sections.
■ Moisture content
■ Supplied finish
■ Density
18 - 100mm | 18 - 25%
120mm | 23 - 28%
Sawn
800kg/m³
Available in Prime Grade or Joinery Grade, the timber arrives at your workshop quality assured and ready for final preparation – ensuring a premium product and delivering significant time/labour savings.
■ Grade overview -
Prime Grade: Clear, straight grained sections, generally consistent in colour. European grade QF1A/B. Air dried timber may contain slight splitting across the timber surfaces as a result of the natural seasoning process. This is not considered a defect.
Joinery Grade: Largely clear and straight grain cuttings, including some knots, shakes and imperfections in part of each piece. European grade QF2/3. Air dried timber may contain light splitting across the surfaces as a result of the natural seasoning process. This is not considered a defect.
Turn the page for prices... A much quicker way of pricing up your cutting list!
Joinery
27mm Sawn to Size Air Dried Oak
■ Size not listed? Use the nearest larger section or call us for a specific price.
Sawn to Size Air Dried Oak 34mm
Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
41mm Sawn to Size Air Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
Sawn to Size Air Dried Oak 54mm
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
65mm Sawn to Size Air Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
Sawn to Size Air Dried Oak 80mm
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
100mm Sawn to Size Air Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
Sawn to Size Air Dried Oak 120mm
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
Sawn to Size Kiln Dried Oak
Prime & Joinery Grade
Proven to bring real efficiency and labour savings to your joinery process, our Sawn to Size product is designed to make producing oak joinery predictable and streamlined. Selected from our extensive board stocks and cut directly to your final sawn sizes, our experienced team check each piece for quality and straightness at each stage, finally marking it up with the dimensions/your coding for easy reference.
Fully seasoned and kilned to achieve a moisture content relative to the indoor environment, Kiln Dried is the correct choice for all interior joinery. Our Prime Grade production is regarded as a benchmark for high quality joinery manufacture, providing clear, straight grained cuttings with minimal defects.
■ Moisture content
■ Supplied finish
■ Density
13% average
700kg/m 3 Sawn
Available in Prime Grade or Joinery Grade, the timber arrives at your workshop quality assured and ready for final preparation – ensuring a premium product and delivering significant time/labour savings.
■ Grade overview -
Prime Grade: Clear, straight grained sections, generally consistent in colour. European grade QF1A/B.
Joinery Grade: Largely clear and straight grain cuttings, including some knots, shakes and imperfections in part of each piece. European grade QF2/3.
Turn the page for prices...
A much quicker way of pricing up your cutting list!
Joinery
27mm Sawn to Size Kiln Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
Sawn to Size Kiln Dried Oak 34mm
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
Joinery
41mm Sawn to Size Kiln Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger
or call
Prime Grade
Sawn to Size Kiln Dried Oak 54mm
Joinery Grade
■ Size not listed? Use the
Joinery
65mm Sawn to Size Kiln Dried Oak
Prime Grade
■ Size not listed? Use the nearest larger
or
Joinery Grade
Prime Grade
Sawn to Size Kiln Dried Oak 80mm
Joinery Grade
Joinery
100mm Sawn to Size Kiln Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.

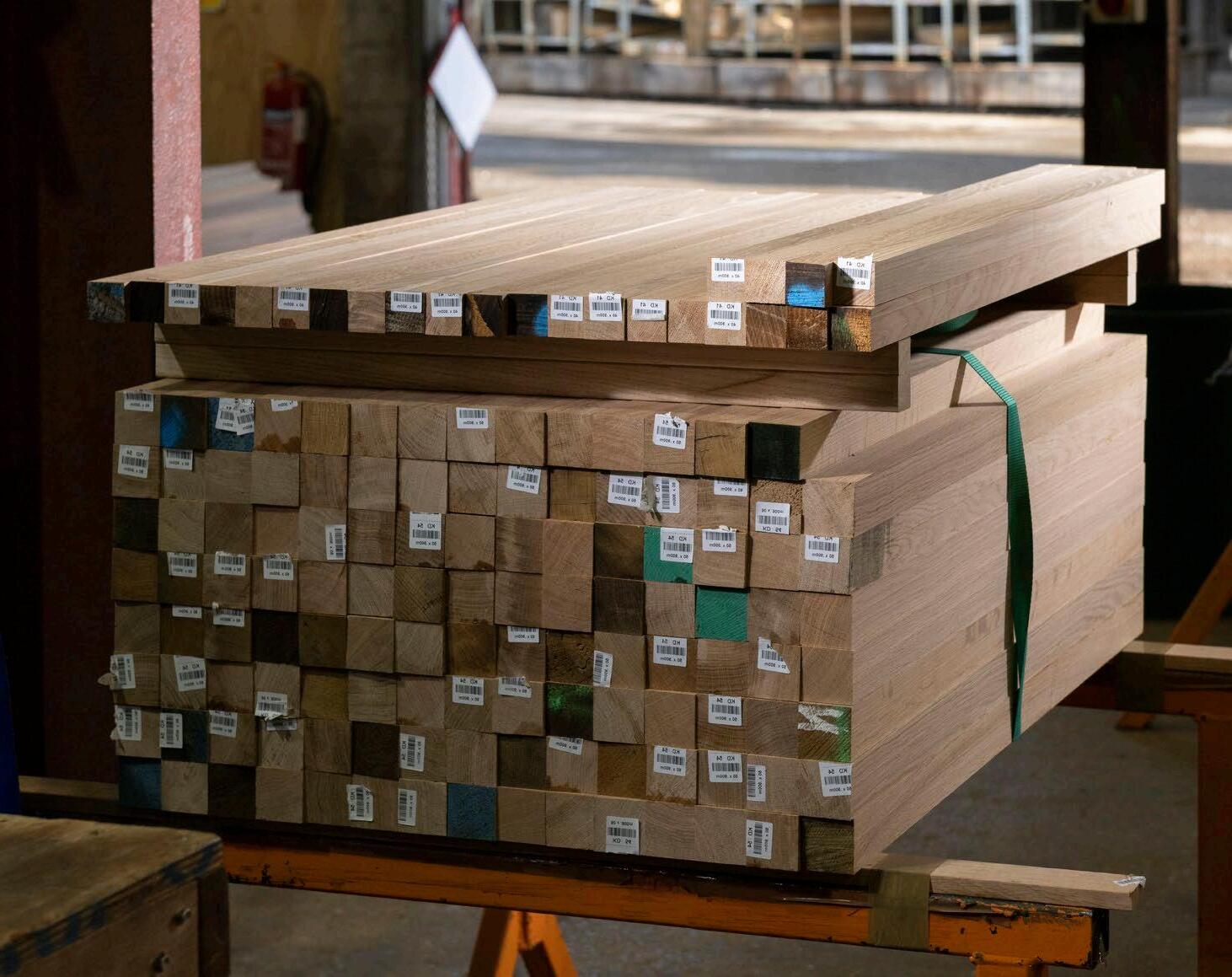

How
much time do you spend sorting and sawing timber?

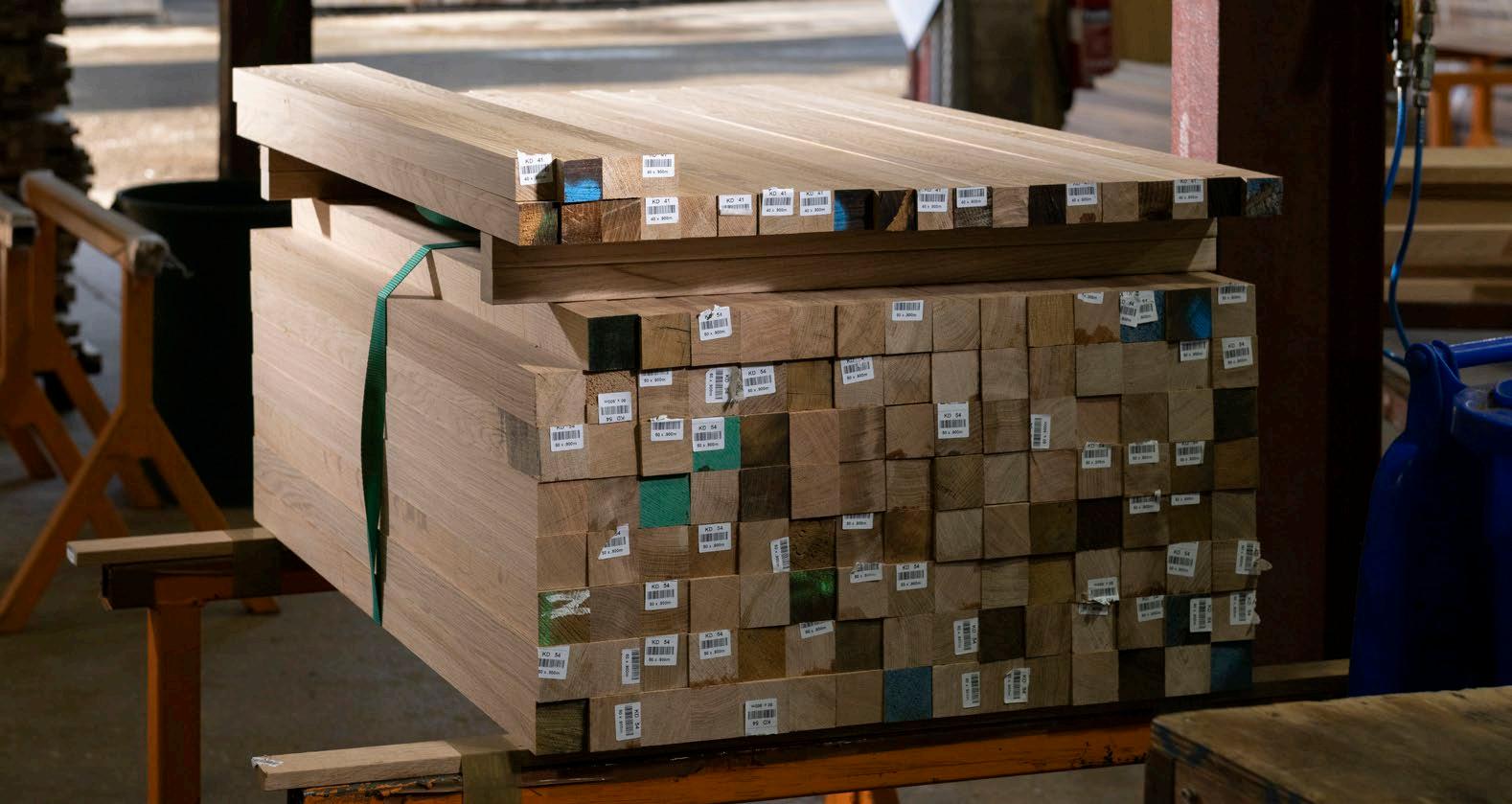

Hewins Sawn To Size oak...
...is pre-cut to your nominal sizes to eliminate your time spent sawing.
...is individually labelled to your cutting list to save you time sorting.
...arrives ready for planing so you can start work immediately.
...is double checked in production to give you quality assurance.
Keep your joiners joining, whist you increase your sales profitability!and
Planed All Round Air Dried Oak
Prime & Joinery Grade
Proven to bring real efficiency and labour savings to your joinery process, our PAR product is selected from our extensive stocks of Air Dried boards, then cut and carefully machined to your finished sizes.
Our experienced team check each piece for quality, straightness and finish as it is produced. The timber arrives at your workshop quality assured and ready to go - ensuring a premium product and significant time and labour savings.
■ Moisture content
18 - 100mm: 18 - 25%
120mm: 23 - 28%
■ Supplied finish
■ Density
Planed
800kg/m 3
Key features:-
• Perfect for exterior boarding, corner cladding, cover strips, external detailing and more!
• Supplied with a planed finish ready for oiling/lacquering. Final cross cutting and sanding/preparation may be required on site
• Minimal and easy handling, increasing your safe working methods
• Saves you a whole process - your oak arrives planed and ready for final preparation and installation
• All produced in our inhouse machining centre, giving you a qualityassured product
■ Grade overview
Prime Grade: Clear, straight grained sections, generally consistent in colour. European grade QF1A/B.
Joinery Grade: Largely clear and straight grain cuttings, including some knots, shakes and imperfections in part of each piece. European grade QF2.
Turn the page for prices...
A much quicker way of pricing up your cutting list!
Joinery
15-21mm Planed All Round Air Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
Planed All Round Air Dried Oak 22-27mm
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
28-34mm Planed All Round Air Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
Planed All Round Air Dried Oak 35-40mm
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
46-57mm Planed All Round Air Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
Planed All Round Air Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest
or call
73-92mm Planed All Round Air Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
Planed All Round Air Dried Oak 93-110mm
Prime Grade Joinery Grade
■ Size not listed? Use the nearest
Planed All Round
Kiln Dried Oak
Prime & Joinery Grade
Proven to bring real efficiency and labour savings to your joinery process, our PAR product is selected from our extensive stocks of Kiln Dried boards, then cut and carefully machined to your finished sizes.
Our experienced team check each piece for quality, straightness and finish as it is produced. The timber arrives at your workshop quality assured and ready to go - ensuring a premium product and significant time and labour savings.
Key features:-
• Perfect for shelves, window linings, panelling, cover strips, internal detailing and more!
• Supplied with a planed finish ready for oiling/lacquering. Final cross cutting and sanding/preparation may be required on site
• Minimal and easy handling, increasing your safe working methods
• Saves you a whole process - your oak arrives planed and ready for final preparation and installation
• All produced in our inhouse machining centre, giving you a qualityassured product
■ Grade overview
Prime Grade: Clear, straight grained sections, generally consistent in colour. European grade QF1A/B.
Joinery Grade: Largely clear and straight grain cuttings, including some knots, shakes and imperfections in part of each piece. European grade QF2.
Turn the page for prices...
A much quicker way of pricing up your cutting list!
15-21mm Planed All Round Kiln Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
Prime Grade
Planed All Round Kiln Dried Oak 22-27mm
Joinery Grade
■ Size not listed? Use the nearest larger
or call
28-34mm Planed All Round Kiln Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
Round
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call
for a specific
Joinery
46-57mm Planed All Round Kiln Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.
Planed All Round Kiln Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest
or call
73-92mm Planed All Round Kiln Dried Oak
Prime Grade Joinery Grade
■ Size not listed? Use the nearest larger section or call us for a specific price.

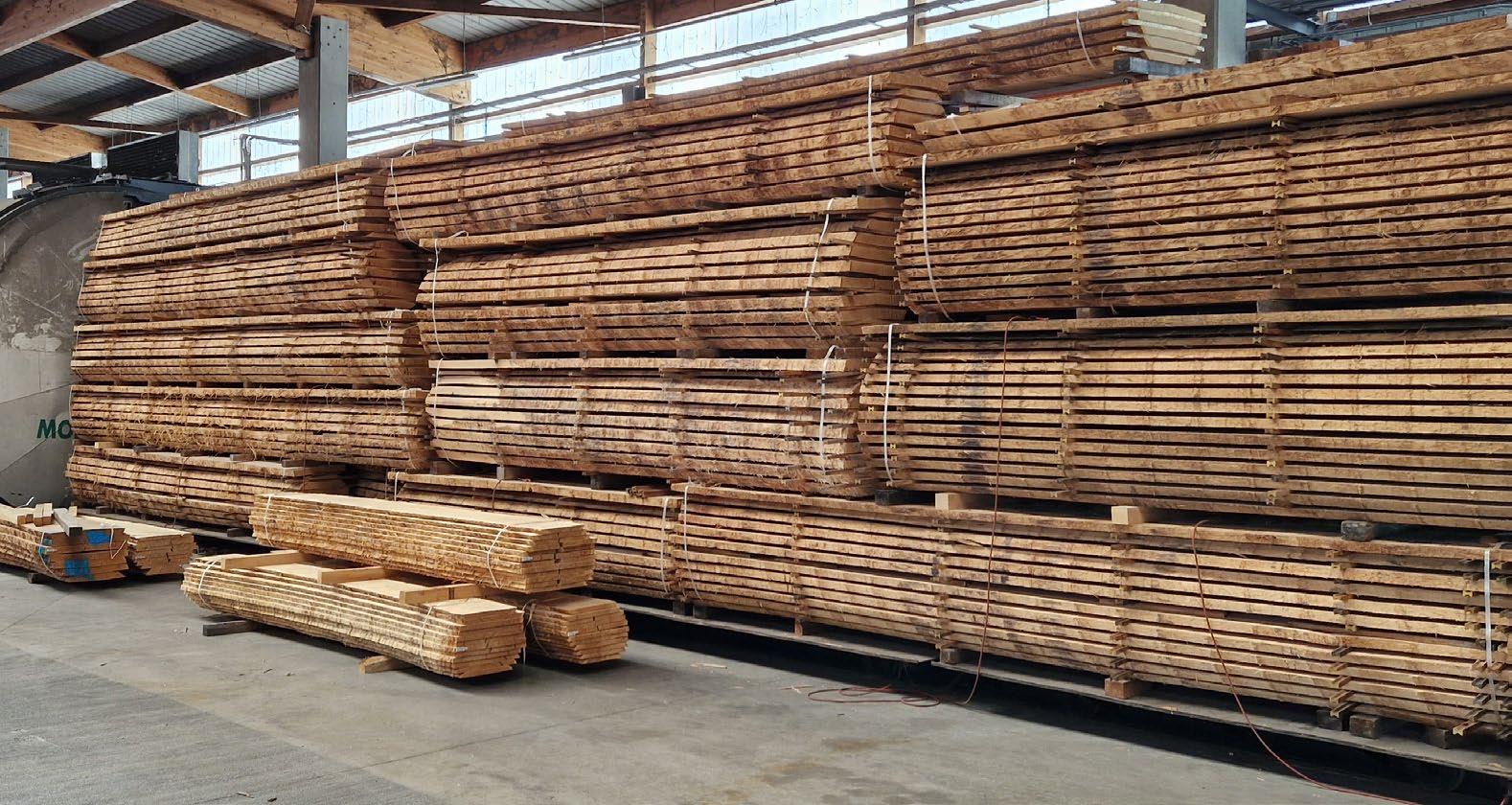

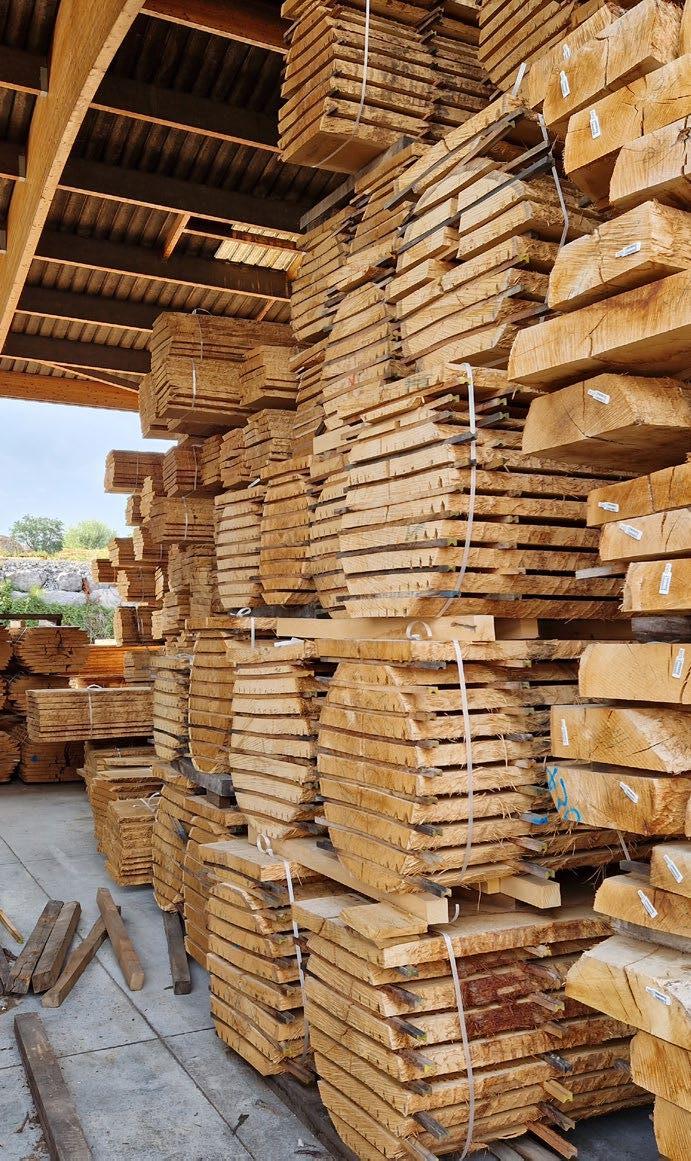

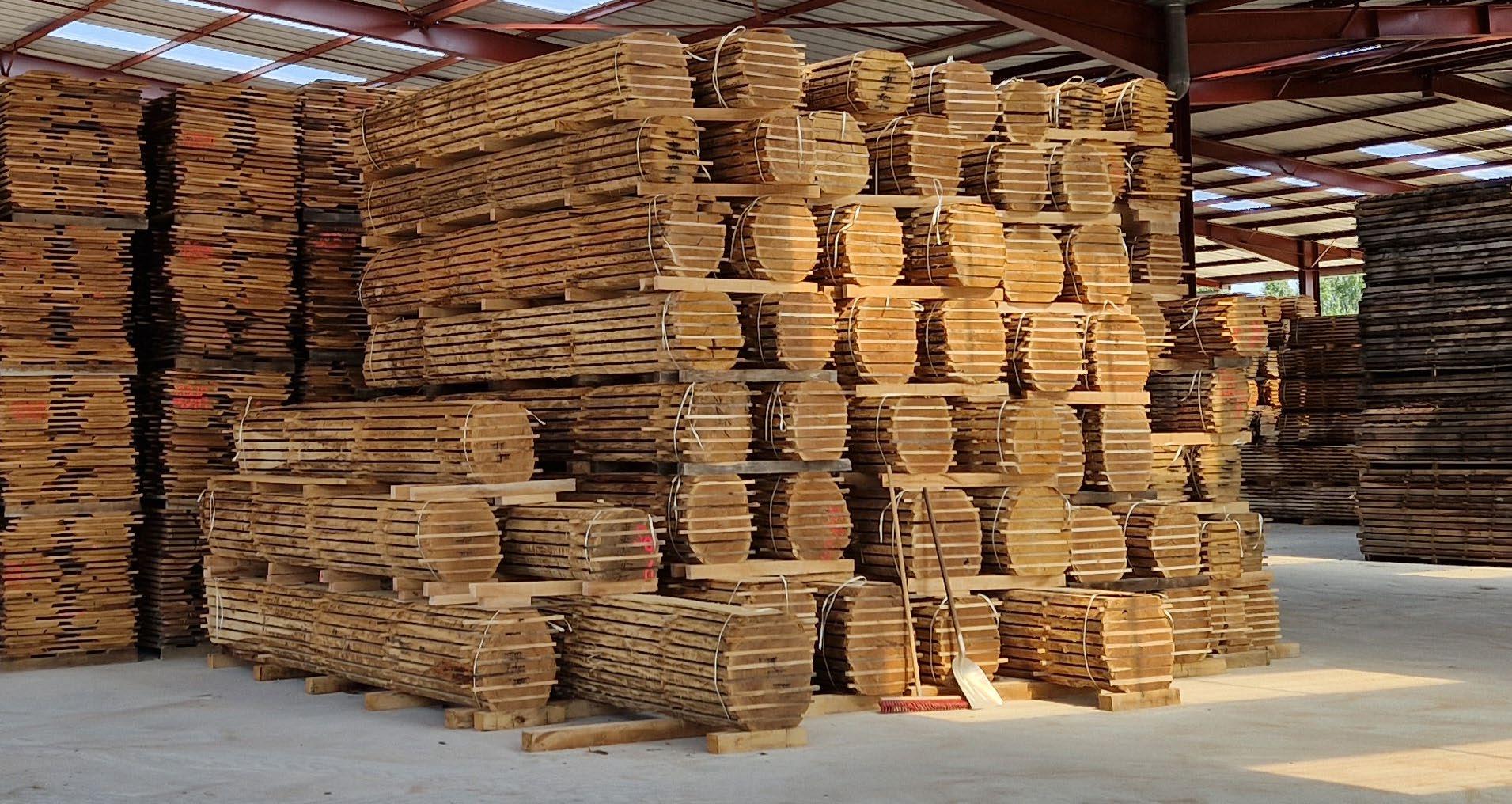

Waney Edge Boards
Waney Edge Boards
Air Dried Oak
Prime Grade
Seasoned naturally to achieve a moisture content relative to the outdoor environment, Air Dried is well suited to external applications such as gates, exposed external doors and balustrades. Due to the controlled and gradual seasoning process, air dried boards can be produced in Prime Grade up to 120mm thick, providing unrivalled quality for larger sections.
■ Grade overview - Provides cuttings 3 to 4 sides clear and generally consistent in colour. European grade QB1/A. Air dried timber may contain slight splitting across the timber surfaces as a result of the natural seasoning process. This is not considered a defect.
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
18 - 100mm | 18 - 25%
120mm | 23 - 28%
We recommend 18 - 100mm | 100%
120mm | 150%
Sawn
800kg/m³
■ Wide board requirements (200mm+) may command a higher price, relative to overall order. Contact our sales team for a specific quote.
What is your time really worth?
Turn back to page 98 to see how you can benefit from our Sawn to Size service.
Waney Edge Boards
Air Dried Oak
Joinery Grade
Seasoned naturally to achieve a moisture content relative to the outdoor environment, Air Dried is well suited to external applications such as gates, exposed external doors and balustrades. Joinery Grade provides an alternative to Prime Grade where light character features are desired or smaller components are being cut, therefore defects can easily be worked around.
■ Grade overview - Largely clear and straight grain cuttings, including some knots, shakes and sap in part of each board. European grade QB1/2. Air dried timber may contain light splitting across the surfaces as a result of the natural seasoning process. This is not considered a defect.
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
18 - 100mm | 18 - 25%
120mm | 23 - 28%
We recommend 18 - 100mm | 100% 120/150mm | 150%
Sawn
800kg/m³
■ Wide board requirements (200mm+) may command a higher price, relative to overall order. Contact our sales team for a specific quote.
Don’t like handling waney edge? Contact our sales team for a quote Sawn to Size.
Waney Edge Boards
Kiln Dried Oak
Prime Grade
Fully seasoned and kilned to achieve a moisture content relative to the indoor environment, Kiln Dried is the correct choice for all interior joinery. Our Prime Grade production is regarded as a benchmark for high quality joinery manufacture, providing clear, straight grained cuttings with minimal defects. Waney edge boards allow great scope for varied or particularly demanding cuttings such as wide stair components.
■ Grade overview - Provides cuttings 3 to 4 sides clear and generally consistent in colour. European grade QB1/A.
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
13% average
We recommend 100%
Rough sawn
700kg/m 3
■ Wide board requirements (200mm+) may command a higher price, relative to overall order. Contact our sales team for a specific quote.
What is your time really worth?
Turn back to page 98 to see how you can benefit from our Sawn to Size service.
Waney Edge Boards
Kiln Dried Oak
Joinery Grade
Fully seasoned and kilned to achieve a moisture content relative to the indoor environment, Kiln Dried is the correct choice for all interior joinery. Joinery Grade provides an alternative to Prime Grade where light character features are desired or smaller components are being cut, therefore defects can easily be worked around. Waney edge boards allow great scope for varied or particularly demanding cuttings such as wide stair components.
■ Grade overview - Largely clear and straight grain cuttings, including some knots, shakes and sap in part of each board. European grade QB1/2.
■ Moisture content
■ Wastage allowance
■ Supplied finish
■ Density
13% average
We recommend 100%
Rough sawn
700kg/m 3
■ Wide board requirements (200mm+) may command a higher price, relative to overall order. Contact our sales team for a specific quote.
What is your time really worth?
Turn back to page 98 to see how you can benefit from our Sawn to Size service.
Fixings & finishes
Adhesives, oils & lacquers
Fixings & finishes
Fixings
Fresh Sawn Framing Pegs
Tapered Pellets
Carpenters Mate Finishing Screws
Subfloor & adhesives
Marldon Smoothing Compound
Marldon Universal Primer
Marldon Rapid DPM
ProVent Underlay
Timbermate Excel Silver Underlay
Marldon Adhesive Trowelled
Marldon Adhesive Sausage
Marldon Notched Trowel 4mm
Finishes & Maintenance
Osmo Polyx Oil
Framing Pegs Fresh Sawn Oak
The essential item that tightens and locks the joints of an oak frame together. Oak Framing Pegs are produced by hand using traditional methods to ensure that the pegs follow the grain of oak providing maximum strength for use when drawing joints. Available from stock 250 x 19mm dowelled, or 275 x 19mm long drawn pegs. Other sizes can be produced to order. Pegs come in packs of 10.
May be subject to a courier delivery charge, depending on volume/location. Diameter
Fixings & finishes
Tapered Pellets
Oak
Tapered European Oak Pellets are the ideal fixing for the surface concealment of screw and bolt heads. They guarantee a tight fit due to precision turned taper and eliminates the black glue line produced when using straight plugs. These pellets also save you time and money: they are supplied as singles rather than multiples on a stick.
May be subject to a courier delivery charge, depending on volume/location.
Carpenters Mate Finishing Screws
Carpenters Mate premium quality No. 7 gauge stainless steel screw, manufactured from 316 grade of stainless steel which has an increased resistance to corrosion. Incorporating the all positive No. 2 square drive, the head of the screw with a 6mm head diameter ensures as near invisible fastening as possible! No. 2 Square Drive. 1 free drive tool with every pack.
May be subject to a courier delivery charge, depending on volume/location.
Looking for a different fixing?
We recommend Carpenters Mate products. Contact us to find out what is best for your oak project.
Marldon Subfloor Preparation
Product Coverage Size £ each
Smoothing Compound - MXS110 5m²/ea 25kg bag
Universal Primer - MXS120 8m²/ltr 5.0 Ltr
Rapid DPM MXS140 12.5m²/4 ltr 4.0 ltr 2prt
May be subject to a courier delivery charge, depending on volume/location.
Flooring underlay & adhesive
Product Coverage Size £ each
ProVent Underlay 15m² roll -
Timbermate Excel Silver Underlay 15m² roll -
Marldon MXA200 Adhesive, Trowelled 1-1.2m²/kg 17kg tub
May be subject to a courier delivery charge, depending on volume/location.
Osmo Polyx®
Hard Wax Oil

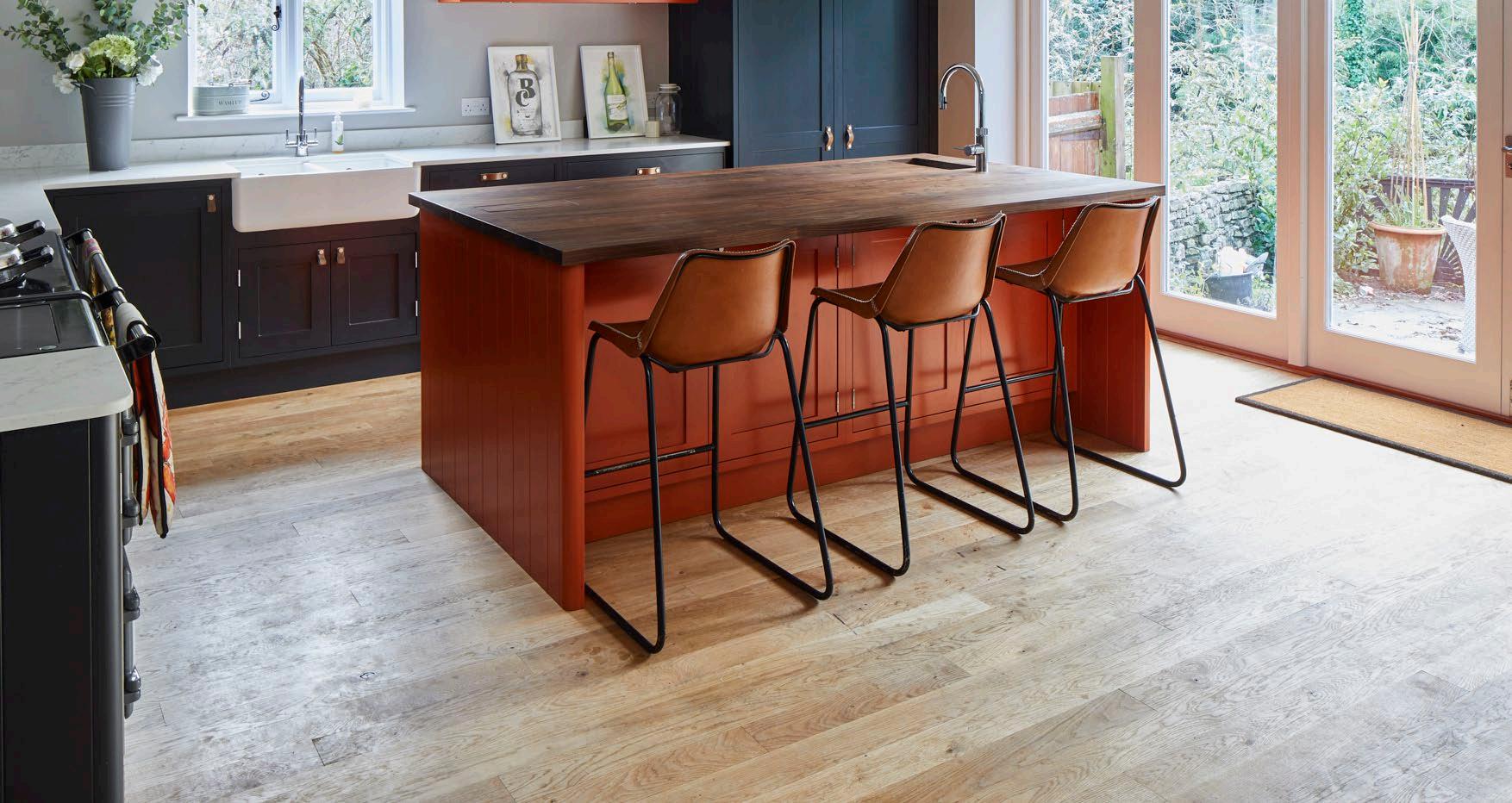

Osmo Polyx Oil is developed from natural oils and waxes to provide excellent durable and hardwearing protection for interior wooden flooring and furniture. Its microporous, breathable properties makes it resistant to common spillages and dirt. It does not crack, flake, peel or blister. This oil will enhance the grain in the wood and emphasise its natural features - giving a warm and rich appearance when applied. Available in clear Satin or Matt and also in Raw option which gives a lighter tone.
■ Colour
■ Coverage
■ Requirement
■ Maintenance
Clear satin or matt, or Raw for a lighter tone
Approx. 24m²/litre, per coat
2 coats on new timber
1 coat, dry, no sanding required
2.5L Satin/Matt
May be subject to a courier delivery charge, depending on volume/location.
Fixings & finishes
Osmo

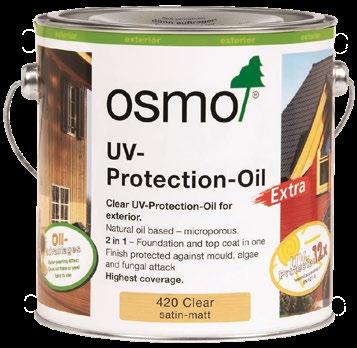

UV Protection Oil
A very popular oil for joinery and other exterior uses. Likened to putting sun cream onto timber, it is designed to protect the timber from UV - therefore limiting the silvering effect caused by direct sunlight. Produced from natural oils in a clear satin-matt finish, it is micro-porous and does not crack, flake, peel or blister. This product can be used on fresh sawn oak to maintain the original golden colour, providing it is used correctly and regularly re-coated.
■ Colour
■ Coverage
■ Requirement
■ Maintenance
Clear satin-matt finish
Approx. 18m²/litre, per coat
2 coats on new timber
1 coat, dry, no sanding required
May be subject to a courier delivery charge, depending on volume/location.
Owatrol Deks Olje
D1 Saturating Oil
Deks Olje D1 is a saturating wood oil which drives out any moisture and air present in the wood and fills the pores. It will enrich and stabilise the Oak to provide long lasting protection in internal & external applications. Deks Olje D1 does not form a film on the timber but protects it from within and so it will not peel or crack but gives a clear matt finish and is easy to maintain. It is designed for use on yachts, even below the waterline.
■ Colour
■ Coverage
■ Requirement
■ Maintenance
Clear satin-matt finish
1-4m²/litre, per coat
Enough coats to saturate the timber
1 coat, dry, no sanding required
May be subject to a courier delivery charge, depending on volume/location.
Fixings & finishes
PureKleen Surface Cleaner
PureKleen is a high-performance renovating cleaner used to remove organic and microbiological growth contaminants from porous surfaces without the need for excessive scrubbing or pressure wash. Supplied in a light gel, it is designed to both clean and provide ongoing protection from moss, lichen and algae, and does not contain solvents, acids or caustic soda so is very environmentally friendly. We offer 2 variations of PureKleen as below.
PureKleen-BG - designed for hard ground surfaces such as natural stone, cement, tarmac, brick, terracotta etc. It is ideal for cleaning ground hardscapes before or after fixing oak cladding/features and is also very effective in removing tannin stains from paved areas and such like.
PureKleen-BF - formulated to treat timber surfaces, restoring them to close to their original colour. We recommend once the timber surfaces have been treated they are then sealed with Purewood to maximise protection and preserve the colour.
■ Coverage
Heavy soiling 3m²/litre, light soiling 5m²/litre Depends on porosity of substrate
May be subject to a courier delivery charge, depending on volume/location.

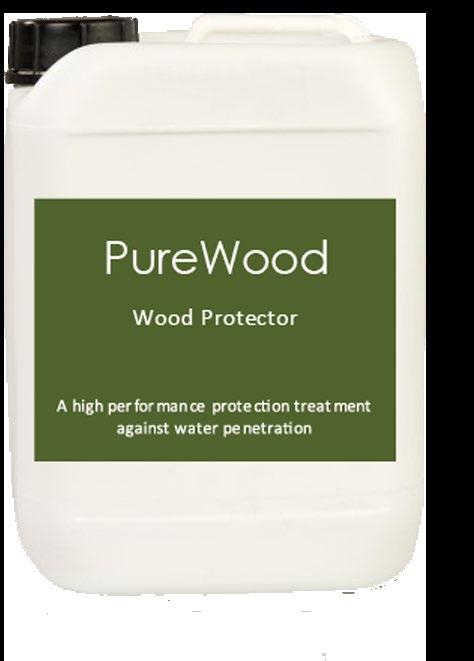

PureWood Protective Finish
PureWood is a high performance, water based and solvent free wood protection solution for use on all types of both untreated and restored timber, including teak, pine, oak and exotic hardwoods. Its exceptional resistance to all weather conditions, including UV radiation makes it ideal for external applications such as cladding, decking, gates and garden furniture. It is also suitable for interior wood surfaces, protecting against stains and making them easier to clean. Composed of a resin blend using the foremost nanotechnology. Rather than a film forming coating, this is a protection and decoration product, penetrating the surface fibres rendering them water repellent and stain resistant, without affecting surface texture or aesthetics.
■ Colour
■ Coverage
■ Maintenance
Oak
Approx. 6-10m²/litre, depends on porosity of substrate
2 coats, 'wet-on-dry'
May be subject to a courier delivery charge, depending on volume/location. Size £
Light
Our Service
Location & delivery service
Where we are

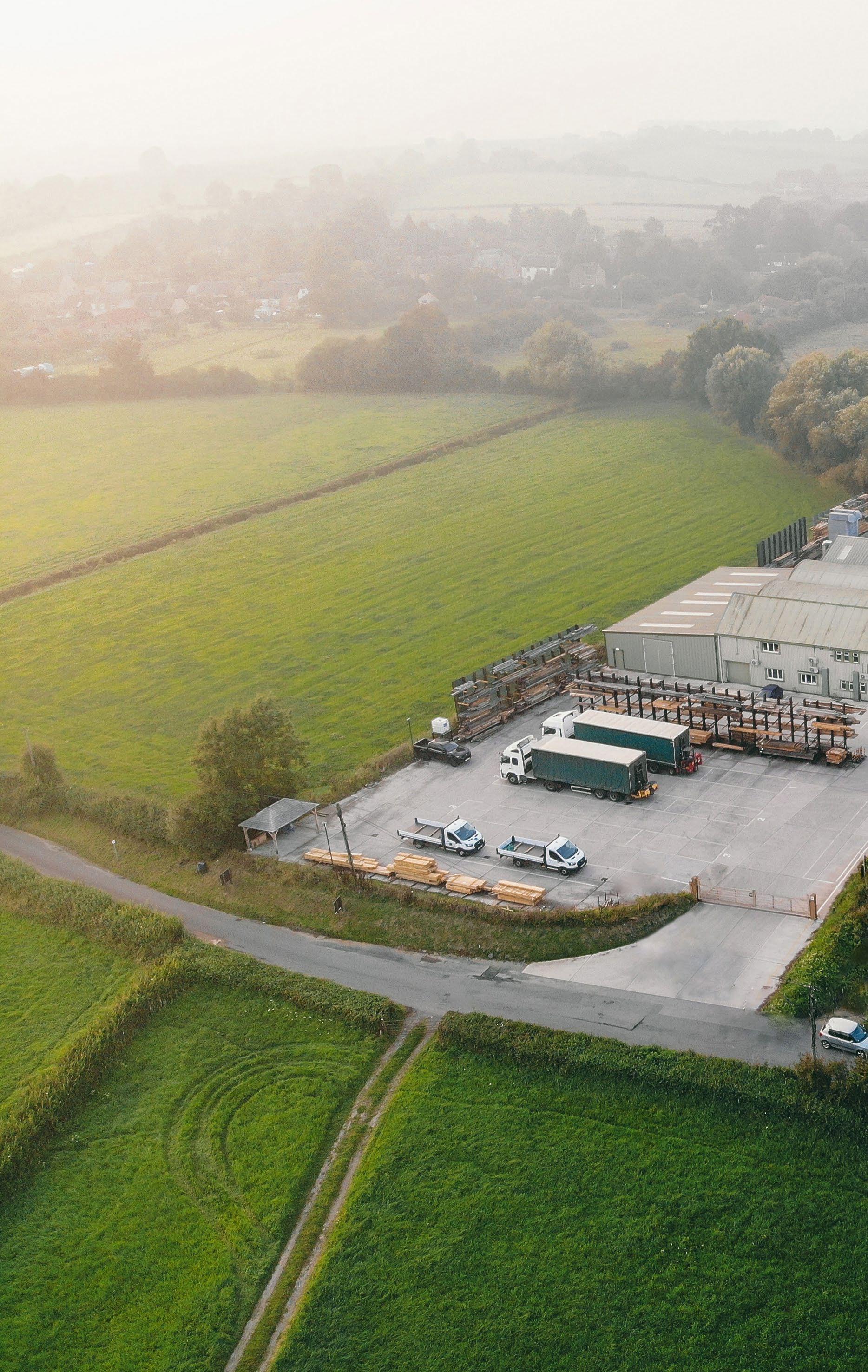

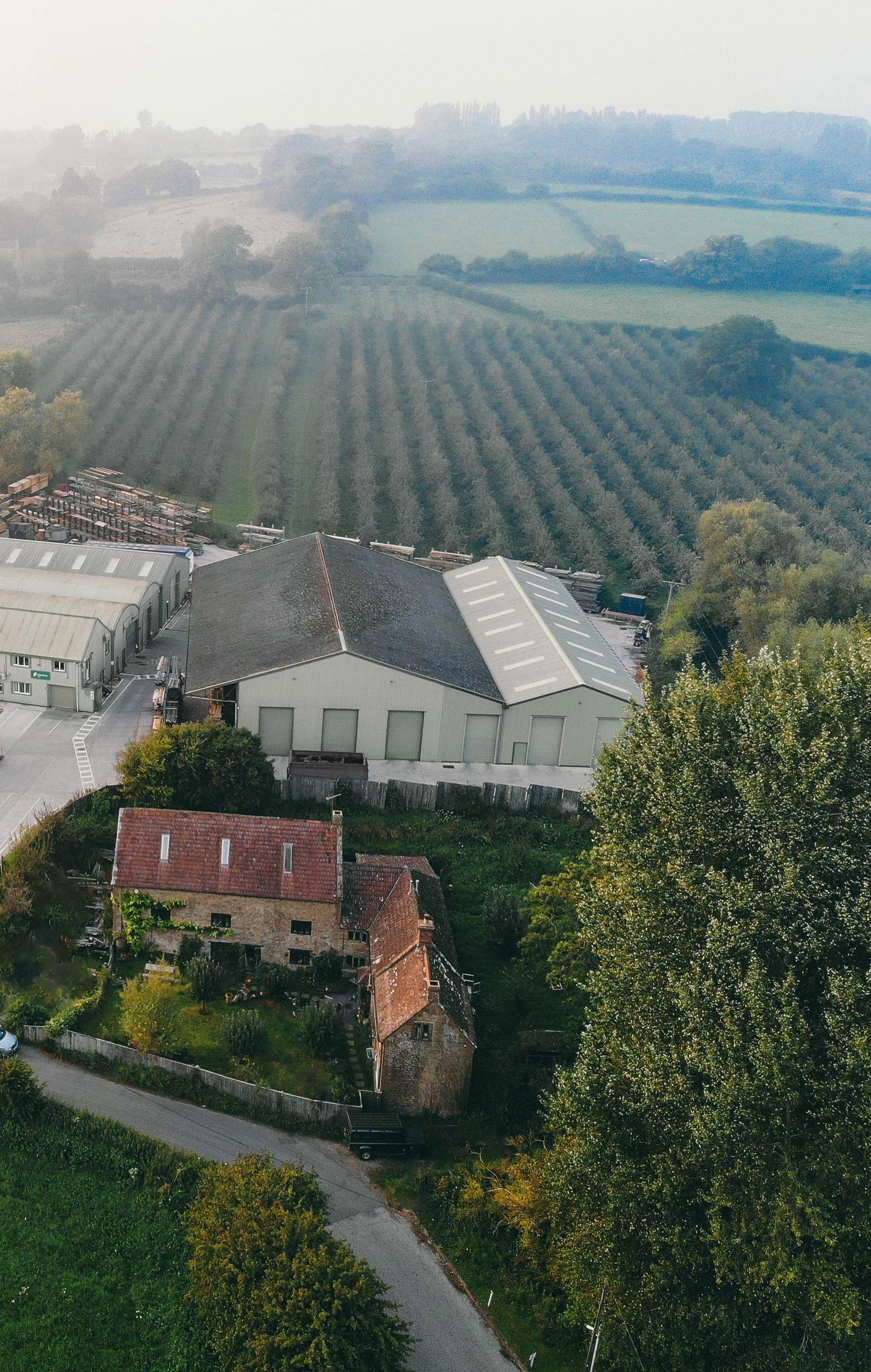

Surrounded by acres of farmland and orchards, we're located in the village of Lopen, Somerset.
Our offices, mills and warehouses are all based at this address, where collections can be made with prior arrangement.
Our sales team will advise you of the earliest collection date possible, and you will receive a call to let you know when your order is ready for collection. With a busy production facility and your safety as our priority, we are not able to offer self-selection or collections without prior ordering.
Our delivery service
Our delivery vehicles serve a broad area on a regular basis. At order stage we can advise the earliest possible delivery date and our despatch team will contact you to confirm delivery 1 working day before it is planned. Our lead times are usually:
■ 2 - 4 days on selected orders
■ 3 - 7 days on sawn to size orders
■ 10 - 15 days on fresh sawn / seasoned beam orders
■ 5 - 15 days on machined orders

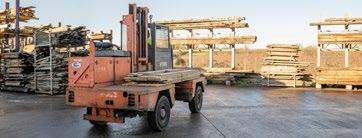

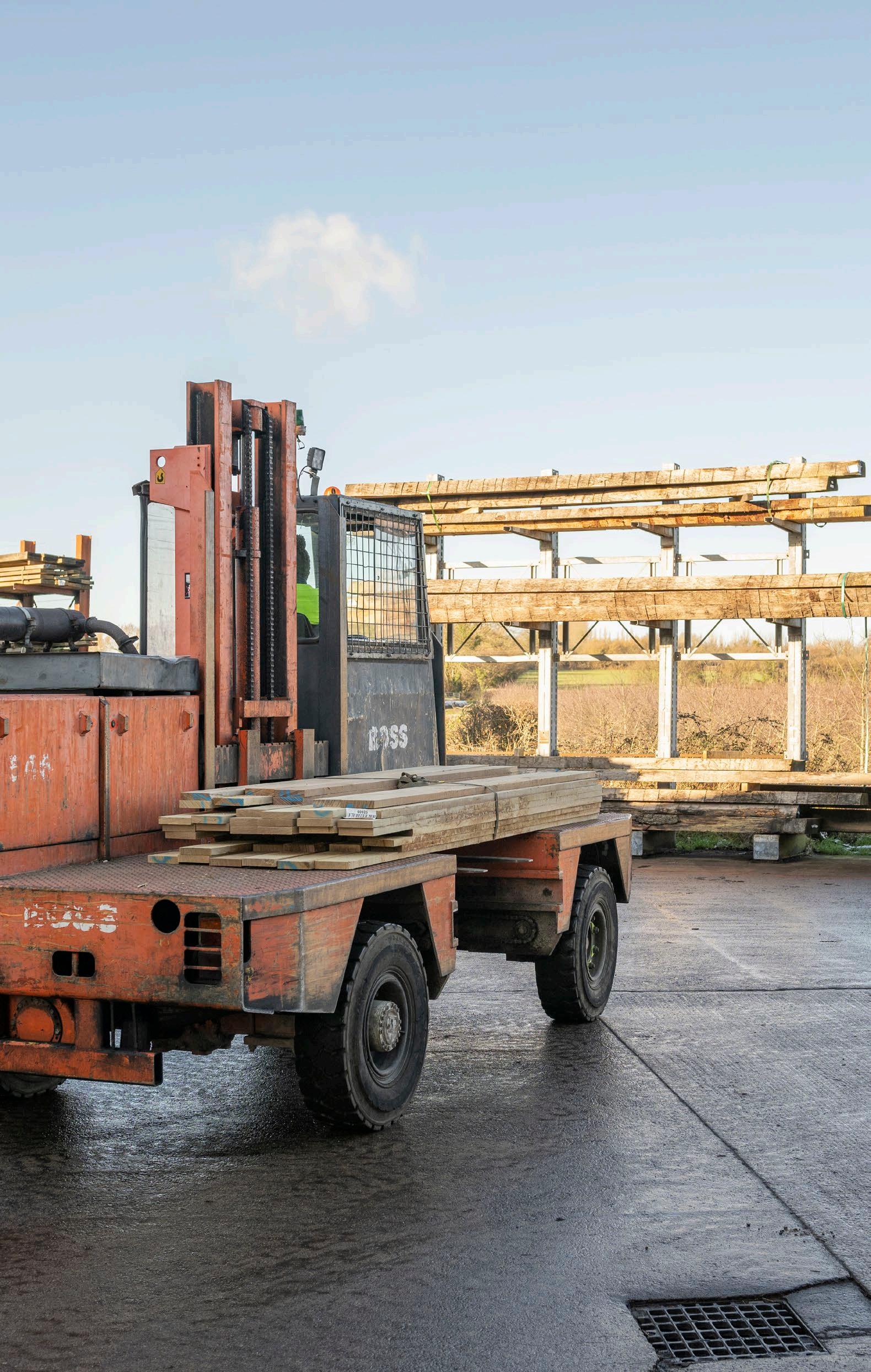

We have various vehicle options for hard to reach locations and can also offer forklift unload to hardstanding if required.
