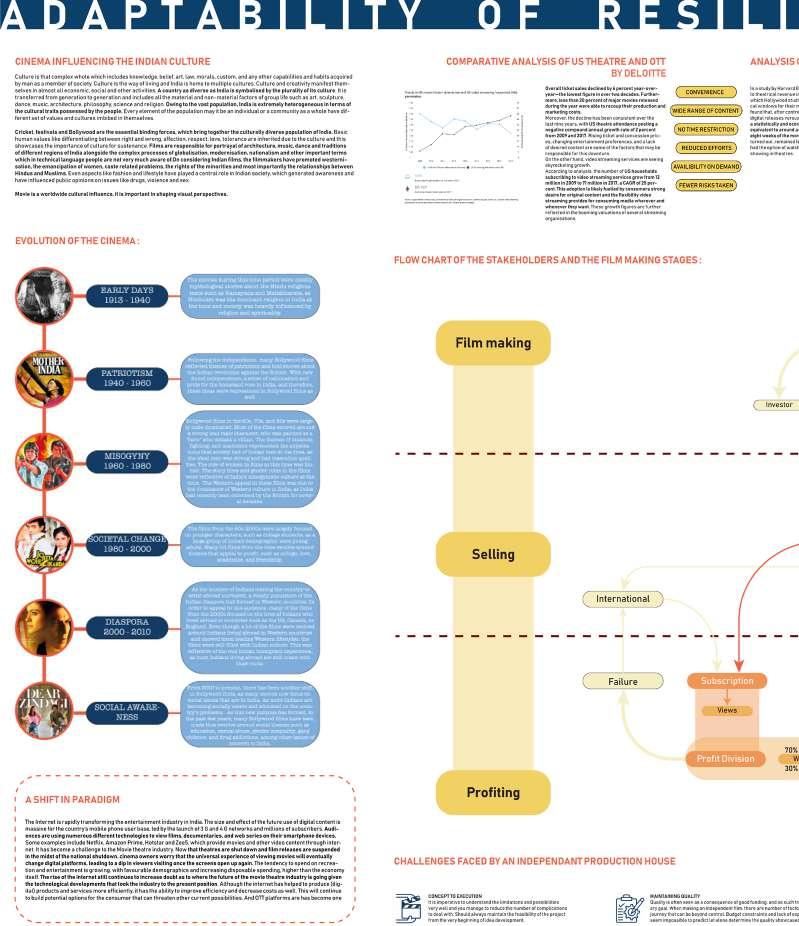

Design Dissertation Redefining cinema theatres

Community Housing A socio - economic urban village

A Social Hub Innovative hacks for public use

Emergence Installation for design workshop

Working Drawings Compilation of technical drawings

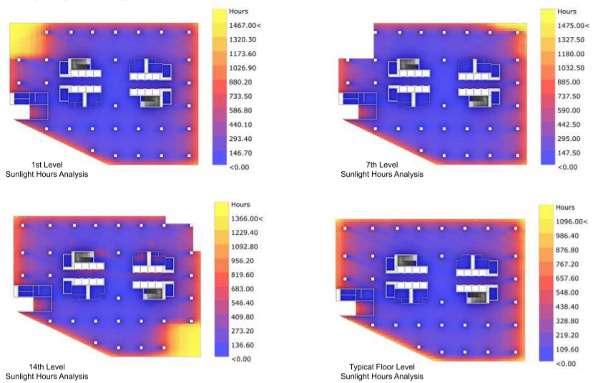

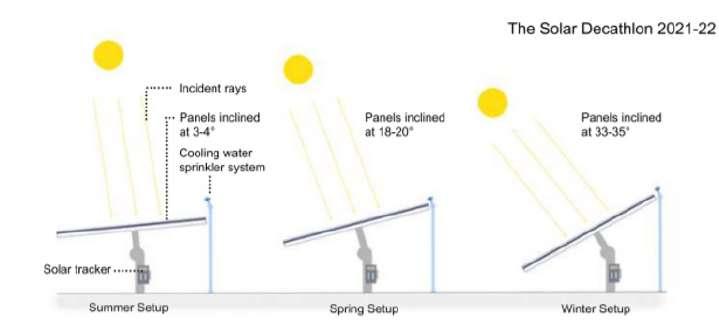

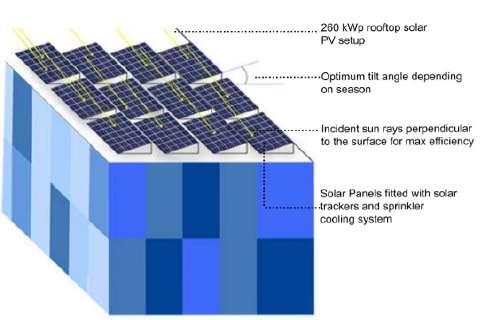

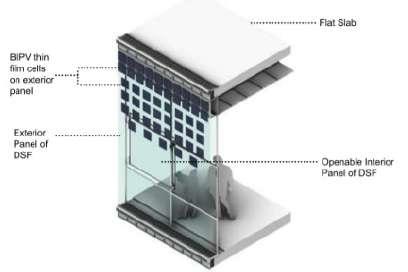

Solar Decathlon Sustainable development competition

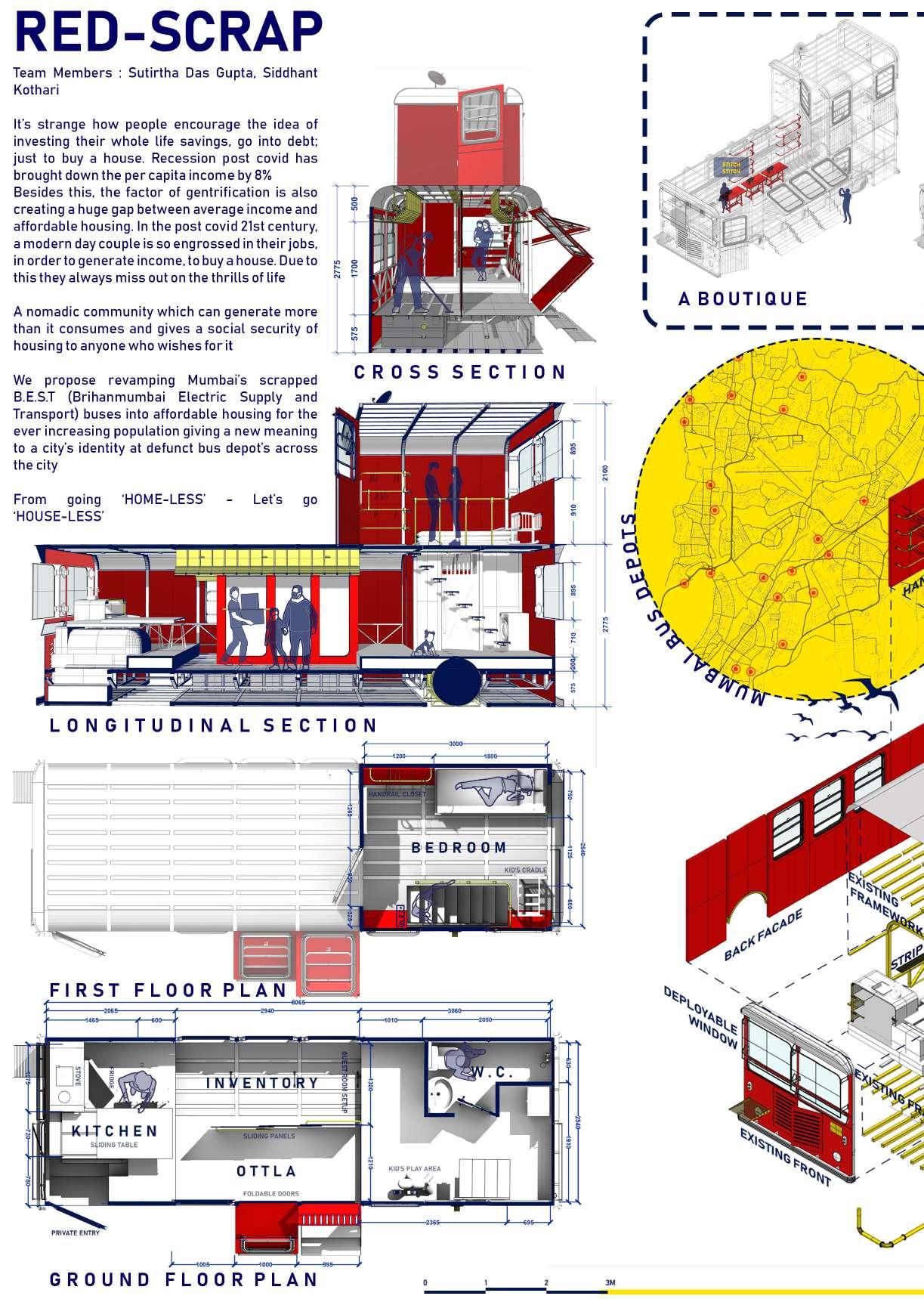

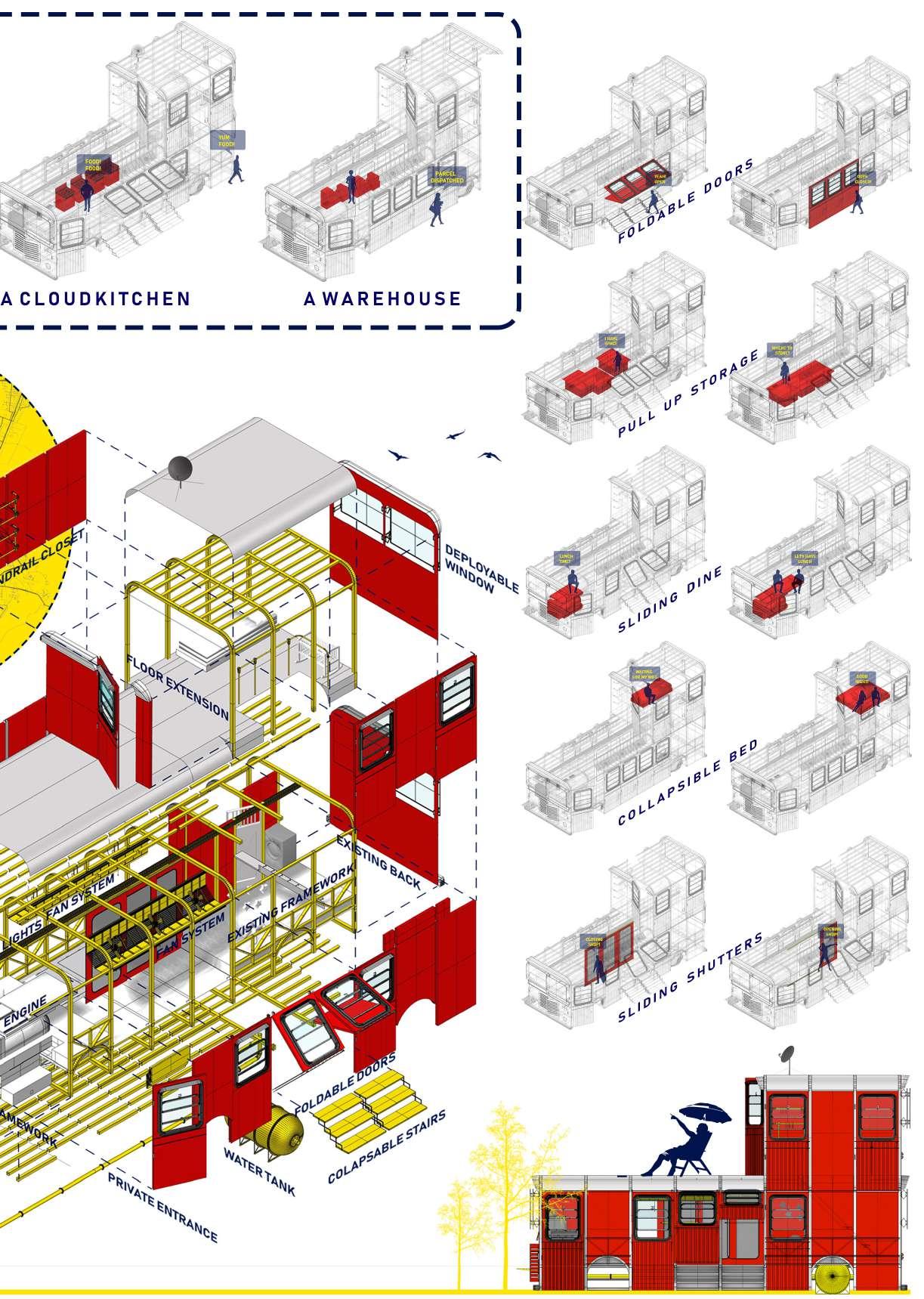

Red Scrap Nano Housing competition by Volume Zero

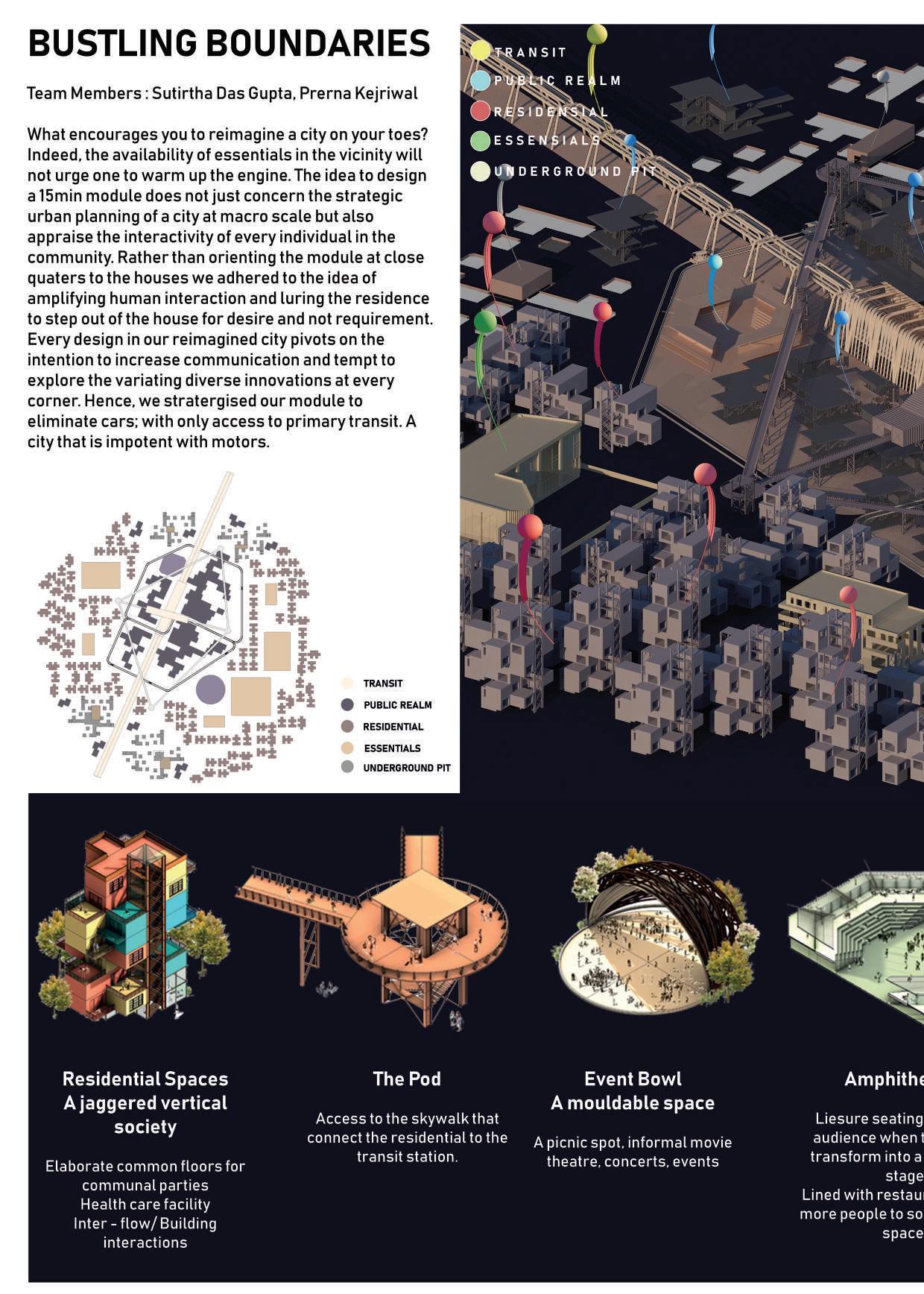

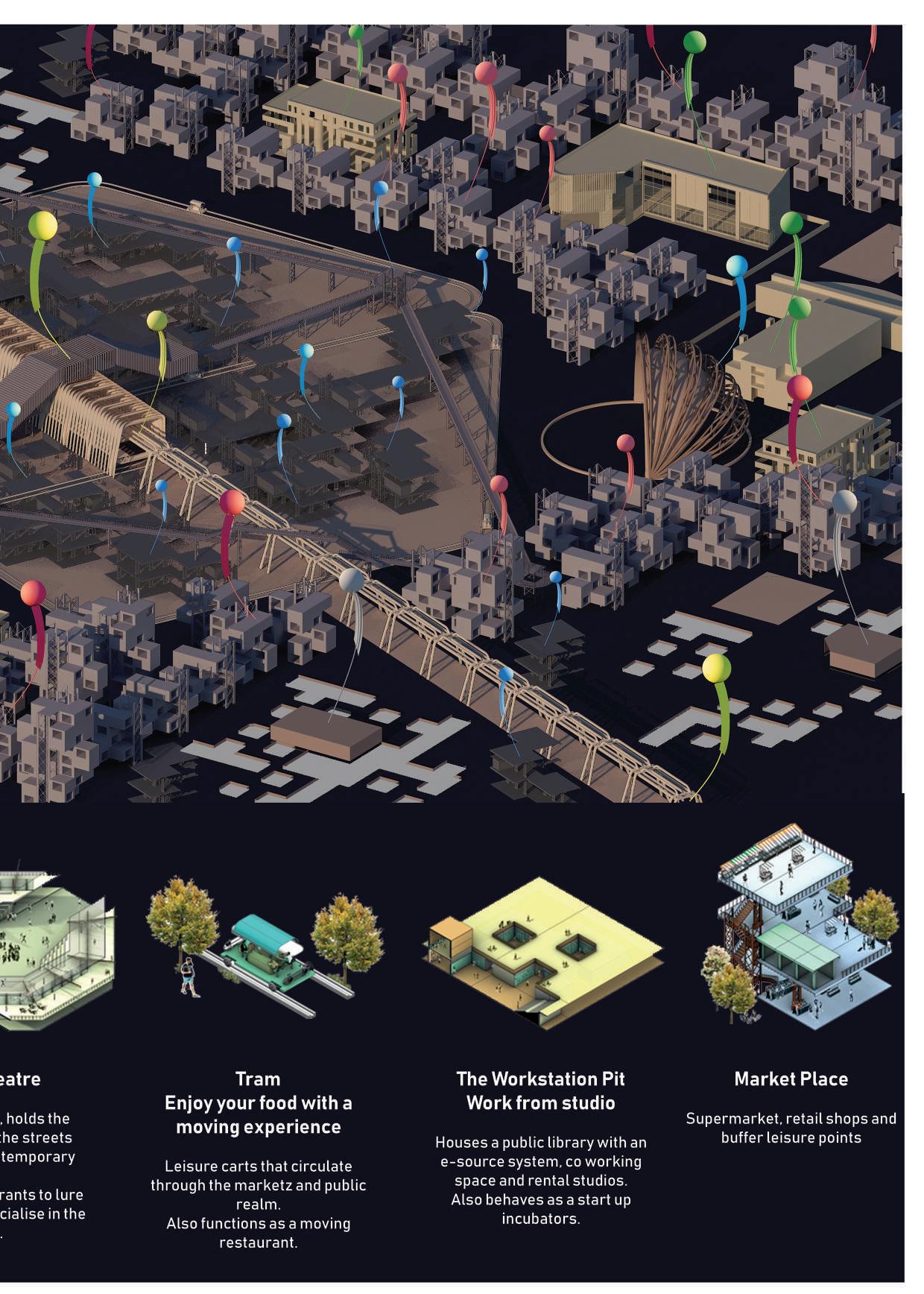

Bustling Boundaries 15min city competition by The Charette

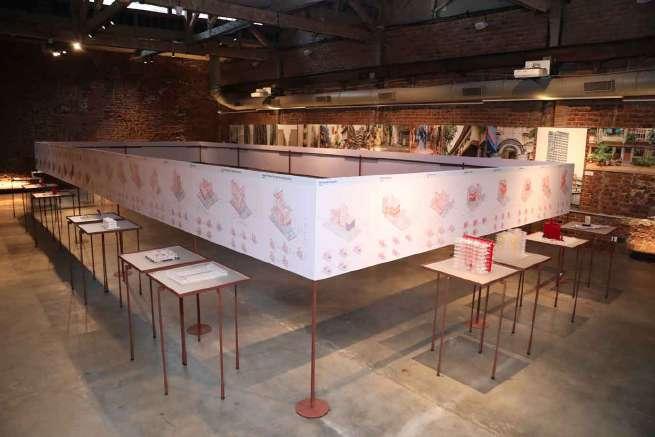

(de) Coding Mumbai Exhibition by SP+A

Other Interests Photographs of performances and achievements

Page 3

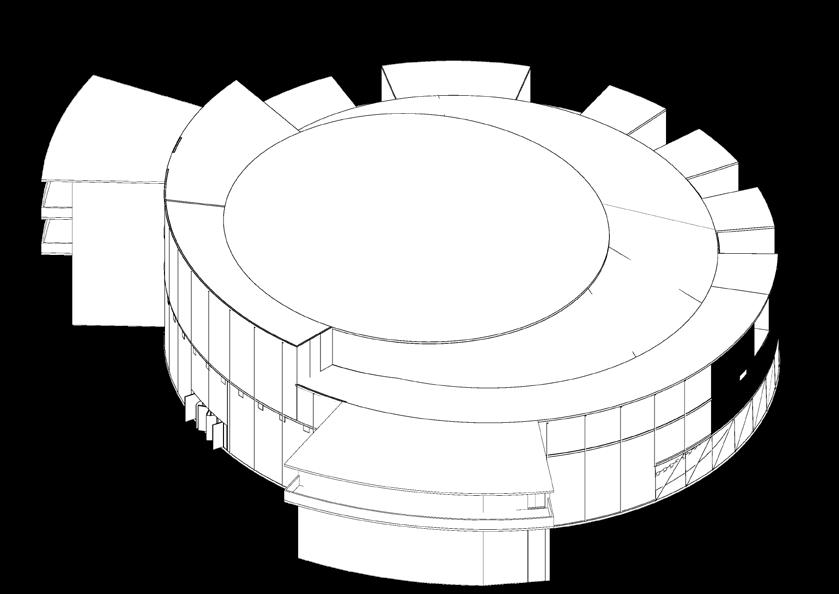

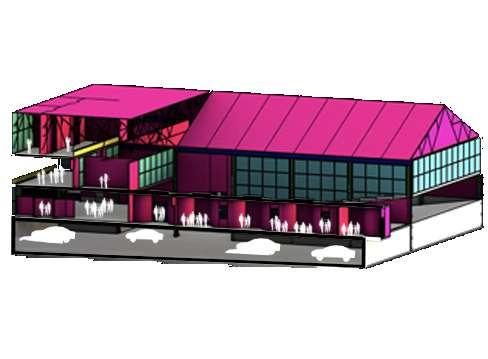

PERFORMING ARTS CENTRE Semester 7 Mentor : Rajiv Parekh Location : Rang Bhavan, Mumbai Performing arts is a fashion of expressing emotions and stories to their viewers. With personal experience as a stage performer the layout of a standard stage and seating acts as a barrier between the expression and the viewer to relate to the act. Performing has not only been a source of entertainment but also a medium of conveying emotions to its listeners.

This design project combines the standpoint of an artist and architecture to explore the idea of blurring the boundaries for a more immersive and personal experience to any performance by being involved in the action.

Software used :

Page 4

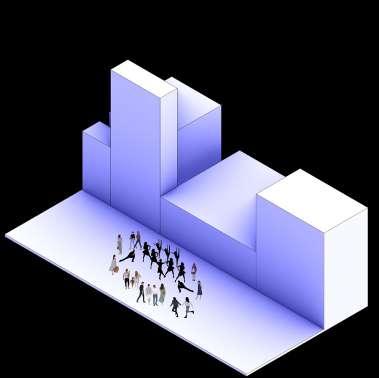

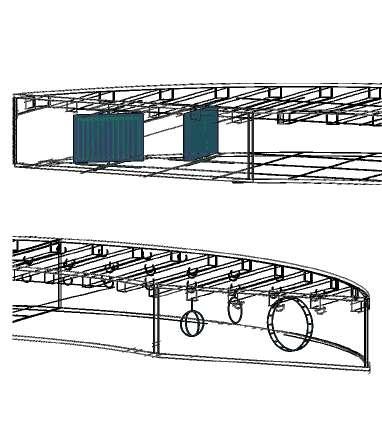

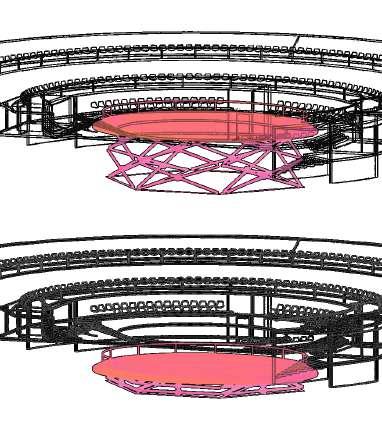

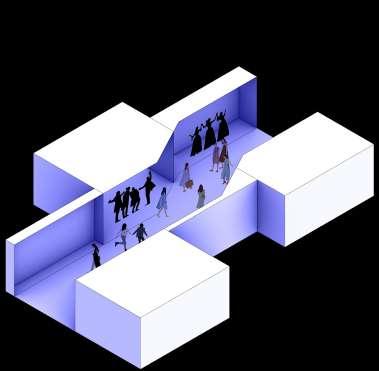

Immersive Design Strategies for Performing Arts

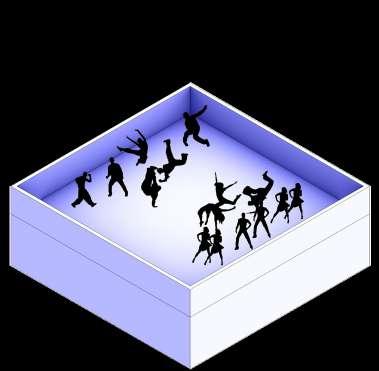

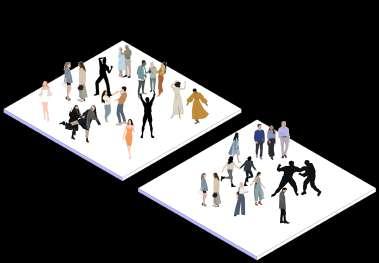

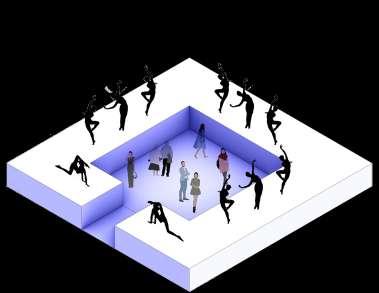

Street Performance : Audience gather around on the streets for a live performance.

Battle Ground : Underground dance battles performed between rival teams.

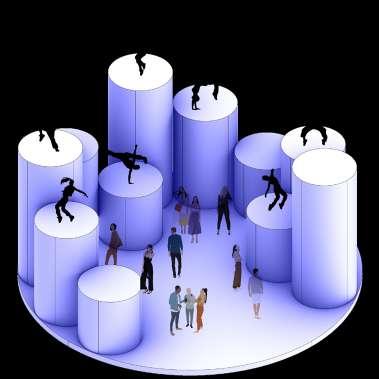

Around the audience : Reversing the position of stage and audience for a panoramic vision.

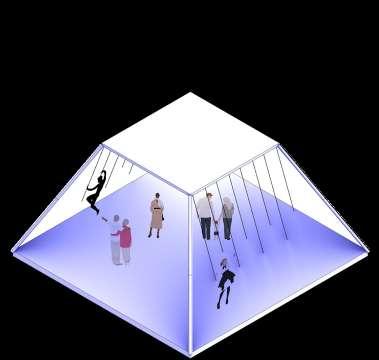

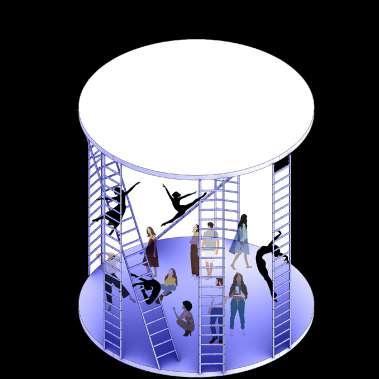

No stage performance : The props or installation used as the only platform for performing.

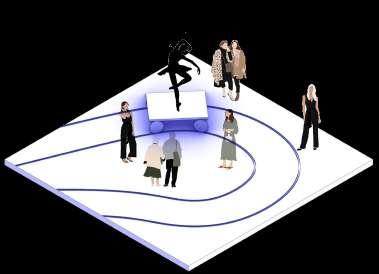

On the wheels : A moving base following the rails used by performs to entertain the passing crowd.

Fragmentation : Individual stage provided for every performer to showcase their talents

Walkthrough : Different sets divided to different stages and arrayed in sequence, saving performance time.

Be the puppet : Performer and the viewer attached to a single string where the viewer is a part of the show through guidance

Improv : Performers in disguise with the audience ambush with a scene. Reaction of others lead the next plot of the story

Page 5

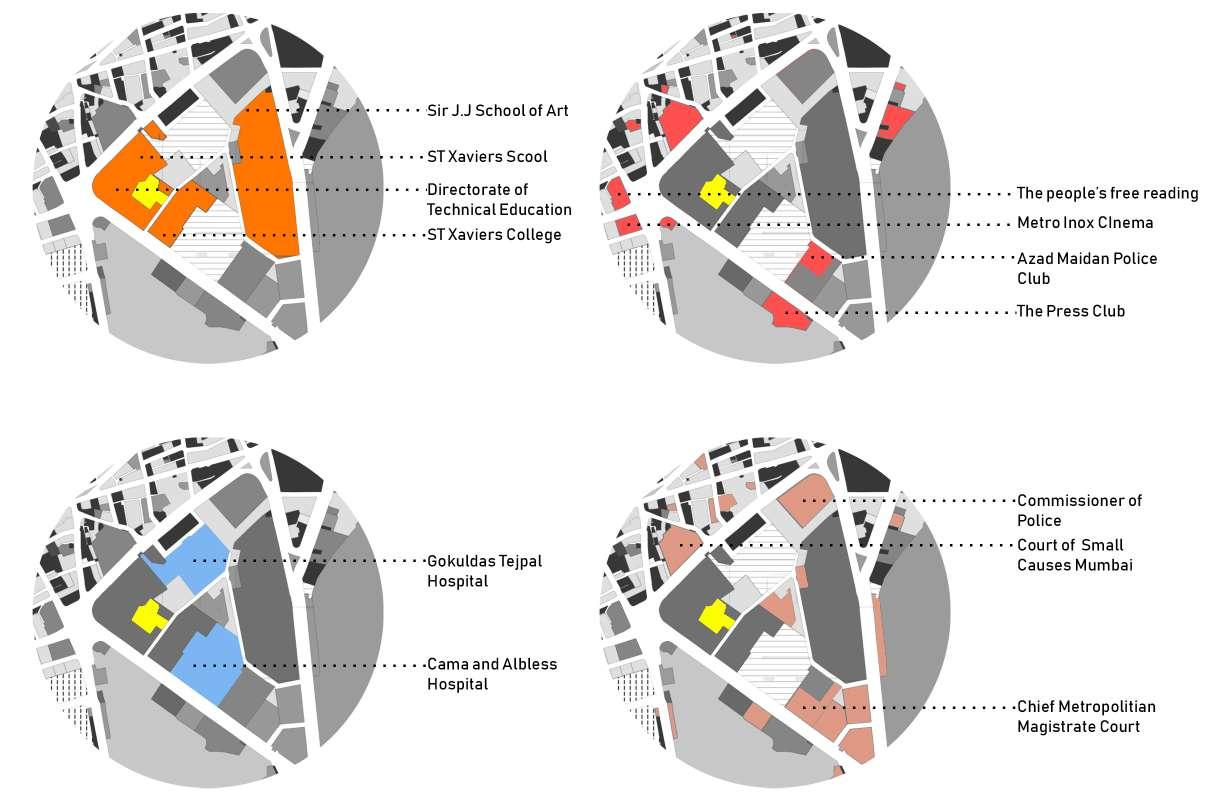

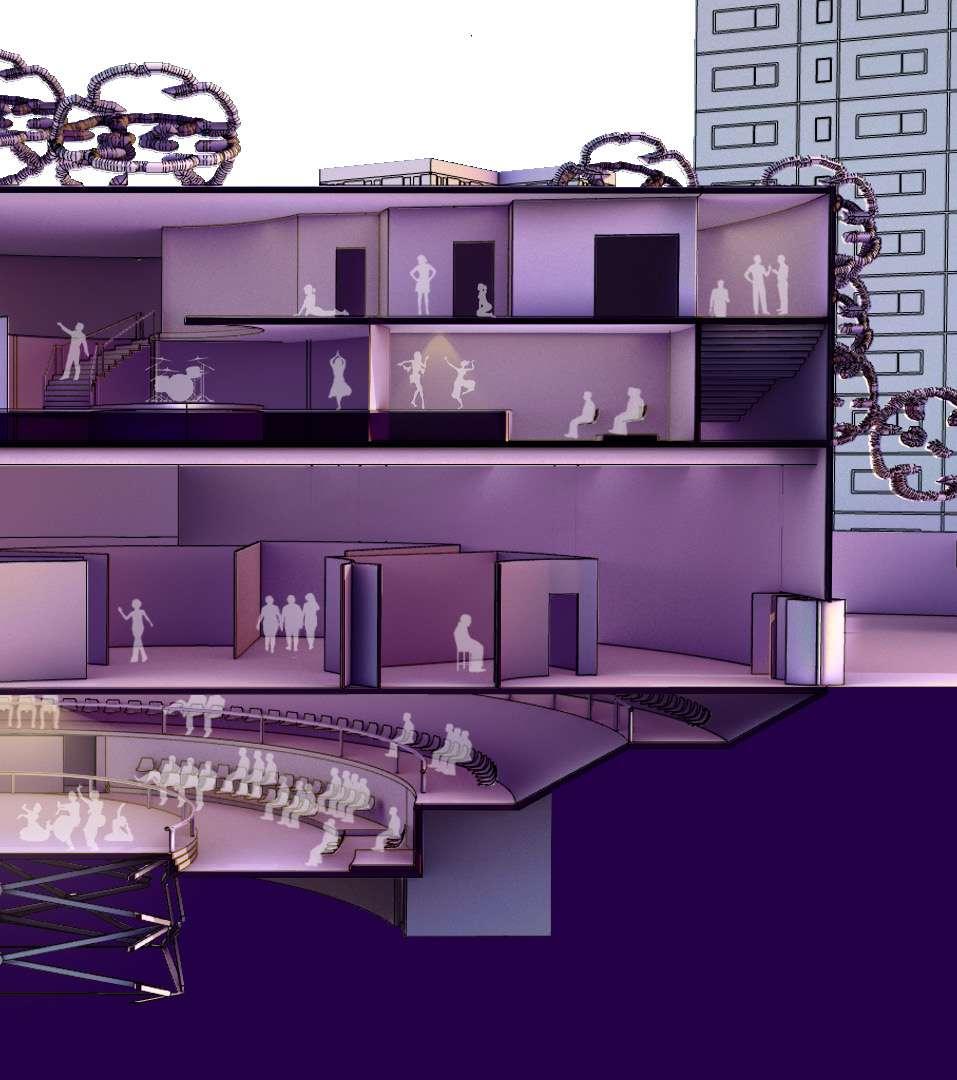

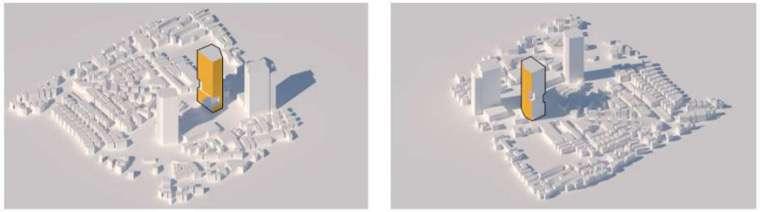

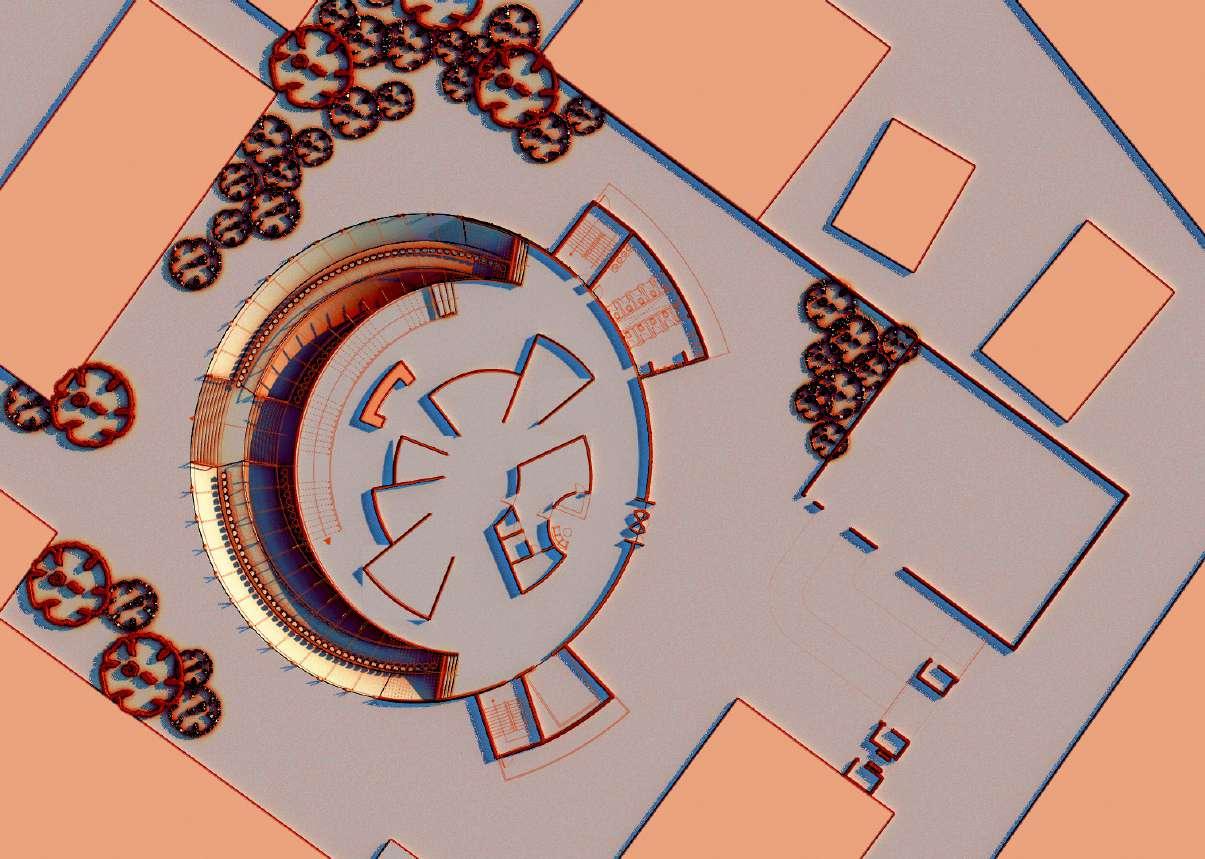

Site Analysis

Page 6

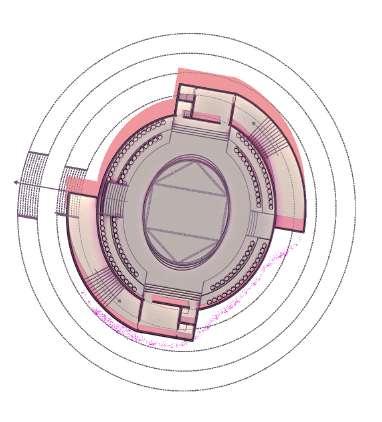

Basement Plan

2

1. Hydraulic Stage 2. Green Room 1

Hydraulic Stage

First Floor Plan 3

1

Immersive Drama

2

1. Kiosks 2. Reception Desk 3. No stage performing studio 4. Immersive drama performing studio

4

No Stage

Second Floor Plan

10 9

8

11

6 1

7

Twister Octopad

2 3 5 4 5

1. Hydraulic backstage 2. Backstage 3. Stage 4. Entry to the revolving stage 5. Restaurant 6. Dance Arcade 7. Twister Octopad Room 8. Stencil Room 9. Laser Chase Room 10. String Room 11. Back Entry

Laser Chase Room

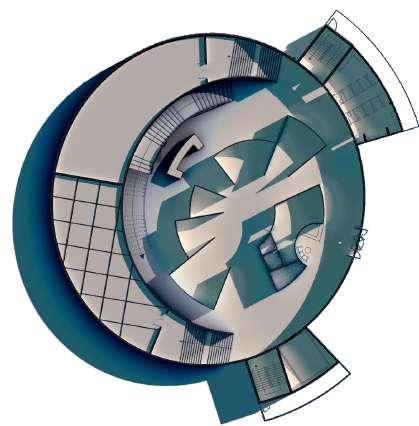

Third Floor Plan

4

3

1. Back Entry 2. Storage Room 3. Green Room 4. AV Room 5. Offices

2

1 5

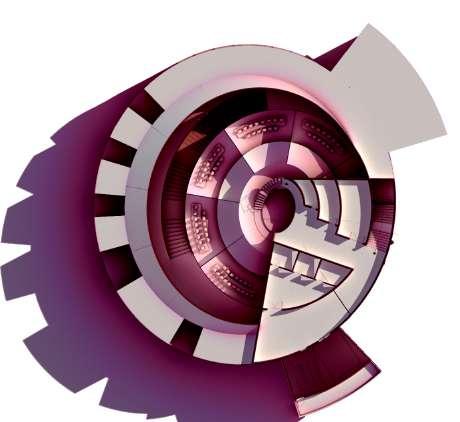

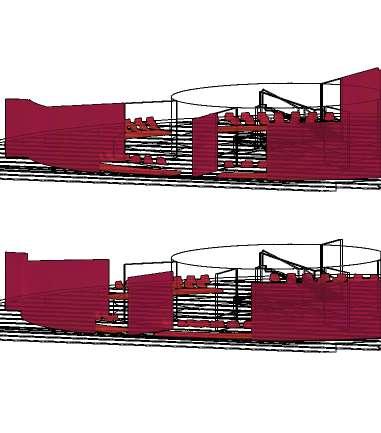

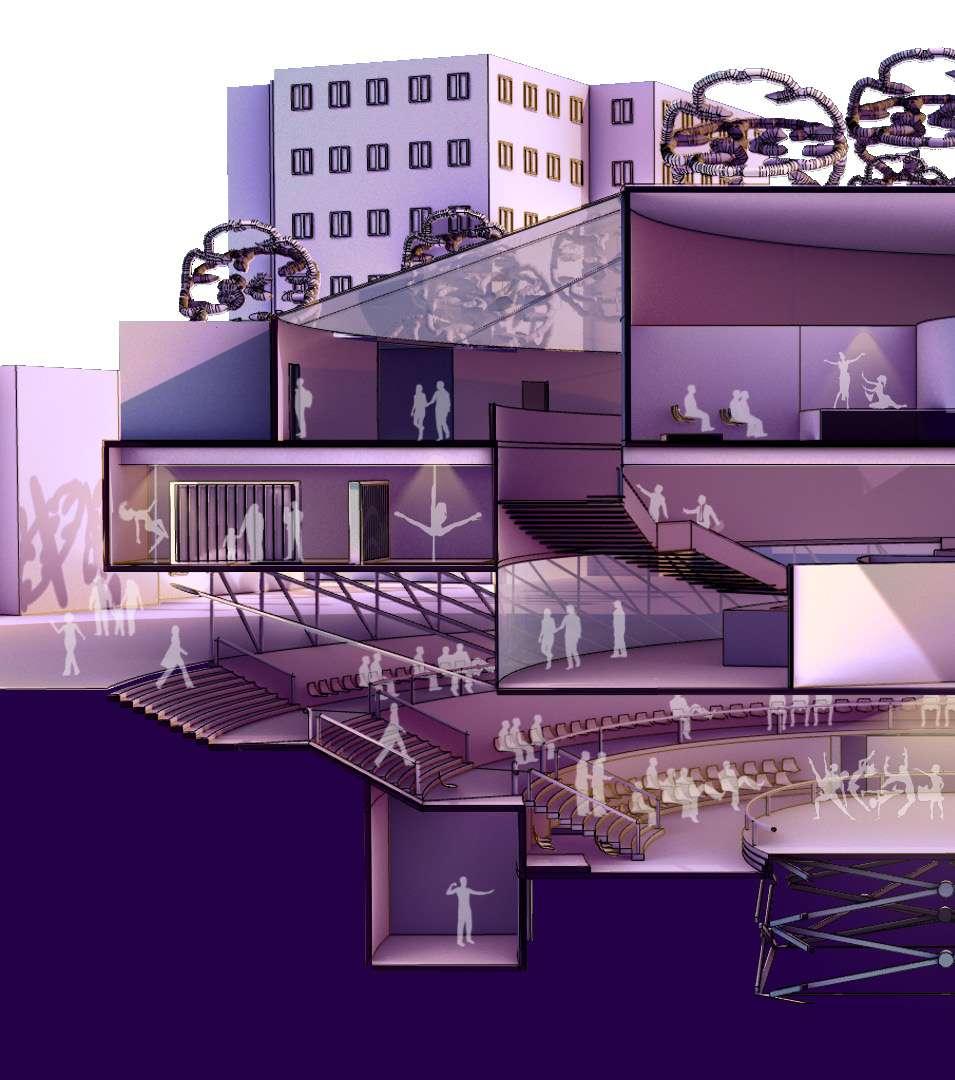

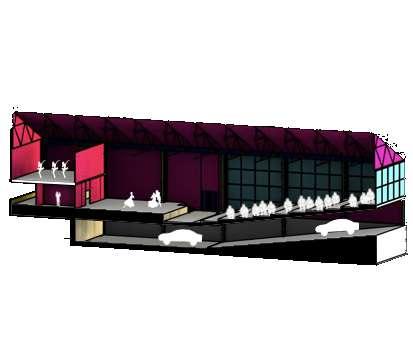

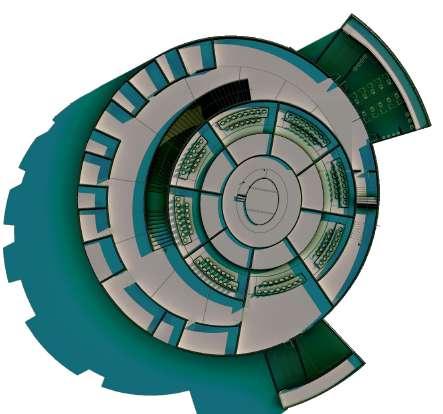

Revolving Around the Stage Page 7

Page 8

Page 9

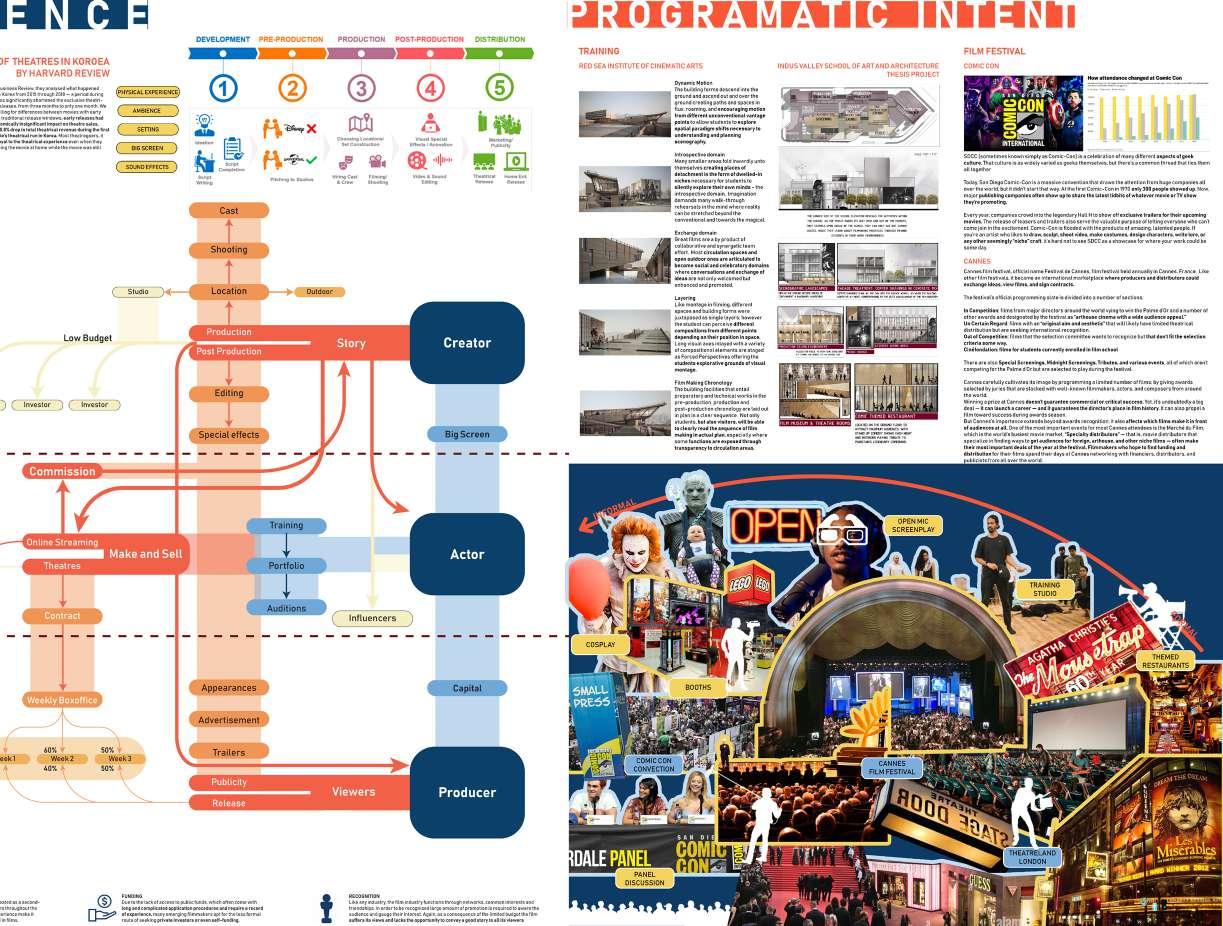

DESIGN DISSERTATION Semester 9 Mentor : Milind Merchant (Ongoing Project) Intend to create a marketplace for content creators and content consumers by bringing a new perspective to cinema theatres following the decline in the usage of cinema theatres in the recent years. With the comparative study of OTT platforms and theatres the research directed to detailed understanding the choices of filmmakers and viewers. Henceforth, as an architect the aim is for both the platforms to coexist with providing a space for independent production house the deserved recognition

Page 10

Page 11

COMMUNITY HOUSING Semester 8 Mentor : Dipal Chayya Location : MMRDA Ground, Mumbai Urban villages origin themselves to the urbanization around them. In Mumbai, they are existing pockets of old villages that have gotten cramped among the rapidly rising city around them. This housing project refers to the overtime changes of two urban villages in Mumbai yet maintaining the ethnicity of the community. This project acknowledges the elements of uniting the societies in urban villages and projects the idea of being self sufficient Software used :

Page 12

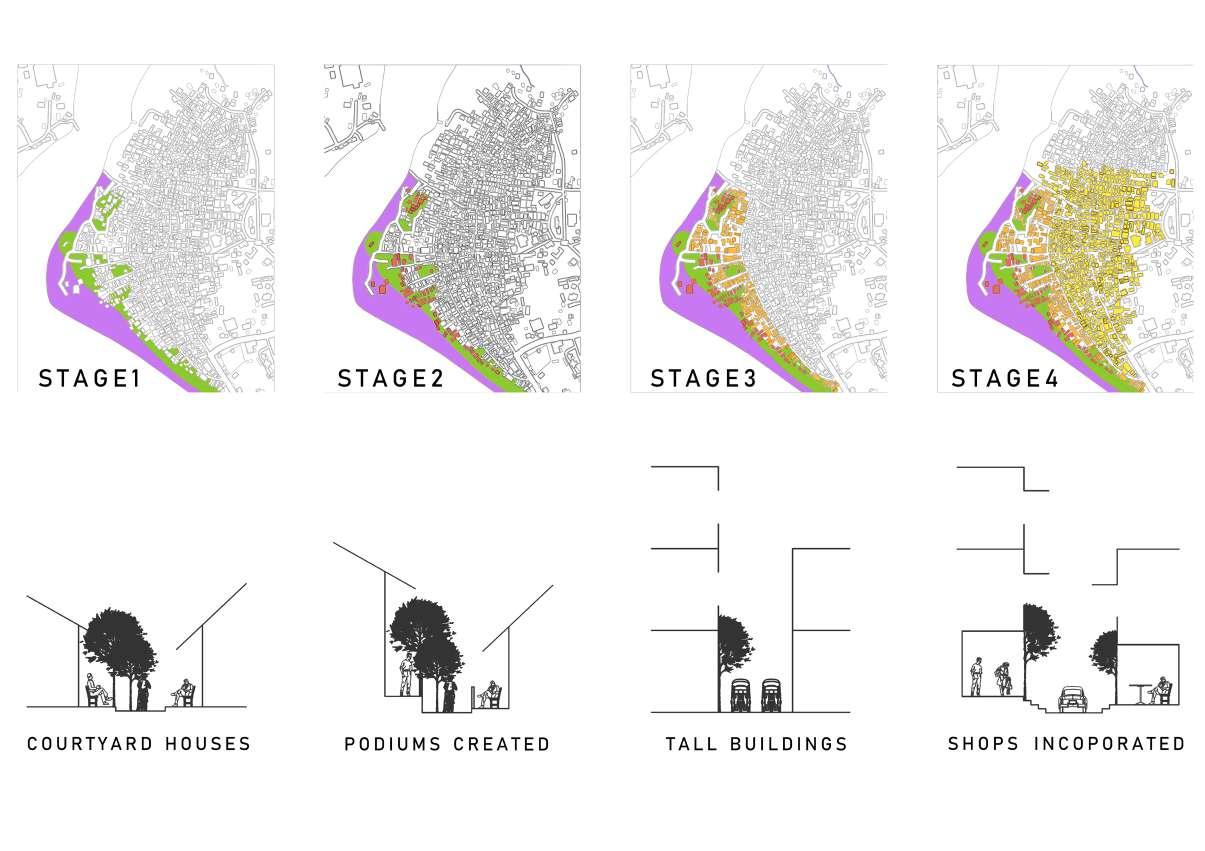

Case Study : Versova Gaothan

Case Study : Ranwar Village

Page 13

Page 14

Page 15

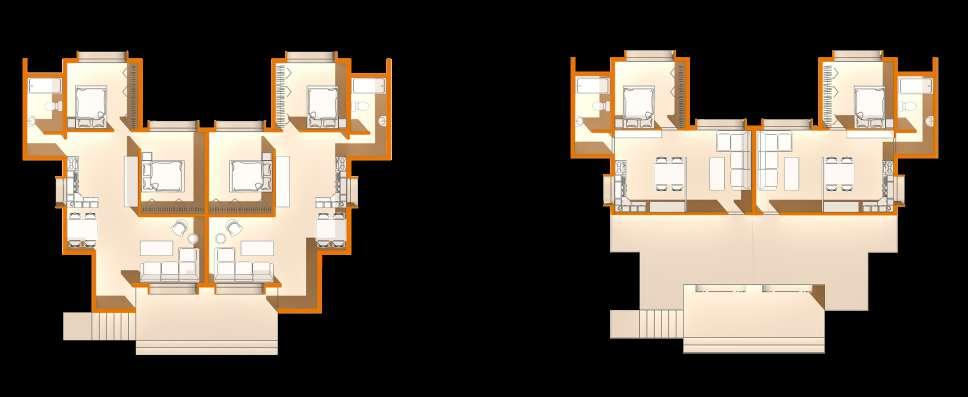

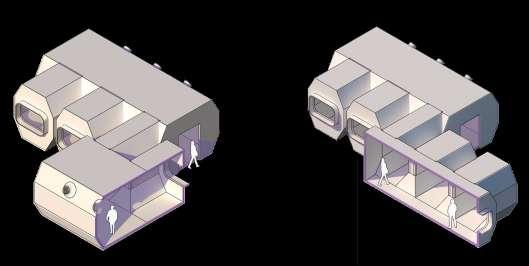

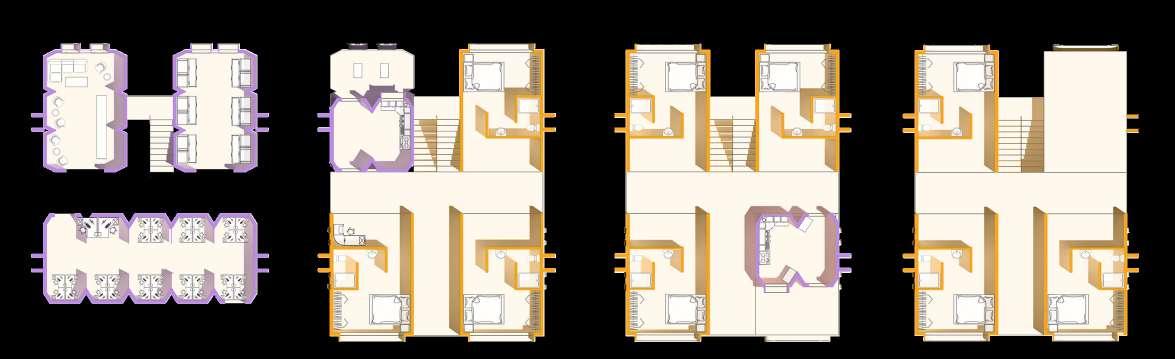

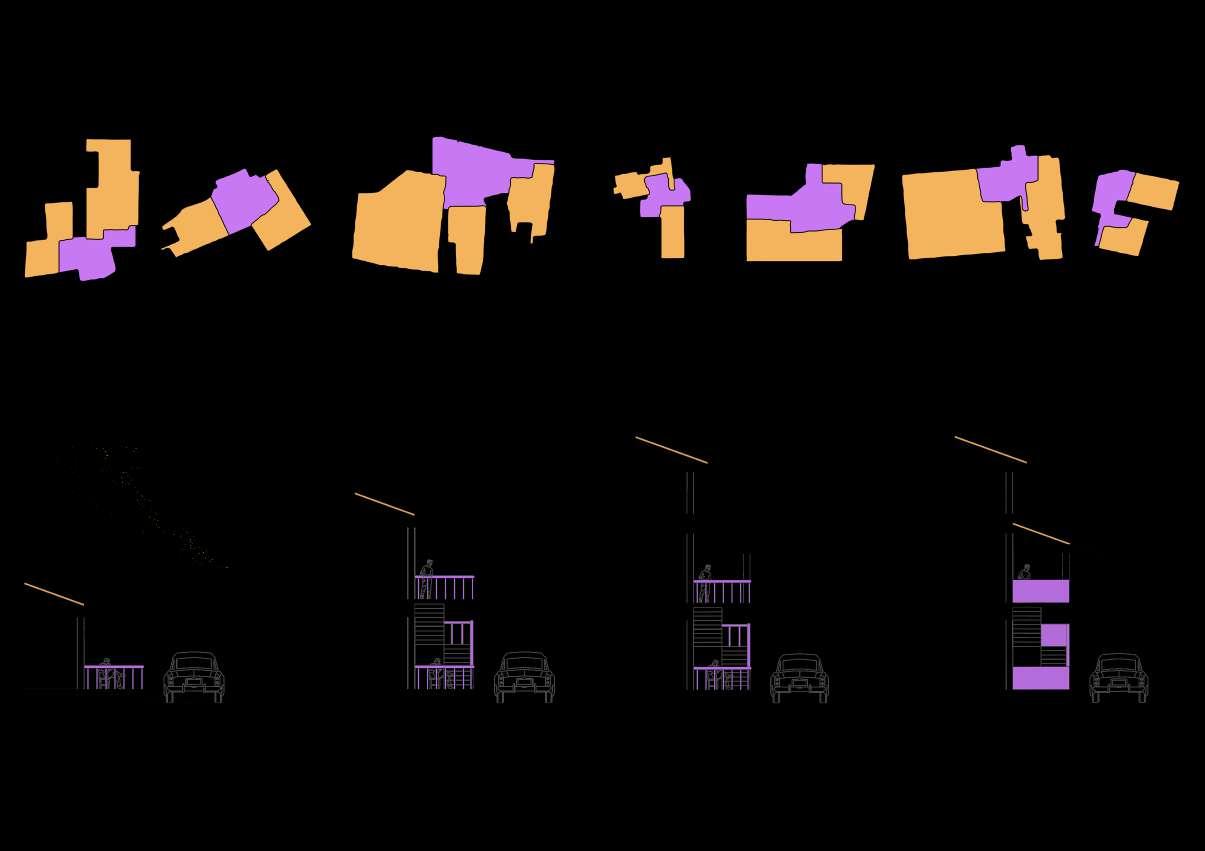

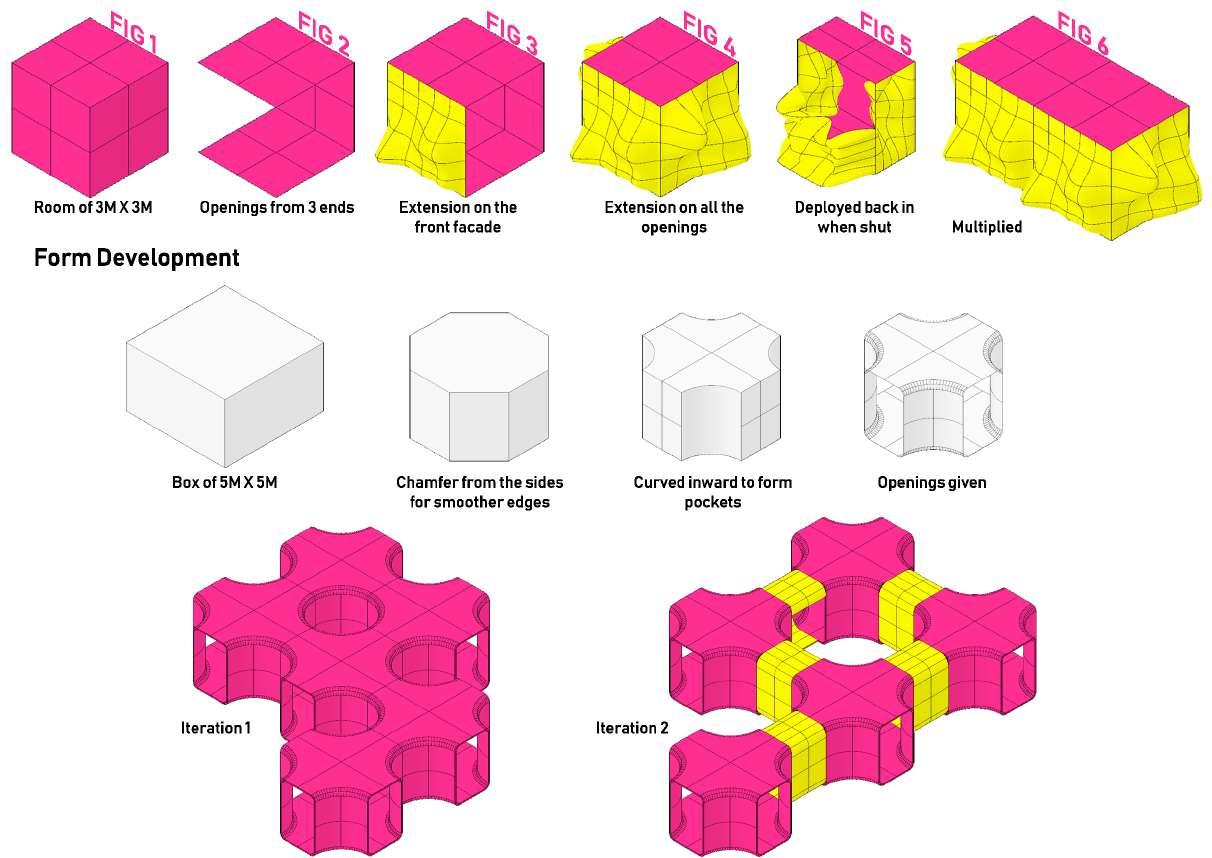

Housing Typology : Twin Housing

Balcony

Otla

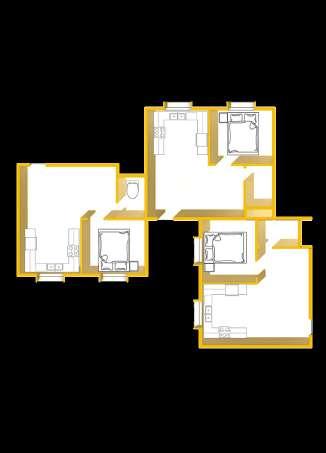

Ground Floor Plan

First Floor Plan

Iteration 1

Iteration 2

Housing Typology : Rental

Terrace

Reception

Laundry

Pantry

Pantry

Cyber Cafe

Ground Floor Plan

First Floor Plan

Community Kitchen and Gym Page 16

Second Floor Plan

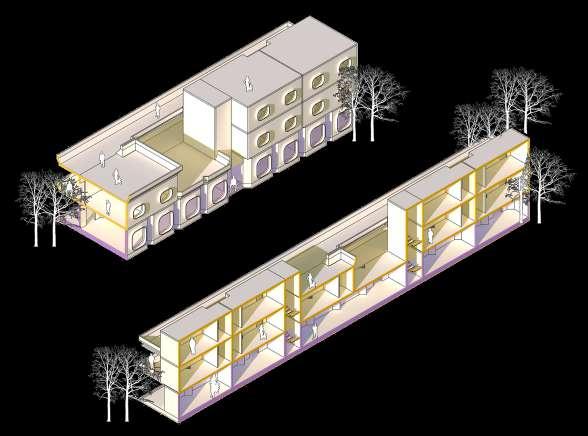

Sectional Axos

Third Floor Plan

Housing Typology : Colony

1BHK Housing

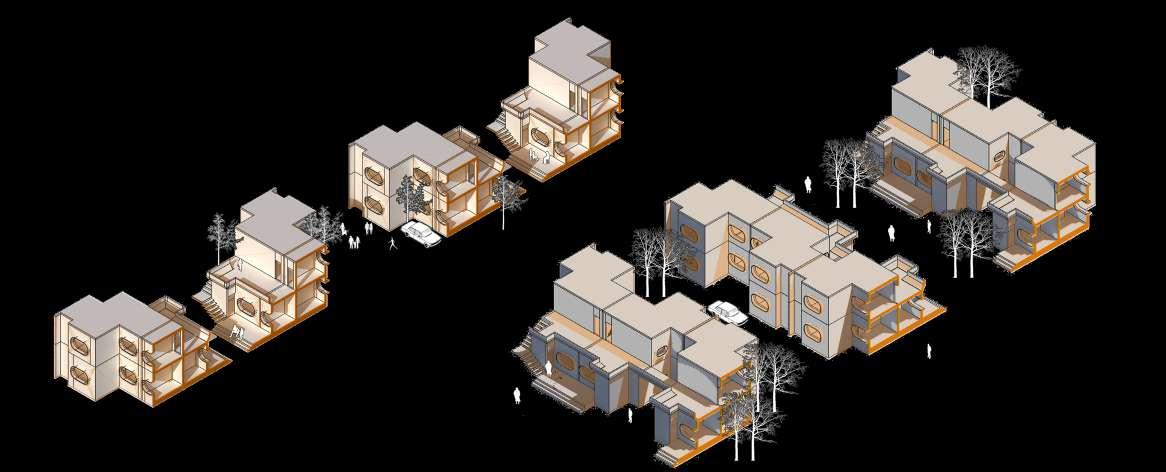

Sectional Axonometric

Housing Typology : Chawls Shop

Shop

Club House

Shop

Shop

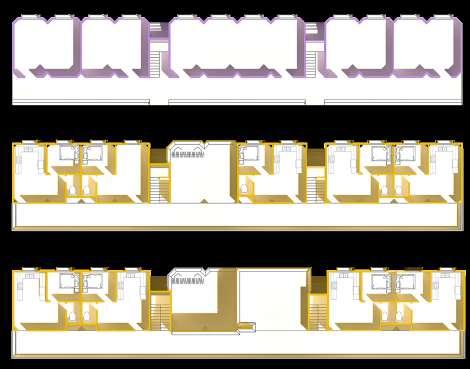

Ground Floor

First Floor Drying Terrace

Second Floor

Sectional Axos

Public Spaces

Retail Shops

Drive Through and Cafes

Community Market

Design Details

Octa Rooms

Trickle Chajja

Chimney

Octa Seats Page 17

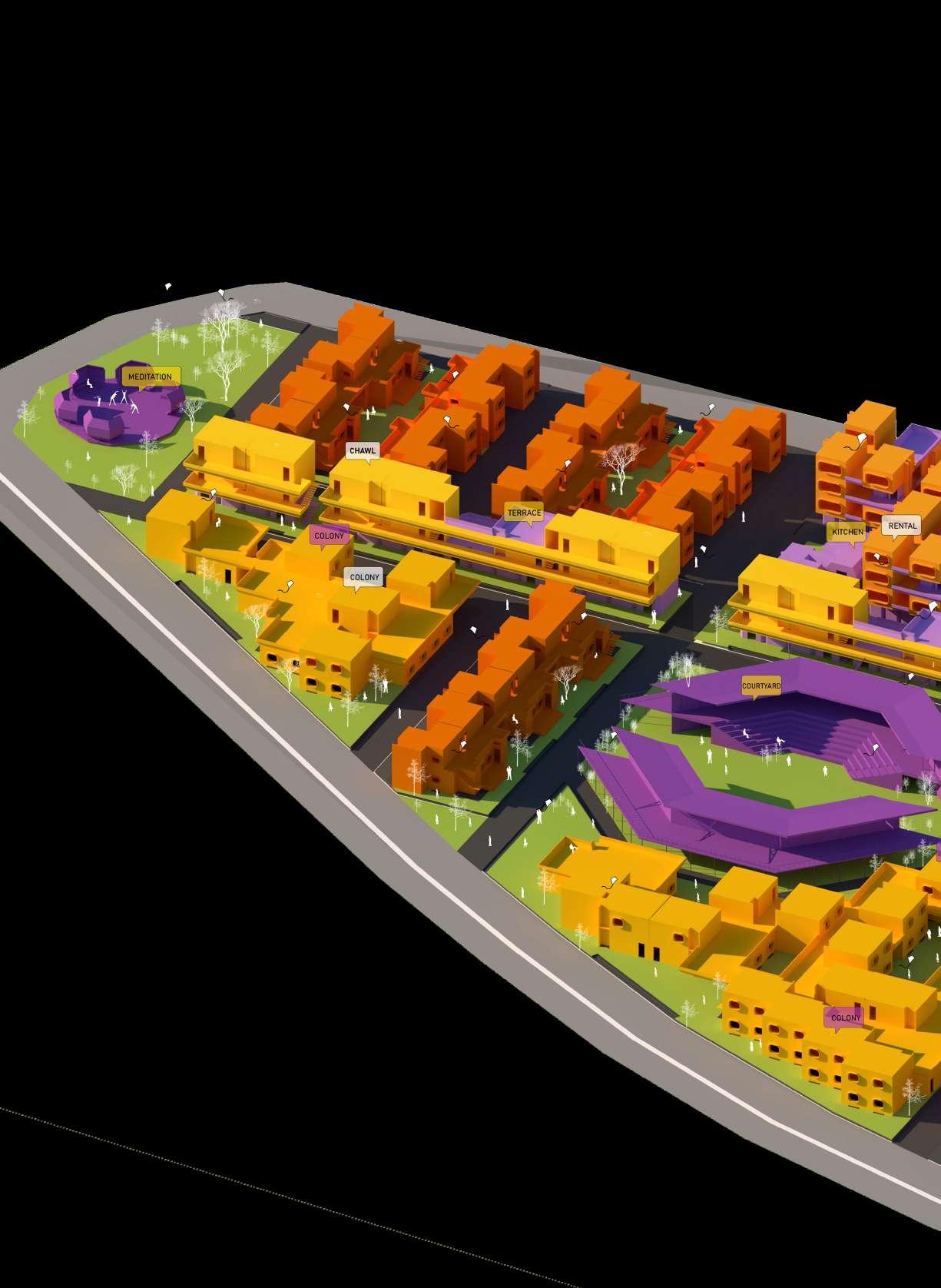

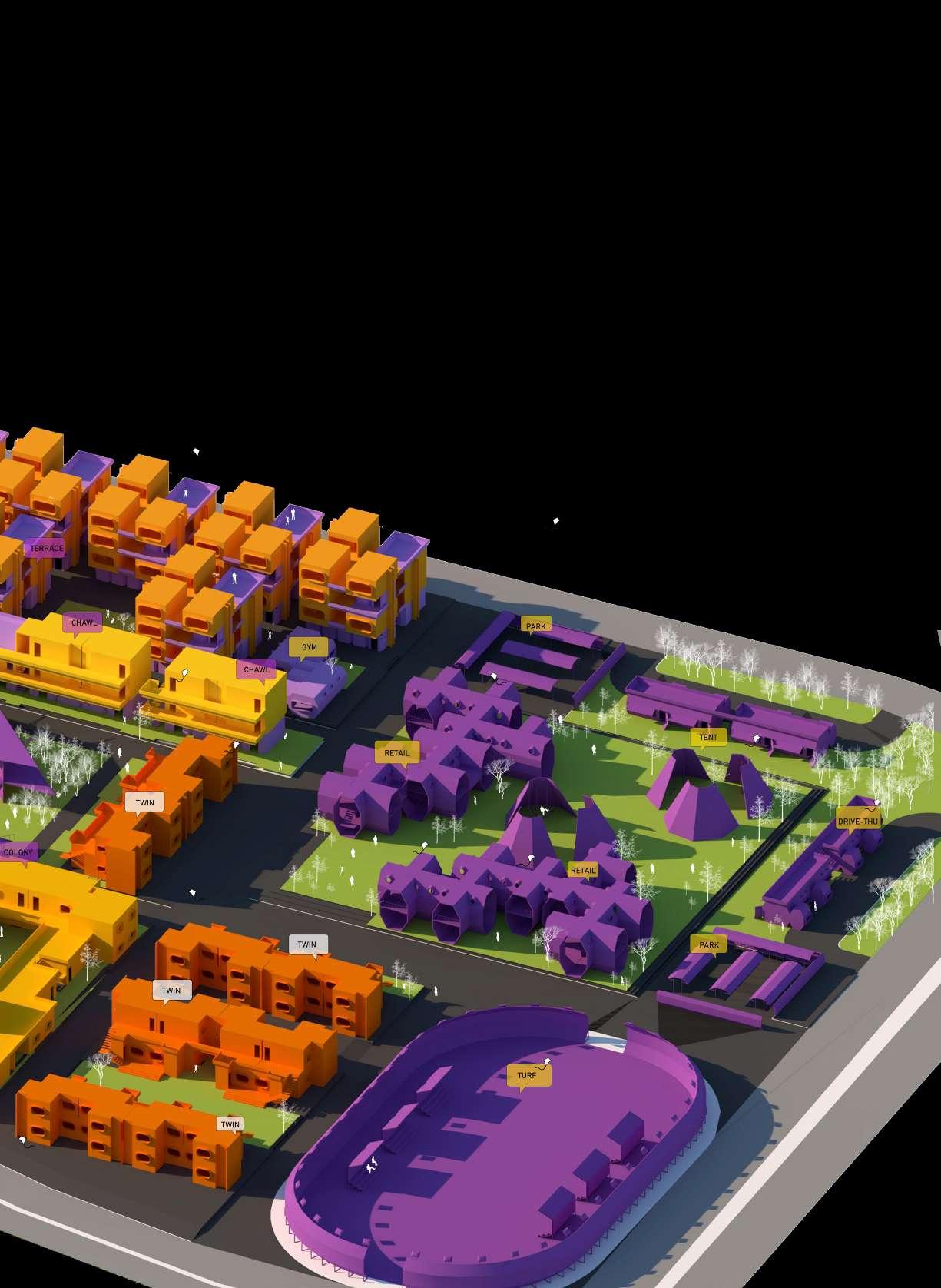

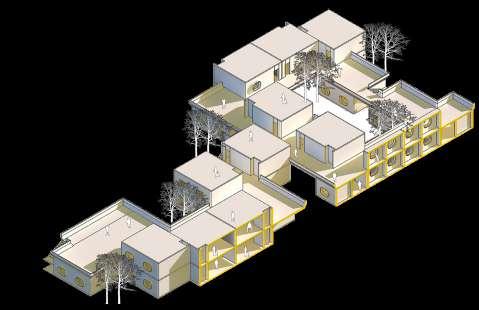

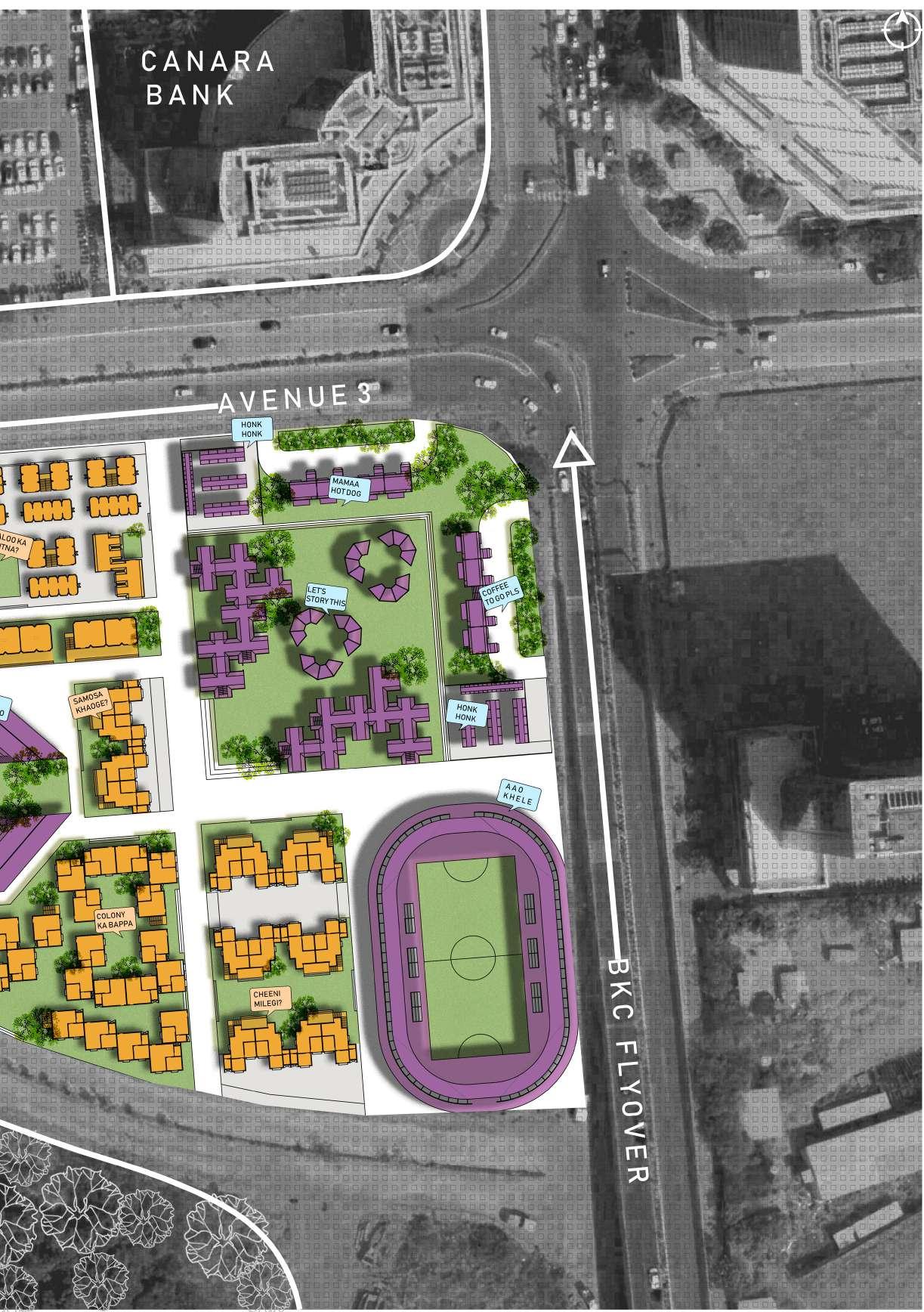

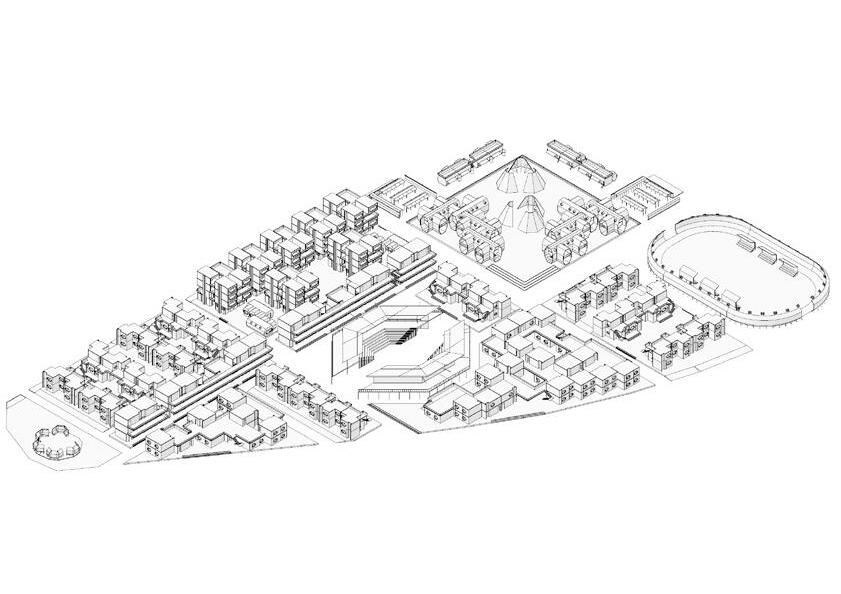

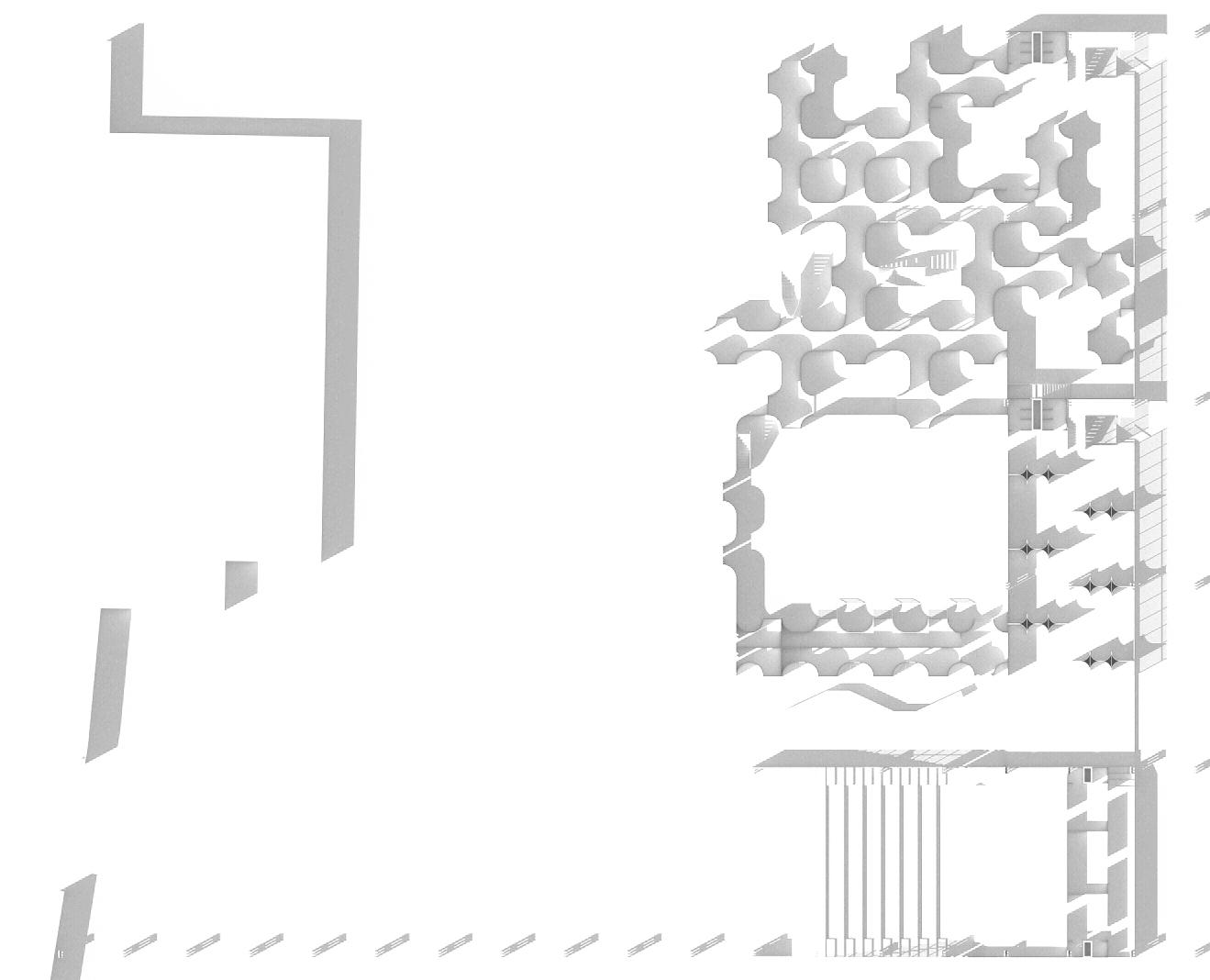

Axonometric View

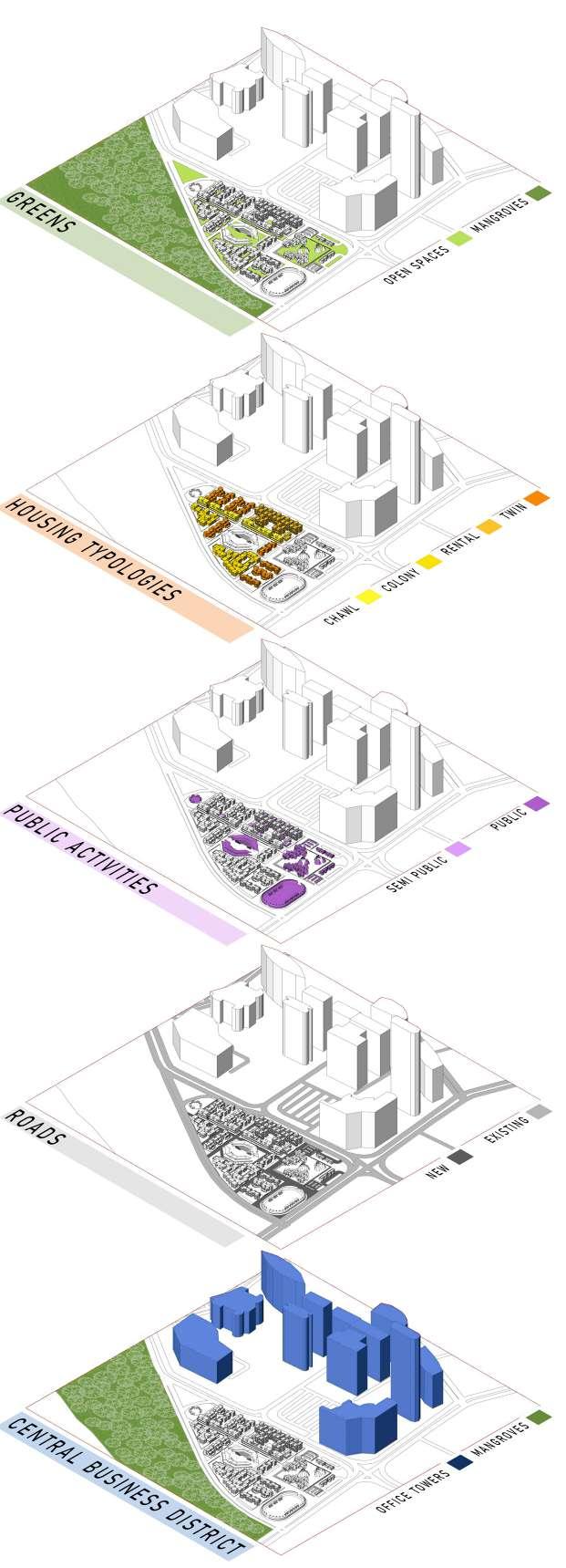

Public Spaces Semi Public Spaces Twin Housing Rental Housing Colony Housing Chawl Housing

Page 18

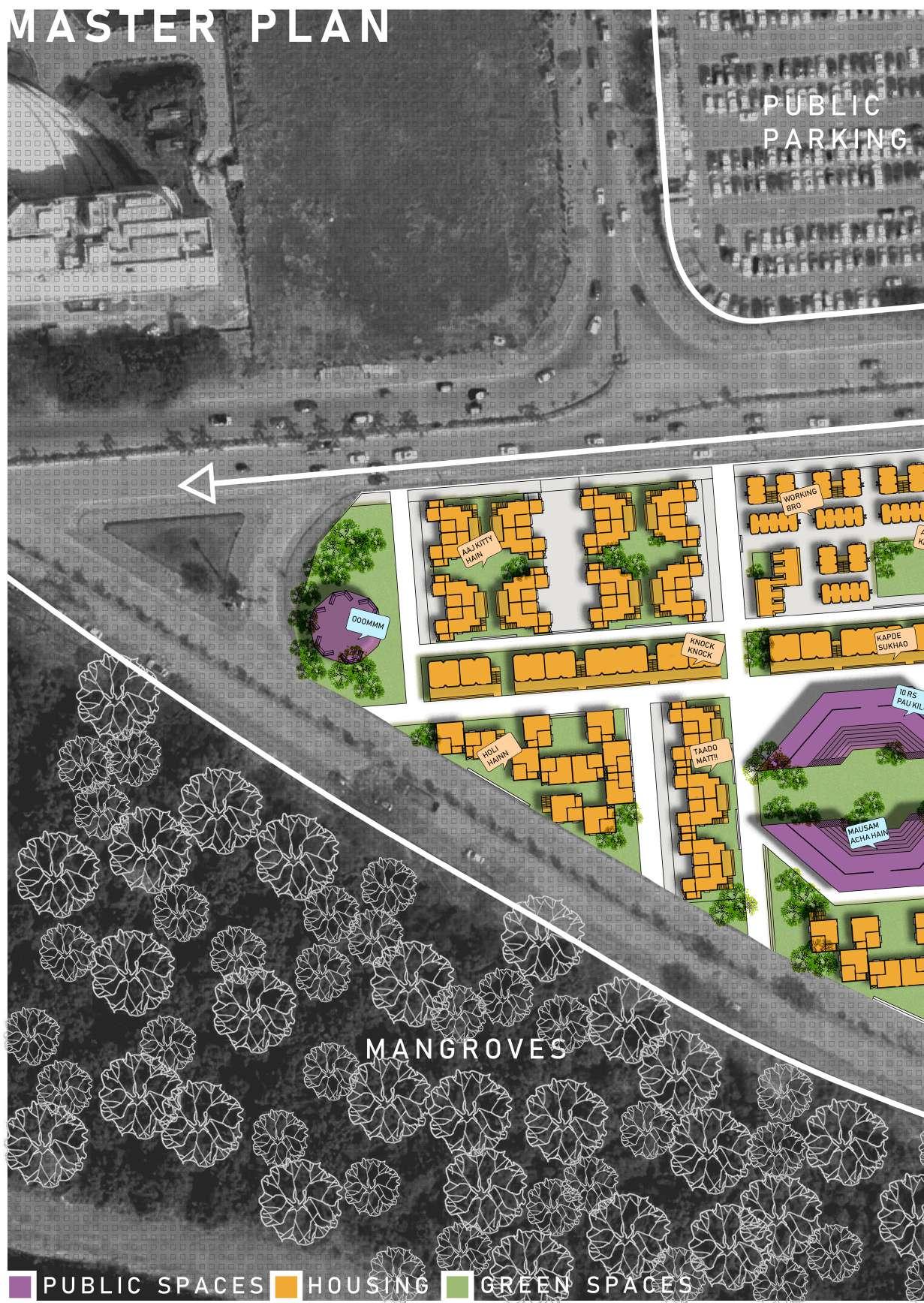

The Public Spaces consists of, 1) A drive through and a cafeteria with mainly to serve all the office employs within the central business district.

2) Next to the cafeteria modules of retail shops surrounded around the park are proposed to host exhibitions for the visiting crowd.

3) A football turf is devised for the local citizens to play sports considering the present activities on site.

4) A community market is placed at the centre for all the inhabitants to gather and socially engage with one another 5) A silent or a meditation park is dedicated for an older age group at the edge of the site.

A range of houses are designed accommodating the diverse requirements based on income of the inhabitants. The two bedroom twin housing society and the rental housing are situated at the edge of the main road for convenient commute. The rentals are dedicated to the office employees for their temporary stays due to work deadlines. Semi public spaces such as community kitchen, gym, computer labs and pantries are arranged for the tenants, therefore, they do not need to engage with the rest of the community on site.

Other than 2BHK twin housing there are 1BHK colonies and chawls for a low income group of inhabitants.

Page 19

Rental Housing

Twin Housing Page 20

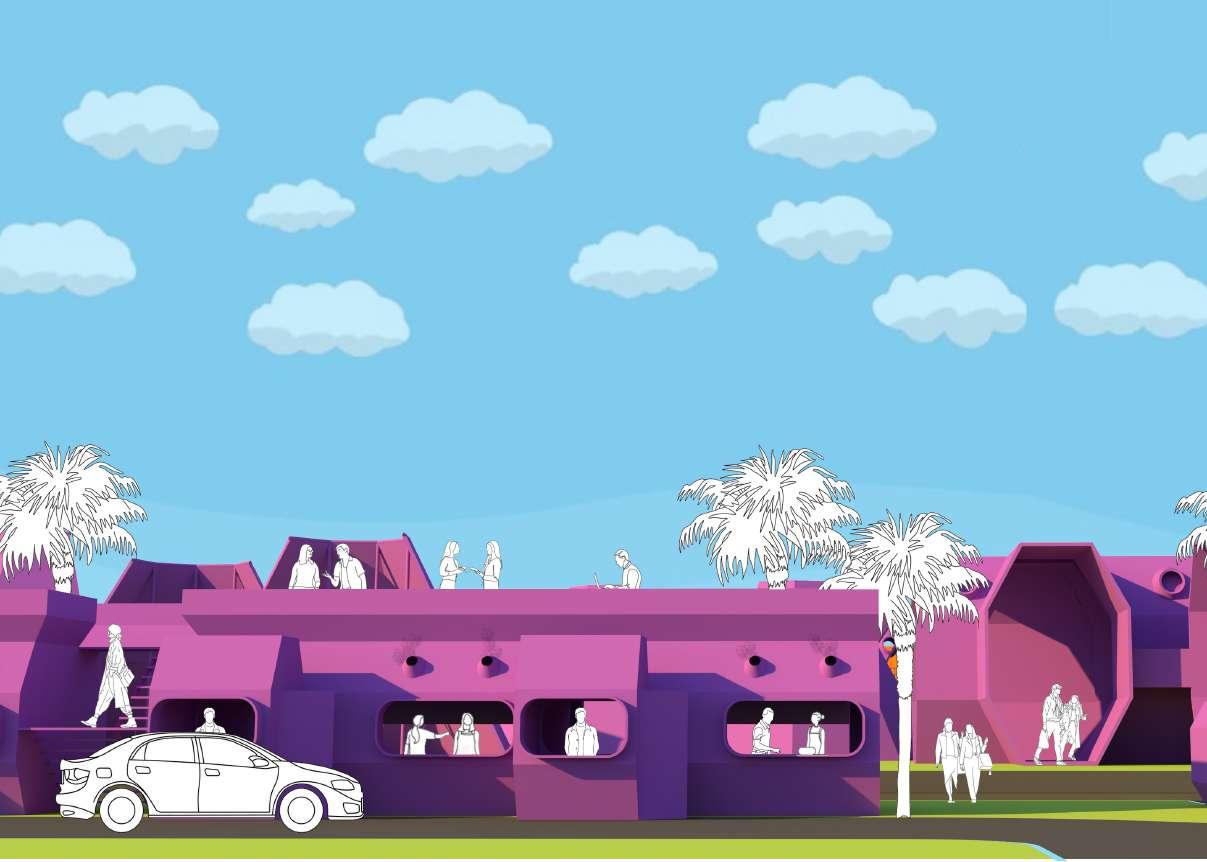

Drive Through and Cafeteria

Community Market Page 21

A SOCIAL HUB Semester 6 Mentor : Vidya Raghu Location : Richardson and Crudas Mill, Mumbai Observing the Dadar flower market and examining the daily behavioural patterns of various vendors in the area, this project attempts to acknowledge and upgrade the spatial use for both the buyers and sellers while providing more public activities for social gatherings as well.

Software used :

Page 22

Page 23

Site Plan

9 9

1. Market Stalls 2. Retail Shops 3. Smoking Area

Page 24

4. Outdoor Play Area 5. Indoor Play Area 6. Gaming Arcade

7. Counter Desks 8. Cloud Kitchens 9. ATM Vestibule

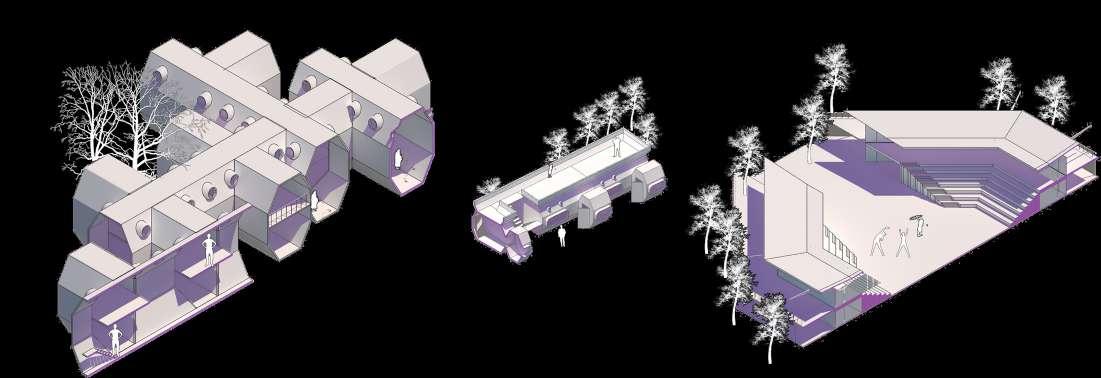

Sectional Axonometric

1

1

2 3

3

2

1

4

5

6

7 8

10

11

13

12

14

13

10. Open Cafe 11. Gallery 12. Theatre

13. Green Room 14. AV Room

Page 25

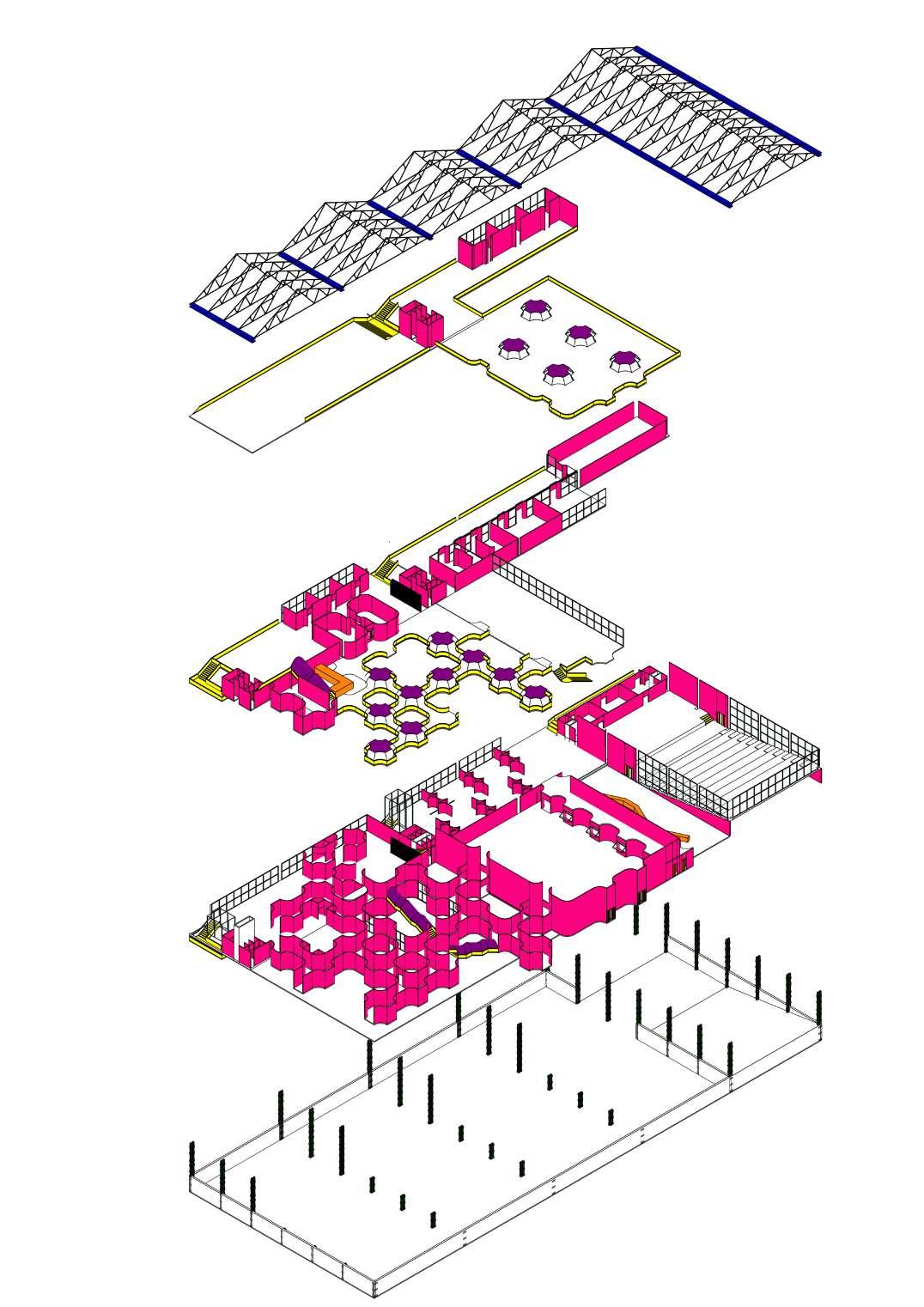

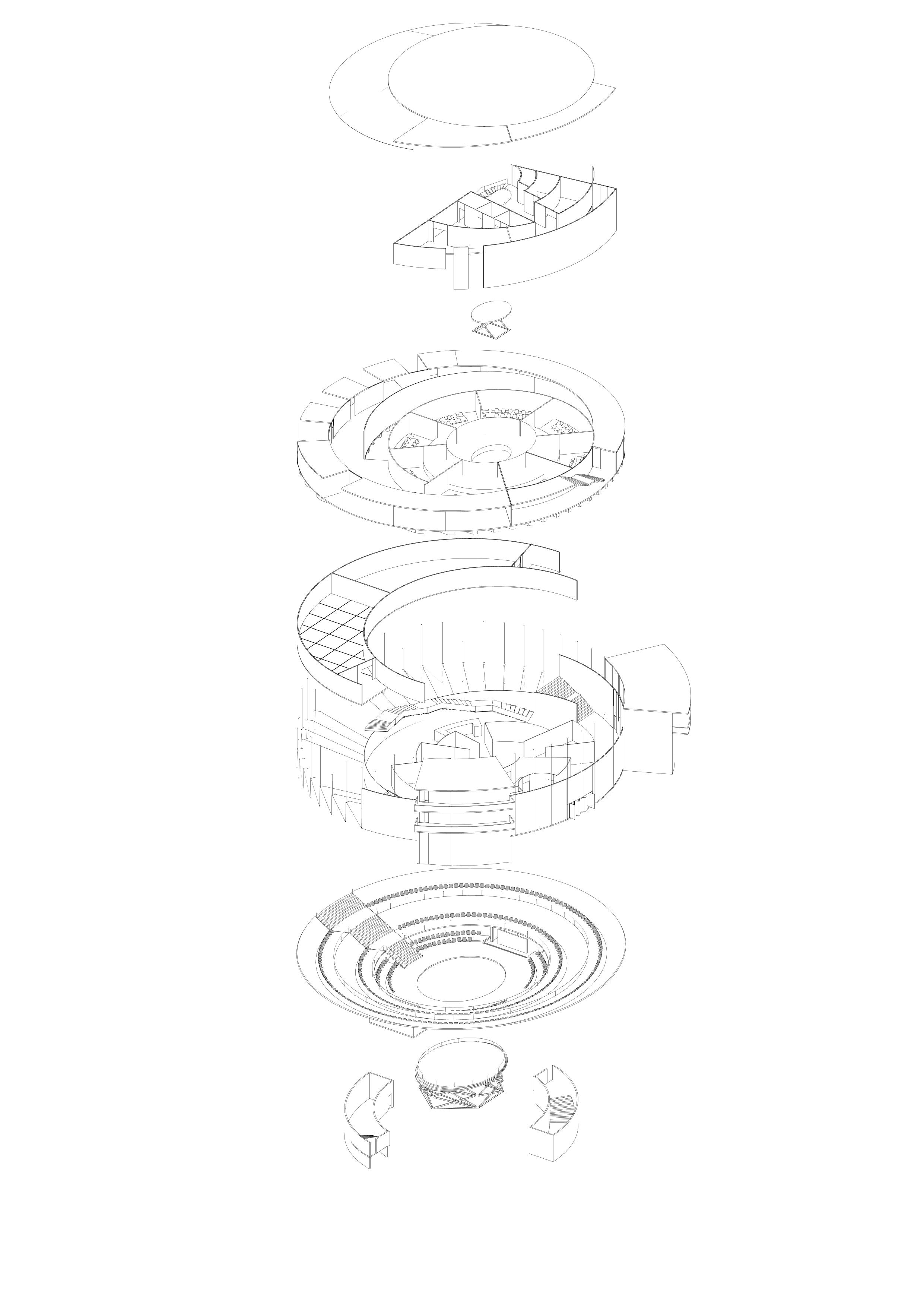

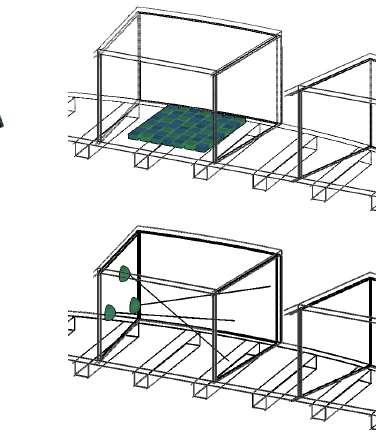

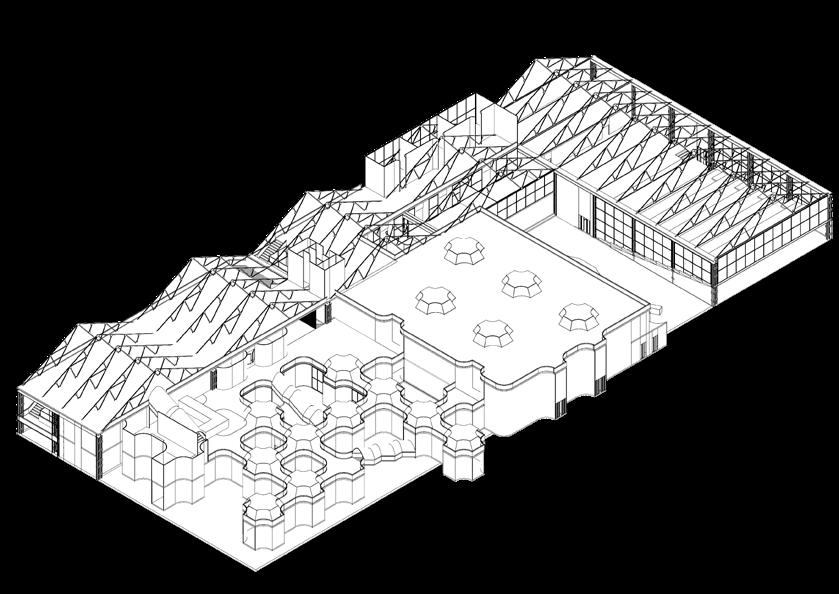

Exploded axo

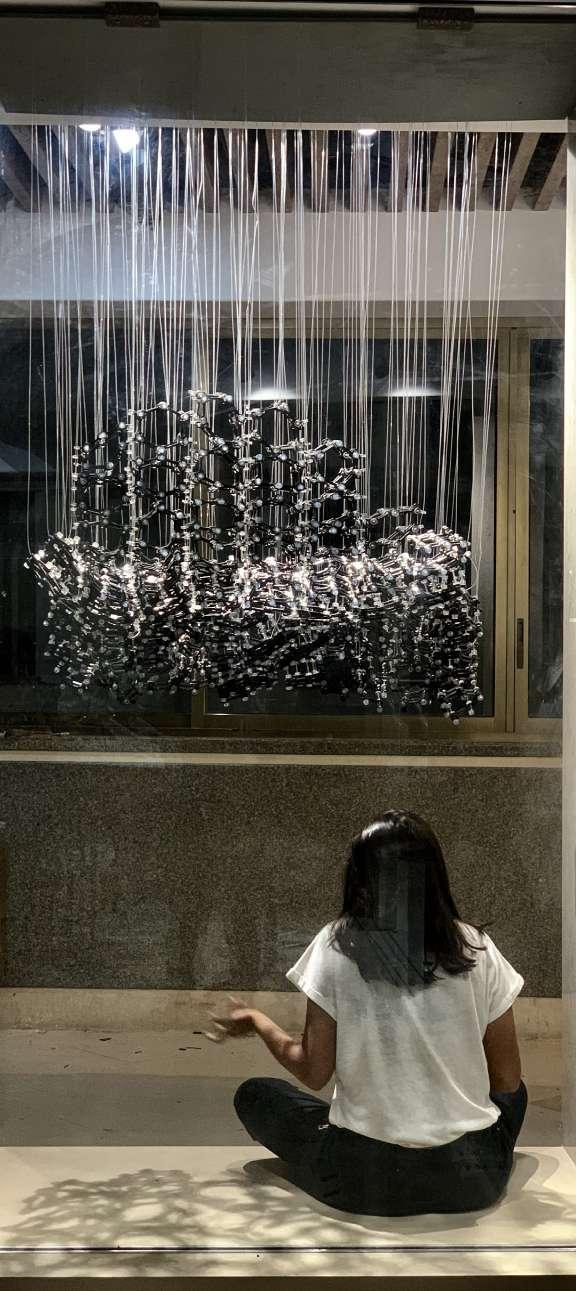

EMERGENCE Semester 3 Mentor : Atrey Chayya Team Member : Prerna Kejriwal Location : Balwant Seth School of Architecture, Mumbai The model has been designed based on the study of emergent behaviour observed in an octopus’s underside.

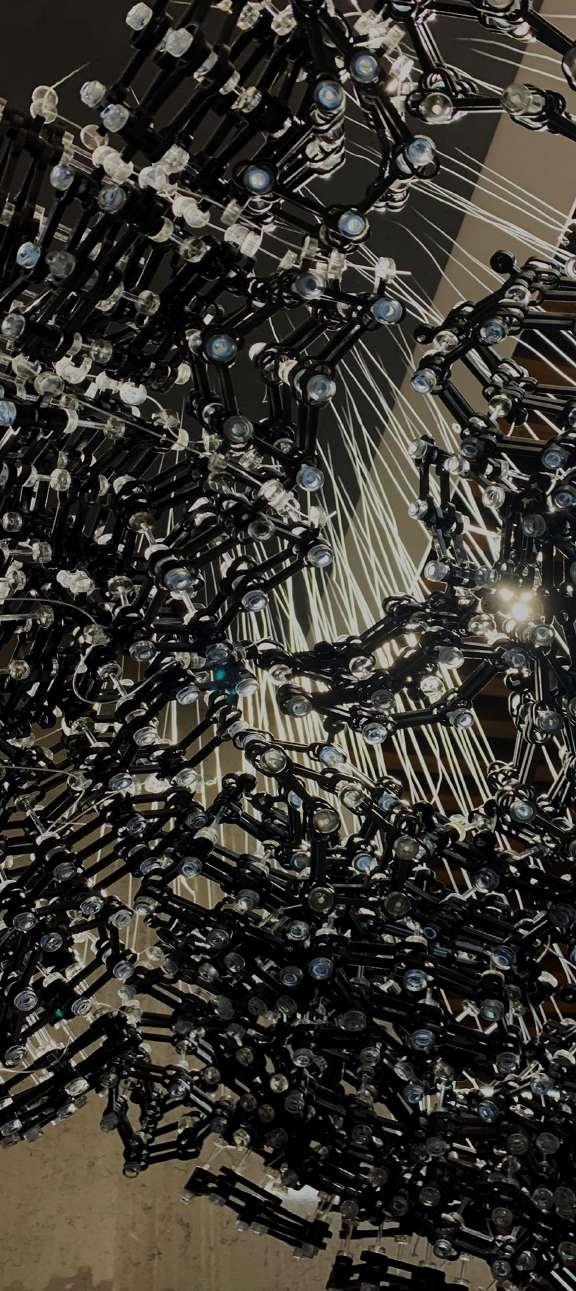

This installation has been an attempt to maintain the flexible ,dynamic and adaptive nature of the octopus’s suction cups with A refined yet complex use of numerous modules ,well connected to make one system .

Software used :

Page 26

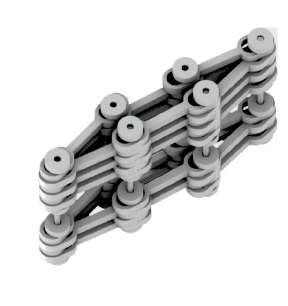

Single Module

Page 27

WORKING DRAWING Semester 5, 6 Mentor : Pournima Software used :

Page 28

Summer Solace

11:00

Winter Solace

21 June

N

06:05

E

11:00

N

E

07:11

21 Decemb

19:15

W

W

S

18:01

S

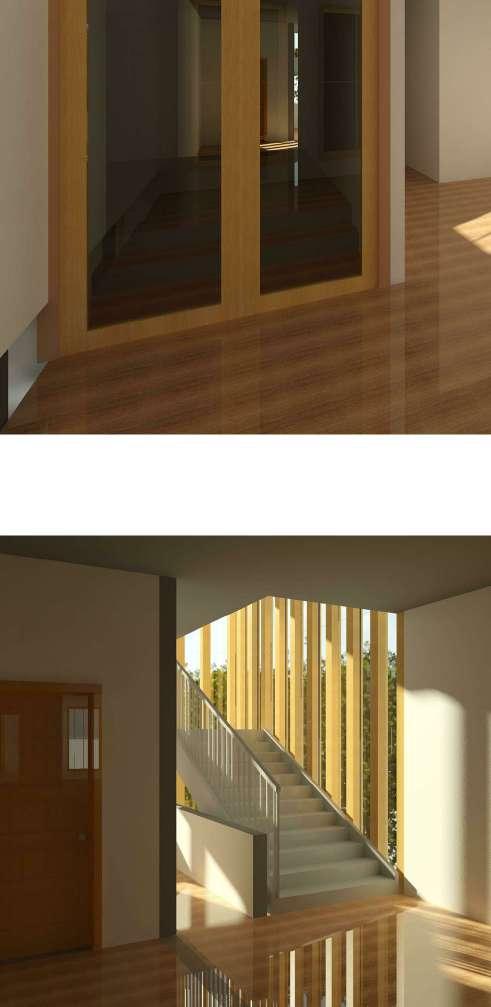

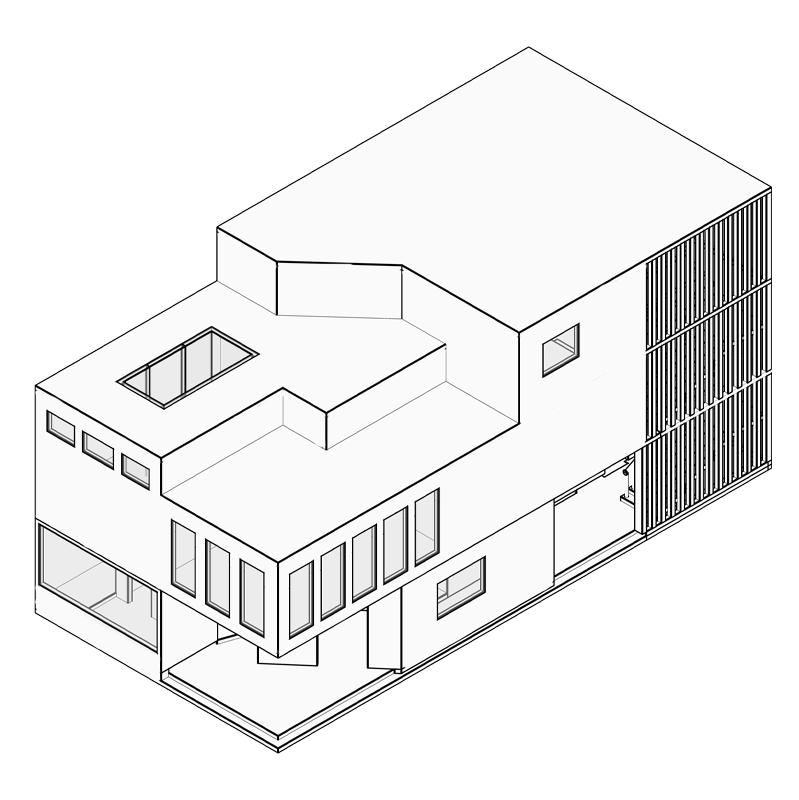

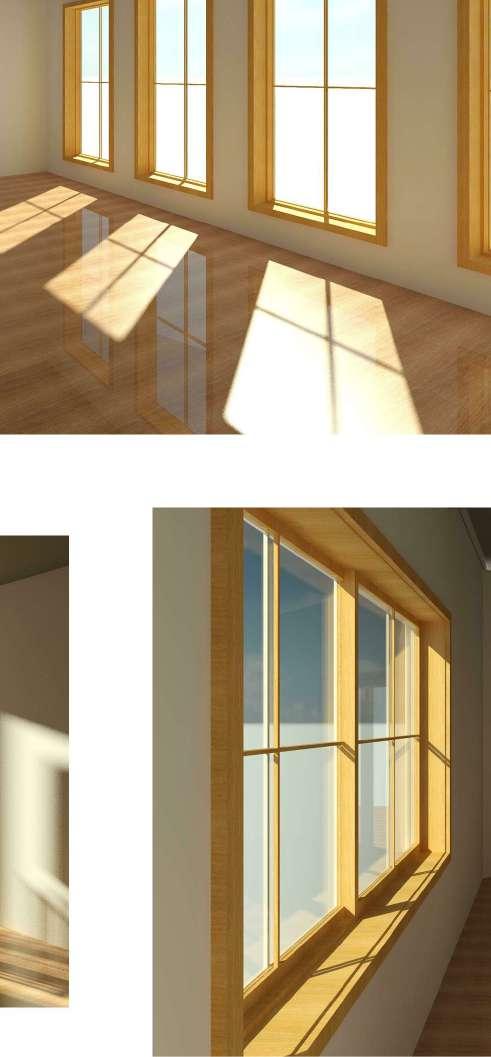

Revit Renders

Cafe

1:7

Cafe 1:7 afe 7

y

3

Reception 1:3

Page 29

DRAWING DESCRIPTION

DRAWING No. GENERAL NOTES : 1. DO NOT SCALE THIS DRAWING. ONLY WRITTEN DIMENSIONS ARE TO .

BE FOLLOWED 2. ALL DIMENSIONS ARE IN MILLI METRES, UNLESS OTHERWISE SPECIFIED. 3. THIS DRAWING IS TO BE READ IN CONJUNCTION WITH RELEVANT STRUCTURAL AND SERVICE DRAWINGS 4. ANY DISCREPANCY IN ARCHITECTURAL DRAWINGS OR BETWEEN ARCHITECTURAL DRAWINGS AND DRAWINGS OF ANY OTHER CONSULTANTS MUST BE BROUGHT TO THE NOTICE OF THE ARCHITECT BEFORE SUBMISSION OF TENDER BY THE CONTRACTOR OR BEFORE EXECUTING THE WORK OR BEFORE PLACING ORDER FOR MATERIALS ETC. 6. FOLLOW STRUCTURAL DRAWING FOR SIZING AND DIMENSIONS OF ALL .

STRUCTURAL MEMBERS 7. LARGE SCALE DETAILS WHEREVER GIVEN SHALL SUPERCEDE SMALL .

SCALE DRAWINGS 5. THIS DRAWING IS A COPYRIGHT AND SOLE PROPERTY OF, & SHALL NOT BE REPRODUCED WHOLLY OR IN PART WITHOUT THE SPECIFIC WRITTEN PERMISSION OF THE ARCHITECT.

20700 6485

8605

2880

3045

2260

450

2145

4890 4590

1700

875

2365

3280

5 132

25 20

10175

1730

75

33

30

21 2125

1855

1730 2140 1830

4700

2440

1200

KEY PLAN (1:200)

4510

30 14

4600

875 2485

2005

87 0

4725

2315

1860

1760

4180

470

4580

2200

1850 1500 500

CLIENT:

350

1850

PROJECT GROUND FLOOR PLAN AT 1.2M

ISSUE

Ground Floor Plan

PROGRAM: LEARNING CENTER. SITE: FOUNTAINHAS,PANJIM (GOA) BALWANT SHETH SCHOOL OF ARCHITECTURE, NMIMS NAME: HETA SHAH SCALE- 1:50

N

DR.NO 01 ROLL NO.A037 BSSA

14/08/20

SEM V

W.D.

DRAWING DESCRIPTION

DRAWING No. GENERAL NOTES : 1. DO NOT SCALE THIS DRAWING. ONLY WRITTEN DIMENSIONS ARE TO .

BE FOLLOWED 2. ALL DIMENSIONS ARE IN MILLI METRES, UNLESS OTHERWISE SPECIFIED. 3. THIS DRAWING IS TO BE READ IN CONJUNCTION WITH RELEVANT STRUCTURAL AND SERVICE DRAWINGS 4. ANY DISCREPANCY IN ARCHITECTURAL DRAWINGS OR BETWEEN ARCHITECTURAL DRAWINGS AND DRAWINGS OF ANY OTHER CONSULTANTS MUST BE BROUGHT TO THE NOTICE OF THE ARCHITECT BEFORE SUBMISSION OF TENDER BY THE CONTRACTOR OR BEFORE EXECUTING THE WORK OR BEFORE PLACING ORDER FOR MATERIALS ETC. 6. FOLLOW STRUCTURAL DRAWING FOR SIZING AND DIMENSIONS OF ALL .

STRUCTURAL MEMBERS 7. LARGE SCALE DETAILS WHEREVER GIVEN SHALL SUPERCEDE SMALL .

SCALE DRAWINGS 5. THIS DRAWING IS A COPYRIGHT AND SOLE PROPERTY OF, & SHALL NOT BE REPRODUCED WHOLLY OR IN PART WITHOUT THE SPECIFIC WRITTEN PERMISSION OF THE ARCHITECT.

4200 8835 4000

225

3795

1750

2880

5

137

0

5270

845

3540

1955

2935

450

7600

10175

50

31

239

1690

3460

460 2790

2810

1830

3025

KEY PLAN (1:200)

670

4490

4680

4910

4325

760 450

760

1700 5105

4575

CLIENT:

PROJECT SECOND FLOOR PLAN 7.05M

ISSUE

Third Floor Plan

PROGRAM: LEARNING CENTER. SITE: FOUNTAINHAS,PANJIM (GOA) BALWANT SHETH SCHOOL OF ARCHITECTURE, NMIMS NAME: HETA SHAH SCALE- 1:50

Page 30

N

DR.NO 03 ROLL NO.A037 BSSA

14/08/20

SEM V

W.D.

DRAWING DESCRIPTION

DRAWING No. GENERAL NOTES : 1. DO NOT SCALE THIS DRAWING. ONLY WRITTEN DIMENSIONS ARE TO .

BE FOLLOWED 2. ALL DIMENSIONS ARE IN MILLI METRES, UNLESS OTHERWISE SPECIFIED. 3. THIS DRAWING IS TO BE READ IN CONJUNCTION WITH RELEVANT STRUCTURAL AND SERVICE DRAWINGS 4. ANY DISCREPANCY IN ARCHITECTURAL DRAWINGS OR BETWEEN ARCHITECTURAL DRAWINGS AND DRAWINGS OF ANY OTHER CONSULTANTS MUST BE BROUGHT TO THE NOTICE OF THE ARCHITECT BEFORE SUBMISSION OF TENDER BY THE CONTRACTOR OR BEFORE EXECUTING THE WORK OR BEFORE PLACING ORDER FOR MATERIALS ETC. 6. FOLLOW STRUCTURAL DRAWING FOR SIZING AND DIMENSIONS OF ALL .

STRUCTURAL MEMBERS 7. LARGE SCALE DETAILS WHEREVER GIVEN SHALL SUPERCEDE SMALL .

SCALE DRAWINGS 5. THIS DRAWING IS A COPYRIGHT AND SOLE PROPERTY OF, & SHALL NOT BE REPRODUCED WHOLLY OR IN PART WITHOUT THE SPECIFIC WRITTEN PERMISSION OF THE ARCHITECT.

8605

2880

3540 4780

247

1270

450

4690 2175

1680

530

365

4760

3410

360

1845

375

0

360

4890

50 31

10175

3140

1955

1350

1700

360

1350

1955

3865 1330

360

7395

230

20700

6515

595

380 410

595

1410

1560 595

4490

1150

3040

440 355

350

KEY PLAN (1:200)

2475

1290

4600

440

5915

350

6135

5555 8190

4575

CLIENT:

PROJECT FIRST FLOOR PLAN AT 4.05M

ISSUE

First Floor Plan

PROGRAM: LEARNING CENTER. SITE: FOUNTAINHAS,PANJIM (GOA) BALWANT SHETH SCHOOL OF ARCHITECTURE, NMIMS NAME: HETA SHAH SCALE- 1:50

N

DR.NO 02 ROLL NO.A037 BSSA

14/08/20

SEM V

W.D.

DRAWING DESCRIPTION

DRAWING No. GENERAL NOTES : 1. DO NOT SCALE THIS DRAWING. ONLY WRITTEN DIMENSIONS ARE TO .

BE FOLLOWED 2. ALL DIMENSIONS ARE IN MILLI METRES, UNLESS OTHERWISE SPECIFIED. 3. THIS DRAWING IS TO BE READ IN CONJUNCTION WITH RELEVANT STRUCTURAL AND SERVICE DRAWINGS 4. ANY DISCREPANCY IN ARCHITECTURAL DRAWINGS OR BETWEEN ARCHITECTURAL DRAWINGS AND DRAWINGS OF ANY OTHER CONSULTANTS MUST BE BROUGHT TO THE NOTICE OF THE ARCHITECT BEFORE SUBMISSION OF TENDER BY THE CONTRACTOR OR BEFORE EXECUTING THE WORK OR BEFORE PLACING ORDER FOR MATERIALS ETC. 6. FOLLOW STRUCTURAL DRAWING FOR SIZING AND DIMENSIONS OF ALL .

STRUCTURAL MEMBERS 7. LARGE SCALE DETAILS WHEREVER GIVEN SHALL SUPERCEDE SMALL .

SCALE DRAWINGS

23845

6215 4725

1490

3500

1590

655

310

7680

1085

380 715

1720

1130

75

5. THIS DRAWING IS A COPYRIGHT AND SOLE PROPERTY OF, & SHALL NOT BE REPRODUCED WHOLLY OR IN PART WITHOUT THE SPECIFIC WRITTEN PERMISSION OF THE ARCHITECT.

3450

915

450 300

985 300

315

180 220

315

240 180

300

450

280

450 300

300

450 300

400

175 300 325

300

315 230 300

5050

185 160 300 380 380

300 450

1980 450 300

2850

320 450 300

450

150 300 290

450

450 300

450 300

300

4650

KEY PLAN (1:200) 13735

ISSUE

16100 22955

Centre Line Plan

PROGRAM: LEARNING CENTER. SITE: FOUNTAINHAS,PANJIM (GOA) BALWANT SHETH SCHOOL OF ARCHITECTURE, NMIMS NAME: HETA SHAH SCALE- 1:100

DR.NO 05 ROLL NO.A037 BSSA

N

SEM VI

23/04/21 W.D.

Page 31

DRAWING DESCRIPTION

DRAWING No. GENERAL NOTES : 1. DO NOT SCALE THIS DRAWING. ONLY WRITTEN DIMENSIONS ARE TO .

BE FOLLOWED 2. ALL DIMENSIONS ARE IN MILLI METRES, UNLESS OTHERWISE SPECIFIED. 3. THIS DRAWING IS TO BE READ IN CONJUNCTION WITH RELEVANT STRUCTURAL AND SERVICE DRAWINGS 4. ANY DISCREPANCY IN ARCHITECTURAL DRAWINGS OR BETWEEN ARCHITECTURAL DRAWINGS AND DRAWINGS OF ANY OTHER CONSULTANTS MUST BE BROUGHT TO THE NOTICE OF THE ARCHITECT BEFORE SUBMISSION OF TENDER BY THE CONTRACTOR OR BEFORE EXECUTING THE WORK OR BEFORE PLACING ORDER FOR MATERIALS ETC. 6. FOLLOW STRUCTURAL DRAWING FOR SIZING AND DIMENSIONS OF ALL .

STRUCTURAL MEMBERS 7. LARGE SCALE DETAILS WHEREVER GIVEN SHALL SUPERCEDE SMALL .

SCALE DRAWINGS 5. THIS DRAWING IS A COPYRIGHT AND SOLE PROPERTY OF, & SHALL NOT BE REPRODUCED WHOLLY OR IN PART WITHOUT THE SPECIFIC WRITTEN PERMISSION OF THE ARCHITECT.

Front Elevation

KEY PLAN (1:200) ISSUE

PROGRAM: LEARNING CENTER. SITE: FOUNTAINHAS,PANJIM (GOA) BALWANT SHETH SCHOOL OF ARCHITECTURE, NMIMS NAME: HETA SHAH

Back Elevation

SCALE- 1:100

DR.NO 07 ROLL NO.A037

N

BSSA

23/04/21

SEM VI

W.D.

DRAWING DESCRIPTION

DRAWING No. GENERAL NOTES : 1. DO NOT SCALE THIS DRAWING. ONLY WRITTEN DIMENSIONS ARE TO .

BE FOLLOWED 2. ALL DIMENSIONS ARE IN MILLI METRES, UNLESS OTHERWISE SPECIFIED. 3. THIS DRAWING IS TO BE READ IN CONJUNCTION WITH RELEVANT STRUCTURAL AND SERVICE DRAWINGS 4. ANY DISCREPANCY IN ARCHITECTURAL DRAWINGS OR BETWEEN ARCHITECTURAL DRAWINGS AND DRAWINGS OF ANY OTHER CONSULTANTS MUST BE BROUGHT TO THE NOTICE OF THE ARCHITECT BEFORE SUBMISSION OF TENDER BY THE CONTRACTOR OR BEFORE EXECUTING THE WORK OR BEFORE PLACING ORDER FOR MATERIALS ETC. 6. FOLLOW STRUCTURAL DRAWING FOR SIZING AND DIMENSIONS OF ALL .

STRUCTURAL MEMBERS 7. LARGE SCALE DETAILS WHEREVER GIVEN SHALL SUPERCEDE SMALL .

SCALE DRAWINGS 5. THIS DRAWING IS A COPYRIGHT AND SOLE PROPERTY OF, & SHALL NOT BE REPRODUCED WHOLLY OR IN PART WITHOUT THE SPECIFIC WRITTEN PERMISSION OF THE ARCHITECT.

Left Elevation

Right Elevation KEY PLAN (1:200) ISSUE

PROGRAM: LEARNING CENTER. SITE: FOUNTAINHAS,PANJIM (GOA) BALWANT SHETH SCHOOL OF ARCHITECTURE, NMIMS NAME: HETA SHAH SCALE- 1:100

Page 32

N

DR.NO 09 ROLL NO.A037 BSSA

23/04/21

SEM VI

W.D.

900

900

DRAWING DESCRIPTION

GENERAL NOTES :

865

7830

4060

7625

4065

1. DO NOT SCALE THIS DRAWING. ONLY WRITTEN DIMENSIONS ARE TO .

BE FOLLOWED 2. ALL DIMENSIONS ARE IN MILLI METRES, UNLESS OTHERWISE SPECIFIED. 3. THIS DRAWING IS TO BE READ IN CONJUNCTION WITH RELEVANT STRUCTURAL AND SERVICE DRAWINGS 4. ANY DISCREPANCY IN ARCHITECTURAL DRAWINGS OR BETWEEN ARCHITECTURAL DRAWINGS AND DRAWINGS OF ANY OTHER CONSULTANTS MUST BE BROUGHT TO THE NOTICE OF THE ARCHITECT BEFORE SUBMISSION OF TENDER BY THE CONTRACTOR OR BEFORE EXECUTING THE WORK OR BEFORE PLACING ORDER FOR MATERIALS ETC. 6. FOLLOW STRUCTURAL DRAWING FOR SIZING AND DIMENSIONS OF ALL .

STRUCTURAL MEMBERS 7. LARGE SCALE DETAILS WHEREVER GIVEN SHALL SUPERCEDE SMALL .

SCALE DRAWINGS 5. THIS DRAWING IS A COPYRIGHT AND SOLE PROPERTY OF, & SHALL NOT BE REPRODUCED WHOLLY OR IN PART WITHOUT THE SPECIFIC WRITTEN PERMISSION OF THE ARCHITECT.

1500

2650

2075

2475

2615

1200

750

2850

1500

900

900

4000

1360

900

7625

4000

DRAWING No.

7990 1015

2870

100

4860

345

2065

2050

2445

3300

470

1595

7820

2970

3130

5595

2645

Section AA’

1200

3560

1800

1420

900

1200

2100

2550

KEY PLAN (1:200)

3150

4200

3025

4870

4560

5175

CLIENT:

4965

PROJECT SECTION AA

2120

500

900

1375

230

1375

4560

ISSUE

5175 1230 3850 2100 2005

1375 2100

3300

3450

3100

975

PROGRAM: LEARNING CENTER. SITE: FOUNTAINHAS,PANJIM (GOA) BALWANT SHETH SCHOOL OF ARCHITECTURE, NMIMS NAME: HETA SHAH

Section BB’

SCALE- 1:50

N

DR.NO 10 ROLL NO.A037 BSSA

14/08/20

SEM V

W.D.

DRAWING DESCRIPTION

DRAWING No. GENERAL NOTES : 1. DO NOT SCALE THIS DRAWING. ONLY WRITTEN DIMENSIONS ARE TO .

BE FOLLOWED 2. ALL DIMENSIONS ARE IN MILLI METRES, UNLESS OTHERWISE SPECIFIED. 3. THIS DRAWING IS TO BE READ IN CONJUNCTION WITH RELEVANT STRUCTURAL AND SERVICE DRAWINGS 4. ANY DISCREPANCY IN ARCHITECTURAL DRAWINGS OR BETWEEN ARCHITECTURAL DRAWINGS AND DRAWINGS OF ANY OTHER CONSULTANTS MUST BE BROUGHT TO THE NOTICE OF THE ARCHITECT BEFORE SUBMISSION OF TENDER BY THE CONTRACTOR OR BEFORE EXECUTING THE WORK OR BEFORE PLACING ORDER FOR MATERIALS ETC. 6. FOLLOW STRUCTURAL DRAWING FOR SIZING AND DIMENSIONS OF ALL .

STRUCTURAL MEMBERS 7. LARGE SCALE DETAILS WHEREVER GIVEN SHALL SUPERCEDE SMALL .

SCALE DRAWINGS 5. THIS DRAWING IS A COPYRIGHT AND SOLE PROPERTY OF, & SHALL NOT BE REPRODUCED WHOLLY OR IN PART WITHOUT THE SPECIFIC WRITTEN PERMISSION OF THE ARCHITECT.

../../../Desktop/college/WD/SEM 6/New Folder With Items/square lr.jpeg

../../../Desktop/college/WD/SEM 6/New Folder With Items/square lr.jpeg

../../../Desktop/college/WD/SEM 6/New Folder With Items/GP01122_b.jpg

../../../Desktop/college/WD/SEM 6/New Folder With Items/GP01122_b.jpg

../../../Desktop/college/WD/SEM 6/New Folder With Items/GP01122_b.jpg

../../../Desktop/college/WD/SEM 6/New Folder With Items/square lr.jpeg

../../../Desktop/college/WD/SEM 6/New Folder With Items/super_gloss_toronto_marble_f1.jpg

../../../Desktop/college/WD/SEM 6/New Folder With Items/super_gloss_toronto_marble_f1.jpg

../../../Desktop/college/WD/SEM 6/New Folder With Items/square lr.jpeg

../../../Desktop/college/WD/SEM 6/New Folder With Items/GP01122_b.jpg

../../../Desktop/college/WD/SEM 6/New Folder With Items/GP01122_b.jpg

../../../Desktop/college/WD/SEM 6/New Folder With Items/Screenshot 2021-02-26 at 8.29.26 AM.png

../../../Desktop/college/WD/SEM 6/New Folder With Items/GP01122_b.jpg

../../../Desktop/college/WD/SEM 6/New Folder With Items/super_gloss_toronto_marble_f1.jpg

../../../Desktop/college/WD/SEM 6/New Folder With Items/GP01122_b.jpg

../../../Desktop/college/WD/SEM 6/New Folder With Items/square lr.jpeg

../../../Desktop/college/WD/SEM 6/New Folder With Items/GP01122_b.jpg

../../../Desktop/college/WD/SEM 6/New Folder With Items/GP01122_b.jpg

../../../Desktop/college/WD/SEM 6/New Folder With Items/super_gloss_toronto_marble_f1.jpg

../../../Desktop/college/WD/SEM 6/New Folder With Items/GP01122_b.jpg

KEY PLAN (1:200) ISSUE

PROGRAM: LEARNING CENTER. 150

290 40

150

SITE: FOUNTAINHAS,PANJIM (GOA) BALWANT SHETH SCHOOL OF ARCHITECTURE, NMIMS NAME: HETA SHAH SCALE- 1:100

N

DR.NO 10 ROLL NO.A037 BSSA

23/04/21

SEM VI

W.D.

Page 33

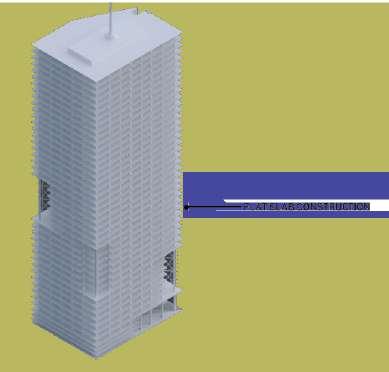

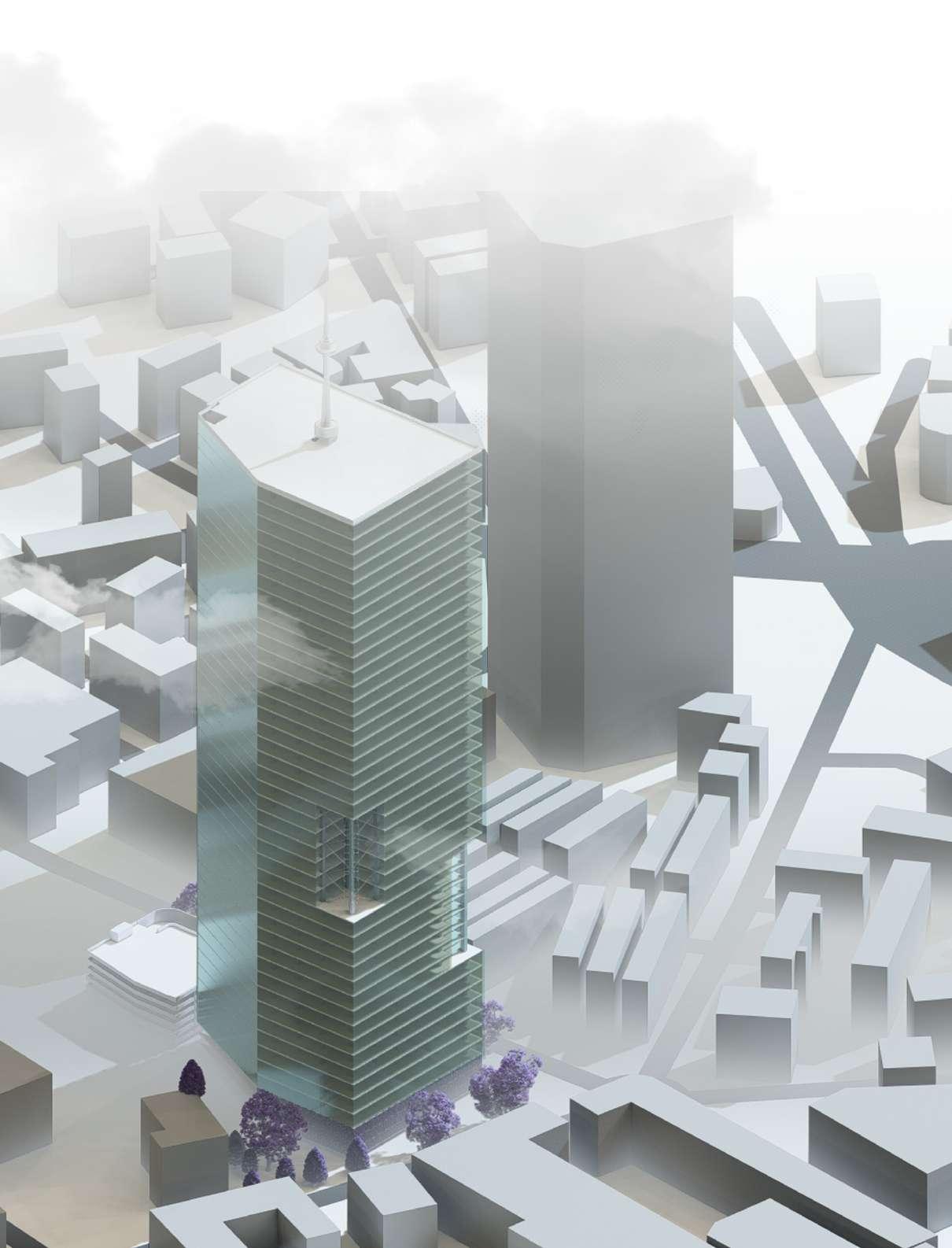

SOLAR DECATHLON 2021-2022 Team XYZ : Janvi Mangukiya, Nikhiil M Kannan, Amogh Deshpande, Aditya Kumar, Kunwar Jeswani, Prerna Kejriwal, Shruti Pandey, Siddhant Kothari, Soham Bhanushali, Sutirtha Das Gupta.

Project Partner : Access Architects Building type : Office Building (Ruby Phase 2)

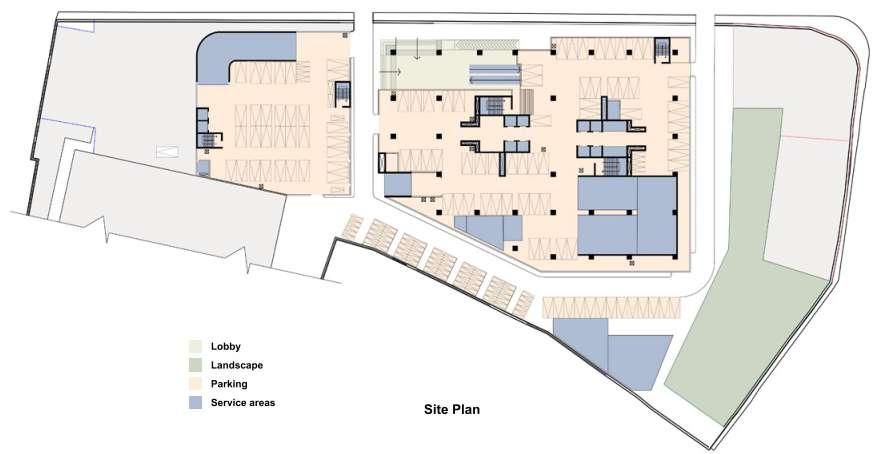

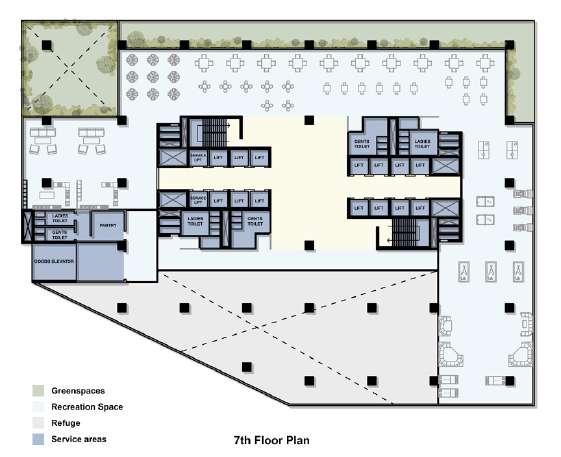

Page 34

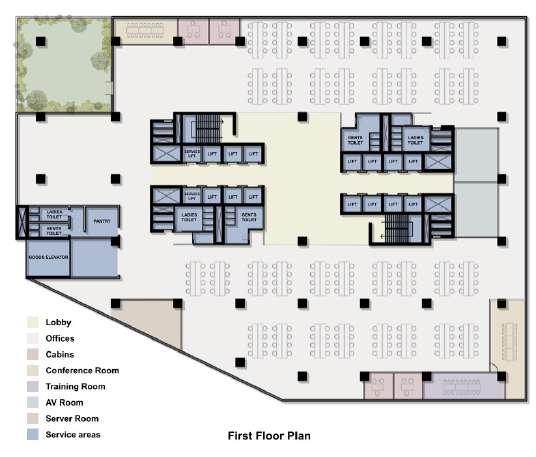

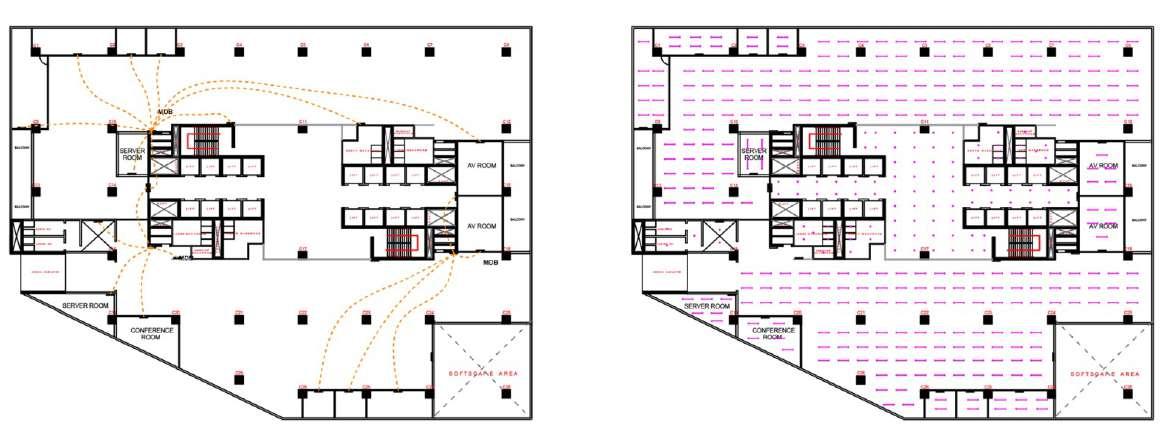

Artificial Lighting Services

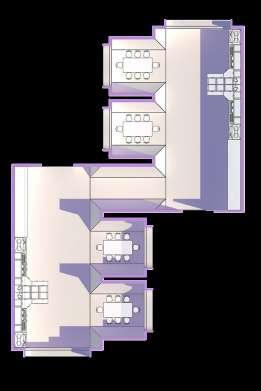

MDB & MSB placement on a typical floor layout

Lighting unit placement on a typical floor layout Page 35

Rooftop Solar Panels

Building Integrated Photovoltaic Cells

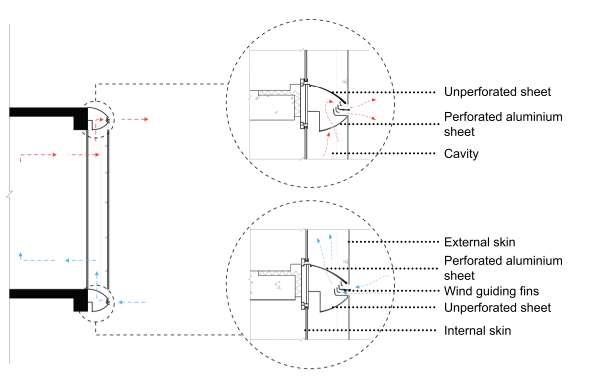

Fish Mouth Unit attached to the DSF unit

Page 36

Green walls for the external façade

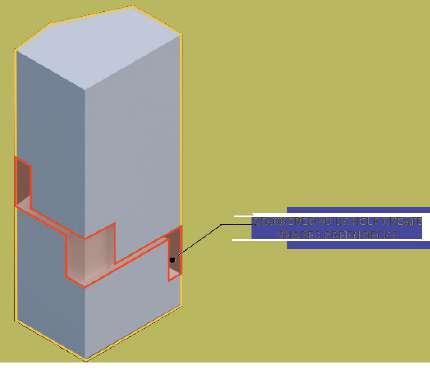

Design Development

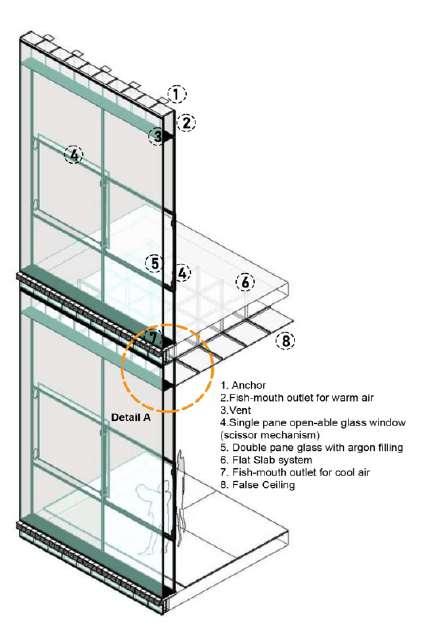

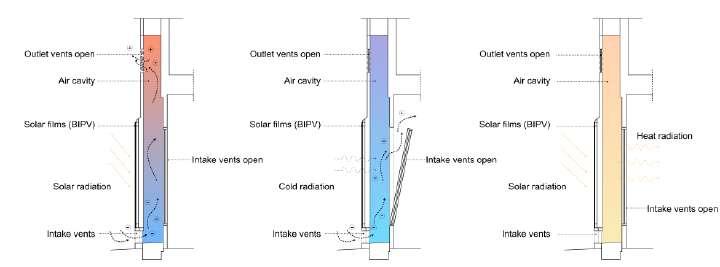

Double Skin Facade

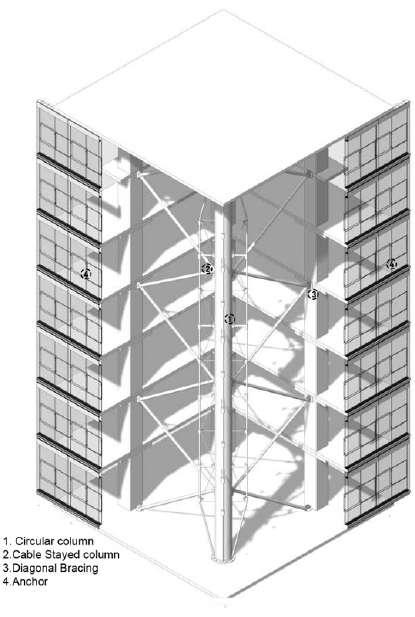

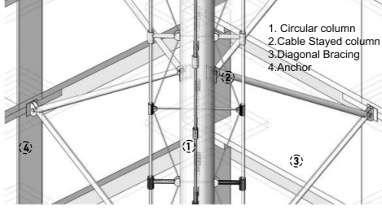

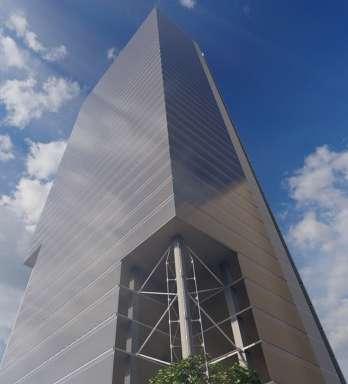

Tension stayed column detail

Page 37

Page 38

Page 39

Page 40

Page 41

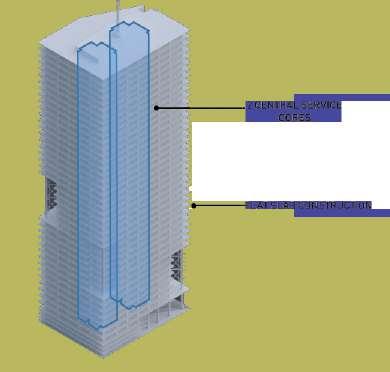

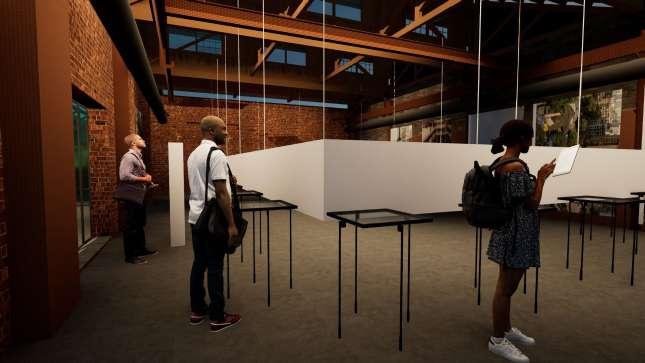

(de) CODING MUMBAI Firm : SP+A An exhibition by SP+A based on a book documenting the evolution of buildings according to the changes in bylaws in Mumbai. The book is divided in four phases comprising of several case studies in Mumbai which were displayed in a round of panels and models respectively.

Softwares used :

Page 42

Page 43

OTHER INTERESTS Other than architecture, being a performer has truly been my passion since childhood.

Here is a compilation of few of my achievements as a performer of Indian classical and Indian folk dance forms.

Page 44

Page 45

Heta Shah Email : hetahshah2000@gmail.com Phone No. : 9619292383

Page 46
