Herschel Infrared 2024 (UK) Domestic Brochure

Comfort White Panel

Inspire Picture Panel

Where Performance meets Design Domestic Brochure 2024 Indoor & outdoor heating solutions www.herschel-infrared.co.uk

Completely changing the way we heat ourselves Infrared heating is a practical and effective alternative to gas and heat pumps for net zero heating Image shows Select XLS White Towel Heater (with Integrated Controls)

Better for you

Better for buildings

Our infrared heating technology uses the heat humans were designed for. We’ve evolved over time to naturally absorb the comfortable feeling of infrared radiant heat. A fresher type of heat that you’ll wish you’d switched to sooner.

Our infrared heaters directly heat the building, driving out damp and mould, reducing condensation and maintaining a more healthy living environment.

Better for our planet 100% electric. Power with a renewable tariff for CO2 free warmth. Efficient and simple to install, our infrared heaters offer the easiest way to achieve net zero heating.

Image shows Comfort White

Designs you will LOVE We have infrared heaters for indoor and outdoor applications. Made of the highest quality components, our heaters are built to last. They are subject to rigorous testing by TÜV or equivalent bodies and, for the UK market, are specifically optimised for UK voltage.

Panel heaters - Indoor Our panel heaters are stylish, ultra-slim and space-saving, specially designed for heating rooms evenly - creating a comfortable, natural feeling of warmth that our customers love! A number of designs are available including standard white, mirrors, towel heaters and even bespoke pictures.

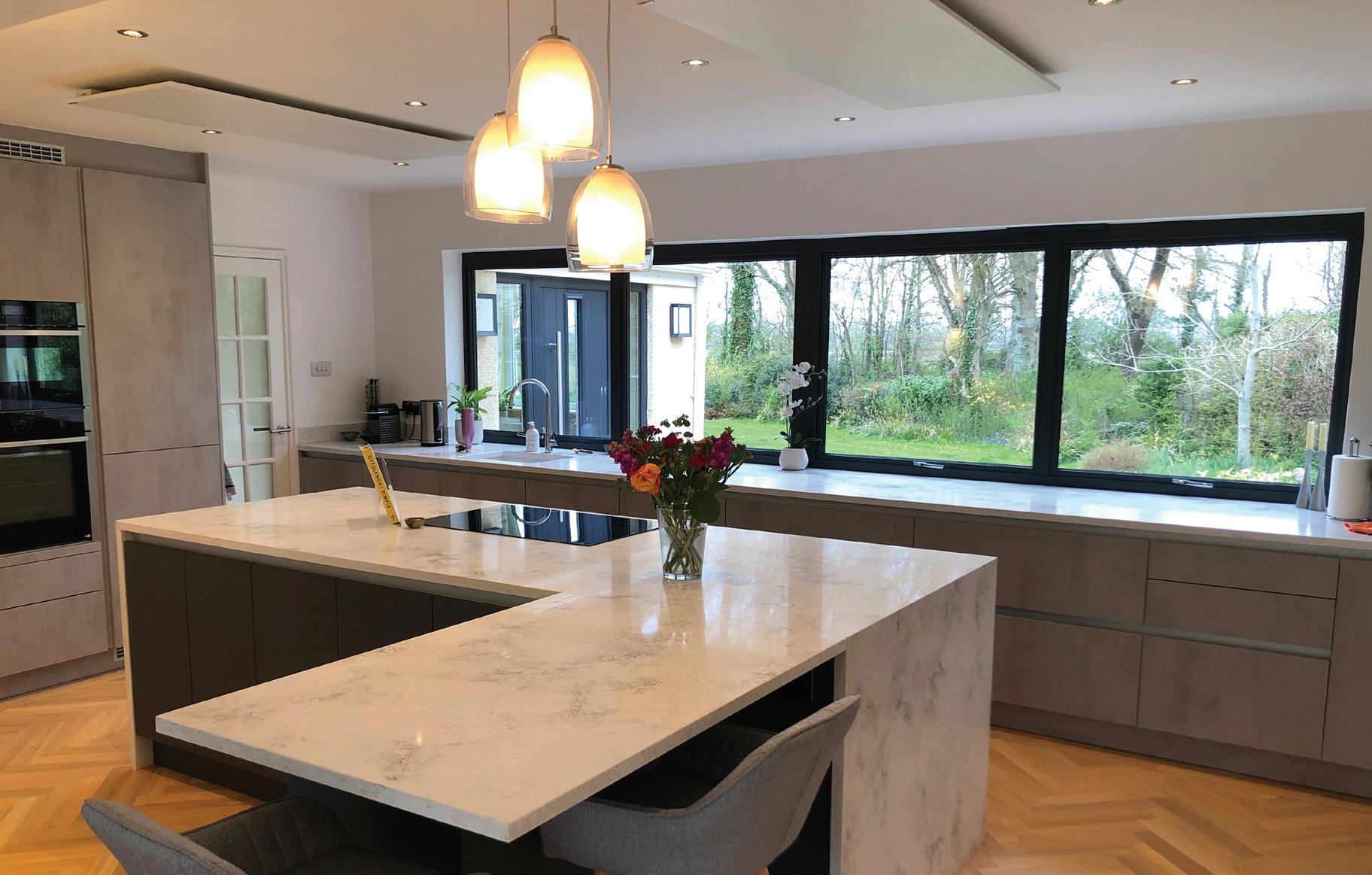

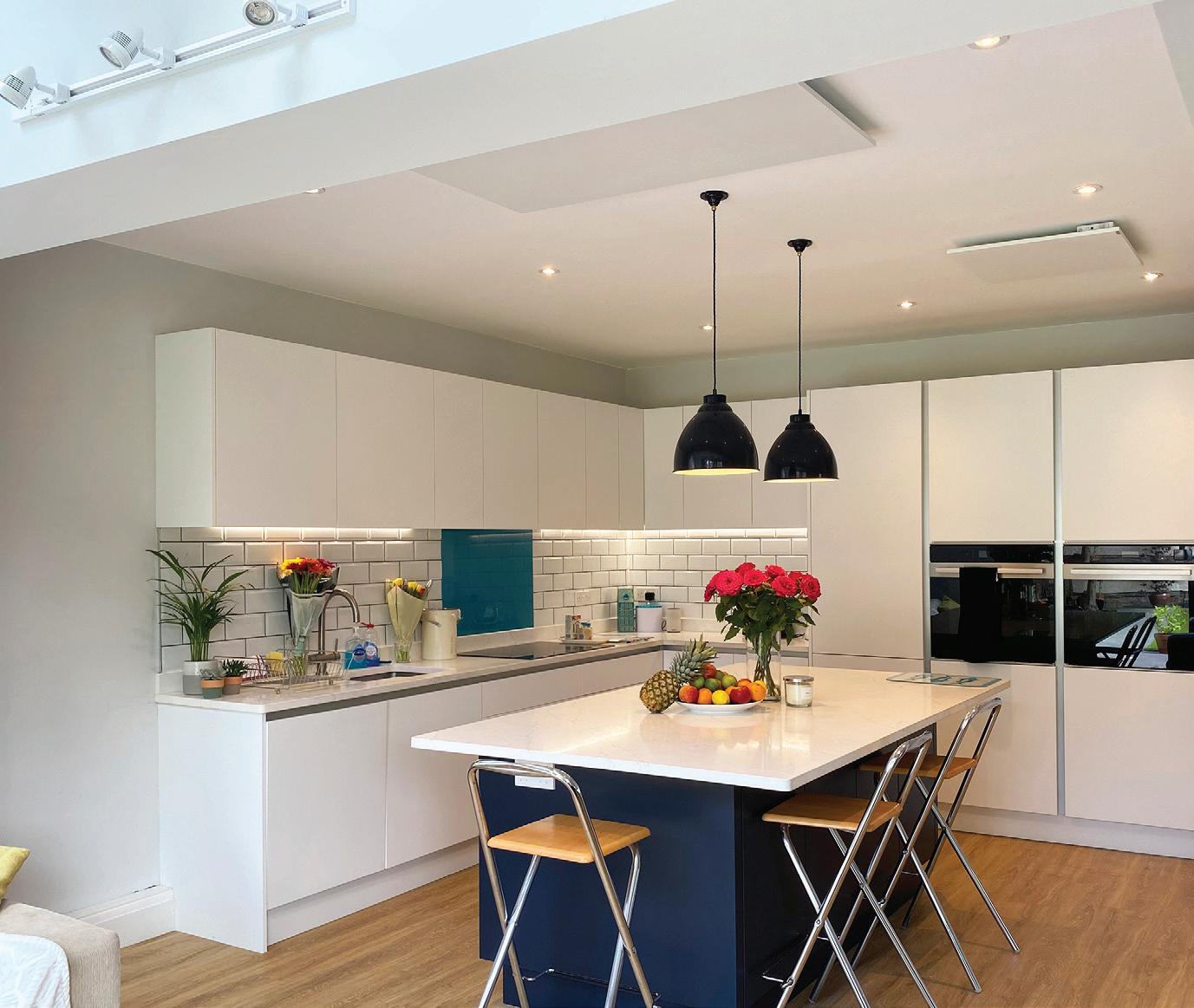

Image shows Select XLS White (ceiling mounted)

Instead of directly heating the air in a room, our infrared panels heat the walls, ceiling and floor evenly which absorbs the heat and gently re-emits the heat back into the room. This is more efficient than conventional heating systems which waste energy by heating large volumes of air.

Outdoor heaters Our outdoor heaters are engineered for performance, efficiency and durability using the best technologies. We want you to maximise your enjoyment of outdoor living by providing comfortable and efficient outdoor heating.

Our range includes wall-mounted, freestanding and hanging models to suit your space. All Herschel’s electric patio heater are made from high grade materials to withstand the effects of weather and give many years of use and enjoyment outdoors.

We also have heaters for the commercial and industrial markets. Visit our website to see our full range of heaters.

Image shows Florida patio heater

3

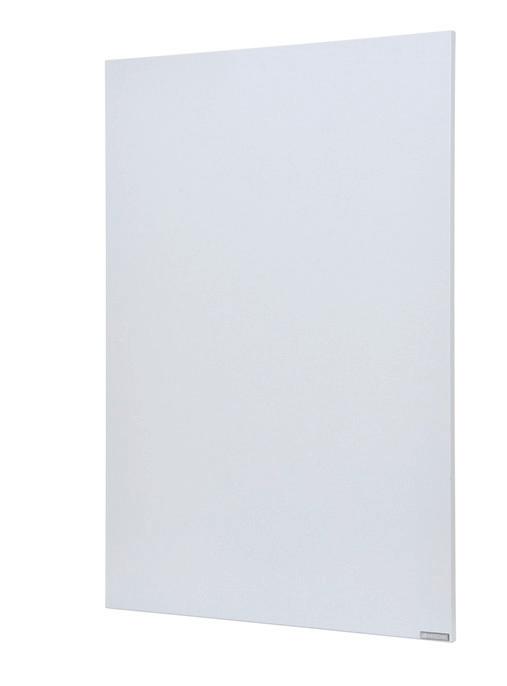

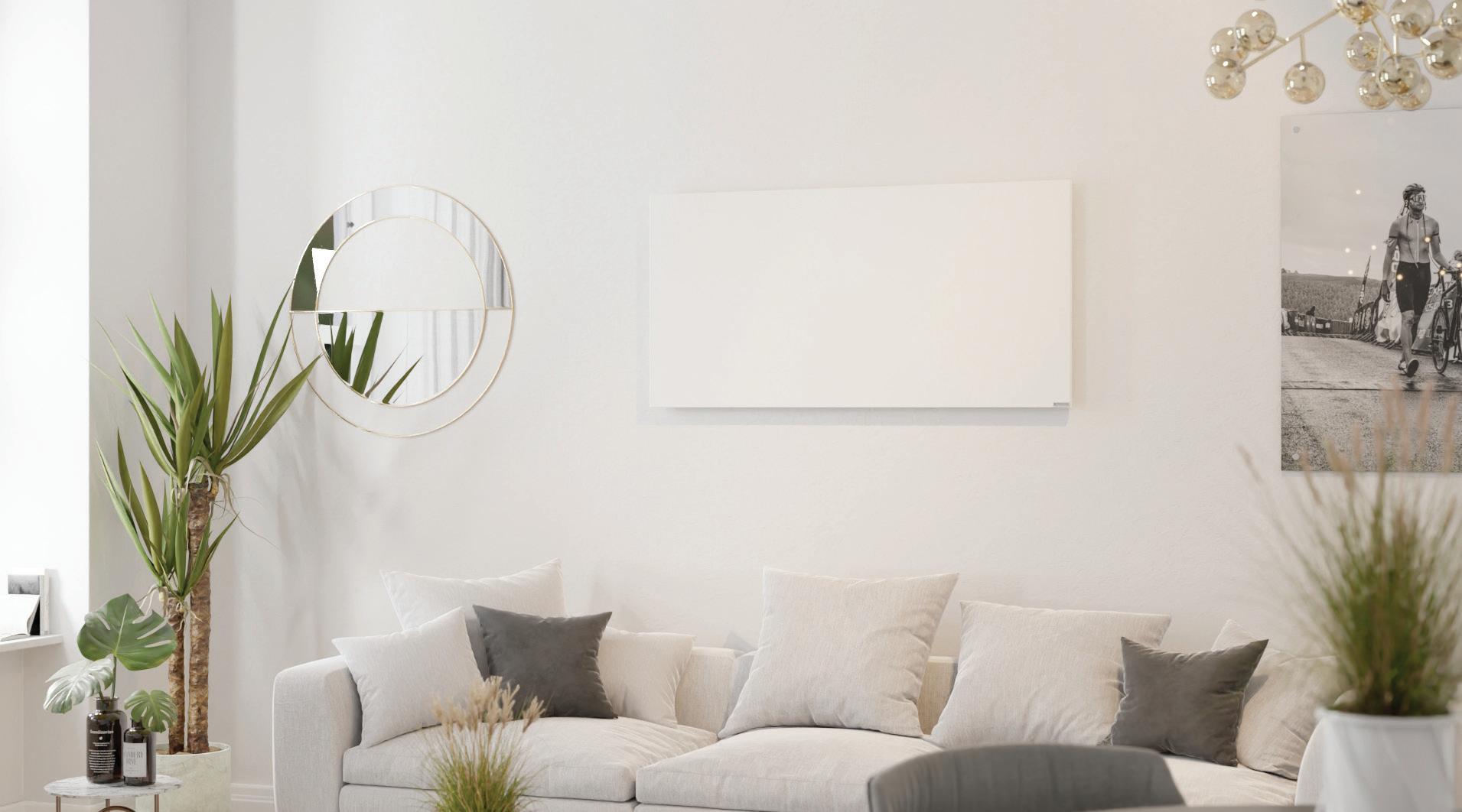

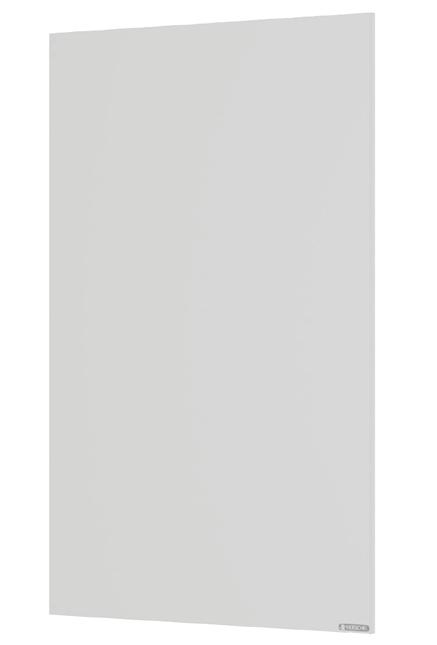

Image shows Comfort

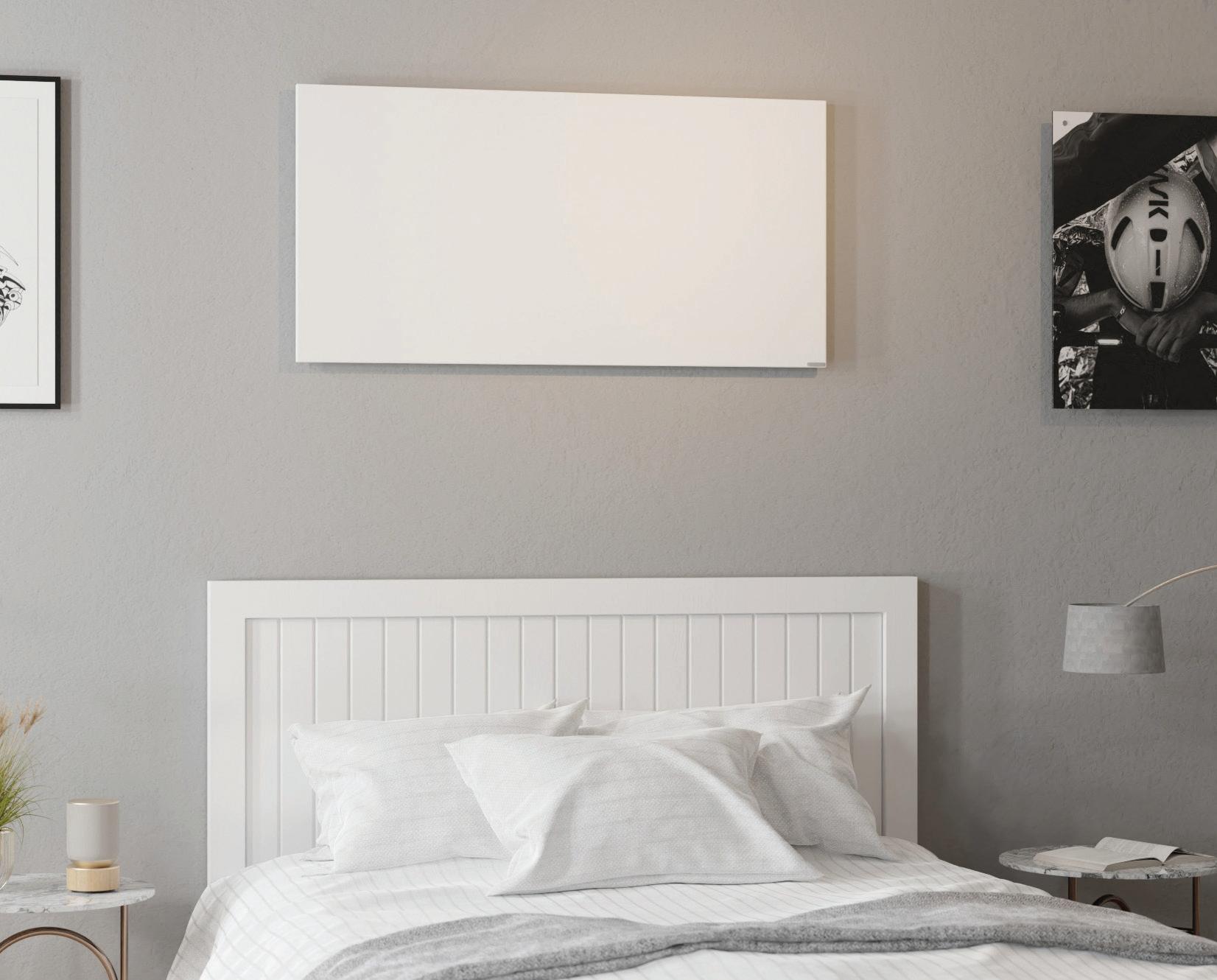

Comfort Experience the pinnacle of sustainability, comfort, and performance with Comfort: the most efficient and ecofriendly panel on the market.

Key Features: • Available in 9 sizes • 250W - 1250W • Frameless powder-coated finish • Highly efficient, long life heating element • Over 95% recyclable Other colour options available, contact Herschel for more information.

Steel Powder Coated Front • Specialist high-temperature resistant powder coating (RAL 9016) • Surface temp 95-110C

Thermal Safety • 2 integrated thermal safety switches

Herschel Comfort

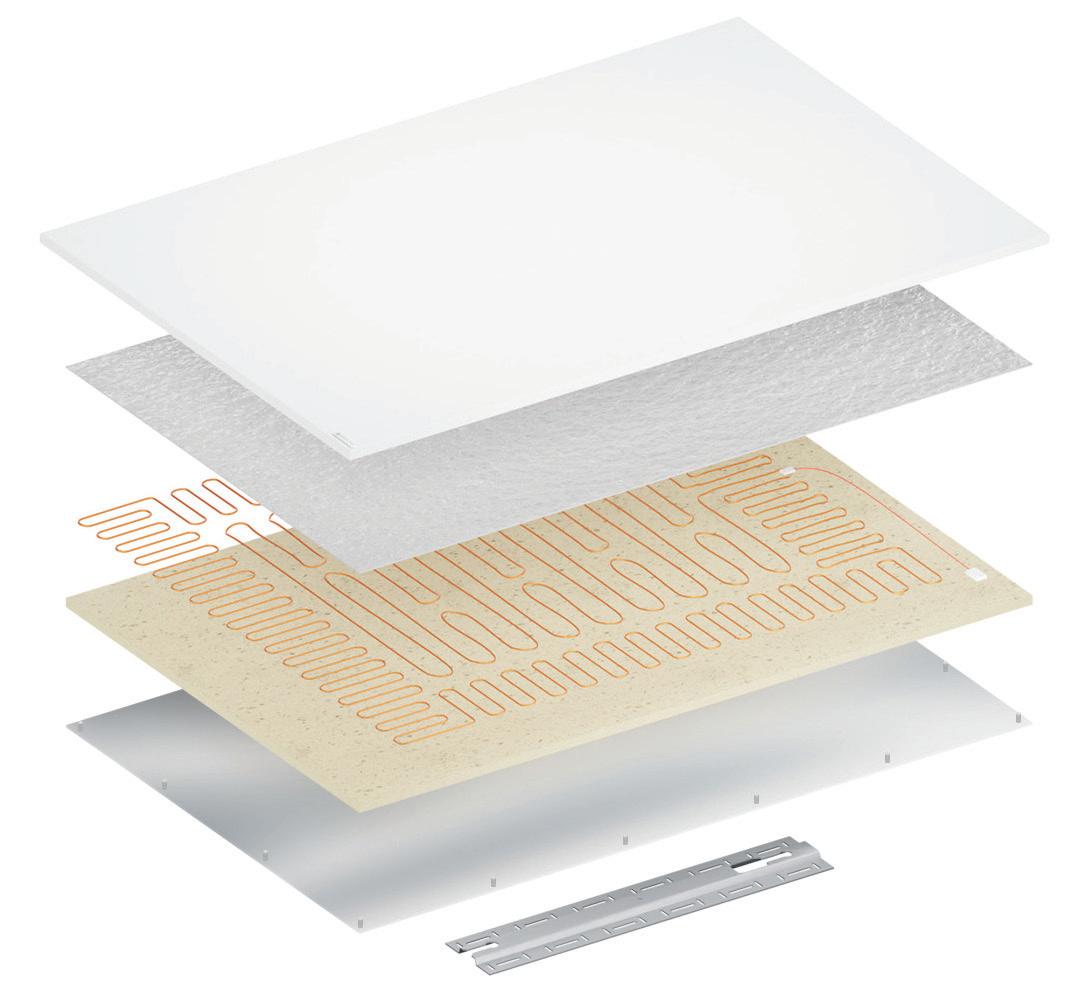

Swift Comfort Plus System • High performance, long life German made heating element • Extremely rapid start-up times • Warm up in 5 minutes • Special grade aluminium foil to deliver optimum infrared spread • Uniform heat dispersion

Unparalleled Performance The Herschel Comfort white infrared heating panel combines sustainability, comfort and performance to deliver the most efficient, eco-friendly panel on the UK market. Using Herschel’s latest developments in technology and unrivalled experience in infrared application, every design detail has been considered with manufacture in our UK Production Facility using British and European components.

The Comfort white infrared heater features Herschel’s innovative Swift Comfort Plus system, improving efficiency by delivering a higher proportion of infrared heat into the room and a faster warm-up experience. Swift Comfort Plus includes our high performance, long life German made heating element which heats up to higher temperatures extremely quickly from startup and delivers an optimum spread of heat across the surface of the panel. A combination of high quality, UK made insulation material and a specially treated radiant reflective stainless steel back panel reduces rearward heat loss by over 20%. Comfort has been tested to the new IEC 60675 standard for radiant efficiency.

UK Made Insulation • • • •

Natural volcanic basalt wool insulation Manufactured in Wales 100% recyclable, low environmental impact High thermal efficiency

One-Piece Mounting Bracket Radiant Reflective Back • Specially treated radiant reflective stainless steel • Reduces rearward heat loss by over 20% • 100% recyclable steel

• One piece central fixing bracket for easy and secure installation • Compatible with wall or ceiling mounting • 100% recyclable British galvanised steel

Image shows Krystal

Krystal White Fast-acting comfort from a sleek white glass, ultra-compact and space-saving solution Key Features: • Available in 600W and 1000W • Ceiling or wall mounting • Includes optional recessed-ceiling finish* • Stunning microcrystal glass, white • High efficiency

*Krystal installed within recessed ceiling mounting kit, in white

Herschel Krystal Discreet Power Unique in design, the elegant Herschel Krystal infrared panel heater is constructed using specialised microcrystal ceramic glass and incorporates Herschel’s innovative COSIX © Cell infrared heating technology. The fast-acting Krystal offers a highly attractive, sleek and compact, space-saving solution that can be neatly recessed into ceilings to ensure a contemporary, seamless finish for any interior.

Available in 600W and 1000W and a choice of two colours, black or white, Krystal’s innovative design delivers an efficient and effective heating solution along with the beautiful feeling of natural, radiant warmth that our customers love. Perfect for high-end properties and bathrooms, the Krystal is designed for ceiling mounting in rooms and can be wall mounted in large spaces.

Krystal Black Fast-acting comfort from a sleek black glass, ultra-compact and space-saving solution Key Features: • Available in 600W and 1000W • Ceiling or wall mounting • Includes optional recessed-ceiling finish* • Stunning microcrystal glass, black • High efficiency

*Krystal installed within recessed ceiling mounting kit, in black

5 warranty

5

Image shows Select XLS White

Select XLS White The best selling Select XLS White provides highly efficient performance heating that blends into the background and maximises room space, with wall and ceiling mounting Key Features: • Available in 5 sizes • 300W - 1100W • Frameless, white finish • Integrated SMART-R technology • Heater over 95% recyclable

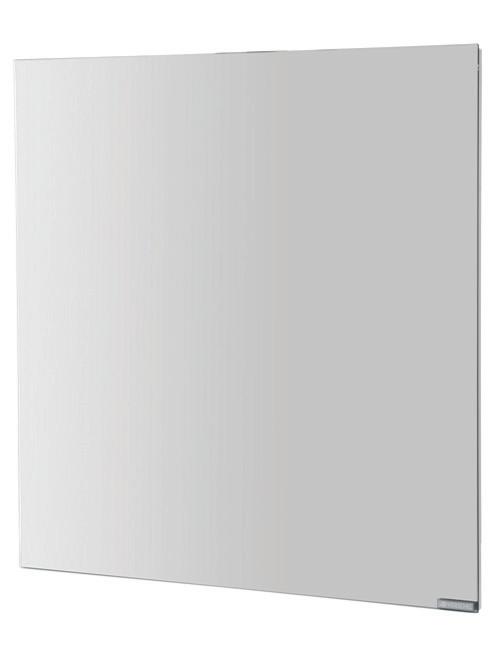

Select XLS Mirror A mirror heater that warms your bathroom and won’t steam up

Herschel Select XLS

Key Features: • Available in 3 sizes • 350W - 700W • Integrated SMART-R technology • Steam-free mirror when on • Helps reduce damp and mould

Effortless Versatility The Select XLS range of infrared panel heaters offers a fantastic combination of performance, quality and price, all backed with a 5 year warranty. The Select XLS panel features Herschel’s SMART-R receiver technology integrated into the panel making them perfect for DIY and retrofit installations.

Available in a number of super-slim finishes including White, Mirror, Towel and Round, there are options for ceiling and wall mounting (and our Round panel can even be ceiling-suspended for a contemporary finish).

With simple control through your choice of XLS thermostat, plus in-built controls on our Select XLS Mirror with Lights and Select XLS Towel heater, our Select XLS range provides a versatile solution for the modern home.

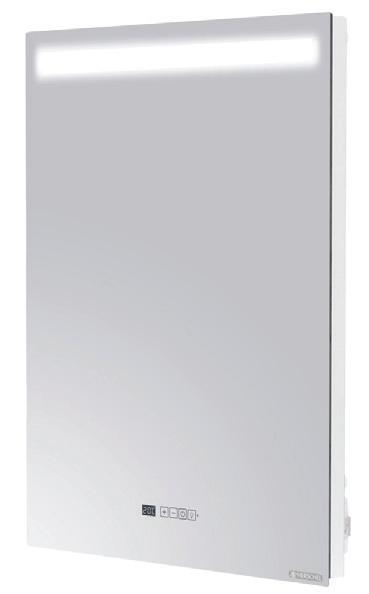

Select XLS Mirror with Lights (with integrated controls)

The popular XLS mirror heater now with additional lighting and integrated control capabilities Key Features: • Available in 2 sizes - 400W & 600W • Integrated touch screen controls and App control • Dimmable light with colour changing options, also includes a backlight • Control lights and heater separately • Includes demist function

Panel heaters - Select XLS

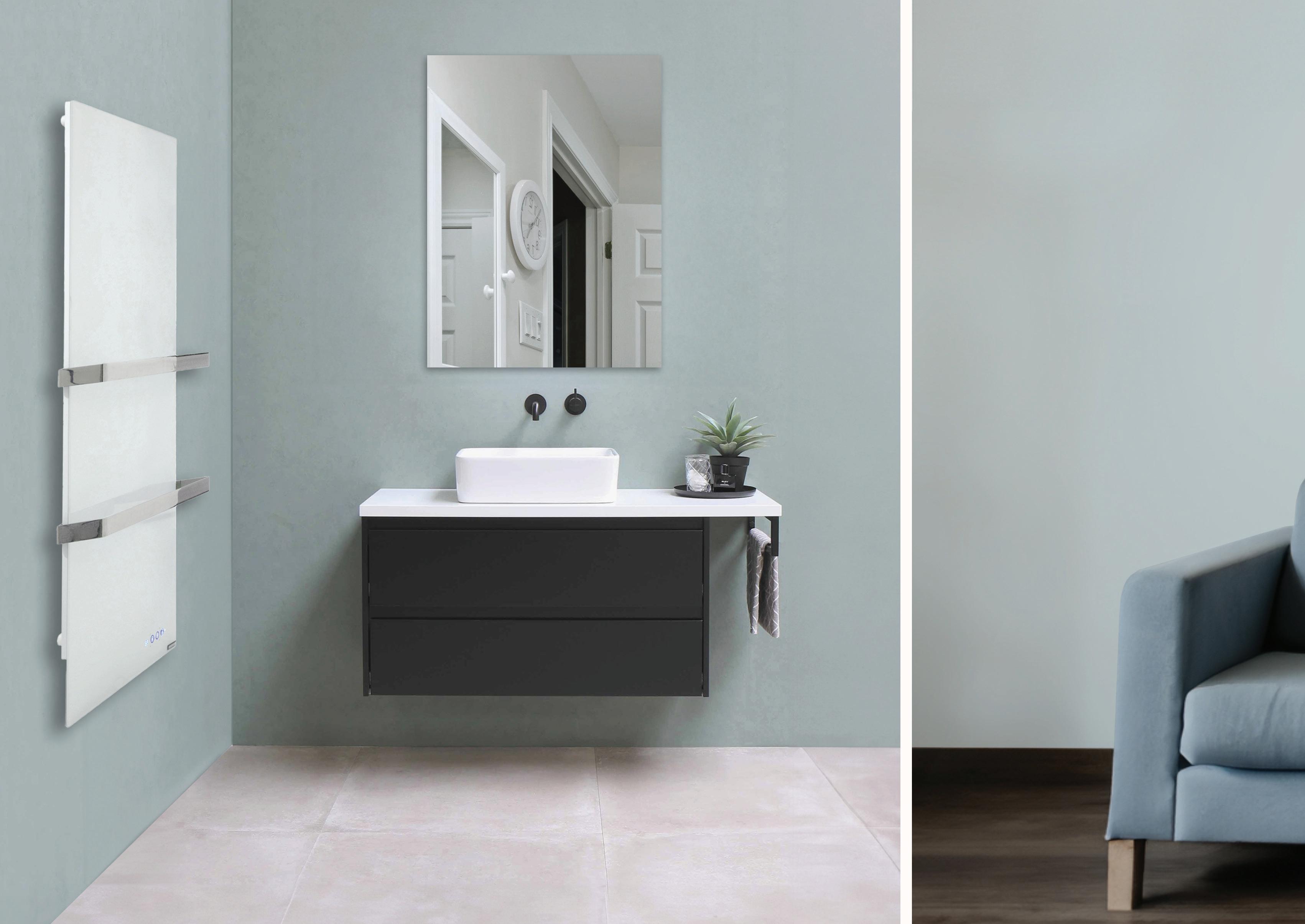

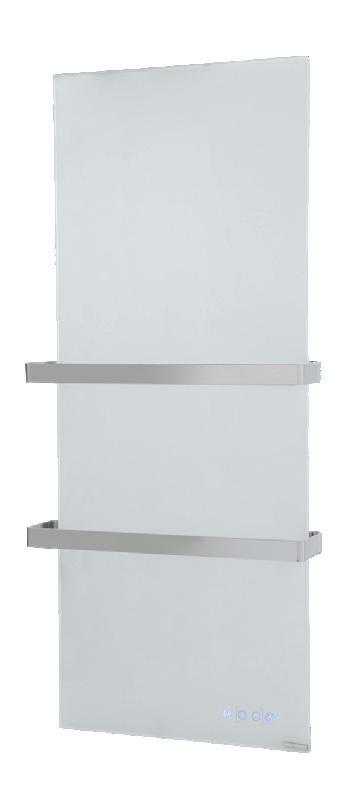

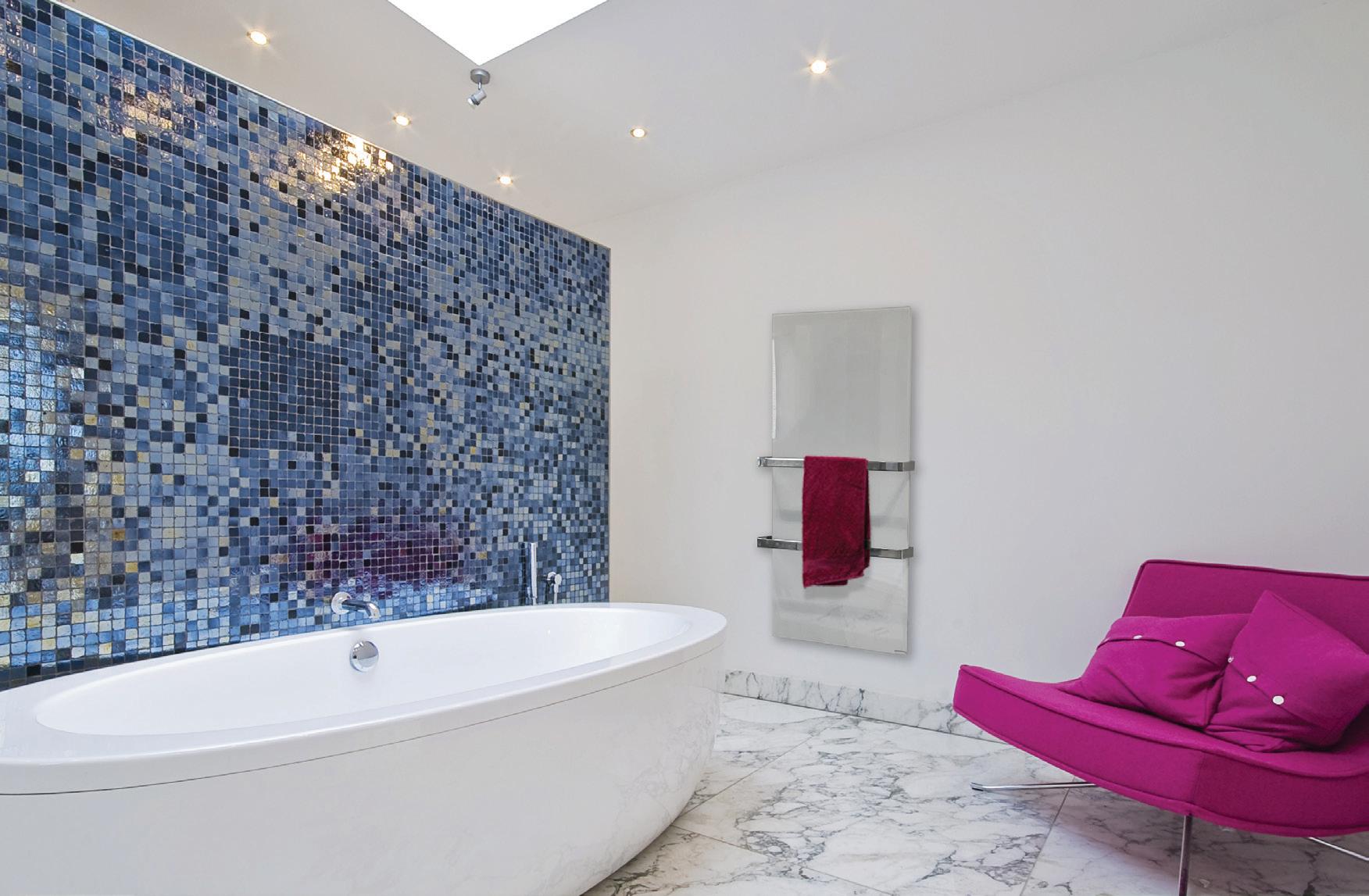

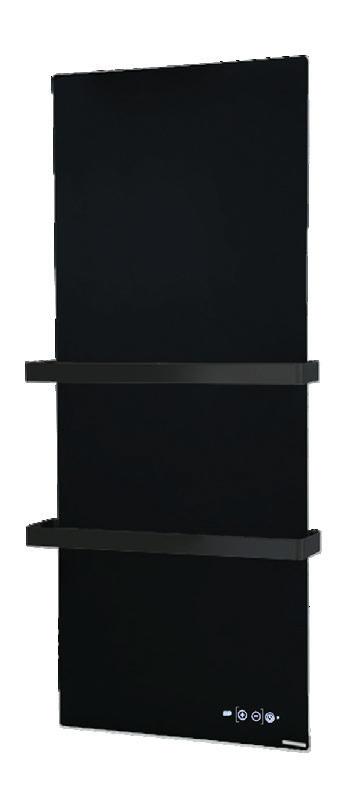

Select XLS Towel (with integrated controls)

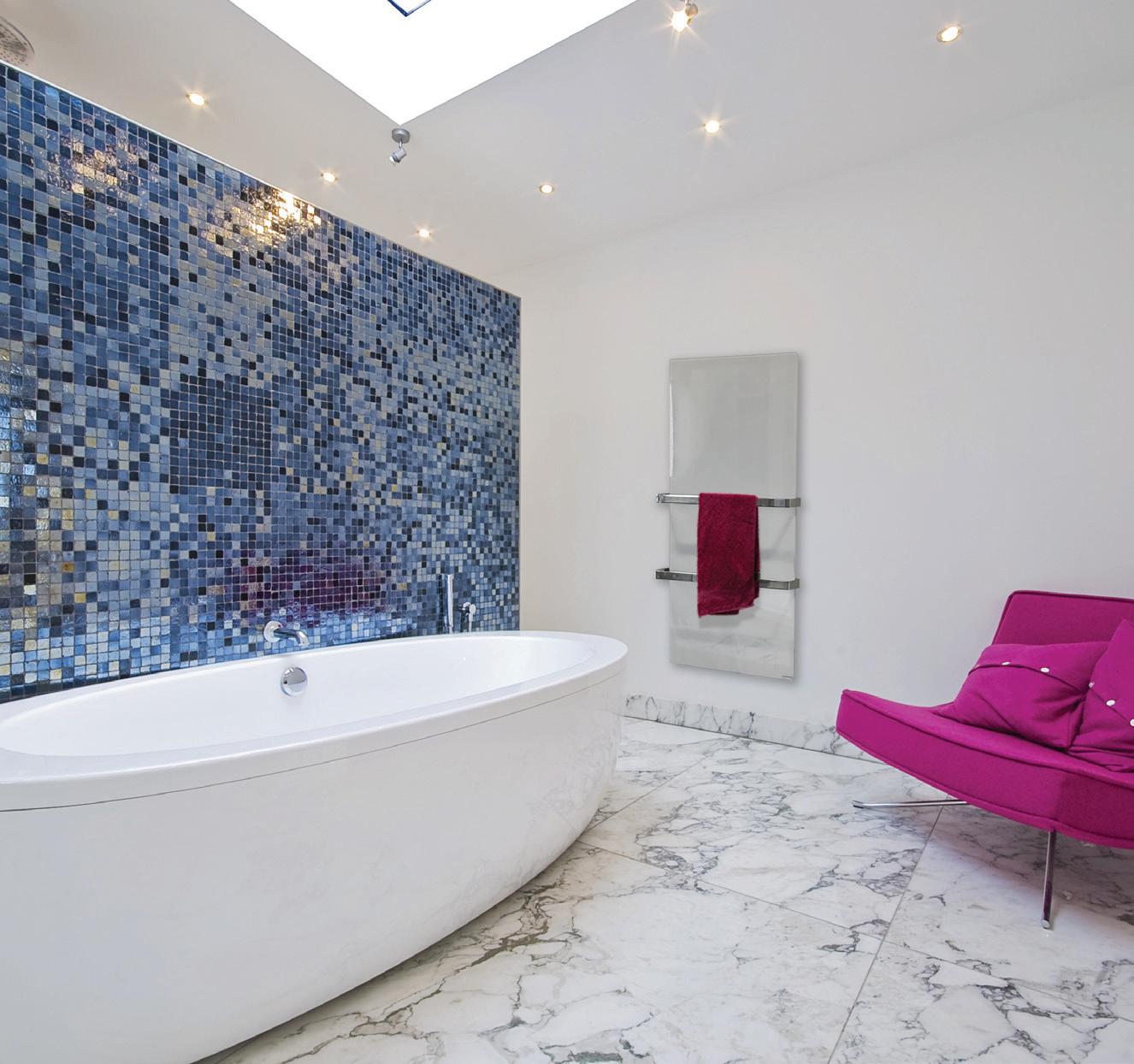

The ideal heating solution for any bathroom where a designer finish is required. Featuring dual-element technology for cosy heating alongside low energy, gentle warming of towels

Image shows Select XLS Towel

Key Features: • Available in 2 sizes - 500W & 700W • Heats room & warms towels • Available with white or black glass finish • Touchscreen controls for manual temp and timer control • No separate controller required

Image shows Select XLS Round

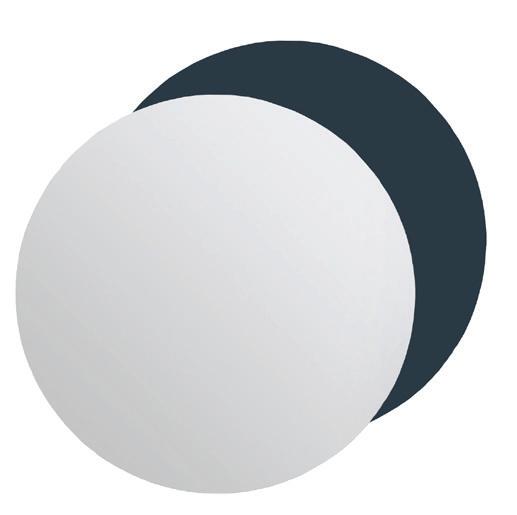

Select XLS Round Cool and contemporary heating from a circular design that is sure to add a style statement to any living space Key Features: • 400W round panel heater • 2 colour finishes: white and grey • Wall or ceiling mounting • Ceiling suspension also available with wire mounting kit (included) • Integrated SMART-R technology

5 warranty

7

Image shows Inspire Picture

Inspire White The longest selling infrared panel heater on the market, Inspire White can be wall or ceiling mounted to provide the ideal space-saving heating solution for any home. Designed to be beautifully discreet, the super slim Inspire White extends just under 5cm from the wall once installed and looks equally good in living areas, bedrooms or bathrooms Key Features: • Available in 9 sizes • 250W - 1250W • Frameless powder-coated finish • Highly efficient, long life heating element • Over 95% recyclable

Herschel Inspire Trusted and Timeless Our Inspire range of infrared heaters is made in Germany and is the longest selling range on the market.

Beautifully finished, our Inspire heaters are designed and manufactured to last a lifetime, and come complete with a 10-year warranty. All our panel heaters are ultra slimline, with large surface areas, specially designed for heating rooms efficiently and comfortably. There are options for ceiling or wall mounting with easy, secure fixing.

A number of designs are available including standard white, glass, mirrors, and even bespoke pictures to complement any interior - with simple control by iQ thermostats.

Inspire Picture With bespoke, specialised printing in Germany, the Inspire Picture is the epitome of style, efficiency and comfort.

Customise your own panel with a family portrait, a favourite photo, or even your child’s artwork or choose from our own specially selected designs Key Features: • Available in 7 sizes • 250W - 1200W • Use your own favourite image • Gloss finish • Made to order in Germany

Image shows Inspire White

Panel heaters - Inspire

Inspire Mirror Add warmth to your room with a sophisticated dual purpose mirror heater Key Features: • Available in 7 sizes • 250W - 1250W • Luxury premium finish, safety glass • Steam-free mirror when on • Ideal for bathrooms, living spaces and hallways

Inspire Glass Add warm elegance to your room with a stunning white or black glass finish Key Features: • Available in 4 sizes • 350W - 900W • Available in white or black • Luxury finish, safety glass • Designed to compliment any interior

Inspire Blackboard A practical, modern and unique heating solution for any environment with a handy blackboard Key Features: • Available in 3 sizes • 750W - 1150W • Stylish blackboard heater • Designer heating, gentle heat • Use with Herschel iQ Controls

9

Panel Heaters - Select Image shows Select Portable 500

Select Under Desk Compact personal heating specially designed to warm legs for the work from home market Key features: • 220W low energy • Gentle, localised warmth • Portable, freestanding • Smart Life App controllable • On/off control via foot pedal

Select Portable Flexible portable heater designed to provide topup heating when and where you want it

Herschel Select Convenient Comfort Herschel Select heaters are convenient portable infrared heaters that deliver cosy, effective top-up warmth whilst being cheap to run and easy to set up. The heaters come with feet which are simple to fix, enabling a quick and easy set up - just place them where desired for some additional comfort. Simply plug in to the nearest available mains socket for power.

The Select portable range of heaters have an inbuilt thermostat for automatic regulation of temperature.

All heaters have in-built manual temperature control or can be managed with the SmartLife App for Appenabled control.

Key features: • 500W freestanding heater • Portable, slimline • Smart Life App controllable • Low energy heating at minimal cost • Gentle, localised warmth

Select S3 The powerhouse of our portable infrared heaters with heating from 3 sides and integrated touch controls, perfect for living spaces or offices Key features: • 1000W freestanding heater • Integrated touch controls on top of heater • Smart Life App controllable • Low energy heating at minimal cost • Heat from three sides of the heater

5

warranty

Designer heaters - Larger spaces Image shows Aspect XL2

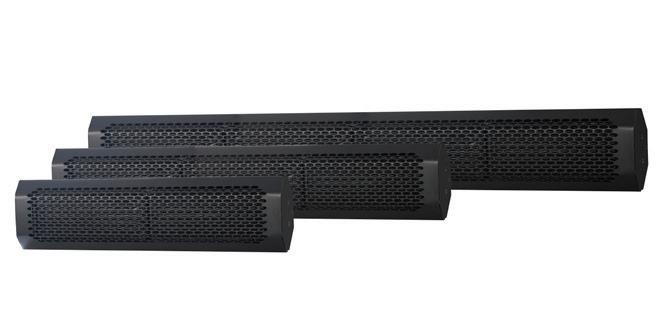

Aspect XL Range A sleek and sophisticated design that is ideal for heating larger interiors Key features: • 2600W (XL4), 1950W (XL3), 1300W (XL2) • Zero light designer heater • Black powder-coated Stainless Steel • Fast warm up times • Wall and ceiling mount

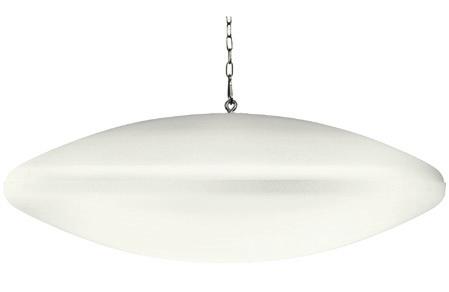

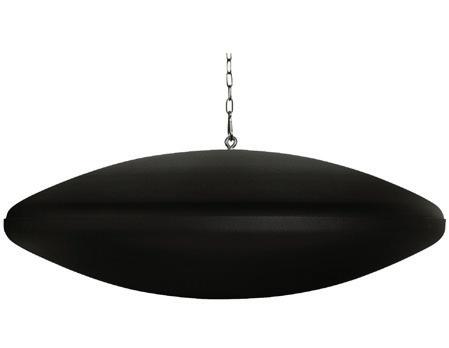

Summit Powerful heating ideal for larger spaces that require gentle yet effective heating

Herschel Space Heaters Efficient Power Herschel’s designer, zero light space heaters are perfect for heating larger spaces in homes. Ideal for contemporary homes with vaulted or higher ceilings, as well as poorly insulated spaces, our space heaters provide high power comfort from a number of stylish finishes. Our team can advise the heaters that work best for your home.

Herschel’s space heaters offer a fast warmup, require no servicing, and come equipped with a 5 year warranty. The space heaters are to be controlled with Herschel’s range of iQ thermostats, with the option to control with a remote control available for the Summit heaters (remote models).

Key features: • Zero light, tasteful design • Available in black or white • 2600W powerful elements • Wall or ceiling mount • With or without remote control • Remote model: 2 power settings & timer (Remote model cannot be used with external thermostat)

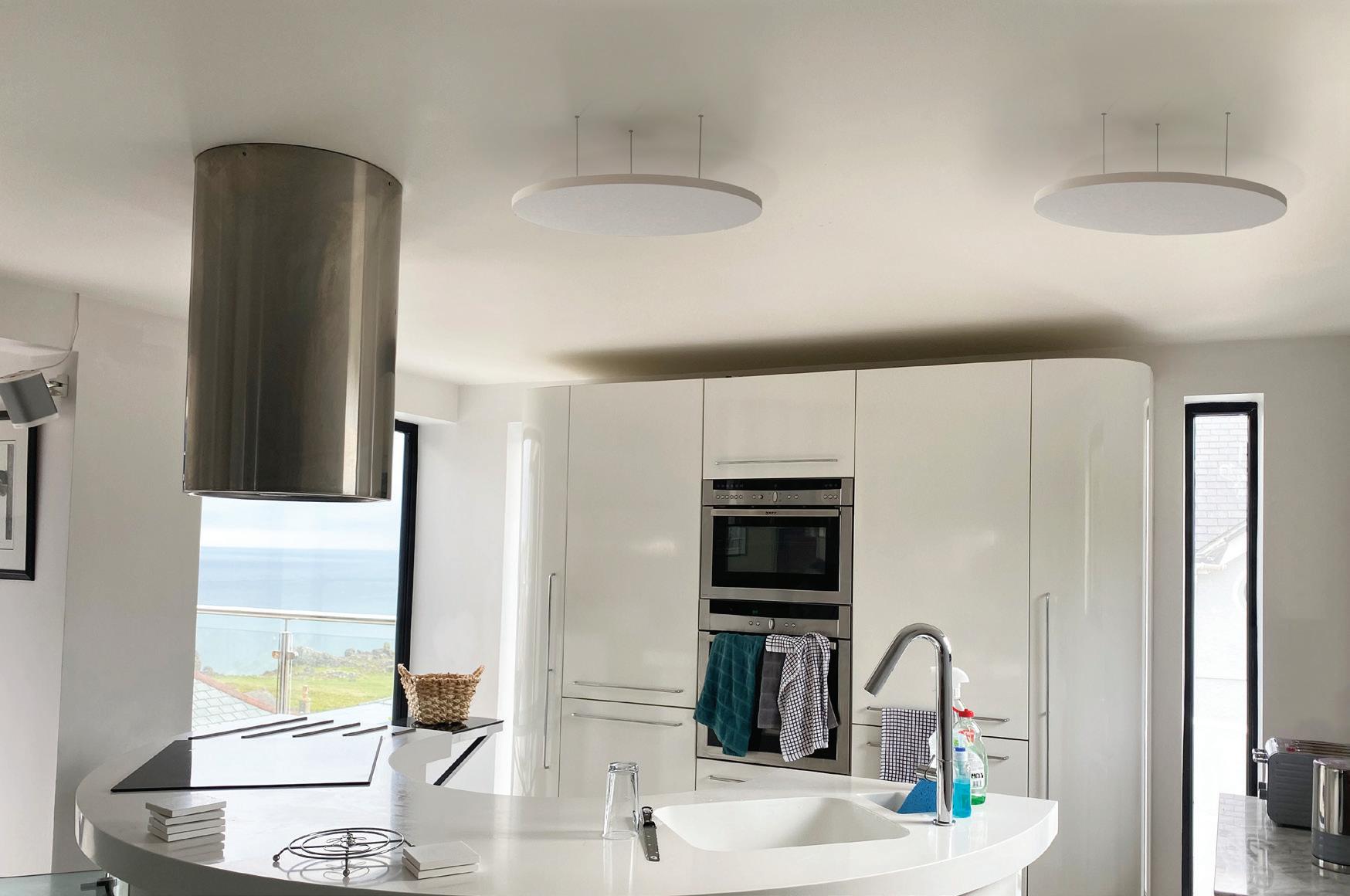

Pulsar Ideal for heating spaces with high ceilings from a striking, statement design Key features: • Contemporary design • Zero light • High power ceramic elements: 2400W & 1800W • 2 colour choices: black (2400W) & white (1800W) • Ceiling suspension 11

Discover the Outdoors Transform your outside area and extend your evenings outdoors with our range of infrared patio heaters.

Options available to suit all patios - portable, freestanding, hanging, wall and ceiling mounting.

Manhattan

Outdoor heaters

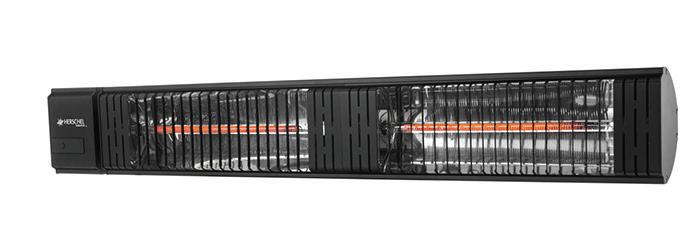

The perfect warm glow, powerful electric heater for larger patio areas Key Features: • 3000W • 2 power levels & timer, remote control • Fast warm up • Mirror reflectors for optimum efficiency • Aluminium construction

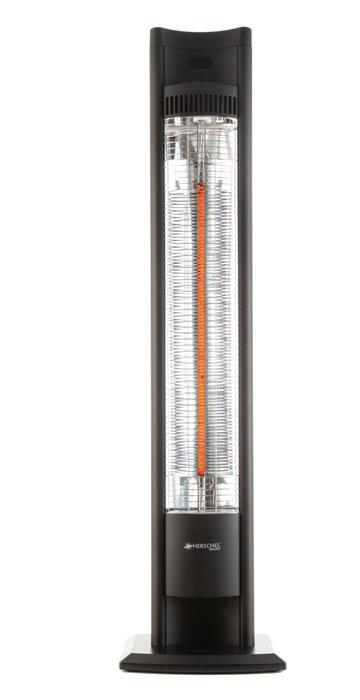

Colorado With a tasteful and sleek design, it’s ideal for those looking for a discreet, effective and highly flexible, warm-glow solution Key Features: • 2500W • 4 power levels & timer, remote control • Fast warm up • Mirror reflectors for optimum efficiency • Aluminium construction

Malibu Warm glow, outdoor comfort combined with luxury and convenience - simply move to the position required Key Features: • 2000W • Portable, freestanding • 2 power levels & timer, remote control • Tip-over safety protection • Mirror reflectors for wide angle spread Image shows Malibu

13

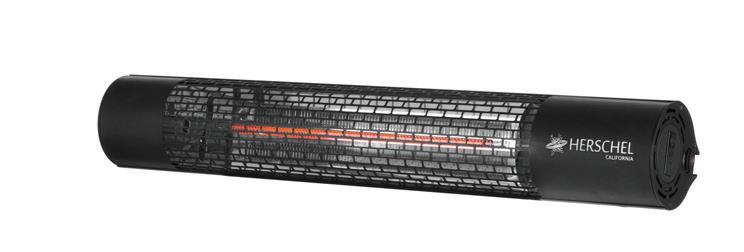

California Voted as ‘Best for Effortless Hollywood-worthy heating’, the stunning California combines its cutting-edge design with optimum comfort Key Features: • 2000W • Available in gold, black and silver • 2 power levels & timer, remote control • Low glare, long life woven carbon fibre lamp • Mirror aluminium reflectors

Hawaii Wave Adding warmth, style and luxury to any outdoor seating area from the beautifully designed Hawaii Wave Key Features: • 2000W freestanding heater • Stylish, circular design • Remote control • Hidden wiring, easy assembly • Warm glow, low glare

Miami Small but mighty, the Miami was voted the Best all-rounder in The Times Guide to ‘The Best Patio Heaters’ Key Features: • 2000W • Available in black and white • Compact, powerful, low glare • Wall and ceiling mounting • Mirror reflector plates for optimum efficiency

Outdoor heaters

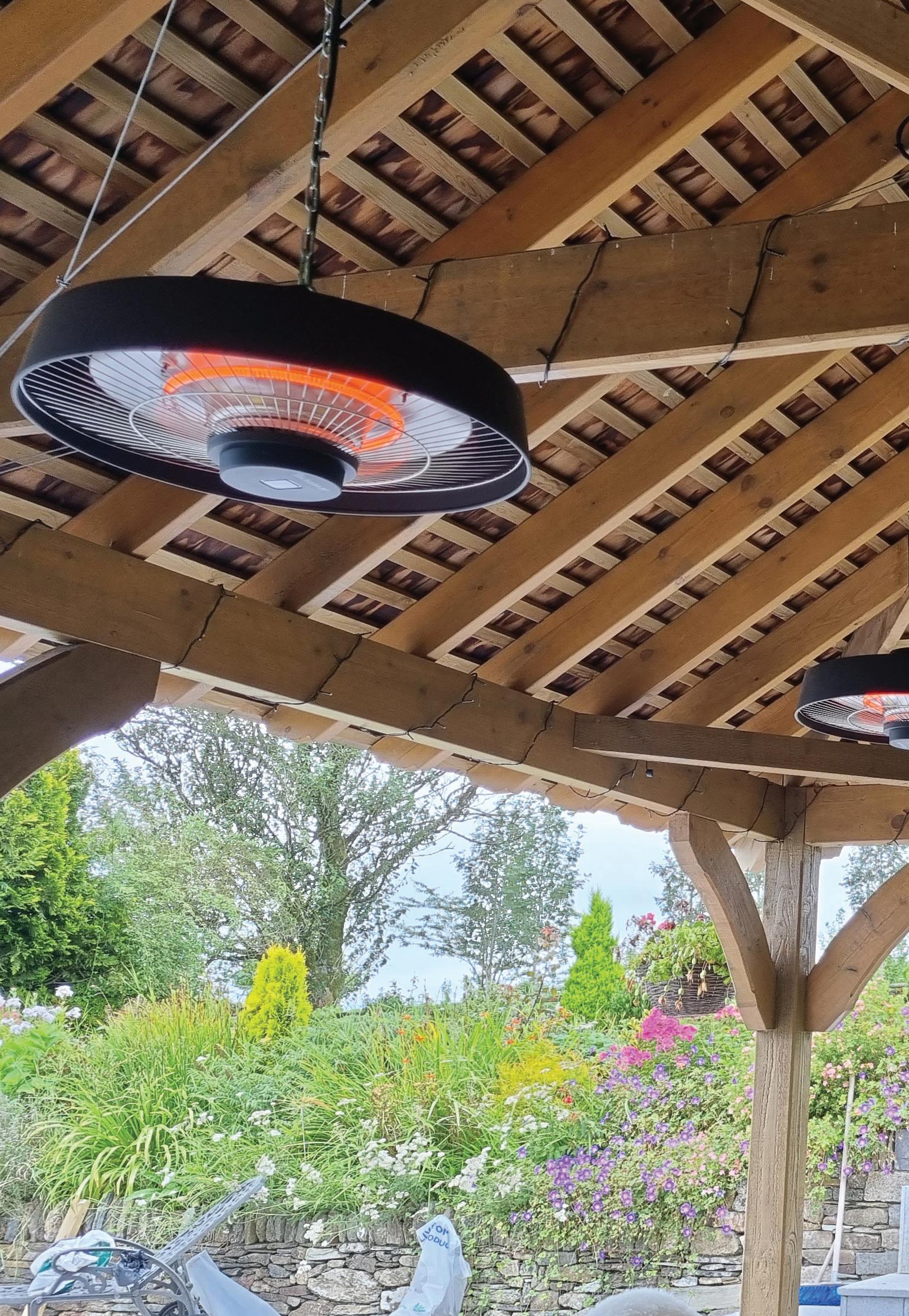

Hawaii 360° focused heat coverage, ideal for unobtrusive outdoor comfort under canopies and shelters Key Features: • 2000W • Hanging outdoor heater • With remote control • High performance, warm glow carbon lamp • Fast warm up

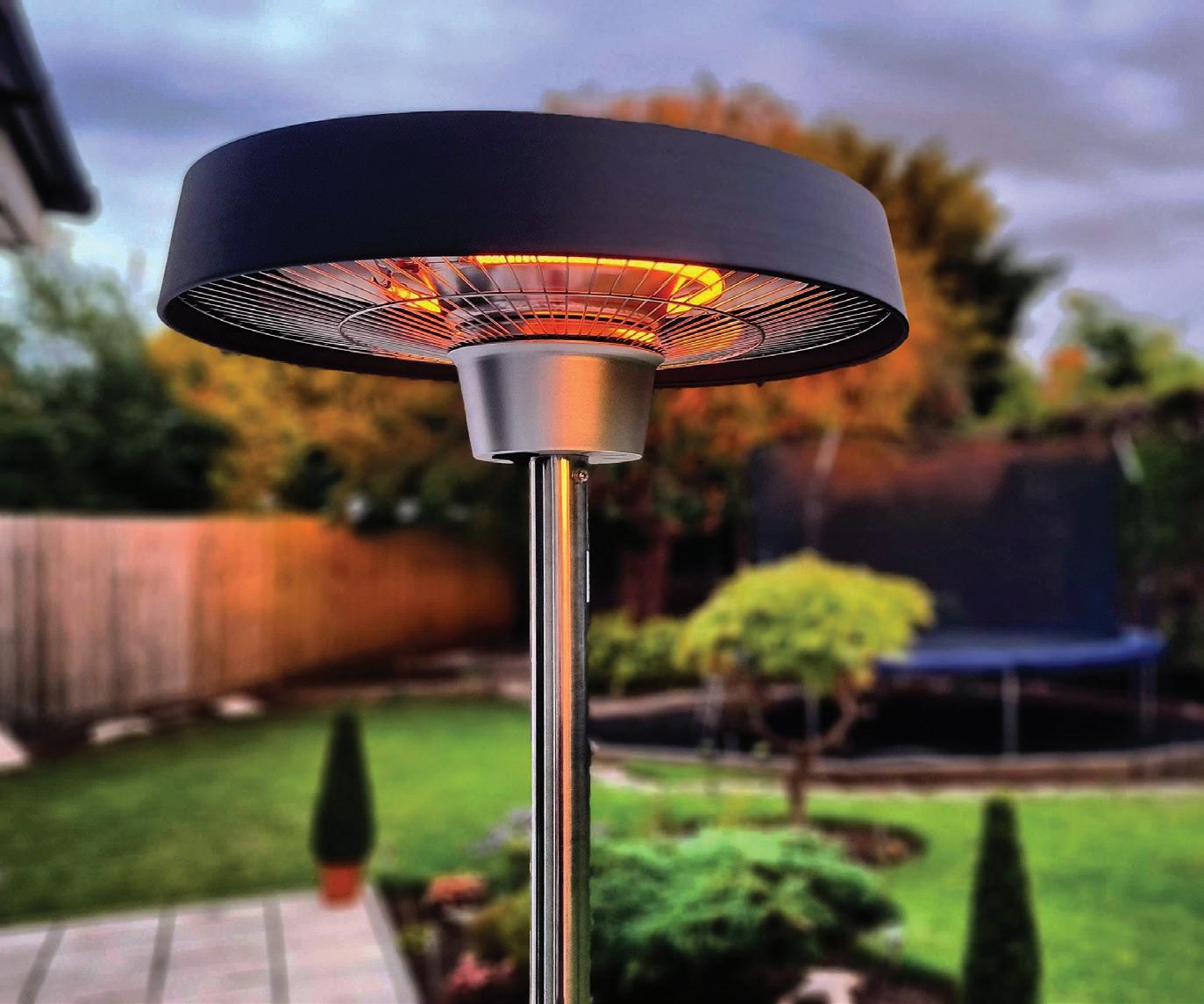

Florida Cosy warm glow warmth from the contemporary, freestanding Florida Key Features: • 2000W • Portable, freestanding outdoor heater • 2 power settings • Weighted stand and pole • Tip-over safety protection

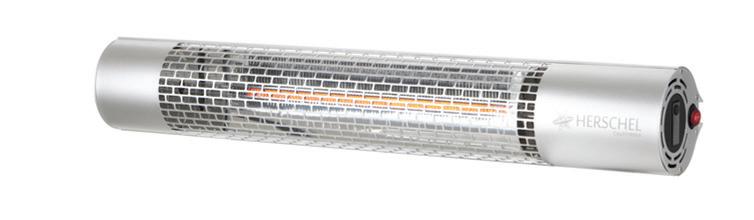

Havana Highly portable, low wattage outdoor heater. Havana provides localised warmth to those in close proximity

Image shows Hawaii

Key Features: • 800W • Portable with built in handle • Ideal for under table use • Tip-over protection • Warm glow, woven carbon fibre lamp

15

Smart Control - effortless efficiency

Herschel iQ Controls

Controls - iQ and XLS

Herschel heaters are controlled on a room by room basis meaning you only heat the rooms you need heating, when you need them heated.

Herschel thermostats enable control of your Herschel heaters straight from an App on your smartphone and from the local room thermostat.

We advise one controller per room and each controller can control one or multiple panels.

So if you have more than one panel in a room, you only need one controller per room.

We have 2 thermostat ranges: iQ and XLS. Herschel iQ controls can be used for Inspire, Comfort, Select XLS or the space heating range (thermostats are not required for outdoor heaters). XLS controls are for our Select XLS range.

Herschel XLS Controls

MKS

MKW

MD2

T2

R2

R3

The MKW, MKS and MD2 are mains thermostats. They can each handle a load of 3.6kW and control temperatures of up to 45C. MKW, MKS and MD2 can be connected to WiFi and controlled via the SmartLife App which is free to download. Programming of the MKW and MKS must done via the App, the MD2 has the option of programming without the App. Once set up, control can be via the thermostat, via the App or a combination of both.

The T2 battery operated thermostat is ideal for smaller installations or retrofits. A simple to use solution, App-enabled and stand alone, the T2 wirelessly pairs to any number of R2 receivers (additional R2 receivers are available separately). R2 receivers are wired to the mains and to heaters (up to 2kW of Herschel heaters on the same circuit).

The R3 controller is both a thermostat and a receiver combined, and is designed to be operated via the Smart Life App on a phone or tablet. Please note the R3 is not interchangeable with the R2.

T-MT

T-BT

T-PL

For ease of install and a true “plug and play” solution, our Select XLS range of panels incorporates our SMART-R receiver built into the panel. This allows the panel to be “paired” and communicate wirelessly (via RF) with a choice of our XLS controllers.

Choose from a battery operated controller T-BT, a mains powered controller T-MT or plug-in controller T-PL. T-MT and T-PL have inbuilt WiFi allowing App and voice control via Alexa and Google Assistant.

Ultra iQ Energy-Saving Accessories*

S-TSCC

S-FSC

S-FSC-B

S-FSC-G

S-FSC-S

PIR

The Touch Screen Control Centre (S-TSCC) acts as the central hub where you can control all of your heating and any other Smart Home accessories. With the ability to store up to 100 Scenes on the device, the possibilities are limitless, allowing you to set your smart heating to fit around your routine. This 4” touch screen device works by wirelessley controlling your Herschel thermostats, all from one device.

Activate up to 4 Smart Life Scenes with the Four Scene Control (S-FSC). Available in four colours, this device allows you to control all your WiFi thermostats from one device. Simple to set up the PIR Sensor works with Herschel WiFi-enabled thermostats to save energy based on room occupancy. *To be used in conjunction with thermostats.

Zero Emission Home The all electric home, heated by Herschel Infrared and combined with solar PV and battery storage, is a readily available, practical and future-proof reality.

MKW thermostat

Malibu

Our infrared heating panels have low embedded carbon and are over 95% recyclable, have long lifetimes, require zero maintenance and can be installed by qualified electricians with no special training required.

Inspire Picture Panel

Comfort White

Krystal Black Select XLS Mirror Pulsar black

Summit White

MD2 thermostat

Touch Screen Control Centre

Inspire Mirror

Select Select XLS HydroNova* Portable 500W Towel Heater

Aspect XL

Manhattan

Havana Summit Black Hawaii Wave

Combining comfort, sustainability, design & affordability

HydroNova system* available for electric water heating solution *includes a Thermino© hot water battery from Sunamp

17

MODEL DESCRIPTION INDOOR HEATERS Krystal KRYSTAL-600-B Herschel Krystal 600W Black KRYSTAL-600-W Herschel Krystal 600W White KRYSTAL-1000-B Herschel Krystal 1000W Black KRYSTAL-1000-W Herschel Krystal 1000W White Comfort - more colour options available, please contact Herschel for more information HC-215 Herschel Comfort 215W White HC-420 Herschel Comfort 420W White HC-600 Herschel Comfort 600W White HC-850 Herschel Comfort 850W White HC-850L Herschel Comfort 850W White HC-1050 Herschel Comfort 1050W White HC-1200 Herschel Comfort 1200W White HC-1250L Herschel Comfort 1250W White Select XLS White XLS300W Herschel Select XLS 300W White XLS400W Herschel Select XLS 400W White XLS600W Herschel Select XLS 600W White XLS800W Herschel Select XLS 800W White XLS1100W Herschel Select XLS 1100W White Select XLS Mirror XLS350M Herschel Select XLS 350W Mirror XLS500M Herschel Select XLS 500W Mirror XLS700M Herschel Select XLS 700W Mirror Select XLS Mirror with Lights XLS400ML-INT Herschel Select XLS 400W Mirror with Lights** XLS600ML-INT Herschel Select XLS 600W Mirror with Lights** Select XLS Towel Heater XLS500TW-INT Herschel Select XLS Towel Heater 500W White (integrated)** XLS700TW-INT Herschel Select XLS Towel Heater 700W White (integrated)** XLS500TB-INT Herschel Select XLS Towel Heater 500W Black (integrated)** XLS700TB-INT Herschel Select XLS Towel Heater 700W Black (integrated)** Select XLS Round XLS400RDW Herschel Select XLS 400W Round - White XLS400RDG Herschel Select XLS 400W Round - Grey Inspire White CL-200 Herschel Inspire White 250W CL-300 Herschel Inspire White 350W CL-400 Herschel Inspire White 420W CL-500 Herschel Inspire White 550W CL-750 Herschel Inspire White 750W CL-750L Herschel Inspire White 820W Long CL-900 Herschel Inspire White 900W CL-1200 Herschel Inspire White 1200W CL-1200L Herschel Inspire White 1250W Long Inspire Picture - made to order. Available in 7 sizes with wattages from 250W to 1200W

POWER

DIMENSIONS

WEIGHT

HEATED AREA* m²

600W 600W 1000W 1000W

30 x 60 cm 30 x 60 cm 30 x 60 cm 30 x 60 cm

3.6 g 3.6 kg 3.7 kg 3.7 kg

11-13 11-13 14-23 14-23

215W 420W 600W 850W 850W 1050W 1200W 1250W

60 x 30 cm 60 x 60 cm 80 x 60 cm 120 x 60 cm 160 x 45 cm 150 x 60 cm 120 x 80 cm 160 x 60 cm

4 kg 8 kg 10.5 kg 15.5 kg 15.5 kg 19 kg 21 kg 21 kg

3-5 5-8 11-13 12-20 12-20 14-24 17-29 17-29

300W 400W 600W 800W 1100W

30 x 90 x 1.6 cm 60 x 60 x 1.6 cm 60 x 85 x 1.6 cm 60 x 120 x 1.6 cm 60 x 155 x 1.6 cm

5.5 kg 6.5 kg 8.5 kg 11.5 kg 18 kg

5-7 6-8 11-13 13-18 15-24

350W 500W 700W

60 x 60 x 2 cm 60 x 85 x 2 cm 60 120 x 2 cm

8.5 kg 11 kg 17 kg

6-8 9-12 13-15

400W 600W

60 x 80 x 7 cm 70 x 100 x 7 cm

12 kg 16.5 kg

6-8 11-13

500W 700W 500W 700W

48 x 120 x 13 cm 60 x 130 x 13 cm 48 x 120 x 13 cm 60 x 130 x 13 cm

21 kg 22 kg 21 kg 22 kg

4-9 6-12 4-9 6-12

400W 400W

70 x 70 cm 70 x 70 cm

8.3 kg 8.3 kg

6-8 6-8

250W 350W 420W 550W 750W 820W 900W 1200W 1250W

60 x 30 cm 90 x 30 cm 60 x 60 cm 80 x 60 cm 90 x 70 cm 170 x 40 cm 100 x 80 cm 120 x 80 cm 160 x 60 cm

4 kg 5 kg 6 kg 8 kg 10 kg 10 kg 12 kg 15 kg 15 kg

3-5 4-7 5-8 7-12 11-18 11-18 13-22 17-29 17-29

Details of the thermostats and other accessories, including ceiling mounting kits for Krystal, are available on our website. * Heated areas are a guide only. We always recommend using the online calculator for panel specification or contact your dealer directly for a more detailed assessment.

MODEL DESCRIPTION Inspire Mirror SH-200 Herschel Inspire Mirror 250W SH-300 Herschel Inspire Mirror 350W SH-400 Herschel Inspire Mirror 420W SH-500 Herschel Inspire Mirror 550W SH-750 Herschel Inspire Mirror 750W SH-900 Herschel Inspire Mirror 900W SH-1200L Herschel Inspire Mirror 1250W Long Inspire Glass (available in black or white) GH-300 Herschel Inspire Glass 350W GH-500 Herschel Inspire Glass 550W GH-750 Herschel Inspire Glass 750W GH-900 Herschel Inspire Glass 900W Inspire Blackboard HB-750 Herschel Inspire Blackboard 750W HB-900 Herschel Inspire Blackboard 900W HB-1150 Herschel Inspire Blackboard 1150W Select Range HS500PR Herschel Select 500W Portable** HS220UD Herschel Select 220W Under Desk** HS1000S3 Herschel Select S3 1000W** Pulsar IRPULSAR-1800W Herschel Pulsar 1800W White IRPULSAR-2400B Herschel Pulsar 2400W Black Summit IR-SUMMIT-2600 Herschel Summit Black (non remote) IR-SUMMIT-2600R Herschel Summit Black with remote control** IR-SUMMIT-2600W Herschel Summit White (non remote) IR-SUMMIT-2600RW Herschel Summit White with remote control** Aspect XL IRXL2-1300 Herschel Aspect XL2 1300W IRXL3-1950 Herschel Aspect XL3 1950W IRXL4-2600 Herschel Aspect XL4 2600W OUTDOOR HEATERS M-MANHATTAN-3000 Herschel Manhattan 3000W with remote control M-COLORADO-2500R Herschel Colorado 2500R with remote control M-MALIBU-2000 Herschel Malibu 2000W Portable Heater with remote control M-CALIFORNIA-2000R-G Herschel California 2000R - Gold with remote control M-CALIFORNIA-2000R-B Herschel California 2000R - Black with remote control M-CALIFORNIA-2000R-S Herschel California 2000R - Silver with remote control M-HAWAII-WAVE-2000 Herschel Hawaii Wave 2000W Freestanding with remote control M-MIAMI-2000W Herschel Miami 2000W White M-MIAMI-2000B Herschel Miami 2000W Black M-HAWAII-2000W Herschel Hawaii 2000W Suspended with remote control M-FLORIDA-2000 Herschel Florida 2000W Freestanding M-HAVANA-800 Herschel Havana 800W Portable heater

POWER

DIMENSIONS

WEIGHT

HEATED AREA* m²

250W 350W 420W 550W 750W 900W 1250W

60 x 30 cm 90 x 30 cm 60 x 60 cm 80 x 60 cm 90 x 70 cm 100 x 80 cm 160 x 60 cm

5 kg 7 kg 8 kg 12 kg 16 kg 20 kg 25 kg

3-5 4-7 5-8 7-12 11-18 13-22 17-29

350W 550W 750W 900W

90 x 30 cm 80 x 60 cm 90 x 70 cm 100 x 80 cm

8 kg 12 kg 16 kg 20 kg

4-7 7-12 11-18 13-22

750W 900W 1150W

90 x 70 x 2 cm 100 x 80 x 2 cm 120 x 80 x 2 cm

13 kg 16 kg 20 kg

11-18 13-22 17-29

500W 220W 1000W

75 x 55 x 1.6 cm 65 x 40 x 1.6 cm 111.5 x 30 x 30 cm

5.5 kg 3.5 kg 16 kg

n/a n/a n/a

1800W 2400W

30 x 38 x 80 cm 30 x 38 x 80 cm

28 kg 28 kg

8-15 12-20

2600W 2600W 2600W 2600W

140 x 16 x 5 cm 150 x 16 x 5 cm 140 x 16 x 5 cm 150 x 16 x 5 cm

7 kg 8 kg 7 kg 8 kg

9-16 9-16 9-16 9-16

1300W 1950W 2600W

55 x 14 x 11 cm 82 x 14 x 11 cm 110 x 14 x 11 cm

3.7 kg 5.5 kg 7.4 kg

3000W 2500W 2000W 2000W 2000W 2000W 2000W 2000W 2000W 2000W 2000W 800W

104.5 x 15 x 8.5 cm 90 x 17 x 10 cm 102 x 17 cm 78 x 13 x 14 cm 78 x 13 x 14 cm 78 x 13 x 14 cm 220 x 50 cm 46 x 19 x 7.5 cm 46 x 19 x 7.5 cm 50 x 25 cm 50 x 207.5 cm 20 x 65 cm

4.2 kg 3.5 kg 6 kg 3 kg 3 kg 3 kg 13 kg 2.2 kg 2.2 kg 3.5 kg 10.5 kg 3.5 kg

6-9 9-12 9-16 Heated Zone Outdoors (m²)*** 9-14 7-12 n/a 5-9 5-9 5-9 n/a 4-7 4-7 4-7 4-7 n/a

** Additional controls not required *** Heated Zone Outdoors (m²) is a guide only. Air movement will reduce coverage.

Always refer to Installation Manuals before installation. Full warranty details are available online.

19

All information accurate as of April 2024

Select XLS Mirror

Select XLS Towel Heater

For further information contact: sales@herschel-infrared.com www.herschel-infrared.co.uk +44 (0)117 3253850
