DESCRIPTION:
Social Housing project for informal settlers with the intent to develop a self-sustaining community by recycling, re-using, and creating crafts for every part of a banana plant. This week's presentation includes 20 ideas sheets, on-site form finding, and initial floor plans
CHING & HERMOSA Casa Musa Tondo, Manila
ARCDS04
THE NARRATIVE
THE NARRATIVE

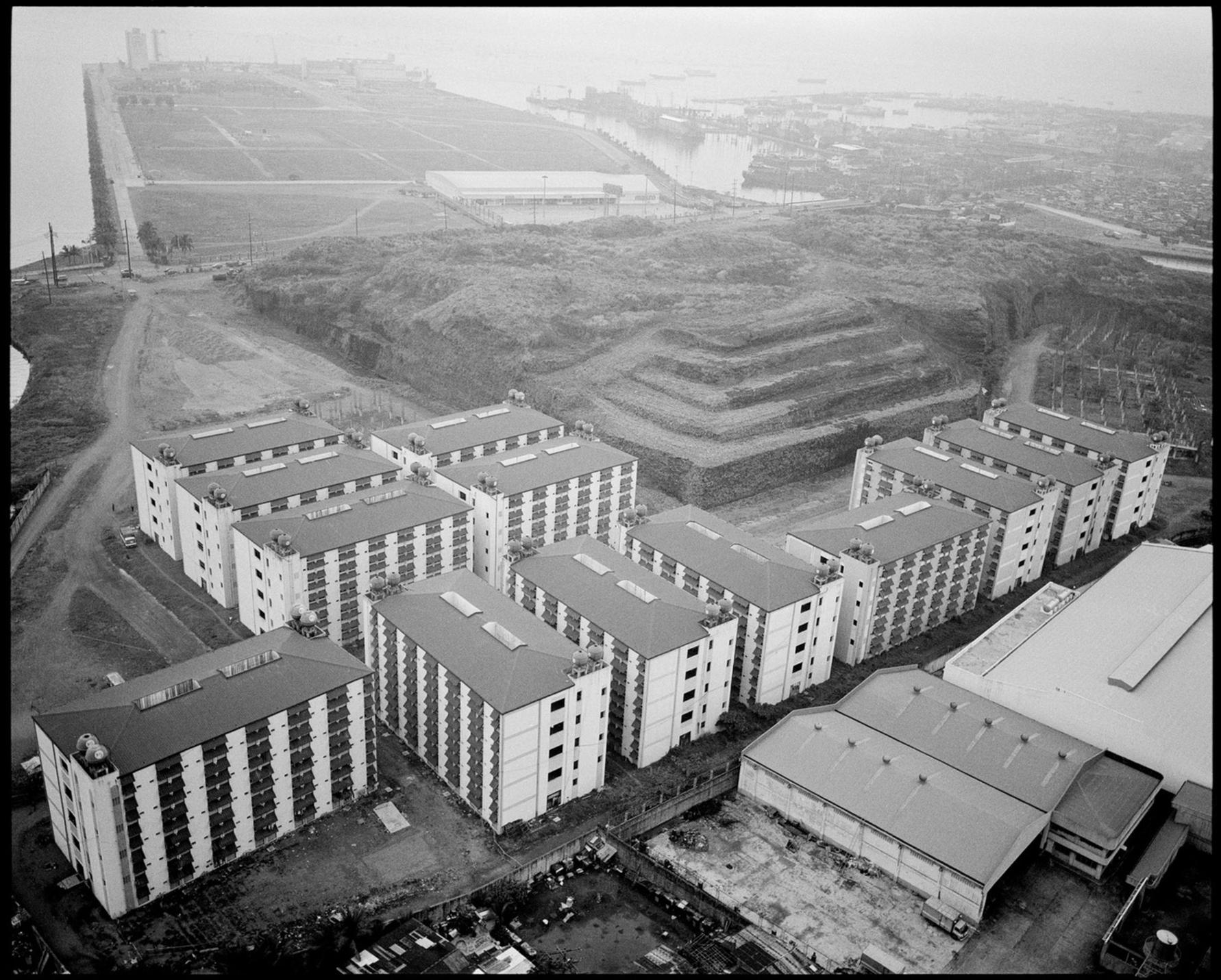

Smokey Mountain , Manila (1960's)
LUNGSOD ISKWATER

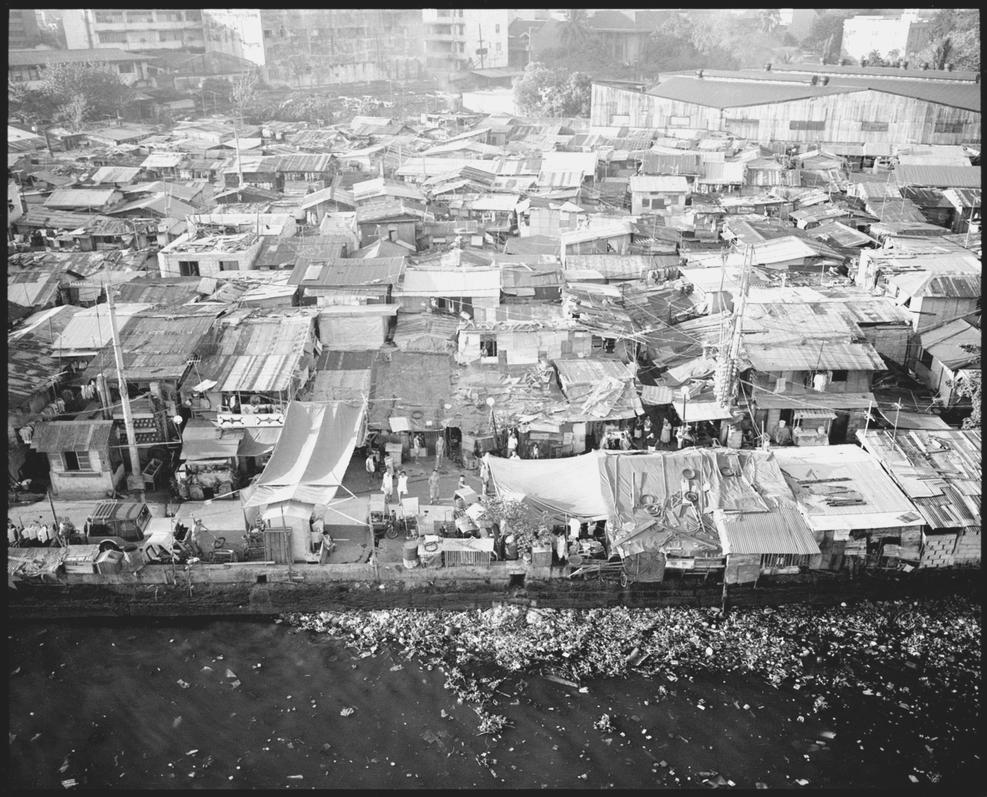

Smokey Mountain now
SITE CONDITIONS
SITE CONDITIONS
SITE CONDITIONS

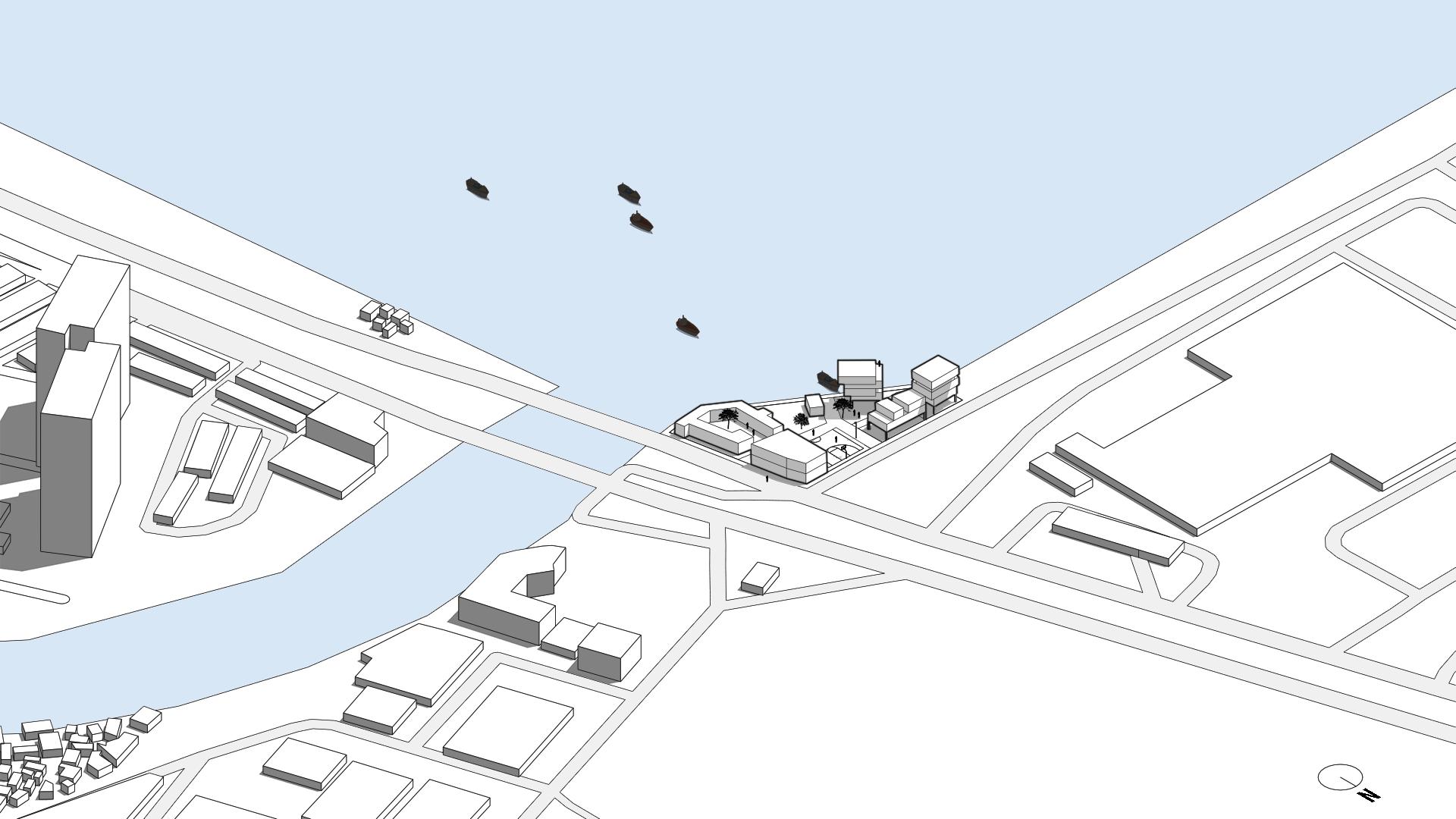

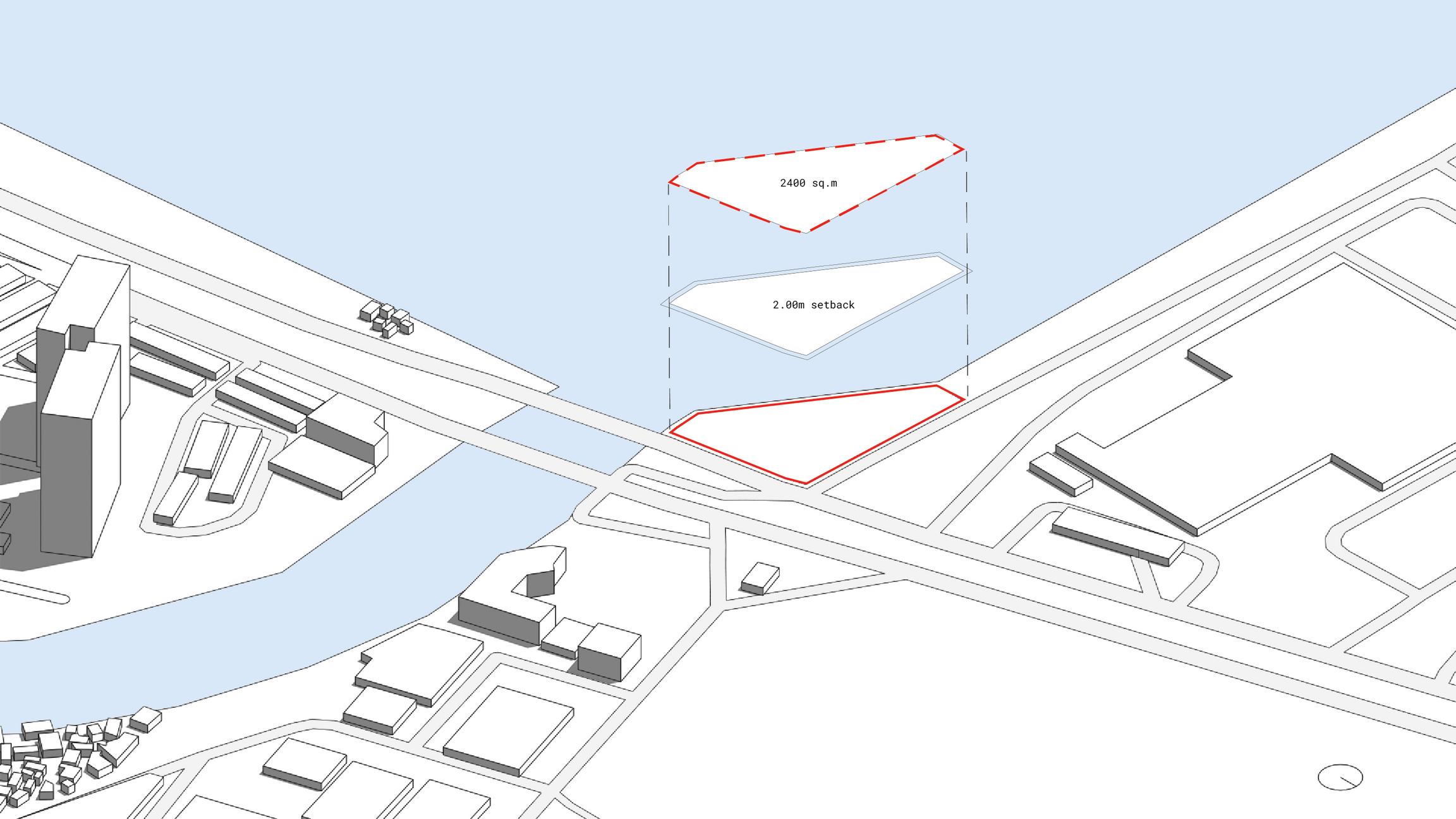

14° 62' 97.81" N, 120° 95' 90.30" E Location: Cor. Radial Rd. 10 and Miguel de Legaspi St., Zone 11, Tondo, Manila ~1,500 sq.m.
Estero De Marala
Manila Bay
EsteroDeVitas
SITE CONDITIONS
Location: Cor. Radial Rd. 10 and Miguel de Legaspi St., Zone 11, Tondo, Manila ~1,500 sq.m.
14° 62' 97.81" N, 120° 95' 90.30" E
SARI-SARI STORE
Using plastic for concrete harsscapes
RECYCLED HARDSCAPES
DRYING AREA
Emphasizing the informal settlers' brotherhood towards each other
Retaining their lifestyle and hobbies

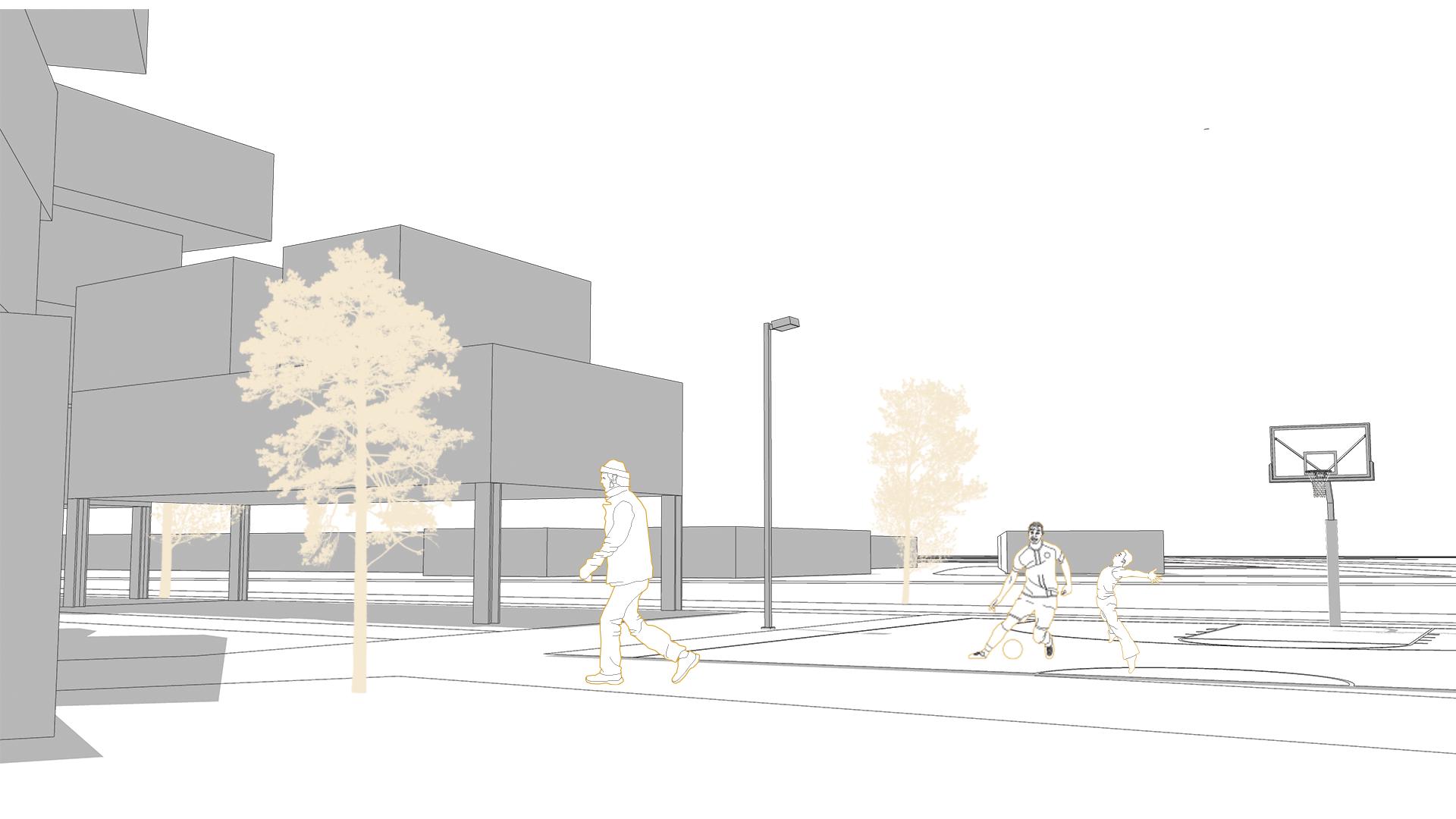

RECREATIONAL
Adaptive ways for Climate Change
ELEVATED FORM
the vertical space
VERTICALITY Maximizing
Banana peels as odor repellant
CONTROL
ODOR
FUNCTIONALITY

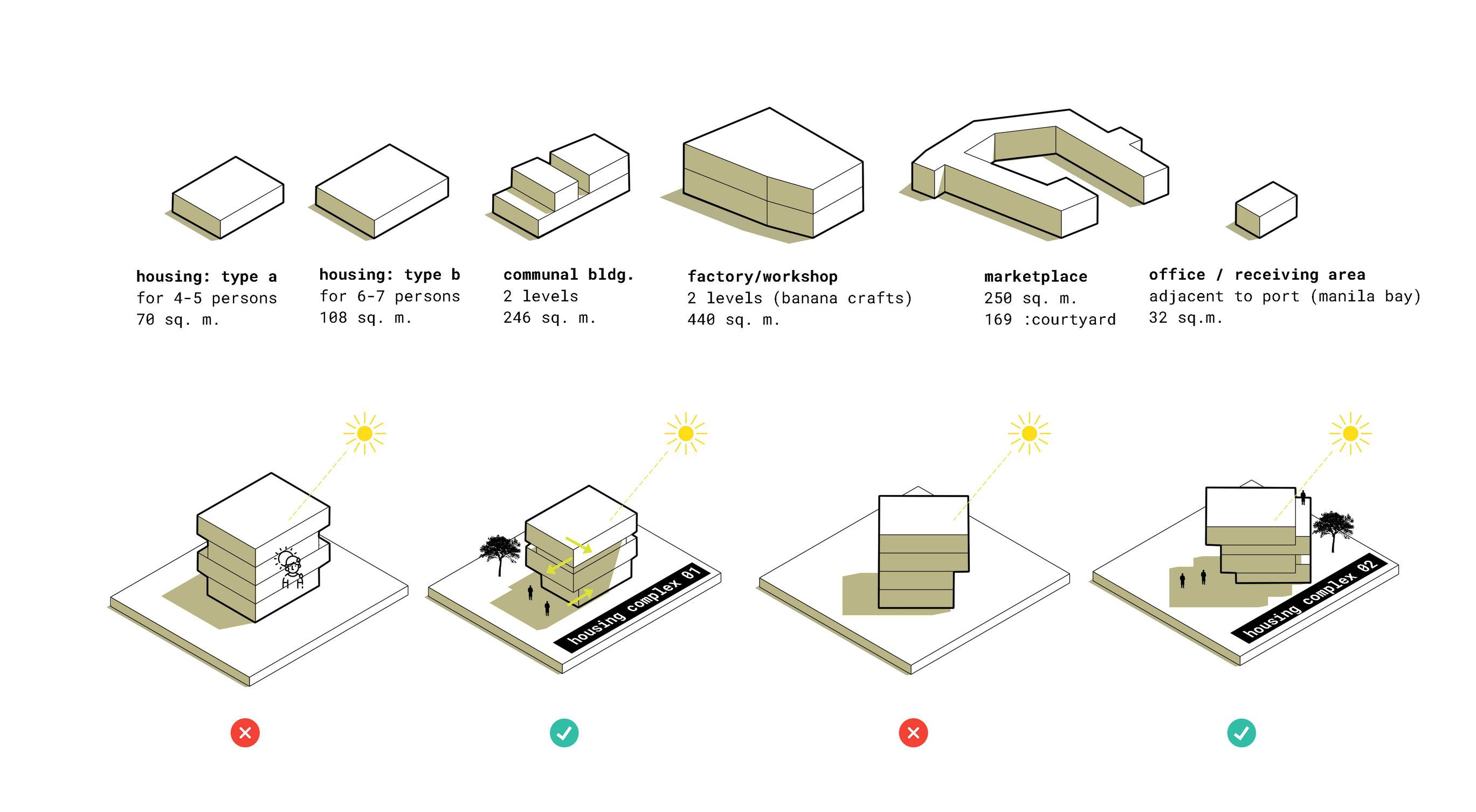

Space and Function

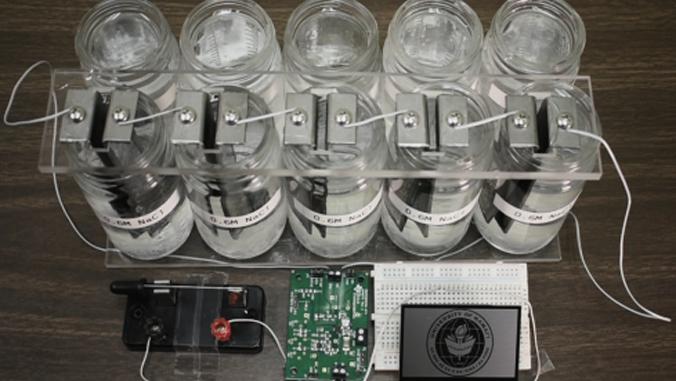

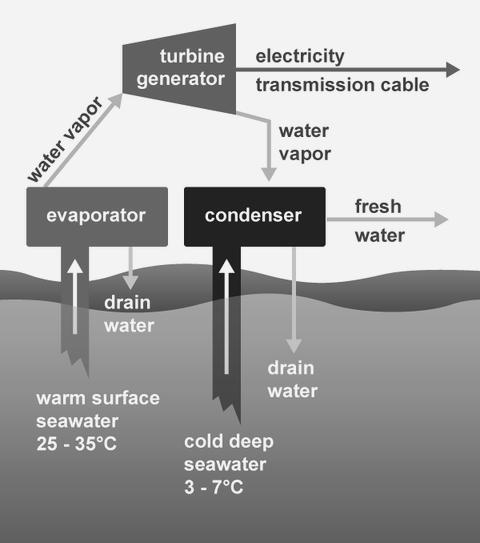

RENEWABLE ENERGY
INTERIOR SPACES
PROGRAM REQUIREMENTS
FORM FINDING
FORM FINDING
FORM FINDING
FORM FINDING ff. visualization
OBSESSION

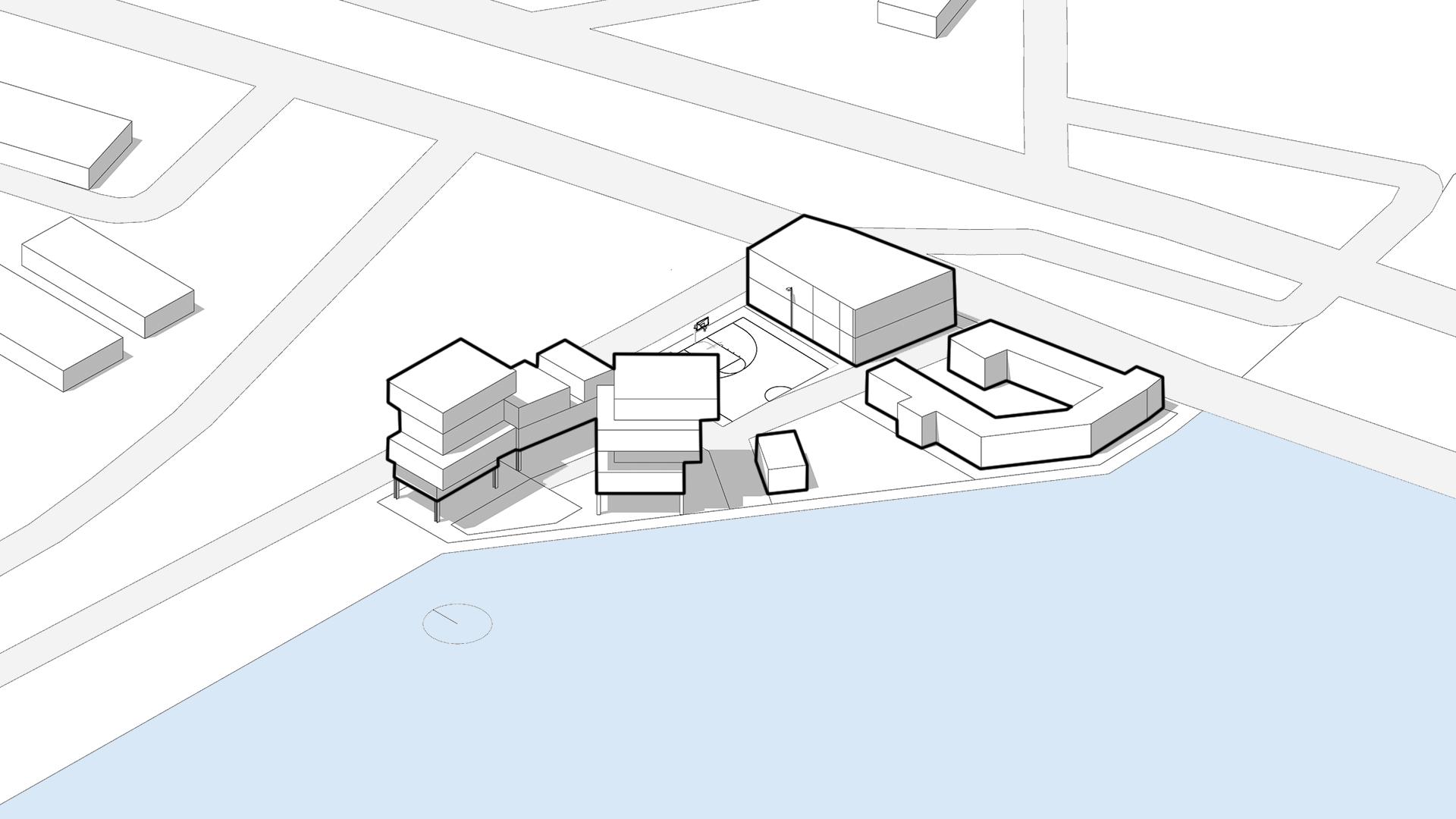

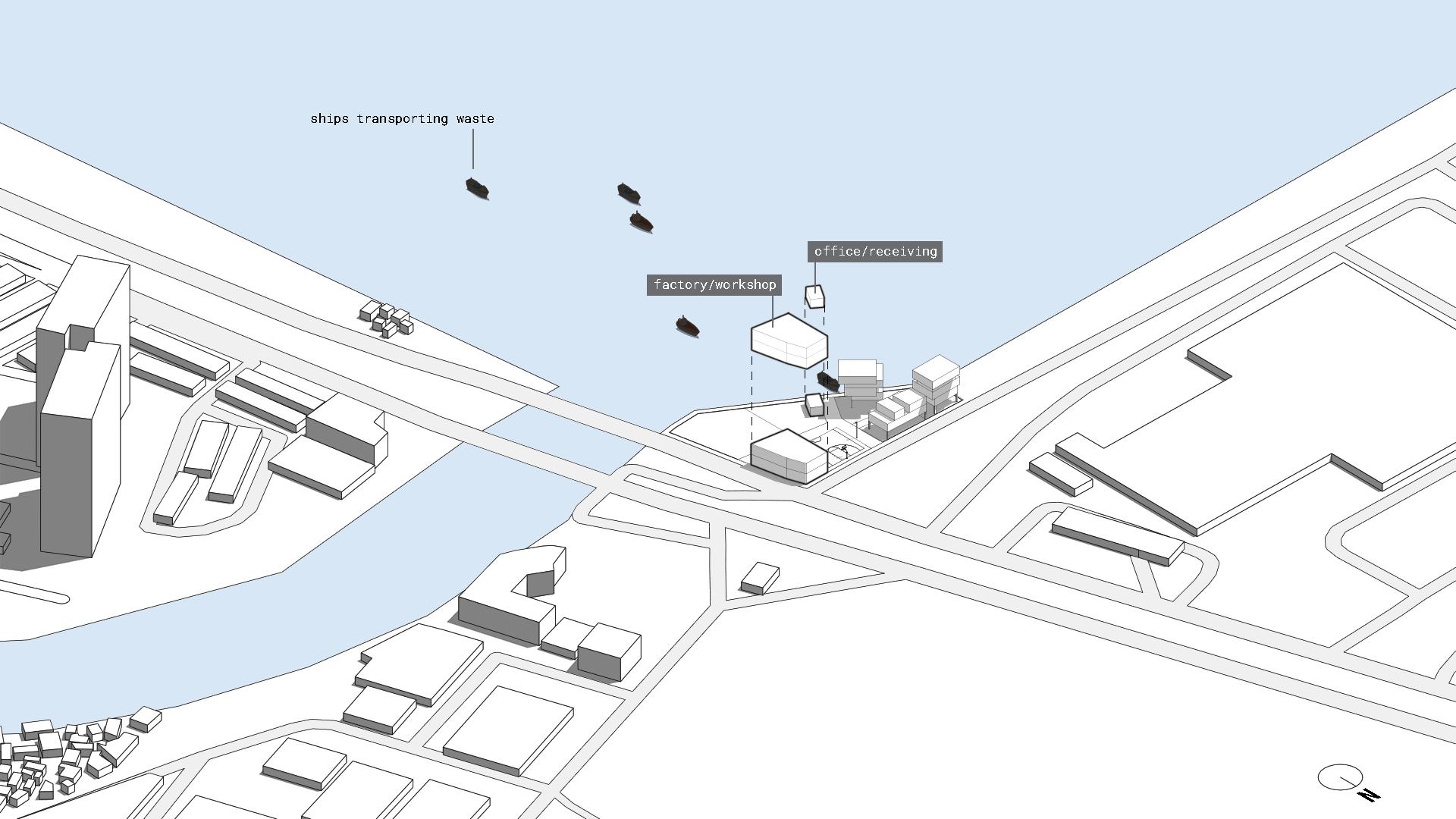

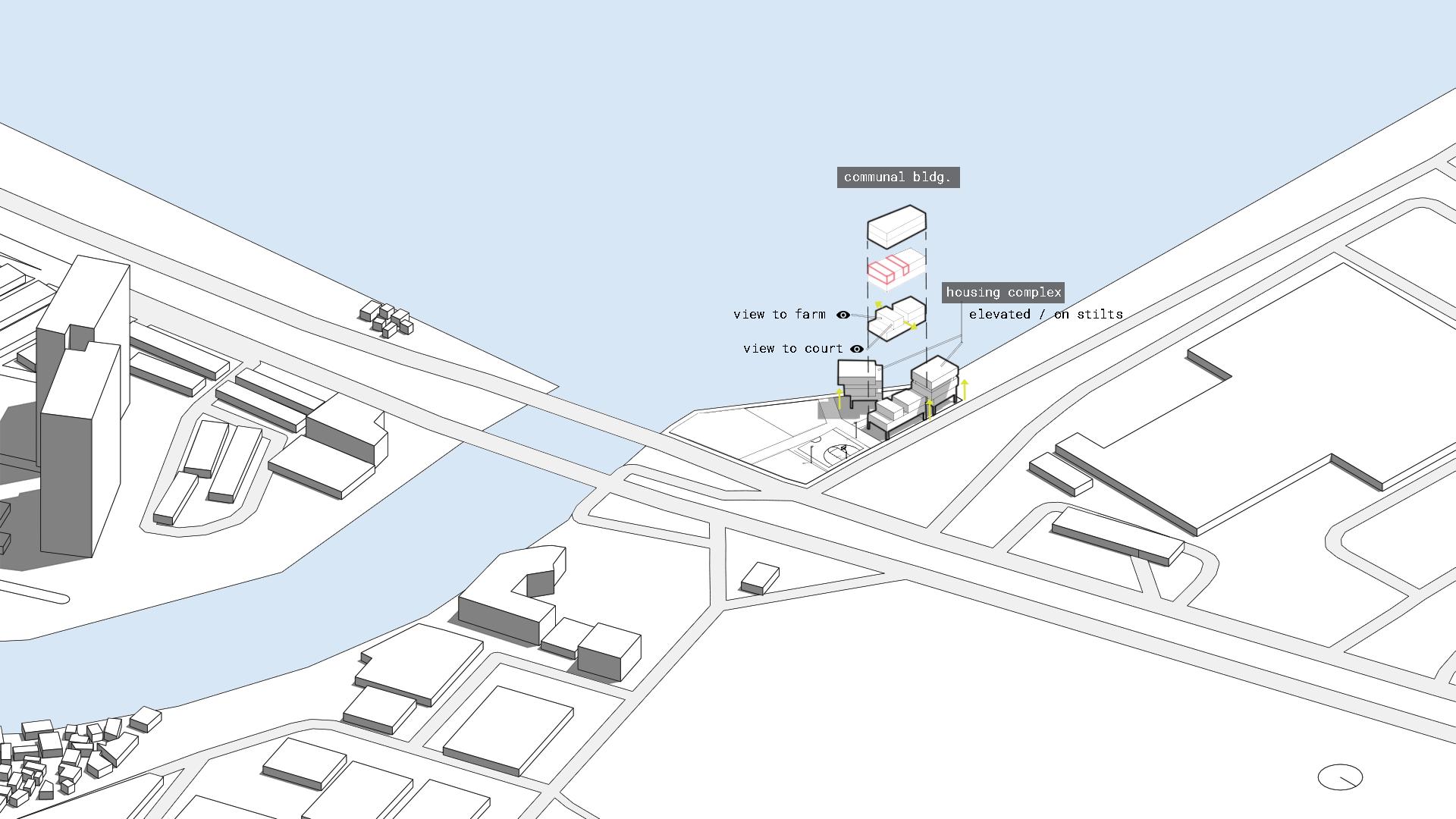

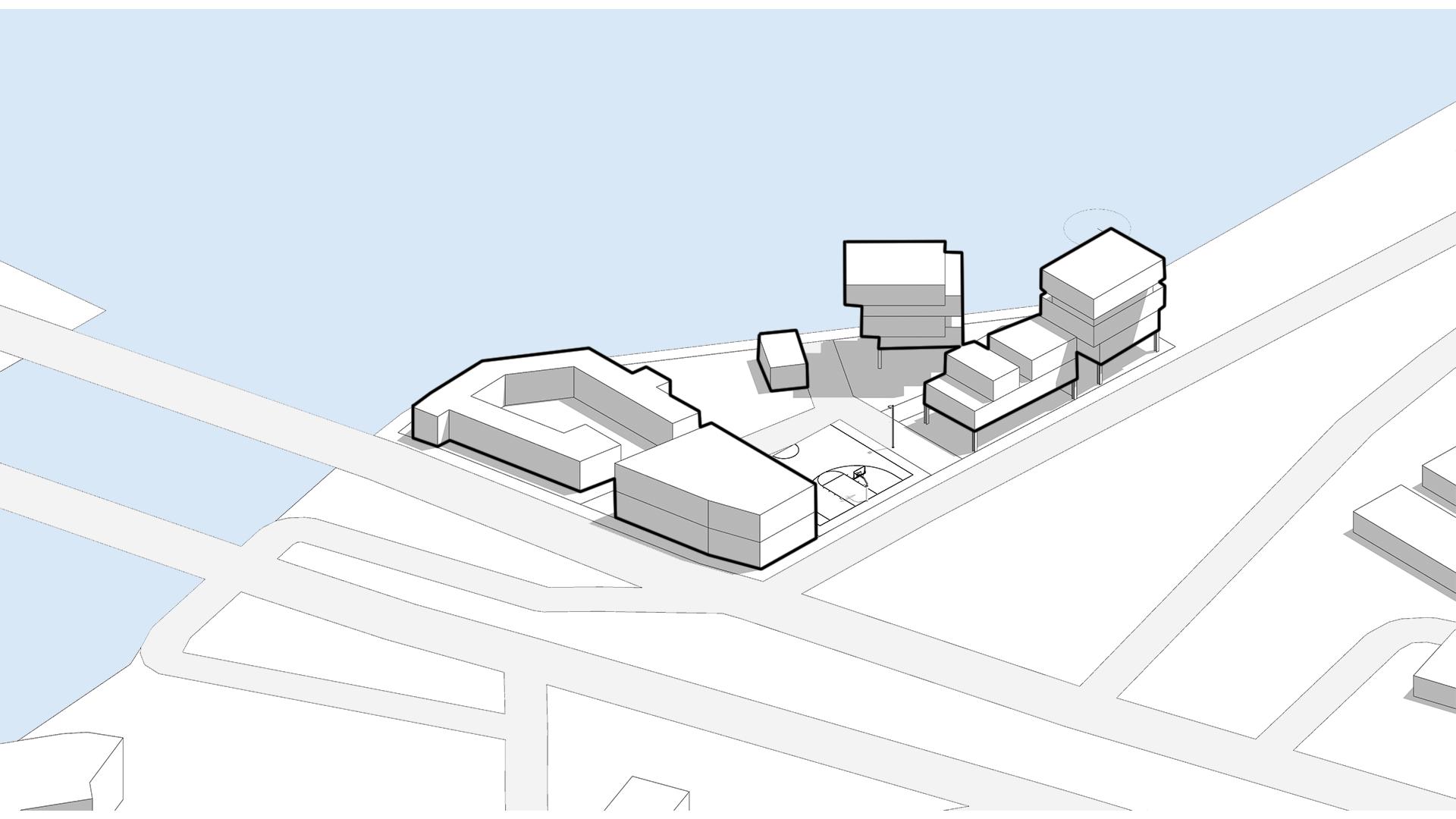

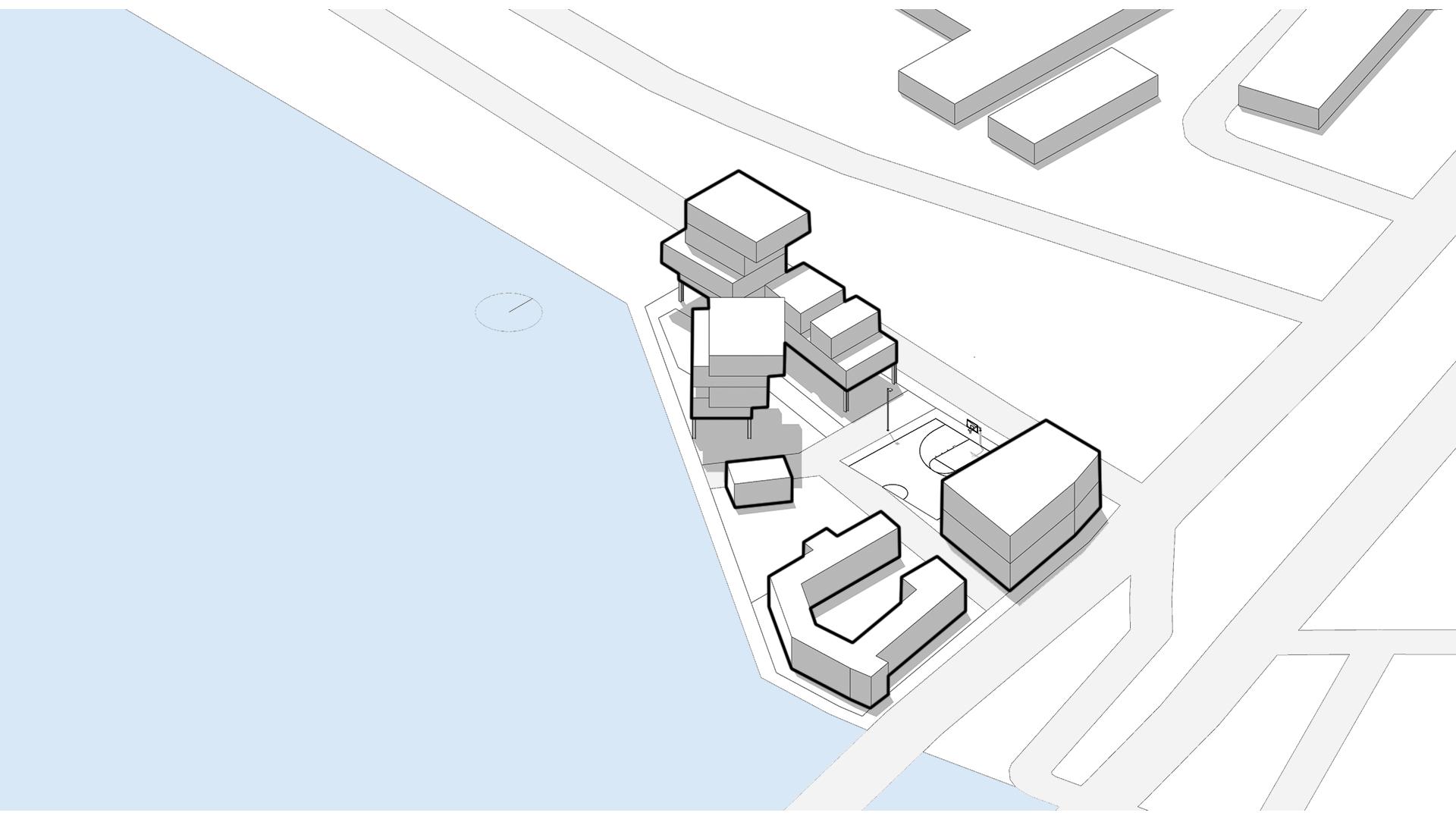

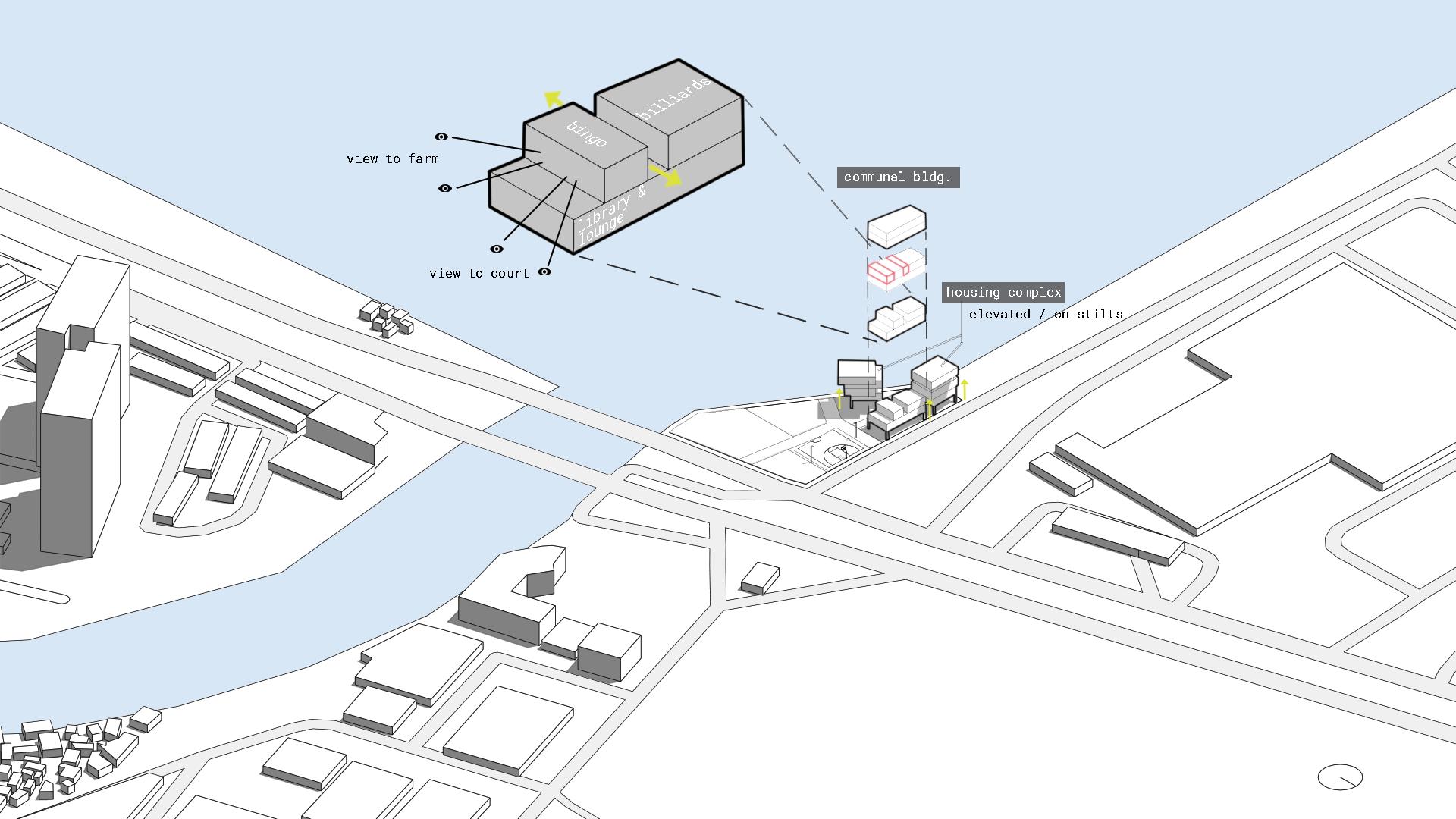

AXONOMETRIC VIEWS
AXONOMETRIC VIEWS
AXONOMETRIC VIEWS
AXONOMETRIC VIEWS

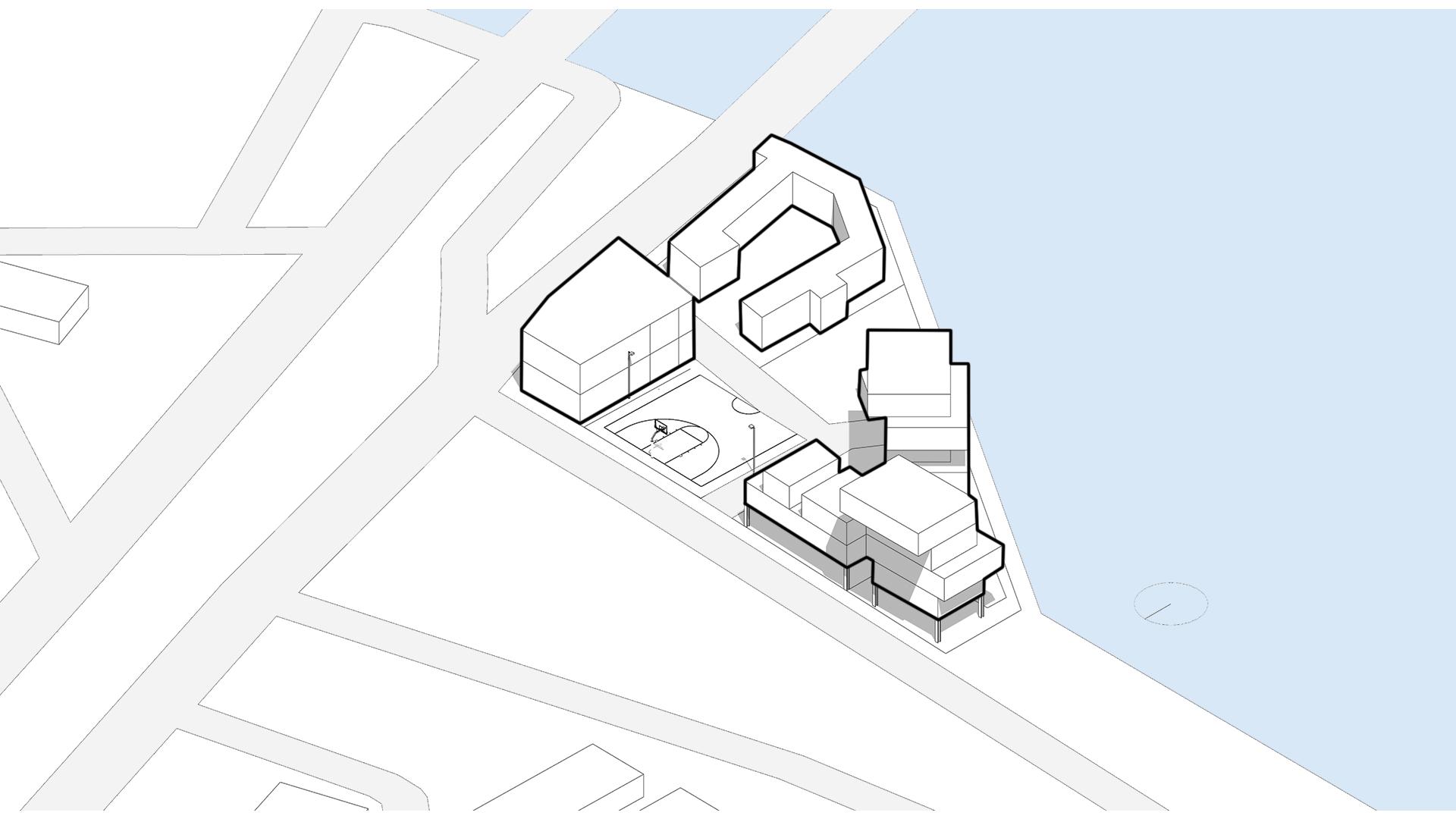

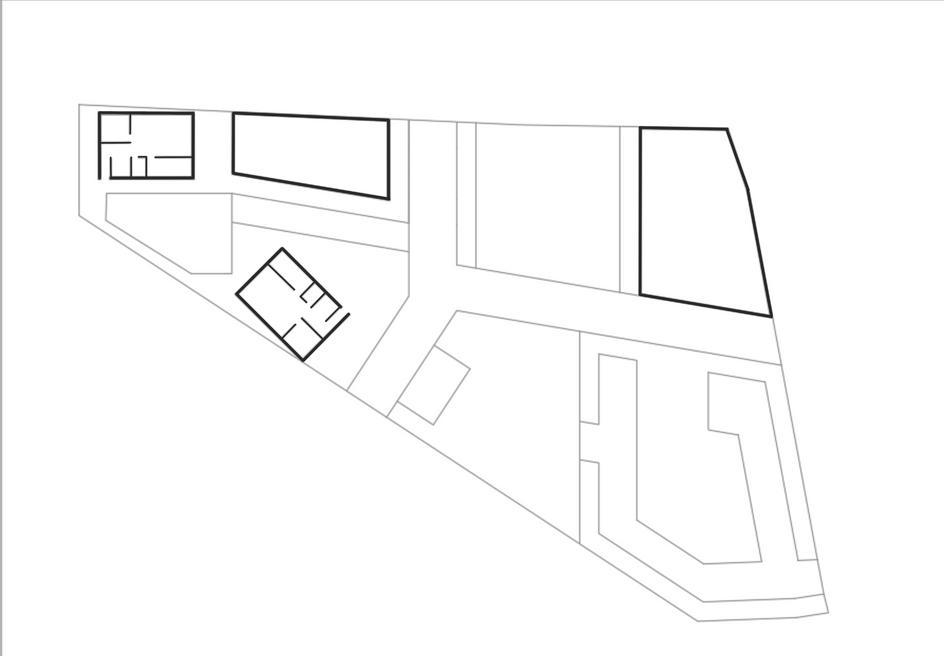

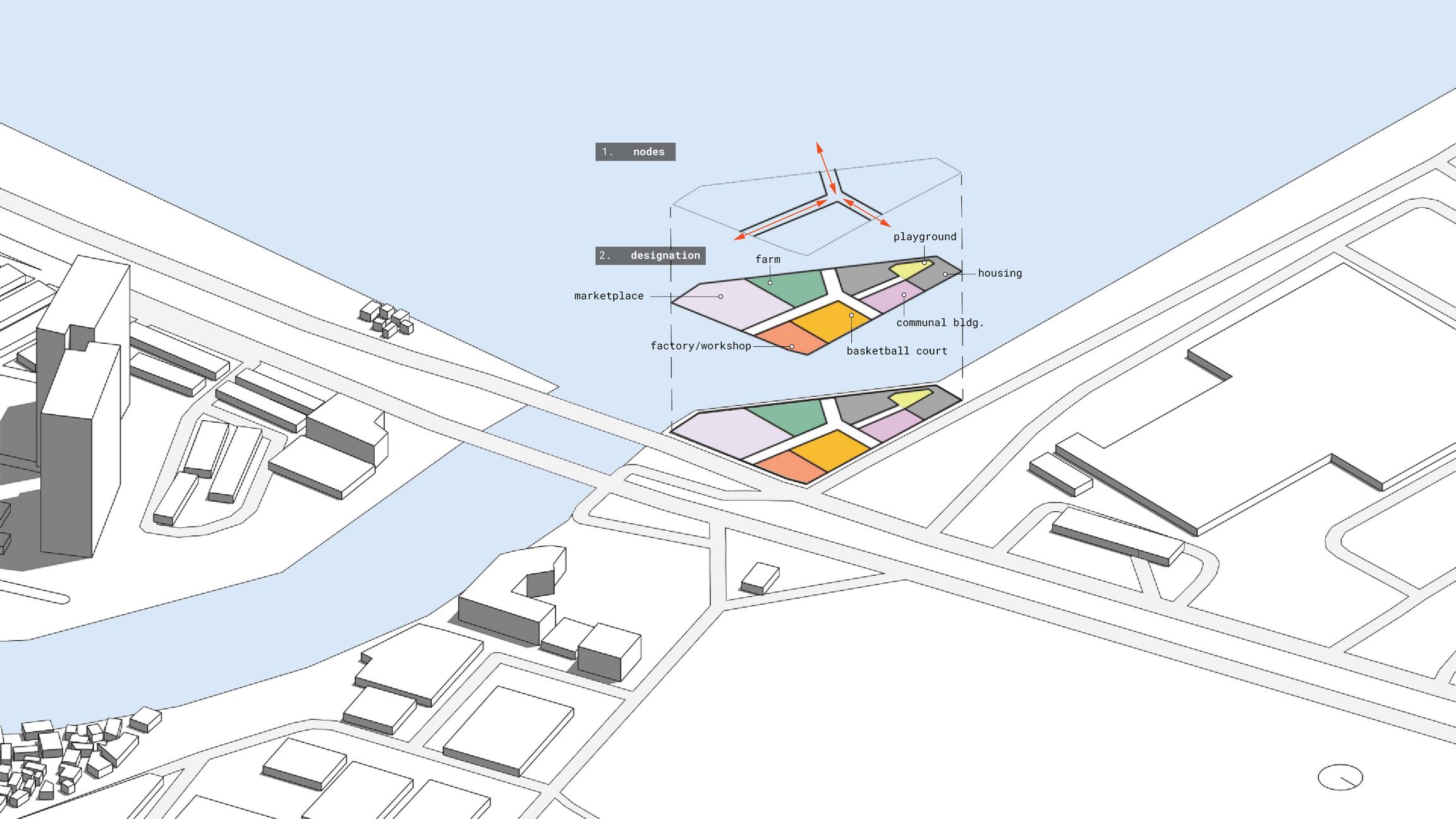

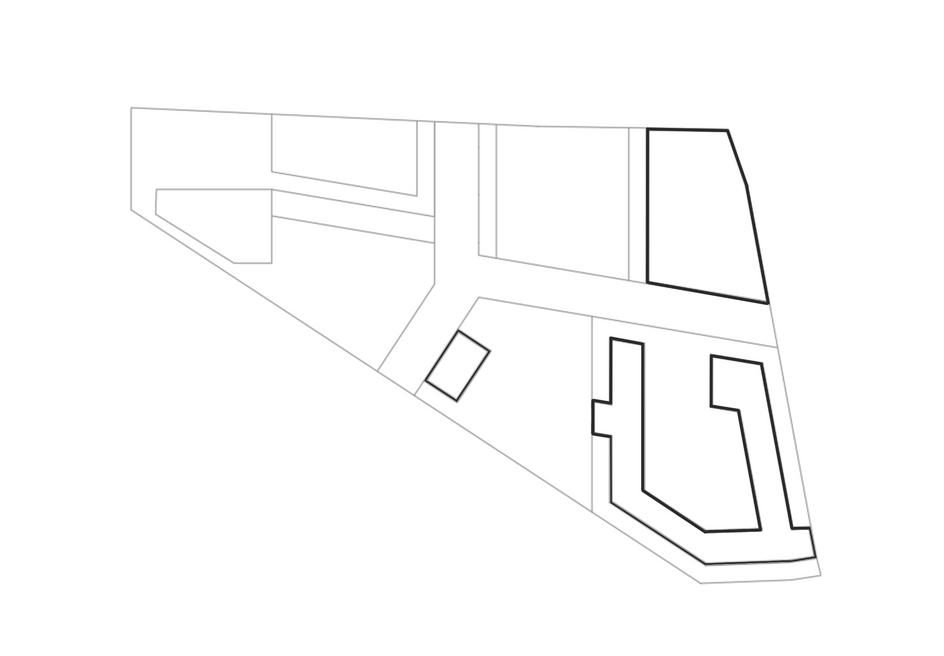

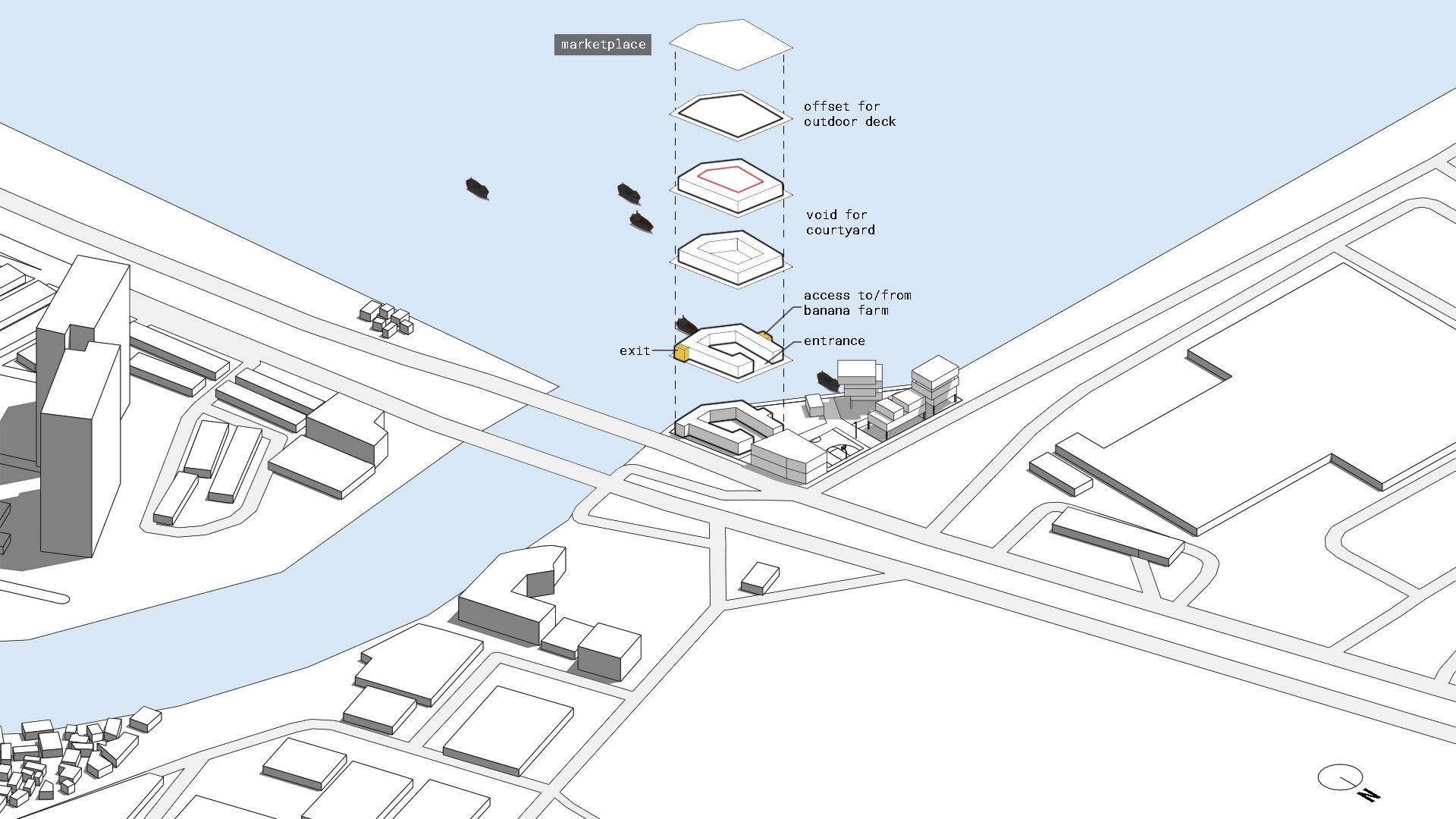

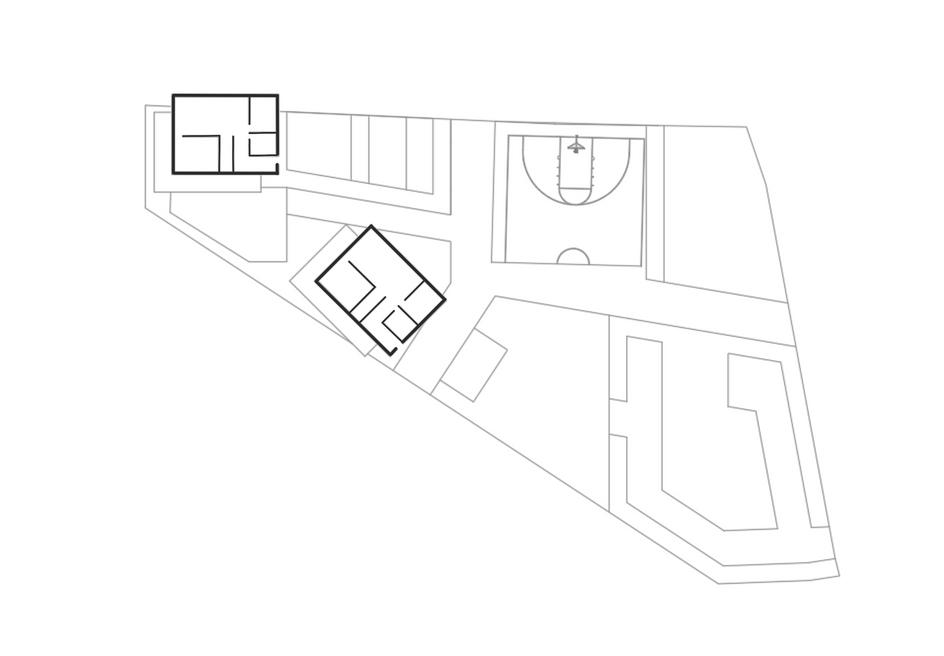

MASTER PLAN 1 Housing Complex 2 Playground 3 Communal Bldg. 4 Basketball Court 5 Office / Receiving Area 6 Banana Farm 7 Factory 8 Marketplace

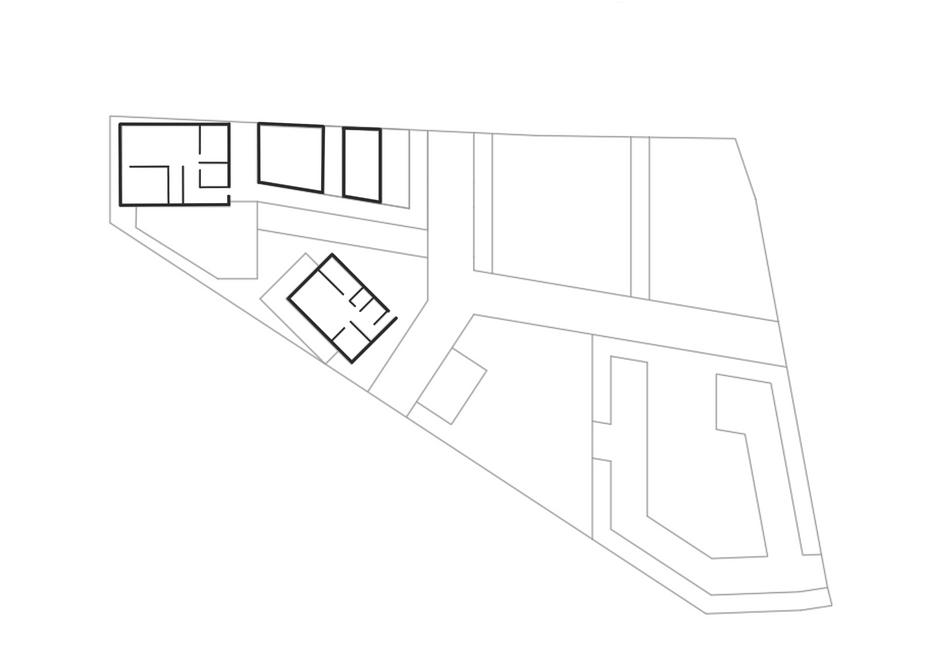

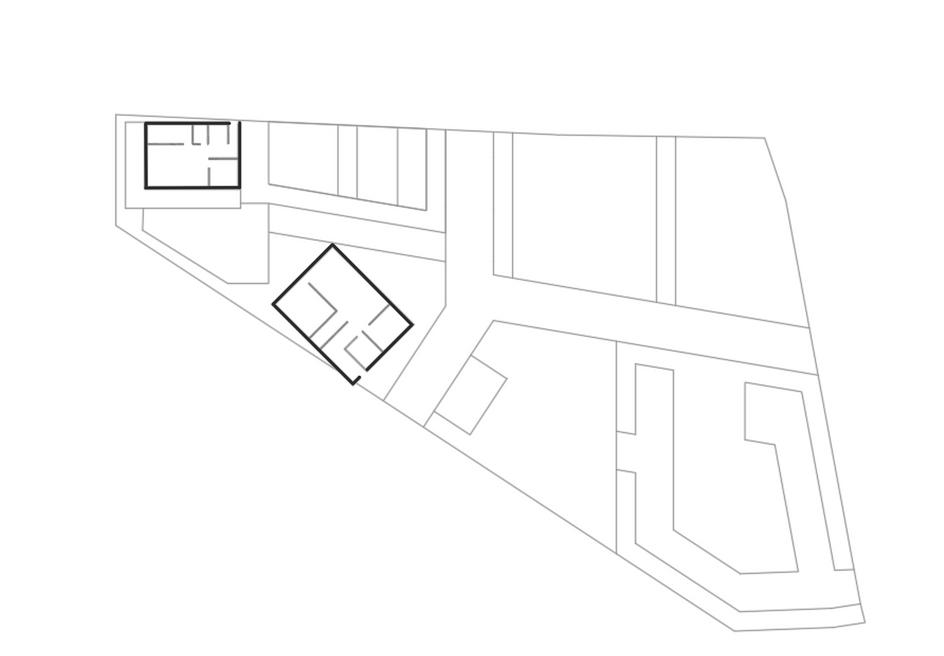

FLOOR PLANS Ground Level Second Level Third Level Fourth Level Fifth Level

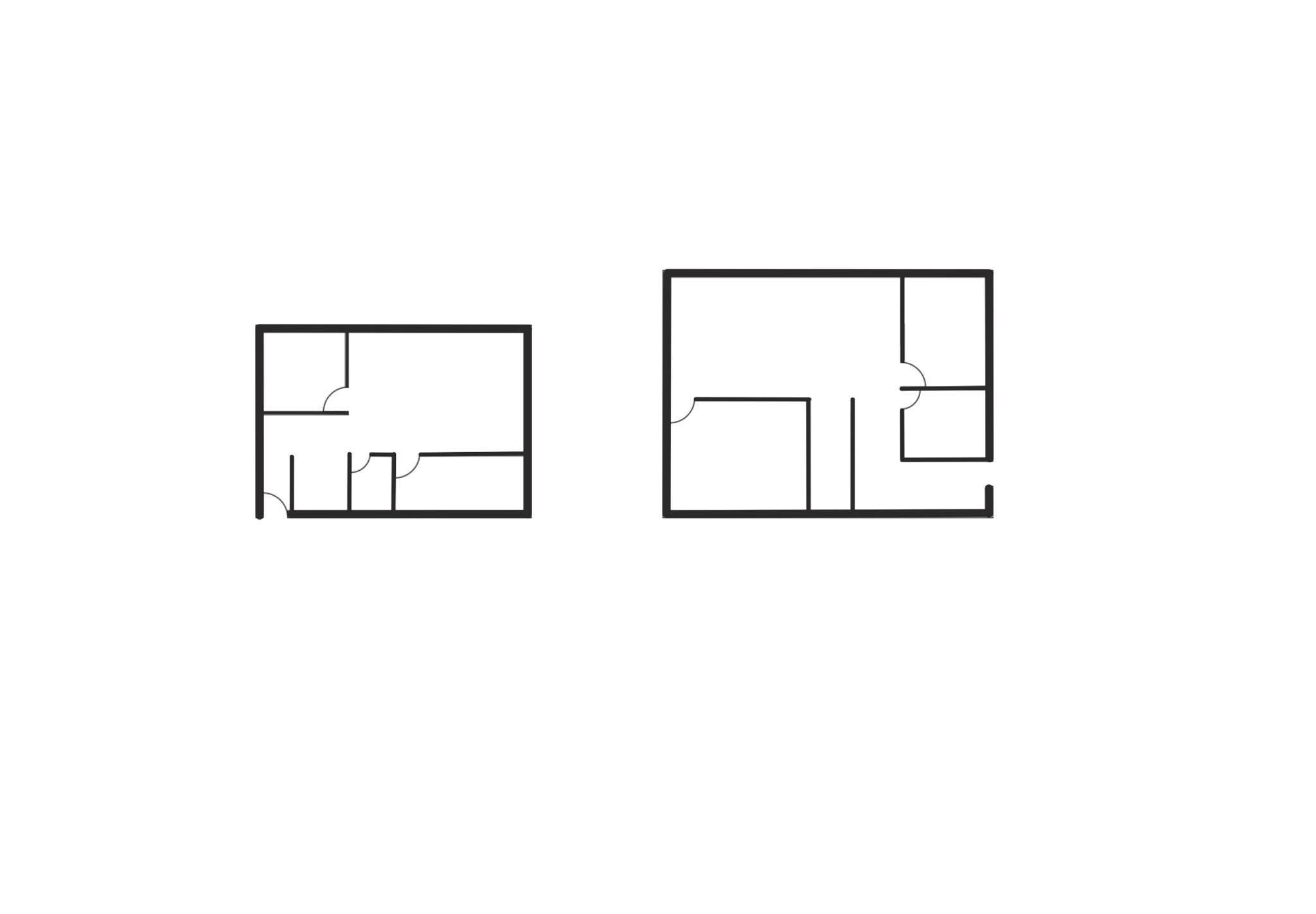

FLOOR PLANS Dining Living Room Bedroom Master's Bedroom T&B Kitchen Kitchen Living Room Dining Master's Bedroom Bedroom T&B Study Area Type A Unit 4-5 persons Type B Unit 6-7 persons
