Casa Musa
CHING & HERMOSA
Architectural Design 04
Banana Social Housing + Marketplace
Tondo, Manila
W [12]
Instructor: Sir Kooks
CHING & HERMOSA
ARCDS04
PROJECT NAME:
LOCATION:
WEEK NUMBER:
Casa Musa
Tondo, Manila
12

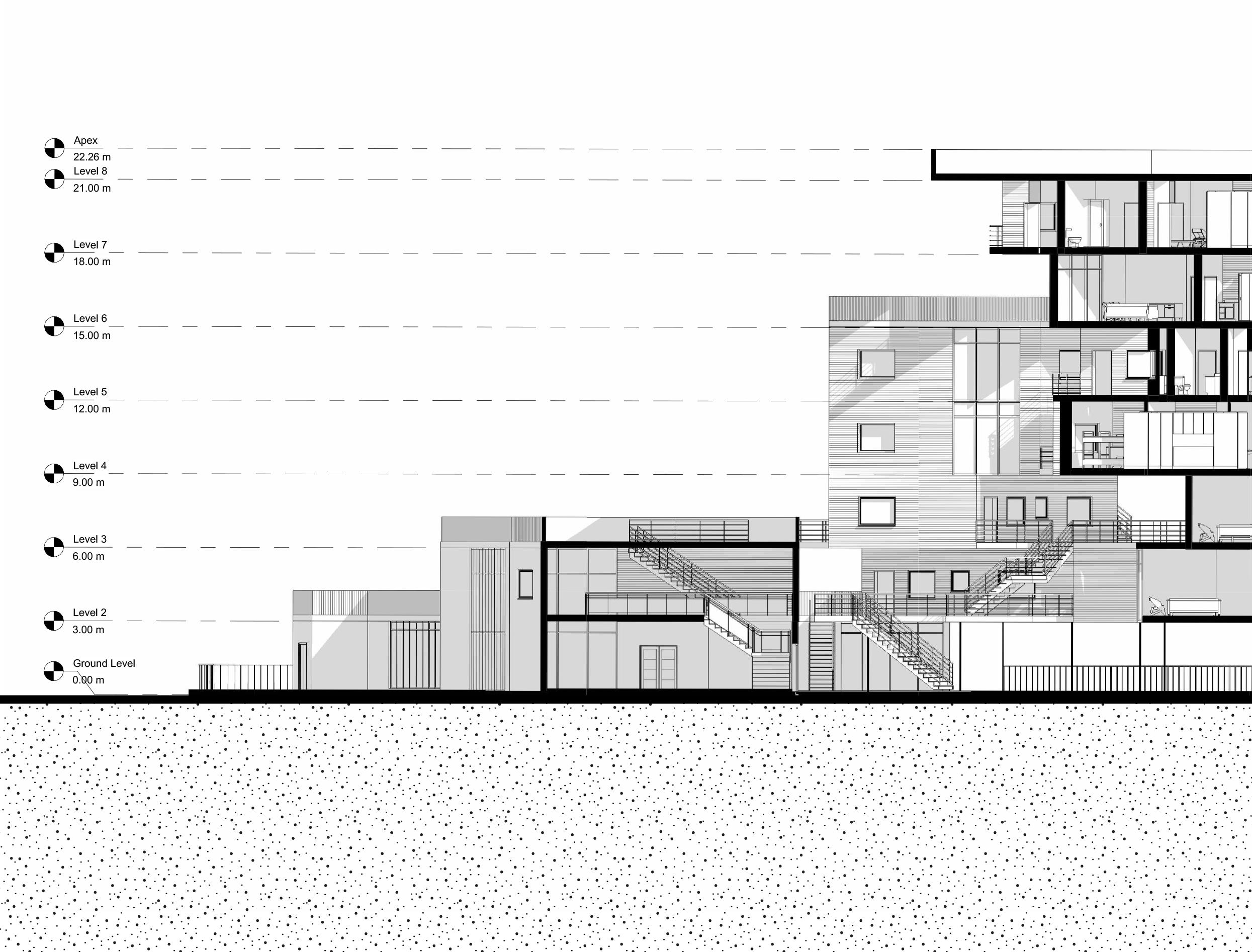

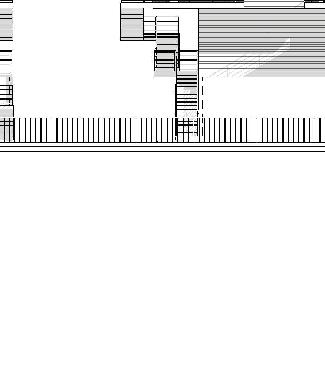

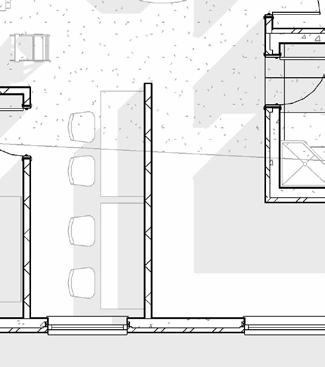

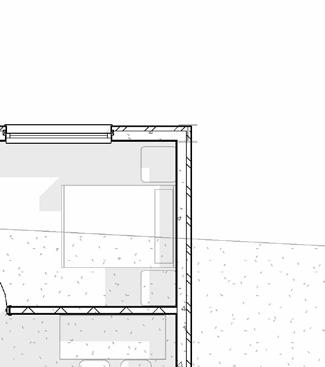

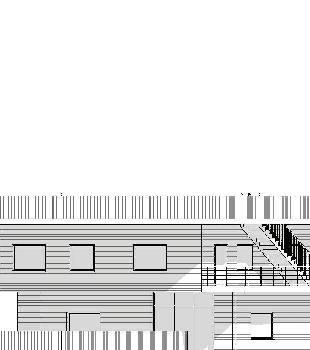

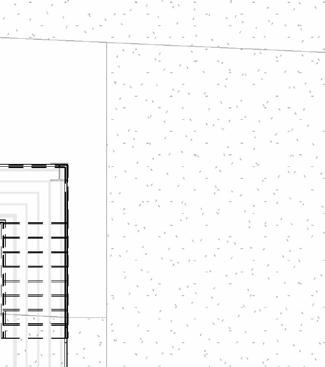

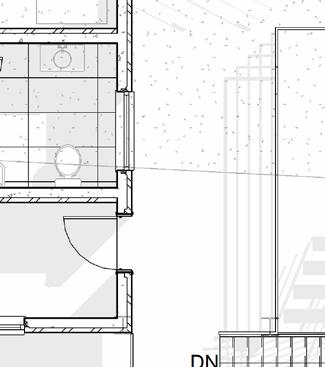

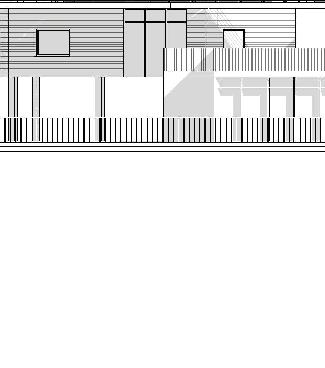

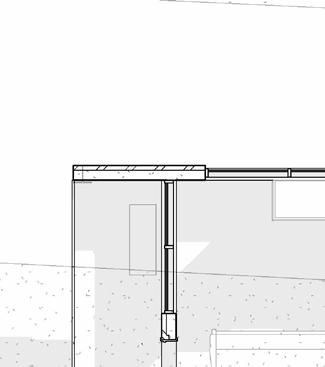

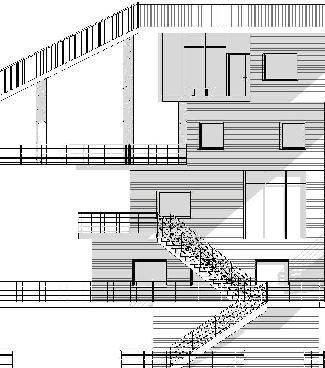

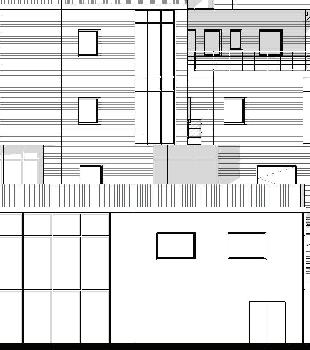

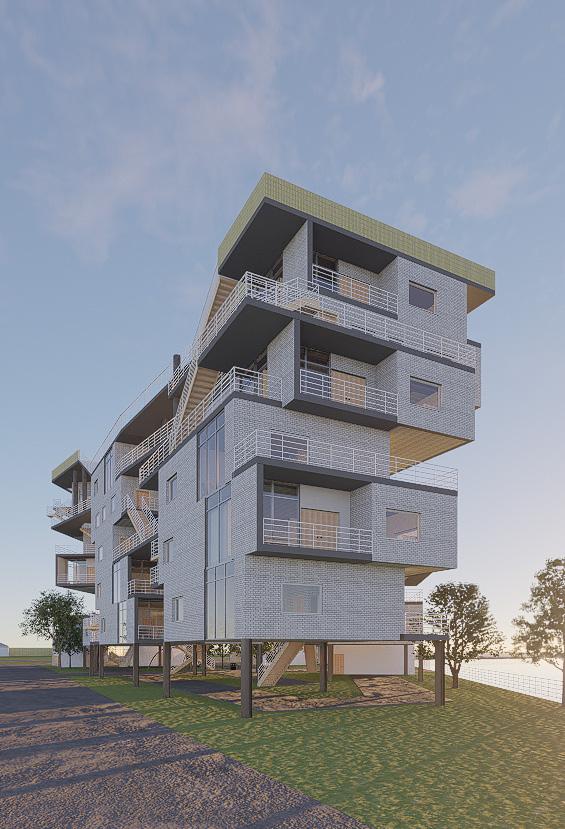

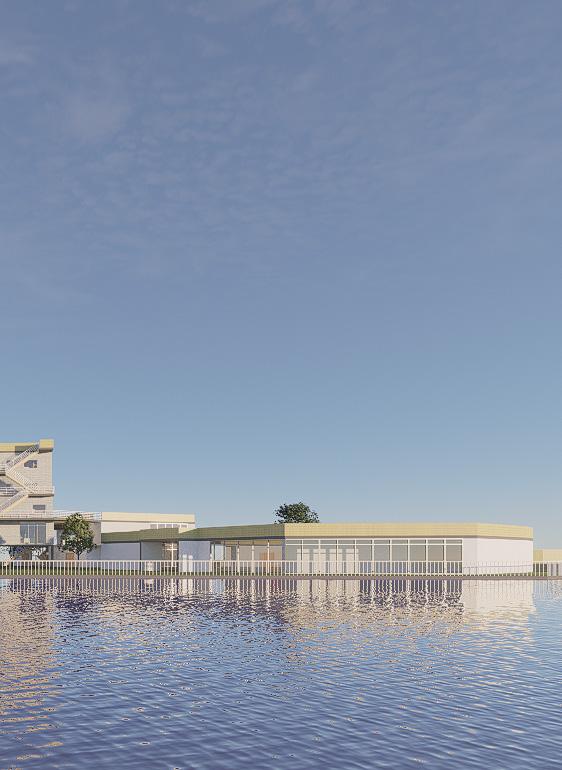

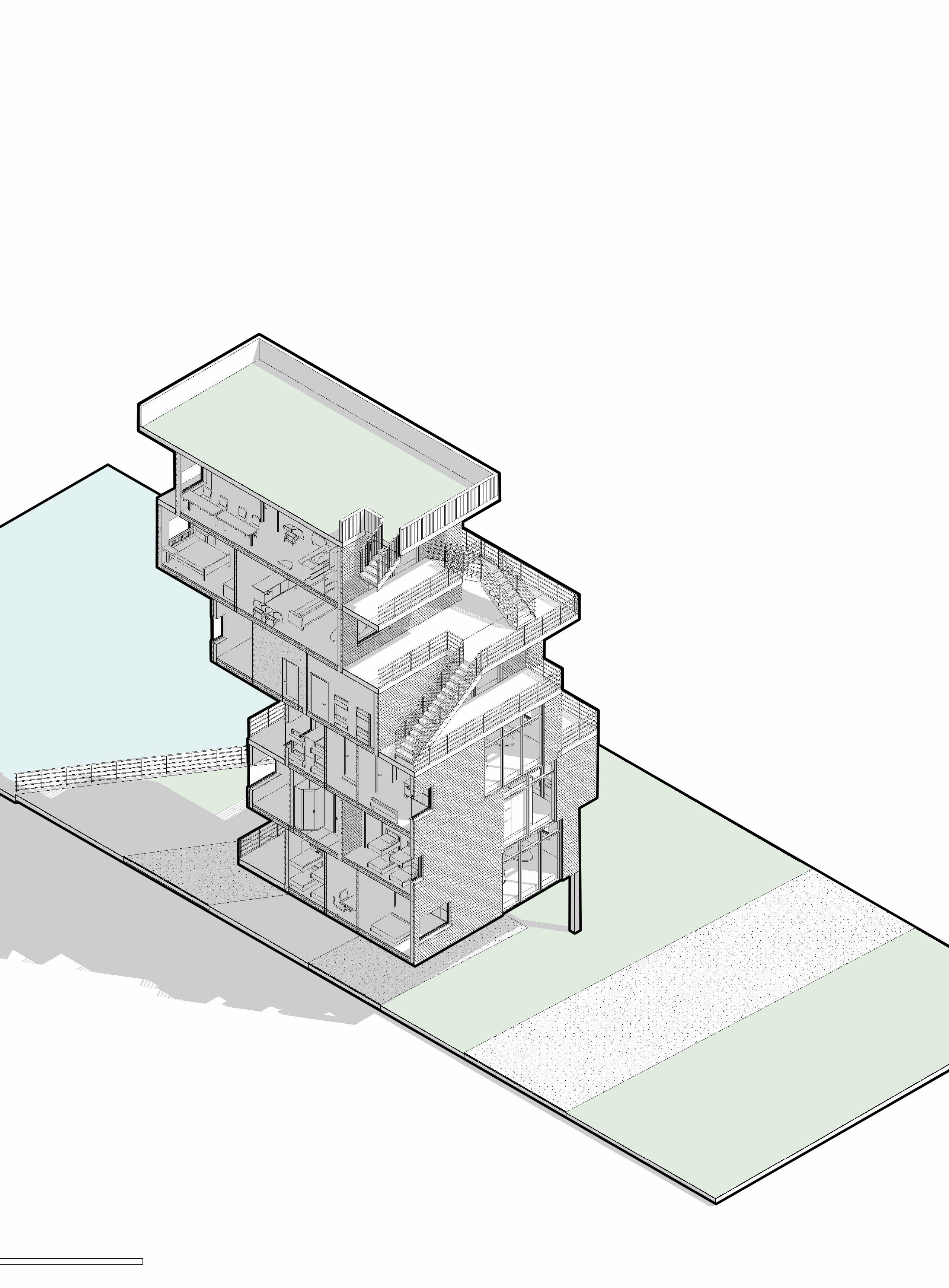

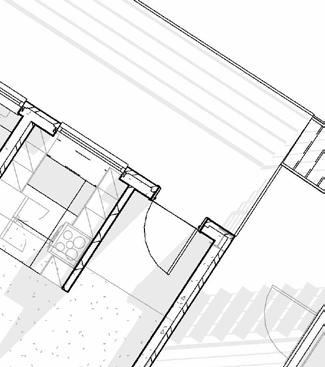

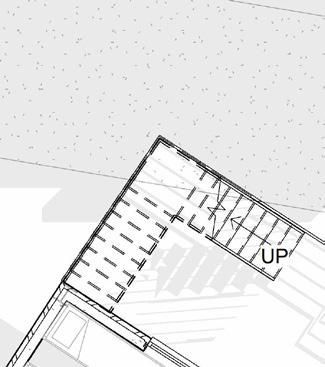

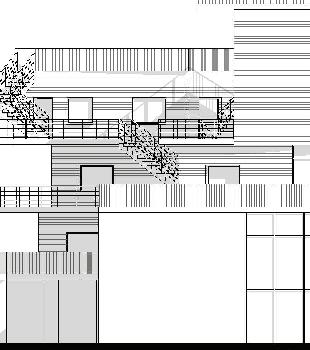

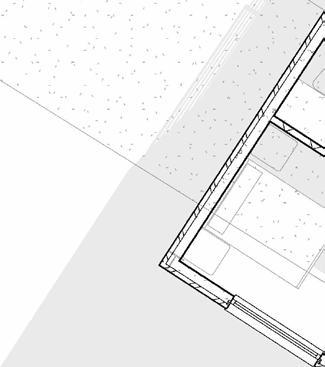

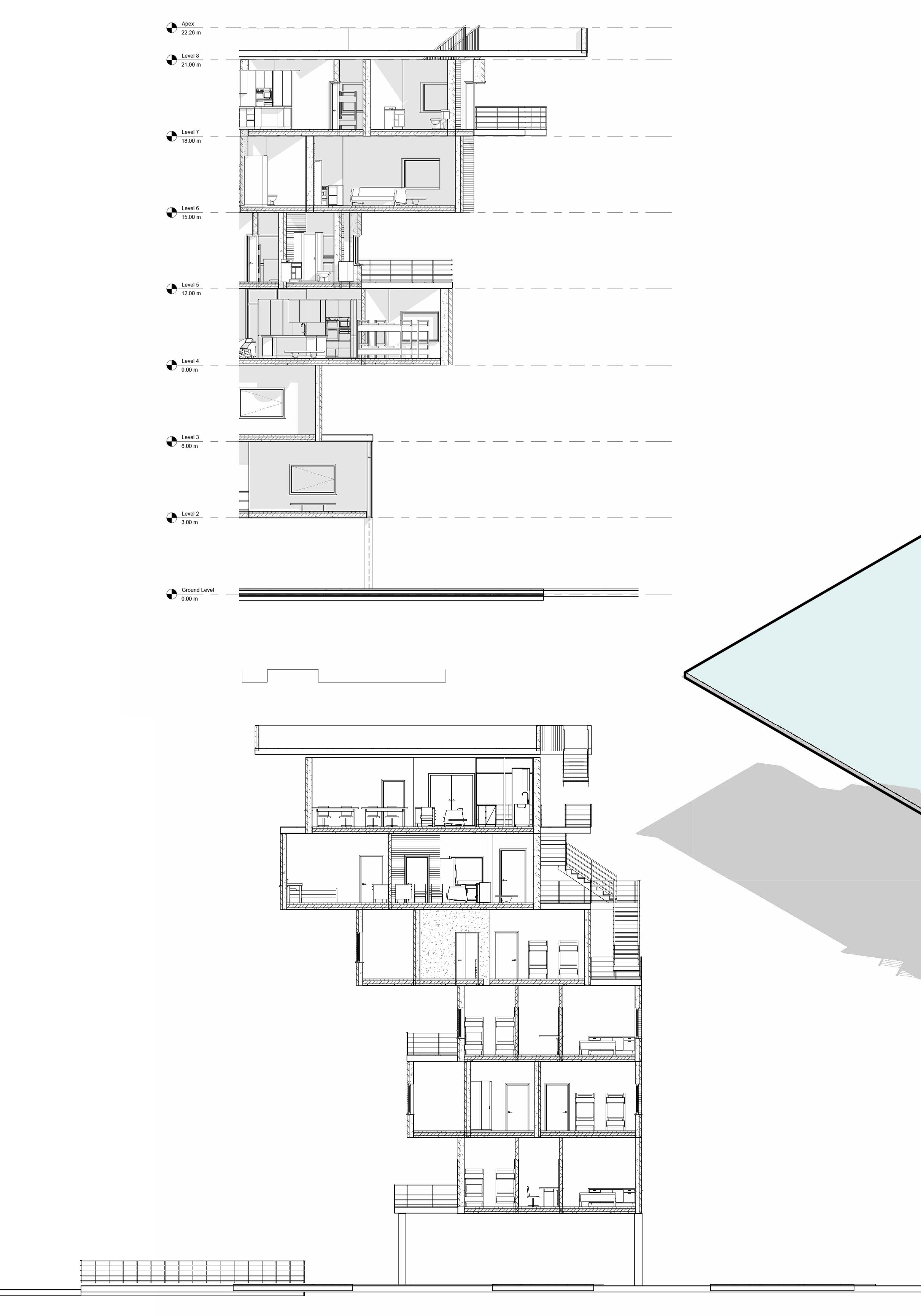

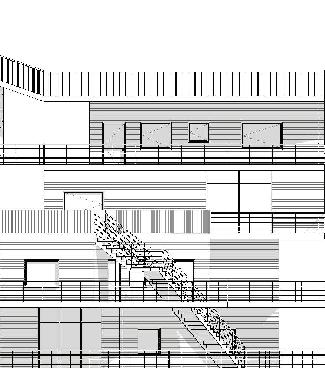

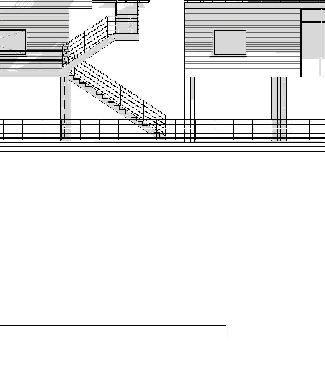

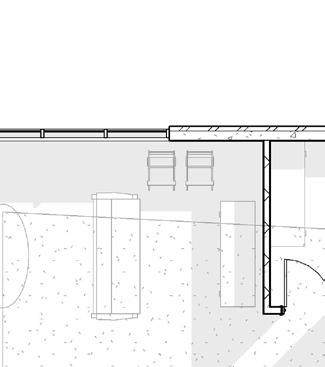

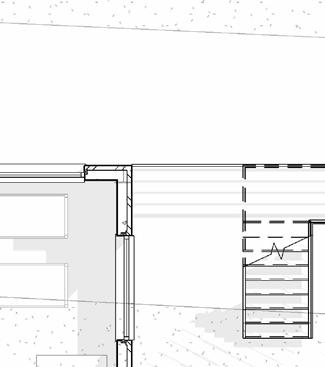

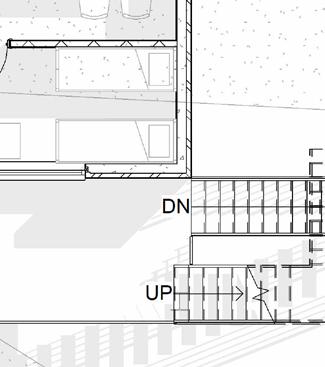

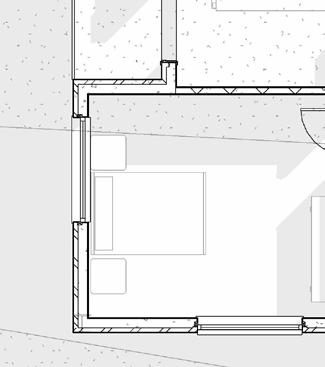

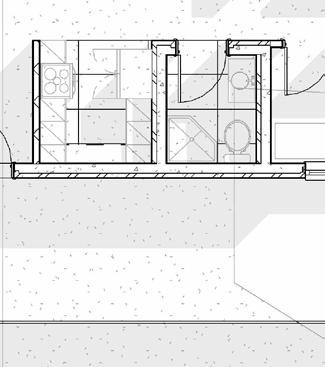

DESCRIPTION: Social Housing project for informal settlers with the intent to develop a self-sustaining community by farming, recycling, reusing, and creating crafts from every part of a banana plant. Planned to provide homes for 20 families, and a marketplace open to the public This week's presentation includes 10 architectural sheets, plans, sections, and axonometric view. Finals draft presentation

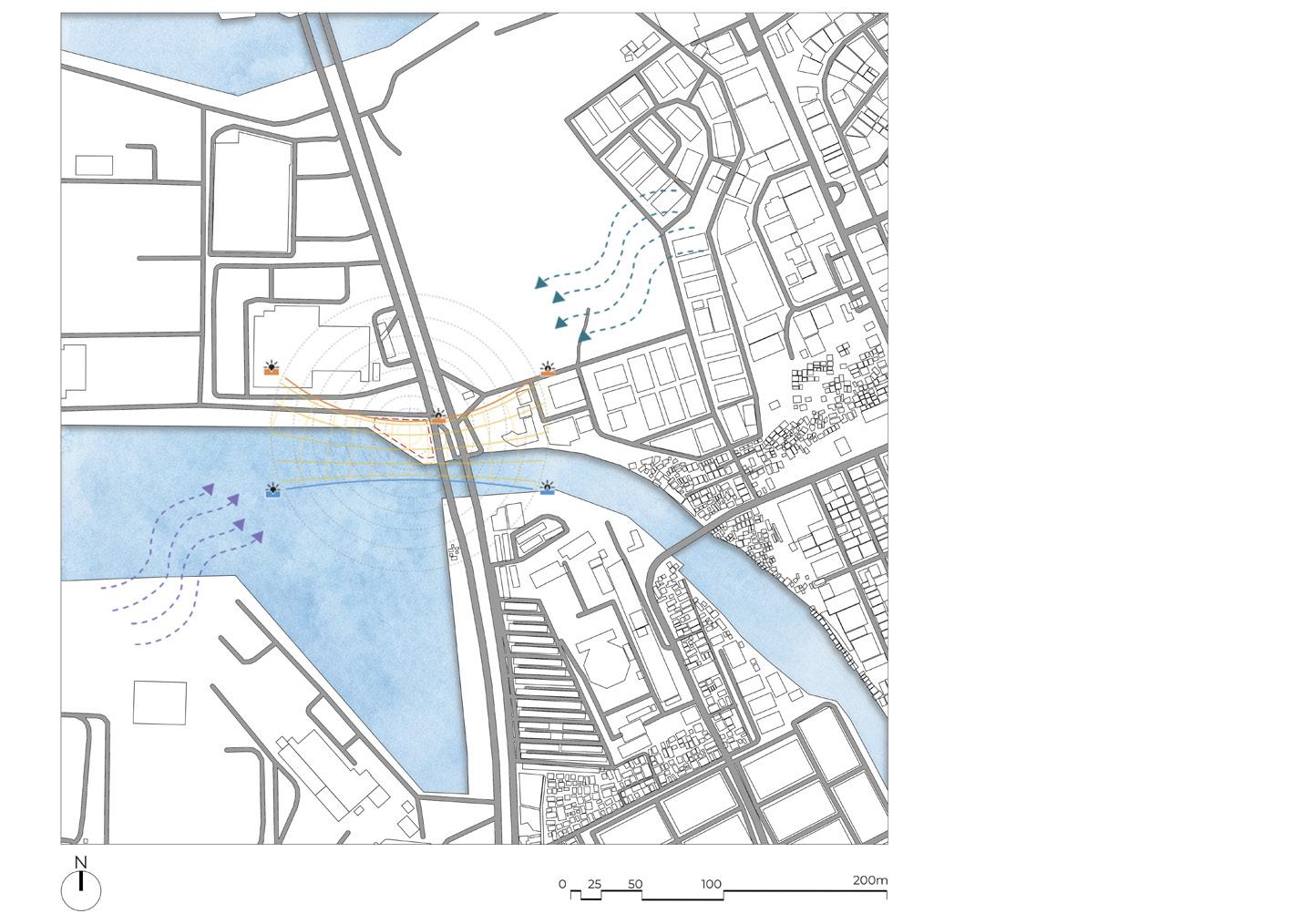

SUN PATH AND WIND ANALYSIS
Optimizing the sunset view
ZONING MAPING

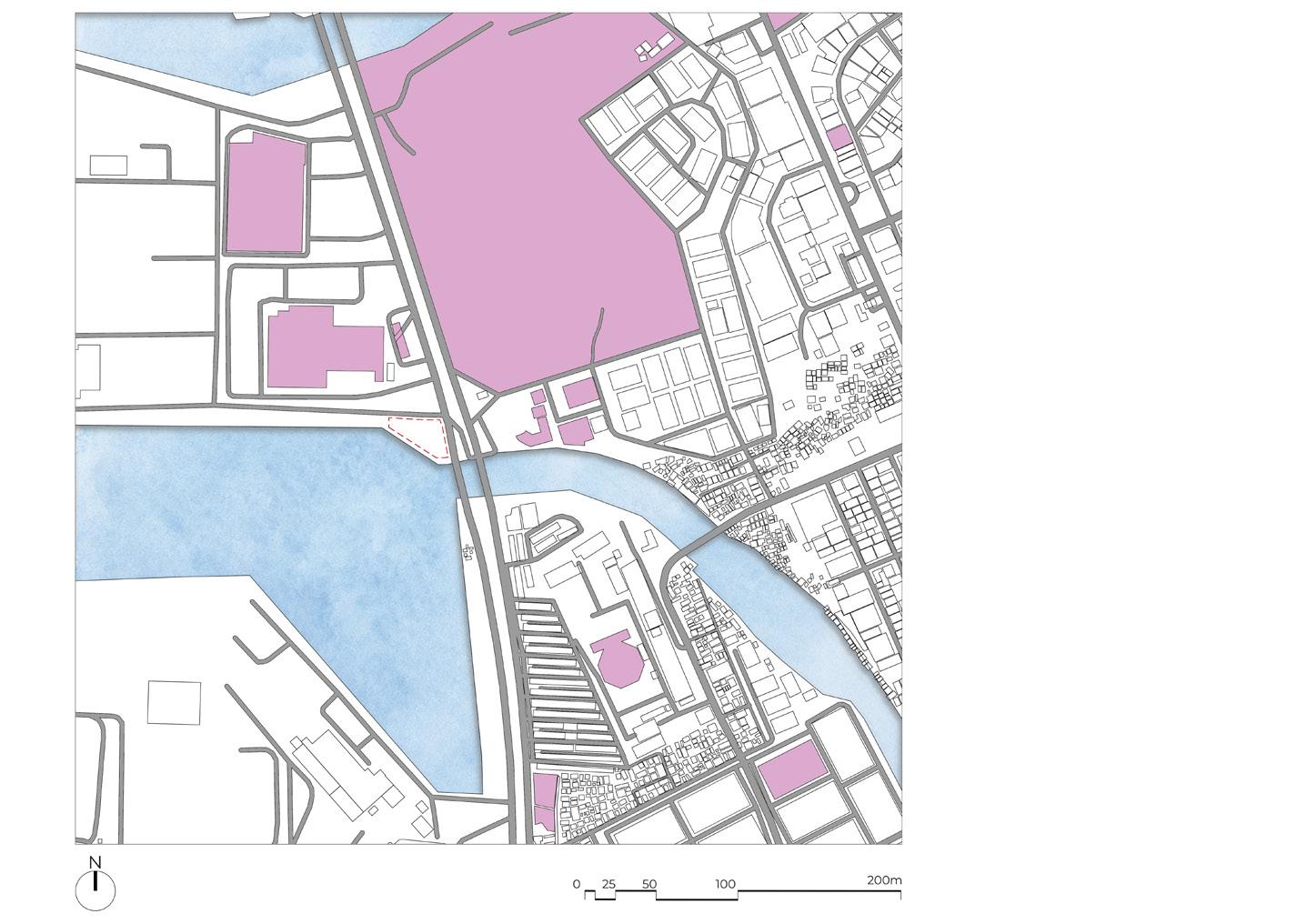

Based on Comprehensive Land Use Planning (C.L.U.P.) Of Manila

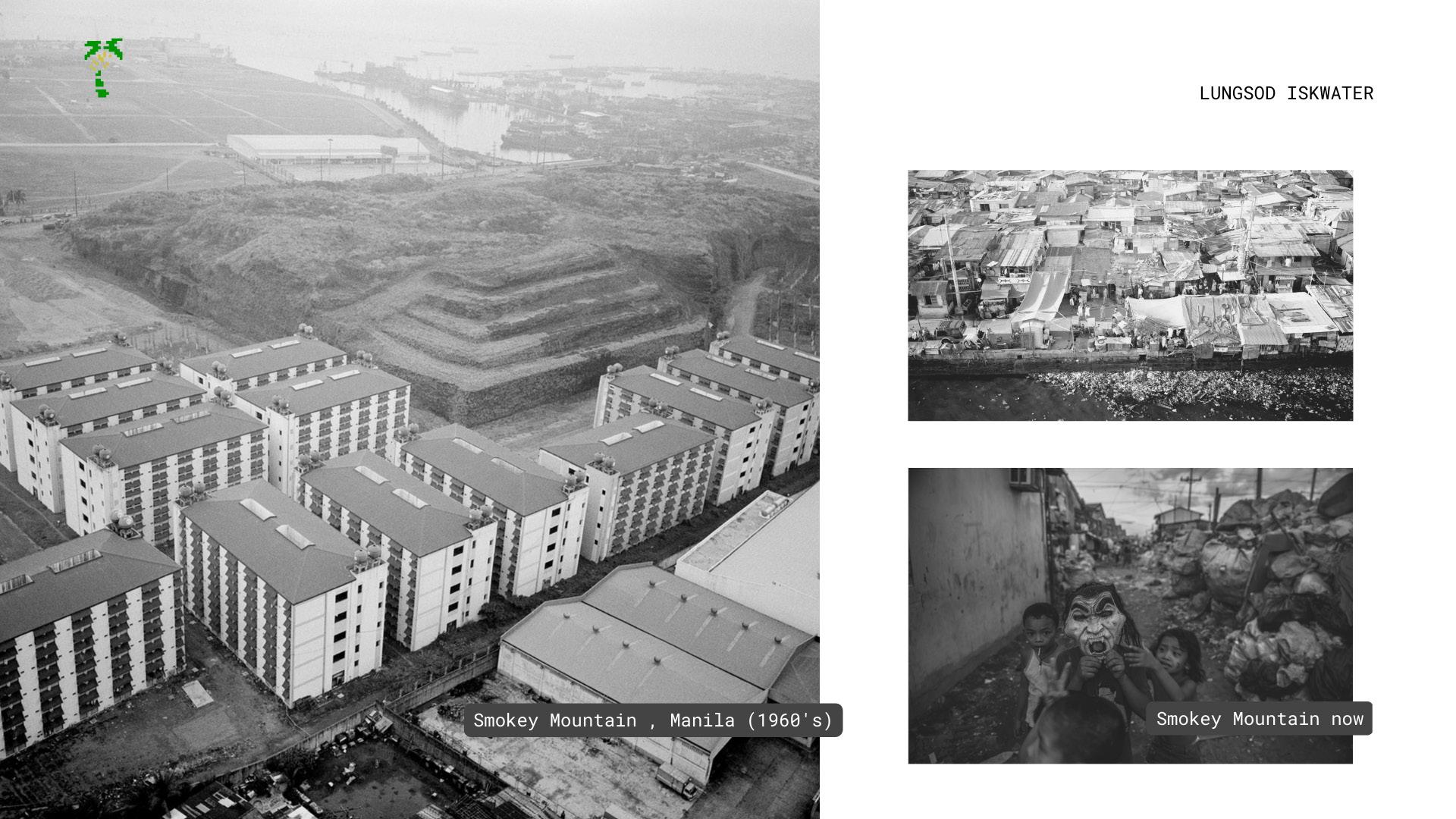

Landmarks

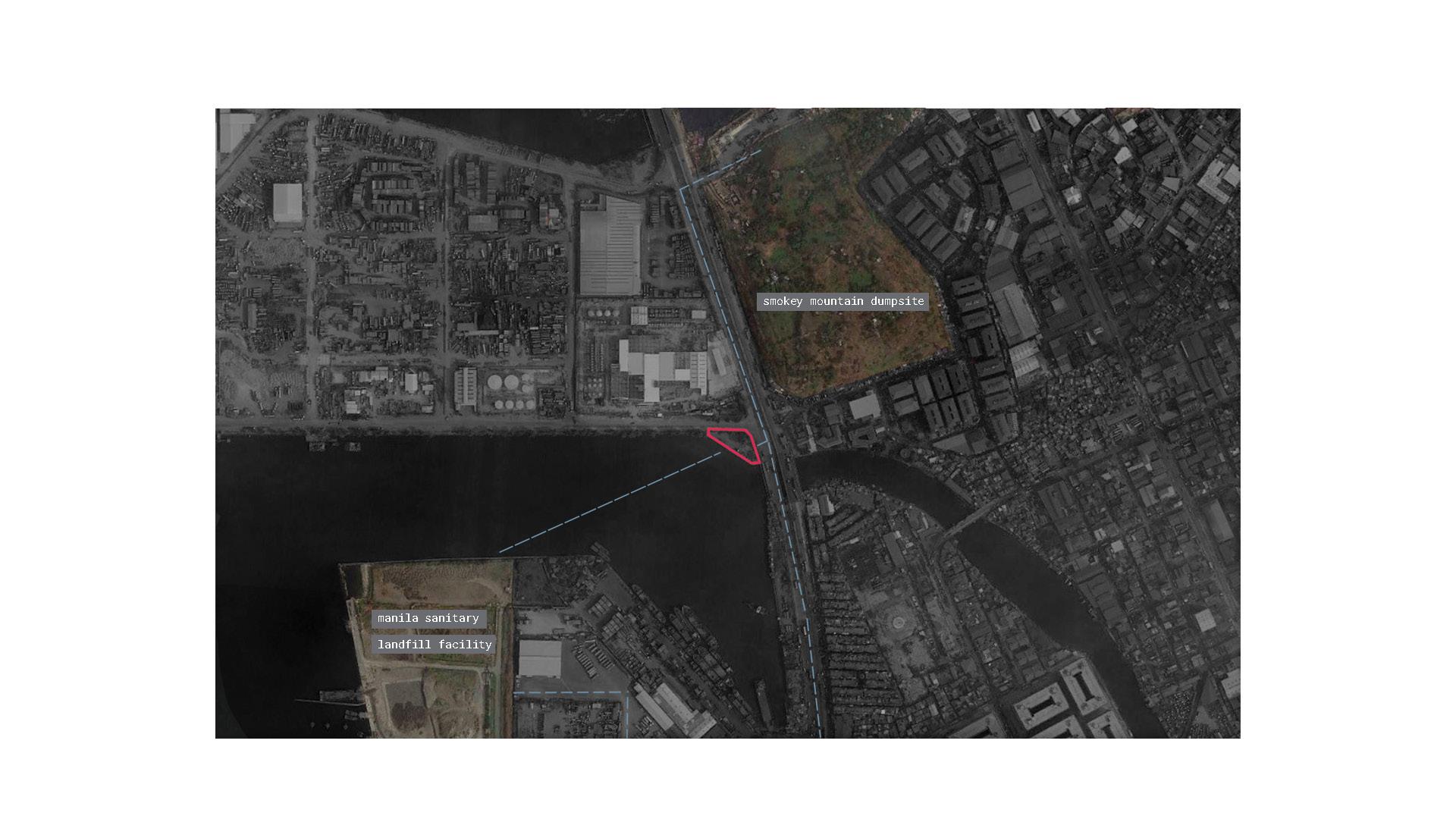

Points of Interest around the chosen site
Noticeable density of housing on the east and east-west direction of the site.

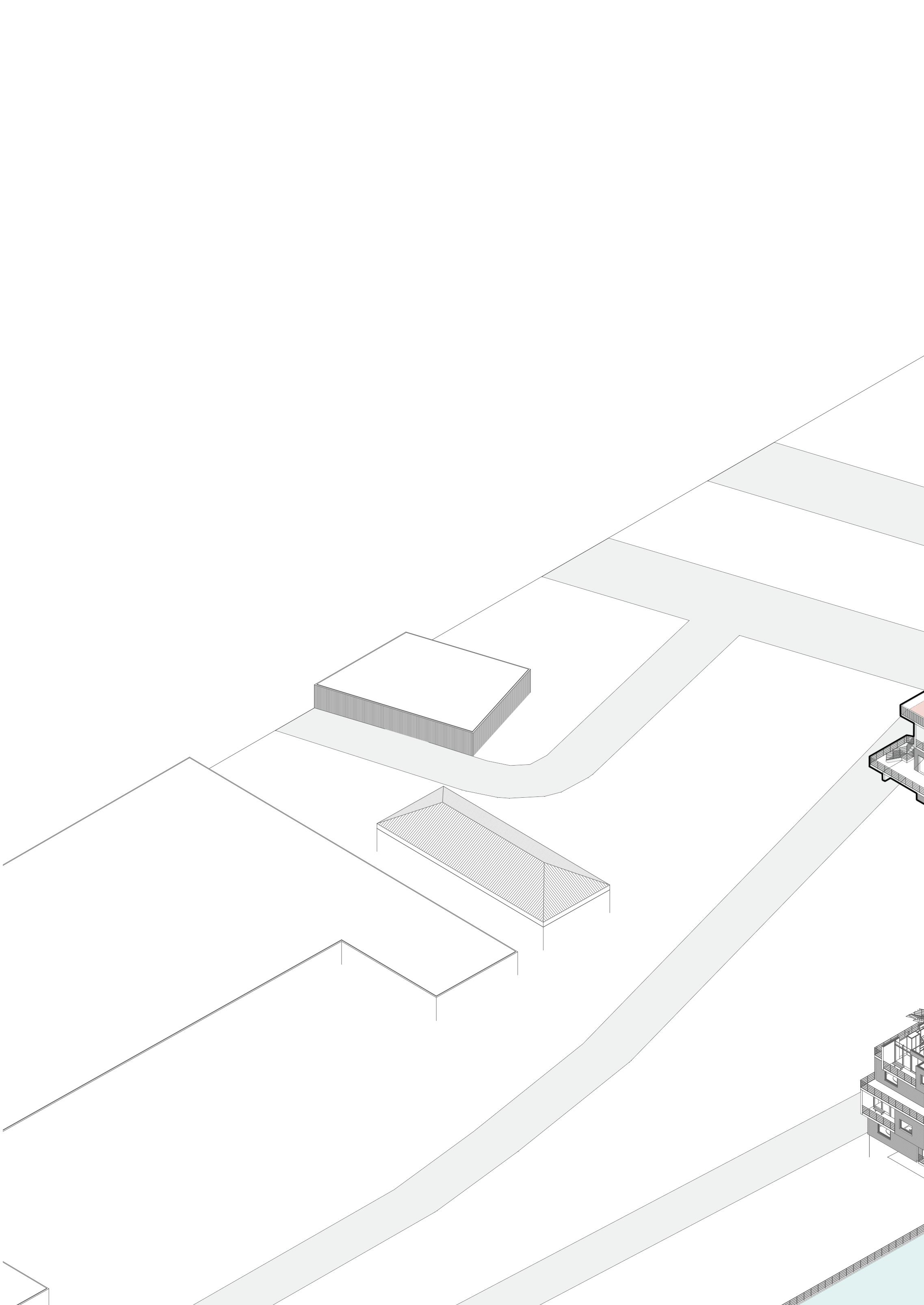

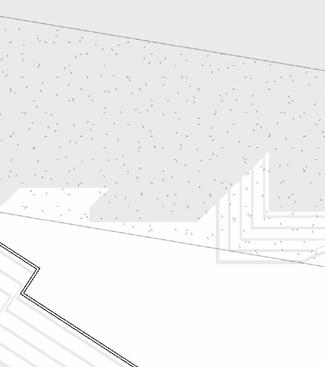

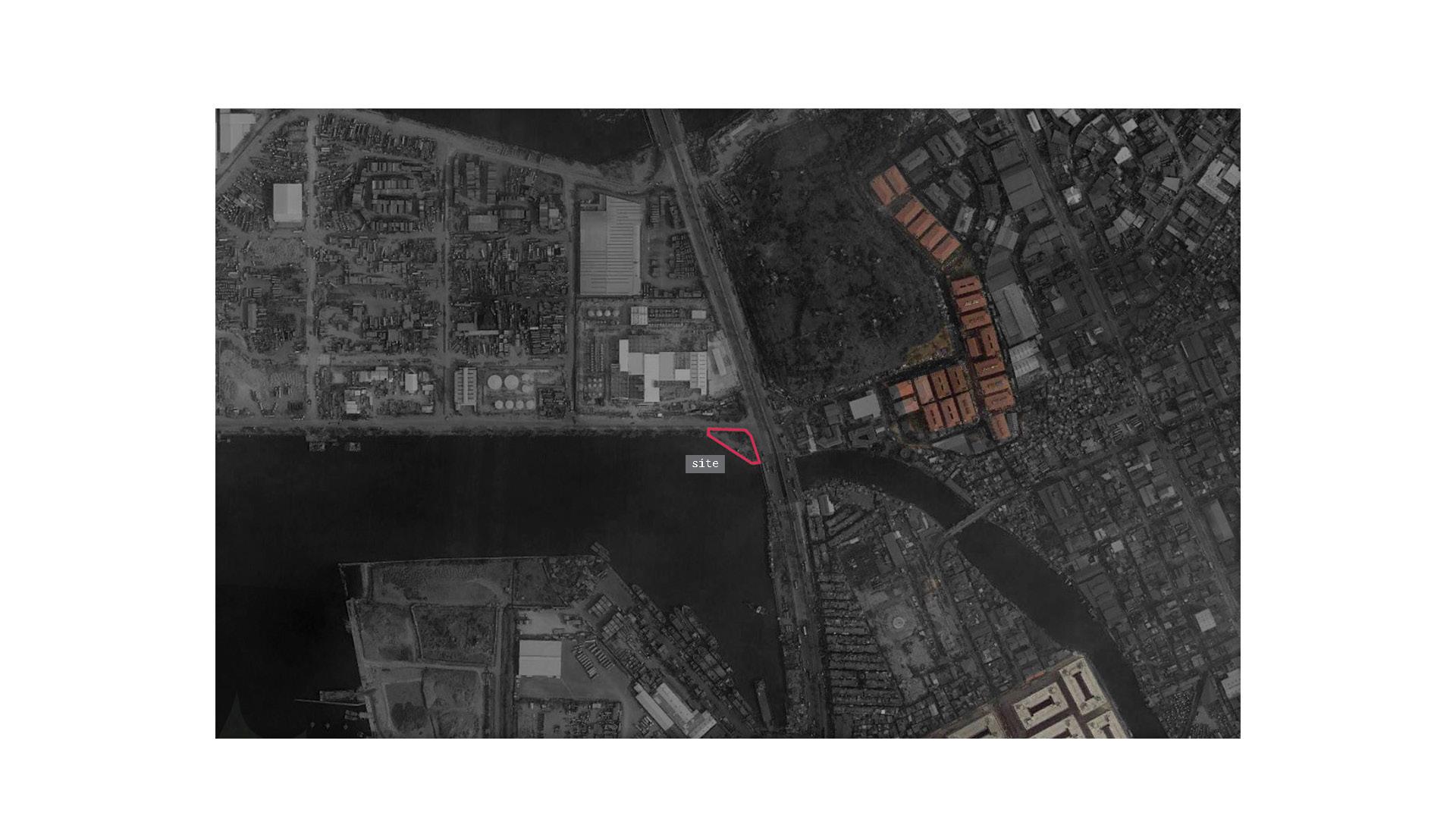

SITE

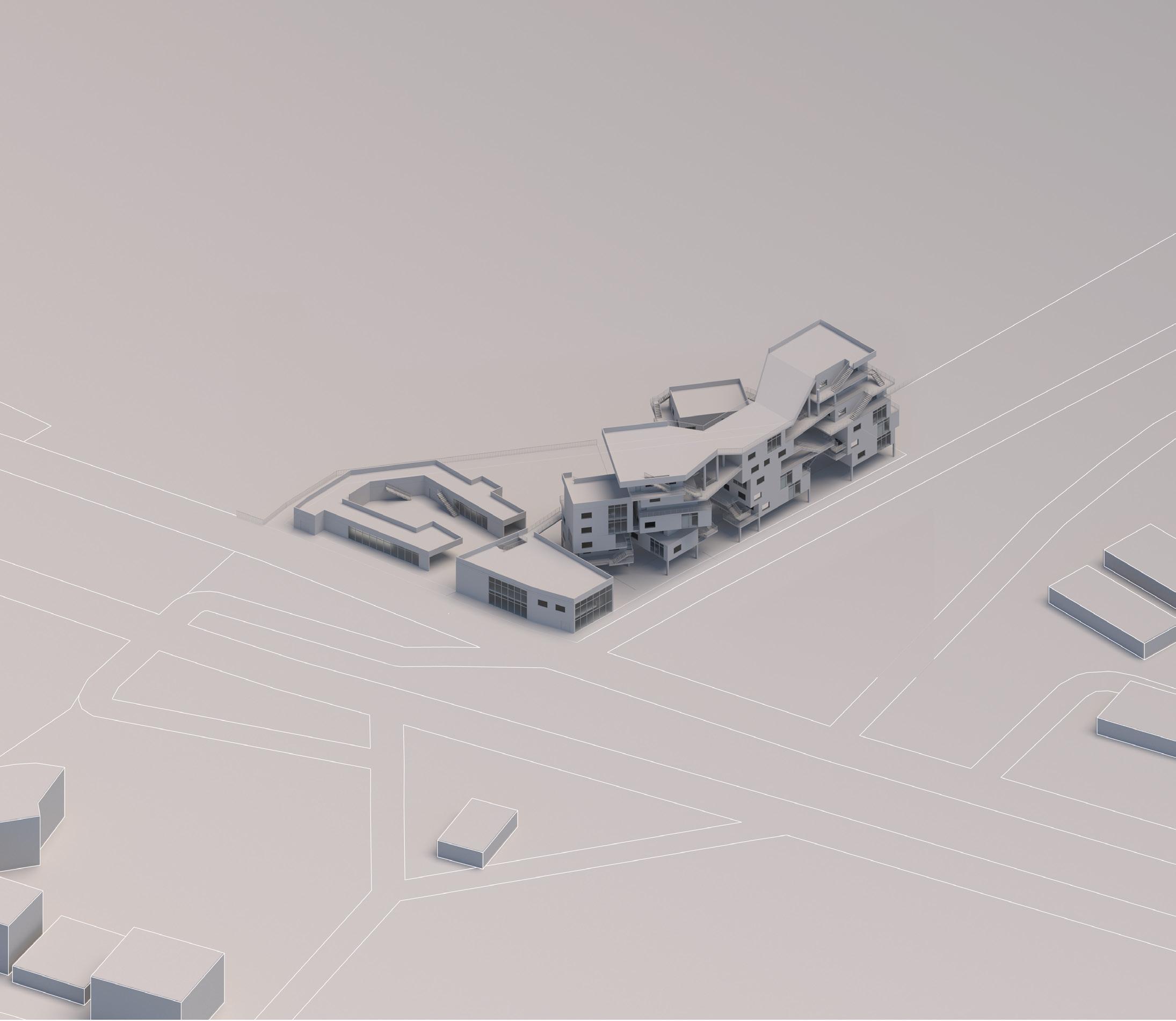

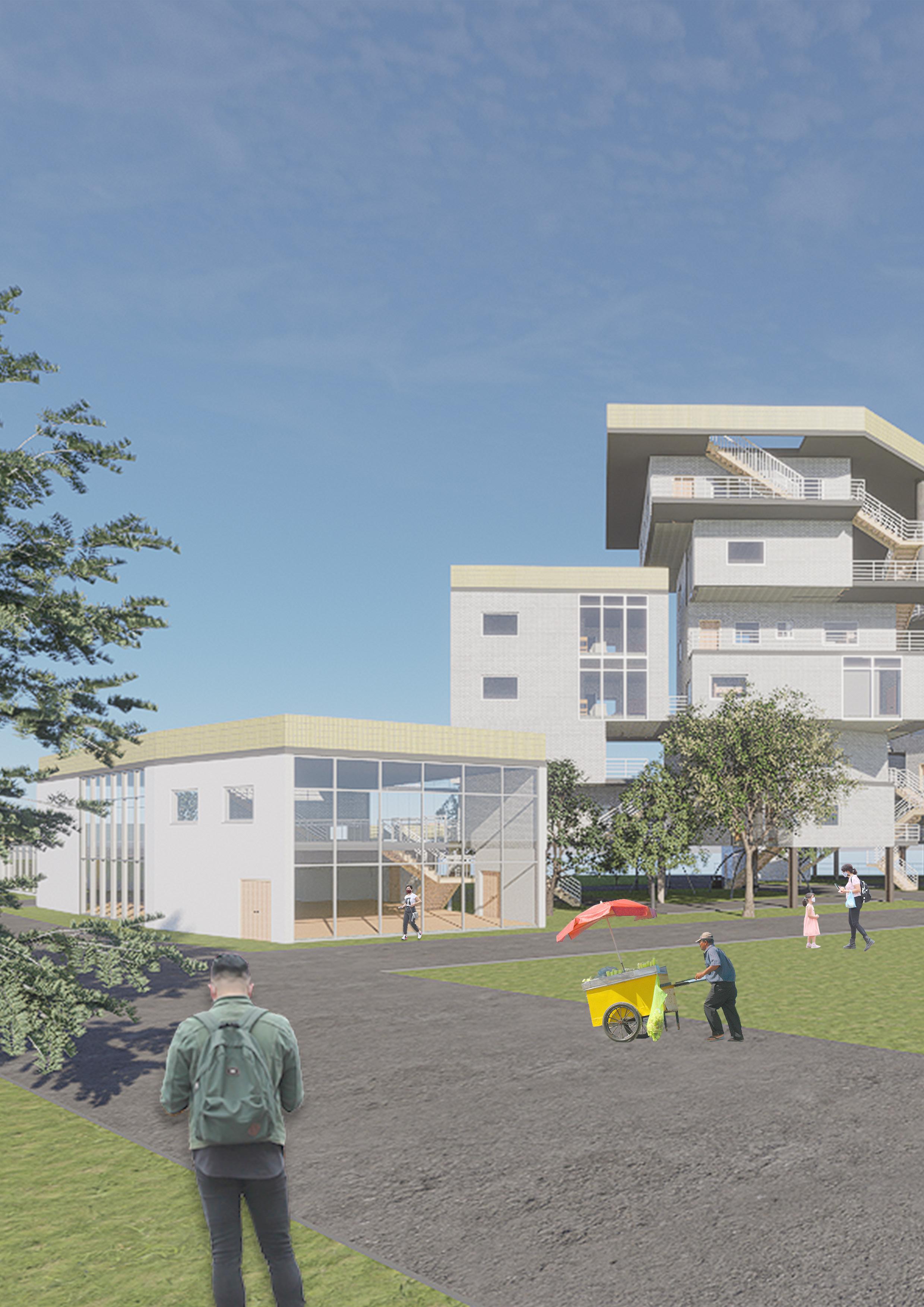

The is located at Radial Rd. 10, Tondo, Manila City. Gross floor area is 2,400 square meters.

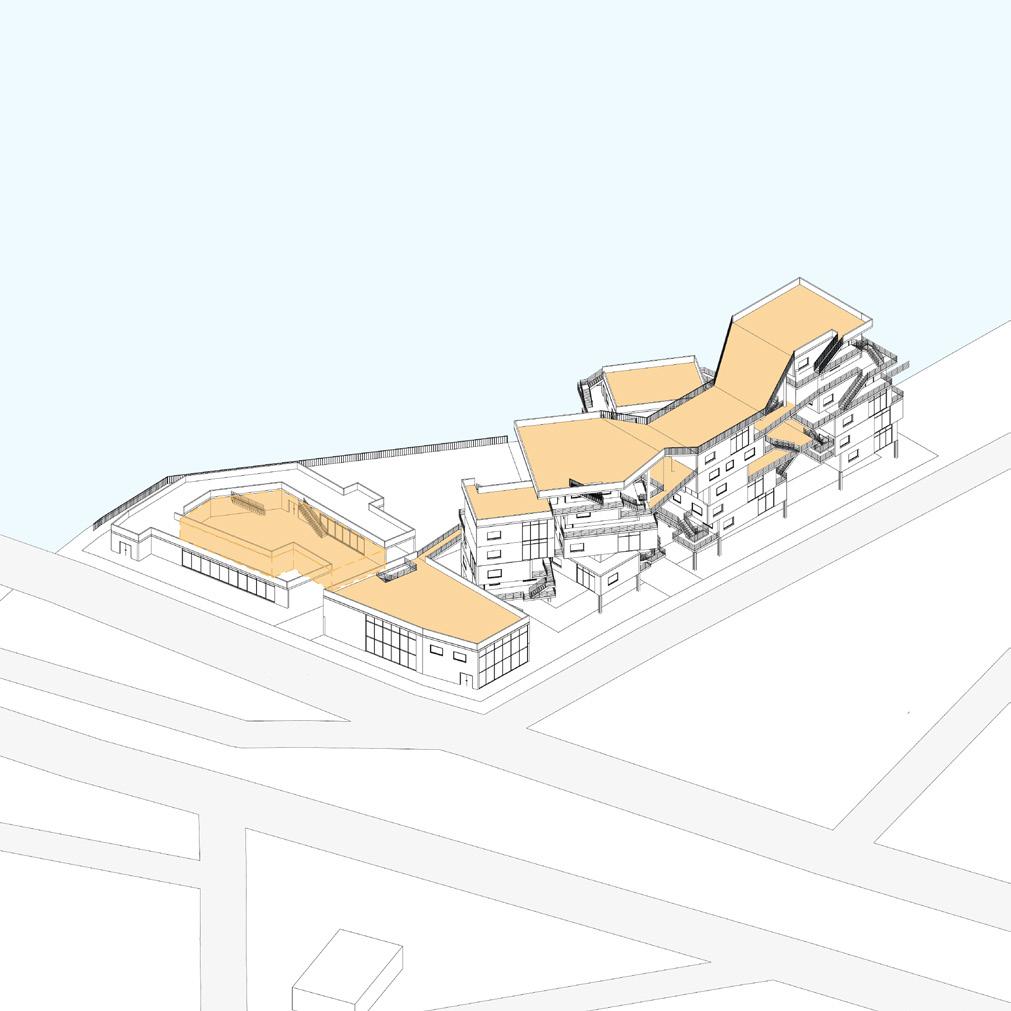

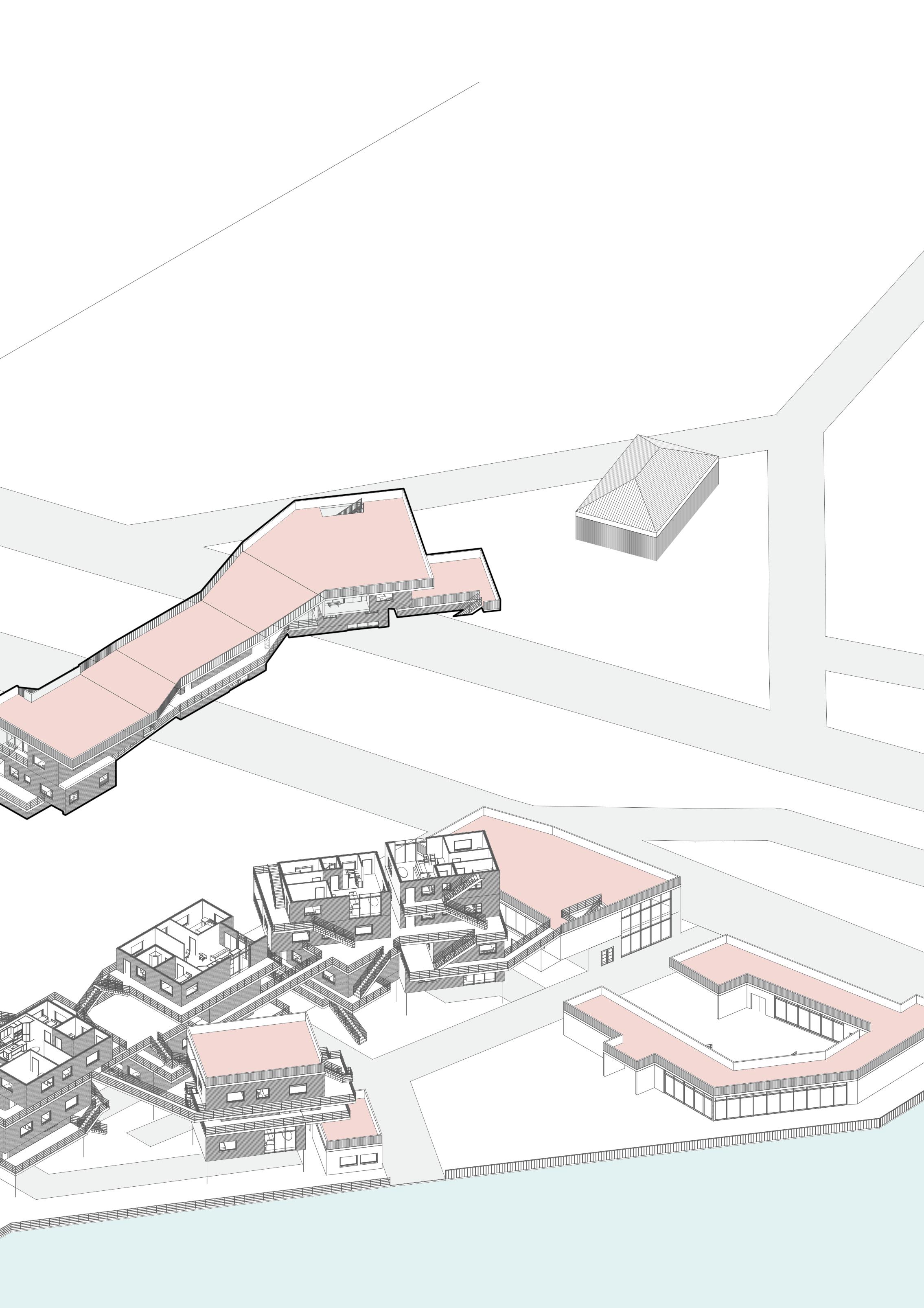

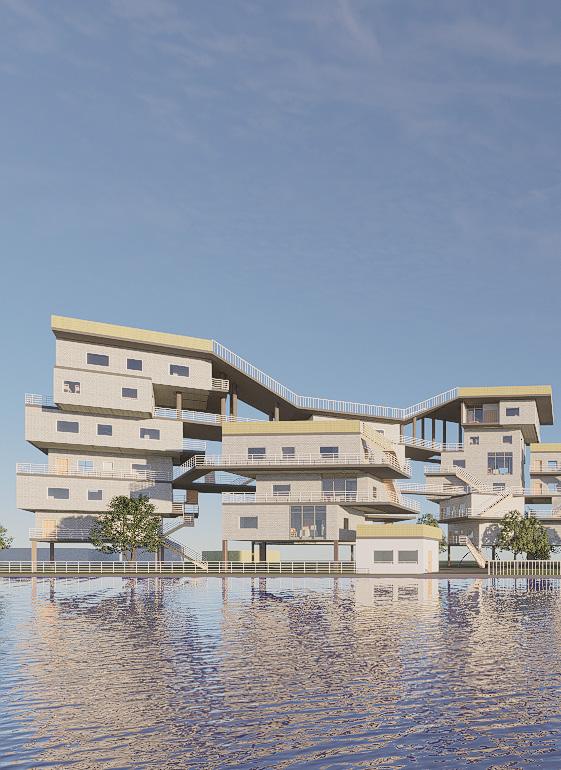

STAGGERED LAYOUT

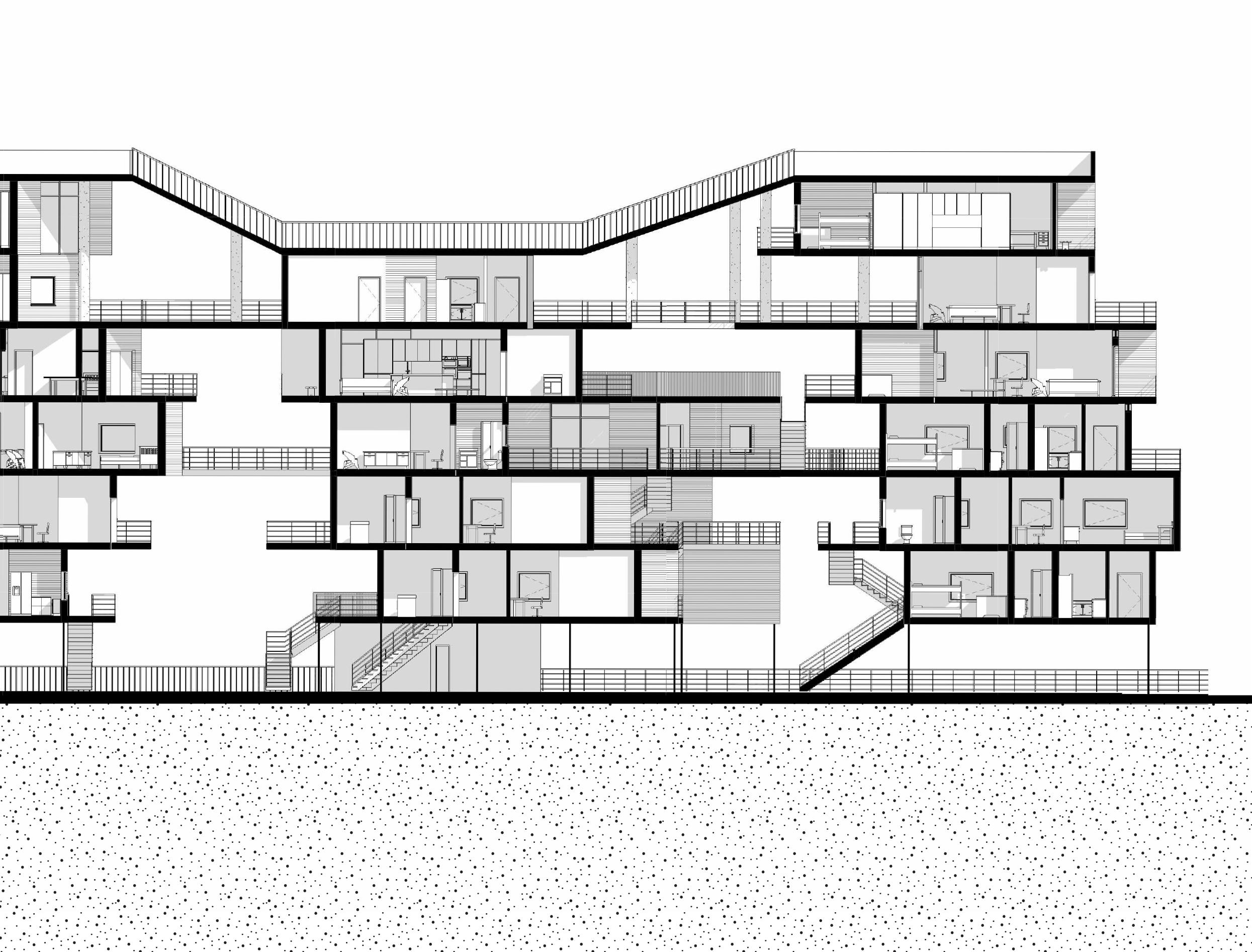

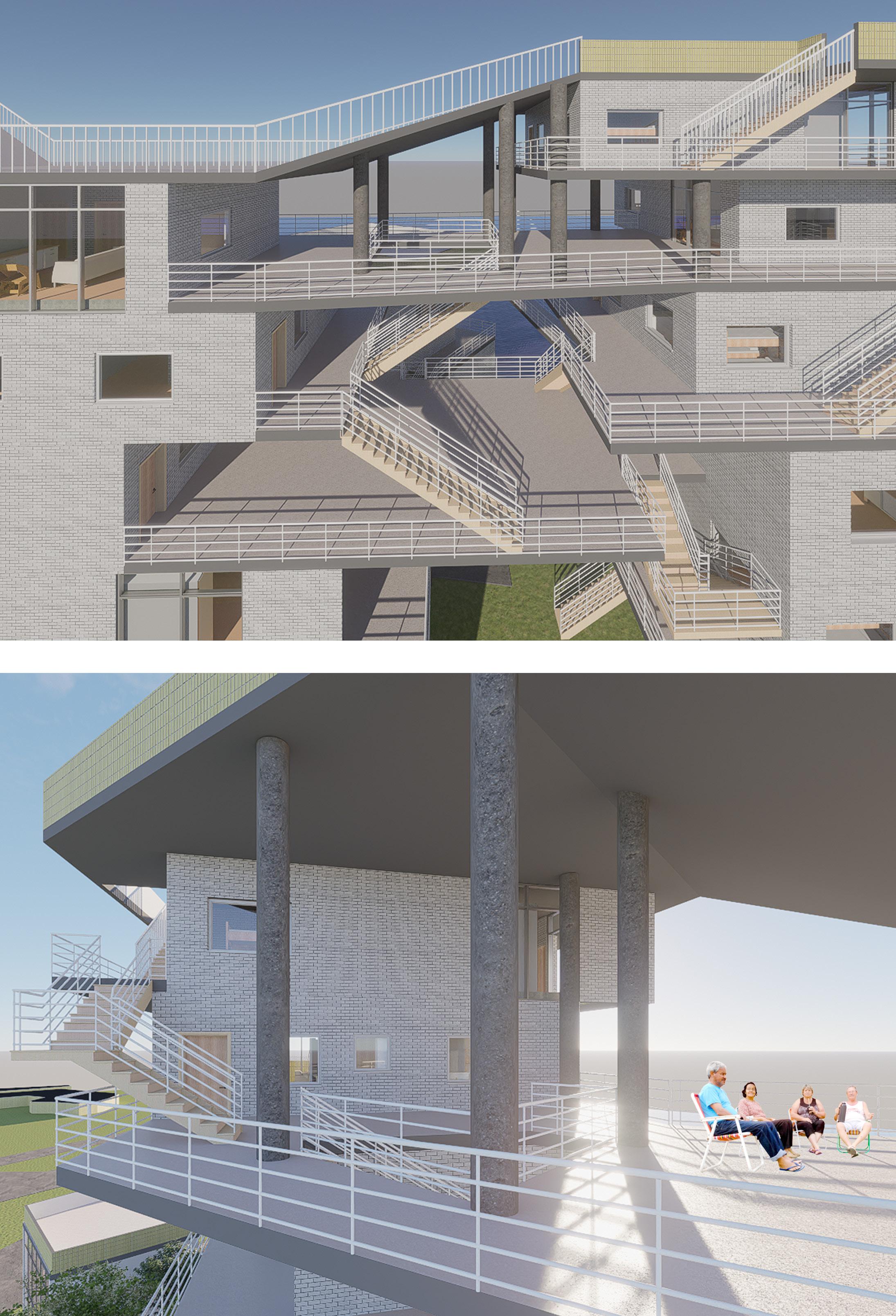

“As if about to fall”. The layout manifest the informal settlement pattern but in a vertical presentation. Additionally offering better sun shade compared to common housing complex structures.

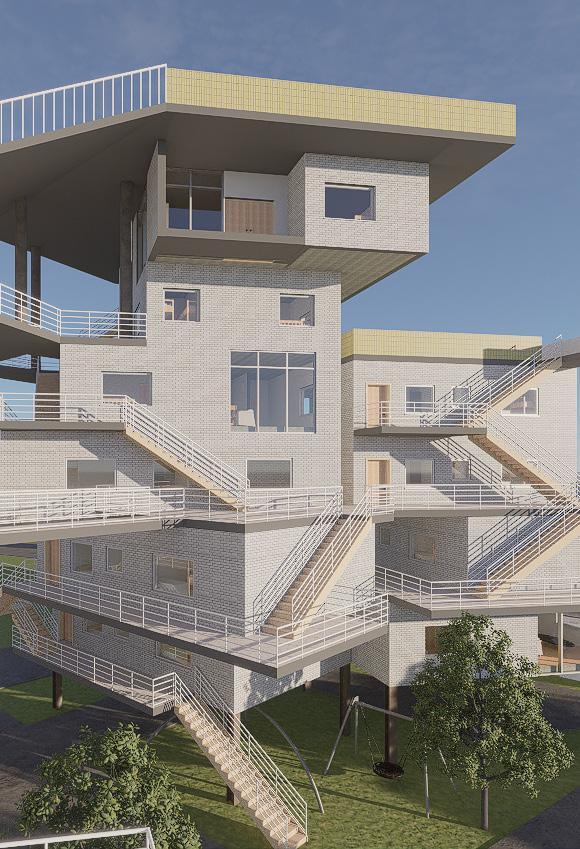

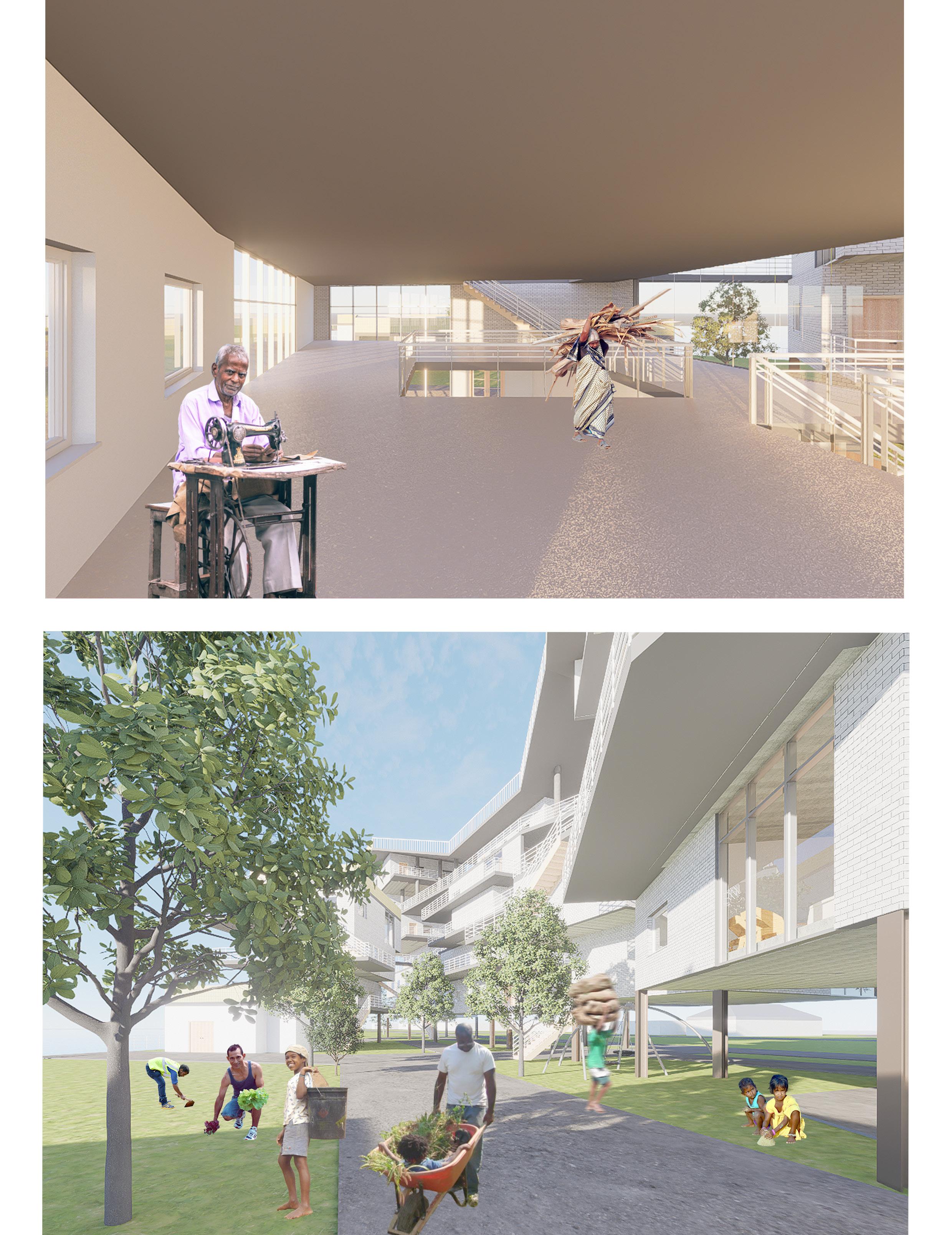

TAMBAYAN

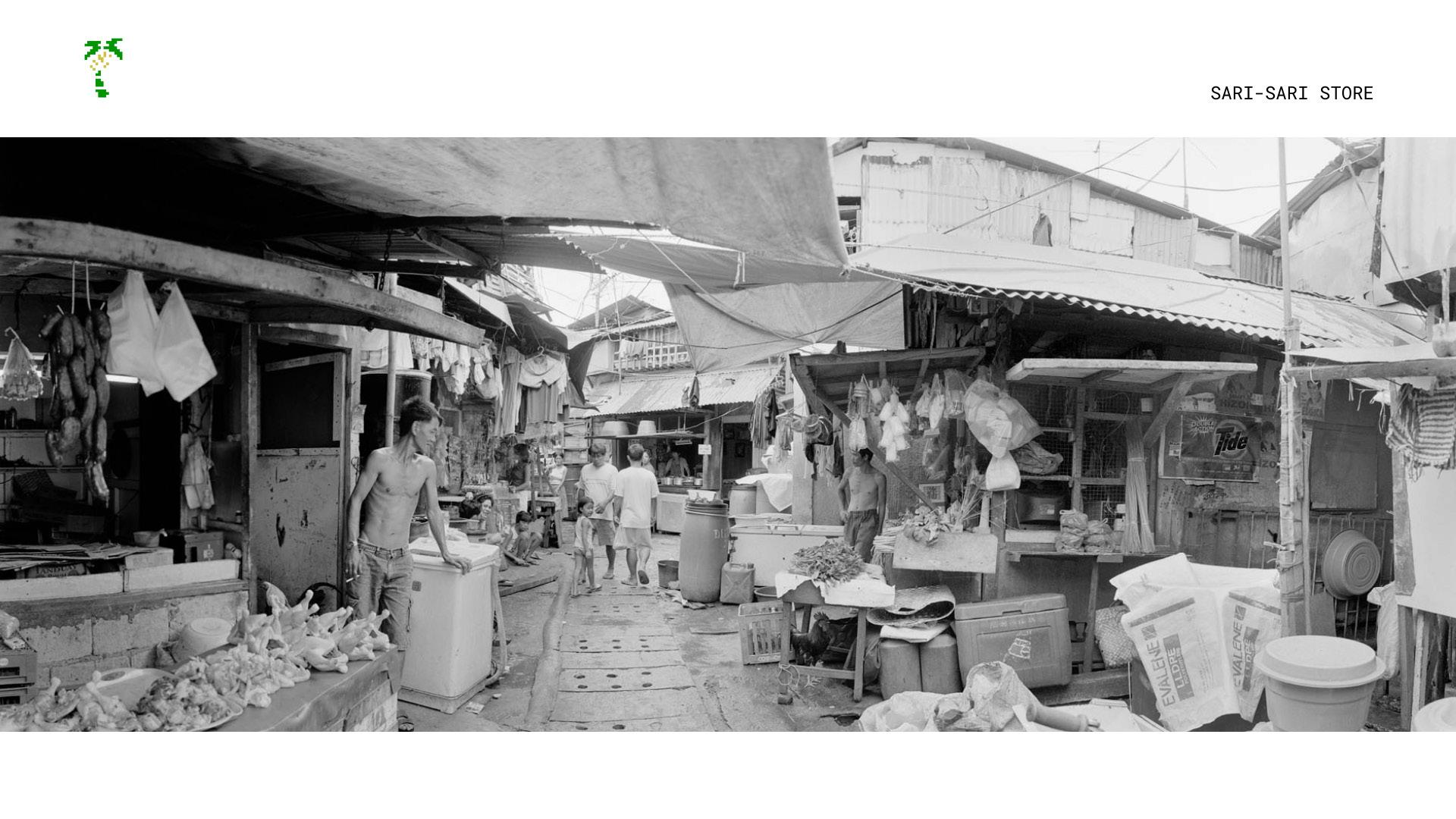

Communal Areas are spead throughout the project. A courtyard is also placed in the marketplace; inclined with the concept of sari-sari stores which also becomes a ‘tambayan’ in informal settlement communities. These communal areas offer many opportunites as well.
