Interior Design Portfolio The College of DuPage Spring 2025

RETAIL DESIGN

Autodesk AutoCAD l Sketchup l Enscape Complemento in Spanish stands for complement, that is what this retail stands for, to complement every attire and elevate any wardrobe with quality accessories such as sustainable, hand-made, leather accessories and jewelry from Complemento.

Considerations

Objectives

Design Accomplishments

•

Exterior Environment

•

Branding

•

Recycled Materials

•

Characteristics of the Merchandise

•

Sustainability

•

Indoor Air Quality

•

Target Customer

•

Energy Efficiency

•

LED Lighting

•

`Signage/Branding`

•

Wayfinding

•

Personalized Service

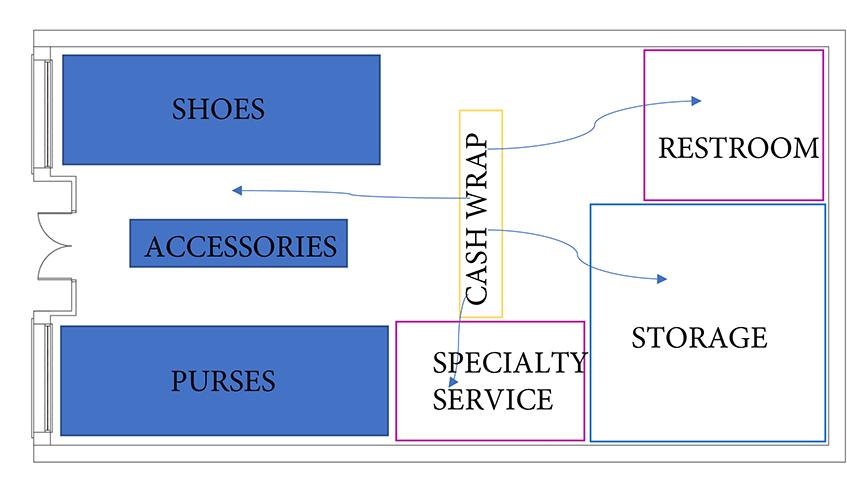

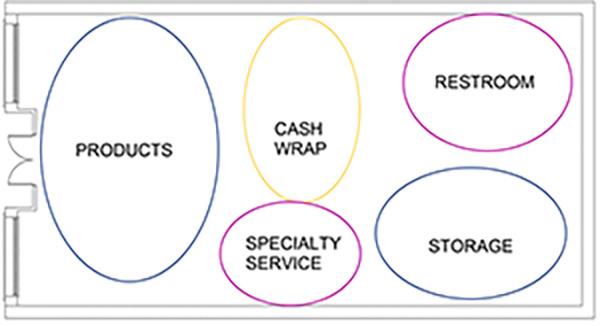

ENTRANCE STORAGE

SPECIALTY SERVICE

Not To Scale. Original Scale is Representative of Industry Standards

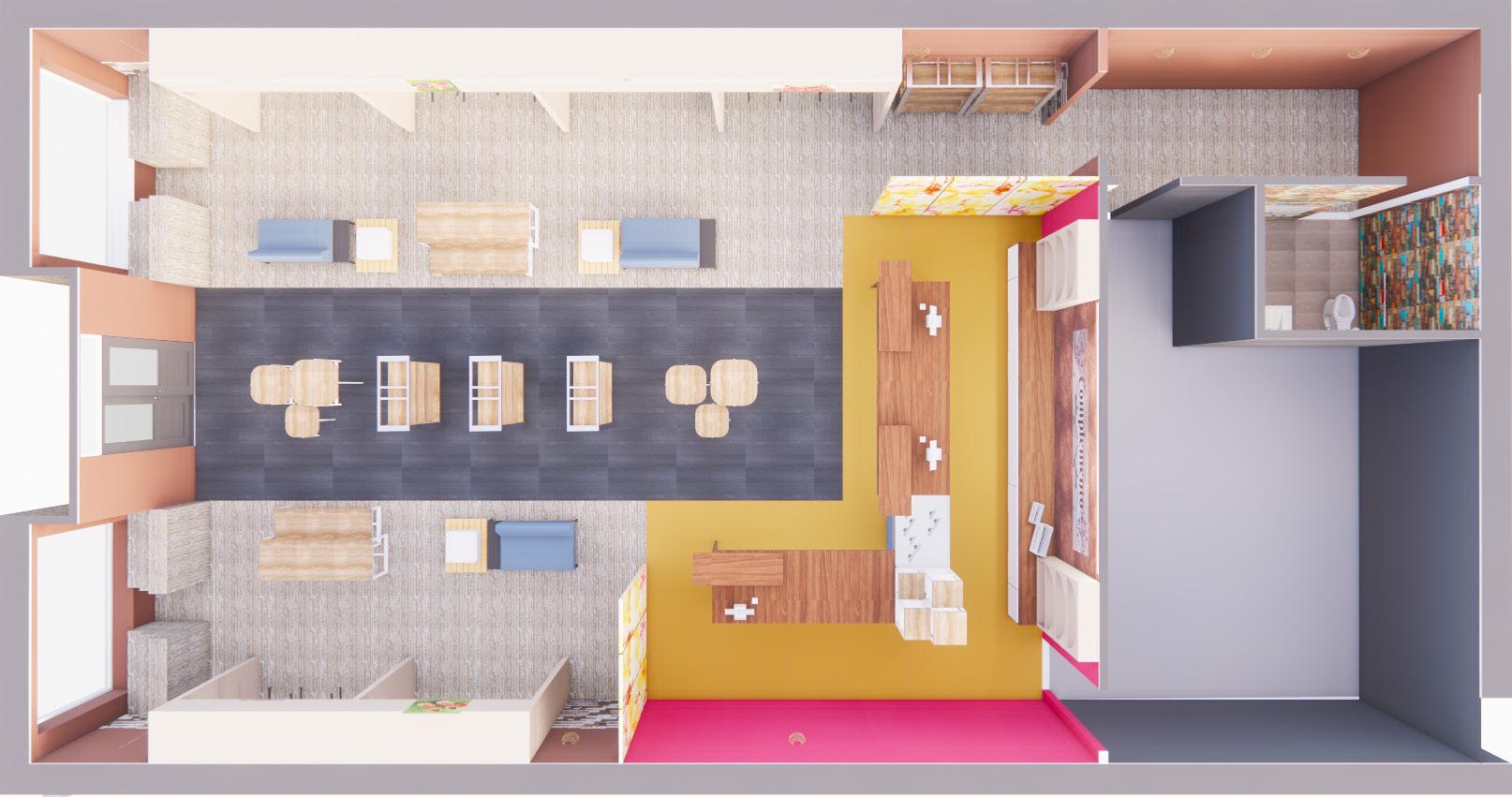

Birds eye view. Produced In Sketchup l enhanced in Photoshop.

CONCEPT

CASHWRAP

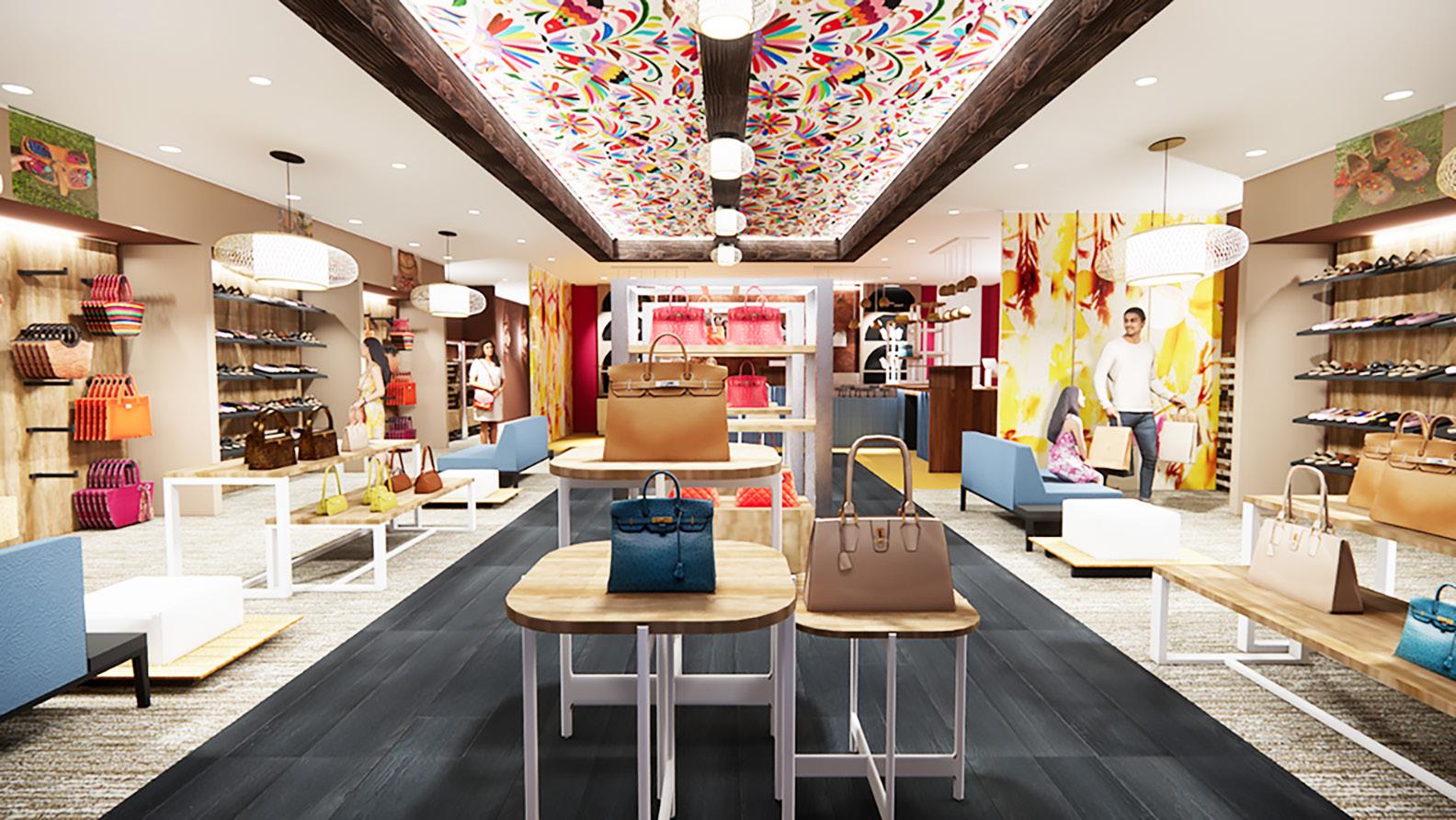

Natural material lighting that is Energy Efficient. as well as amplify the desired Boho design.

Mexican fashion is all about bright colors and designs. These be integrated in the retail design color palette. Main colors are fuchsia, yellow and light blue. Slightly incorporated to not overpower the products but still complement the overall design.

Not To Scale. Original Scale is Representative of Industry Standards

Target Customer: - All Ages - Primarily 20+ Total Occupancy: - 129 ADA: - Restroom Compliant - More Than 5% Accessible Dining - Accessible Traffic Paths

RESTAURANT DESIGN Autodesk AutoCAD l Sketchup l Enscape

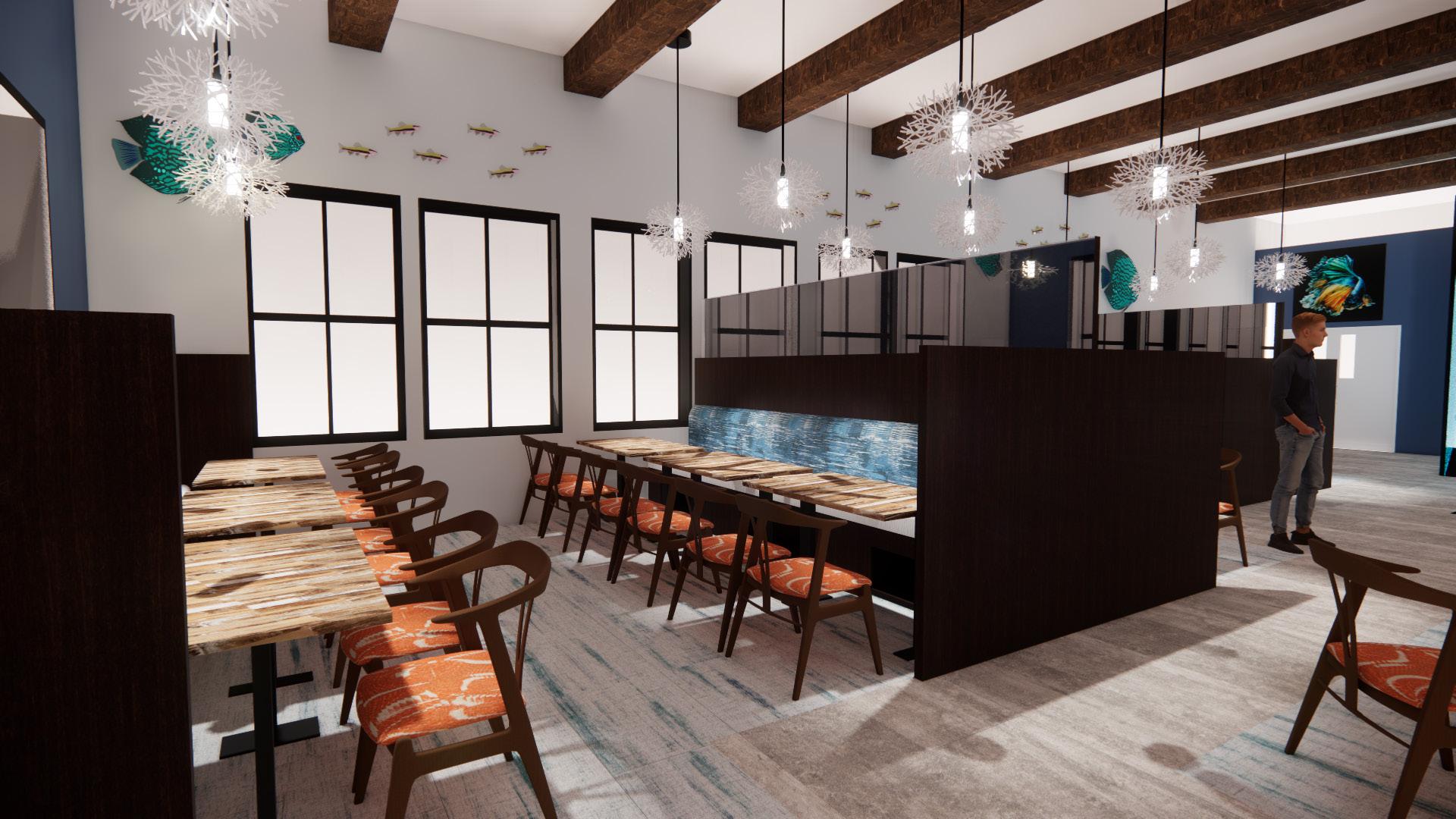

Blue Abyss is a Modern Coastal Seafood Restaurant for seafood lovers and for the whole family to enjoy! Blue Abyss is dedicated on using Sustainable Products, with a focus on ease of Circulation, and Acoustical Materials for a comfortable ambience.

Sustainable Products

Circulation

Acoustical

•

Low VOC Paint

•

Most Importantly for staff

•

Sound Absorption Materials

•

Floorscore Certified

•

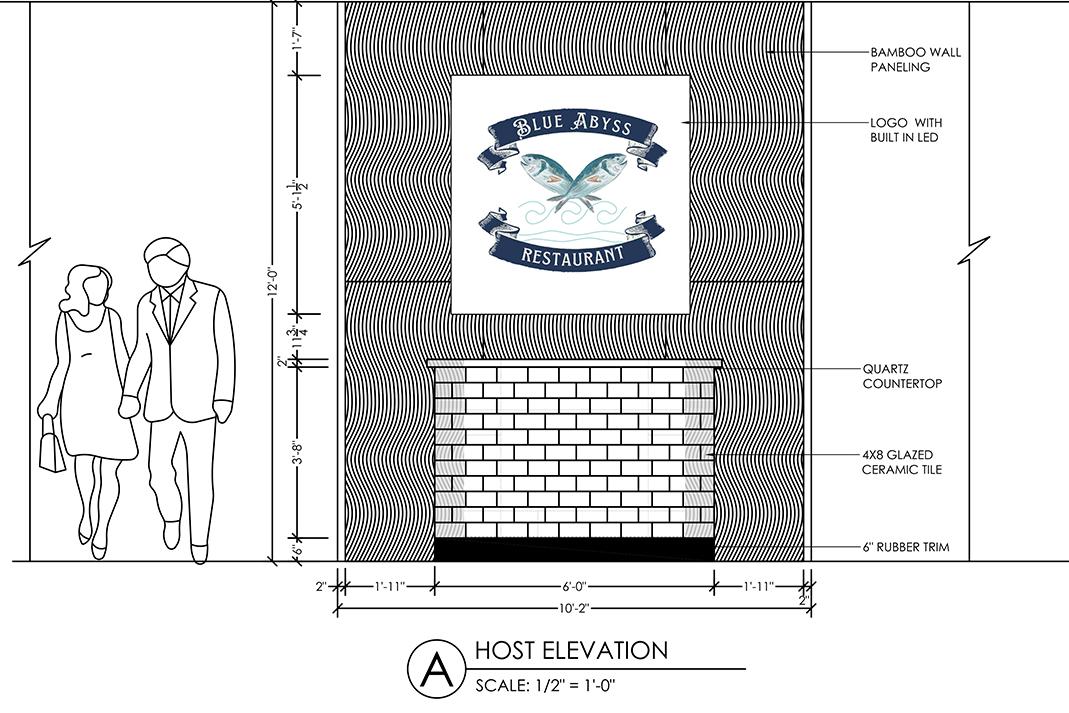

Bar at close proximity to the kitchen

•

Partition walls to help with

•

Greengurd Fabrics

•

Restroom is accessible from both sides of the restaurant

acoustics •

Armstrong Flooring

Wood panels for sound absorption

Flint Ridge Storm Sky

Matiz Blue Razz

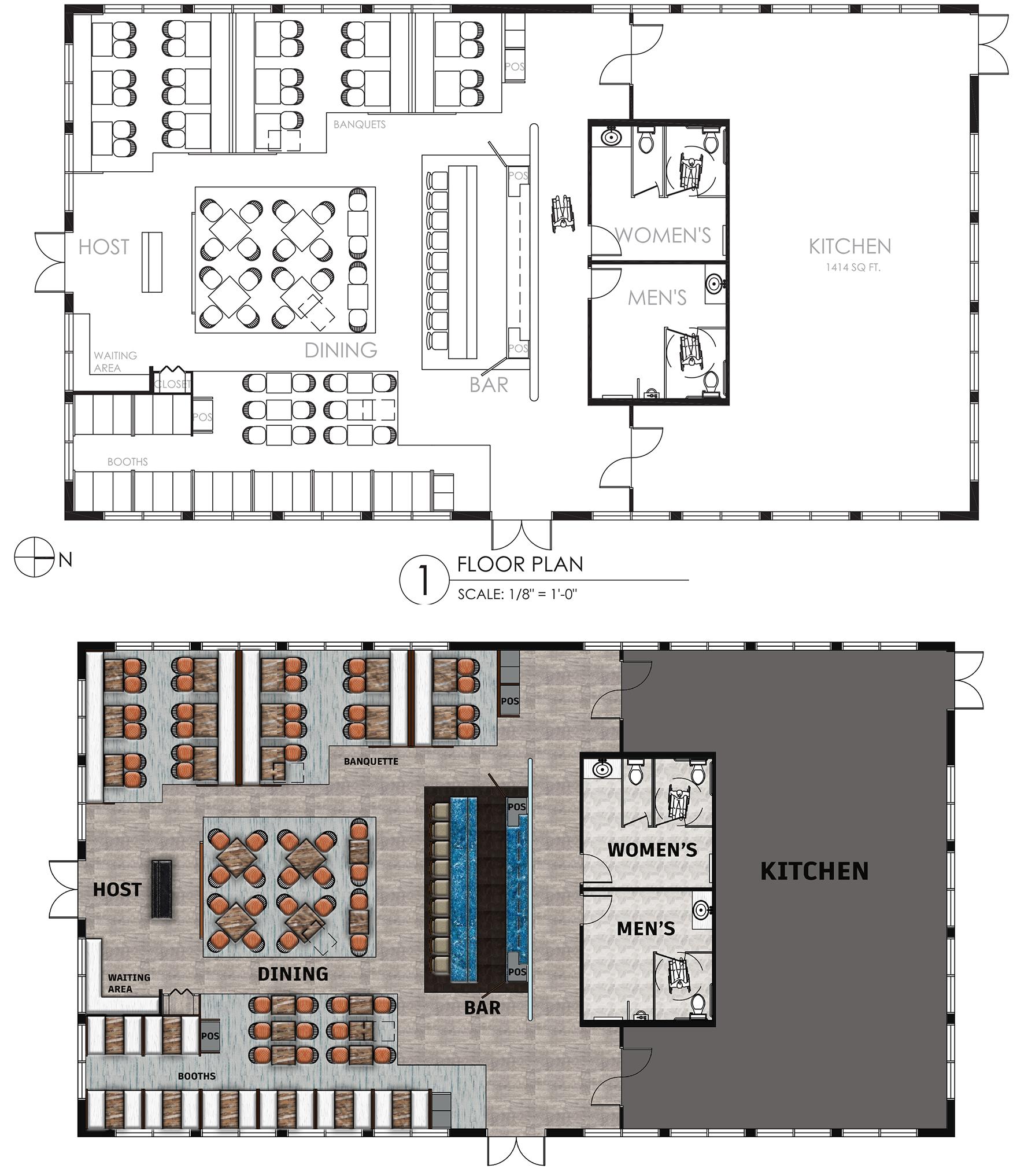

Not To Scale. Original Scale is Representative of Industry Standards

CONCEPT

Armstrong Flooring

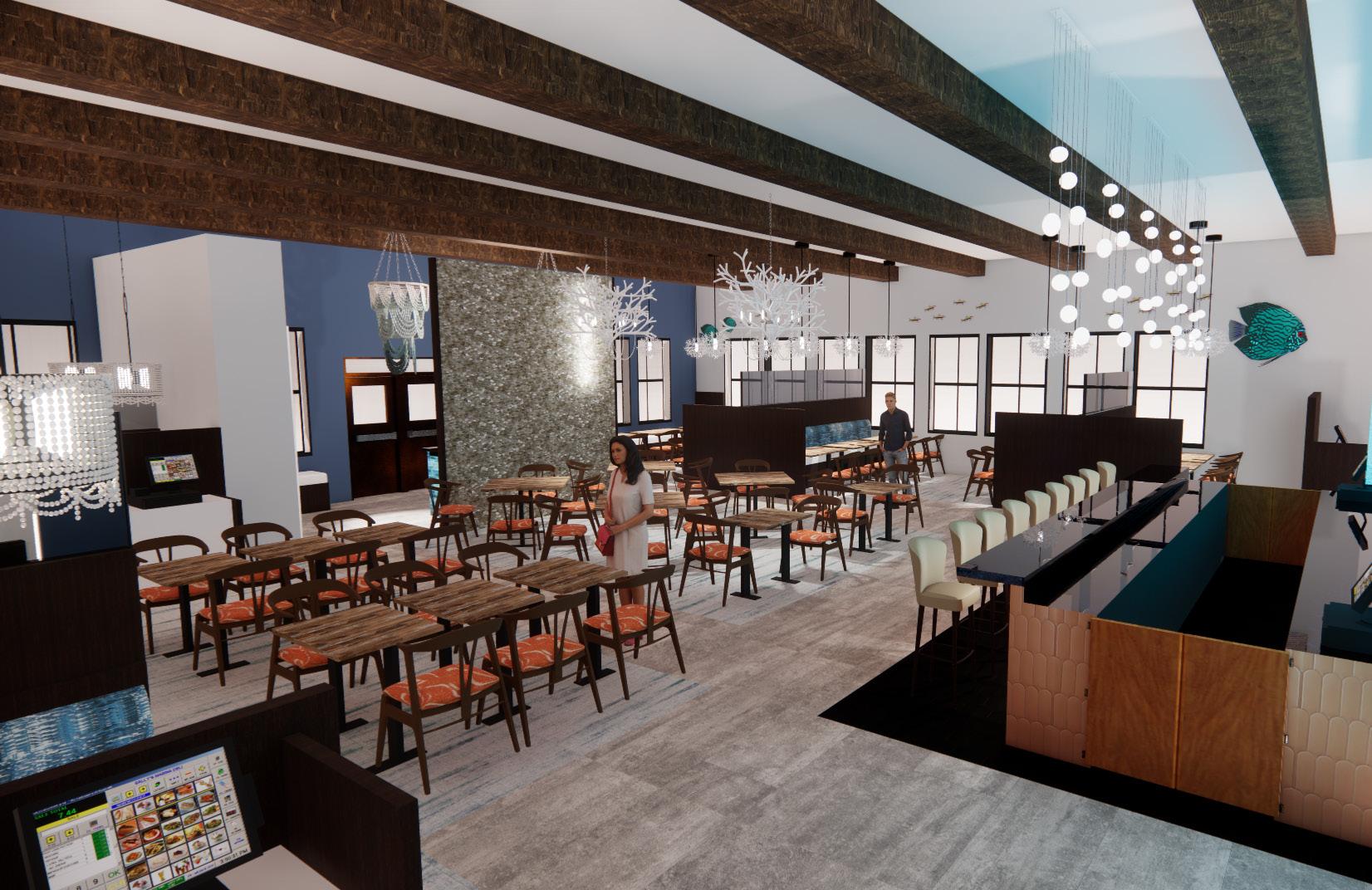

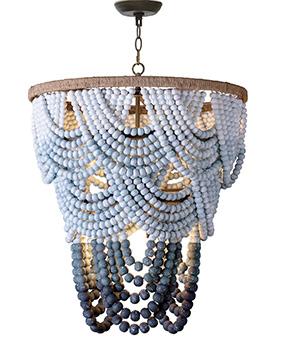

Lighting primarily selected to enhance the coastal design theme of the restaurant. All lighting fixtures are LED, have a dimmer option and are Energy Efficient.

Industry-Wide environmental products, Fire Resistant, and Durable Materials and Finishes. All complement eachother and add the finishing touches to this vibrant yet tranquil modern coastal restaurant.

Not To Scale. Original Scale is Representative of Industry Standards

HEALTHCARE REVIT l Enscape Deliver a happy environment by delivering Variety and Flexibility, that include Accommodations for residents, staff, and guests. Giving comfort, accessibility, and keeping a Healthy and Safe Environment through sustainable furniture and materials.

Variety and Flexibility

Accommodations

•

Activities such as music and art

•

•

Flexibility and freedom to walk outside through the courtyard and walkways

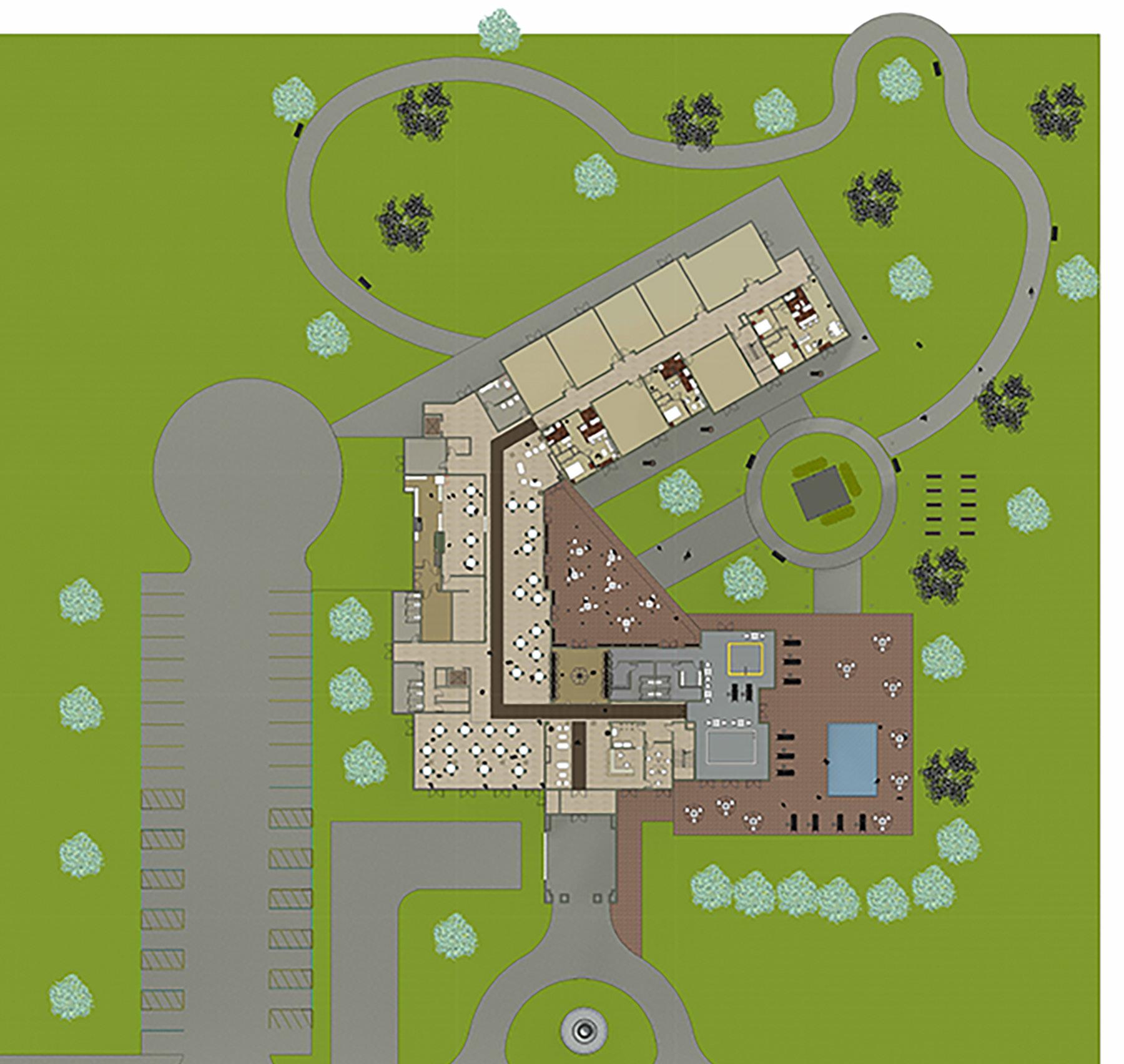

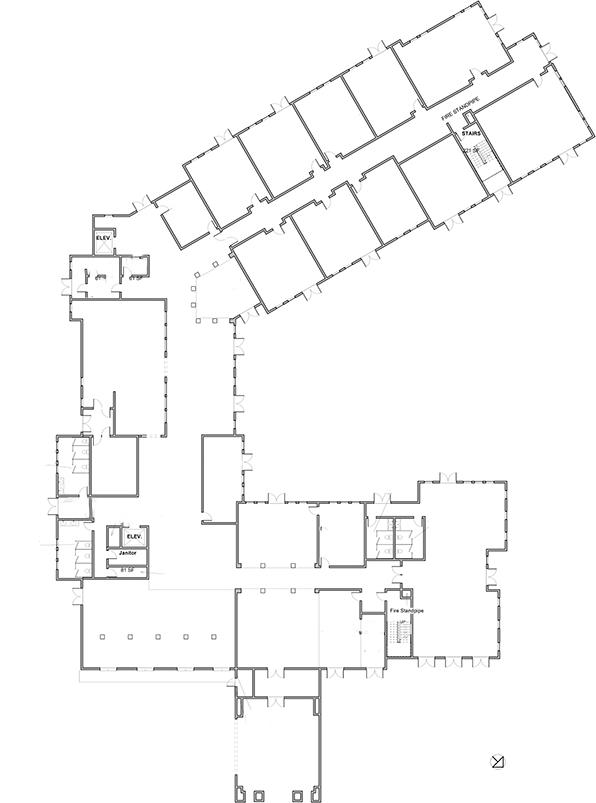

Floor Plan Level 1 Private Areas

Healthy and Safe Environment

Spacious social areas for residents, staff and guests

•

Spacious apartments for residents and family

•

•

Slip resistant materials

•

Low VOC materials

•

Fire-rated furniture

Comfortable furniture for residents

Wayfinding

Increase Daylighting

By consistent and familiar flooring, with Distinct lighting fixtures, and an organized floor plan.

Daylight all around the facility benefits residents with better quality of sleep, mood, and overall health.

Social/Public Areas

Biophilia helps with cognitive health and attention, improves well-being and mental

Service Areas

Rendering produced and enhanced in Revit. Drawing created in Revit.

health.

CONCEPT

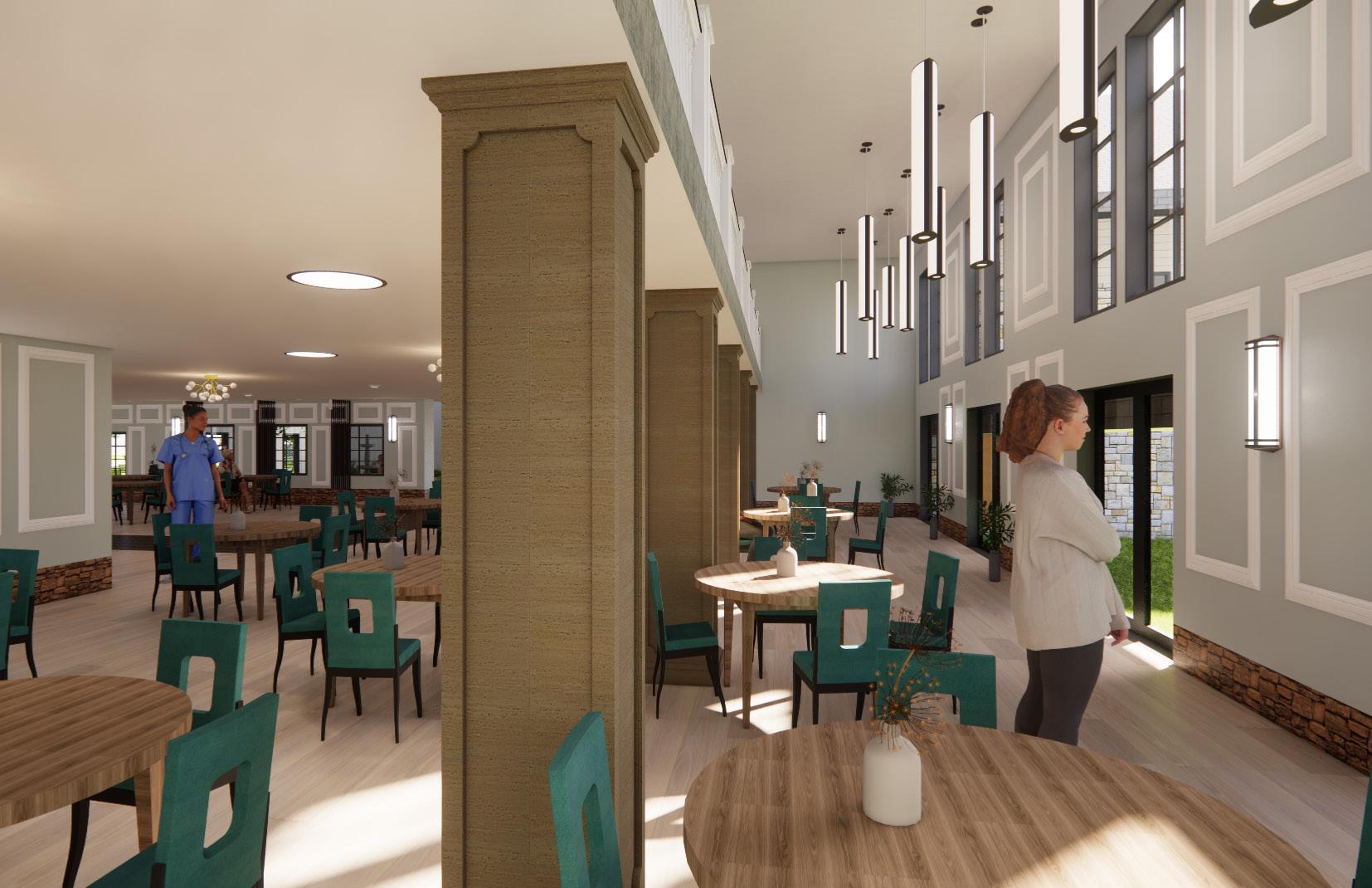

Garden Room (Biophilia)

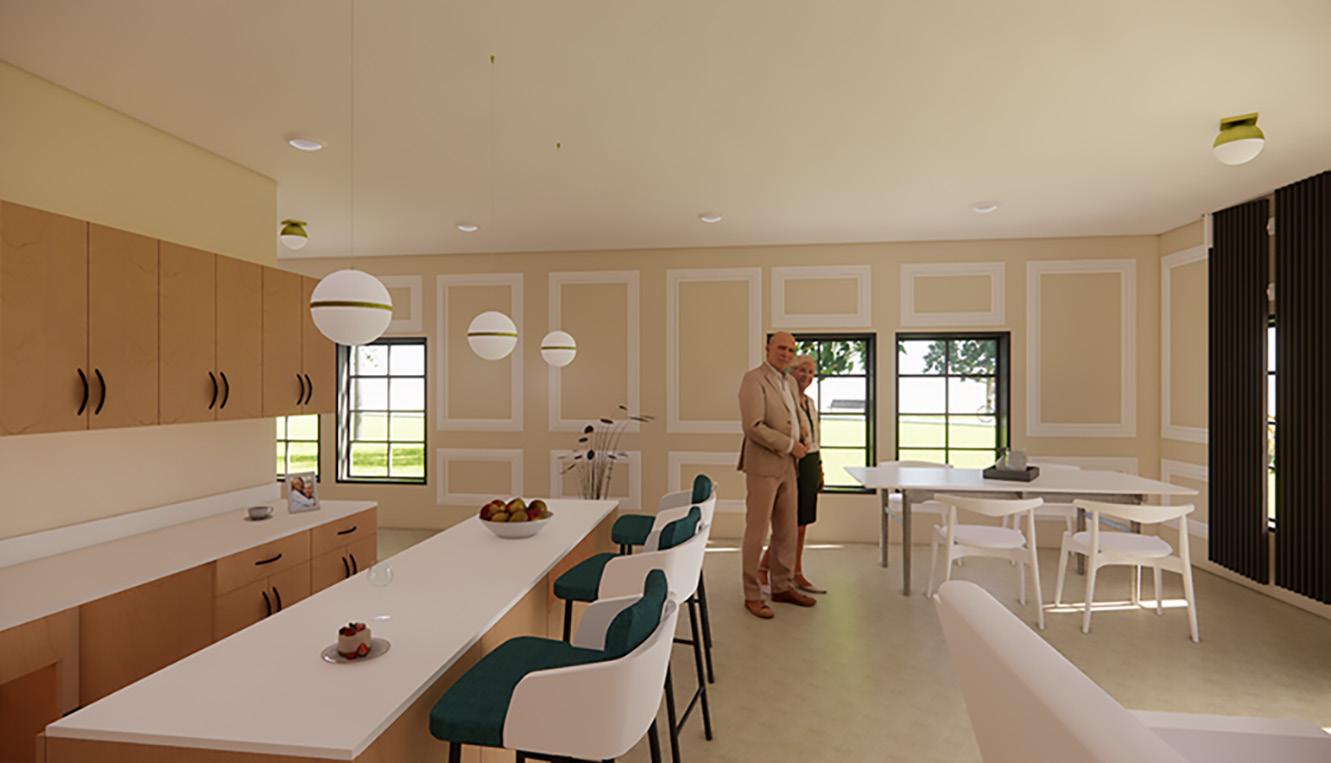

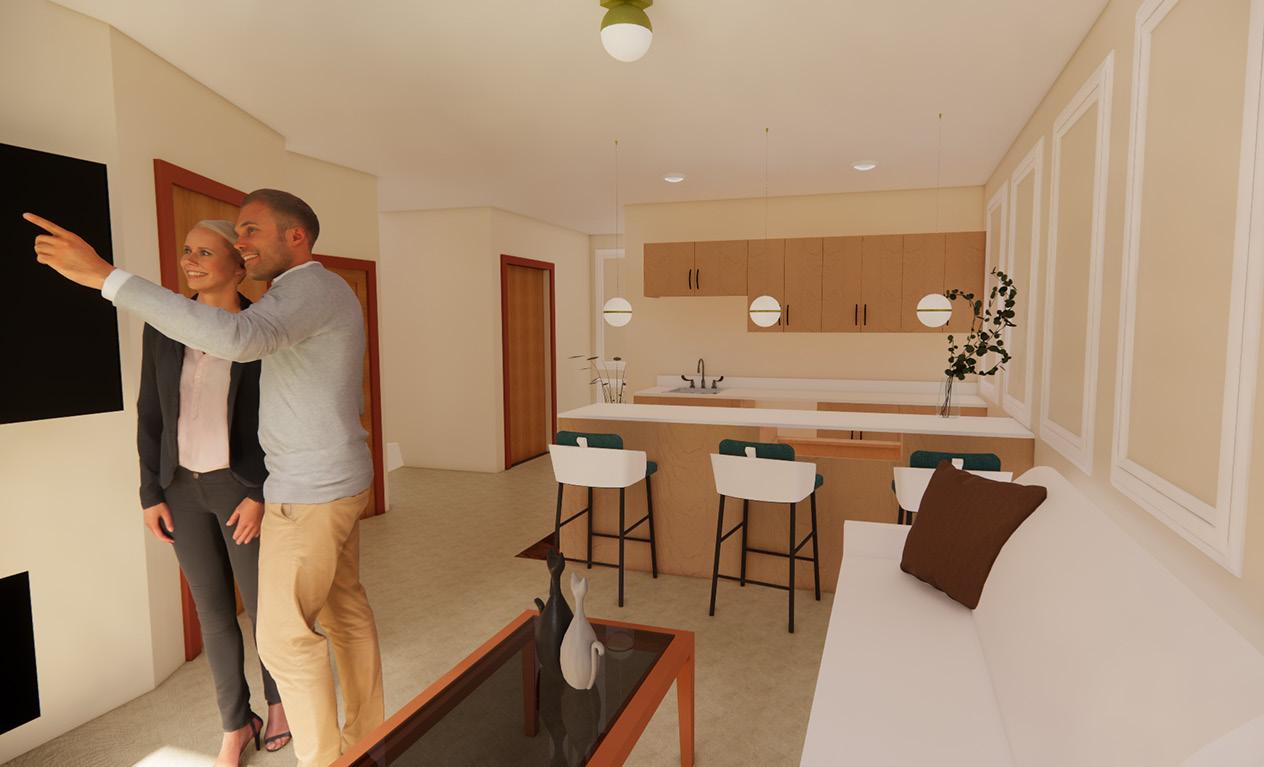

Renderings produced in Revit and enhanced in Enscape.

All Apartments Include • • • • •

Public Area Finishes

ADA bathrooms ADA kitchens Queen size bed Electrical fireplace Storage

Apartment Finishes

Ensuite Bath KITCHEN & BATH I

Autodesk AutoCAD l Sketchup l Enscape

An organic modern ensuite bath that will be a harmonizing hybrid blending of modern minimalism with nature’s beauty. This design duo blends warm tones, rich textures, and natural materials for a calming yet elegant aesthetic.

-Modern/Cohesive color palette using neutral warm and dark colors - Large shower with a bamboo bench and smart rainfall -An enclosed glass shower with temperature-controlled ventilation that is equipped with built-in bench seating -Biophilic elements in the interior of the bathroom by using a “smart glass” dividing wall that is switch controlled -Glass dividing walls with fade-out option to bring in natural lighting and provide privacy when needed -An “Open Concept” bathroom that is spacious and easy to navigate -ADA accessibility throughout the bathroom (walls prepared for grab bars) - Energy efficient lighting

GROUP PROJECT My main role was to....

- Research and find efficient, and natural materials - Create the construction plan, floor plan and mechanical plan

- Ensure 3-D renderings were accurate JOE DIBERNARDO - partners role was to.....

- Verify the drawings were accurate - Select the other part of the materials and finishes - Create 3-D renderings

Not To Scale. Original Scale is 1’= 1/2” is Representative of Industry Standards.

CONCEPT

- Select part of the materials and finishes

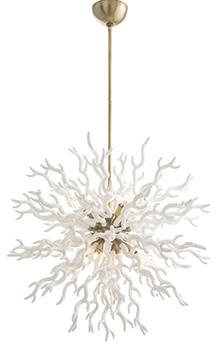

Selections of dark/matte bath accessories and finishes, along with statement lighting fixtures.

Enhances the space to create a relaxing “getaway” experience right in the comfort of their home!

A large, unique angled concrete sink with integrated lighting. Smart mirror over the vanity that reflects ambient light throughout the space. Windows are entirely open for the most use of natural light.

Renderings produced in Sketchup and enhanced in Enscape.

Not To Scale. Original Scale 1’=1/2” is Representative of Industry Standards

A unique, large, organic concrete soaking tub, near a biophilia niche, for bath option and focal point in the bathroom.

Renderings produced in Sketchup and enhanced in Enscape.

COMPLETED DESIGN

Stewart Residence RESIDENTIAL

Autodesk AutoCAD l Sketchup l Enscape

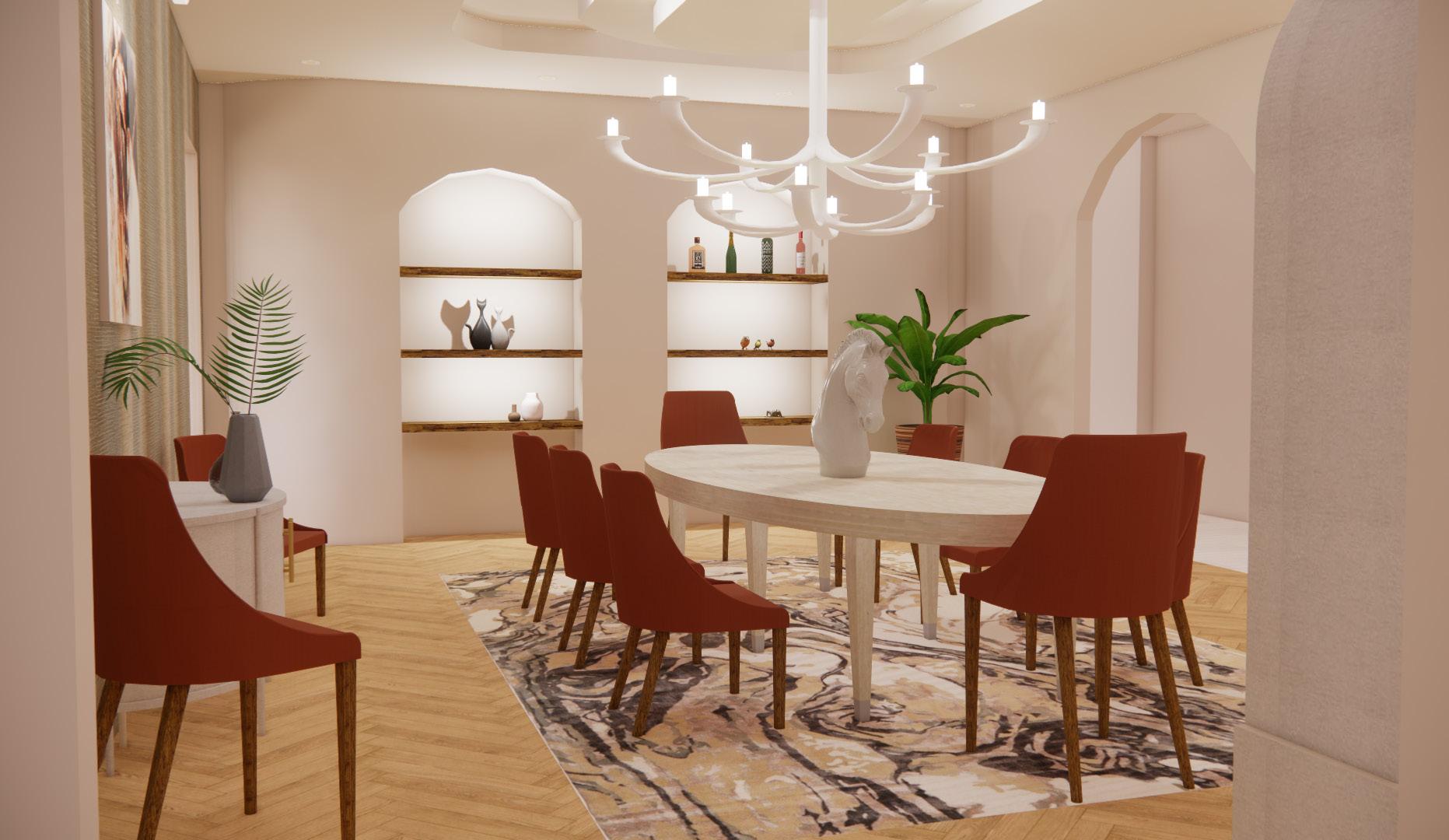

An organic modern home, that incorporates Architectural Features such as recessed ceilings and recessed niches, that soften and brighten each room. Open and clearly defined rooms with easy wayfinding floorplan. An overall Cohesive Design where the Stewarts can comfortably invite and entertain their guests!

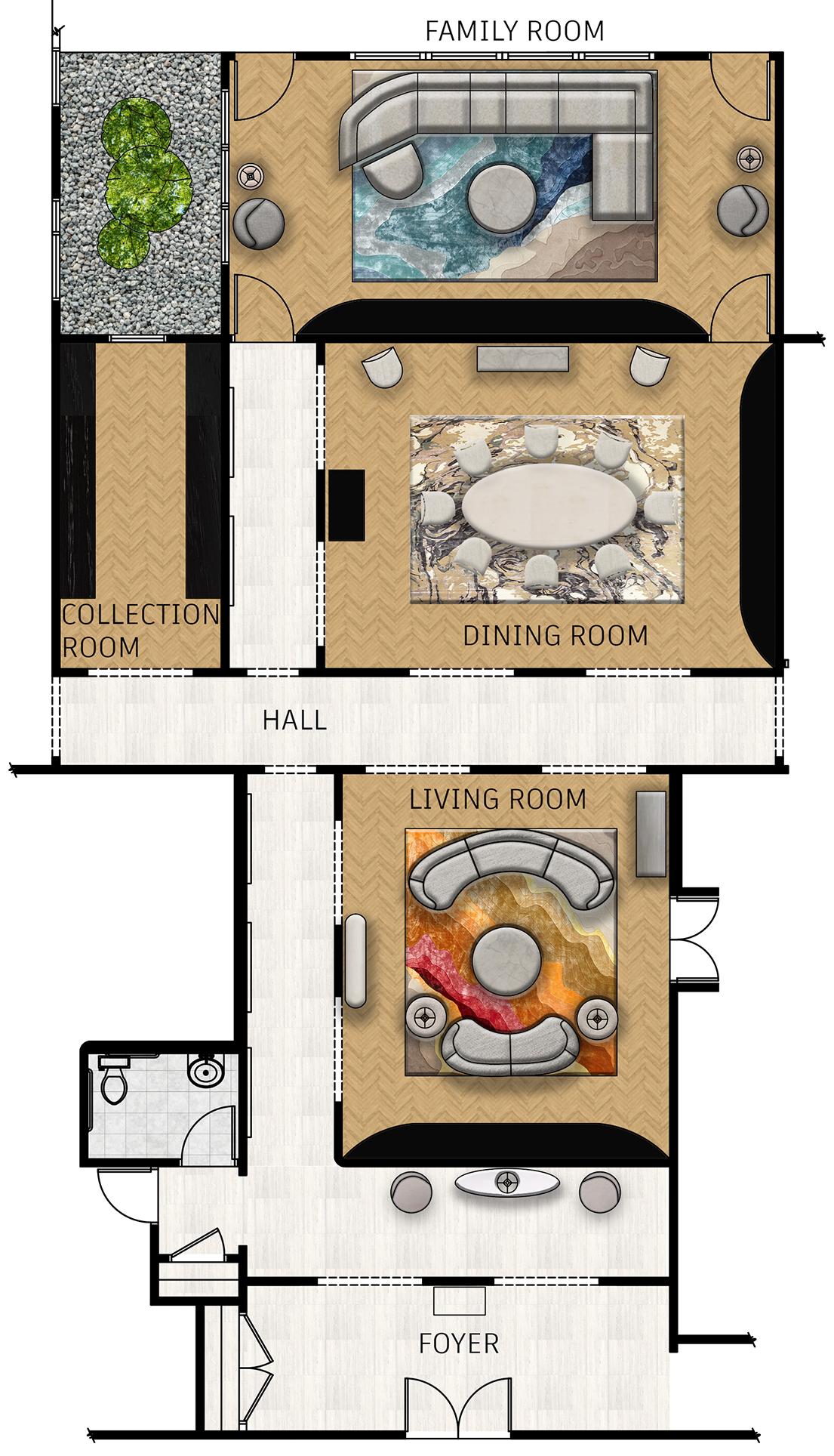

Produced in Autodesk AutoCAD l enhanced in Photoshop.

INSPIRATION Unique soft looking furniture that elevates and gives the space an Organic aesthetic.

Arched entryways and arched niches throughout the home for added interest and Acoustical Support.

Basement Re-Model KITCHEN & BATH II

Autodesk AutoCAD l Sketchup l Enscape

Project Highlights

Existing • Flooring • Keep existing wall paint except for media room • Bar to be re-modeled • Bathroom

Goal • Update existing bar with new cabinetry • Add in new countertop for the bar • Apply new and efficient lighting

Contemporary design

•

Variety of seating

•

Variety of lighting for a theater experience

•

Incorporate acoustical materials

•

Best projector screen size for better view

•

Enhanced audio system

•

Dimmable lighting

•

Smooth traffic flow

•

Clear screen view

•

Popcorn concession stand

•

Theater storage

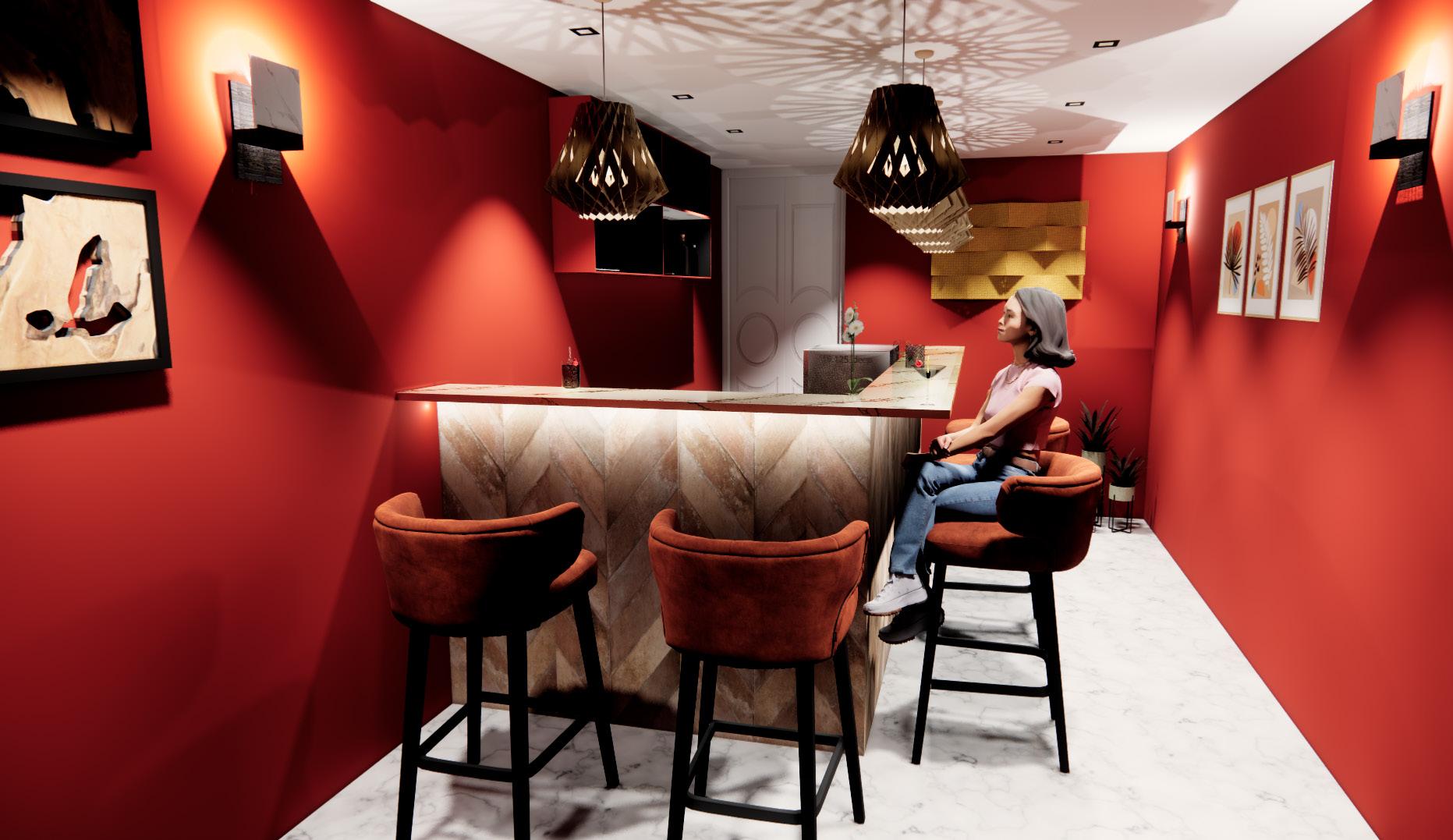

Basement cinema room and bar re-model.

Budget: $50,000 Axonometric. produced in Autodesk AutoCAD l enhanced in Enscape.

ARCHITECTURAL DETAILS

•

Renderings produced in Sketchup and enhanced in Enscape.

Not To Scale. Original Scale is 1’ = 1/2” and is Representative of Industry Standards

Swayer Residence Autodesk AutoCAD

ARCHITECTURAL DETAILS

Not To Scale. Original Scale as Shown and is Representative of Industry Standards.

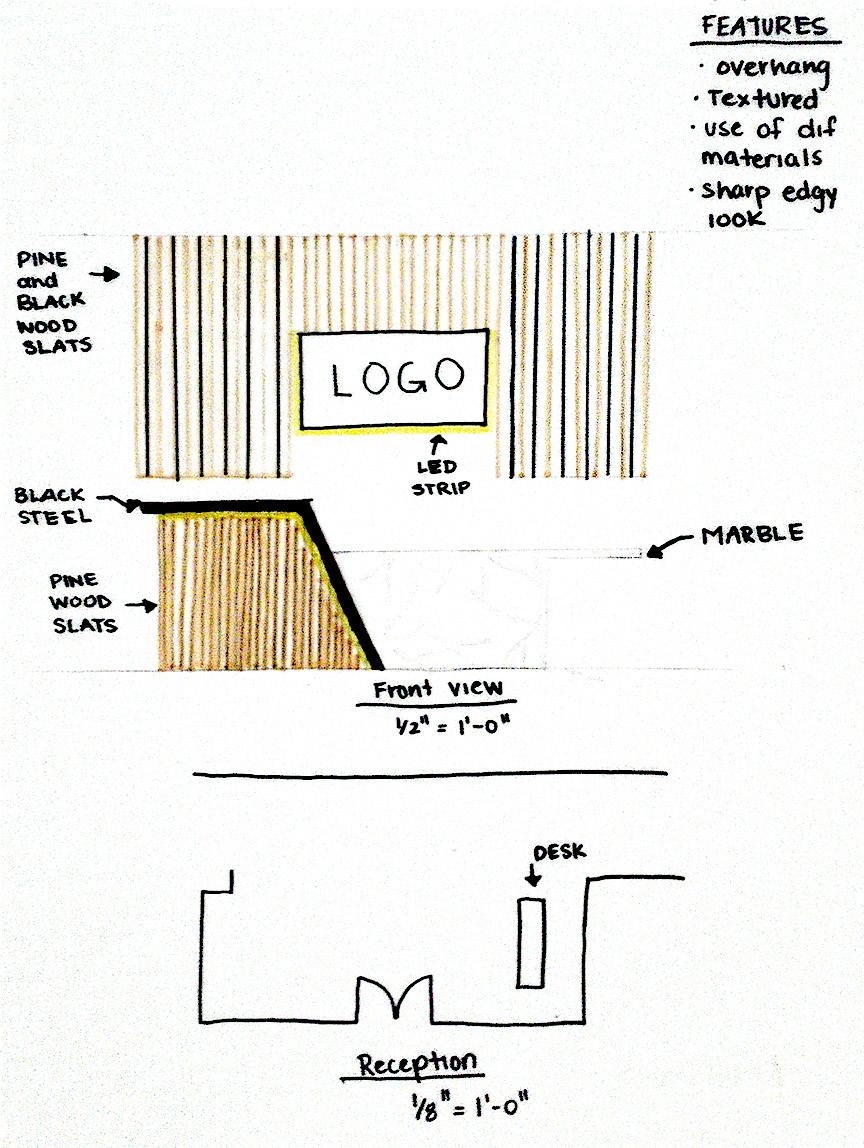

Management Office Reception Desk Plans and Details Autodesk AutoCAD

PLANS AND DETAILS

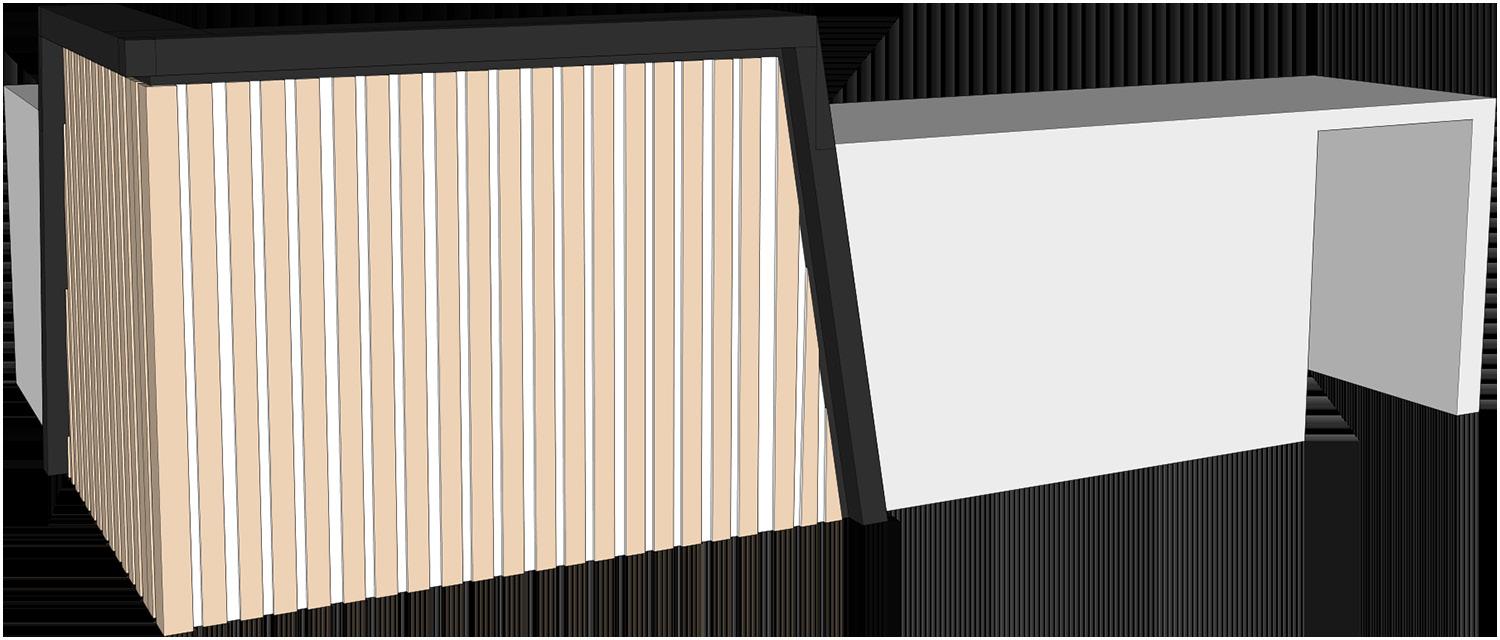

Axonometric. produced in Sketchup.

"Where your pleasure, there is your treasure; Where your treasure, there your heart; Where your heart, there your happiness."

-Saint Augustine.

Cristal Hernandez graduated from the College of DuPage, with an Associate of Applied Science in

Interior Design. Her artistic and technical skills, as well as her strong attention to detail give her the fundamentals to prosper and continue her journey in the interior design field. She is knowledgeable in schematic design, space planning, creating mood boards, working in 3D programs & creating hand or computer renders. She is passionate about sustainable design and delivering full-service designs. Cristal has proved to be a team player, adaptable, creative thinker, and problem solver.

Outside of interior design, Cristal loves spending time with her family and friends. She enjoys dancing, singing, and listening to music.

Her dream is to travel the world to see and experience the beautiful architecture and art the world has to give.

Contact: Hcristal598@Gmail.com https://www.linkedin.com/in/cristal-hernandezint/

Affiliations

*NKBA Student Member * ASID Student Member * IIDA Student Member
