Focus on Decontamination Equipment

Decontamination Focus

henryschein.ie | 01 4565288 | iesales@henryschein.ie |

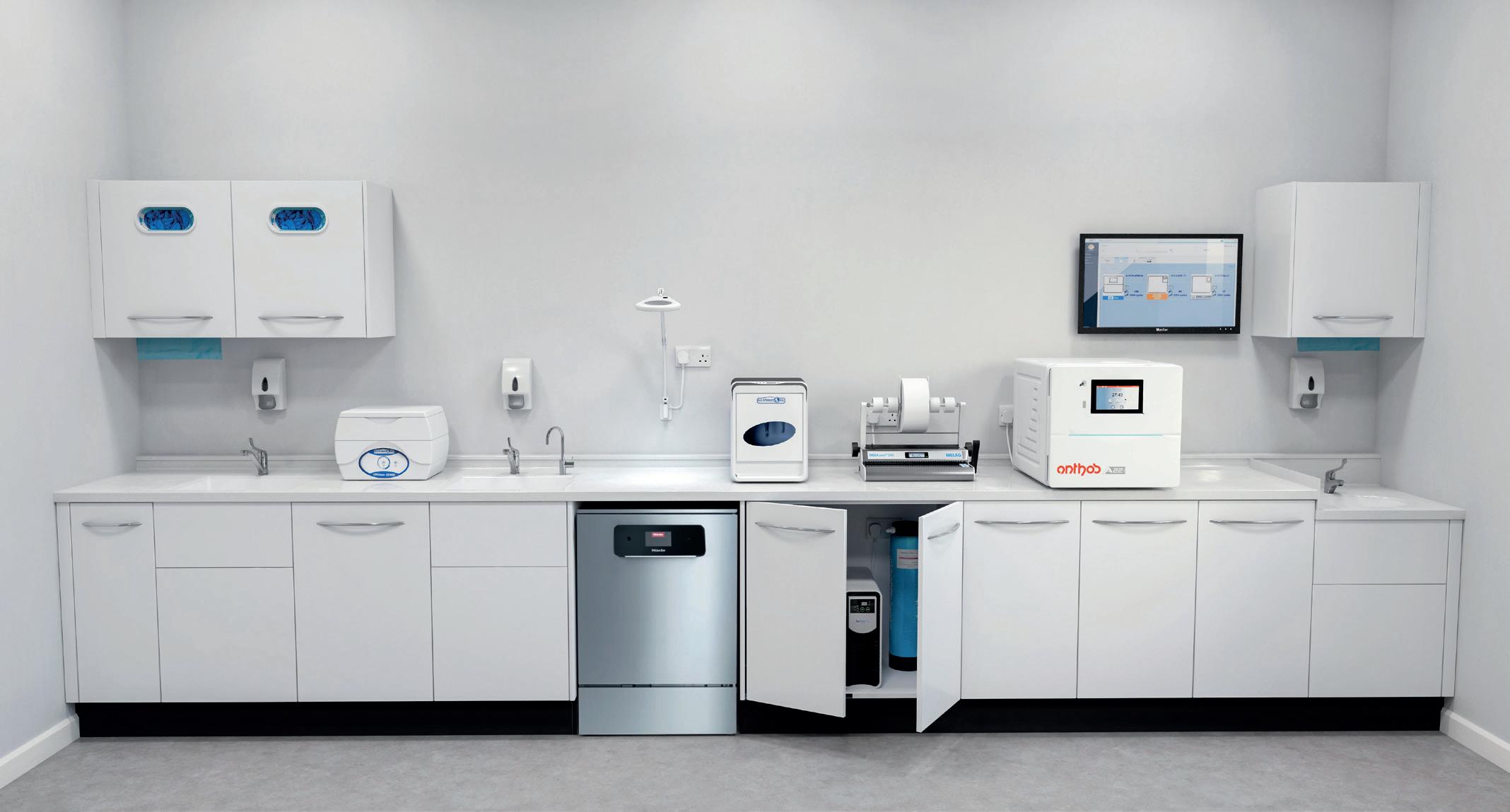

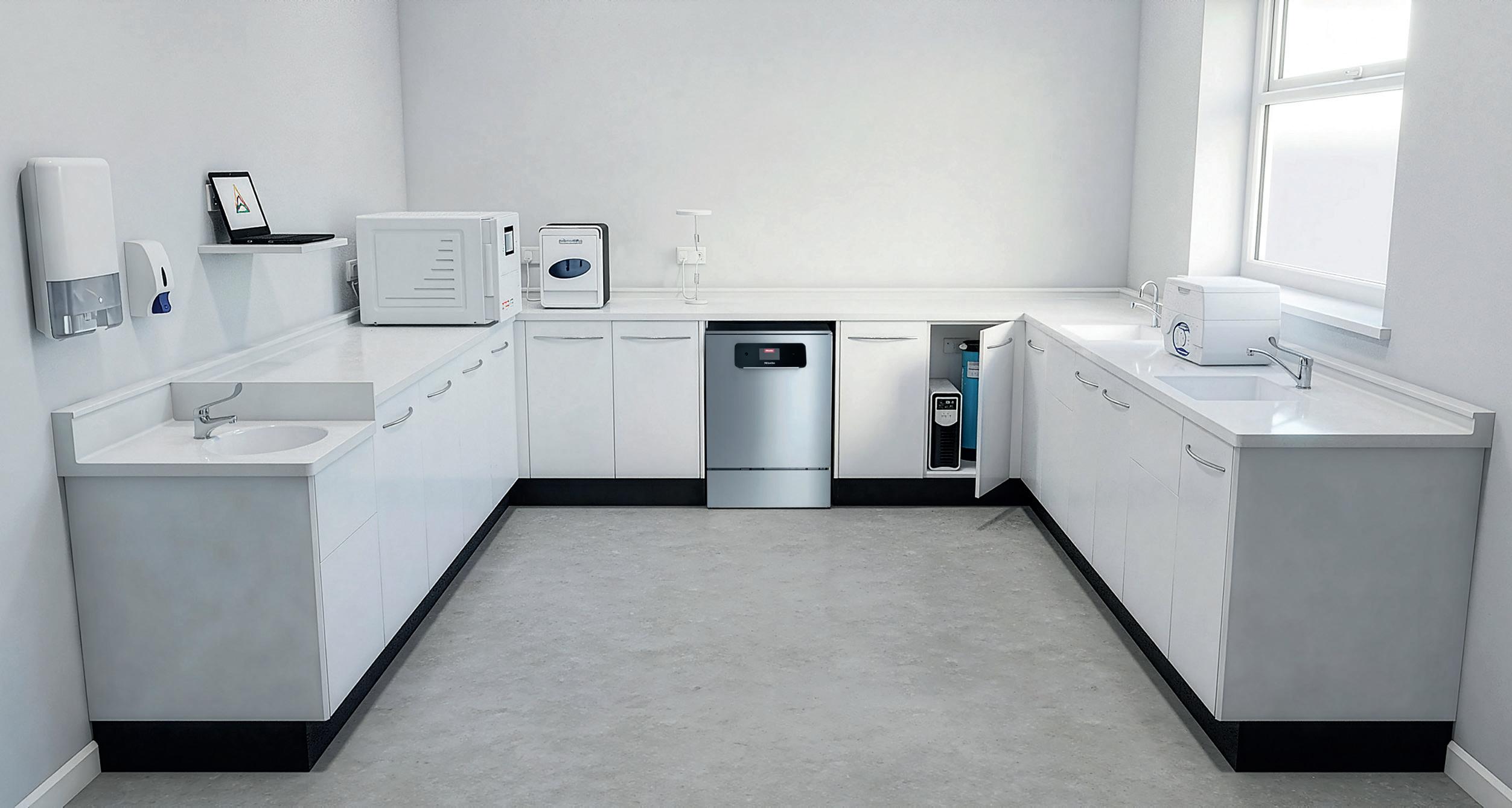

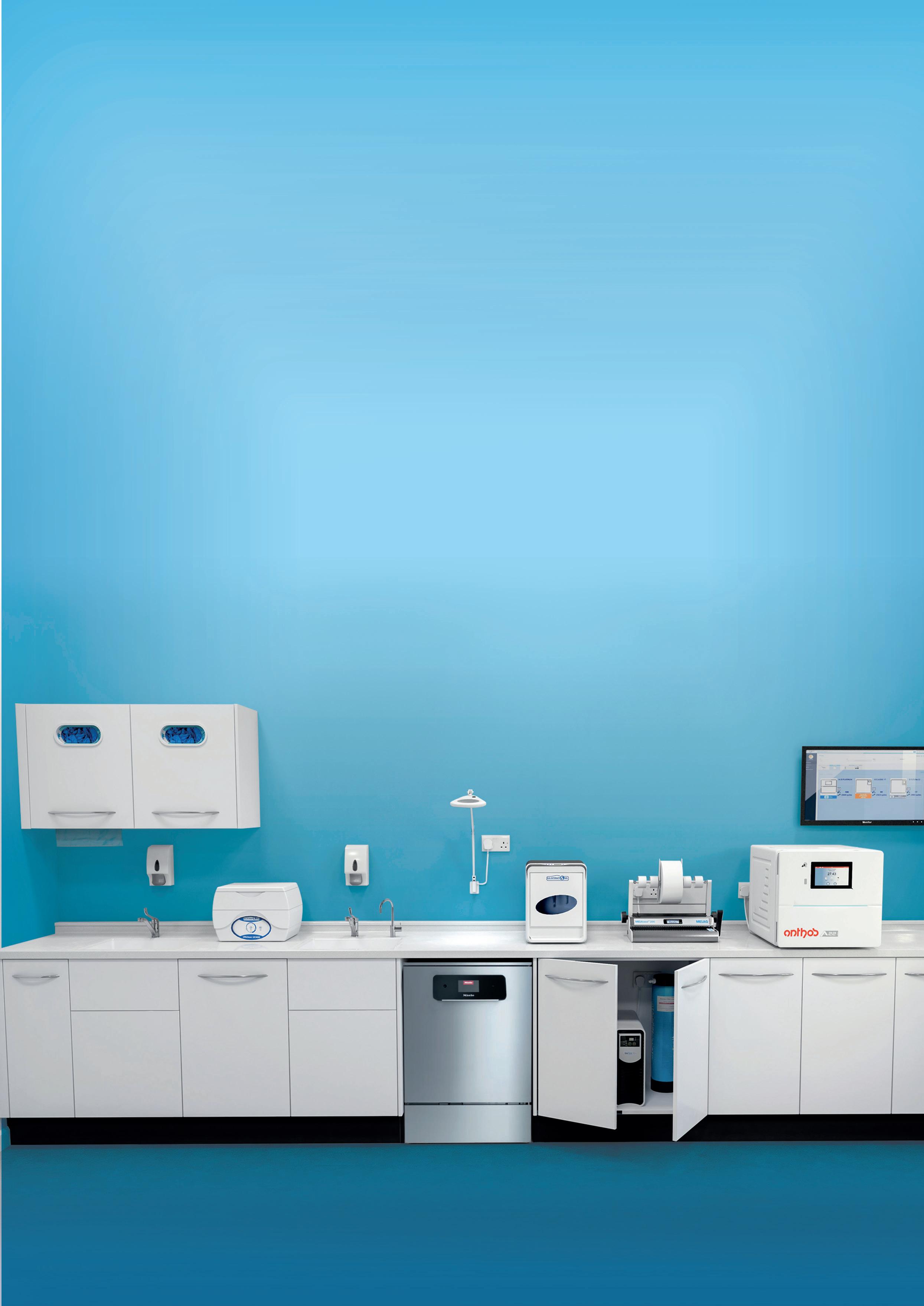

The Perfect Decontamination Room Let Henry Schein Help You Create It

Dispenser

Dispenser

859

Dirty Set Down

Dispenser

R.O. (Under)

859

Inspection Wash

US Bath

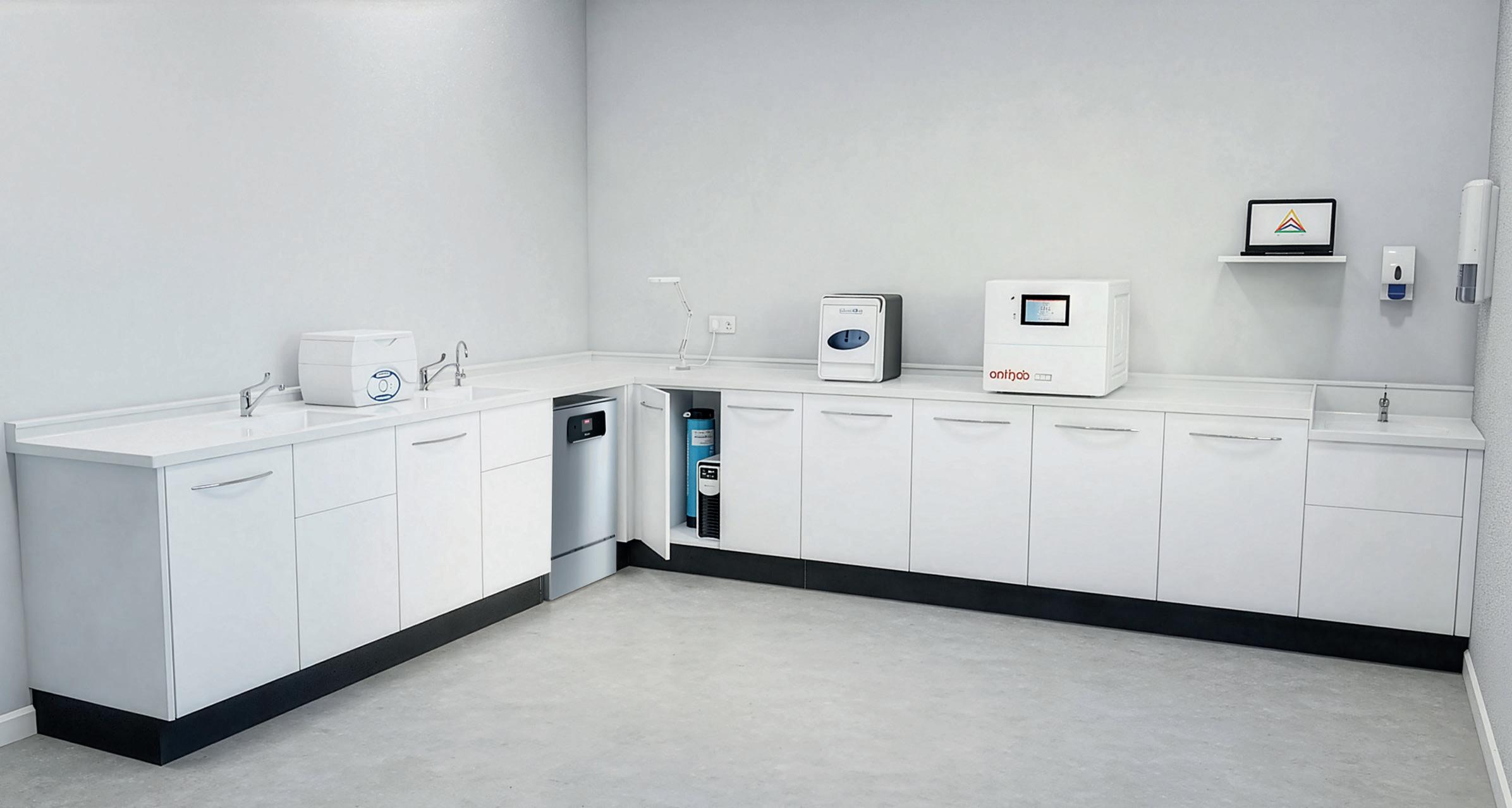

Choice Of Configurations

Rinse

Work Flow

Washer/Disinfector (under)

Autoclave Oiler

Sealer

Cooling & Packing

820

Lower Level Hand Basin

The Best Options To Suit Your Practice

washer open

Complete Traceability It’s best practice, if space allows, to have separate clean and dirty rooms. There should be a distinctive work flow with a set down, wash and rinse sink, washer/disinfector, autoclaves, inspection and cooling/packing areas -starting from the dirty area and ending in the clean area.

“ 2

Did You Know?

Current decontamination guidance requires everything to be logged and tested for continual compliance as well as ensure each stage is fulfilling its role within the practice.

”

henryschein.ie

01 4565288

henryschein.ie

01 4565288

3

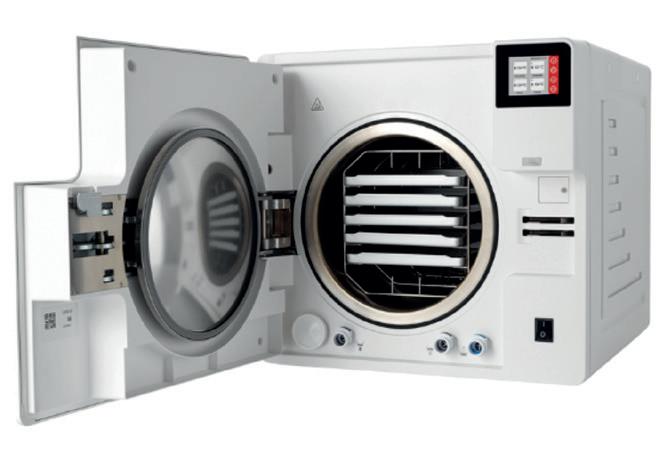

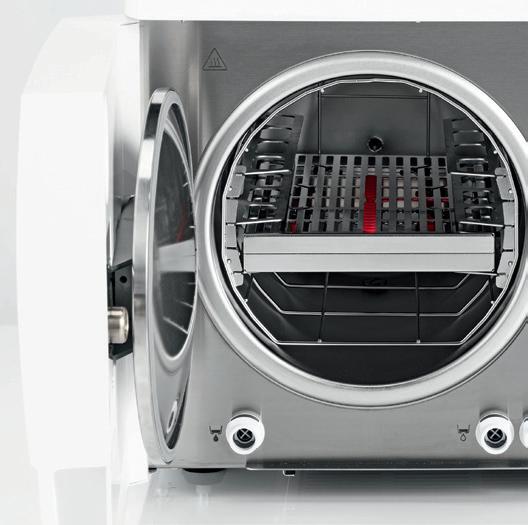

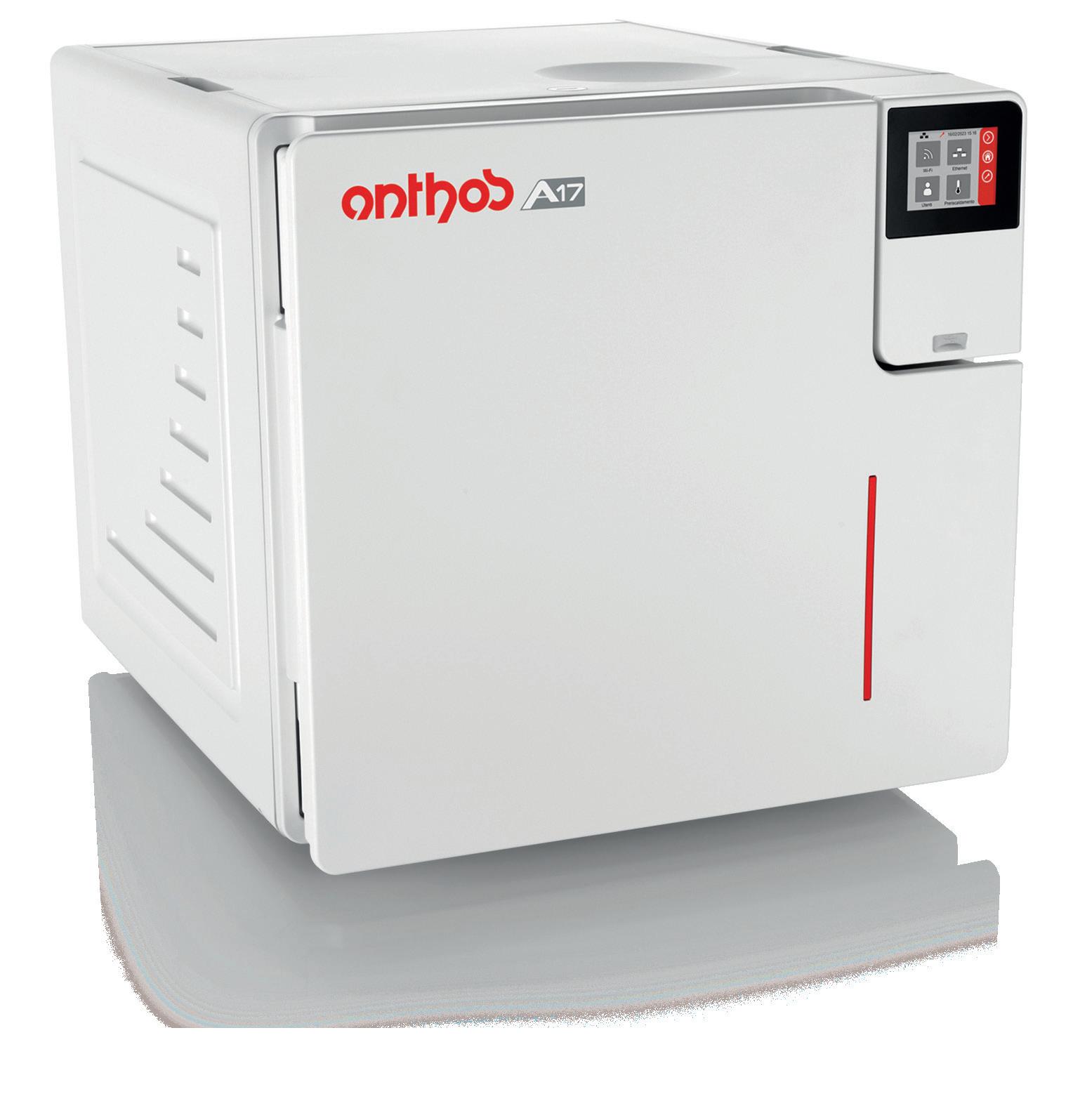

Autoclaves A Range

A Platinum Range

Anthos A Range autoclaves offer cutting-edge sterilisation technology, ensuring seamless infection control without disrupting your workflow. Designed for dental professionals who demand excellence, these autoclaves combine advanced features with effortless usability.

50 cycles with 5 litres of mains water!

Flexibility For Every Practice

Designed to optimise every stage of the sterilisation process, they guarantee maximum safety and reliability, while reducing costs and consumption.

Anthos A Platinum autoclaves offer the perfect balance between advanced performance, operational efficiency and environment-friendliness.

Every dental practice has unique needs. That’s why the Anthos A comes in 17L and 22L capacities, offering the versatility to accommodate varying workloads.

Both models are equipped with 5 trays, and for extra customisation, a modular tray holder is available, optimising load management for maximum efficiency.

• One of the distinctive elements of A Platinum is its innovative water treatment system, which allows waste to be minimised and resources to be optimised. Thanks to demineralisation and recirculation filters, the autoclave is able to reuse water in subsequent sterilisation cycles, dramatically reducing water consumption compared to traditional systems.

With just 5 litres of mains water, up to 50 sterilisation cycles can be completed. A truly outstanding result.

Intelligent Sterilisation Made Simple The Anthos A Range brings a new level of convenience to sterilisation.

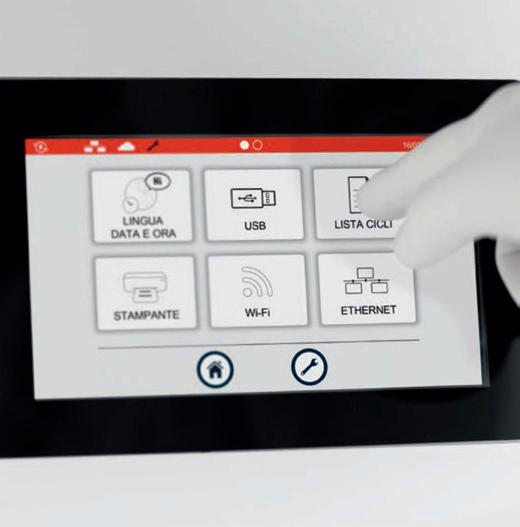

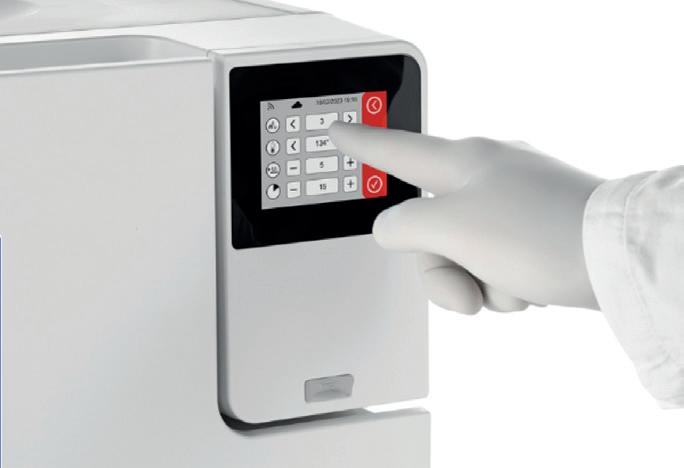

With an intuitive 3.2” touchscreen display, controlling the entire process is quick and effortless. The delayed start and extra drying function allow for optimised cycles, ensuring your instruments are perfectly sterilised and ready when you need them.

Easy Check: Remote Monitoring and Easy Maintenance Need a smarter way to manage your autoclave? EasyCheck, an optional in-cloud platform, provides remote technical support, helping you minimise downtime and optimise performance.

Features include:

From as little as

€117 per month ex VAT*

• Remote software updates • Maintenance interval tracking • Component and sensor verification

Video tutorials, on-display info

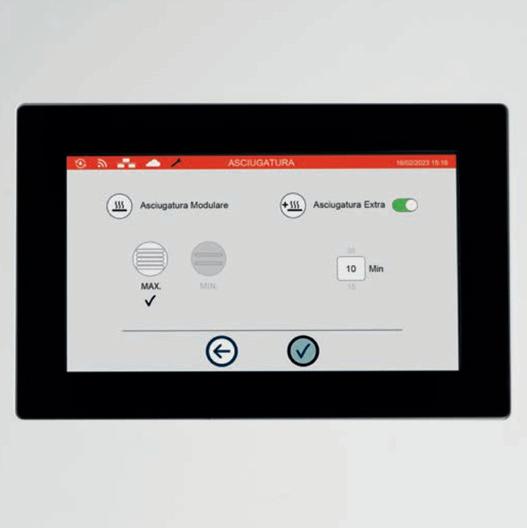

Shorter cycle times and Modular Drying

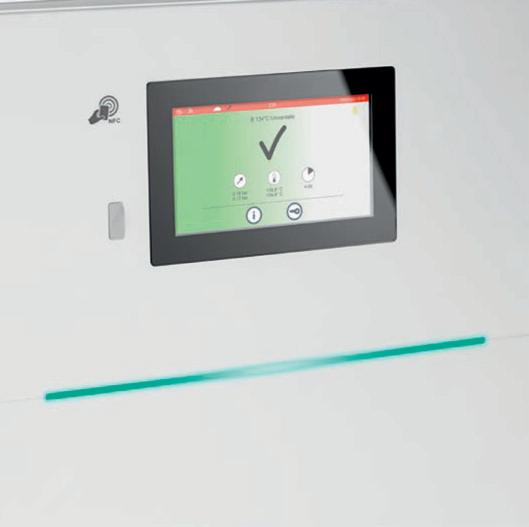

LED bar

From as little as

€79 per month ex VAT*

4

Model

Volume (Litres)

Universal B Cycle 134C (mins)

Universal B Cycle 121C (mins)

Prion B Cycle 134C (mins)

S Cycle 134C (Unwrapped hollow instruments) (mins)

S Cycle 134C (wrapped solid instruments) (mins)

Fast Cycle (mins)

Load (KG)

Drying Time (mins)

Active Air Drying

Dimensions (mm) (WxHxD)

Weight (kg)

Anthos A17

17

42

58

56

22

34

22

6

included within cycle time

No

500 x 490 x 600

46

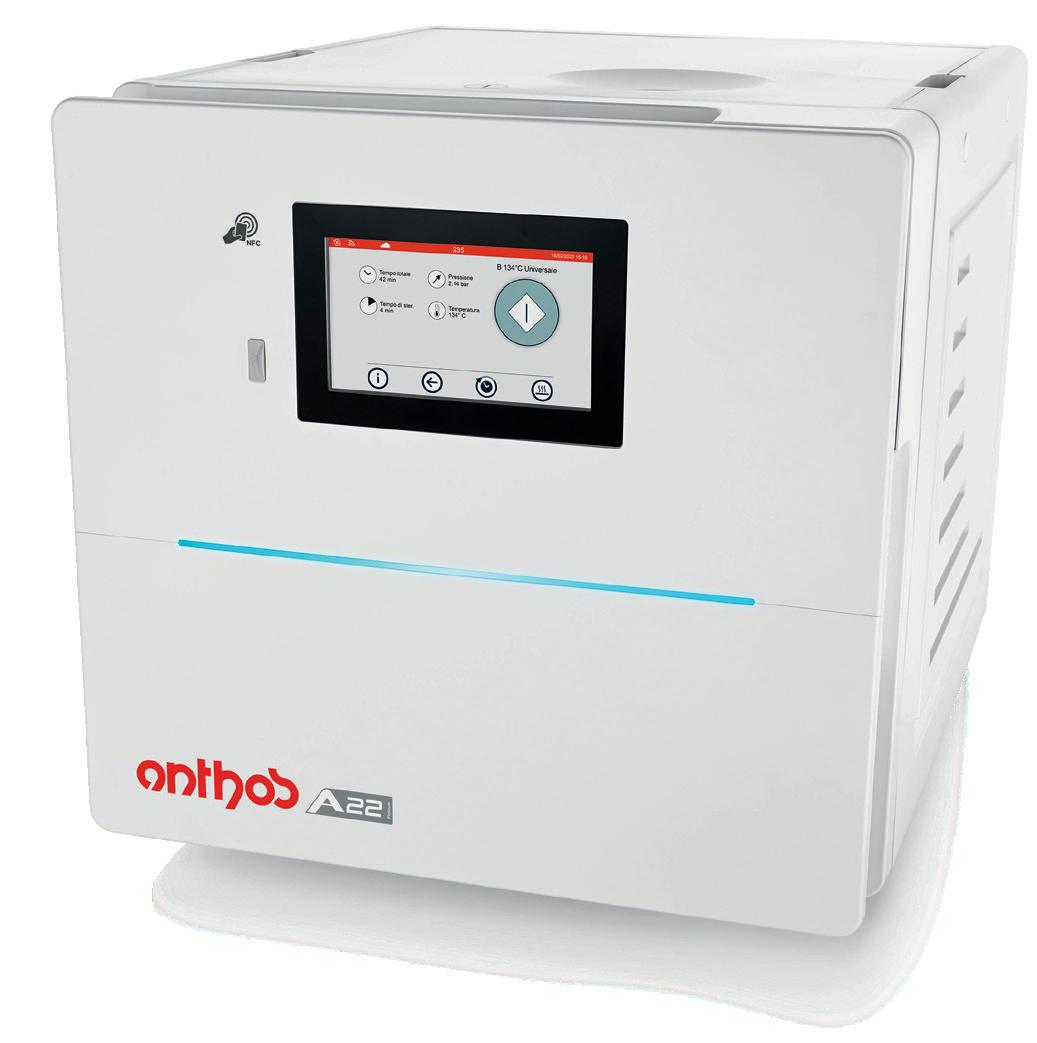

Anthos A22

22

46

63

60

25

39

25

7.5

included within cycle time

No

500 x 490 x 600

49

Anthos A17 Platinum

17

39

53

53

21

25

21

6

included within cycle time

Yes

500 x 490 x 600

47

Anthos A22 Platinum

22

42

59

57

24

30

24

7.5

included within cycle time

Yes

500 x 490 x 600

50

henryschein.ie

01 4565288

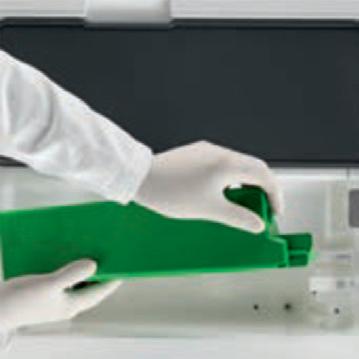

Integrated demineralisation

Treating used water

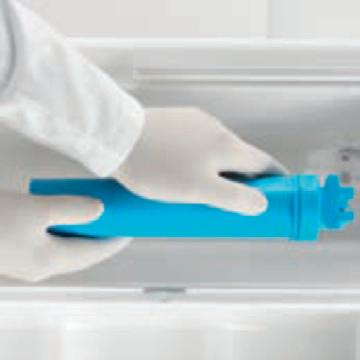

A demineralisation filter in the main reservoir allows use of ordinary mains water. This rationalises the available space, streamlines processes and provides significant savings.

The recirculation filter in the secondary tank demineralises and purifies the used water.

This process makes it reusable in subsequent sterilisation cycles and automatically controls the water delivery reservoir.

Moreover, the integrated filtration system delivers never-before-seen operational simplicity. To make water management even simpler, optional automatic filling systems are available.

henryschein.ie

Just 5 litres of mains water are needed to perform 50 sterilisation cycles: a market-leading specific consumption of just 100ml/cycle

01 4565288

5

Autoclaves

From as little as

€58 per month ex VAT*

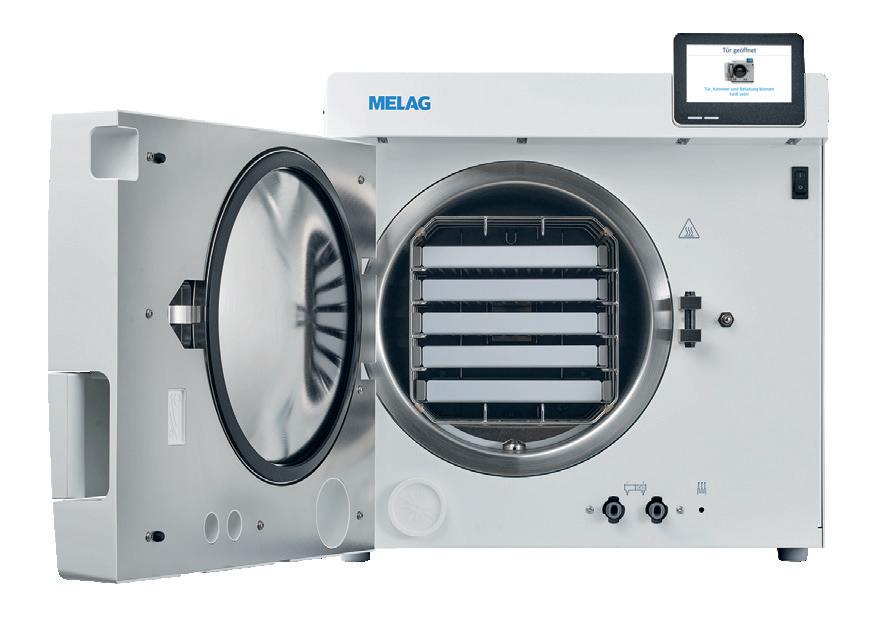

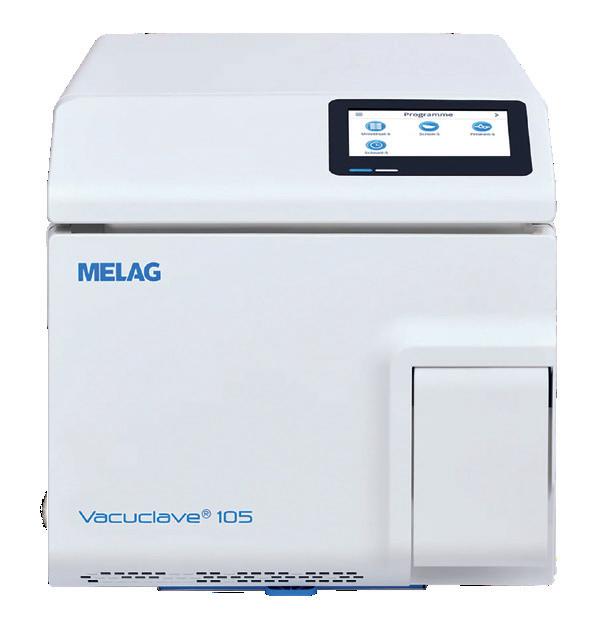

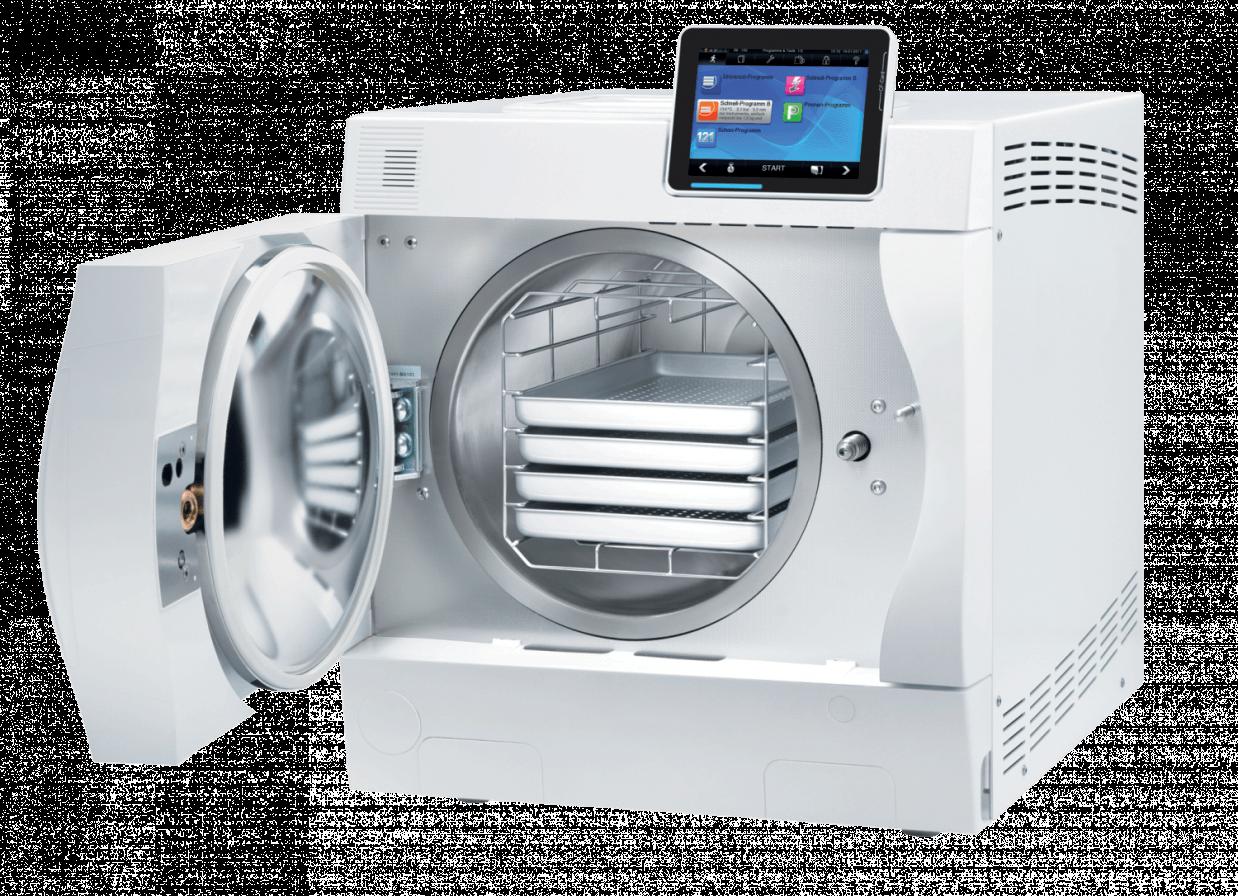

Melag Vacuclave 105 Pro Line

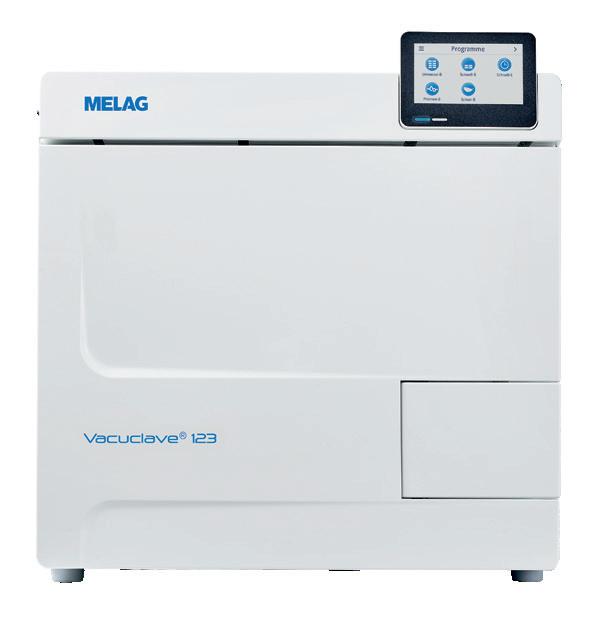

Melag Vacuclave 123 Pro Line

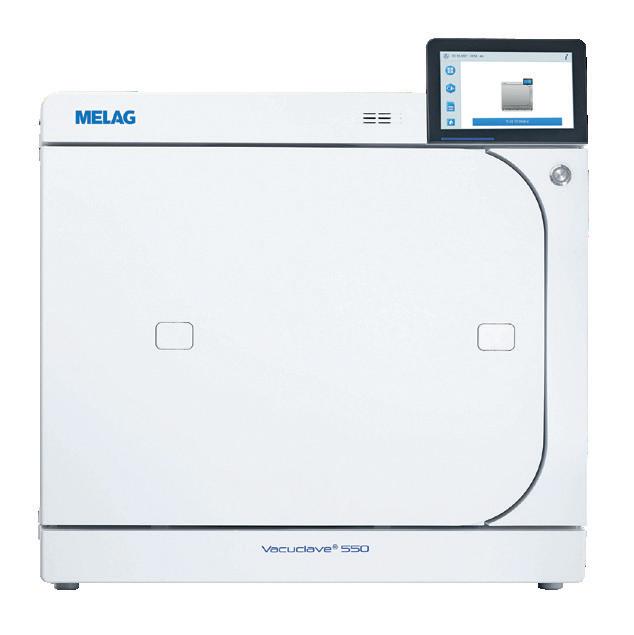

Melag Vacuclave 550 Pro Line

Sterilise up to 22 contra-angle handpieces on 2 trays in just 6.5 minutes (plus flexDRY drying) and with 60% less space required than with a conventional class B autoclave

With smart operating and documentation concepts as well as a chamber volume of 23 litres, the Vacuclave 123, the entry-level Pro Line model, offers everything you need for the safe, convenient and resource-saving sterilisation.

Sterilise up to 25 kg of instruments in just 13 - 43 minutes - is that possible?

Yes, with Vacuclave 550. Thanks to the extra-large chamber and pioneering innovations, you’ll be ready for all BIG tasks. Discover the advantages of our new 50 litre autoclave for large practices and clinics.

• Reliable sterilisation of up to 6kg on 5 trays in only 16 to 31 minutes (plus timed drying).

• Outstanding capacity for up to 25 kg on 16 trays or 10 MELAstore Boxes

• Touchscreen with intuitive menu structure for easy operation just like your smartphone

• Intelligent drying for shortening the drying time by up to 80%

• Class S and B sterilisation of up to 2kg of instruments on 2 trays in just 6.5 to 15 minutes (plus drying) • FlexDRY drying system can flexibly adapt the drying time to your workflow and load at intervals of 1 to 60 minutes • Plug & play installation concept enables lightning-fast installation - with 60% less space required than conventional autoclaves • Energy-saving mode between sterilisation processes for top energy efficiency

• Standby mode between sterilisations for top energy efficiency

Melag Vacuclave 323 Prime Line

The 318 Prime Line autoclave from MELAG, with a 17 litre chamber volume, offers efficient processes for loading, sterilising, and documentation.

With an excellent price-performance ration, you can sterilise more instruments in less time, saving you money.

Whether loading, sterilisation or documentation - the new Prime Line autoclave with a chamber volume of 23L offers a price-performance ratio that stands up any comparison. With the Vacuclave 323 from MELAG you can sterilise more instruments in less time, all while saving money.

• Stay all-round flexible; the 318 offers an outstanding capacity for up to a 7kg load • The algorithm-controlled drying ensures optimum results and a reduction in drying time of up to 80% • ProControl enables batch approval and user authentication directly on the display without extra software solutions

henryschein.ie

A great autoclave range that provides solutions for steam sterilisation in accordance with EN 13060.

• Impressive speed with Double Jacket Technology for record operating times • Energy efficiency rethought with the patented system for heat recovery • Uncompromising comfort with extra-large Smart-Touch Display for intuitive operation • Traceable documentation via ProControl for documentation and approval

• User-friendly optimisations for efficient filter replacement, tank cleaning and water supply

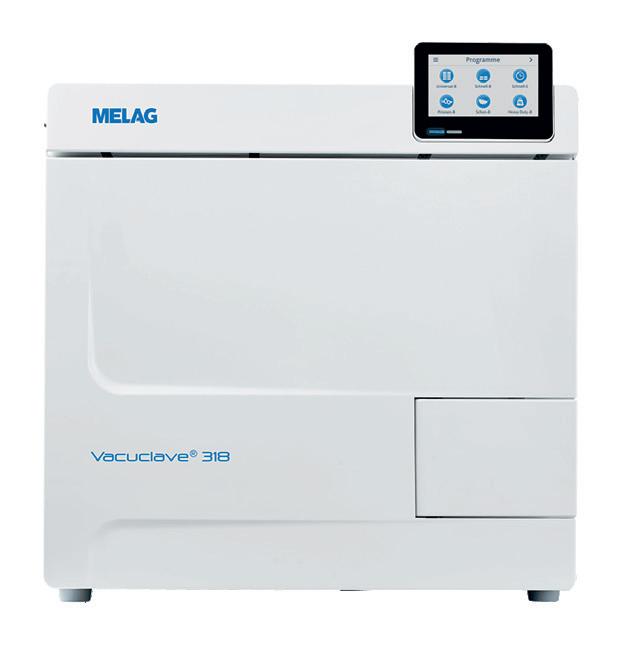

Melag Vacuclave 318 Prime Line

Vacuclave 318 combines the Pro Line product highlights with further innovations for more performance, for outstanding drying results and for seamless traceability.

6

• Integrated water tanks and highly effective air cooling for site-independent operation without cooling water

“

• With the heavy duty program of larger loading quantities, you can achieve powerful sterilisation of up to 8kg on 5 trays in only 16 to 31 minutes plus drying • Algorithm-controlled process for optimum drying results while reducing drying time by up to 80% • Touchscreen with intuitive menu structure for easy operation just like your smartphone • Integrated water tanks and highly effective air cooling for site-independent operation without cooling water

01 4565288

Melag 41B+ Evolution Premium Class

”

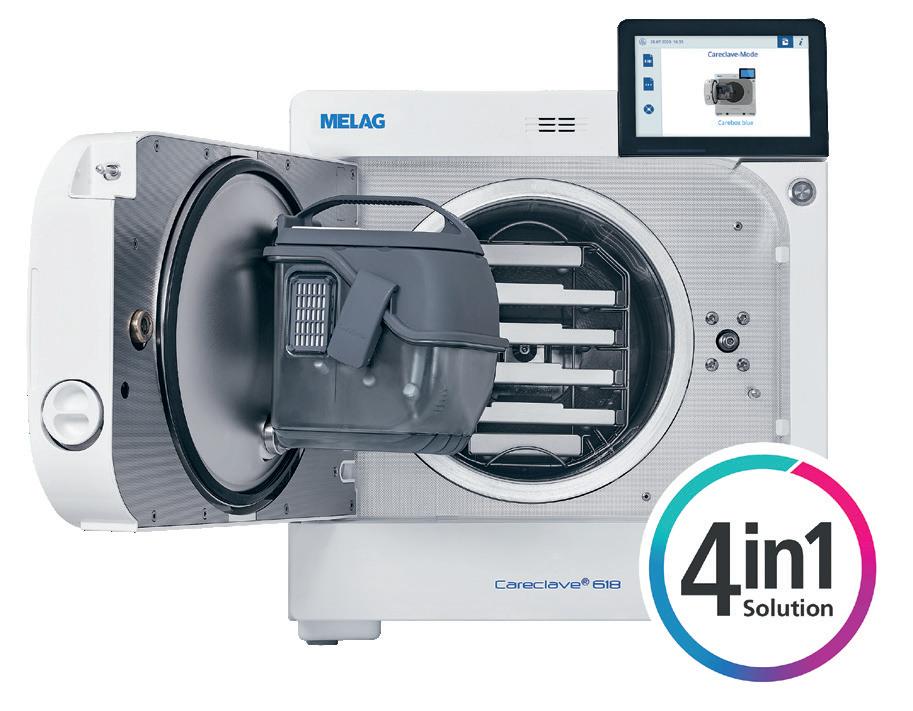

Melag CareClave 618

Sterilise up to 9kg of instruments in 8 to 25 minutes: MELAG’s Premium Class is fast and reliable, offering class B autoclaves that are full of power, easy to use, and as versatile as you are.

Legally-compliant reprocessing and care of handpieces can be costly, and time consuming. So join more than 2,000 dental practice that have switched to the 4-in1 solution for cleaning, disinfection, lubrication, and sterilisation.

• High loading capacities: for up to 9kg instruments on 8 trays

• 4-in-1 Solution: cleaning, disinfection, lubrication and sterilisation in one unit

• Double Jacket Technology: for sterilisation in record time

• Carebox Blue: reprocessing and lubrication of up to 8 handpieces

• Patented DRYtelligence: for optimum drying results with any load

• Carebox Green: reprocessing of 8 ultrasonic scaler tips

• Extra large Smart-Touch Display: for intuitive operation by the clinic team

• Class B autoclave: sterilisation of 11 kg in record time

• ProControl Authentication: for batch approval directly on Vacuklav

• iDos: metering module for precise oiling with Care Oil

• Interfaces for documentation: via CF card or network without surcharge

henryschein.ie

01 4565288

7

Water Filter Systems Our expert engineer support for you, easily accessible whenever you need it.

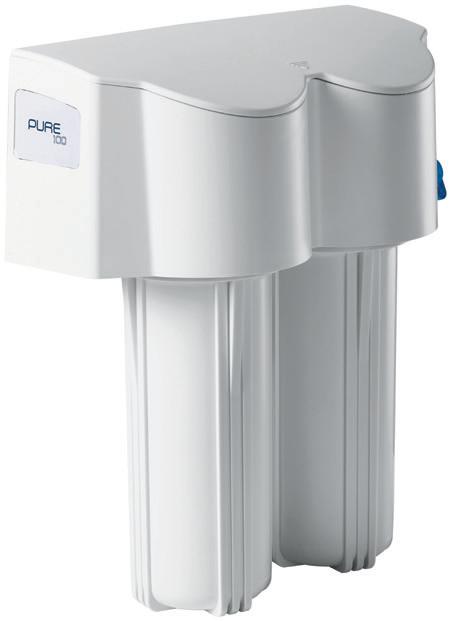

Cefla Pure 100

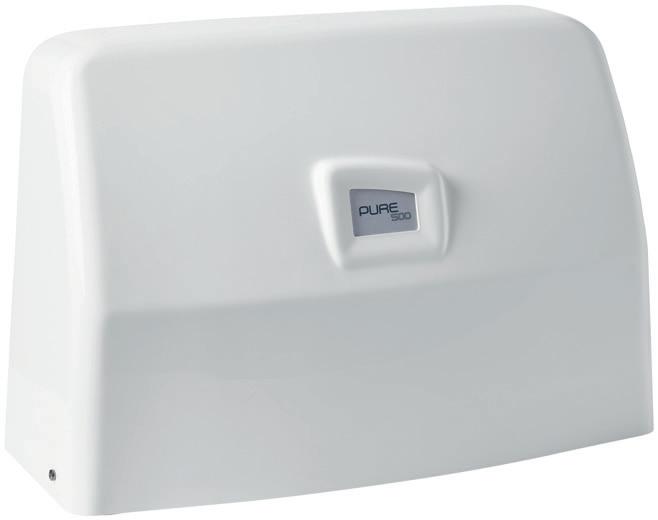

Cefla Pure 500

The Pure 100 resin demineraliser consists of two ion exchange resin cartridges.

The Pure 500 reverse osmosis demineraliser is an ecological system that ensures, cycle after cycle, a proper supply of demineralised water to autoclaves.

This system eliminates the ions that contaminate mains water, allowing high quality demineralised water to be produced.

Service First is an easy way for you to request support from your engineer, right from your smartphone. No app needed - just scan and access.

Step 1: We attach QR codes to all your practice’s equipment even pre-existing items.

Passing the mains water through an osmotic membrane eliminates both organic and inorganic substances, resulting in water that is perfect for sterilsation.

From as little as

Step 2: Simply scan the QR code to contact us with your problem.

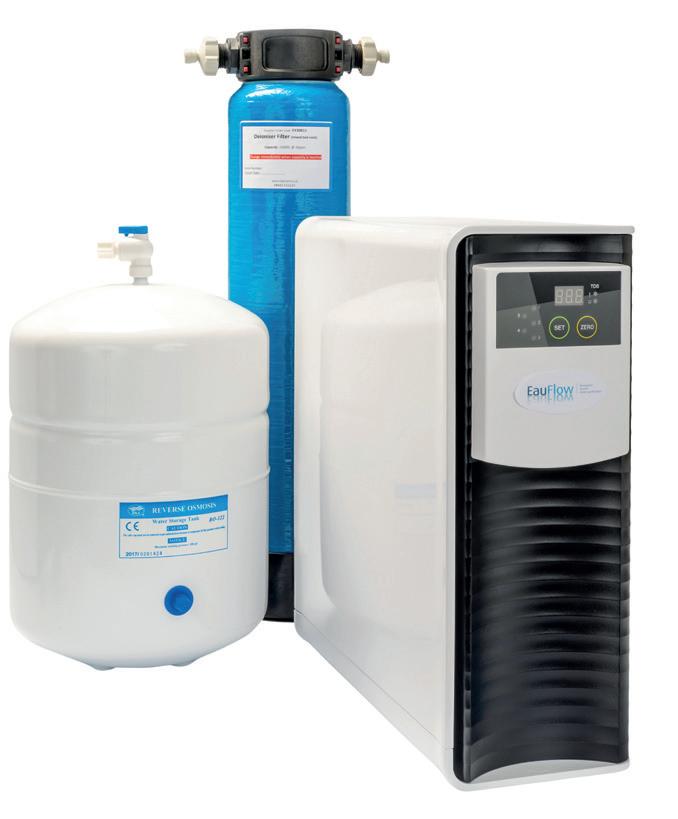

EauFlow 505 HD Hard Water Version

€19 per month ex VAT*

• Dental Reverse Osmosis (RO) clinical grade water on tap

“

The reversal of the physical principle of osmosis is an extremely environmentally-friendly type of water processing.

”

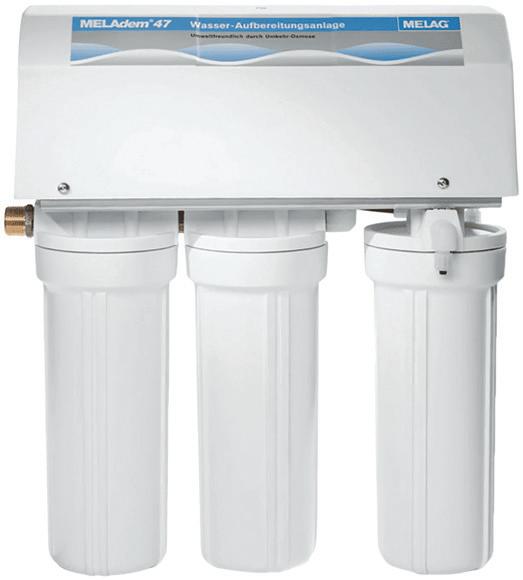

Melag MELAdem 47

• EauFlow is the #1 dental RO system and supplied into 1,000’s of dental practices.

(Need faster support? Call us on 01 4565288, or request a Remote Assistance Call - receive a same-day callback when you ring before 4pm.)

Report a Problem as it Occurs We will pick it up immediately during our working hours

Audit History

Comprehensive

Practical

Future-Proof

Any work carried out gets logged for future reference

We cover all your products, even those we did not install

Easy and time-saving, no need to interrupt your working day

There are further benefits to come like CQC document storage

Features: • Simple water-quality monitoring • Easy maintenance • Flexible for practices with 2-20 chairs • Multiple configuration options • Low energy use • Hassle-free peace of mind • 99.8% uptime - the most reliable dental RO on the market

So Many Ways To Solve The Problem

Increasing hygiene requirements in the processing of medical products can involve the frequent sterilising of instruments. The consequent increased need for high quality demineralised water is provided amply by the MELAdem 47 and at low cost.

• Quick change cartridge system, replaced annually

The reversal of the physical principle of osmosis is an extremely environmentally-friendly type of water processing. MELAdem 47 produces around 3-5 litres of feed water per hour, so that several MELAG steam sterilisers can be supplied at the same time.

• Flexible configuration options • Trigger nozzle or tap

• The screens are easy to view and navigate through on your smart phone.

• Water filter system

• Creates 3 litres of water per hour

• Always fresh aqua dem which protects your instruments and your autoclave

• Five litre storage tank

• Considerably cheaper, more efficient and sustainable than alternatives

• There is no limit on the number of times you scan your QR codes.

• Continuous water quality monitoring • Choice of tank sizes to meet your needs

• Bottled water creates plastic waste and ‘water-miles’ to handle and deliver

• Counter fitted tap

• Automatic monitoring of the water quality when connected to a MELAG Vacuklav® or Euroklav®

8

• Designed for daily use in autoclaves, dental chairs, ultrasonic baths and other clinical water equipment, EauFlow RO delivers hassle-free purified water on tap.

Step 3: We will pick up your query the same day, when you contact us before 4pm - so you will be up and running again in no time.

• Distillers are slow and require high levels of energy

henryschein.ie

01 4565288

• Service First also includes an AI Assistant, plus troubleshooting, FAQs, and PDF instruction manuals for all of your products!

• We are ready to help when you need it. Your QR code will allow us to access all the information that we need in order to repair your product, including the make and model, serial number, location and contact details.

henryschein.ie/equipment-servicing/service-first

“

The team from Henry Schein has assisted me very closely when old equipment has unfortunately required urgent attention to keep us open and has organised engineers for us within minutes with very prompt responses.

”

Sanjay Patel, Dental Care Centre

01 4565288

9

Washer Disinfectors

Thermal Disinfector

Practicality And Flexibility

All The Traditional Thermal Disinfector Features in a Smaller Size

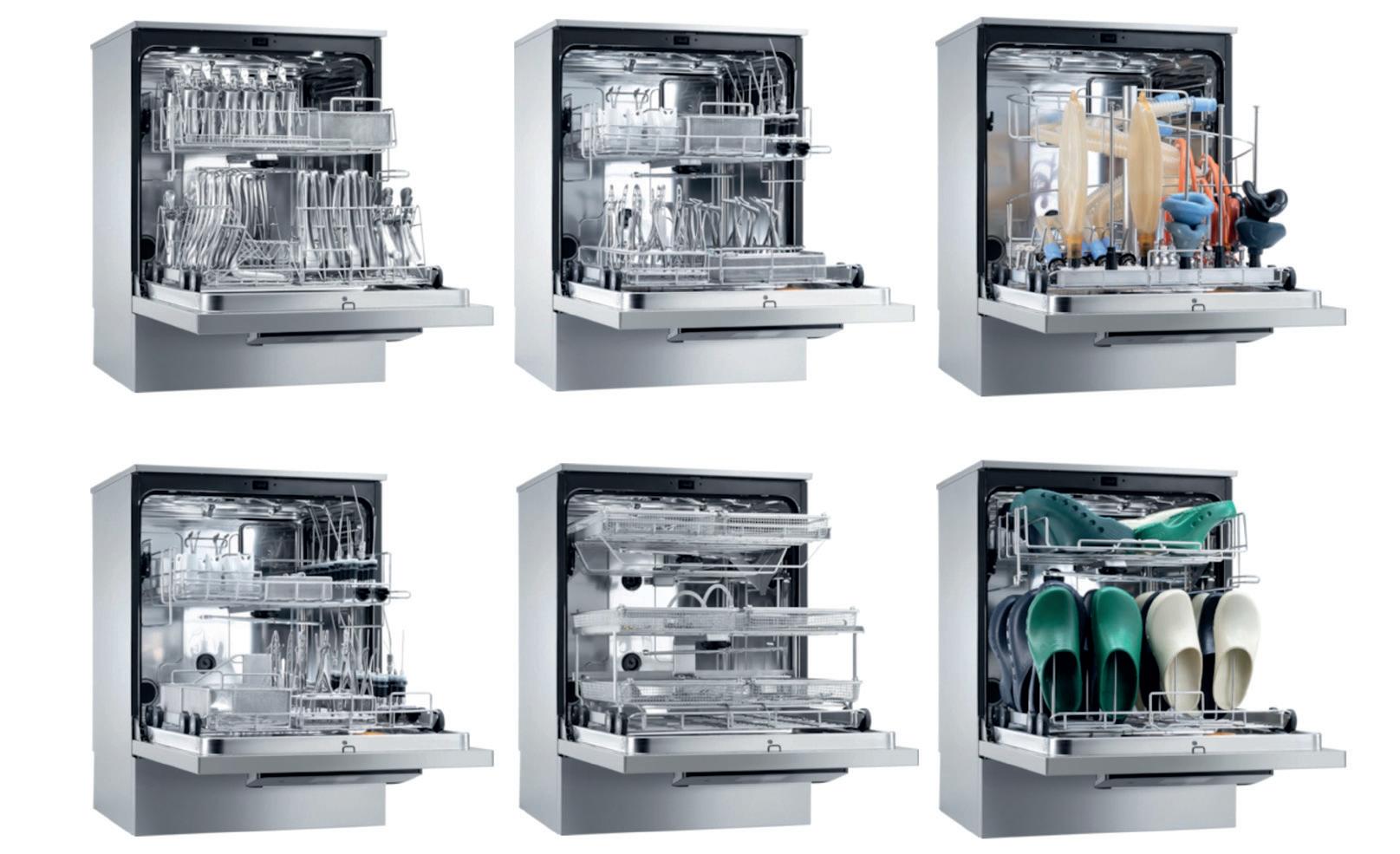

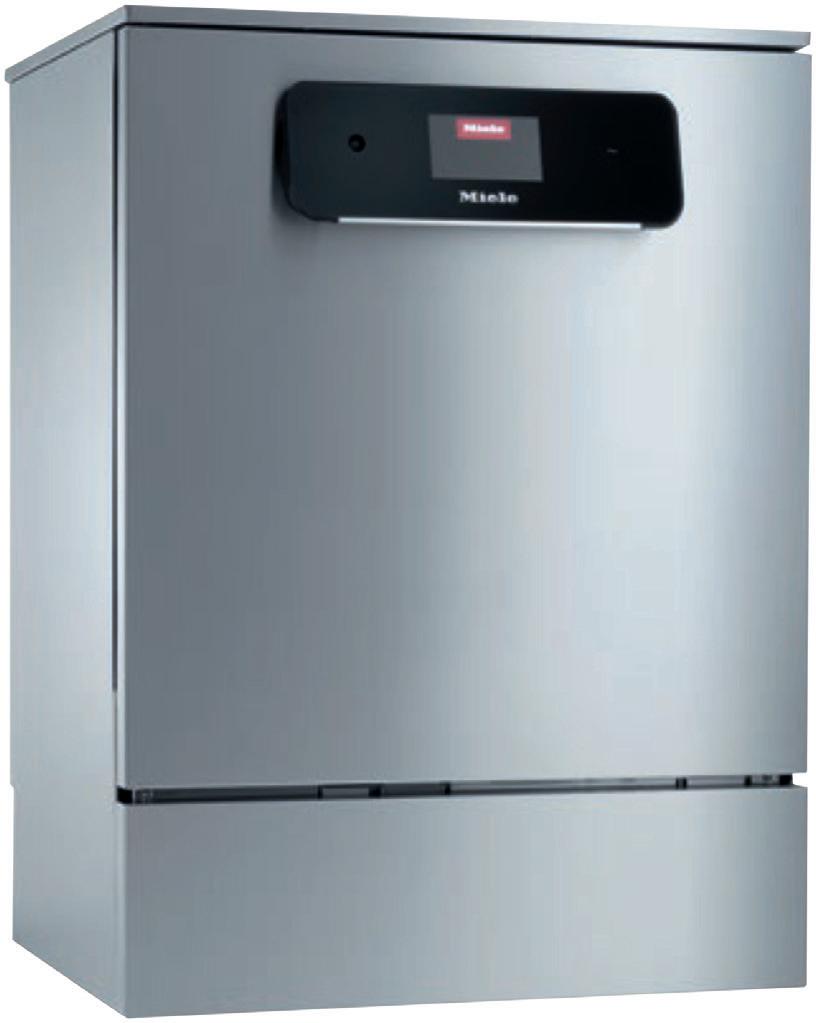

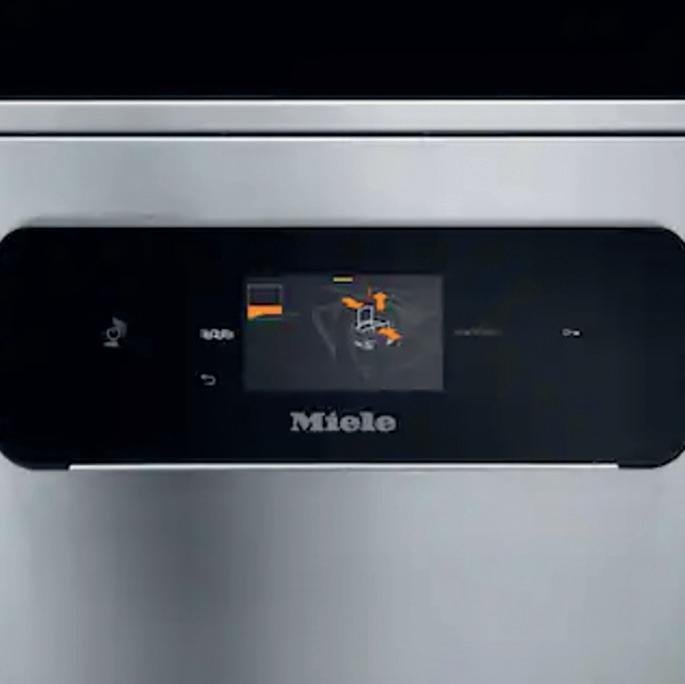

Miele PWD 8682 (DC5) Thermal disinfector and washer-disinfector with AD water connection, liquid dispensing and EcoDry function.

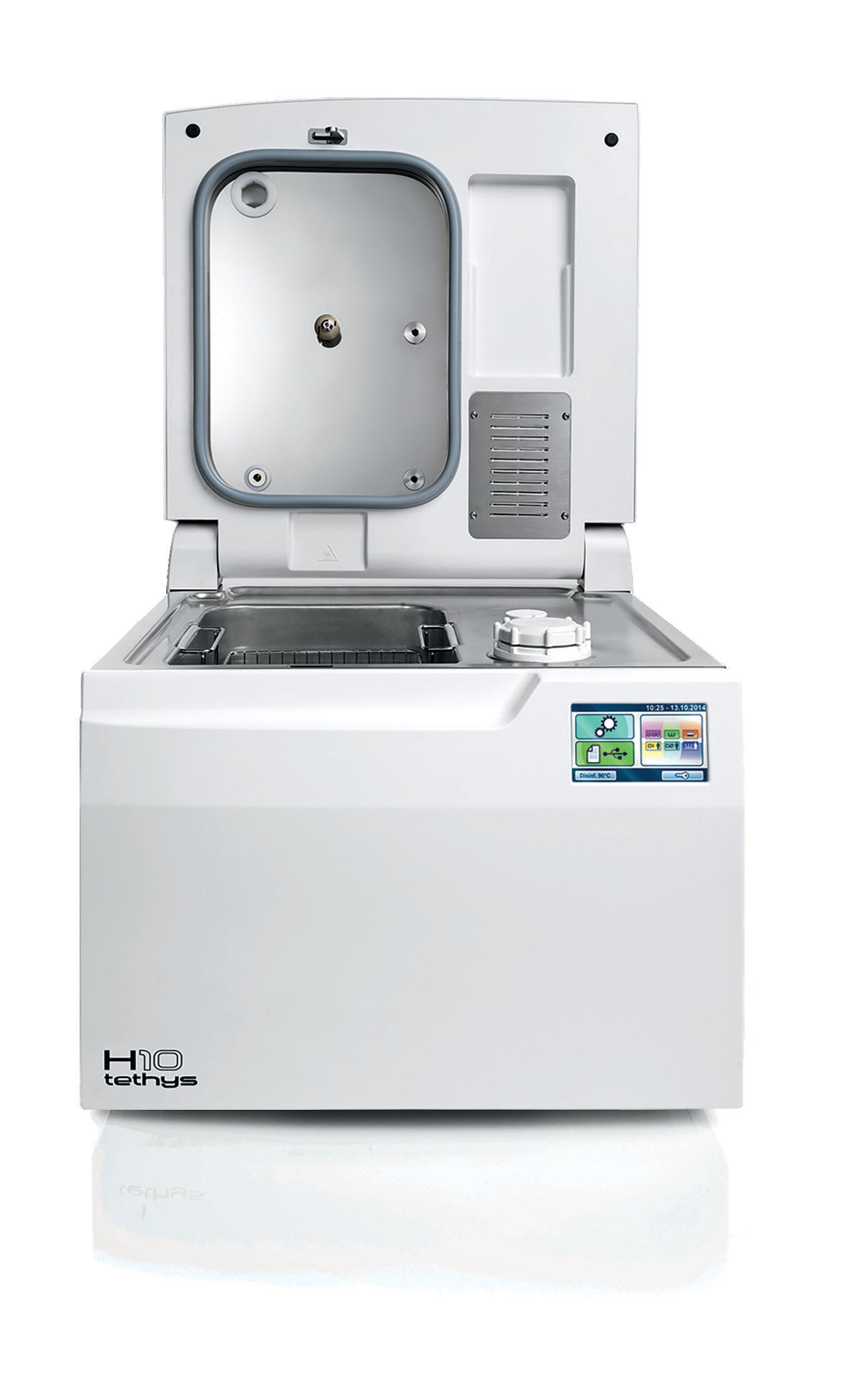

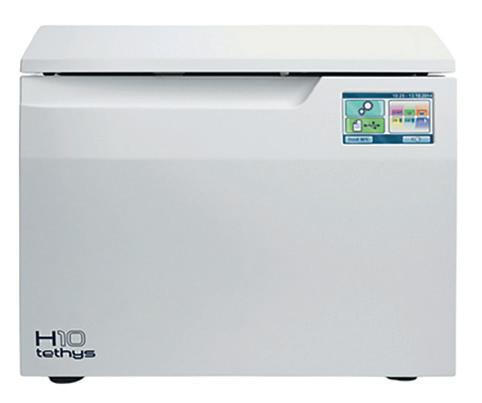

Cefla Tethys H10 Plus Benchtop

Features:

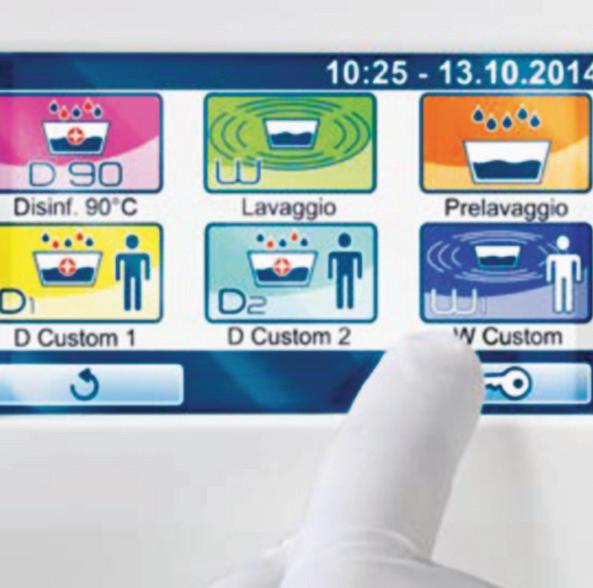

Tethys H10 Plus is the new thermal disinfector that makes the instrument reconditioning process simple and practical.

• Perf./cycle, e.g. 44 transmission instruments or 44suction devices • Throughput/cycle e.g. 8 DIN mesh trays

This innovative device carries out many of the numerous manual tasks typically encountered prior to sterilisation, thus reducing personnel workloads and risk.

• Safety through monitoring – wash pressure and spray arm monitoring • Maximum user convenience with M Touch Flex full-touch colour display

With the Tethys H10 Plus decontamination, washing, thermal disinfection and drying are compacted into one fast automated process.

• Convenient drying support – EcoDry • Connectivity as standard via WiFi

A certified revolution

• 2 LEDs in the top of the wash cabinet ensure it’s well-lit during loading and unloading

Tethys H10 Plus is a true EN ISO 15883-1/2-compliant thermal disinfector that incorporates the full force of ultrasound.

Features • Combined ultrasound-heat action

• The force of ultrasound - uniform ultrasound distribution inside

• A real 90°C thermal disinfection process that complies with EN ISO 15883-1/2

• Hot air drying phase that includes purification with an integrated HEPA filter

From as little as

€155 per month ex VAT*

• Reduces washing and disinfection times drastically complete cycle in 35 minutes • Operating data is available via a standard Ethernet or Wi-Fi

• Integrated water softener with ion exchange resins

From as little as

€92 per month ex VAT*

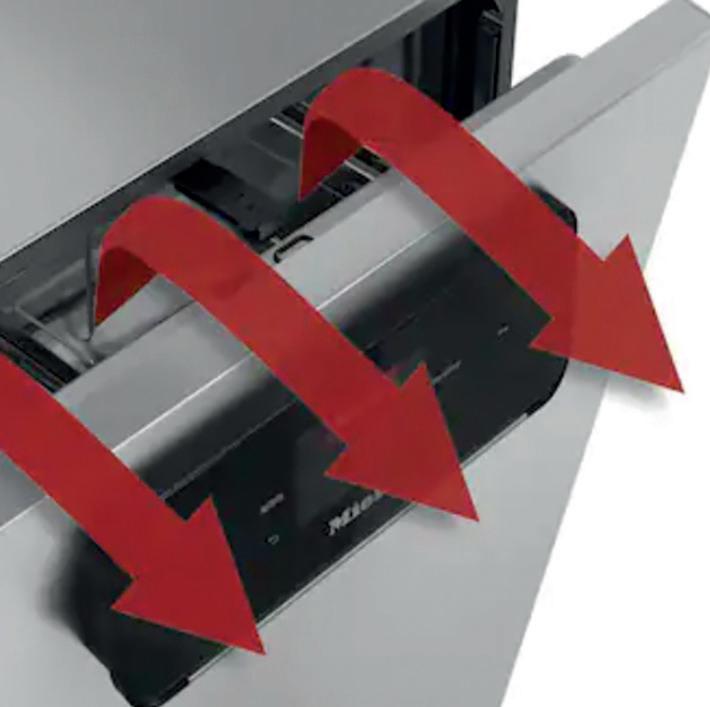

EcoDry - convenient drying support

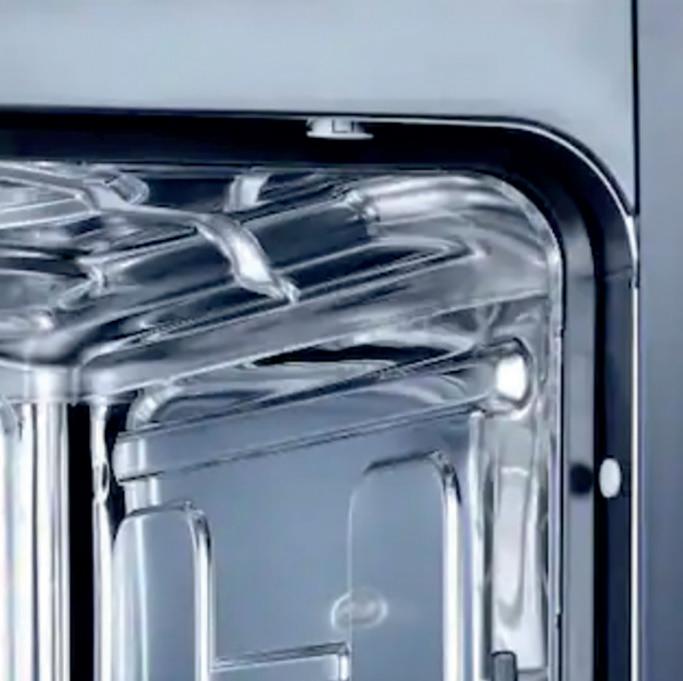

Crevice-free wash cabinet

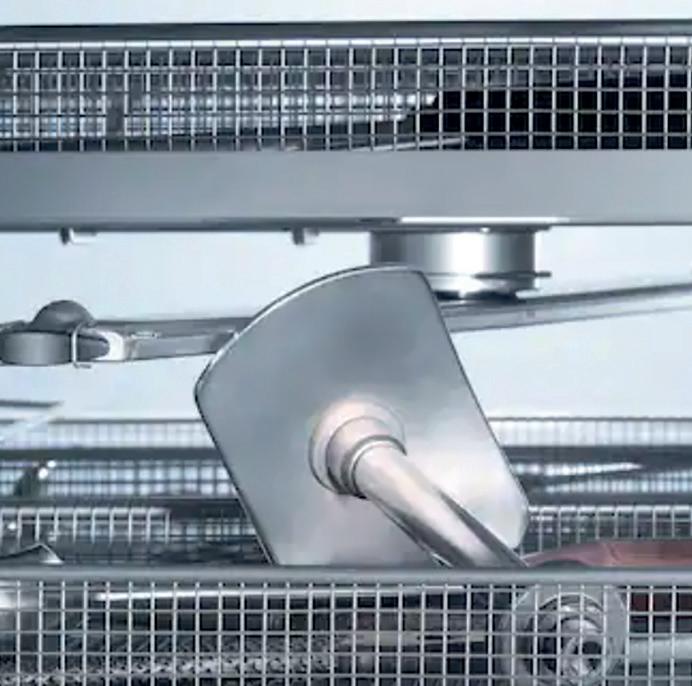

Spray arm monitoring

How-to sequences

“

Did You Know?

This innovative device carries out many of the numerous manual tasks typically encountered prior to sterilisation, thus reducing personnel workloads and risk. The combination of deep ultrasound washing and thermal disinfection provides effective rationalisation of reconditioning protocols, ensuring absolute protection for the user.

”

10

henryschein.ie

01 4565288

henryschein.ie

01 4565288

11

Trust Our Team Here To Help, Share Knowledge And Inspire You

Alex Lesniak Digital Imaging/CADCAM Sales Specialist Leinster/Munster: 086 7809445 alex.lesniak@henryschein.ie

Richard Wilson Equipment Sales Specialist Connaught: 086 6069628 Ulster: 0044 7809 485286 richard.wilson@henryschein.com

“

I had an excellent experience recently when refurbing my practice through Henry Schein. From start to finish, everything was handled with professionalism, attention to detail and care.

Dr Mark McCreesh

”

*Prices mentioned exclude VAT, delivery and installation. Prices mentioned are based on finance figures over 60 months and are subject to terms and conditions.
