Peppy Tap Brochure

There in an instant

4 in 1 instant hot water taps with chilled and filtered water bringing convenience and style to any kitchen

The benefits of Peppy Taps is an Australian company whose founder have extensive experience in the Australian plumbing market. After comprehensive product development and testing Peppy Taps launch a range of instant hot water taps that combine convenience and style in one tap One tap that replaces not just the kettle but traditional kitchen taps too. Less clutter in the kitchen and only one hole to drill in your benchtop for easier installation. Ideal for a minimalist modern kitchen or where there is limited worktop space.

Perfect at home or in the workplace dining/lunchroom The 4 in 1 functionality of a Peppy Tap means that it is the only tap needed in the kitchen and it will provide four functions to make it quicker and easier to get on with the multiple demands placed on todays modern kitchen The Peppy Tap’s stylish design will make it an elegant centrepiece for the kitchen elevating the overall design of the kitchen 5 Colour options ensures the Peppy Tap can be incorporated into any kitchen design and proudly take its place within the overall interior design A Peppy Tap will save time. You can instantly pour boiling water directly from the tap. The annoying wait for the kettle to boil, or boiling a saucepan on the hob is a thing of the past. A Peppy Tap helps you get on with your day.

Workplace efficient: save time and improve both staff wellbeing and productivity with instantly available hot (and chilled*) water A Peppy Tap will reduce your water waste & save electricity because you will heat and pour only the quantity of water that you need, rather than over or under-filling a kettle. Always pouring the required amount of water means instant hot water taps are a more environmentally sustainable option while also helping you save more energy than using a traditional kettle.

A Peppy tap makes life around the kitchen that extra bit easier.

A calcium and carbon antibacterial filter will improve the water purity, removing lead from water * Chilled model

1

The benefits of Enjoy the ease and accessibility of a Peppy Tap - instant access to boiling and filtered chilled* water.

A Peppy Tap will be an immediate family favourite with a wide range of versatile uses: Improve your hydration with filtered or chilled* water being instantly accessible Make hot drinks to your preferred temperature using pre set temperature settings Quickly blanch vegetables to loosen the skin or to prepare vegetables for the freezer Speed up preparation of pasta and rice Easier cleaning of stubborn chopping board stains or greasy pots and pans Built in safety. Peppy Taps come with child friendly, safety sprung handles and insulated sides.

Compact under counter units. Peppy Taps smaller size boiling tanks and compact chiller units fit nicely in the under sink area and can be located separately

A Peppy Tap will become a versatile family favourite

Enjoy peace of mind with the assurance of testing and certification to Australian and New Zealand Standards.

2

Built in Safety Peppy Taps dispense near-boiling water and have been carefully designed with practicality and safety in mind so that it can be used by all the family.

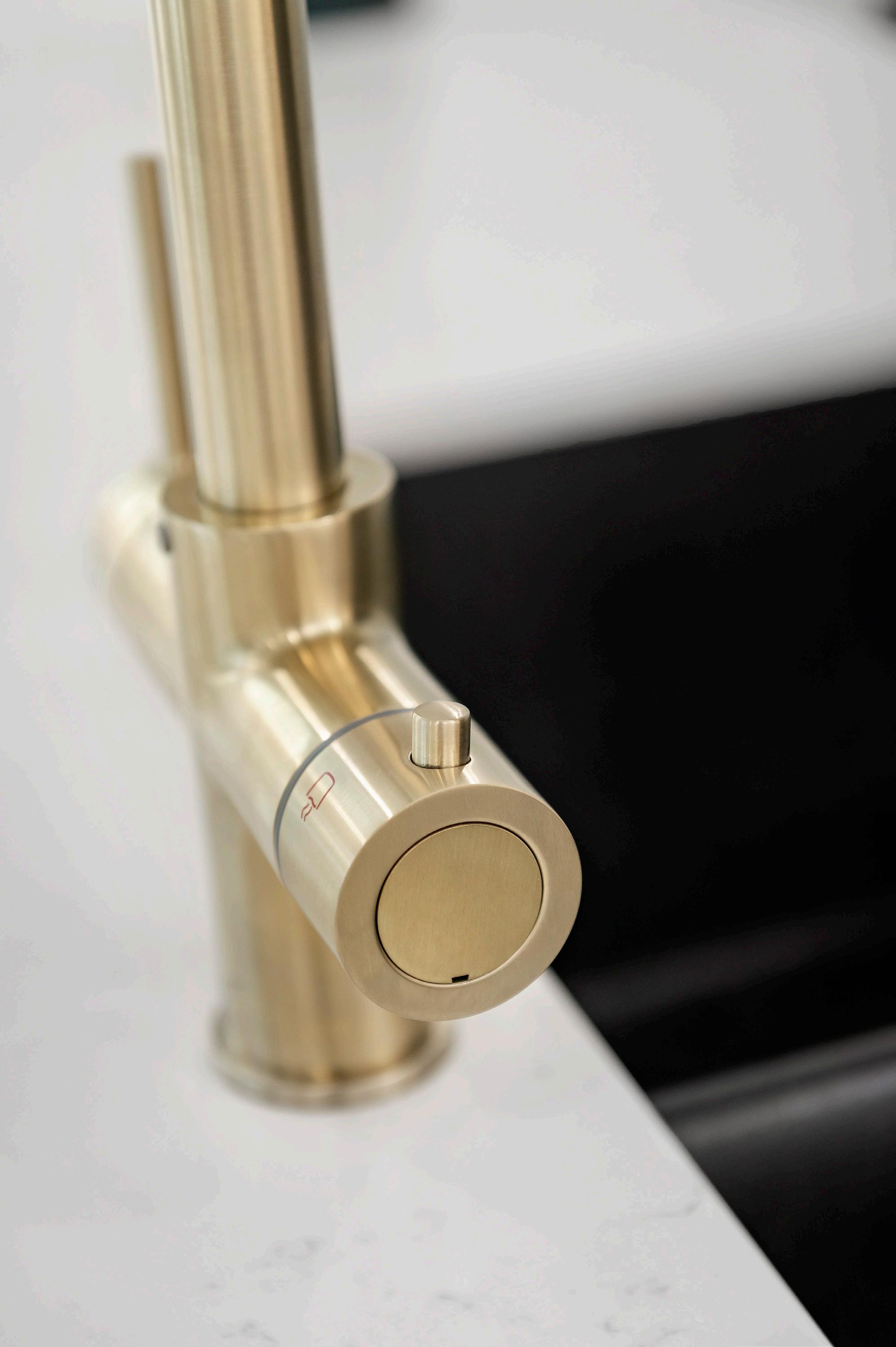

More child proof than a boiling kettle – Peppy Taps have a spring loaded handle on the boiling water handle to ensure it cannot be accidentally turned on. To activate the boiling water, the safety button must be held down and twisted and kept in place until you are finished pouring. This system ensures that boiling water isn’t left running or the handle isn’t knocked by accident.

Water pressure is also slightly lower than a traditional tap to prevent the splashing of boiling water The Anti Scald tap outlet - does not get hot when boiling water runs through the tap.

Flow restrictors for both the hot and cold mains inlets ensures incoming water pressure is kept at the right level for both the boiler & chiller.

Auto shut down is activated if the boiler is empty Vented design on the boiler prevents pressure build up in the boiler which could be a safety hazard and removes the requirement for cabinet vents.

3

OPTION

1

4 in 1 Filtered Tap Filtered Boiling Water (to 980 Celsius) Filtered Ambient Hot Mains Cold Mains

OPTION

2

4 in 1 Chilled Tap

Filtered Boiling Water (to 980 Celsius) Filtered Chilled Hot Mains Cold Mains 4

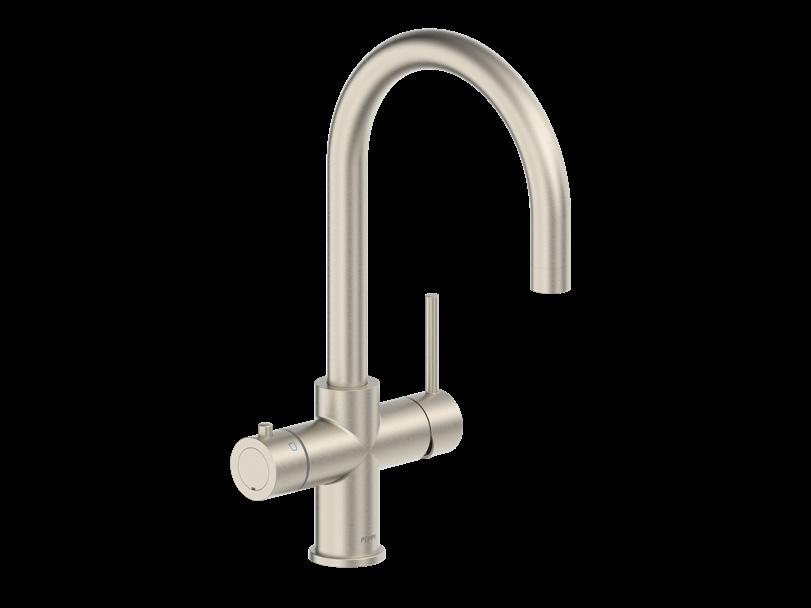

Filtered Water 4 in 1 tap The Peppy filtered water tap offers the benefit of instant hot water and filtered water ensuring the convenience of instant near boiling water with the taste and health benefits of filtered water

There is an important benefit having the filter water function operate separately from hot and cold tap water functions.

This feature does not reduce the water pressure for hot and cold water and does not increase the frequency of replacing filters by supplying filtered water when not required.

Functions 1 Filtered Boiling Water

(to 980 Celsius) 2 Filtered ambient 3 Hot Mains 4 Cold Mains

Chrome

Brushed Nickel

Matte Black

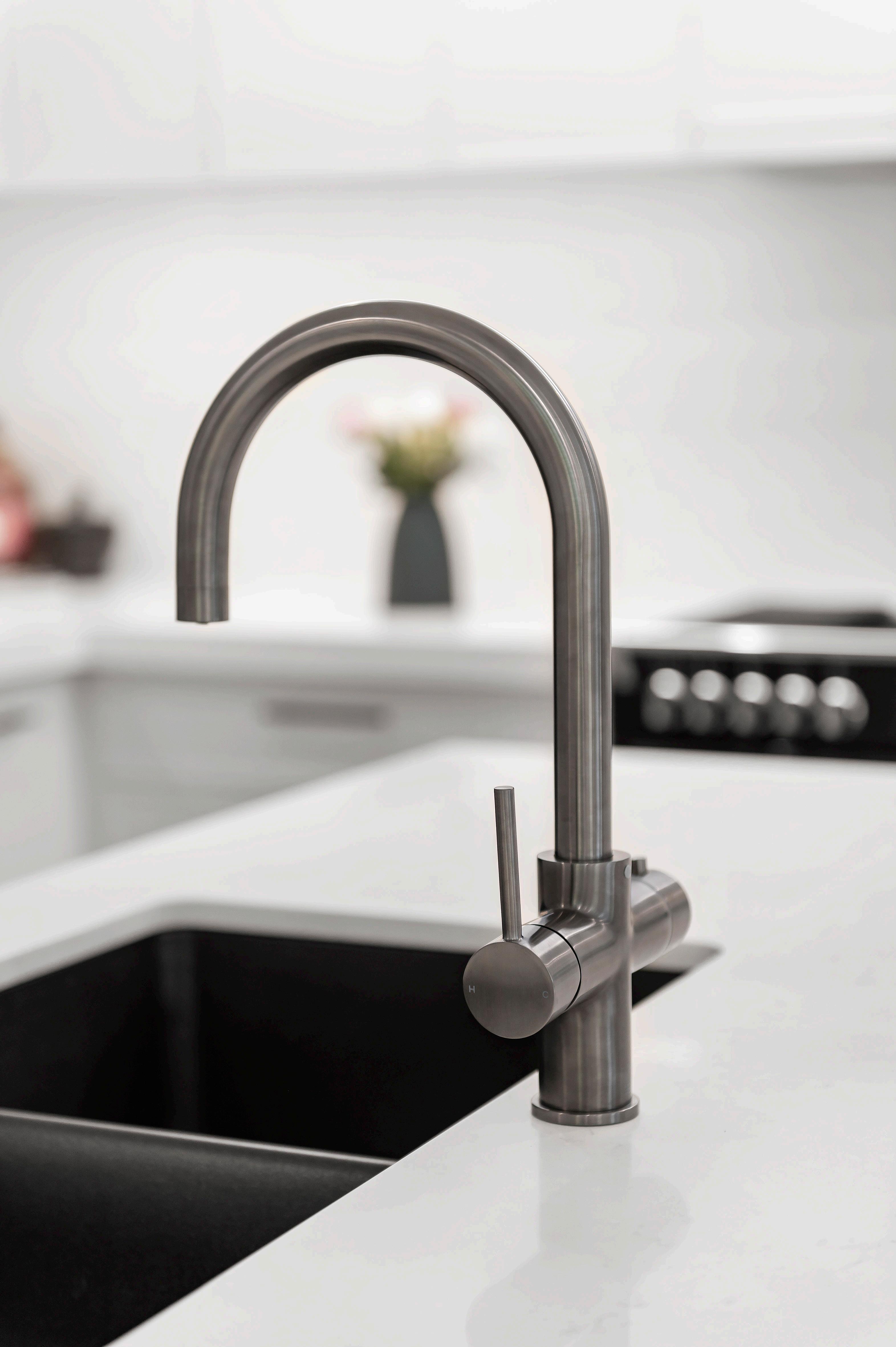

Brushed Brass Gold Gunmetal Grey

5

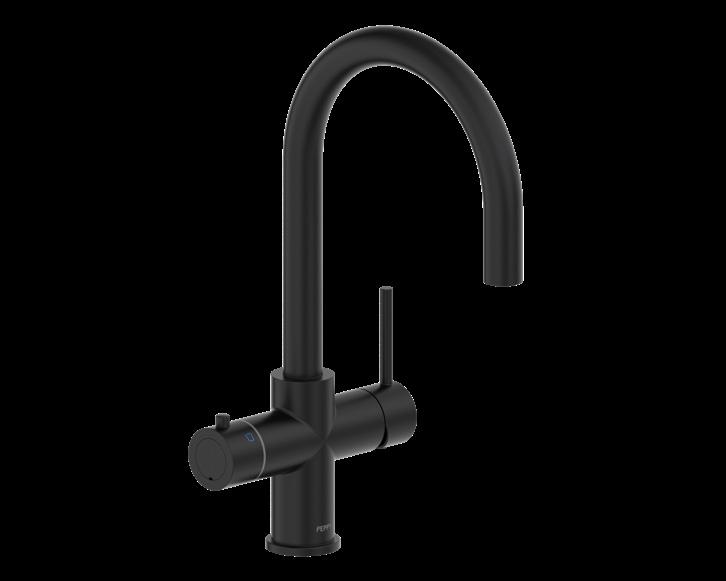

Chilled Water 4 in 1 tap The Peppy chilled water tap redefines the kitchen, offering the ultimate in functionality with instant hot water and filtered chilled water ensuring the convenience and versatility of instant near boiling water and the pure tasting and refreshing chilled water.

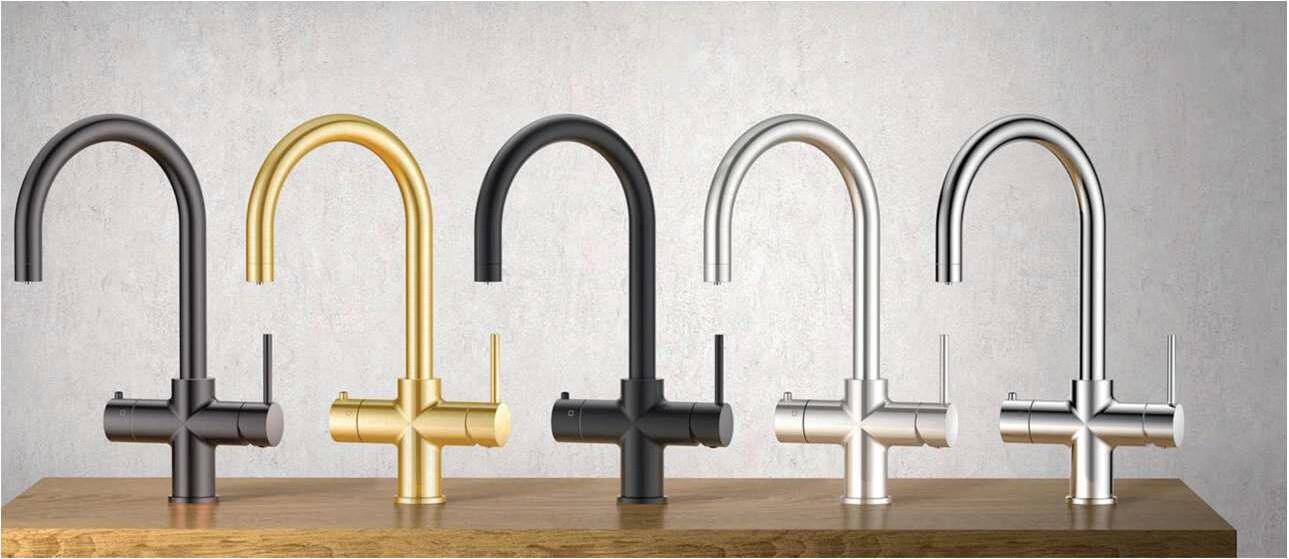

Colour Finishes

Peppy Taps offer a choice of 5 high quality colour finishes in Chrome of durable PVD finish.

This makes it easy to incorporate a Peppy Tap in the colour palette of your interior design

Functions 1 Filtered Boiling Water

(to 980 Celsius) 2 Filtered Chilled 3 Hot Mains 4 Cold Mains

Chrome

Brushed Nickel

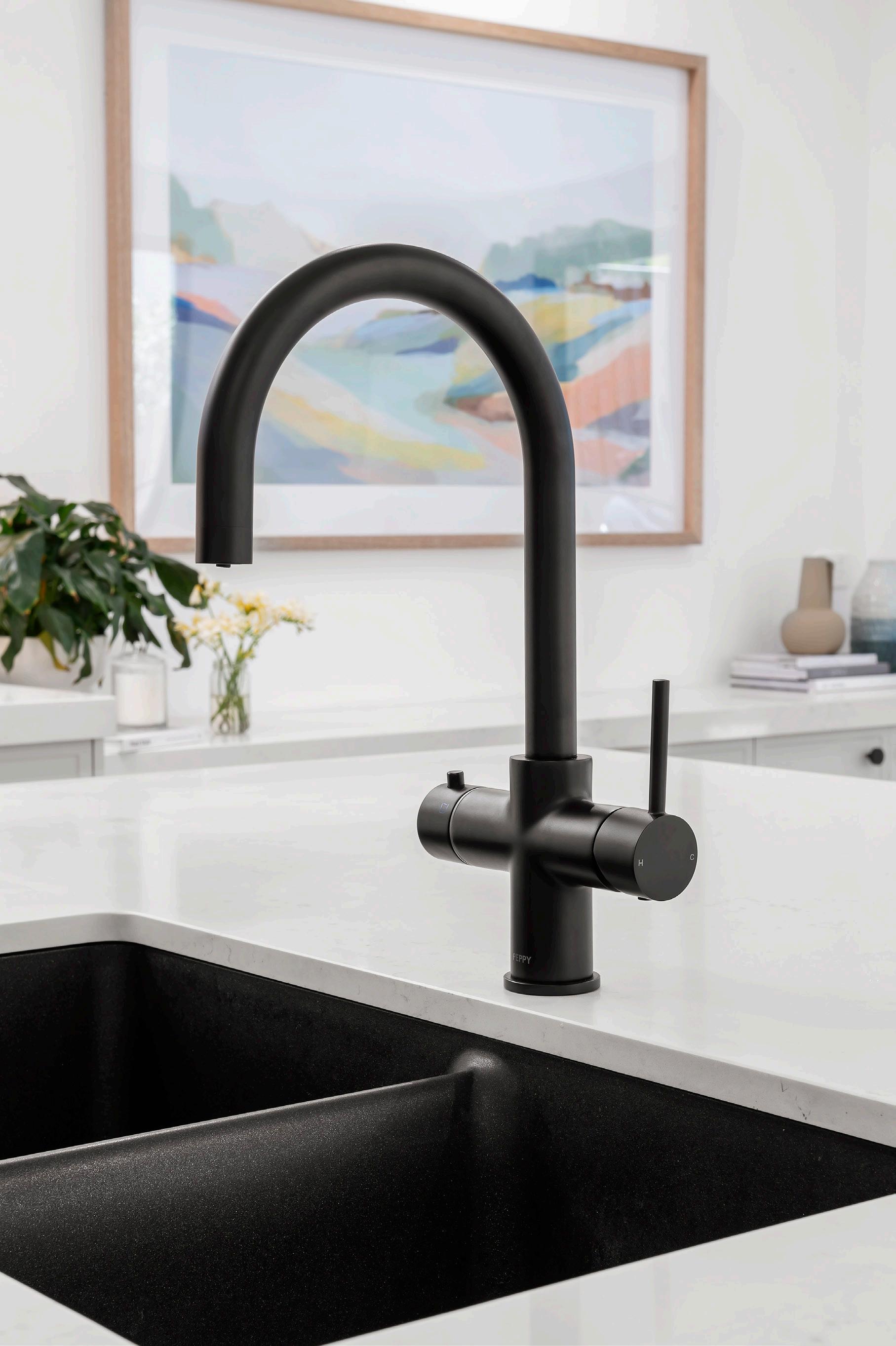

Matte Black

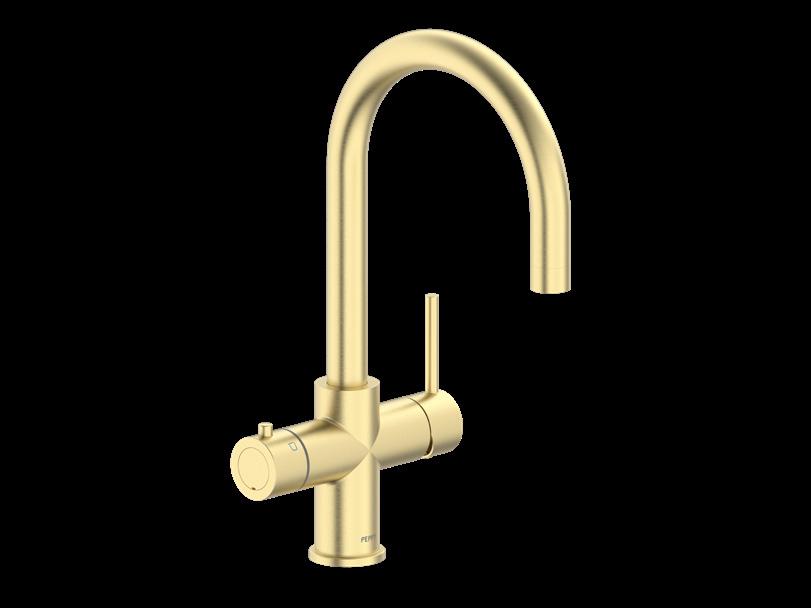

Brushed Brass Gold Gunmetal Grey

6

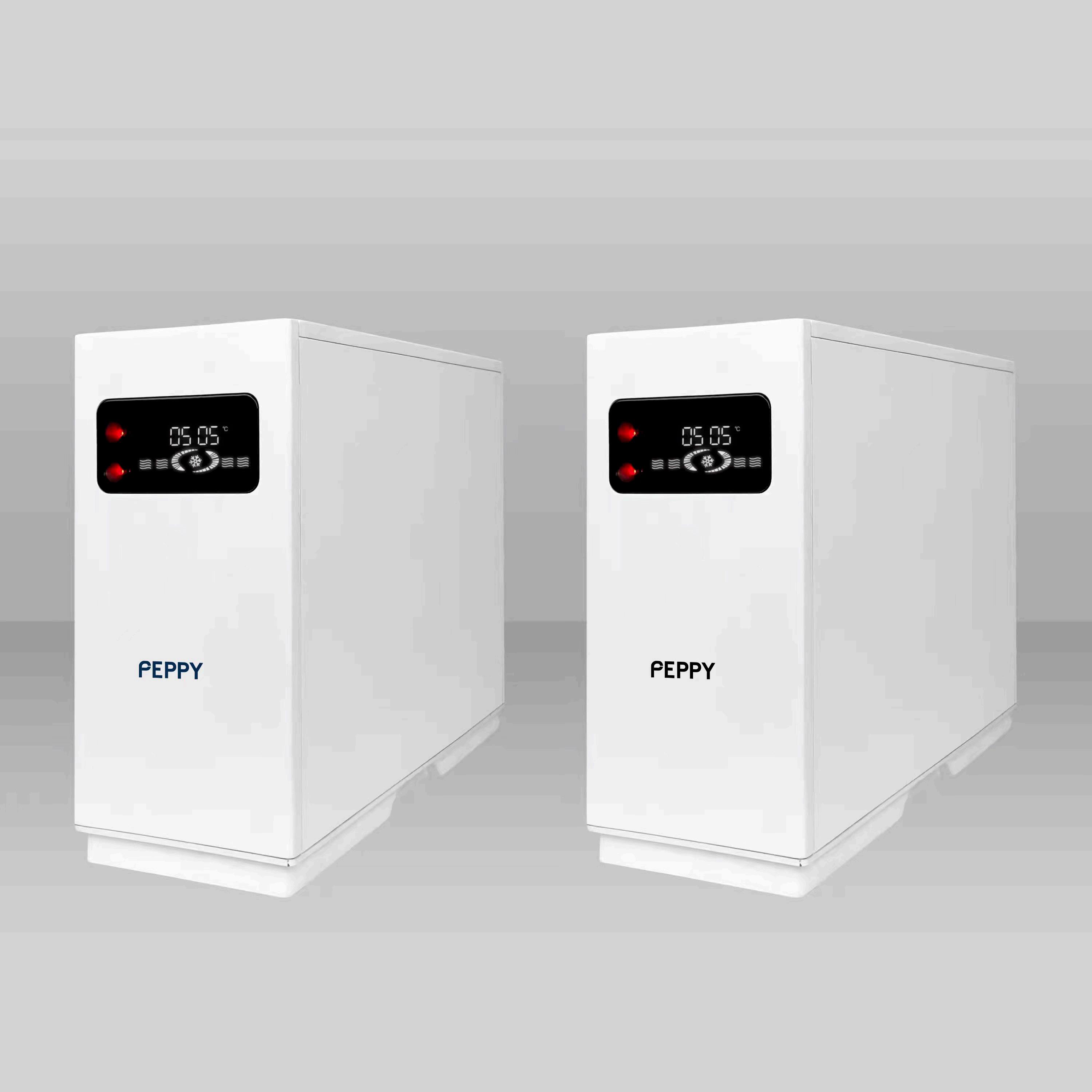

Water Chiller Preset temperatures are in 1 degree increments between 4 to 14 degrees.

Boiler Control Centre 7 preset temperature settings 75, 85, 90, 95, 96, 97 and 98 degrees celcius. Thermostat is accurate to 0.5 degrees.

2.4L stainless steel tank that can deliver 1.8L of water at specified temperature. Initial heating time is 7-8 minutes from ambient. Reheating time 2 - 3 mins.

Non pressurised system (open vent design) with safety handle.

Means no grates are needed on cabinet doors as gases vent through the outlet. RCM Certificate for electrical compliance. Digital display.

Product dimension 195mm x 175mm x 288mm.

Refrigerant R600A, non Ozone depleting.

RCM Certification Digital display.

Product dimension 356mm x 139mm x 290mm.

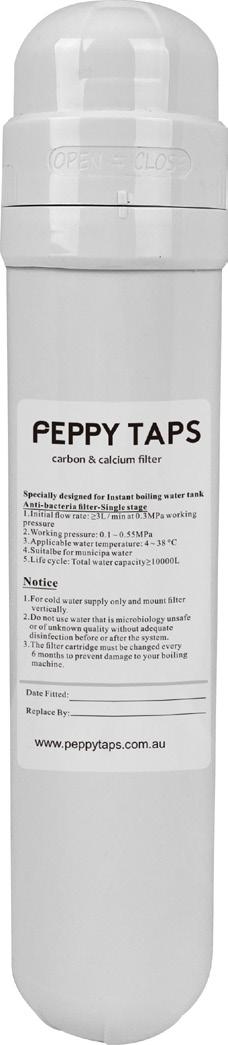

Water Filter Dual Action Calcuim Carbon Antibacterial water Filter Reduces lead Easy change over by the end customer. No need for costly servicing. Filter change over video on website.

Change after 3-6 months.

Filter life shows on boiler, with easy reset.

SGS Compliance certificate Tested to NSF standard 42 and watermark.

7

Maintenance & Servicing Minimal ongoing servicing & maintenance costs regularly change (every 3 – 6 months) the filter of your boiling water tap to help maintain the purity of the water.

Digitally displayed error codes for Boiler & Chiller make it easy to diagnose errors and the modular system makes it easy for failed parts to be easily changed over.

Certification Watermark 3718 & 4020 WELS 5 Stars, 6 litres per minute on Mains water RHF electrical compliance on appliances SGS certification for Carbon Filter

Product Warranty Tap

3 year parts & labour replacement then 2 years parts only replacement

Boiler

3 year parts & labour replacement then 2 years parts only replacement

Chiller

3 year parts & labour replacement then 2 years parts only replacement

8

Product Details

Product Codes 4 in 1 Filtered Code

Finish

4IN1BACH

Chrome

4IN1BAMB

Matte Black

4IN1BABN

Brushed Nickel

4IN1BAGMG Gunmetal Grey 4IN1BABBG

Components

4 in 1 Tap Water Boiler Filter

Brushed Brass Gold

4 in 1 Chilled Code

Finish

4IN1BCCH

Chrome

4IN1BCMB

Matte Black

4IN1BCBN

Brushed Nickel

4IN1BCGMG Gunmetal Grey 4IN1BCBBG

Components 4 in 1 Tap Water Boiler Water Chiller Filter

Brushed Brass Gold

9

NOTES

10

Australia Peppy Taps 03 9122 0716 www.peppytaps.com.au 60 Lakewood Boulevard, Carrum Downs, 3201 sales@peppytaps.com.au New Zealand Distribution by Heirloom International Ltd 0800 434 756 www.peppytaps.co.nz 3 Analie Place, East Tamaki, Auckland, 2013 sales@heirloom.co.nz

all rights reserved Copyright 2022 Peppy Taps reserves the right to change product specifications without notice. The term “Peppy Taps” is a trade mark of Peppy Taps (Aust) Pty Ltd.
