SENTINEL CARE COLLECTION

Caring For The Community

Committed to creating a safer environment for those that require it, Heirloom is very proud of their Sentinel Care and Ambulant range. It has been created to offer not only attractive care solutions, but to help create a more comfortable bathroom environment.

Care and stability products have wide application in the New Zealand bathroom and the Heirloom range of care products have been selected to meet the needs of the impaired and ambulant, as well as the elderly or young children who require added balance stability.

The Sentinel Care range demonstrates that functionality does not preclude style and offers a range of high end care products that will take their place in any modern bathroom.

Our Sentinel Care range includes New Zealand Standard compliant products in our grab rail, toilet, seat and basin ranges and many of our products are high quality decorative decor pieces. So now you can create an individual care suite in your home that will not only function as you wish, it will look good too.

We call it designer care.

Our Promise

Each Heirloom Sentinel product comes with a warranty, matched to the collection and materials used. We are proud of our products and their durability and take our warranties seriously.

Should you need further information or help, feel free to contact us via our website, heirloom.co.nz, or call free on our helpline 0800 HEIRLOOM (434 756).

Graham Rea, CEO Heirloom International Limited.

Beyond the ordinary

The Sentinel Decor range brings exquisite design to this range of high quality ambulant products to provide support with a touch of class, that will be a pleasing feature in the bathroom.

Decor Shower Rails

Mix and match, reversible

Our handsome Decor rails provide a degree of design not often seen in such grab rails. They can now be comfortably accommodated into any modern bathroom, or anywhere else in the home and give extra confidence for all. And they are reversible for ulimate installation flexibility.

With the choice of the 730 model for use beside a toilet and the 1230 in the shower with a shower head and other attachments you can beautifully coordinate your bathroom.

L Shower Rail 730 730 x 440mm GRDL730

L Shower Rail 1230 1230 x 480mm GRDL1230

Each rail is able to be reverse mounted.

Exceptional design and practicality

Our stylishly presented Decor Seat is designed to be on hand when you need to be seated to attend to the daily bathing rituals, but remain unobtrusive when not in use or remove from the bathroom to be completely out of the way.

Sentinel Decor Shower Seat ( left )

Fashionably crafted with a stainless steel support mechanism, and a polypropylene seat and back.

This Decor shower seat fits conveniently into any bathroom and complement any decor. Ready when you are they simply fold down to use.

• Removable /Fold up seat (left) SSFH370

• Fixed-to-wall /Fold up seat (right)

Decor Seat Support Rail

This sturdy polished stainless steel rail is designed to support the removable seat.

It can be used also as a grab rail, providing that extra bit of stability anywhere in the home. It matches other stainless or chrome fittings, but before installation you must be sure there is adequate structure within your wall to hold it.

Decor Grab Rail/Footrest

Our modern multi-use corner grab rail/ footrest enables you to keep your stability while accessing your feet when bathing or tending nails.

Beautifully crafted in chrome with an anti-slip surface, this is an accessory that has a place in most bathrooms. Space efficient, easy to install and easy care.

Decor Seat

SSF370

Decor

Seat Support Rail

GRDR510

Decor Footrest/Grab Rail

CAFRW

Grab rail provides safety with minimum space requirement.

Footrest provides more comfort for foot care.

Decor Grab Rails

Stability with style

The Sentinel Decor stability collection has its focus on providing attractive strong and functional grab rails without compromising style.

Decor Grab Rails

Mitred Grab Rail

462 x 65 x 70mm 25mm diameter GRM

Decor Grab Rail

345 x 62 x 25mm 30mm diameter GRDL350

Decor Grab Rail

360 x 95 x 30mm GRDR360

Also refer to Stability Rails for further options.

Decor Grab Rail

350 x 80 x 55mm 25mm diameter GRR350

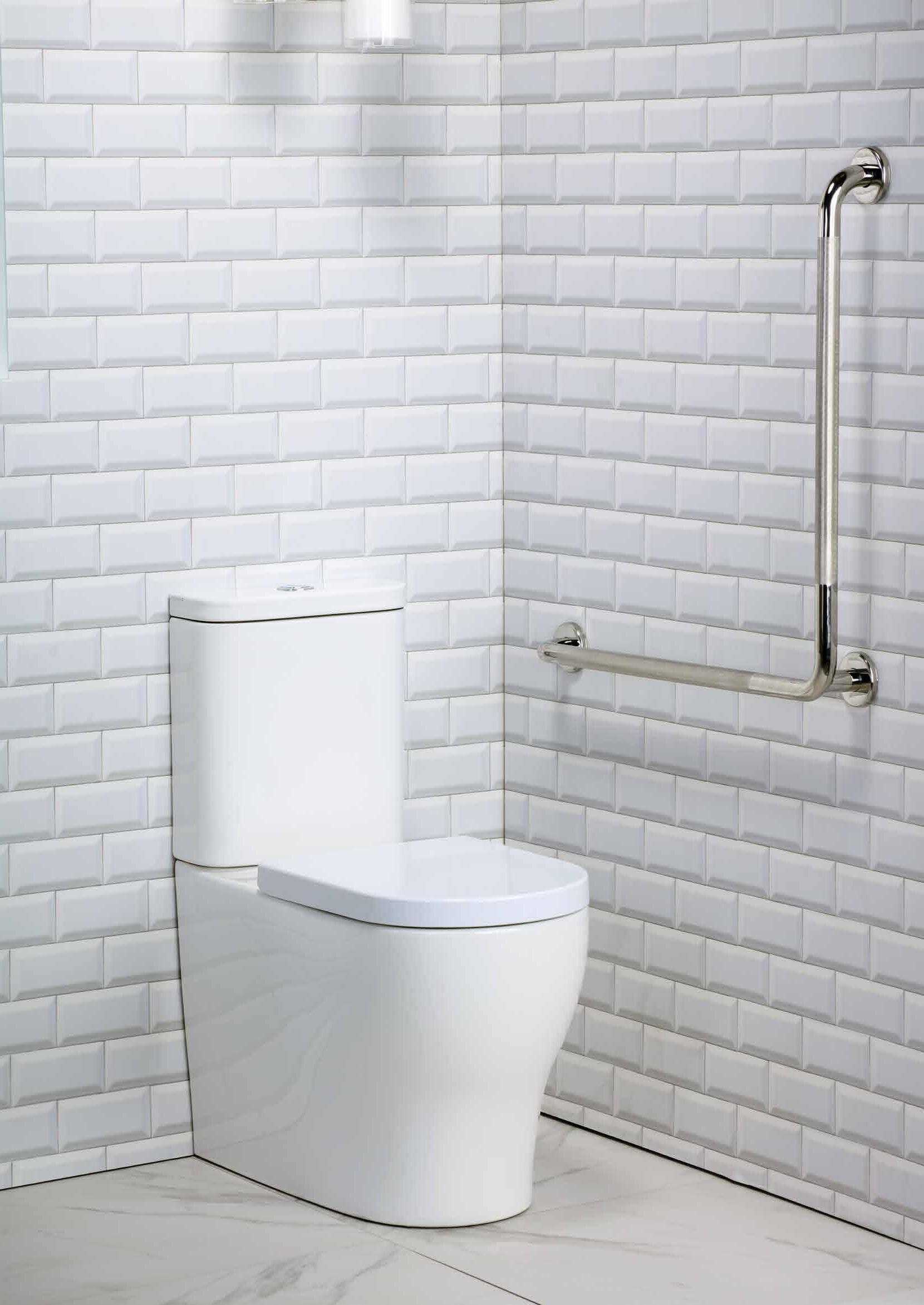

Una Care Toilet

Fusion of style and functionality

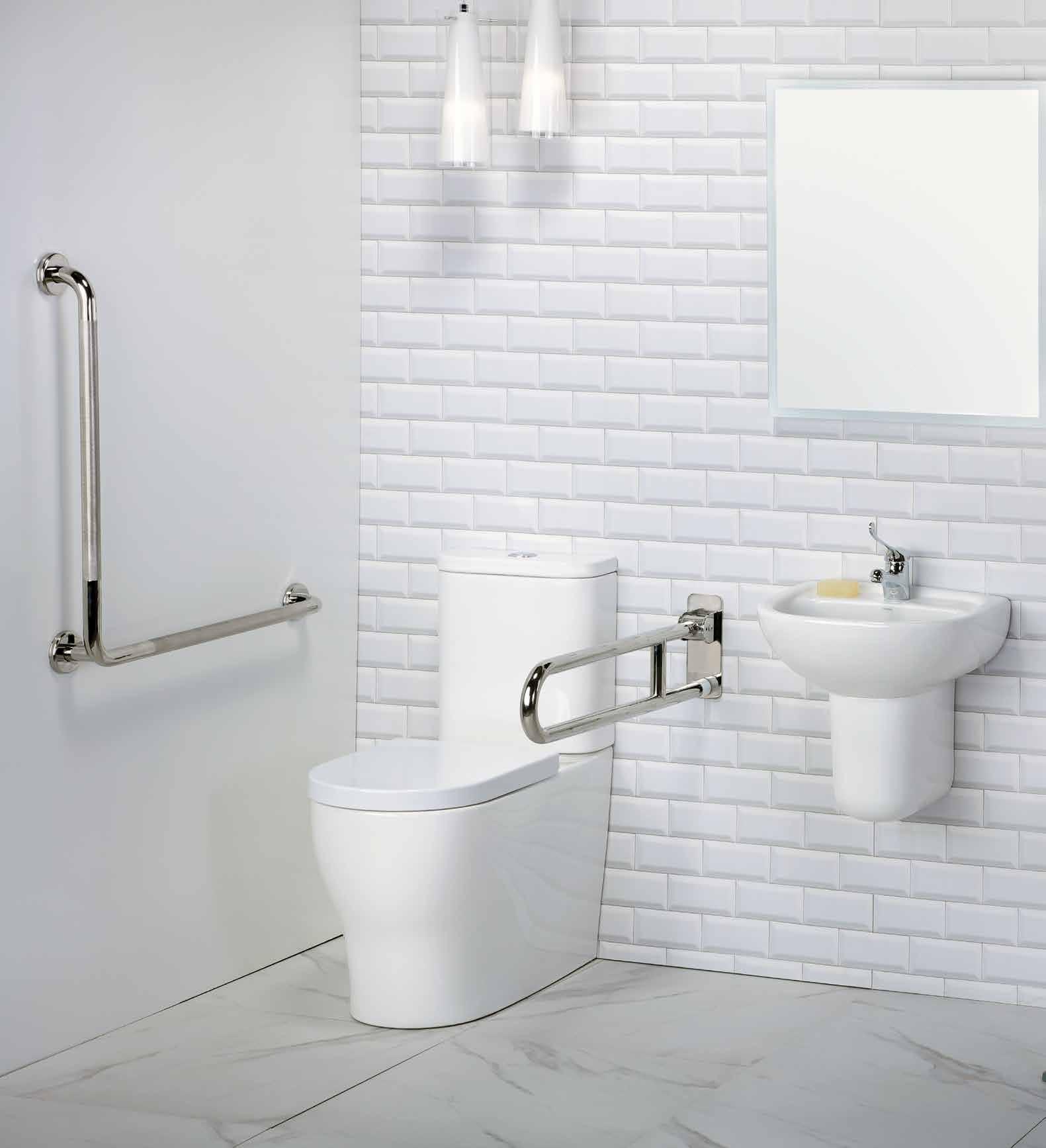

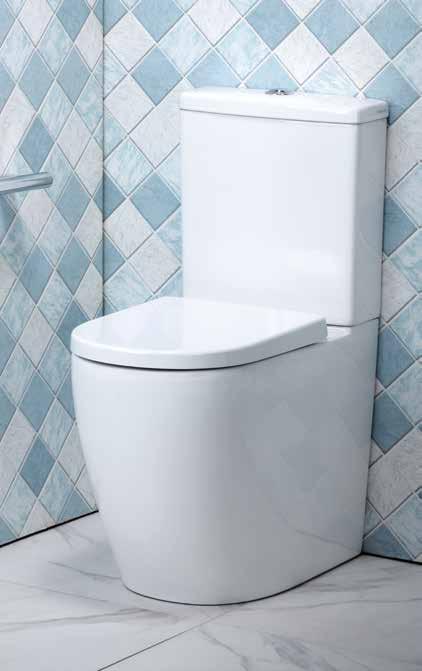

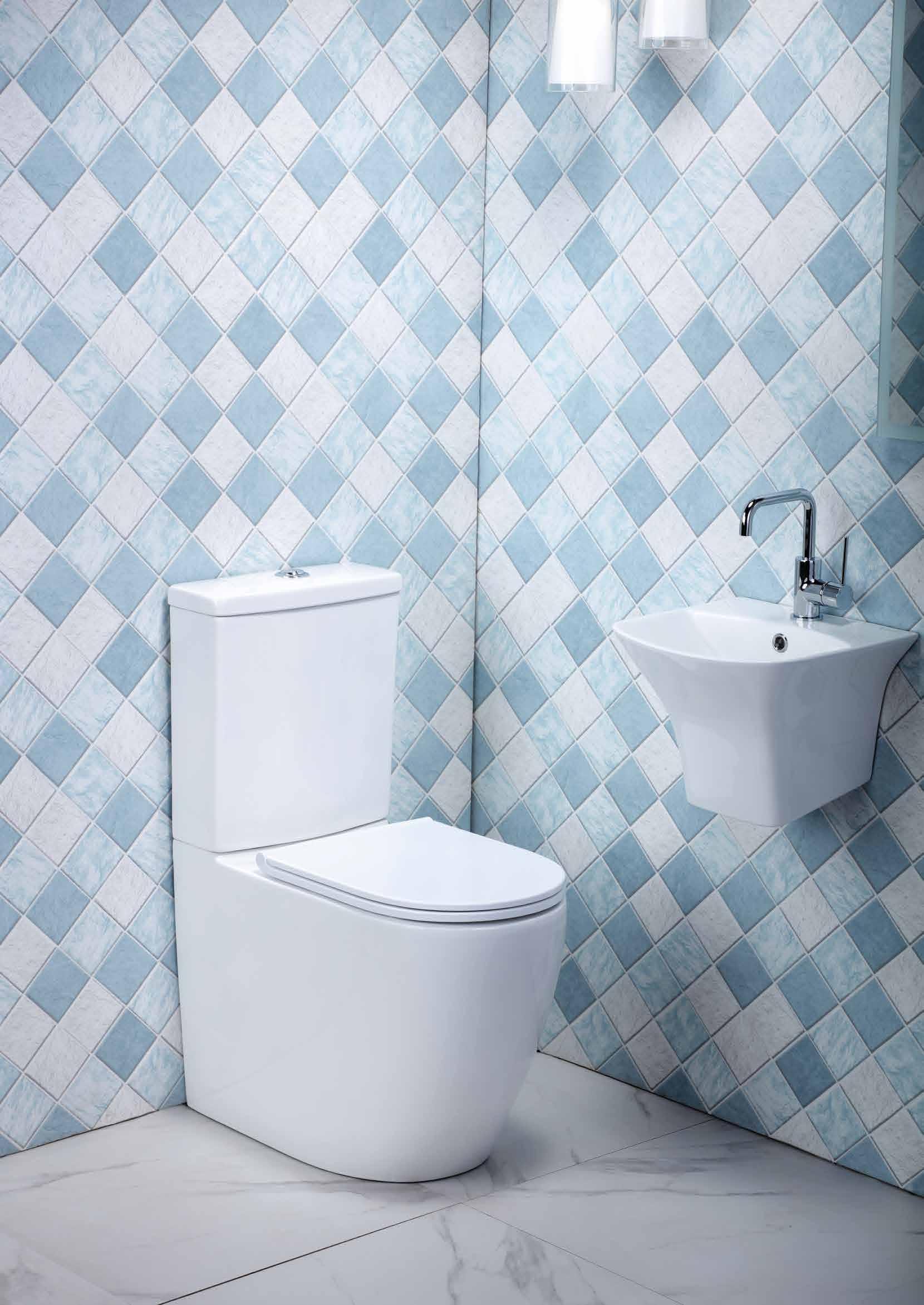

Our Sentinel Care Una wall faced suite is designed specifically for the care and ambulant market to provide easy wheelchair access. Available with care options such as a care seat or care buttons.

Its functional design is combined with streamlined wall faced styling and rimless pan.

Sentinel Care Una Wall Faced Toilet Features

Cistern

Ceramic tank for quieter flushing action

WELS 4 Star rated for water efficiency

4.5/3L dual flush

Top & bottom (left or right) inlet valve

Pan

Care height and depth pan

Smooth shrouded pan, Universal S or P style

Rimless pan with cascading flush action for effective hygienic cleaning

Standard set out 90–210mm

Extended set out 170–295mm

Seat (standard and deluxe)

Soft close, top fix, quick release and stainless steel hinges

Sentinel Care Toilet Back Rest

Comfort stop

Standards compliant back rest to partner with the Sentinel Care Suite. Able to be detached from wall mounting pillar for temporary removal of the back rest.

Code GRTRBR175

Sentinel Care Flush Button

Raised button with braille identifiers for easy access.

Code 391000FBC

Product Code Toilets

Standard

S pan 120–230 374125S

S pan 190–330 374125SE

P pan 374125P

Product Code Care Toilets Seats

Care Seat (White) 1 Care Seat (Grey) 1

S Pan 120–230 374125CS 374124CGS

S Pan 190–330 374125CSE 374124CGSE

P Pan 374125CP 374124CGP

Heiko Comfort Toilet

Stylish Comfort.

This very stylish, contemporary suite, is ideal for those who have reduced knee flexibility so prefer a higher seat. At 485mm the Heiko offers greater comfort, while still displaying stunning design.

Heiko Deluxe

Heiko Comfort Wall Faced Toilet Features

Cistern

Ceramic tank for quieter flushing action

WELS 4 Star rated for water efficiency

4.5/3L dual flush

R&T/WDI universal inlet valve (top inlet or bottom left/right)

R&T/WDI outlet valve

Pan

Comfort height

Box rim directed flush for effective flush action and effective hygienic cleaning

Standard set out 60–150mm

Extended set out 150–240mm

Seat

Soft close seat, top fix, stainless steel quick release fixings

Product Code Toilets

S Pan 60–150mm Universal Inlet 374120S

S Pan 150–240mm Universal Inlet 374120SE

P Pan Universal Inlet 374120P

Product Code Seats Standard Deluxe

S Pan 60–150 374120S 374120DS

S Pan 150–240 374120SE 374120DSE

P Pan 374120P 374120DP

Heiko Standard. With black trim which is an optional extra.

Small but perfectly formed.

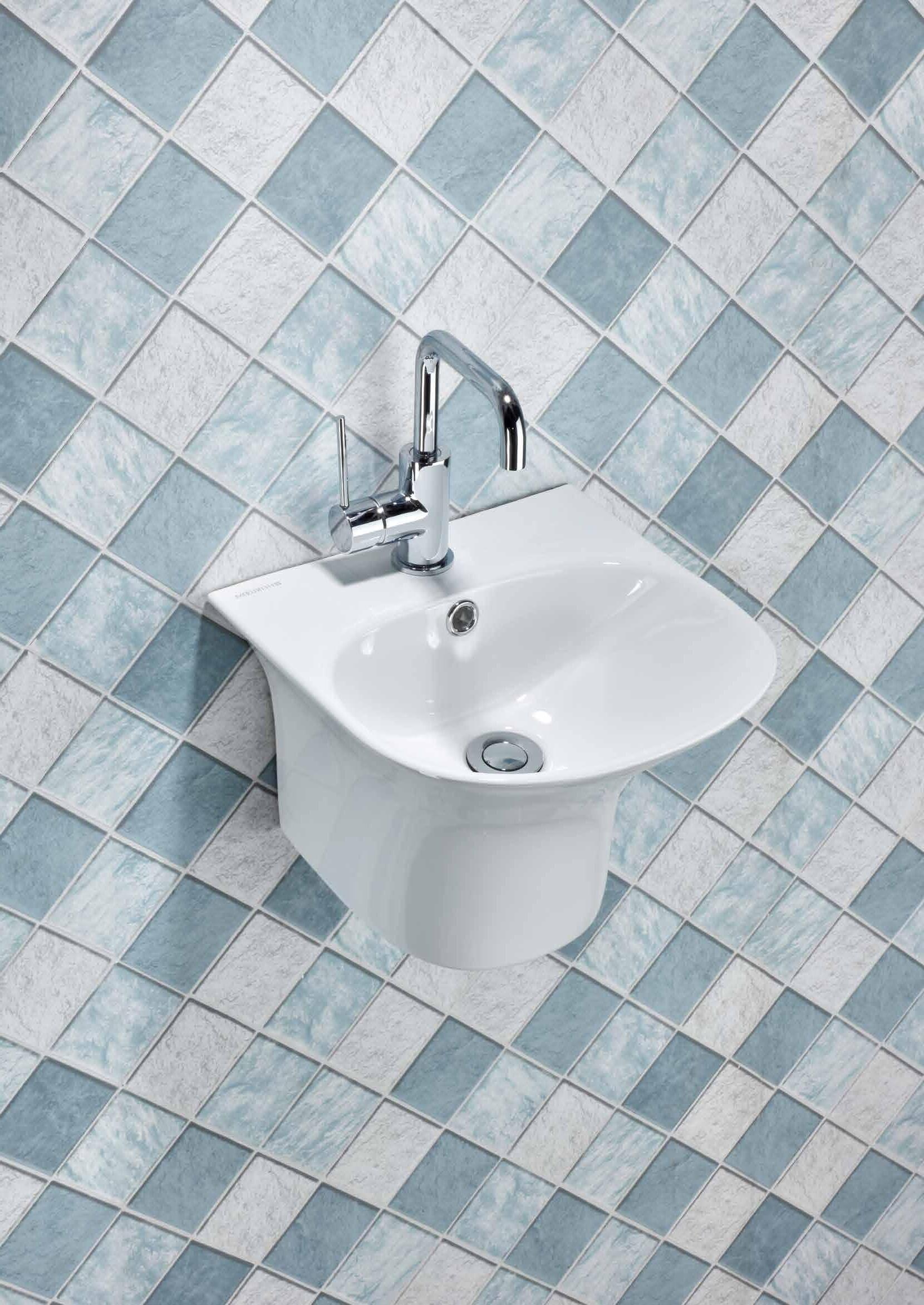

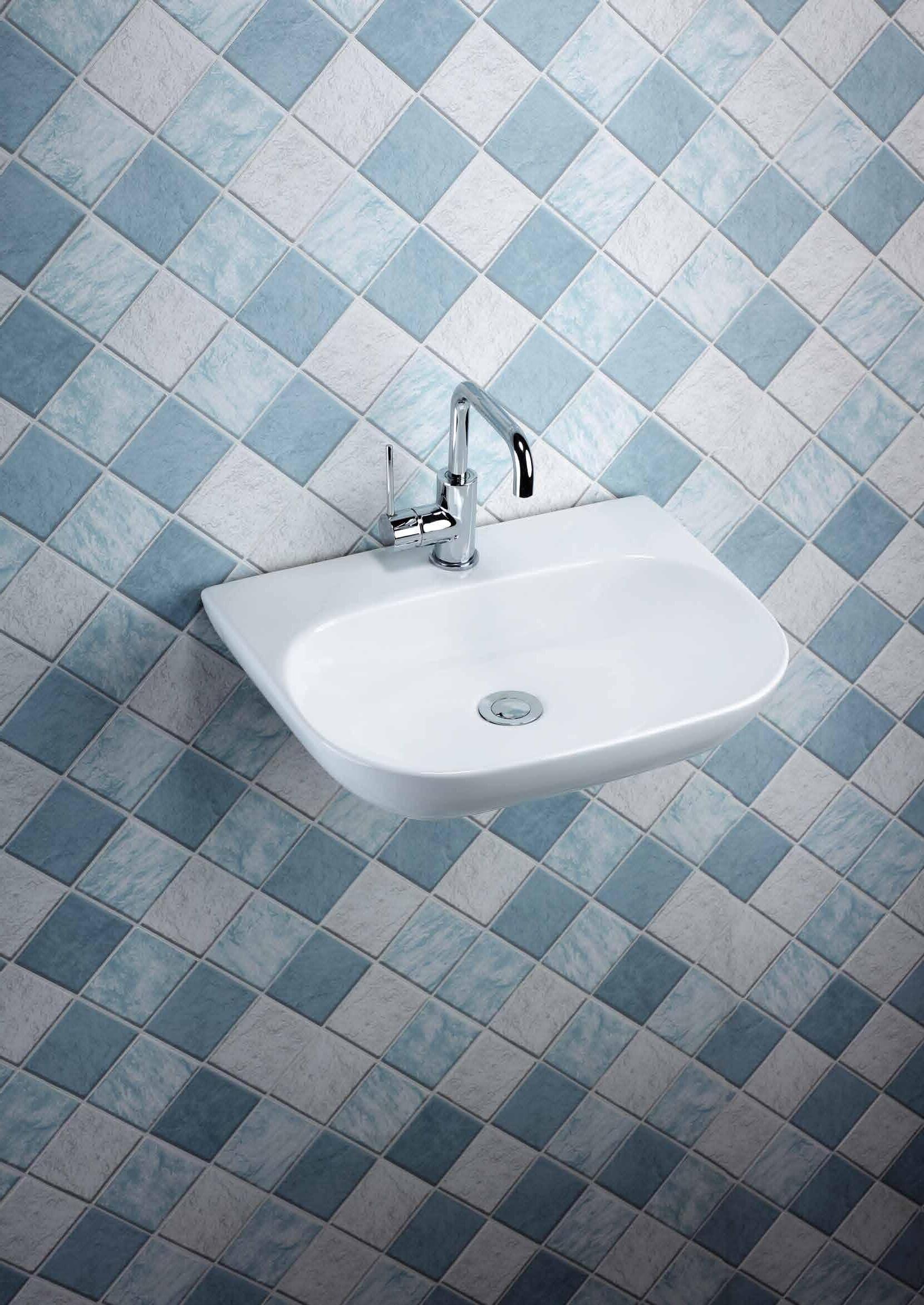

These wall mounted stylish basins are elegantly formed to provide a beautiful design statement while the intergrated shroud allows for wheelchair access.

Sentinel Care Basins

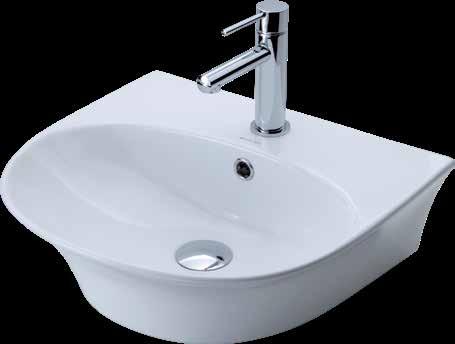

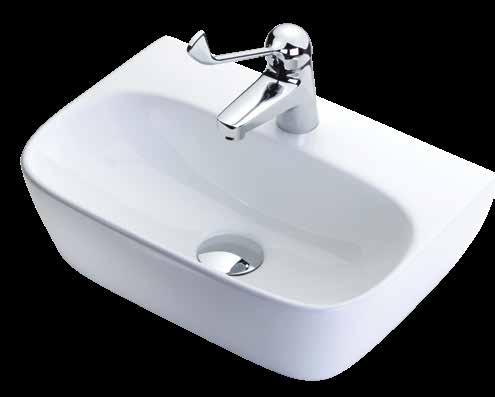

Loft Mini Basin

This single style basin, is designed with a nicely rounded soft look.

• One centre tap hole (tap not included)

• Basin overflow

• Waste included

• Wall mount bolts included

• 355 x 350mm

Code 361110

Sentinel Care Basins

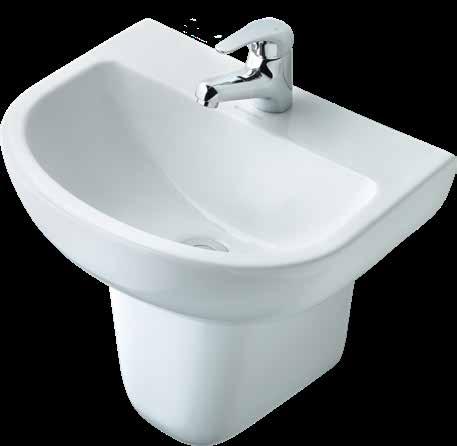

Sentinel Care Basin

Designed to partner the Sentinel Care toilet suite.

• One centre tap hole (tap not included)

• Basin overflow

• Waste included

• Wall mount bolts included

• 450 x 400mm

Code 362145

Veloso Mini Basin

A versatile modern basin with clean straight lines.

• One centre tap hole (tap not included)

• Basin overflow

• Waste included

• Wall mount bolts included

• 450 x 360mm

Code 361112

Annex Mini Basin

With elegant curves and timeless style, Annex is a versatile basin. It partners beautifully with the Sentinel toilet to create a very modern overall look.

• One centre tap hole (tap not included)

• Basin overflow

• Waste included

• Wall mount bolts included

• 355 x 355mm

Code 361200

Small but perfectly formed.

These wall mounted stylish basins are elegantly formed to provide a beautiful design statement while the intergrated shroud allows for wheelchair access.

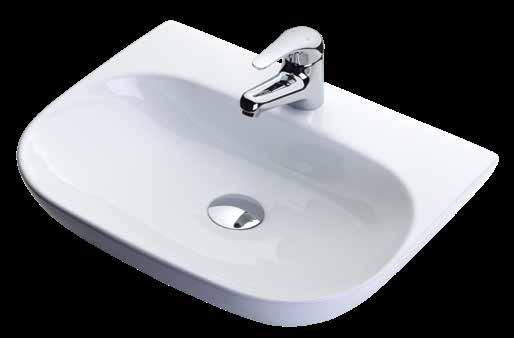

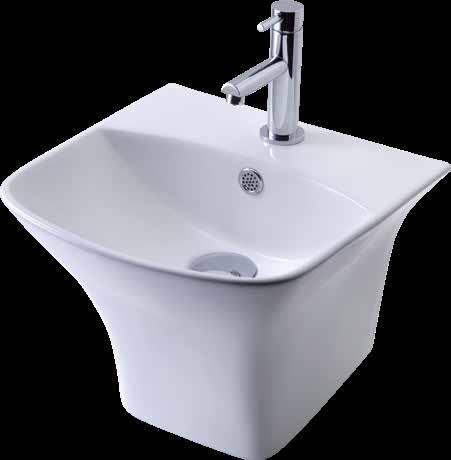

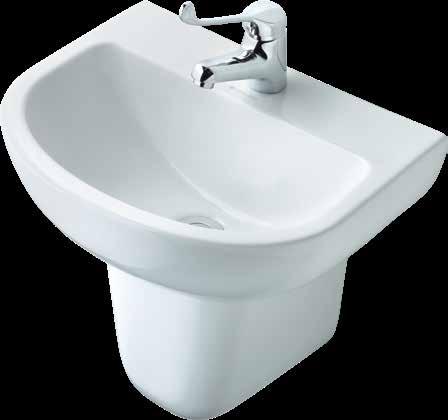

Sentinel Una Care Basin

Sentinel Una Wall Basin and Shroud

This single style basin, has a nicely rounded soft look to suit any decor. The shroud neatly covers the taps water supply and waste outlets, enabling easy access should that ever be required.

• One centre tap hole (tap not included)

• Waste not included

• Wall mount bolts included

• 450x 360mm

Basin code 362146

Shroud code 362146S

Tap Options

Pop up Waste (not included)

Pop up waste Chrome

BWPUWC

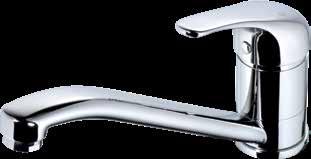

Compact mixer Swivel spout Chrome on brass T209KM

Everyday basin mixer Chrome on brass T101BM

Care handle basin mixer Chrome on brass TC101BM

Basins

Sentinel Decor

Small but perfectly formed. These wall mounted stylish basins are elegantly formed to provide a beautiful design statement while the intergrated shroud allows for wheelchair access.

Sentinel Decor Basins

Sentinesor Basin

This streamlined wall basin is elegantly styled and practical.

• Centre tap hole (tap not included)

• Waste included

• Wall mount bolts included

• 495 x 370mm

Decor code 362148

Sentinel Decor Compact Basin

This compact version of the Decor basin is also streamlined, elegantly styled and practical, with the added advantage of being able to fit a more cofined space.

• Centre tap hole (tap not included)

• Waste included

• Wall mount bolts included

Compact 430 x 295

Decor Compact code 362147

Tap Options

Compact mixer Swivel spout Chrome on brass T209KM

Everyday basin mixer Chrome on brass T101BM

Care handle basin mixer Chrome on brass TC101BM Bottle trap Chrome TBTC

Heiko

Modern elegance.

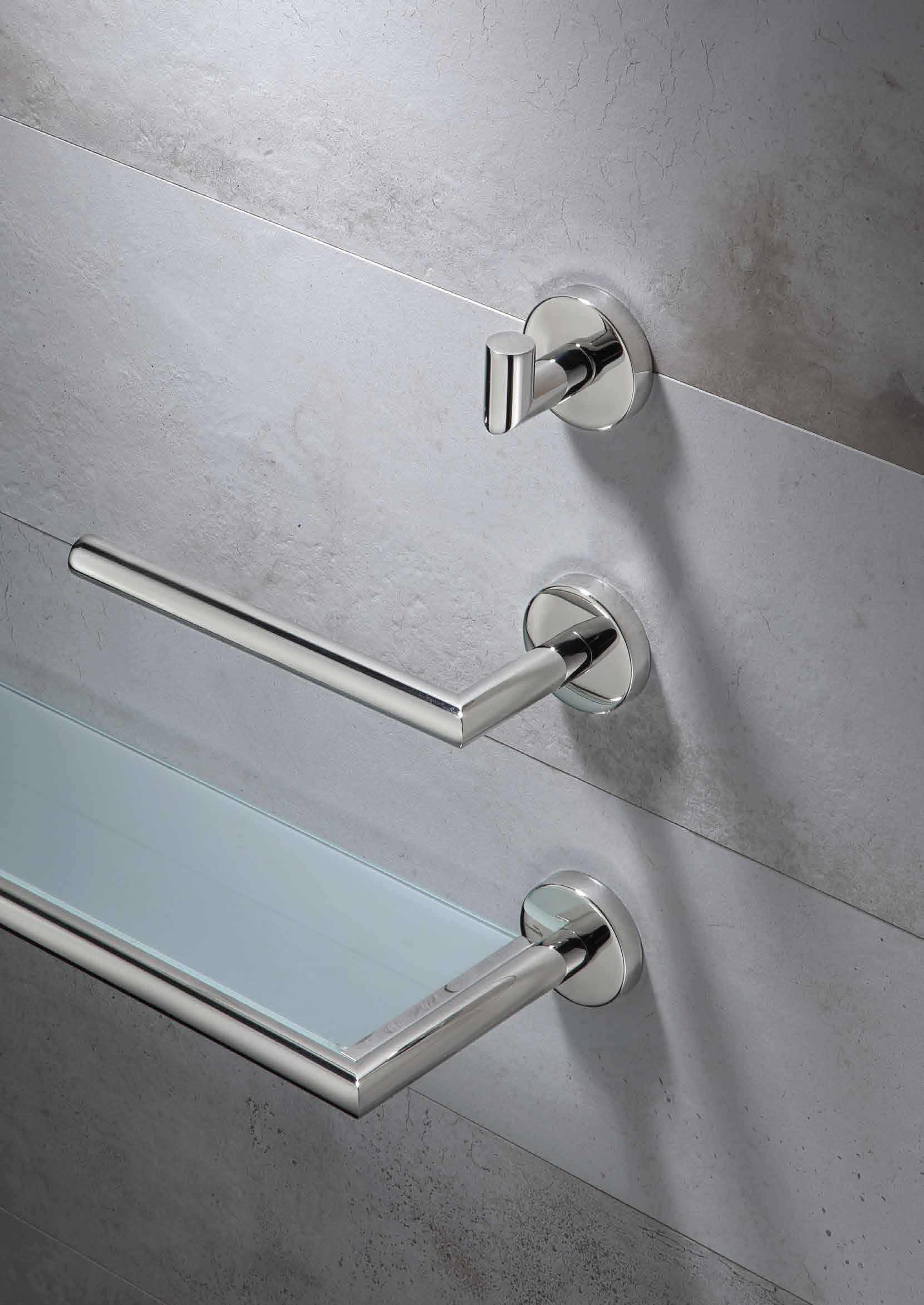

Crafted from stainless steel for easy care and durability, the modern forms of the Heiko Collection provide an elegant finishing touch to any modern bathroom. Its robust mounting design also makes it popular in more demanding environments.

Made from 304 grade Stainless Steel the Heiko collection is easy care and offers long life supported with a 10 year warranty.

Towel Stirrup HTRS

Towel Stirrup HTRSF

Toilet Roll Holder HTRN

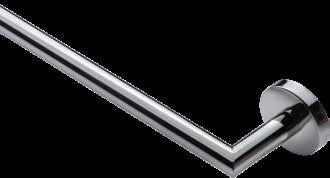

Towel Rail Available in 500mm and 700mm lengths HTR500 / HTR700

Glass

Spare Toilet Roll Holder HTRNS

Cento

*Nylon line: 12 month warranty

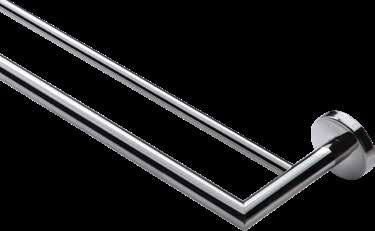

Double Towel Rail HDTR700

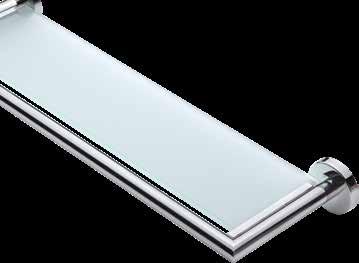

Shelf HGS

Heiko Clothes Line* (Square) HCLS

Heiko Clothes Line* (Round) HCLR

Robe Hook HRH

Towel Rack HTRACK

Toilet Roll Holder Shelf YCTRNS

Sentinel Seats

Practical seating options

The Sentinel range of seats offers a variety of seating options for the shower or other areas of the home.

The range has options for not only the physically impaired but anyone that seeks extra support in the bathroom.

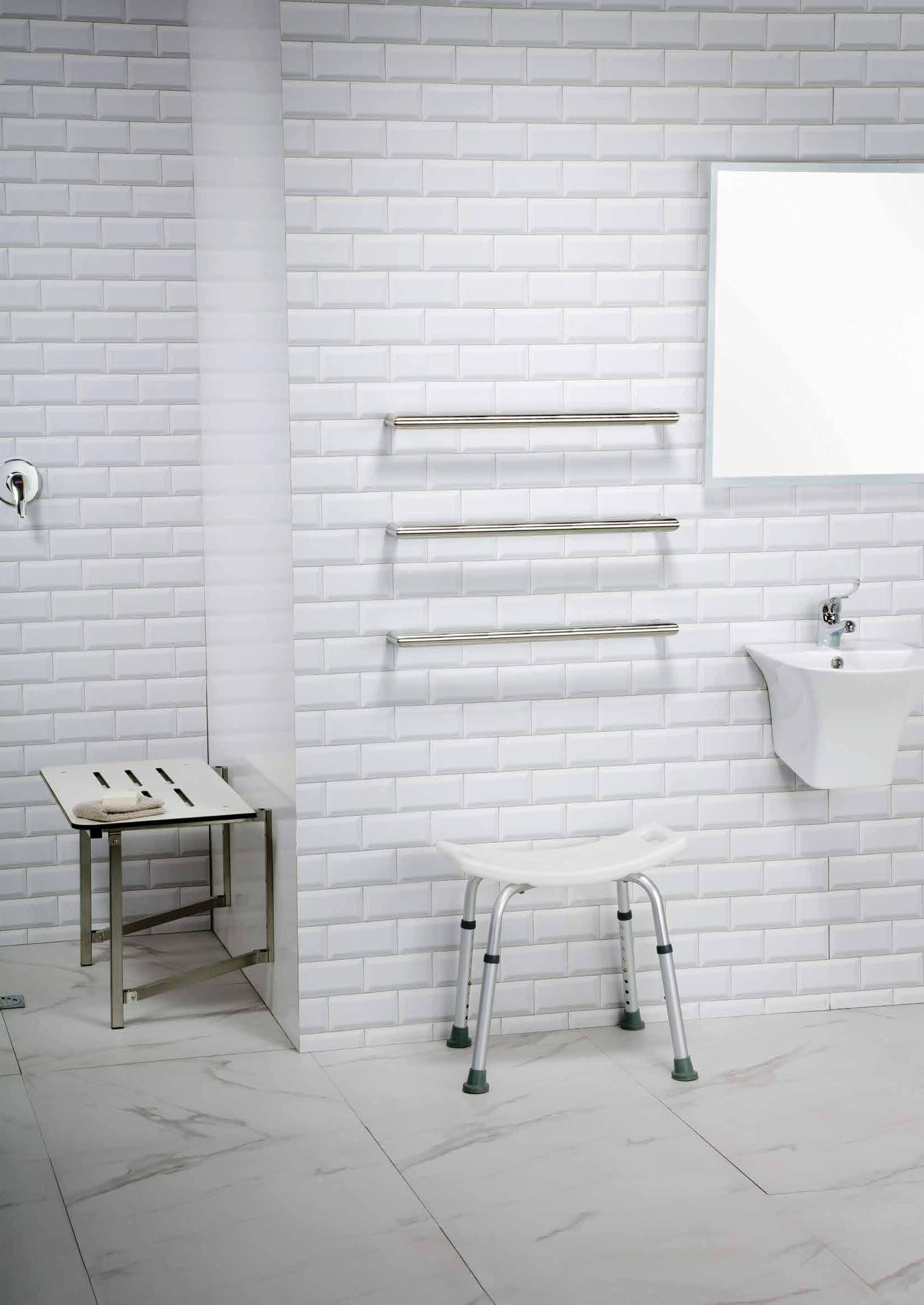

Sentinel Care Shower Seats

Our Care range of modern and stylish seats allow comfort and security.

Compact Wall-mounted Seat

Dimensions 360 x 360mm

Tested to 350kg

SSF360

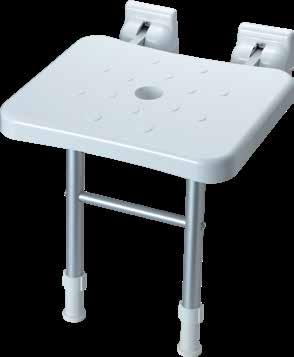

Compact Wall-mounted Seat with legs

Dimensions 360 x 360mm

Tested to 350kg

SSFL360

Sentinel Care Shower

Seats have a 7 year warranty

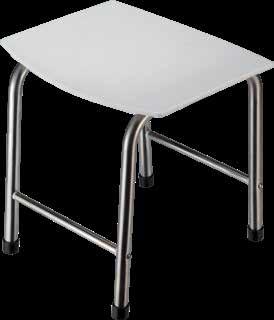

Care Stool

Dimensions:

Seat 420 x 350mm

Height 460mm

Legs 400 x 375mm

SSTOOL

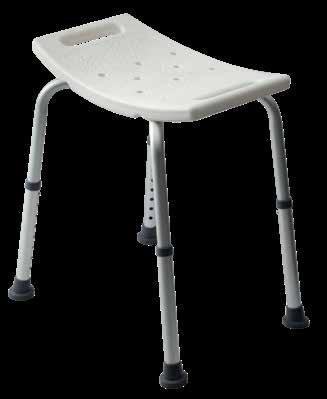

Adjustable Shower

Stool

White Nylon Seat

Adjustable Legs

Seat height extends from 350 to 530mm

Tested to 200kg

SSADJ

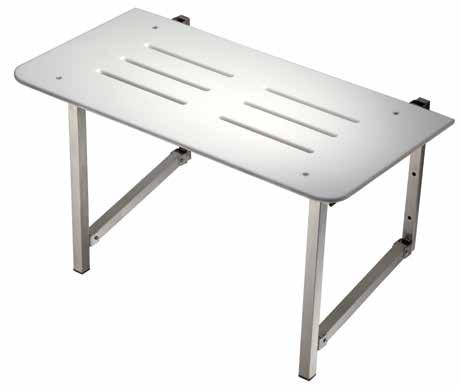

Folding Wall-mounted Seat

#304 Stainless Steel

Tested to 350kg

Unfolded dimensions: 477(h) x 800(w) x 450(d)mm

SSF800

Sentinel Grab Rails

Caring about the community

Heirloom’s Care compliant Sentinel range creates support right where it’s needed, with a range of attractive bathroom rails to suit every application.

From those who are wheelchair bound or those who may need some stability support, to children who like some help to steady in the bathroom, we have products to make life more comfortable for everyone.

Sentinel Grab Rails

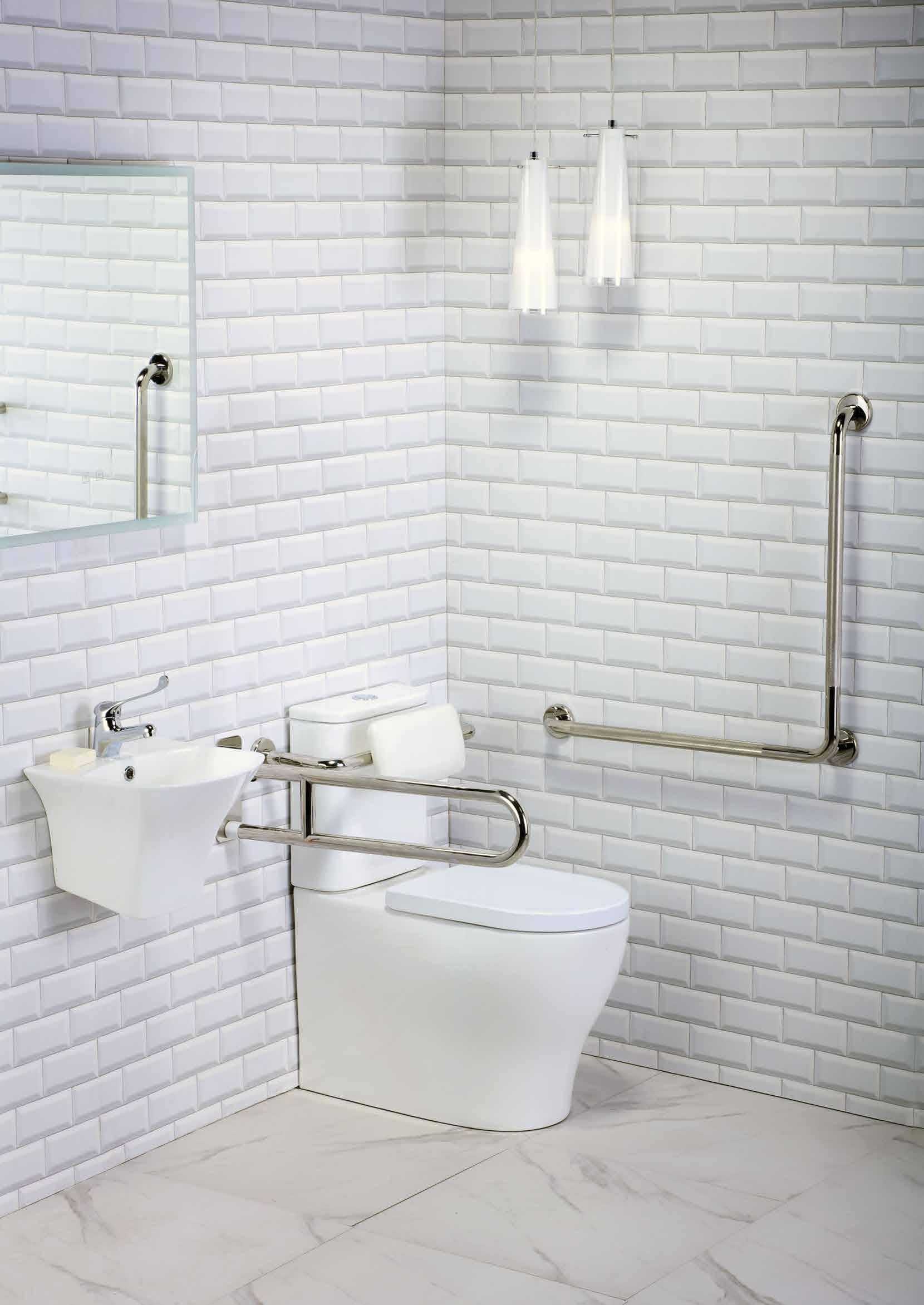

Sentinel Grab Rails, designed with style, size and finish to suit anyone who may need a little extra support.

Straight wall-fixed rails can be fitted in either a vertical or horizontal position or at an incline. You must ensure that you use the correct type of fixing for the wall material and that material must be capable of supporting the load that will be placed on the grab rail.

Secure, comfortable grip finishes

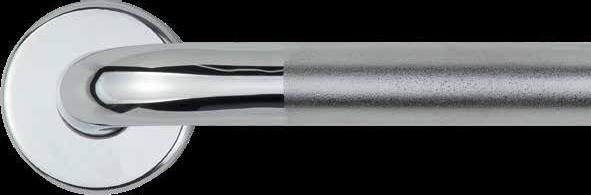

Heirloom grab rails come in three comfortable grip finishes. Simply choose, or be guided by your health care advisor for the grip you think the most appropriate for your application.

Stainless Steel Grab Rails

• For support, safety and peace of mind

• High quality #304 stainless steel

• Slip resistant finishes – Knurled, Peened and Powder Coated White

• Easy clean, easy care

• Concealed fittings

• 32mm diameter

Stainless Steel

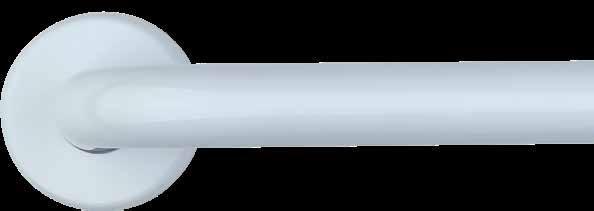

Powder Coated

Knurled

Peened

NZ Standard Compliant Solutions

Not only do our Shower grab rails look good they are a very sensible shower option. Combine Sentinel grab rails with a shower handset for NZ Standard compliant solutions.

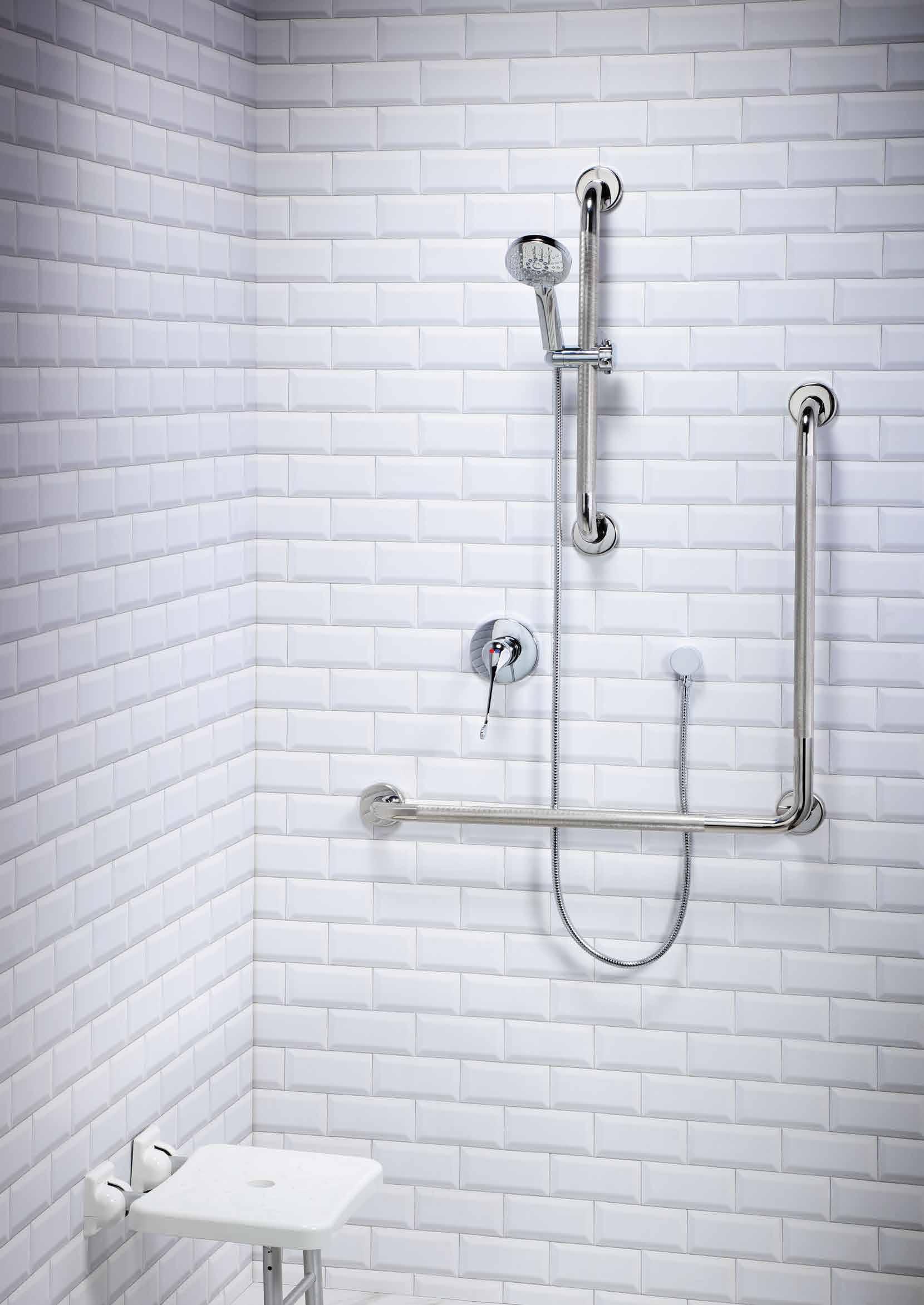

Easi Grab Rail Shower Kit

Available

The set comprises a 600mm grab rail a shower mixer, a hand shower and holder, plus the Sentinel 750 x 750 grab rail.

101 Series Shower Mixer Chrome on brass

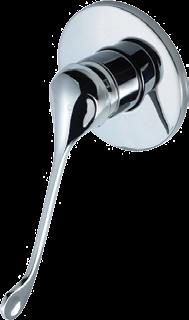

101 Series Care Shower Mixer Chrome on brass

101 Series Shower Hand Set

Easi Shower Kit

Designed to a T

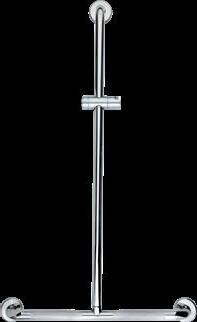

Our T-bar Easy Shower grab rails are a great idea! Designed to be not only a support rail, but to also hold a shower head and accessories.

Easi Shower Kit

Available separately or as a complete shower kit.

Series

SHOWER & FLEXI HOSE

SHOWER HEAD HOLDER GRAB RAILS & SHOWER MIXER GRAB RAILS

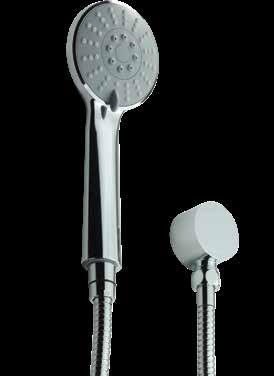

101 Series Shower Hand Set

steel flexi hose

The set comprises a shower grab rail (various size options), a hand shower and holder, plus shower mixer.

Easi Grip Mixers & Taps

Get a grip

Duality and functional range of Easi Grip shower mixers and taps to partner with the Sentinel range of hand showers to complete the bathroom.

Easi Grip Mixers and Taps

Our functional range of Easi Grip shower mixers and taps are designed to fit into any bathroom. Their classic style is easy to operate and maintain.

3 functions

Stainless

3 functions

Stainless

3 functions

Stainless

Shower mixer Chrome on brass T101SM

Diverter mixer Chrome on brass T101SD

Basin mixer Chrome on brass T101BM

Kitchen mixer Chrome on brass T101KM

Shower Hand Set

steel flexi hose Brass elbow T209HS

Care basin mixer Chrome on brass TC101BM

Care basin mixer Chrome on brass TC102BM

101 Series Care Shower Mixer Chrome on brass TC101SM

101 Series Shower Hand Set

steel flexi hose Brass elbow T101HS

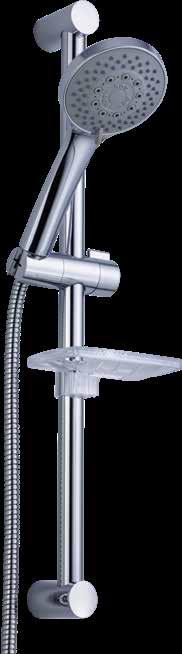

101 Series Slide Shower

steel flexi hose Soap Holder Brass elbow T101SS

Sentinel Easi Shower Accessories

Designed with convenience in mind

Designed for Easi Shower rails or any 32mm grab rail. Manufactured from chrome on sturdy plastic or chrome on brass. They can be installed retrospectively to avoid removing the grab rail. How convenient!

Chrome on brass

Chrome on plastic

Shower Head Holder

Chrome on brass

W100 x H45 x D70mm

GASHB

Shower Head Holder

Chrome Plastic

W110 x H60 x D60mm

GASHA

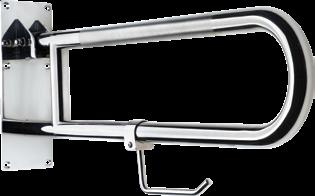

Toilet Roll Holder

Stainless steel (For 32mm grab rail)

GATRN

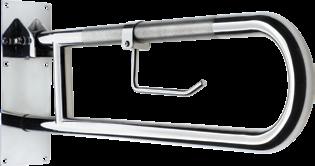

Installation suggestions for the toilet roll holder onto the GRL Lift Up Grab Rail

Soap Dish

Chrome on brass

W128 x H28 x D148mm

GASBB

Plastic Soap Dish

W185 x H60 x D82mm

GASBA

Sentinel Utility Rails

Ease of access

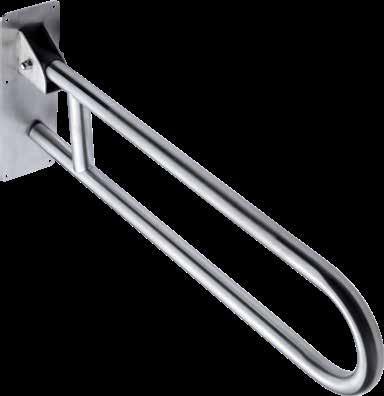

Our Utility grab rails offer further choices . So versatile they’re an obvious choice for improving your comfort in the bathroom.

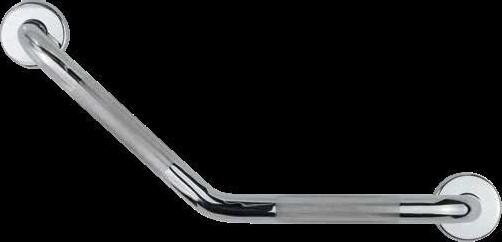

The standard L shaped rail, is an ideal choice for most situations. Our rails give you the option of being able to pull yourself up on the vertical rail or support yourself on the horizontal bar, comfortably.

Brushed

Extends

32mm diameter

GRL

GRK45A305

Peened

GRP45A305

Lift Up Grab Rail

stainless steel

Peened surface on top rail

750mm

45º 305 Rail 305 x 305mm Knurled finish 32mm diameter

finish

Grab Rails

Sentinel Stability Rails

An extra hand when needed

Our attractively designed Stability range has a more elegant 25mm profile for a more stylish finish. Especially designed for situations when you need just a little balance support.

Fashionably crafted from stainless steel, they fit conveniently into any bathroom and complement other accessories.

Sentinel Basins Specifications

Sentinel Toilets Specifications

Should you need further help or information, feel free to contact us via our website www.heirloom.co.nz or on our Customer Helpline 0800 HEIRLOOM (434 756). Heirloom reserves the right to alter design, material, and specifications without notice. All dimensions are subject to manufacturing tolerances and should be checked prior to installation.

Care Bathroom Layout Guidelines

Heirloom Care and Ambulant Products. Helping you get it right!

The NZ Stanadard NZS 4121:2001 lists certain buildings that must be designed with prescribed fittings and layouts that enable people with disabilities to use the building with the same convenience as those who do not have disabilities.

These requirements do NOT apply to private residential buildings. For a list of the buildings covered by the standard refer to NZS4121:2001. The following information and diagrams are provided as a summary guide of the main provisions of the standards as they relate to certain Heirloom products. This information is not a substitute for the standard and to ensure full compliance customers should consult the full standard.

PLEASE NOTE: The following guidelines apply to public buildings and do NOT apply to private residential buildings.

Tips and Guidelines

Heirloom Care and Ambulant Products. Helping you get it right!

Heirloom Care and Ambulant products provide a comprehensive range of bathroom products to improve the lifestyle and wellbeing of people with impaired mobility or poor stability. These products have equal application for people with a disability that affects mobility and the young or elderly that have poor stability.

In certain circumstances a facility will be deemed an accessible facility and must comply with applicable NZ Standards. In all other cases these standards will not apply thus offering greater flexibility especially for alternative product designs. Even in these cases though, consideration must be given to functionality and product performance.

GRAB RAILS

New Zealand Standards:

New Zealand standard NZS4121:2001 provides guidelines regarding building access and facilities for people with disabilities including toilets and showers.

The standard includes both product, location, and installation requirements for accessible facilities.

Grab rails shall:

• Be 30 – 40mm diameter

• Be non slip at point of use

• Have rails 50 – 60mm clearance from wall

When installed beside a toilet, a 750 x 750 grab rail is specified and shall be installed 150 – 250mm forward of the toilet and 700mm above floor level.

Grab rails must be capable of sustaining a force of 1100M (110kg).

These specifications apply to prescribed locations generally where there is public access and generally do not reply to private locations. If the standard does not apply Heirloom stability and décor rails are an excellent option as they provide both functionality and good design to deliver a pleasing solution.

User Requirements;

It is important to tailor the position of grab rails to the user’s individual needs.

The location and direction of a grab rail needs to take into consideration the user’s functional capacity and body mechanics (hand strength, range of movement in joints), their size (height and arm reach), the local environment and the intended purpose of the rail.

Grab rails should be positioned close enough to reach, and high enough to provide support to gain the required momentum and stability.

It is important that grab rails are installed in a position that allows the user to sustain a firm and successful grasp of the rail. The most desirable position is one that reduces the risk of injury, maximises grip strength and decreases the effort and energy required to maintain a grasp of the grab rail during an activity.

Optimal positioning should allow the wrist to align with the forearm, minimise wrist deviation, permit complete circulation of the grab rail with the fingers and encourage good body alignment in relation to the rail.

(Grab rails continued on next page)

Tips and Guidelines

Heirloom Care and Ambulant Products. Helping you get it right!

Shape of Grab Rail:

The direction of the grab rail will also depend on the purpose of the rail.

• Horizontal grab rails can assist individuals pushing up or lowering down to a seated position (such as from a toilet). They can also be used as a balance support when standing (for example whilst in a shower).

• Vertical grab rails can assist individuals pulling up from a seated position or climbing up a single step.

• L-shaped grab rails combine the horizontal and vertical grab rail allowing an individual to push pull, or a combination of both.

• Grab rails can be positioned on an angle. This allows the rail to be used as a forearm support for people who may have painful hands or wrists. An angled grab rail enables a user to maintain contact with the rail when moving from a sitting to a standing position.

• 45 degree angle rail is commonly used in combination with a horizontal rail alongside a toilet to assist in standing.

Installation:

Grab rails are often required to withstand considerable force. The way in which a grab rail is fixed into the wall will determine the amount of force that can be applied through the rail.

Things to consider when installing a grab rail include:

• The material the wall is made of brick, timber frame or plaster board will all require different methods of installation. Some walls are not suitable for grab rail installation as they may not be able to take the stress of a person’s full weight.

• Where the studs are located in the wall, if practical all fittings should be secured into a stud or nog for maximum strength. In new builds or major renovations the location of grab rails can be pre planned to ensure suitable fixing support.

• Type of fitting and mounting. It is recommended that a builder be consulted for the installation of grab rails to ensure that the correct fittings are used for specific types of walls.

• Remember the strength of the product is only as good as the strength of the fitting to the wall.

Post Installation:

It is important to regularly check rails and fittings for any signs of rusting, insecure attachment, rotation in

Tips and Guidelines

Heirloom Care and Ambulant Products. Helping you get it right!

SHOWER SEATS

Shower chairs are an important tool in helping people maintain their independence, and can restore a sense of joy to the bathing activity.

The simple addition of a shower stool, upon which a person can sit while bathing, significantly reduces the risk of falling while in the shower and therefore has wide application to offer steadiness for aged people (The process of ageing is nearly always accompanied by a decline in leg strength and stability) and people with limited balance as well as those with impaired mobility and physical strength.

Size

Firstly check the chair’s overall height, width, and depth to make sure that it fits into your bath or shower, and the bathroom itself, with enough room for people to manoeuvre. Also consider whether the seat should be fixed to the wall or be a portable unit such as a stool. If the seat is to be fixed to the wall it is usual to install a seat that can be folded up when not in use so it does not compromise the available floor area.

Legs/Height

Legs can be made of moulded plastic or a rustresistant material, like aluminium, coated metal, or stainless steel. The legs should be sturdy and have slip-resistant tips that grip the floor. An adjustable leg design allows customisation for each user.

The chair should be tall enough so that feet are placed flat on the floor, with knees bent at a 90 degree angle. A height-adjustable chair allows for a more personalised and more comfortable fit.

Seat

Ensure that the shower seat is slip resistant and it includes a drainage hole so water can’t build up! Padded seats may be more comfortable but product life and waterproofness should also be considered.

Weight Capability

Consider the load that the seat must carry and ensure the seat will meet requirements. If a heavier load is required supporting legs will increase the strength of wall mounted seats.

New Zealand Standards:

New Zealand standard NZS4121:2001 provides guidelines regarding building access and facilities for people with disabilities including toilets and showers. Shower seats in accessible facilities should be 800mm wide and 450mm from the wall and the top of the seat is to be 450-540 above the floor.

Tips and Guidelines

Heirloom Care and Ambulant Products. Helping you get it right!

TOILETS

New Zealand Standards:

For accessible facilities New Zealand standard NZS4121:2001 provides guidelines regarding building access and facilities, including toilets and showers, for people with disabilities. Notice should also be taken of the Australian Care standard. For non-accessible facilities a wider choice of products are available and an Heirloom comfort height toilet suite provides a good combination of functional ease and modern styling.

Size Layout, Installation

New Zealand standard NZS4121:2001 provides guidelines regarding building access and facilities for people with disabilities including toilets and showers. For accessible facilities the standard prescribes minimum areas, clearances and installation locations. This includes zones for installing toilet roll holders, mirrors, etc.

For non-accessible facilities attention should be given to the space required for easy mobility and ensure each product is placed in a location that ensures easy access and use and in addition to that equal consideration can be given to product design and styling.

BASINS

New Zealand Standards:

New Zealand standard NZS4121:2001 provides guidelines regarding building access and facilities for people with disabilities including toilets and showers.

For accessible facilities, basins must have a maximum depth of 400mm and have a minimum underside clearance of 675mm when installed.

For non accessible facilities the basin can be chosen to be functional for the users and in the style of choice.

DISCLAIMER

This information is provided as a guideline only. For all installations the latest version of the standard should be consulted and professional input obtained.

Heirloom is very proud of their Care and Ambulatory range.

We recognise that a wider section of our community appreciates a little support from time to time. From those who are wheelchair bound or those who may need some extra stability support to children who like some help to steady in the bathroom we have products to make life more comfortable for all.

MBRCARE01122

Heirloom International Ltd

PO Box 204 235, Highbrook, Auckland 2161, New Zealand

FREEPHONE 800 HEIRLOOM (434 756)

FAX 09 274 5577 EMAIL info@heirloom.co.nz

www.heirloom.co.nz
