SERIES
57M ALUMINIUM FDHF
SPECS
HEESEN
SERIES
GENERAL
Yacht number 21557
Hull type FDHF, fast displacement hull form
Naval architect Van Oossanen Naval Architects / Heesen Yachts
Exterior design Omega Architects
Interior design Harrison Eidsgaard
Classification ABS A1 commercial yacht service AMS
Large commercial yacht code reg-yc
Hull Aluminium
Superstructure Aluminium
Delivery Q3 2027
PROPULSION DETAILS
Main engines 2 x MTU 16V 4000 M65L
Maximum power 2 x 2560kW
Gearbox: 2 x Zenoro, each 175kW, 50 Hertz
Engine control MTU blue vision NG
Propellers 2 x five blade fixed pitch
Main generators 2 x Zenoro, each 175kW, 50 Hertz
Stabilisers Naiad dynamics 2fins type 925 zero speed
DIMENSIONS
Length over all 56.7 metres / 186 feet
Beam over all 10.45 metres / 34 feet and 3 inches
Draft 2.3 metres / 7 feet and 6 inches (half load)
Displacement Approx. 490 tons (half load)
Tonnage Approx. 780 GT
ACCOMMODATIONS
Crew 13
Guests 12
Suites Full-beam owner’s stateroom and five double guest suites
TECHNICAL DETAILS
Maximum speed 21.5 kn
Range at 13 knots 3,900 NM (at 13 knots)
Fuel capacity 80,000 litres / 21,130 US Gallon
Fresh water 22,000 litres / 5,812 US Gallon

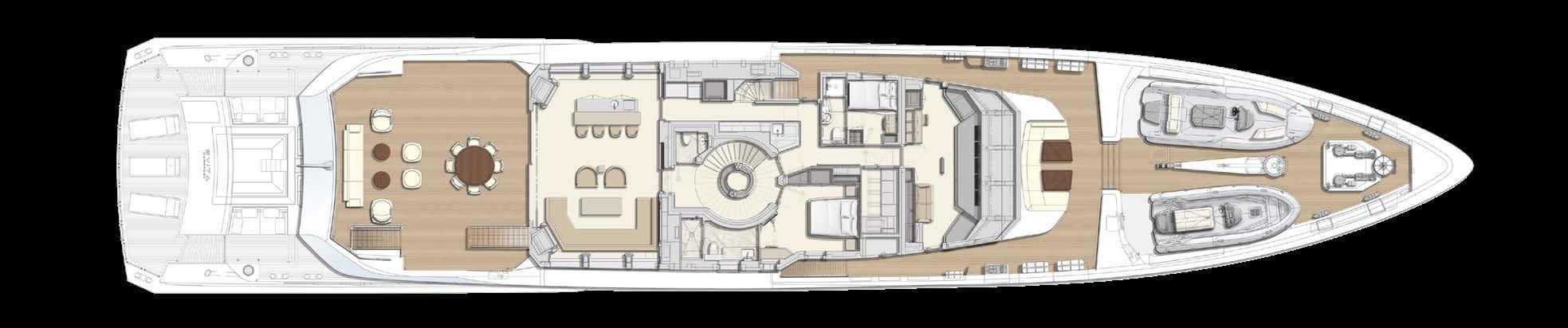

GENERAL ARRANGEMENT

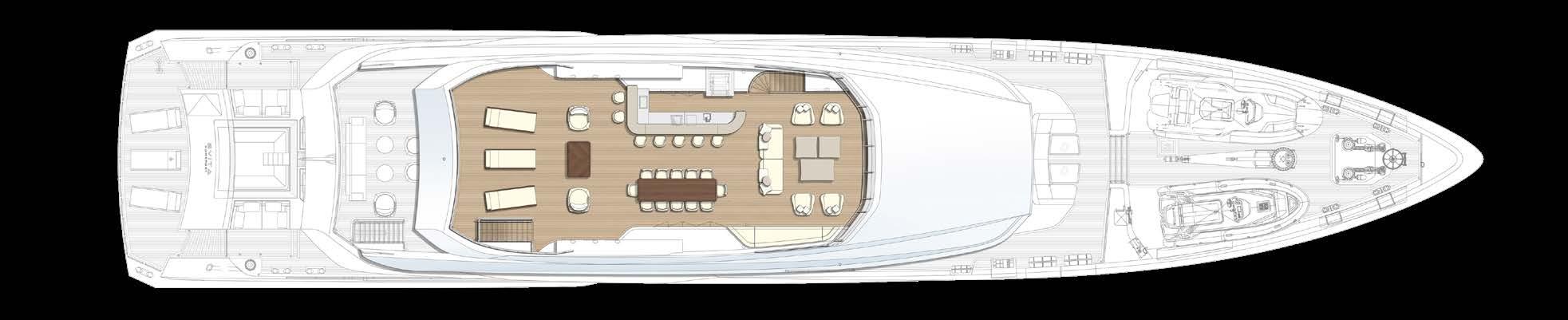

SUN DECK
GENERAL ARRANGEMENT
WHEELHOUSE DECK

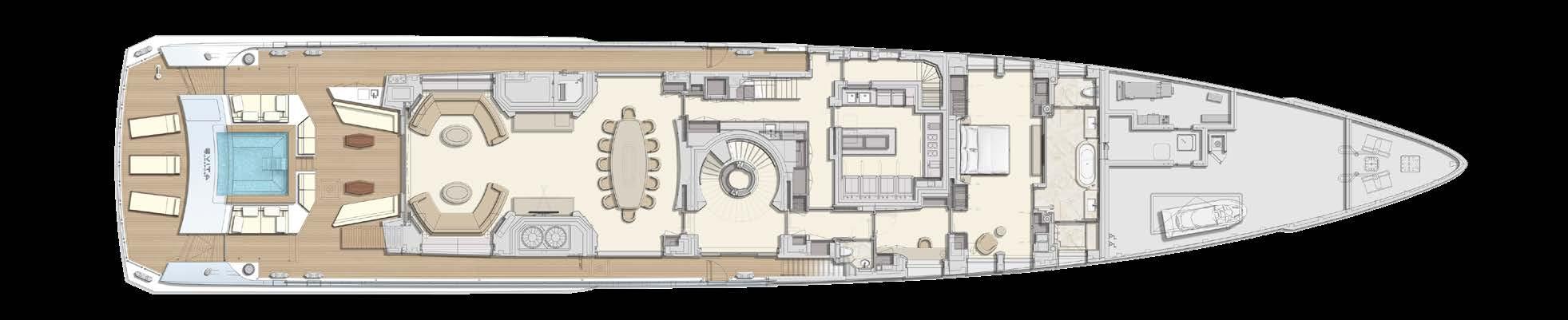

GENERAL ARRANGEMENT MAIN DECK

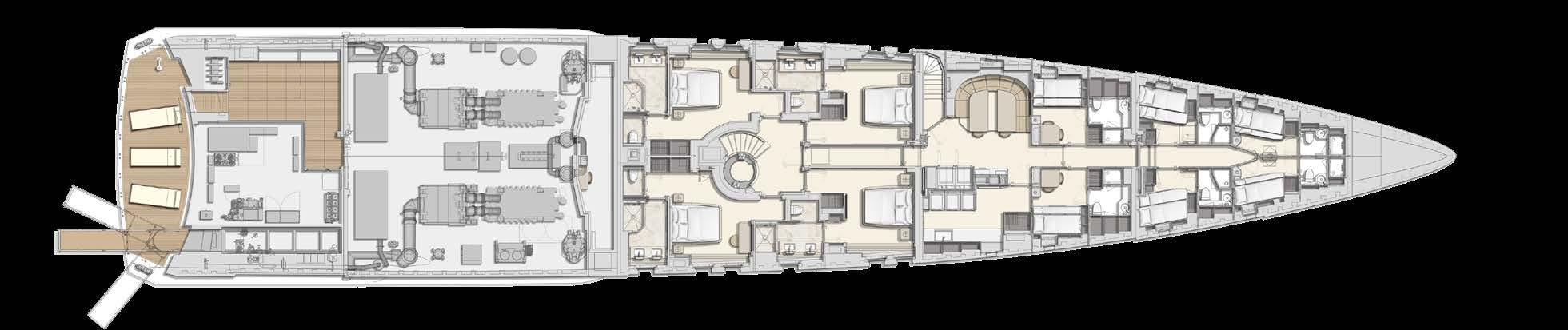

GENERAL ARRANGEMENT LOWER DECK
