SERIES
55M STEEL FDHF

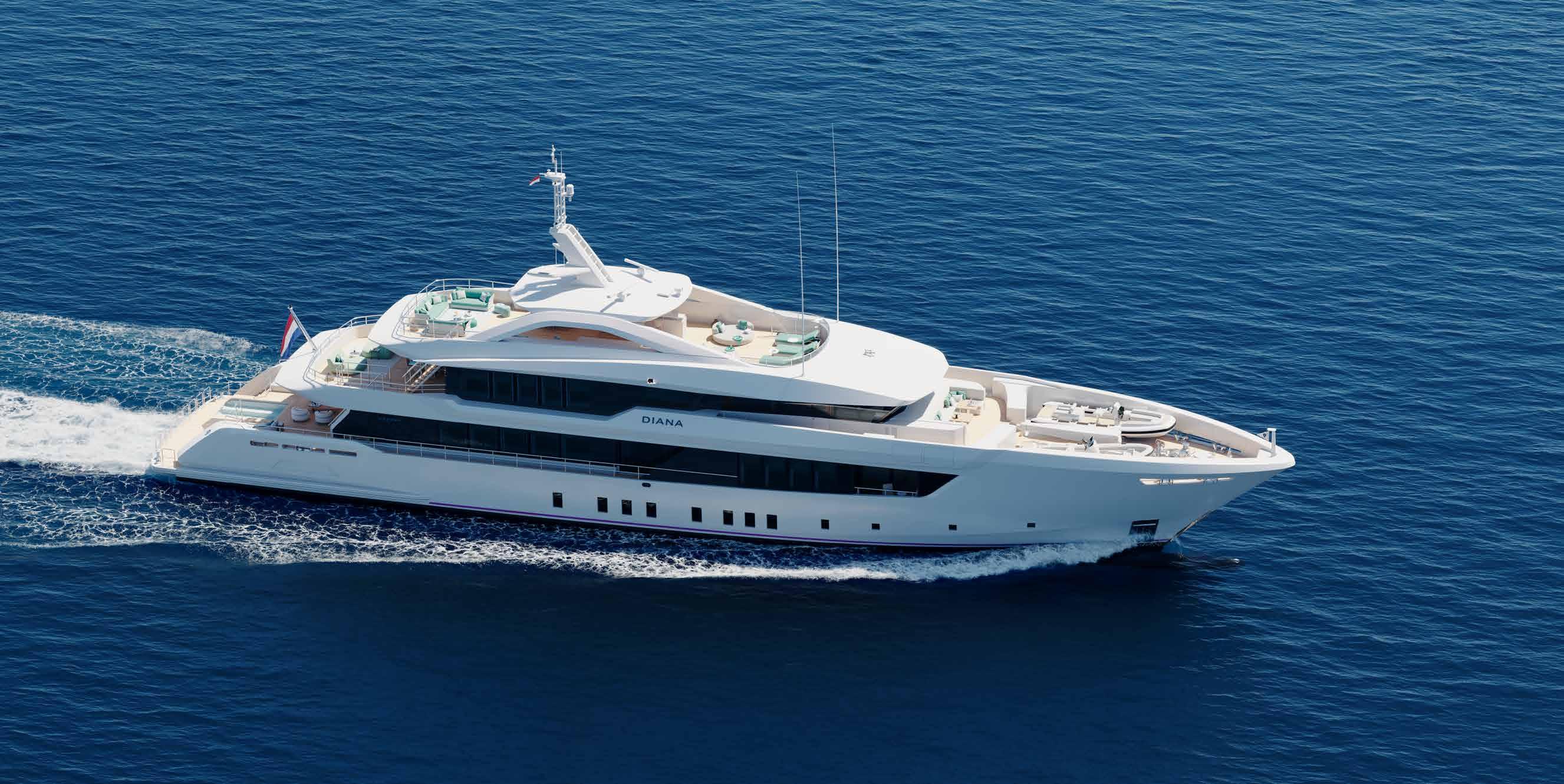

SPECS DIANA 55 METRE STEEL
HEESEN
SERIES
GENERAL
Yacht number 21455
Hull type FDHF, fast displacement hull form
Naval architect Van Oossanen Naval Architects / Heesen Yachts
Exterior design Omega Architects
Interior design Luca Dini Design & Architecture
Classification Lloyds 100A1 SSC Yacht LMC, UMS Large commercial yacht code reg-yc
Hull Steel
Superstructure Aluminium
Delivery Q2 2027
PROPULSION DETAILS
Main engines 2 x MTU 8V 4000 M63L
Maximum power 2 x 1000kW
Gearbox: 2 x ZF 5356
Engine control MTU blue vision NG
Propellers 2 x five blade fixed pitch
Main generators 2 x Zenoro, each 175kW, 50 Hertz
Bowthruster ZF-Marine 125kW, electrically driven
Stabilisers Naiad dynamics 2fins type 720 zero speed
DIMENSIONS
Length over all 55.0 metres / 180 feet and 5 inches
Beam over all 9.6 metres / 31 feet and 6 inches
Draft 2.85 metres / 9 feet and 4 inches (half load)
Displacement Approx. 600 tons (half load)
Tonnage Approx. 760 GT
ACCOMMODATIONS
Crew 13
Guests 12
Suites Full-beam owner’s stateroom and five double guest suites
TECHNICAL DETAILS
Maximum speed 15.5 kn
Range at 13 knots 4,500 NM (at 12 knots)
Fuel capacity 100,000 litres / 26,400 US Gallon
Fresh water 24,000 litres / 6,340 US Gallon
