SERIES
SPECS GRACE
50 METRE
STEEL FDHF
HEESEN SERIES
GENERAL
Yacht number 21350
Hull type FDHF, fast displacement hull form
Naval architect Van Oossanen Naval Architects / Heesen Yachts
Exterior design Harrison Eidsgaard
Interior design Harrison Eidsgaard
Classification Lloyds 100A1 SSC Yacht LMC,
UMS Large Commercial Yacht Code REG-YC
Hull Steel
Superstructure Aluminium
Delivery Q1-2028
PROPULSION DETAILS
Main engines 2 x MAN D2862LE438 (IMO TIER III)
Maximum power 2 x 882kW
Gearbox: 2 x ZF-Marine
Propellers 2 x five blade fixed pitch
Main generators 2 x Zenoro, 118kW each
Bowthruster ZF-Marine 100kW, electrically driven
Stabilisers Naiad Dynamics, 2 Fins, Type 575, Zero Speed
DIMENSIONS
Length over all 49.90 meter / 163 feet 8 inches
Beam over all 9.30 meter / 30 feet 6 inches
Draft 2.55 metres / 8 feet 4 inch (half load)
Displacement 480 tons (half load)
Tonnage 499 gross tons
ACCOMMODATIONS
Crew 9
Guests 12
Suites Full-beam owner’s stateroom, one full-beam VIP suite, four double guest suites
TECHNICAL DETAILS
Maximum speed 15.5 knots
Range at 12 knots 3,800 Nautical Miles
Fuel capacity 60,000 litres / 15,850 US Gallons
Fresh water 20,000 litres / 5,300 US Gallons
GENERAL ARRANGEMENT
SUN DECK
GENERAL ARRANGEMENT
WHEELHOUSE DECK

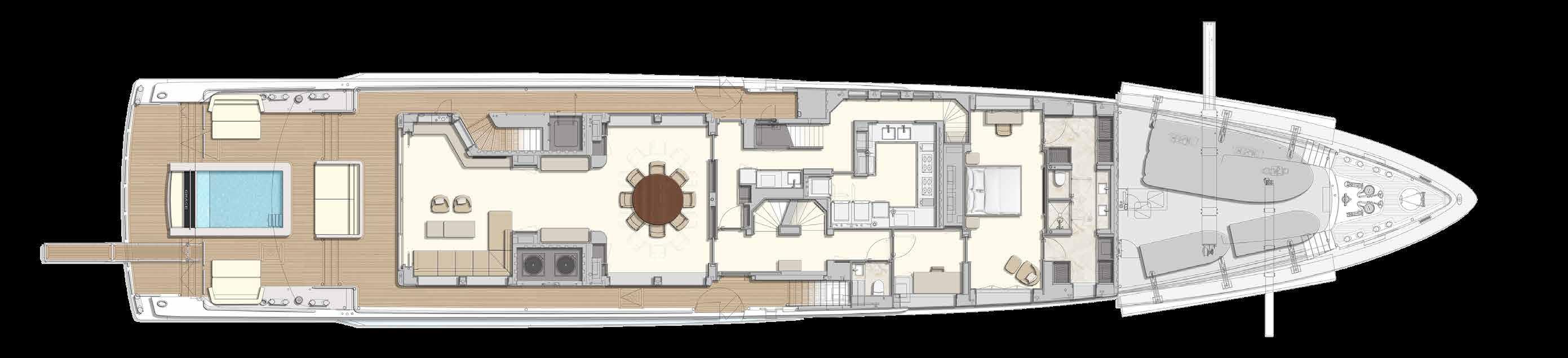

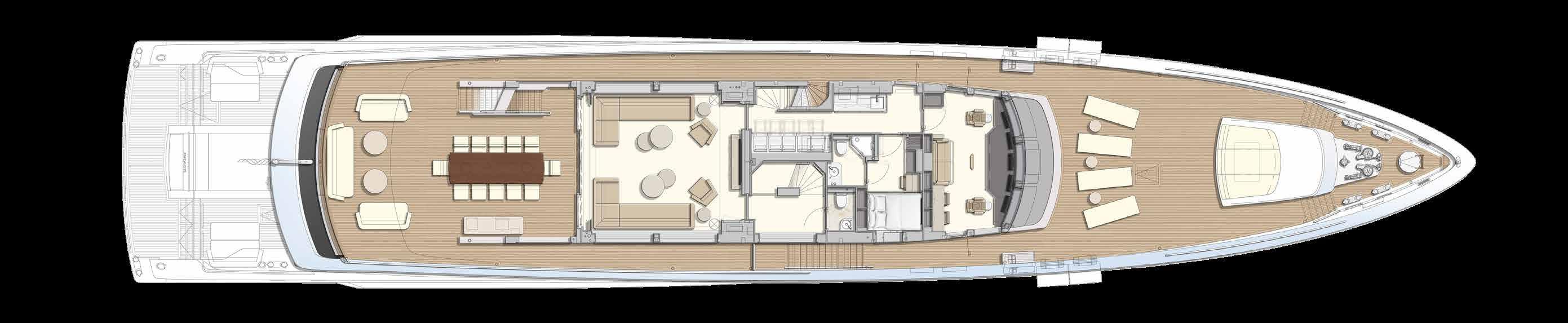

GENERAL ARRANGEMENT MAIN DECK

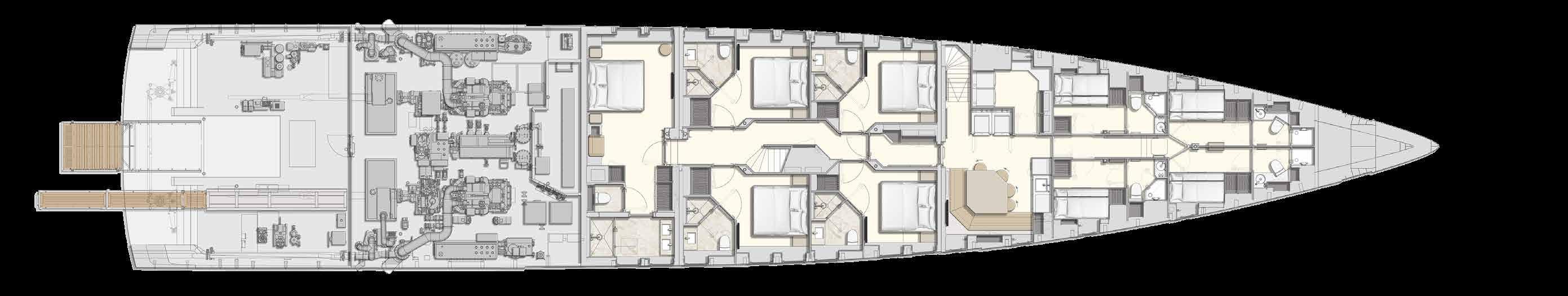

GENERAL ARRANGEMENT LOWER DECK
