TRIANGLE JENGA EXPLORATION IN WOOD Wood Kerfing as an technique is used as an alternative to steam bending. Here, Modules are designed with the help of this technique to further be translated into a form of a walkway placed at the site of the campus.

10 Kerf Piece 2 Elevation 20

Kerf Piece 1 Elevation 80

140

80

300 Kerf Piece 2 Plan

10

590

Kerf C/C distance - 12mm Kerf Depth - 5 mm

60

175

50

55 25 5 10

Kerf Piece 3 Elevation

60

300 Kerf Piece 3 Plan

20

Kerf C/C distance - 7mm Kerf Depth - 5 mm Full Cut Depth - 10 mm 75

150

10 175

Kerf Piece 1 Plan Kerf C/C distance - 12mm Kerf Depth - 6 mm

50

55 25 5 10

Kerf Piece 3 Elevation

60

75

300

60

300 Kerf Piece 4 Plan

10

15

17

0

Kerf C/C distance - 7mm Kerf Depth - 7 mm Full Cut Depth - 10 mm

Kerf Piece 5 Elevation

50

200

200

100

50

150

600

300 600

Kerf Piece 5 Plan

Kerf Piece 6 Plan

Kerf C/C distance - 7mm Kerf Depth - 7 mm

Kerf C/C distance - 7mm Kerf Depth - 12mm

150

45

°

60

45

20 20

Kerf Piece 6 Elevation

Isometric View - Modules

Stabilization of Modules Max. deflection - 0.746 mm Max. compression - 0.015 N/mm2 Max. tension - 0.013 N/ mm2 Max. My - 0.075 N/mm2 Max. Mz - 0.507 N/mm2

Y

Y

X Z

Modeling of the Module

X Z

Y

Load 1

X Z

Assigning Reduction factor

Load 1

Self-weight and Point-load

Deflection Check Permissible Limit for deflection is 3.9 mm which is calculated in Load 1 accordance IS883 (2016) Page 21.

0.746 < 3.9 Hence, Safe Stress Check Permissible Limit for stresses are obtained from IS883 (2016) Page 17. Compression, tension, and bending are within the limit.

Y

X Z

Deformation in Module

Y

X Z

Load 1 : Displacement

Module behaviour of Moment in Z Axis

Load 1 : Bending Z

Axial stresses taken by Module

Combined Stress Check Ratio of tension and bending is 0.0839 < 1 Ratio of compression and Load 1 : Beam Stress bending is 0.0857 < 1

Leaf Piece Teak Wood Kerf C/C - 7 mm Kerf Depth - 12 mm

Plate M.S

Hole OD - 9 mm

Leaf Piece Teak Wood Kerf C/C - 7 mm Kerf Depth - 12 mm

Threaded Rod Steel OD - 6 mm

Nut Bolt M.S OD - 8 mm

Nail Steel

Curve Piece Teak Wood Kerf C/C - 7 mm Kerf Depth - 12 mm

Half Leaf Teak Wood Kerf C/C - 7 mm Kerf Depth - 12 mm

Solid Piece Teak Wood Base Piece Teak Wood Dowel Wood OD - 5 mm

Plate M.S

Hole OD - 9 mm

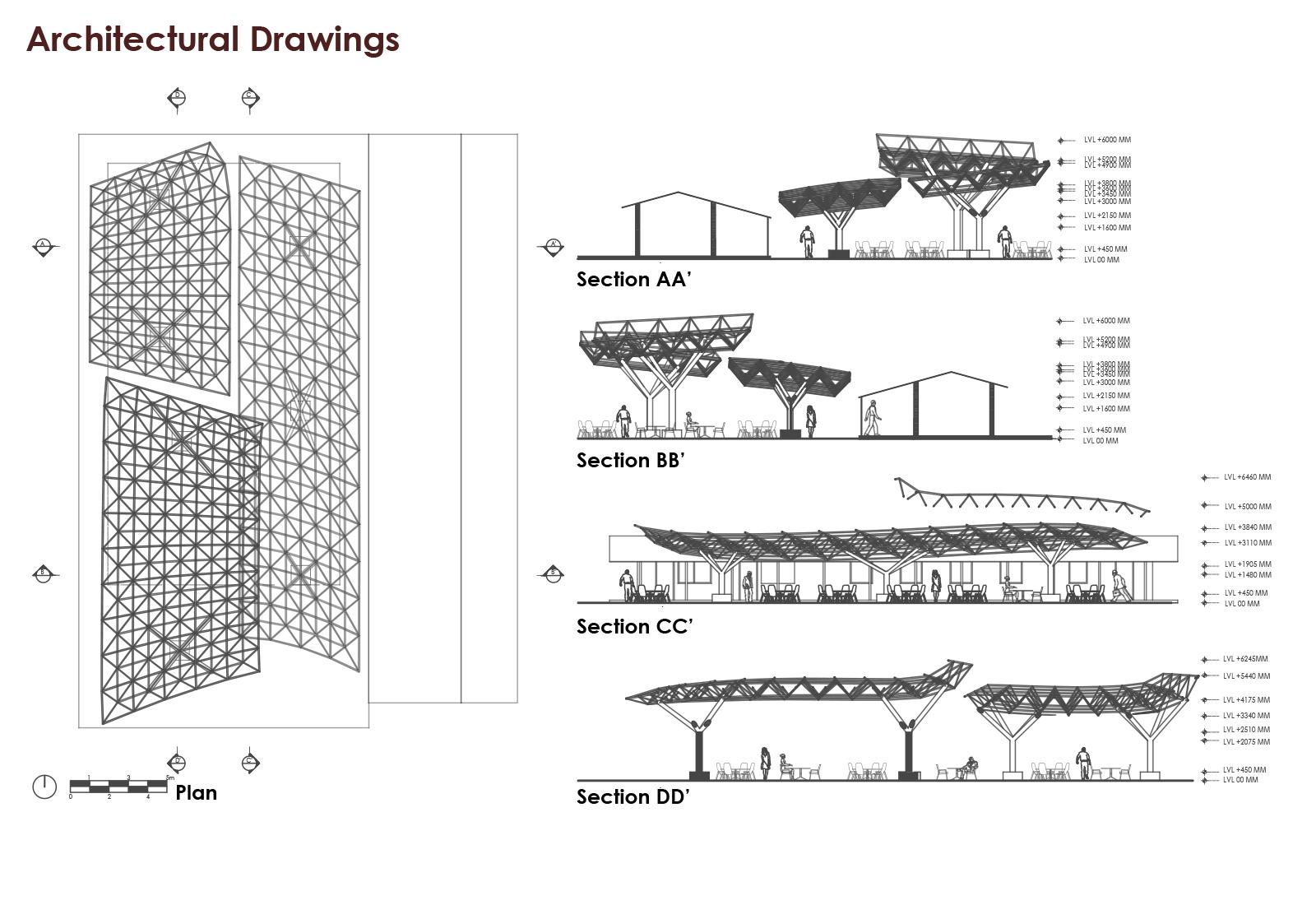

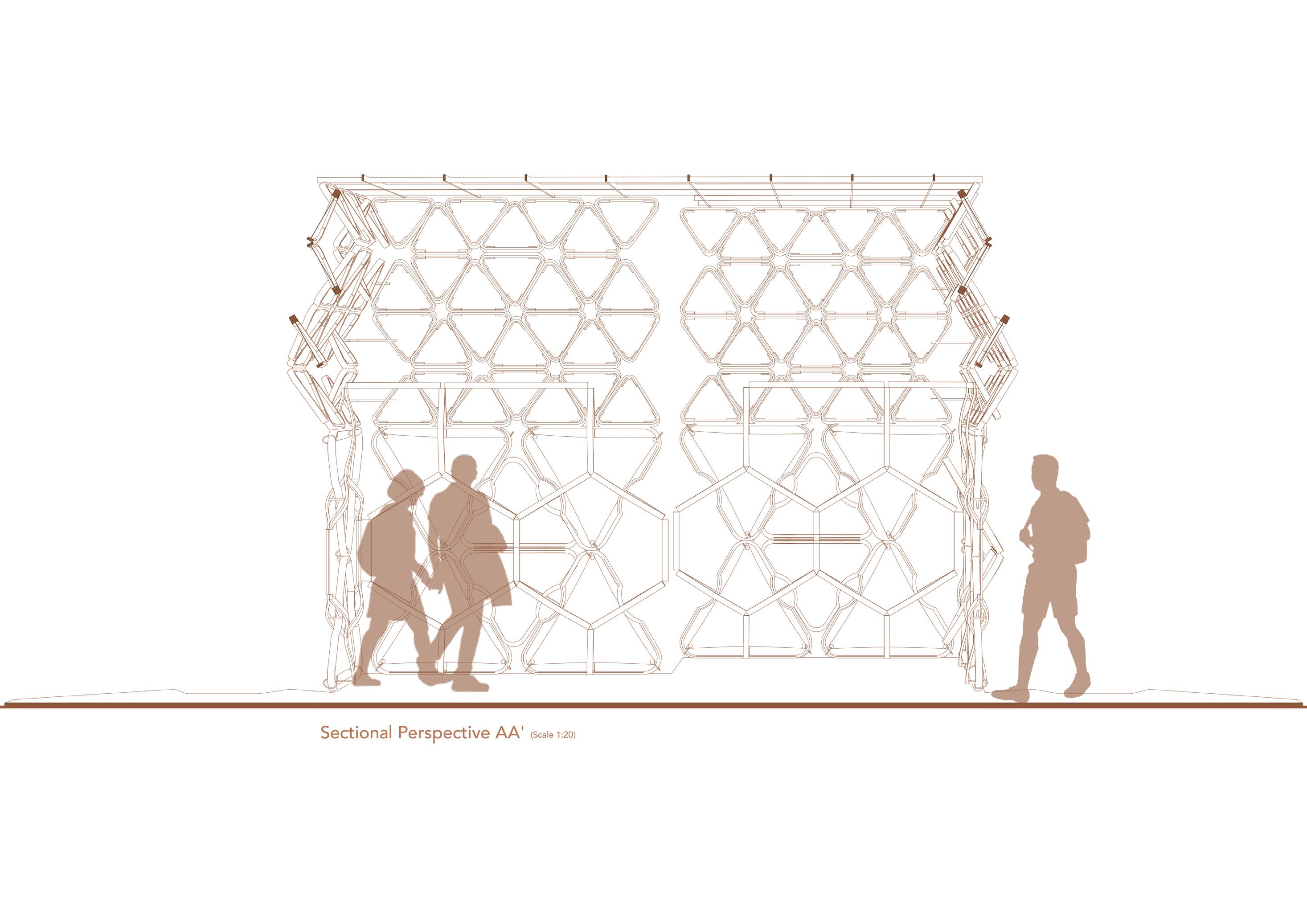

UNO, DOS, TRES FORM AND STRUCTURE-STEEL The site South canteen on CEPT campus is densely packed during the lunch hour with scorching heat, so the structure was designed to cover the hot wind and light by restricting the south- west direction.My intent was to create multiple Roofs and overlay them, this way i restricted south- west and allowed north light. It is also designed to make south canteen accessible from all sides. The design evolved with structural response and workability in mind.

SAFE OR UNSAFE? GEOTECHNICAL PARAMETERS The project began with an alloted site , on which soil investigation was done to better understand the soil properties. after analysis of data several iterations were designed for foundation according to the intensity of load on the given structure. alongside this experminent on soil improvement with the use of saw dust was also done on black cotton soil.

SITE BORELOG the site of boring was at silvassa - bhilad highway, near vapi. through the help of rotary drilling, soil samples distured and undistured were collected to perform further labratory test

SITE PLAN

PATHWAY TO DYSCRETE VERSATILITY OF CONCRETE Concrete is the material used the most in the field of construction. Alongside being most consumed it is also the most harmful material.

So different methods of using concrete are being explored. In the early explorations of Dyscrete, the concrete is observed to emulate a dye-sensitized solar cells. After several trials, you will be able to see the results that conclude that any surface of concrete can provide better alternative than conventional solar panels.

HANDS - ON WORK One of the modular spaceframe designed by a student was taken as a project to be fully built in actual scale by all 12 students from the studio. This task was completed within 11 days with rigoreous hardwork.

A logo for studio was proposed and executed by the students, which included the making of formwork, working on mix design, casting, and demoulding the Logo with Lightweight Concrete.

Models & J

Scan for the construction Process

PRINTS BY HUE PRODUCT DESIGNING AND MANAGEMENT My freind and I are the founders of HUE - featuring Quirky designs printed on Merchandise. R & D of Products and financial mangement is done by me.
