Decoupling Membrane

A high specification decoupling membrane designed for use with the 3mm PKC range underfloor heating cables

• Combined decoupling mat and cable holder • Enables speedy installation of heating cables • Heating cables are protected from trowel work • Simple to cut for total floor coverage

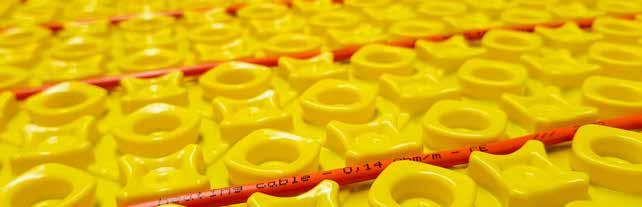

Heat Mat’s decoupling mat operates as a high quality anti-fracture membrane that is usually fixed to the sub-floor with a water-based thin-bed S2 adhesive. Once the mat has been installed it provides fixing loops for Heat Mat’s PKC range of 3mm heating cables, which can be speedily fitted without requiring any double-sided tape. The heating cables are normally fitted at an output of around 150W/sqm (fitting alternately with a 3 stud spacing and then a 5 stud spacing). The decoupling mat provides significant protection to the heating cables during the installation of floor tiles.

Product code Coverage (m2)

Price (RTP ex. VAT)

PKC-DEC-1500 15m2 roll of decoupling mat suitable for PKC cables £283.00

PKC-DEC-0500 5m2 roll of decoupling mat suitable for PKC cables £106.00

PKC-DEC-0100 1m2 square of decoupling mat suitable for PKC cables £27.00*

PKC-DEC-10MT 10m roll of 120mm wide sealing tape £45.00*

*See page 2 for delivery charge information
