Commercial Installations FROM THE HH COMMERCIAL CATALOGUE

01

News Café

South Africa

N

ews Café in South Africa operates as a non-traditional cafe that regularly hosts DJs and live events. The venue required a sound system capable of supporting both daily background music and high-performance audio within a single installation.

Exclusive distributor Apex pro supplied integrators Pro Sound, with the necessary equipment to address this dual requirement. The TNi-W8BK loudspeakers were installed for comfortable, daily background music. When the venue hosts live performances and DJ sets, the system is supplemented by TRS-1800 active subwoofers and TRE-1501 fullrange loudspeakers to provide the required high output for the events.

02

Social Beach Club Sardinia, Italy

S

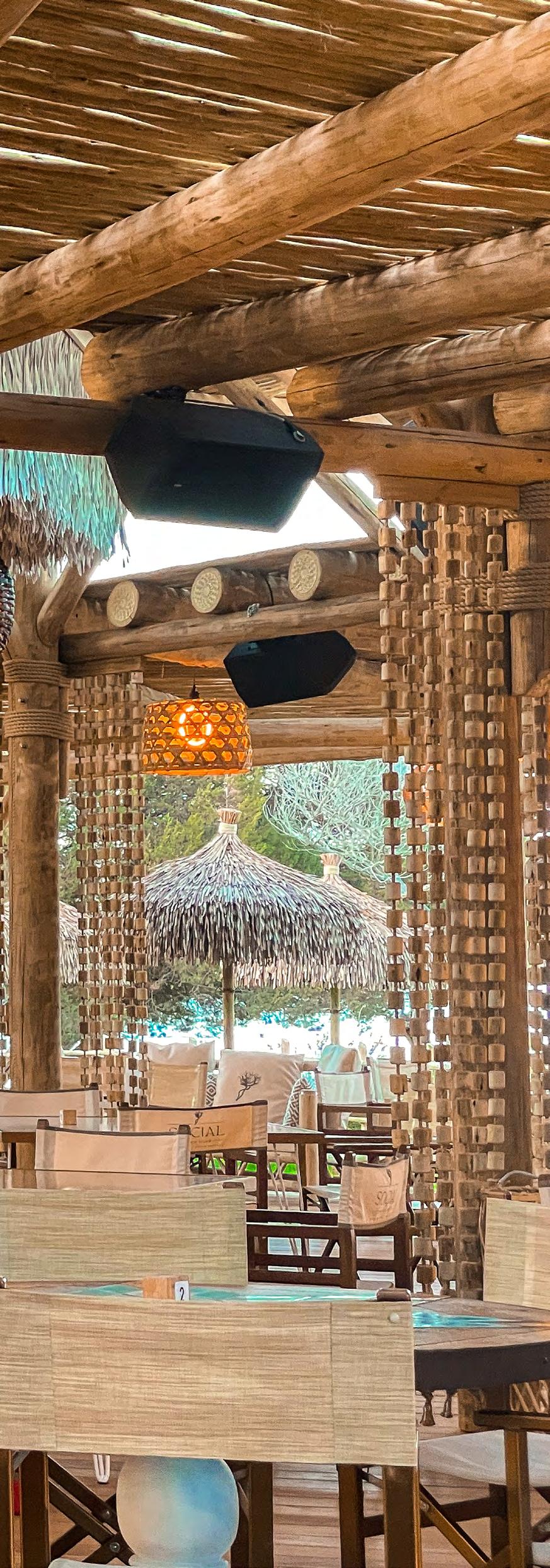

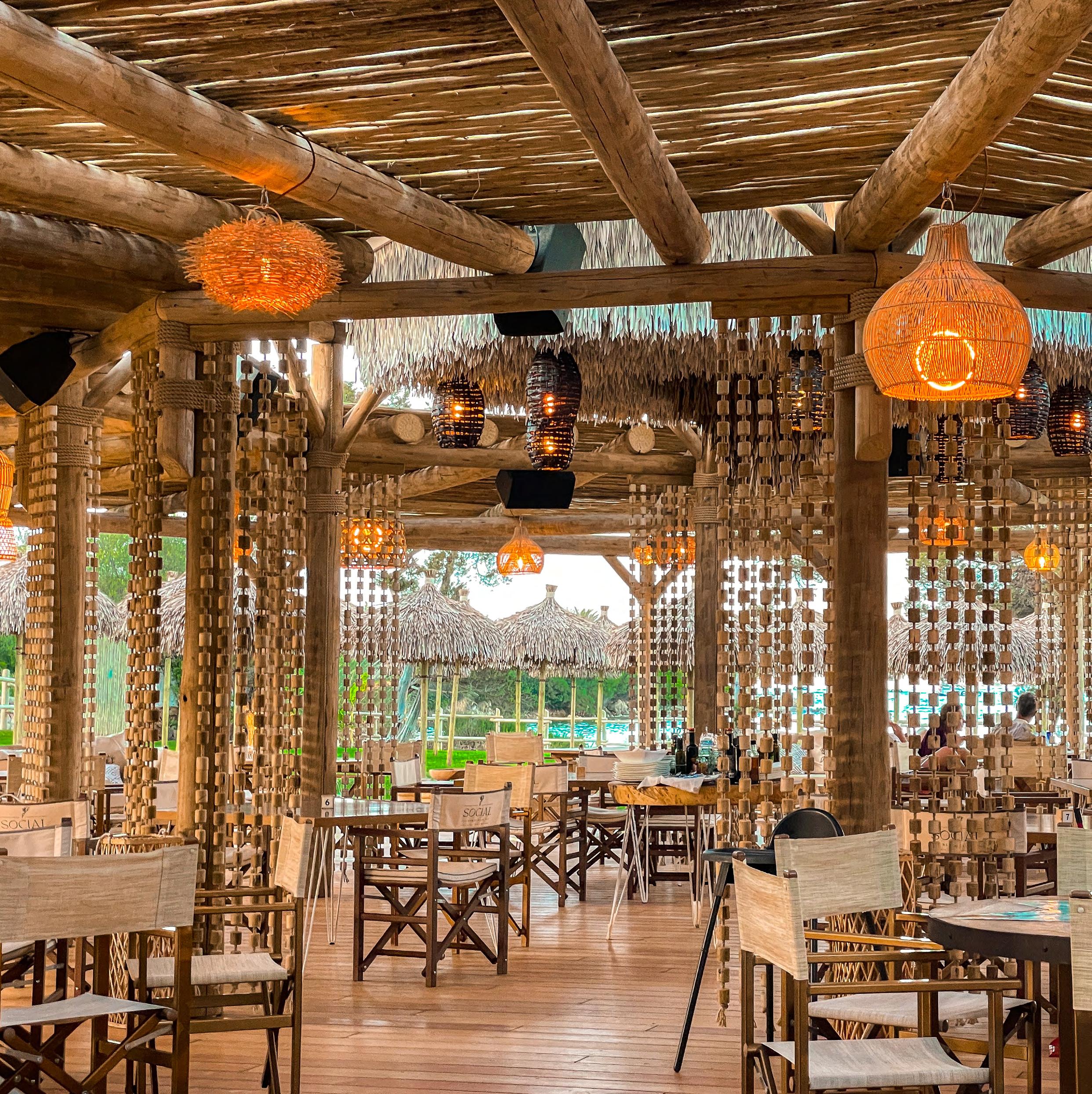

upplied by InterTech SRL and installed by the former with AV Network SRL, the system was built so staff can easily switch between lounge, DJ, and morning presets with the flick of a switch – no expertise needed.

Upon arrival, guests are welcomed by a small bar, covered by four TNiW6-BK wall-mounted loudspeakers, powered by a single MZ-140Q. The same zone amplifier powers eight TNi-W8-BK loudspeakers positioned around the main bar.

The central space, a restaurant by day and dancefloor by night, uses an SP48 signal processor to manage custom scene presets, created via the SP Series desktop app. Eight TNi-W8PRO-BK highperformance loudspeakers powered by two M-750D amplifiers deliver the main sound, supported by two

TRS-1500 subs for extended low-end. A single MZ-280Q handles both the garden and beach zones. When the party moves to the beach at night, an M-750D powers two TNi-W15PROBK loudspeakers, delivering the power needed for the late-night DJ sets.

Oscar Cipolla of InterTech SRL said, “We’ve had an excellent experience with both the electronics and the loudspeakers. The M-Series power amps and MZ zone controllers are extremely flexible and reliable tools.

The TNi-WPRO series is straightforward to install and delivers excellent performance at both low and high levels.” He added, “The TNi-W6 and W8 models are great all-rounders, offering a consistent, impressive tone and real value for money.”

03 Haraȷuku Tokyo Café Mumbai

I

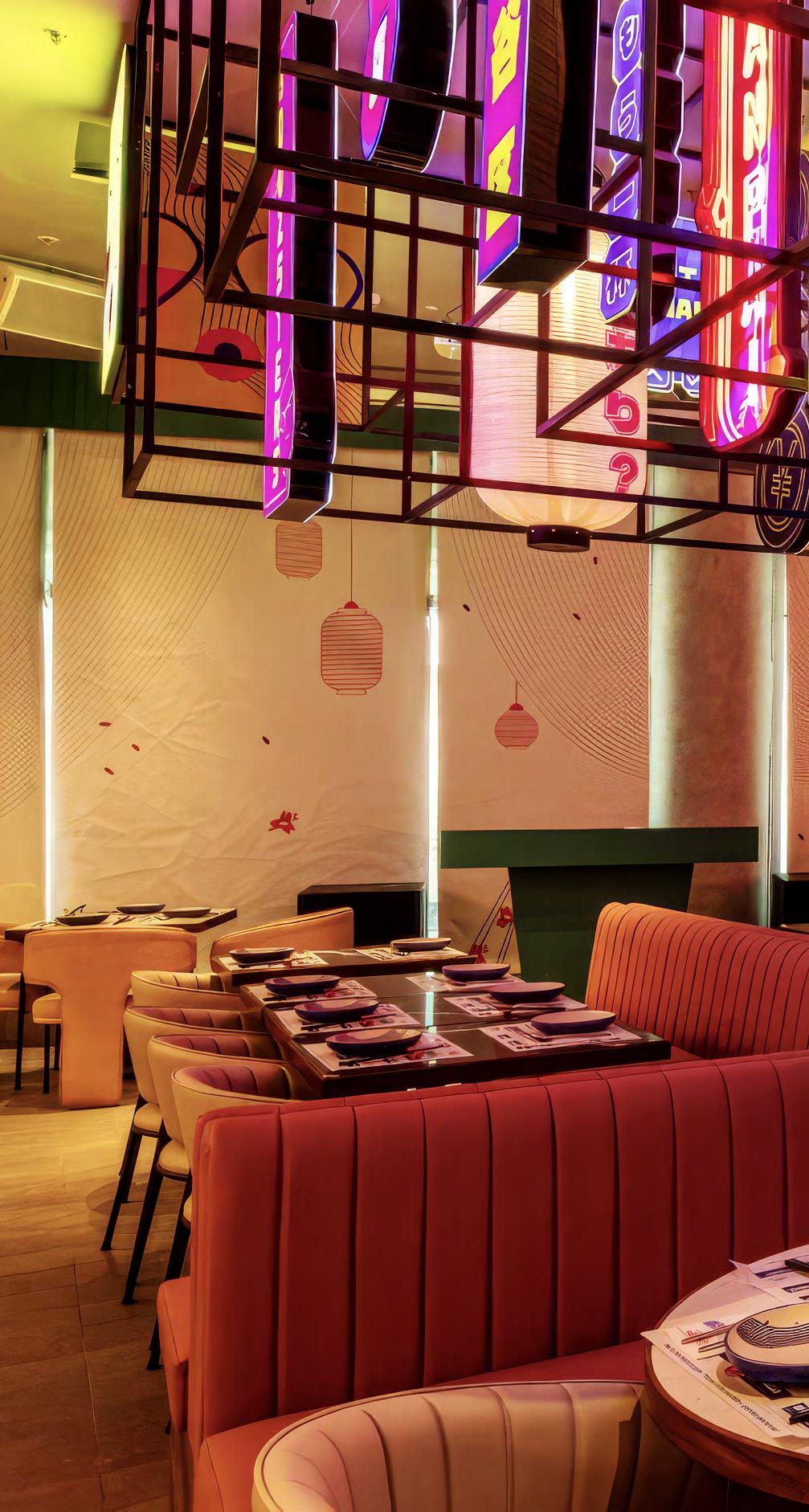

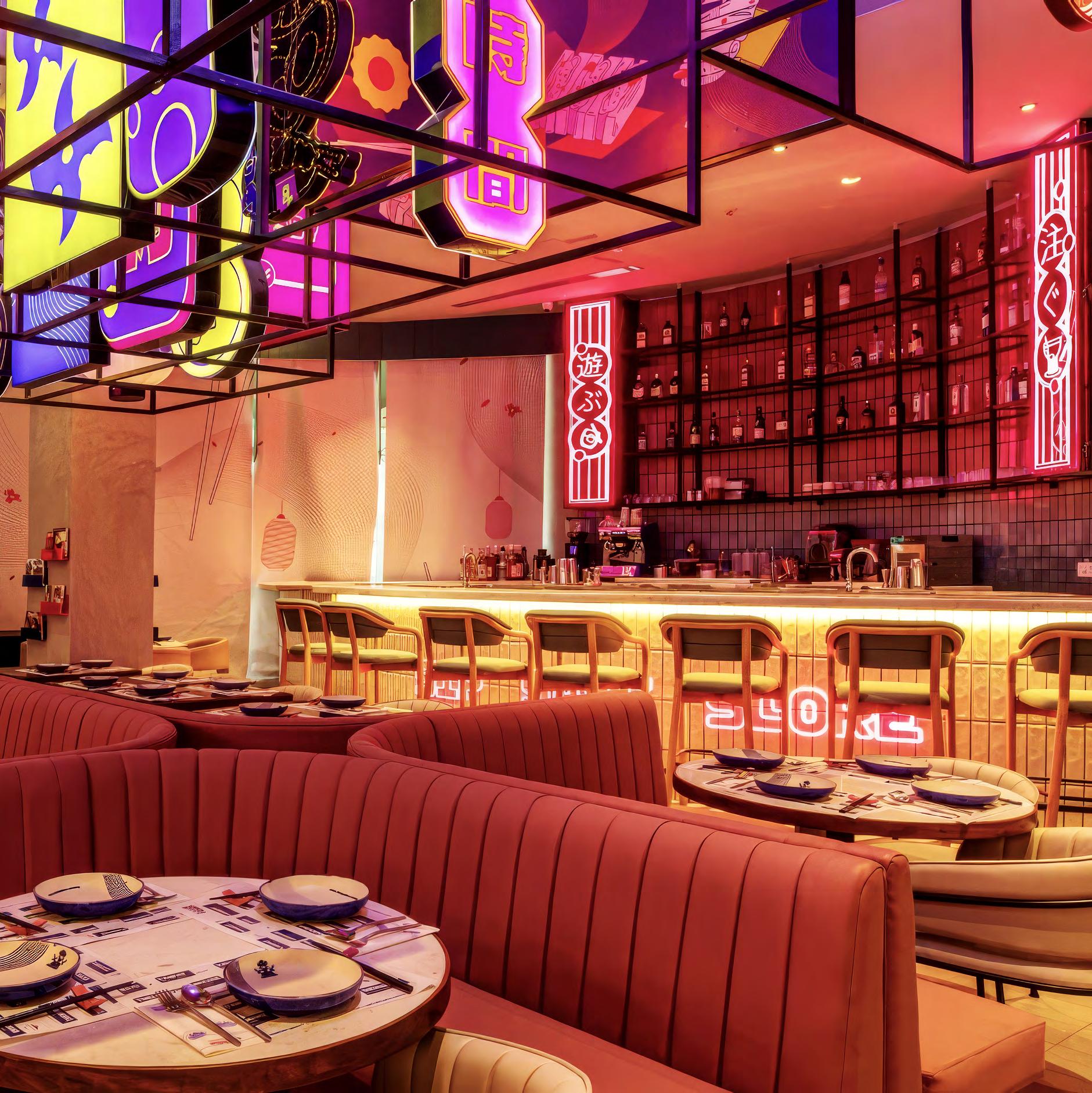

n India, Harajuku Tokyo Café has recently expanded to Mumbai, first launching in Delhi in 2021 and rapidly expanding across the National Capital Region. The chain plans to scale across 20+ cities in India, with 90 outlets established by the end of 2027.

Installed by systems integrator, Varun Dua of Bassline AV Technologies. Dua states, “HH is a very flexible, multi-use brand which fits well for a venue like this, which plays background music during the day as well as DJ music and karaoke in the evenings”.

Generation AV supplied the install with four TNi-W8PRO-WH loudspeakers, supported by TNi-W6-WH 6-inch loudspeakers used as delays fills. For low end support, the Tessen Array TNA1800S subwoofer was used.

04

The Urban Foundry Pune, India

T

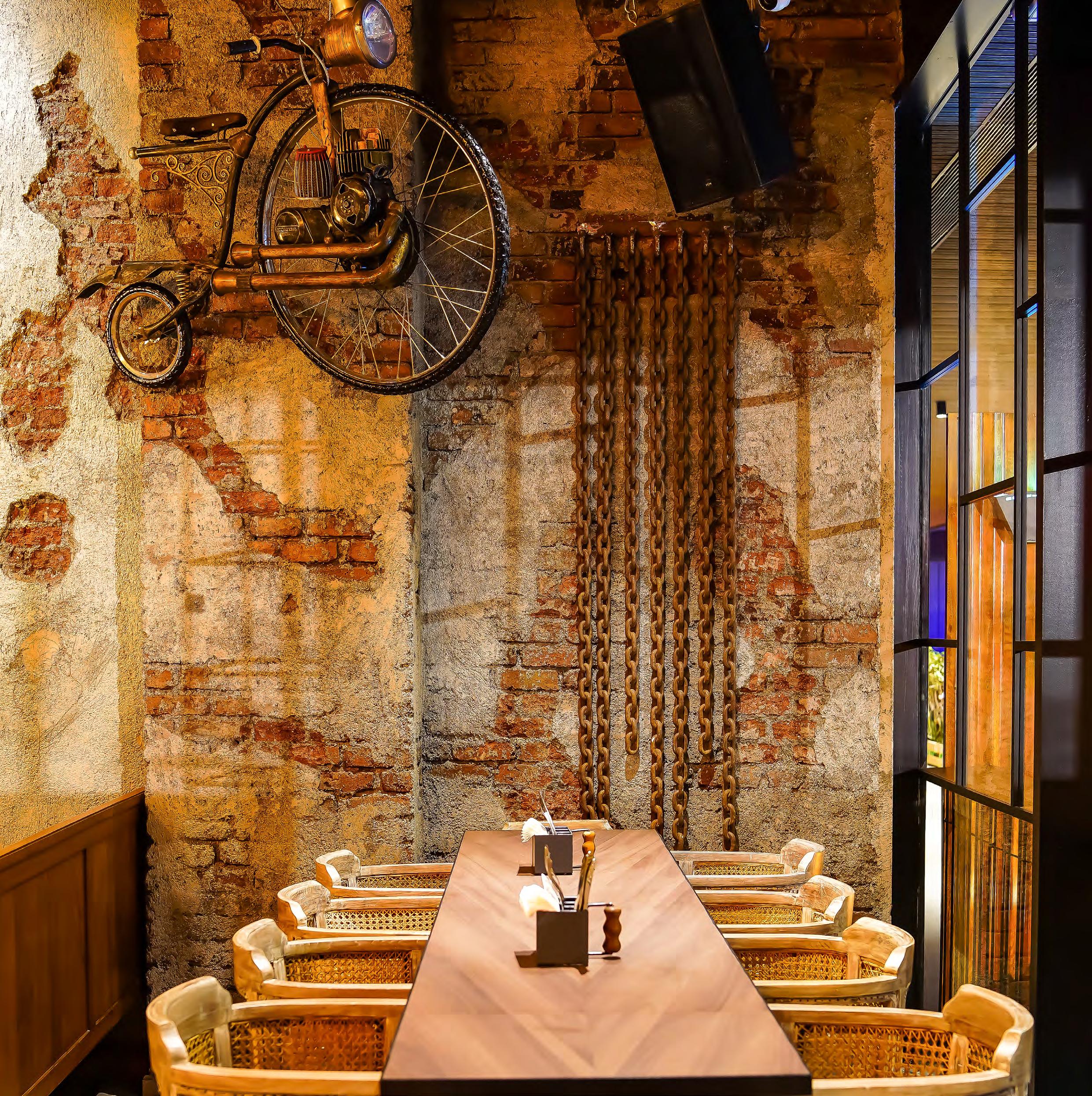

he Urban Foundry is a popular all-day bar and eatery in the Indian city of Pune. The industrial theme of the venue creates a unique ambience in which customers enjoy a wide range of beautifully presented local and international cuisine. Music plays an important part in maintaining the atmosphere in The Urban Foundry’s always busy setting, and the venue’s management recently enlisted the services of distributor Generation AV and Pune-based integrator Audio Groove, to supply and install a high quality sound system for the venue.

“Both Generation AV and Audio Groove have been exceptional partners in every aspect of this project. From the outset their team did a fantastic job of recommending a system that suited our budget, the space, and the unique challenges of our location. The installation was smooth and the system is fantastic.

HH Audio sound quality has completely transformed the atmosphere of our restaurant, creating the perfect vibe for our guests. It’s truly one of the best setups we’ve ever had - the attention to detail

was evident throughout the process.”

Kishore Shetty, Urban Foundry Audio Groove supplied and installed a system comprising HH Audio Tessen TNi-W12PRO and TNi-W8PRO 2-way, full-range loudspeakers (12” and 8” respectively) supported by TNA-1800S passive subwoofers. The system is driven

by HH Audio M-Series amplifiers (M-1500D and M-750D) and controlled by an HH Audio SP48 digital speaker management system.

“The support we received from Generation AV and Audio Groove has been phenomenal. They were always on hand to answer any questions, offer advice, and ensure everything was running perfectly.

Their Professionalism and commitment to delivering top-tier service from start to finish was impressive from start to finish.

“We’re incredibly glad we chose HH Audio for this project. Product quality, design and performance made for a perfect audio solution. We couldn’t be happier with the outcome.”

- Kishore Shetty

05

Della Fame Istanbul

Della Fame is a stylish and spacious venue which offers indoor and alfresco dining courtesy of its street-facing aspect, and delivers a high standard of Italian-inspired Mediterranean cuisine from its open kitchen.

The Della Fame team engaged leading Istanbulbased professional audio integrator, Pulsarpro, to supply and install a discreet, high quality system that would meet the needs of the venue’s different spaces.

Project coordinator Hakan Tamer deployed 10 x HH 3 x HH TNi-C8 ceiling speakers were mounted in the lobby and restroom entrance area, while the garden area benefitted from 16 x TNi-W6 compact wall-mounted speakers.

Hakan Tamer comments: “The HH loudspeakers proved to be first-class products in terms of quality, power and consistency of coverage, as well as respecting the visual aesthetic of the venue’s unique decoration.”

Della Fame Business Manager, Murat Coşkun is pleased with the system: “Our mission is to offer a relaxing experience, day and night, for guests who want to take a break from the hustle and bustle of the city. Good music plays a big part in creating the right atmosphere at Della Fame. Our new sound system, with its carefully placed HH speakers, delivers excellent sound quality.

06

Nineteen Golf Club Leicester, England

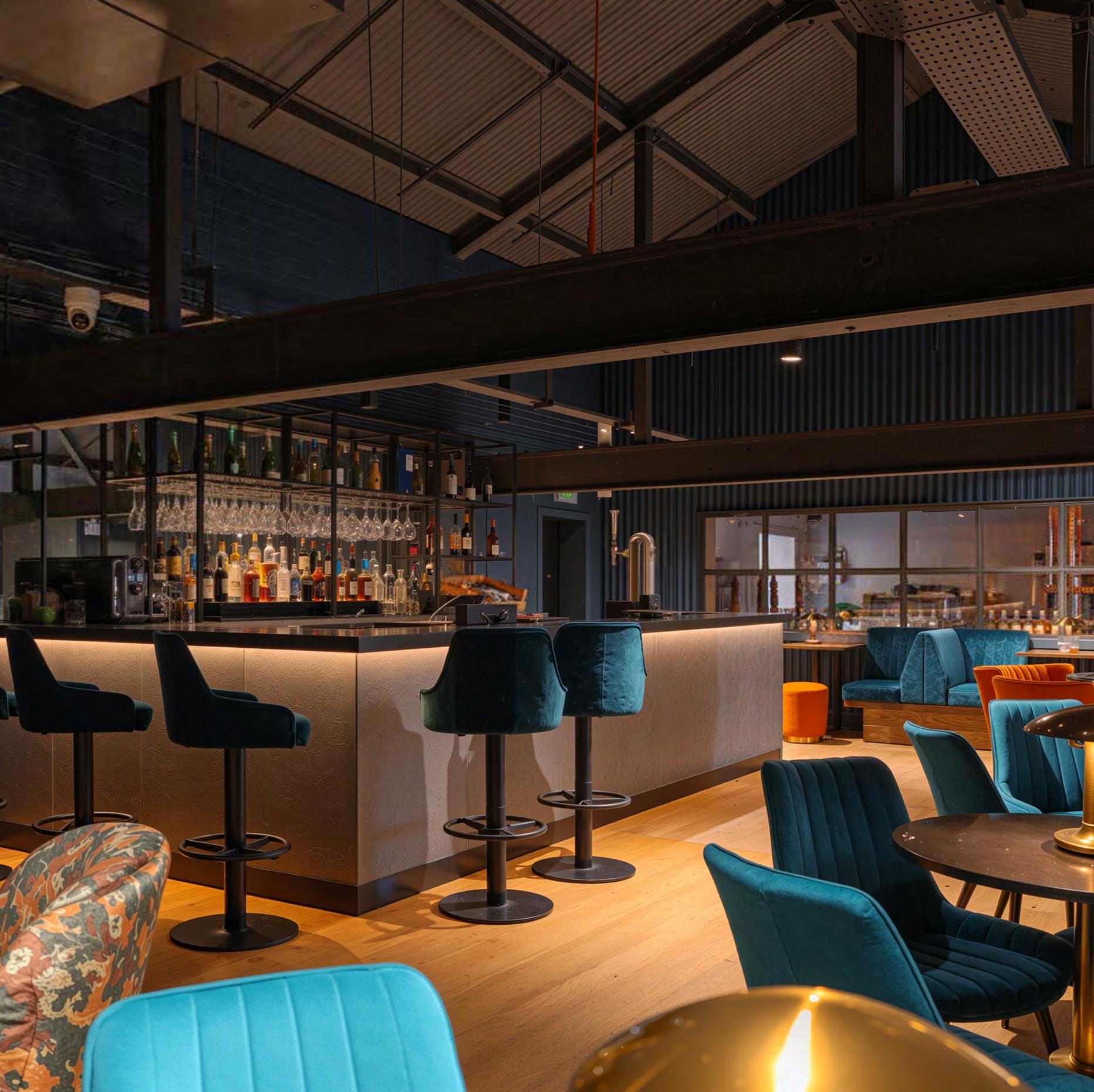

Nineteen Golf Club Leicester, Leicester’s premier indoor golf experience, needed a high-spec, professional audio system for their new premises. The system had to deliver exceptional sound quality while maintaining a stylish, unobtrusive presence that blended seamlessly with the modern decor.

The audio system installed at Nineteen Golf Club Leicester was designed to meet these requirements with precision, combining high-quality performance, flexibility, and aesthetic appeal. The system consisted of carefully selected components to ensure the best possible audio experience for guests while maintaining a modern, sleek environment.

The HH Audio MZ-280Q 4-zone amplifier was chosen to manage the system’s power distribution: • 4-Zone Control: Independent volume control and input source selection for each zone: bar,

lounge, and golf bays.

• Multiple Inputs: Integrated inputs for Sky TV, DJ mixer, and Bluetooth devices.

• Class-D Efficiency: Ensured highquality sound output while maintaining energy efficiency.

• Tone Control: Bass and treble adjustments allowed for finetuning of the audio across the venue, ensuring balanced sound.

The HH MZ-280Q allowed for effortless zone management with flexible input switching for: Bluetooth, Sky TV and DJ connections, all easily switchable between various sources for different occasions. The installation of the audio system at Nineteen Golf Club Leicester was a complete success, and the venue’s team was thrilled with the results. The system met all their requirements, providing highquality sound across all zones, from the bar and lounge to the golf bays.

07

NOX - Rooftop Lounge Mumbai

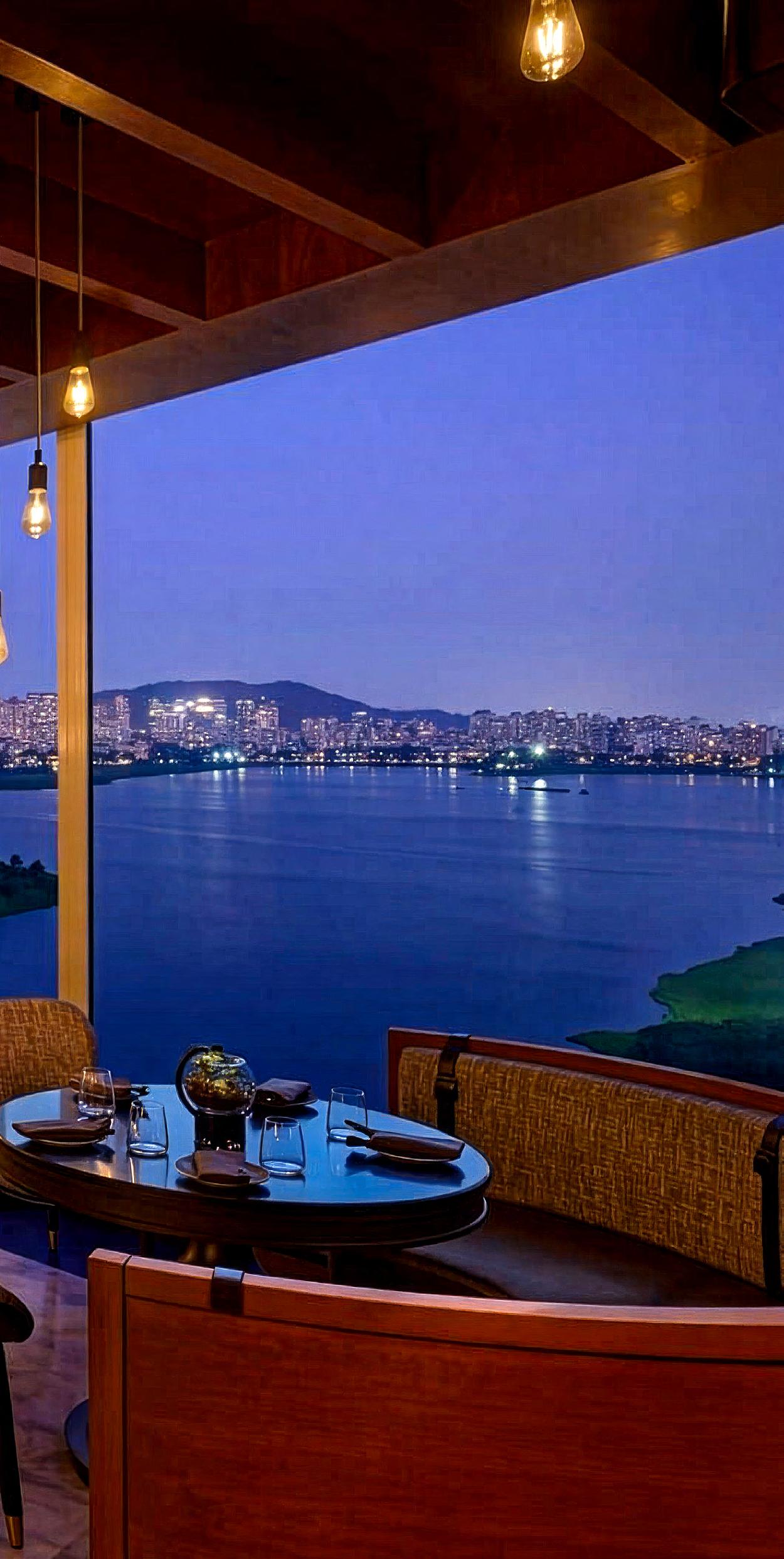

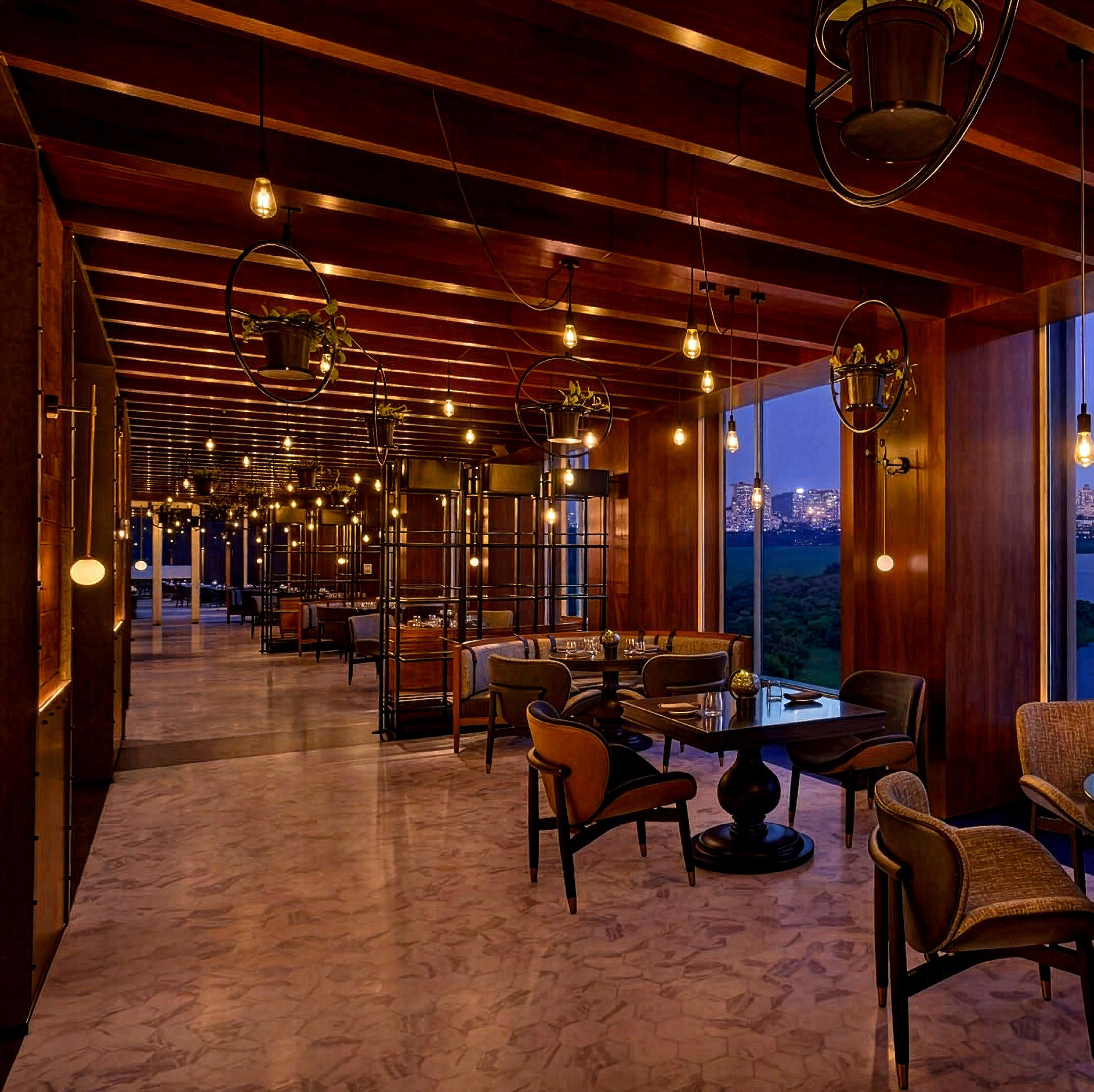

Located on the 36th floor of The Westin Powai, Mumbai, NOX offers sophisticated European and Mediterranean fine dining with panoramic views of Powai Lake. A premium restaurant by day that transforms into a vibrant rooftop lounge and party space by night.

The system, designed by AudioTechnik India with support from GENERATION AV, was created to perform effortlessly across contrasting environments.

Design Goals: - Provide flexible system control and tuning for mode changes between dining and high-energy playback.

- Integrate the sound system unobtrusively with the architectural and visual design of the space.

Signal management, zoning, and optimisation are handled via the HH Audio SP48 DSP, with dedicated presets for Fine Dine and Party modes. HH Audio TRS-1800 subwoofers deliver controlled, impactful bass enhancing the immersive experience.
