OPTUM AFS CONNECT ™
10 GOOD REASONS

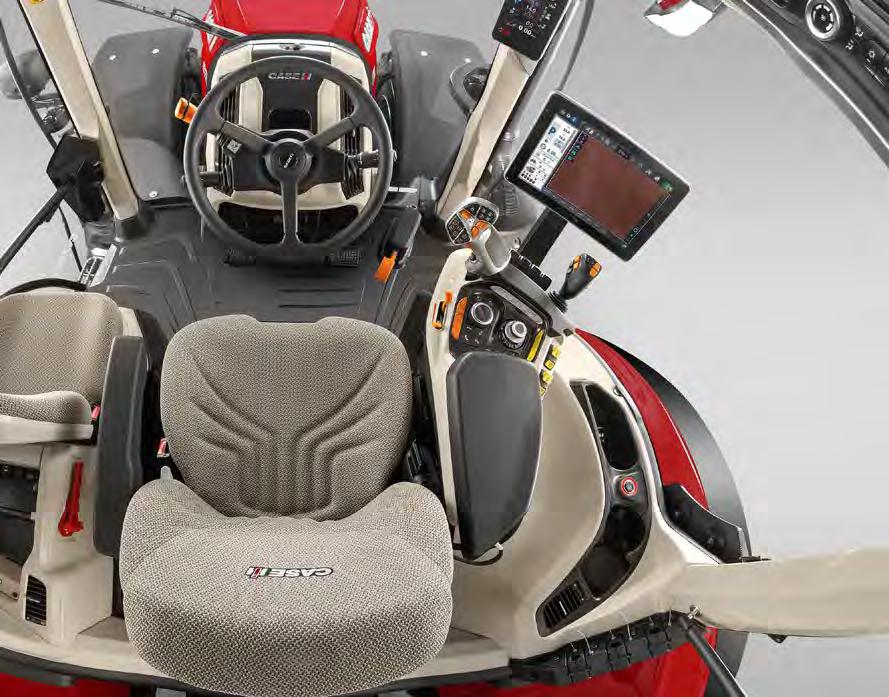

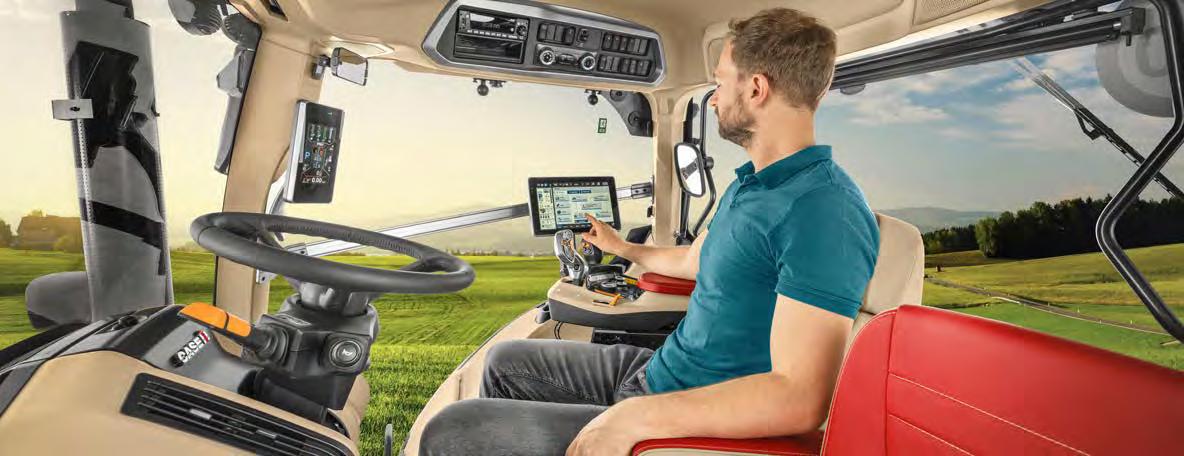

SETTING THE STANDARD FOR COMFORT AND ERGONOMICS
You asked, we delivered: the totally new cab of the Optum AFS ConnectTM is proof of our passion for industry-leading technology with an unmatched level of quality only seen in luxury cars.
Your workday has never been as comfortable, quiet and intuitive as it will be in the luxurious Optum AFS Connect command centre.
STAY RELAXED, EVEN ON LONG WORKING DAYS
• Work tirelessly with the quietest tractor cab on the market (65 dB(A))
• Powerful climate control and improved airflow creates a comfortable environment like no other
• New cab suspension equipped as standard for reliable shock absorption

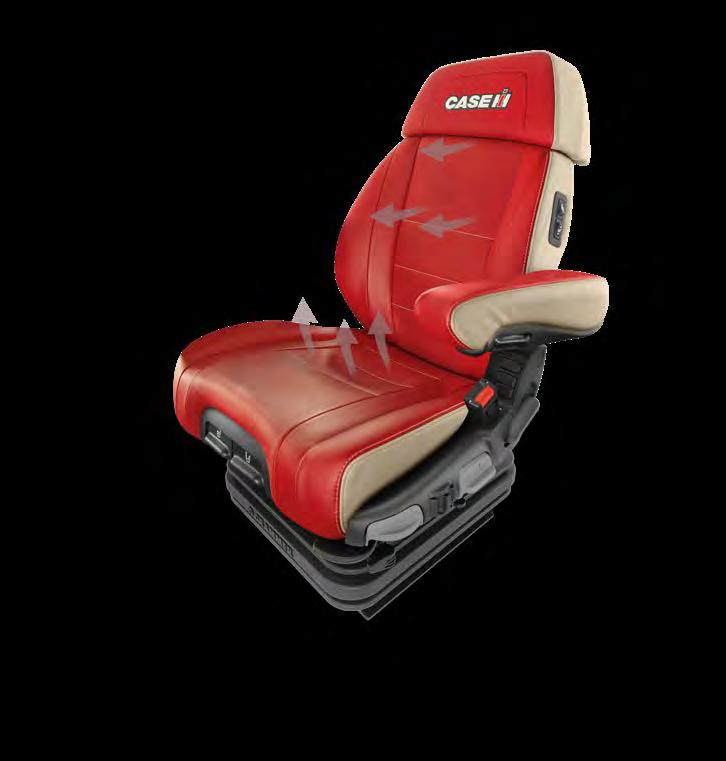

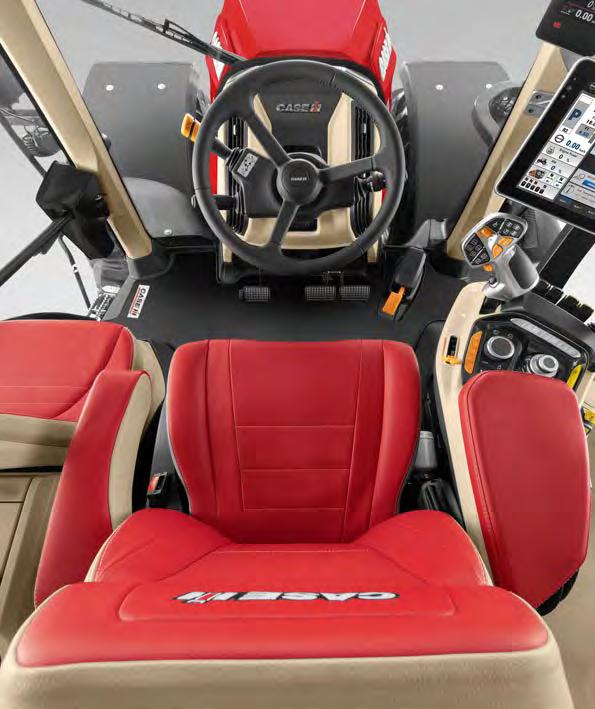

• Modern driver's seat, available with active suspension, cooling and high-quality leather cover
YOUR TRACTOR, YOUR WORKPLACE, YOUR PREFERENCES

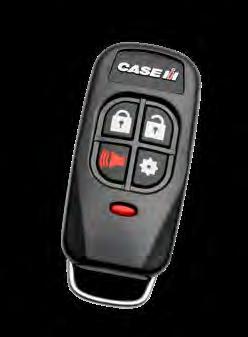

• Unique, keyless locking mechanism can be programmed for authorised personnel, offering top theft prevention
• Multicontroller armrest can be height and position adjusted for optimal support for every driver
• Driver's seat swivels to the right with adjustable head rest for a sitting position that prevents back pain
MORE SPACE AND SUPERIOR ALL-ROUND VIEW
• New 4-pillar cab frame increases space and storage options behind the driver's seat
• Up to 4 cameras can be connected to the AFS 1200 monitor
• One-piece windscreen made of tough, laminated glass provides excellent noise dampening and a great view of the front mounting space
• New, lowered wheel housings improve your view out the side
AT THE PUSH OF A BUTTON
INTUITIVE OPERATING CONCEPT
• Updated Multicontroller with 4 hot keys that can be freely programmed with over 120 functions
• Dial encoder and quick access buttons simplify navigation and allow quick adjustment of settings
• New ICP key panel features colour-coded groups of icons, making choosing a function easier
• 95% of the most important functions are available on the Multicontroller

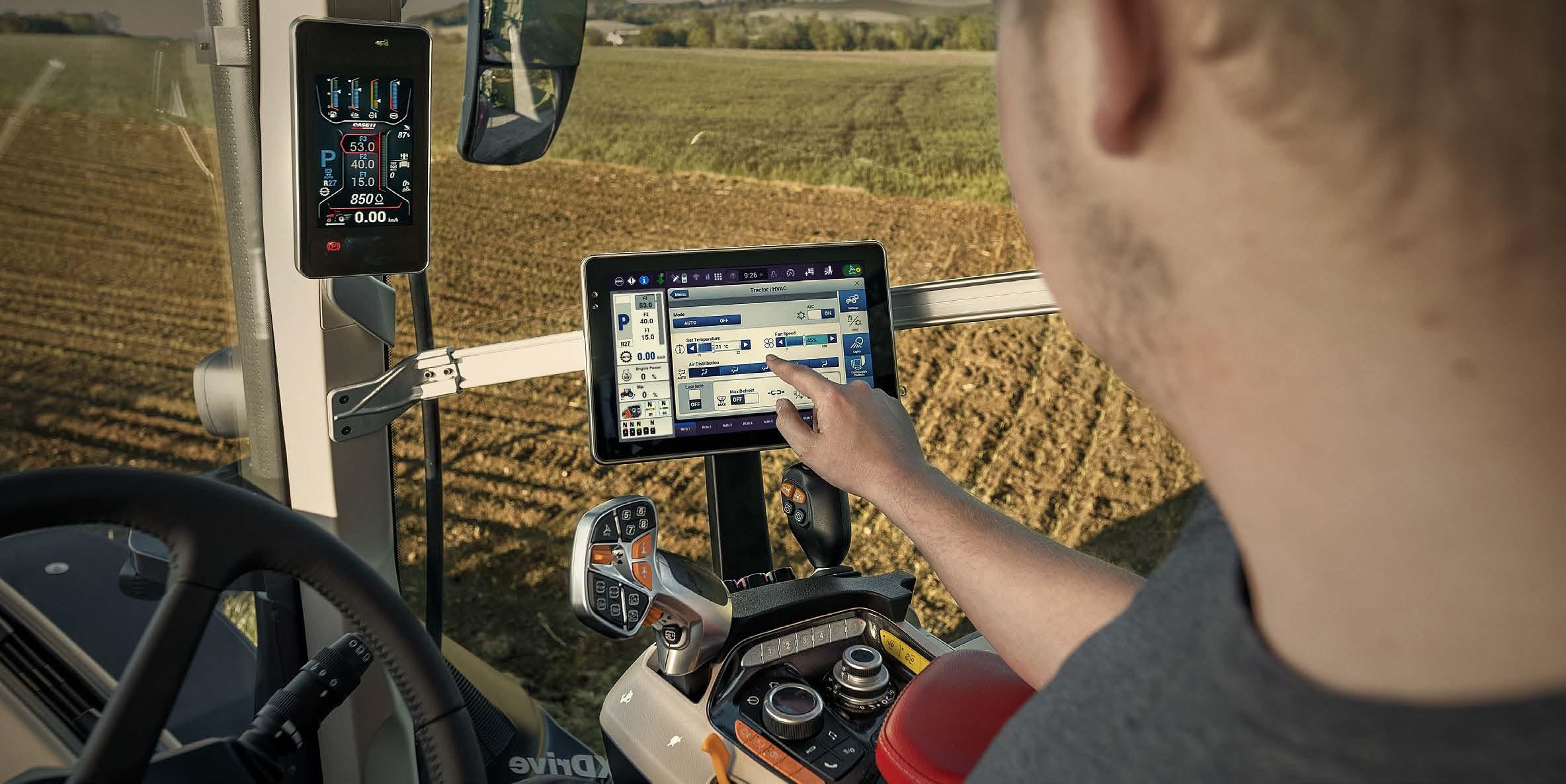

INFORMATION IN HIGH RESOLUTION
• New A-pillar display provides an overview of the most important information without interfering with the view to the front of the machine
• High resolution AFS 1200 multi-touch monitor offers excellent readability and easy menu navigation
PROVEN, EFFICIENT POWER

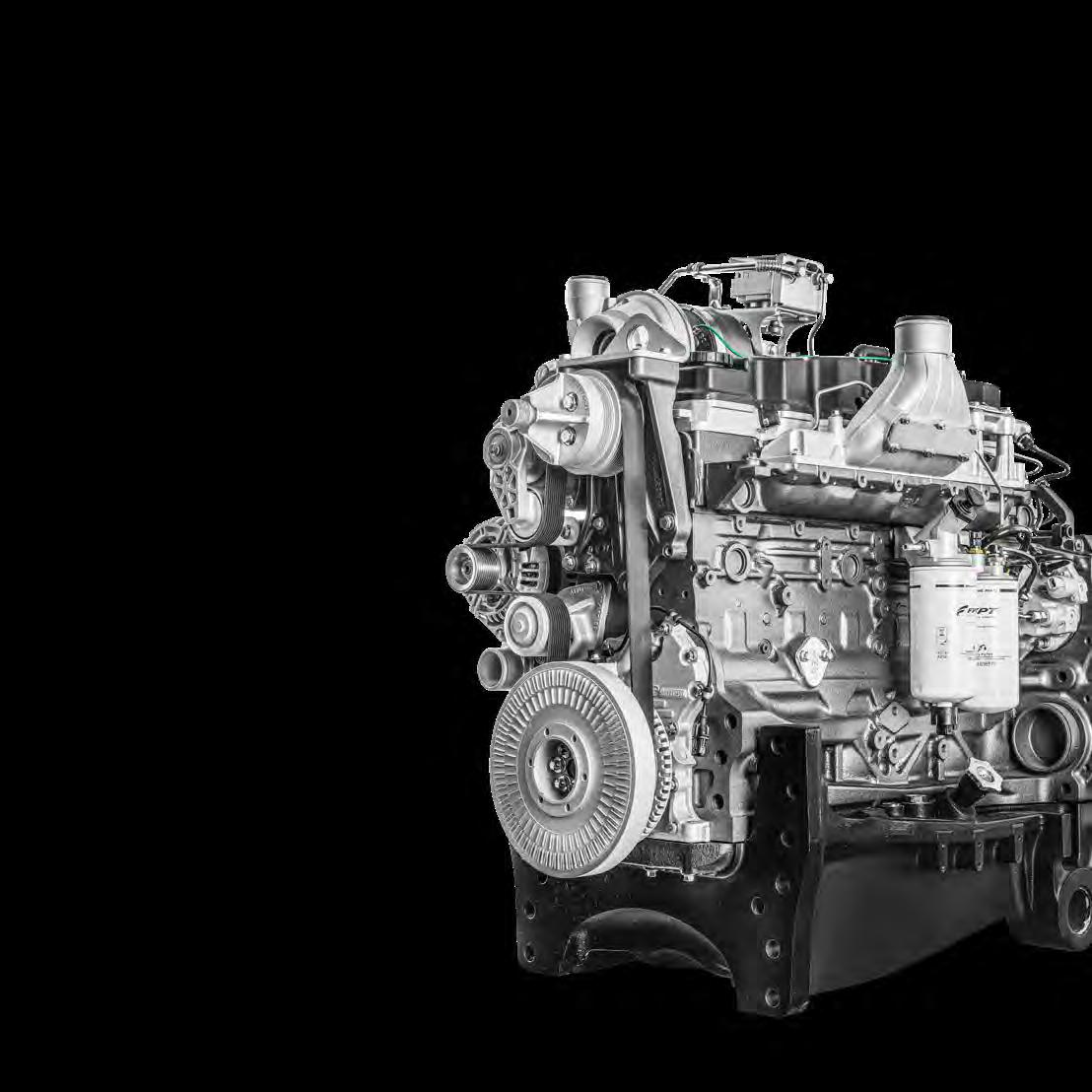

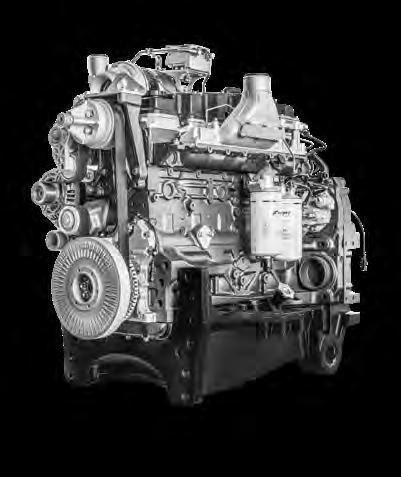

The FPT six-cylinder 6.7 engine with high-pressure Common Rail fuel injection delivers between 250 and 300-rated horsepower and was developed in-house. The patented, highly-efficient Hi-eSCR2 exhaust gas treatment meets Euro Stage V emissions standards without adversely impacting the engine performance.
THE MOST EFFICIENT ENGINE OF ITS KIND
• Maximum torque of 1,282 Nm at a fuel-efficient 1,400 rpm
• Automatic Productivity Management (APM) ensures the engine is always working within its ideal, fuel-efficient speed
• Innovative, reversible fan keeps the air intake free of debris so the engine is always able to perform to the fullest
LESS MAINTENANCE FOR GREATER PRODUCTIVITY
• E xtended maintenance interval of 750 h reduces maintenance costs
• The large 601 l diesel tank is designed for long working days without refueling
• The Hi-eSCR 2 exhaust aftertreatment system has no particle filter or exhaust gas return for highest efficiency
SOLID PERFORMANCE FOR THE HARDEST JOBS
• An enormous torque rise of 40% and a large, constant performance range keep the engine working smoothly
• Electronic controlled eVGT turbocharger with variable vane geometry delivers constant high performance and fast reactivity at all engine speeds
OPERATING CONCEPT
HIGHER EFFECTIVENESS FOR MAXIMUM DRIVE
• The dual-clutch automatically shifts between 4 mechanical driving ranges for uninterrupted power transmission
• 100% mechanical power transmission under 10 km/h for the heaviest pulling jobs
AUTOMATIC PRODUCTIVITY MANAGEMENT
• APM automatically matches the gear ratio and engine speed to keep fuel consumption to a minimum
• Low engine speed (1,550 rpm) at high transport speeds maximise fuel efficiency
A NEW DRIVING EXPERIENCE WITH ADJUSTABLE TRANSMISSION SETTINGS
• New transmission software ensures a smooth, reactive response
• Adjustable acceleration and deceleration rates of the transmission
• Power-shuttle with adjustable aggressiveness
SAFETY IN EVERY SITUATION
• Active Hold Control keeps the tractor stopped without applying the brake

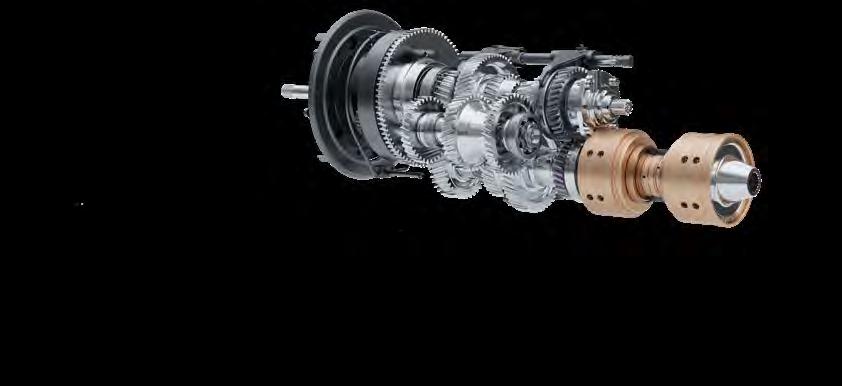

CONTINUOUSLY GREATER EFFICIENCY AND DRIVING PLEASURE

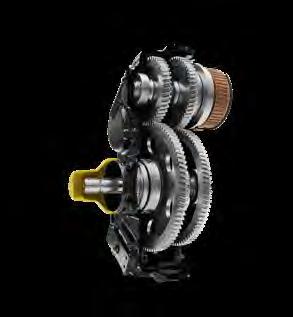

The continuously variable CVXDrive transmission is designed to find the perfect gear ratio for every job, completely automatically and without the driver even noticing. A double-clutch allows seamless gear range changes from a standstill to top speed while integrated creep speeds and Active Hold Control make the CVXDrive transmission a winner.

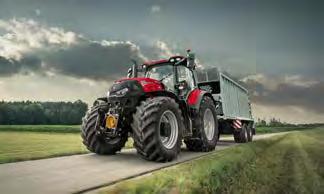

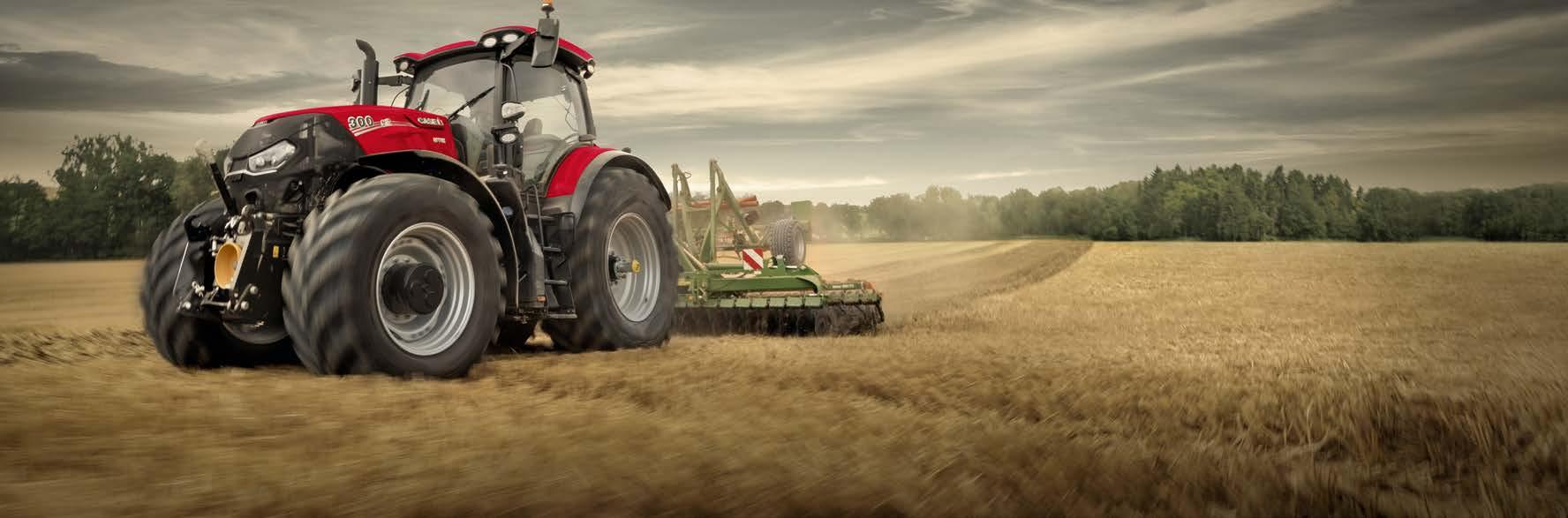

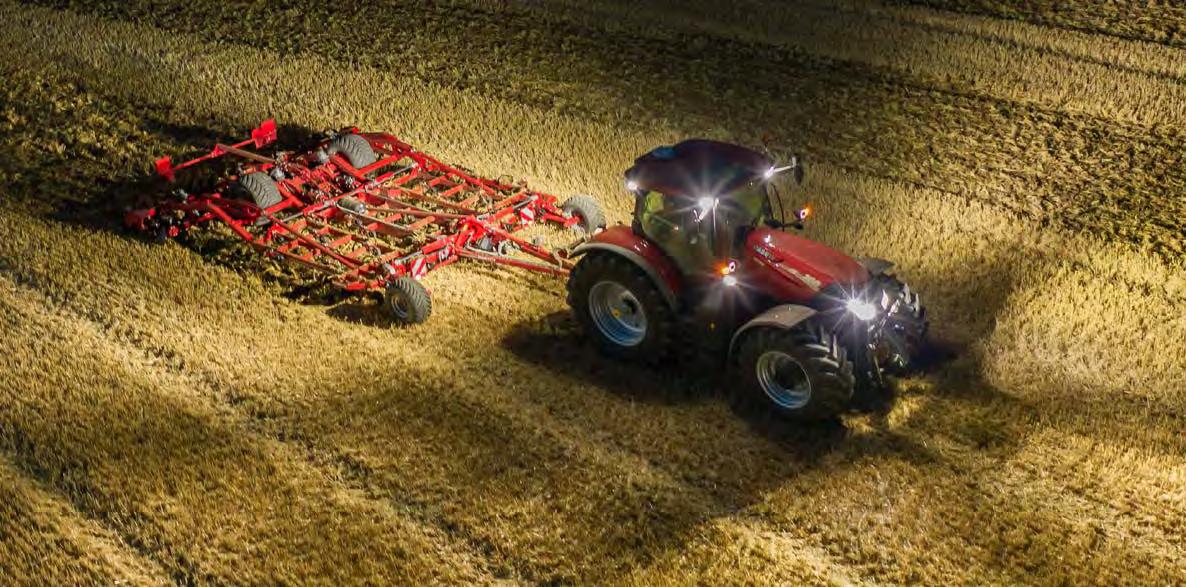

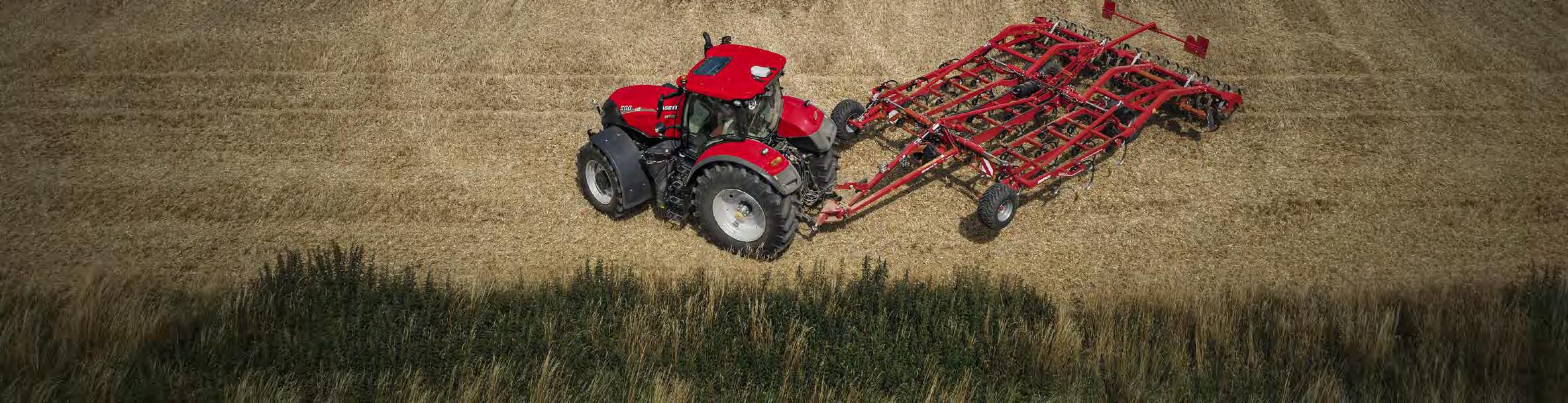

SIMPLY MASTER ANY TERRAIN

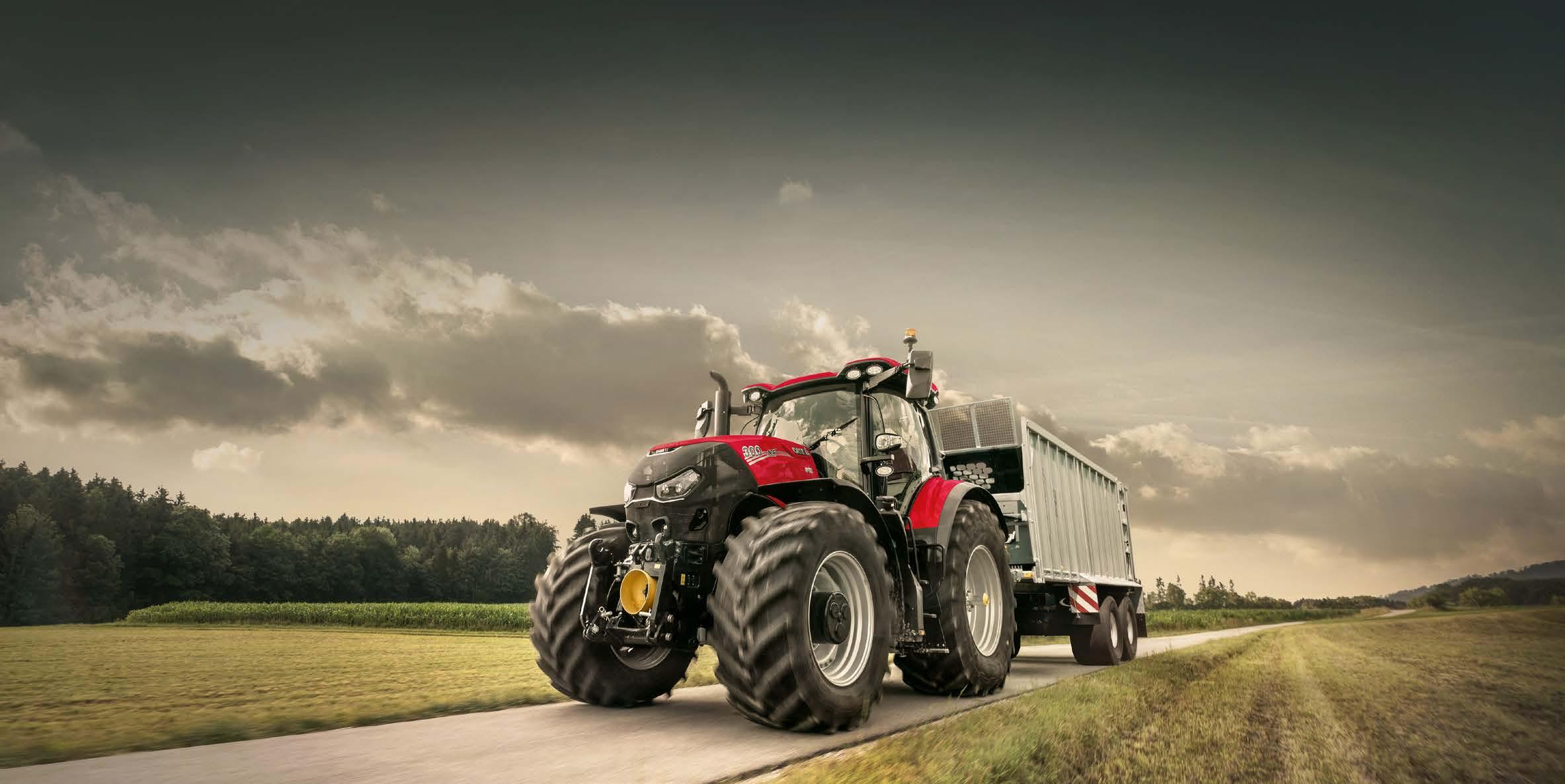

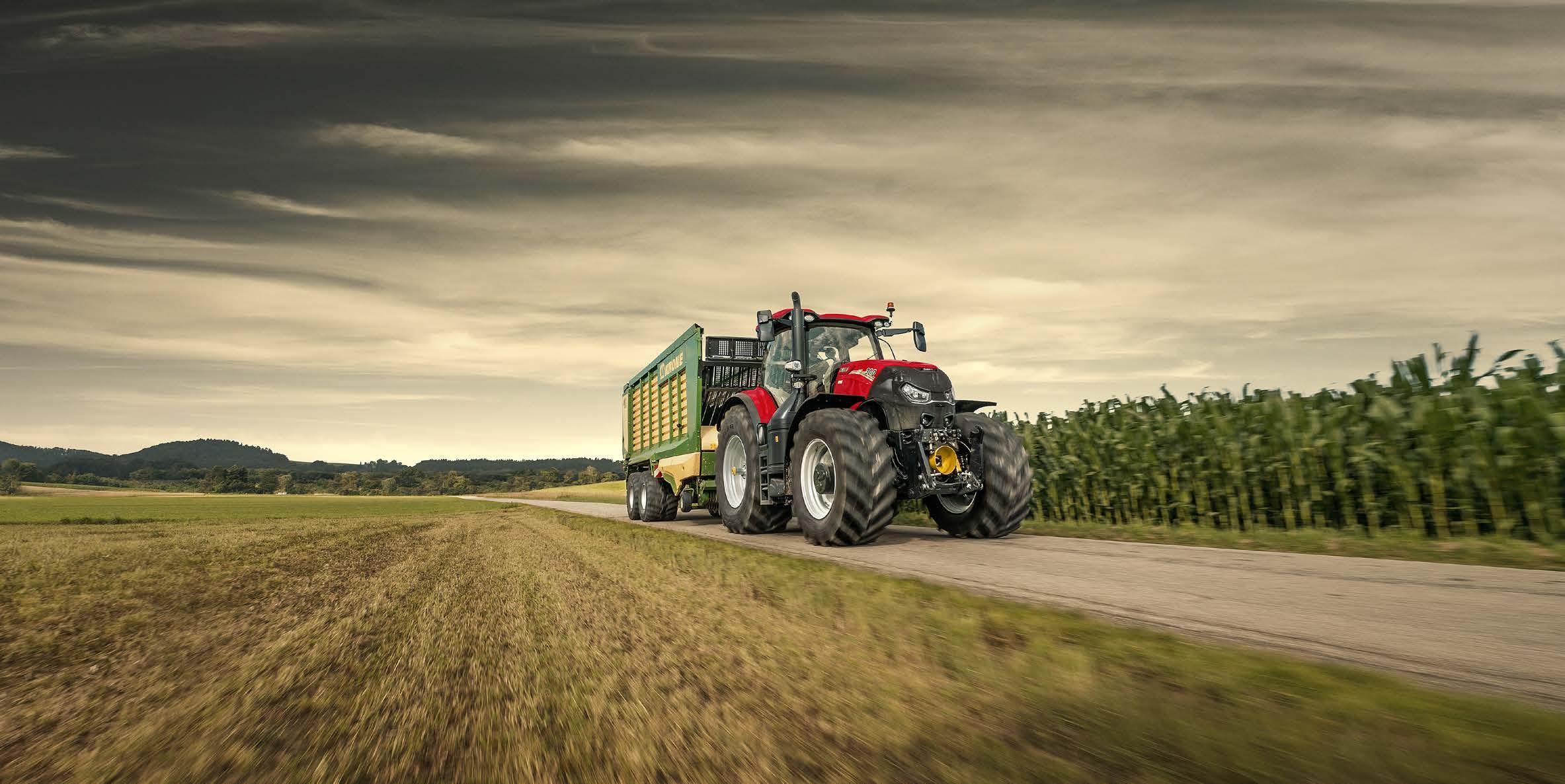

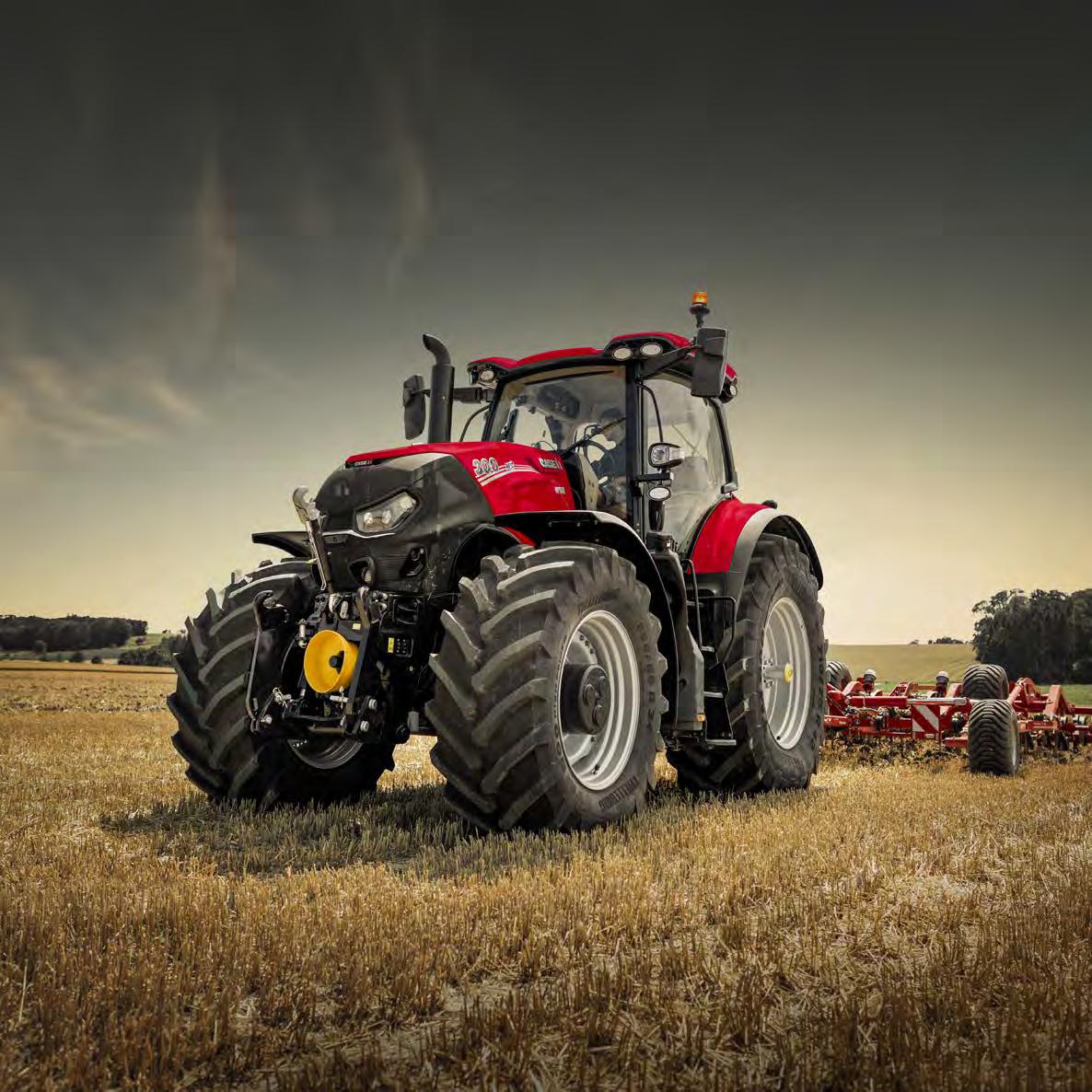

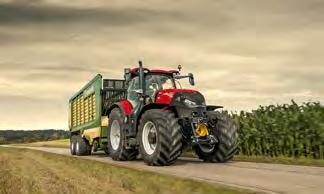

With their excellent power-to-weight ratio, agility and a high total permissble weight of 16,800 kg, Optum AFS Connect tractors are equally at home in the field and on the road.

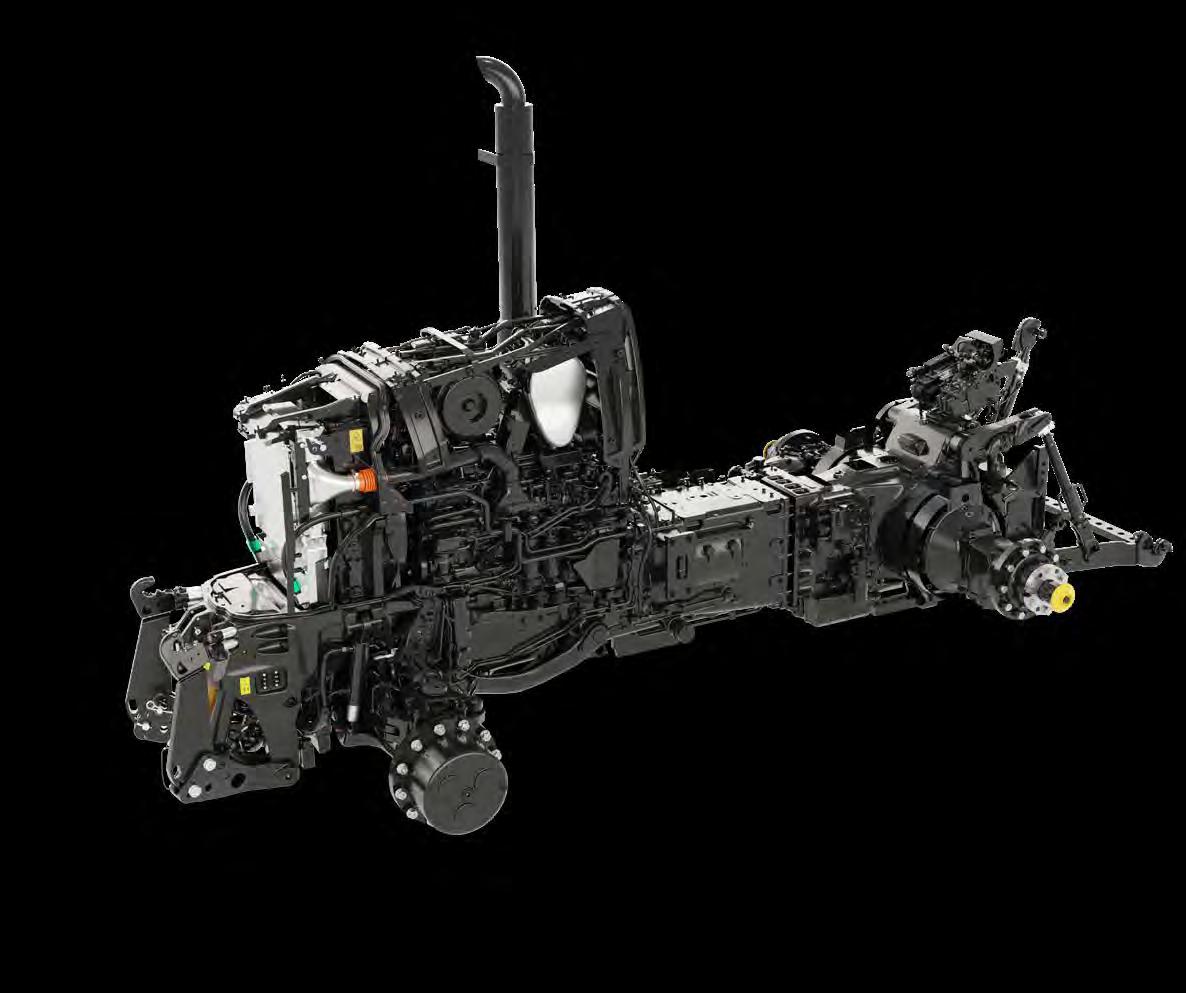

AGILE AND STABLE

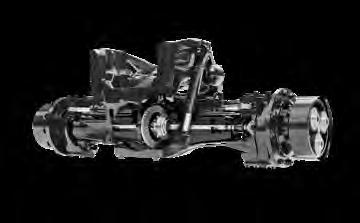

• Front axle with active saddle-type suspension ensures stress-free work in the field and on the road
• Robust axles can handle an enormous working load: front axle can carry 7,500kg and the rear axle 11,650kg
• 270 kg engine frame reliably handles the forces generated by the front linkage and front axle carrier
STRONG AS A TIGER, AGILE AS A CAT
• Reactive steering system for safe, responsive steering
• Adaptive steering system speeds up headland turns
• Slim design for a tight turning circle of just 7.7 m
• C onstant tyre pressure supervision via the AFS 1200 monitor
TRACTION MEANS PULLING POWER
• 100% lockable differential on front and rear axle reduces slip
• Automatic all-wheel-drive and differential lock management allows stress-free work
MORE SAFETY THROUGH INNOVATION
Safety is a critical feature of agricultural machinery that strongly influences the development of our products. The Optum AFS ConnectTM is equipped with state-of-theart technology to improve safety on the road and in the field, without burdening the driver with extra steps.
SMART BRAKING
• Highly-efficient engine back-pressure brake generates an additional 149 kW of braking power
• Optional automatic control of the trailer's steering axle to prevent damage while reversing
• Front wheel brakes available upon request for increased safety
SAFETY IS OUR PRIORITY
• Patented Advanced Trailer Brake automatically activates the trailer's air brakes when the tractor slows due to the CVXDrive transmission
• Active Hold Control prevents the tractor rolling backward when stopped on a slope, without using the brake pedal
• Automatic parking brake offers the highest level of safety
HANDLE ANY CHALLENGE
At Case IH, we know that a high utilisation rate has a positive influence on your tractor's overall economy. That's why we designed the hydraulic system to broaden the Optum AFS ConnectTM's range of uses. With even greater performance and precision, your machine can handle any challenge.
Key combinations bring you directly to the settings menu where you can configure your remotes
SUCCESS UNDER PRESSURE
• Pressure and flowrate-controlled axial piston variable displacement pump with a flowrate of 223 l/min
• 70 fluid volume to activate external loads such as hydraulic cylinders
• Up to 5 additional remotes can be installed at the rear and up to 3 at the front with a flowrate of 140 l/min
• Power Beyond connection for implements with integrated load sensing unit

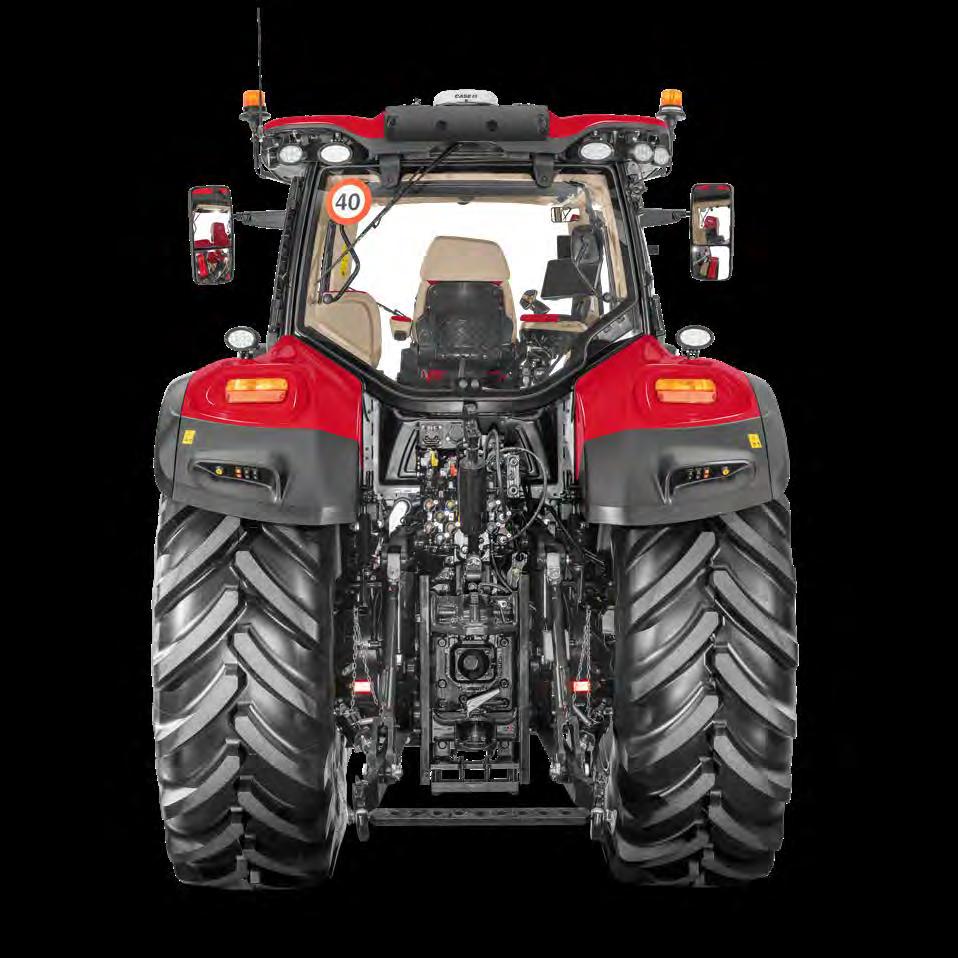

LIFTS JUST ABOUT ANYTHING

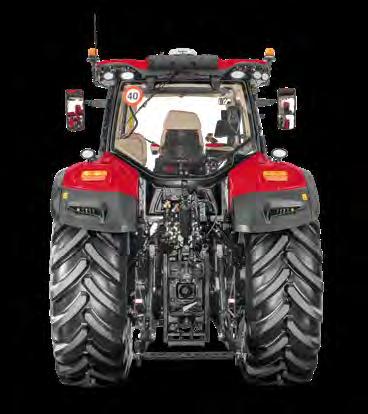

• Rear linkage with an incredible constant lifting power of 11,058 kg
• Fully-integrated front linkage with position control and 5,821 kg of lifting power
• Hydraulic lower link stabilisers increase safety while driving with heavy implements
BENCHMARK FOR OPERATION
• Industry-exclusive toggle switches which change colour depending on the remote assigned to them
• Up to 4 additional remotes can be assigned to the Multicontroller
• Optional joystick with programmable buttons and float setting on two axis to easily operate the remote valves

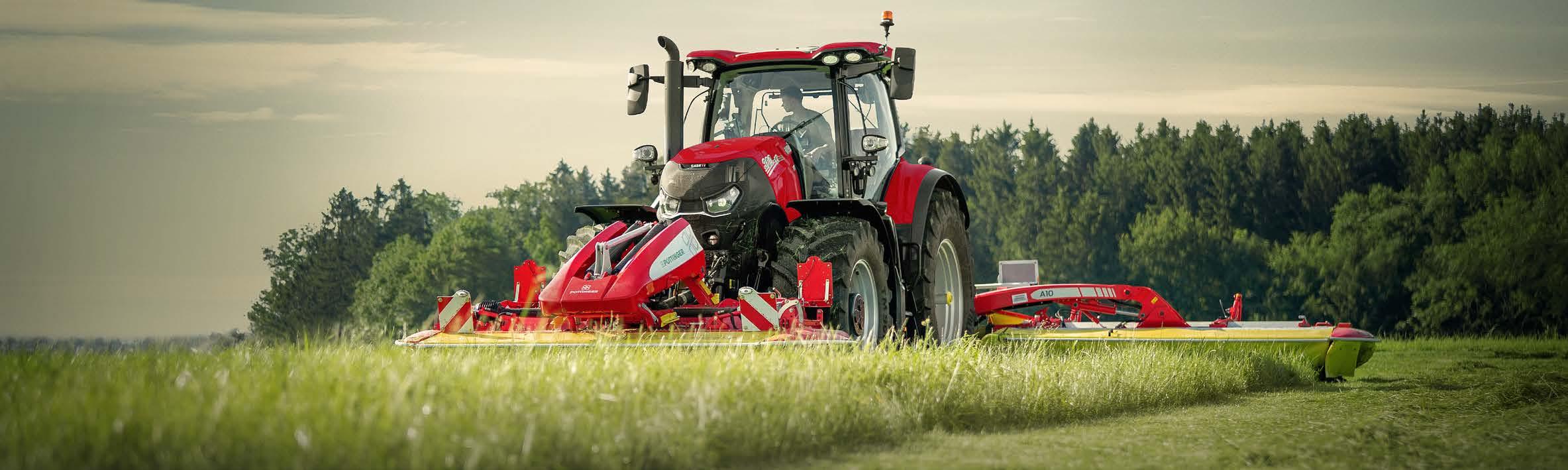

POWERFUL YET FRUGAL PTO WORK
Mowing, baling, loading and more - the Optum AFS ConnectTM's heavy-duty PTO delivers maximum performance and reliability for every application. Perfectly matched to the engine's characteristics, the Optum is extremely efficient in PTO-mode.
MORE OPTIONS = MORE EFFICIENCY
• 4 PTO speeds (540/540E/1,000/1,000E) with electronic preselection
• Optional front PTO with 2 speeds (1000/1000 Eco)
• E xternal controls to switch the front and rear PTO on or off
MODERN PTO TECHNOLOGY
• Factory-equipped automatic PTO system for front and rear PTO protects both the tractor and the implement
• Automatic activation of PTO brake when PTO switches off for increased safety
• Soft-start feature prevents the engine stalling
FARM MANAGEMENT
GET MORE DONE EVERY DAY
Optimise your time by simply organising your fields, applications and agronomic data
FLEET MANAGEMENT
TRACK, MONITOR AND MANAGE YOUR ENTIRE FLEET
Efficiently follow the locations of your machines & display your machine parameters in real time
MANAGE YOUR DATA EXCHANGE
CONNECT AND SHARE DATA
Securely share your operation's data with trusted partners, anytime and anywhere
OUR NEW SYSTEMS ARCHITECTURE FOR EVEN MORE POSSIBILITIES
Thanks to our latest AFS Connect telematics package, you have the freedom to take the right, data-driven decisions at the right time, anywhere and from any device.
THE FREEDOM TO MANAGE AND EDIT YOUR DATA
• Visualise and organise current field activities, fleet information, applications and agronomic data
• Share select agronomic data - down to the field level - with third parties of your choice. You never lose control of your data
• Highest level of security when transfering data to and from the cloud
REMOTE SUPPORT TO KEEP YOUR MACHINE RUNNING
• Remote screen viewing: supports the operator whilst setting up and operating the machine
• Remote service tool: remotely diagnose potential issues in machines that are connected to the dealer
• Remote software updates for tractor and monitor
• 3 years of activation included
YOU DECIDE WHEN AND WHERE
• Access AFS Connect from anywhere to view, share and manage data in real time on any device
• Share vehicle information with external partners, access a live vehicle map or call up directions to the machine's current location
NO SIGNAL LOSS IN CHALLENGING ENVIRONMENTS
To boost and stabilize the signal, Optum AFS ConnectTM can follow all available GNSS constellations simultaneously (GPS, Galileo, Glonass and BeiDou).
WITH AFS® TO SUCCESS
Our Advanced Farming Systems (AFS®) lead the industry in precision farming solutions. AFS connects the control systems of the tractor and implement thanks to full ISOBUS compatibility and HMC II headland management. Take advantage of your Optum AFS ConnectTM's pioneering technolgy for more performance, productivity and flexibility.
1.5 CM OF PURE PRECISION
RTK+ cellular-based correction guidance has no trouble achieving a repeatable accuracy of just 1.5 cm, reducing overlaps, lowering the cost of inputs and maximising yield potential.
TURN AS IF BY MAGIC
AccuTurn ProTM automates the entire headland series by calculating the ideal turning path and speed while also managing the implement.
OPTIMIZED WORKFLOW
With ISOBUS III, the implement automatically controls the Optum's most important functions, automatically adjusting their parameters to suit the implement's requirements.
GET MORE OUT OF EVERY FIELD
The fully-integrated AccuGuideTM guidance system ensures reliable pass-on-pass precision regardless of season, operation or pattern (field, round and round, curve, track, spiral or straight) to reduce overlaps.
HMC 2
Headland Management Control II helps the driver turn in the headland. It can be programmed via the Multicontroller or the AFS Pro 1200 monitor by time or by distance.
MANUEL SPEIDEL,
MANAGER AT ZIMMERMANN FARMS IN TÜBINGEN DISTRICT, GERMANY:
"We farm about 260 hectares of land. Of those, about 160 hectares are fields and 100 are pasture. We also contract farm an additional 350 hectares of fields, in addition to a lot of other contract work and municipal jobs. We were fortunate to be able to test the Optum AFS ConnectTM prototype before its launch. We were especially pleased with the spacious new cab with the new armrest and color monitor. The armrest is a real highlight, you can freely assign remotes and all Isobus functions. The machine really won us over while we worked with it."
