Axonometric drawing of the Study model

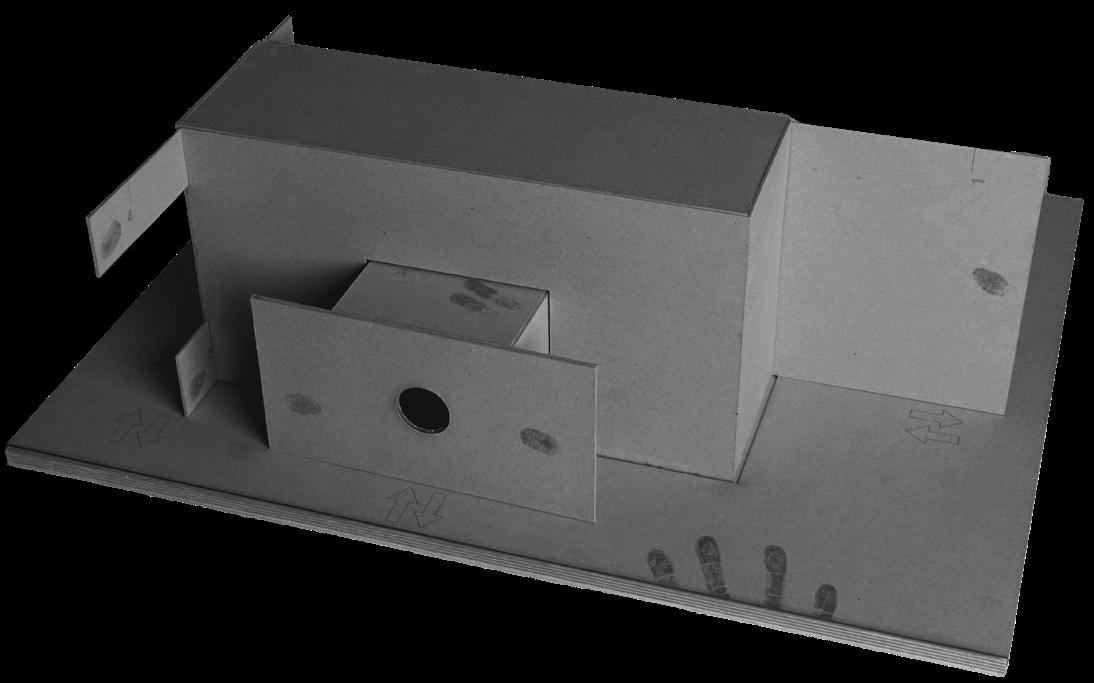

Model to study the sharpness and blurriness of lights and shadows in different compsitions

The Igloo

The Cave

The Well

The Hall

Light conditions in position

When the camera is set to A, the vault is pressed against the back wall. As both windows in the back are opened, the light flows into the room through the openings in the back wall and softly reflects onto the vault and back towards the opening. All is lit up in a smooth soft way, creating a smooth and intimate room which we have chosen to call The Igloo.

Light conditions in position

When providing the maximum of light to enter the model, all fronts are lit up. The vault is still amplified as the shades of light are in contrast; the openings to the left provides stronger light to the wall behind the vaults left sida and then fades past the windows, and the light flowing in through the big window in the back wall is focused onto the right part of the vault.

Light conditions in position

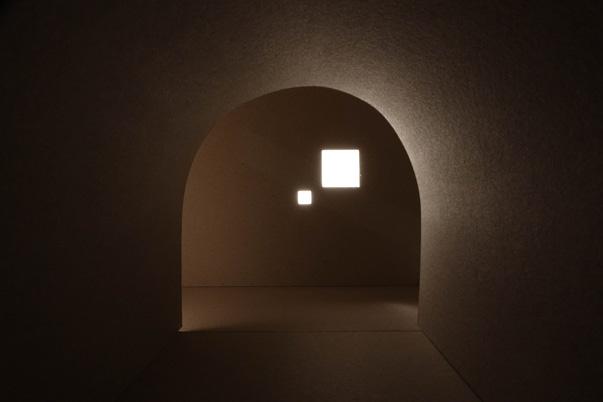

When only the small window is opened, the light that manages to press through the small window fails to lit up the room. The small, square window shapes the light that manages to attain the vault into blurry semicircles. This darker room feels less than a church and more as looking up from down a well.

Light conditions in position

By closing the windows in the back wall, and opening the upper window to the left, the room infront of the vault is in focus. The focus has shifted from the vault to the other room; the vault is dark and the back room is softly lit up. Infront of the vault, to the left, we sense a bigger room, a hall filled with activity.
