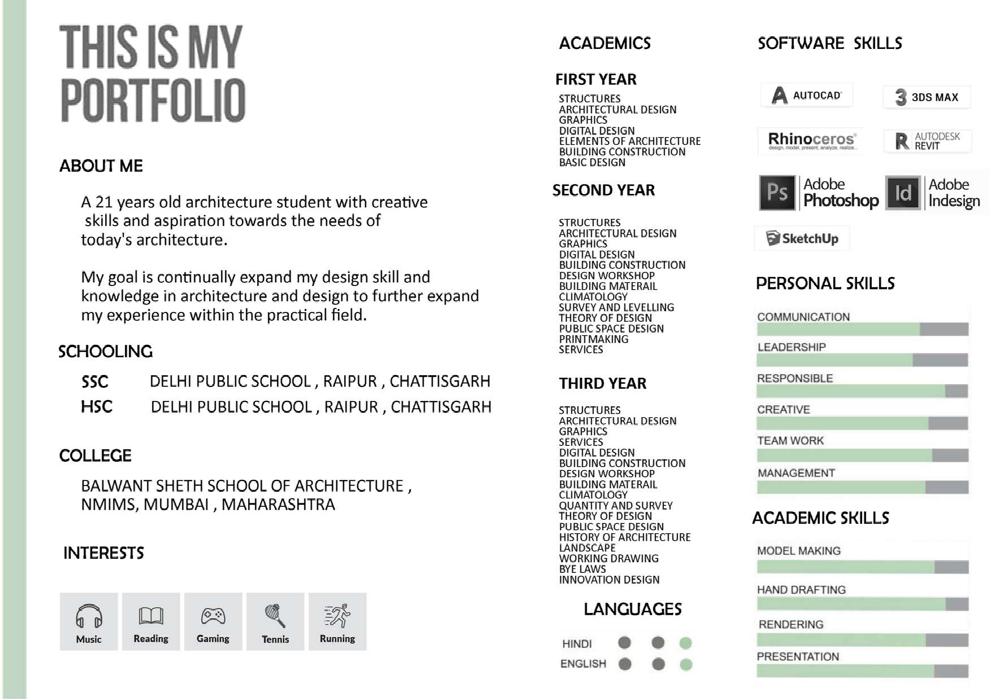

RESUME

CONTENT PORTFOLIO Harshita Agrawal Table of Content ARCHITECTURAL DESIGN LANDSCAPE DESIGN WORKING DRAWING WITH REVIT PHOTOSHOP Location: PAREL , MUMBAI Location: BHULESHWAR , MUMBAI Location: LONAVALA , MAHARASHTRA 01 02 03 04 ADVANCE SERVICES Location: MUMBAI 05 INSTALLATION Location: NMIMS , MUMBAI 06 STUDY TOUR Location: KOLKATA , WEST BENGAL 07 EXPLORATIONS 08 Location: ANDHERI , MUMBAI

TABEL OF

PROJECT 01

ARCHITECTURAL DESIGN

Location: PAREL, MUMBAI

Semester: 6th

Year: 3rd

Introduction:

This project proposes the creation of a vibrant, multifunctional urban hub above and below an existing stadium. The aim is to revitalize the stadium site by adding valuable public spaces while respecting the existing structure.

Project Site:

Existing stadium with a defined plot size and footprint.

Project Scope:

Design a new structure above the existing stadium that incorporates a variety of public spaces. Consider factors like weight distribution, integration with the existing stadium design, and overall aesthetics.

Explore the possibility of creating a structure below the stadium as well, potentially utilizing existing undercroft space.

01 PORTFOLIO

AIMING TO CREATE WITH A BETTER FLOW OF PUBLIC SPACES WITH KEEPING UPTO MEMEORY OF THE PLACE AND AIMING TO SOLVE THE PROBLEM OF PEOPLE LIVING AND THRIVING AROUND THE SITE

01 Architectural Design

CONCEPT

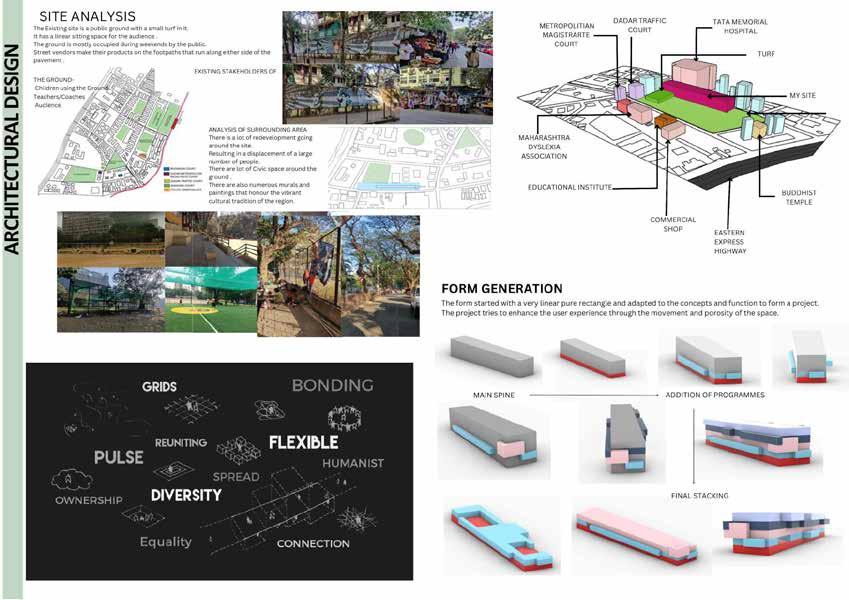

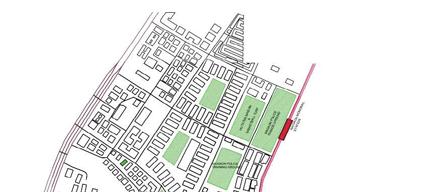

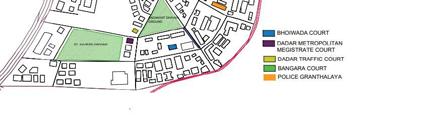

PORTFOLIO Name TATA MEMO DADAR TRAFFIC FORM GENERATION SITE

ANALYSIS

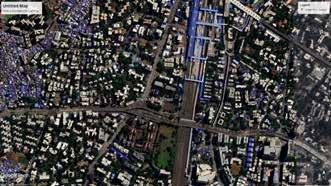

RIAL L MY SITE TURF LIFT 1 LIFT 2 STAIRCASE LIFT LOBBY +-0.0M DOWN DOWN VIEWING DECK VIEWING DECK 29 38 ST XAVIERS GROUND TURF ST XAVIERS STREET SCALE 1:150 GROUND FLOOR UP UP Female Toilet Male Toilet Female Toilet Male Toilet -3.0M RECREATIONAL AREA PRACTICE ROOM MULTI PURPOSE ROOM MULTI PURPOSE ROOM PRACTICE ROOM PERFORMANCE AREA PERFORMANCE AREA JAMMING AREA FOR ARTISTS/ EXHIBITION SPACE ST XAVIERS GROUND TURF ST XAVIERS STREET SCALE 1:150 BASEMENT FLOOR FloorFLOORPlanPLANS

Female Toilet Male Toilet Female Toilet Male Toilet LIFT 1 LIFT 2 STAIRCASE & LIFT LOBBY INFORMATION AREA +7.5M DECK FACILITATION CENTRE +7.5M 19 38 ST XAVIERS GROUND TURF ST XAVIERS STREET SCALE 1:150 FIRST FLOOR LIFT 1 LIFT 2 STAIRCASE & LIFT LOBBY +-0.0M +2.7M +3.0M +3.4M +3.8M +4.2M +4.7M +5.1M +5.5M ST XAVIERS GROUND TURF ST XAVIERS STREET SCALE 1:150 STADIUM FLOOR FLOOR PLANS ELEVATION GROUND LEVEL 0 STADIUM LEVEL 2700 Level 2 8000 Level 3 11000 Level 4 14000 BASEMENT -3000 GROUND LEVEL 0 STADIUM LEVEL 2700 Level 2 8000 Level 3 11000 Level 4 14000 BASEMENT -3000 1 : 150 North 1 1 : 150 South 2

Female Toilet Male Toilet Female Toilet Male Toilet LIFT 1 LIFT 2 STAIRCASE LIFT LOBBY COMMON WORKING AREA OFFICE STORAGE AREA KITCHEN 29 SCALE 1:150 SECOND FLOOR ST XAVIERS GROUND TURF ST XAVIERS STREET ELEVATION FLOOR PLANS GROUND LEVEL 0 STADIUM LEVEL 2700 Level 2 8000 Level 3 11000 Level 4 14000 BASEMENT -3000 GROUND LEVEL 0 STADIUM LEVEL 2700 Level 2 8000 Level 3 11000 Level 4 14000 BASEMENT -3000 1 150 East 1 1 150 West 2 LEVEL LEVEL

SECTIONS GROUND LEVEL 0 STADIUM LEVEL 2700 Level 2 8000 Level 3 11000 Level 4 14000 BASEMENT -3000 GROUND LEVEL 0 STADIUM LEVEL 2700 Level 2 8000 Level 3 11000 Level 4 14000 BASEMENT -3000 GROUND LEVEL 0 STADIUM LEVEL 2700 Level 2 8000 Level 3 11000 Level 4 14000 BASEMENT -3000 B C D A 1 150 Section 1 1 1 150 Section 2 2 1 150 Section 3 3

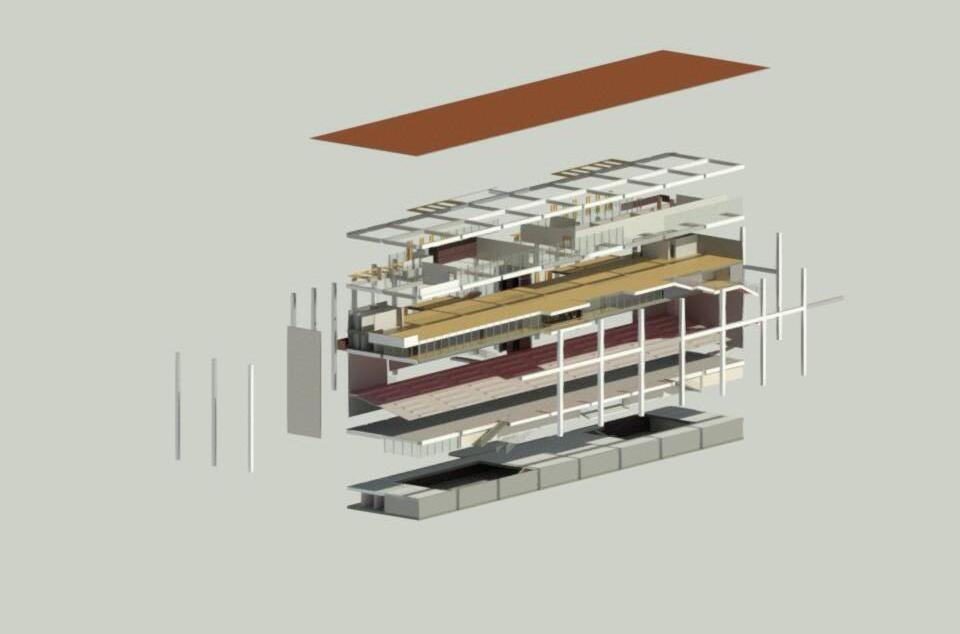

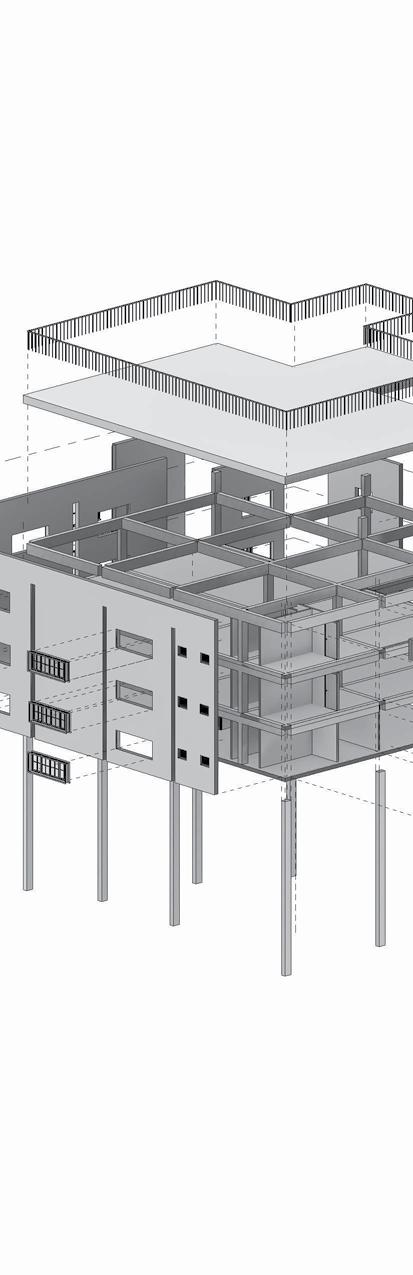

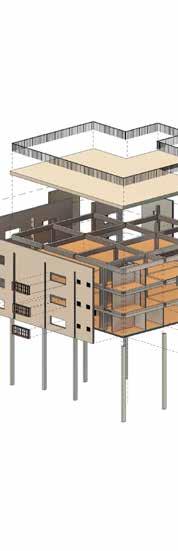

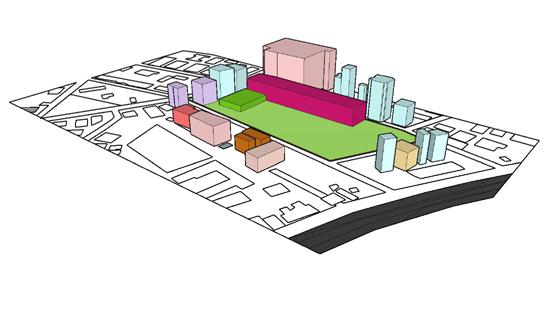

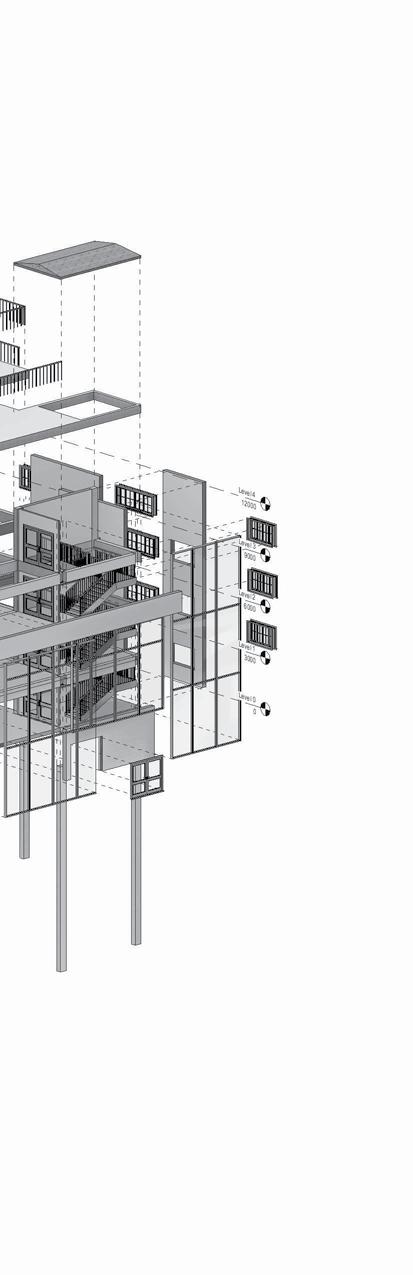

EXPLODED VIEW

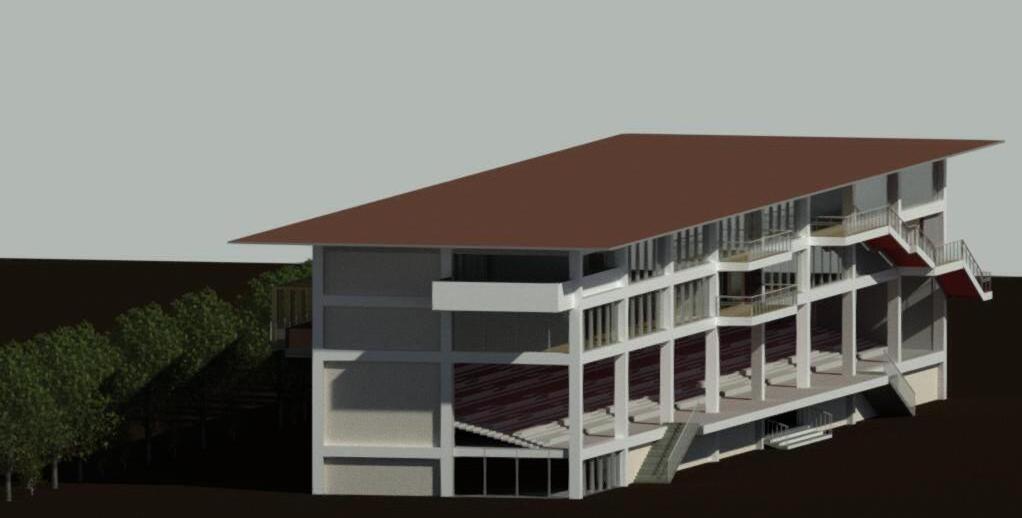

ISOMETRIC VIEW

PROJECT 02

LANDSCAPE DESIGN

Location: MA SHETH SCHOOL , MUMBAI

Semester: 6 th Sem

Year: 3rd Year

Introduction:

The studio looked at students to envisage and develop a landscape design for a specific site using multiple design scales, drawing and communicating it in ways appropriate to the chosen proposal, keeping in mind the notions of ecological planting design. Students looked at planting as systemic entities that work together with other parts to create a diverse functional and experiential quotient. Along with the purely functional roles, and the obvious benefits of aesthetic delight, planting starts to be increasingly important to the context within which it is designed and also to the biotic elements. There was also an exercise where

PORTFOLIO

This is an Assignment where we did an inticrate study on the different aspects of plantation in mumbai to understand the regional plantation of mumbai that we further applied to the site.

06 Landscape Design

SHETH M.A. SCHOOL

tree

loose and architectural habit with a high canopy of finely divided blue-green to silver gray leaves, 3-5 in. long (7-12 cm). The foliage remains appealing all year round. In late winter to early spring, clouds of fragrant, ballshaped, fluffy yellow flowers held in large racemes appear on the branch tips. The bark is smooth, gray-green to dark gray, becoming fissured with age. Short-lived (50 years), this is one of the hardiest acacias. It is commonly grown by the cut-flower industry both for its foliage and flowers. Interview

Secondary classes are from 7:00am to 12:30pm.

Primary classes are from 12:30pm to 5:00pm.

He stays there till 7:00pm.

After 6:00pm the road becomes empty only vehicles and some people walking toward the station are visible. The playground belonged to the school and was only accessible to students and staff.

Secondary classes are from 7:00am to 12:30pm.

Primary classes are from 12:30pm to 5:00pm.

He stays there till 7:00pm.

LANDSCAPE DESIGN: SHETH M.A. SCHOOL

shaped, fluffy yellow flowers held in large racemes appear on the branch tips. The bark is smooth, gray-green to dark gray, becoming fissured with age. Short-lived (50

Name of Plant Botanical Name Description Plant Images

After 6:00pm the road becomes empty only vehicles and some people walking toward the station are visible. The playground be longed to the school and was only accessible to students and staff.

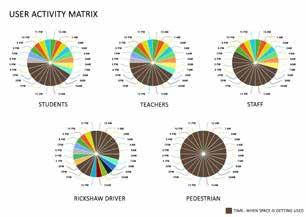

USER GROUP STUDY

tree Arecaceae The Arecaceae is a family of perennial flowering plants. Their growth form can be climbers, shrubs, tree-like and stemless plants, all commonly known as palms. Those having a tree-like form are called palm trees. Most palms are distinguished by their large, compound, evergreen leaves, known as fronds, arranged at the top of an unbranched stem.Its wood is used for agricultural implements, water conduits, buckets, rafters, etc. The leaves are used as brushes, brooms

Name of Plant Botanical

Name Description Plant Images

Palm tree Arecaceae The Arecaceae is a family of perennial flowering plants. Their growth form can be climbers, shrubs, tree-like and stemless plants, all commonly known as palms. Those having a tree-like form are called palm trees. Most palms are distinguished by their large, compound, evergreen leaves, known as fronds, arranged at the top of an unbranched stem.Its wood is used for agricultural implements, water conduits, buckets, rafters, etc. The leaves are used as brushes, brooms and ropes. The leaves are also used for the treatment of cancer, cardiovascular diseases, kidney diseases and wound healing.

Name of Plant Botanical Name Description Plant Images

Peepal tree Ficus religiosa Ficus religiosa or sacred fig is a species of fig native to the Indian subcontinent. The sacred fig is the state tree of the Indian states of Odisha,[6] Bihar and Haryana. Ficus religiosa is a large dry seasondeciduous or semi-evergreen tree up to 30 metres (98 ft tall and with a trunk diameter of up to 3 metres (9.8 ft). It not only emits oxygen but also has many important medicinal benefits. Different parts of the Peepal such as root bark, stem bark, roots, leaves, and fruits are used to manage conditions like high blood sugar levels, constipation, and asthma.

leaves, and fruits are used to manage conditions like high blood sugar levels, constipation, and asthma. EDGE

Name of Plant Botanical Name Description Plant Images

Bartondi Tree (Indian mulberry)

Name of Plant Botanical Name Description Plant Images

(Gulmohar tree) Mayflower tree

Morinda pubescans A small evergreen tree up to 10m high with vertically furrowed bark spreading canopy. The bark is yellowish. Indian Mulberry is an evergreen shrub or small tree growing to 5-10 m tall. Stem is short and crooked, with rough bark with deep longitudinal cuts. Oppositely arranged leaves are 15-25 cm long, oblong to lancelike.

Delonix regia A medium seized deciduous tree from Madagascar, growing up to 12m high. The leaves are twice divided, called bi compound leaves. They are found all over Mumbai along roadside, railway tracks and gardens.

Name of Plant Botanical Name Description Plant Images

(Gulmohar tree) Mayflower tree

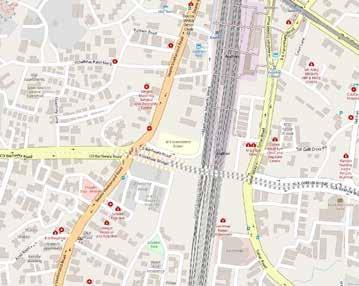

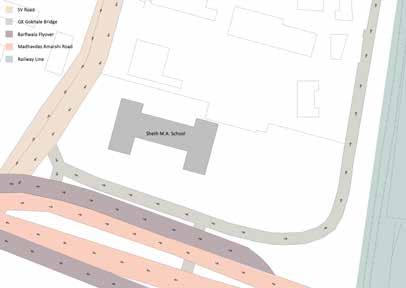

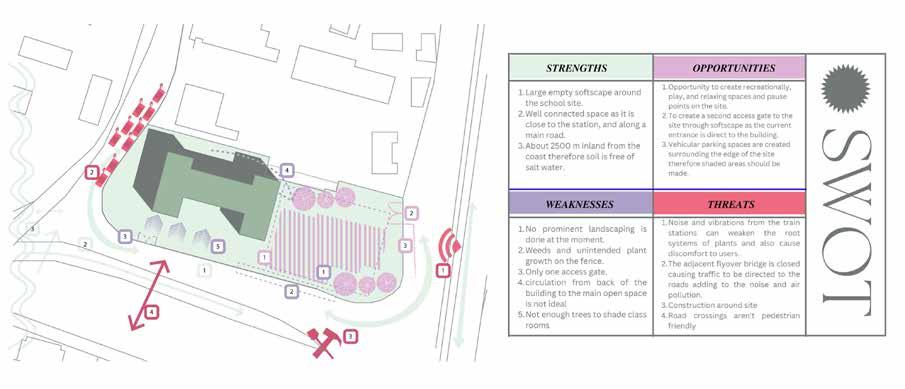

07 SITE ANALYSIS SITE CONTEXT SITEPLAN & SECTION Name of Plant Silver Wattle long (7 12 cm). The foliage remains appealing all year round. In late winter to early spring, clouds of fragrant, ballshaped, fluffy yellow flowers held in large racemes appear on the branch tips. The bark is smooth, gray-green to dark gray, becoming fissured with age. Short-lived (50 years), this is one of the hardiest acacias. It is commonly grown by the cut-flower industry both for its foliage and flowers. Interview with the watchman: Secondary classes are from 7:00am to 12:30pm. Primary classes are from 12:30pm to 5:00pm. He stays there till 7:00pm. After 6:00pm the road becomes empty only vehicles and some people walking toward the station are visible. The playground be longed to the school and was only accessible to students and staff. LANDSCAPE DESIGN: SHETH M.A. SCHOOL Name of Plant Botanical Name Description Plant Images Palm tree Arecaceae The Arecaceae is a family of perennial flowering plants. Their growth form can be climbers, shrubs, tree-like and stemless plants, all commonly known has many important medicinal benefits. Different parts of the Peepal such as root bark, stem bark, roots,

BRICK

WIRE MESH WALL EDGE

COMPOUND WALL EDGEBRICK WALL WIRE MESH WALL SHRUBS AND WEEDS ON EDGE TREES OUTSIDE AND INSIDE PLOT ROAD PEDESTRIAN FOOT PATH ON BOTH SIDES LEVEL CHANGE AT FOOTPATH SUFFIECIENT SPACE FOR ONE PEDESTRIAN ONLY PARTIAL RAILING AROUND FOOTPATH EDGE CONDITIONS COMPOUND WALL EDGEWIRE MESH WALL SHRUBS AND WEEDS ON EDGE TREES OUTSIDE AND INSIDE PEDESTRIAN FOOT PATH ON LEVEL CHANGE AT FOOTPATH SUFFIECIENT SPACE FOR ONE PARTIAL RAILING AROUND Name of Plant Botanical Name Description Plant Images Silver Wattle Acacia dealbata Fast-growing, Acacia dealbata (Silver Wattle) is an evergreen shrub or small tree of loose and architectural habit with a high

the cut-flower

its foliage

CONDITIONS COMPOUND WALL EDGE-

WALL

CONDITIONS

canopy of finely divided blue-green to silver gray leaves, 3-5 in. long (7-12 cm). The foliage remains appealing all year round. In late winter to early spring, clouds of fragrant, ball

years), this is one of the hardiest acacias. It is commonly grown by

industry both for

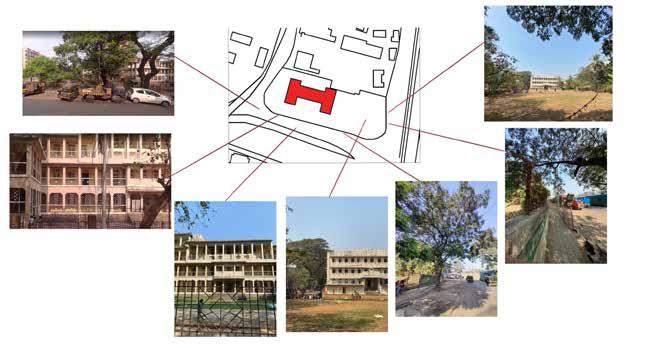

and flowers. Interview with the watchman:

Name

Peepal tree Name

Bartondi

Mayflower

Name of Plant Botanical Name Description Plant Images Silver Wattle Acacia dealbata Fast-growing,

dealbata

with the watchman:

Palm

of Plant

Tree (Indian mulberry) Name of (Gulmohar tree)

tree Name of Plant (Gulmohar tree) Mayflower tree

Acacia

(Silver Wattle) is an evergreen shrub or small

DESIGN: SHETH M.A. SCHOOL Name of Plant Botanical Name Description Plant Images Palm tree Arecaceae The Arecaceae is a family of perennial flowering plants. Their growth form can be climbers, shrubs, tree-like and stemless plants, all commonly known as palms. Those having a tree-like form are called palm trees. Most palms are distinguished by their large, compound, evergreen leaves, known as fronds, arranged at the

of an unbranched stem.Its wood is used

water

buckets,

The

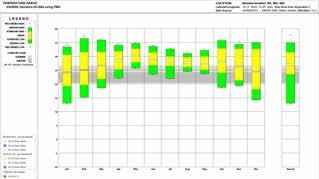

are used as brushes, brooms and ropes. The leaves are also used for the treatment of cancer, cardiovascular diseases, kidney diseases and wound healing. Name of Plant Botanical Name Description Plant Images Peepal tree Ficus religiosa Ficus religiosa or sacred fig is a species of fig native to the Indian subcontinent. The sacred fig is the state tree of the Indian states of Odisha,[6] Bihar and Haryana. Ficus religiosa is a large dry seasonover Mumbai along roadside, railway CLIMATE STUDY

top

for agricultural implements,

conduits,

rafters, etc.

leaves

Name of Plant Botanical Name Description Plant Images Silver Wattle Acacia dealbata Fast-growing, Acacia dealbata (Silver Wattle) is an evergreen shrub or small tree of loose and architectural habit with a high canopy of finely divided blue-green to silver gray leaves, 3-5 in. long (7-12 cm). The foliage remains appealing all year round. In late winter to early spring, clouds of fragrant, ballshaped, fluffy yellow flowers held in large racemes appear on the branch tips. The bark is smooth, gray-green to dark gray, becoming fissured with age. Short-lived (50 years), this is one of the hardiest acacias. It is commonly grown by the cut-flower industry both for its foliage and flowers. Interview with the watchman: Secondary classes are from 7:00am to 12:30pm. Primary classes are from 12:30pm to 5:00pm. He stays there till 7:00pm. After 6:00pm the road becomes empty only vehicles and some people walking toward the station are visible. The playground belonged to the school and was only accessible to students and staff.

11 12

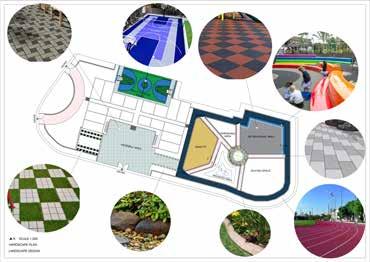

PLAN Landscape Design RECREATIONAL AREA SEATING SPACE MOUNTED AREA GARDENING AREA +-0.0M +0.3M +0.9M +0.6M +1.2M +-0.0M -3.0M -0.6M -0.9M -1.2M -1.5M SAND PIT -0.3M +0.15M +0.15M MULTICOURTPURPOSE ASSEMBLY AREA A A' B' B

VIVEKANANDA ROAD ENTRY ENTRY ENTRY

MASTER

MADHAVDASAMARSHIROAD SWAMI

SOFTSCAPE PLAN SOFTSCAPE PLAN SCALE 1:250 N LANDSCAPE DESIGN PLANTATION LEGEND 1 AZADIRACHTA INDICA Neem trees can reach 15–30 metres (49–98 feet) height and Neem trees act as very efficient, natural air filters 2 JACARANDA MIMOSIFOILA Mature Size can reach 25–50 flowering tree whose flowering season between April-May Landscapes 3 SARACA INDICA ASHOKA TREE Maximum Height the meters meters and Flowers are 1.5 to cm long Sweetly Scented Flowers and shade also promoting happiness and positivity 4 LAGERSTROEMIA SPECIOSA small medium-sized large tree growing 15 meters erect panicles 20–40 long. Flowering season April–June and sun, and has great 5 BAUHINIA VARIEGATA KACHNAR TREE Flowers are Large, showy, rosy purple, fragrant flower. Bloom time Spring fragnant flowers 6 MILINGTONIA The tree grows height between 18 and metres and ornamental and the pleasant 7 SPATHODEA CAMPANULATA ampule-shaped and contains water. used provide shade and Aesthetic value RECREATIONAL AREA SEATING SPACE MOUNTEDAREA GARDENING AREA +-0.0M +0.3M +0.9M +0.6M SAND PIT +0.15M +0.15M MULTIPURPOSE COURT ASSEMBLY AREA ENTRY ENTRY Adding Aesthetic Value and also adding colorful article landscape beds and tree for shading ROSE FLOWER BED SEATING SPACE HARDSCAPE PLAN

PROJECT 03

WORKING DRAWING WITH REVIT

Location: BHULESHWAR , MUMBAI

Semester: 6th

Year: 3rd

Introduction:

This project focuses on the creation of a working drawing portfolio for a mixed-use building. The portfolio will showcase detailed construction drawings, including plans, sections, and specific details, necessary for the construction of the building.

LOCATION PLAN

09 G+3 DADISETH G+5 G+2 G+1 G+2 G+2 G+7 G+4 G+2 G+2 G+2 G+3 G+2 G+3 G+4 G+4 G+2 G+5 G+4 G+2 6722,5 2800 6732,5 2500 5859,69 1400 5245 2400 5245 2000 5245 1500 1500 6702,5 14805 2400 5337,61 3000 700 700 900 600 600 1200 WOMEN TOILET +5.4M AREA 8.5SQ M GENTS TOILET +0.41M 3.9M X 2.2M AREA 8.5SQ M +0.41M 3.9M X 2.2M 1500 1500 OFFICE AREA -72SQ M +3.52M 20.9M X 19.6M 19600 12 W10 W10 1 2 3 4 A B C 5245 3800 W12 W7 W6 W5 W4 W3 W1 W2 W4 W3 PORTFOLIO Name

FIRST FLOOR

10 Working Drawing DADISETHAGYARILN G+4 G+4 G+2 G+2 HARSHITA AGRAWAL AND SHALL NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION. 2) THE COMMENCMENT OF CONSTRUCTION SUBJECT TOAPPROVAL FROM ALL COMPETENT AUTHORITIES. GENERAL NOTES: 01. ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK. 02. ALL DIMENSIONS ARE UNFINISHED AND ARE IN MM UNLESS AND OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT SITE. 03. DISCREPANCY IF ANY SHOULD BE BROUGHT TO THE ARCHITECT'S NOTICE BEFORE COMMENCING THE WORK. 04. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS TO BE FOLLOWED. 05. THIS DRG. TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL & SERVICES DRGS. INTERNAL PLASTER 15MM EXTERNAL PLASTER 25MM EXECUTION NOTES: AS PER DRGS. UNLESS OTHERWISE SPECIFIED 06. ALL STRUCTURAL DIMENSIONS TO BE REFER FROM THE STRUCTURAL DRGS. 07. FOR ALL CIVIC DETAILSREFER RESPECTIVE DRGS. REFER WALL SECTION DRGS. FOR EXECUTION. 09. FOR ALL DOORS AND WINDOWS REFER TO ALL DOOR WINDOW SCHEDULE DRGS. 10. ALL MECHANICAL CUT-OUTS & SLEEVES TO BE IN CONJUNCTION WITH RESPECTIVE RELEVANT SERVICE DRGS. PROVISION TO BE MADE FOR DAMPER SLABS IN ALL DUCT SHAFTS & CUT-OUTS ON ALL FLOORS. 11. ALL BRICK WALL WORK IS IN ENGLISH BOND. 12. ALL PARTITION WALLS ARE 115MM THICK UNLESS SPECIFIED. LOCATION PLAN NAME: HARSHITA AGRAWAL WORKING DRAWING SCALE 1:50 BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. SIGN: 11-08-2022 ROLL NO 42 PROJECT NAME SITE MIXED USE COMMERCIAL, BHULESHWAR CONCEPT STUDYING HOW DIFFERENT TRANSITIONAL SPACES COME TOGETHER AND CREATE SPACIAL QUALITY GIVING THE USER A DIFFERENT EXPERIENCE; ON ANALYZING FONTAINHAS.HOW PEOPLE GET CONNECTED BETWEEN INDOOR AND OUTDOOR,ACTS AS A BUFFER SPACE SITE BHULESHWAR MUMBAI LEGEND BRICK WALL RCC SITE BOUNDARY 5615,69 3250 NOTES: 1) THIS DRAWING IS PROPERTY OF HARSHITA AGRAWAL AND SHALL NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION. 2) THE COMMENCMENT OF CONSTRUCTION SUBJECT TOAPPROVAL FROM ALL COMPETENT AUTHORITIES. GENERAL NOTES: 01. ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK. 02. ALL DIMENSIONS ARE UNFINISHED AND ARE IN MM UNLESS AND OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT SITE. 03. DISCREPANCY IF ANY SHOULD BE BROUGHT TO THE ARCHITECT'S NOTICE BEFORE COMMENCING THE WORK. 04. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS TO BE FOLLOWED. 05. THIS DRG. TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL & SERVICES DRGS. INTERNAL PLASTER 15MM EXTERNAL PLASTER 25MM EXECUTION NOTES: AS PER DRGS. UNLESS OTHERWISE SPECIFIED 06. ALL STRUCTURAL DIMENSIONS TO BE REFER FROM THE STRUCTURAL DRGS. 07. FOR ALL CIVIC DETAILSREFER RESPECTIVE DRGS. REFER WALL SECTION DRGS. FOR EXECUTION. 09. FOR ALL DOORS AND WINDOWS REFER TO ALL DOOR WINDOW SCHEDULE DRGS. 10. ALL MECHANICAL CUT-OUTS & SLEEVES TO BE IN CONJUNCTION WITH RESPECTIVE RELEVANT SERVICE DRGS. PROVISION TO BE MADE FOR DAMPER SLABS IN ALL DUCT SHAFTS & CUT-OUTS ON ALL FLOORS. 11. ALL BRICK WALL WORK IS IN ENGLISH BOND. 12. ALL PARTITION WALLS ARE 115MM THICK UNLESS SPECIFIED. FIRST FLOOR PLAN NAME: HARSHITA AGRAWAL WORKING DRAWING SCALE DIFFERS BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. SIGN: 11-08-2022 ROLL NO 42 PROJECT NAME SITE MIXED USE COMMERCIAL, BHULESHWAR CONCEPT STUDYING HOW DIFFERENT TRANSITIONAL SPACES COME TOGETHER AND CREATE SPACIAL QUALITY GIVING THE USER DIFFERENT EXPERIENCE; ON ANALYZING FONTAINHAS.HOW PEOPLE GET CONNECTED BETWEEN INDOOR AND OUTDOOR,ACTS AS BUFFER SPACE SITE BHULESHWAR MUMBAI LEGEND BRICK WALL RCC SITE BOUNDARY N W10 6722,5 2800 6732,5 2500 5859,69 5245 2400 5245 5333 5245 3800 3250 5245 1500 1500 3000 3400 3800 2400 6702,5 14805 2400 5337,61 3000 20968 700 700 6732,5 5550 3407,75 837,61 2500 3000 600 600 1200 1200 ENTARANCE LOBBY COFERENCE HALL CAFETERIA PASSAGE WOMEN TOILET +2.4M +0.48M AREA -125SQ M 14.8M X 5.9M 6.7M X 5.5M AREA -72SQ M AREA 8.5SQ GENTS TOILET +0.48M +0.48M +0.48M +0.41M 3.9M 2.2M AREA 8.5SQ +0.41M 3.9M 2.2M AREA 63SQ M 1500 1500 D2 D1 D3 2800 2 3 4 A B C NOTES: 1) THIS DRAWING IS PROPERTY OF HARSHITA AGRAWAL AND SHALL NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION. 2) THE COMMENCMENT OF CONSTRUCTION SUBJECT TOAPPROVAL FROM ALL COMPETENT AUTHORITIES. GENERAL NOTES: 01. ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK. 02. ALL DIMENSIONS ARE UNFINISHED AND ARE IN MM UNLESS AND OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT SITE. 03. DISCREPANCY IF ANY SHOULD BE BROUGHT TO THE ARCHITECT'S NOTICE BEFORE COMMENCING THE WORK. 04. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS TO BE FOLLOWED. 05. THIS DRG. TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL & SERVICES DRGS. INTERNAL PLASTER 15MM EXTERNAL PLASTER 25MM EXECUTION NOTES: AS PER DRGS. UNLESS OTHERWISE SPECIFIED 06. ALL STRUCTURAL DIMENSIONS TO BE REFER FROM THE STRUCTURAL DRGS. 07. FOR ALL CIVIC DETAILSREFER RESPECTIVE DRGS. REFER WALL SECTION DRGS. FOR EXECUTION. 09. FOR ALL DOORS AND WINDOWS REFER TO ALL DOOR WINDOW SCHEDULE DRGS. 10. ALL MECHANICAL CUT-OUTS & SLEEVES TO BE IN CONJUNCTION WITH RESPECTIVE & RELEVANT SERVICE DRGS. PROVISION TO BE MADE FOR DAMPER SLABS IN ALL DUCT SHAFTS & CUT-OUTS ON ALL FLOORS. 11. ALL BRICK WALL WORK IS IN ENGLISH BOND. 12. ALL PARTITION WALLS ARE 115MM THICK UNLESS SPECIFIED. GROUND PLAN NAME: HARSHITA AGRAWAL WORKING DRAWING BALWANT SHETH SCHOOL SHEET NO. SIGN: 11-08-2022 ROLL NO 42 PROJECT NAME SITE + X MIXED USE COMMERCIAL, BHULESHWAR CONCEPT STUDYING HOW DIFFERENT TRANSITIONAL SPACES COME TOGETHER AND CREATE SPACIAL QUALITY GIVING THE USER A DIFFERENT EXPERIENCE; ON ANALYZING FONTAINHAS.HOW PEOPLE GET CONNECTED BETWEEN INDOOR AND OUTDOOR,ACTS AS BUFFER SPACE SITE BHULESHWAR MUMBAI LEGEND BRICK WALL RCC SITE BOUNDARY D4 D5 D5 W12 W7 W6 W5 W4 W3 W1 W2 W4 W3 W10 6722,5 2800 6732,5 2500 5859,69 1400 5245 2400 5615,69 3000 5245 5333 2000 5245 1500 1500 6702,5 14805 5930 2400 5550 5337,61 3000 700 700 600 600 3250 WOMEN TOILET +7.4M AREA 8.5SQ GENTS TOILET +0.41M 3.9M X 2.2M AREA 8.5SQ +0.41M 3.9M X 2.2M 1500 1500 CO-WORKING SPACE 20.9M X 19.6M AREA -72SQ M +6.82M 19600 2800 A B C 5245 3800 NOTES: 1) THIS DRAWING IS PROPERTY OF HARSHITA AGRAWAL AND SHALL NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION. 2) THE COMMENCMENT OF CONSTRUCTION SUBJECT TOAPPROVAL FROM ALL COMPETENT AUTHORITIES. GENERAL NOTES: 01. ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK. 02. ALL DIMENSIONS ARE UNFINISHED AND ARE IN MM UNLESS AND OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT SITE. 03. DISCREPANCY IF ANY SHOULD BE BROUGHT TO THE ARCHITECT'S NOTICE BEFORE COMMENCING THE WORK. 04. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS TO BE FOLLOWED. 05. THIS DRG. TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL SERVICES DRGS. INTERNAL PLASTER 15MM EXTERNAL PLASTER 25MM EXECUTION NOTES: AS PER DRGS. UNLESS OTHERWISE SPECIFIED 06. ALL STRUCTURAL DIMENSIONS TO BE REFER FROM THE STRUCTURAL DRGS. 07. FOR ALL CIVIC DETAILSREFER RESPECTIVE DRGS. REFER WALL SECTION DRGS. FOR EXECUTION. 09. FOR ALL DOORS AND WINDOWS REFER TO ALL DOOR WINDOW SCHEDULE DRGS. 10. ALL MECHANICAL CUT-OUTS SLEEVES TO BE IN CONJUNCTION WITH RESPECTIVE RELEVANT SERVICE DRGS. PROVISION TO BE MADE FOR DAMPER SLABS IN ALL DUCT SHAFTS & CUT-OUTS ON ALL FLOORS. 11. ALL BRICK WALL WORK IS IN ENGLISH BOND. 12. ALL PARTITION WALLS ARE 115MM THICK UNLESS SPECIFIED. SECOND FLOOR PLAN SCALE DIFFERS BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. SIGN: 11-08-2022 PROJECT NAME SITE MIXED USE COMMERCIAL, BHULESHWAR CONCEPT STUDYING HOW DIFFERENT TRANSITIONAL SPACES COME TOGETHER AND CREATE SPACIAL QUALITY GIVING THE USER DIFFERENT EXPERIENCE; ON ANALYZING FONTAINHAS.HOW PEOPLE GET CONNECTED BETWEEN INDOOR AND OUTDOOR,ACTS AS BUFFER SPACE SITE BHULESHWAR MUMBAI LEGEND BRICK WALL RCC SITE BOUNDARY W12 W7 W6 W5 W4 W3 W1 W2 W4 W3 W10 GROUND FLOOR SECOND FLOOR SITE PLAN UGT 5500 3500 2250 1250 21568 14805 6230 5695 20500 6079,39 5398,55 5695 3855,05 2797,4 5008,25 23500 24568 23500 25909,86 NOTES: 1) THIS DRAWING IS A PROPERTY OF HARSHITA AGRAWAL AND SHALL NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION. 2) THE COMMENCMENT OF CONSTRUCTION SUBJECT TOAPPROVAL FROM ALL COMPETENT AUTHORITIES. GENERAL NOTES: 01. ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK. 02. ALL DIMENSIONS ARE UNFINISHED AND ARE IN MM UNLESS AND OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT SITE. 03. DISCREPANCY IF ANY SHOULD BE BROUGHT TO THE ARCHITECT'S NOTICE BEFORE COMMENCING THE WORK. 04. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS TO BE FOLLOWED. 05. THIS DRG. TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL SERVICES DRGS. INTERNAL PLASTER 15MM EXTERNAL PLASTER 25MM EXECUTION NOTES: AS PER DRGS. UNLESS OTHERWISE SPECIFIED 06. ALL STRUCTURAL DIMENSIONS TO BE REFER FROM THE STRUCTURAL DRGS. 07. FOR ALL CIVIC DETAILSREFER RESPECTIVE DRGS. REFER WALL SECTION DRGS. FOR EXECUTION. 09. FOR ALL DOORS AND WINDOWS REFER TO ALL DOOR WINDOW SCHEDULE DRGS. 10. ALL MECHANICAL CUT-OUTS & SLEEVES TO BE IN CONJUNCTION WITH RESPECTIVE & RELEVANT SERVICE DRGS. PROVISION TO BE MADE FOR DAMPER SLABS IN ALL DUCT SHAFTS & CUT-OUTS ON ALL FLOORS. 11. ALL BRICK WALL WORK IS IN ENGLISH BOND. 12. ALL PARTITION WALLS ARE 115MM THICK UNLESS SPECIFIED. SITE PLAN NAME: HARSHITA AGRAWAL WORKING DRAWING SCALE 1:50 BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. SIGN: 11-08-2022 ROLL NO 42 PROJECT NAME SITE X MIXED USE COMMERCIAL, BHULESHWAR CONCEPT STUDYING HOW DIFFERENT TRANSITIONAL SPACES COME TOGETHER AND CREATE SPACIAL QUALITY GIVING THE USER DIFFERENT EXPERIENCE; ON ANALYZING FONTAINHAS.HOW PEOPLE GET CONNECTED BETWEEN INDOOR AND OUTDOOR,ACTS AS A BUFFER SPACE SITE BHULESHWAR MUMBAI LEGEND BRICK WALL RCC SITE BOUNDARY N FOUNDATION PLAN 4B 5B 5C 5E 5F 3F 2F 1F 1D 1C 1B 3B 4C 3C 3E 2D 4E PB PB 13 PB PB 14 PB 15 PB PB 30 PB 27 PB PB PB PB PB 11 PB 10 PB PB PB PB 18 PB PB 23 PB PB 25 PB 26 PB PB F1 F2 F3 F4 F5 F6 F7 F11 F8 F12 F13 F20 F19 F18 F16 SCHEDULE FOR FOOTING SR. NO. FOOTING NO. FOOTING SIZE 1 2 3 TOTAL PCC SIZE 1750 3324,9 3013,19 1500 X 1650 1800 X 1950 F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, F14, F15, F16, F18, F19, F20 F17 F13 (COMBINED FOOTING) 450 18 1 1 1450 X 1450 1750 X 1750 SCHEDULE FOR FOOTING SR. NO. FOOTING NO. FOOTING SIZE 1 2 TOTAL PCC SIZE 1345 X 854 1645 X 995 1, F F 5, 6, 7, 8, F 9, F 10, F 11, F 12, 14, 15, 16, 18, 19, 20 21, 22, 23, F 24, F 25, F 26, F 27, F 28, 29, 30, 32, 33, 34, 35, 36, 37, 38, F 39,F 40, 42, 43, 44, 45, 46,F 48, 49, 50, 51, 52, 53, 49 COMPOUND WALL 12 13 14 15 16 46 45 42 40 39 36 35 34 33 32 30 29 28 27 26 25 24 23 22 21 17 18 19 20 31 F 3, F 17 31, F 47 854 X 854 995 X 995 4 3728,23 2624,27 6452,5 NOTES: 1) THIS DRAWING IS PROPERTY HARSHITA AGRAWAL AND SHALL NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION. 2) THE COMMENCMENT OF CONSTRUCTION SUBJECT TOAPPROVAL FROM ALL COMPETENT AUTHORITIES. GENERAL NOTES: 01. ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK. 02. ALL DIMENSIONS ARE UNFINISHED AND ARE IN MM UNLESS AND OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT SITE. 03. DISCREPANCY IF ANY SHOULD BE BROUGHT TO THE ARCHITECT'S NOTICE BEFORE COMMENCING WORK. 04. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS FOLLOWED. 05. THIS DRG. TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL SERVICES DRGS. INTERNAL PLASTER 15MM EXTERNAL PLASTER 25MM EXECUTION NOTES: AS PER DRGS. UNLESS OTHERWISE SPECIFIED 06. ALL STRUCTURAL DIMENSIONS TO BE REFER FROM THE STRUCTURAL DRGS. 07. FOR ALL CIVIC DETAILSREFER RESPECTIVE DRGS. REFER WALL SECTION DRGS. EXECUTION. 09. FOR ALL DOORS AND WINDOWS REFER TO ALL DOOR WINDOW SCHEDULE DRGS. 10. ALL MECHANICAL CUT-OUTS SLEEVES TO BE IN CONJUNCTION WITH RESPECTIVE & RELEVANT SERVICE DRGS. PROVISION MADE FOR DAMPER SLABS DUCT SHAFTS & CUT-OUTS FLOORS. 11. ALL BRICK WALL WORK IS ENGLISH BOND. 12. ALL PARTITION WALLS ARE 115MM THICK UNLESS SPECIFIED. FOUNDATION PLAN NAME: HARSHITA AGRAWAL WORKING DRAWING SCALE 1:50 BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. SIGN: 11-08-2022 ROLL PROJECT NAME SITE X MIXED USE COMMERCIAL, BHULESHWAR CONCEPT STUDYING HOW DIFFERENT TRANSITIONAL SPACES COME TOGETHER AND CREATE SPACIAL QUALITY GIVING THE USER A DIFFERENT EXPERIENCE; ON ANALYZING FONTAINHAS.HOW PEOPLE GET CONNECTED BETWEEN INDOOR AND OUTDOOR,ACTS BUFFER SPACE SITE BHULESHWAR MUMBAI LEGEND BRICK WALL RCC SITE BOUNDARY

11 SUNKEN SLAB SUNKEN SLAB C O - W O R K I N G S P A C E O F F C E L O B B Y P A S S A G E 560 3000 O V E R H E A D T A N K 900 1600 1140 1320 STAINLESS STEEL BALUSTER 150MM HIGH RISER 300MM DEEP TREAD 6MM THICK CLEAR GLASS RAILING 1500 815 2100 1 2 4 25MM SCREEDING 400X400X10 TILE FLOORING 3000 3000 15MM SCREEDING VATTA BRICK UPSTAND MANHOLE MS LADDER 560 560 1500 VATTA BULLNOSE 1500 815 10MM TILE SKIRTING 25MM OUTER PLASTER 15MM INNER PLASTER 40MM INDIAN PATENT STONE 150MM BRICK BED COBA (SLOPE 1:80) THROATING 25MM DAMP PROOF COURSE 230MM PARAPET WALL 25MM PCC COPING LVL +0.00M LVL +0.45M LVL +3.3M LVL +6.6M 1500 1500 SECTION AA' 2800 2500 1400 2400 2000 5245 1500 1500 6702,5 5337,61 WOMEN TOILET +5.4M AREA 8.5SQ GENTS TOILET +0.41M AREA 8.5SQ +0.41M 1500 1500 OFFICE 2800 2500 5859,69 2400 5245 1500 1500 6702,5 14805 900 WOMEN TOILET +7.4M AREA 8.5SQ M GENTS TOILET +0.41M AREA 8.5SQ M +0.41M 1500 1500 CO-WORKING SPACE W9 W10 W11 6722,5 6732,5 5245 5615,69 5245 5333 5245 3800 5245 6702,5 20968 6732,5 3407,75 3000 ENTARANCE LOBBY COFERENCE HALL CAFETERIA PASSAGE WOMEN TOILET +2.4M AREA 8.5SQ GENTS TOILET 3.9M 2.2M AREA 8.5SQ 3.9M 2.2M 1500 D2 D1 D3 W12 5245 2000 A' A SECOND FLOOR PLAN A' A FIRST FLOOR PLAN A' A GROUND FLOOR PLAN W7 W6 W5 W4 W3 W1 W2 W4 W3 W8 W8 W10 W7 W6 W5 W4 W3 W1 W2 W4 W3 W8 W8 W10 W7 W6 W5 W4 W3 W1 W2 W4 W3 W8 W8 W10 NOTES: 1) THIS DRAWING IS A PROPERTY OF HARSHITA AGRAWAL AND SHALL NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION. 2) THE COMMENCMENT OF CONSTRUCTION SUBJECT TOAPPROVAL FROM ALL COMPETENT AUTHORITIES. GENERAL NOTES: 01. ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK. 02. ALL DIMENSIONS ARE UNFINISHED AND ARE IN MM UNLESS AND OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT SITE. 03. DISCREPANCY IF ANY SHOULD BE BROUGHT TO THE ARCHITECT'S NOTICE BEFORE COMMENCING THE WORK. 04. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS TO BE FOLLOWED. 05. THIS DRG. TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL & SERVICES DRGS. INTERNAL PLASTER 15MM EXTERNAL PLASTER 25MM EXECUTION NOTES: AS PER DRGS. UNLESS OTHERWISE SPECIFIED 06. ALL STRUCTURAL DIMENSIONS TO BE REFER FROM THE STRUCTURAL DRGS. 07. FOR ALL CIVIC DETAILSREFER RESPECTIVE DRGS. REFER WALL SECTION DRGS. FOR EXECUTION. 09. FOR ALL DOORS AND WINDOWS REFER TO ALL DOOR WINDOW SCHEDULE DRGS. 10. ALL MECHANICAL CUT-OUTS & SLEEVES TO BE IN CONJUNCTION WITH RESPECTIVE & RELEVANT SERVICE DRGS. PROVISION TO BE MADE FOR DAMPER SLABS IN ALL DUCT SHAFTS & CUT-OUTS ON ALL FLOORS. 11. ALL BRICK WALL WORK IS IN ENGLISH BOND. 12. ALL PARTITION WALLS ARE 115MM THICK UNLESS SPECIFIED. SECTION NAME: HARSHITA AGRAWAL WORKING DRAWING SCALE 1:50 BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. 1 SIGN: 11-08-2022 ROLL NO 42 PROJECT NAME : SITE + X MIXED USE COMMERCIAL, BHULESHWAR CONCEPT : STUDYING HOW DIFFERENT TRANSITIONAL SPACES COME TOGETHER AND CREATE SPACIAL QUALITY GIVING THE USER A DIFFERENT EXPERIENCE; ON ANALYZING FONTAINHAS.HOW PEOPLE GET CONNECTED BETWEEN INDOOR AND OUTDOOR,ACTS AS A BUFFER SPACE SITE BHULESHWAR MUMBAI LEGEND : BRICK WALL RCC SITE BOUNDARY N SCALE 1:50 SCALE 1:150

C O N F E R E N C E R O O M SUNKEN SLAB SUNKEN SLAB 2100 25MM SCREEDING 400X400X10 TILE FLOORING O V E R H E A D T A N K C O - W O R K I N G S P A C E O F F I C E L O B B Y 25MM OUTER PLASTER 15MM INNER PLASTER 1200 1200 1100 40MM INDIAN PATENT STONE 150MM BRICK BED COBA (SLOPE 1:80) VATTA BRICK UPSTAND MANHOLE 15MM SCREEDING 10MM TILE SKIRTING LVL +0.00M LVL +0.45M LVL +3.3M LVL +6.8M VATTA BULLNOSE THROATING 25MM DAMP PROOF COURSE 230MM PARAPET WALL 25MM PCC COPING SECTION BB' 6722,5 6732,5 2400 5245 5333 5245 1500 1500 6702,5 900 WOMEN TOILET +5.4M GENTS TOILET +0.41M 3.9M 2.2M AREA 8.5SQ M +0.41M OFFICE 6722,5 6732,5 5859,69 2400 3000 5245 5245 1500 1500 6702,5 2400 3000 700 700 600 WOMEN TOILET +7.4M GENTS TOILET +0.41M 3.9M 2.2M AREA 8.5SQ +0.41M CO-WORKING SPACE W9 W10 W11 6722,5 2800 6732,5 2500 2400 5615,69 5245 3800 5245 1500 1500 6702,5 14805 5337,61 6732,5 3407,75 3000 1200 1200 1200 ENTARANCE LOBBY COFERENCE HALL CAFETERIA PASSAGE WOMEN TOILET +2.4M AREA 8.5SQ GENTS TOILET +0.41M AREA 8.5SQ 3.9M 2.2M 1500 1500 D2 D1 D3 W12 5245 3800 3800 2000 SECOND FLOOR PLAN FIRST FLOOR PLAN GROUND FLOOR PLAN W7 W6 W5 W4 W3 W1 W2 W4 W3 W8 W8 W10 W7 W6 W5 W4 W3 W1 W2 W4 W3 W8 W8 W10 W7 W6 W5 W4 W3 W1 W2 W4 W3 W8 W10 B B' B B' B B' NOTES: 1) THIS DRAWING IS A PROPERTY OF HARSHITA AGRAWAL AND SHALL NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION. 2) THE COMMENCMENT OF CONSTRUCTION SUBJECT TOAPPROVAL FROM ALL COMPETENT AUTHORITIES. GENERAL NOTES: 01. ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK. 02. ALL DIMENSIONS ARE UNFINISHED AND ARE IN MM UNLESS AND OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT SITE. 03. DISCREPANCY IF ANY SHOULD BE BROUGHT TO THE ARCHITECT'S NOTICE BEFORE COMMENCING THE WORK. 04. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS TO BE FOLLOWED. 05. THIS DRG. TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL & SERVICES DRGS. INTERNAL PLASTER 15MM EXTERNAL PLASTER 25MM EXECUTION NOTES: AS PER DRGS. UNLESS OTHERWISE SPECIFIED 06. ALL STRUCTURAL DIMENSIONS TO BE REFER FROM THE STRUCTURAL DRGS. 07. FOR ALL CIVIC DETAILSREFER RESPECTIVE DRGS. REFER WALL SECTION DRGS. FOR EXECUTION. 09. FOR ALL DOORS AND WINDOWS REFER TO ALL DOOR WINDOW SCHEDULE DRGS. 10. ALL MECHANICAL CUT-OUTS & SLEEVES TO BE IN CONJUNCTION WITH RESPECTIVE & RELEVANT SERVICE DRGS. PROVISION TO BE MADE FOR DAMPER SLABS IN ALL DUCT SHAFTS & CUT-OUTS ON ALL FLOORS. 11. ALL BRICK WALL WORK IS IN ENGLISH BOND. 12. ALL PARTITION WALLS ARE 115MM THICK UNLESS SPECIFIED. SECTION NAME: HARSHITA AGRAWAL WORKING DRAWING SCALE 1:50 BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. 1 SIGN: 11-08-2022 ROLL NO 42 PROJECT NAME SITE + X MIXED USE COMMERCIAL, BHULESHWAR CONCEPT STUDYING HOW DIFFERENT TRANSITIONAL SPACES COME TOGETHER AND CREATE SPACIAL QUALITY GIVING THE USER A DIFFERENT EXPERIENCE; ON ANALYZING FONTAINHAS.HOW PEOPLE GET CONNECTED BETWEEN INDOOR AND OUTDOOR,ACTS AS A BUFFER SPACE SITE BHULESHWAR MUMBAI LEGEND : BRICK WALL RCC SITE BOUNDARY N SCALE 1:50 SCALE 1:150

WINDOW DETAIL

FOR ALL DOORS AND REFER TO ALL DOOR WINDOW SCHEDULE DRGS.

10. ALL MECHANICAL CUT-OUTS SLEEVES TO BE IN CONJUNCTION WITH RESPECTIVE & RELEVANT SERVICE DRGS. PROVISION MADE FOR DAMPER SLABS DUCT SHAFTS & CUT-OUTS FLOORS.

11. ALL BRICK WALL WORK ENGLISH BOND.

12. ALL PARTITION WALLS

THICK

ELEVATION DETAIL AT 3 SECTION BB' 150 MM THK LINTEL DOUBLE PANEL SLIDING WINDOW 20 MM THK GRANITE STONE FRAME 10MM THK PLASTER 180 MM THK BRICK WALL OUTSIDE INSIDE FREE PANEL MESH WINDOW 7 MM THK PLAIN GLASS WINDOW FRAME PRESS LOCK LINTEL LEVEL @2100mm FROM FFL SILL LEVEL @900mm FROM FFL PANEL FRAME GRANITE FRAME B B' BRUSH SEAL ALUMINUM EXTRUDED PROFILES 7MM THK PLAIN GLASS PANEL SEPARATION BAR 1 2 3 MESH PANEL BRUSH SEAL PANEL TRACK GLASS PANEL ALUMINUM EXTRUDED PROFILES NOTES: 1) THIS DRAWING IS A PROPERTY HARSHITA AGRAWAL AND NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION. 2) THE COMMENCMENT OF CONSTRUCTION SUBJECT TOAPPROVAL FROM ALL COMPETENT AUTHORITIES. GENERAL NOTES: 01. ALL EXISTING GROUND TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK. 02. ALL DIMENSIONS ARE UNFINISHED AND ARE IN UNLESS AND OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT 03. DISCREPANCY IF ANY BE BROUGHT TO THE ARCHITECT'S NOTICE BEFORE COMMENCING WORK. 04. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS FOLLOWED. 05. THIS DRG. TO BE READ CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL SERVICES DRGS. INTERNAL PLASTER 15MM EXTERNAL PLASTER 25MM EXECUTION NOTES: AS PER DRGS. UNLESS OTHERWISE SPECIFIED 06. ALL STRUCTURAL DIMENSIONS TO BE REFER FROM THE STRUCTURAL DRGS. 07. FOR ALL CIVIC DETAILSREFER RESPECTIVE DRGS. REFER WALL SECTION DRGS. EXECUTION. 09.

AGRAWAL WORKING DRAWING SCALE 1:50 BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. SIGN: 11-08-2022 ROLL PROJECT NAME : SITE + X MIXED USE COMMERCIAL, BHULESHWAR CONCEPT STUDYING HOW DIFFERENT TRANSITIONAL SPACES COME TOGETHER AND CREATE SPACIAL QUALITY GIVING THE USER DIFFERENT EXPERIENCE; ON ANALYZING FONTAINHAS.HOW PEOPLE GET CONNECTED INDOOR AND OUTDOOR,ACTS BUFFER SPACE SITE : BHULESHWAR MUMBAI LEGEND : BRICK WALL RCC SITE BOUNDARY DETAIL AT 2 DETAIL AT 1 WINDOW HEIGHT 1200mm PLAN 1 1 1 6mm Plain Glass with Anodized Aluminum Frame Dark Grey Glossy Finish 1700X1200 7mm Thick Plain Glass Aluminum Frame 2 Shutter Sliding Window With MeshSCHEDULE FOR WINDOWS SR. NO NO. ON GF PLAN NO. ON FF PLAN DESCRIPTION DIMENSION SPECIFICATIONS NO. ON SF PLAN BRUSH SEAL 7MM THK PLAIN GLASS PANEL SEPARATION BAR PANEL SEPARATION BAR WINDOW LENGTH 1700mm 180 MM THK BRICK WALL FREE PANEL MESH WINDOW 7 MM THK PLAIN GLASS ANGLE FOR WATER TO FLOW ANGLE FOR WATER TO FLOW

115MM

UNLESS SPECIFIED. WINDOW DETAIL NAME: HARSHITA

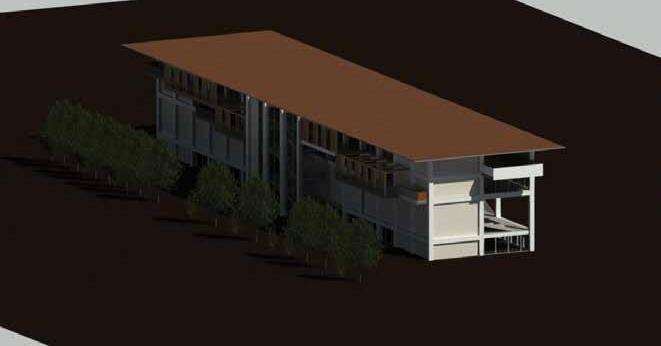

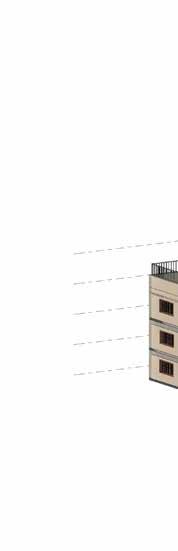

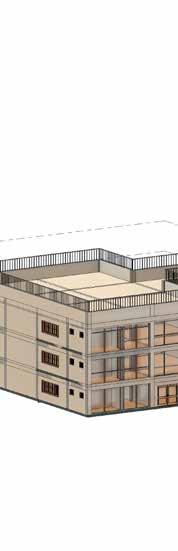

REVIT MODEL OF THE PROJECT

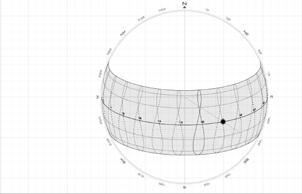

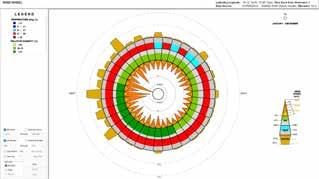

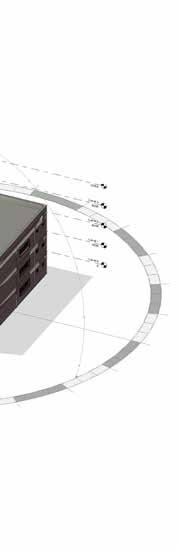

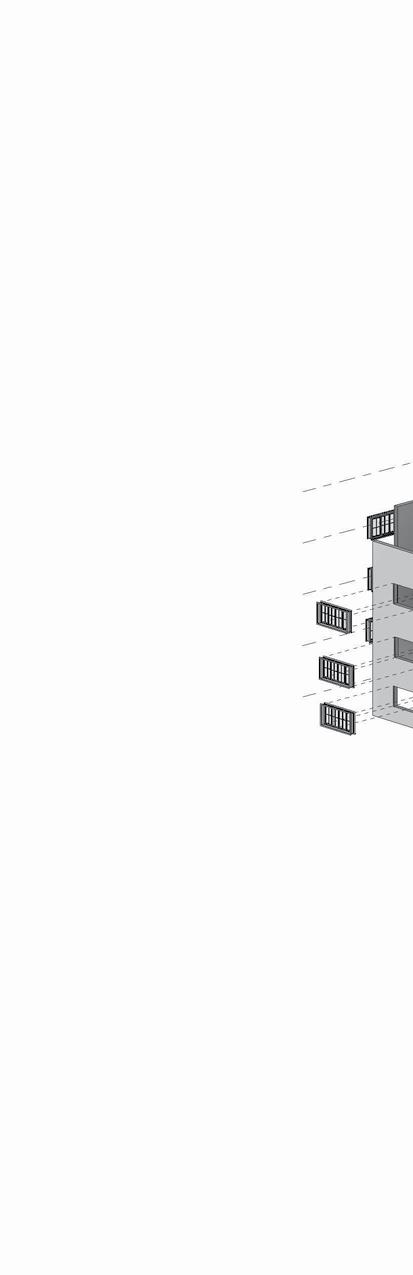

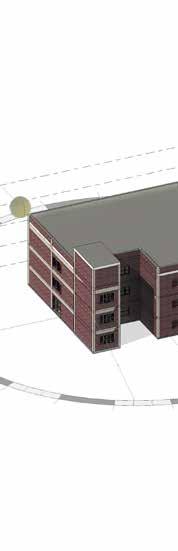

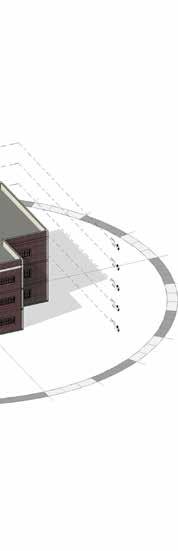

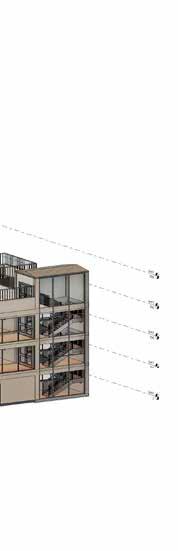

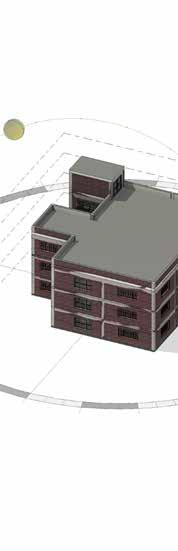

N PROJECT STATUS CODE RevDescriptionDate SUNPATH WINTER 7.15 PM W S N SUNPATH SUMMER www.autodesk.com/revit PROJECT STATUS PURPOSE OF ISSUE CODE SUITABILITY DESCRIPTION BHULESHWAR RevDescriptionDate RENDERED 3D www.autodesk.com/revit SCALE (@ A1) CHECKED BY TITLE PROJECT NUMBER CLIENT PROJECT DRAWING NUMBER REV DRAWN BY DATE STATUS PURPOSE OF ISSUE CODE SUITABILITY DESCRIPTION 17-03-2023 12.41.38 PM EXPLODED Project Number BHULESHWAR HARSHITA AGRAWAL Checker A112 Author 03/01/23 RevDescriptionDate exploded 1 EXPLODED

150 450 MM DEEP RCC BEAM FALSE CEILING SECTION MIRROR AS PER SELECTION 864 562 490 550 450 350 450 230 MM THICK BRICK WALL 25MM THK EXTERNAL PLASTER 15MM THK INTERNAL PLASTER PILLAR COCK AS PER SELECTION WASH BASIN AS PER SELECTION BOOTLE TRAP AS PER SELECTION 400 X 400 MM FLOOR TILE 25 MM THK SCREEDING BRICK BAT COBA 150 THK RCC SLAB SCALE (1:20) SUNKEN 450 MM DEEP RCC BEAM FALSE CEILING 300 450 230 MM THICK BRICK WALL 25MM THK EXTERNAL PLASTER 15MM THK INTERNAL PLASTER 400 X 400 MM FLOOR TILE 25 MM THK SCREEDING BRICK BAT COBA 150 THK RCC SLAB SUNKEN MIRROR AS PER SELECTION PILLAR COCK AS PER SELECTION WASH BASIN AS PER SELECTION SOAP DISPENSER AS PER SELECTION HAND DRYER AS PER SELECTION BOOTLE TRAP AS PER SELECTION DIAPER CHANGING STATION AS PER SELECTION 32 SECTION SCALE CALCULATIONS No. of Male water closets Maximum number of Seats 100 per 50 Seats upto 200 people 2 for 100 people No. of Male Ablution tap 1 per wc No. of Male Urinals 1 per 50 seats or part 2 for 100 people 2 for 100 people No. of Female water closets per 50 people upto 200 people for 100 people No. of Female Ablution tap 1 per wc No. of Female Wash basins for 100 people No. of Male Wash basins 4 for 100 people 1 per wc for 100 people 1 per wc Water Closet Water Closet Wash Basin Health Faucet Urinal Mirror Automatic Soap Dispenser Toilet Paper Holder VGS-WHT-81953UF Jaquar Range:Disabled Friendly Description:Wall Hung WC Set,Size 350x750x340 mm MRP ₹ 29,500.00 LW647CJW/F# W/LW647JW/F#W Pillar Cock 40915000 DIS-WHT-93951UF Jaquar Rimless Wall Hung WC Size: 390x570x365 mm MRP ₹ 19,900.00 TOTO Material Ceramic Modern, elegant styling Rear overflow Size 520 420 157 mm URS-WHT-13253N TOTO Water Pressure:0.25 ~ 0.75MPa Finish: Nickel Chrome Size: 50W 172D x 153H mm MRP 29,500.00 Jaquar Range:Urinal Description:Urinal (Back Inlet) With Fixing Accessories, Size: 385x325x635 mm HANSGROHE Article features wall-mounted material: brass holder material: metal drilling distance: 26 mm diameter drill hole: 6 mm DSDR0117 Kohler Description:1 Wall Mount Mirror Set,Size 35x560x864 mm MRP 15,500.00 Dolphy Automatic 700 Ml Soap Dispenser Automatic Sensing Range 5-15 cm Dispensing Volume 2ml 26052IN-CPL DBCS0005 EH24S Diaper Changing Station DOLPHY Article feature-Recessed Mounted Maximum Load 25 kgs Depth Closed 104 mm Extension Open 495 mm Hand Dryer Nahani Trap 7275IN-CP DOLPHY Article feature-Recessed Mounted Maximum Load 25 kgs Depth Closed 104 mm Extension Open 495 mm Kohler Description:Drain Set Size 100 x100 710 mm MRP 1,800.00 TTLR302F-1NR2/ TTLR302FR2 Bib Cock Bottle Trap D1 560 D2 D1 W1 W1 W1 W1 W1 W1 D3 JANITORS ROOM SHAFT FEMALE WASHROOM MALE WASHROOM NOTES: 1) THIS DRAWING IS A PROPERTY OF HARSHITA AGRAWAL AND SHALL NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION. 2) THE COMMENCMENT OF CONSTRUCTION SUBJECT TOAPPROVAL FROM ALL COMPETENT AUTHORITIES. GENERAL NOTES: 03. DISCREPANCY IF ANY SHOULD BE BROUGHT TO THE ARCHITECT'S NOTICE BEFORE COMMENCING THE WORK. 04. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS TO BE FOLLOWED. 05. THIS DRG. TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL & SERVICES DRGS. EXECUTION NOTES: BRICK WALL 230mm BRICK WALL 115mm AS PER DRGS. UNLESS OTHERWISE SPECIFIED 06. ALL STRUCTURAL DIMENSIONS TO BE REFER FROM THE STRUCTURAL DRGS. 07. FOR ALL CIVIC DETAILSREFER RESPECTIVE DRGS. REFER WALL SECTION DRGS. FOR EXECUTION. 09. FOR ALL DOORS AND WINDOWS REFER TO ALL DOOR WINDOW SCHEDULE DRGS. 10. ALL MECHANICAL CUT-OUTS & SLEEVES TO BE IN CONJUNCTION WITH RESPECTIVE & RELEVANT SERVICE DRGS. PROVISION TO BE MADE FOR DAMPER SLABS IN ALL DUCT SHAFTS & CUT-OUTS ON ALL FLOORS. 11. ALL BRICK WALL WORK IS IN ENGLISH BOND. 12. ALL PARTITION WALLS ARE 115MM THK UNLESS SPECIFIED. LEGEND UNFINISHED AND ARE IN MM UNLESS AND OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT SITE. 01. ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK. 02. ALL DIMENSIONS ARE TYPICAL FLOOR PLAN NAME: HARSHITA AGRAWAL N WORKING DRAWING BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. 1 SIGN: ROLL NO:B042 D3 940 W1 W1 D3 D3 JANITORS ROOM SHAFT FEMALE WASHROOM MALE WASHROOM 300 D1 D2 D1 W1 W1 W1 W1 D3 D3 100 JANITORS ROOM SHAFT FEMALE WASHROOM MALE WASHROOM A' B' B C' C Grab Bar Range: Jaquar AHS-CHR-1501 Hotelier DOOR AND WINDOW SPECIFICATIONS SYMBOL MANUFACTURER: DIMENSIONS: TYPE MATERIAL SPECIFICATION: MANUFACTURER: DIMENSIONS: TYPE MATERIAL SPECIFICATION: MANUFACTURER: DIMENSIONS: TYPE MATERIAL SPECIFICATION: MANUFACTURER: DIMENSION TYPE MATERIAL SPECIFICATION: DESCRIPTION Merino Restrooms 800X 2100 Single Hinged Single Swing Shutter 30 mm Thk Waterproof Blockboard Finished With Plastic Laminate With Granite Frame 1000 X 2100 600 X 2100 DUROPLAST 400 X 600 UPVC Fixed Louvered Window With Exhaust Fan mm Thk Frosted Glass With Heavy Duty Aluminium Frame D3 D2 D1 W1 Merino Restrooms Single Hinged Single Swing Shutter 30 mm Thk Waterproof Blockboard Finished With Plastic Laminate With Granite Frame Merino Restrooms Single Hinged Single Swing Shutter 30 mm Thk Waterproof Blockboard Finished With Plastic Laminate With Granite Frame TOILET FIXTURES SPECIFICATIONS Flush FIXTURES DADO TILING TILING SPECIFICATIONS SPECIFICATION MANUFACTURER: DIMENSIONS: FINISH TYPE: FLOOR TILING MANUFACTURER: DIMENSIONS: FINISH TYPE: NITCO 300 X 400 (MM) GLOSSY CERAMIC NITCO 400 400 (MM) GLOSSY VITRIFIED TILES ICON SECTION AA' SCALE (1:25) SECTION AA' SCALE (1:25) SECTION AA' SCALE (1:25) 75890IN-P-CP Kohler Description:Flush Plate Size 22x0.5x16 mm MRP 2,230.00 MRP 1,500.00 Urinal Partition 16407IN-CP Kohler Description:Bottle Trap Chrome Finish Size 274 x150 32 mm MRP 1,900.00 TOTO Size 125W X 125D 110H mm Flow rate 4.0Lpm Finish Chrome THX20MCRB TTWR102-1 TOTO Finish Nickel Chrome Material Brass Size 138W 129D x 76H mm Biptap Faucet way TOILET DETAIL

PJ1/2 Ø32 (225) 730 NOTES: 1) THIS DRAWING IS A PROPERTY OF HARSHITA AGRAWAL AND SHALL NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION. 2) THE COMMENCMENT OF CONSTRUCTION SUBJECT TOAPPROVAL FROM ALL COMPETENT AUTHORITIES. GENERAL NOTES: 03. DISCREPANCY IF ANY SHOULD BE BROUGHT TO THE ARCHITECT'S NOTICE BEFORE COMMENCING THE WORK. 04. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS TO BE FOLLOWED. 05. THIS DRG. TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL & SERVICES DRGS. EXECUTION NOTES: BRICK WALL RCC MEMBERS BBC AS PER DRGS. UNLESS OTHERWISE SPECIFIED 06. ALL STRUCTURAL DIMENSIONS TO BE REFER FROM THE STRUCTURAL DRGS. 07. FOR ALL CIVIC DETAILSREFER RESPECTIVE DRGS. REFER WALL SECTION DRGS. FOR EXECUTION. 09. FOR ALL DOORS AND WINDOWS REFER TO ALL DOOR WINDOW SCHEDULE DRGS. 10. ALL MECHANICAL CUT-OUTS & SLEEVES TO BE IN CONJUNCTION WITH RESPECTIVE & RELEVANT SERVICE DRGS. PROVISION TO BE MADE FOR DAMPER SLABS IN ALL DUCT SHAFTS & CUT-OUTS ON ALL FLOORS. 11. ALL BRICK WALL WORK IS IN ENGLISH BOND. 12. ALL PARTITION WALLS ARE 115MM THK UNLESS SPECIFIED. LEGEND UNFINISHED AND ARE IN MM UNLESS AND OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT SITE. 01. ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK. 02. ALL DIMENSIONS ARE TYPICAL FLOOR PLAN NAME: HARSHITA AGRAWAL N WORKING DRAWING BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. 2 SIGN: ROLL NO:B042 SECTION AA' 647 92 182 900 3000 (1:20) D3 SUNKEN SLAB SUNKEN SLAB JANITORS ROOM 3750 7405 900 SHAFT SECTION BB' SCALE (1:20) 313 W1 W1 A 200X230MM R.C.C.LINTEL FROSTED GLASS LOUVRE WITH ALUMINIUM CASING 40MM ALUMINIUM SECTION FRAME INSIDE OUTSIDE 15MM GRAY SLATE STONE SECTION AA' OUTSIDE LOUVERED WINDOW ELEVATION PLAN INSIDE WINDOW FRAME DETAIL LOUVERED WINDOW FRAME DETAIL 15MM GRAY SLATESTONE A' 15MM GRAY SLATE STONE ALUMINIUM SPACER SECTION 40MM ALUMINIUM SECTION FRAME FROSTED GLASS LOUVRE WITH ALUMINIUM CASING LOCKING FIN 40 MM ALUMINIUM SECTION FRAME NOTES: 1) THIS DRAWING IS A PROPERTY OF HARSHITA AGRAWAL AND SHALL NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION. 2) THE COMMENCMENT OF CONSTRUCTION SUBJECT TOAPPROVAL FROM ALL COMPETENT AUTHORITIES. GENERAL NOTES: 03. DISCREPANCY IF ANY SHOULD BE BROUGHT TO THE ARCHITECT'S NOTICE BEFORE COMMENCING THE WORK. 04. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS TO BE FOLLOWED. 05. THIS DRG. TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL & SERVICES DRGS. EXECUTION NOTES: BRICK WALL RCC MEMBERS BBC AS PER DRGS. UNLESS OTHERWISE SPECIFIED 06. ALL STRUCTURAL DIMENSIONS TO BE REFER FROM THE STRUCTURAL DRGS. 07. FOR ALL CIVIC DETAILSREFER RESPECTIVE DRGS. REFER WALL SECTION DRGS. FOR EXECUTION. 09. FOR ALL DOORS AND WINDOWS REFER TO ALL DOOR WINDOW SCHEDULE DRGS. 10. ALL MECHANICAL CUT-OUTS & SLEEVES TO BE IN CONJUNCTION WITH RESPECTIVE & RELEVANT SERVICE DRGS. PROVISION TO BE MADE FOR DAMPER SLABS IN ALL DUCT SHAFTS & CUT-OUTS ON ALL FLOORS. 11. ALL BRICK WALL WORK IS IN ENGLISH BOND. 12. ALL PARTITION WALLS ARE 115MM THK UNLESS SPECIFIED. LEGEND UNFINISHED AND ARE IN MM UNLESS AND OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT SITE. 01. ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK. 02. ALL DIMENSIONS ARE TYPICAL FLOOR PLAN NAME: HARSHITA AGRAWAL N WORKING DRAWING BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. 3 SIGN: ROLL NO:B042 450 MM DEEP RCC BEAM FALSE CEILING 300 450 230 MM THICK BRICK WALL 25MM THK EXTERNAL PLASTER 15MM THK INTERNAL PLASTER 400 X 400 MM FLOOR TILE 25 MM THK SCREEDING BRICK BAT COBA 150 THK RCC SLAB SECTION CC' SCALE (1:25) MIRROR AS PER SELECTION PILLAR COCK AS PER SELECTION WASH BASIN AS PER SELECTION TILES AS PER SELECTION TOILET PAPER HOLDER AS PER SELECTION HEALTH FAUCET AS PER SELECTION W/C AS PER SELECTION HAND DRYER AS PER SELECTION URINAL AS PER SELECTION BATHROOM/KITCHEN SWEEPINGS FLOOR FINISH WATER SEAL (PREVENTS FOUL GASES TO ENTER IN) CONNECTED TO WASTE PIPE NAHANI TRAP SECTION 230 MM BRICK WALL 10 MM WALL TILE 15 MM BACKING BOARD 5MM THK Z CLIPS ATTACHED TO MIRROR PANEL AND HOOK ONTO MOUNTING RAIL 1200 X 2300 X 30 MM MIRROR AS/ SPEC 16 MOUNTING RAIL HALOGEN RECESSED LIGHT MIRROR MOUNTING DETAIL 381 54 95

PROJECT 04

PHOTOSHOP

Location: Lonavala

Semester: 2th sem

Year: 1st Year

Introduction:

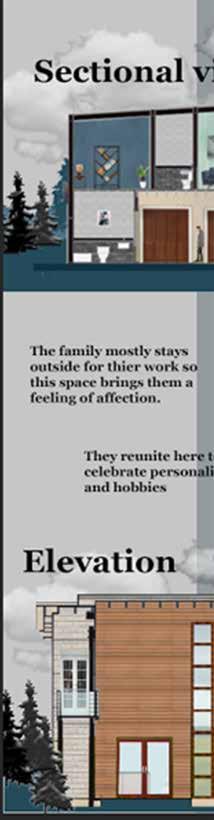

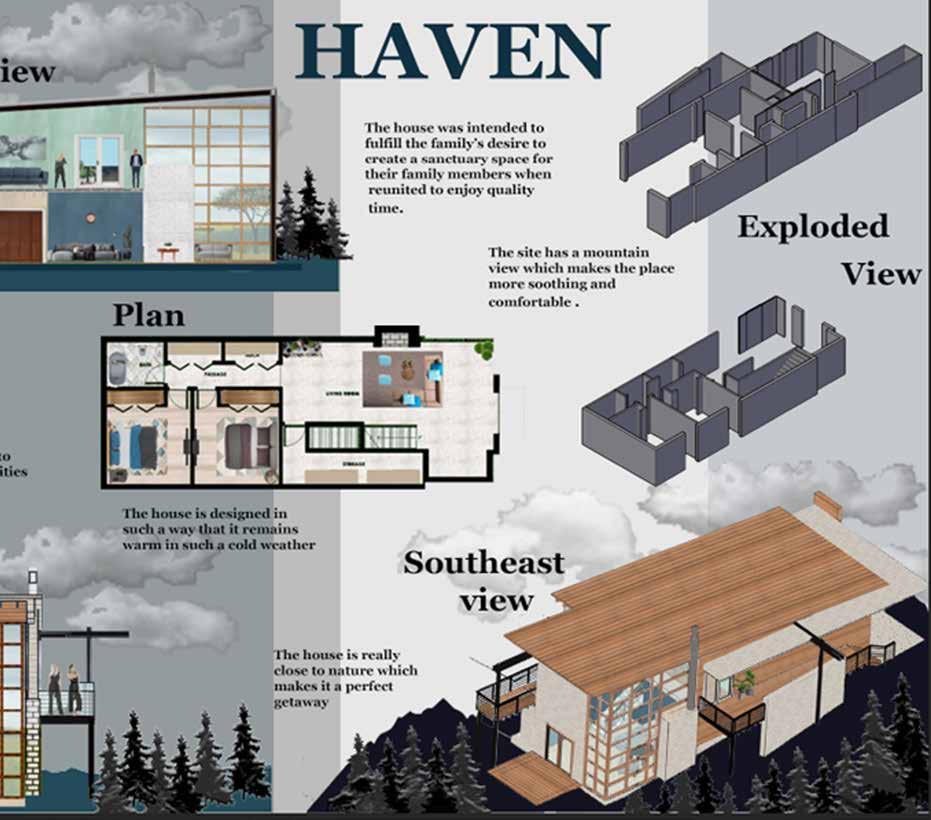

This project aims to utilize Photoshop to create visually appealing and informative renderings for a family holiday home designed for 4 people. The deliverables will showcase the proposed layout, exterior appearance, and interior space organization of the holiday home

PORTFOLIO

PROJECT 05

ADVANCE SERVICES

Location: Mumbai

Semester: 7th sem

Year: 4th Year

Introduction:

This project aims to develop a comprehensive services portfolio architecture for a building, encompassing two crucial areas: Heating, Ventilation, and Air Conditioning (HVAC) and Firefighting Systems with Electrical Layout. Additionally, the project will include architectural plans for the building, adhering to specific plot size, plot area, and built-up area (BUA) instructions.

Services Portfolio Development:

Design an HVAC system that ensures optimal temperature control, ventilation, and air quality throughout the building.

Design a firefighting system that prioritizes occupant safety and adheres to relevant fire safety codes.

Clearly outline the components, functionalities, and layouts of both systems within a cohesive port-

05 PORTFOLIO

06 ADVANCED SERVICES REGISTERS FAN SUPPLY PIPE B042 HARSHITA AGRAWAL SCALE 1:200 ADVANCE SERVICES BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. 3 SIGN: N YR 4 SEM 7 BASEMENT FLOOR B044 SHIVRAJ BAJWA SITE PROJECT NAME LEGEND DIFFUSER FAN RETURN PIPE B047 PRIYAL JAIN PUMP ROOM U.G.T + FIRE FIGHTING TANK DRIVER ROOM + TOILET AC PLANT ROOM GENERATOR FAN SUPPLY ROOM FAN RETURN ROOM FAN RETURN ROOM FAN SUPPLY ROOM FAN SUPPLY ROOM FAN SUPPLY ROOM FAN SUPPLY ROOM FAN SUPPLY ROOM FAN RETURN ROOM FAN RETURN ROOM FAN RETURN ROOM FAN RETURN ROOM E C AC RETURN PIPE AC SUPPLY PIPE BASEMENT FLOOR FRESH AIR VENT OF FAN ROOM GROUND LEVEL 0.0M RETURN DUCT SUPPLY DUCT FAN RETURN ROOM PLINTH LEVEL 1.5M REGISTER BASEMENT LEVEL -3.0M DIFFUSER SECTION THROUGH FAN ROOM PHOTO OF DIFFUSERS IN THE BASEMENT DIFFUSER FAN SUPPLY ROOM FAN RETURN ROOM NATURAL VENTILATION PUMP ROOM U.G.T TANK AC PLANT ROOM GENERATOR ROOM ROOM ROOM ROOM ROOM ROOM ROOM ROOM ROOM ROOM ROOM ROOM ZONING OF FAN ROOMS 1:200 NATURALLY VENTILATED ZONES 1:200 ZONES FOR MECHANICAL VENTILATION 1:200 1:200 SCHEMATIC SECTION BASEMENT FIRST FLOOR SECOND FLOOR GROUND FLOOR THIRD FLOOR FOURTH FLOOR FIFTH FLOOR FIFTH FLOOR FIFTH FLOOR

B042 HARSHITA AGRAWAL SCALE 1:200 ADVANCE SERVICES BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. 3 SIGN: N YR 4 SEM 7 GROUND FLOOR B044 SHIVRAJ BAJWA PROJECT NAME LEGEND B047 PRIYAL JAIN ENTRY EXIT GROUND FLOOR WASHROOM WASHROOM CABIN CO-WORKING SPACE RECEPTION AREA SECURITY & CAMERA ROOM OFFICE INQUIRY ROOM AHU ROOM AHU ROOM PANTRY AHU ROOM CO- WORKING SPACE CO- WORKING SPACE DROP OFF AHU 1 - AREA AHU 2 - AREA AHU 3 - AREA AHU 4 - AREA LEGEND AHU FCU AC SUPPLY DUCT AC RETURN DUCT FAN COIL UNIT COOL WATER SUPPLY PIPE HOT WATER SUPPLY PIPE NATURALLY VENTILATED AHU ZONING PLAN 1:200 ZONING PLAN 1:200 680 Sqm 443 Sqm 514 Sqm SCHEMATIC SECTION THROUGH AIR HANDELING UNIT WASHROOM WASHROOM AIR HANDELING UNIT 1:200

B042 HARSHITA AGRAWAL SCALE 1:200 ADVANCE SERVICES BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. 3 SIGN: N YR 4 SEM 7 1ST FLOOR TO 5TH FLOOR B044 SHIVRAJ BAJWA PROJECT NAME B047 PRIYAL JAIN WASHROOM AHU ROOM AHU ROOM AHU ROOM CONFERENCE ROOM CONFERENCE ROOM PANTRY ROOM CO- WORKING SPACE HUDDLE ROOM COLLABERATIVE SPACE HUDDLE ROOM OFFICE OFFICE RECREATIONAL AREA CONFERENCE ROOM STORAGE MULTI- PURPOSE SPACE (5TH FLOOR) STORAGE WASHROOM AHU ROOM AHU ROOM AHU ROOM STORAGE OFFICE OFFICE STORAGE EXHIBITION HALL EXHIBITION HALL EXHIBITION HALL MEETING ROOM CO- WORKING SPACE AHU ZONING PLAN ZONING PLAN 1:200 1:200 AHU ZONING PLAN ZONING PLAN 1:500 1:500 1:500 1:200 TYPICAL FLOOR PLAN (1ST - 4TH FLOOR) FCU SUPPLY UNIT RETURN UNIT AHU WATER RETURN SUPPLY UNIT WATER LOOP AIR LOOP 20% NATURAL AIR REFRIGRANT LOOP WATER SUPPLY COOL WATER RETURN WATER LOOP EVAPORATOR ROOM ROOM REFRIGERANT CYCLE AHU 1 AREA AHU 2 AREA AHU 4 AREA LEGEND AHU FCU AC SUPPLY DUCT AC RETURN DUCT FAN COIL UNIT COOL WATER SUPPLY PIPE HOT WATER SUPPLY PIPE NATURALLY VENTILATED 445 Sqm 443 Sqm 514 Sqm WASHROOM WASHROOM WASHROOM WASHROOM WASHROOM WASHROOM

AHU 2 - AREA AHU 3 - AREA AHU 4 - AREA B042 HARSHITA AGRAWAL SCALE 1:200 ADVANCE SERVICES BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. 3 SIGN: N YR 4 SEM 7 5TH AND 6TH FLOOR B044 SHIVRAJ BAJWA SITE PROJECT NAME LEGEND AHU FCU B047 PRIYAL JAIN STORAGE WASHROOM WASHROOM AHU ROOM AHU ROOM GYM GIRLS CHANGING ROOM SAUNA YOGA DANCE STUDIO TRAINERS ROOM OFFICE FITNESS AND LEISURE ARENA BOYS CHANGING ROOM & SAUNA AHU ROOM FOOD COURT WASHROOM WASHROOM AHU ROOM AHU ROOM AHU ROOM FAMILY HALL KITCHEN SITTING AREA RECEPTION AND WAITING LOUNGE FOOD STALL FOOD STALL FOOD STALL FOOD STALL FOOD STALL CAFE AC SUPPLY DUCT AC RETURN DUCT FAN COIL UNIT COOL WATER SUPPLY PIPE HOT WATER SUPPLY PIPE NATURALLY VENTILATED AHU ZONING PLAN ZONING PLAN 1:200 1:200 AHU ZONING PLAN ZONING PLAN 1:200 1:200 1:500 1:500 TYPES OF AC UNIT SYSTEM WINDOW AC SPLIT AC VRF/VRV SYSTEM SINGLE SPLIT MULTIPLE SPLIT (VARIABLE AIR FLOW/ VARIABLE AIR VOLUME) CENTERALISED SYSTEM DIRECT EXPANSION CHILLED WATER SYSTEM AHU FCU CAN TYPE VAV TYPE (CONSTANT AIR VOLUME) (VARIABLE AIR VOLUME) 454 Sqm 600 Sqm 341 Sqm PHOTO OF AIR HANDELING UNIT STORAGE ROOM WASHROOM WASHROOM WASHROOM WASHROOM WASHROOM WASHROOM

B042 HARSHITA AGRAWAL SCALE 1:200 ADVANCE SERVICES BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. 3 N YR 4 SEM 7 FITNESS AND LEISURE (7TH FLOOR) B044 SHIVRAJ BAJWA PROJECT NAME B047 PRIYAL JAIN LEGEND AC PLANT ROOM GENERATOR FAN SUPPLY ROOM FAN RETURN ROOM FAN RETURN ROOM FAN SUPPLY ROOM FAN SUPPLY ROOM FAN SUPPLY ROOM FAN SUPPLY ROOM FAN SUPPLY ROOM FAN RETURN ROOM FAN RETURN ROOM FAN RETURN ROOM FAN RETURN ROOM E C BASEMENT FLOOR LEGEND H S HEAT DETECTOR SMOKE DETECTOR DRY CARBON SPRINKLER HOOTER SPRINKLER SIAMESE FIRE EXITFIRE EXIT SIGNAGE RADIUM STRIP EMERGENCY LIGHT HOSE REEL SAND BUCKET PORTABLE FIRE EXTINGUISHER SITE HYDRANTS RADIUM STRIP SMOKE DETECTORS OHT TERRACE FLOOR LEVEL HOSE REEL SPRINKLER DUCT WET RISER SPRINKLER FIRST FLOOR LEVEL CONNECTION SITE HYDRANT GROUND LEVEL 0.0M BASEMENT LEVEL F.F. TANK GROUND LEVEL 0.0M DUCT PLINTH LEVEL 1.5M SCHEMATIC SECTION 1:200 SPRINKLER SPRINKLERS RISER PIPE WET RISER PIPE LINTEL FIRST AID HOSE REEL BRANCH PIPE WITH NOZZLE LONG REEL HOSE PIPE WITH COUPLING DETAIL OF HOSE CABINET (ELEVATION) 14

B042 HARSHITA AGRAWAL SCALE 1:200 ADVANCE SERVICES BALWANT SHETH SCHOOL OF ARCHITECTURE SHEET NO. 3 SIGN: N YR 4 SEM 7 1ST FLOOR TO 4TH FLOOR B044 SHIVRAJ BAJWA PROJECT NAME B047 PRIYAL JAIN LEGEND H S HEAT DETECTOR SMOKE DETECTOR DRY CARBON SPRINKLER HOOTER SPRINKLER SIAMESE FIRE EXITFIRE EXIT SIGNAGE RADIUM STRIP EMERGENCY LIGHT HOSE REEL SAND BUCKET PORTABLE FIRE EXTINGUISHER ENTRY EXIT DROP OFF FIRE CONTROL ROOM ELECTRICAL ROOM WASHROOM CABIN CO-WORKING SPACE RECEPTION AREA SECURITY CAMERA ROOM OFFICE INQUIRY ROOM AHU ROOM AHU ROOM AHU ROOM AHU ROOM CO- WORKING SPACE CO- WORKING SPACE FIRE EXIT SECURITY CABIN SECURITY CABIN SITE HYDRANTS SAND BUCKET CROSS MAIN PIPE SPRINKLER HOSE AND HEAD SUSPENDED CEILING SPRINKLER AREA OF SPRINKLER DISCHARGE OVERLAP FLOOR LEVEL SPRINKLER SYSTEM WASHROOM WASHROOM WASHROOM FROM FIRE FIGHTING TANK FIRE HYDRANTS SIAMESE CONNECTION GROUND FLOOR 1:200

14 IRA PAREEK AND HARSHITA AGRAWAL B023 AND B042 20-09-2022 BSSA NMIMS YEAR 3 SEM 5 SHEET 3 SERVICES ELECTRICAL AND LAYOUT PLAN W K W AC GEYSER F4 MACHINE MSB3 W K W AC AC AC STORAGE STORAGE TV TV FRIDGE GEYSER GEYSER F2 F1 F4 F3 MICROWAVE CHIMNEY CL10 CL9 CL14 CL13 CL12 CL15 CL16 CL17 CL19 CL20 CL21 CL18 CL4 CL11 CL5 CL6 CL7 CL8 CL1 CL 2 CL3 TL1 CL5 CL22 CL23 CL24 CL25 CL26 CL27 CL28 CL34 CL33 CL32 CL31 CL29 CL30 CL35 CL36 CL37 CL39 CL38 CL40 CL41 CL43 CL42 WASHING MACHINE MSB1 MSB4 BELL MSB5 MSB3 MSB2 SR. NO. APPLIANCES COMPANY PRICE (Rs) DESCRIPTION 1 CEILING LIGHT HAVELLS 1002 3 2 SPOT LIGHT PHILIPS 273 IMAGE Havells Trim Cosmo LED Surface Panel Round 18W ,White Lights Philips LED Spotlight, GU10 5 Watt, Warm White Luminous New York Brooklyn 1200Mm Ceiling Fan Champagne Gold Haier Cleancool+ 1.5 Ton 4 Star Inverter Split AC HSU18C-NTB4B, White 3,460 37790 LUMINOUS HAIER CEILING FAN 4 AIR CONDITIONOR GEYSER WASHING MACHINE REFIGERATOR 5 6 7 8 CHIMNEY HAVELLS INSTANIO 10L White BLUE 8.0 kg Front Load Washing Machine with AI Control, Hygiene Steam & SmartThings Connectivity, WW80T504DAB Samsung 394 L 3 Star Frost-free Double Door Refrigerator (RT39M5538S8) Elica 1100 m³/hr 60cm Filterless Chimney (Motion Sensor Control, EFL-S607 VMS, Black) HAVELLS SAMSUNG SAMSUNG ELLICA 49,490 7,990 35590 13999 PLAN WITH CIRCUIT APARTMENT PLAN SCALE 1:20 SCALE 1:100 CIRCUIT NO. SWITCH BOARD NO. ROOM/SPACE HEIGHT OF SB FROM FFL (m) DESCRIPTION SOCKETS SB MODULE CIRCUIT 1 MSB 1 1.200 CL1,CL2,CL3,CL4,CL5 CL6,F2,BELL,RINGER PASSAGE 1 s/s (5 A), REGULATOR 10 CIRCUIT 2 MSB 2 BED ROOM 1 1.500 1s/s(5 A) SSB 1 CL36,CL37,CL38 1s/s(5A),1s/s(15A) 6 SSB 2 0.500 4 BED ROOM 1 1.000 BED ROOM 1 BED ROOM 1 WASHROOM 1 WASHROOM 1 SSB 3 SSB 4 SSB 5 SSB 6 AC 1 CL41,CL42,SL2,F4 BED ROOM 1 CL39,CL40,SL1,F4 0.500 0.500 SSB 7 WASHROOM 1 1.200 1.500 1.200 CL34,CL35 GEYSER 1 CL30,CL31,CL32,CL33 MSB 3 BED ROOM 2 BED ROOM 2 BED ROOM 2 BED ROOM 2 SSB 8 SSB 9 SSB 10 SSB 11 1s/s(15A) TV 1 6 CIRCUIT 3 CIRCUIT 4 CIRCUIT 5 BED ROOM 2 1.200 CL22,CL23,CL24,CL29 1.000 1s/s(5A) 8 TV 2 CL26,CL27,SL4,F3 CL25,CL28,SL3,F3 1s/s(5A),1s/s(15A) 6 1 s/s (5 A), REGULATOR 0.500 0.500 2s/s(5A) 0.500 AC 2 1s/s(15A) WASHROOM 2 SSB 12 SSB 13 SSB 14 SSB 15 SSB 16 SSB 17 MSB 4 MSB 5 WASHROOM 2 1.500 CL18,CL19,CL20,CL21 1.200 GEYSER 2 1s/s(15A) 1s/s(5A) LIVING ROOM SERVICE ROOM 1.000 1.200 SERVICE ROOM 1.200 CL7,CL8,CL11,F5 WASHING MACHINE 1s/s(5A),1s/s(15A) CL15,CL16,CL17 1s/s(5A) LIVING ROOM KITCHEN KITCHEN 1.200 1.200 1.000 1.000 SSB 16 CL12,CL13,AC3 1s/s(5A),1s/s(15A) 1 s/s (5 A), REGULATOR KITCHEN CL9,CL10,CL14,TL1,F1 1 s/s (5 A), REGULATOR FRIDGE,MICROWAVE CHIMNEY 2s/s(5A),2s/s(15A) 1s/s(15A) 2s/s(5A) 1 s/s (5 A), REGULATOR 1s/s(5A) 1s/s(15A) 10 8 6 4 4 8 8 4 4 4 12 10 8 6 6 8 8 ELECTRICITY CONSUMPTION APPLIANCE POWER (W) VOLTAGE (VOLTS) TIME USED (MINUTES) ENERGY UNITS (kWh) CURRENT (AMPS) GEYSER 3000W 230 V 60 3 13 TOASTER 750W 230 V 2 0.0300 3.3500 MICROWAVE 1400W 230 V 1 0.0200 6.1000 REFRIGERATOR 200W 230 V 240 0.8000 0.9000 MIXER 200W 230 V 3 0.0100 0.9000 OVEN 1500W 230 V 30 2.2500 13 9 TUBE LIGHT SYSKA 1,150 Syska SSK-T5-18W 18-Watt LED Tube Light

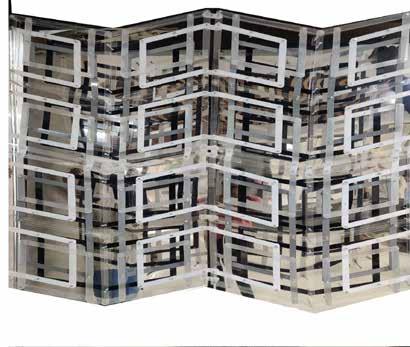

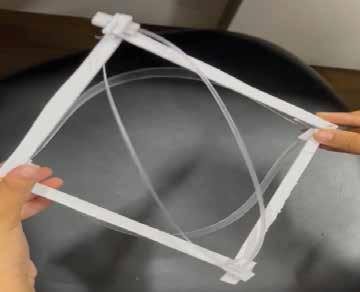

Process Models unfolded state, where it is required to have a specific span, S, and leave a space underneath with specific height, An angulated mechanism can be derived from a polar mechanism From a series of parallel, linear scissor mechanisms, interconnected by simple pinjointed struts, a foldable frame can be assembled. Membranes can be spanned in such a frame, in a classic ridge-and-valley configuration

This project challenges you to design and construct a kinetic sculpture installation that utilizes a scissor mechanism and incorporates an acrylic model. The project is intended for an architectural college setting, encouraging exploration of movement, form, and spatial relationships.

Location:

Semester:

Year:

Deployable Process Description: INSTALLATION

Mumbai

5th sem

3th Year PROJECT 06

Deployable Planes :

Adaptation of Aristophanes

Description:

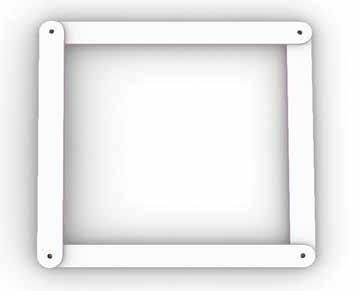

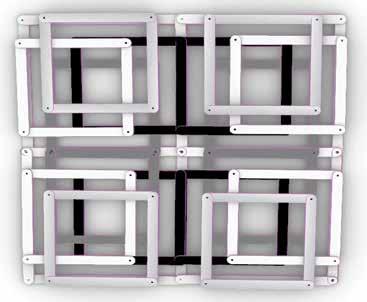

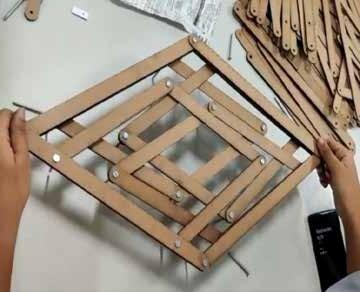

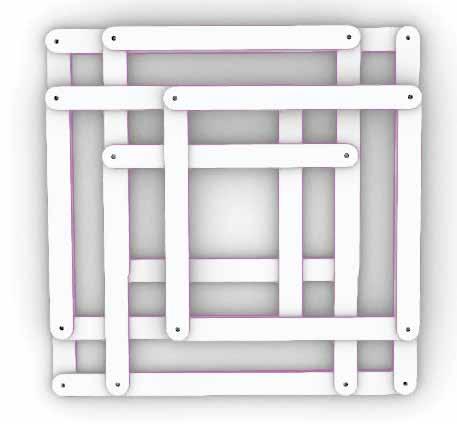

The design of the scissor mechanism for this retractable structure is based on the geometry of the closed roof. In this configuration the scissor mechanism is in its most unfolded state, where it is required to have a specific span, S, and leave a space underneath with specific height,

An angulated mechanism can be derived from a polar mechanism

From a series of parallel, linear scissor mechanisms, interconnected by simple pinjointed struts, a foldable frame can be assembled. Membranes can be spanned in such a frame, in a classic ridge-and-valley configuration

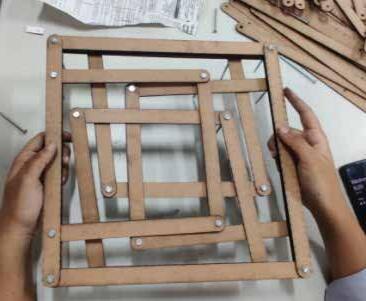

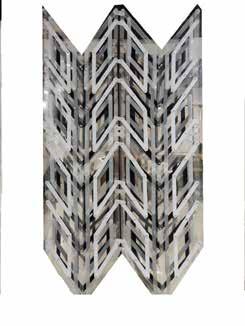

Process Models

PROJECT 07

STUDY TOUR

Location:kolkata - Shanti niketan - Bishnupur

Semester: 5th sem

Year: 3th Year

This project delves into the rich history and captivating landscapes of three distinct locations in India: Kolkata, Shantiniketan, and Bishnupur. Through a series of sketches and a final poster design, explored the unique visual identity of each place.

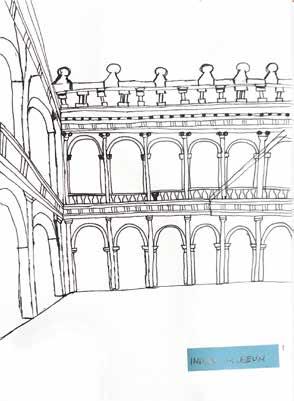

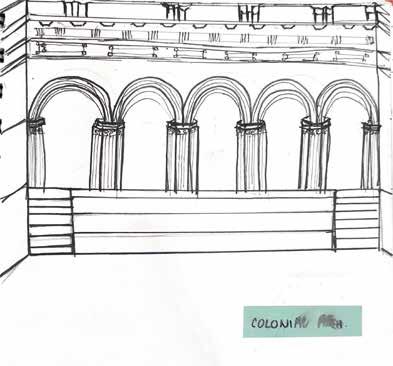

Sketchbook Exploration:

Create a series of sketches that capture the essence of each location: Kolkata, Shantiniketan, and Bishnupur.

Focus on historical landmarks, architectural styles, natural landscapes, or cultural scenes that resonate with you.

Poster Design:

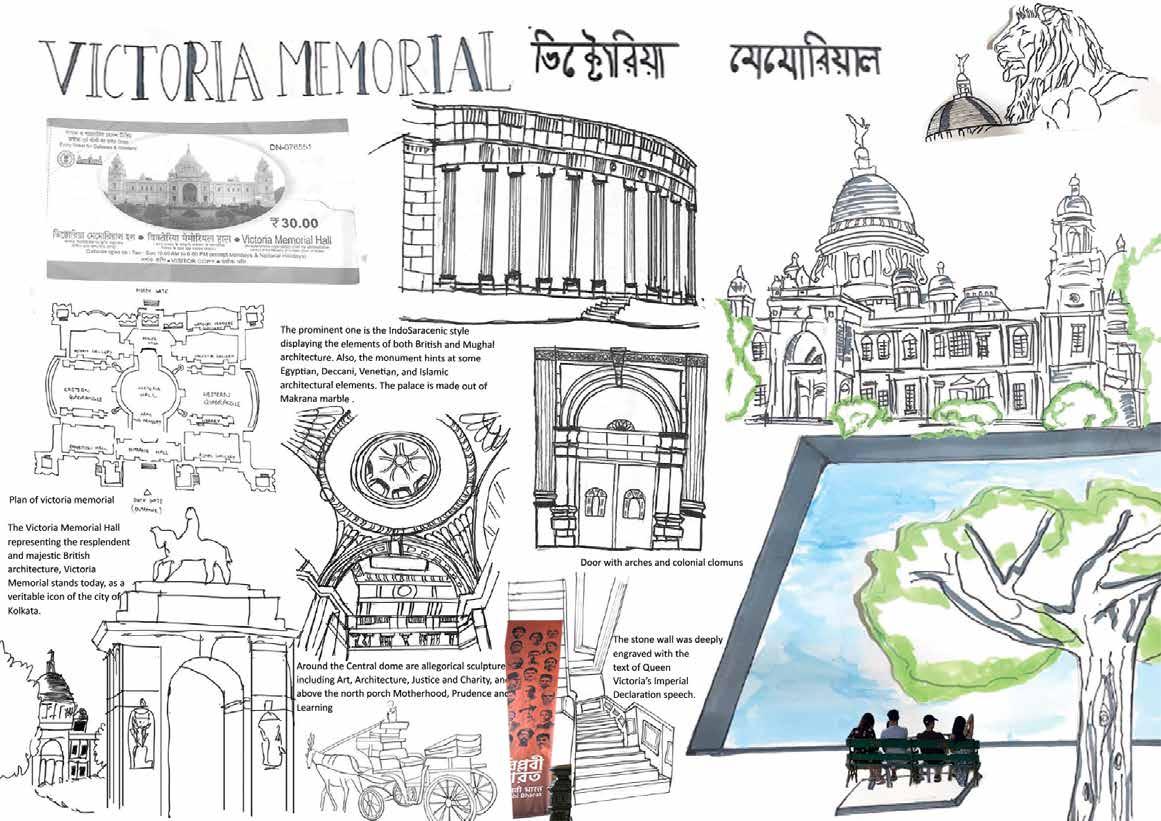

Develop a final poster focusing on the Victoria Memorial in Kolkata.

Highlight the architectural grandeur and historical significance of this iconic landmark. Consider incorporating elements that showcase the colonial influence on Kolkata’s architecture. Utilize visual elements like composition, typography, and color to create an impactful and informative poster.

15 PORTFOLIO

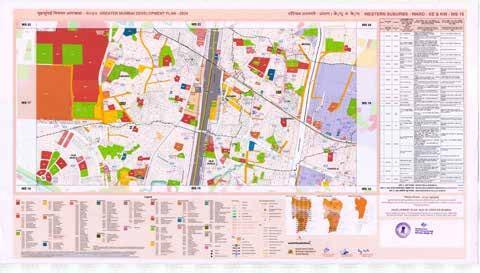

PORTFOLIO EXPLORATION PROJECT 08 ELECTIVE - DESIGNING FOR PHYSICALLY AND MENTALLY CHALLENEGD PEOPLE ELECTIVE - PRINTMAKING
