ABOUT APS GROUP APS Group is the leading supplier of VEKA PVCu systems to the home improvement and construction industry in Ireland. Established in 2001, we have built a strong reputation for delivering high-quality products, dependable logistics, and a consistently professional service.

Operating across Northern Ireland, the Republic of Ireland, Great Britain and beyond, APS Group supports fabricators, installers, and specifiers with market-leading PVCu solutions backed by technical expertise and dedicated customer support. Our experienced team combines in-depth product knowledge with a proactive sales approach, ensuring every customer receives the right solution for their project.

Quality and compliance are central to everything we do. APS Group holds ISO 9001 and ISO 14001 certification and is accredited by the FSB and Secured by Design, giving our customers complete confidence in both our processes and our products.

2

Introduction

We manage our own transport fleet and warehouse operations, allowing us to maintain full control over stockholding, order accuracy, and delivery performance. With just-in-time delivery options, a dedicated order tracking system, and experienced warehouse staff, we ensure a reliable and efficient service from order to site.

APS Group works closely with architects and specifiers, offering support with project-specific specifications, access to full online product manuals, and CPD presentations delivered either at our bespoke training facility at our Lisburn head office or at customer premises.

Our VEKA product portfolio includes the awardwinning OMNIA double flush, double rebate window and door system, the performanceleading VEKA M70 system, along with Vertical Sliding windows, Tilt & Turn windows, Patio doors, and French doors - all designed to deliver outstanding performance, aesthetics, and long-term value.

We also have access to a fantastic range of foil colours to choose from, covering woodgrain and matt finishes, as well as finely textured aluminium-look options and the exclusive Feinstruktur foil range only available from VEKA. Learn more about the range in this guide.

At APS Group, we are committed to building long-term partnerships, delivering exceptional service, and supporting the success of every project we are involved in.

Find out more: www.aps-group.co.uk

3

Quality.

Innovation.

Sustainability.

With over four decades of operation, VEKA manufactures window and door systems with a focus on quality, sustainability, and product development. Our vision is to be the brand of choice based on a heritage of trust and achieved through investment in our people and products.

VEKA works with fabricators, architects, installers, and homeowners to provide systems that meet industry requirements. By incorporating sustainability measures and ongoing product development, VEKA designs solutions that comply with relevant standards and supports the commitmentto long-lasting partnerships throughout the supply chain.

Compliance Focus PE

R F O R MA N

C S PA

D S E CUR

E

IT

Y

VE

AN

RO

CE

2 4 APP

World-Class Delivery

D

EN

H

95%+ On Time In Full performance, ensuring reliable supply.

4

Introduction

Closed-Loop Recycling

Extensive Colour Range VEKA Recycling leads Europe with advanced PVCu reuse.

A full suite of profiles available in a wide variety of finishes.

5

Contents Introduction

8-9

12-25

26-33

Why choose PVCu?

The services we offer

Our colour range

• VEKA Recycling

• Feinstruktur

• Supply chain & customer service

• Ex-stock colour range

• VEKA commercial support

• MTO colour range

10-11 Discover VEKA

• Testing laboratory & accreditations • Building regulations & warranty • Exposure categories & testing guidance • What we can do for you

6

Introduction

Product Overview

36-43

56-59

OMNIA

Patio Doors

• Casement Window

• Imagine Patio Door Bevelled

• Tilt & Turn Window

• Imagine Patio Door Sculptured

• Residential & French Doors

44-51 M70 Range

60-63 Ancillaries

• M70 Casement Window • M70 Tilt & Turn Window • M70 Residential & French Doors

52-55 Vertical Sliders • Imagine Vertical Slider

7

Why choose PVCu?

8

Durability The British Plastics Federation (BPF) and the Building Research Establishment (BRE) identified that PVCu windows have a life expectancy of at least 35 years.

Energy Efficiency VEKA manufactures window and door frames with a focus on energy efficiency, and produced the UK’s first BFRC A‑rated PVCu window. Its range also includes recycled profiles that have received industry recognition for environmental performance.

The product range now features the Softline 82 Passivhaus window, a Passivhaus Certified Tilt & Turn design intended to minimise energy loss and support thermal efficiency.

Introduction

Weather Resistance

Sustainability

Low Maintenance

VEKA windows are manufactured from PVCu materials designed to resist common issues such as rotting, peeling, cracking, or warping. They incorporate multiple chambers, co‑extruded gaskets, and the option for steel reinforcement.

In addition to windows and doors that are manufactured to deliver thermal efficiency, some products in the range incorporate recycled post‑consumer materials, which supports reduced waste and resource use. These features are intended to contribute to improved environmental performance in building projects.

The PVCu materials used in VEKA windows and doors are designed to require minimal maintenance. This can help reduce the time and costs associated with upkeep for the end client.

Additional features, including the availability of triple glazing, contribute to weather‑tight performance.

Recyclability PVCu windows typically have an average lifespan of around 35 years and can be recycled up to ten times. Through VEKA Recycling, PVCu material is reprocessed for use in new products, supporting resource efficiency.

Recycling PVCu helps to reduce the use of raw materials. At the end of their service life, all parts of the window — including the PVCu profile, glass, hardware, steel or aluminium reinforcement, and gasket — can be recycled.

9

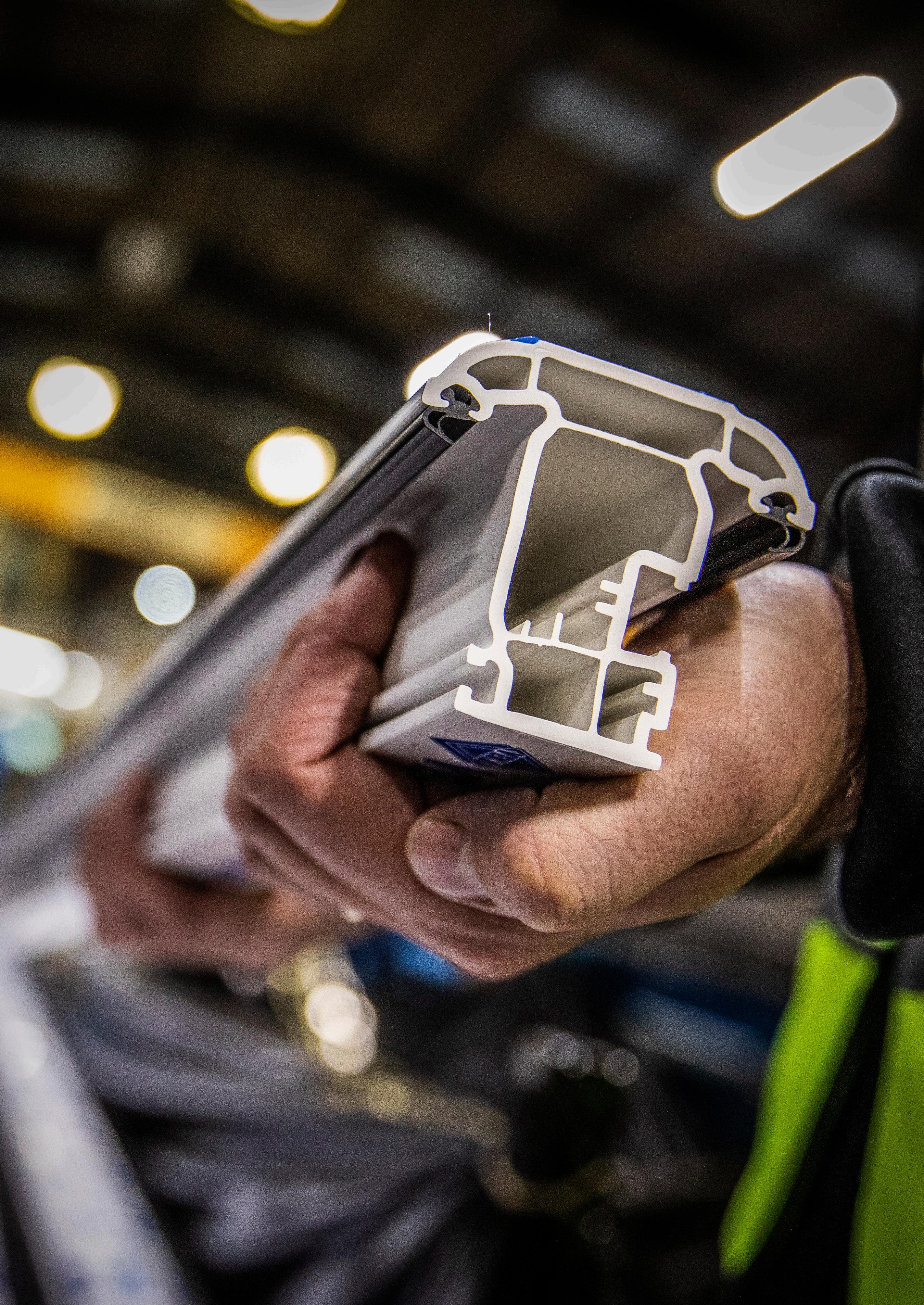

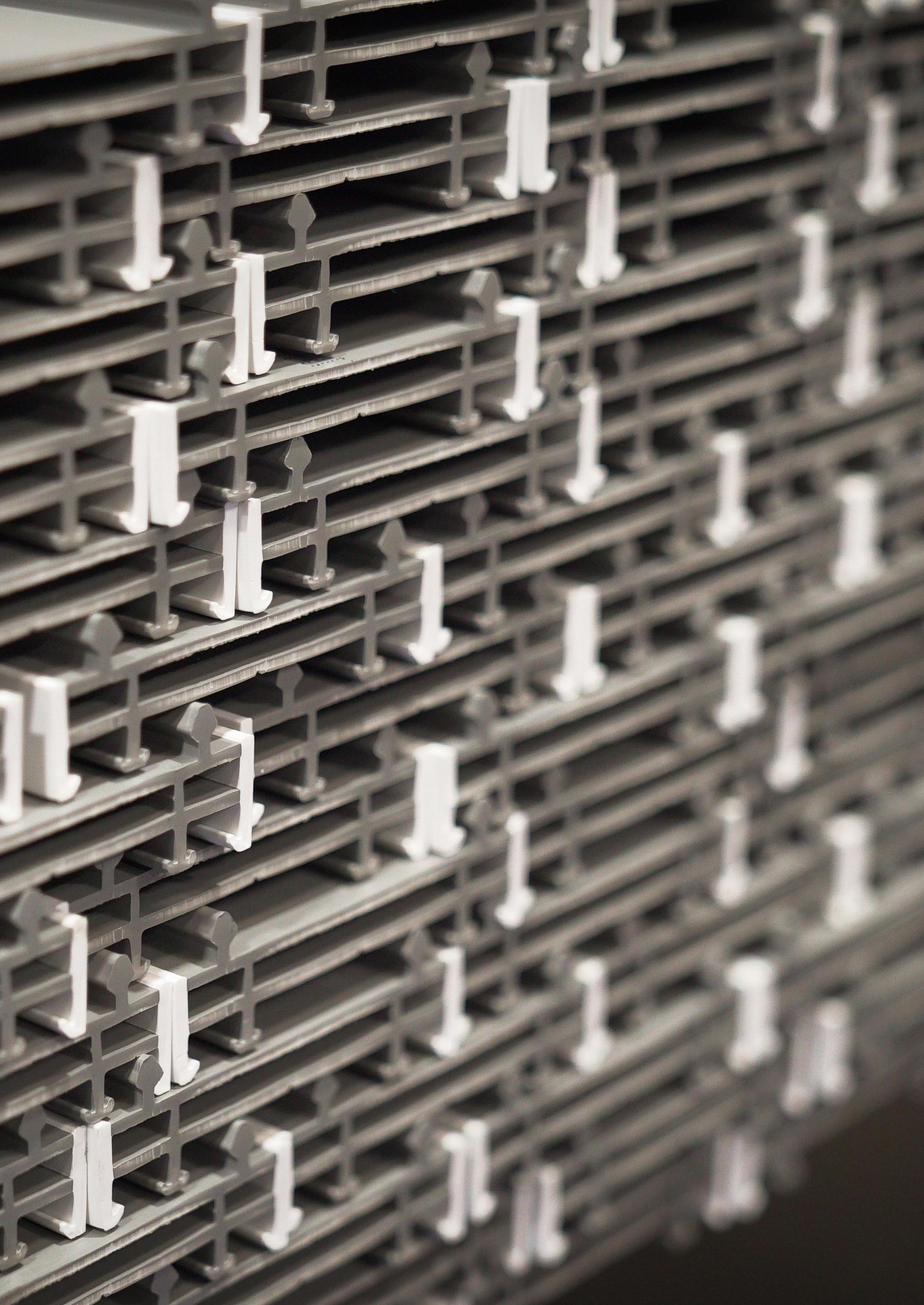

Discover VEKA VEKA focuses on designing, developing, and extruding PVCu systems for use in windows and doors. Over the years, we’ve applied technical expertise to manufacturing processes and maintained stable growth, with a product range of PVCu systems that are supplied to fabricators and installers for residential and commercial projects, and are widely used across the industry.

55 YEARS

Heritage VEKA has been manufacturing PVCu window systems for more than 55 years. Headquartered in Germany and family‑owned since 1969, we operate subsidiaries in over 40 countries across Europe, Asia, and America.

We continue to apply our experience to the design and extrusion of PVCu products and have maintained the culture established at our founding. VEKA plc is our UK arm, supplying VEKA, Halo, and OMNIA profile systems, along with products that incorporate recycled PVCu.

10

Our German heritage combined with British manufacturing means our systems are produced with consistent standards. We remain committed to ongoing product development so that our range evolves in line with technology and market requirements.

Introduction

People Our technical team is available to provide support by phone or email. We can assist with CAD design, BIM, prototyping, and calculations such as wind load or energy performance to help ensure the correct specification for each project.

We are experienced in working with PVCu products and have carried out processes including extrusion, fabrication, installation, dismantling, and inspection. This practical knowledge supports our understanding of both the products we manufacture and how they are used in everyday settings.

Quality We manufacture our products to meet recognised industry standards. All of our windows and doors carry BSI Kitemark certification, include ten‑year guarantees, and our operations are certified to ISO 9001:2015.

We also work to conform to PAS24 requirements and design our systems to support strong thermal performance, including U‑value ratings. Testing and quality controls are applied throughout production to help ensure consistent performance of our profiles.

Choice We supply a portfolio of systems suitable for residential, commercial, and public sector projects.

In developing our Variations colour range, we focused on the colour and texture of each foil and on ensuring products are available within lead times that support project requirements. We maintain a UK stock holding valued at approximately £8 million, covering more than 5,500 SKUs.

Product Development We have been developing PVCu window and door systems for 55 years. Our history includes producing the first A‑rated window in the UK and introducing approaches to recycling PVCu materials.

Our product range and services continue to evolve as we apply our knowledge and experience to new technologies and methods of working. We focus on designing solutions that meet industry requirements and support the creation of future living spaces.

Set Standards. Choose VEKA.

11

The

services we offer 12

Introduction

13

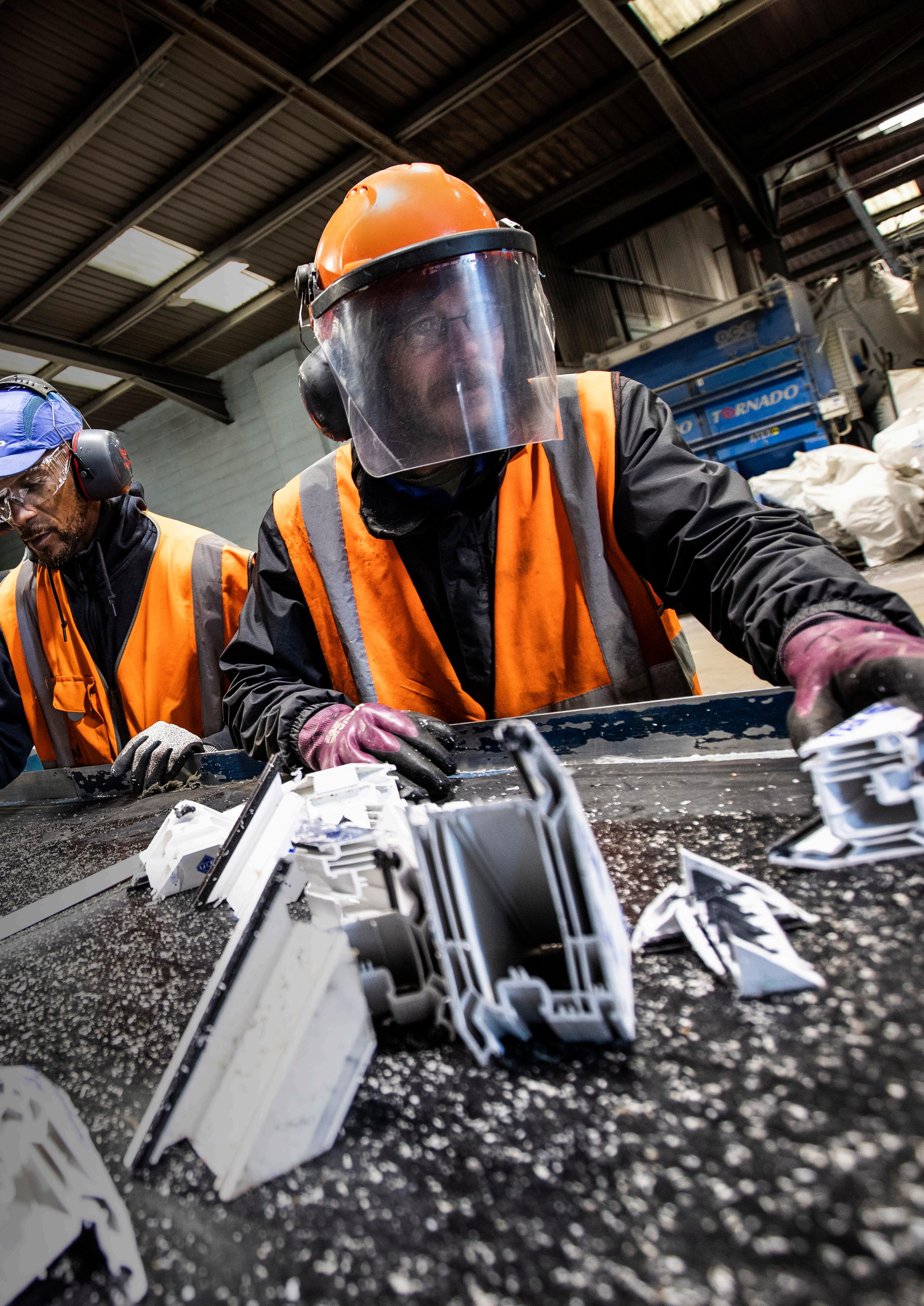

We operate VEKA Recycling, the UK’s first PVCu recycling facility, based in Wellingborough.

The site processes end‑of‑life PVCu windows and doors with an annual recycling capacity of around 25,000 tonnes.

A typical PVCu window has an average lifespan of about 35 years and can be recycled up to ten times.

By reprocessing PVCu material, we support resource efficiency and reduce the need for raw materials. At the end of their service life, all parts of a window — including the PVCu profile, glass, hardware, steel or aluminium reinforcement, and gasket — can be recycled through our facility.

In 2024 VEKA Recycling processed over

PVCu recycling to support a circular approach

68,300 tonnes of PVCu across Europe.

In 2024 VEKA Recycling diverted

1.35 million

frames from landfill in the UK.

14

95% Approximately 95% of the PVCu waste collected by VEKA is recycled

We are proud to close the loop on PVCu recycling. We use the latest technologies to create pelletised PVCu which is passed onto approved extruders to make new building products, including new PVCu windows. VEKA’s latest ReCore range uses grey recycled PVCu in the core of its products, like the ReCore Cill above.

Introduction

15

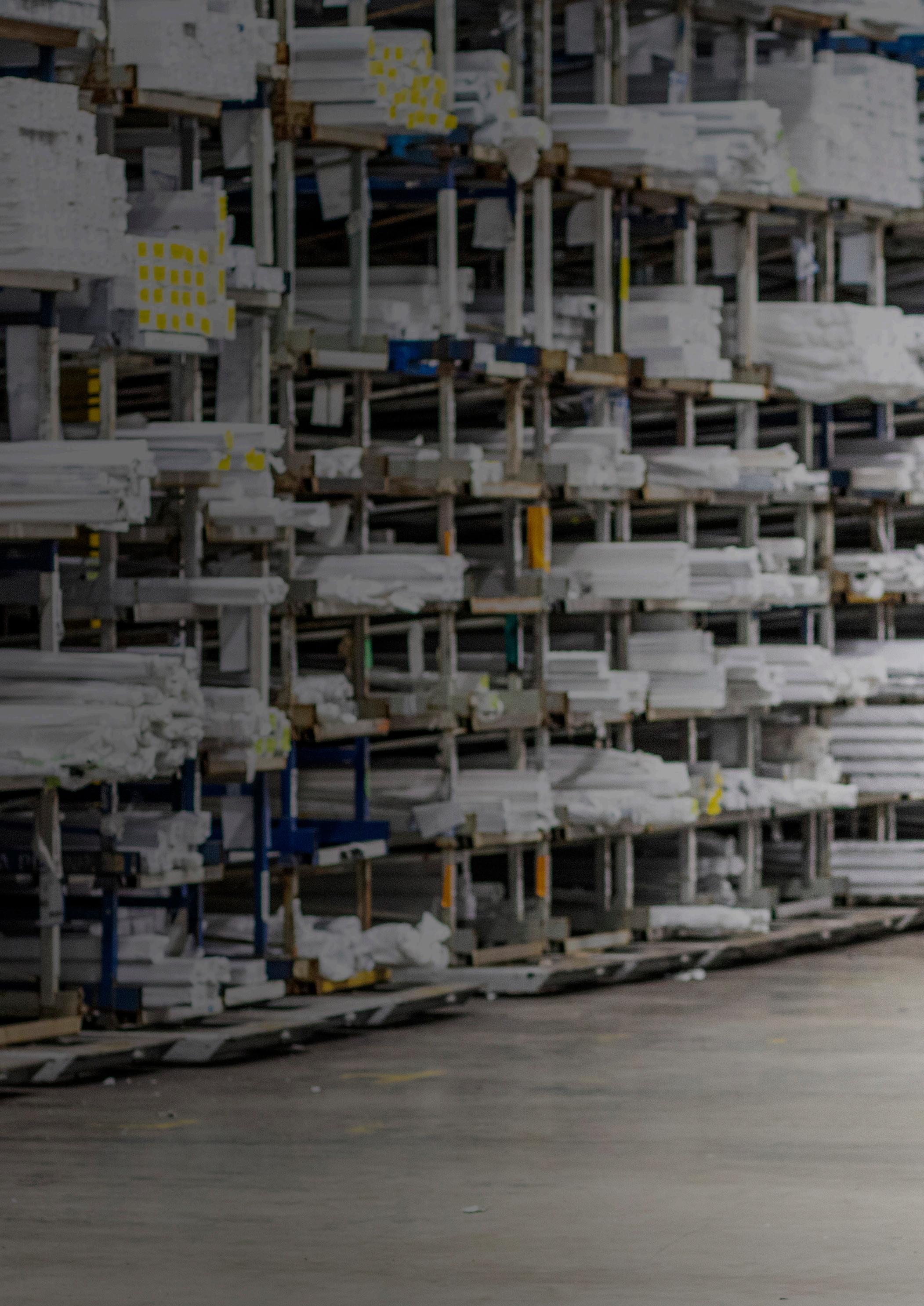

Supply chain & customer service At VEKA, our supply chain is designed for efficiency, reliability, sustainability, and our customer service team is there to help for any query or order. Operating from our advanced manufacturing and distribution facility in Burnley, Lancashire, we serve customers nationwide.

World-Class On Time In Full A company that consistently achieves 95% or higher on-time delivery and complete order fulfillment is considered World-Class, and at VEKA performance consistently exceeds 98%. This requires a sophisticated supply chain with robust forecasting, inventory management, and real-time tracking.

It also involves strong supplier collaboration, optimised logistics, and continuous improvement.

Customer Service - The First Line Of Contact Our friendly and helpful customer service team are on hand Monday - Friday to help with all your orders, queries and questions, ensuring a smooth process from order to delivery.

16

Introduction

17

18

Introduction

VEKA commercial support VEKA delivers more than just PVCu systems, we offer comprehensive support for every stage of your commercial project. From healthcare to high-rise, our solutions help you meet the demands of modern construction, combining durability, thermal efficiency, and security with smart, specificationready design.

With decades of hands-on industry experience, our experienced technical team understand both the products and the practical challenges you face.

Digital tools like WinDoPlan and NBS Source make specifying simple, giving you instant access to product data, U-values, and locationspecific performance figures. VEKA’s systems are also available as BIM objects to streamline collaborative working and ensure accuracy from the outset. With trusted products and expert support, VEKA is your reliable partner for delivering sustainable, regulation-compliant solutions, backed by 55 years of innovation and industry leadership.

19

Testing laboratory & accreditations 20

Introduction

Meeting Standards, Supporting Success In addition to our in-house testing facility where we make sure our products meet and exceed British standards, we have an onsite Technical Team who are here to provide support whenever you need and Technical Service Engineers who can help with set up and queries offsite.

BSI Kitemark The BSI Kitemark is an invaluable mark of quality for all sorts of products, but particularly materials and hardware for the construction industry. It’s of paramount importance that specifiers, contractors and end users can place complete trust in the fabric of their buildings and we’re proud that for over 20 years, all our VEKA plc products have carried that instantly recognisable sign of confidence.

PE

R F O R MA N

C S PA

D S E CUR

E

IT

Y

VE

AN

RO

CE

2 4 APP

D

EN

H

PAS 24 & Secured By Design As part of our commitment to providing high-security products for our partners, our systems are rigorously tested to meet PAS 24 standards. When fabricated in line with VEKA plc manuals, they can also be approved under the Secured by Design scheme – the Police Preferred Specification for enhanced security.

ISO 9001:2015, ISO 50001 and ISO 14001:2015 Our factory at VEKA plc in Burnley, Lancashire has achieved accreditations meeting British standards for quality and environmental management. We are certified to Quality Management System ISO 9001:2008 in the design and manufacture of PVCu window and door components and extrusion and to Environmental Management System ISO 14001:2004 in the design and manufacture of PVCu window and door systems.

21

Building regulations & warranty Building Regulations When correctly fabricated our windows and doors meet building regulation requirements across the United Kingdom and Ireland.

WinDoPlan can be used to calculate thermal values and wind loads, and the VEKA Technical Team are available to help with any additional building regulation advice.

Warranty

10

22

The VEKA profile has a warranty of 10 years from the date on the profile, as set out in the terms and conditions of sale. This shows that the quality of the VEKA profile is high, and that the profile will maintain its shape and be resistant to the effects of weathering as per BS EN 12608.

Introduction

Exposure categories & testing guidance Testing Guidance What is a U-Value?

A U-value is the measurement of heat transferred from one side of a window (or door) to the other.

The lower the U-value, the less heat that would be lost through the door or window. The notional value is 1.2 for new builds and 1.4 for existing dwellings. These are calculated for the whole building (walls and windows etc.). For example, a 1.6 u-value for a window is allowable but this needs to be made up elsewhere. The Black & White guide, available on the VEKA UK website, gives specifications for our windows to meet these requirements and how to achieve the U-values in this guide.

Energy loss

(W/m2K-value) What are Energy Ratings?

What is a G-Value?

Energy ratings are different to U-values. It usually works that there is a trade-off between the two.

Energy ratings incorporate G-values, U-values, and air permeability, and they are calculated based on regulation windows (fixed next to opener).

G-Values are used to measure how much heat is transmitted through a window from the sun’s rays.

Exposure Categories Exposure categories are specified by the design wind load, and define the classifications required for a specific area.

WinDoPlan allows you to calculate the wind load for your project, with a map detailing the windspeed differences across the UK.

23

What we can do for you

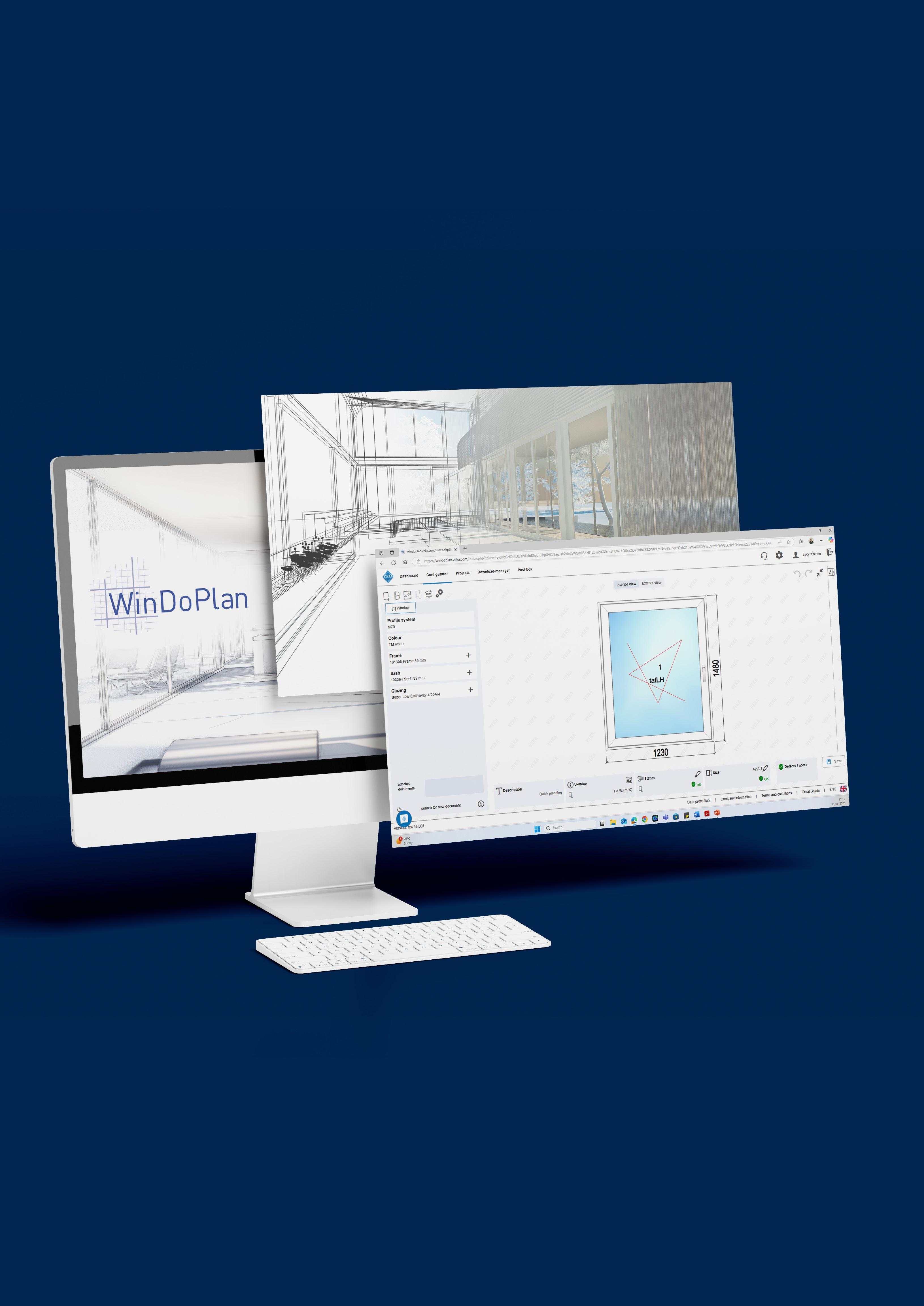

WinDoPlan Exclusive to VEKA and free to use Digital planning and tendering tool Create product specific U-Values Calculate glass area and location specific wind loads Quick access to live technical information PDF, DWG and DXF file downloads 24

Introduction

Extensive Testing We offer an indicative in-house testing facility for all of our windows and doors.

We work closely with hardware and component manufacturers to ensure that our products not only meet, but exceed all British standards including security, weather testing or cyclic testing.

NBS Source VEKA windows and doors are available on NBS (National Building Specification) Source.

You can find all the information for your specification from an expansive catalogue of systems.

Enables a quick and easy addition to digital design specifications.

BIM Objects Our windows and doors are available as BIM objects through WinDoPlan.

This provides all the relevant information for your specification and project requirements.

CAD Design We can provide a wide range of technical information to assist specifiers including: Feasibility drawings CAD blocks Cross section details

For additional support email sales@aps-group.co.uk

25

Our

colour range

26

Introduction

27

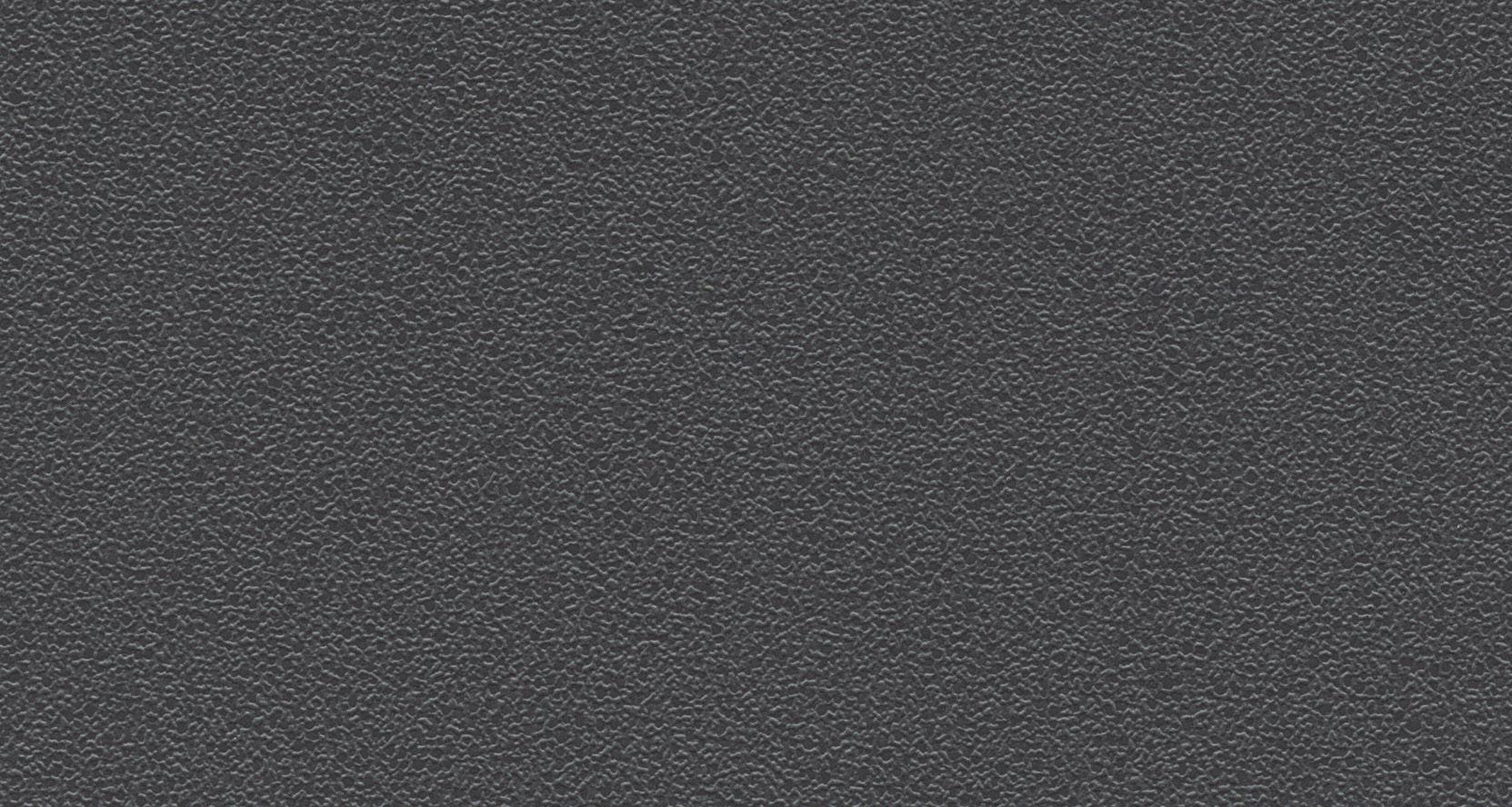

Feinstruktur [fine structure] is a decorative foil that offers the practicality of a durable premium finish, with a finelytextured surface that mirrors the sophistication of powder-coated aluminium.

Feinstruktur is not just about aesthetics, but also the innovative technology built into the decorative foil. Tested to VEKA’s standards, it boasts a high degree of resilience that resists scratches and repels fingerprints and dirt. It also withstands harmful UV rays, extremes of temperature, and exposure to chemicals and cleaning agents. The result is easy maintenance, and reduced wear and tear on the appearance of your windows and doors.

28

Hard wearing and robust

Reduced thermal absorption

Feinstruktur has a very hard-wearing surface that offers protection against knocks, scratches, and stresses during transportation, installation, and life in the home.

The infrared-reflecting pigments of Feinstruktur significantly reduce thermal absorption, keeping the frame free from warping or twisting so it maintains its shape.

Resists harsh chemicals

Sustainable and recyclable

This durable and finely-textured finish is resistant to chemicals, including cleaning agents and alcohol. Cleaning is simple with any hard to remove dirt easily removeable.

Feinstruktur is made from sustainable raw materials and is fully recyclable, creating a high quality product that you know can be recycled.

Introduction

A Palette for Modern Living Eight contemporary colours that harmonise with every style of architecture.

Feinstruktur is available in a range of sophisticated shades to create a palette for contemporary or traditional spaces – inside and out. It reflects the latest colour trends while complementing an array of different façades and materials.

01

02

03

04

05

06

07

08

Anthracite Grey

Black

Slate Grey

Quartz Grey

Basalt Grey

Silver Grey

Umber

Traffic White

29

Ex-stock colour range

White Ref Nearest RAL

White 9010

Our full range of 18 ex-stock colours is available across all systems.

If a colour isn’t stocked for a specific product, it can be made to order.*

Cream Ref Nearest RAL

Crem 9001

Sage Green Ref Nearest RAL

Sage -

Chartwell Green Ref Nearest RAL

CGrn 6019

Pebble Grey Ref Nearest RAL

Pbbl 7032

*only stocked on sculptured profiles

Basalt Grey Ref Nearest RAL

Silver Grey Bslt 7012

Ref Nearest RAL

Anthracite Grey Smooth Silv 7001

Anthracite Grey

Feinstruktur - Anthracite

Ref Nearest RAL

Ref Nearest RAL

30

Anth 7016

AnthFS 7016

Ref Nearest RAL

Anth# 7016

Introduction

Beck Brown Ref Nearest RAL

Feinstruktur - Black

Slate Grey

Ref Nearest RAL

Ref Nearest RAL

BlckFS 9005

Blck 8022

Slte 7015

To learn more about the stocked colour range email the APS team:

sales@aps-group.co.uk

Rosewood Ref Nearest RAL

Rose 8017

*Feinstruktur and SPECTRAL are only available on bevelled or flat surfaces.

Agate Grey Ref Nearest RAL

Agte 7038

All the colours in our Variations ex-stock range, share the same lead time as our standard profile.

Claystone Ref Nearest RAL

Irish Oak Ref Nearest RAL

Clay -

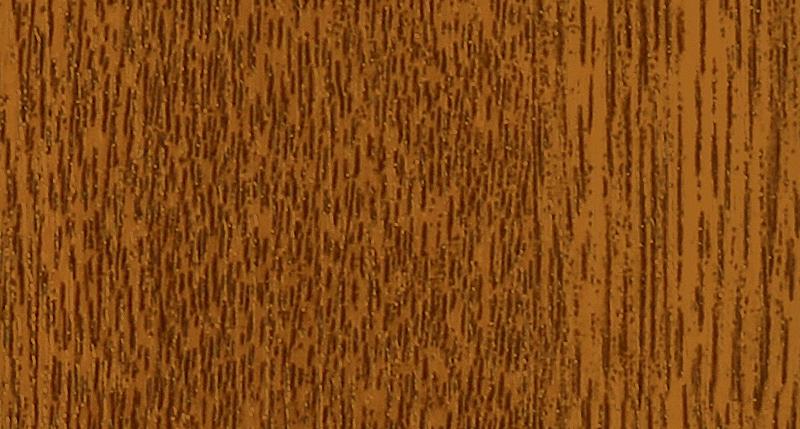

Golden Oak Ioak 1011

Ref Nearest RAL

Goak 8001

31

MTO colour range

Monument Oak Ref Nearest RAL

In addition to our ex-stock colour range, we also have a collection of Made-to-Order Colours on an extended lead time. Together with the ex-stock colours there are 43 colour options in total, covering different finishes from woodgrain to matt options.

MOak 7006

SPECTRAL - Platinum Grey Ref Nearest RAL

Plat* 8017

SPECTRAL - Anthracite Grey Ref Nearest RAL

Anth* 7016

Feinstruktur - Slate Grey Ref Nearest RAL

SlteFS 7015

Anteak Ref Nearest RAL

Dark Green Ref Nearest RAL

Feinstruktur - Silver Grey AnTK 7048

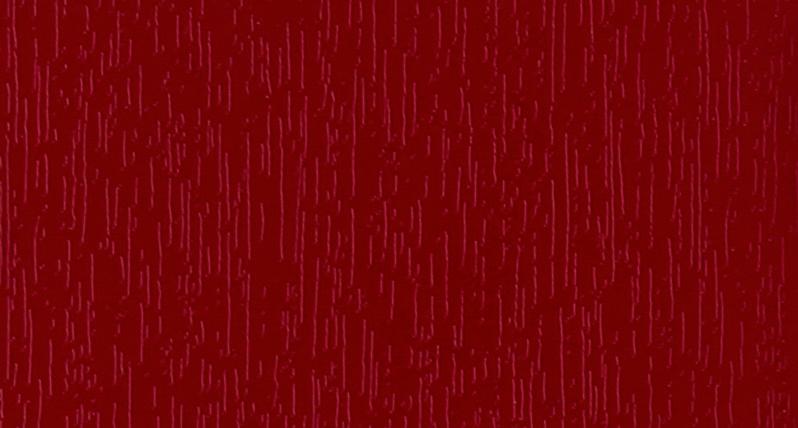

Dark Red DGrn 6009

Ref Nearest RAL

Ref Nearest RAL

SilvFS 7001

Regency A DRed 3011

Ref Nearest RAL

Rgcy 8017

Feinstruktur - Quartz Grey Ref Nearest RAL

QuarzFS 7039

Mountain Pine Ref Nearest RAL

MPne 1011

Natural Oak 32

Ref Nearest RAL

NOak 1002

Introduction

SPECTRAL - Graphite Ref Nearest RAL

Ginger Oak Ref Nearest RAL

Ging 1001

Grap* 9011

Feinstruktur - Basalt Grey

SPECTRAL - Umbra

Ref Nearest RAL

Ref Nearest RAL

BsltFS 7012

Umbr* -

Feinstruktur - Umber

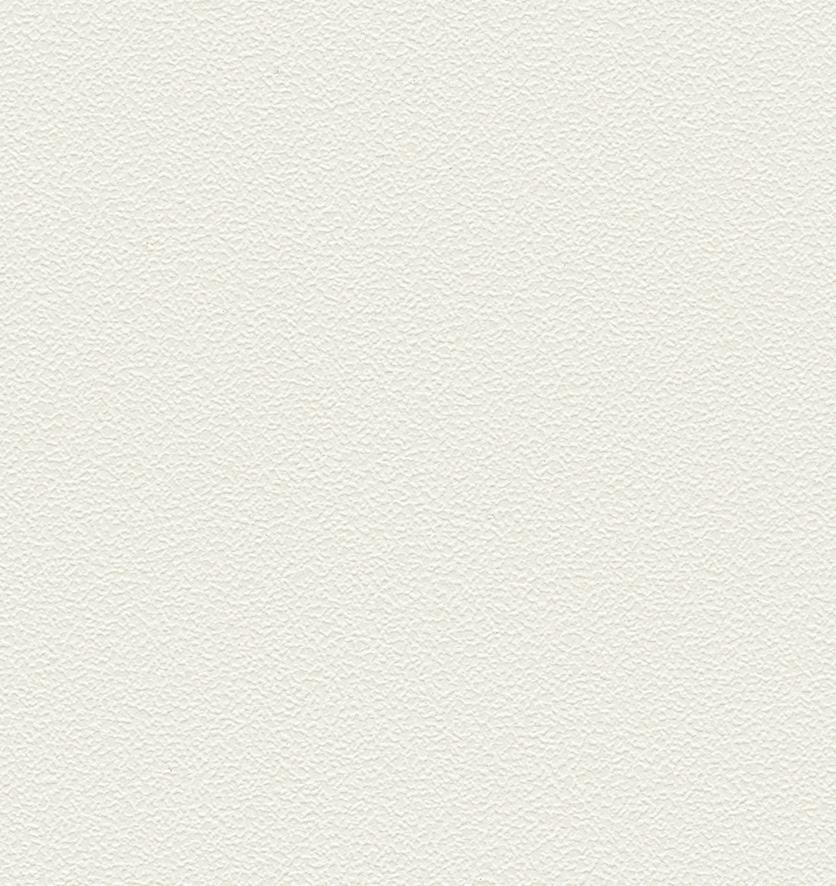

Feinstruktur - Traffic White

Ref Nearest RAL

Ref Nearest RAL

UmbrFS -

WhteFS 9016

Light Ivory Ref Nearest RAL

Livy 1015

To learn more about the stocked colour range email the APS team:

sales@aps-group.co.uk

Light Oak Ref Nearest RAL

LOak 8008

*Feinstruktur and SPECTRAL are only available on bevelled or flat surfaces.

Steel Blue Ref Nearest RAL

Siena PN

Balmoral Ref Nearest RAL

Ref Nearest RAL

SBlu 5011

Windsor Balm 7030

Ref Nearest RAL

Snna 8028

Walnut V Wind 1019

Ref Nearest RAL

Wlnt 8028

33

Our

product range 34

Introduction

35

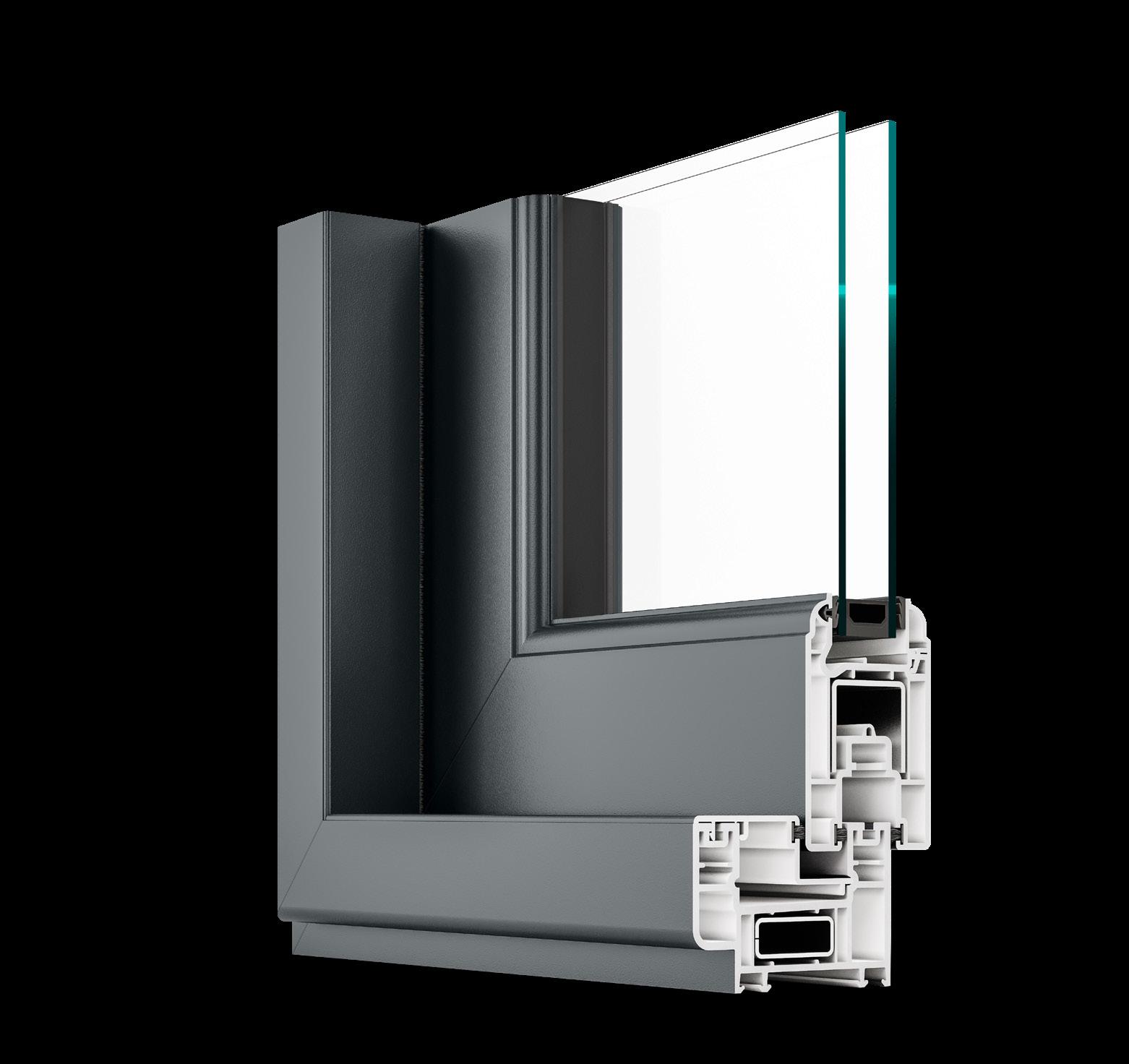

Flush inside and out Slim profile. Flush fit.

Designed for consistency inside and out.

OMNIA features corners that can replicate the look of traditional timber joints, while trims and beadings are available in contemporary styles. The lines are kept clean and uncluttered for a simple, understated appearance.

A full suite of products from Casement and Tilt & Turn windows, as well as Residential and French doors. The design maximises visible glass area relative to the frame, helping to increase natural light in the home.

36

OMNIA

37

OMNIA

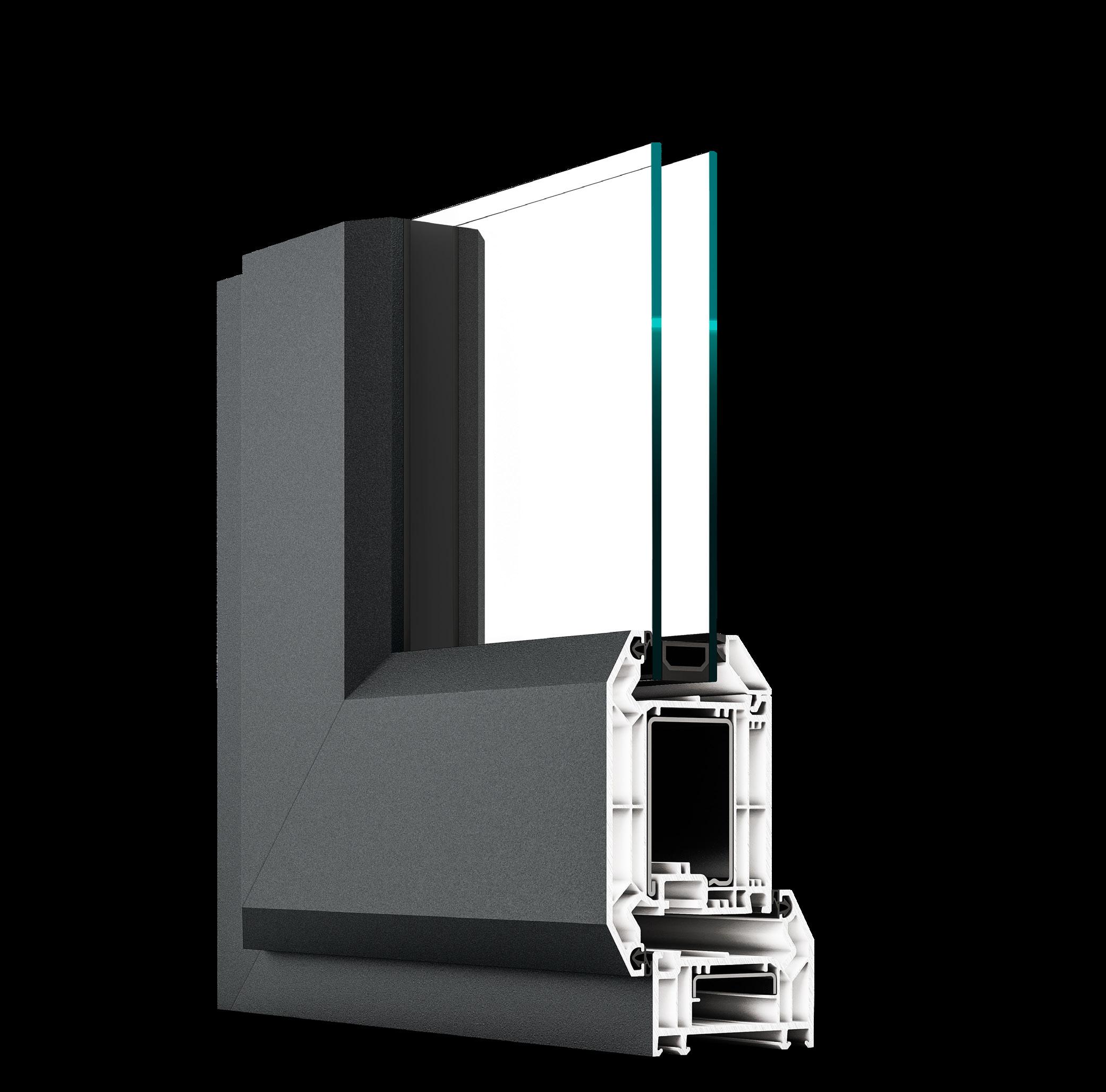

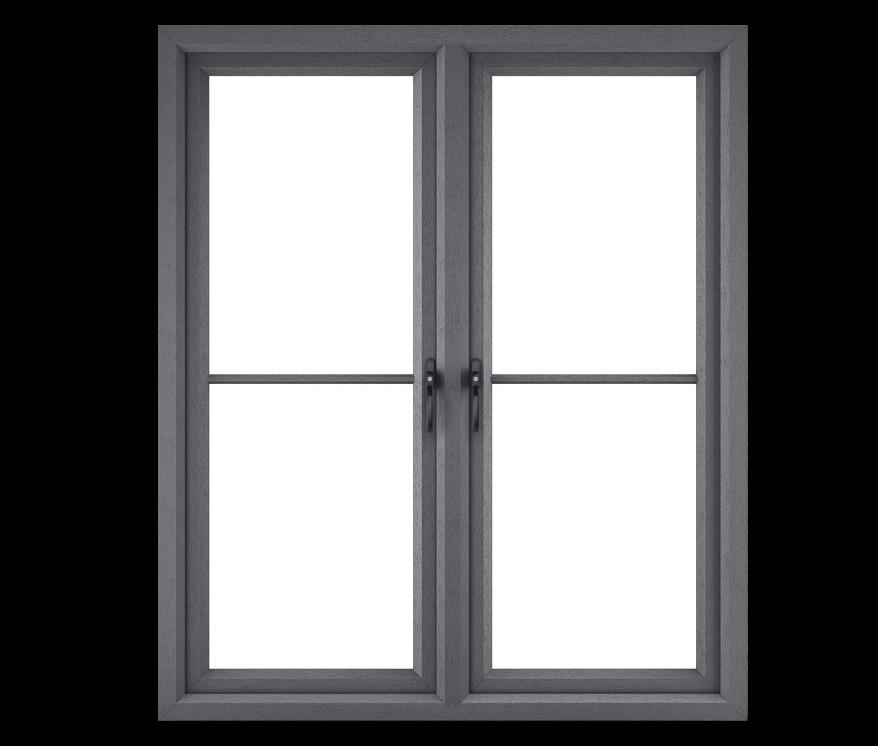

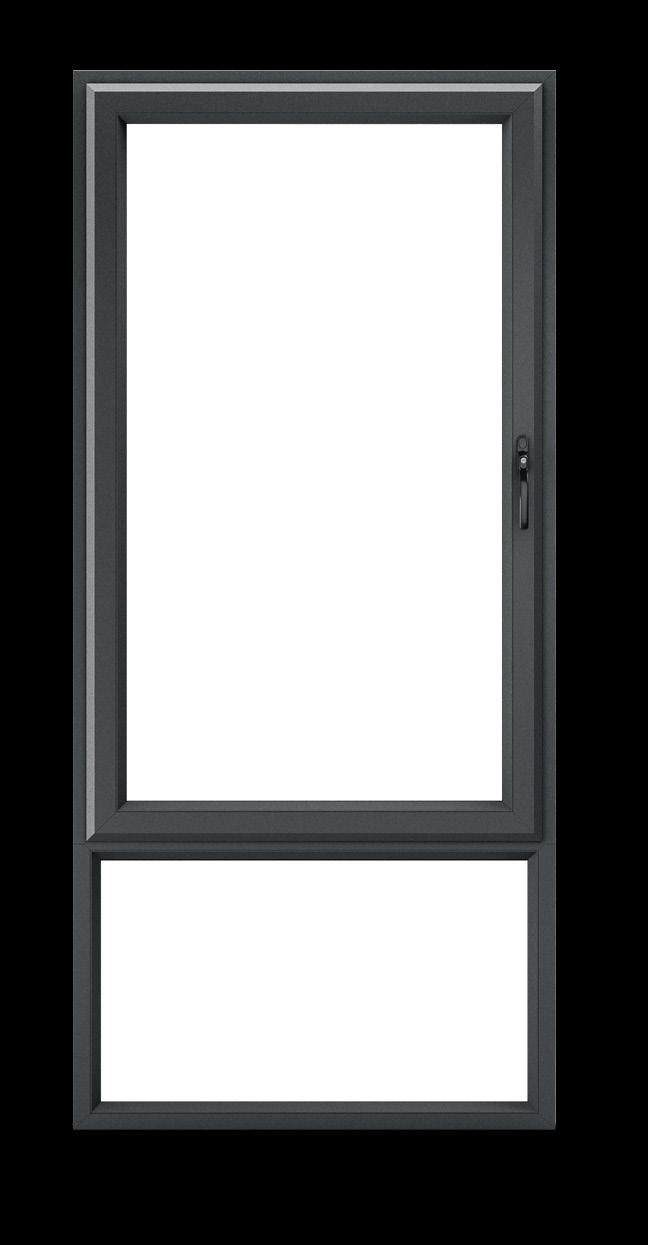

Casement Window

U-Values with Triple Glazing as low as:

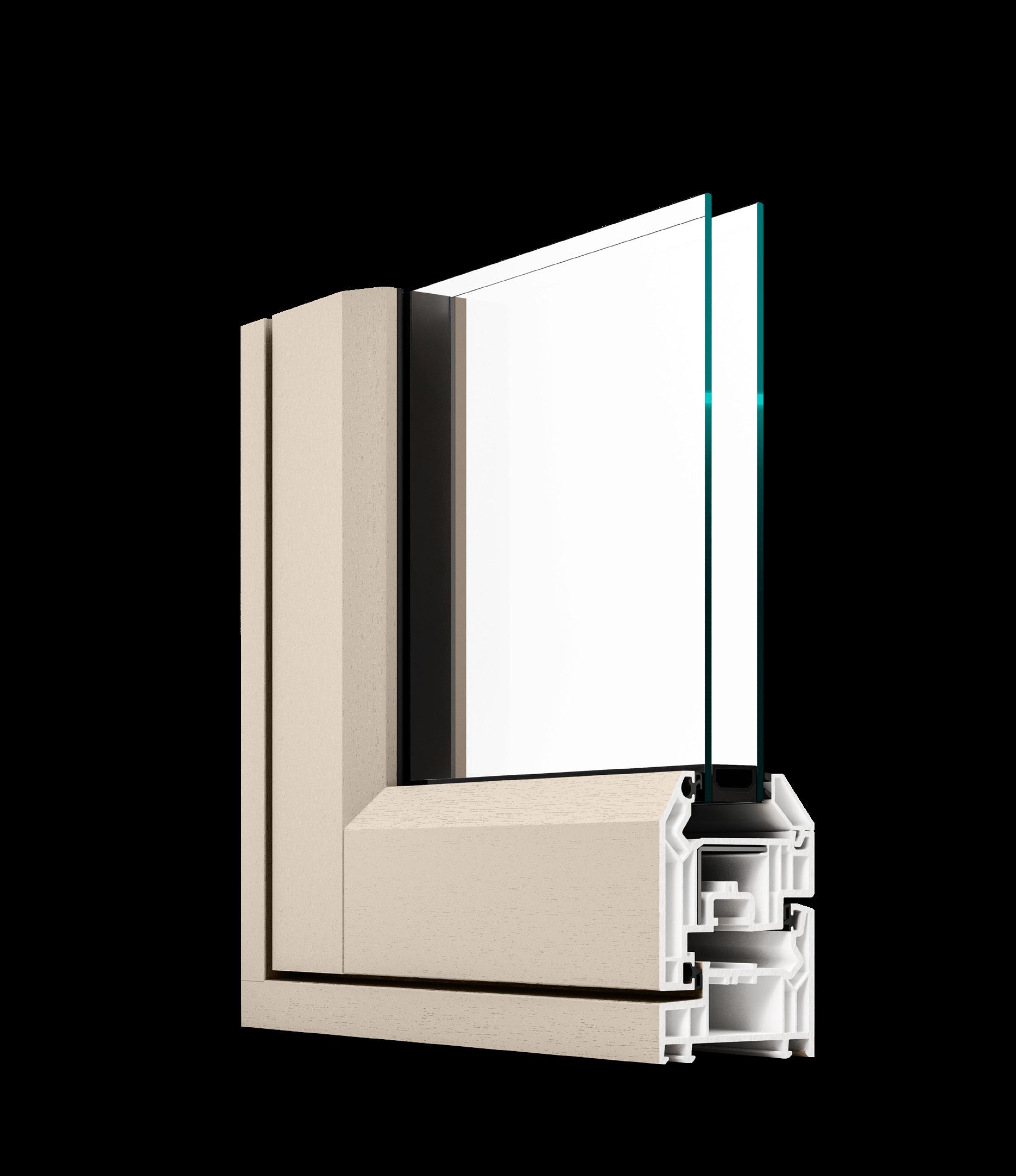

The OMNIA Casement Window is a part of a pioneering suite of double flush double rebated windows and doors.

0.75

W/m2K

U-Values with Double Glazing as low as:

1.2

W/m2K

Available in a large assortment of colours and woodgrain options from the Variations range

Test Results Window type: Side hung

Window type: Top hung Max sash sizes (wxh)

1500mm x 1500mm

Max sash sizes (wxh)

850mm x 1600mm

Air permeability

Class 4

Air permeability

Class 4

Water tightness

Class 9A

Water tightness

Class 9A

Resistance to wind

A5

Resistance to wind

A5

Exposure category

2000

Exposure category

2000

38

R F O R MA N

C S PA

D S E CUR

E

IT

PE

OMNIA

Y

VE

AN

RO

CE

2 4 APP

D

EN

H

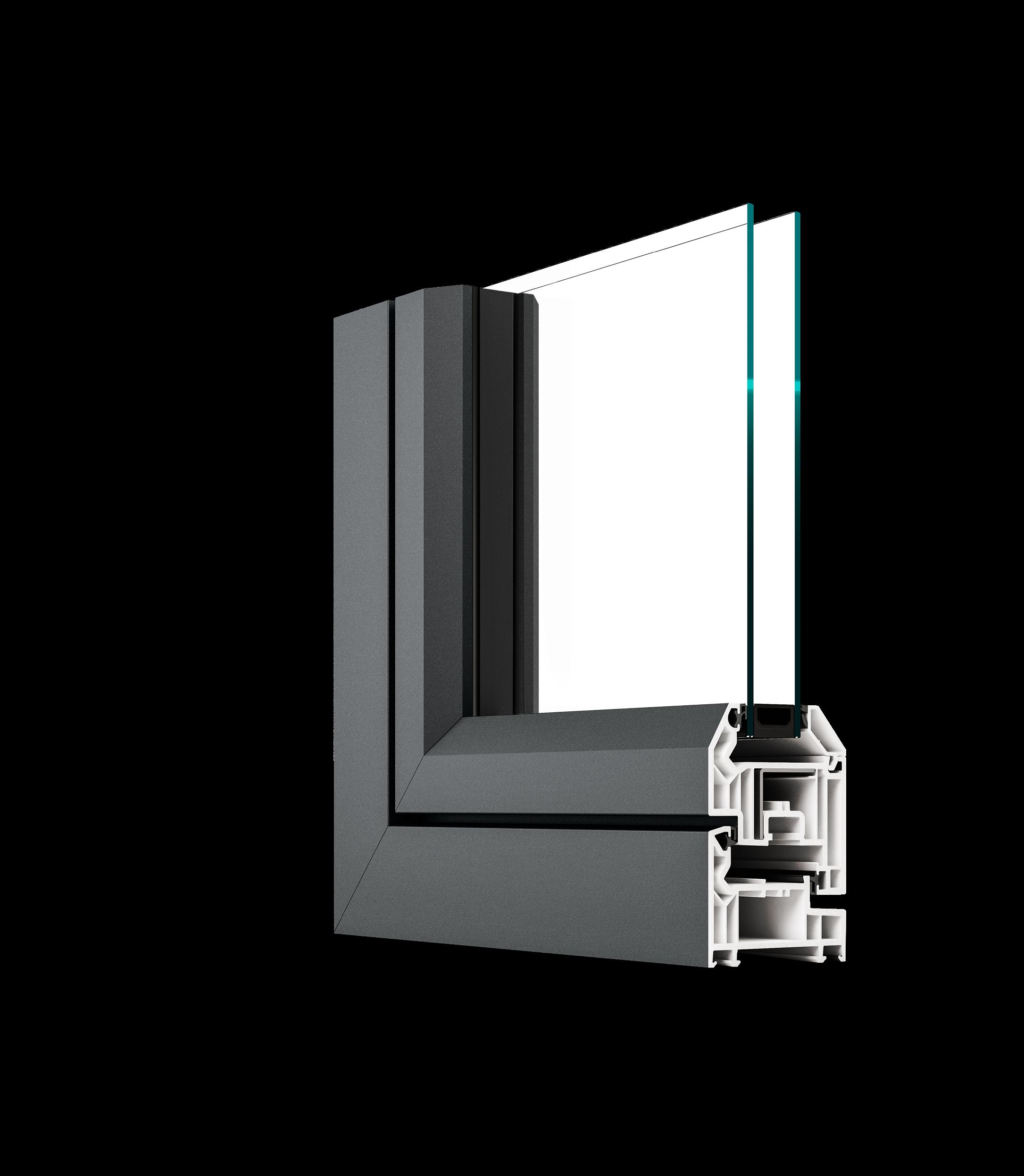

Technical Drawing 70

Features and Benefits

7 0 7 70 0

666777

333999

Clean lines and sleek profile suitable for both traditional and contemporary styles.

111111555

Traditional timber-style corners

777666

222000

444888

666999888

698 222000

444888

20 666222

62 666

777666

48

OMNIA’s zero sight-line mullion creates a stunning expansive visual effect that stands out from the standard options in the market.

Compatibility with premium fixtures and fittings as well as high quality hardware complements the OMNIA system, ensuring smooth operation and lasting performance.

Maximum sash sizes Top hung: 1500mm (w) x 1500mm (h) Side hung: 850mm (w) x 1600mm (h) Fixed light: 3000mm (w) x 3000mm (h) 698 222000

20 444888

Sash 76mm T or Z sash

777666

76

48

333999

666777

333000

39

Outer frames 55mm and 67mm outer frames Mullions 62mm and 84mm mullions

111111555 67

666999888

222000

444888 20

48 555444666 115 111444555 30

Frame 7rame mm 67 mm Frame ash mm sh 76 mm ash Mullion 62 mm 62 Mullion 62 mm mm

Zero sight-line mullion

Ultra compatibility

777666

76 6 111555888 76

158 546 145

For those seeking a classic, authentic look with the durability of modern materials.

555444666

546

20

48

76

115

67

39

Modern casement aesthetic

70

7 0 7 70 0

Glazing beads • 10mm bevelled

• 28mm rebated

• 28mm bevelled

• 36mm bevelled

• 28mm sculptured

• 40mm bevelled

• 28mm putty

• 44mm bevelled

Ancillaries Frame extensions, thermal inserts, cills and weathering trims Range of coupling options Range of bay pole options

39

OMNIA

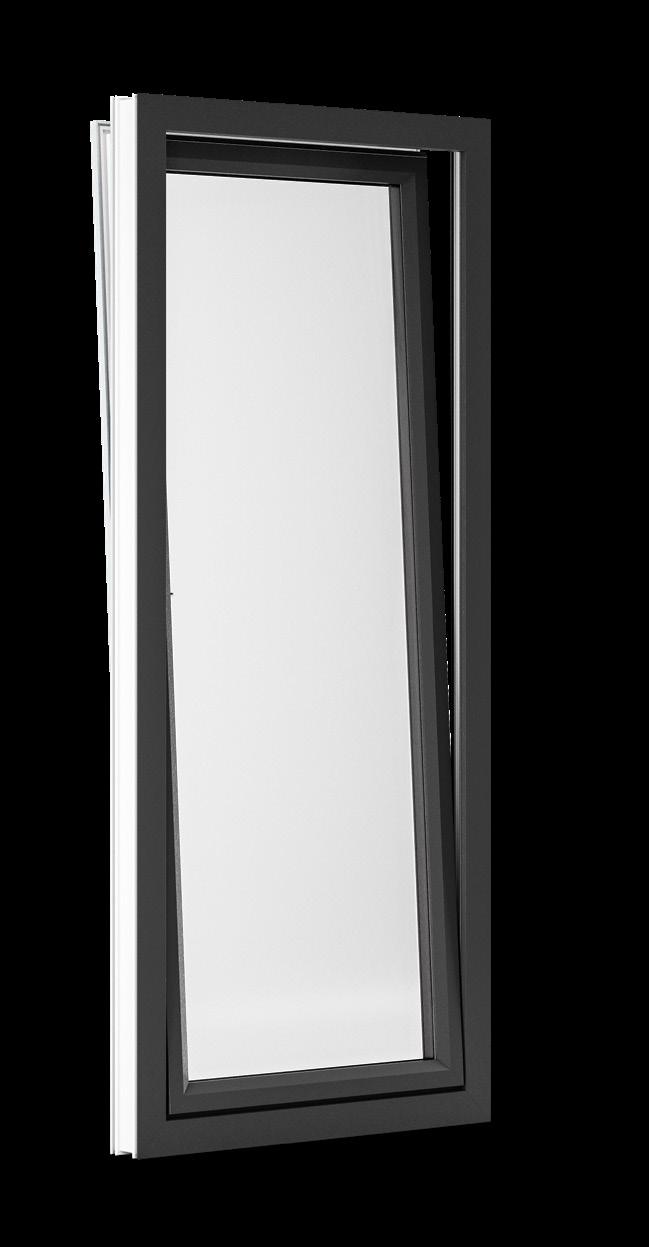

Tilt & Turn Window

U-Values with Triple Glazing as low as:

The OMNIA Tilt and Turn window combines sleek aesthetics with practical performance in a double flush, double rebated design.

0.79

W/m2K

U-Values with Double Glazing as low as:

1.2

W/m2K

Available in a large assortment of colours and woodgrain options from the Variations range

Test Results Window type: Top hung

40

Max sash sizes (wxh)

1200mm x 2100mm

Air permeability

Class 4

Water tightness

Class 9A

Resistance to wind

A5

Exposure category

2000+

R F O R MA N

C S PA

D S E CUR

E

IT

PE

OMNIA

Y

VE

AN

RO

CE

2 4 APP

D

EN

H

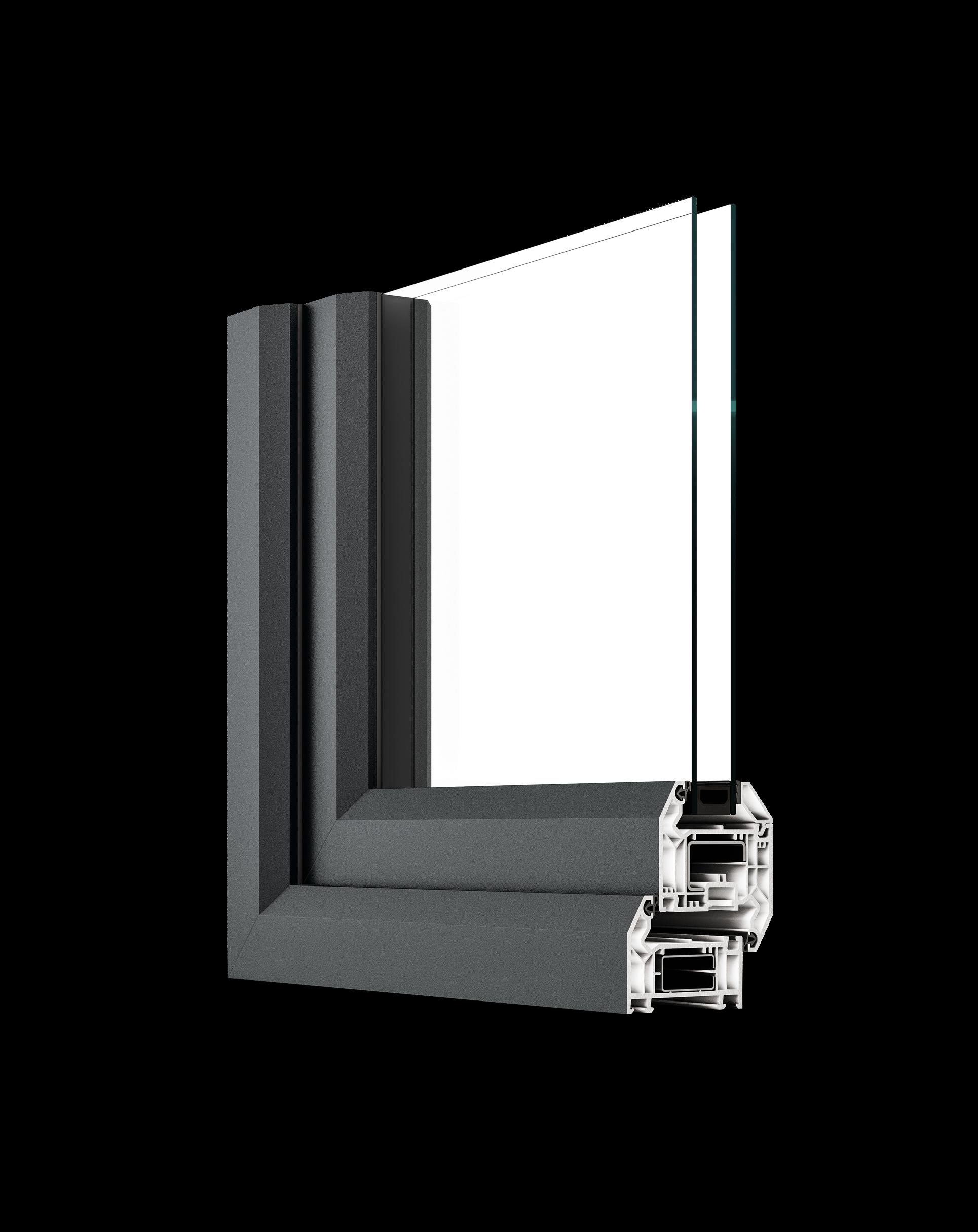

Technical Drawing

Features and Benefits Improved ventilation

6677

Helping maintain the integrity of profile during fabrication and installation.

20 48 48

Effortless installation

2200

When foiled in Feinstruktur, OMNIA double flush windows combine the benefits of PVCu with the look of Aluminium.

2200

20

Aluminium aesthetic

7766

76 48 48

48

443388

Designed for quick installation with a flawless finish.

438

48 76 76

111155

67 39 39

Rider block mechanism

Maximum sash sizes Tilt & Turn: 1200mm (w) x 2100mm (h) Outer frames 55mm and 67mm outer frames

2200

20

6622

111100 62

110

Mullions 62mm and 84mm mullions

990022

902

770 7 00

228866

286

76

115

39

70

Bringing together the demand for flush with the dual functionality of tilt & turn for improved ventilation.

3300

9977 30

97

me 309 30967 Frame Frame mm 67 67 mm mm 309 Frame 67 mm 347 lion 347 62 Mullion Mullion mm 62 62 mm mm 347 Mullion 62 mm 20 76 0 Sash mm 76 76 mm mm 0 Sash Sash 76 mm me 365 36567 Frame Frame mm 67 67 mm mm 365 Frame 67 mm

70

770 00 7

6677

67

2200

20

Sash 76mm sash Glazing beads • 10mm bevelled

• 28mm rebated

• 28mm bevelled

• 36mm bevelled

• 28mm sculptured

• 40mm bevelled

• 28mm putty

• 44mm bevelled

Ancillaries Frame extensions, thermal inserts, cills and weathering trims Range of coupling options Range of bay pole options

41

OMNIA

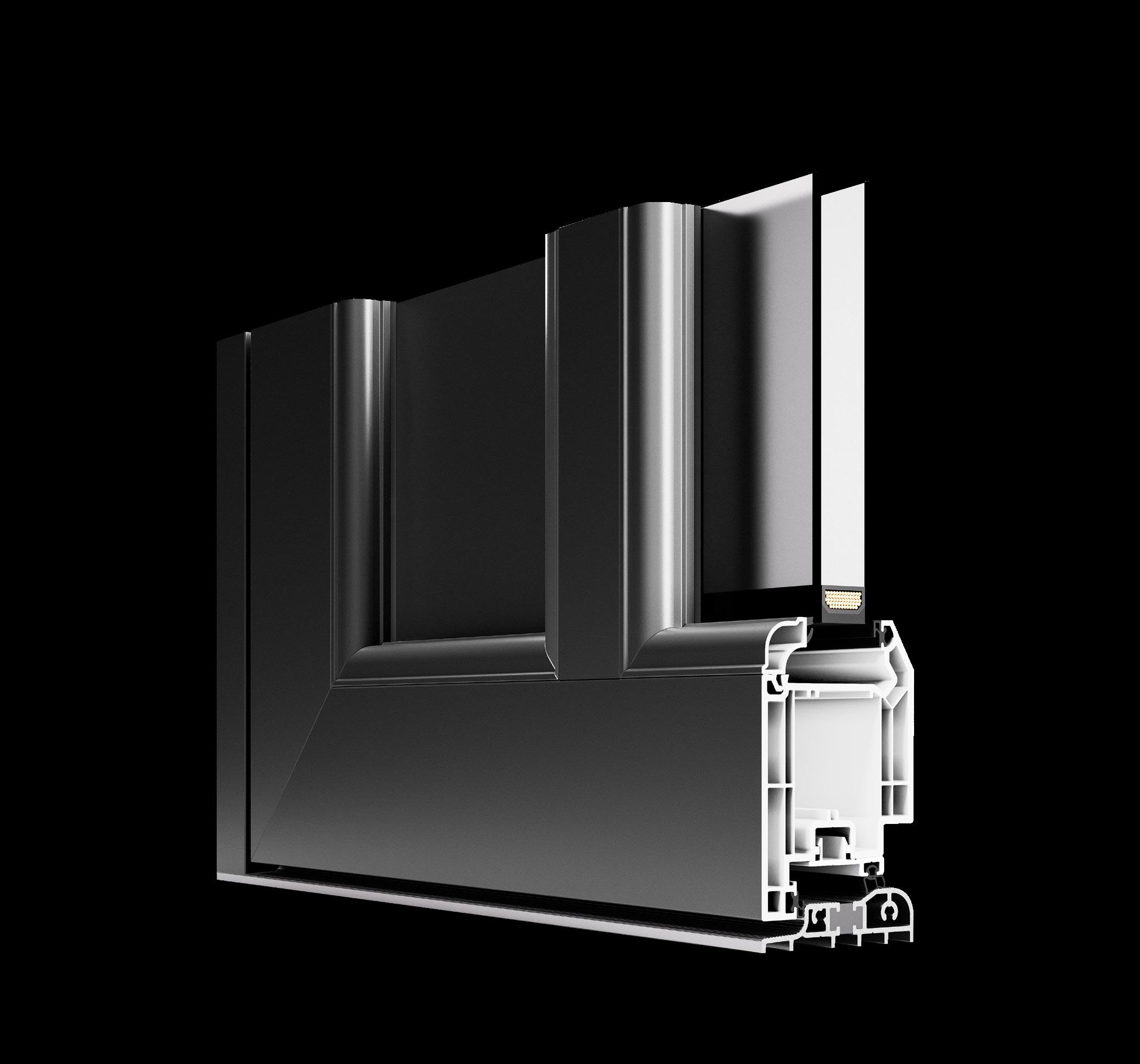

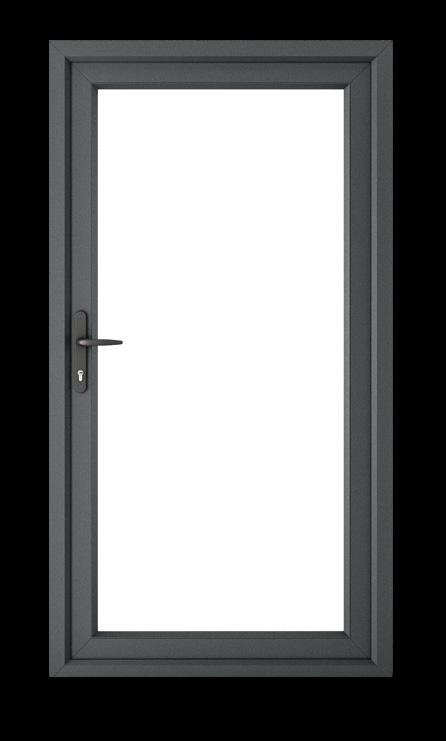

Residential & French Doors

U-Values with Triple Glazing as low as:

0.82

W/m2K

OMNIA doors offer the perfect balance of style, security, and performance— built on a robust double flush, double rebated platform.

U-Values with Double Glazing as low as:

1.2

W/m2K

Available in a large assortment of colours and woodgrain options from the Variations range

Test Results Door type: Single leaf

42

Door type: Double Leaf

Max sash sizes (wxh)

1122mm x 2122mm

Max sash sizes (wxh)

1122mm x 2122mm

Air permeability

Class 2

Air permeability

Class 2A

Water tightness

Class 7A

Water tightness

Class 4A

Resistance to wind

1200

Resistance to wind

1200

Exposure category

1200

Exposure category

1200

R F O R MA N

C S PA

D S E CUR

E

IT

PE

OMNIA

Y

VE

AN

RO

CE

2 4 APP

D

EN

H

Technical Drawing

Features and Benefits Double flush doors

70

OMNIA doors complete the full suite of double flush options.

67

Shadow lines

144

Co-extruded PCE gasket creates shadow line for ease and speed in fabrication.

73

Secure smooth-glide operation Created for effortless and secure door movement.

Aluminium style

68

68

Create the aluminium door look with Feinstruktur in 8 on-trend colours.

Maximum sash sizes Residential: 1122mm (w) x 2122mm (h) French Door: 1122mm (w) x 2122mm (h) Outer frames

116

84

55mm, 67mm outer frames Mullions

Midrail

N/A

115mm midrail

Sash 105mm door sash

32

Glazing beads

70

• 28mm putty bead

• 32mm bevelled

• 28mm sculptured

• 36mm bevelled

• 28mm bevelled

• 40mm bevelled

• 32mm sculptured

• 44mm bevelled

Ancillaries Frame extensions, cills and weathering trims Range of coupling options Range of bay pole options

43

M70 Range The VEKA M70 range delivers a contemporary windows and doors solution defined by its crisp, bevelled design and clean, angular lines - making it an ideal choice for modern architecture and new-build homes. Its intelligently engineered narrow frame profile maximises the glazed area, allowing more natural light to flood into interior spaces while maintaining a refined, minimalist appearance.

Beyond its modern aesthetics, M70 sets the benchmark for performance. As VEKA’s most thermally advanced 70mm casement window system, it can achieve outstanding U-values as low as 0.75 W/m²K when triple glazed - helping to meet and exceed the demands of today’s energy-efficient homes without compromising on style.

44

Casement Windows

45

M70

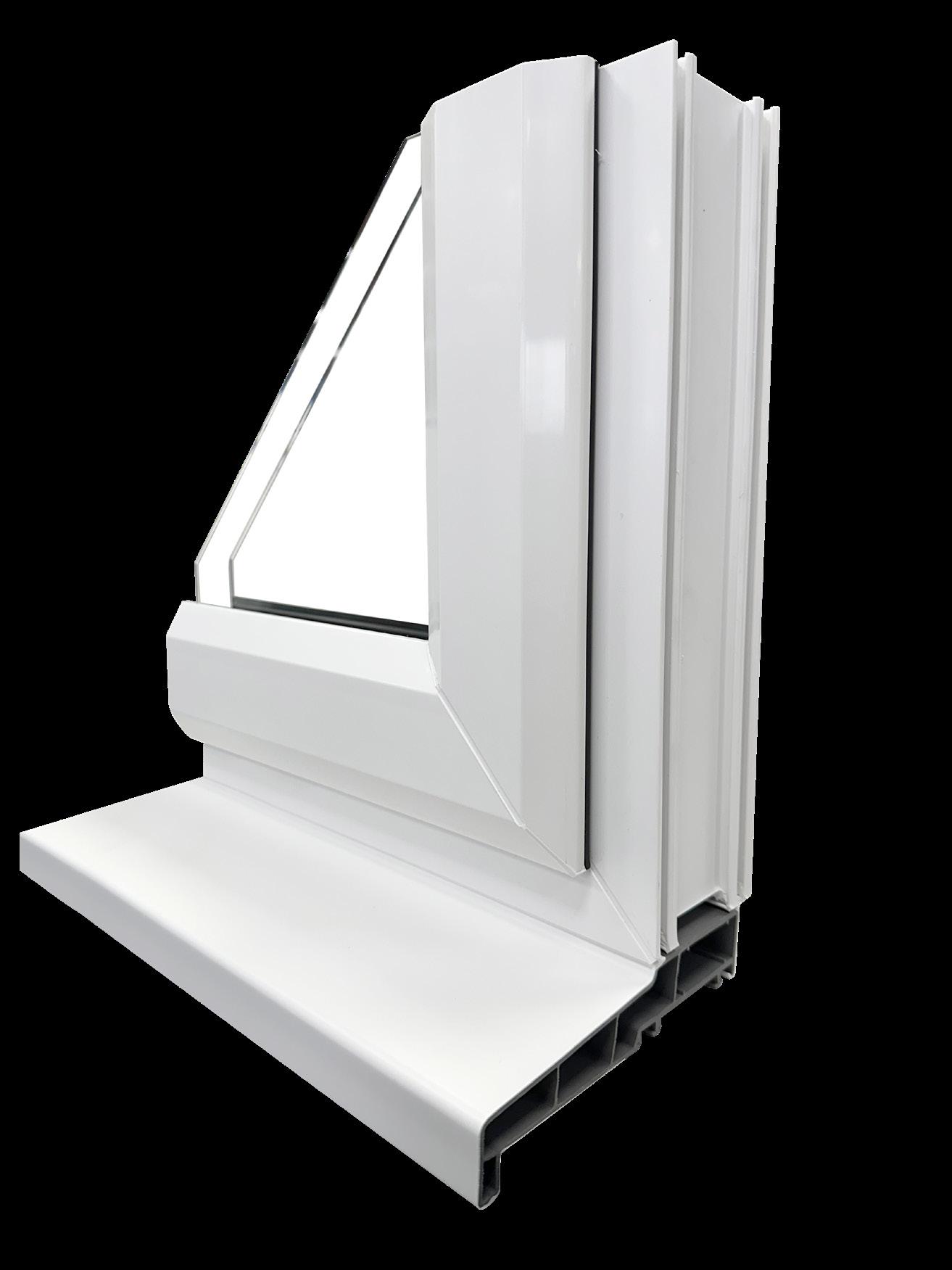

Casement Window

U-Values with Triple Glazing as low as:

The M70 casement window offers a contemporary look with slimmer sightlines and leading thermal performance.

0.75

W/m2K

U-Values with Double Glazing as low as:

1.2

W/m2K

Available in a large assortment of colours and woodgrain options from the Variations range

Test Results Window type: Top hung reinforced

Window type: Side hung reinforced

Max sash sizes (wxh)

1400mm x 1400mm

Max sash sizes (wxh)

800mm x 1550mm

Air permeability

Class 4

Air permeability

Class 2

Water tightness

Class 8A

Water tightness

Class 7A

Resistance to wind

AE2400 Pa

Resistance to wind

A4

Exposure category

2000+

Exposure category

1600

Window type: Fixed light reinforced Max sash sizes (wxh)

3000mm x 3000mm

Air permeability

Class 4

Water tightness

Class E1050

Resistance to wind

AE2400 Pa

Exposure category

2000+

46

PE

R F O R MA N

C S PA

D S E CUR

E

IT

Y

VE

AN

RO

CE

2 4 APP

Casement Windows

D

EN

H

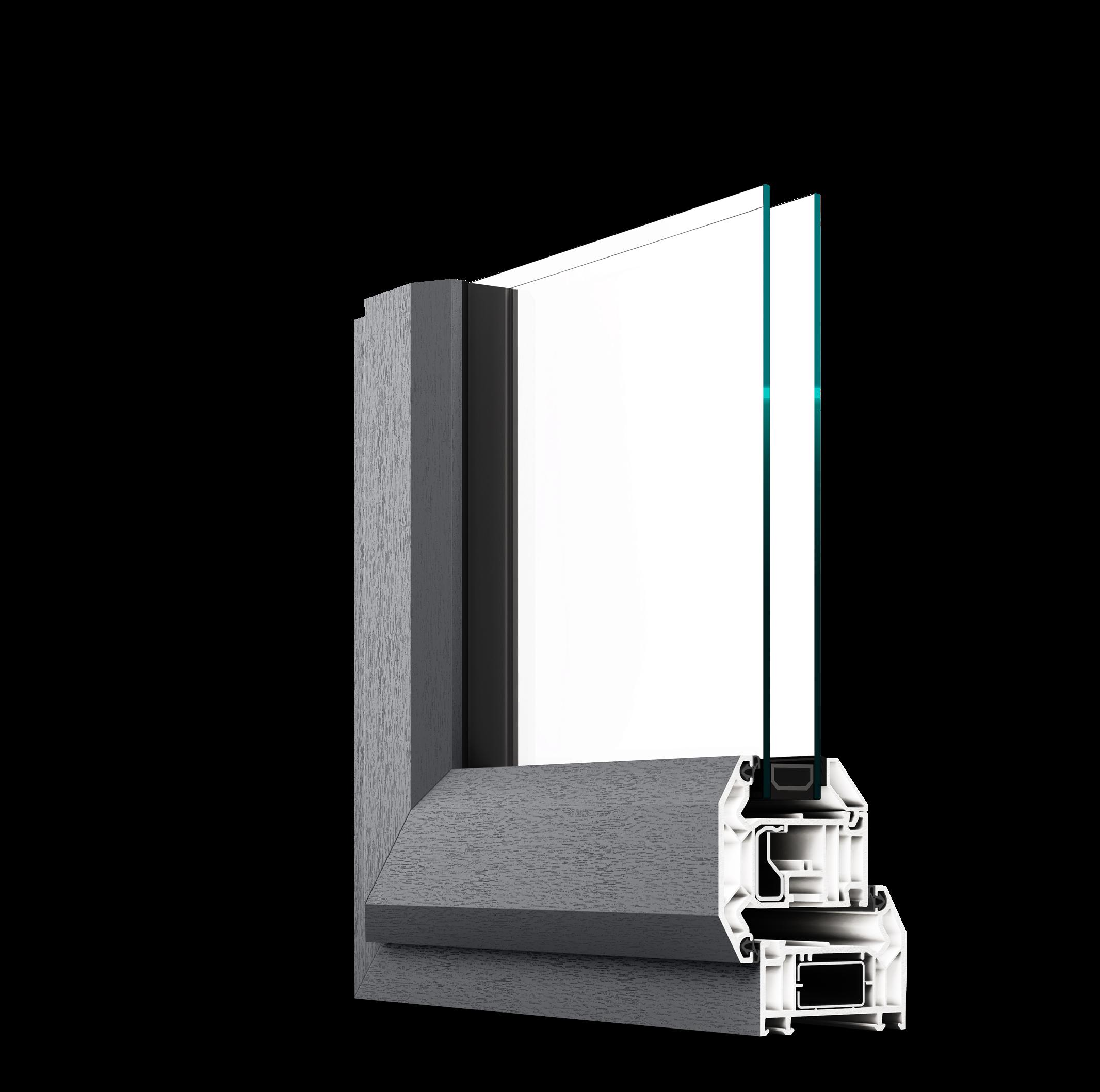

Technical Drawing

Features and Benefits

70

Clean, modern aesthetic

76

103

27

The M70 bevelled design gives a crisp, angular look that suits contemporary architecture and new-build homes.

Slim sightlines Designed with a narrow frame profile, M70 allows more natural light into the room while maximising the glazed area.

High energy efficiency

Low maintenance PVCu The durable PVCu construction resists warping, rotting, and fading, requiring minimal upkeep over time.

40

116

76

With multi-chambered profiles and the option to incorporate triple glazing, M70 helps achieve excellent thermal insulation values.

85

55

Maximum sash sizes Top hung: 1400mm (w) x 1400mm (h) Side hung: 800mm (w) x 1550mm (h) Fixed light: 3000mm (w) x 3000mm (h) Outer frames 55mm, 67mm and 80mm outer frames Mullions 68mm or 82mm mullions

150

Sash 76mm casement sash Glazing beads • 28mm bevelled

• 40mm bevelled

• 28mm sculptured

• 44mm bevelled

• 36mm bevelled Ancillaries Frame extensions, cills and weathering trims Range of coupling options Range of bay pole options

47

M70

Tilt & Turn Window

U-Values with Triple Glazing as low as:

The M70 Tilt & Turn window offers a contemporary look with slimmer sightlines and leading thermal performance.

0.81

W/m2K

U-Values with Double Glazing as low as:

1.2

W/m2K

Available in a large assortment of colours and woodgrain options from the Variations range

Test Results Window type: Tilt & Turn

48

Max sash sizes (wxh)

1600mm x 1600mm

Air permeability

Class 3

Water tightness

Class 9A

Resistance to wind

AE2400

Exposure category

2000+

PE

R F O R MA N

C S PA

D S E CUR

E

IT

Y

VE

AN

RO

CE

2 4 APP

Tilt & Turn Windows

D

EN

H

Technical Drawing

Features and Benefits Modern bevelled design

70

55

Crisp, clean sightlines create a contemporary look ideal for new-builds and minimalist styles.

Offers safe, secure ventilation with the tilt function and full inward opening for easy cleaning and access.

54

109

Dual-action opening

Slimmer sightlines,more light Narrow profiles maximise glass area, improving natural light and outside views.

Energy efficient performance

122

54

Multi-chambered design supports excellent thermal insulation, helping to lower energy bills.

68

Maximum sash sizes Tilt & Turn: 1600mm (w) x 1600mm (h) Outer frames 55mm, 67mm and 80mm outer frames Mullions 68mm or 82mm mullions

Midrail 115mm

85

55

Sash 82mm tilt & turn sash Glazing beads • 28mm bevelled

• 40mm bevelled

• 28mm sculptured

• 44mm bevelled

• 36mm bevelled

150

Ancillaries Frame extensions, thermal inserts, cills and weathering trims Range of coupling options Range of bay pole options

49

M70

Residential & French Doors

U-Values with Triple Glazing as low as:

M70 Residential and French Doors offer a stunning and functional product for any type of building.

0.80 W/m2K

U-Values with Double Glazing as low as:

1.2

W/m2K

Available in a large assortment of colours and woodgrain options from the Variations range

Test Results Door type: Single leaf

Door type: Double leaf

Max sash sizes (wxh)

1122mm x 2122mm

Max sash sizes (wxh)

1122mm x 2122mm

Air permeability

Class 4

Air permeability

Class 3

Water tightness

Class 7A

Water tightness

Class 7A

Resistance to wind

A3

Resistance to wind

A3

Exposure category

1200

Exposure category

1200

50

PE

R F O R MA N

C S PA

D S E CUR

E

IT

Y

VE

AN

RO

CE

2 4 APP

Residential & French Doors

D

EN

H

Technical Drawing

Features and Benefits

70

Modern bevelled styling

67

Clean, angular profiles deliver a contemporary aesthetic ideal for modern homes and extensions.

87

154

Slim sightlines Narrow profiles maximise glazing area and natural light while maintaining strength and security.

Strong thermal performance Multi-chambered design helps achieve low U-values and meet building regulations.

Versatile configurations

68

68

Available as single or double (French) doors, with inward or outward opening options and a wide choice of finishes.

Maximum sash sizes Residential: 1122mm (w) x 2122mm (h) French Door: 1122mm (w) x 2122mm (h) Outer frames 55mm, 67mm and 80mm outer frames Mullions 68m, 76mm & 82mm T & Z mullions

Midrail 115mm midrail

132

95

Sash 115mm door sash Glazing beads • 28mm bevelled

• 40mm bevelled

• 28mm sculptured

• 44mm bevelled

37

• 36mm bevelled Ancillaries Frame extensions, cills and weathering trims

89

Range of coupling options Range of bay pole options

51

Vertical sliders Vertical Slider windows are designed to replicate the appearance of traditional sash windows. They are commonly specified for heritage buildings where replacement products need to resemble the original style while meeting modern performance standards.

While they provide a close visual match to older timber frames they are manufactured to reduce draughts and improve ease of maintenance compared with traditional designs.

52

Vertical Sliders

53

Imagine

Vertical Slider The Imagine Vertical Slider carries the beauty of a classic design combined with performance.

U-Values with Double Glazing as low as:

1.2

W/m2K

Test Results Window type: Vertical Slider

54

Max sash sizes (wxh)

1400mm x 2450mm

Air permeability

Class 4

Water tightness

Class 7A

Resistance to wind

BE2400

Exposure category

2400

Available in a large assortment of colours and woodgrain options from the Variations range

PE

R F O R MA N

C S PA

D S E CUR

E

IT

Y

VE

AN

RO

CE

2 4 APP

D

EN

H

Technical Drawing

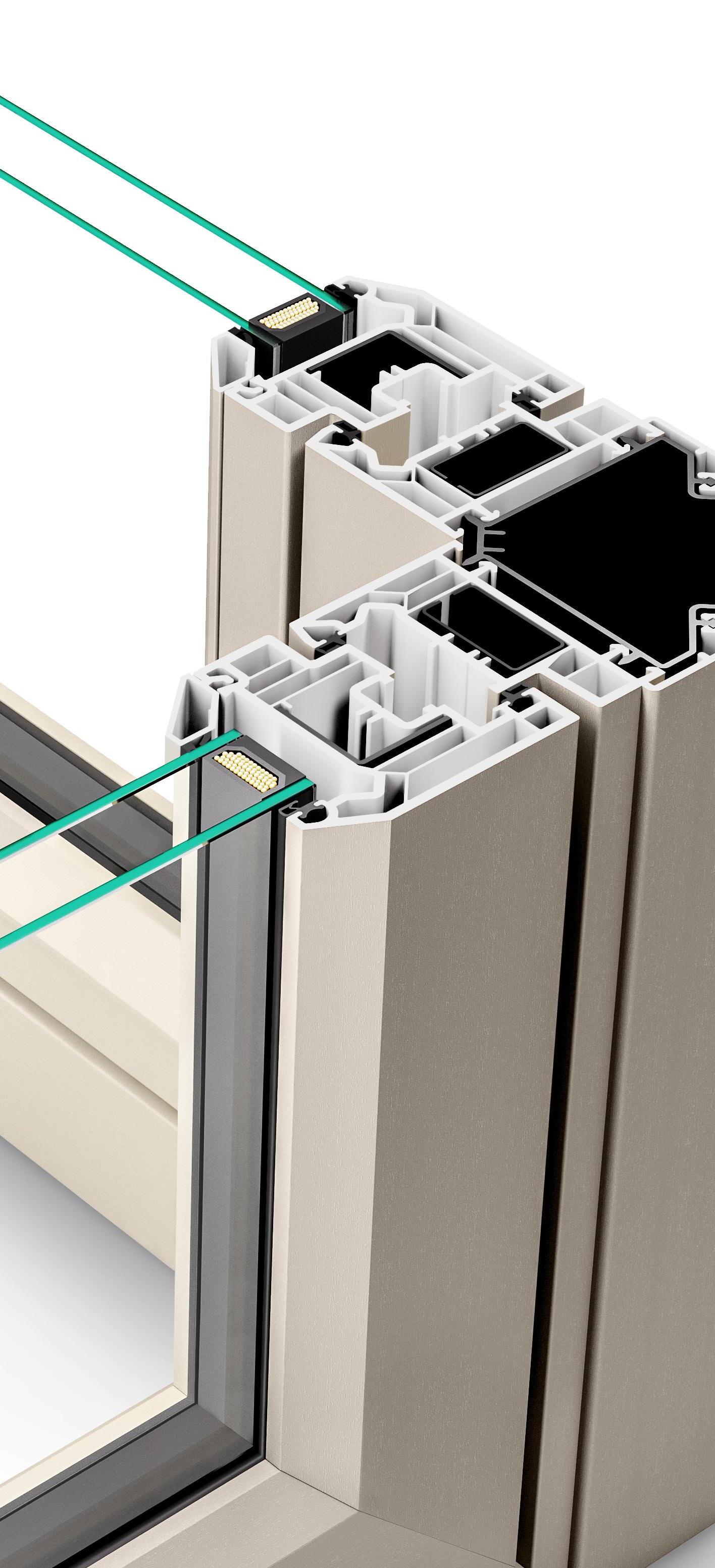

Features and Benefits Authentic timber-look styling

146

Designed to replicate traditional sash windows with run-through horns, deep bottom rails, and sculptured detailing— ideal for heritage or conservation settings.

70

146

108

Modern performance,classic design Delivers the look of timber with the benefits of PVCu—low maintenance, high durability, and improved thermal efficiency.

108

70 38

70

146

Both sashes slide vertically and tilt inwards for easy cleaning and ventilation – ideal for upper floors.

38

108

38

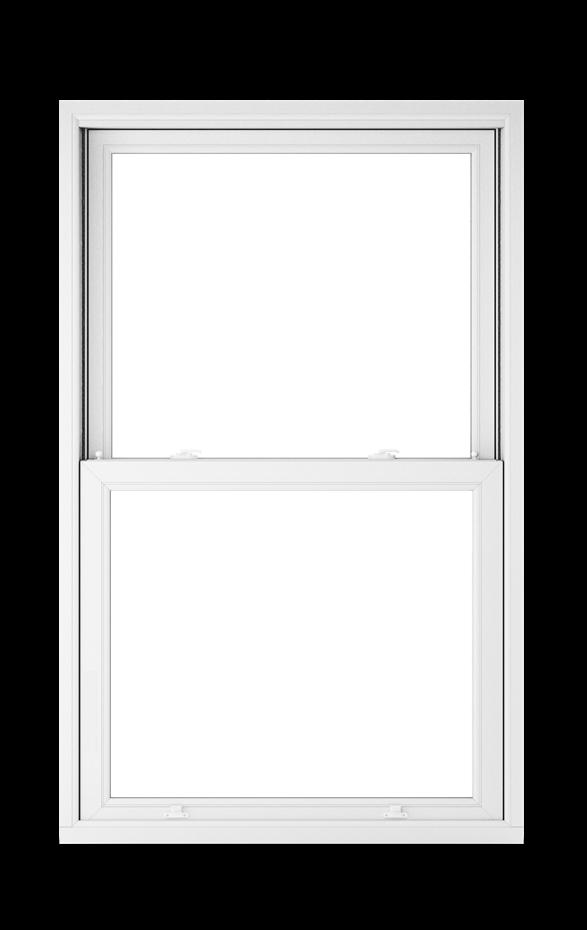

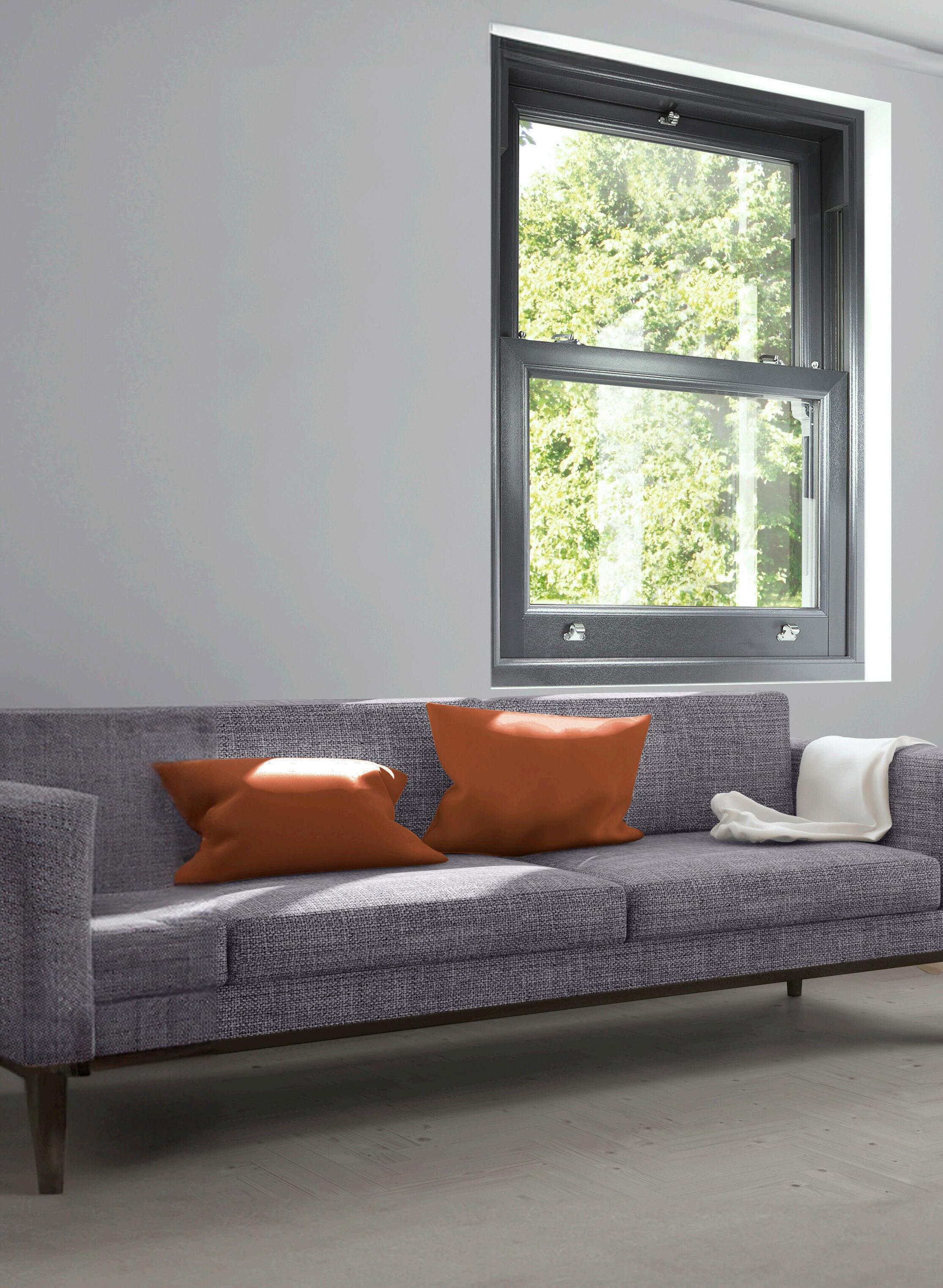

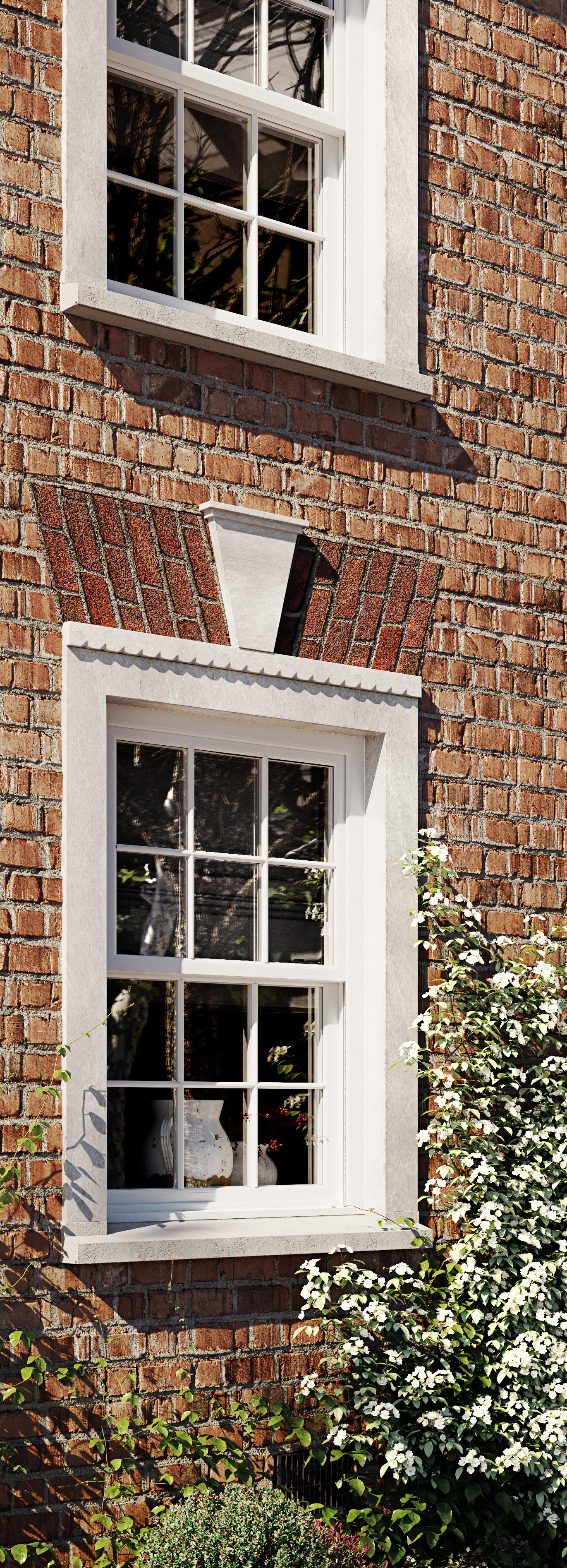

Vertical Sliders

Smooth slide & tilt operation

Available in a wide range of heritage colours and woodgrain foils, with options like Georgian bars or sash horns for a bespoke finish.

66

52

66

52

66

52

Flexible design options

Maximum sash sizes Vertical slider: 1400mm (w) x 2450mm (h)

64

96

64

Outer frames 146mm outer frame Sash 50mm upper sash

96

Glazing beads • 28mm sculptured

64

105mm lower sash bottom rail

96

64mm lower sash

155

• 28mm square 155

Ancillaries Frame extensions, cills and weathering trims Coupling option

155

Bay pole option

55

Patio doors Open up your room.

Patio doors are designed to provide access between indoor and outdoor spaces. Sliding patio doors feature slim sight lines, which increase the visible glass area and reduce the amount of frame, helping to maximise views of the outside.

They are manufactured to support insulation and ease of use, with panels that slide open to allow natural light and ventilation into the home.

56

Patio Doors

57

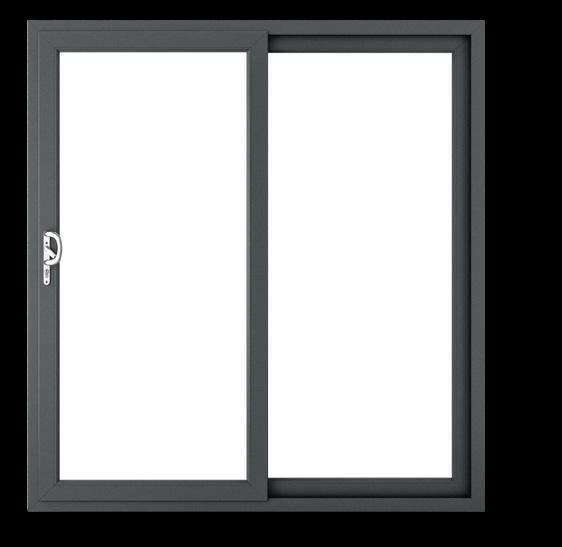

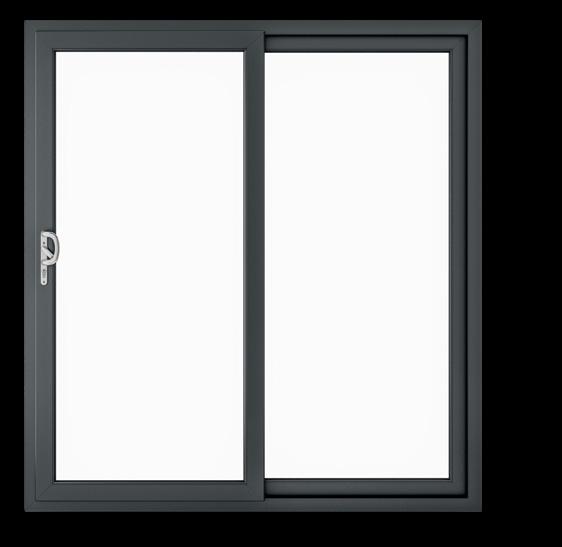

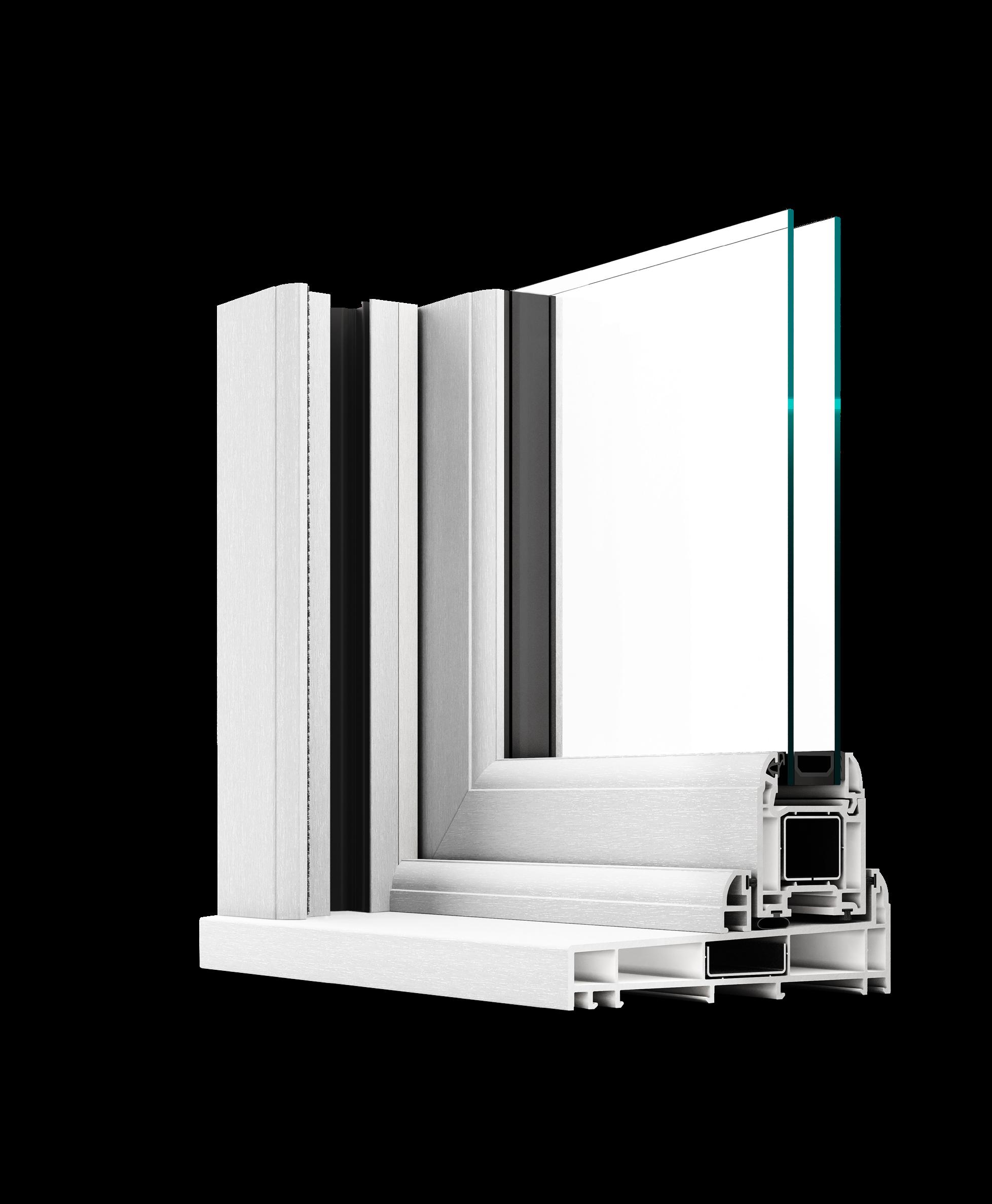

Imagine Patio Door

Bevelled / Sculptured

U-Values with Triple Glazing as low as:

Imagine Patio Doors link together style and functionality, with clean lines and aesthetics.

1.1

W/m2K

U-Values with Double Glazing as low as:

1.2

W/m2K

Bevelled

Sculptured

Available in a large assortment of colours and woodgrain options from the Variations range

Test Results Door type: Patio doorsets 2/3/4 pane

Door type: Patio doorsets 2/3/4 pane

Max sash sizes (wxh)

1053mm x 2074mm

Max sash sizes (wxh)

1503mm x 2329mm

Air permeability

Class 3

Air permeability

Class 2

Water tightness

Class 5A

Water tightness

Class 3A

Resistance to wind

A3

Resistance to wind

A2

Exposure category

1200

Exposure category

800

58

PE

R F O R MA N

C S PA

D S E CUR

E

IT

Y

VE

AN

RO

CE

2 4 APP

D

EN

H

Technical Drawing Bevelled

Features and Benefits

70

15

Slimline aesthetics with maximum glass area

90

138

33

Narrow interlock design enhances natural light and outside views—ideal for modern homes and garden rooms.

Effortless sliding action

PAS 24-accredited with anti-lift design and multi-point locking for peace of mind.

15

93

90

Advanced security options

33

75

Precision-engineered track and rollers ensure smooth, quiet sliding with minimal effort.

Flexible configurations Available in 2, 3, or 4-pane layouts with colour-matched ancillaries and optional mid-rails or fixed lights.

150

Sculptured 15

Maximum sash sizes

33

70

Patio doorsets 2/3/4: 1053mm (w) x 2074mm (h)

90

138

Patio doorsets 2/3/4: 1503mm (w) x 2329mm (h) Outer frames 58mm outer frame

Patio Doors

Midrail 116mm bevelled / sculptured midrail Sash

90

75

90mm bevelled / sculptured door sash Glazing beads • 28mm bevelled

15

93

33

• 28mm sculptured • 32mm bevelled Ancillaries Frame extensions and cills 150

59

Ancillaries

60

Ancillaries

61

VEKA ANCILLARIES | WALLCHART VEKA_ANCILLS_DECEMBER 2024

15

70

116058

113112

Small H Couple

Vertical Dogbone Coupler

116012

114026

Covering Profile

15mm Frame Extension

30

109045

Ancillaries

116030

Eurogroove Infill (white only)

Concealed Vertical Coupler

115117

20mm Vertical Aluminium Coupler

114061

716323

30mm Frame Extension 36 x 11 Steel Box 113412 35 x 12 Steel Box 713187

704368

Expansion Joint Plain Cover 716323 Brush Pile 744961

704811

45

We have a full range of ancillaries available alongside our window and door profiles, from cills and thermal inserts, to frame extensions and Georgian bars.

Plain Cover

20mm Thermally Broken Vertical Aluminium Coupler

104474

716323

If you have any ancillary requirements you can contact us for more information.

6mm Vertical Aluminium Couple

Plain Cover

709126 or 109130 PVC Cover

114062

45mm Frame Extension 35 x 28 Steel Box 713191

ILLARIES | WALLCHART

DECEMBER 2024

709300

709825

709317

Fixing Retainer

Clip-on Cover

709192

Weather Bar

Weather Bar

709232

709223

End Cap

109333

Overhead V Supports End Cap

End Cap

150

225

709321

Plain Post Cover

30

116058

Small H Coupler

709167

116012

Covering Profile

90° Plain Post Cover

110103

ALLCHART

109045

Eurogroove Infill (white only)

116030

2mm Vertical Coupler

744783

716323 116058 Plain Cover

90° Sculptured Post Cover

744783

709321

Head/Base Plate for 116063

90° Plain Post Cover

704368 709167 744783 Plain Expansion Joint 744551 150mm Cill 744550 710040 Plain Cover 716323 Head/Base Plate

HeadBrush Plate Pile for 116064

744961 for 116063

116058

12

ne Coupler

704811 12 116030 116217 mm Thermally Broken Vertical Profile 709321 ncealed VerticalCoupler 2mm Vertical Aluminium 90°Coupler Plain716323 Coupler 116058 Post Cover Plain Cover Small H Coupler 744783

Head/Base Plate for 116063

109045

Small H Coupler

744783

709167

Head/Base Plate Plain 709321 709162 for 116063 Post Cover 90° Plain 90° Sculptured 104474 Post Cover 6mm Vertical Aluminium CouplerPost Cover

744550 709126 or 109130

709168 Head Plate PVC Cover 90° 709321 116030 Sculptured for 116064 116217 Zero Post Cover 90° Plain Concealed 2mm Vertical 116063Vertical Deduction Post Cover Coupler Coupler 90° Bay Post

Post Cover Head 40 x 15Plate Steel Box for Caps 116065 End

744783 709168Head/Base Plate 744550 Sculptured709165 for 116063

Supports er 109010 Head/Base Plate

This one is changing109167 and I can 744564 744544 send you new image/number Profile Cover Cap 709246

Base Plate for 225mm Cill 116064 109267 109336 38 x 19 Steel U Channel 113317 End Caps Drainage Cap

110106

109647

Base Plate Arched Head Kit for Insert 116065

110106 225mm Cill 38 x 19 Steel U Channel 38 x 20 Steel Box

109010 709168 109084 Sculptured Post Cover

Head Plate for 116065

709165 744550150° Plain

Head Plate Post Cover for 116064

713016 709138

709166

116064

135° Bay Post

135° 8mm Per Frame Deduction

709168 146° - 170° Sculptured Post Cover 709166 135° 110° - 145° 709165 8mm Per 150° 150° Sculptured Plain Post Cover 8mm Per 116064Post Cover Frame 709167 146° - 170° 744564 Deduction Frame 135° Bay Post Plain Post Cover 709246 Base Plate Deduction 110° - 145° Arched Head Insert Kit for 116065 704801 150° Variable Bay Pole

709166 8mm Per 116065 SculpturedFrame Post Cover 109060 744544150° 146° - 170° Bay Post 109059 Deduction Base PlateClip for In Packer Adapter 109230 116064 709165 Head Drip 744564

Base Plate

Plant On Reinforcement

109195

Cover Profile

109060

Clip In Packer

709168

150° Bay Post

Plain Post Cover 146° - 170° 709164

Post Cover Small 704801 110° - 145° Variable Bay Pole

709163110067 Odd leg 109059 Post Cover adaptor Small Adapter 146° - 170°

744543

10

Variable Base Plate

8

D

Sculptured Post Cover 110° - 145°

744549 Plate Cill 110123 Head 180mm 709167Straight Head Plate for 704801 forBox 116065 713016 40 x 15 Steel Coupler 744564 744544 Plain Post Cover End Caps 109259 Base Plate Base Plate for 110° - 145° 116064 for 116065 709168 709167

113128 for 116065

744549 116065

Head Plate for 704801

744551

Plain Post Cover - 145° 150° 744549 709168709165 110° 8mm Head Plate forPer 704801 Sculptured150° Plain 116065 709166Frame Post Cover Post Cover 150° Bay Post Deduction Sculptured Post Cover

150° 8mm Per Frame Deduction

113317709166 End Caps 113245150° Sculptured Post Cover

180

709167744551 Sculptured Post Cover 150° Sculptured Plain 110° - 145° Head Plate Post Cover Post Cover for 116065

709167744551 135° 8mm Per 709166 Plain Head Plate Frame 109167 116064 Sculptured Post Cover150° for 116065

43.5

109167 109333 62 Profile Cover Cap 104474 Overhead Vent 744783 al Aluminium Coupler

90° Zero Deduction

Head Plate Post Cover150° Plain for 116064Post Cover

709162 135° Bay Post Deduction Profile Cover Cap Post Cover Eurogroove Infill 90° Sculptured (white only) 90° Sculptured Post Cover 368 Post Cover 709167 709165 709168150° sion Joint Plain Plain 135° Sculptured Cover 716323 709321 8mm Per Post Cover Post Cover Coupler 116030 744961 116217 90° Post Cover Pile 709162 Frame 744544 90° Plain 116065 116064 709317 90° 709192 ncealed Vertical Zero 109333 2mm Vertical 90° Sculptured135° Bay Post Deduction 116063 09300 Post Cover Base Plate150° for Bay Post Zero Weather Bar Weather Bar Deduction Coupler Coupler Overhead Vent 116063 Post Cover 744783 ing Retainer 90° Bay Post 116064 109267 Deduction Supports 109336 90° Bay Post 709166 709168 704368 135° Head/Base Plate Drainage Cap 709232 709223Joint Sculptured End Cap 109337 150° Sculptured Expansion 8mm Per for 116063 End Cap EndCover Cap Plain 716323 Post Cover Post Cover Frame 116064 709162 90° Brush Pile 744961 Deduction 135° Bay Post 90° Sculptured Zero 225 104474 116063 744544 Deduction 744564 Post Cover al Aluminium Coupler 90° Bay Post Base Plate for Base Plate 744783 135° 368 744783 116064 for 116065 6 or 109130 8mm Per Head/Base Plate sion Joint Plate Head/Base VC Cover for 116063 Frame 116065 109167 116064 Cover 90° for 116063 716323 ertical Deduction Profile Cover Cap Pile 744961 135° Bay Post Zero 744544150° Bay Post 116063 Deduction 104474 Base Plate 109060 for 90° Bay Post 6mm Vertical Aluminium Coupler 744783 116064 Clip In Packer Head/Base Plate 709126 or 109130 for 116063 PVC Cover

709162

150

709165

150° Plain This one is changin Post Cover send you new imag

744551

116063

90° Bay Post

Small H Coupler

Straight Coupler 135 Coupler

744550

Head Plate for 116064

Head/Base Plate for 116063

30

115117

mm Vertical Aluminium Coupler

150mm Cill 40 x 15 Steel Box 713016 90 Coupler 109089 End Caps 109006 709162

116217

Concealed Vertical Coupler

Head Plate for 116065

30

113112

Vertical Dogbone Coupler

744551

744550

Head Plate for 116064

43.5

744783

Head/Base Plate for 116063

10

709165 744549 709166 Head Plate for 704801

150° Plain Post Cover

Sculptured Post Cover 146° - 170°109060 709168 Clip In Packer

709165 Sculptured Post Cover 709166 110° 145°Cover Plain -Post 150° Sculptured 146° - 170° Post Cover 709167

Plain Post Cover 704801 110° - 145° Variable Bay Pole 150° 8mm Per 709166 116065 109059 Frame Sculptured Post Cover Adapter Deduction 150° Bay Post146° - 170°

1 See d

709165

110 - 170° Plain 709164 Post Cover See manual for 146° - 170° Small Post Cover deductions 744564 110° - 145°

Base Plate 110104 for 116065 Odd leg adaptor

109060

744163 704801 Fixing Nipple 709163 Variable Bay Pole

Post Cover Small 146° - 170° 109059 Adapter

(VEKA

(Availa

1 See d

Clip In Packer744543 110 - 170° Variable Base Plate See manual for 709183 deductions709164 Cruciform 1 Post Cover Small Cover mould 110° Used- 145° in conjunction with hea for 709189 7 plates for load bearing applic 7 709163 M16 x 1.5mm

116064

8mm Per 109059 Frame

744544

116065

150° Bay Post

VEKA ANCILLARIES | WALLCHART VEKA ANCILLARIES | WALLCHART VEKA_ANCILLS_DECEMBER 2024ANCILLARIES | WALLCHART VEKA 709164 VEKA_ANCILLS_APRIL 2025 VEKA ANCILLARIES | WALLCHART Post Cover Small VEKA_ANCILLS_DECEMBER 2024

15 1515

15 Head/Base Plate

15mm Frame Extension

141428 Frame Fixing Bracket 709321 709246 sizes 175, 200 & 250mm)

Variable Bay Pole

109059

110 - 170° See manual for deductions

Adapter

Base Plate for 116065

709164

Clip In Packer

744783 744783 Head/Base Plate Head/Base 744783 for 116063 Plate

for 116063 Plate Head/Base

Head Plate for 116065 744543

Variable Base Plate

709165

Covering Profile

Plain Post Cover

Head/Base Plate for 116063

709163 116058 Post Cover Small Small H Coupler 146° - 170° 744551

113112 744550 Vertical Dogbone Coupler 113112 Used in conjunction with head/base Head Plate 113112 116012 Vertical Dogbone Coupler for 116064 plates for load bearing applications.

Vertical Dogbone 113112Coupler Covering Profile 116012 114026 Vertical116012 Dogbone Coupler M16 x 1.5mm 114026 Covering Profile 15mm Frame Extension Tight Thread Covering Profile 116012 15mm Frame Nut Extension 114026 709167 (Non-VEKA Part) 15mm Frame Extension

744783

Post Cover Small 110° - 145°

109060

70 744543 70 Variable Base Plate 70

114026 for 116063

704801

744564 VEKA_ANCILLS_DECEMBER 2024

110° - 145°

Base Plate for 709163 116064 Post Cover Small 146° - 170° 70

744783

Plain Post Cover 146° - 170°

8mm Per Frame Deduction

deductions

AdapterDeduction 135° Bay Post

744549 116058 for 116063 116058 Head Plate for 704801 Small H Coupler Small H Coupler 116058 709321 Small H Coupler 90° Plain 709321 709321 Post Cover 709168 90° Plain Sculptured Post 90° Cover Plain 709321 Post Cover 110° - 145° Post Cover 90° Plain

150° Plain Post Cover Used in conjunction with head/base

744550

Head Plate for 116064

709167

Plain Post Cover

709168

Sculptured

Post Cover 709167 116030 116217 Post Cover 90° Plain 709162 Plain plates for load bearing applications.

Arched Head Insert Kit Post Cover Eurogroove Infill Concealed Vertical 2mm Vertical 109045 116030 116217 Post Cover 744556 90° Sculptured 709162 110° 145° (white only) 109045 116030 116217 Coupler M16 x Infill 1.5mm Concealed Coupler Eurogroove 709162 Vertical Post2mm Vertical Cover Transfer Stud 90° Sculptured Eurogroove Infill Nut Tight Thread Concealed Vertical 2mm Vertical 109045 709166 116030 709168 116217 (white only) Coupler Coupler 90° Sculptured 709162 1 Post Cover (white only)Infill Part)Concealed (Non-VEKA 141428150° Sculptured Coupler Coupler Eurogroove Vertical Sculptured 2mm Vertical 709166 Post Cover 8m 115117 744550 90° Sculptured 744551 744783 744549 (white only) (VEKA) Frame Fixing Bracket Post Cover Coupler Post Cover Coupler Sculptured Post Cover 744163 Fr 709162Head/Base Post Cover 20mm Vertical Aluminium Coupler 116064 Head Plate 115117 Head Plate 90° for 704801 Plate Head Plate 109230 (Available sizes 175, 200 & 250mm) 114061 146° - 170° Ded Fixing 115117 90° Sculptured 110104 716323 135° Bay Post Zero forNipple 116064 for 116065 for 116063 20mm Vertical Aluminium Coupler 90° 116063 Head Drip114061 30mm Frame Extension Post Cover Odd leg 20mm Vertical Aluminium Coupler Deduction 744556 115117 90° Plain Cover Zero 114061 716323 36 x 11 Steel Box 113412 90° Bay Post 709168 adaptor 116063 709165 30mm Frame Extension 135° Zero 20mm Vertical Aluminium Coupler m x 16.5mm Tape 716323 90° Deduction 704368 Transfer Stud150° 116063 35 x 12 Steel Box 713187 30mm Extension Plain Cover 114061 36 x 11Frame Steel Box 113412 Post Post Cover Plain Post Sculptured Cover90° Bay PerCover Deduction For 20mm Bar) Zero Plain Per 716323 7091678mm 709165 8mm Expansion Joint 36 xx 11 113412 Bay Post 116063 30mm Frame Extension 704368 744557 Frame 35 12 Steel Steel Box Box 713187 145° 146° - 170°110° -90° 116065 615.000100 White 116064 Deduction Frame 90° Plain Cover 716323 704368 Plain Cover Plain 150° Plain 35 36xx12 11Steel SteelBox Box 713187 113412 90° Bay Post Expansion Joint Load Transfer Deduction 615.001000 Black709321 150°Pile Bay Post 135° Bay Post Zero Brush Post Cover Post 744961 Cover Deduction 28 116063 Expansion 704368 744544 35 x Plate 12 Steel Box 713187 Plain CoverJoint 716323 Base Deduction 704801709167 90° Plain 110067 Plain Cover forcement Expansion Base Plate for Brush Pile Joint 716323 744961 90° Bay Post Plain Post Cover 709183 Brush Pile 744961 Post Cover Variable Bay Pole 744783 Odd leg Plain Cover 716323 116064 110 - 170° 95 110° - 145° Cruciform 1mm x 16.5mm Tape adaptor Brush Pile 744961 Head/Base Plate See manual for ofile 744783 Cover mould 709166 709168 (For 20mm Bar) 704811 deductions 744783 for 116063 109059 Clarification on reinforcement orientation Head/Base Plate KEY: 744557 for 709189 Sculptured 744615.000100 White 744564150° 20mm Thermally BrokenSculptured Vertical Head/Base 744544 744783 Adapter 709166 704811 for 116063 Plate WinDoPlan.

Load Transfer 6217 Post Cover PostDO Cover 704811 744615.001000 Black Sculptured Post Cover Aluminium 709162 can be obtained via for 116063 Base Plate Base Plate BaseCoupler Plate for20mm Thermally Head/Base Plate Broken Vertical 104474 PVC Profile Vertical shown 20mm are Thermally 146° - for 170° Broken Vertical 90° Sculptured NOT SCALE the drawings 704811 744783 116064 for 116065 716323 116063 Aluminium Coupler 6mm Vertical Aluminium Coupler upler 104474 Post visual representations only.

VEKA PLC 20mmAluminium Thermally Coupler Broken Vertical Head/Base PlateCover Plain Cover Gasket 716323 104474 709126 or 109130 709164709165 6mm Vertical Aluminium Coupler Coupler 135° for 116063 716323 has the right to alter the designs, Aluminium 150° Coupler Plain Cover 6mm Vertical Aluminium 104474 PVC Cover Steel 20 20 Post CoverPlain SmallPost Cover 8mm Per 709126 or 109130 Plain Cover 716323 109167 8mm Per Coupler specification & descriptions without prior Clarification on reinforcement orientation KEY: 6mm Vertical Aluminium 114062 709126 or 109130 109060116065 Frame 110° - 145°146° - 170° 116064 Plain Cover PVC Cover Frame 90° of our Profile Cover Cap Aluminium 709191 709824 109167 notice as part policy of continuous 34 can be obtained via WinDoPlan.

DO 45mm Frame Extension 114062 PVC Cover Deduction 709126 or 109130 150° Bay Post Clip In Packer 135° Bay Post Deduction Zero External Georgian 109167 External Georgian 116063 Profile Cover Cap PVC Profile 35 x 28 Steel Box 713191 114062 development and improvements.

NOT SCALE PVC theCover drawings shown709163 are 704801 Deduction 45mm Frame Extension 109130 Profile Cover Cap 109167 / Astragal Bar / Astragal Bar 90° Bay Post 45mm Frame Extension 114062 visual representations only. VEKA Post PLCCoverVariable 35 x 28 Steel Box 713191 34mm External SmallProfile Bay Cover Pole Cap Gasket 110 - 170° 35 x 28 Steel Box 713191 45mm Frame Extension Georgian / Astragal Bar 146° - 170° 109167 has the right to alter the designs, See manual for 35 x 28 Steel Box 713191 Steel Profile Cover Cap 2mm x 30mm Tape deductions specification & descriptions without prior 109059 20 20 709317 709192 109333 (For 34mm Bar) 744543 Adapter 744564 744544 Aluminium 709246 709300 notice as part of our policy of continuous Weather Bar Weather Bar 709189 709122 146106.000100 Overhead 709825 709317 709192Base Variable Base Plate Plate Vent Base Plate forWhite Arched Head Insert Kit 109333 109267 Fixing Retainer development and improvements.

709317 709300 709192 146106.001000 Black External Georgian Supports 109336 109333 Clip-on Cover External Georgian 744783 Weather Bar Weather Bar 116064 for 116065 709300 Overhead Vent 709825 Drainage Cap 709232 / Astragal709825 Bar Weather Bar Weather BarEnd Cap / Astragal Bar Fixing Retainer 709223 709317 709192 109267 713016 109337 Overhead 109333Vent109336 Head/Base Plate Supports Fixing Retainer 709300 Clip-on Cover 109267 End Cap Weather Bar End Cap Weather Bar 109258 Drainage Cap 709164 Supports 109336 for 116063 Overhead 709232 Clip-on Cover 709825 709223 End Cap Vent 109337 Fixing Retainer Drainage Cap 109267 709232 709223 End Cap 109337 Post Cover Small Used in conjunction with head/base Supports 109336 End Cap End Cap 225 709246 150 Clip-on Cover Drainage Cap End Cap 709232 End Cap 109060 709223 - 145° End Cap 109337 plates for110° load bearing applications.

Arched Head Insert Kit 109267 109230 End Cap End Cap

8.5

18

11

11

12.5

45 4545

Clip In Packer

150 150

Drainage Cap

43.5

109167

109230 Head Drip

M16 x 1.5mm 709163 Tight Thread Nut Cover Small (Non-VEKAPost Part) 146° - 170°

(VEKA) Frame Fixing Bracket

Fixing Nipple

(Available sizes 175, 200 & 250mm)

744543 113128 744556Variable Plate PlantBase On Reinforcement Transfer Stud 109195

Odd leg adaptor

Head Drip

113128110067

113128 Odd leg This one is changing and I can Plant On Reinforcement adaptor 113128 Plant On Reinforcement Cover Profile 109195 send you new image/number Plant On Reinforcement 109195 Cover Profile Used in conjunction with head/base 709246 109195 110106 225mm Cill 110084 225mm CillThis one is changing and I can Cover Profile plates for load bearing applications.

110067 Arched Head Insert Cover Profile 38 x 19 SteelKitU Channel End 113317 End Caps 109647 110084 225mm Cill Caps 709183 109914 send you new image/number M16 x 1.5mm Odd leg 38 x 20 Steel Box 113245

113128 110103 150mm Cill Plant OnStraight Reinforcement 40 x 15 Steel Box109267 713016 Coupler 109010 110103 150mm Cill 336 109195 Drainage Cap 110103 150mm Cill 90 Coupler 109089 135 Coupler 109084 337 40 x 15 Steel Box 713016 Straight Coupler 109010 adaptor Profile End Caps 109006 110103 150mm713016 Cill 40 15 Cover Steel Box Straight Coupler 109010 90 xCoupler 109089 135 Coupler 109084 90 135 Coupler 109084 40Coupler xCaps 15 Steel Box 109089 713016 Straight Coupler 109010 150 End 109006 End Caps 109006 90 Coupler 109089 135 Coupler 109084 150 109230 End Caps 109006 150

85

20

709191

709189

713016 109258

External Georgian / Astragal Bar

11

8.5

30

20

85mm Cill 40 x 15 Steel Box End Caps

30

20

709122

External Georgian / Astragal Bar

34

109130

34mm External Georgian / Astragal Bar 2mm x 30mm Tape (For 34mm Bar) 146106.000100 White 146106.001000 Black

85 85 85

Transfer Stud

Clarification on reinforcement orientation can be obtained via WinDoPlan. DO NOT SCALE the drawings shown are 110122 85mm Cill only. VEKA PLC visual representations 15 Steel Box to alter 713016 has40 xthe right the designs, 110122 85mm Cill End Caps 109258 110122 85mm specification & descriptions without priorCill 40 x 15 Steel Box 744557 110122 85mm Cill 40 x 15 Steel Box End Caps notice asLoad part of our policy of continuous Transfer 40 xCaps 15 Steel Box End Base Plate development and improvements.

End Caps

KEY: PVC Profile Gasket Steel Aluminium

303030

18

12.5

20

709824

External Georgian External Georgian / Astragal Bar / Astragal Bar

110122

KEY:

34

External Georgian External Georgian PVC Profile 109130 / Astragal Bar / Astragal Bar 110067 709183 110123 34mm External Gasket Odd leg 180mm Cill Cruciform Georgian / Astragal Bar 40 xadaptor 15 Steel Box 713016 Straight Coupler 1mm x 16.5mm Tape 110123 180mm Cill mould109260 Steel Cover End Caps 109259 (For 20mm Bar) 1101232mmBox 180mm Cill x 30mm Tape 713016 Straight Coupler 109260 20 20 40 x 15 Steel for Cill 709189 744615.000100 White 110123 180mm 34mm 713016 Bar) 40 15 Steel(For Box Straight Coupler 109260 Aluminium Endx Caps 109259 Black 709189 709122 146106.000100 White End 109259 40 xCaps 15 Steel Box 713016 Straight 744615.001000 Coupler 109260 External Georgian External Georgian 146106.001000 Black End Caps 109259 / Astragal Bar / Astragal Bar 18

710040 150mm Cill 40 x Caps 15 Steel Box 713016 End 709138 End 709138 40 xCaps 15 Steel Box 713016 110122End85mm Caps Cill 709138 40 x 15 Steel Box 713016 End Caps 109258

20

709191

12.5

30

710040 150mm Cill 109195 d I40 can x 15 Steel Box 713016 710040 150mm Cill Profile Cover End Caps 709138 mber 710040 40 x 15 Steel150mm Box Cill713016

20

709824

744556

11

Plant On Reinforcement

180

Odd leg adaptor

303030

113128

110104

11

303030

30

85

Head Drip

11

150

Cruciform 38 x 22 Steel Box 113175 Straight Coupler 109915 1mm x 16.5mm Tape 110106 225mm Cill 109914 Tight Thread Nut (For 20mm End CapsCover mould BackBar) Plate 109916 Part) for180 709189 38 x 19 Steel U Channel 113317 End Caps 109647 744557 (Non-VEKA85 744615.000100 White 141428 Load Transfer 38 x 20 Steel Box 744163113245 (VEKA) Frame 744615.001000 Black Fixing Bracket 180 (Available sizes 175, 200 & 250mm)Base Plate 180 Fixing Nipple

8.5

n

30

225 225

141428

744163

110104

30 30 43.5

Profile Cover Cap

30 3030

30

45

30 3030

30

109045

20

70982

External Ge / Astragal

20

70918

External Geo / Astragal

713016 713016 109258 713016 109258 109258

Clarification on reinforcement orientation can be obtained via WinDoPlan. DO NOT SCALE the drawings shown are visual representations only. VEKA PLC has the right to alter the designs, specification & descriptions without prior notice as part of our policy of continuous development and improvements.

Ancillaries

63

APS Group 25-27 Enterprise Crescent, Ballinderry Road, Lisburn, County Antrim, BT28 2BP 02892 660500 sales@aps-group.co.uk www.aps-group.co.uk

Images are for illustration purpose only.

We reserve the right to change product specification at any time.

All calculations provided in accordance with EN14351.

Due to the limitations of the printing process we recommend that an accurate colour swatch is requested prior to ordering.

The company cannot accept any responsibility for colours or images shown in this brochure.

All information within this brochure is correct at time of going to print.

V01/26

Set Standards. Choose VEKA.
