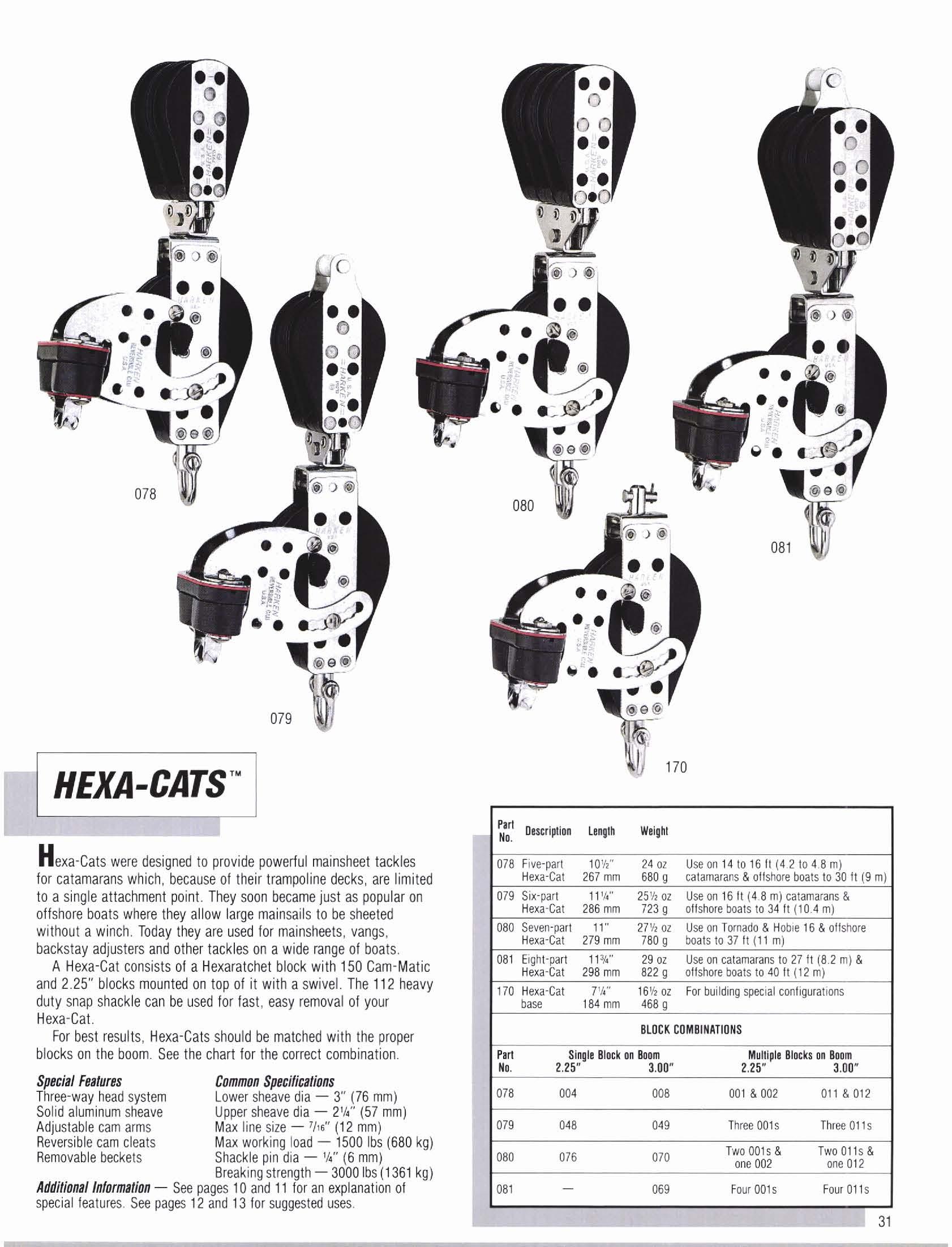

3.00" Hexa-Cats

Hexa-cats were designed to provide powerful mainsheet tackles for catamarans which, because of their trampoline decks, are limited to a single attachment point. They soon became just as popular on offshore boats where they allow large mainsails to be sheeted without a winch. Today they are used for mainsheets, vangs, backstay adjusters and other tackles on a wide range of boats.

A Hexa-Cat consists of a Hexaratchet block with 150 Cam-Matic and 2.25" blocks mounted on top of it with a swivel. The 112 heavy duty snap shackle can be used for fast, easy removal of your Hexa-Cat.

For best results, Hexa-Cats should be matched with the proper blocks on the boom. See the chart for the correct combination.

~r~~ ~ ~ ~'nree-way nead system Lower sheave dfa - 3 (76 mm) Sol~o al~m n~m sheave Adjustable cam arms Reversible cam cleats Upper sneave d a - 2'14" (57 mm) M'ai line size - 7/16" (12 mm) Max working load - 1500 lbs (680 kg) Removable beckets Shackle pin dia - %" (6 mm) Breaking strength - 3000 lbs (1361 kg) AddIIinnal Inlnfn~ation - See pages 10 and 11 for an explanation of special leatures. See pages 12 and 13 for suggested uses.
