Advanced Commercial Design Studio

Page 1


Table of Contents

Introduction

Programming

• Branding

• Project Research - City, Culture, Demographics, and Precedent Studies

• Project Requirements Spreadsheet

• Matrix and Bubble Diagrams

• Working Concept

• Base Building Analysis

Schematic Design

• SIte Plan and Analysis

• Bubble Plans

• Blocking Plans

• Hand Drawing Schematic Floor Plans

• Conceptual Sketches

• Material, Furniture, and Finishes

Concept Development

• 1st Floor DESIGN DEVELOPMENT

• 2nd Floor DESIGN DEVELOPMENT

• Apartment Floor DESIGN DEVELOPMENT

Branding

I chose ‘sandstone’ because the color and shape of the stones in Jaipur are mostly, red, pink, light brown, and orange. The colorful tones represent the history and the overall richness of textiles and the architecture of mosques and hindu temples attracting tourism and improving its economy

Jaipur, India

INTRODUCTION

Jaipur, a capital city in Rajasthan, India is in the east-central part of the state surrounded by hills, fertile alluvialplains to the east and south, hill chains and desert areas to the north and west as a walled town. To gain more knowledge on Jaipur, let’s look at the history and its colonial roots of religion and culture.

HISTORICAL

Founded in 1727by MaharajaSawai Jai Singh, the late 20th and early 21stcenturies saw a mixed Hindu-Muslim population growth between 1991-2011with numerous bombing attacks on mosques and Hindu temples as targets. In 1858, Rajasthan became an official British colony and was under the British regime until 1947,when India first gained its independence. Jaipur, known as “The Pink City,”was established in 1876 when MaharajaRam Singh had most of the buildings pink (color of hospitality) to prep for Queen Victoria’s visit from Britain.

SOCIAL AND CULTURAL

Since Jaipur has a lot of beauty with its ‘straight-line planning’,it is a popular tourist destination with its economy mostly used for commercial trade with major road, rail and air connections. With a population of over 3 million people, its economy is also based on tourism, gemstone cutting, jewelry manufacturing, and information technology. There are other industries that serve a purpose for engineering, metalworking, hand-loom weaving, distilling, glass manufacturing, hosiery, carpets, blankets, shoes and drugs. Jaipur’s hub is presented with the City Palace, home to the royal familyof Jaipur and Jantar Mantar, an 18th century open-air observatory that is designated a UNESCO World Heritage site in 2010,the Hawa Mahal (Hall of Winds),Ram Bagh palace, the Nahagarh, Tiger Fort, its museum and library.

ENVIRONMENTAL

Jaipur’senvironmental aspects are shown in a desert climatewhere its streets are lined with trees with public and private gardens. In terms of temperature, it becomes very hot for most of the year at 110degrees F during the summer.Most of the homes in Jaipur are constructed with flat, walled rooftops for people to sleep on the hottest nights.

PrecedentStudy Jeevan Jyoti

Old Age Home

LOCATION: JAIPUR, INDIA

TYPE OF FACILITY:

ASSISTED LIVING ANALYSIS

• Jeevan Jyoti Old Age Home provides guidance and enlightenment through sharing valuable experiences with a strong heritage of rituals, ideals, and moral values to their existing society. Located in Pashu Hatwara,Ramgarh Road in the capital city of Jaipur, it provides lush green surroundings where all senior citizens can have a once-in-a-lifetime experience when they settle down and enjoy the natural beauty filling their heart with joy and solace.

• The facility offers manyamenities including:

• • 14luxury rooms with 42 comfortable beds

• • Intercom facility in all rooms

• • Water cooler

• • Attached lavatory and geyser

• • Elevator facility

• • 24-hour security guards with CCTV cameras and a library

• Huge central kitchen with a dining hall for breakfast, lunch, and dinner

• • Indoor games under full premises

• Historical monuments and spiritual centers for healthy mind and soul

• Huge central park inside the premises for recreational activities with cow ranch and farming, and a well-built pathwayfor morning and evening walks

Pros: The amenities provided for the elderly are very helpful for improvingtheir own mental health and appreciating the natural environmental setting they are in to get well faster. Since it is a largecommunity,many elderly folks can have positive interactions with one another and participate in activities like meditation and yoga. Its facilities are also top-notch which brings many seniors mental peace with beautiful landscaping to make the outdoor fun more invitingfor seniors to enjoy and be taken care of.

Cons: There are no designated zones for separate residential living, walking distance to multiplex apartments and attached townhomes. 24/7 help assistance is needed for only one senior living facility but no other amenities outside the senior facility.

CONSIDERATIONS FOR DESIGN

The architecture of the senior living facility portrays a modern aesthetic towards a warm-muted color palette by incorporating various landscaping materials evoking a sense of peace and rejuvenation.By letting seniors relate to nature, the presence of biophilic design becomes a necessity for them to interact with others and live a healthy,meaningful life in the future. This senior living facility sits in the gated community outside of downtown filled with tall trees and small shrubs near the central park with the amount of natural light from inside the facility by adding windows to make every living space ambient without the need of interior fixtures.

PrecedentStudy

Maple Ridge Senior Living

LOCATION: ASHLAND, OREGON

TYPE OF FACILITY:

ASSISTED LIVING

Maple Ridge Senior Living promotes meaning and joy for their residents, family members, and their senior living team. In turn, many elderly folks get inspired and motivated because they need a place for exceptional care and feel empowered so that seniors can continue to thrive and build their future.

Many amenities include:

• Beautiful valley views from many apartments

• Beauty/Barber salon onsite

• Maintenance service

• Comfortably furnished lounges, activity and living areas

• Library including resident-authored books!

• Private mailboxes

ANALYSIS

Working: The floor plans presented include many options for all the needs every senior wants. With a balance of lifestyle and budget, every accommodation a senior has can work out with the tasks of living an independent lifestyle. All seniors can focus on having fun without having to worry about their home and yard maintenance and take full advantage of the amenities they must keep themselves happy.

Not working: The assisted living team can do more with diversity and inclusion by having other people with different backgrounds such as the elderly living internationally (e.g. India, China, Italy, or Africa, etc.).

PrecedentStudy Heartfields at Cary

LOCATION: CARY,NORTH CAROLINA

TYPE OF FACILITY:

ASSISTED LIVING

Location holds a special place for the elderly within walking distance or going on a short drive to many popular places like shops, restaurants, entertainment, and other activities they would benefit. They will also be close to outdoor activities and public parks like the seniors are out in the country.

Many amenities include:

• Lounge

• Fitness Center

• Library

• Private dining room

ANALYSIS

Working: Every living senior feels welcomed and respected by their dedicated team members with all amenities they can choose to go with (e.g. assisted living, memory care, respite care and short-term stays). There is also outpatient rehabilitation for seniors who have suffered from many surgeries or overcoming injuries or illness through Ageility, which helps them get back to being healthy and improve their fitness training.

Not working: No drawbacks for this senior living.

Encyclopedia Britannica.“Jaipur.”Encyclopedia Britannica.Inc., 25 July 2024, https://www.britannica.com/place/Jaipur-India, Accessed 11 Sep. 2024.

“Jeevan Jyoti.”Jeevanjyoti.co.in., https://www.jeevanjyoti.co.in, Accessed 13 Sep. 2024. “Jeevan Jyoti: Gallery.”Jeevanjyoti.co.in., https://jeevanjyoti.co.in/gallery,Accessed 15 Sep. 2024.

“Heartfields at Cary.”Fivestarseniorliving.com, https://www.fivestarseniorliving.com/communities/nc/cary/heartfields-at-cary, Accessed 15 Sep. 2024.

“Heartfieldsat Cary: Assisted Living at Cary, NC.”Fivestarseniorliving.com, https://www.fivestarseniorliving.com/communities/nc/cary/heartfields-at-cary/assisted living#floorplans, Accessed 15 Sep. 2024.

“Heartfields at Cary: Our Neighborhood.”Fivestarseniorliving.com, https://www.fivestarseniorliving.com/communities/nc/cary/heartfields-at-cary/our-neighborhood, Accessed 14 Sep. 2024.

“Maple Ridge: Our Community.”Compass-living.com, https://www.compass-living.com/senior living/or/ashland/maple-ridge/our-community, Accessed 14 Sep. 2024.

“Maple Ridge: Floor Plans.”Compass-living.com, https://www.compass-living.com/senior living/or/ashland/maple-ridge/floor-plans#/, Accessed 15 Sep. 2024.

Project Location

• 33, Arjun Nagar,Jaipur,Rs: 302018, India

• NEW SENIOR LIVINGFACILITY

• The design for the new senior living facility must feature lush trees surrounded by natural

• grass on the outside while having maximized natural light and ventilation for improving the

• senior’s health. Accessibility challenges must be always dealt with while still providing enough

• heating, ventilation, and air conditioning to individuals who are feeling hot or unwell during the day and night.

• • The architecture of the senior living facility portrays a modern aesthetic towards a warm-muted color palette by incorporating various landscaping materials evoking a sense of peace and rejuvenation. By letting seniors relate to nature, the presence of biophilic design becomes a necessity for them to interact with others and live a healthy, meaningful life in the future. This senior living facility sits in the gated community outside of downtown filled with tall trees and small shrubs near the central park with the amount of natural light from inside the facility by adding windows to make every living space ambient without the need of interior fixtures.

Buena Vista Luxury Garden Resort

Heritage resort in Jaipur with private pools, lush green gardens , 9-hole golf course

StayVista at Tain Farms

Rural farm in Jaipur

Jaipur, India

Site Analysis& Climate

JAIPUR, RAJASTHAN, INDIA

Jaipur’s environmental aspects are shown in a desert climate where its streets are lined with trees with public and private gardens. In terms of temperature, it becomes very hot for most of the year at 110 degrees F during the summer. Most of the homes in Jaipur are constructed with flat, walled rooftops for people to sleep on the hottest nights.

Proposed Site Sun Path

The summer season begins in April and ends in July. Temperatures rise to 30 degress C and go past 45 degress C.

Winter season in October and lasts through March where the nights are colder, and the days are warmer.

Jaipur’s monsoon season begins on the 3rd week of July with the highest at 76.2 mm

Site Access + Considerations

STRENGTHS:

Includes the landscaping of hill chains and awesome views of downtown Jaipur while admiring the pink architecture of the buildings and palaces

• The presence of incorporating sandstone as a building block for residential and commercial housing

• Walking distance to the hospital and other residential housing nearby

WEAKNESSES:

Longer distance to work with noisy traffic and no space to walk on the curb

• Space planning for local roads and highways are cramped

• Is know for its harsh, dusty winds of the desert

OPPORTUNITIES:

Contains architectural marvels that are historically rich and is part of the Golden triangle Circuit

• People wearing colorful attire (traditional Rajasthani cuisine) and by treating everyone and tourists with respect

THREATS:

Temperatures always high throughout the entire year

Exterior Facade of the CK Birla Hospital

Exterior Facade of the

Shanteshwar Mahadev Mandir

Demographics

Race

The people of Jaipur wear brightly colored clothing and jewelry to honor their traditions and culture with their warm hospitality. With a population of 3,073,350, 78% are Hindus including 18.6% Muslims, 2.3% Jains, leaving others at 1%. They also have a responsibility for manufacturing, business, IT, education, and tourism.

Culture

Rajasthan’s history reflects its vibrant culture with its traditions, architecture, and the art of the city itself. Many intricate architectures are the monuments having a unique blend of Rajput and Mughal styles while hiring skilled artists and craftsmen from different parts of India and the world who have settled in this city. The most famous arts include Bandhani, block printing, ‘tarakashi’, ‘meenakari’. Kathak dances are common Jaipur with Indian festivals such as Diwali, Makar, Sankranti, and Eid along with the famous Kite, Elephant, and literary festivals attended by authors and writers across the world. In terms of food, many Rajasthani dishes feature dal bati choorma, missi roti, and ghevar. This project is surrounded by automobile and other public transportation on busy roads and highways with frequent traffic jams and crowded streets filled with nearby stores and a lot of pedestrians.

Gender and Age Distribution

According to the gender ratio, there were 898 females for every 1000 males (1,454,070 out of 1,619,280 males) from the 2011 Census. The population for ages 15-64 stands at 65.3% in 2014. Unfortunately, seniors 65 and older represent 7.5% of the total population of Rajasthan accounting 76% of them living in rural areas. Another drawback happens through literacy which seniors are accounted for 28.8% (45.6% men and 13.6% women). This data analysis represents that the younger generation are outpacing the seniors in a way that the life expectancy for seniors are very high although most of the population is predmoninat with children and parents living together. With minimal illnesses reported amongst the aging seniors, 16% of ederly women report illness by visiting the doctors about their health issues.

Zoirós Frontída Senior Living Center

Zoirós Frontída Senior Living Center

Adjacency Matrix

This is the adjacency matrix for both the first and second floors showing adjacencies and preferences on

Bubble Diagrams: 1st Floor

The mosquebecomes the hub with the lobby in the front with the reception,vestibule, and the post boxesnext to each other,it becomesconvenientfor seniors to access in-person mail if anythinggets delivered to them. The admissionsdirector and assitant offices with the conference roomsgiveprivacyfor employeesto file their work safely and havegroup meetingswith no disturbance.

The lobby becomesthe main space when seniors first walk in to this facility. Since the restroomsfor women and men are separated,they should be accessible with the adjacency of admissiondirector and assistantoffices. While the conference room will be easily accessible for nursing staff, the post boxes and storagewill have manageable operations.

BubbleDiagrams:2nd Floor

The dining area and kitchenare the hub of senior livingbecause it allows them to eat whilesocializing with others. Since the salon/barberarea is anotherspecial use for gettinga haircut,doing nail polish,etc.,the adjacencyfor the dining hall and a short walkingdistance to the mulitpupose room gives the facility moreroomfor proper storage function and ample space for seniors and disabled to walk freely.

The multipurposeroombecomes the mainhub for the second floor for seniors to participate in fun activitiesthey love doing back in their days.

Concept Development

PURPOSE

The concept “ Balua Patthar” , meaning sandstone in Hindi, blends in the natural desert landscape of Jaipur with its warmcolored tones.

CLIENT GOAL

Zoiros Frontida aims to revolutionize senior living by creating spaces that act as nurturing environments for seniors who call their facility home. Zoiros Frontida defines home as a secure and a familiar place that promotes well-being.

The client’s main focus is in providing an unparalleled standard of care. In which every resident feels like home, no matter where they are in the world.

DESIGN INTENT

The senior living facility will be incorporated with the use of the mosque becoming the central focus for peace and meditation.

The “ Balua Patthar” concept will embody the values of color, custom designs and eclectic items that fit into the style of modern-oriental architecture.

DESIGN APPROACH

The unique designs featured for my sandstone concept will include stonework and masonry for the exterior walls,stained glass windows and jewelry for the lighting fixtures at the lobby. Glass lighting will become the first impression seniors will glance at once they step inside the senior living facility.

Building Analysis Level 1

The north views of the senior living facility look out to the quiet fields where many seniors can take a walk with no distrubance. On the south end of the senior facility, the views to the parking lot and the outdoor garden provide high-quality, indoor, outdoor expereince for seniors to improve their own health and interact with others without feeling lonely. However, without having a full view of the outdoor garden for the west view, safety still becomes a priority for seniors with the help of making sure they are not left unattended.

Full Quality View of the fields
View facing the parking lot
View of the outdoor garden

Building Analysis Level 2

SUBHEADING

Since the second floor contains unobstructed views of the forest and the parking lot, many seniors can can get a better view of it allowing more natural light to enter into the senior facility. In terms of seniors wanting more natural daylight and a place for refuge, viewing the outdoors every day is the key to wellness and enjoying life to the fullest.

Full Quality View of the fields
View facing the parking lot
View of the outdoor garden

Bubble Plans 1st Floor

Bubble Plans 1st Floor (cont.d)

Bubble Plans 2nd Floor

Block Diagram 1st Floor (Option #1)

1stFloor

Pros:There is an open floor plan layout with ample storage for drop-off and pick-up mail at the front of the senior living facility. Both the mosque and Hindu temples at the back of the 1st floor provide a separation of privacy for seniors to meditate and improve their mental health.

Cons:The overall view of the senior facility is somewhat blocked because of havingegress of the stairways on both sides for the safety of seniors walking up and down the stairs.

Block Diagram 1st Floor (Option #2)

1stFloor

Pros:The mosque takes up half the back space on the first floor with the rest of the spaces staying as is.

Cons:The Hindu temple is not present with the lack of privacy and not having a separate space for hindus to quietly pray and meditate.

BlockDiagram2nd Floor (Option #1)

2nd Floor

Pros:Unobstructed views of the parking lot and the forest while letting some seniors go for a haircut while others want to socialize as they are having their lunch or dinner together.

Cons:The square footage of the housekeeping area is a bit cramped adjacent to the kitchen area which might become noisy for cleaning staff to do their work and keep everything tidy.

BlockDiagram2nd Floor (Option #2)

2nd Floor

Pros:The back of the 2nd floor has more open space for seniors to dine in comfortably while having the housekeeping staff room adjacent to the kitchen.

Cons:There is no direct connection between the activity director and assistant’s office to the multipurpose room. Having the salon at the center of the 2nd floor makes it harder to rearrange special events for seniors who want more fun doing anything that makes them happy.

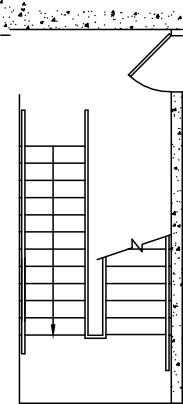

1st and 2nd Floor Schematic Plans

Names and Inspiration

Serene - Capturing the tranquility of the environment and promoting a sense of calm and well-being for the residents.

Welcoming - Emphasizing warmth and hospitality, ensuring that every space feels inviting and fosters a sense of belonging.

Grounded - Signifying stability and connection to the earth, fostering a sense of rootedness and security for the residents.

Furniture and Fixtures - Public Space

NEUTRALS

BIANCO BELLO STANDARD (MARBLE TILE)

RECEPTION AND LOBBY

https://www.materialbank.com/walker-zan ger-bianco-bello-standard-659487?itemLis

tId=quick_view&itemListName=Quick%20 View&index=1

CRESTMONT AVENUE (CARPET)

RECEPTION AND LOBBY

https://www.materialbank.com/mohawk-gr oup-crestmont-avenue-876720?itemListId =quick_view&itemListName=Quick%20Vie w&index=1

ALHAMA PORCELAIN FLOOR TILE

RECEPTION AND LOBBY

ANTIBES ARM CHAIR DINING AREA

https://www.bernhardt.com/shop/350548?position= -1

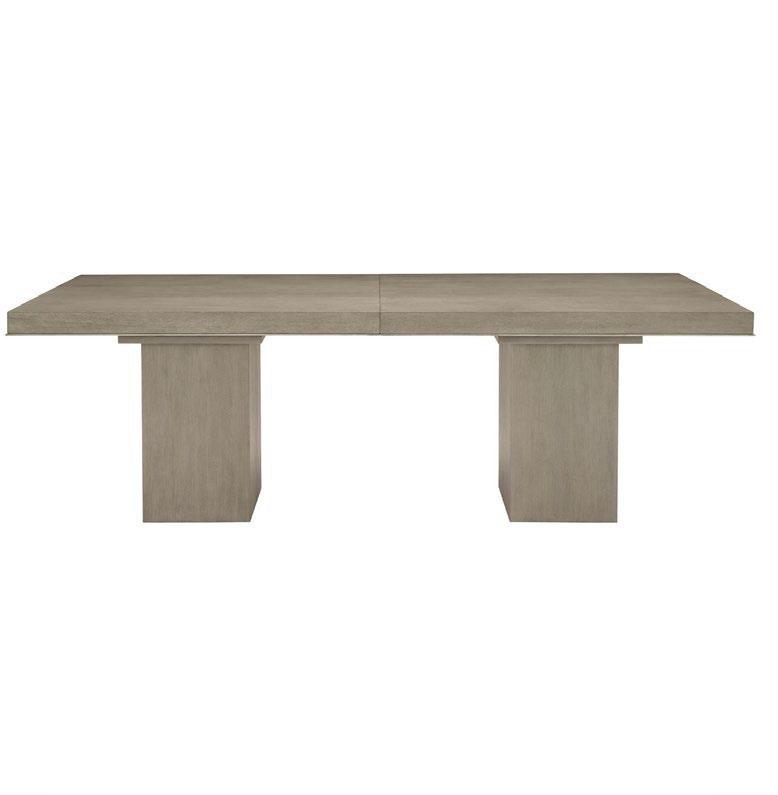

ARGENT DINING TABLE DINING AREA

https://www.bernhardt.com/shop/K1845?positi on=-1

INDY FABRIC SOFA RECEPTION

https://www.bernhardt.com/shop/N8827?positio n=-1

RECEPTION

https://www materialbank com/porcelanos a-alhama-1545215?itemListId=quick_view &itemListName=Quick%20View&index=1 OXFORD CEILING TILE

https://www.materialbank.com/ceilume-oxford-c eiling-tile-1581972?itemListId=quick_view&item ListName=Quick%20View&index=1

MARIO BELLINI (MIDDLE MODULE) SOFA RECEPTION

https://manhattanhomedesign.com/mario-bellini-sofamiddle-module/?sku=BELL-MID-0187

COTTON SHEERWAEVE ROLLER SHADES RECEPTION, MULTIPURPOSE ROOM, DINING

https://www.hunterdouglasarchitectural.com/win dowcoverings/rollershades/RB500/index.jsp

Furniture and Fixtures - Public Space

Warm Tones

ARTISAN LOVE CARPET

RECEPTION, LOBBY, MOSQUE

https://www.materialbank.com/bolon-artisan -1679917?itemListId=quick_view&itemListN ame=Quick+View&index=1&activeChild=87 9766

BRICK PATH CARPET

RECEPTION, LOBBY, MOSQUE

https://www.materialbank.com/jj-floorin g-adjust-modular-1152098?itemListId= quick_view&itemListName=Quick+View &index=1&activeChild=695284

SIENNA PLUNDER LVP

RECEPTION, LOBBY, MOSQUE

https://www.materialbank.com/siena-pl under-943484?itemListId=quick_view&i temListName=Quick%20View&index=1

ELBOW CHAIR

DINING CHAIR

https://www.roveconcepts.com/elbow-chair

HADRIAN ARMCHAIR

DINING CHAIR

https://www.roveconcepts.com/hadrian-arm chair?aid[88]=1701

RHEA DINING CHAIR

DINING CHAIR

https://www.roveconcepts.com/rhea-diningchair?aid[172]=1707

CORNELIA DINING TABLE DINING AREA

https://www.bernhardt.com/sho p/K1946?position=-1

VERMONT RAM DINING TABLE

DINING AREA

https://www.bernhardt.com/shop/3 21021?position=-1

BRONZE TONE PAINT

RECEPTION, LOBBY, MOSQUE

https://www.materialbank.com/benjami n-moore-bronze-tone-2166-30-791312

?itemListId=quick_view&itemListName =Quick%20View&index=1

Furniture and Fixtures - Public Space

Cool Tones

NASHVILLE BLUE CARPET DINING AREA

https://www.materialbank.com/mannington-co mmercial-nashville-1052504?itemListId=quic k_view&itemListName=Quick%20View&index =1

MISTY TEAL

LOBBY AND RECEPTION

https://www.materialbank.com/benjamin-moo re-misty-teal-2046-60-790364?itemListId=qui ck_view&itemListName=Quick%20View&inde x=1

ARTISAN SILVER PATINA CEILING TILE

LOBBY AND RECEPTION

https://www.materialbank.com/american-tin-c eilings-pattern-36-760559?itemListId=quick_ view&itemListName=Quick%20View&index= 1

LINEA DINING TABLE DINING AREA

https://www.bernhardt.com/shop/K1098?posit ion=-1

WATER’S EDGE BAHIAGRAA WALLPAPER

MOSQUE

https://uswalldecor.com/products/waters-edg e-resource-library-cv4415-bahiagrass-wallpa per-blue

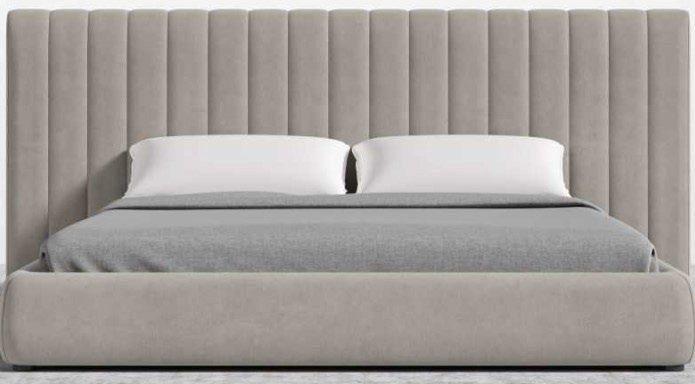

Furniture and Fixtures - Residential

Living

AERO CREAM LIMESTONE TILE

DINING, KITCHEN, AND LIVING

https://www.materialbank.com/tileb ar-aero-cream-limestone-tile-1835 407?itemListId=quick_view&itemLi stName=Quick%20View&index=1

BIOME EARTHEN LVP

DINING, KITCHEN, AND LIVING

https://www materialbank com/arm strong-flooring-earthen-1285589?it emListId=quick_view&itemListNam e=Quick%20View&index=1

SONORA HEIGHTS LVP

DINING, KITCHEN, AND LIVING

https://www.materialbank.com/urb an-surfaces-mission-bay-foundatio ns-vinyl-plank-flooring-2245014?a ctiveChild=1015503

DIANE LOUNGE CHAIR LIVING AREA

https://www.roveconcepts.com/dia ne-lounge-chair

MIA LOUNGE CHAIR LIVING AREA

https://www.roveconcepts.com/mia -lounge-chair

HADRIAN SOFA LIVING AREA

https://www.roveconcepts.com/ha drian-sofa

DANTE SOFA LIVING AREA

https://www.roveconcepts.com/da nte-sofa?aid[88]=1701

BERLIN BED BEDROOM

https://www.roveconcepts.com/ber lin-bed

CHLOE BED BEDROOM

https://www.roveconcepts.com/chl oe-bed

Furniture and Fixtures - Residential Materials

NATURAL OAK LVP

BEDROOM

https://www.materialbank.co m/parterre-ingrained-6-wide -plank-1546071?itemListId= quick_view&itemListName= Quick%20View&index=1

CHOWNING TAN

BEDROOM

https://www.materialbank.com/be njamin-moore-chownings-tan-cw195-794624?itemListId=quick_vie w&itemListName=Quick%20View &index=1

GAME CHANGER TWISTER CARPET

BEDROOM

https://www.materialbank.com/jj-flo oring-game-changer-kinetex-1551 739?itemListId=quick_view&itemLi stName=Quick+View&index=51&a ctiveChild=854628

KASURI HUSK CARPET

BEDROOM

https://www.materialbank.com/ef-c ontract-kasuri-2024380?itemListId =quick_view&itemListName=Quick %20View&index=1

HAVANA MAHOGANY LVP

BEDROOM

https://www.materialbank.com/part erre-ingrained-6-wide-plank-15460 71?itemListId=quick_view&itemLis tName=Quick%20View&index=1

LEATHER SADDLE BROWN BEDROOM

https://www.materialbank.com/be njamin-moore-leather-saddle-bro wn-2100-20-787294?itemListId=q uick_view&itemListName=Quick %20View&index=1

CARAMEL APPLE BEDROOM

https://www.materialbank.com/be njamin-moore-caramel-apple-cc-4 50-980051?itemListId=quick_vie w&itemListName=Quick%20View &index=1

HERITAGE GREIGE QUARTZ COUNTER KITCHEN

https://www.materialbank.com/be njamin-moore-caramel-apple-cc-4 50-980051?itemListId=quick_vie

w&itemListName=Quick%20View &index=1

BROWN KITCHEN CABINET AND DRAWER KITCHEN

https://cabinetstogo.com/collectio ns/gracious-home-custom-cabine try/products/ghcc-burbank-histori c

3 PERSPECTIVE SKETCHES FOR THE SENIOR

LIVING FACILITY

LOBBY

PERSPECTIVE

GRAND STAIRCASE

PERSPECTIVE

3 PERSPECTIVE SKETCHES FOR THE SENIOR

LIVING FACILITY (cont.d)

DINING AREA

PERSPECTIVE

Updated Schematic Floor Plan (1st)

I added the library/living/lounge to the back of the first floor while moving the conference room from the back to the front. For this ‘Balua Patthar’ concept, I also made sure that the hindu temple and mosque are added since my location is at Jaipur with a mix of Hindus and Muslims.

Updated Schematic Floor Plan (2nd) and Apartment

The dining area has maximum square footage it needs to seat a good number people wanting to eat breakfast, lunch, and dinner at their own leisure. However, the multipurpose room is a little bit smaller than the original 750 square feet listed for the program requirements. For the one-bedroom unit, the furniture placement gives the elderly more room to relax while improving the functionality of all living spaces.

ADA RESTROOM FIXTURES

ADA COMMERCIAL TOILET

• MANUFACTURER: KOHLER

• PRODUCT: Highcliff TM Ultra

• COLOR/FINISH: White

• DIMENSION:

▪ GLAZED TRAPWAY: 2 1/8”

▪ WATER SURFACE: 10” X 7”

▪ ROUGH-IN: 10” OR 12”

▪ 1.28 GPF

▪ https://www.kohler.com/en/products/commerc ial/shop-commercial-faucets/components-tou chless-single-hole-lavatory-faucet-with-kinesi s-sensor-technology-and-temperature-mixerac-powered-0-5-gpm-103m37-sana?skuId=1 03M37-SANA-CP

ADA COMMERCIAL FAUCET

• MANUFACTURER: KOHLER

• PRODUCT: Kinesis R

• COLOR/FINISH: Polished Chrome

• DIMENSION:

▪ SPOUT REACH: 6 5/8”

▪ 18” stainless steel braided flexible supply hose for easy installation

▪ https://www.kohler.com/en/products/commercial /shop-commercial-faucets/components-touchles s-single-hole-lavatory-faucet-with-kinesis-senso r-technology-and-temperature-mixer-ac-powere d-0-5-gpm-103m37-sana?skuId=103M37-SAN A-CP

ADA COMMERCIAL SINK

• MANUFACTURER: KOHLER

• PRODUCT: Morningside TM

• COLOR/FINISH: White

• DIMENSION: 20” x 27”

• https://www.kohler.com/en/products/commercial/sh op-commercial-lavatories-sinks/morningside-20-x27-wall-mount-concealed-arm-carrier-wheelchair-b athroom-sink-with-single-faucet-hole-12638?skuId =12638-0

ADA DOOR APPROACH

• MANUFACTURER: EMTEK

• PRODUCT: Emtek 8141 Stretto

Modern Rectangular Non-Keyed Passage

• SIZE: 2” W X 10” H

• FINISH: Satin Nickel

• Meets ADA Requirements

ADA VESTIBULE

VESTIBULE

• 18” MIN. FOR DOOR APPROACH

• 48” MIN. ACROSS 2 EGRESS DOORS

FLOORING

• MANUFACTURER: WALKER ZANGER

• PRODUCT: BARCELONA SAND MATTE

• USE FOR COMMERCIAL DESIGN: INTERIOR

ADA RESTROOMS

ADA RECEPTION DESK

RECEPTION DESK:

• WILL BE 34” HIGH WITH A 36” WIDE OPENING OVERHANG COUNTER FOR THE DISABLED

Finalized First Floor Plan

Admissions Director Women’s Restroom

Reception

Men’s Restroom

Admissions Assistant

Finalized First Floor Plan

Finalized Second Floor Plan

Multipurpose Room

Activity Director and Staff Activity Storage

Women’s Restroom

Men’s Restroom Kitchen

SCALE: 1/8” = 1’ - O”

Housekeeping

Dining

Finalized Apartment Layout

Apartment

kitchenette

Elevation

SCALE: 1/8” = 1’ - O”

Ceiling Plan Lobby / Reception / Grand Stair

OXFORD CEILING TILE

RECEPTION AND LOBBY

https://www materialbank com/ceilume-oxford-c eiling-tile-1581972?itemListId=quick_view&item ListName=Quick%20View&index=1

OE QUASI LIGHT (ALUMINUM PENDANT LAMP)

RECEPTION

https://www archiproducts com/en/products/loui s-poulsen/led-polycarbonate-and-aluminium-pe ndant-lamp-oe-quasi-light_397934

TRYBECA CEILING LAMP LOBBY

https://www.archiproducts.com/en/products/reg giani/led-ceiling-lamp-trybeca-ceiling-lamp_400 751

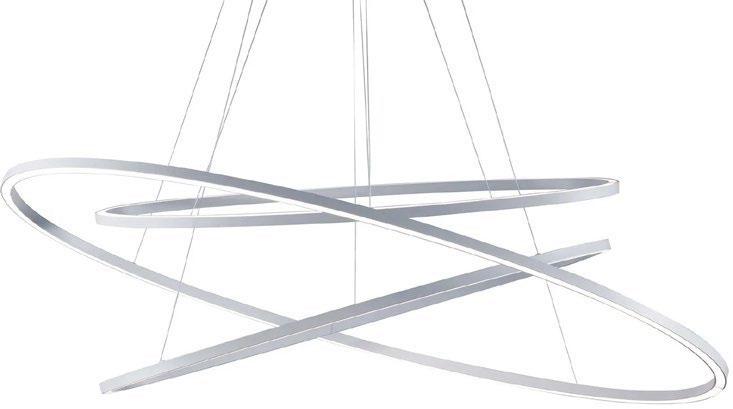

ELLISSE TRIPLE PENDANT LAMP LOBBY

https://www.archiproducts.com/en/products/ne mo/led-extruded-aluminium-pendant-lamp-elliss e-triple-pendant-lamp_412480

Ceiling Plan Library

TRYBECA CEILING LAMP

LIBRARY

https://www.archiproducts.com/en/products/reg giani/led-ceiling-lamp-trybeca-ceiling-lamp_400 751

OXFORD CEILING TILE

LIBRARY

https://www materialbank com/ceilume-oxford-c eiling-tile-1581972?itemListId=quick_view&item ListName=Quick%20View&index=1

INFINITY PENDANT LAMP

LIBRARY

https://www.archiproducts.com/en/products/pan /led-pendant-lamp-infinity_615515

Lobby / Grand Staircase / Reception

OE QUASI LIGHT (ALUMINUM PENDANT LAMP)

RECEPTION

https://www.archiproducts.co m/en/products/louis-poulsen /led-polycarbonate-and-alum inium-pendant-lamp-oe-qua si-light_397934

TRYBECA CEILING LAMP

LOBBY

https://www.archiproducts.com/en/products/reg giani/led-ceiling-lamp-trybeca-ceiling-lamp_400 751

BIOME EARTHEN LVP LOBBY

ELLISSE

LOBBY

TRIPLE PENDANT LAMP

https://www.archiproducts.com/en/products/ne mo/led-extruded-aluminium-pendant-lamp-elliss e-triple-pendant-lamp_412480

https://www.materialbank.com/armstrong -flooring-earthen-1285589?itemListId=q uick_view&itemListName=Quick%20Vie w&index=1

INDY FABRIC SOFA

LOBBY

https://www.bernhardt.com/shop/N8827?positio n=-1

CHOWNING TAN LOBBY

https://www.materialbank.com/benjami n-moore-chownings-tan-cw-195-79462 4?itemListId=quick_view&itemListNam e=Quick%20View&index=1

VERSAILLES

PINK UPHOLSTERY (SOFAS) LOBBY

https://www.materialbank.com/kravet-c ontract-versailles-644307?itemListId=q uick_view&itemListName=Quick+View &index=1&activeChild=273144

LEIA COFFEE TABLE

LOBBY

https://www.roveconcepts.com/leia-coffee-table ?aid[2]=1179&aid[82]=918

Elevation Library

NEWSON TASK CHAIR LIBRARY

https://www.knoll.com/shop/en_us/home-of fice-ergonomic-work-chairs/newson-task-c hair/2561720 html

ANTENNA DESK WITH STORAGE LIBRARY

https://www.knoll.com/shop/en_us/home-of fice-desks-tables/antenna-desk-with-storag e/100561400 html?sku=100561400

ANTENNA DESK (BLACK WALNUT WOODEN FINISH)

LIBRARY

https://www materialbank com/stockton-her itage-wood-finish-1773308?activeChild=89 4189&itemListId=mini_pdp&itemListName =Mini+PDP

BIOME EARTHEN LVP LIBRARY

https://www.materialbank.com/armstrong-flo oring-earthen-1285589?itemListId=quick_vi ew&itemListName=Quick%20View&index=1

WOMB CHAIR LIBRARY

https://www.knoll.com/shop/en_us/living-lo unge-chairs/womb-chair/671620.html?sku =671620

CHOWNING TAN LIBRARY

https://www materialbank com/benjamin-m oore-chownings-tan-cw-195-794624?itemL istId=quick_view&itemListName=Quick%2 0View&index=1

WOMB CHAIR CRIMSON FABRIC LIBRARY

https://www.knoll.com/shop/en_us/living-lo unge-chairs/womb-chair/671620.html?sku =671620

INFINITY PENDANT LAMP

LIBRARY

https://www.archiproducts.com/en/products/pan /led-pendant-lamp-infinity_615515

Elevation

Kitchenette

SCALE: 1/2” = 1’ - 0”

HERITAGE GREIGE QUARTZ COUNTER KITCHENETTE

https://www.materialbank.com/benjami n-moore-caramel-apple-cc-450-980051

?itemListId=quick_view&itemListName =Quick%20View&index=1

BIOME EARTHEN LVP KITCHENETTE

https://www.materialbank.com/armstrong-flo oring-earthen-1285589?itemListId=quick_vi ew&itemListName=Quick%20View&index=1

CHOWNING TAN KITCHENETTE

https://www.materialbank.com/benjamin-m oore-chownings-tan-cw-195-794624?itemL istId=quick_view&itemListName=Quick%2 0View&index=1

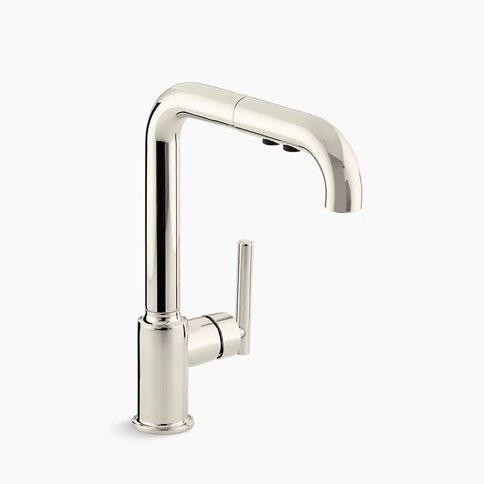

PURIST VIBRANT POLISHED NICKEL PULL-OUT KITCHEN SINK FAUCET KITCHENETTE

https://www.kohler.com/en/products/kitc hen-faucets/shop-kitchen-faucets/purist -pull-out-kitchen-sink-faucet-w-three-fu nction-sprayhead-7505?skuId=7505-S N

DESIGN DEVELOPMENT COMPONENTS

LOBBY AND RECEPTION

Furniture

LEIA COFFEE TABLE

LOBBY

https://www.roveconcepts.com/leia-coffee-table ?aid[2]=1179&aid[82]=918

INDY FABRIC SOFA RECEPTION

https://www.bernhardt.com/shop/N8827?positio n=-1

ROOSEVELT RECEPTION DESK

RECEPTION

https://www.kimballinternational.com/product/ro osevelt.html

Ceiling Fixtures

OXFORD CEILING TILE

LOBBY AND RECEPTION

https://www.materialbank.com/ceilume-oxford-c eiling-tile-1581972?itemListId=quick_view&item ListName=Quick%20View&index=1

Textiles and Materials

BIOME EARTHEN LVP

LOBBY AND RECEPTION

https://www.materialbank.com/armstrong -flooring-earthen-1285589?itemListId=q uick_view&itemListName=Quick%20Vie w&index=1

CHOWNING TAN

RECEPTION AND LOBBY

https://www.materialbank.com/benjami n-moore-chownings-tan-cw-195-79462

4?itemListId=quick_view&itemListNam e=Quick%20View&index=1

VERSAILLES PINK UPHOLSTERY (SOFAS)

RECEPTION AND LOBBY

https://www.materialbank.com/benjami n-moore-chownings-tan-cw-195-79462

4?itemListId=quick_view&itemListNam e=Quick%20View&index=1

ROOSEVELT RECEPTION DESK (AMBER WOODGRAIN COLOR) RECEPTION

https://www.kimballinternational.com/mate rial-library/woodgrain-amber-mc.html

DESIGN DEVELOPMENT COMPONENTS

LOBBY AND RECEPTION

DESIGN DEVELOPMENT COMPONENTS

LOBBY AND RECEPTION

Lobby Rendering

This perspective rendering from the peron’s viewpoint demonstrates the first impression when they walk into a senior living facility. Also, the grand staircase becomes the center-of-attention for welcoming guests into the reception and lobby area so that they can make themselves comfortable without thinking that seniors are left alone with no assistance and required support from the nursing staff.

DESIGN DEVELOPMENT COMPONENTS

LIBRARY

WOMB CHAIR LIBRARY

https://www knoll com/shop/en_us/livinglounge-chairs/womb-chair/671620 html? sku=671620

Ceiling Fixtures

OXFORD CEILING TILE LIBRARY

https://www materialbank com/ceilume-oxford-c eiling-tile-1581972?itemListId=quick_view&item ListName=Quick%20View&index=1

Furniture

NEWSON TASK CHAIR LIBRARY

https://www.knoll.com/shop/en_us/lhome -office-ergonomic-work-chairs/newson-ta sk-chair/2561720.html

ANTENNA DESK WITH STORAGE

LIBRARY

https://www.knoll.com/shop/en_us/lhome -office-desks-tables/antenna-desk-with-s torage/100561400.html?ske=100561400

Textiles and Materials

CHOWNING TAN LIBRARY

https://www materialbank com/benjami n-moore-chownings-tan-cw-195-79462 4?itemListId=quick_view&itemListNam e=Quick%20View&index=1

BIOME EARTHEN LVP LIBRARY

https://www.materialbank.com/armstrong -flooring-earthen-1285589?itemListId=q uick_view&itemListName=Quick%20Vie w&index=1

WOMB CHAIR CRIMSON FABRIC LIBRARY

https://www.knoll.com/shop/en_us/livinglounge-chairs/womb-chair/671620.html? sku=671620

ANTENNA DESK (BLACK WALNUT WOODEN FINISH)

LIBRARY

https://www materialbank com/stocktonheritage-wood-finish-1773308?activeChi ld=894189&itemListld=mini_pdp&itemLis tName=Mini+PDP

DESIGN DEVELOPMENT COMPONENTS

DESIGN DEVELOPMENT COMPONENTS

Library Rendering

The rendering of the library gives a perspective of seniors doing indoor activities that help them have fun and be treated with motivation and happiness in a safe, welcoming environment.

Level #1 Revised Floor Plan

w/Redline Feedback

Level #2 Revised Floor Plan

w/Redline Feedback

Kitchenette View of Outside Daytime Scene

Lobby and Reception Daytime Scene

Kitchenette View of Outside Nighttime Scene

Library Nighttime Scene

Library Daytime Scene

Lobby and Reception Nighttime Scene

THANK YOU!!!!!!!

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
