NINTENDO

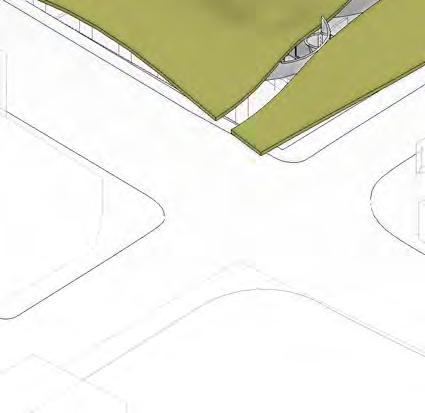

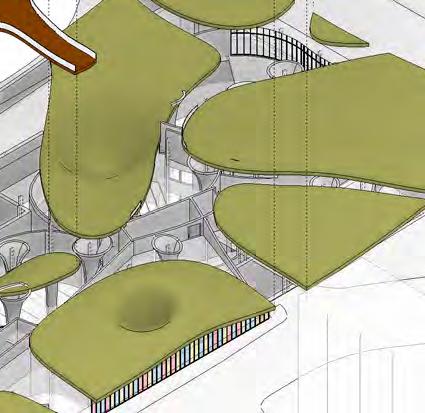

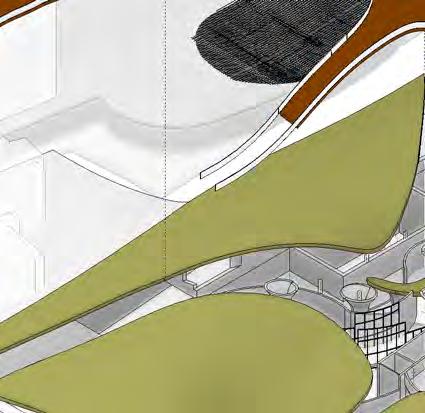

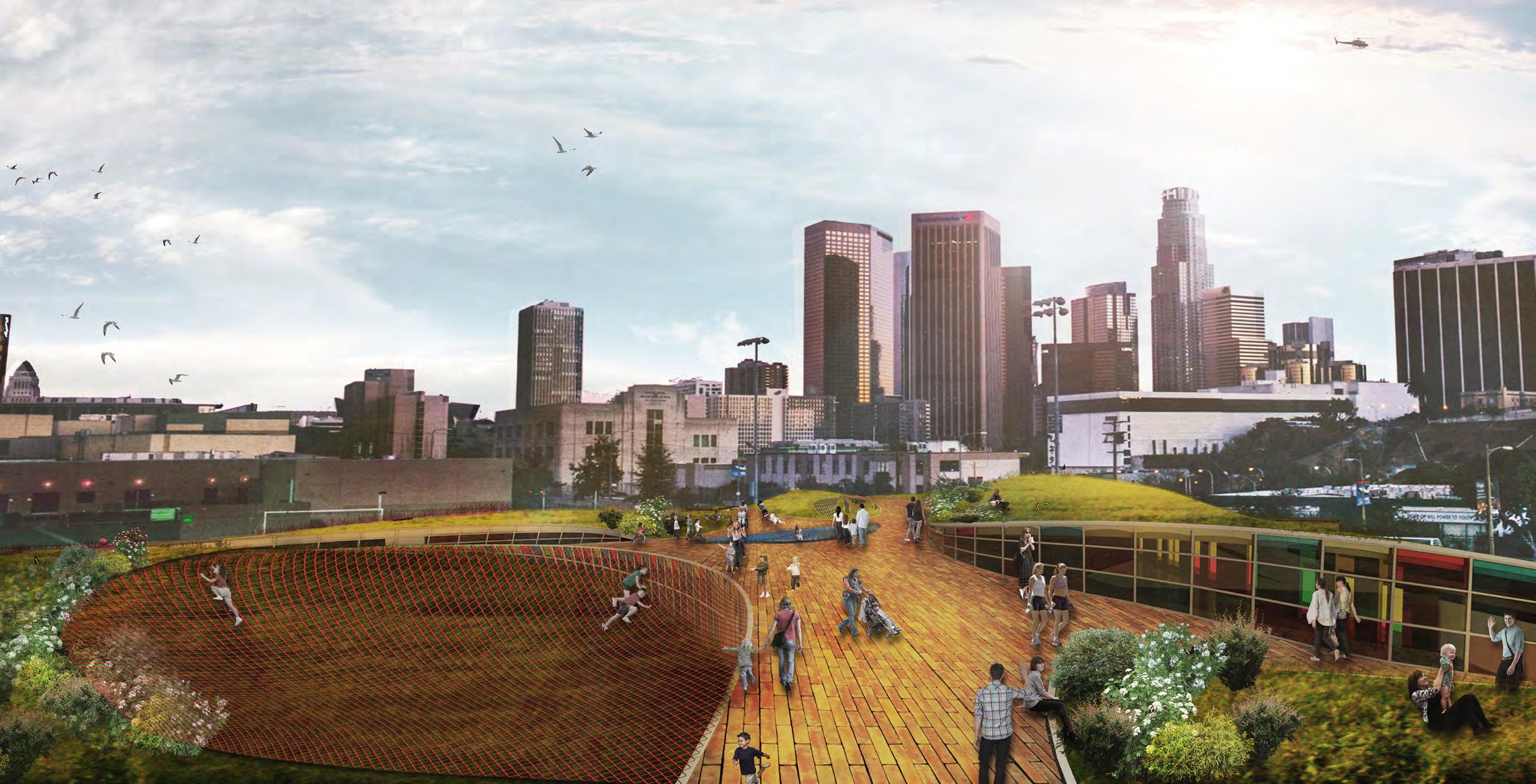

open walkway & green roof
PLAN ROOF LEVEL
lobby, cafe, small retail, exhibition, large retail exhibition, auditorium, game testing, caves
PLAN GROUND LEVEL
PLAN LEVEL -1
servers, auditorium, private game testing, caves, marketing offices, staff lounge
PLAN LEVEL -2
parking garage & mechanical room
PLAN LEVEL -3
FLOOR TO RETAINING WALL CONNECTION
RETAINING WALL TO EARTH CONNECTION
COLUMN DETAIL
GREEN ROOF- COLUMN DRAINAGE & STRUCTURE DETAIL
GREEN ROOF- COLUMN DRAINAGE & STRUCTURE DETAIL
ROOF DRAIN
METAL FLASHING
WATERPROOFING MEMBRANE
GRAVEL
8” SOIL
RESERVOIR LAYER WITH AGGREGATE MOISTURE RETENTION LAYER
AERATION LAYER
INSULATION 5”
DRAINAGE LAYER
ROOT BARRIER
WATERPROOFING MEMBRANE
COLUMN- FLOOR PLATE STRUCTURE & CONNECTION DETAIL
STEEL REBAR
POURED ON SITE CONCRETE
DRAINAGE PIPE
STRUCTURAL STEEL COLUMN
RAINWATER DRAINAGE THROUGH COLUMN STRUCTURE
COLUMN- FOUNDATION STRUCTURE & CONNECTION DETAIL
GREEN ROOF- COLUMN DRAINAGE & STRUCTURE DETAIL
COLUMN- FLOOR PLATE STRUCTURE & CONNECTION DETAIL
STEEL REBAR
COLUMN- FLOOR PLATE STRUCTURE & CONNECTION DETAIL
RAINWATER DRAINAGE THROUGH COLUMN STRUCTURE
COLUMN- FOUNDATION STRUCTURE & CONNECTION DETAIL
CORRUGATED STEEL DECKING
COMPOSITE CONCRETE SLAB STEEL BOLT CONNECTION WITH THE STEEL COLUMN
STEEL TRUSS STRUCTURE
GREEN ROOF- COLUMN DRAINAGE & STRUCTURE DETAIL
COLUMN- FLOOR PLATE STRUCTURE & CONNECTION DETAIL
RAINWATER DRAINAGE THROUGH COLUMN STRUCTURE
COLUMN- FOUNDATION STRUCTURE & CONNECTION DETAIL
COLUMN- FOUNDATION STRUCTURE & CONNECTION DETAIL
STEEL REBAR
WATER DRAINAGE PIPE
STEEL BASE PLATE
STEEL ANCHOR RODS
WATER DRAINAGE COLLECTION
STEEL REINFORCEMENT
POURED CONCRETE FOOTING
12” GREEN ROOF
8” CAST IN PLACE CONCRETE ROOFING
STRUCTURAL STEEL COLUMN
POURED IN PLACE CONCRETE COLUMN WITH STEEL REBAR
COMPOSITE SLAB ON METAL DECKING

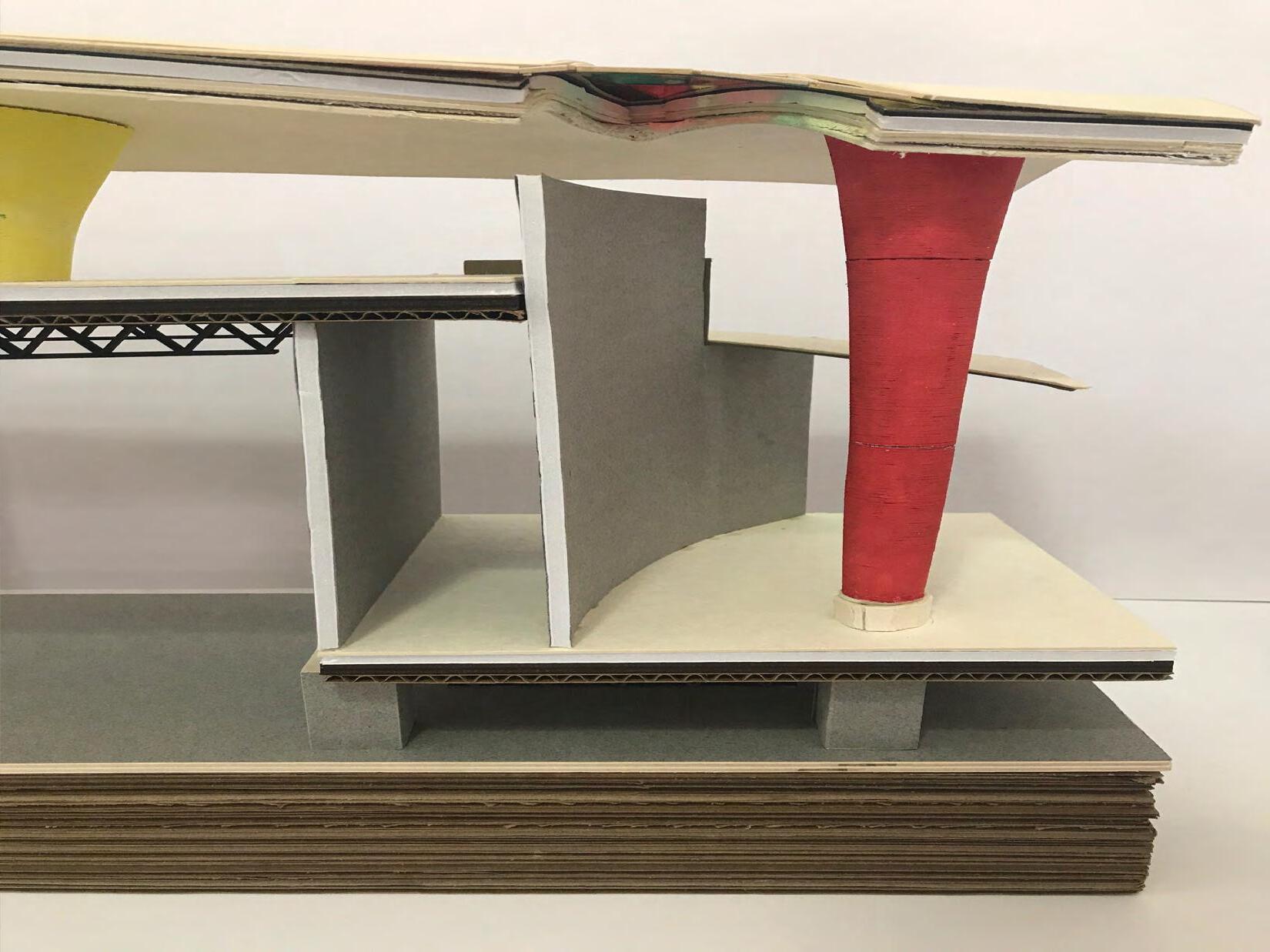

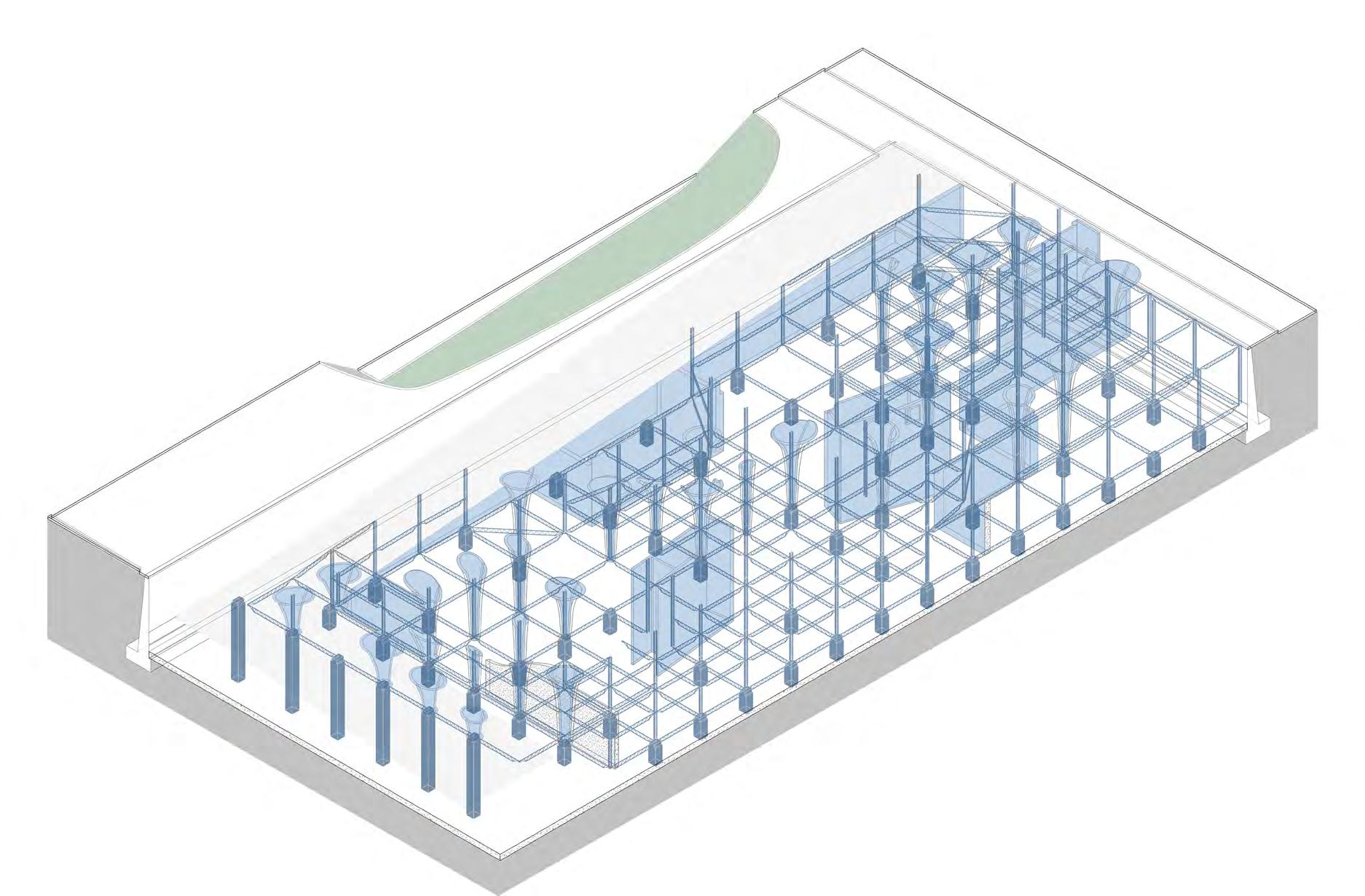

STEEL TRUSS STRUCTURE WITH CONCRETE COLUMN AND FOUNDATION
Cast-in-place Concrete
Rigid Insulation
Gravel Backfill (For Water Drainage)
Steel Anchor Rod
Steel Base Plate
Steel Reinforcement
Min 2” Cover
Gravel Backfill (Drainage Layer)
Compacted Backfill
2” Weephole
Min 2” Cover
Perforated Drainpipe
Sloped to drain away from the Wall
Copper FLashing
Gutter for Water Drainage
Steel Base Plate
Steel Anchors
Min 3” Cover
Key to Prevent Sliding
