111 Main + 95 State at City Creek, Salt Lake City, UT

Hardik Udani, AIA, LEED AP PORTFOLIO - SELECT PROJECTS 1.

111 MAIN, SALT LAKE CITY, UT (TYPE: OFFICE)

2.

95 STATE AT CITY CREEK & SOCIAL HALL PAVILION, SALT LAKE CITY, UT ( TYPE: MIXED USE- OFFICE, CULTURAL & RETAIL)

3.

AMERICAN BUDDHIST CULTURAL SOCIETY (ABCS) TEMPLE, SAN FRANCISCO, CA (TYPE: CULTURAL AND RESIDENTIAL)

4.

5.

INFINITE 101 & 131, SOUTH SAN FRANCISCO, CA. (TYPE: LIFE SCIENCESR&D/OFFICE, PARKING & AMENITY FITNESS CENTER, CONFERENCE, RESTAURANT)

1 4

2

1

5

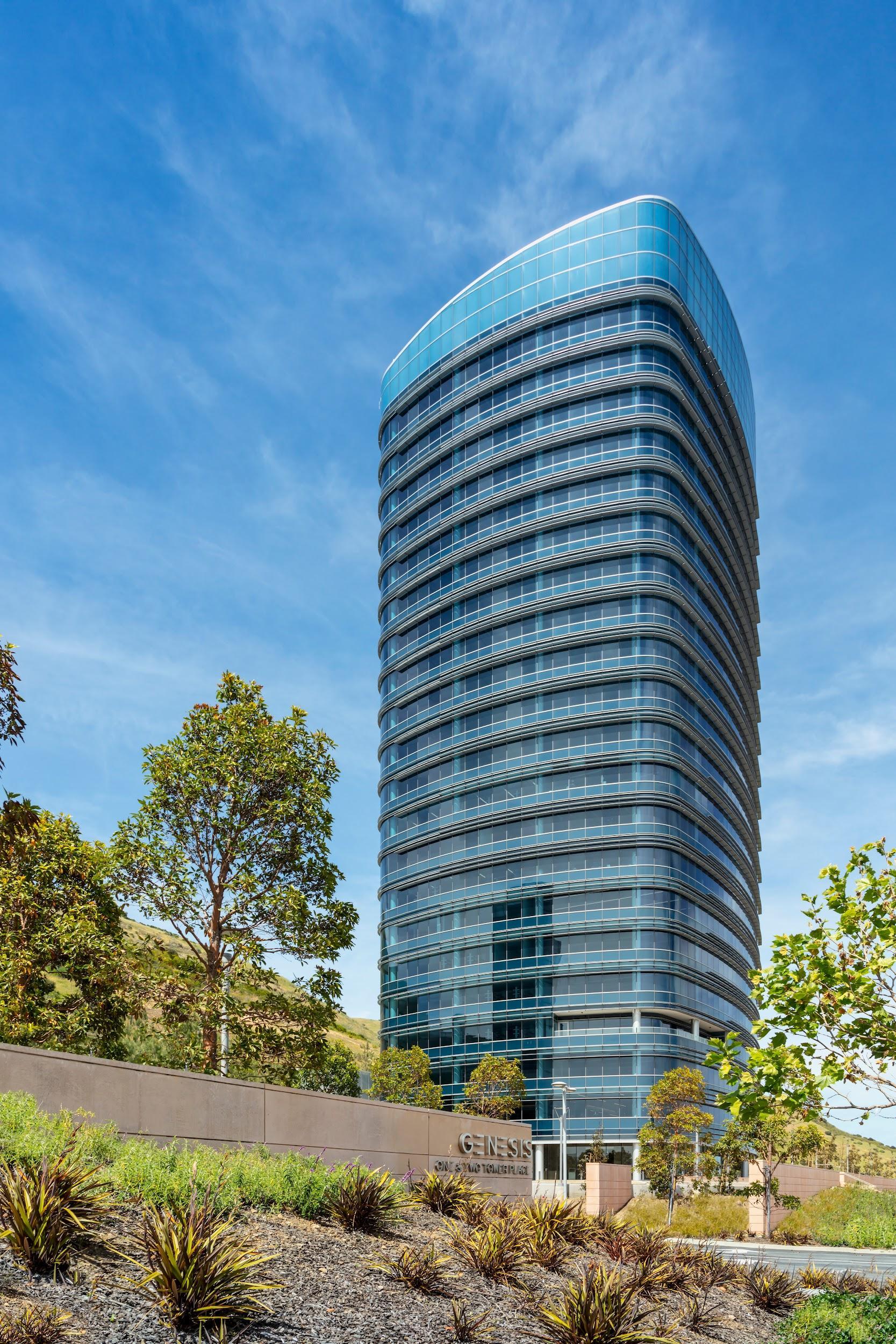

GENESIS NORTH TOWER AND GARAGE, SOUTH SAN FRANCISCO, CA (TYPE: LIFE SCIENCES- R&D/OFFICE AND AMENITIESFITNESS CENTER & CONFERENCE`

3

4

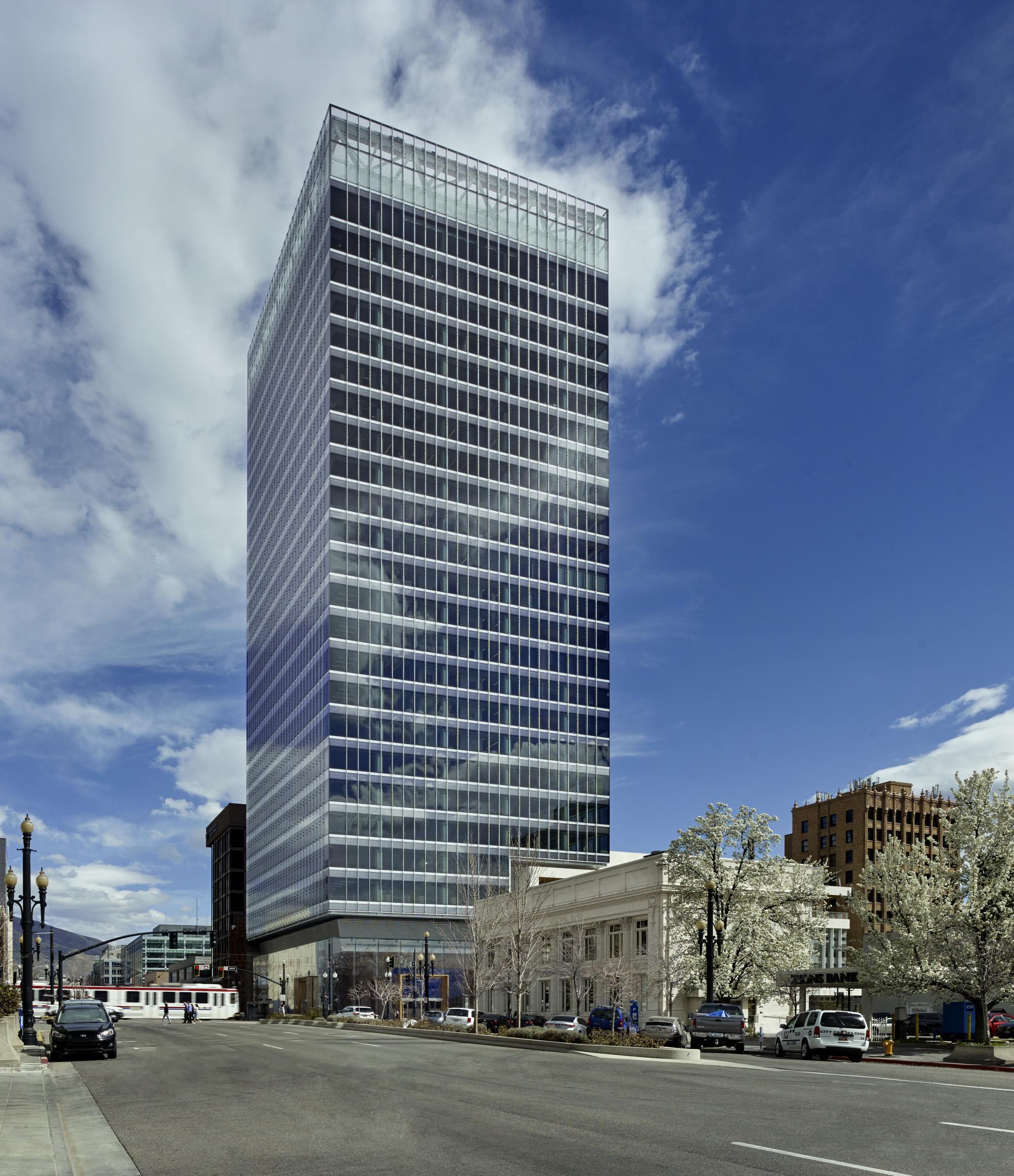

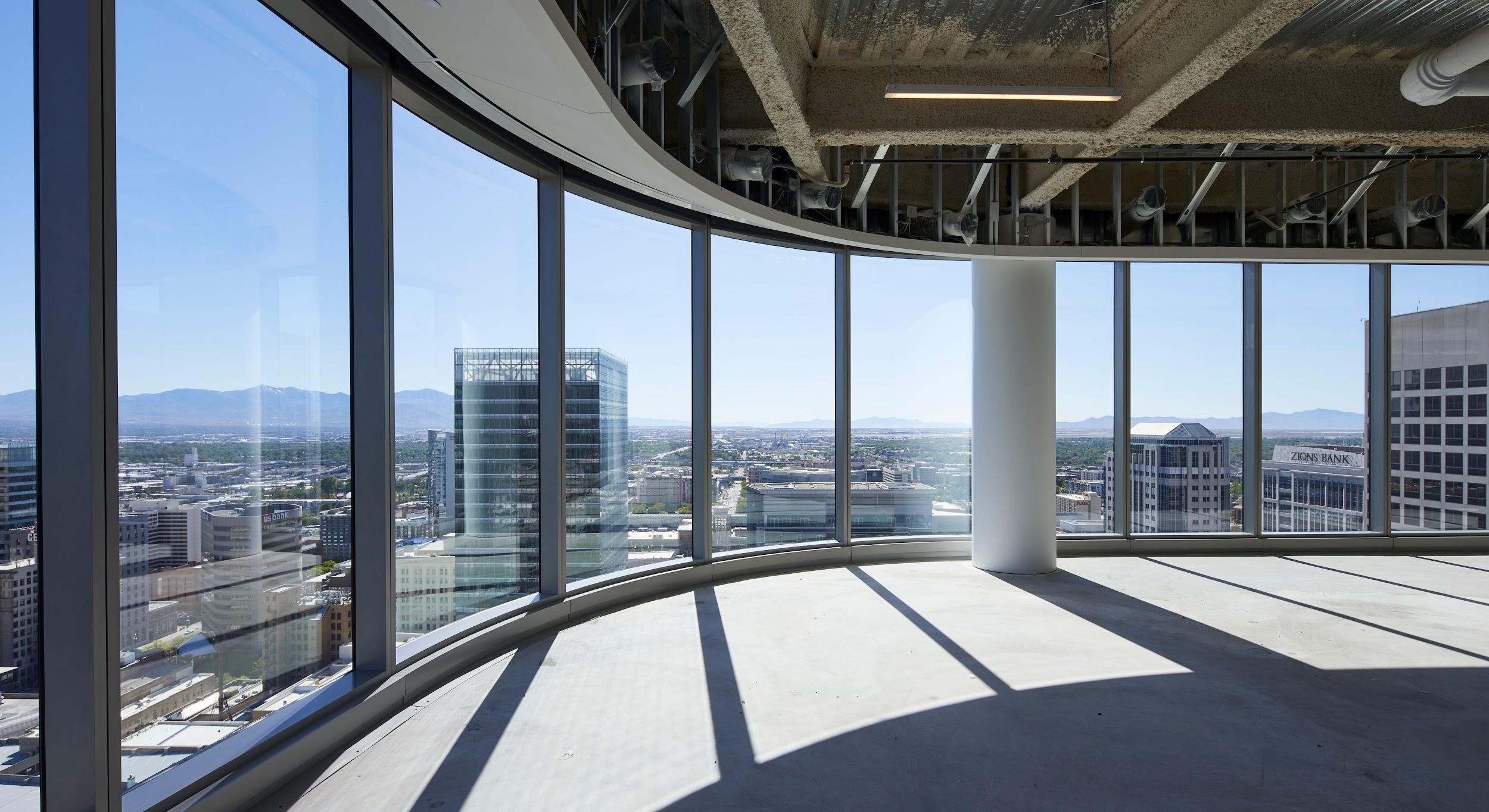

111 MAIN SALT LAKE CITY, UTAH TOWER METRICS PROGRAM NUMBER OF FLOORS BUILDING HEIGHT

OFFICE 24

TYPICAL FLOOR AREA OFFICE AREA GROSS BUILDING AREA

20,925 GSF 447,000 GSF 512,700 GSF

STATUS

COMPLETED 2017

387’-0”

PROJECT TEAM SOM: CRAIG HARTMAN KEITH BOSWELL STEVE SOBEL BRIAN MULDER HARDIK UDANI LISA FOLLMAN FRANCESCA OLIVEIRA GARY HE ALEXANDRA BARRETT MARK SARKISIAN,SE PETER LEE,SE ALWIN TSUI, SE GENERAL CONTRACTOR CURTAIN WALL CONTRACTOR STOREFRONT ENGINEER

OKLAND CONSTRUCTION STEEL ENCOUNTERS ECKERSLEY O’CALLAGHAN

E100 SOUTH

NEW ECCLES THEATER

E200 SOUTH

STATE STREET

MAIN STREET

111 MAIN

111 MAIN (TOWER)

PROPERTY LINE, EXTENT OF BUILDING L1-L4

EXTENT OF TOWER ABOVE

NEW ECCLES THEATER

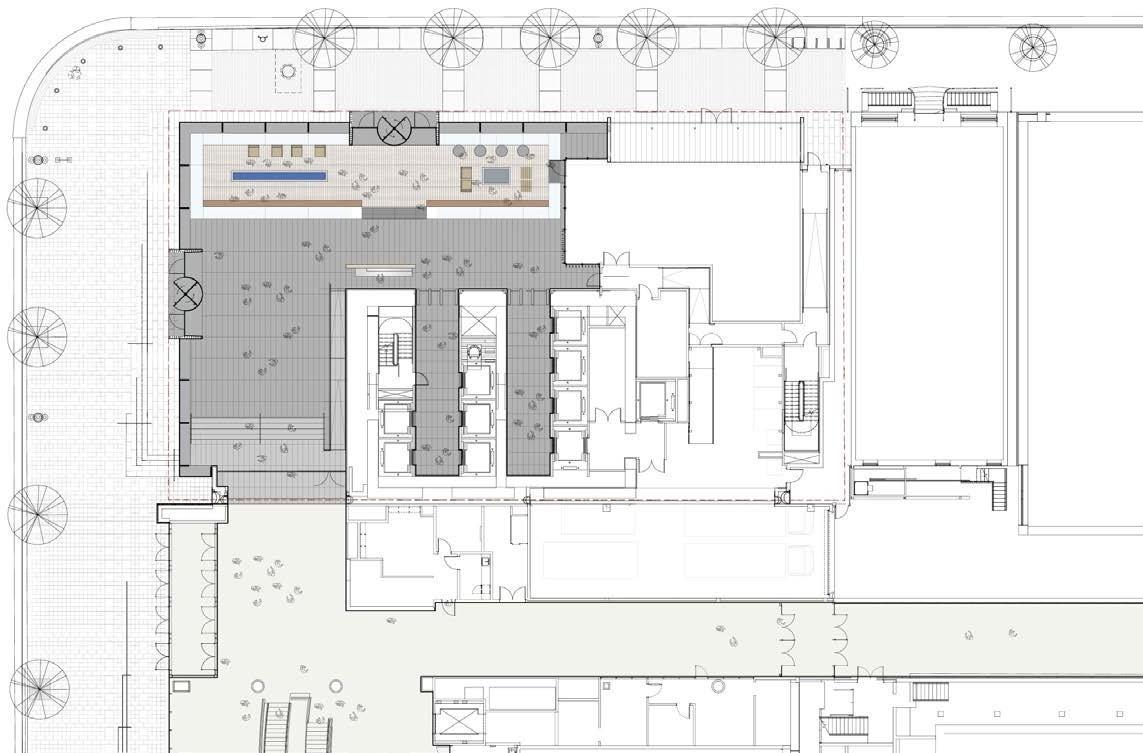

GROUND FLOOR PLAN

PROJECT 111 MAIN NAME OR PHASE SKIDMORE, SKIDMORE, OWINGS OWINGS & & MERRILL MERRILL LLP LLP

111 MAIN SKIDMORE, OWINGS & MERRILL LLP

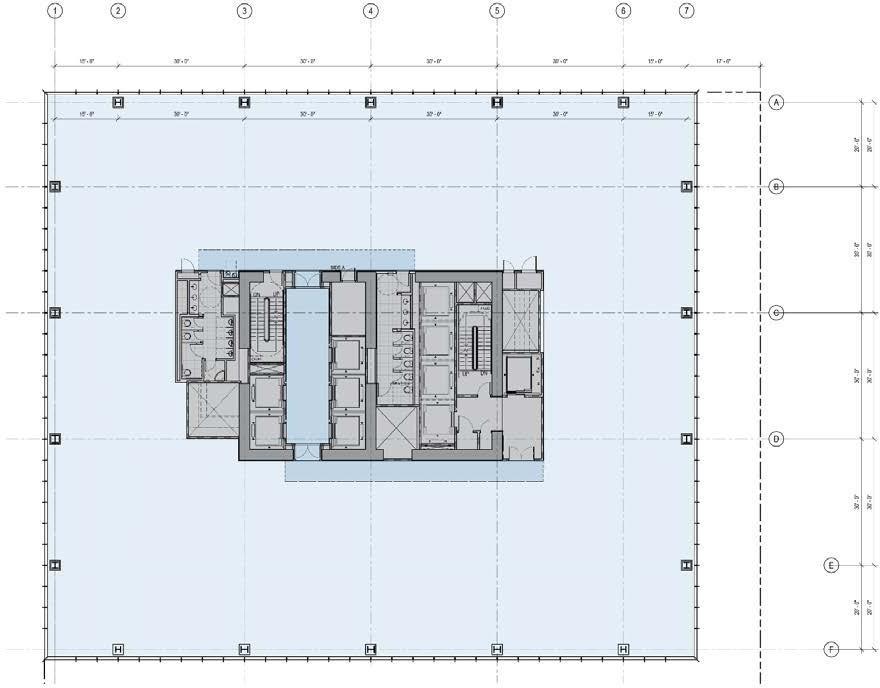

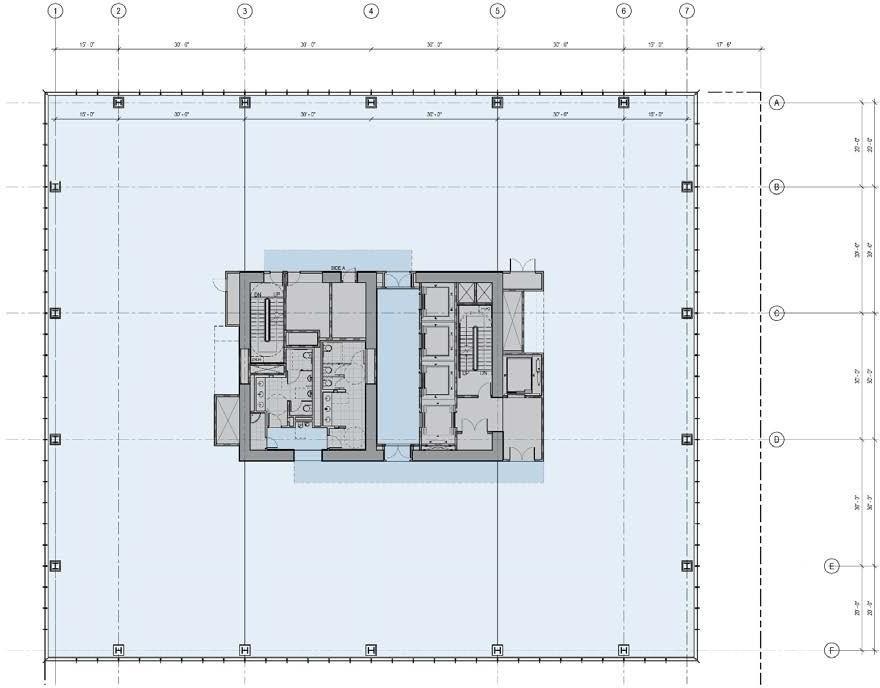

TYPICAL LOW-RISE LEVELS 05-15

155’-0” 15’

30’

Gross Measured: 20,875 sf Floor Rentable: 18,825 sf

20’

42’-6” 30’

33’-0”

36’-6” 135’-0””

47’-3”

111 MAIN SKIDMORE, OWINGS & MERRILL LLP

155’-0”

TYPICAL HIGH-RISE LEVELS 18-24

15’

30’

Gross Measured: 20,875 sf Floor Rentable: 19,500 sf

20’

42’-6” 30’

40’-0”

36’-6” 135’-0””

47’-3”

111 MAIN SKIDMORE, OWINGS & MERRILL LLP

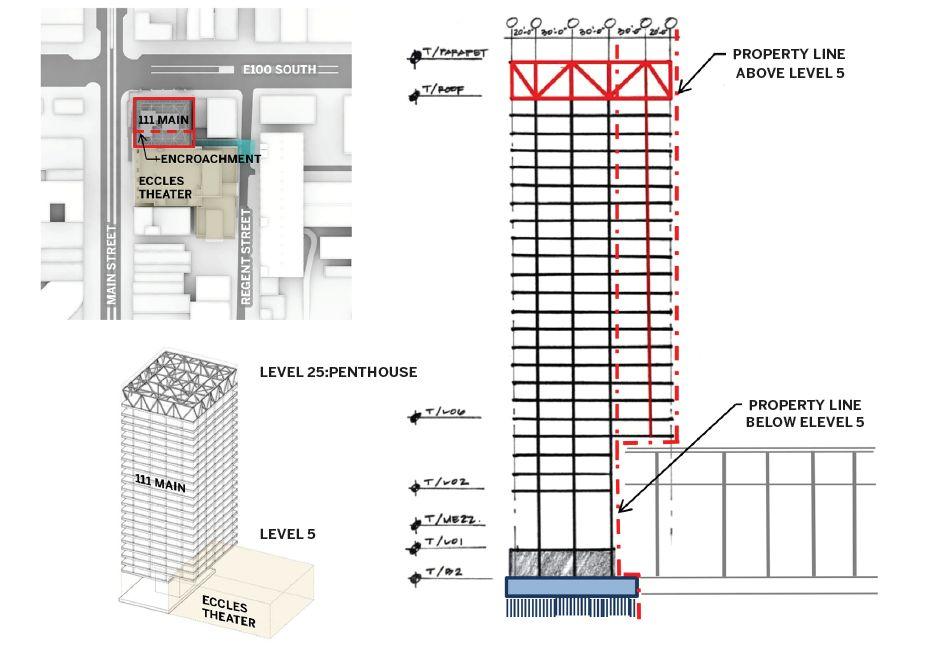

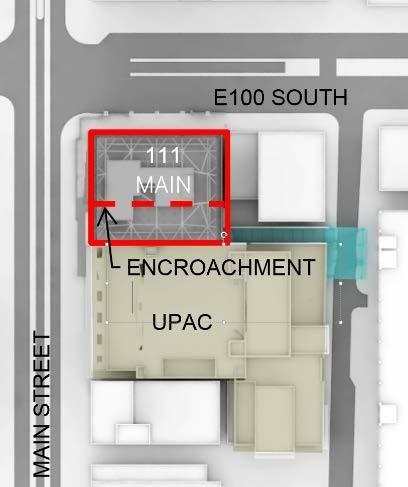

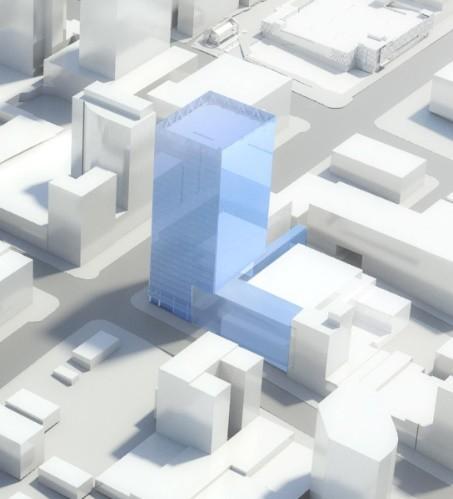

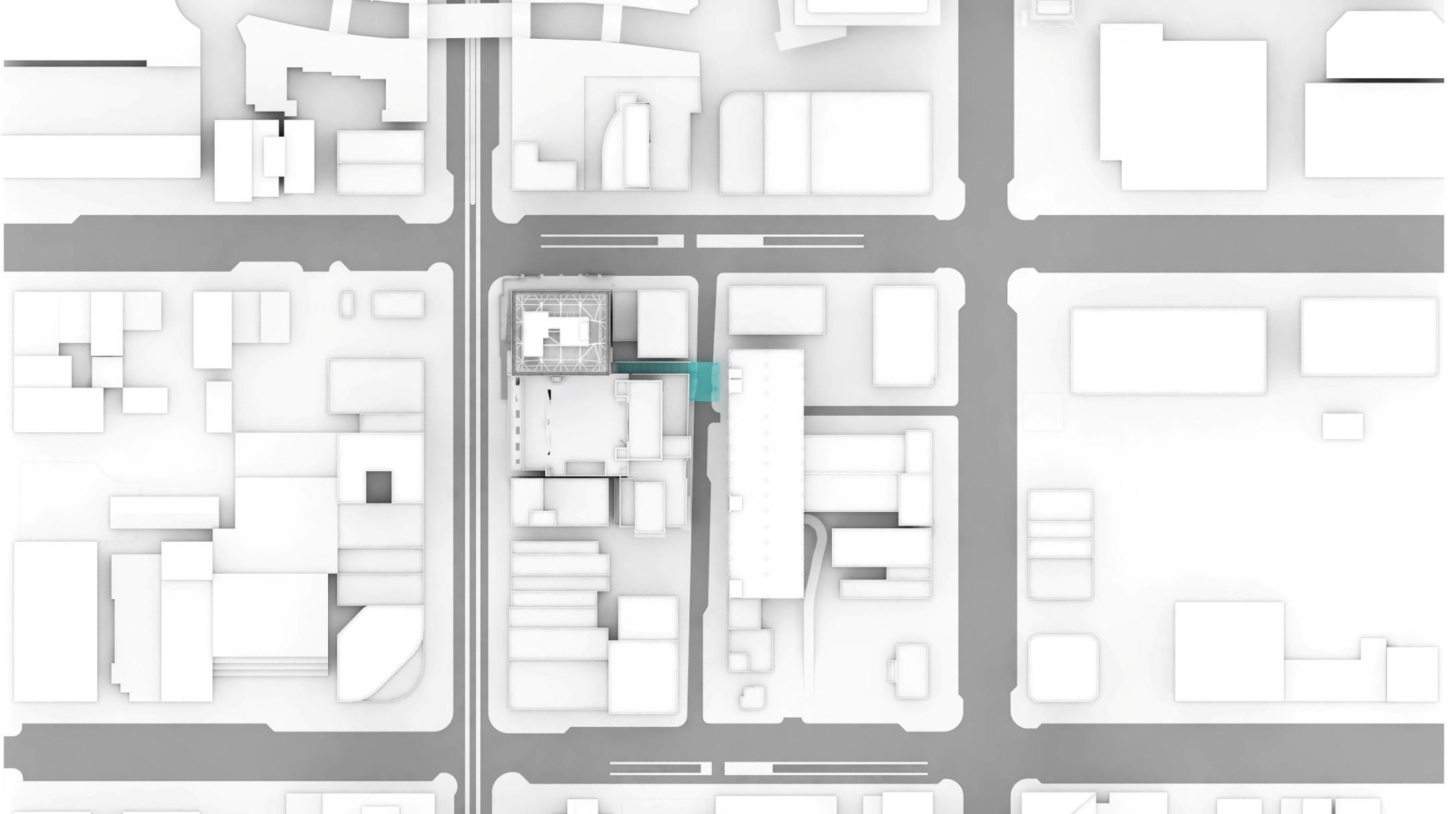

PROJECT SITE AND PROPERTY LINE

Air Easement above Level 5

Property Line

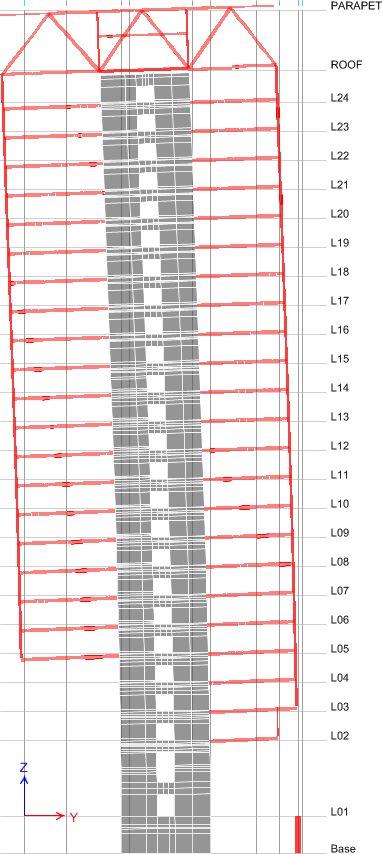

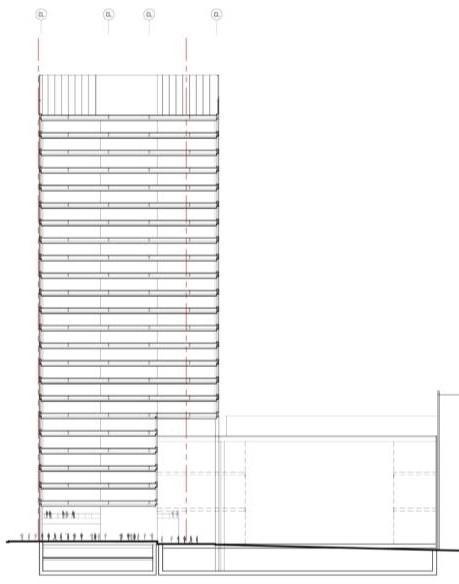

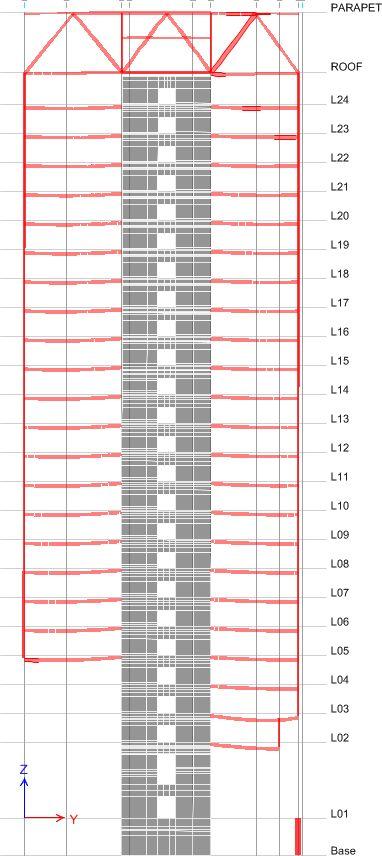

West Structural Elevation 111 MAIN SKIDMORE, OWINGS & MERRILL LLP

111 S Main Tower

111 S Main Tower

UPAC

THEATER MAIN ENTRY

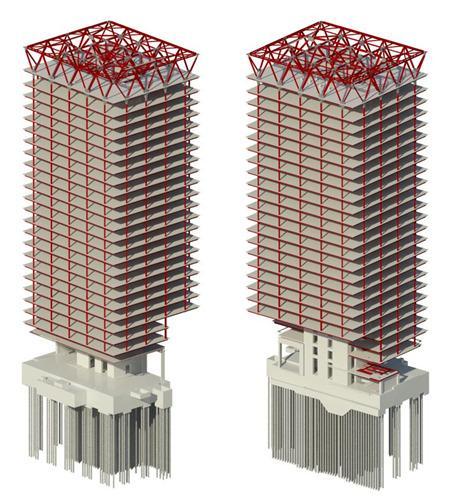

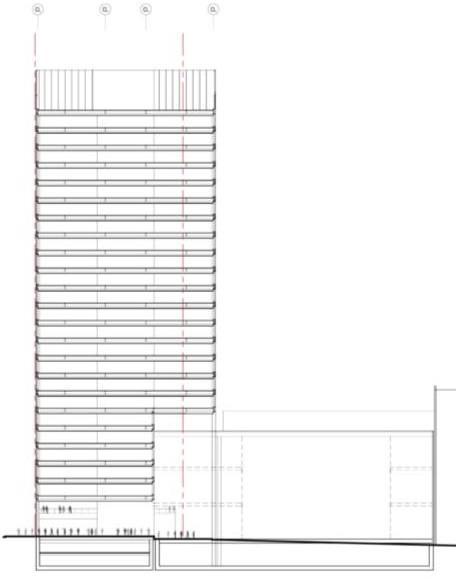

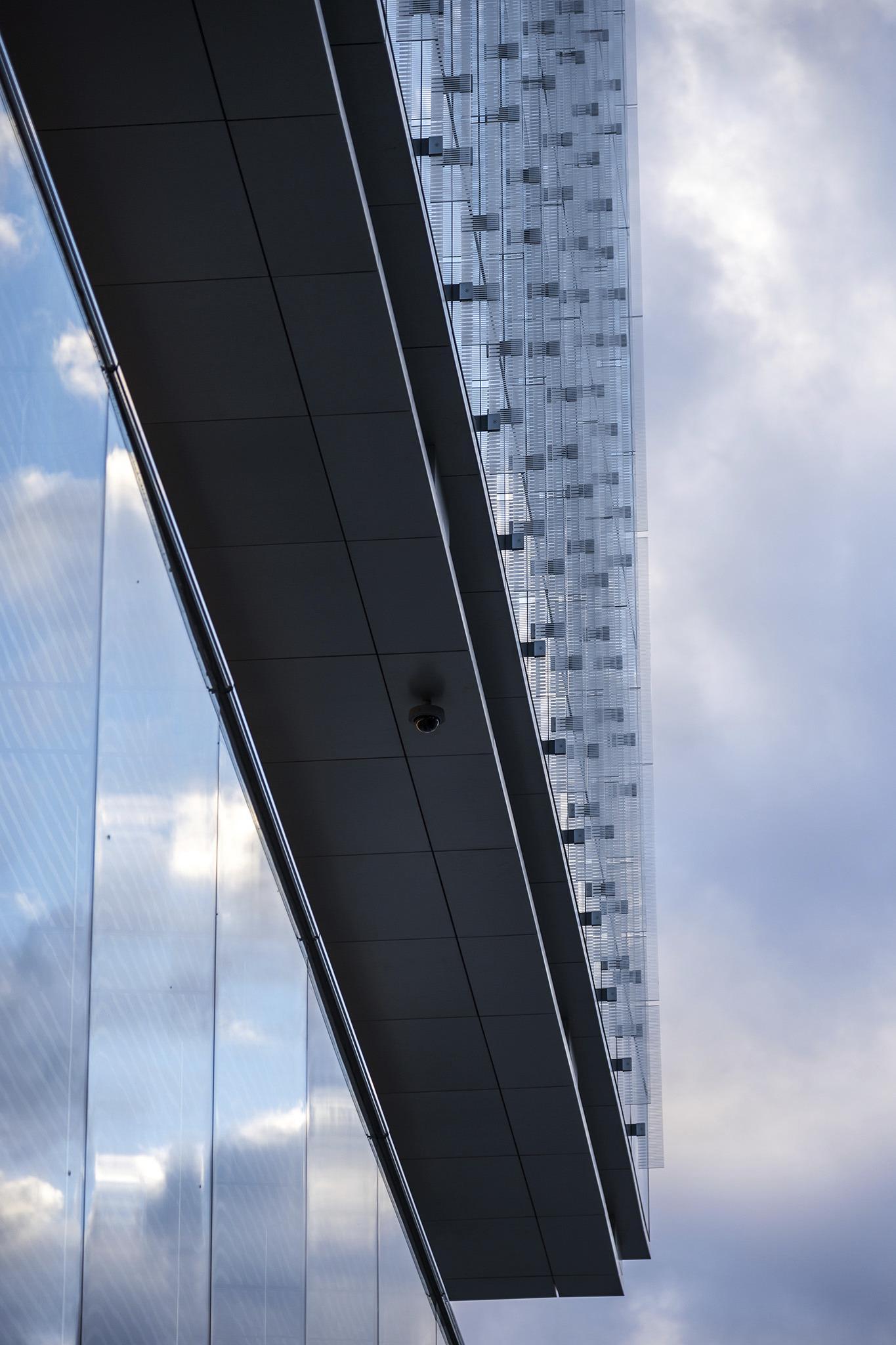

SCHEME A • PERIMETER MOMENT FRAME WITH TRANSFER OVER WINTERGARDEN • TOWER SOUTH COLUMNS EXTEND TO BASEMENT

111 S Main Tower

UPAC

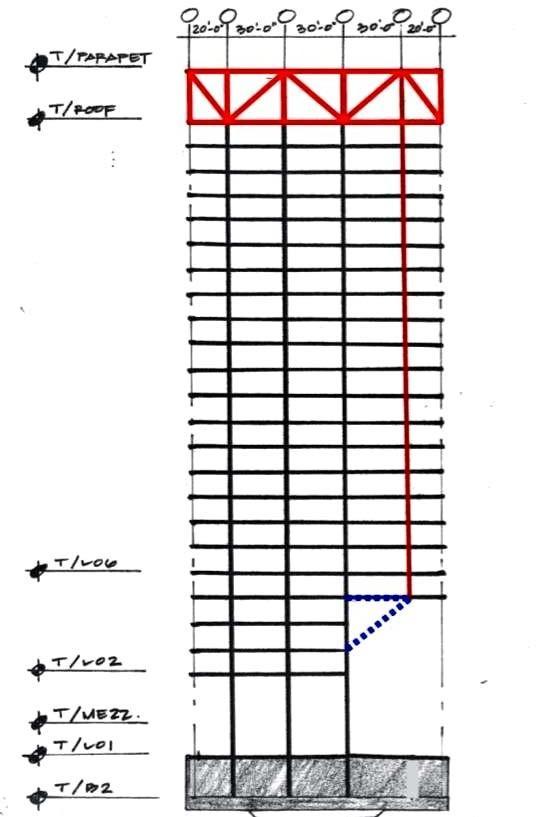

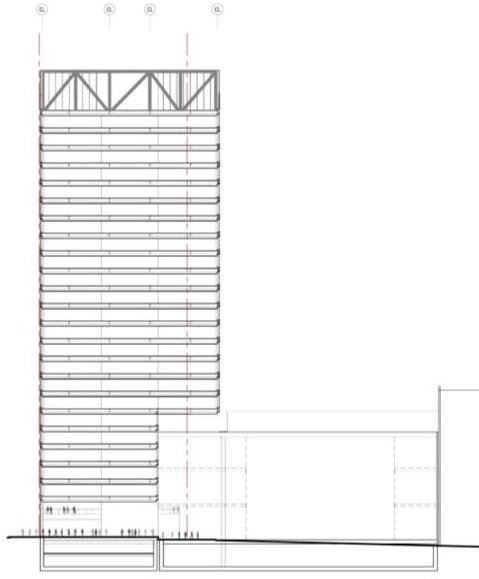

SCHEME B • COMPOSITE STRUCTURAL SYSTEM • TOWER SOUTH COLUMNS HUNG FROM ROOF TOP TRUSS

UPAC

SCHEME C • ALL CONCRETE SHEAR WALL CORE WITH MOMENT FRAME AND GRAVITY BEAMS • TOWER SOUTH COLUMNS EXTEND TO BASEMENT

111 MAIN SKIDMORE, OWINGS & MERRILL LLP

STRUCTURAL ALTERNATIVES STUDIED FOR RESOLVING CANTILEVER

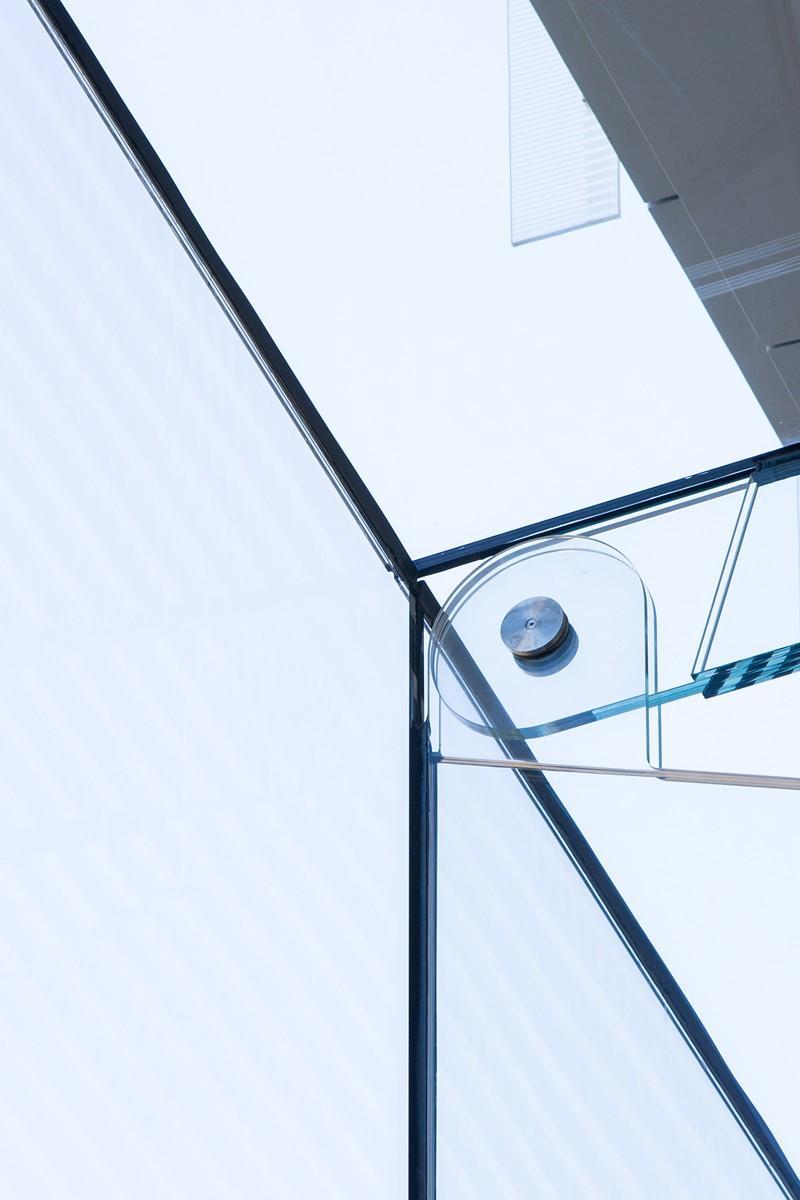

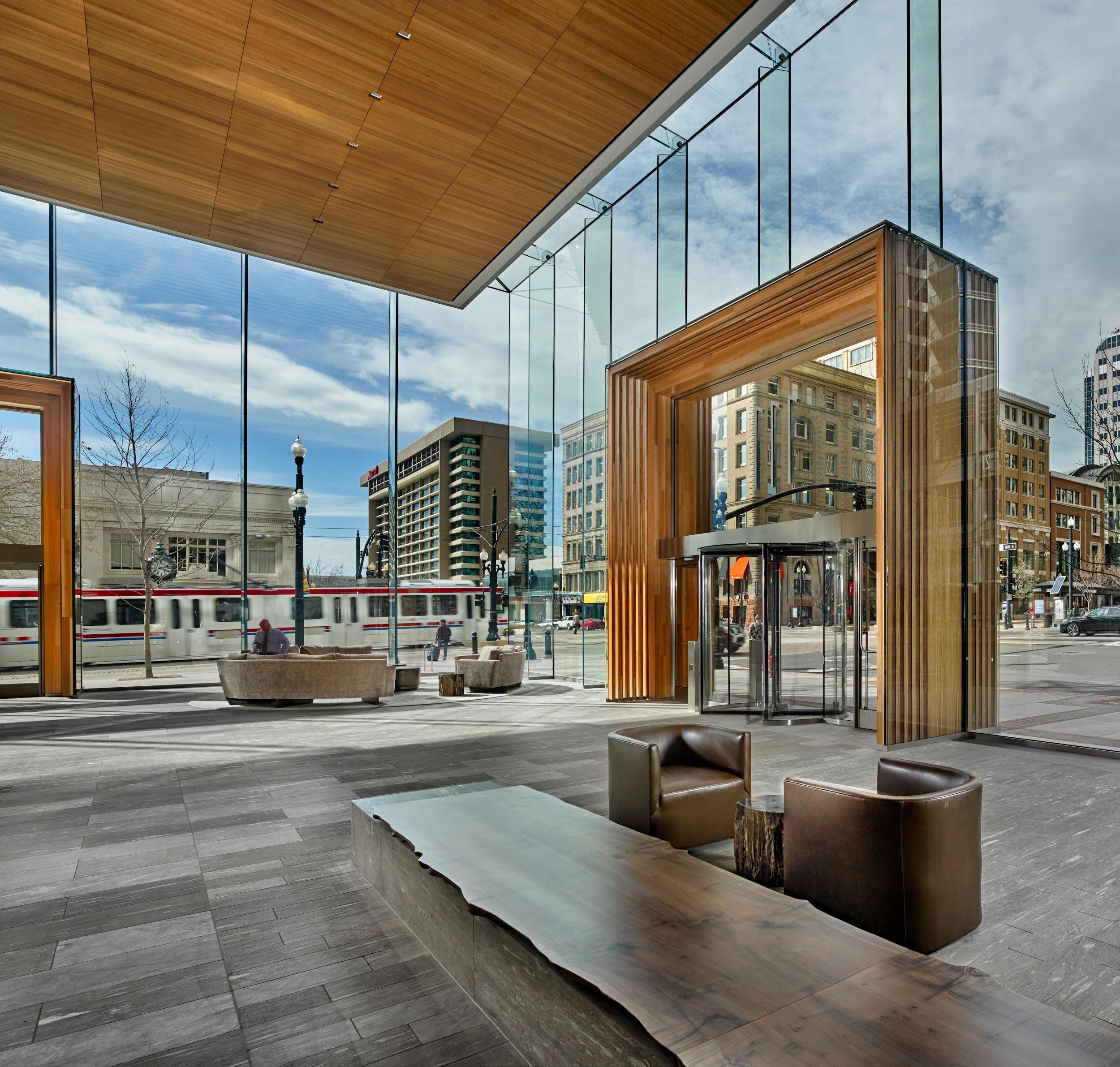

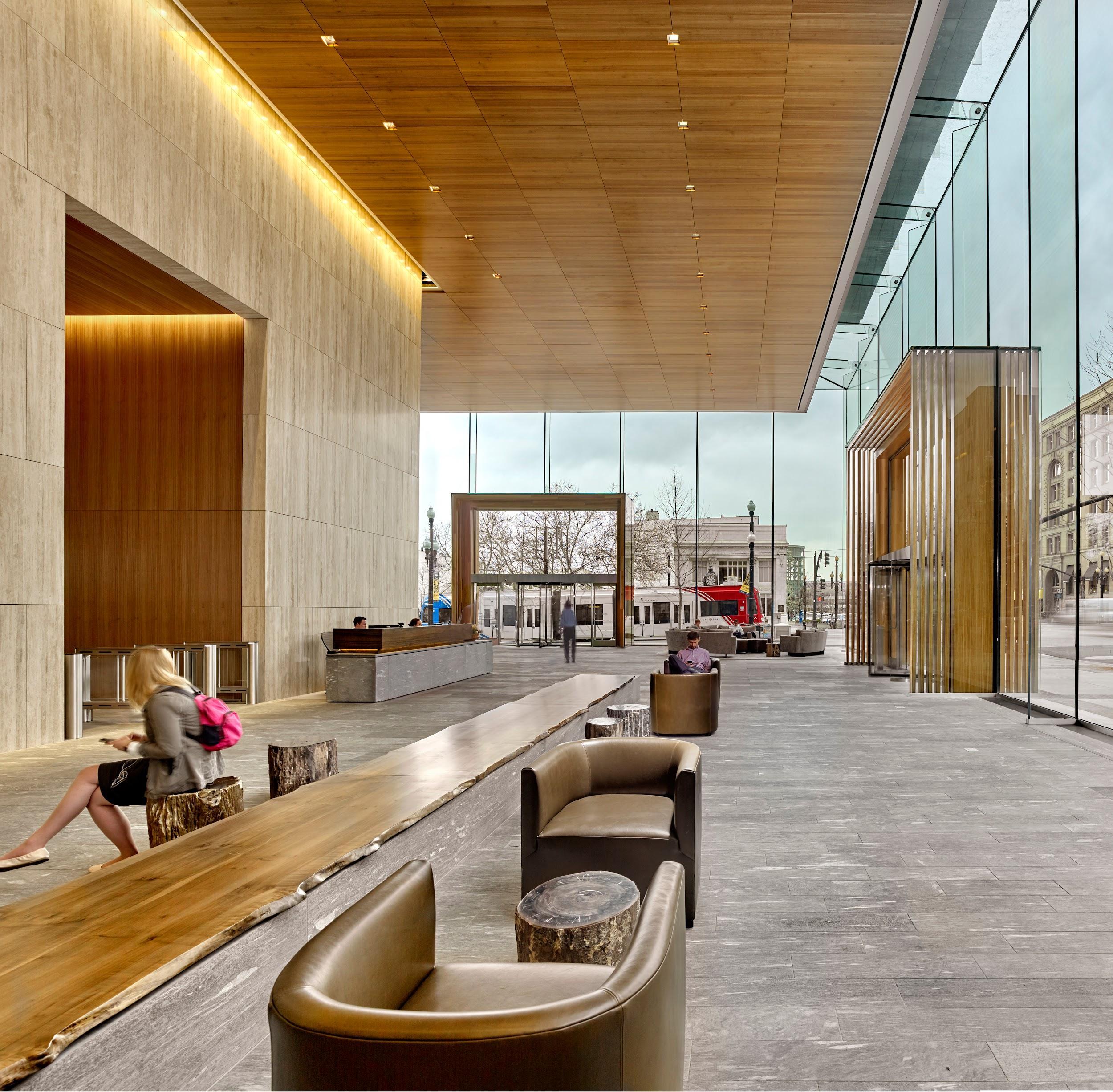

ALL-GLASS LOBBY WALL

•

10’ WIDE BY 35’ TALL LAMINATED CLEAR GLASS

•

2’ DEEP BY 2½” WIDE GLASS STABILIZING FINS

•

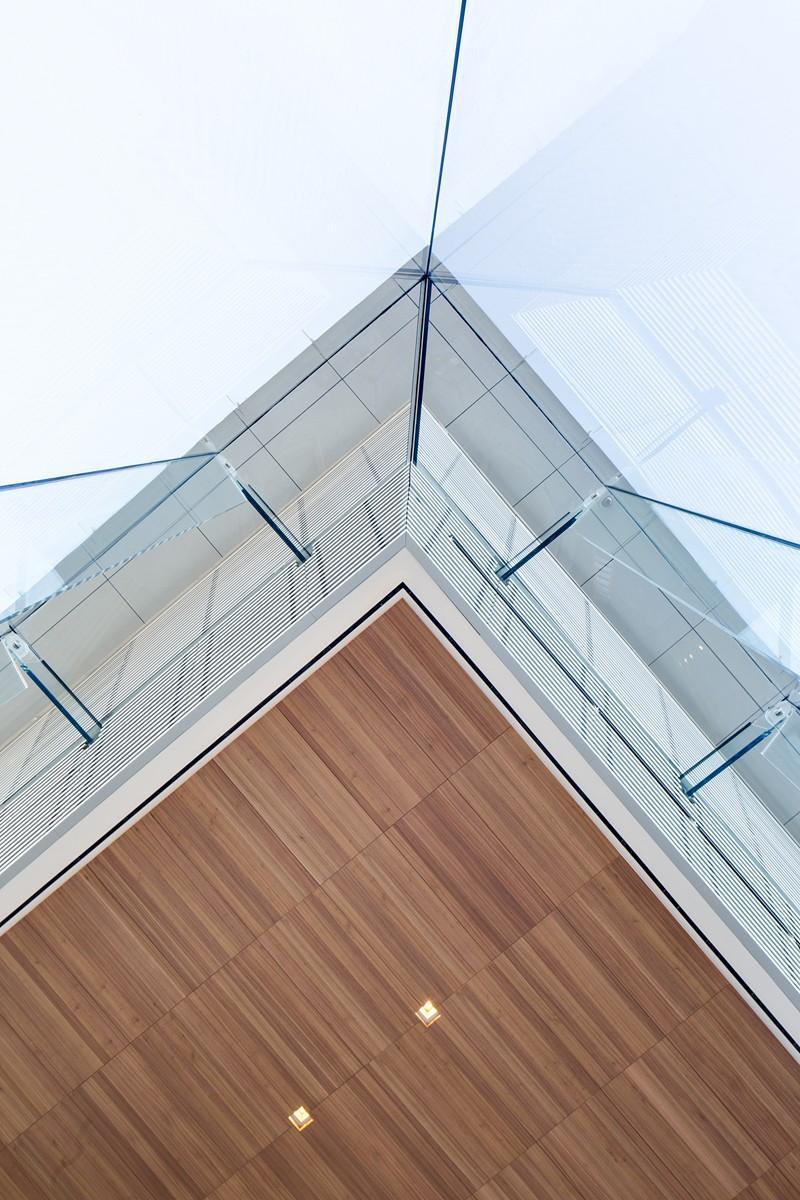

LAMINATED CLEAR GLASS SKYLIGHT

•

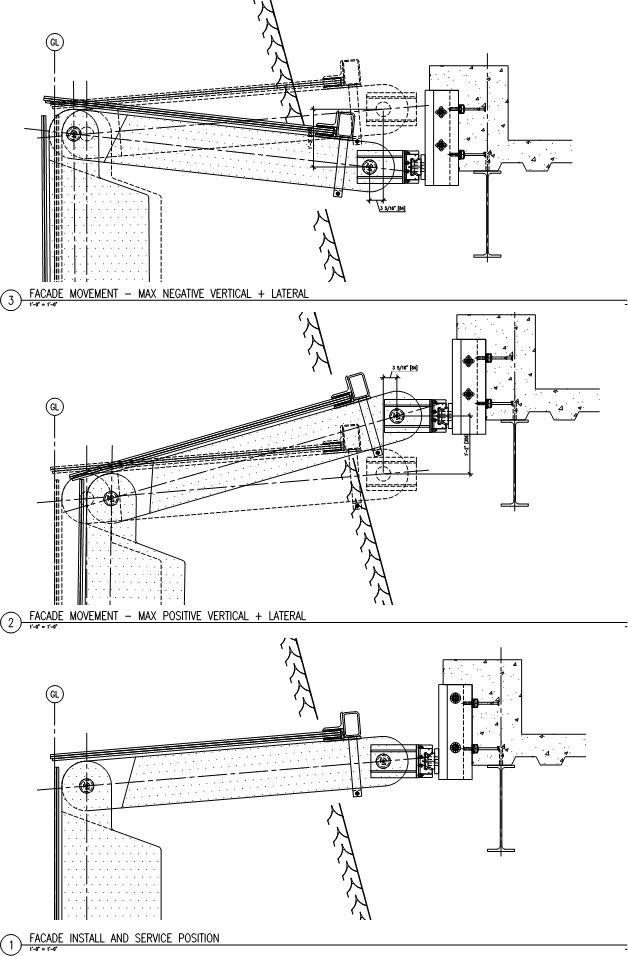

GRAVITY SUPPORTED ALL-GLASS ASSEMBLY LATERALLY TIED TO BASE BUILDING STRUCTURE WITH A DOUBLE PINNED CONNECTION ALLOWING +/-14” TO +/- 18” OF VERTICAL MOVEMENT

•

STEEL RAIL AND ROLLER ALLOWING +/-3½” IN PLANE SEISMIC DRIFT

•

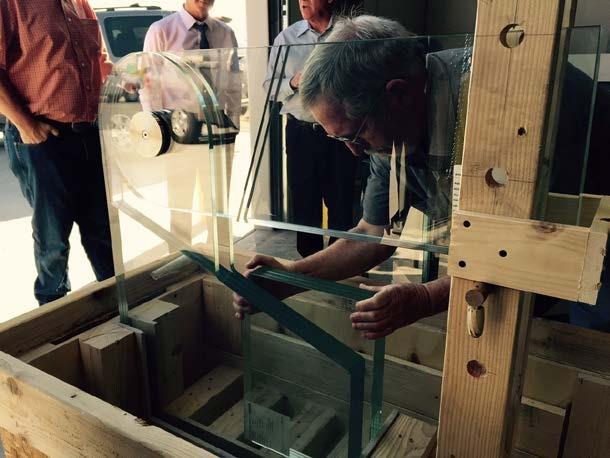

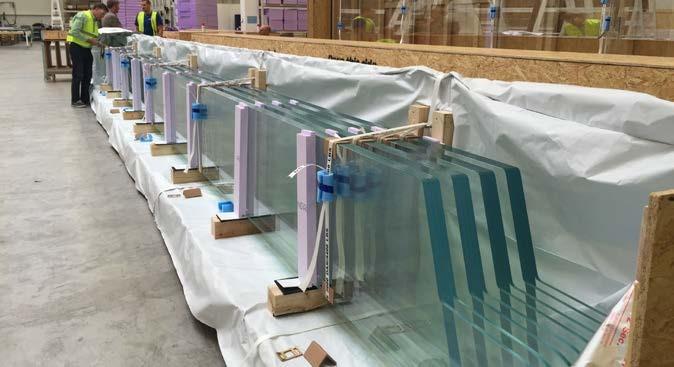

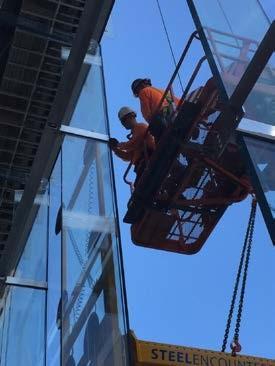

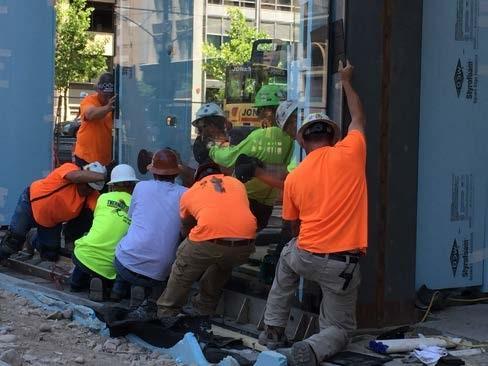

GLASS FABRICATED IN GERSTHOFEN, GERMANY AND ASSEMBLED ON SITE USING SPECIALTY EQUIPMENT PROCURED THROUGH THE GLAZING MANUFACTURER

•

LOBBY WALL ENGINEERING BY ECKERSLEY O’CALLHAN

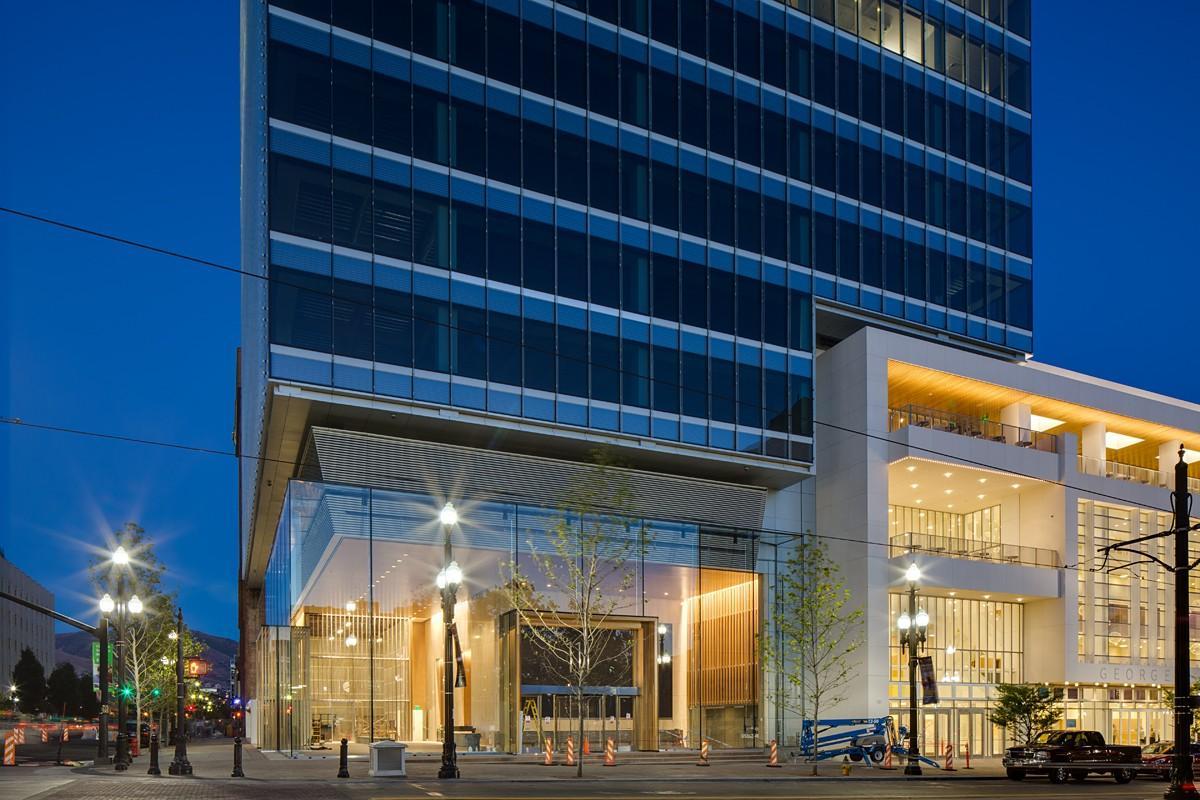

ALL-GLASS FAÇADE DESIGN

Δ=Δ

GRAVITY

+Δ

SEISMIC

=Δ

G-DL+SDL

+Δ

G-LL

+Δ

EH

+Δ

EV

CAMBER = 1.5” to 2”

Δ

G-DL+SDL

DEAD + SUPERIMPOSED LOADS 111 MAIN SKIDMORE, OWINGS & MERRILL LLP

Δ

G-LL

LIVE LOADS

Δ

EH

SEISMIC HORIZONTAL

Δ

EV

SEISMIC VERTICAL

PERFORMANCE CRITERIA

111 MAIN SKIDMORE, OWINGS & MERRILL LLP

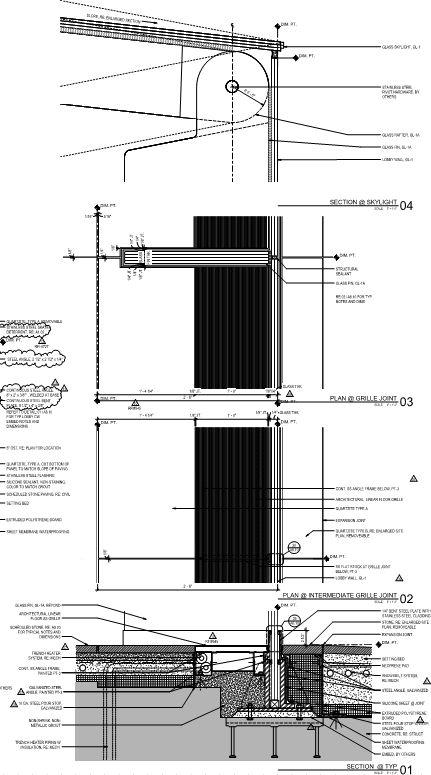

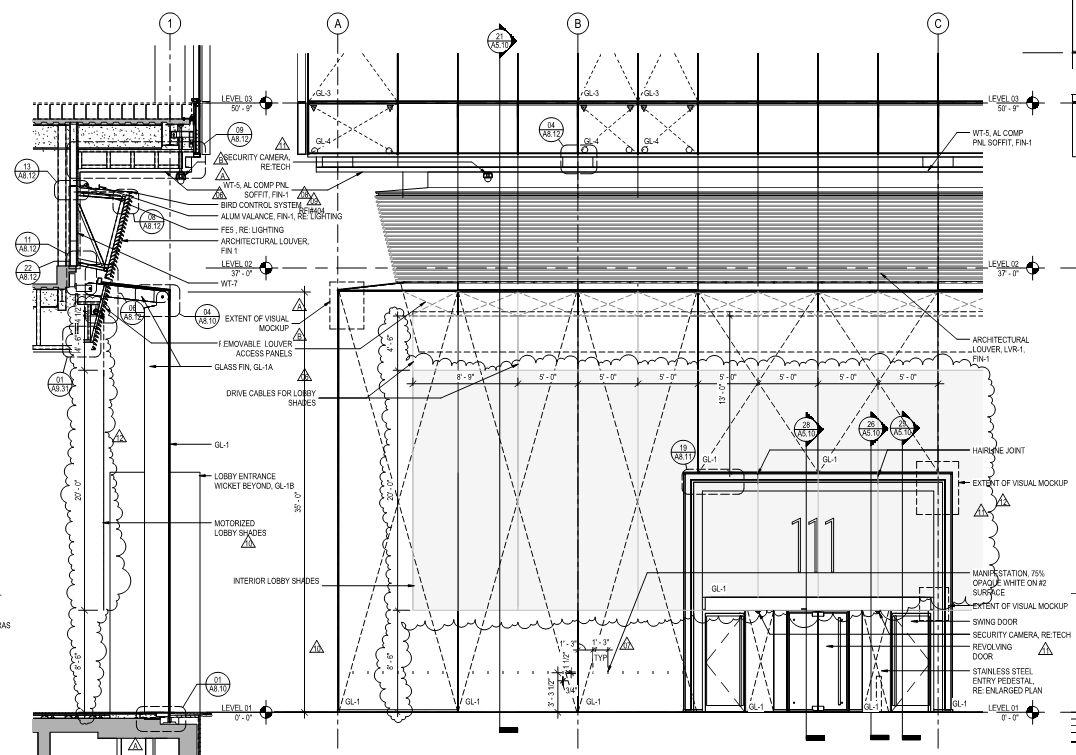

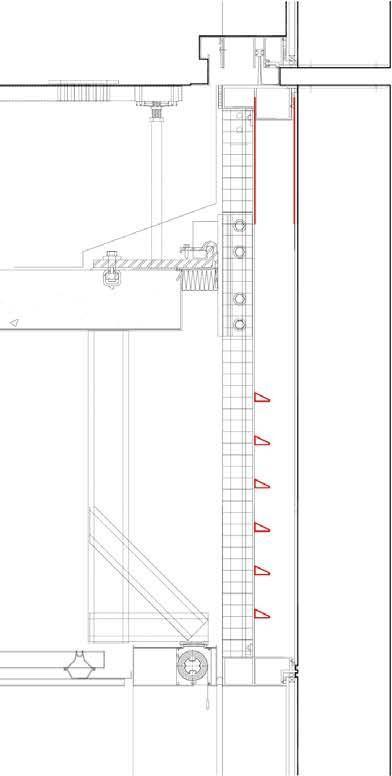

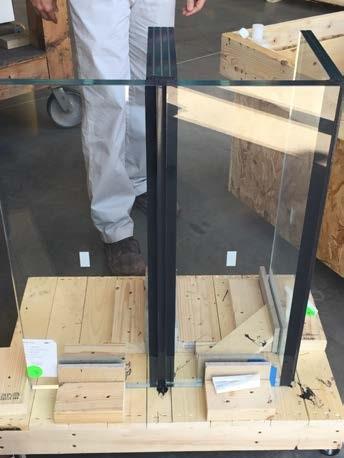

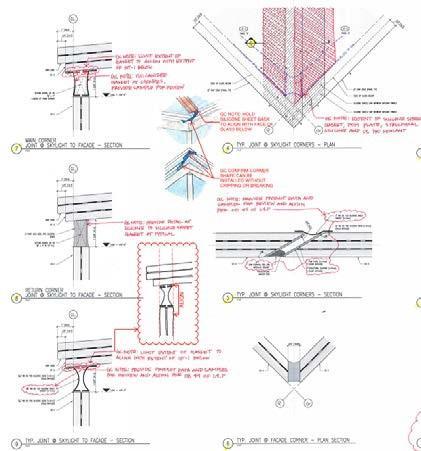

CONSTRUCTION DETAILS

111 MAIN SKIDMORE, OWINGS & MERRILL LLP

CLEAR DESIGN INTENT

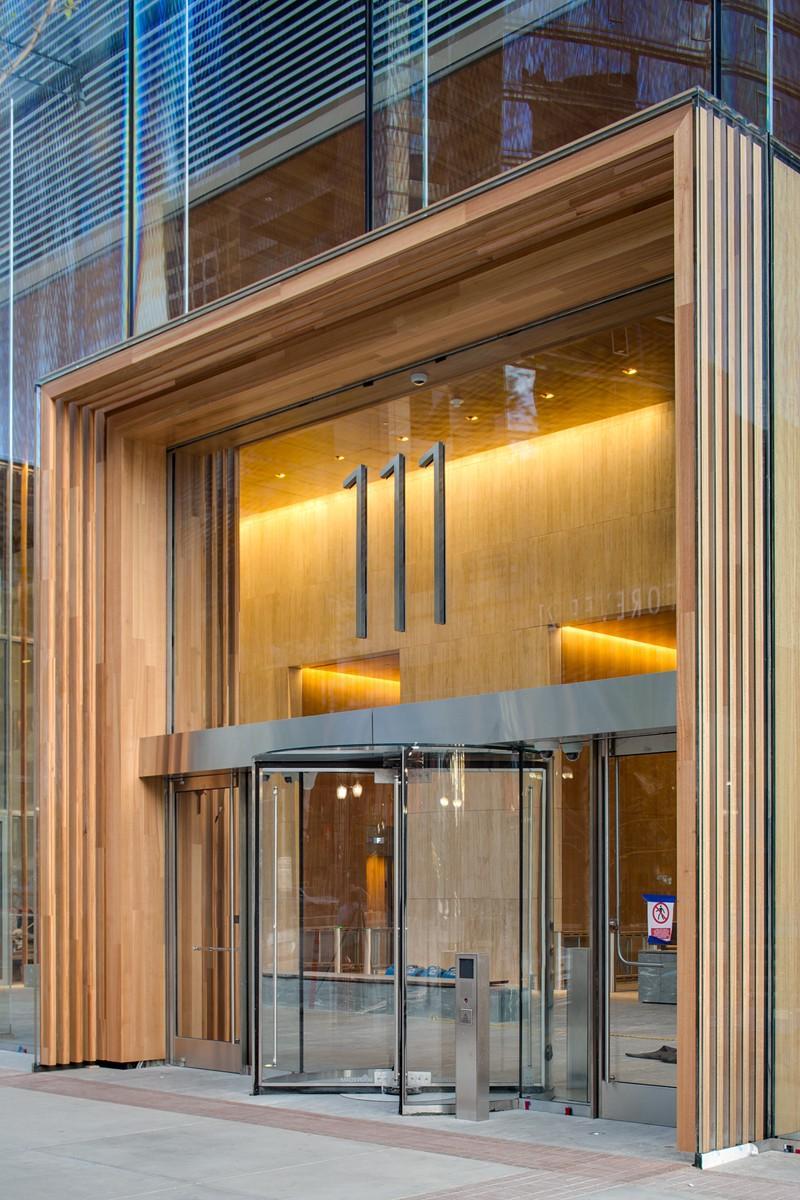

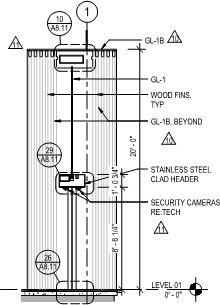

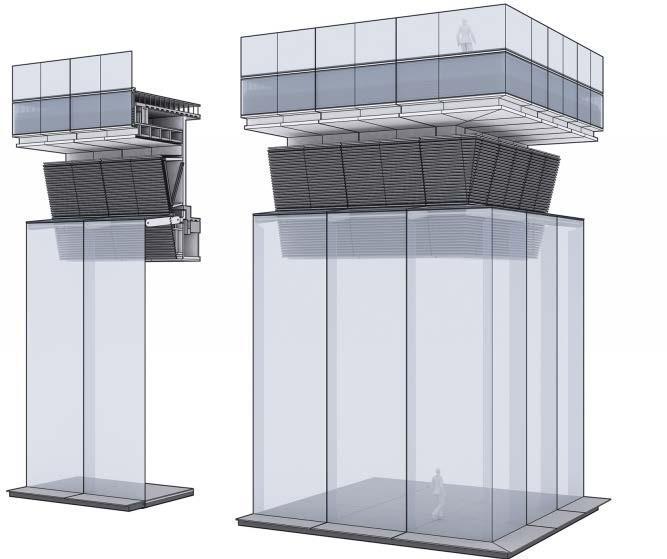

STRUCTURAL GLASS ENTRIES

•

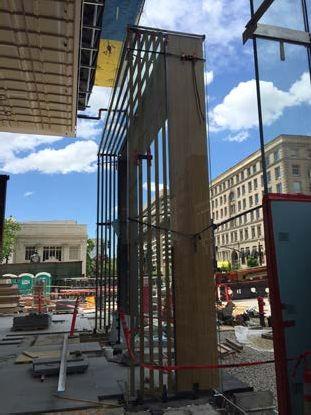

20’ WIDE BY 20’ TALL STEEL AND GLASS ENTRIES ARE WRAPPED BY CLEAR, LAMINATED STRUCTURAL GLASS

•

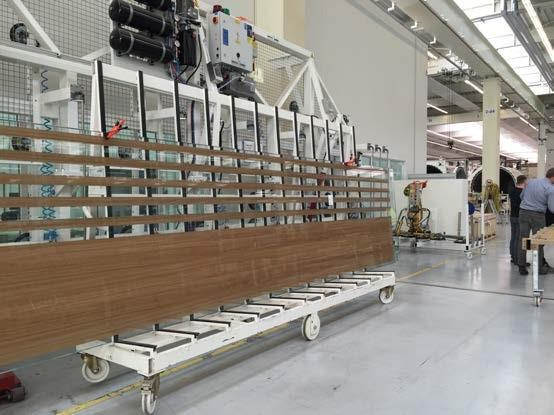

LEAFS OF NATURAL EUCALYPTUS LAMINATED INTO THE GLAZING MAKEUP

•

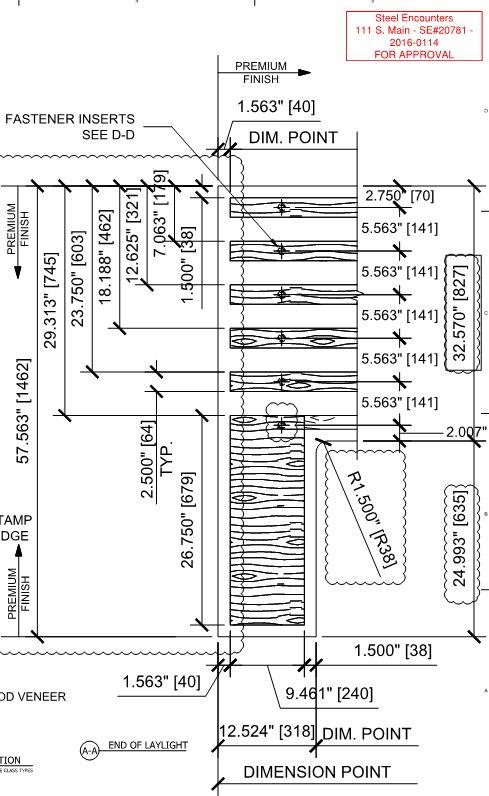

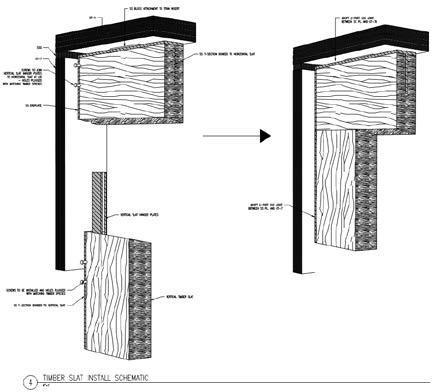

SOLID EUCALYPTUS FINS HUNG FROM STEEL CLIPS WITH INTEGRAL HARDWARE AND STRUCTURAL SILICONE

111 MAIN SKIDMORE, OWINGS & MERRILL LLP

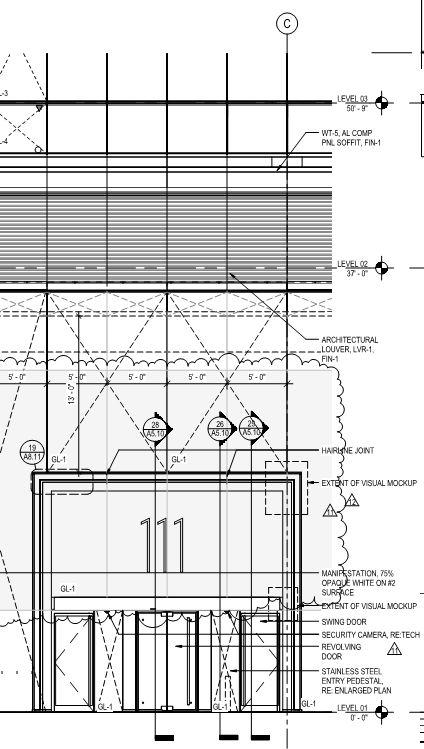

ALL-GLASS ENTRY DESIGN

111 MAIN SKIDMORE, OWINGS & MERRILL LLP

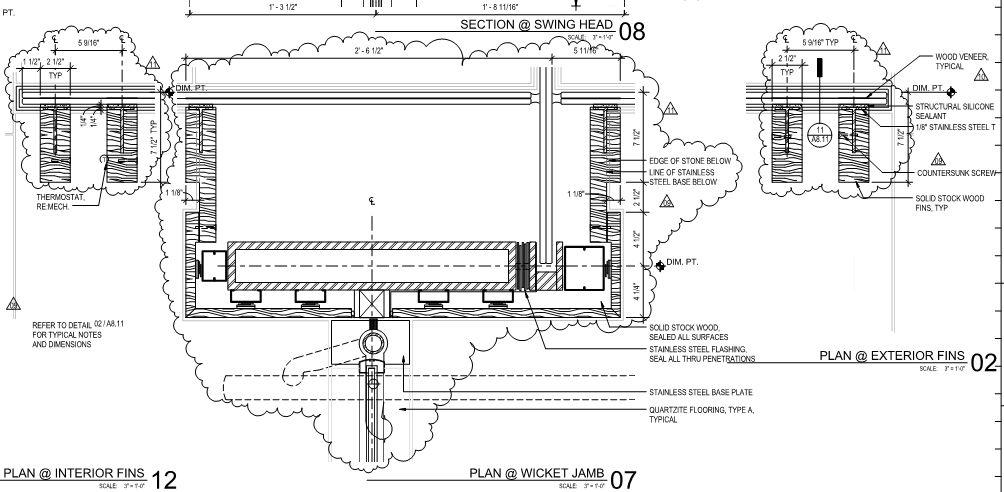

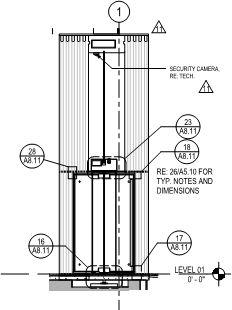

CONSTRUCTION DETAILS

111 MAIN SKIDMORE, OWINGS & MERRILL LLP

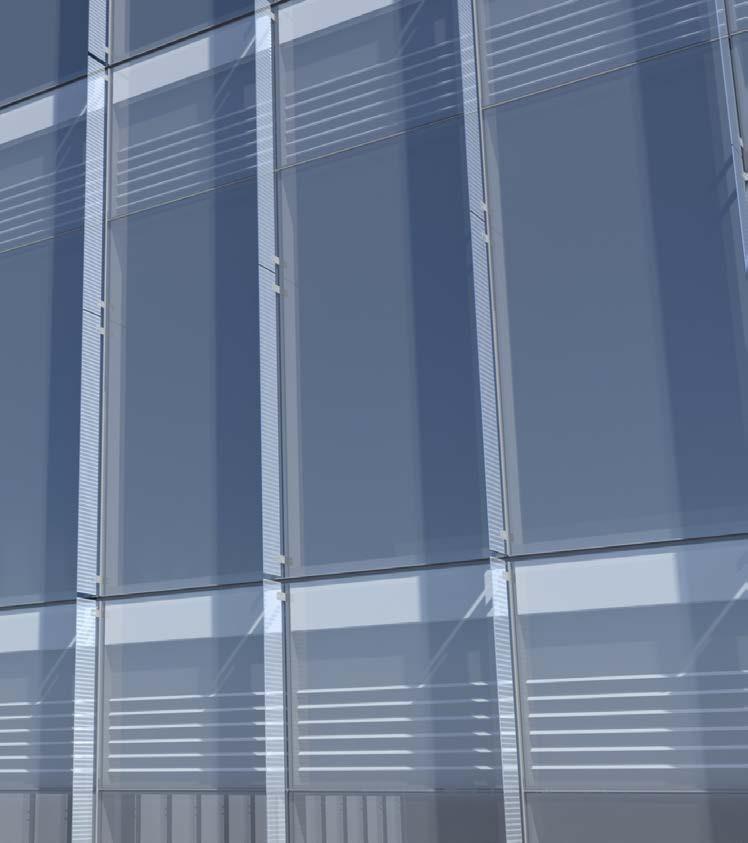

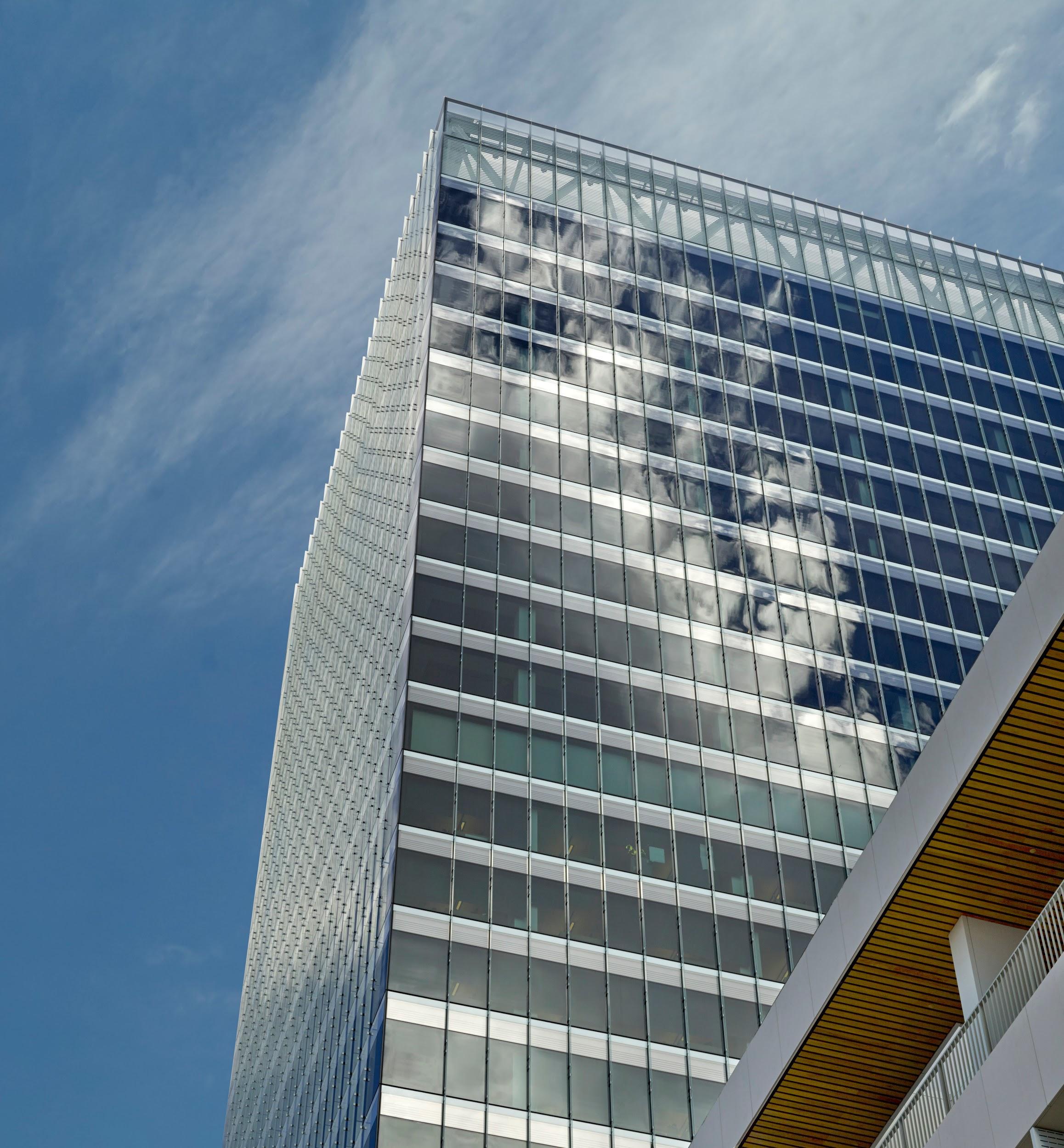

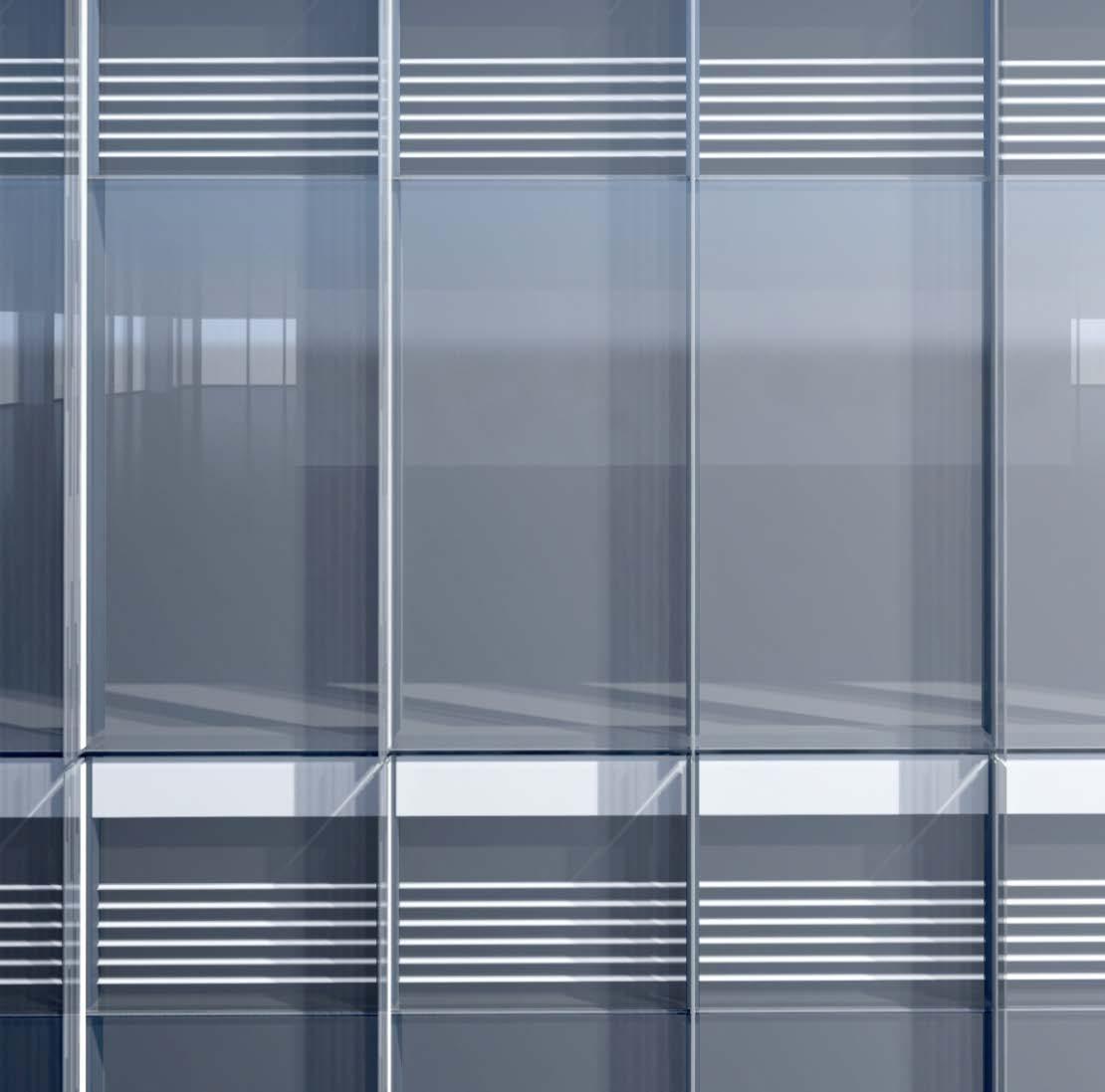

HIGH PERFORMANCE INSULATED GLAZING UNIT

8” VERTICAL FIN OPAQUE WHITE CERAMIC FRIT ON #2 SURFACE OF GLASS METAL BAND ON BACKPAN: STERLING SILVER SHADOWBOX BACKPAN: ECLIPSE GRAY CORRUGATED METAL EXTRUSIONS: STERLING SILVER INSULATED GLAZING UNIT- ULTRA CLEAR LOW IRON W/HEAT STRENGTHENED OUTBOARD LITE 3 3/4” SPACING ON CENTER

3/4” 1/8” 111 MAIN SKIDMORE, OWINGS & MERRILL LLP

1-1/2”

GL-3: SHADOWBOX GLASS

PEARLESCENT WHITE PPG - UC117183VL DURANAR VL

GL-3: VISION GLASS

CERAMIC FRIT ON #2 SURFACE

INTERIOR VERTICAL AND HORIZONTAL MULLIONS: SILVER SHADOW SILVER SHADOW PPG - UC106707XL DURANAR XL

METAL BACK PAN: SILVER SHADOW

HORIZONTAL METAL EXTRUSIONS: PEARLESCENT WHITE

111 MAIN SKIDMORE, OWINGS & MERRILL LLP

2014.08.14 SHADOWBOX COLOR SELECTION

111 MAIN SKIDMORE, OWINGS & MERRILL LLP

111 MAIN

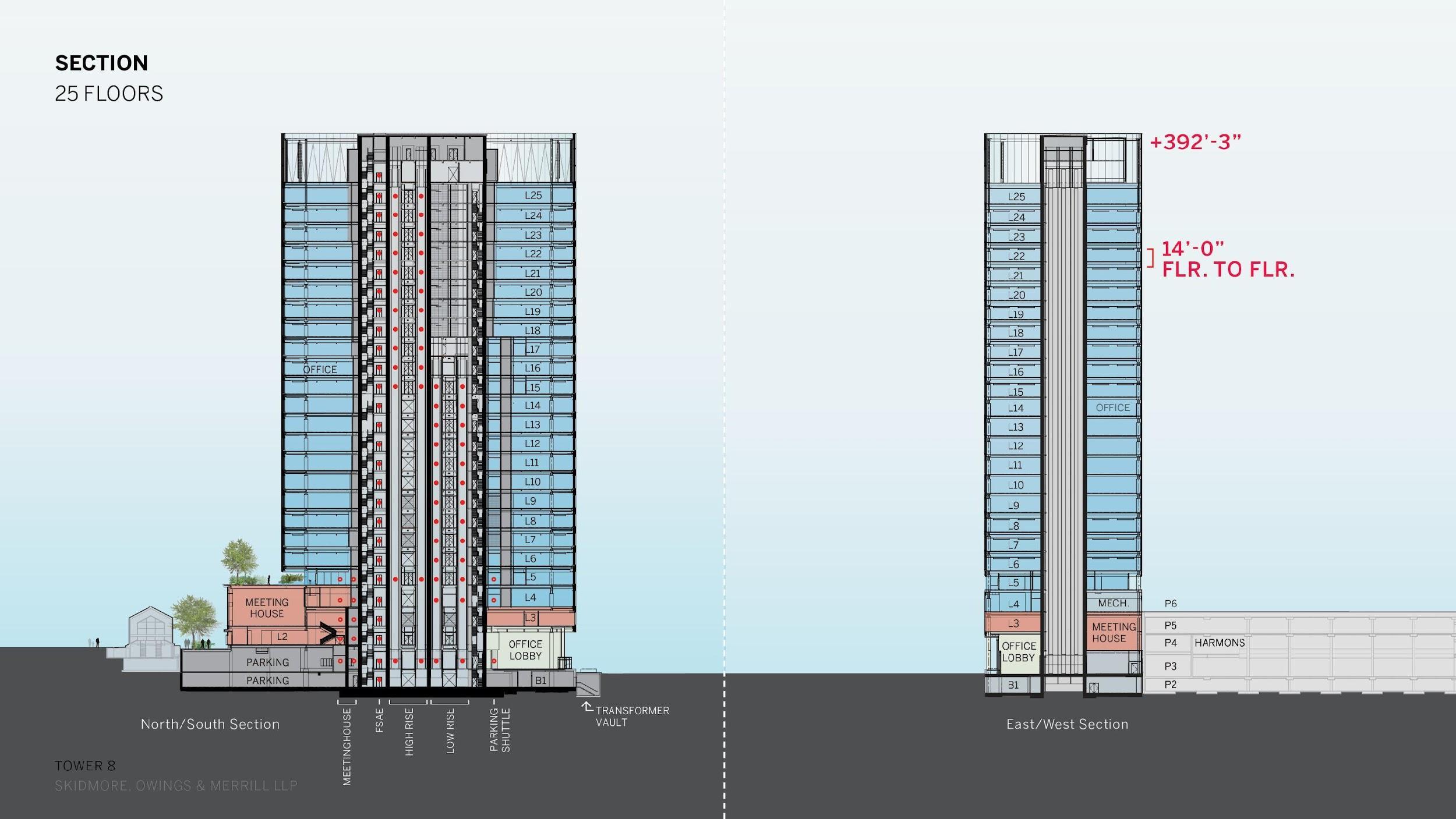

95 STATE AT CITY CREEK SALT LAKE CITY, UTAH TOWER METRICS PROGRAM NUMBER OF FLOORS BUILDING HEIGHT

OFFICE & MEETINGHOUSE 25

TYPICAL FLOOR AREA OFFICE + AMENITY AREA MEETINGHOUSE GROSS BUILDING AREA

20,925 GSF 515,000 GSF 125,000 GSF 640,700 GSF

392’-3”

PROJECT TEAM SOM: MICHAEL DUNCAN KEITH BOSWELL SEAN REGASA GREG WILLIAMS HARDIK UDANI ALEX WELSH SHUANG XU MARK SARKISIAN,SE PETER LEE,SE RUPA GARAI, SE ALEX ZHA, SE

GENERAL CONTRACTOR CURTAIN WALL CONTRACTOR STOREFRONT ENGINEER

OKLAND CONSTRUCTION STEEL ENCOUNTERS ECKERSLEY O’CALLAGHAN

111 Main

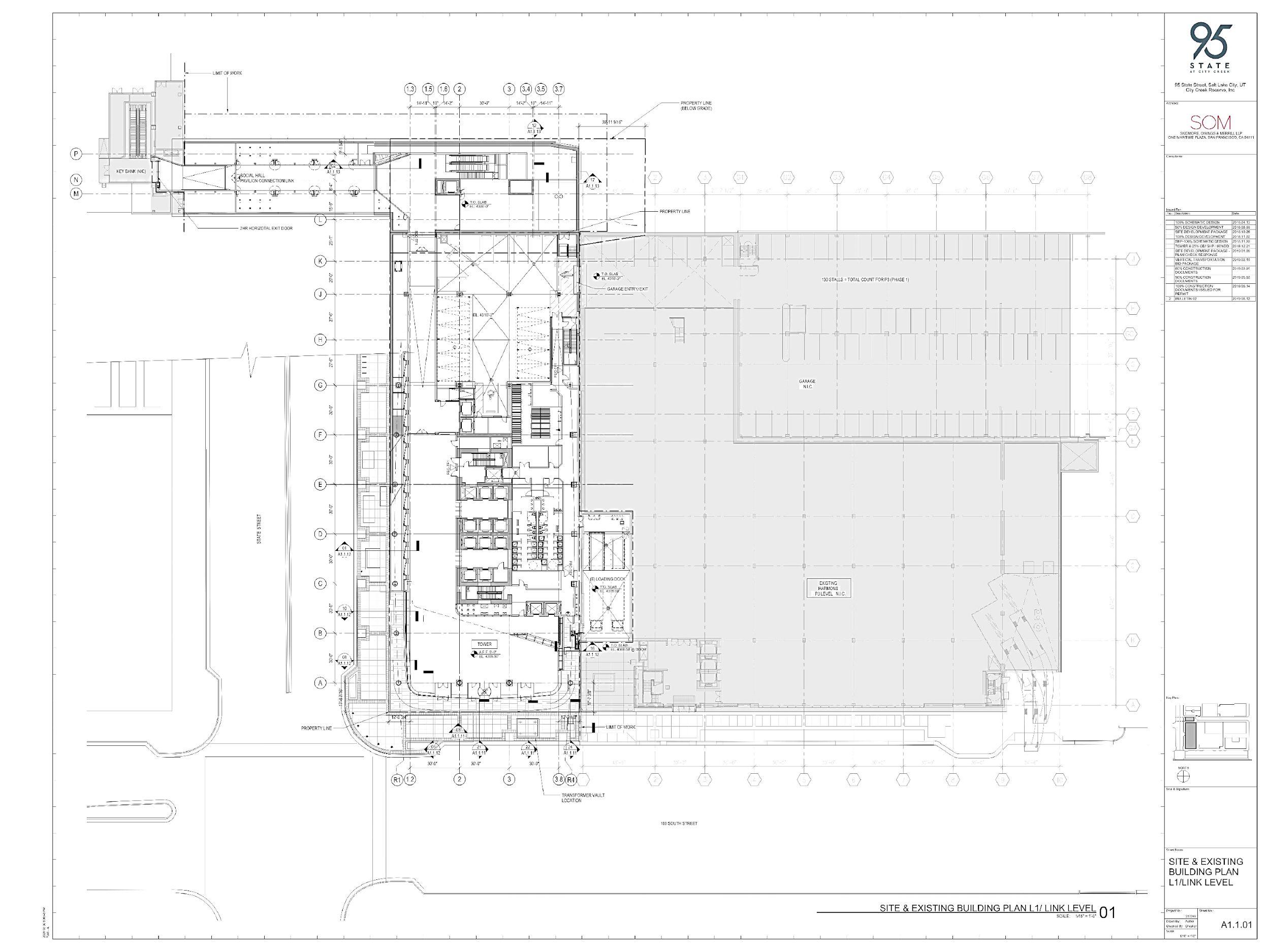

LEVEL 01 PLAN

Pedestrian Tunnel Social Hall Plaza

95 State

95 STATE AT CITY CREEK SKIDMORE, OWINGS & MERRILL LLP

114’-1 ”

”

277’-6

Pavilion

95 STATE AT CITY CREEK SKIDMORE, OWINGS & MERRILL LLP

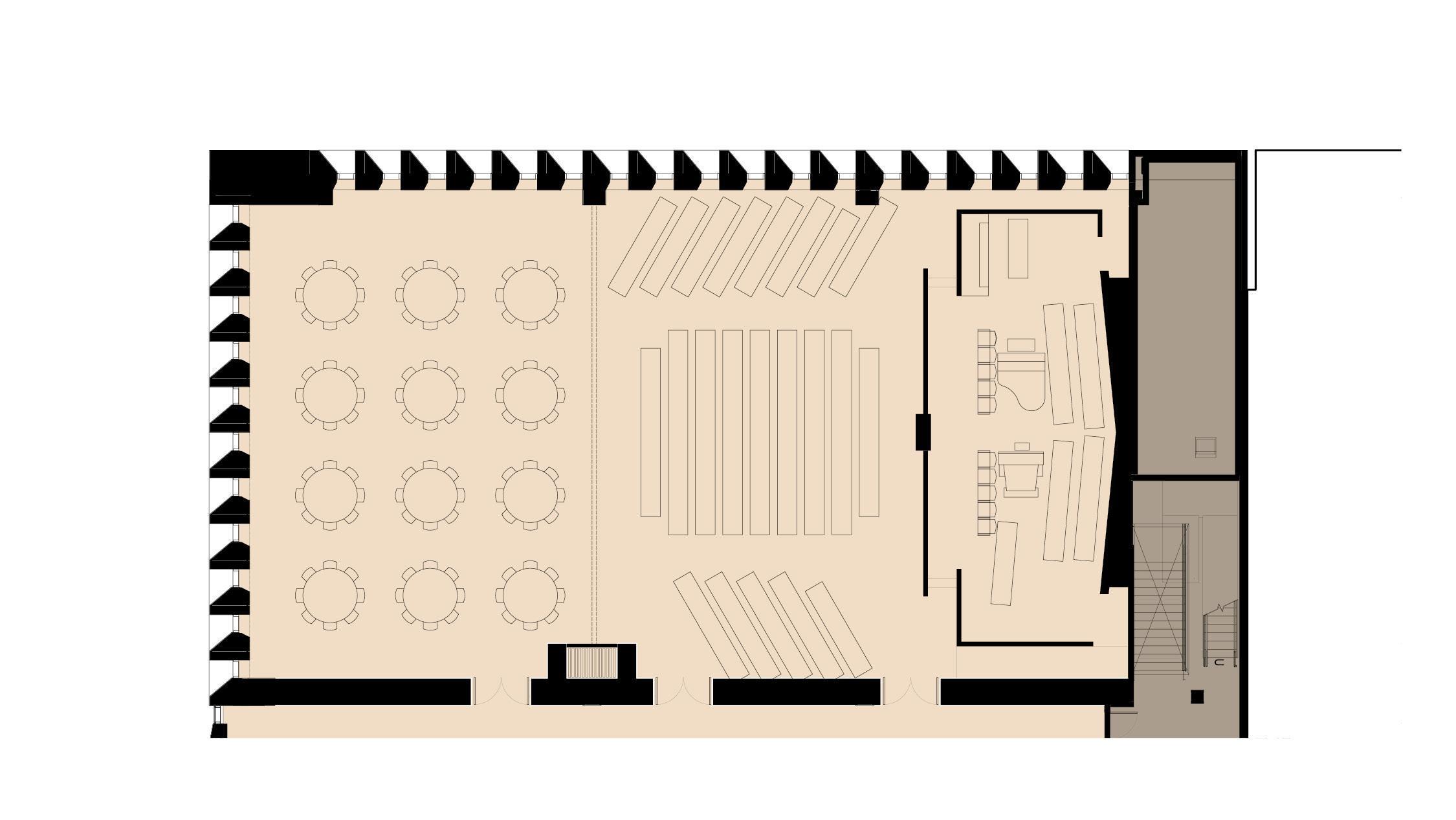

PLAN - LEVEL 3 MEETINGHOUSE

Cultural Hall

95 STATE AT CITY CREEK SKIDMORE, OWINGS & MERRILL LLP

Chapel

(E) Harmon’s

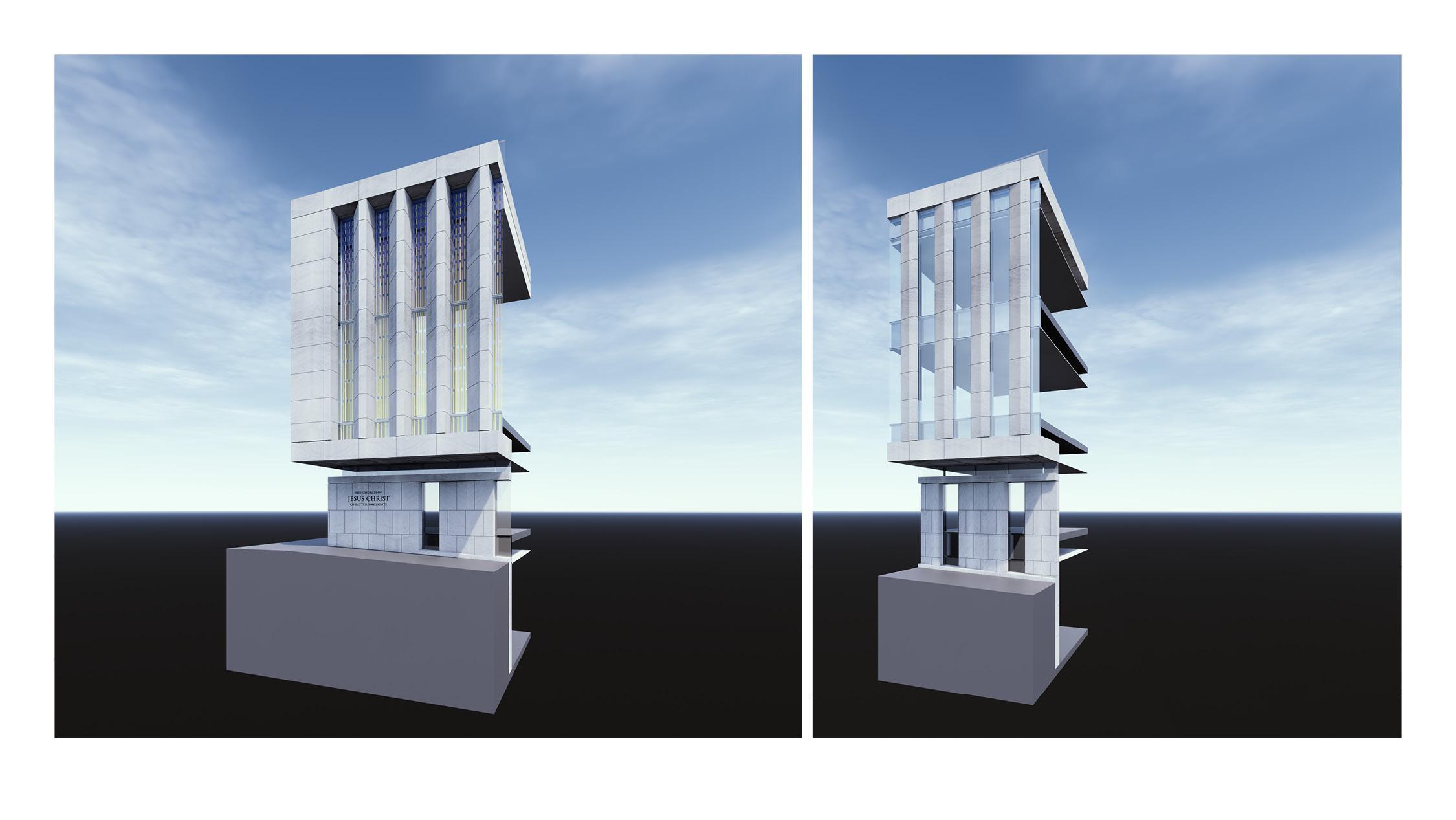

Chapel- Stone fins with Exterior IGU and Interior Laminated Art Glass 12-36”W x 30”D Tapered stone fins

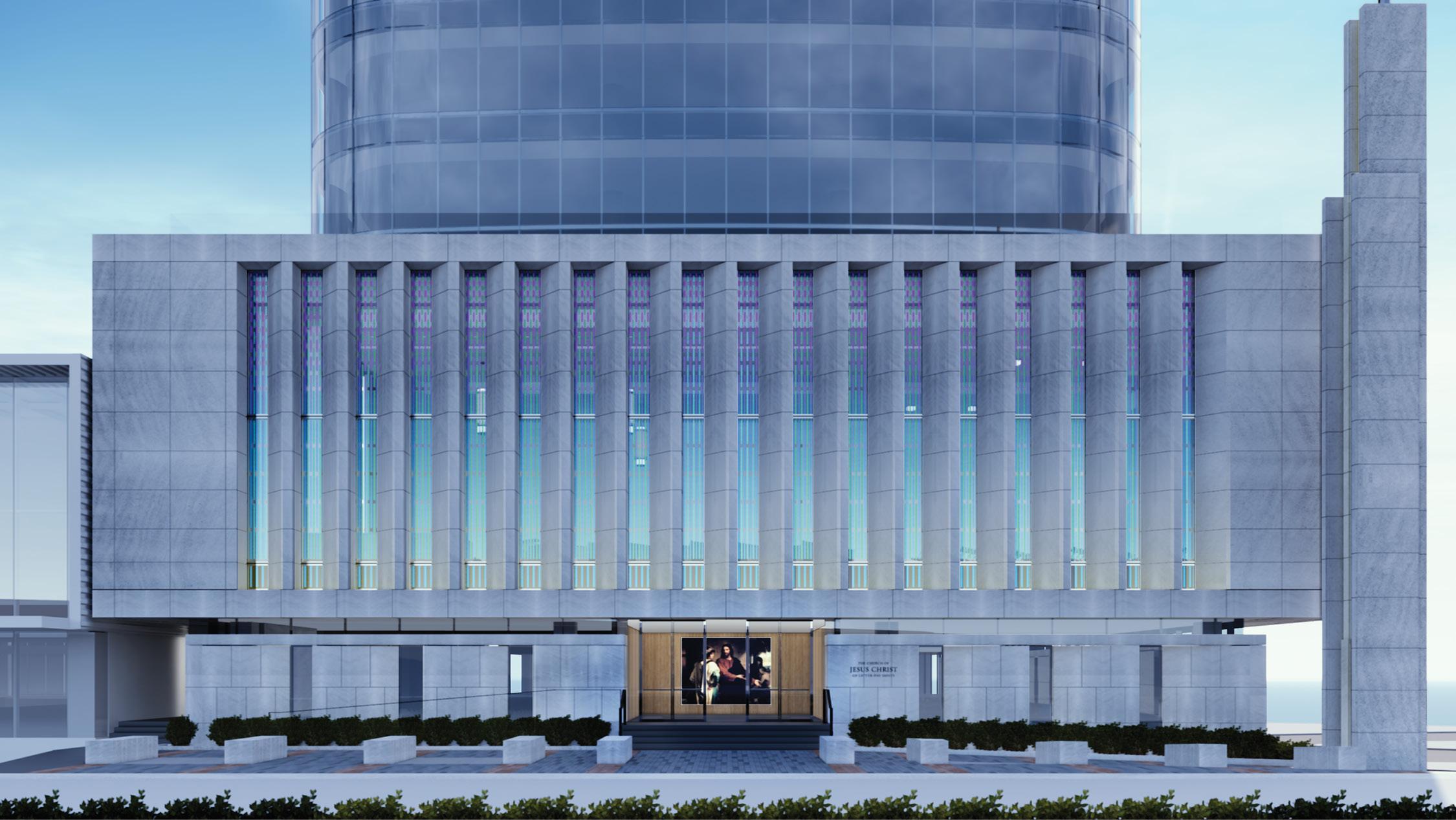

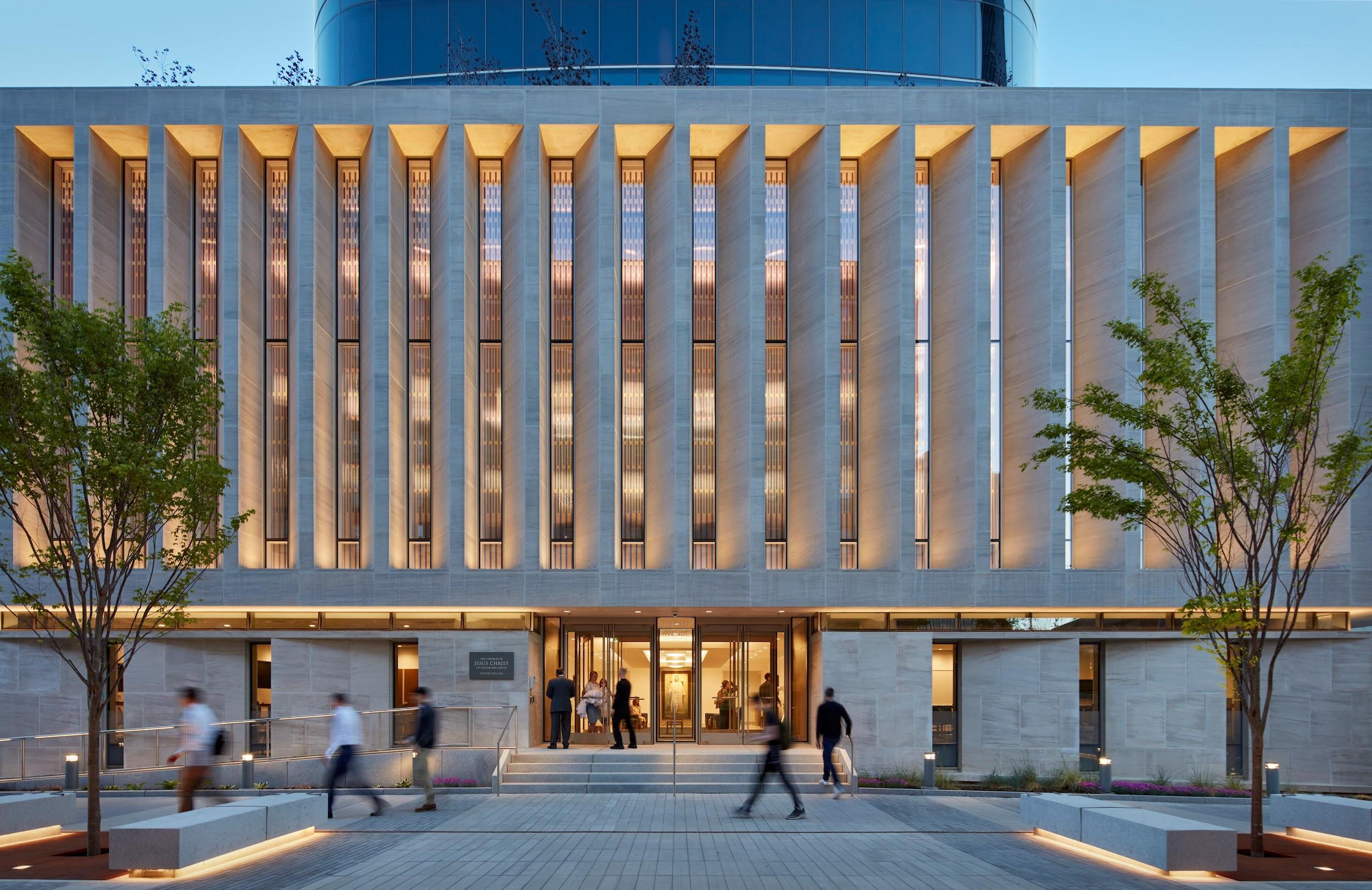

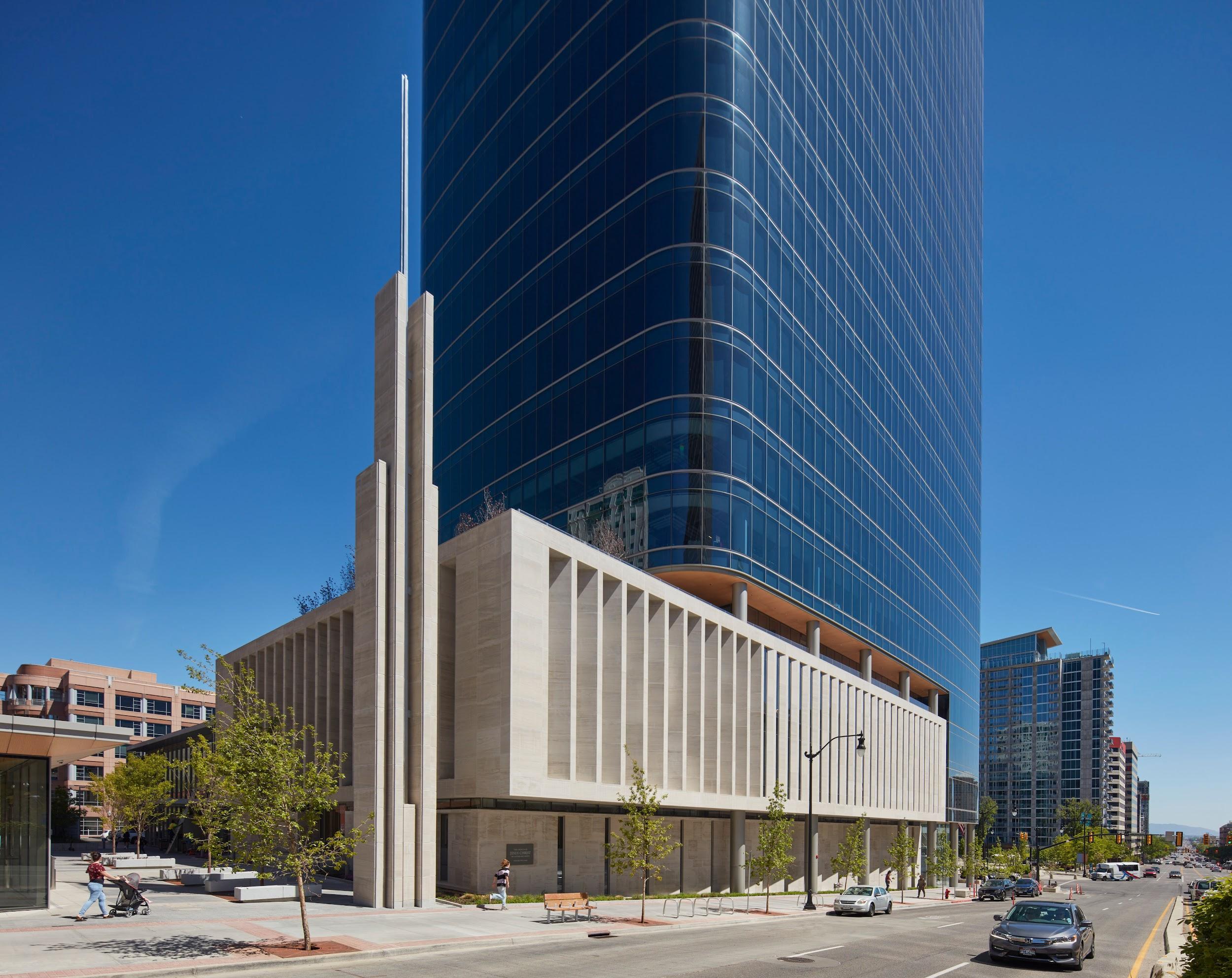

VIEW FROM NORTH AT MEETINGHOUSE ENTRY

60” on center

Office- Stone fins with Insulated Glass Units 12-36”W x 18”D Tapered stone fins

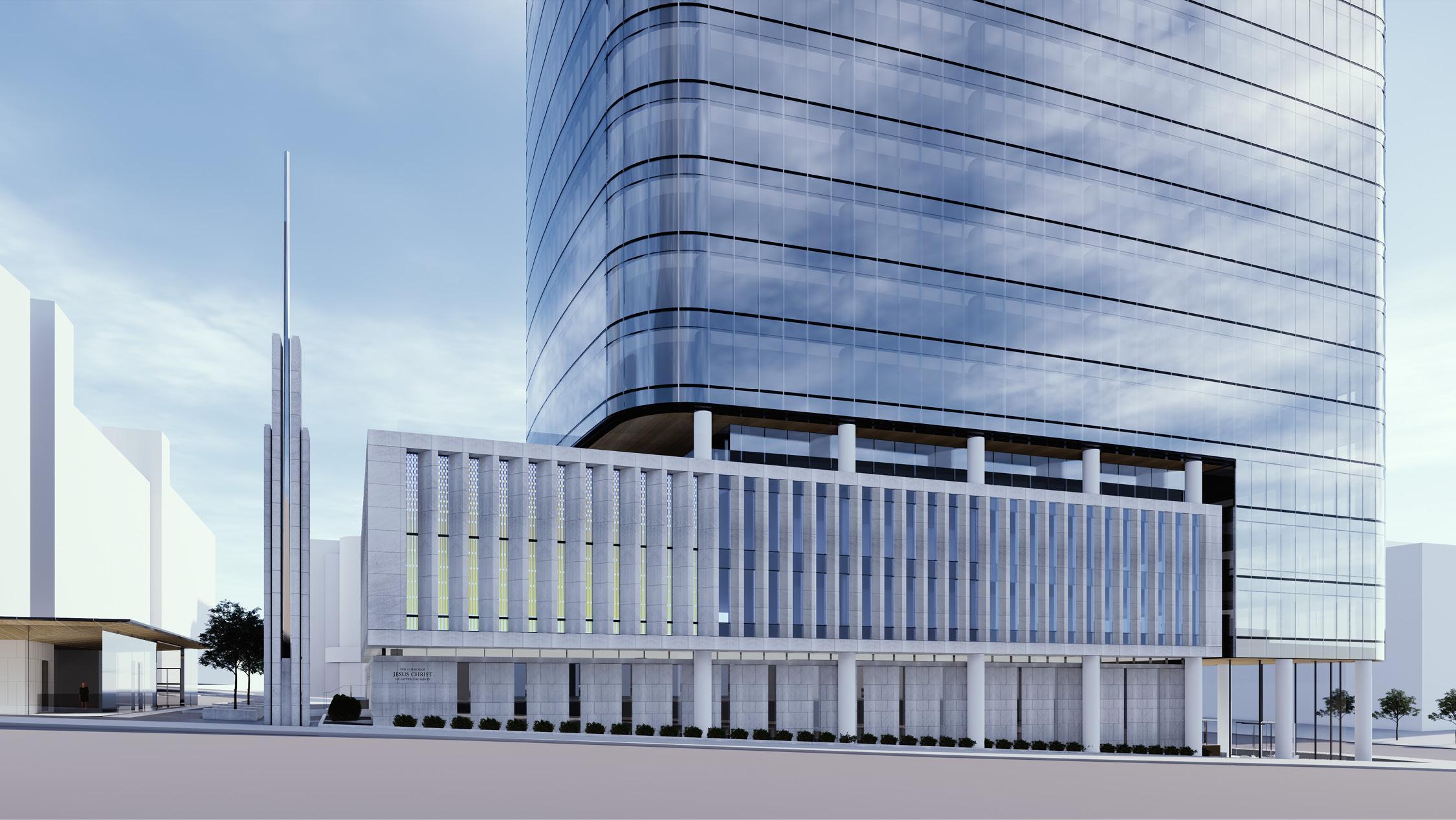

VIEW FROM NORTH WEST AT MEETINGHOUSE PODIUM

60” on center

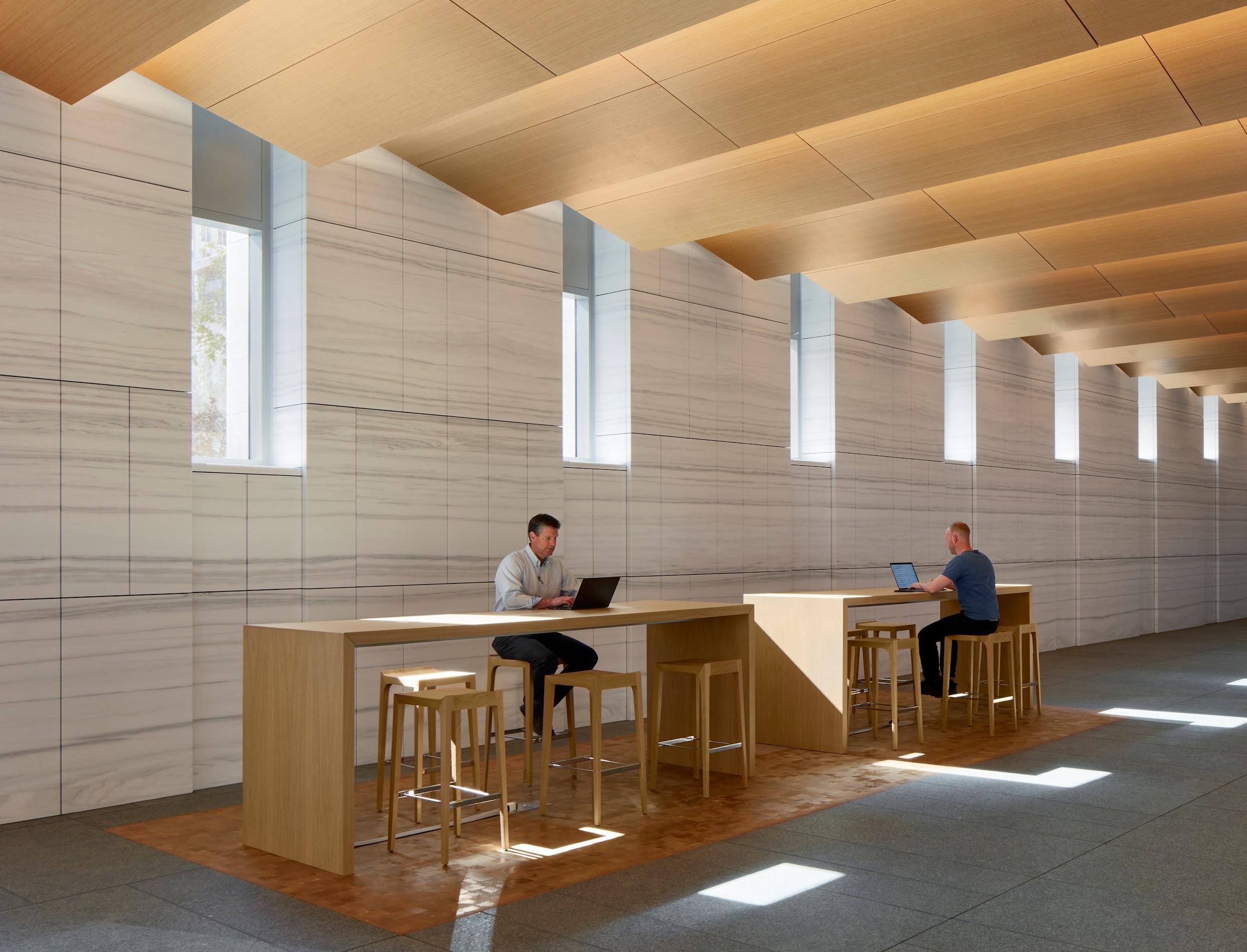

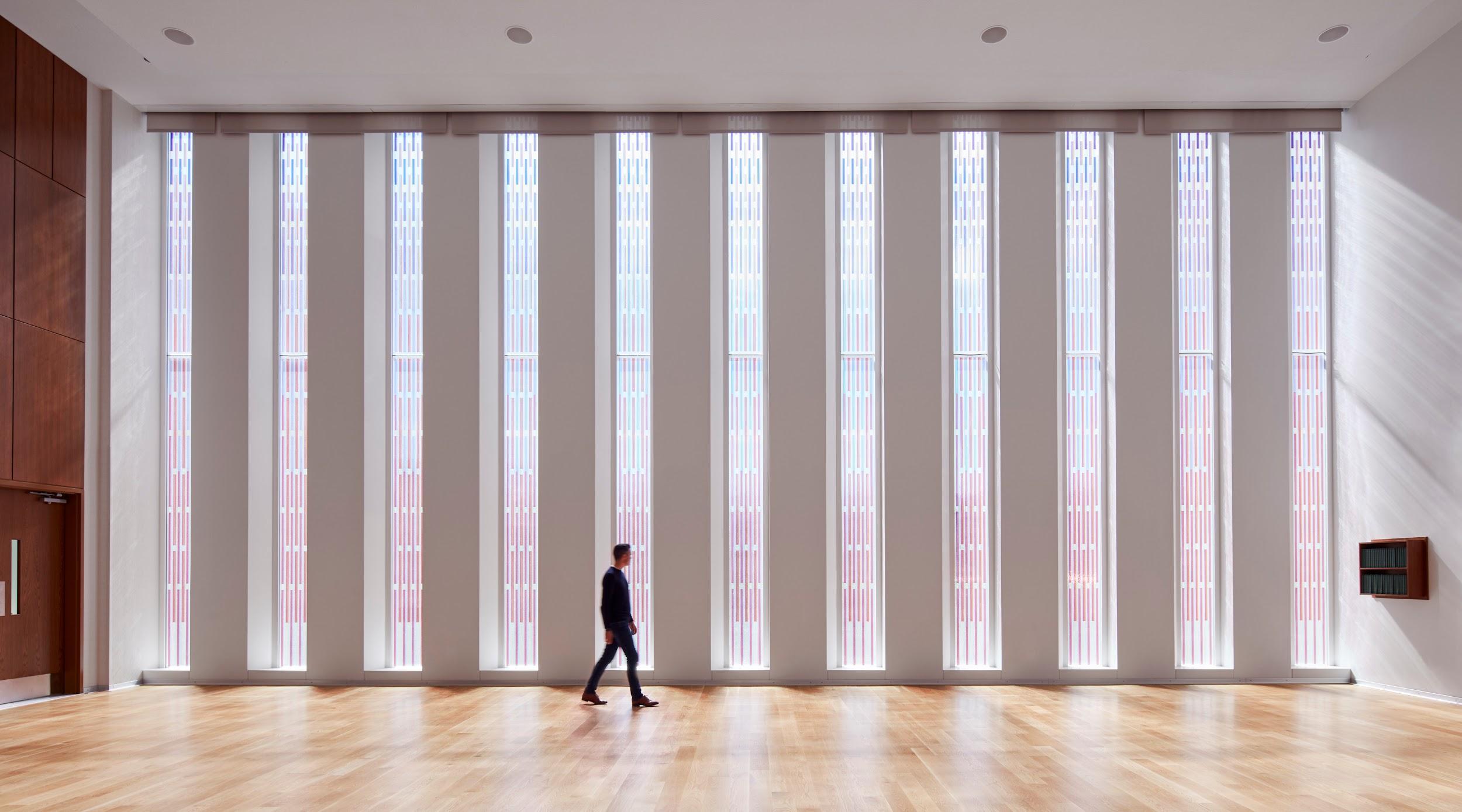

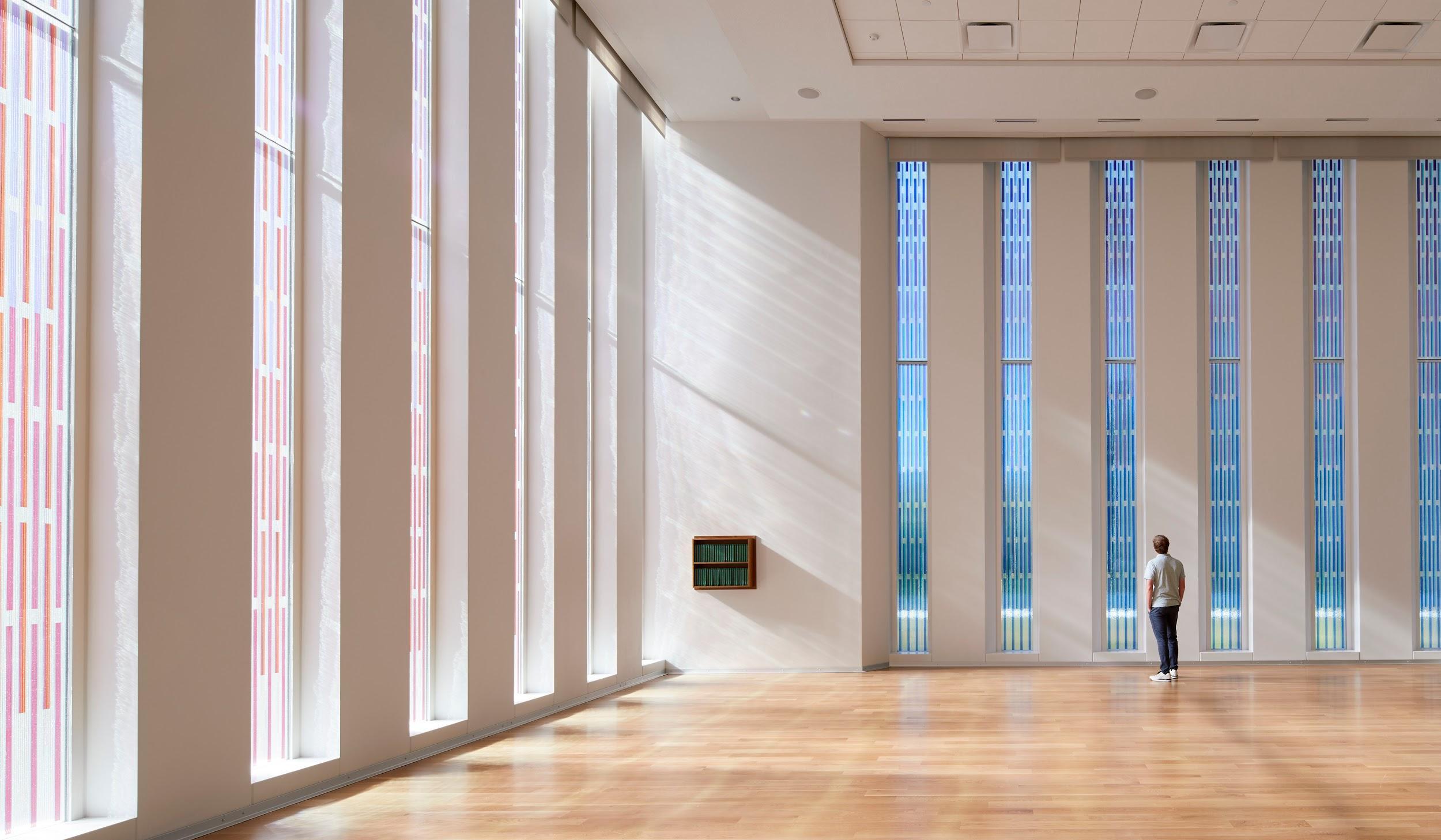

CULTURAL HALL INTERIOR MEETINGHOUSE

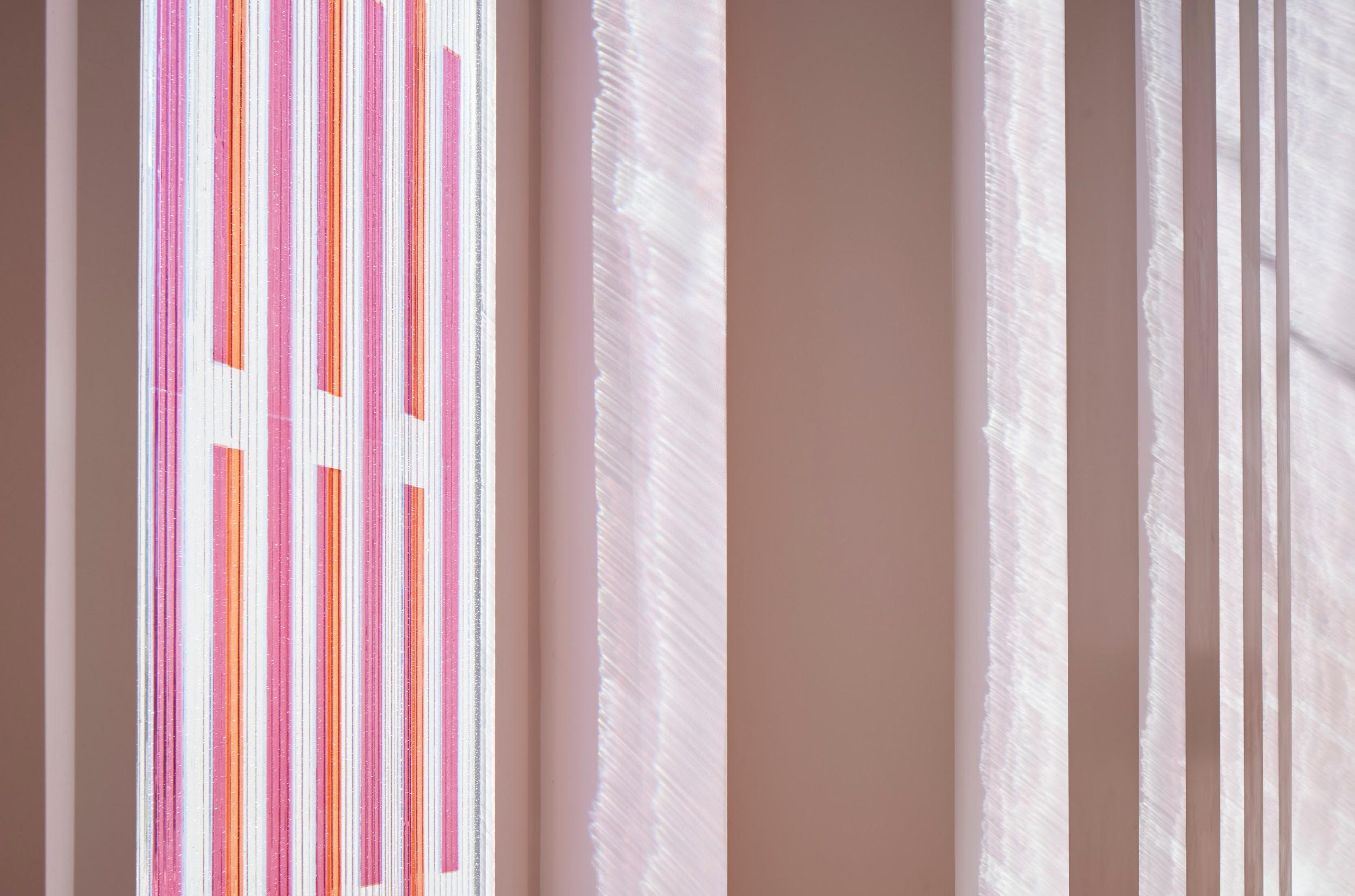

Chapel- Interior Laminated Art Glass Layers of fused colored glass laminated to Fluted Glass - Jamie Carpenter Design (JCDA) - Fabricator: Bullseye Glass

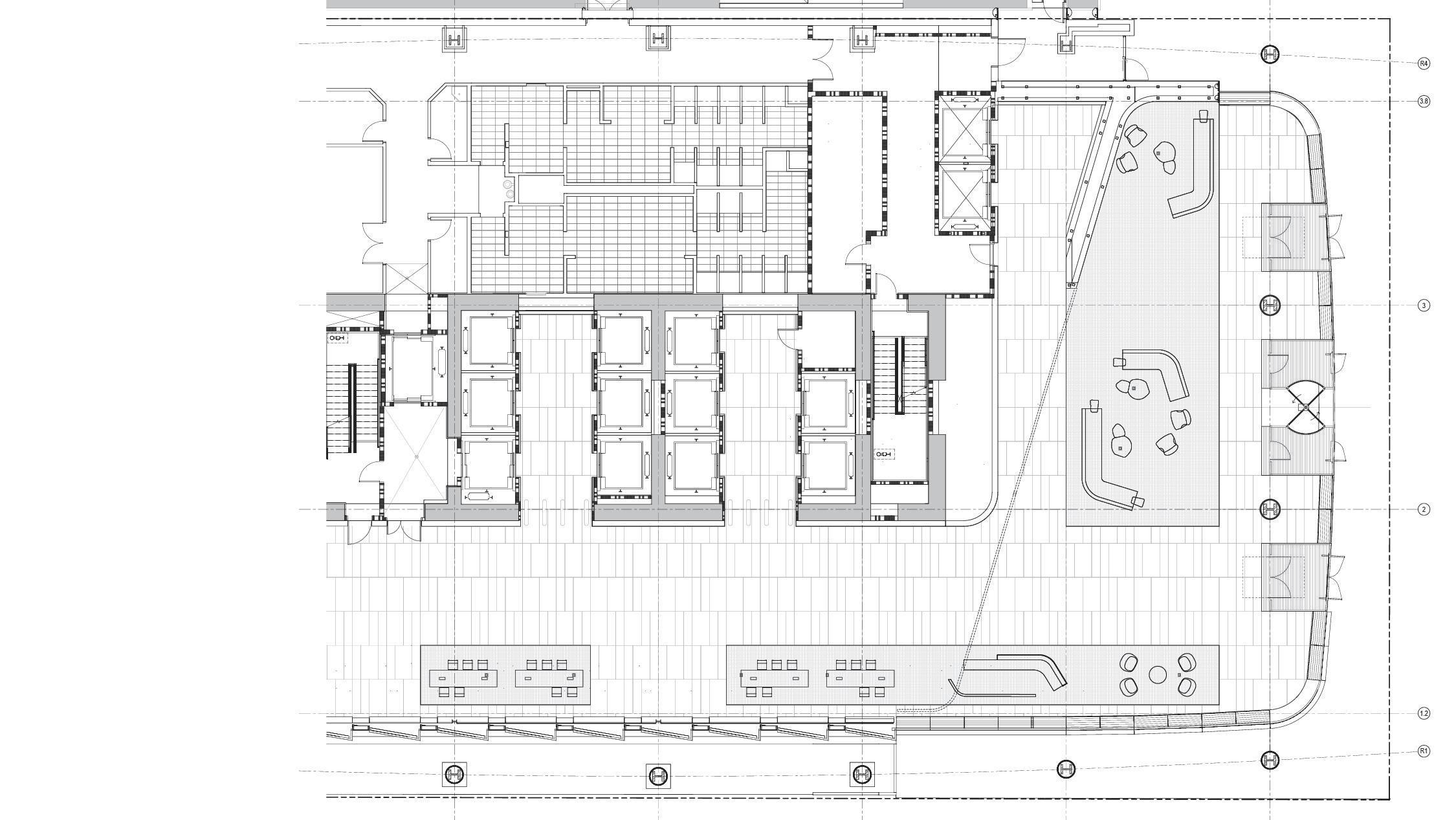

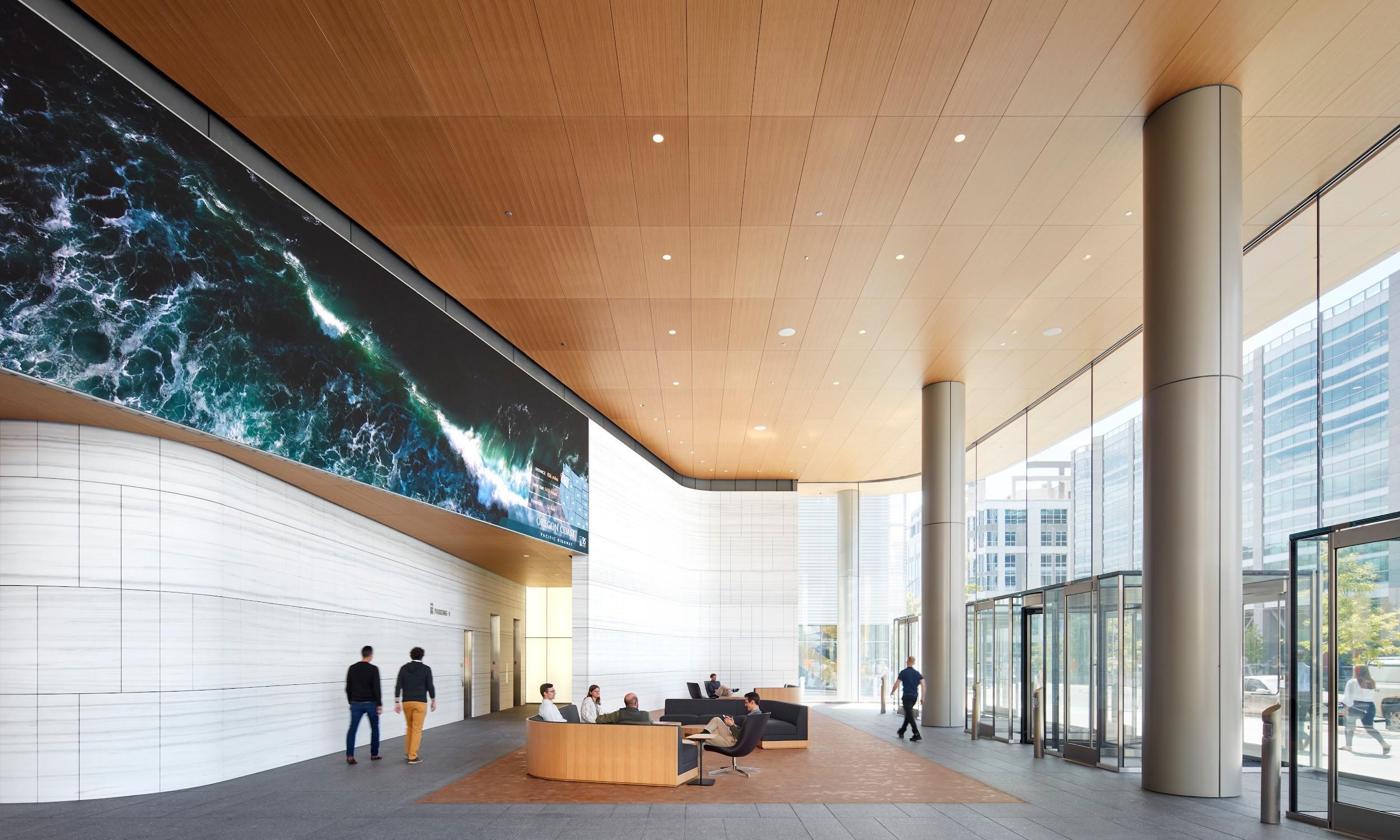

LOBBY LEVEL PLAN

95 STATE AT CITY CREEK SKIDMORE, OWINGS & MERRILL LLP

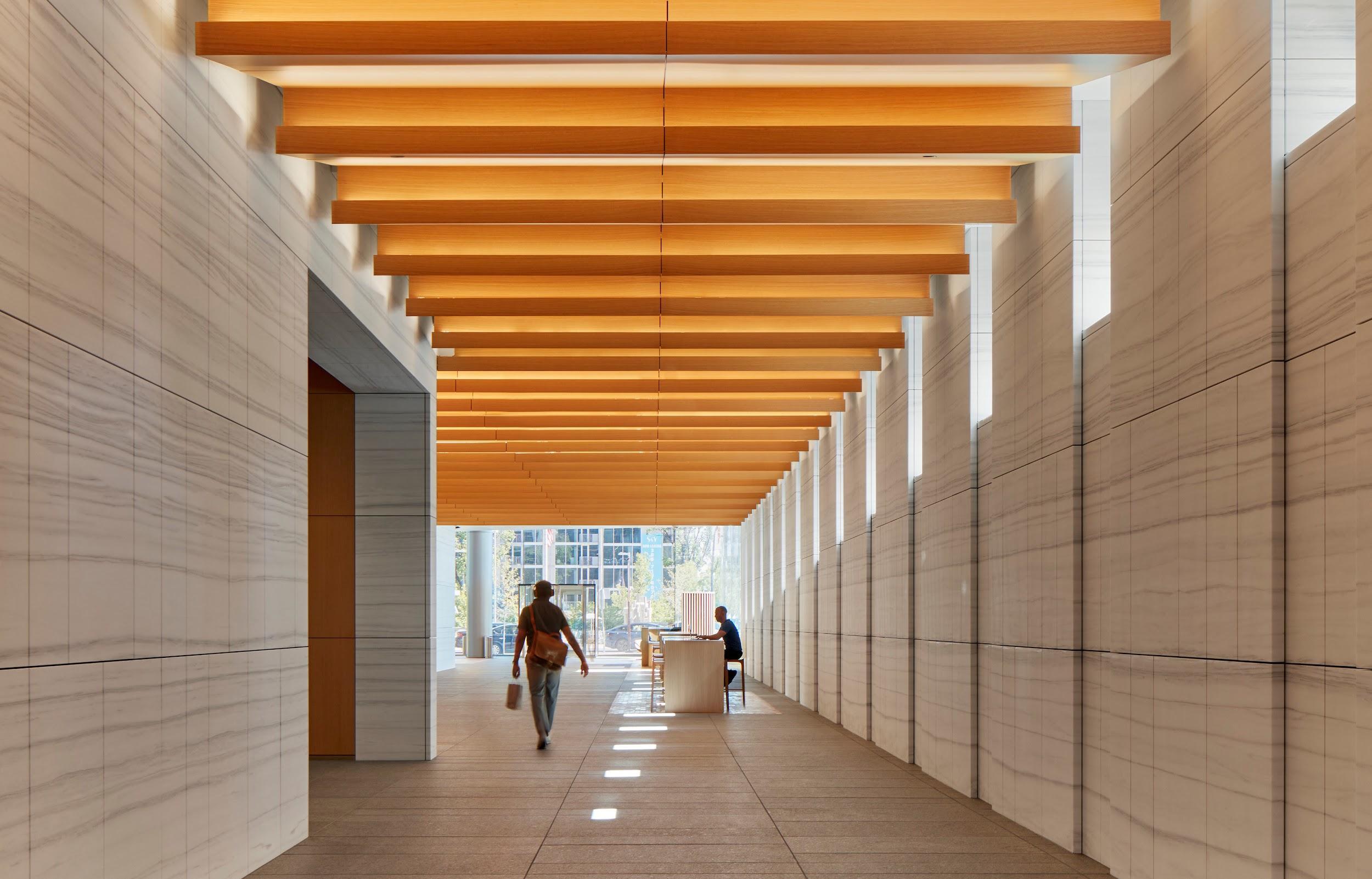

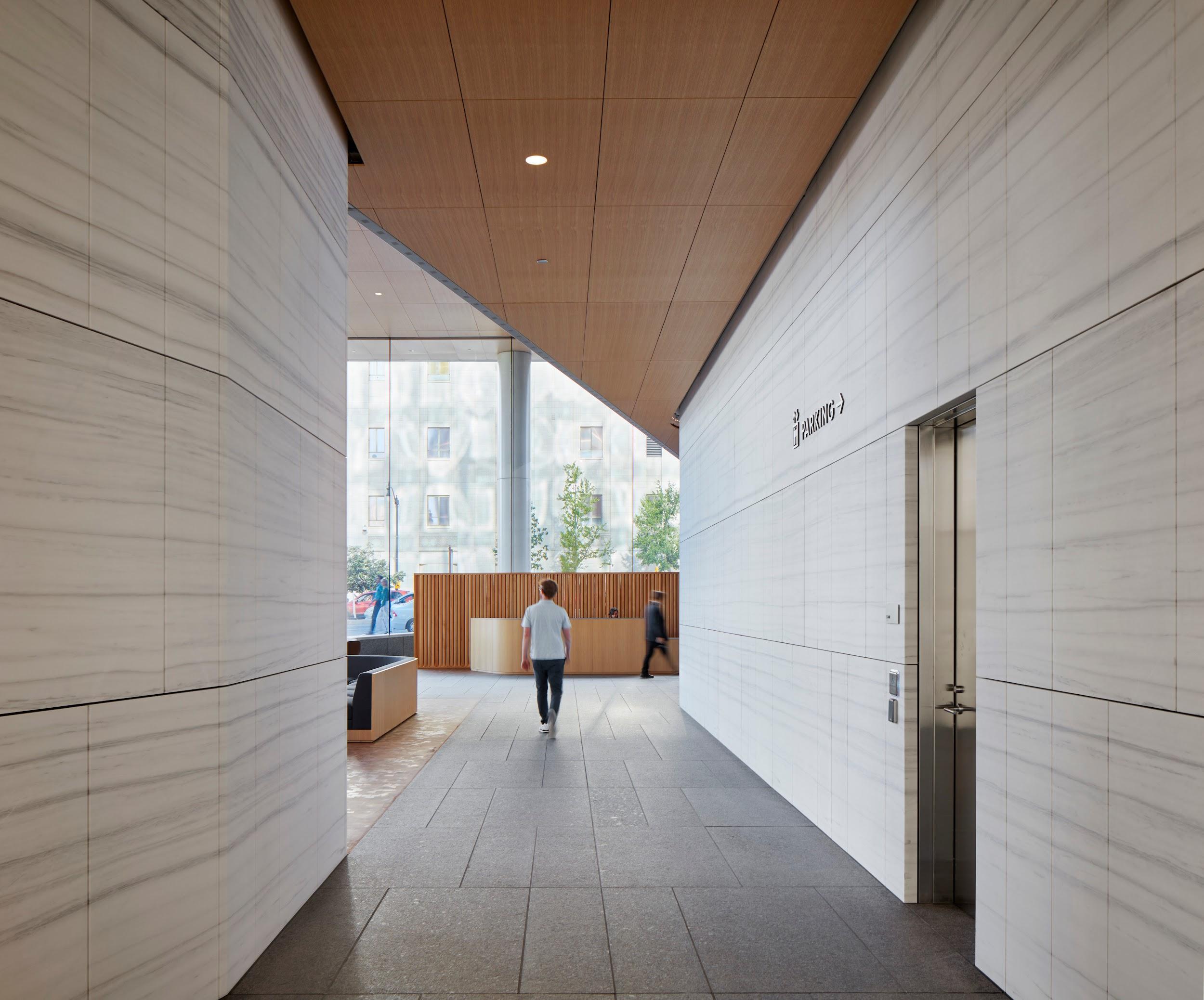

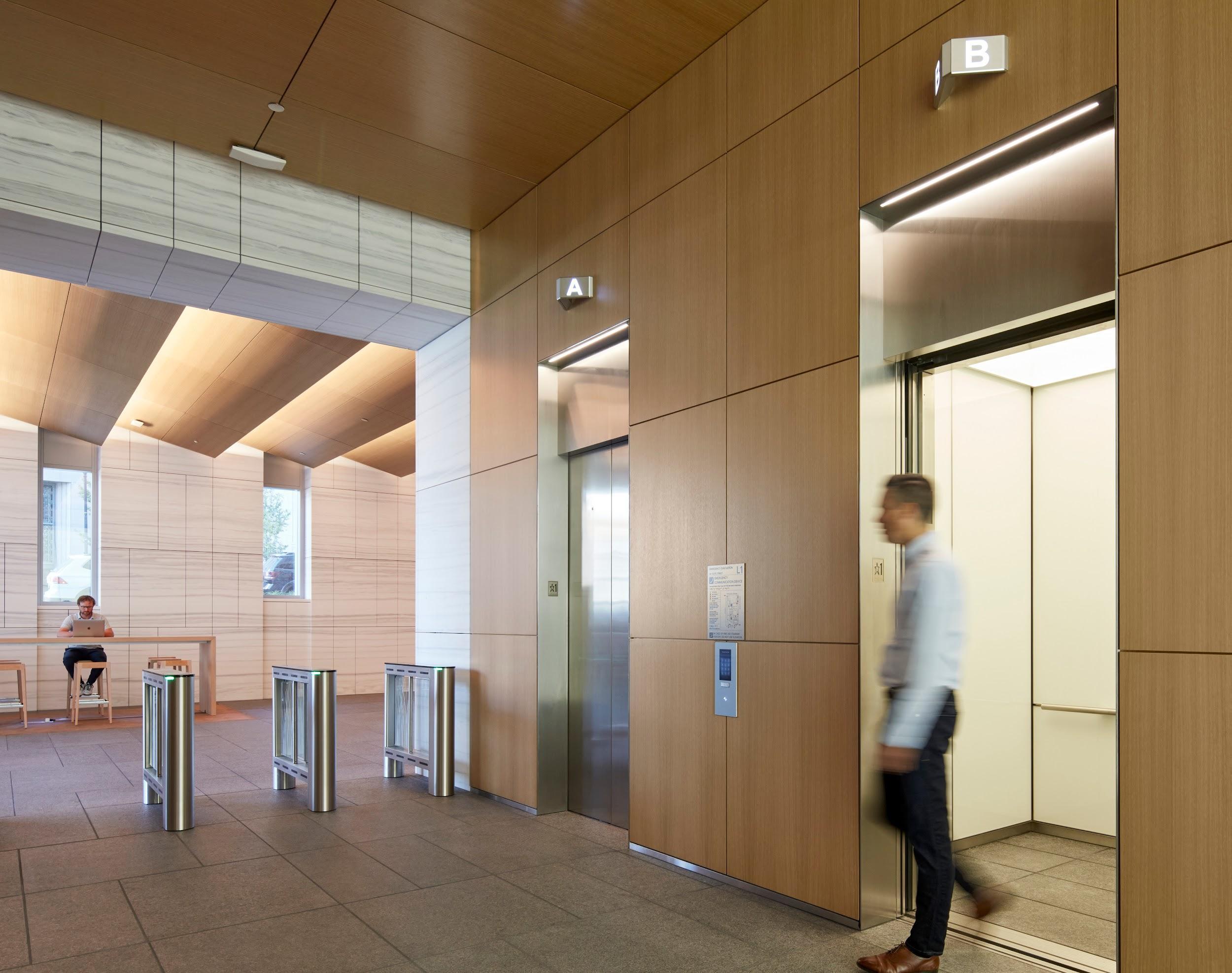

LOBBY LOOKING WEST

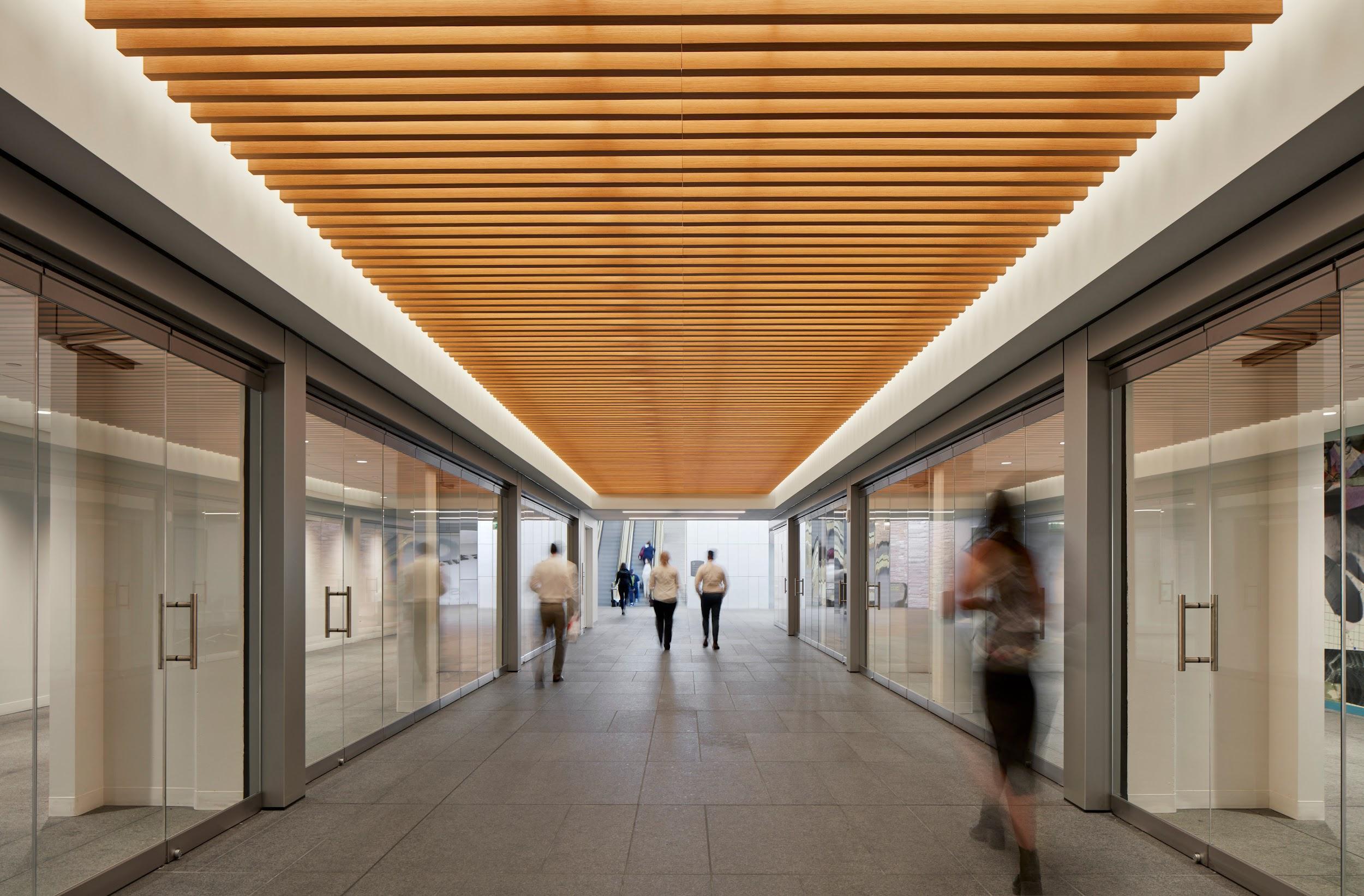

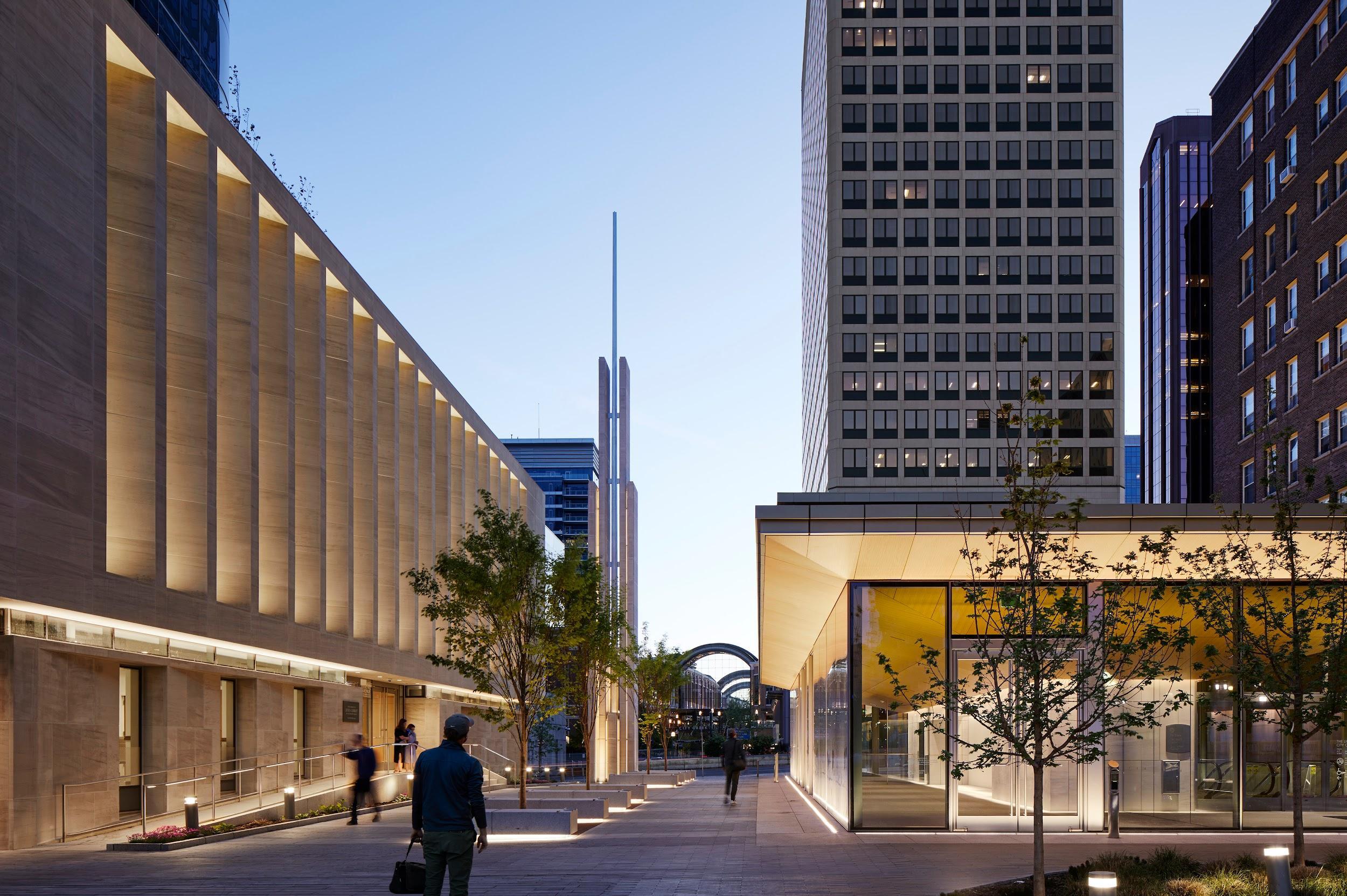

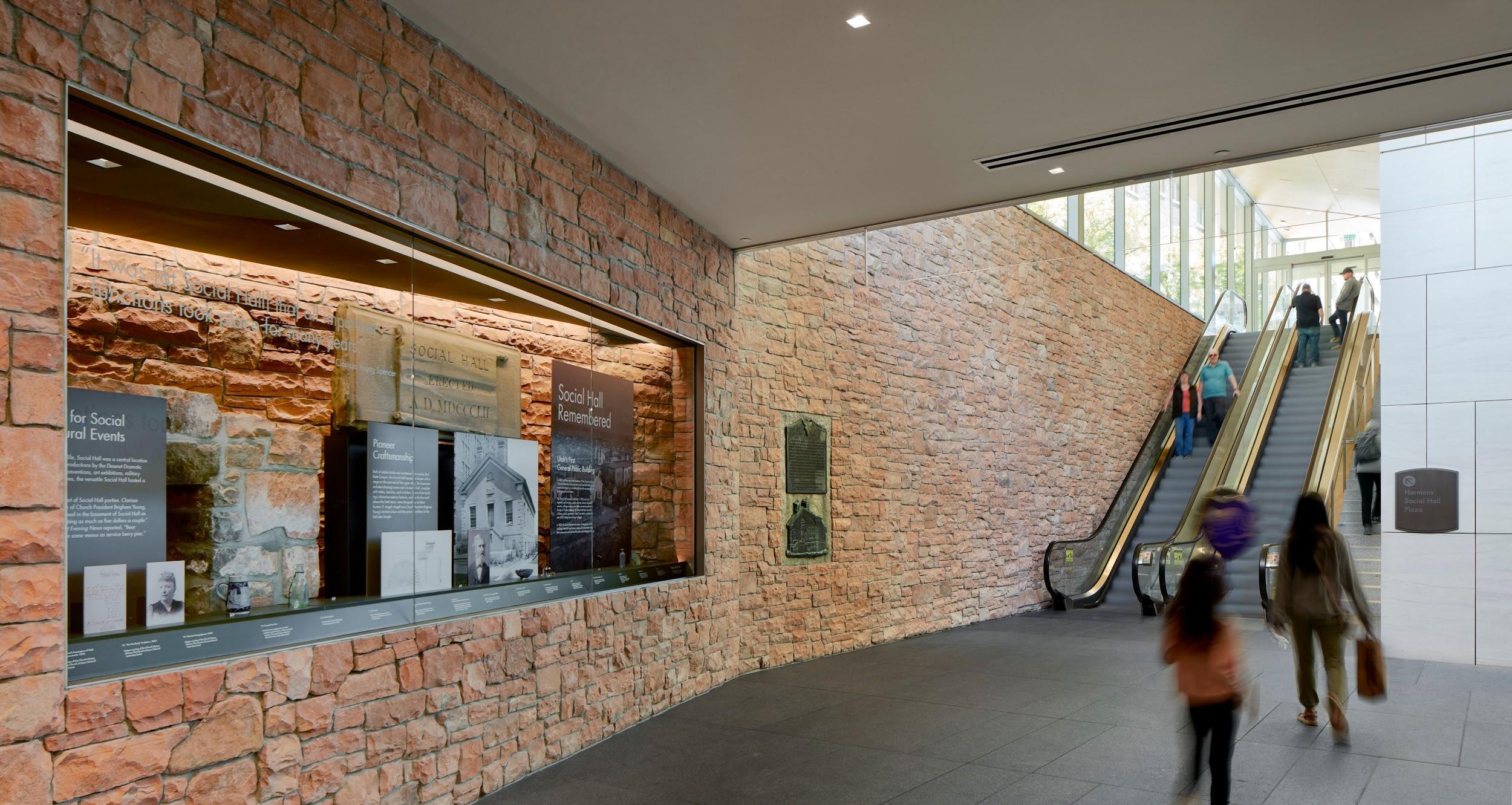

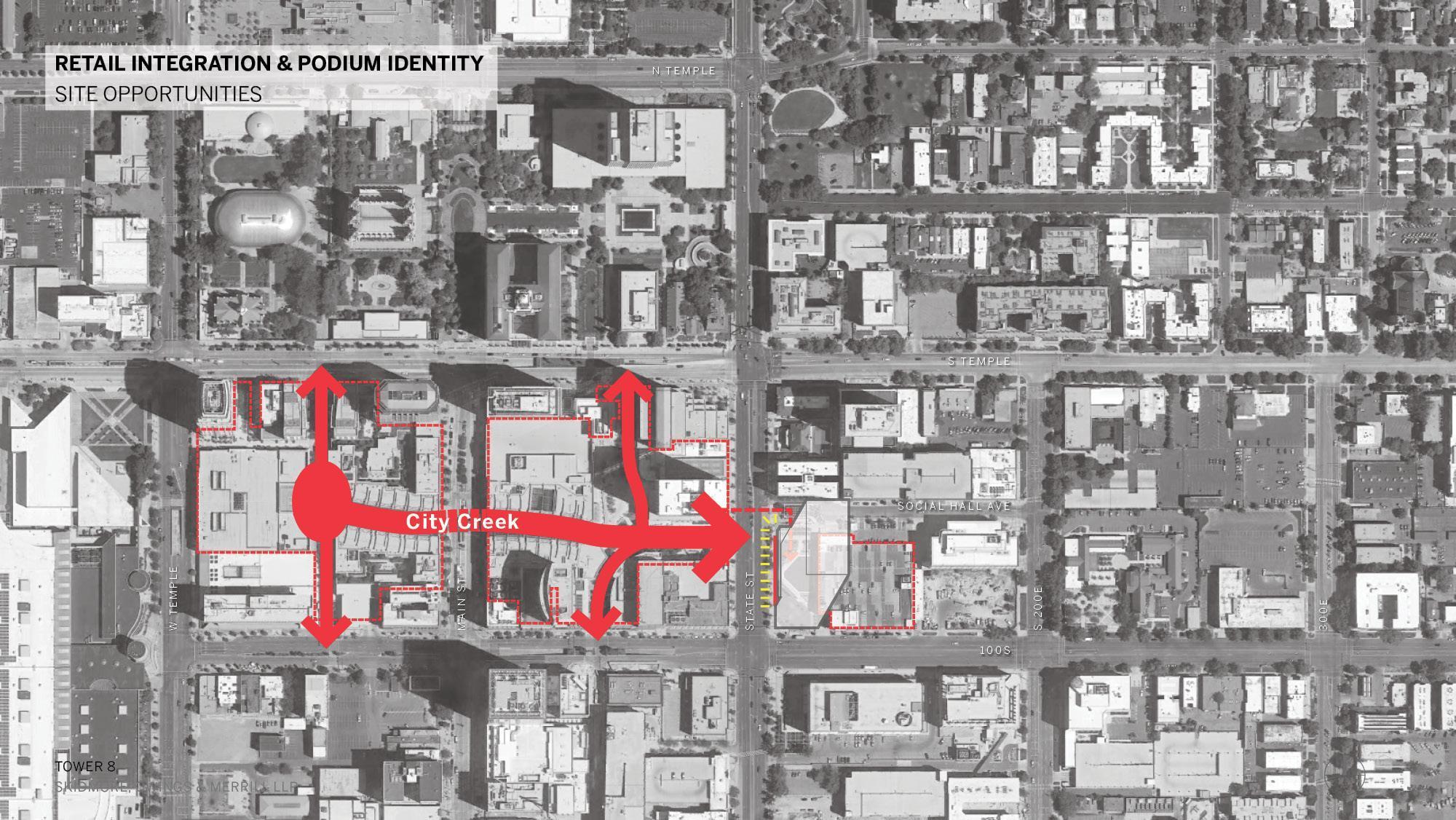

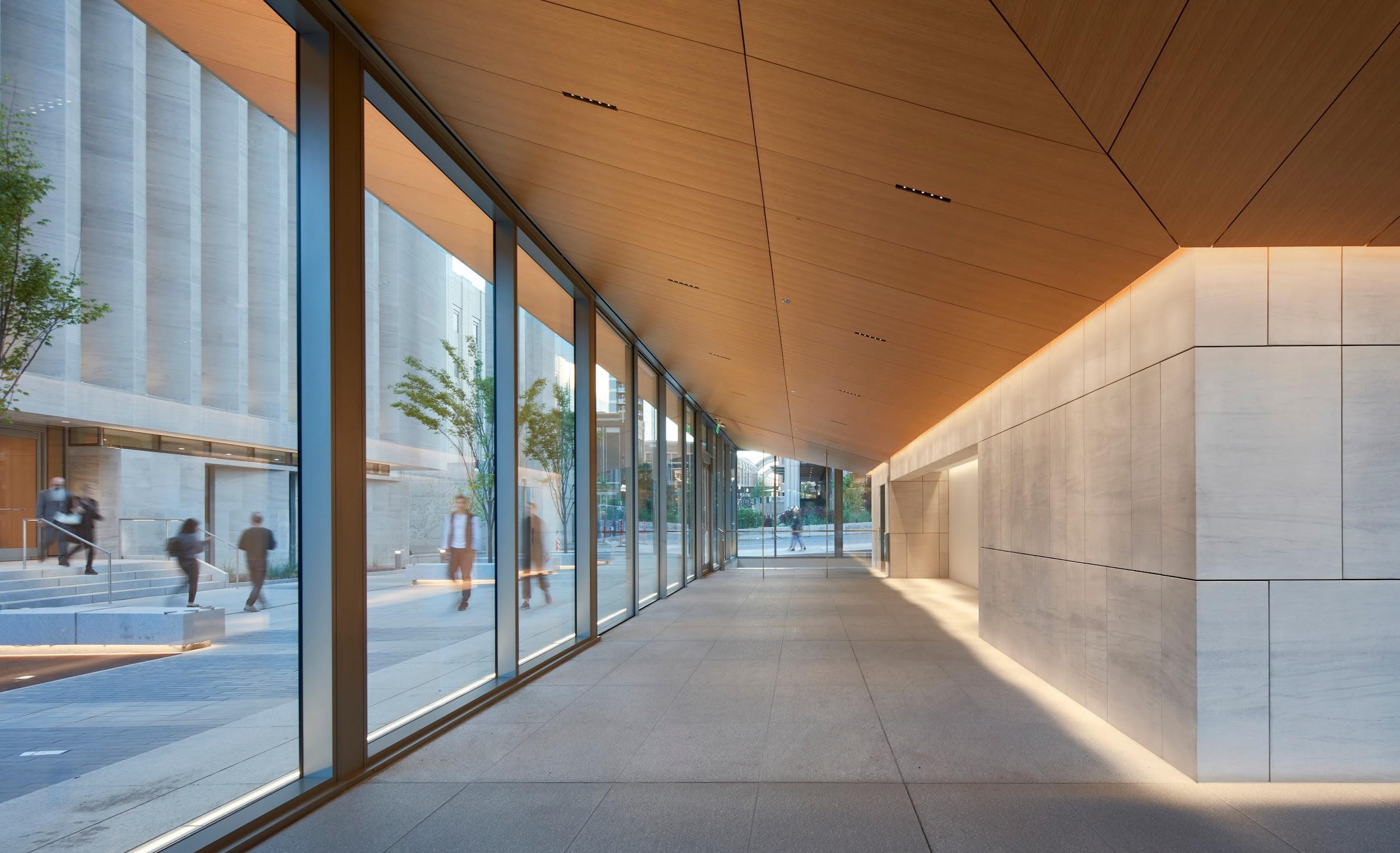

Social Hall Pavilion & Pedestrian Tunnel to City Creek

PROJECT NAME OR PHASE SKIDMORE, OWINGS & MERRILL LLP
