PAINTERS HOUSE

COMPETITION ENTRY | 2022

BEE-BREEDER COMPETITION

AWARD + BUILDNER STUDENT AWARD

PRIVATE DWELLING

LATVIA

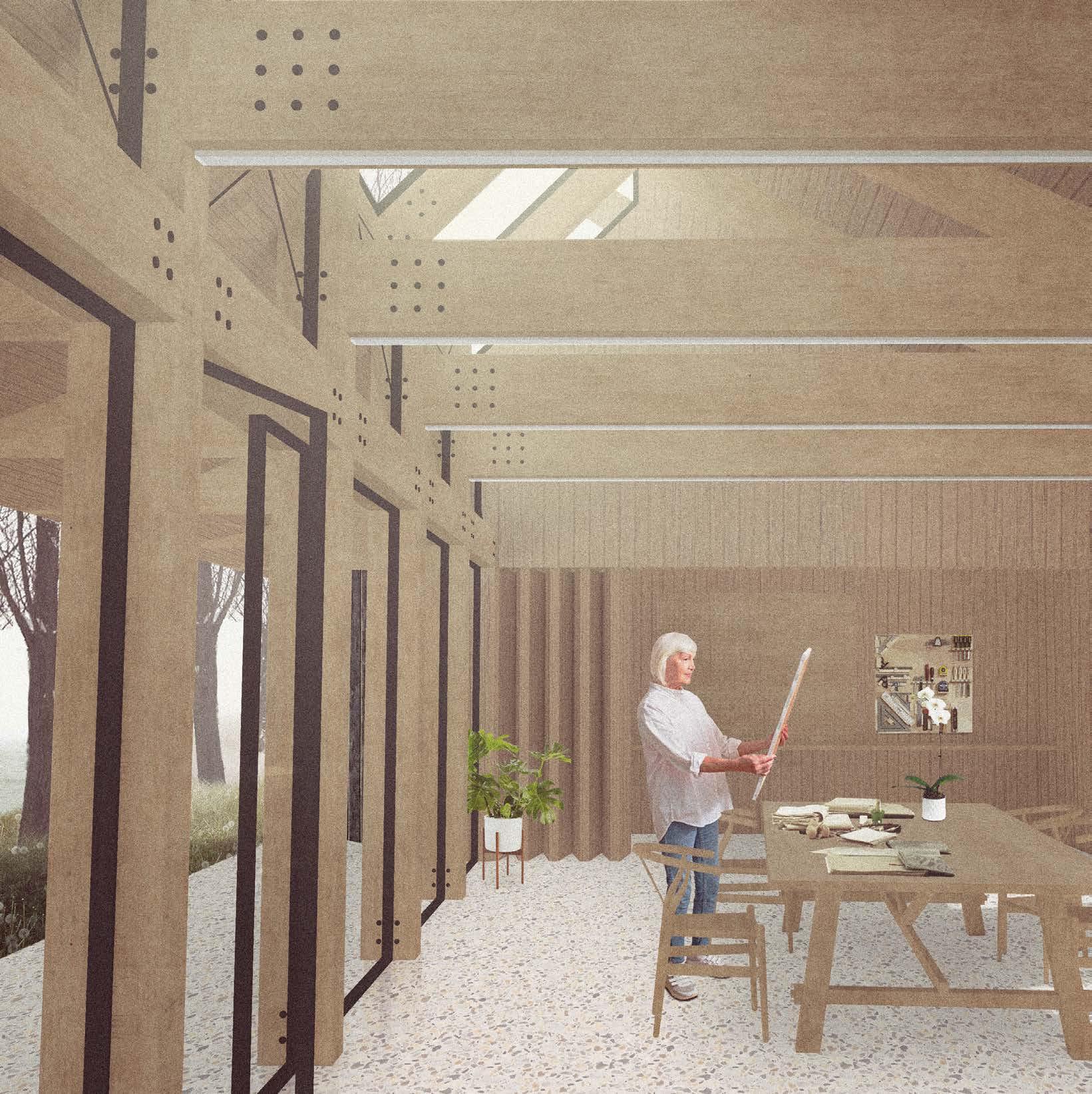

1. The original outlines of the structure are preserved. The northern shed will be merged to the unfinished stone foundation to create an art studio. As the lake also lies north of the compound, this would provide a direct view to the lake from the art studio.

2. The original division between the shed and the foundation will also be preserved, and will now mark as a pathway which connects from the entrance, to the common room and studio, to the lake, through a descending cascade of stairs.

3. The original southern cabin will be split into two private dwellings, with a common space in between. The space is extended towards both the west and the east to provide a direct view towards the lake. Within shared spaces such as the common room and living rooms, the view of the lake will be seen through the studio. But through private spaces such as the bedrooms, the views of the lake are direct.

1. THATCHED ROOF

2. RECYCLED SHOU-SUGI-BAN CLADDING

3. ART STUDIO STORAGE

4. DOUBLE GLAZED GLASS DOOR

5. CROSS-BRACING

6. DOUBLE GLAZED SKYLIGHT

7. BI-FOLDING DOOR

8. TIMBER WORKSHOP

9. INTERIOR TIMBER CLADDING

1. DOUBLE GLAZED TEMPERED GLASS, 4MM THICKNESS WITH 6MM SPACING, SECURED TO THE LVL ROOF RAFTERS AND THE AWNING.

2. TRADITIONAL LATVIAN THATCHED ROOFING, 50CM EXPOSED COURSE RUN, ANCHOR TO AWNING BATTENS AND RAFTERS WITH SWAYS AND CROOKS.

3. TIMBER ROOF BATTEN, OPEN FRAMING GRID, SECURED TO AWNING RAFTERS WITH SCREWS.

4. WEATHER RESISTANT BARRIER OVER FIBREBOARD.

5. DOUBLE GLAZED TEMPERED GLASS, 4MM THICKNESS WITH 6MM SPACING, SECURED TO THE LVL CROSS BEAMS AND THE AWNING.

6. METAL CROSS BRACING, SECURED TO LVL COLUMNS.

7. AWNING RAFTERS, INSULATION BETWEEN SPACINGS.

8. LAMINATED VENEER LUMBER BEAM, 400X200MM.

PIN-POINT CONNECTION TO LVL COLUMNS WITH METAL BRACKETS AND BOLTS

9. TIMBER PURLIN BETWEEN AWNING RAFTERS

10. LAMINATED VENEER LUMBER COLUMN, 300X200MM, RIGID CONNECTION TO CONCRETE FOUNDATION WITH METAL PLATES AND BOLTS

11. LAMINATED VENEER LUMBER BEAM, 300X300MM,

PIN-POINT CONNECTION TO LVL COLUMNS WITH METAL BRACKETS AND BOLTS

12. TIMBER VENEER SURROUNDING LVL BEAM

13. DOUBLE GLAZED TEMPERED GLASS DOOR, SECURED TO THE CONCRETE FLOOR AND LVL BEAM.
