PUBLIC ARCHITECTURE
LUOYANG CITY BALCONY PROJECT LUOYANG PLANNING & ARCHITECTURAL DESIGN INSTITUTE (PROFESSIONAL WORK)
PAGE 6
SHENZHEN ACCESSIBLE SERVICE CENTER FOR ENTREPRENEURSHIP STEFANO BOERI ARCHITETTI (PROFESSIONAL WORK)
PAGE 18
RESIDENTIAL ARCHITECTURE
REIMAGINING WHERE WE LIVE DESIGN IDEAS COMPETITION TRIDENTE BOYCE (PROFESSIONAL WORK)
PAGE 36
BREBNER DRIVE APARTMENT BUILDING TRIDENTE BOYCE (PROFESSIONAL WORK)
PAGE 66
COMPETITION / THESIS

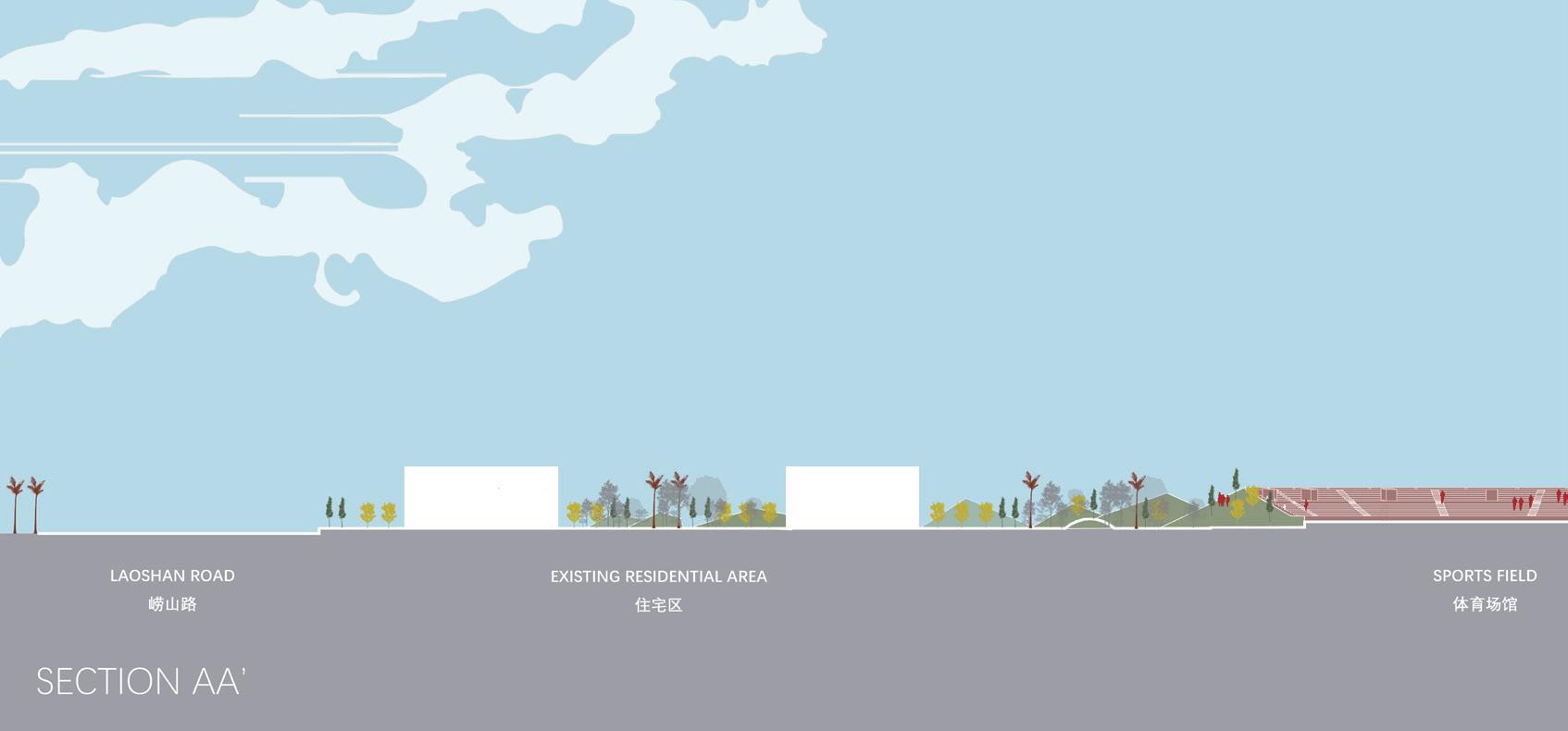

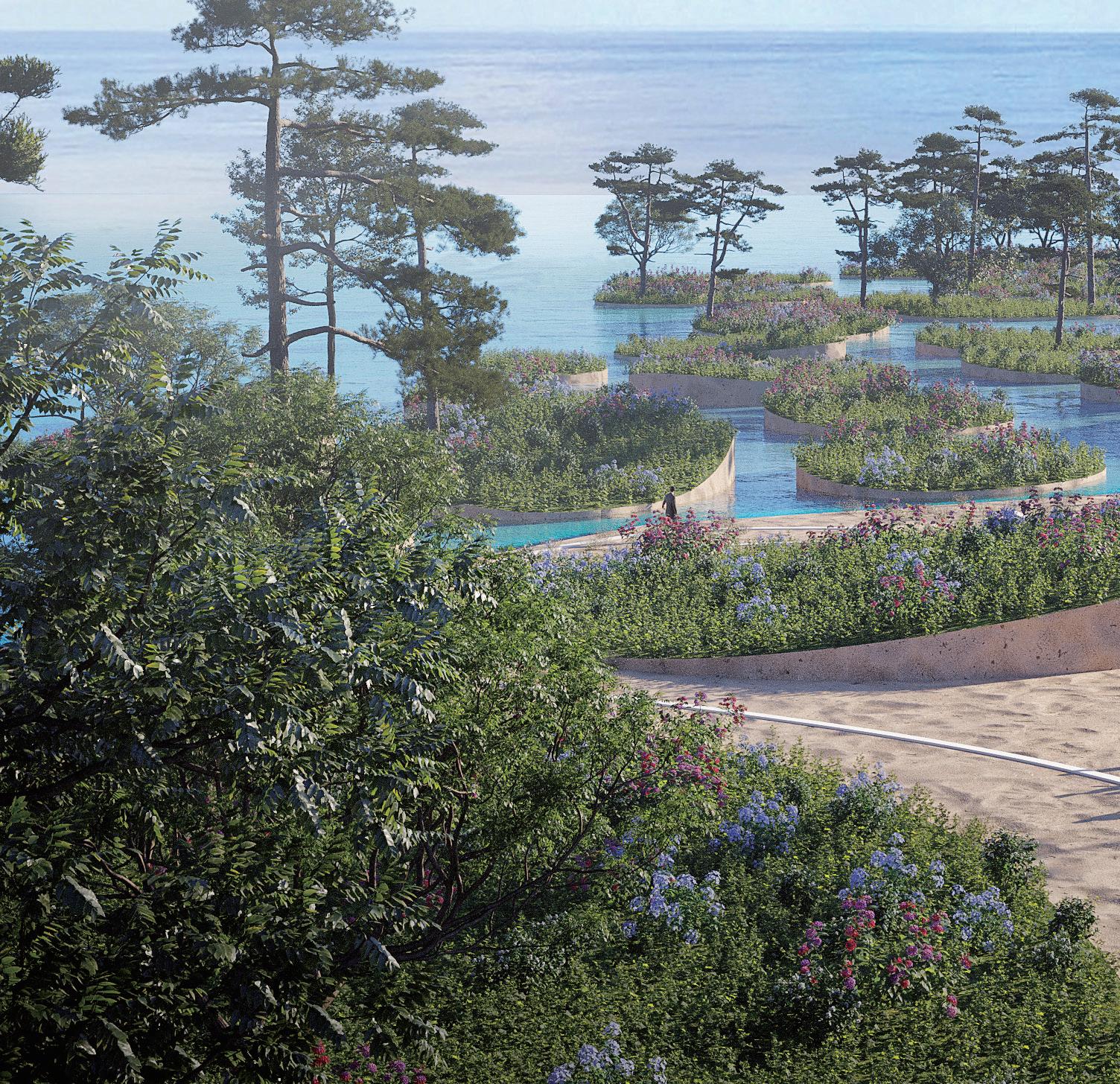

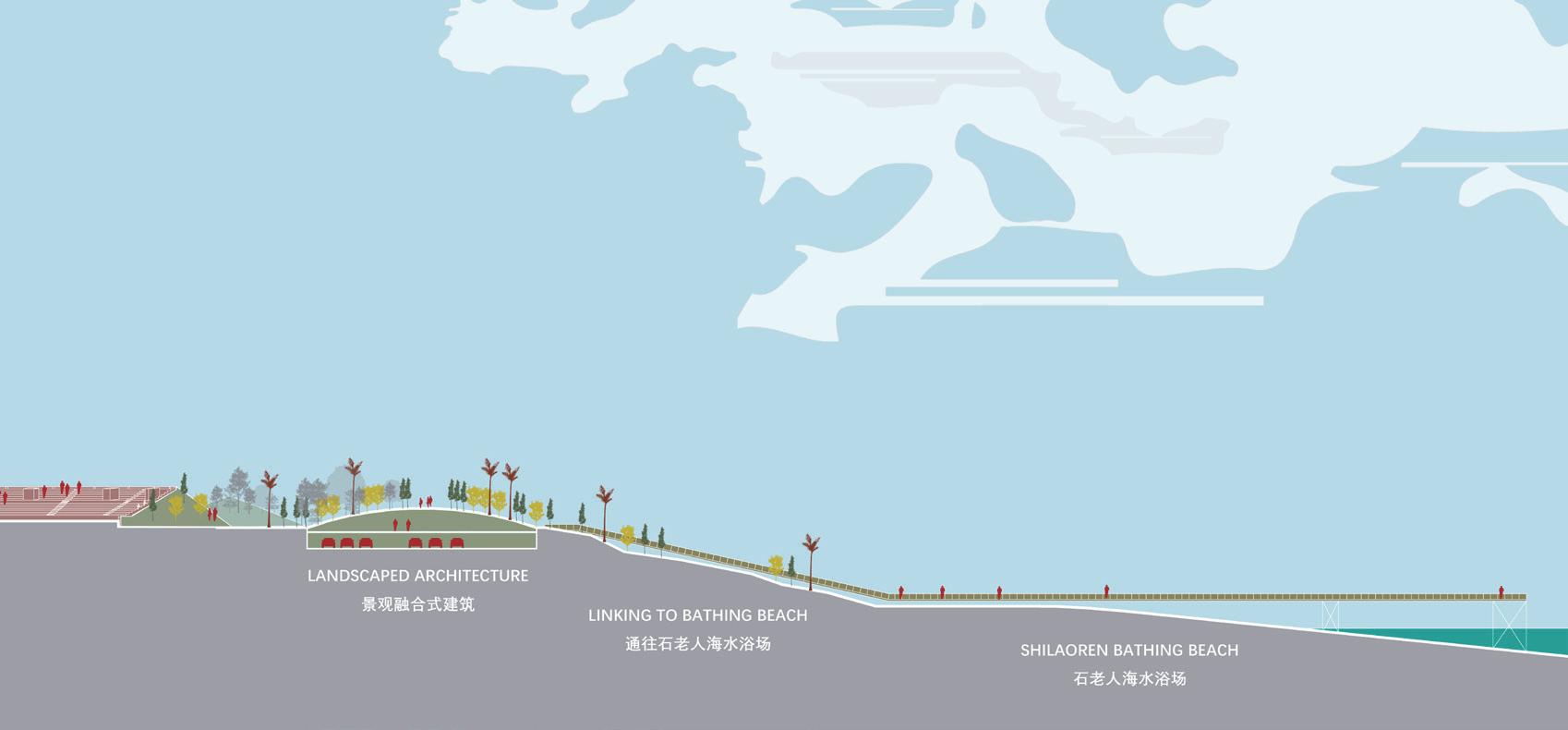

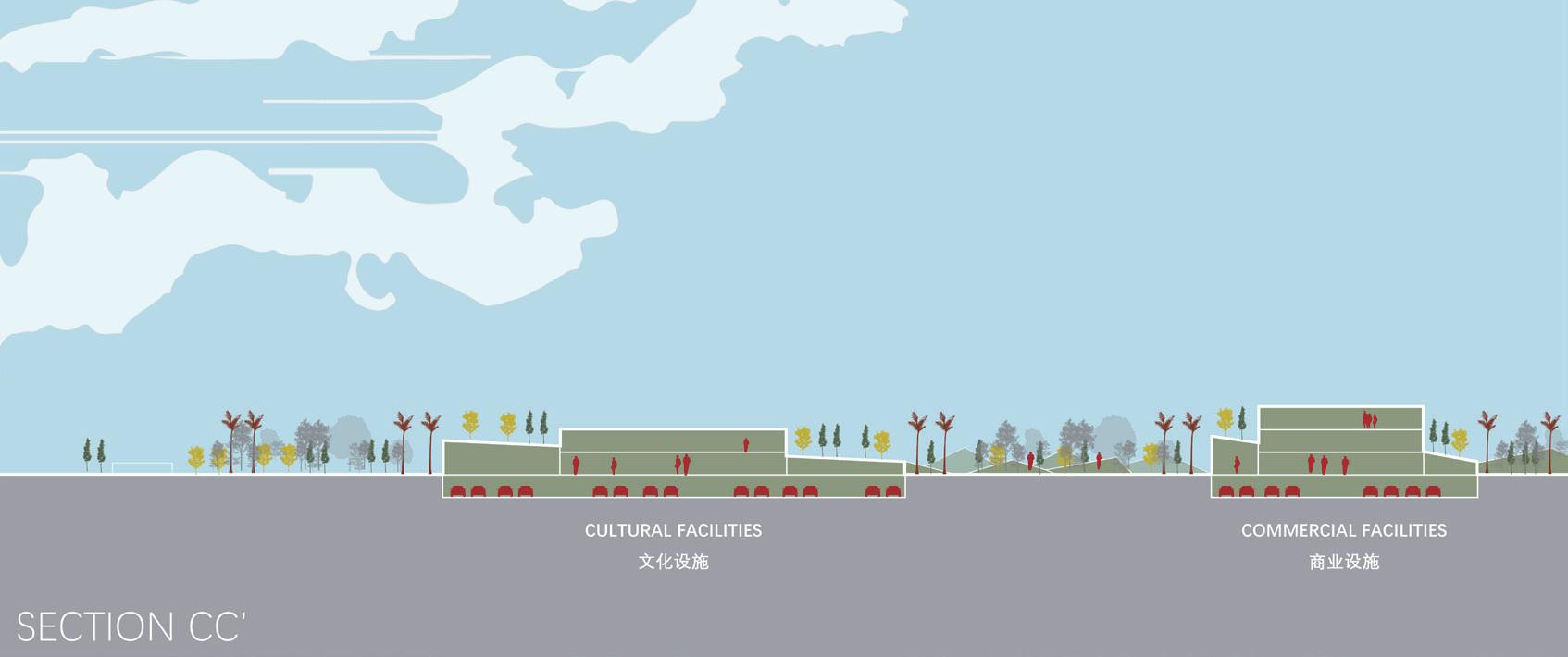

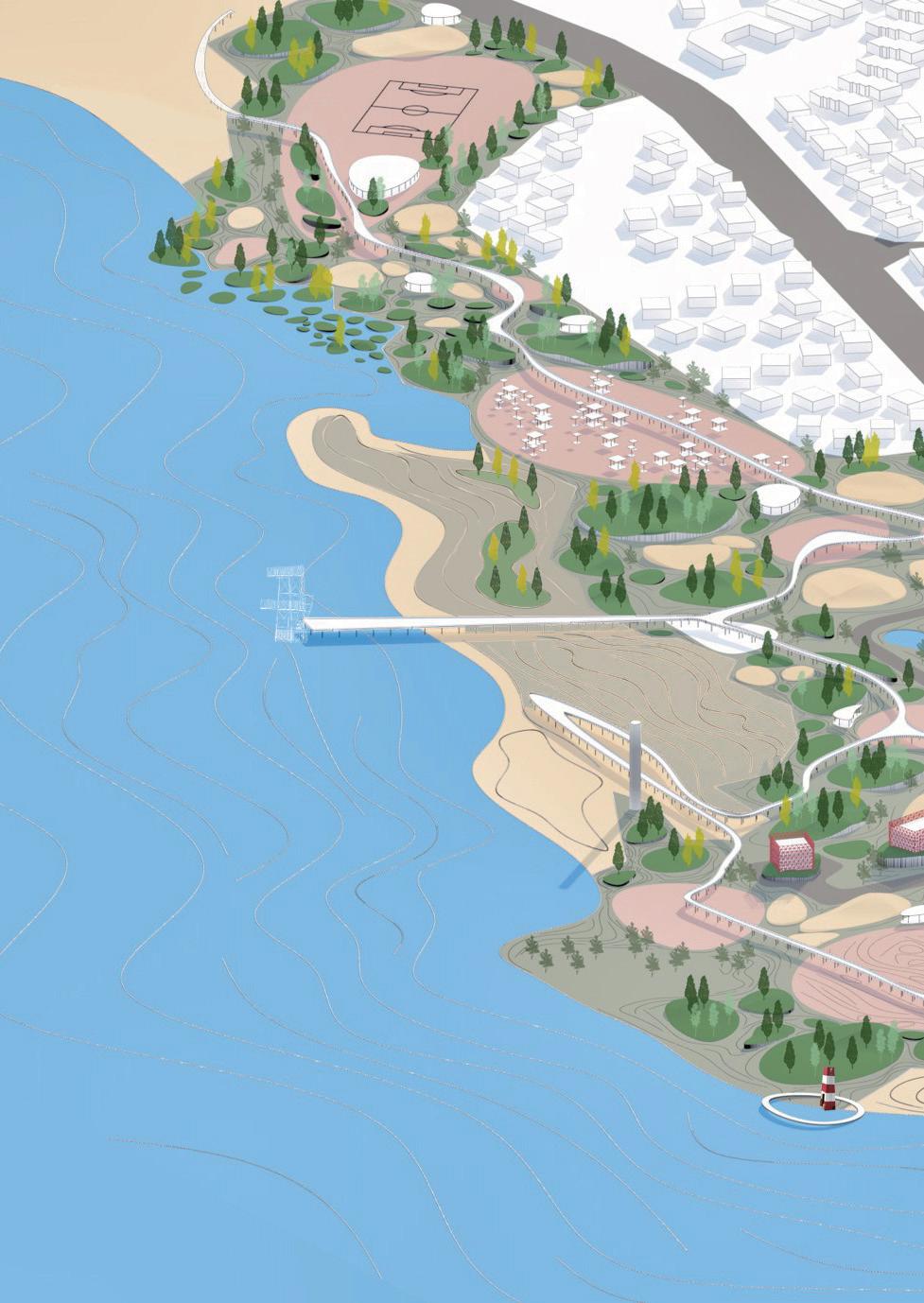

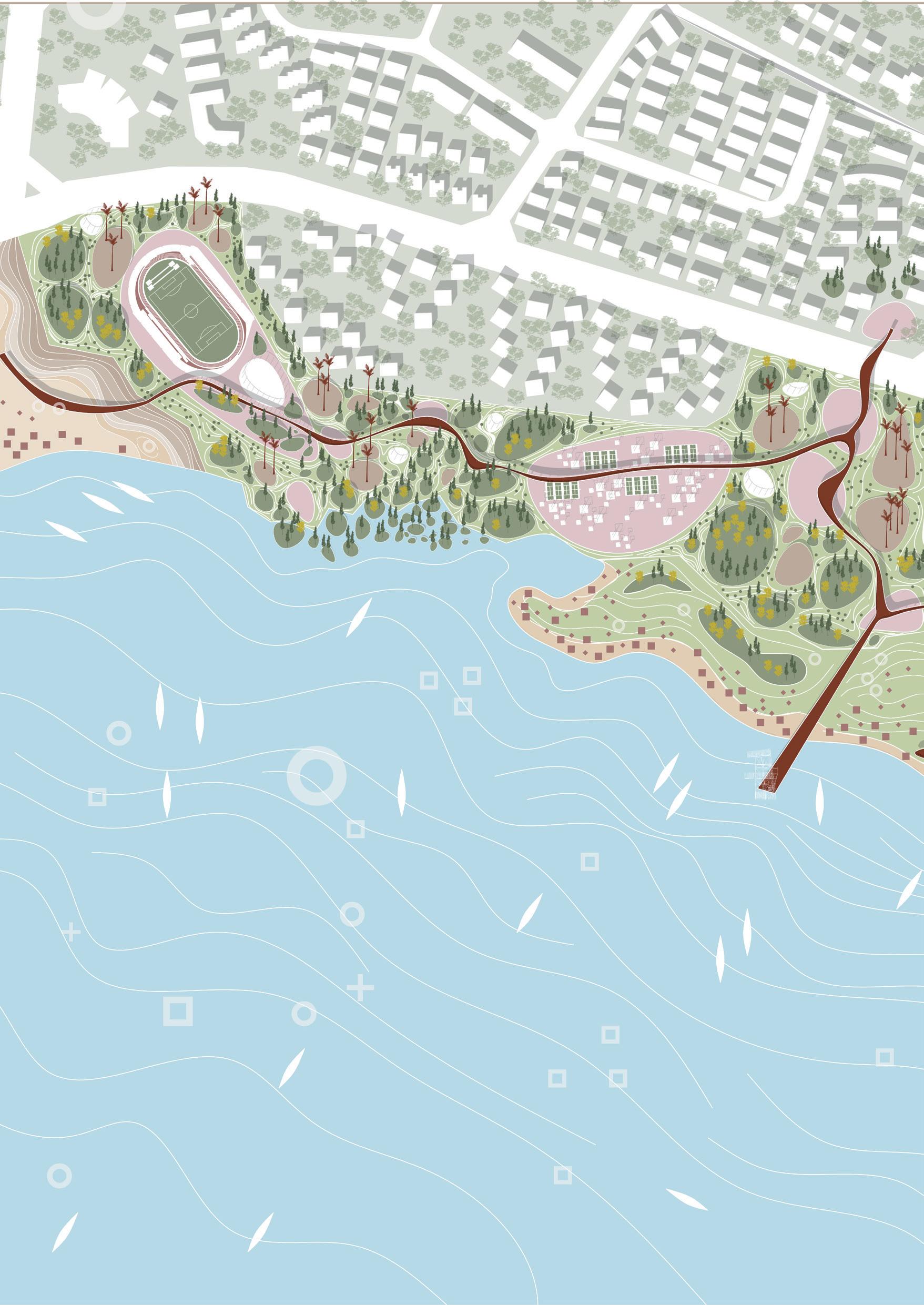

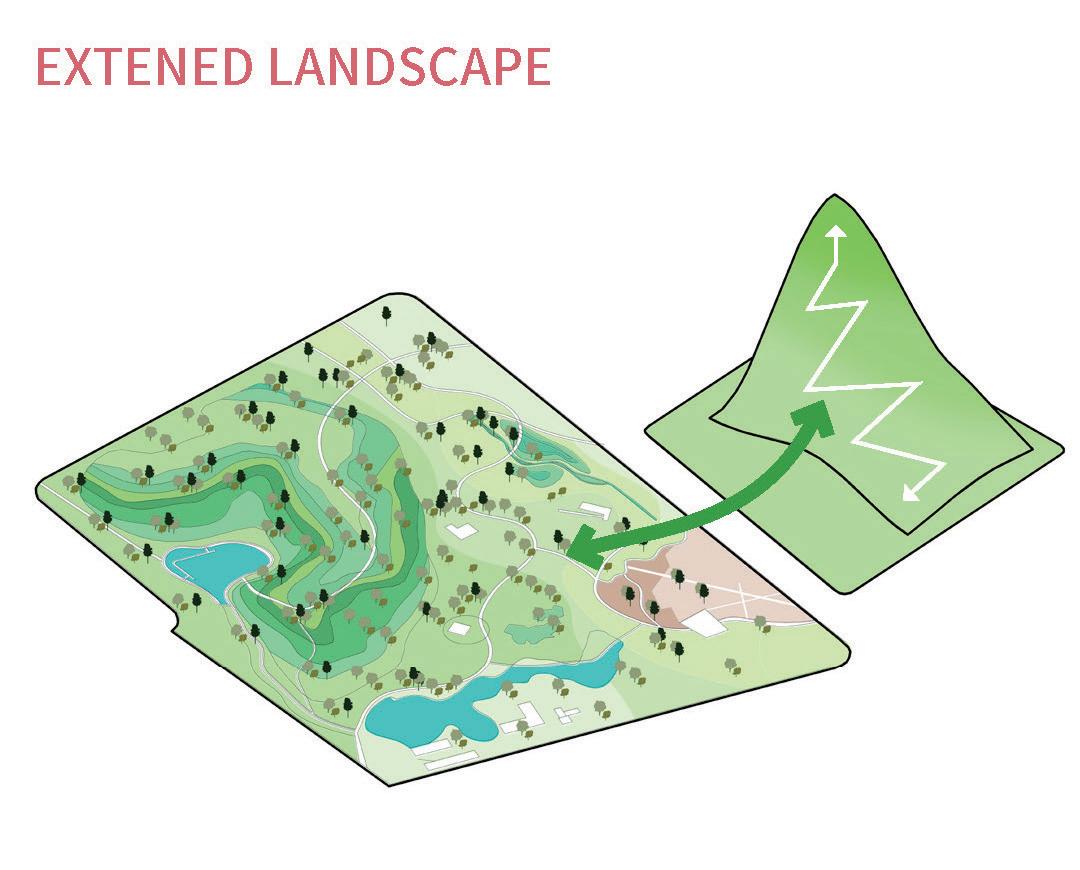

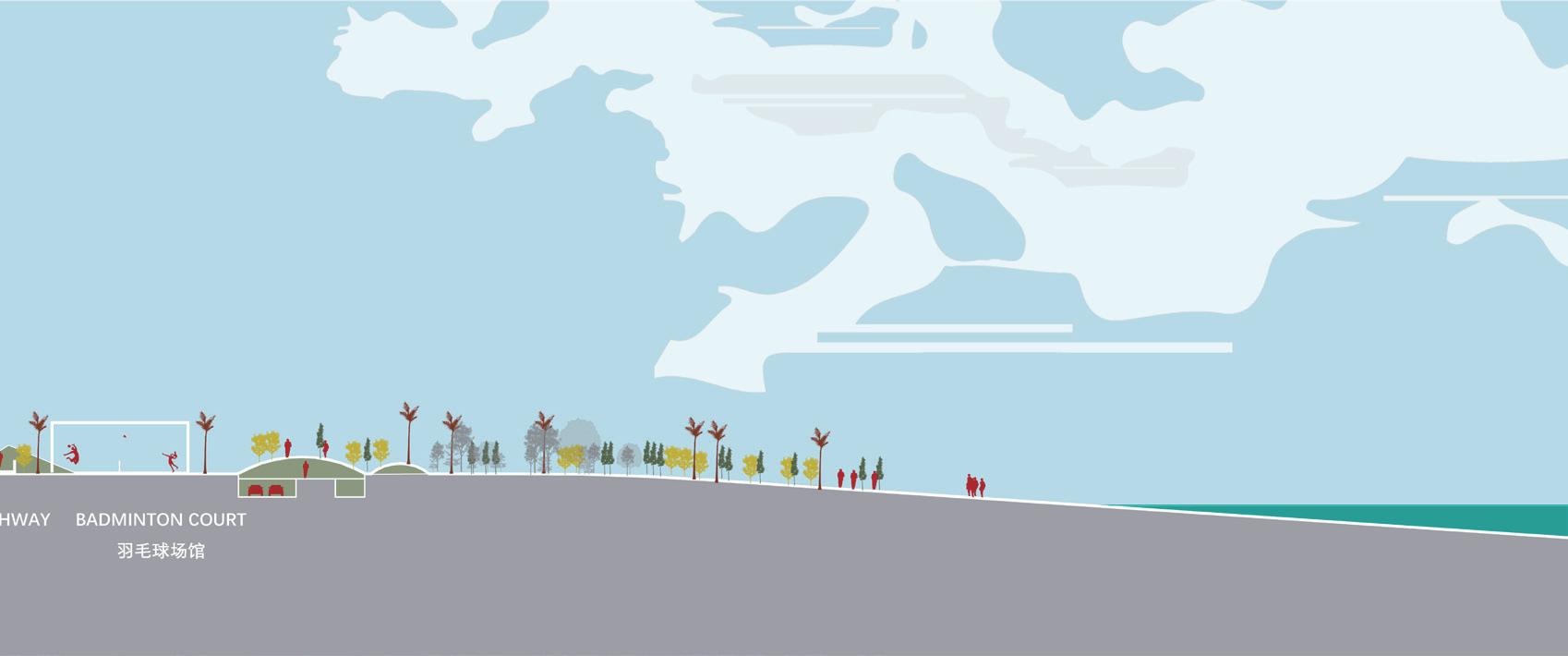

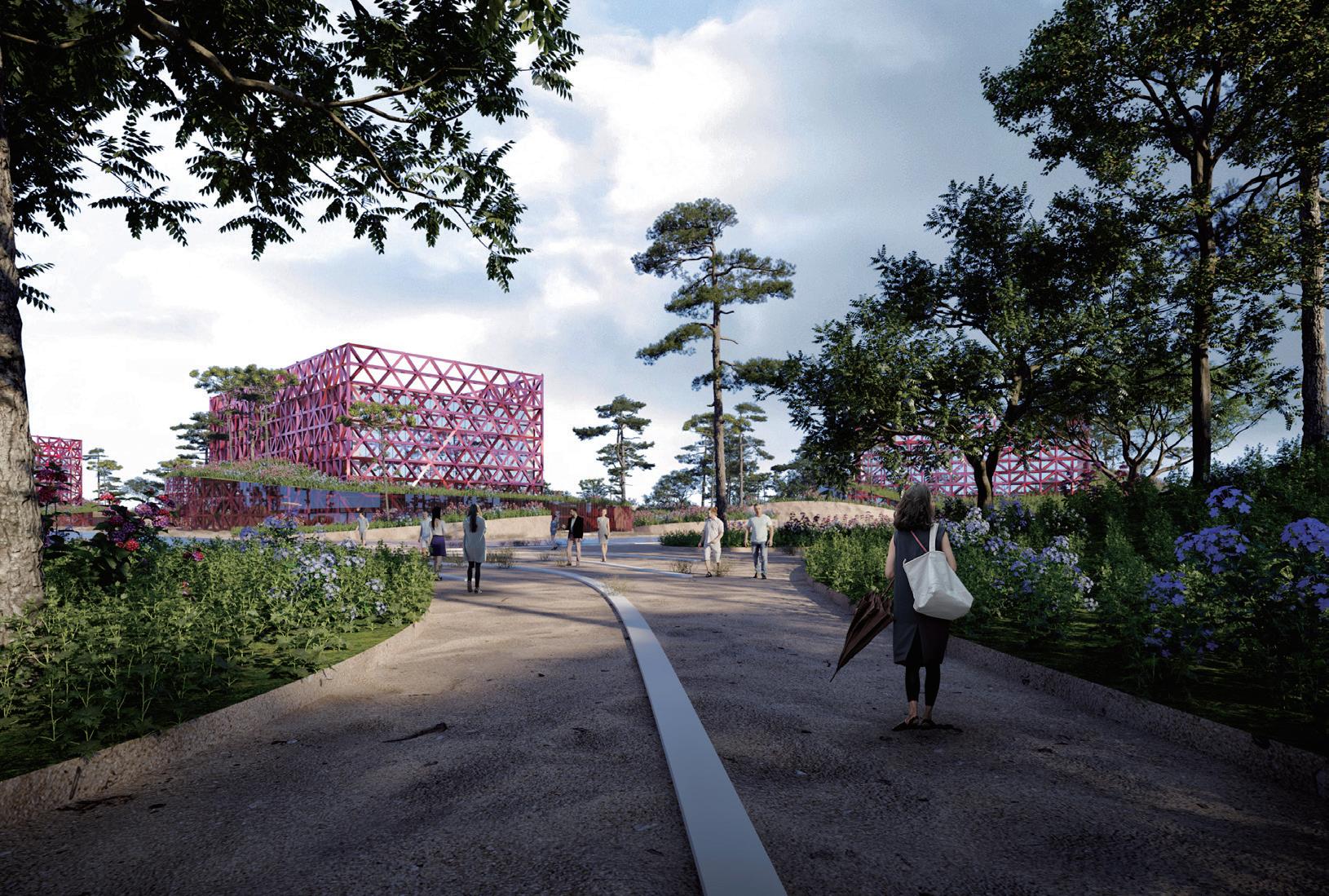

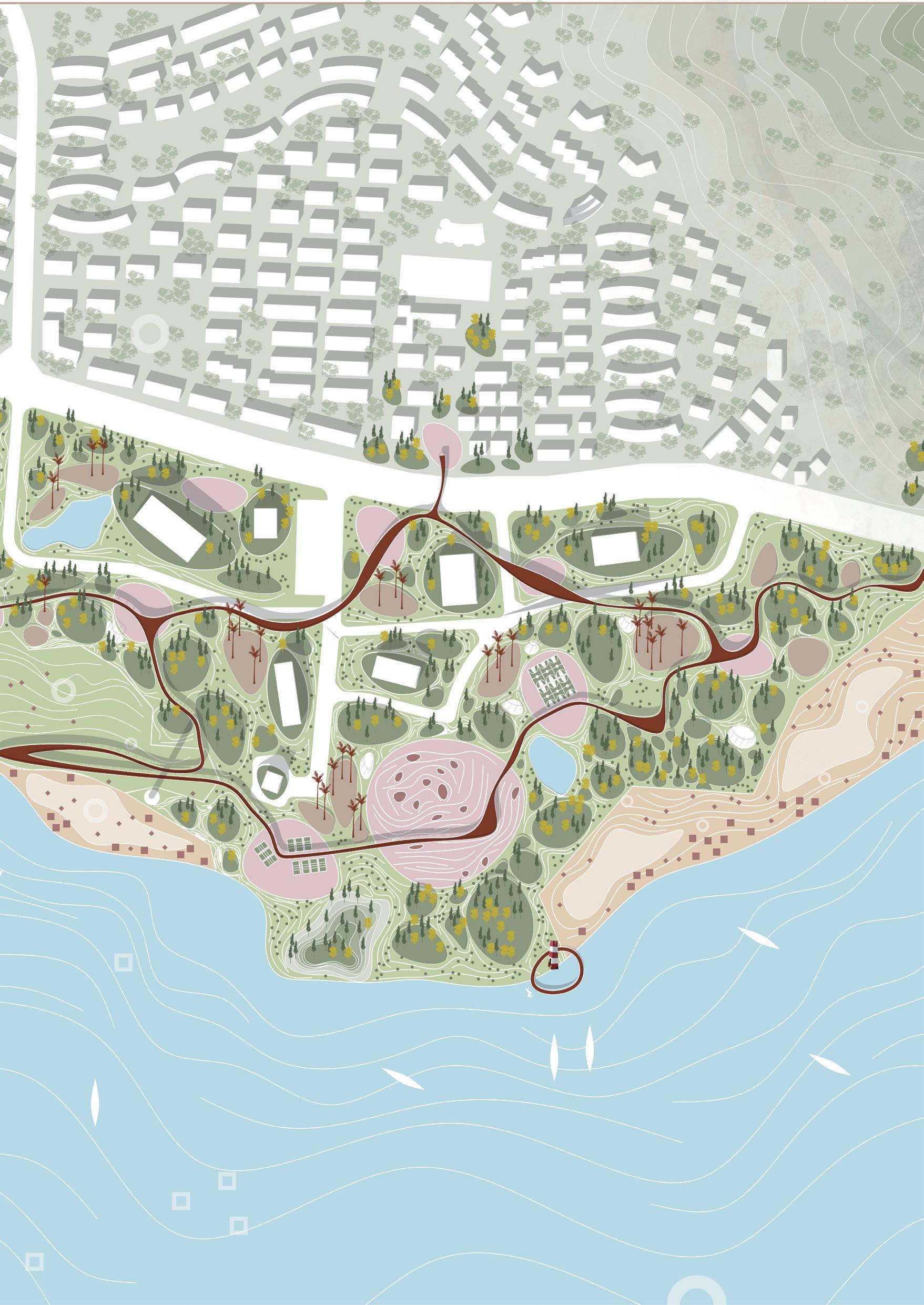

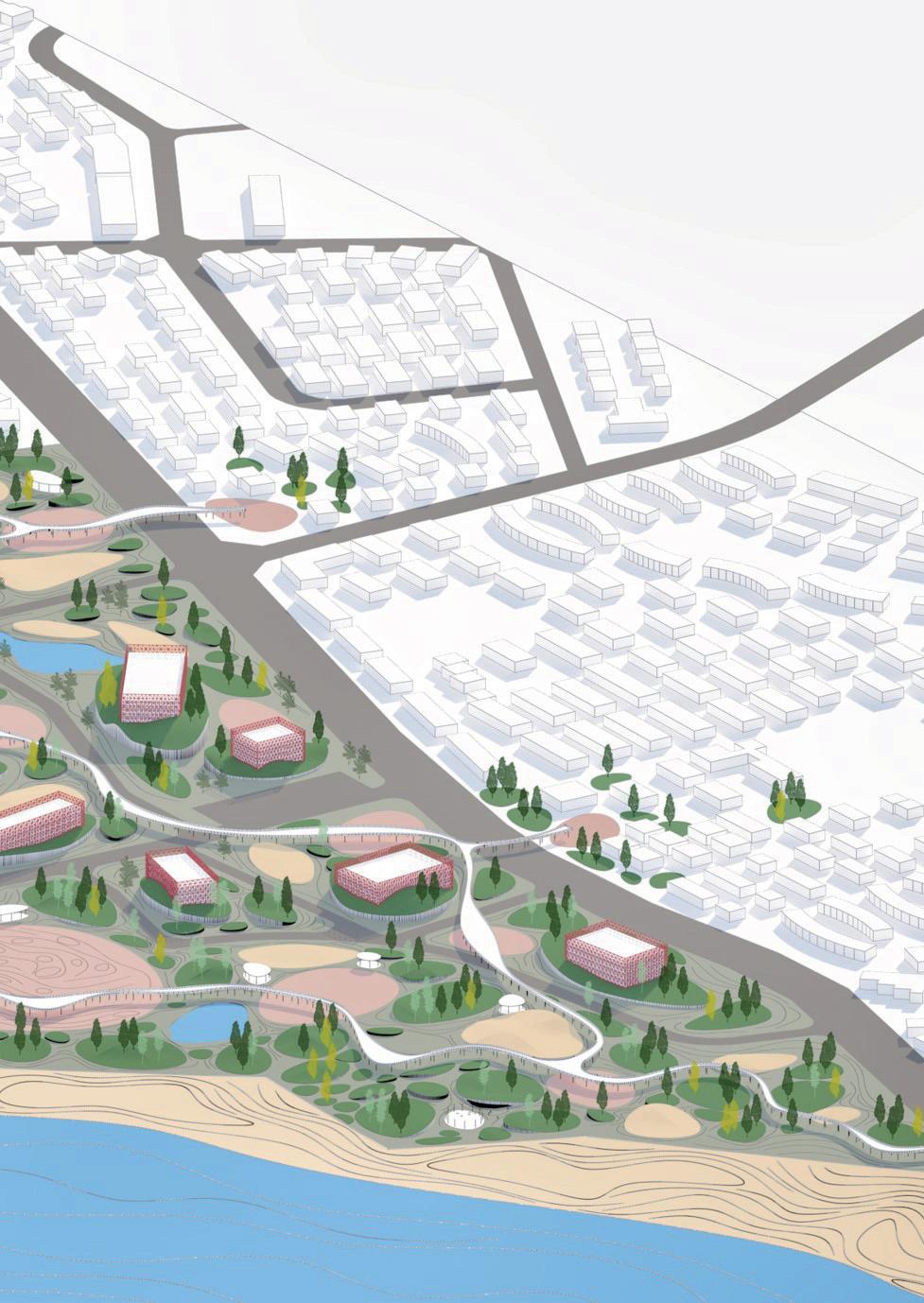

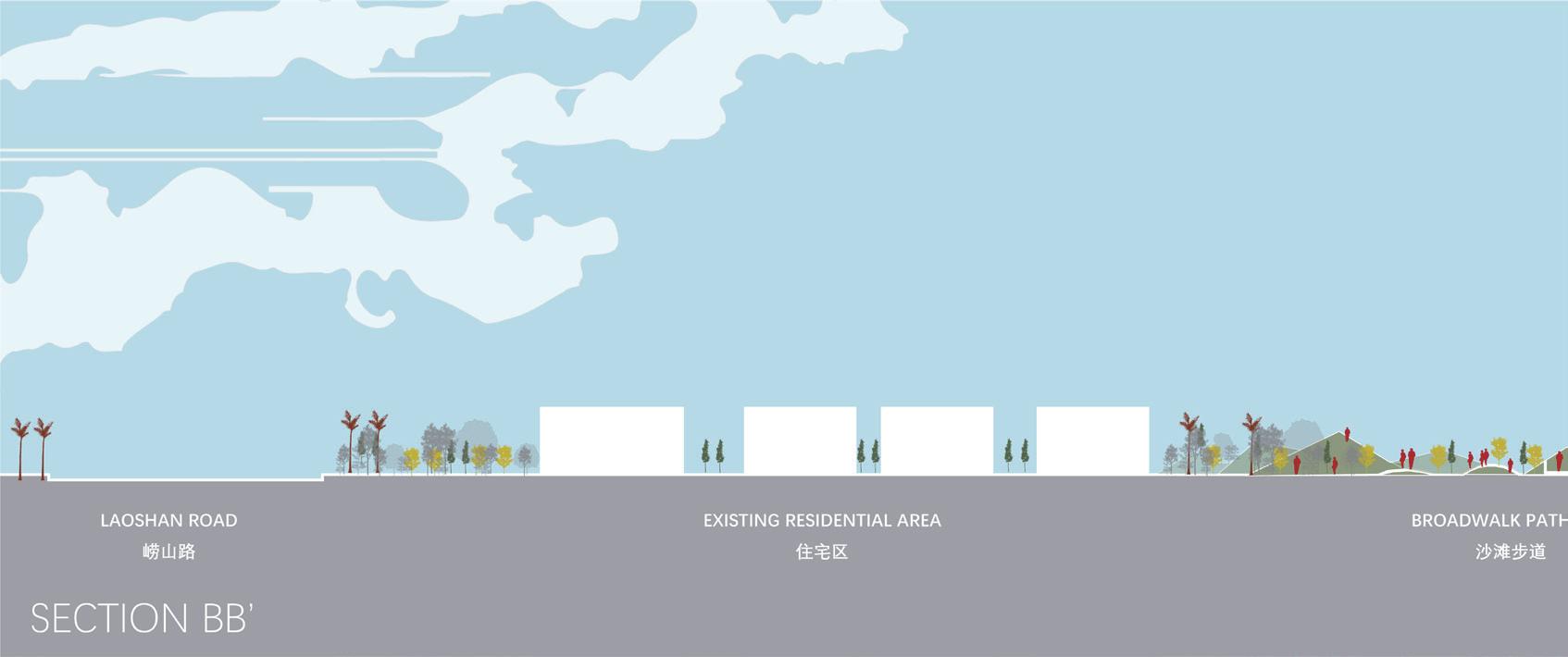

QINGDAO SHILAOREN SEASIDE PARK STEFANO BOERI ARCHITETTI (PROFESSIONAL WORK)
PAGE 102
YOUNG WOMEN’S CHRISTIAN ORGANISATION (YWCA) APARTMENT TRIDENTE BOYCE (PROFESSIONAL WORK)
PAGE 42
SAHA PLAYFORD HOUSING TRUST REDEVELOPMENT TRIDENTE BOYCE (PROFESSIONAL WORK)
PAGE 82

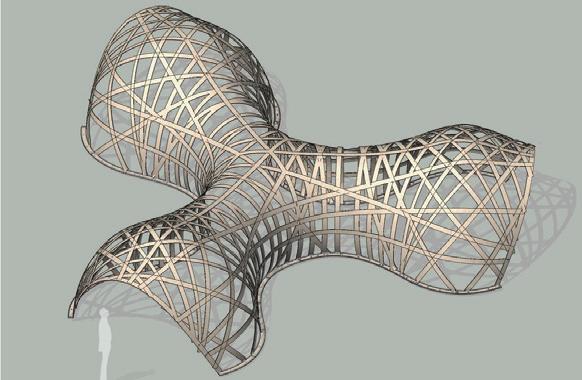

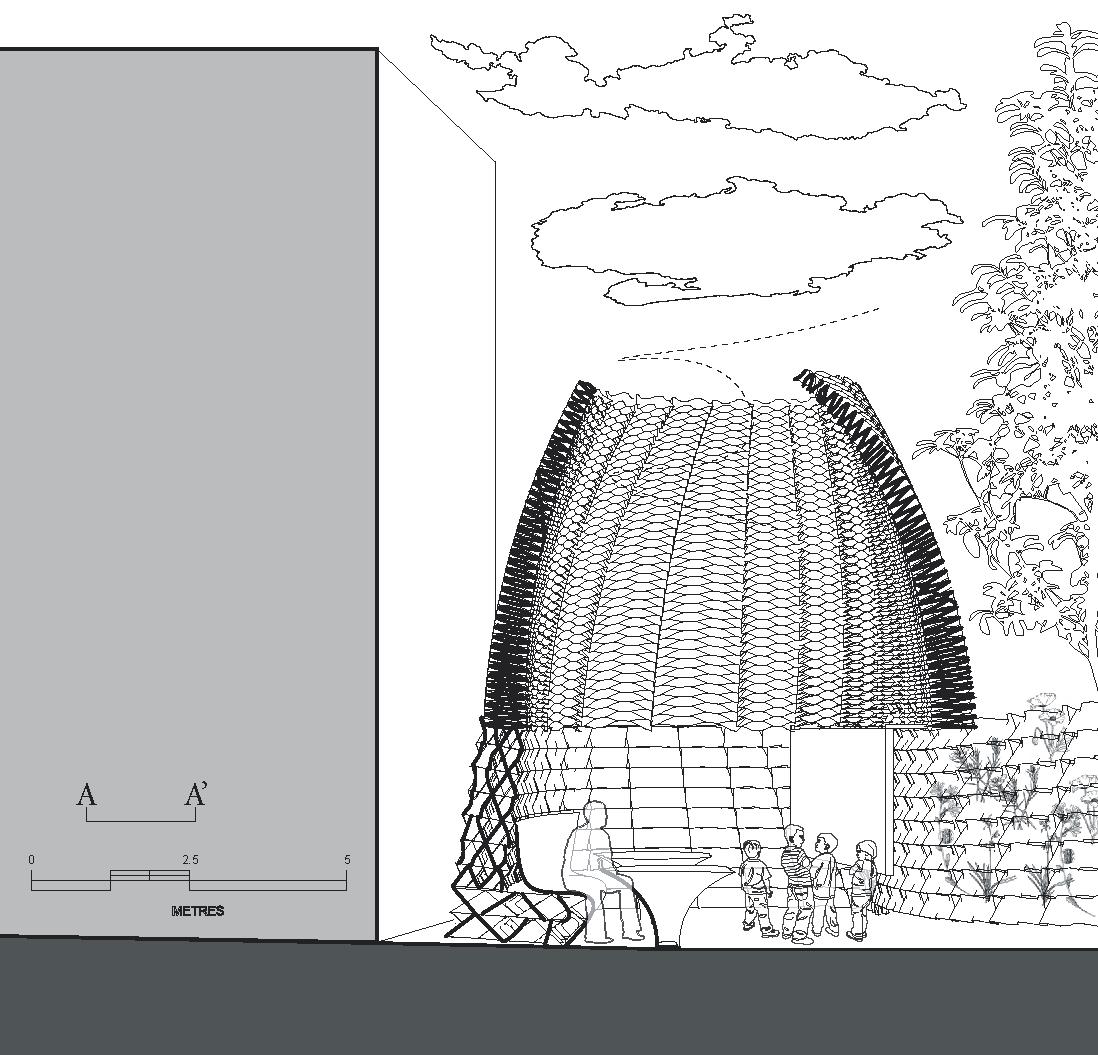

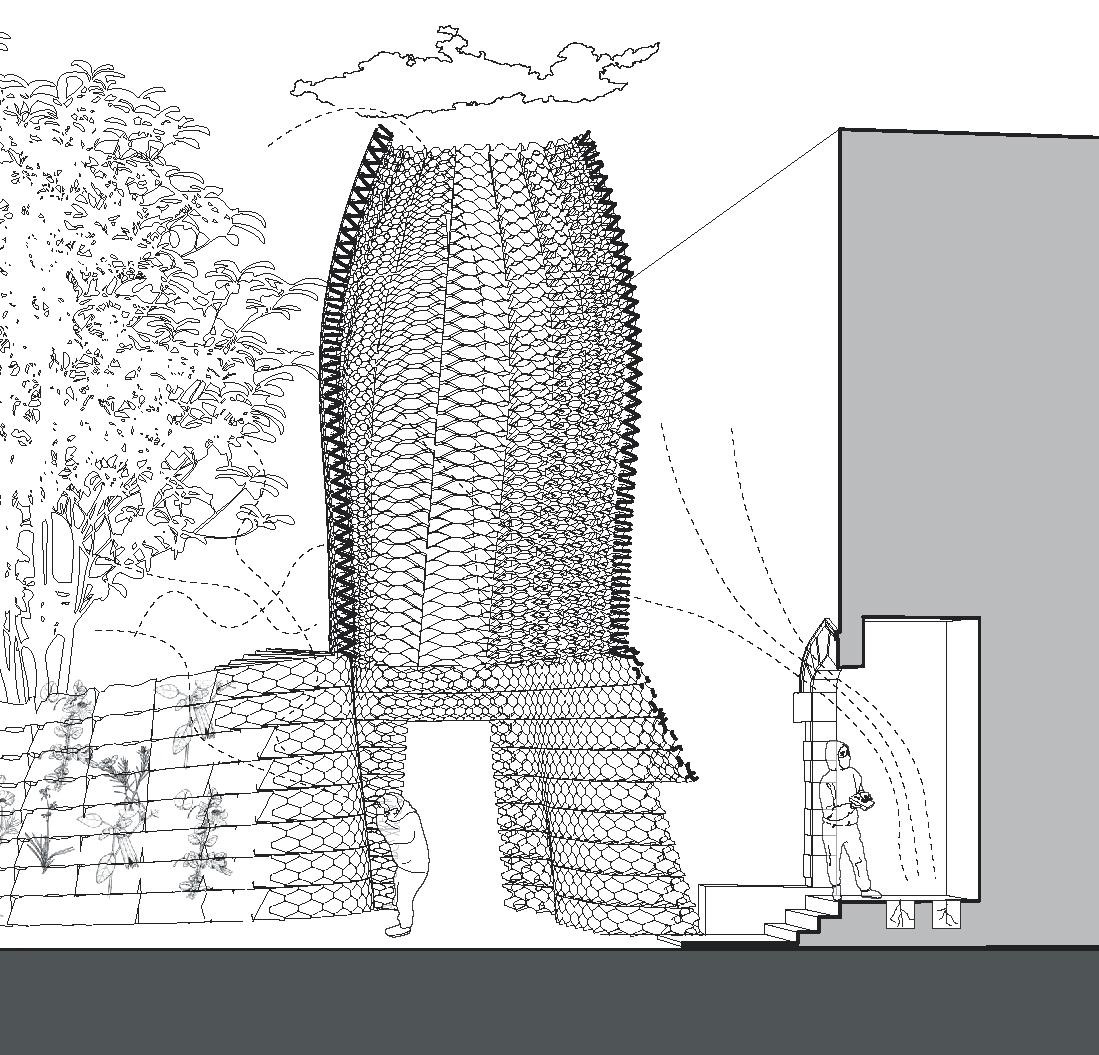

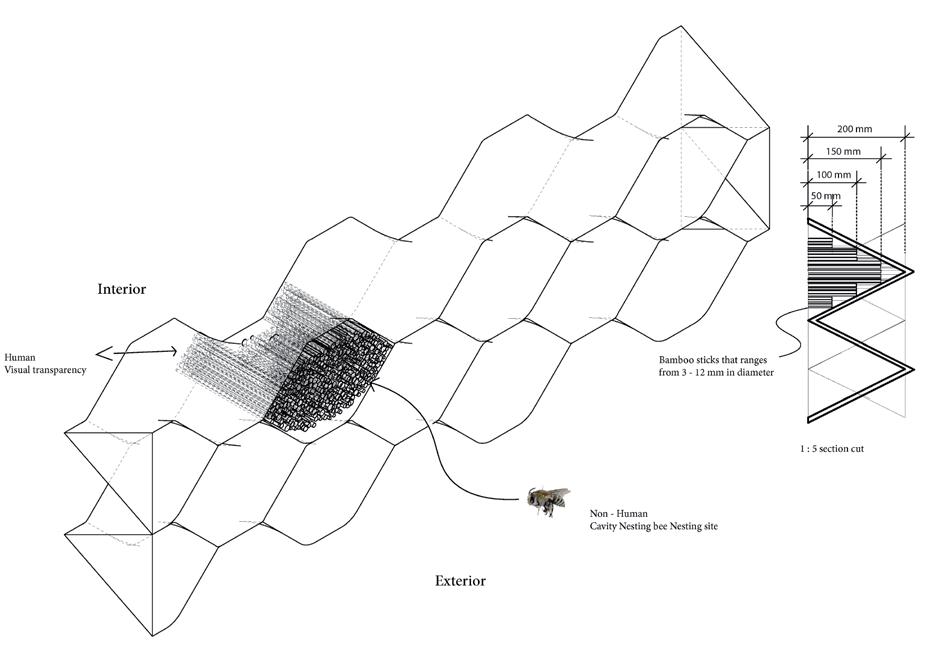

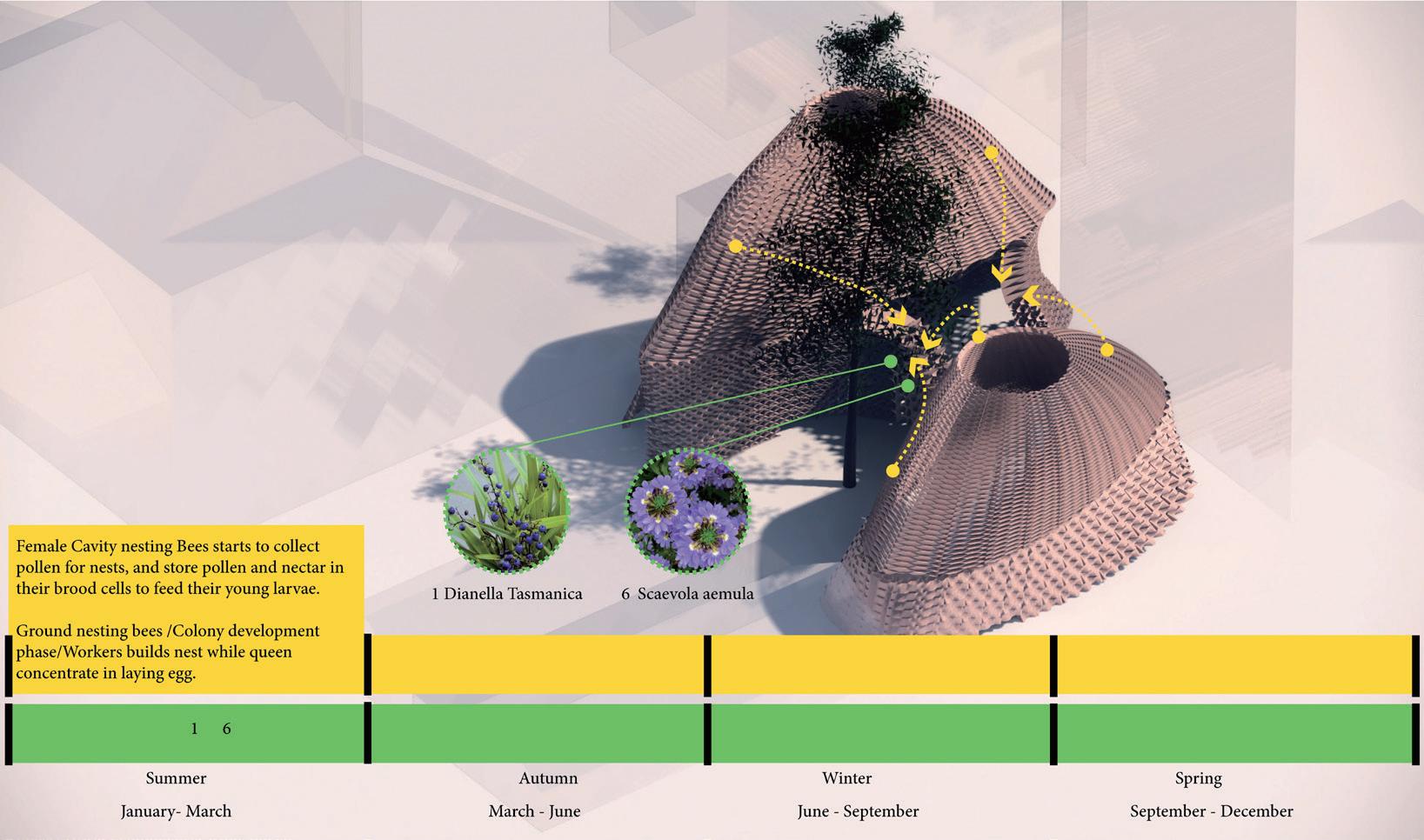

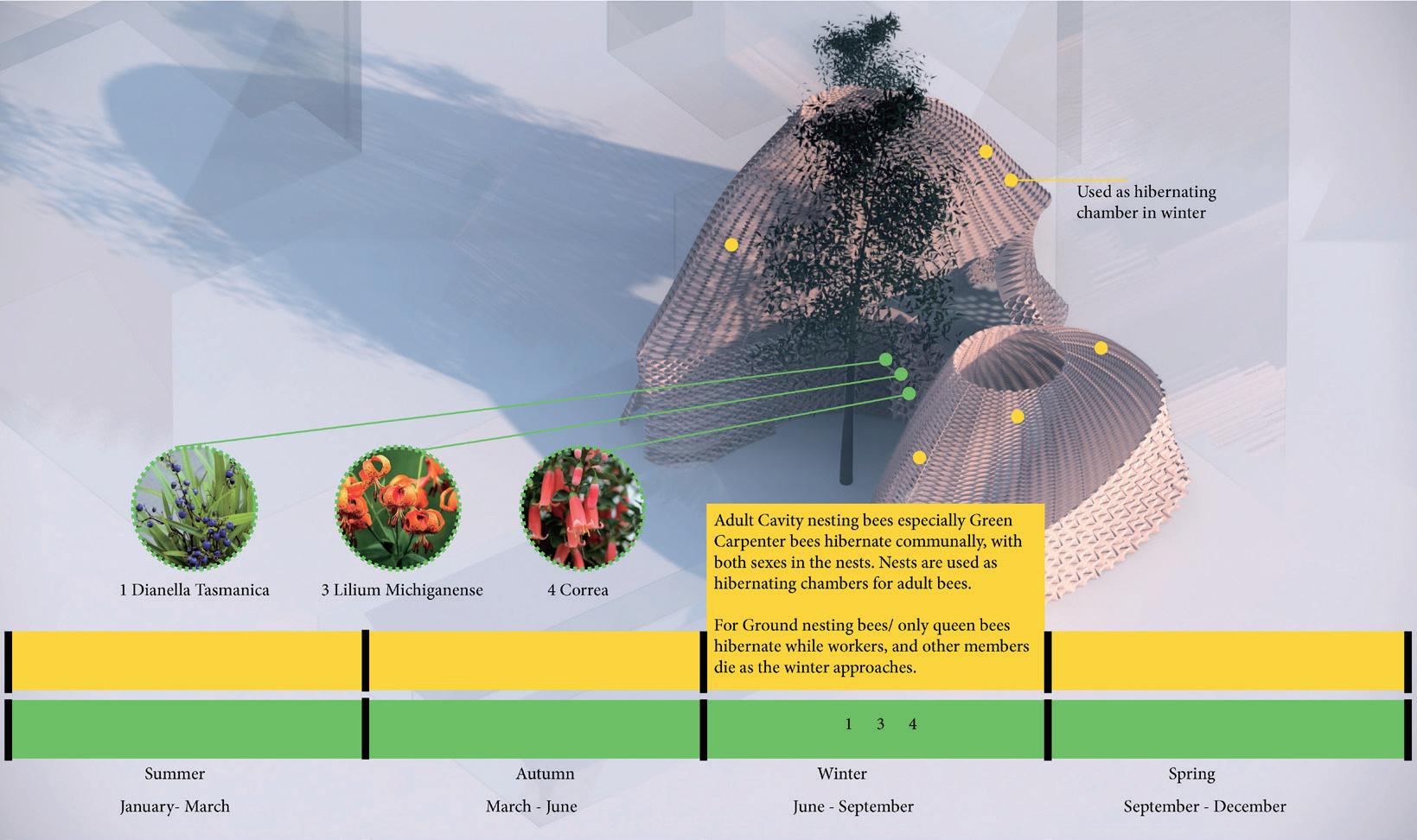

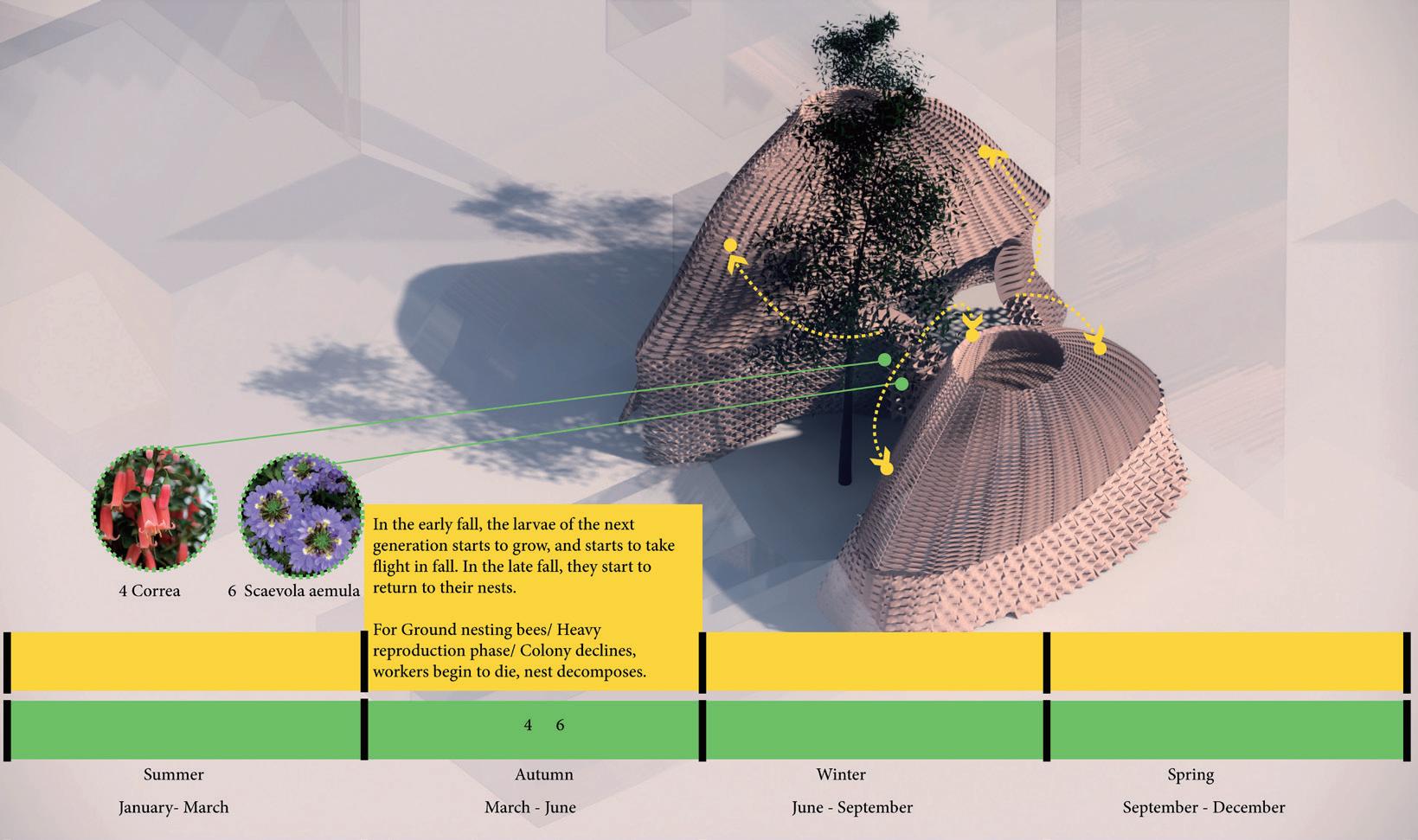

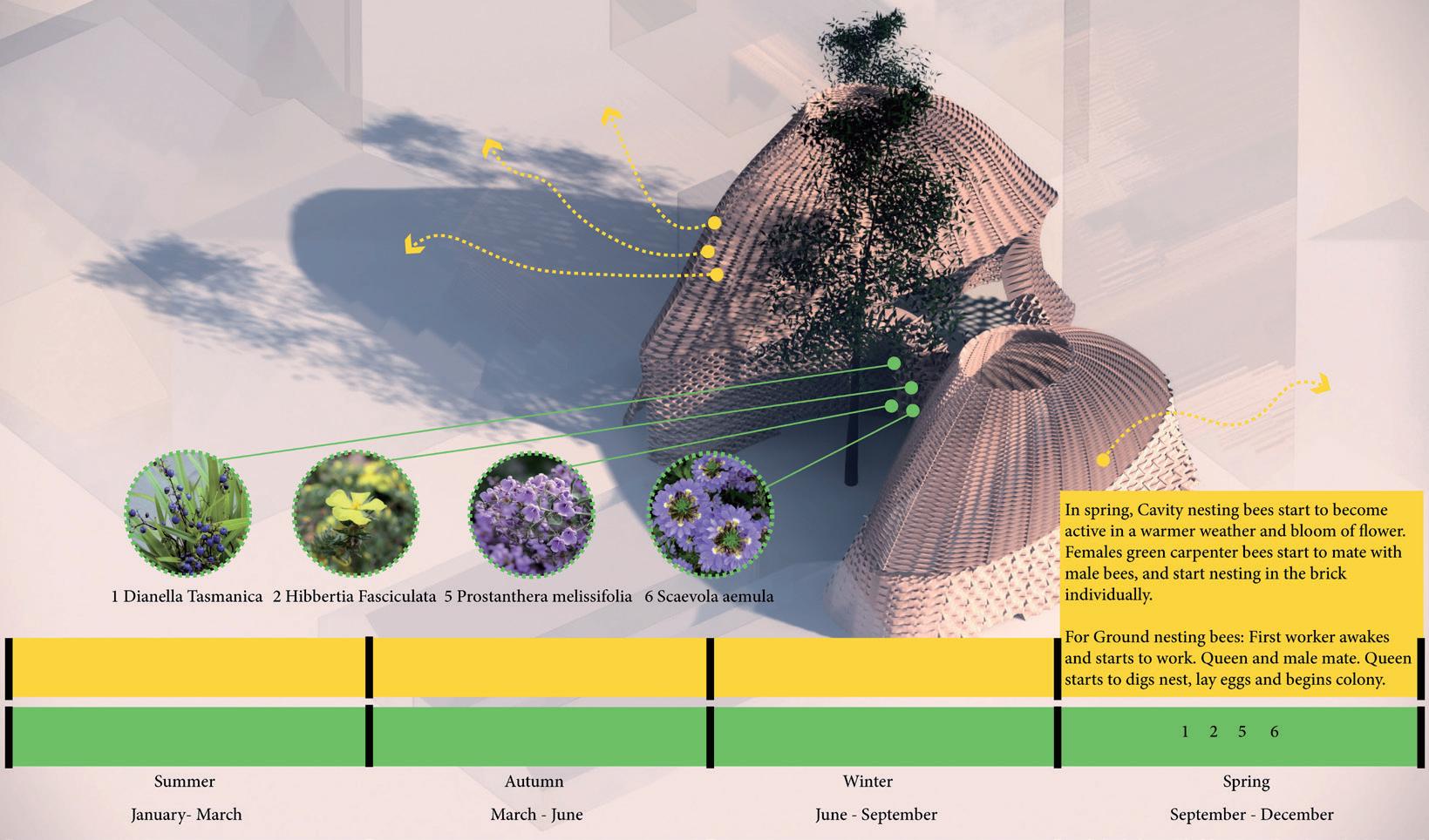

BEE INTERACTIVE LIVING MUSEUM UNIVERSITY OF MELBOURNE (FINAL YEAR THESIS PROJECT)
PAGE 112

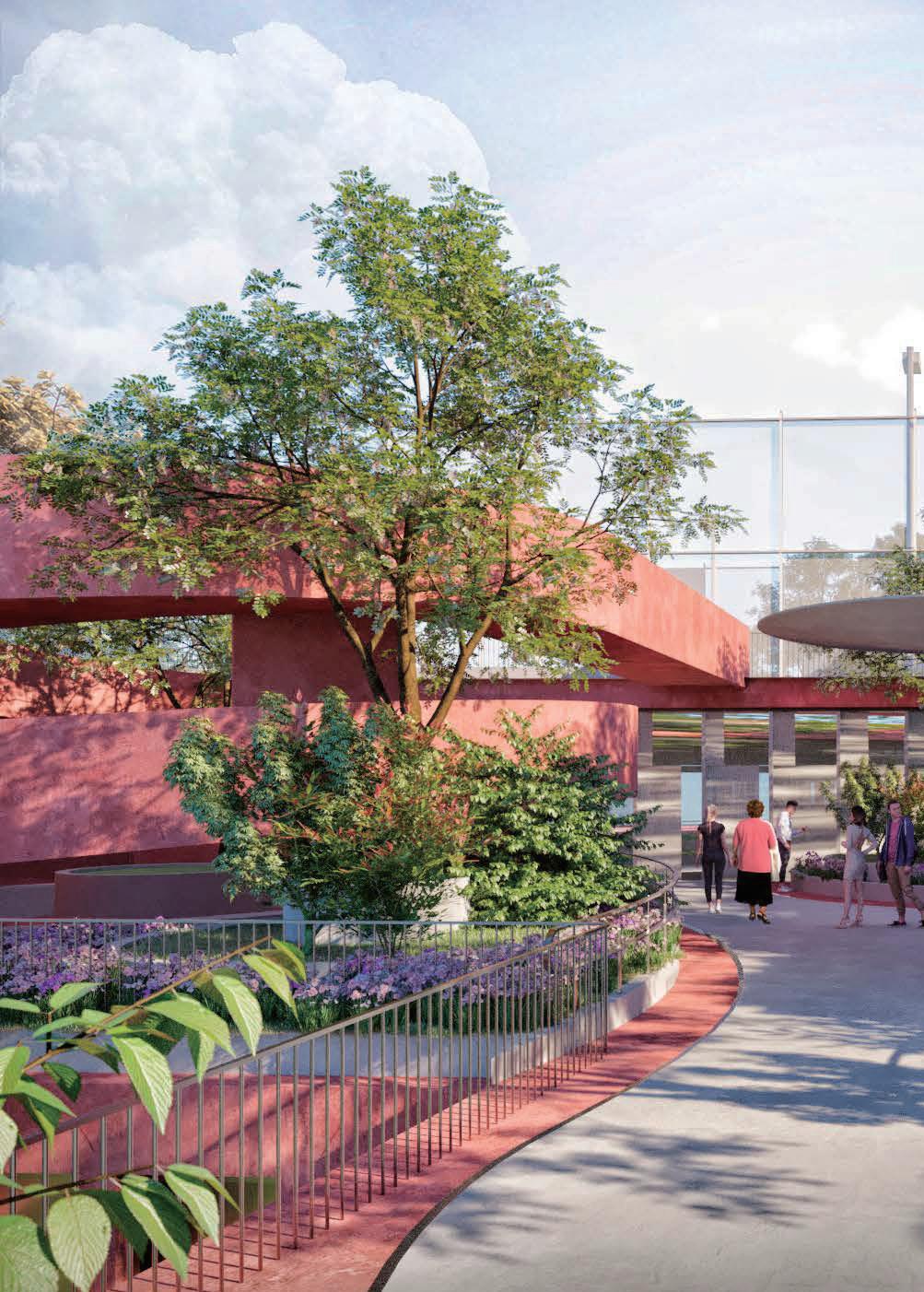

LUOYANG CITY BALCONY PROJECT
Professional Work / Luoyang Planning & Architectural Design Institute Co., LTD CONCEPT DESIGN
Luoyang City Balcony Project is a revitalisation of an old outdoor Stadium and an old Television Tower by introducing a new Green Vitality Axis which includes the functionality of outdoor football fields, outdoor children playground, outdoor basketball fields, and jogging track. I assisted with Construction Documentation, drawing the details of the City Observatory near the Luopu Park, a 2 storeys commercial space with a walkable green roof. The connection between old TV tower and new commercial building, the sloped green roof and the city water balcony details are all well considered in my construction drawings.
1:450 1:450
The Observation Deck functions as a jogging track as well as a garden. The asphalt paving is on top of portland cement acts as an insulation layer for the jogging track.
The Viewing Platform Balcony is an outdoor space. Therefore, the floor slab for the balcony has been lowered for 250mm screed in order to get the slope. It has been treated as the roof for the TV tower lobby.
1:75
Portland Cement Asphalt Paving
The connection between old TV tower and new commercial building is described as ‘lightly touched’. Due to the original building has been built on a soft river bed, the building’s foundation settlement (vertical displacement) has occurred by a substantial amount. Therefore, the ‘VERTICAL CANTELEVERING SLAB’ is used instead of ‘horizontal concrete slab’ fixing to the old, in order to avoid more foundation displacement and rainwater leakage into to the old building.
OLD TV Tower
New Building

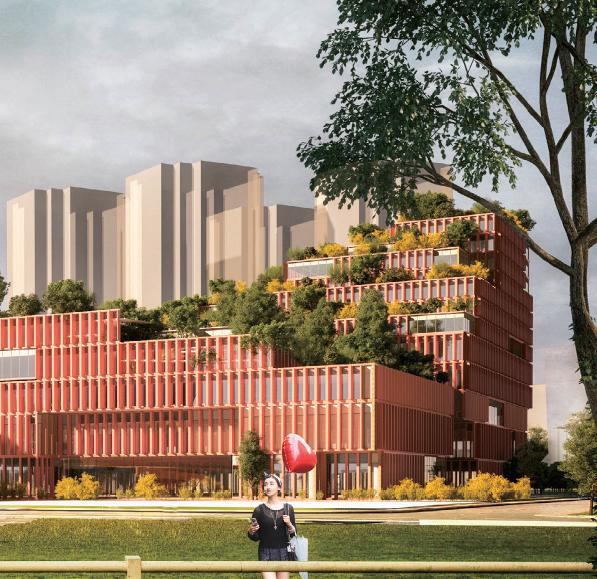

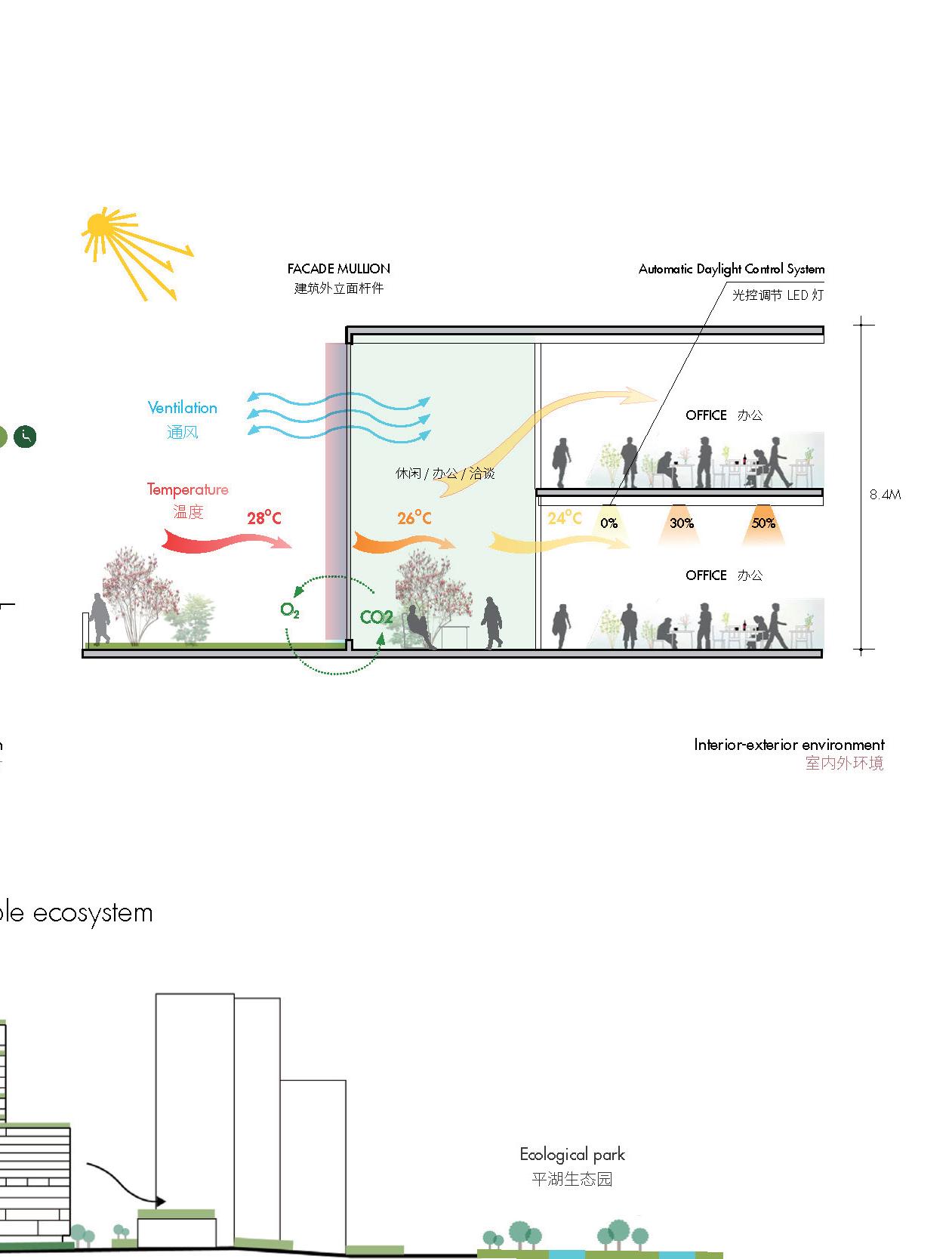

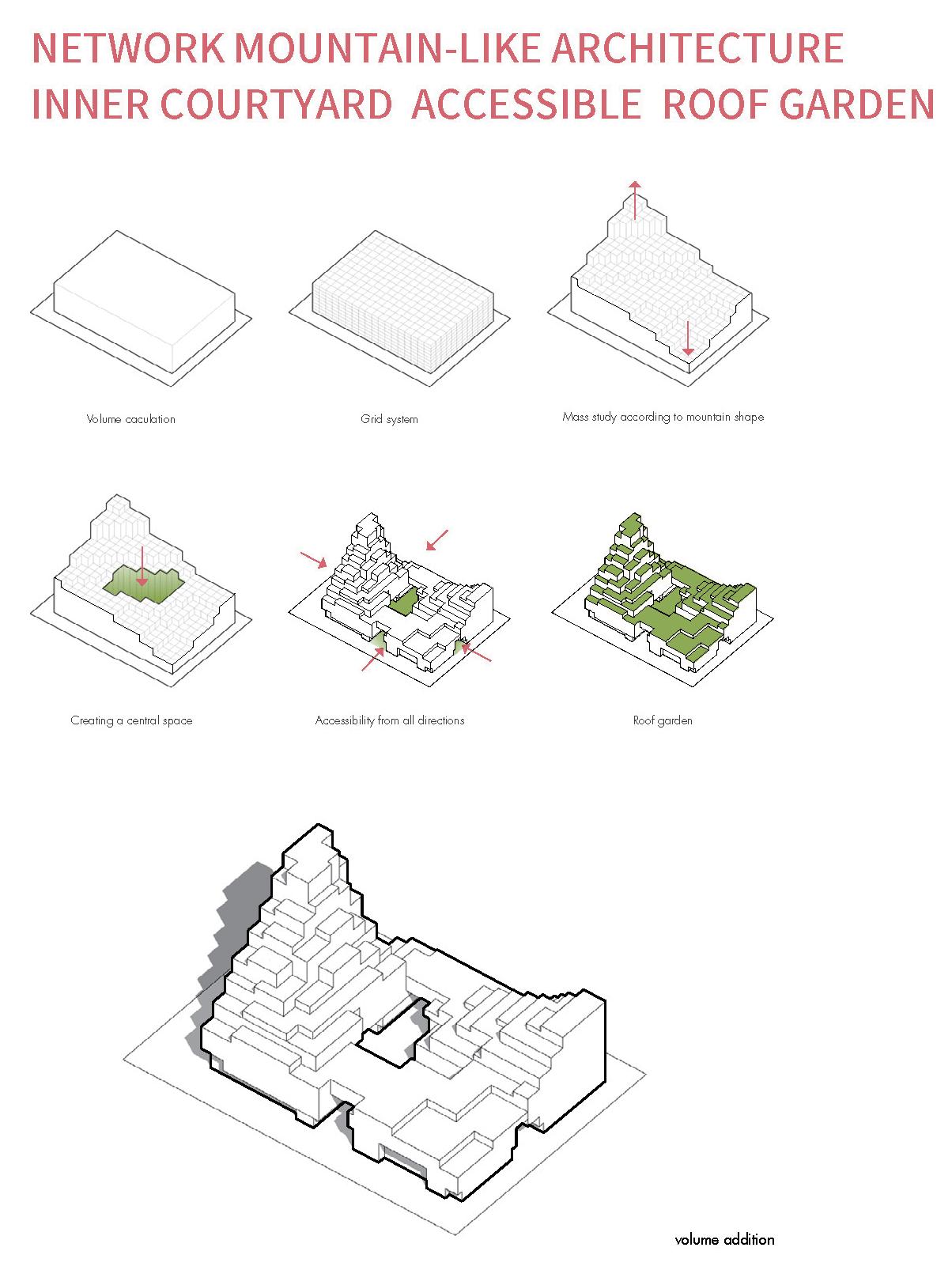

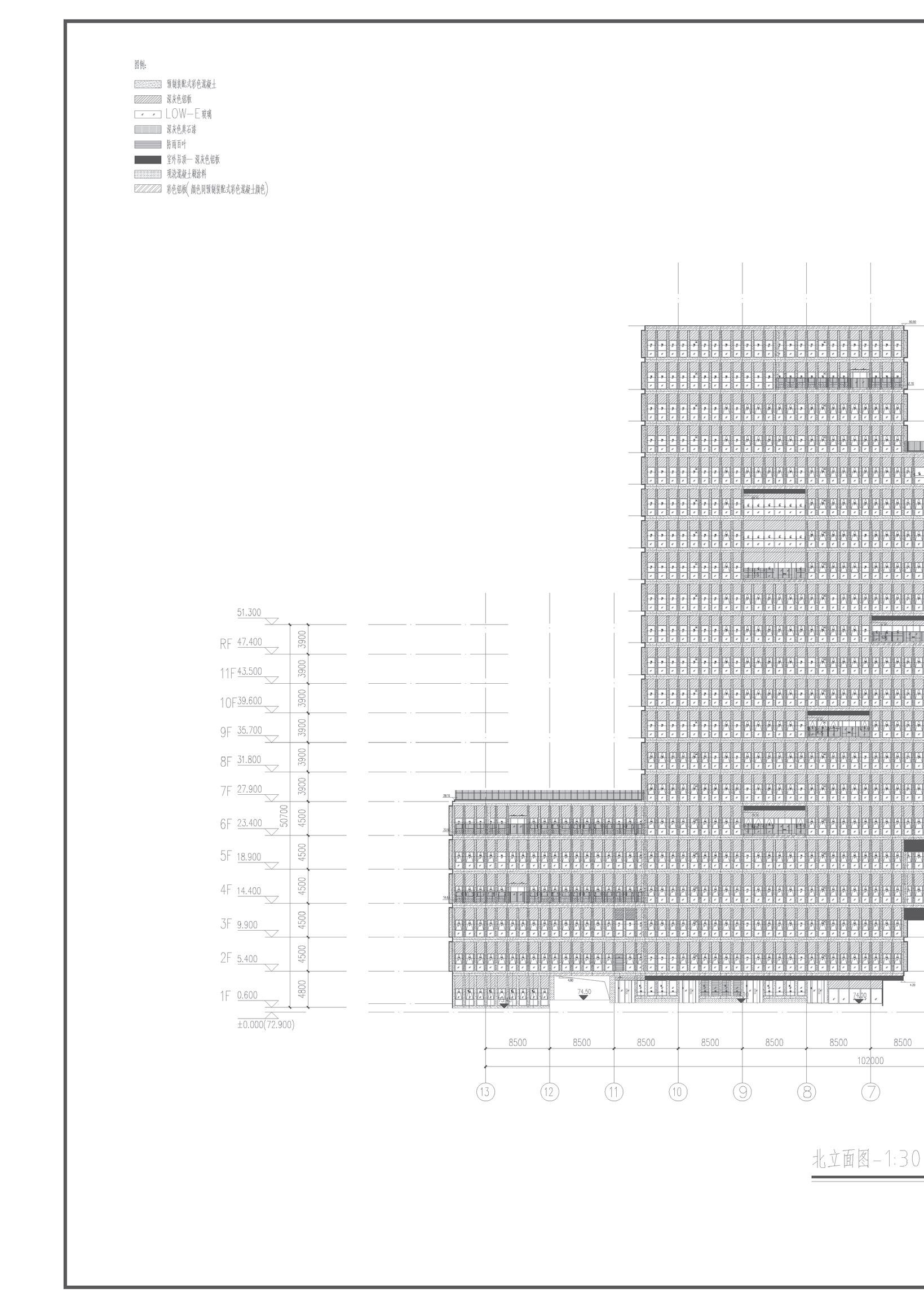

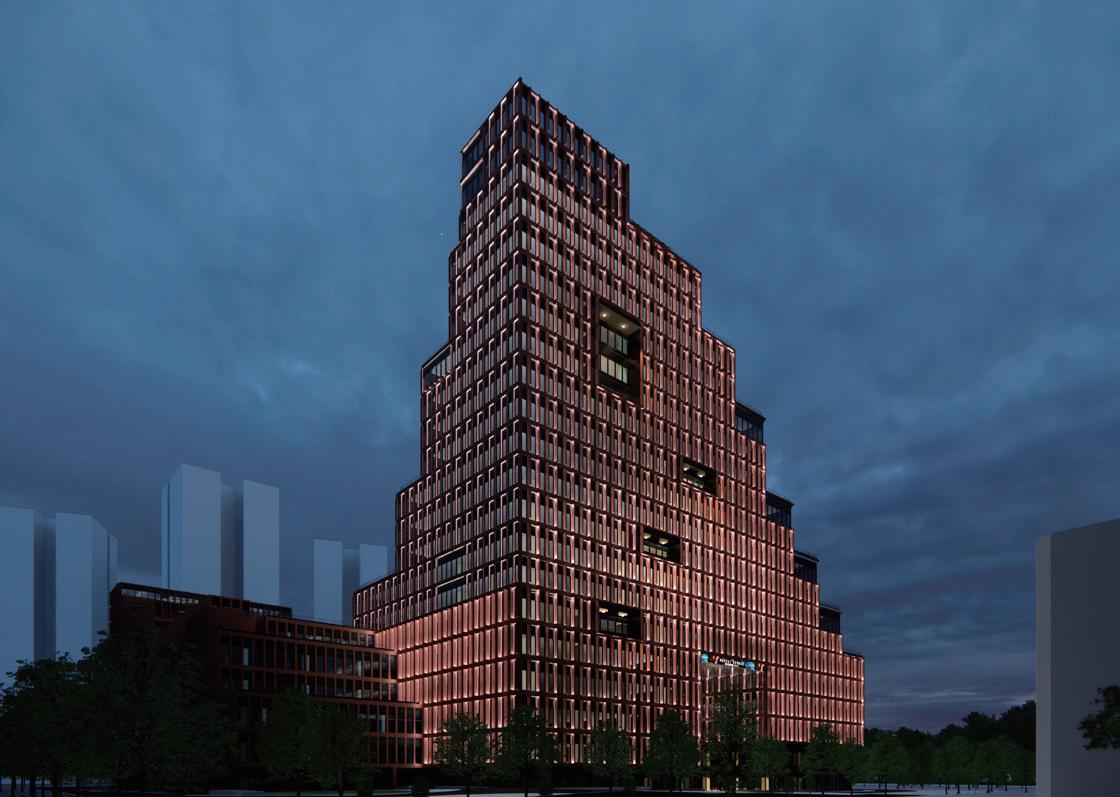

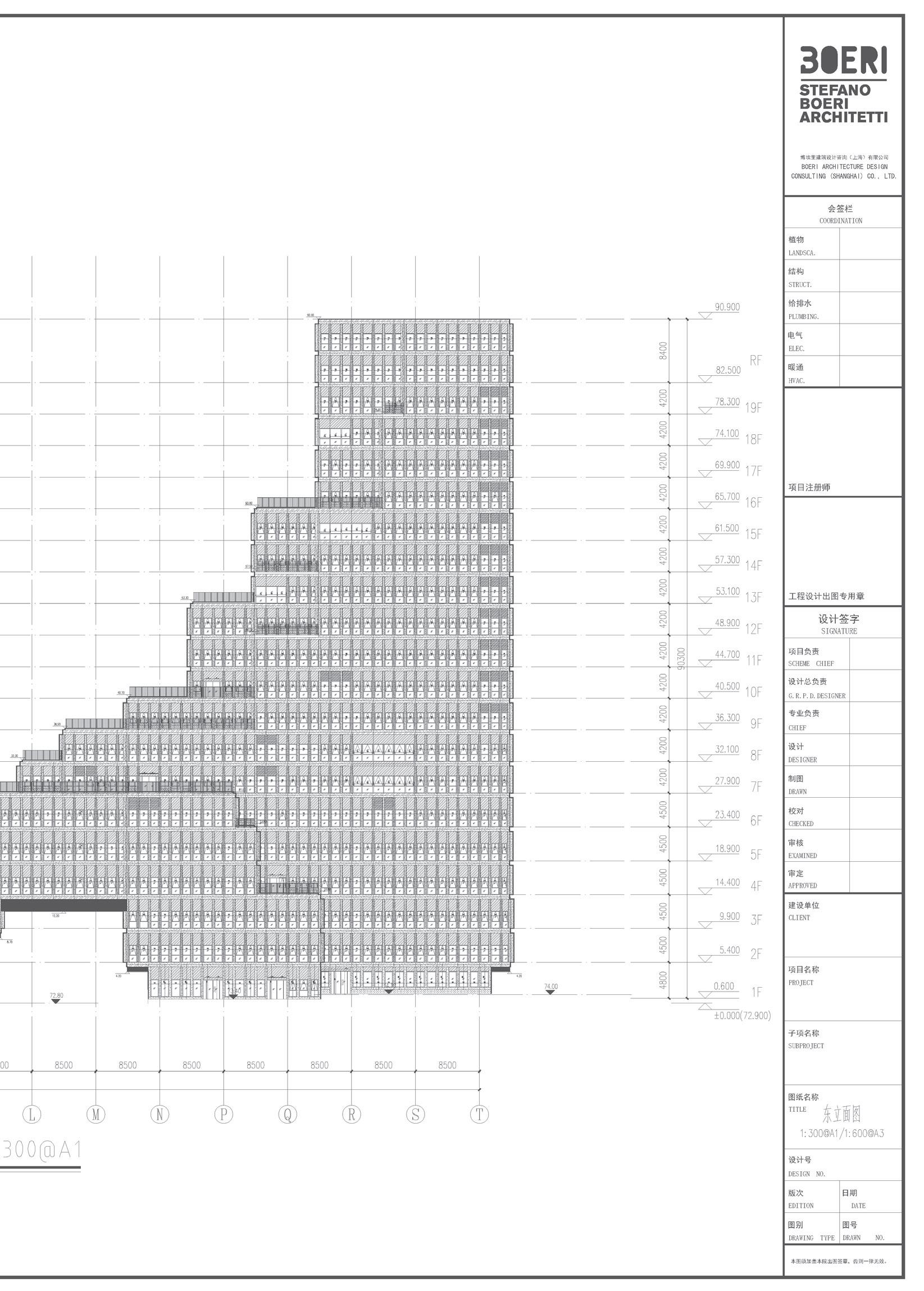

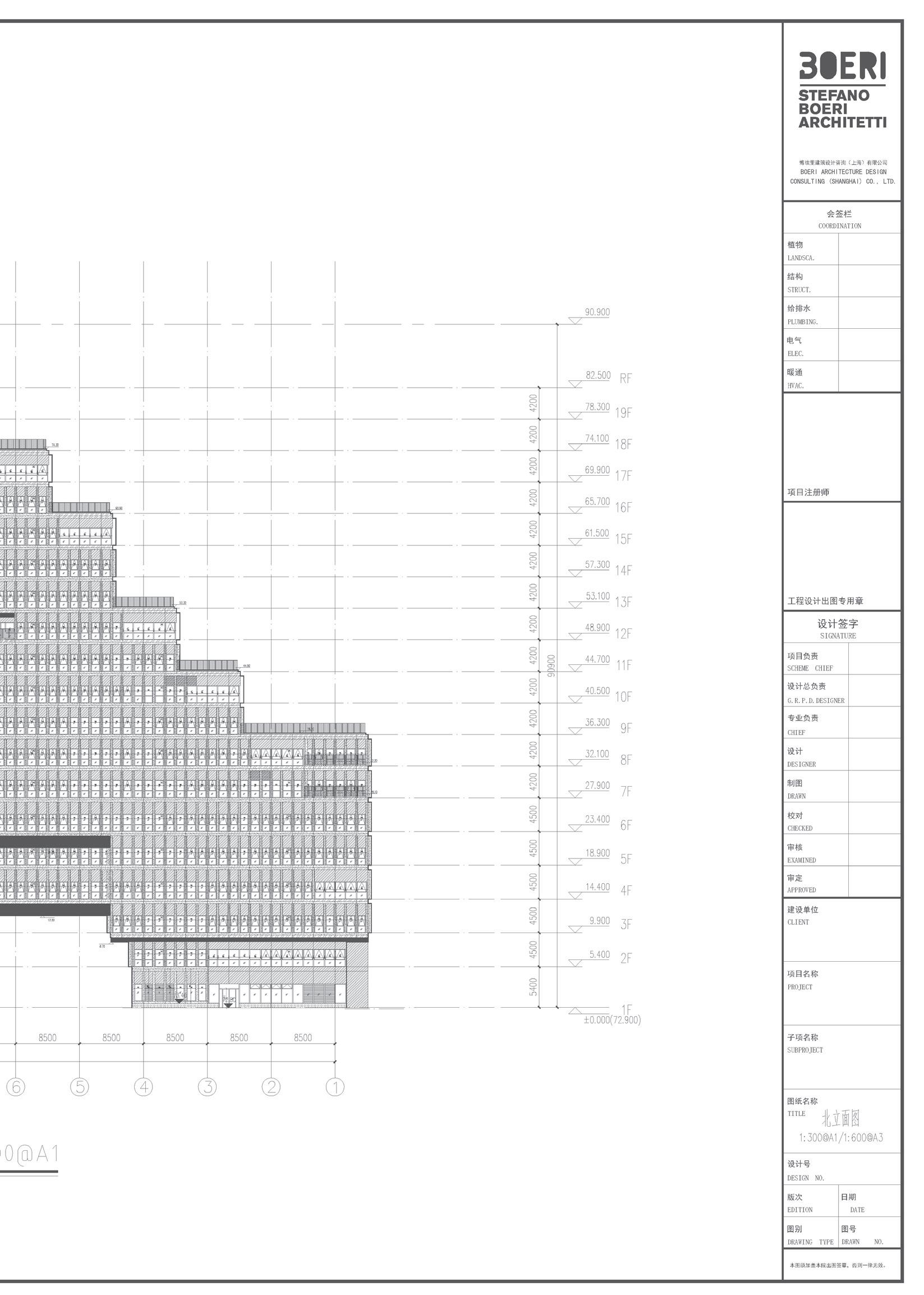

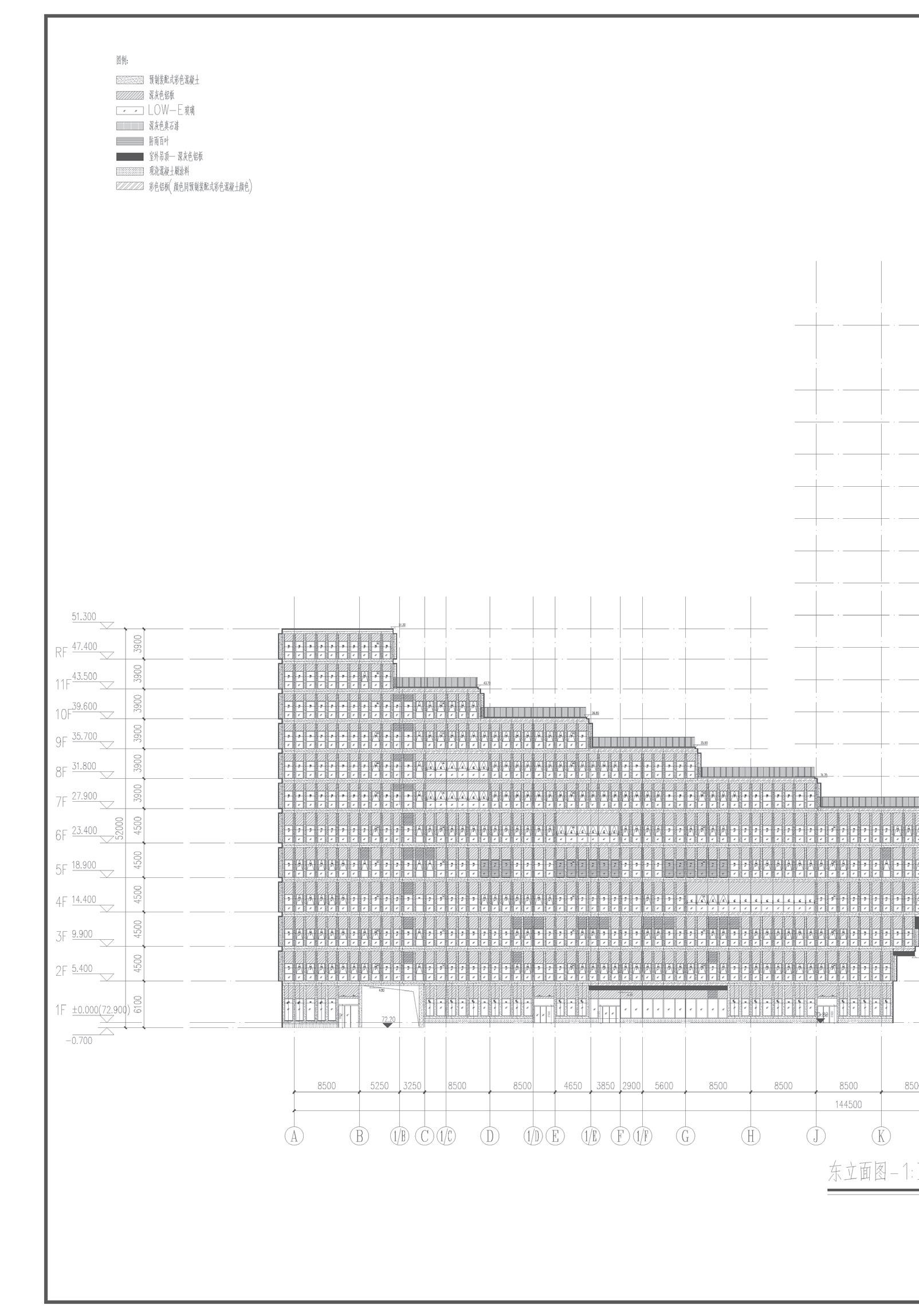

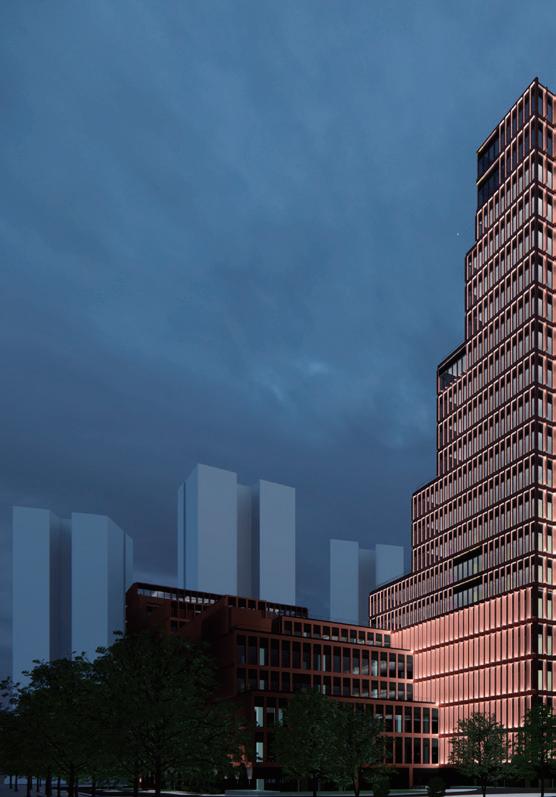

SHENZHEN ACCESSIBLE SERVICE CENTER FOR ENTREPRENEURSHIP
Professional Work / STEFANO BOERI ARCHITETTI FACADE DESIGN + FLOOD LIGHTING DESIGN
This project is an international competition that Stefano Boeri has won for an innovative rehabilitation centre in Shenzhen, China. I am luckily enough to be participated in this project. I was responsible to help with the facade design and flood lighting design.

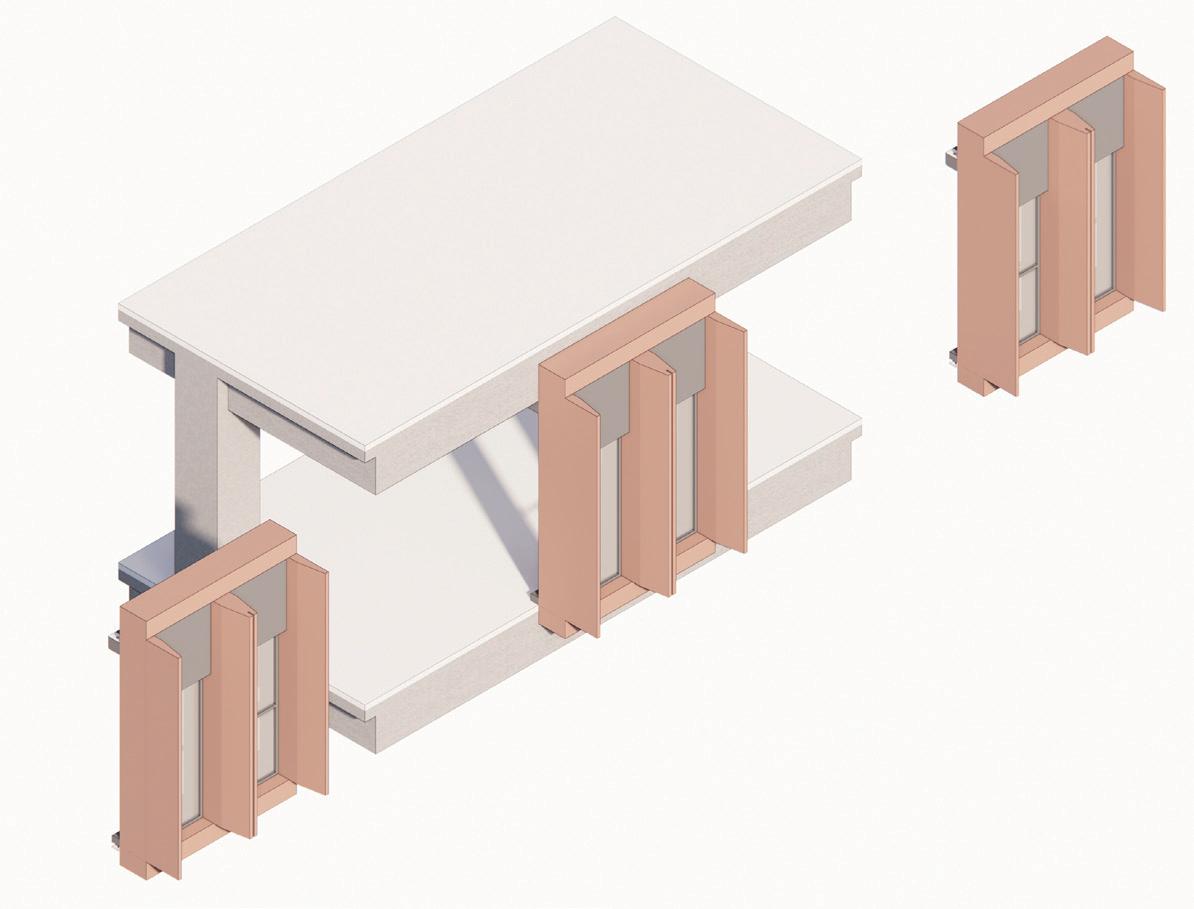

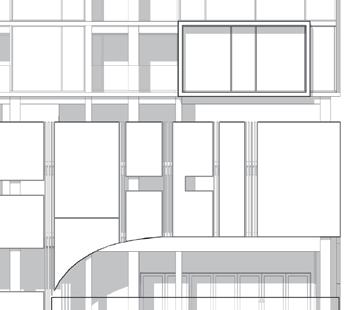

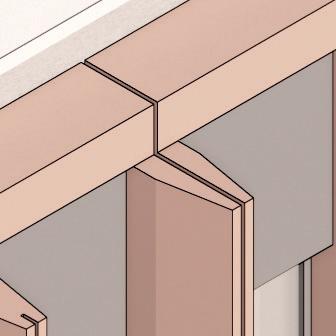

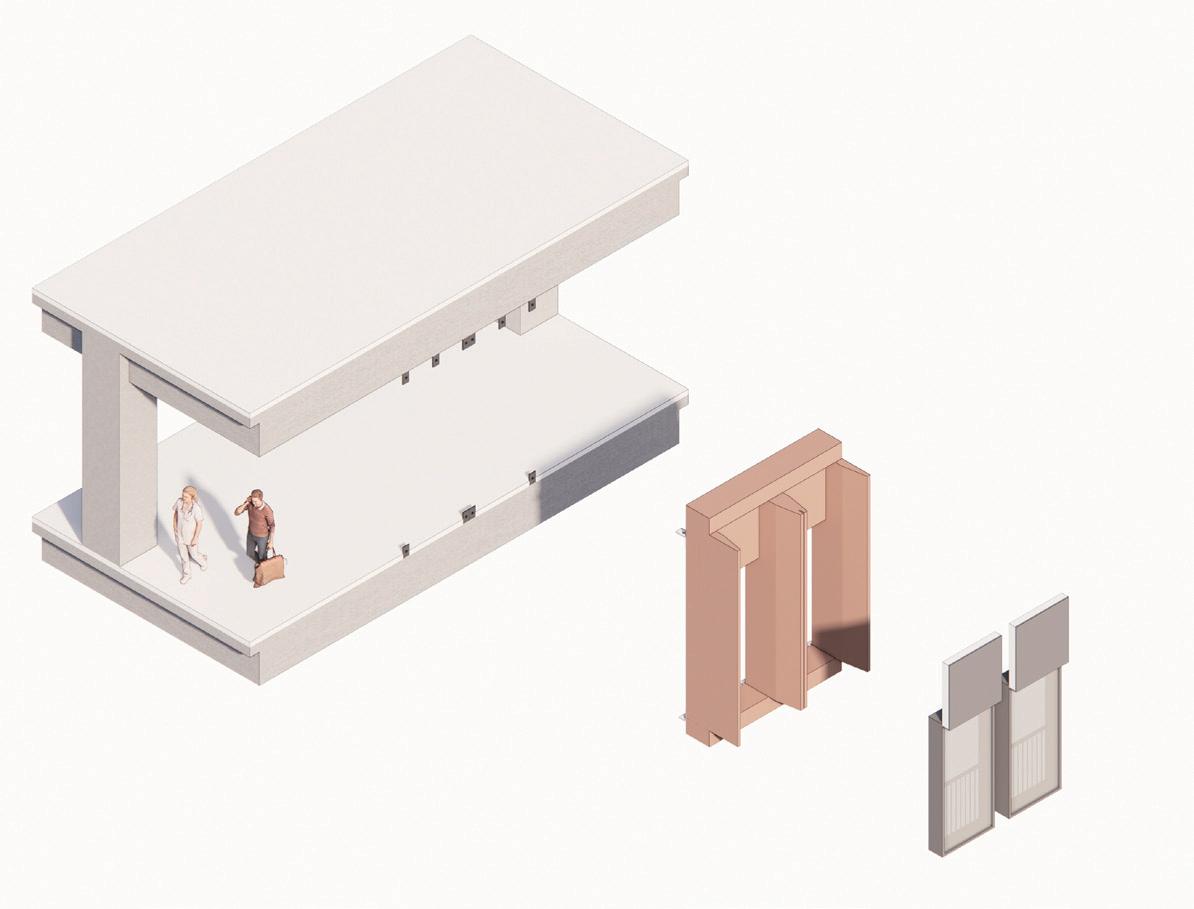

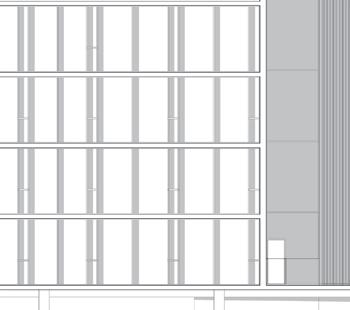

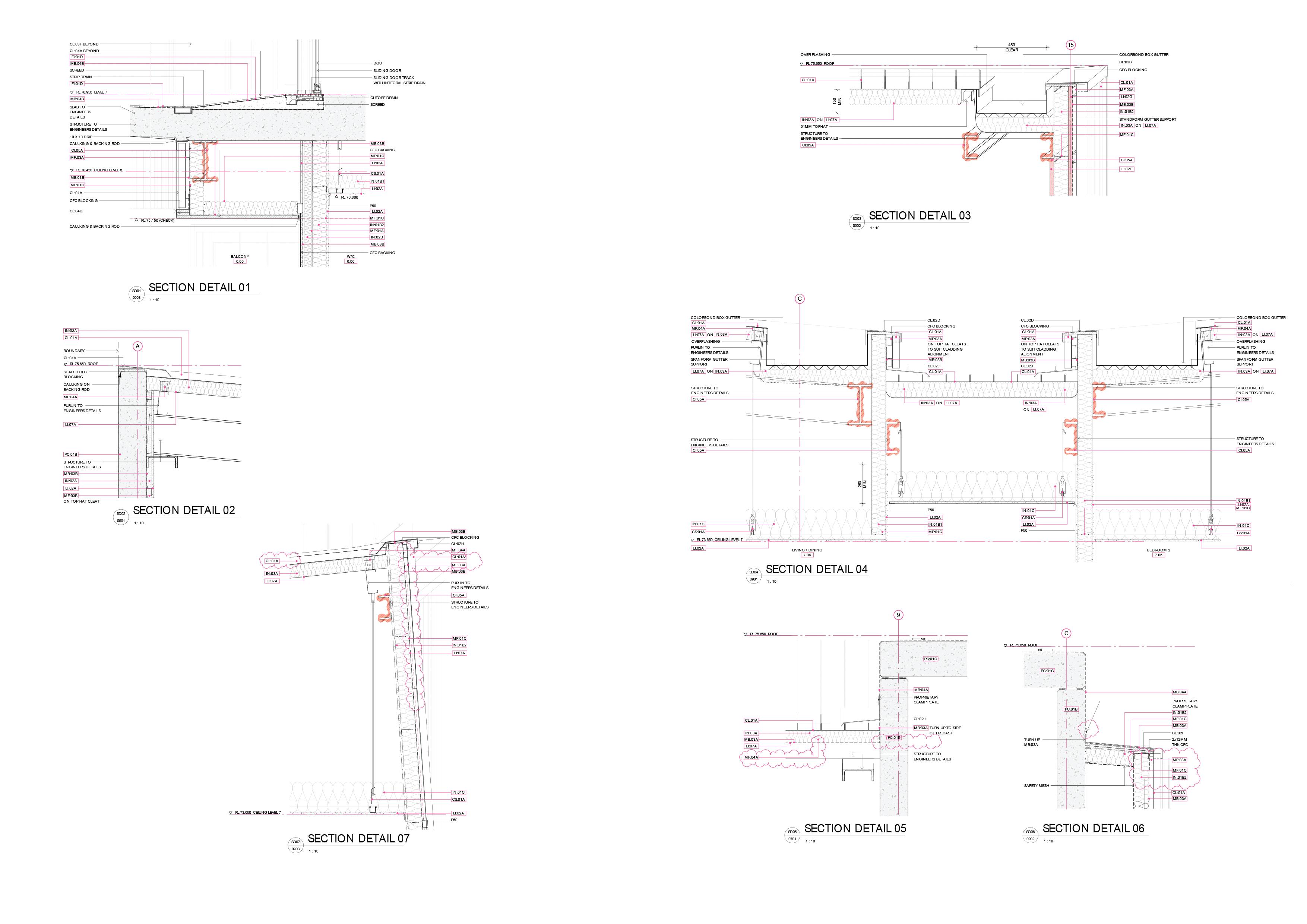

For the facade, we have selected Prefabracated Concrete Unit method to establish the facade. The lighting design is using 3000k blade effect frame lighting system.
FLUSH JOINT
Prefabracated panel installation gap
Prefabracated unit
Prefabracated screw Prefabracated concrete unit
Dark gray alluminium panel
build-in screw Low-E glass
预制彩色混凝土
预制埋件
预制彩色混凝土竖向杆件
预制埋件
深灰色铝合金盖板
深灰色铝合金盖板
防火岩棉
预制彩色混凝土
预制埋件
铝板龙骨
深灰色铝板
双银LOW-E玻璃
深灰色铝合金扶手
深灰色铝合金盖板
防火岩棉
铝板龙骨
深灰色铝板
预制彩色混凝土竖向杆件
预制埋件
深灰色铝合金盖板
预制埋件
防火岩棉
铝板龙骨
深灰色铝板
双银LOW-E玻璃
深灰色铝合金扶手
深灰色铝合金盖板
预制埋件
铝合金扶手
深灰色铝合金盖板
预制彩色混凝土
深灰色铝板
双银LOW-E玻璃
可开启扇
深灰色铝合金窗框
预制彩色混凝土竖向杆件
深灰色铝板

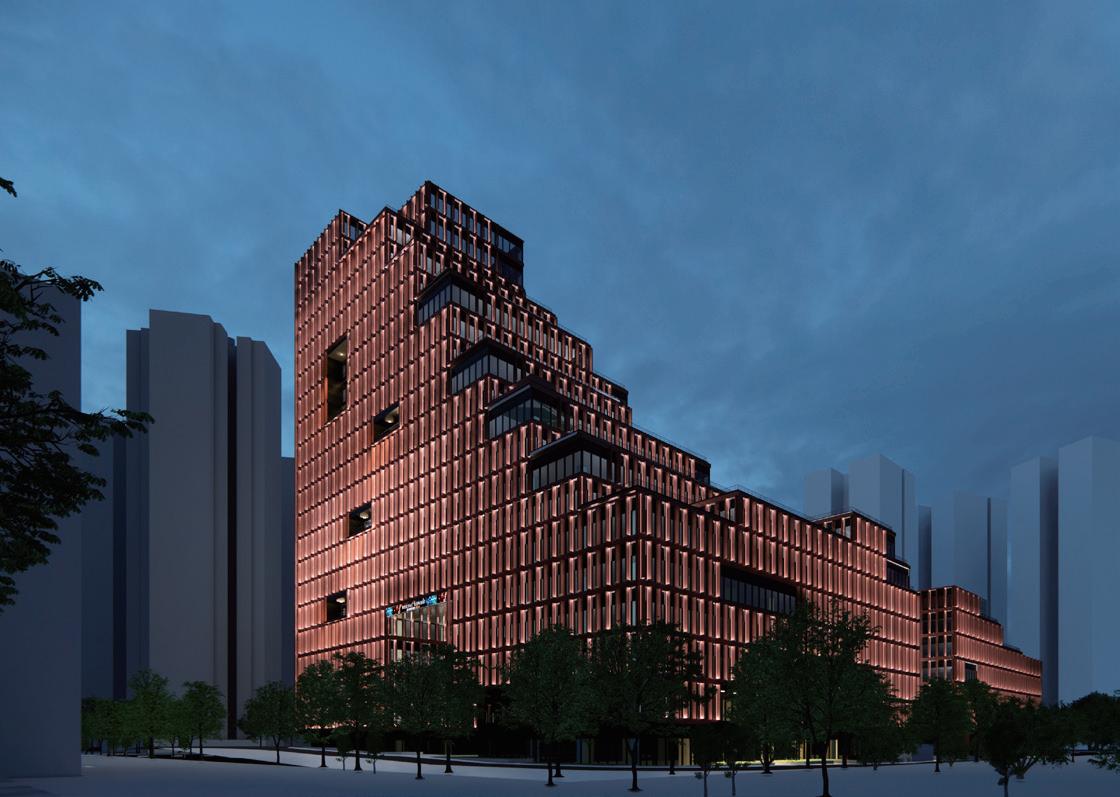

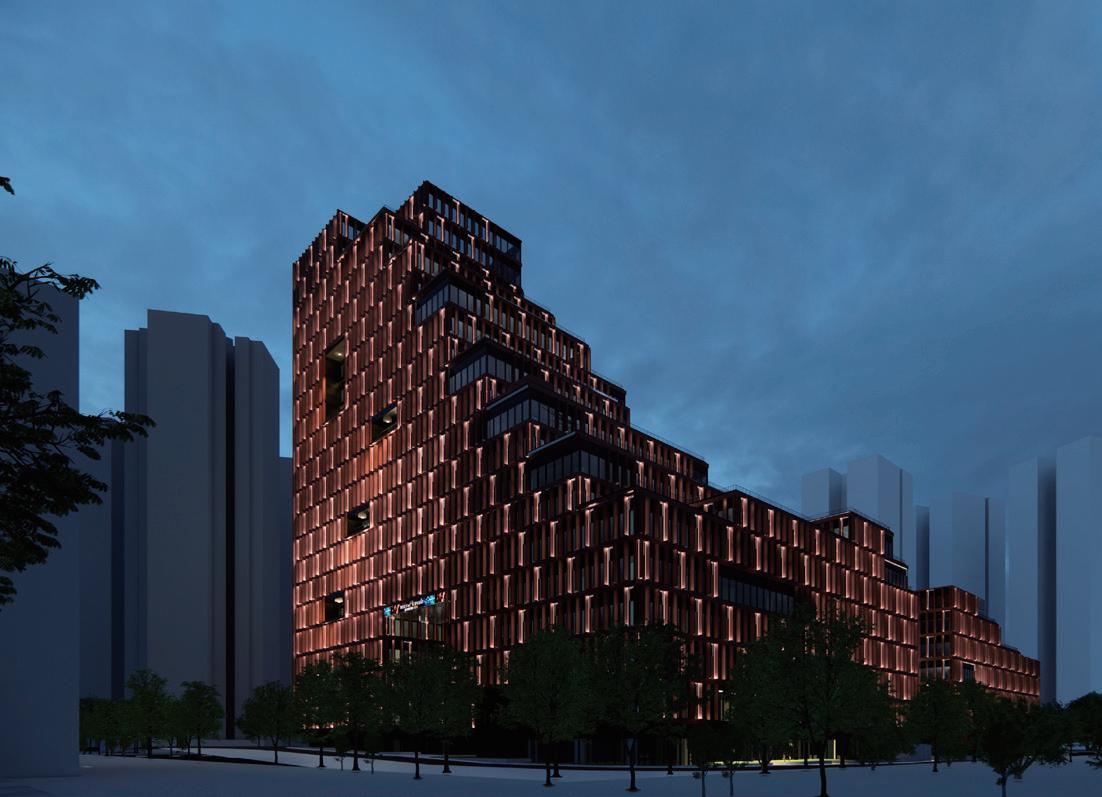

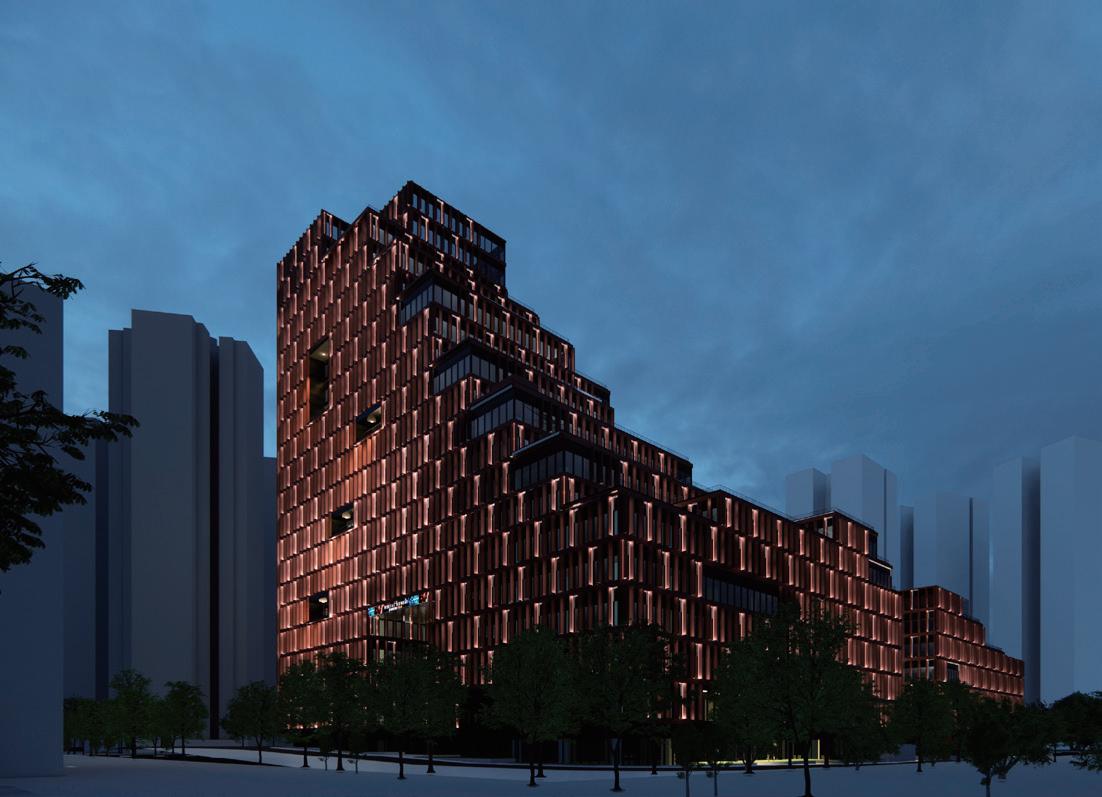

NIGHT MODE (FROM 18:00-19:00)
NIGHT MODE (FROM 18:00-19:00)
BLADE EFFECT DEVICE
180° BLADE EFFECT LIGHT
Luminaire characteristics ：
CK68
Input 6W
Power supply DC24V
Body Die-cast aluminum
CCT 4000k
DECODER EXTERNAL
CRI≥ 80
Optics 180° IP65
Weight 0.9kg
Working temperature -40~50℃
Size 99.8*69.2mm
OPEN MODE (FROM 20:00-21:00)
OPEN MODE (FROM 20:00-21:00)
MIDNIGHT MODE (FROM 21:00-24:00)
MIDNIGHT MODE (FROM 21:00-24:00)

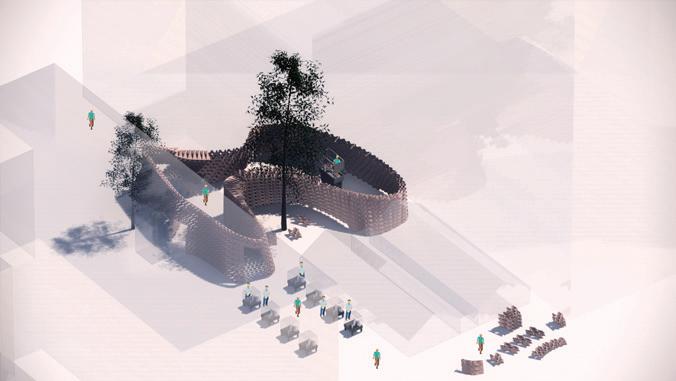

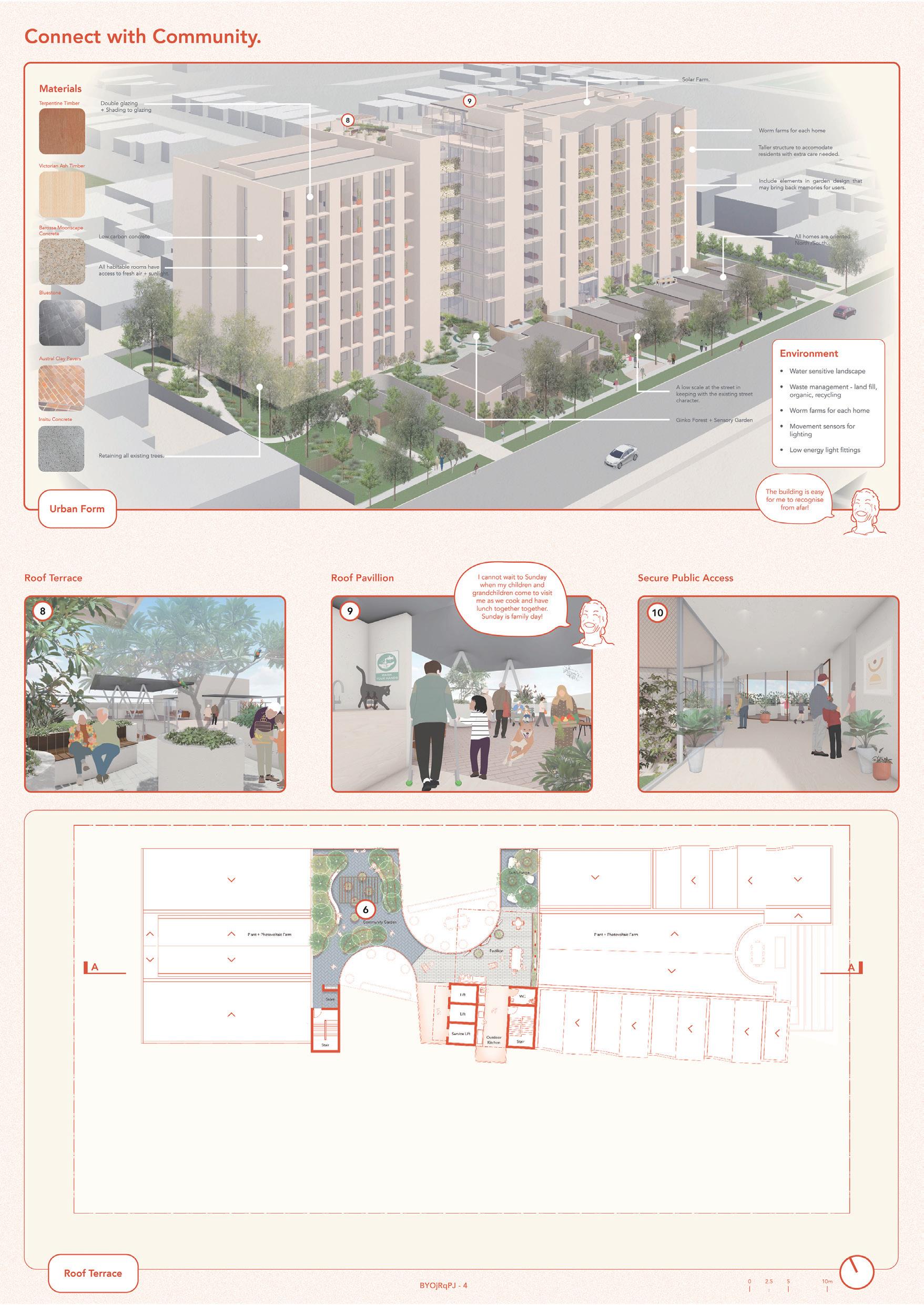

REIMAGINING WHERE WE LIVE DESIGN IDEAS COMPETITION
Professional Work / Tridente Boyce CONCEPT DESIGN
This project is an architectural competition that funded by the Australian Government Department of Health and Aged Care. It is to design an innovative residential aged care development model for the future that adopts the Principles and Guidelines and delivers on the design aspirations. The user group including 10% chinese, 30% first generation Australians from Italian descent, 5% First Nations people, 55% of Australian descent. Functions include Independent Living units, Assisted Care units, Critical Care units.

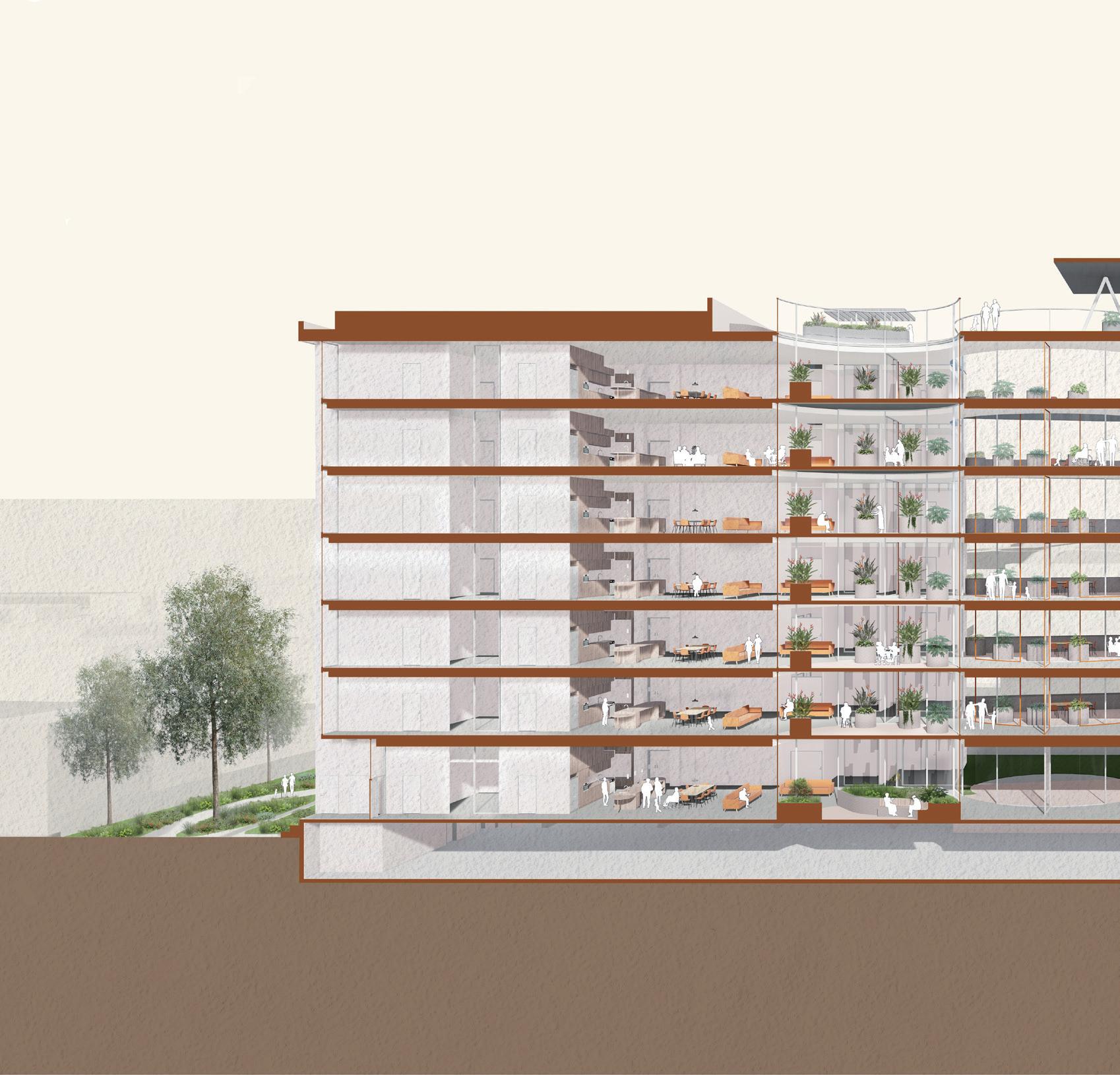

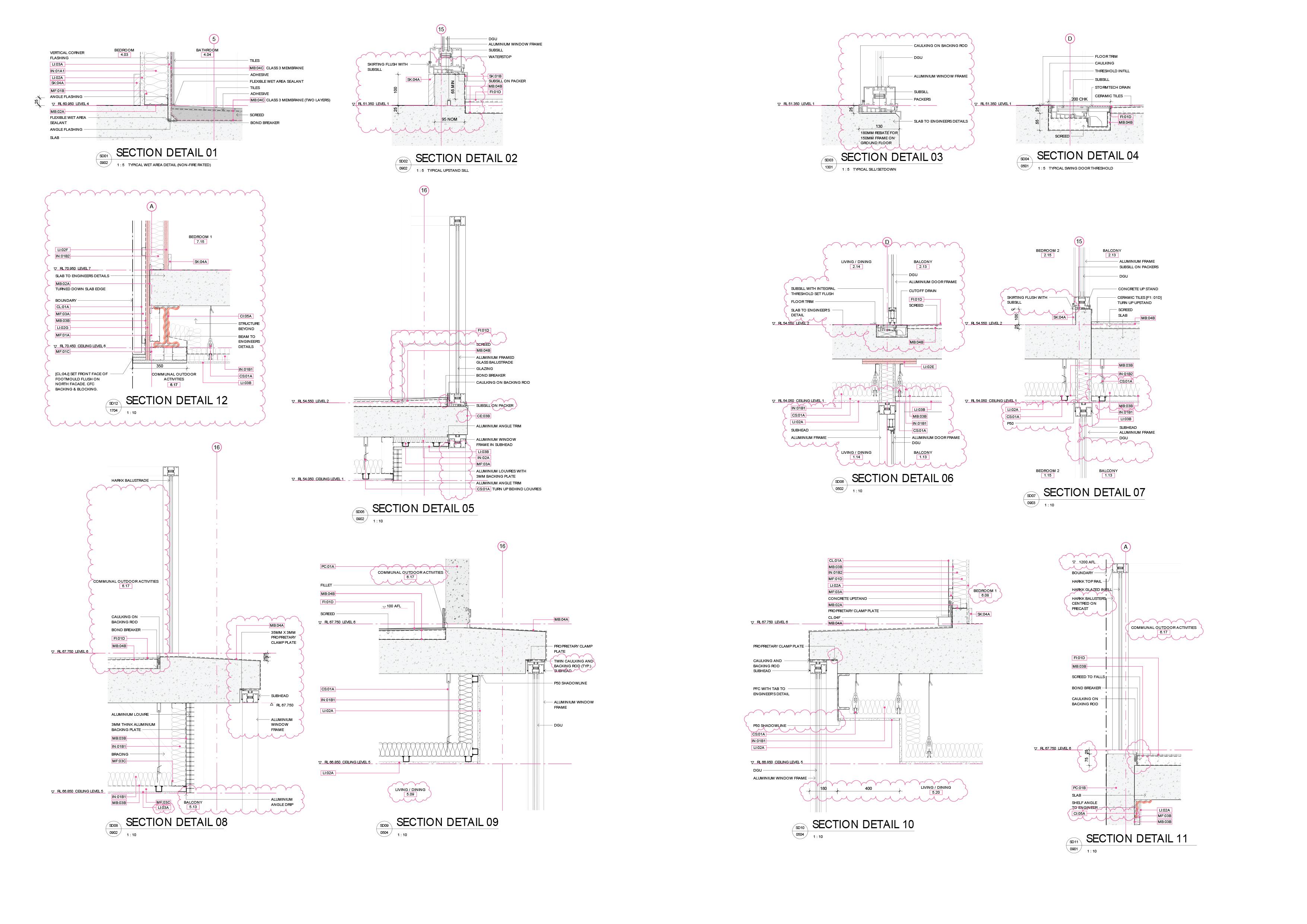

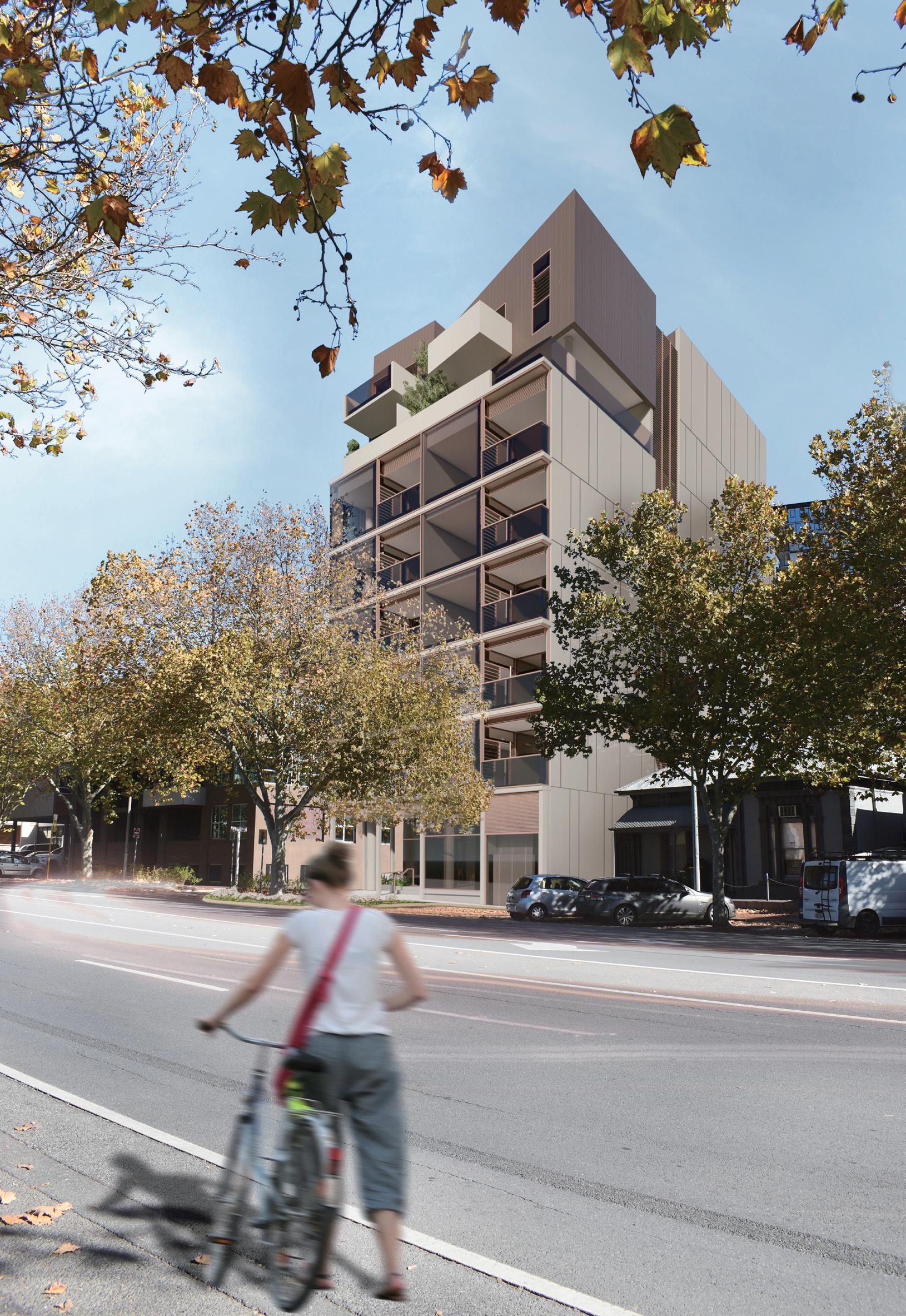

YOUNG WOMEN’S CHRISTIAN ORGANISATION (YWCA) APARTMENT BUILDING
Professional Work / Tridente Boyce DESIGN DEVELOPMENT + CONTRACT DOCUMENTATION DRAWINGS
Tridente Boyce was invited by YWCA Australia to design a 7-Storey apartment building to accomodate only young female residents on the corner of Hutt and Tucker Streets. It is to provide access to safe, secure and affordable housing to end ineuality for women in Australia.

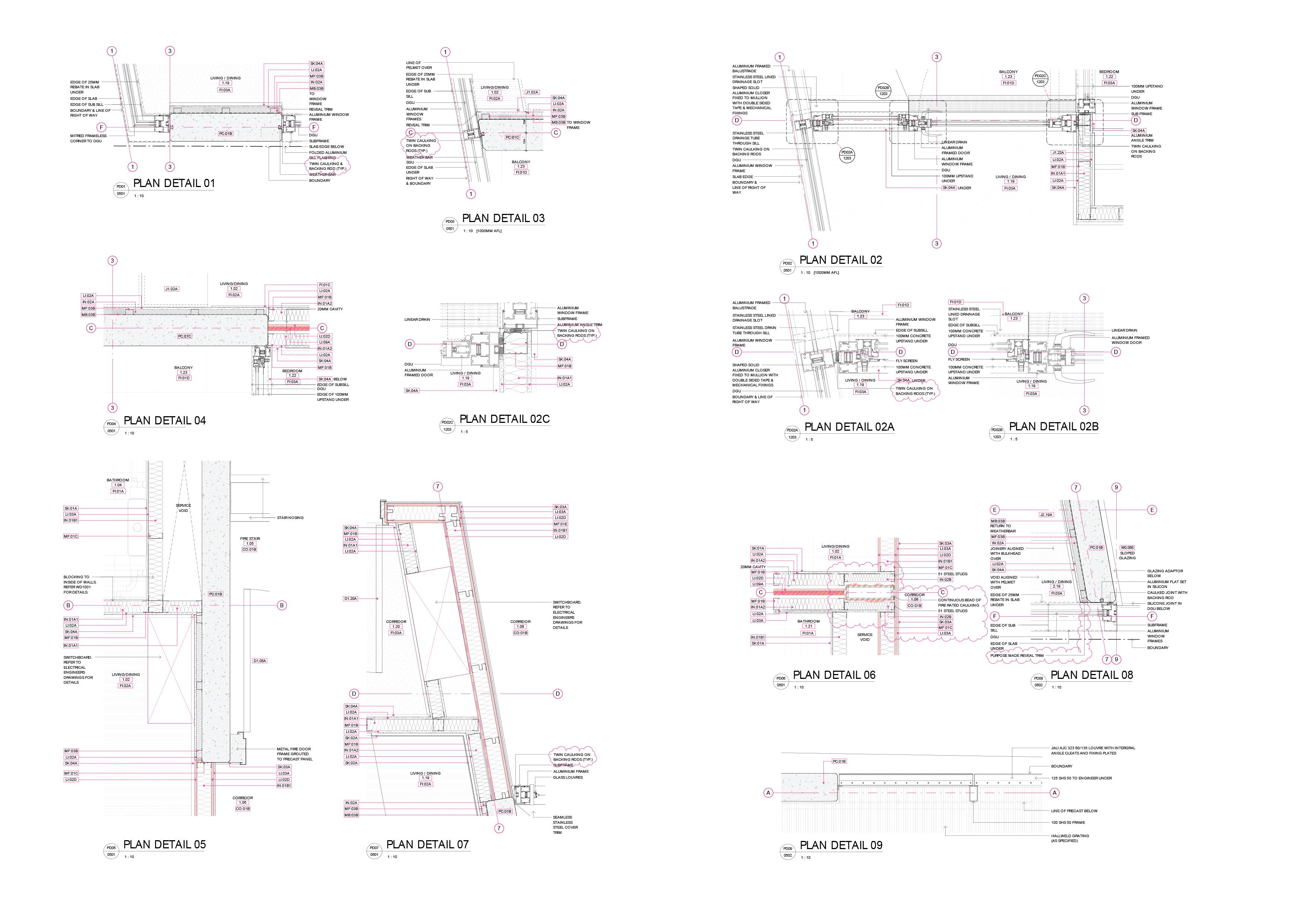

I was part of the team preparing from the 60% Novation Tender package to Issue for Building Rules Consent throughout the whole process.

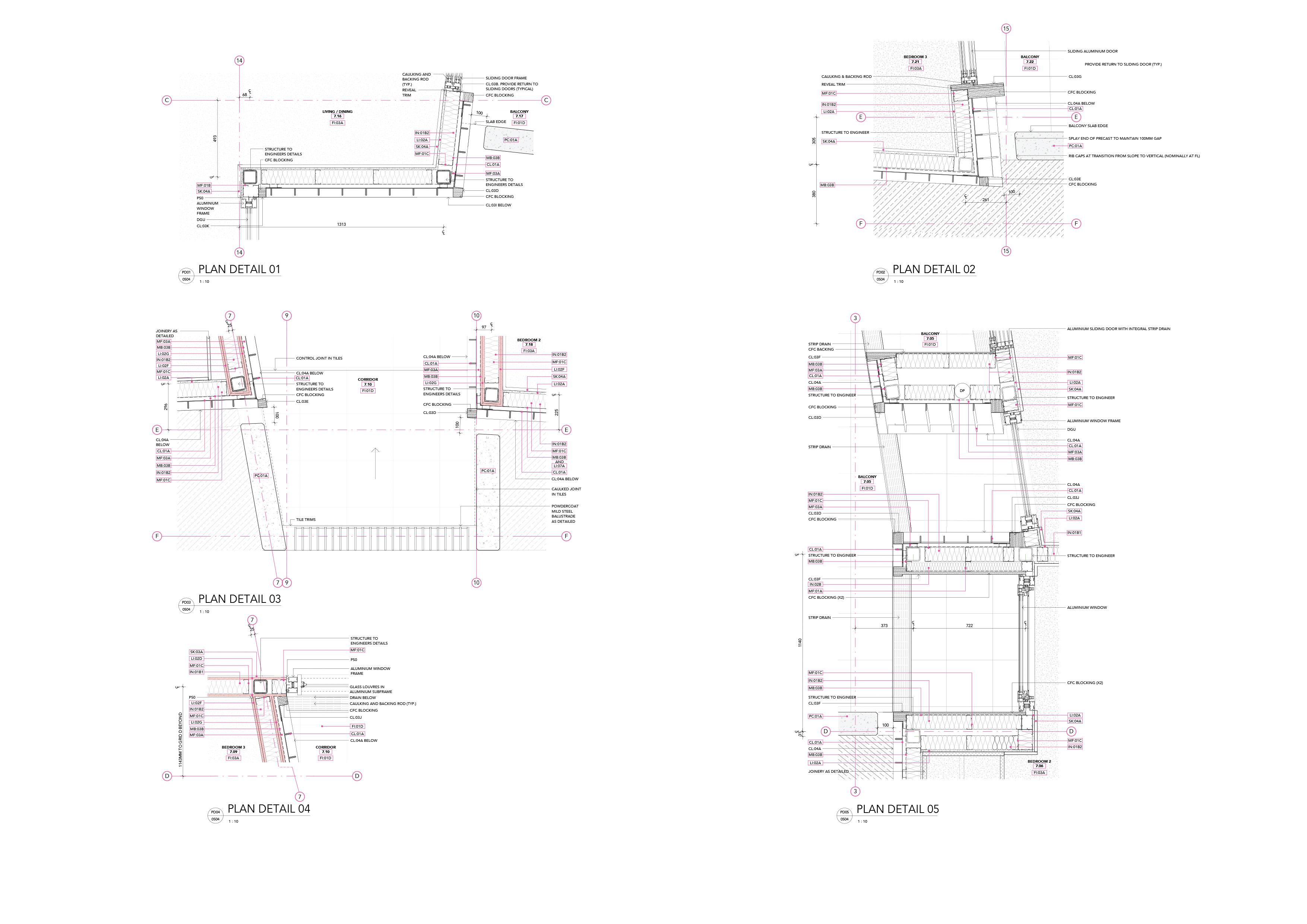

J1.21A J2.16A J2.21A J3.17A J3.22A J4.17A J4.22A J5.17A J5.22A
J1.22A J2.22A J3.23A J4.23A J5.23A

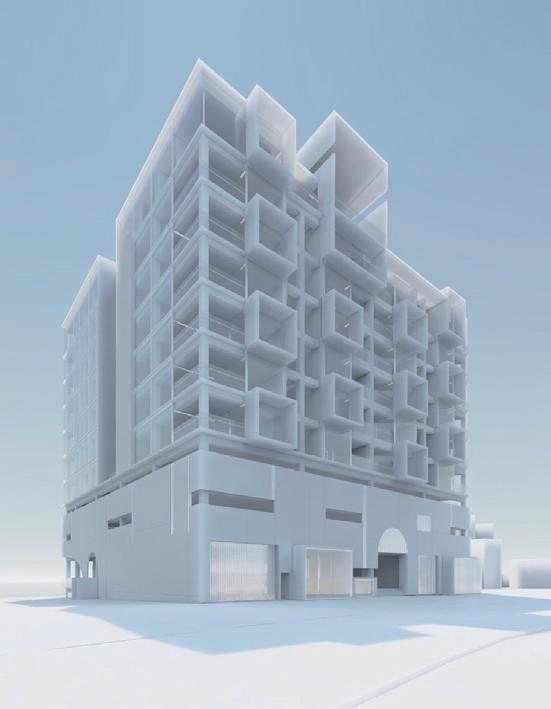

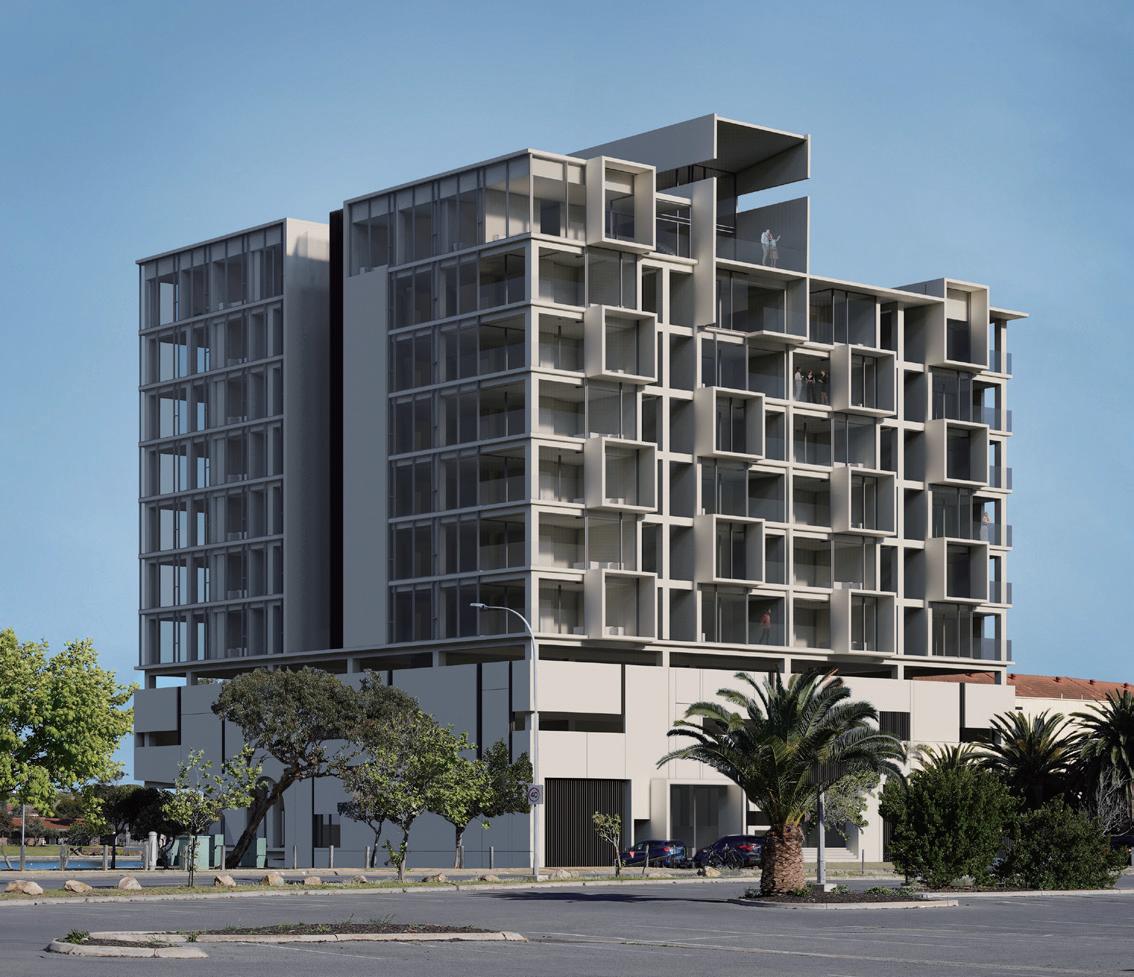

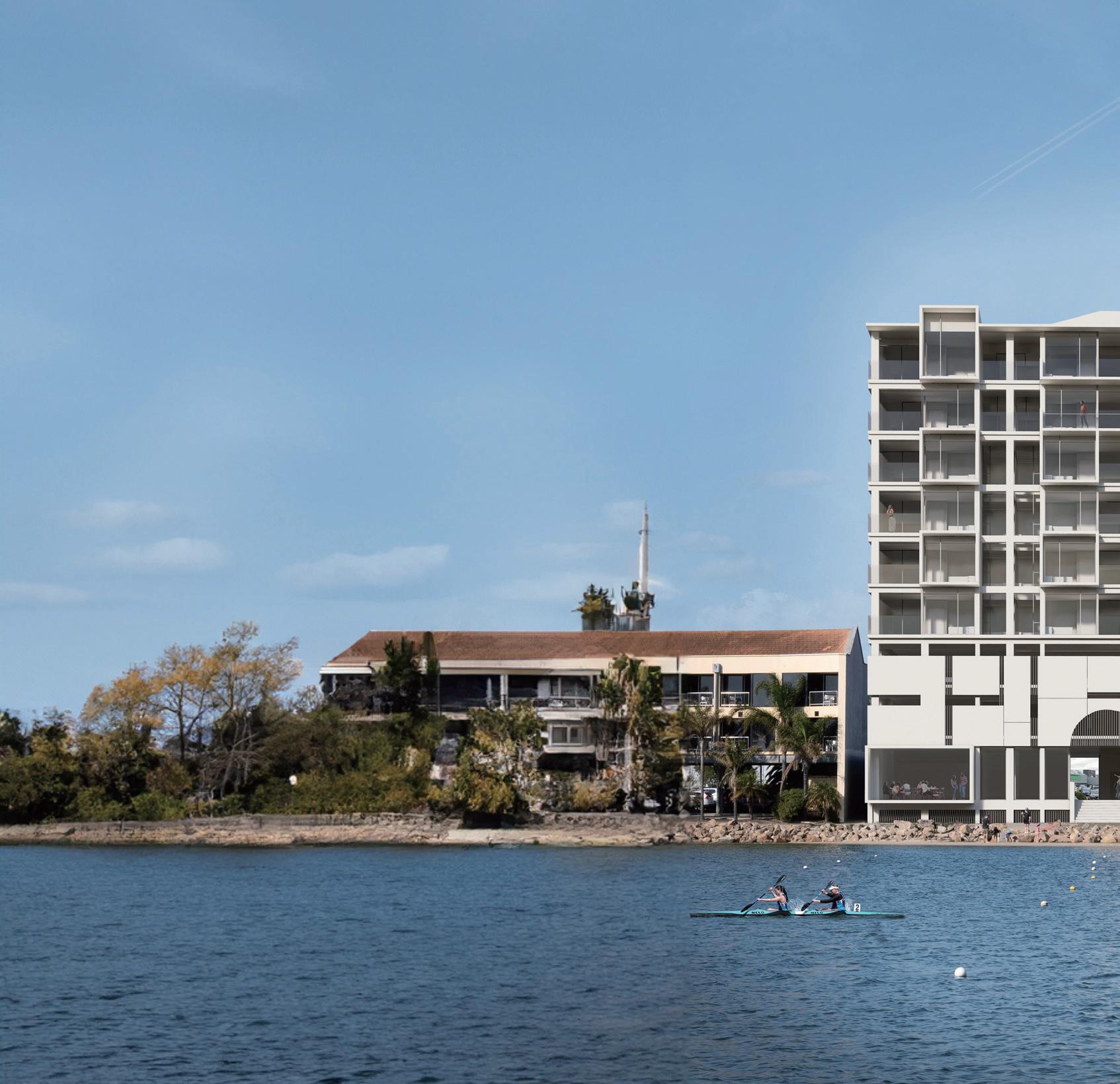

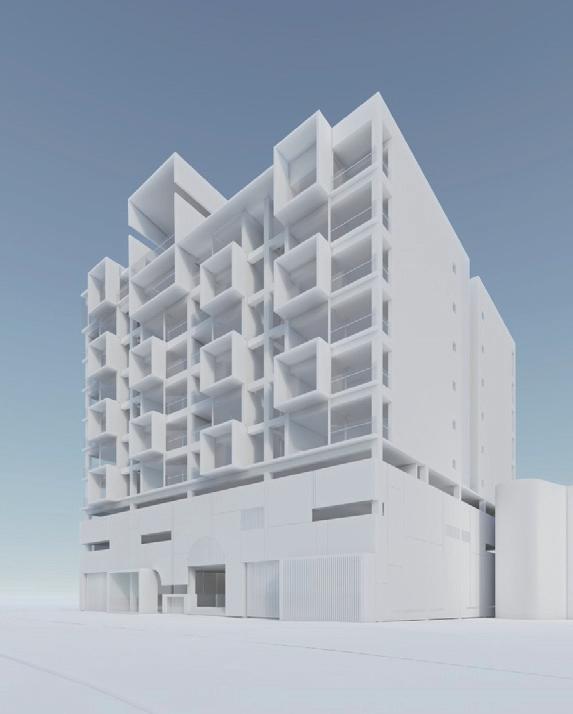

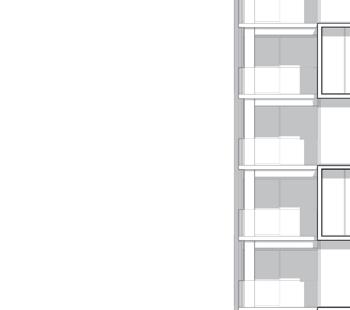

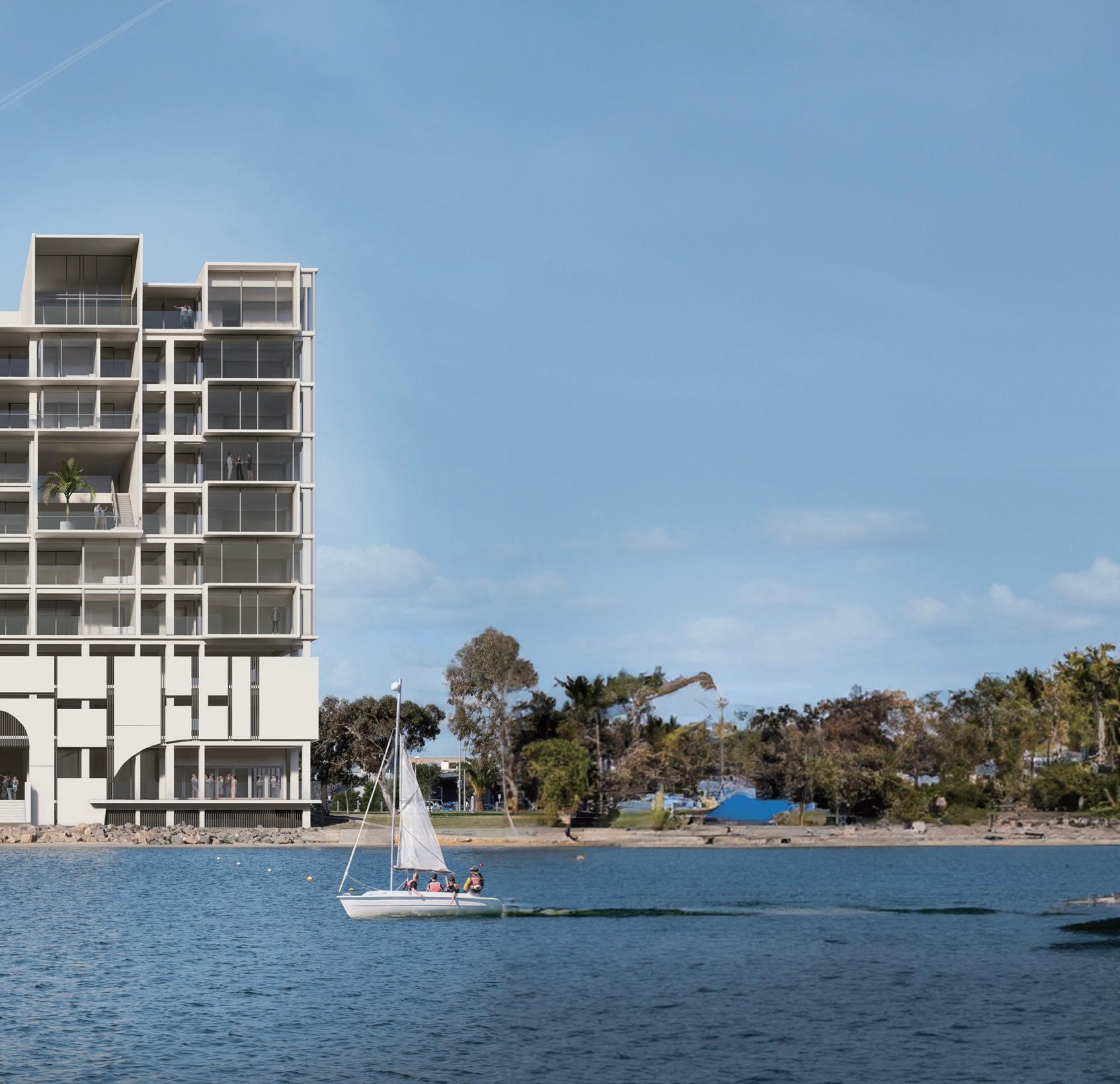

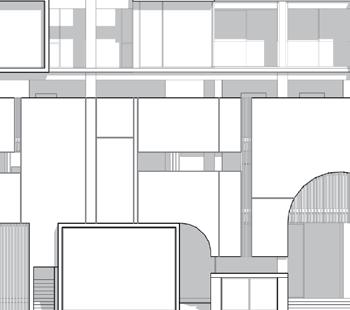

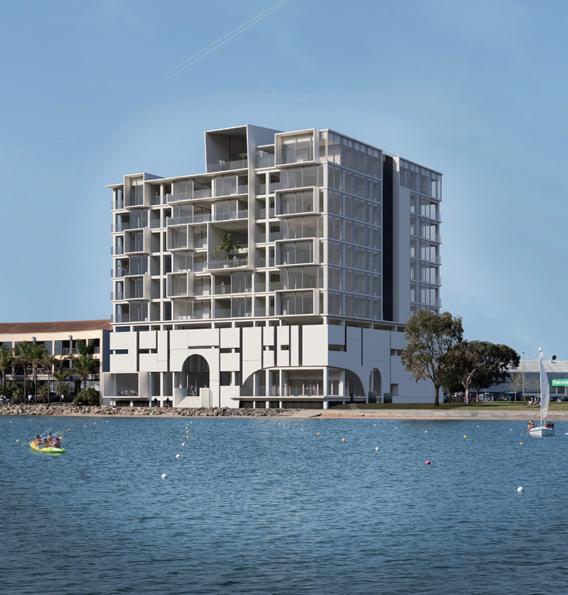

BREBNER DRIVE APARTMENT BUILDING
Professional Work / Tridente Boyce
CONCEPT DESIGN

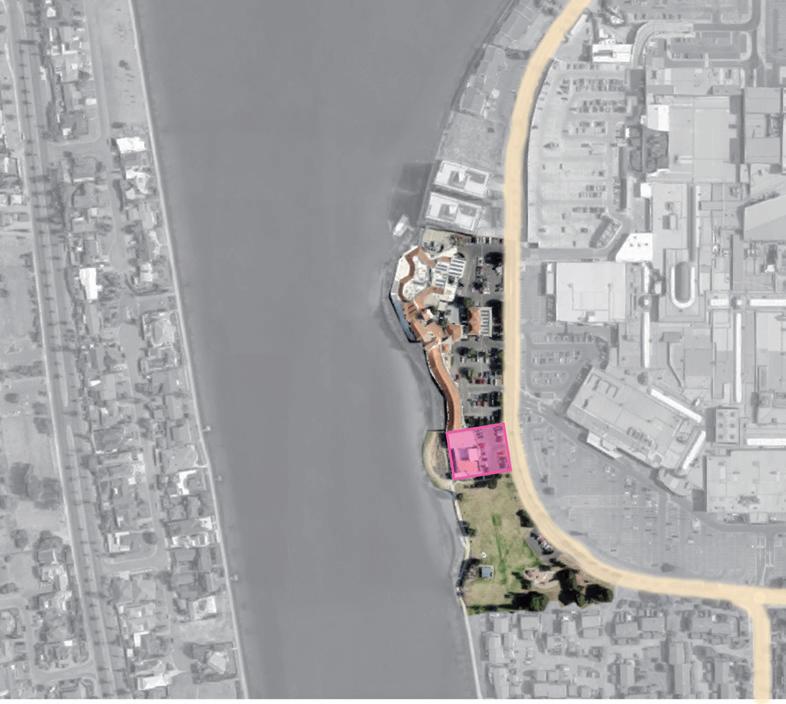

This project is an apartment building located at the north east side of Adelaide. The site is located at West Lakes on the lake front near to the Westfield Shopping Centre. The brief was to develop a mixed use multi-storey building which accommondated commercial use on the ground floor, and 3 levels of car park and a mixture of 1-, 2- and 3- bedroom apartments. The typical apartment plans were developed according to the current apartment market trend in Adelaide. The specialist showed that the most popular apartment sales were two-bedroom apartments.
Development Proposal
7 Levels of Residential Apartments: 46 Apartments, 2 Levels of Car Park with 56 carparks, 1 Level of Commercial Space
Sub-Basement Commercial Car Park: 18 carparks
TOTAL: 10 floors + Sub-Basement.
Add
Protected
Protected Common Area
Sheltered Outdoor Areas
Separate Public Car Park and Resident Car Park
Concrete Barrier to Car Park
Feature Screen/Fins
Charcoal
Feature Concrete
Surfmist
Handrail
Stainless Steel
Balcony Soffit
Surfmist
Framing
SAHA PLAYFORD HOUSING TRUST REDEVELOPMENT
Professional Work / Tridente Boyce CONCEPT DESIGN + DESIGN DEVELOPMENT + CONTRACT DOCUMENTATION DRAWINGS
I joined this project as a team member at the commencement of Concept Design phase. I assisted in the preparation of Concept design drawings, Design development drawings, and Contract documentation drawings for Planning Assessment and Building Rules Assessment & Certification.
KINGSBURY STREET
KINGSBURY STREET
5
6
EXISTING CROSSOVER TO BE REMOVED.
REINSTATE FOOTPATH, KERB AND WATERTABLE
PERMEABLE SURFACE WITH COURSE NON-FINES BASE CROSSOVER AS PER COUNCIL REQUIREMENT. UTILISE NON-DESTRUCTIVE EXCAVATIONS TO AVOID DAMAGING EXISTING TREE AND ITS ROOTS.
DWELLING 5: COLOUR & FINISHES SCHEDULE EXTERNAL
BRICKS
'OLYMPUS' FACE BRICKWORK
MORTAR
'TEMPEST BLUE' FACE BRICKWORK
TIMBER FASCIAS
ROOF SHEETING
PGH BRICKS 'OLYMPUS' [PRIMARY] & 'TEMPEST BLUE' [SECONDARY]
COLOUR MATCHED TO BRICK
PREFINISHED METAL SPANDEK PROFILE. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
DWELLING 6: COLOUR & FINISHES SCHEDULE EXTERNAL
PREFINISHED ALUMINIUM WINDOW FRAMES WITH AWNING
BRICKS
PREFINISHED METAL GUTTERS, DOWNPIPES & FLASHINGS
PREFINISHED ALUMINIUM WINDOW FRAMES WITH AWNING
PGH BRICKS 'ADELAIDE RED' [PRIMARY] & 'OLYMPUS' [SECONDARY]
'OLYMPUS' BRICKWORK
MORTAR COLOUR MATCHED TO BRICK
PREFINISHED SPANDEK PROFILE ROOF SHEET
ROOF SHEETING
PREFINISHED METAL SPANDEK PROFILE. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
'ADELAIDE RED' BRICKWORK
GUTTERS
BOUNDARY LINE
PREFINISHED METAL QUAD (D) GUTTER. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
FASCIAS TIMBER. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
SOFFITS FIBRE CEMENT. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
TIMBER DOOR FRAME & SIDELIGHT
ALUMINIUM FRAMES
FLASHINGS/CAPPINGS
'TEMPEST BLUE' FACE BRICKWORK
TIMBER FASCIAS
BOUNDARY FENCES
BOUNDARY LINE
FRONT FENCES
ROLLER DOOR
LETTERBOX (LB)
GUTTERS
DWELLING 1
PREFINISHED METAL. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'

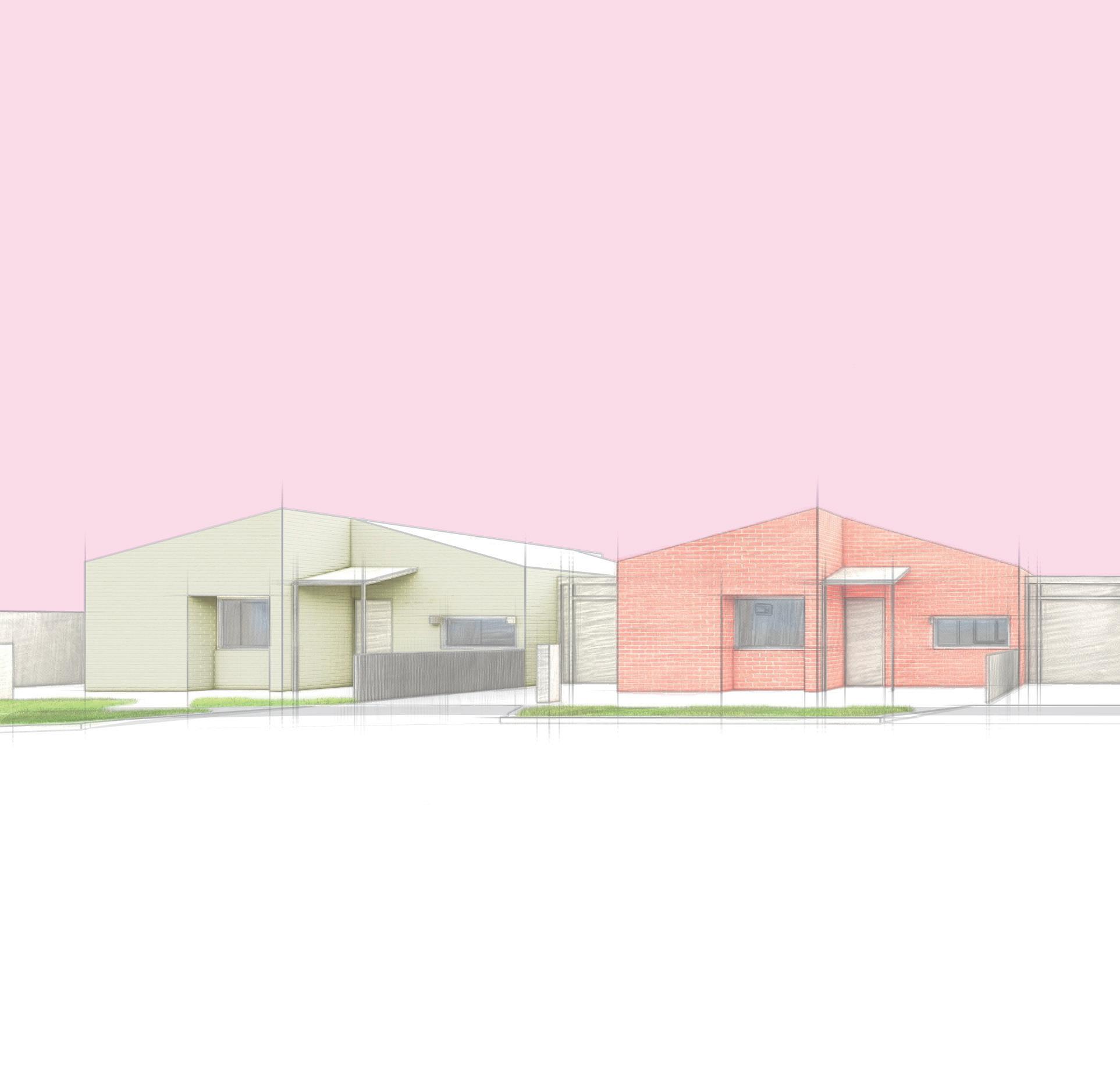

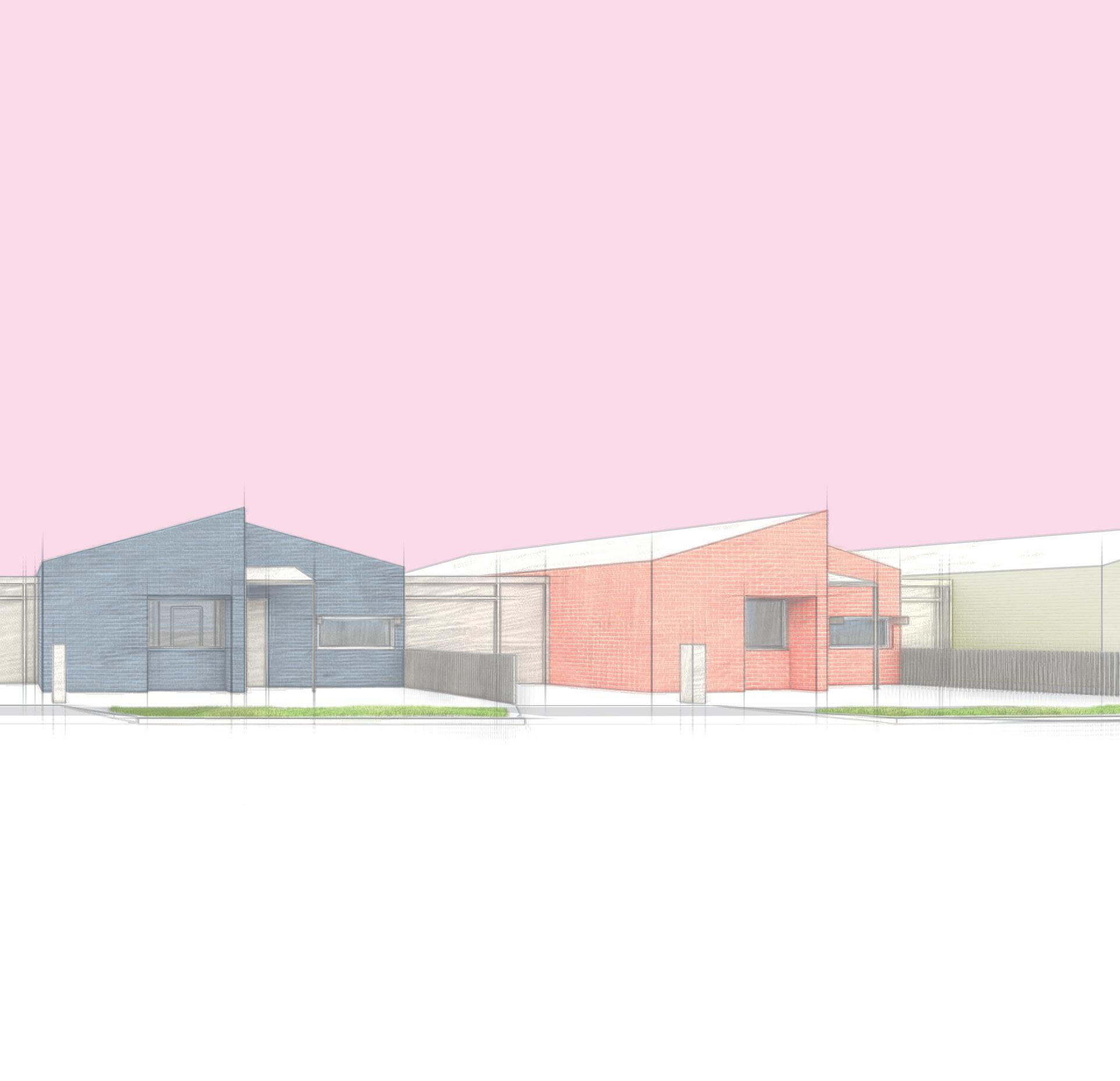

STREET WEST ELEVATION 1:200
PREFINISHED ALUMINIUM. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
FRONT DOOR/SIDELIGHT TIMBER. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
PREFINISHED METAL QUAD (D) GUTTER. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
FASCIAS TIMBER. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
SOFFITS FIBRE CEMENT. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
FLASHINGS/CAPPINGS
PREFINISHED METAL. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
PREFINISHED METAL GUTTERS, DOWNPIPES & FLASHINGS 'ADELAIDE RED' FACE BRICKWORK 'OLYMPUS' FACE BRICKWORK
PREFINISHED METAL ROLLER DOOR
PREFINISHED METAL. COLOUR TO MATCH COLORBOND 'BASALT MATT'
PREFINISHED ALUMINIUM. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
ALUMINIUM FRAMES PREFINISHED ALUMINIUM. COLOUR TO MATCH COLORBOND 'SURFMIST MATT' FRONT DOOR/SIDELIGHT TIMBER. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
BOUNDARY FENCES
FRONT FENCES
PREFINISHED METAL. COLOUR TO MATCH COLORBOND 'BASALT MATT'
PREFINISHED METAL. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
DWELLING 1
HERMAX FENCE LETTERBOX MODEL #154 POWDER COATED 'BASALT MATT' IN PGH BRICKS 'OLYMPUS' WALL. 75MM HIGH STAINLESS STEEL NUMERALS.
STREET NORTH ELEVATION 1:200
PREFINISHED ALUMINIUM. COLOUR TO MATCH COLORBOND 'SURFMIST MATT' ROLLER DOOR
DWELLING 2
LETTERBOX (LB)
'OLYMPUS' FACE BRICKWORK
'TEMPEST BLUE' FACE BRICKWORK
PREFINISHED METAL GUTTERS, DOWNPIPES & FLASHINGS
TIMBER FASCIAS
TIMBER DOOR FRAME & SIDELIGHT
BOUNDARY LINE
PREFINISHED ALUMINIUM WINDOW FRAMES WITH AWNING
'OLYMPUS' FACE BRICKWORK
'TEMPEST BLUE' FACE BRICKWORK
DWELLING 7
STREET SOUTH ELEVATION 1:200
PREFINISHED METAL ROLLER DOOR
TIMBER DOOR FRAME & SIDELIGHT
DWELLING 3
PREFINISHED METAL. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
HERMAX FENCE LETTERBOX MODEL #154 POWDER COATED 'BASALT MATT' IN PGH BRICKS 'OLYMPUS' WALL. 75MM HIGH STAINLESS STEEL NUMERALS.
PREFINISHED 900MM HIGH ALUMINIUM FENCING SHOWN DASHED FOR CLARITY
PREFINISHED SPANDEK PROFILE ROOF SHEET
PREFINISHED ALUMINIUM WINDOW FRAMES WITH AWNING
PREFINISHED SPANDEK PROFILE ROOF SHEET
TIMBER FASCIAS
STREET NORTH ELEVATION 1:200
WINDOW AWNING
'OLYMPUS' FACE BRICKWORK
RED' FACE BRICKWORK
PREFINISHED ALUMINIUM WINDOW FRAMES WITH AWNING
BRICKS PGH BRICKS 'TEMPEST BLUE' [PRIMARY] & 'OLYMPUS' [SECONDARY]
MORTAR COLOUR MATCHED TO BRICK
ROOF SHEETING
PREFINISHED 1800MM HIGH METAL FENCING SHOWN DASHED FOR CLARITY
PREFINISHED METAL GUTTERS, DOWNPIPES & FLASHINGS
PREFINISHED METAL SPANDEK PROFILE. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
'TEMPEST BLUE' FACE BRICKWORK
BRICKS
MORTAR
ROOF SHEETING
'OLYMPUS' FACE BRICKWORK
PGH BRICKS 'ADELAIDE RED' [PRIMARY] & 'OLYMPUS' [SECONDARY]
TIMBER FASCIAS
COLOUR MATCHED TO BRICK
PREFINISHED 1800MM HIGH METAL FENCING SHOWN DASHED FOR CLARITY
PREFINISHED METAL SPANDEK PROFILE. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
GUTTERS
PREFINISHED METAL QUAD (D) GUTTER. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
FASCIAS TIMBER. COLOUR TO MATCH COLORBOND 'SURFMIST MATT' SOFFITS FIBRE CEMENT. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
FLASHINGS/CAPPINGS
'OLYMPUS' FACE BRICKWORK
ALUMINIUM FRAMES
PREFINISHED METAL. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
PREFINISHED ALUMINIUM. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
'ADELAIDE RED' FACE BRICKWORK 'OLYMPUS' FACE BRICKWORK 'TEMPEST BLUE' FACE BRICKWORK
FRONT DOOR/SIDELIGHT TIMBER. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
BOUNDARY FENCES
PREFINISHED METAL. COLOUR TO MATCH COLORBOND 'BASALT MATT'
GUTTERS
PREFINISHED METAL QUAD (D) GUTTER. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
FASCIAS TIMBER. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
SOFFITS FIBRE CEMENT. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
FLASHINGS/CAPPINGS
ALUMINIUM FRAMES
PREFINISHED METAL. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
PREFINISHED ALUMINIUM. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
FRONT DOOR/SIDELIGHT TIMBER. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
BOUNDARY FENCES
PREFINISHED METAL. COLOUR TO MATCH COLORBOND 'BASALT MATT'
FRONT FENCES PREFINISHED ALUMINIUM. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
ROLLER DOOR
LETTERBOX (LB)
PREFINISHED METAL ROLLER DOOR
'ADELAIDE RED' FACE BRICKWORK
PREFINISHED ALUMINIUM WINDOW FRAMES WITH AWNING
'OLYMPUS' FACE BRICKWORK
PREFINISHED METAL. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
NORTHCOTE POTTERY 'PARCEL LETTERBOX' PREFINISHED IN 'CHARCOAL'. 75MM HIGH STAINLESS STEEL NUMERALS.
PREFINISHED SPANDEK PROFILE ROOF SHEET
FRONT FENCES
ROLLER DOOR
LETTERBOX (LB)
PREFINISHED METAL GUTTERS, DOWNPIPES & FLASHINGS
TIMBER DOOR FRAME & SIDELIGHT
PREFINISHED 1800MM HIGH METAL FENCING SHOWN DASHED FOR CLARITY
PREFINISHED ALUMINIUM. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
PREFINISHED METAL. COLOUR TO MATCH COLORBOND 'SURFMIST MATT'
NORTHCOTE POTTERY 'PARCEL LETTERBOX' PREFINISHED IN 'CHARCOAL'. 75MM HIGH STAINLESS STEEL NUMERALS.
PREFINISHED METAL GUTTERS, DOWNPIPES & FLASHINGS
'ADELAIDE RED' FACE BRICKWORK
'OLYMPUS' FACE BRICKWORK
PREFINISHED 1800MM HIGH METAL FENCING SHOWN DASHED FOR CLARITY
HEKA HOOD BRACKET-LESS ALUMINIUM AWNING SYSTEMS. INSTALLATION AS PER MANUFACTURERS FIXING REQUIREMENTS [TYPICAL]
STEPLESS ENTRY
STEPLESS ENTRY
RL 4223 TOP OF ROOF 1513
RL 2710 CEILING 2710
RL 0 FLOOR LEVEL
W0: 06F W0: 06E : D0 06E
DWELLING 6 NORTH ELEVATION
1:100
RL 4223 TOP OF ROOF 1513
RL 2710 CEILING 2710
RL 0 FLOOR LEVEL
DWELLING 6 EAST ELEVATION
1:100
RL 2710 CEILING 2710
RL 4223 TOP OF ROOF 1513 REFER DWELLING 7
RL 0 FLOOR LEVEL
DWELLING 6 SOUTH ELEVATION
1:100
RL 4223 TOP OF ROOF 1513
RL 2710 CEILING 2710
RL 0 FLOOR LEVEL
DWELLING 6 WEST ELEVATION
1:100
STEPLESS ENTRY
DENOTES OBSCURE GLAZING
HEKA HOOD BRACKET-LESS ALUMINIUM AWNING SYSTEMS. INSTALLATION AS PER MANUFACTURERS FIXING REQUIREMENTS
CARPORT OMITTED FOR
STEPLESS ENTRY
PROVIDE CONTROL JOINT WHERE CHANGE OF BRICK COLOURS [TYPICAL]
1513 2710
PREFINISHED SPANDEK PROFILE ROOF SHEET
RL 4223 TOP OF ROOF
ROOF TRUSSES TO TRUSS DESIGNERS DETAIL
R4.0 INSULATION TO CEILING SPACE
RL 2710 CEILING
TIMBER FASCIAS BRICK VENEER WALL
R2.5 INSULATION TO EXTERNAL WALL
CONCRETE PERIMETER PAVING. REFER SITE PLAN
RL 0 FLOOR LEVEL
FOOTINGS AS PER ENGINEER'S DETAIL
RL 4223 TOP OF ROOF
R1.3 INSULATION TO ROOF
R4.0 INSULATION TO CEILING SPACE
PREFINISHED SPANDEK PROFILE ROOF SHEET
RL 2710 CEILING
BEDROOM 2

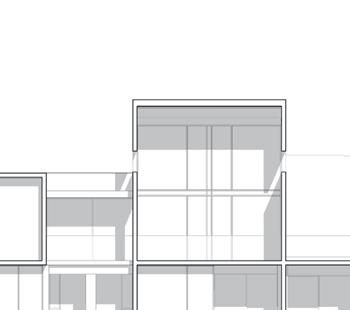

DWELLING 6 SECTION 1:100 A-A
1513 2710 15°
STEEL FRAME PAINTED
POWDERCOATED ALUMINIUM FRAMED SLIDING DOOR
STEPLESS ENTRY
RL 0 FLOOR LEVEL
LIVING / DINING ROOM
DWELLING 6 SECTION 1:100 B-B
RL 2710 TOP OF ROOF
RL 0 FLOOR LEVEL
OFFSET BASE PLATE TO FLUSH WITH COLUMN
TYPICAL CARPORT SECTION 1:100
1
TIMBER FASCIAS
PREFINISHED SPANDEK PROFILE ROOF SHEET
TIMBER DOOR FRAME & SIDELIGHT
FLOOR TILES ON SCREED
PREFINISHED SPANDEK PROFILE ROOF SHEET
ROOF TRUSSES TO TRUSS DESIGNERS DETAIL
PREFINISHED METAL GUTTER, DOWNPIPE AND FLASHINGS
BRICK VENEER WALL
R2.5 INSULATION TO EXTERNAL WALL
POWDERCOATED ALUMINIUM FRAMED WINDOW
BRICK SILL ON EDGE
CONCRETE PERIMETER PAVING. REFER SITE PLAN
FOOTINGS AS PER ENGINEER'S DETAIL
PREFINISHED SPANDEK PROFILE ROOF SHEET
FOOTINGS AS PER ENGINEER'S DETAIL
OFFSET BASE PLATE TO FLUSH WITH COLUMN
DWELLING 6 PART FLOOR
DWELLING 6 PART FLOOR
PREFINISHED METAL SPANDEK PROFILE ROOF SHEET AS SCHEDULED
GUTTER FLASHING
PREFINISHED METAL FLASHING
PREFINISHED METAL QUAD 'D' GUTTER
PAINTED 230MM X 30MM TIMBER FASCIA
2710 CEILING
PREFINISHED METAL FLASHING
PAINTED 300MM X 45MM TIMBER BEAM TO ENGINEER'S DETAILS
2350 TOP OF SOLDIER COURSE
SOLDIER COURSE TIMBER PURLIN
2120 BOTTOM OF SOLDIER COURSE
BRICK WORK
BRICK WORK
TYPICAL GUTTER DETAIL
DAMP-PROOF COURSE
WEEP HOLES AT 1200MM MAX CENTRES
CONCRETE PERIMETER PAVING
R1.3 ROOF BLANKET INSULATION WITH MOISTURE / VAPOUR BARRIER
ROOF TRUSSES TO TRUSS DESIGNERS DETAILS
PREFINISHED METAL QUAD 'D' GUTTER ON 230MM X 30MM TIMBER FASCIA
PREFINISHED METAL BOUNDARY FLASHING. MIN 3 DEGREE PITCH FOR WATER DRAINAGE WITH CRUSH FOLD TO EDGE
R4.0 CEILING INSULATION
10MM FLUSHED PLASTERBOARD CEILING ON TIMBER BATTENS
MOYLE BENDALE PROFILE 25 TIMBER CORNICE WITHOUT CHAMFER
10MM FLUSHED PLASTERBOARD
90MM TIMBER STUD
R2.5 INSULATION
SARKING
SOLDIER COURSE
BRICK WORK
BRICK WORK
10MM FLUSHED PLASTERBOARD
90MM TIMBER STUD
R2.5 INSULATION
SARKING
DAMP-PROOF COURSE
70MM X 19MM PAINTED TIMBER SKIRTING
CONCRETE PERIMETER PAVING
FOOTING AND SLAB AS PER STRUCTURAL ENGINEERS DETAILS
WEEP HOLES AT 1200MM MAX CENTRES
DPC UNDER STUDS
BOUNDARY GUTTER DETAIL
R1.3 ROOF BLANKET INSULATION WITH MOISTURE / VAPOUR BARRIER
ROOF TRUSSES TO TRUSS DESIGNERS DETAIL (MIN 50 BEARING ON WALL FRAME)
30MM THK FASCIA CUT TO SUIT
R4.0 CEILING INSULATION
CEILING JOIST
10MM FLUSHED PLASTERBOARD CEILING ON TIMBER BATTENS
MOYLE BENDALE PROFILE 25 TIMBER CORNICE WITHOUT CHAMFER
10MM FLUSHED PLASTERBOARD
90MM TIMBER STUD
R2.5 INSULATION SARKING
10MM FLUSHED PLASTERBOARD
90MM TIMBER STUD
R2.5 INSULATION SARKING
70MM X 19MM PAINTED TIMBER SKIRTING
FOOTING AND SLAB AS PER STRUCTURAL ENGINEERS DETAILS
PREFINISHED METAL FLASHING
PAINTED 230MM X 30MM TIMBER FASCIA
TYPICAL FASCIA DETAIL 1:10
WEEP HOLES AT 1200MM
PREFINISHED METAL SPANDEK SHEET AS SCHEDULED
R1.3 ROOF BLANKET INSULATION MOISTURE / VAPOUR BARRIER
PAINTED STEEL LINTEL AS
ROOF TRUSSES TO TRUSS
WEEP HOLES AT 1200MM MAX CENTRES
PAINTED STEEL LINTEL AS PER ENGINEERS DETAILS
EXPRESSED JOINT TO PERIMETER SARKING BRICK WORK
6MM FIBRE CEMENT SOFFIT LINING
25MM X 25MM SQUARE TIMBER BEAD
FLOOR TILES ON SCREED
WEEP HOLES AT 1200MM
10MM FLUSHED PLASTERBOARD 90MM TIMBER STUD R2.5 INSULATION
60MM X 19MM PAINTED
X 19MM
BRICK SILL ON EDGE SILL FLASHING POWDER COATED
FOOTING AND SLAB AS ENGINEERS DETAILS
OF SOLDIER COURSE
CENTRES
TIMBER ARCHITRAVE
ALUMINIUM FRAMED WINDOW
SARKING
DAMP-PROOF COURSE
60MM X 19MM PAINTED TIMBER ARCHITRAVE
POWDER COATED ALUMINIUM FRAMED WINDOW
TIMBER REVEAL AS PER WINDOW MANUFACTURER'S DETAILS
10MM FLUSHED PLASTERBOARD
90MM TIMBER STUD
R2.5 INSULATION
SARKING TIMBER PACKER TO SUIT
6MM FIBRE CEMENT SHEET TO WET AREAS TYPICALLY WITH TILED FINISH
2 LAYERS TANKING AS SPECIFIED
BOND BREAKER ROD AS SPECIFIED. USE TAPE TO HOLD ROD IN PLACE AND ELIMINATE LIQUID MEMBER FLOWING BACK AROUND ROD
VERTICAL CORNER FLASHING MOULD AS REQUIRED BY BUILDINGS REGULATIONS
10MM FLUSHED PLASTERBOARD
90MM TIMBER STUD
R2.5 INSULATION
SARKING
BRICK WORK
FLASHING
HEKA HOOD BRACKET-LESS ALUMINIUM AWNING SYSTEMS.
3 SIDED HOOD - 180MM H x 450MM D x LENGTH TO SUIT WINDOW. INSTALLATION AS PER MANUFACTURERS FIXING REQUIREMENTS
QINGDAO SHILAOREN SEASIDE PARK
Professional Work/STEFANO BOERI ARCHITETTI
Competition concept design
This project is to design a world-class seaside park scheme with international standard. Making it an icon showing the mountain-and-sea quality and urban charm of Laoshan District, and build a new dynamic coastal landmark in Qingdao.
In this project, our manifesto includes seeds of activities, following the eco-design principles, intergrating into the landscape, low-density building, high-density forest, connecting to the surrounding context.
BATHING BEACH
MANIFESTO
1 SEEDS OF ACTIVITIES
the pathways must embrace the different ‘seeds of activities’ and buildings must be light and emerged into landscape, respectful of the environment less impact as possible
2 FOLLOW THE GREEN DESIGN PRINCIPLES solar energy, roof garden, protect from solar radiation, natural ventilation, water collection
3 LANDSCAPE EMERGED ARCHITECTURE
the architecture is integrated into the landscape providing smart design solution and adding few core points for culture and commercial spaces
4 LOW BUILT, HIGH GREEN
the masterplan must follow the low built, high green principle
5 RESPONDING TO THE SURROUNDING CONTEXT
the masterplan connects the nearby forgotten shilaoren reef rock, shilaoren bathing beach, wu mountain attractions by adding a boardwalk
GARDEN RESTAURANT
Using the original golf course terrain to set up the stadium, enrich the current vegetation to form an isolated forest
Set up an underground parking lot by vertical space of the building to preserve the ground habitat to the maximum
forest belt; Earth-covered buildings are set up to meet facilities requirements.

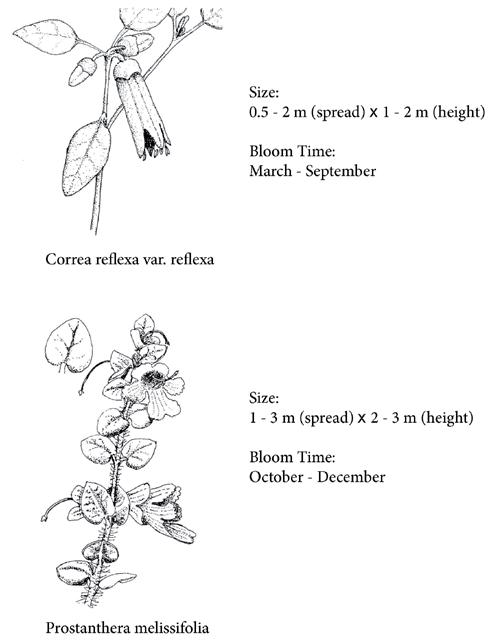

BEE INTERACTIVE LIVING MUSEUM
Final year thesis project/University of Melbourne Living museum/Concept design
Responding to issue of the decline of native bee in Australia, this project is testing a prototype of Human –Bee Interactive Bee Garden in University of Melbourne. Stakeholders involve human and non-human agencies, two types of native Bees, Ground nesting bees and Long Tongued bees.

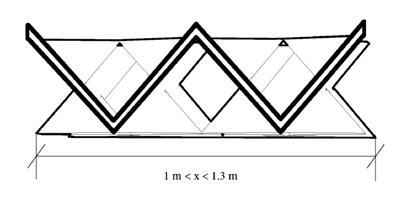

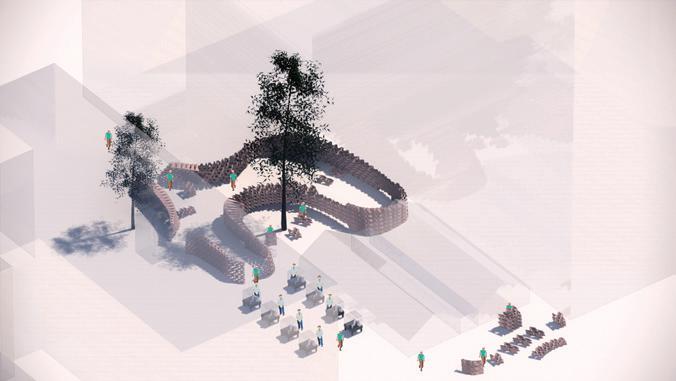

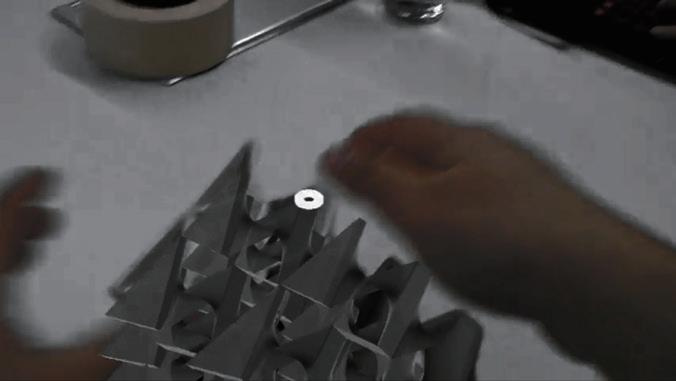

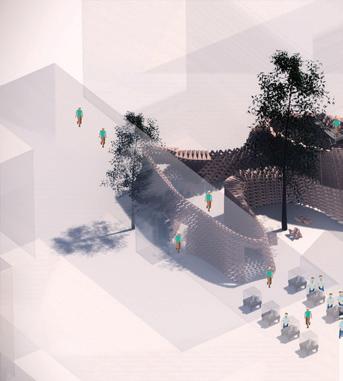

BRICK + AR CONSTRUCTION
Locating
CLAY
Placing
Shifting
Finishing
THANK YOU FOR YOUR TIME!
