Gateway Next Gateway Next 4216_Spr23_Traxel_DD PRESENTATION Edmond Multimodal Transportation Hub

SD RECAP SD RECAP

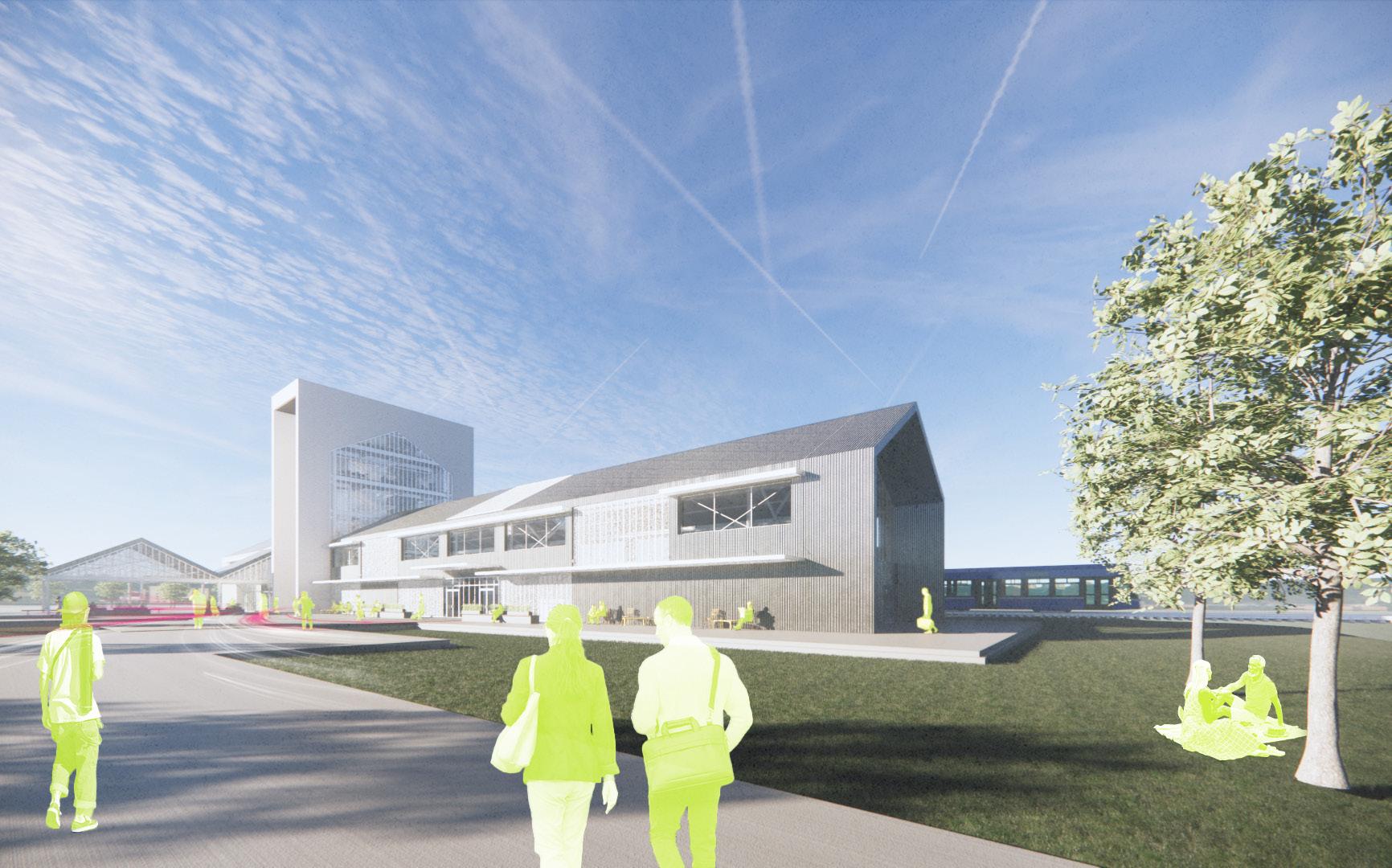

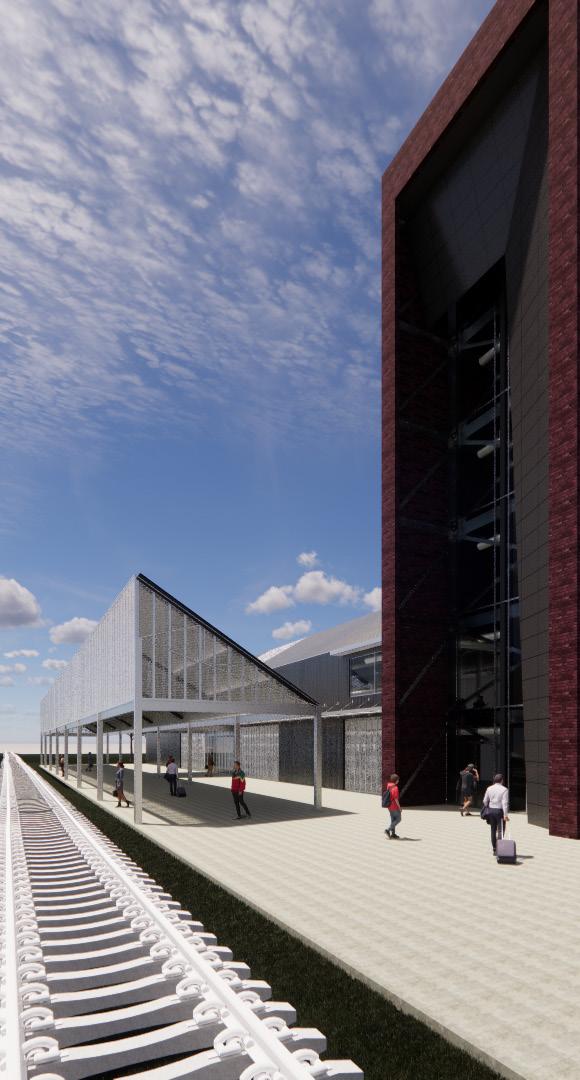

North Approach North Approach

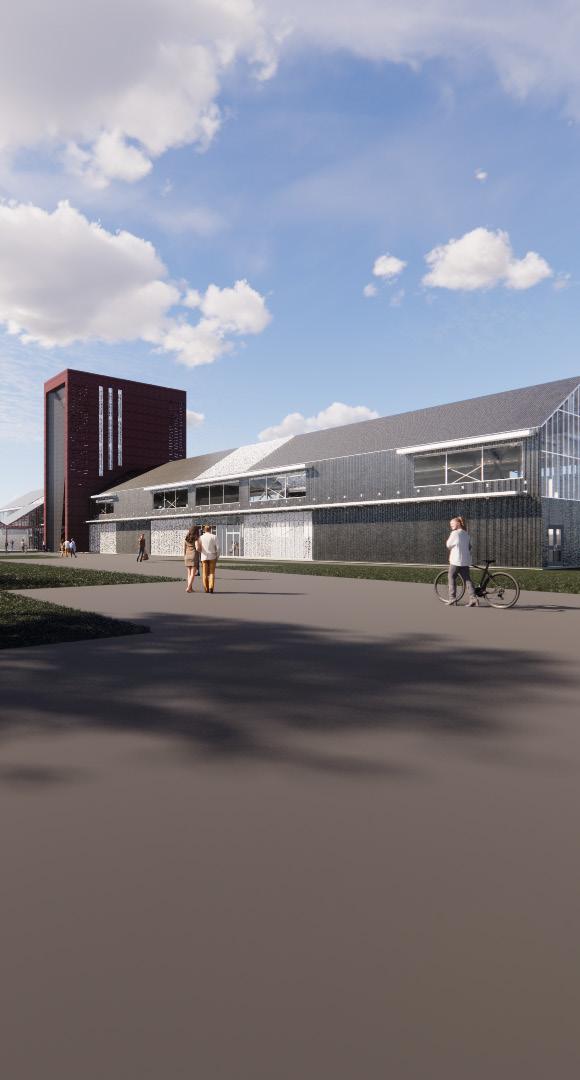

East Approach East Approach

Narrative:

The multimodal hub uses what the citizens of Edmond know: Gable roofs, rhythm and patterns, brick masonry, and visually represent how they can be connected to the future development.

Proportioned by box cars, the gable structure is split by a masonry gateway. Transporting people through what they know, and into what is next.

Concept Concept

Contextualize

Transform

Bisect

Goals:

Establish a dense urban path from the developed Broadway strip.

Add a pedestrian bridge to establish a new axis for the future housing developments.

Add visual cues to the main entrances/pedestrian drop offs.

Existing Community Center

Pedestrian Bridge

Future Development

Existing Alleyway Turned Into Retail Axis

Future Development

Master Plan Master Plan 1”=60’-0” N

Trash Freight Parking Bus Loop

Site Plan Site Plan 1”=30’-0” N

Courtyard Pavement Change Exterior Seating Train Platform Pavement Change

First Floor Plan First Floor Plan 1. Vestibule 2. Ticket Lobby 3. Ticket Office 4. Restrooms 5. Security Office 6. Fan Room 7. Boiler Room 8. Freight 9. Fire Stair 10. Elevator Room 11. Elevator 12. Fire Stair 13. Exterior Storage 14. Vending 15. Waiting Lobby 16. Restrooms 17. Retail 18. Fan Room 19. Electrical Room 20. Janitor 3/64”=1’-0” N 1. 2. 3. 4. 4. 5. 6. 19. 20. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 16. 17. 18.

Second Floor Plan Second Floor Plan 3/64”=1’-0” N 1. Reception Lobby 2. Open Office 3. Enclosed Office 4. Dispatch Headquarters 5. Work Room 6. File Room 7. Fire Stair 8. Restrooms 9. Elevator 10. Fire Stair 11. Sky Bridge 12. Cafe Open To Below 1. 2. 8. 9. 10. 12. 11. 8. 3. 4. 5. 6. 7.

Third Floor Plan Third Floor Plan 1/8”=1’-0” N

1. 2. 3. 4. 1. Elevator 2. Fire Stair 3. Restroom 4. Driver Lounge

Fourth Floor Plan Fourth Floor Plan 1/8”=1’-0” N

1. Elevator 2. Fire Stair 3. Conference Space 1. 2. 3.

Section

Section 3/64”=1’-0”

Latitudinal

Longitudinal

Latitudinal

Longitudinal

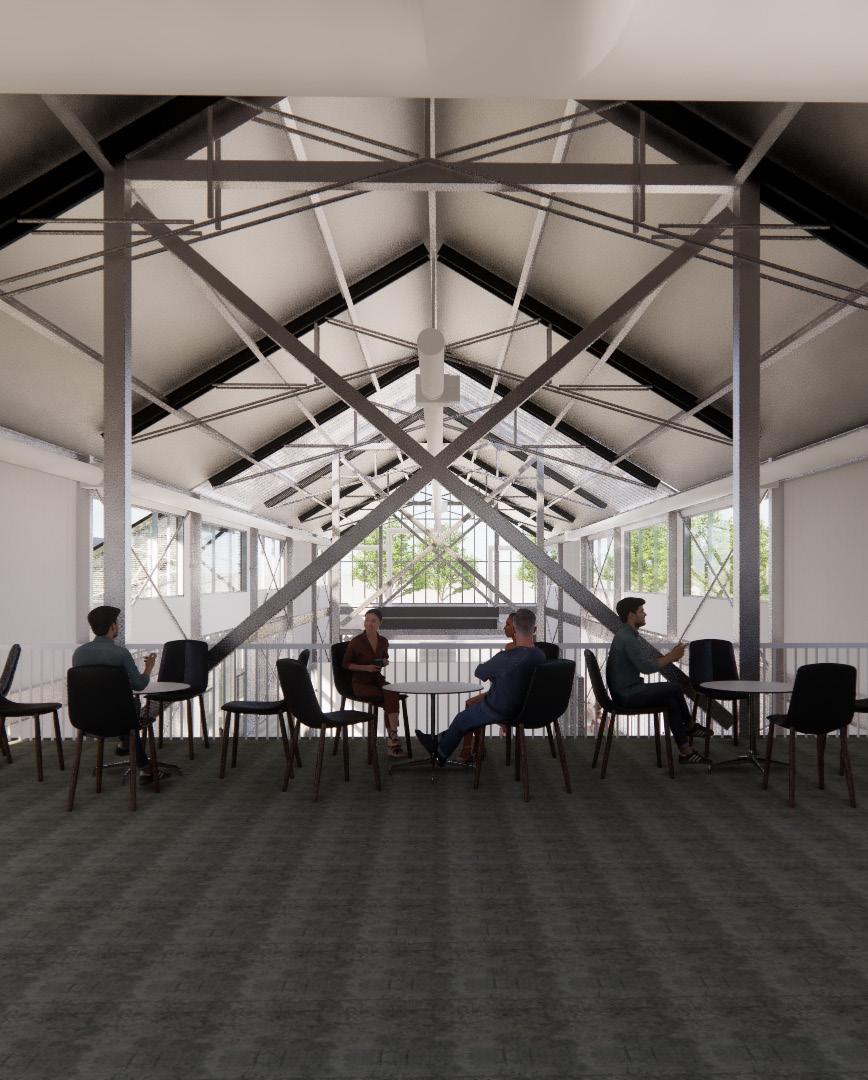

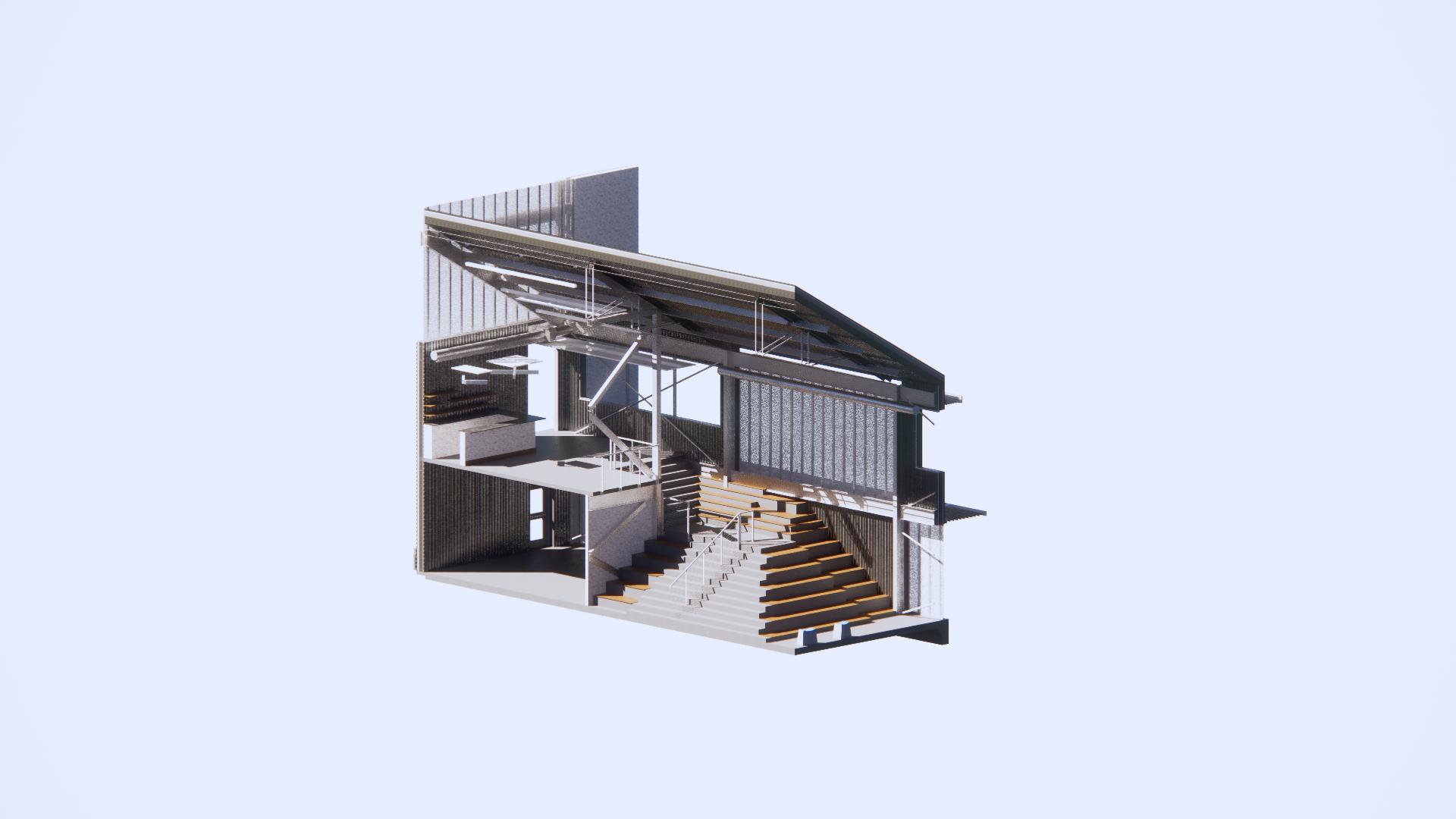

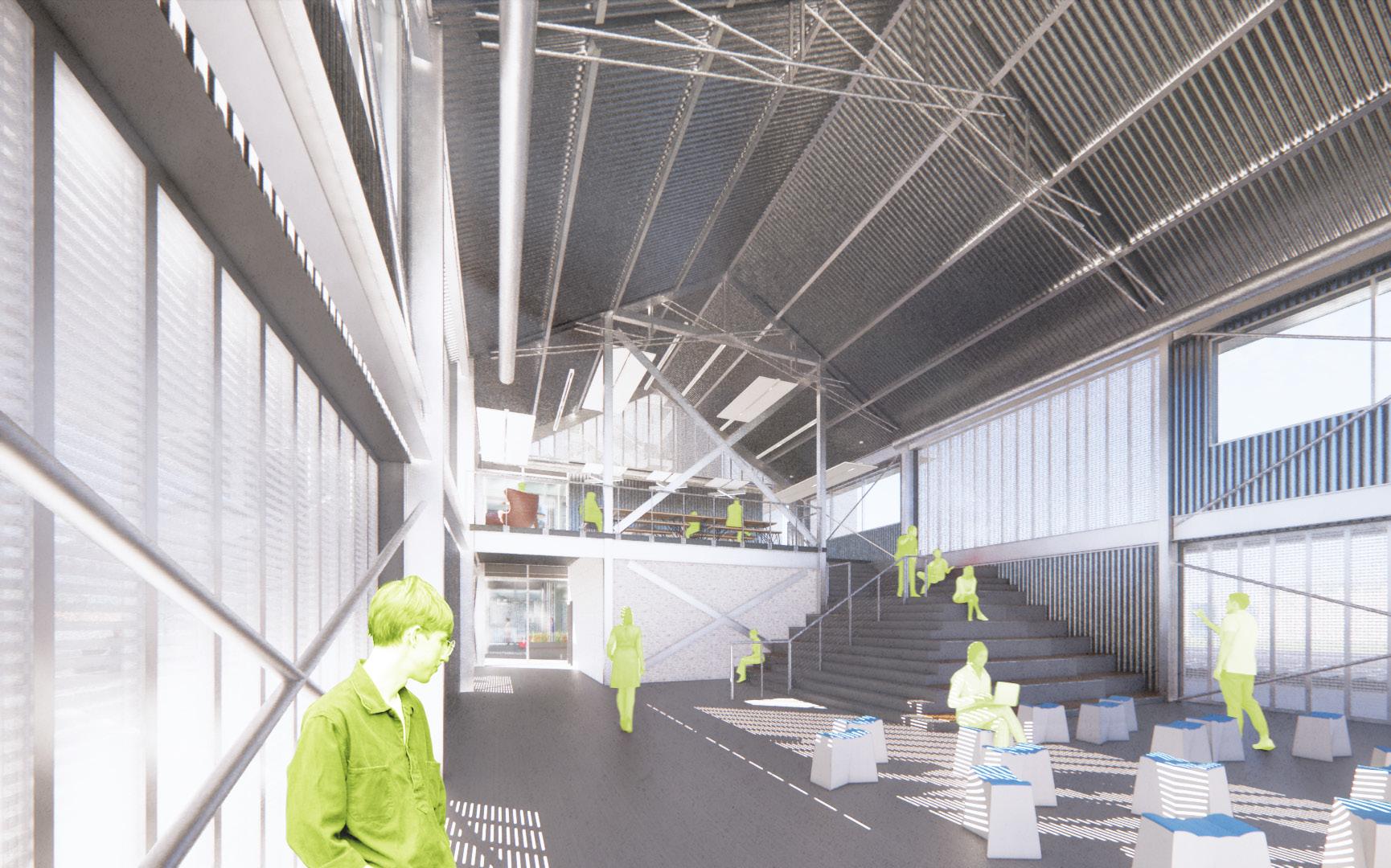

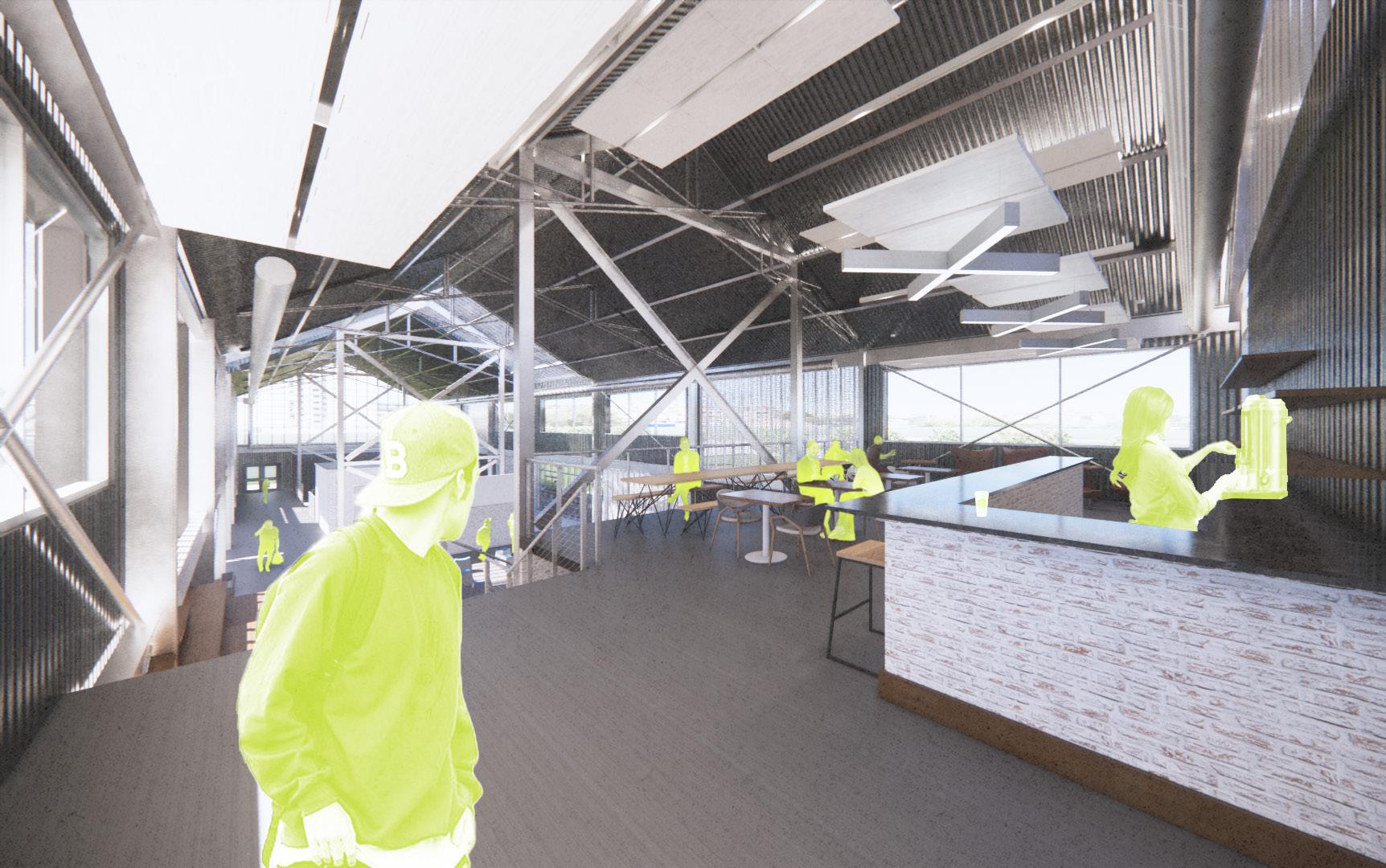

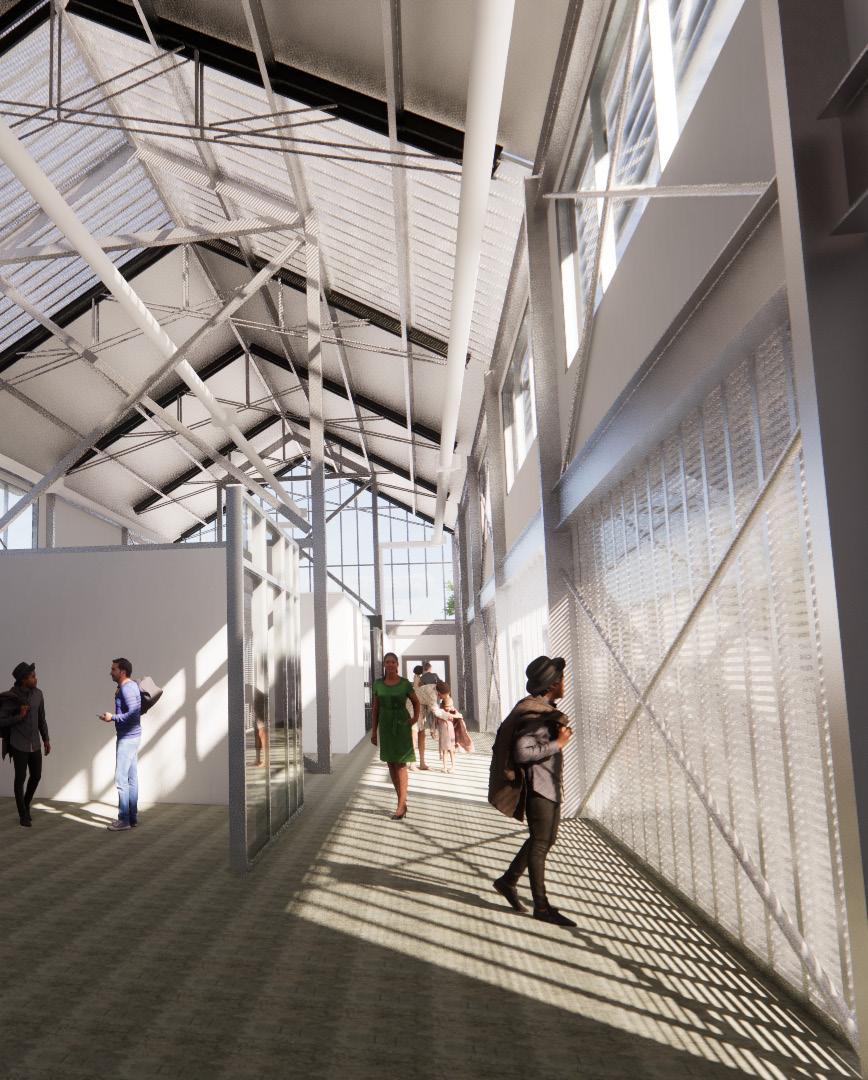

Focus Space Focus Space 3/64”=1’-0”

Application:

The exterior skin is inspired by the pattern style of the Rural Western American Dated Metal Shed.

Relating to the historic train yard site, the pattern is executed through using corrugated metal and channel glass storefront.

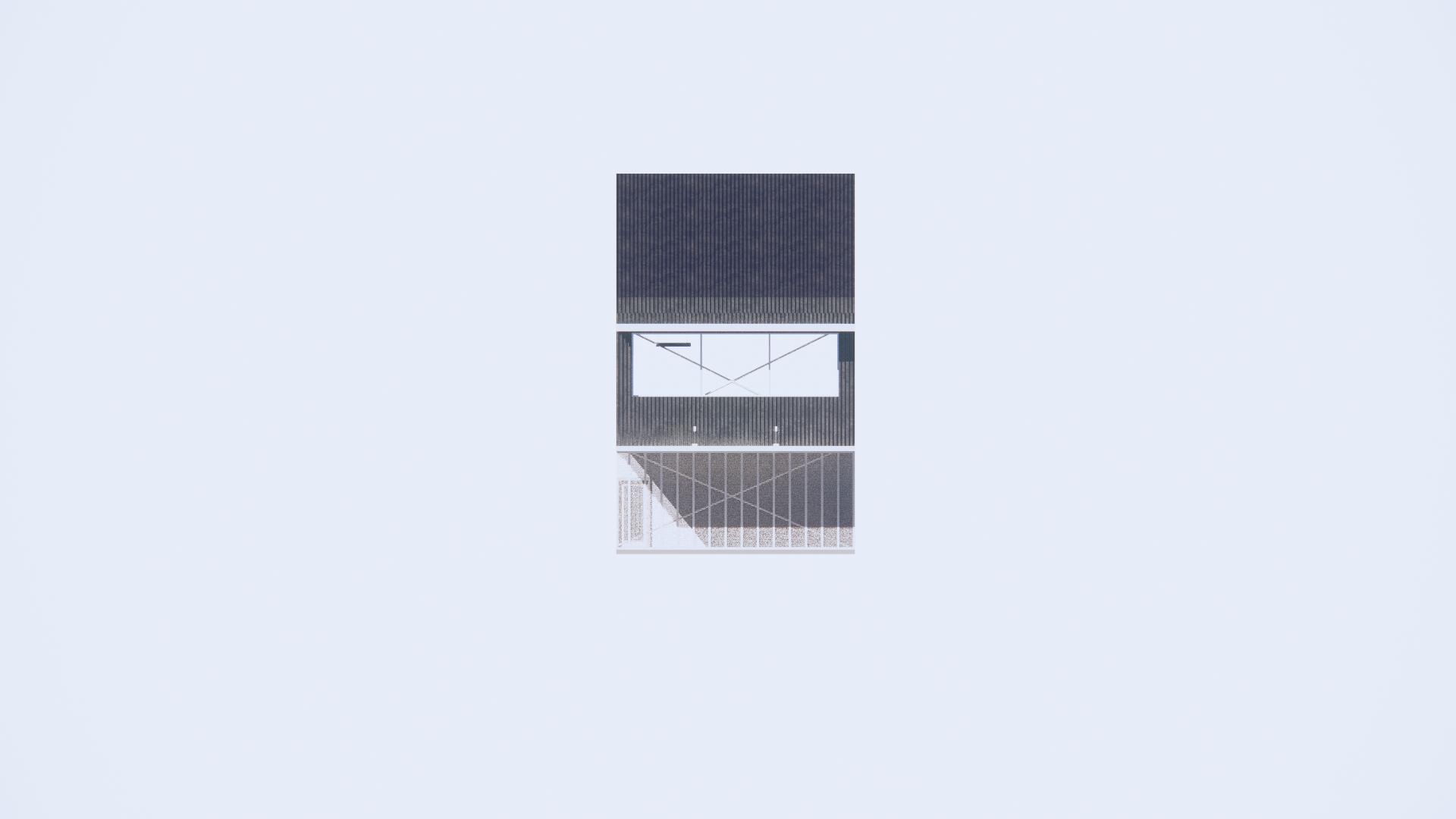

Facade Offset Pattern Facade Material Adaption

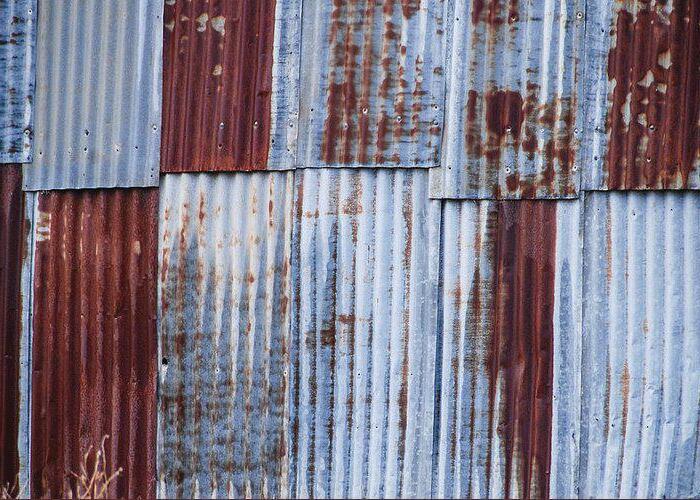

Corrugated Metal Pattern Shed Inspiration

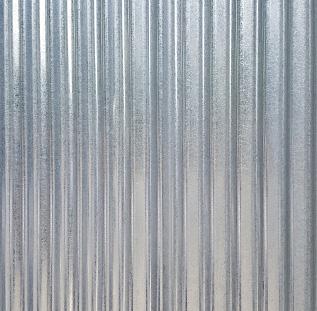

Corrugated Metal

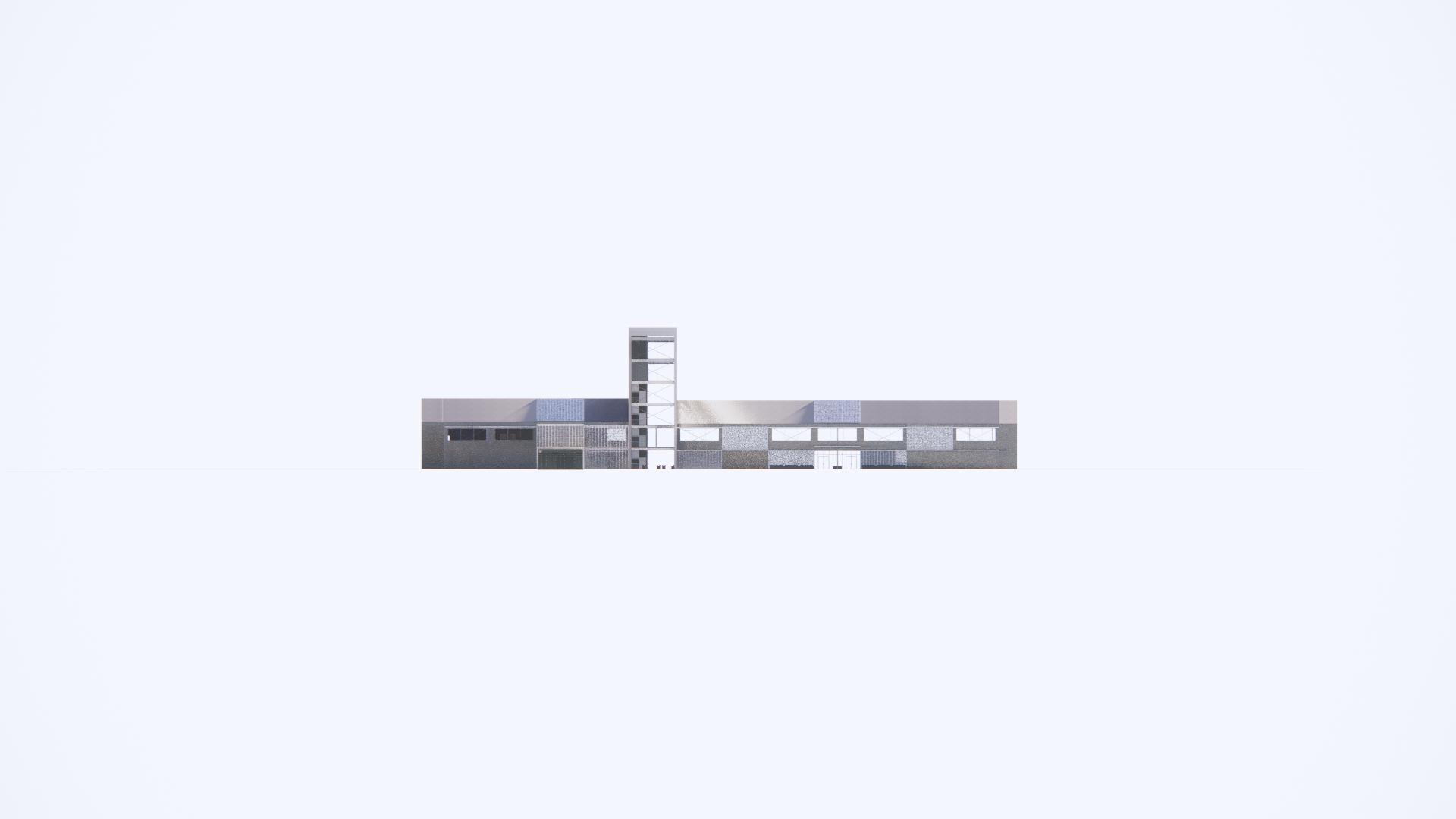

East Elevation East Elevation 1’=20’-0”

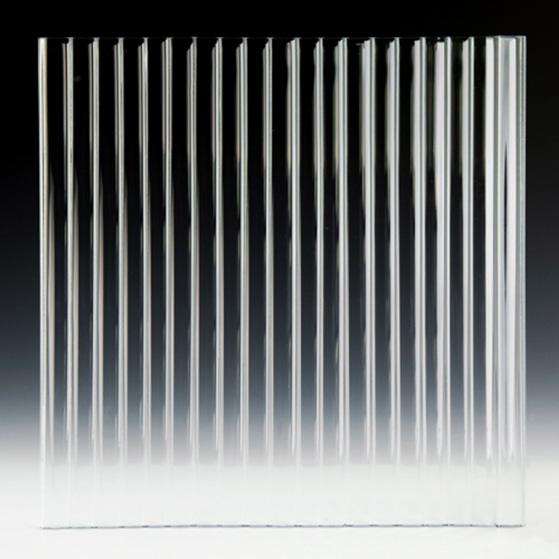

Channel Glass

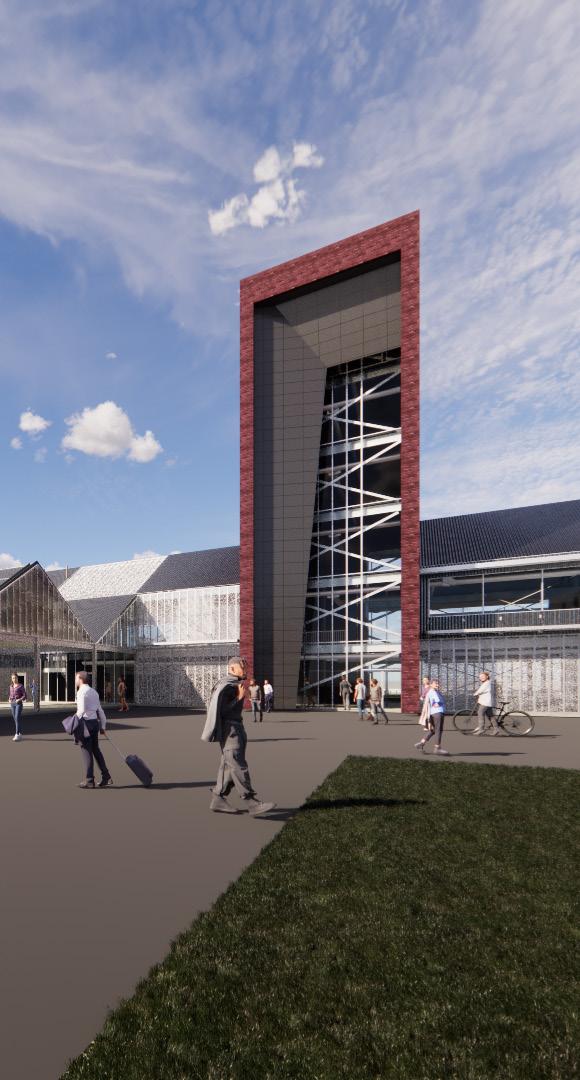

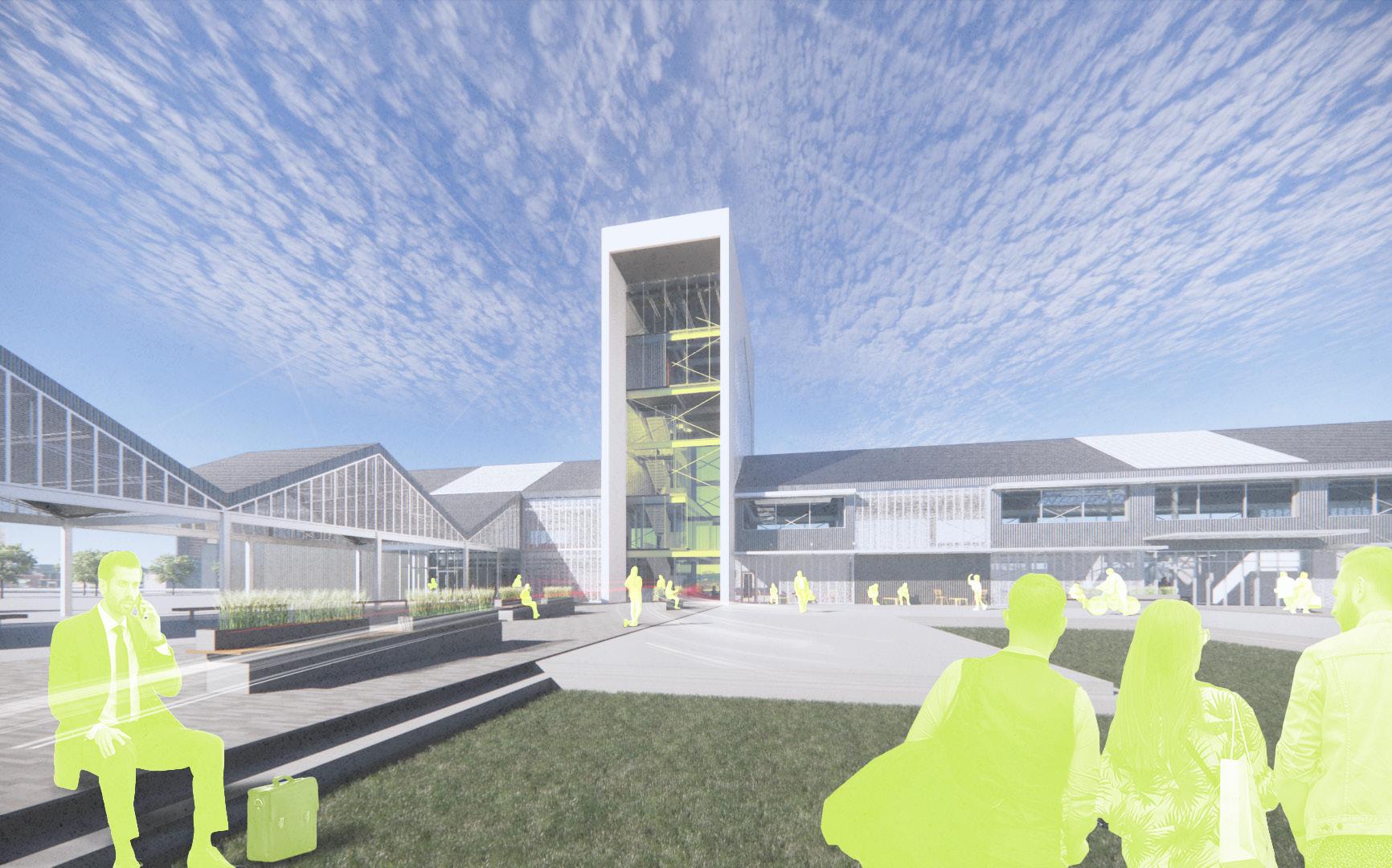

The Gateway:

The gateway embodies the future chapter of Edmond. Using innovative and modern materials such as a spider clamp curtain wall system and locally made thin brick. The gateway beacon rises out of the gable structure. Representing the next chapter of expansion while respecting the past.

Gable Roof Geometry:

In order to relate to the current and future city of Edmond, the gable geometry is used both in its original form as well as in an abstraction.

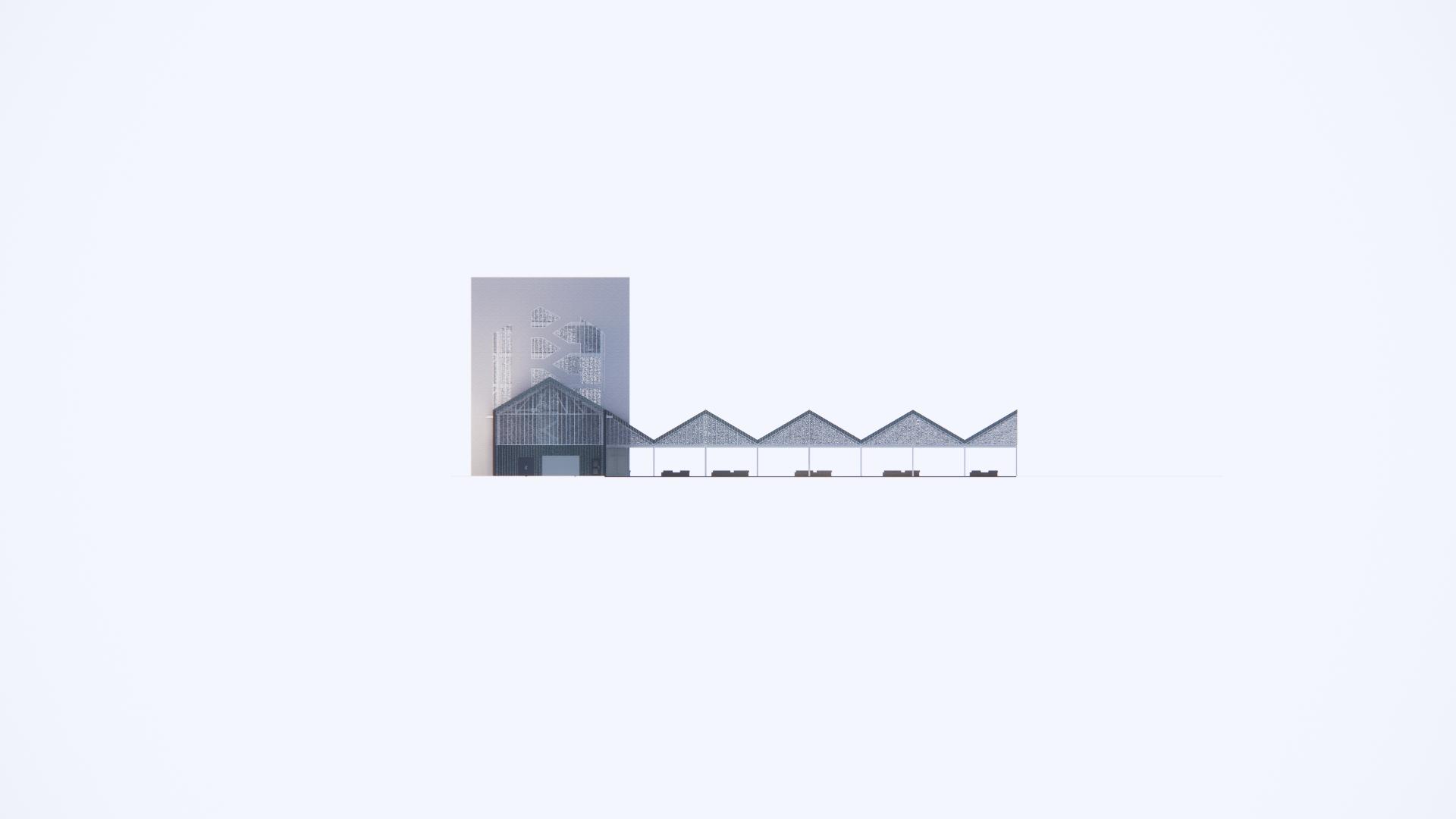

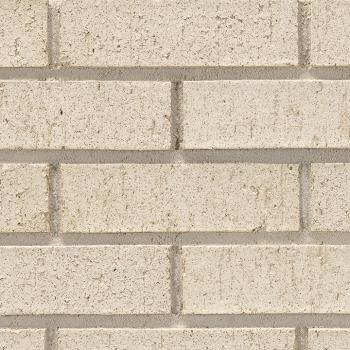

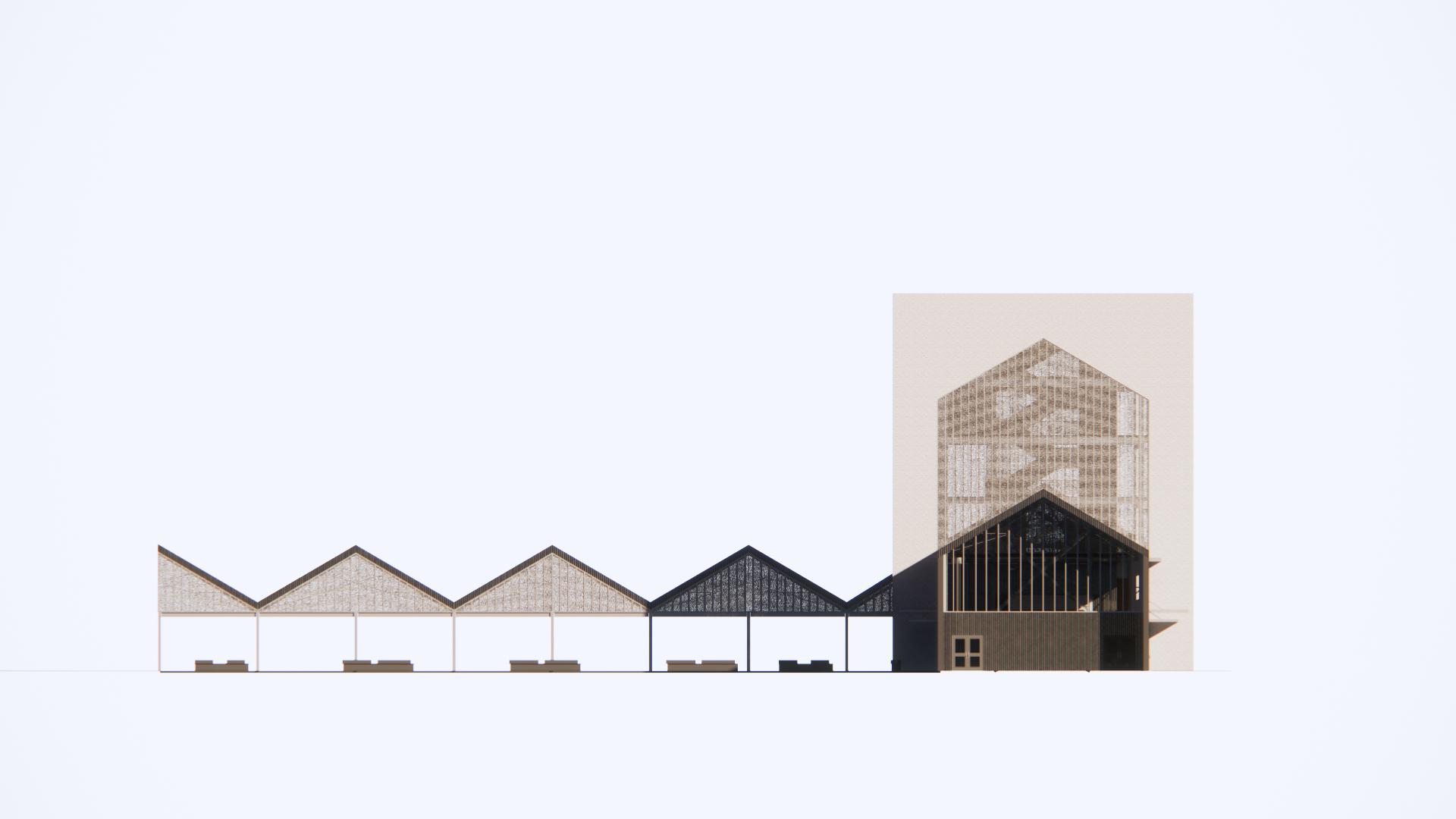

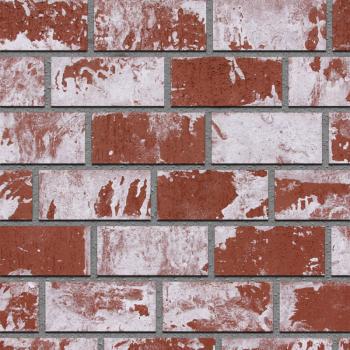

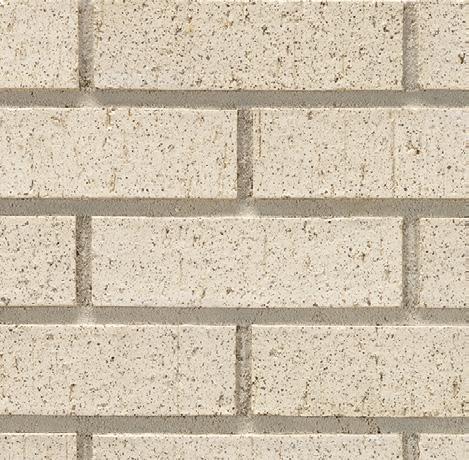

South Elevation North Elevation South Elevation North Elevation 1’=20’-0” 1’=20’-0” Manufactured White Velour Texture Acme Brick PEP051 10872 Shamrock Velour Texture Acme Brick PEP058 106201 Southern Classic Velour Texture Acme Brick PEP051 106083

+ + +

6" MTL STUD METAL FURRING BRACKET 1 1/2" GYPSUM SHEATHING 5/8" 5/8" GYPSUM SHEATHING 1 1/2" METAL FURRING BRACKET CORRUGATED METAL 1/2" 1/2" CORRUGATED METAL 3.5" SLAB ON 3" DECKING W10X12 W12X40 BENHEIM CHANNEL GLASS STOREFRONT 4" SLAB ON GRADE GRADE BEAM LATERAL CROSS BRACING VAPOR BARRIER 5/8" GYPSUM SHEATHING 1/2" CORRUGATED METAL ROOF JOIST ROOF TRUSS ALUMINUM TRIM LATERAL CROSS BRACING VAPOR BARRIER 4" GRAVEL LAYER EXTERIOR PAVING METAL FLASHING 6'X6" GUTTER 6.5" ROOF DECKING 5" RIGID INSULATION BATT INSULATION 6" MTL STUD WITH VAPOR BARRIER 2" RIGID INSULATION SUSPENDED ANWING LOUVERED STUD HEADER 6"X6" MTL FLASHING SEALANT ALUMINUM MULLION VIRACON 1” INSULATING OPTIWHITE DROP DOWN ACOUSTIC PANELS EMBEDDED SUSPENDED LIGHTING DIFFUSER SUPPLY DUCT LOUVERED AWNING Level 1 0' - 0" Level 2 12' - 0" 24' - 0" Wall Section / Focus Space Elevation Wall Section / Focus Space Elevation 3/8”=1’-0”

Lighting

Recessed Structure
