Part 1 Architectural Assistant Portfolio by Han Phan

han phan folio

Academic works 2 - 13 Working experiences 14 - 18

sample works 2019-2023

ACADEMIC PROJECTS

Modelled in SketchUp

Rendered in Twinmotion

connect studio 2023

Project Y3 | MMU Birley Campus, Manchester

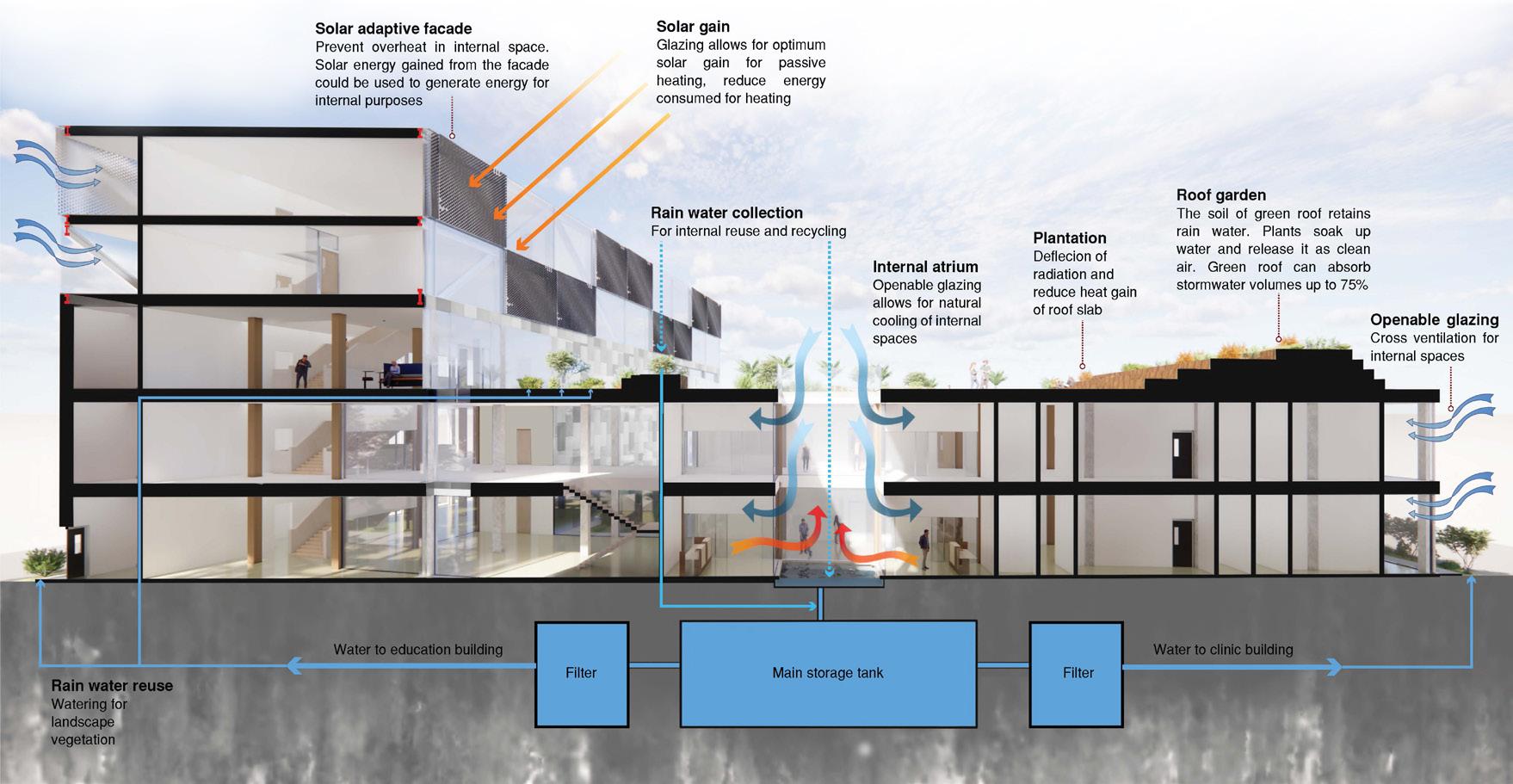

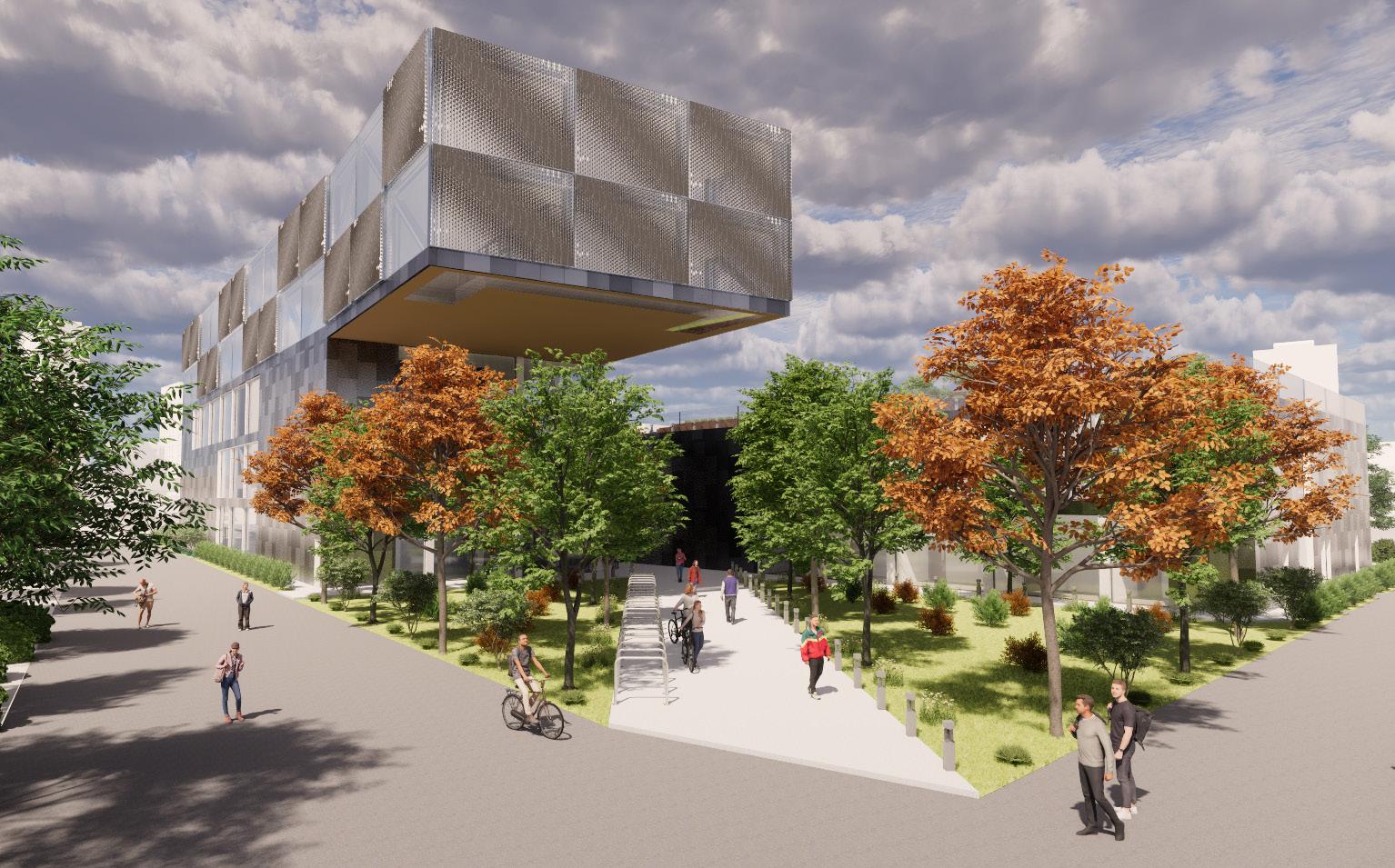

Located in Hulme - Manchester, the brief asks for additional facility of the Health and Education Department of the Manchester Metropolitan University (MMU). The program also seeks to maximise green spaces on-site through the South yard and the roof garden. The roof landscape plays a vital role in delivering the atelier's current theme of "Emergent Biophilic Design", which emphasises the connection between users and the natural elements. The green spaces of the scheme are the connectors that bring the users together, and bringing the project closer to the public in a wider context.



Design position

                    

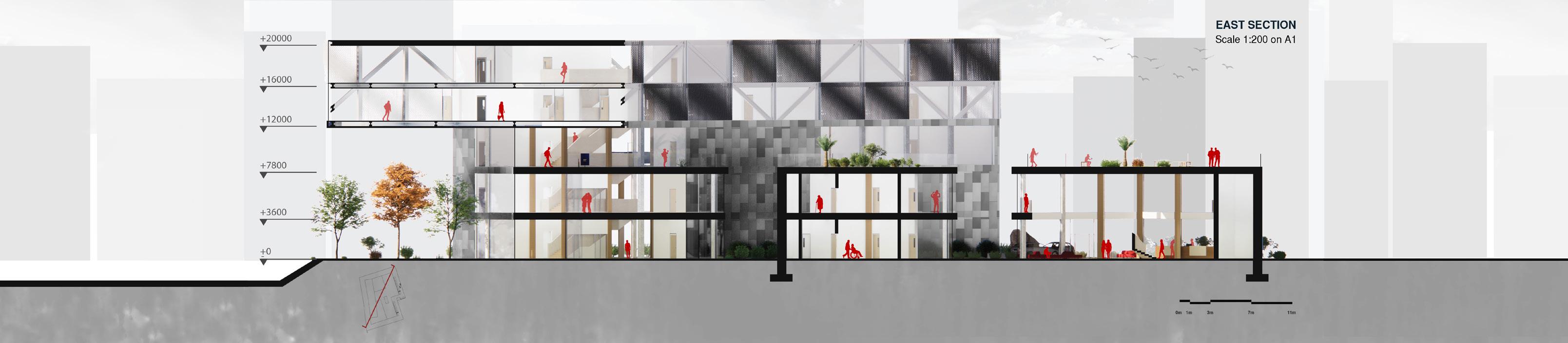

Drawing in AutoCAD

BIOPHILIC

Post production in Photoshop

Improve comfort pleasantness

Use of natural forms and materials

Boost mental

Place-based relationships

Environmental features

Access to natural light

Evolved human-nature relationships

Enhance Ergonomics

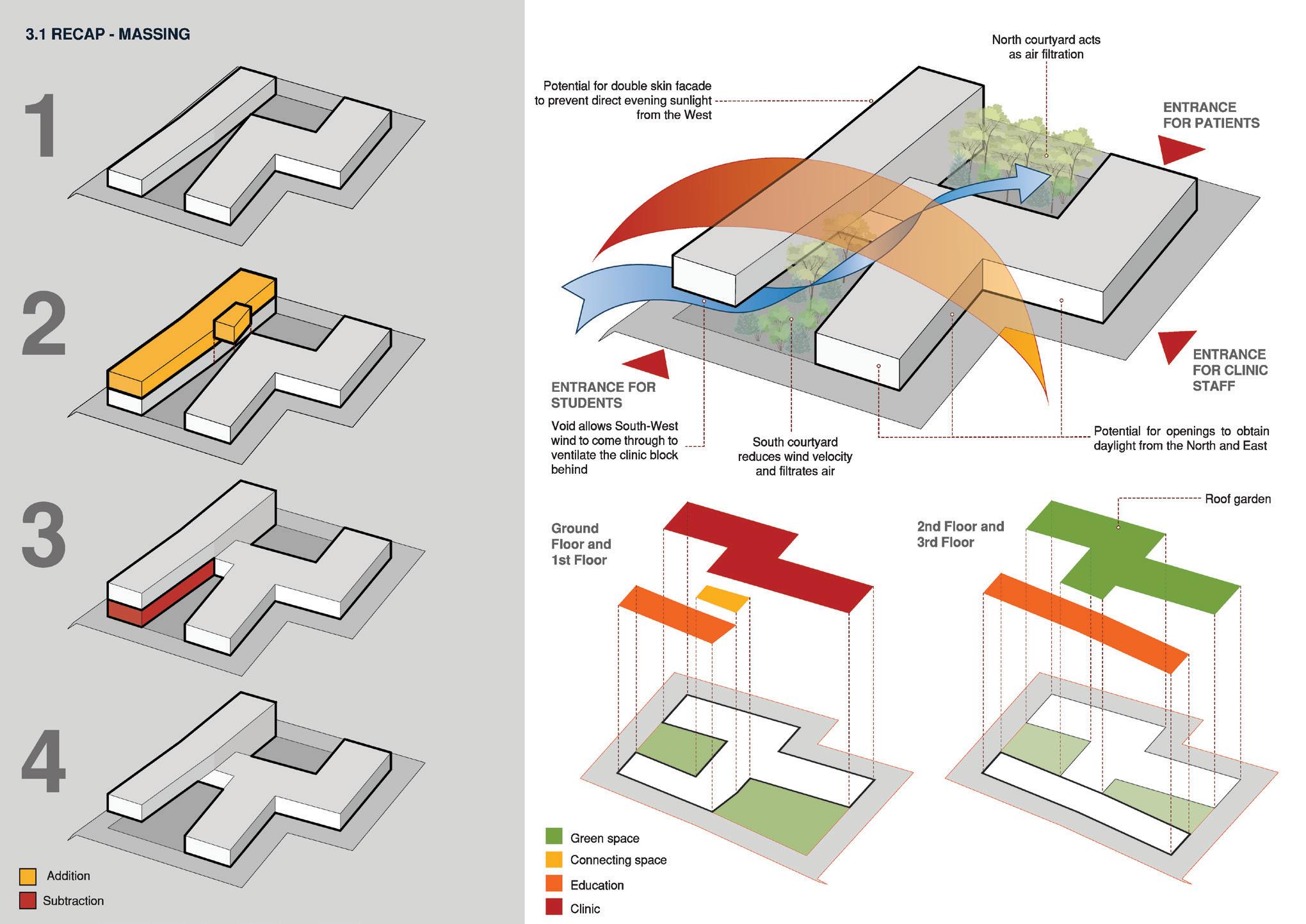

DESIGN DESIGN IDEA



 



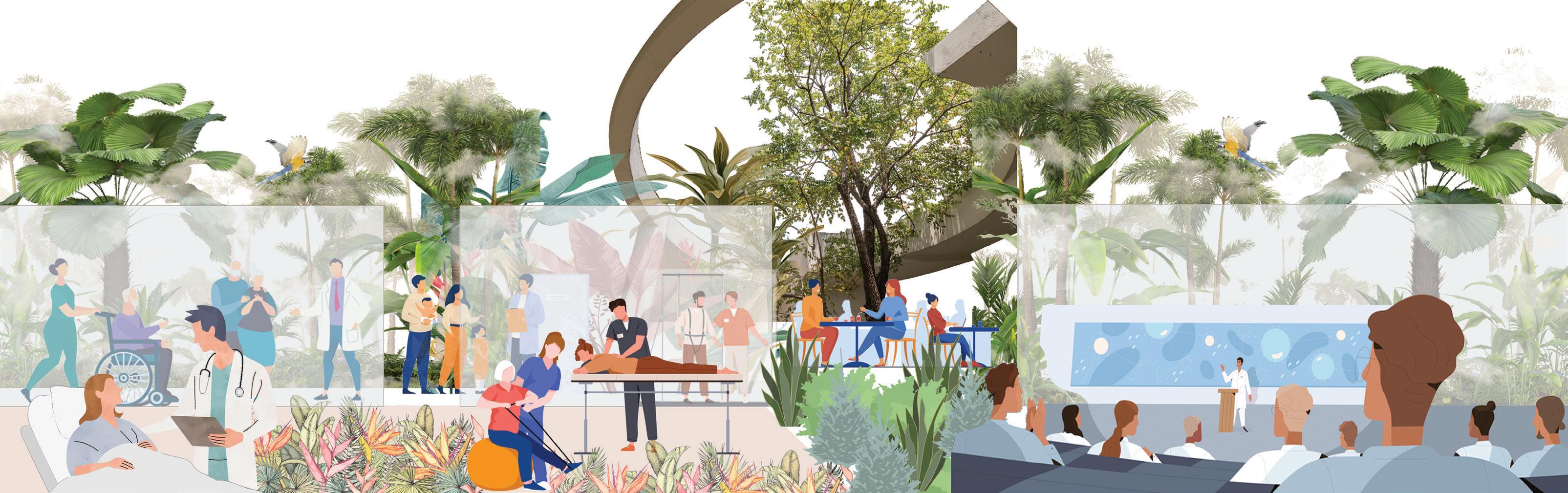

Diagram made in Illustrator Collage made in sketchup

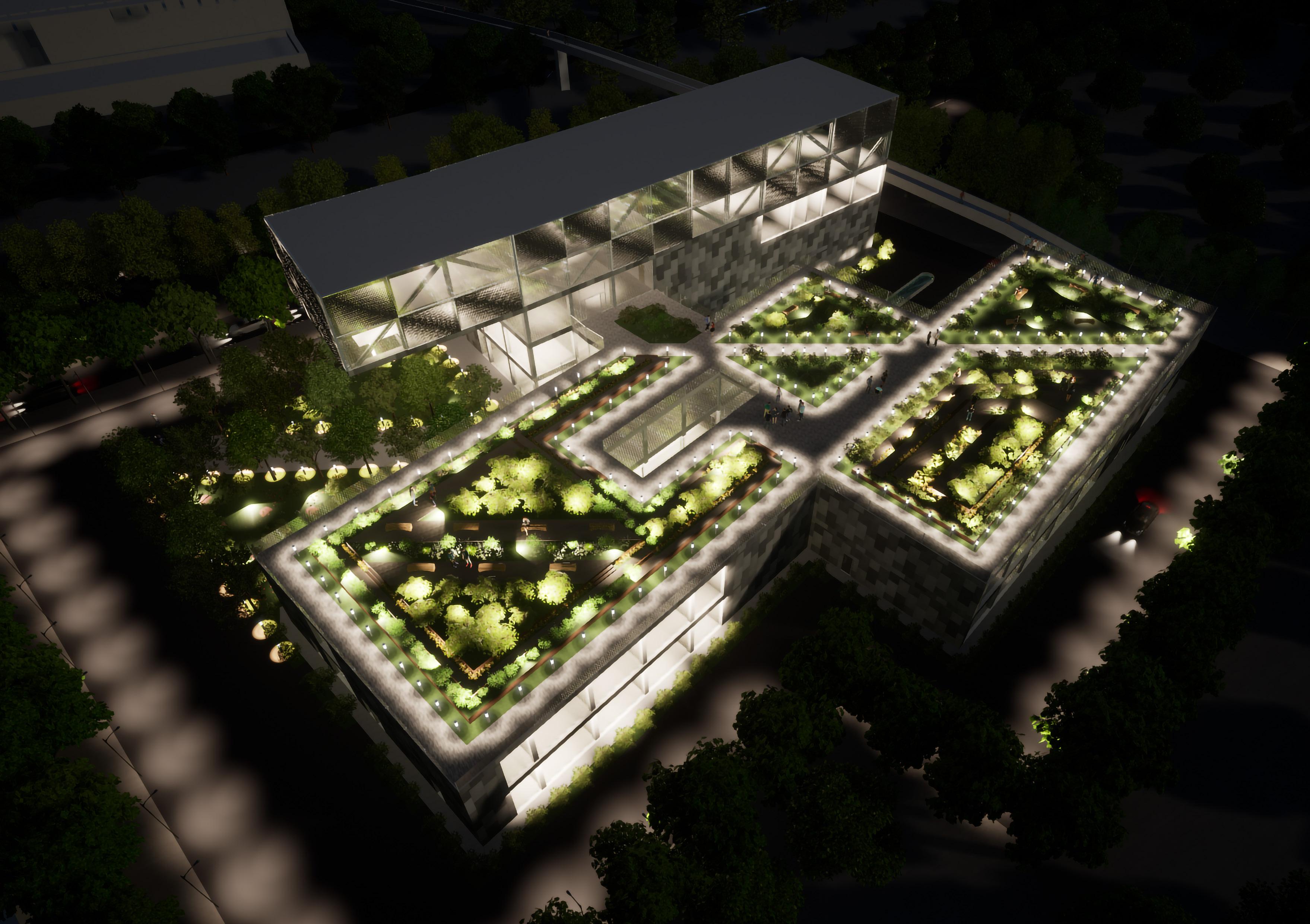

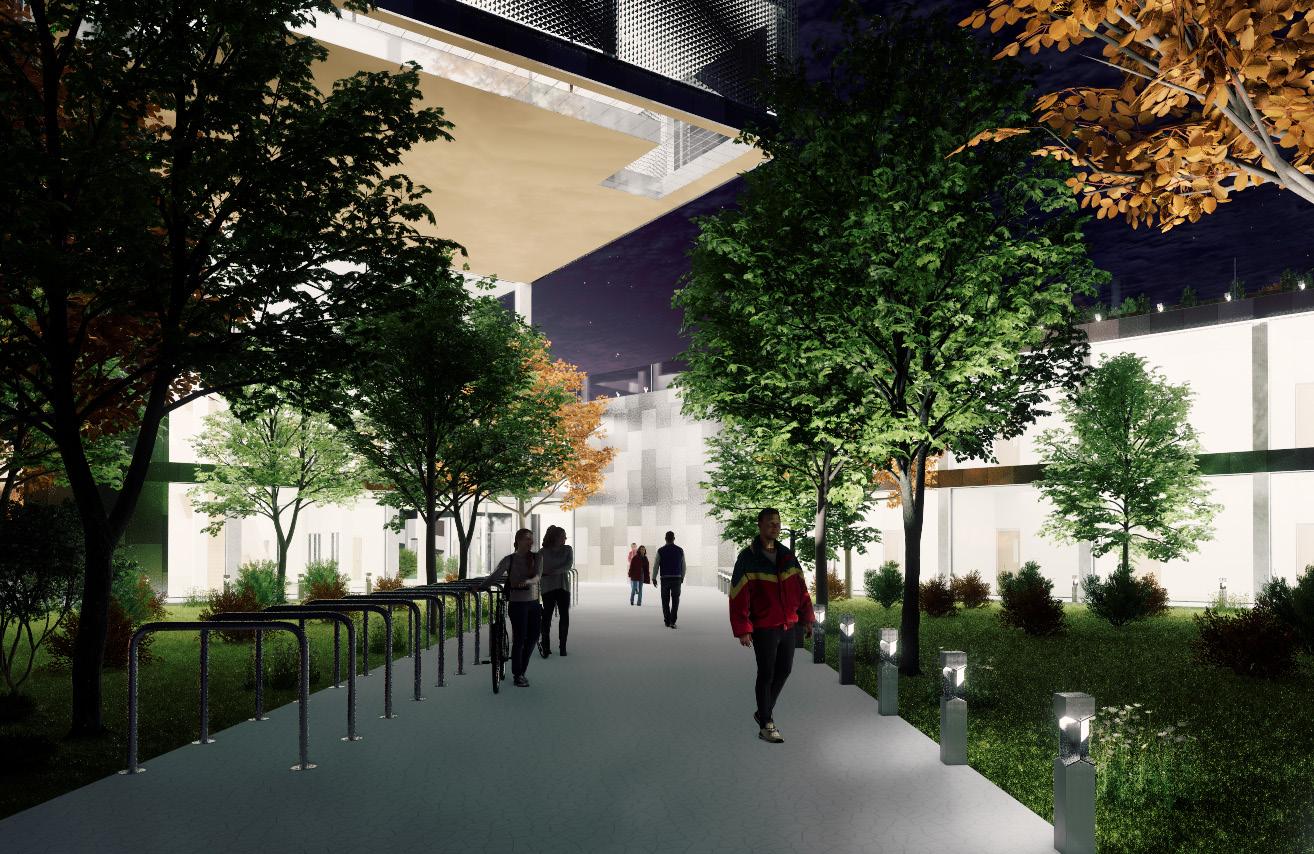

Night view Access to roof garden Drawing in AutoCAD Post production in Photoshop Drawing in AutoCAD Post production in Photoshop Rendered in Twinmotion

Rendered in Enscape

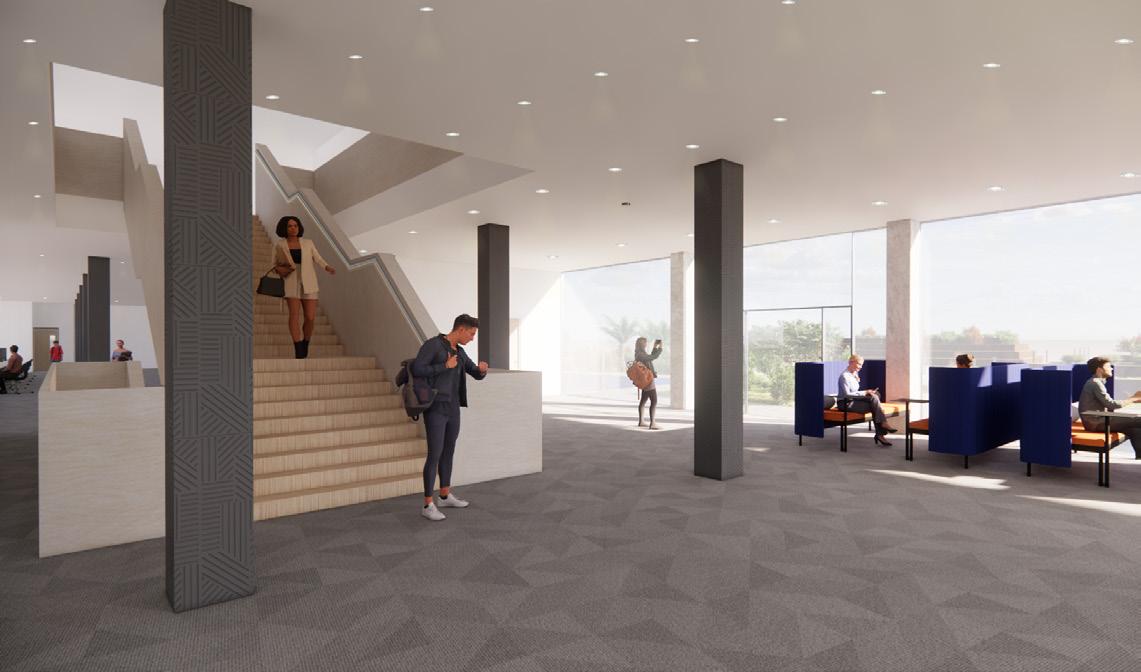

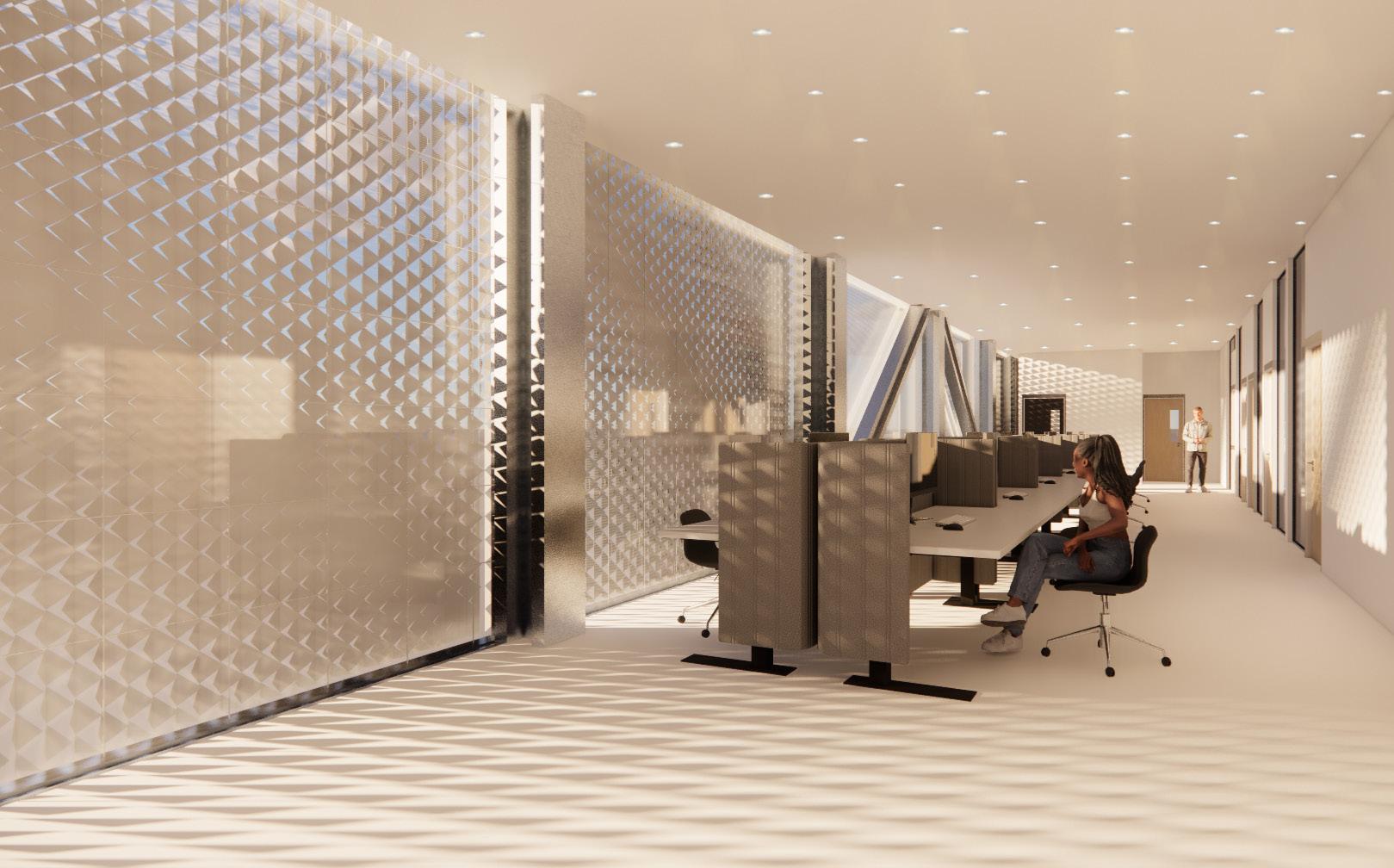

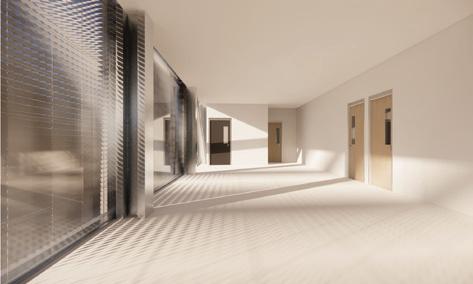

South entrance Self-study space Drawing in AutoCAD Post production in Photoshop Rendered in Enscape Rendered in Enscape

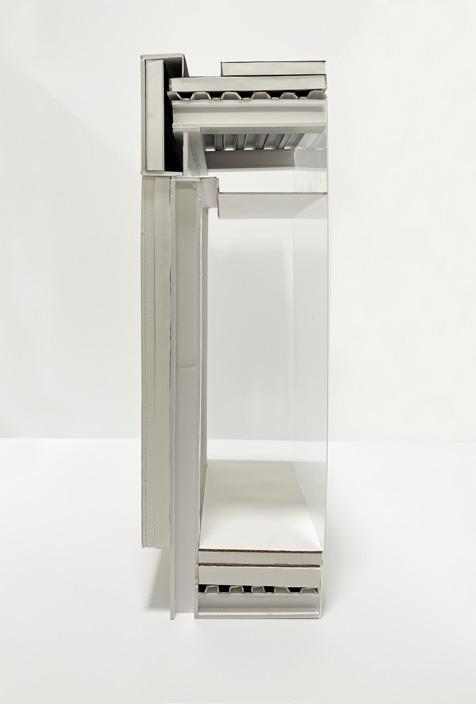

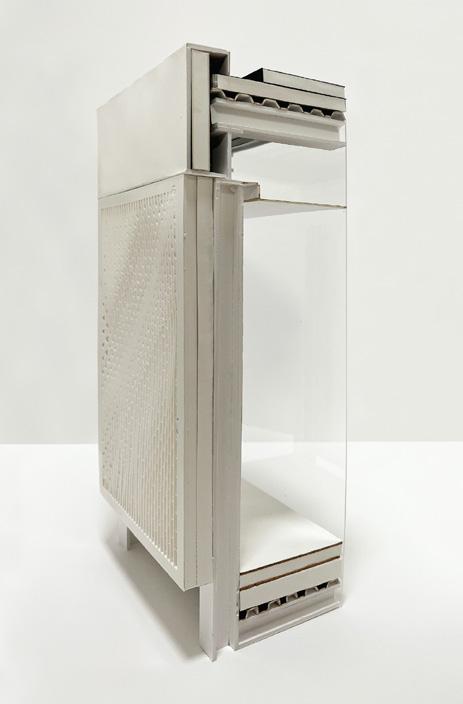

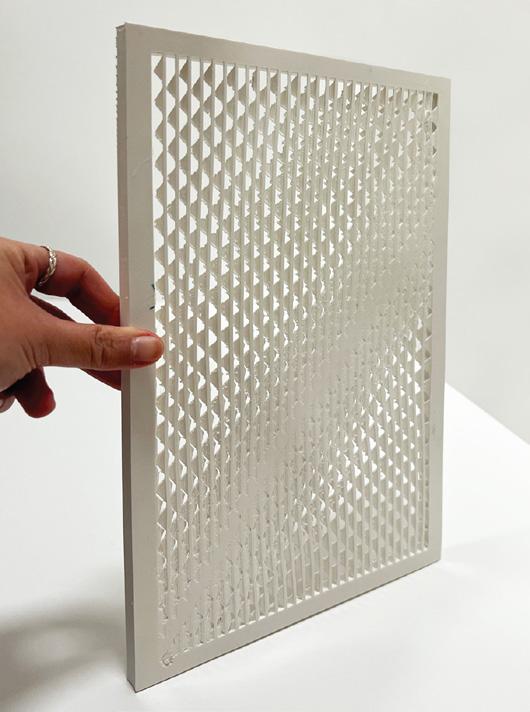

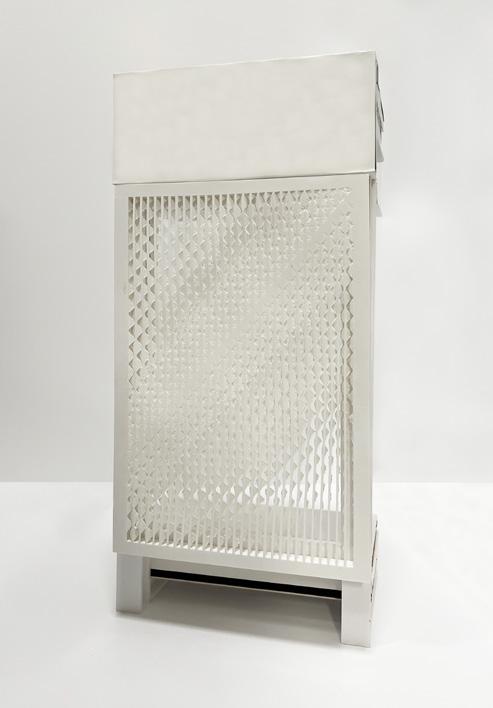

Model at scale 1:20

500mmx500mm

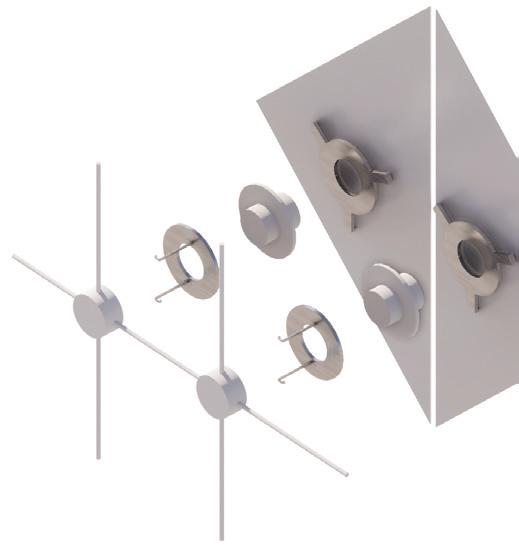

Thin film PV panels or mirror

Panel adaptor

Soft material actuator

Cantilever

Pneumatic control module

Rod net structure

panels

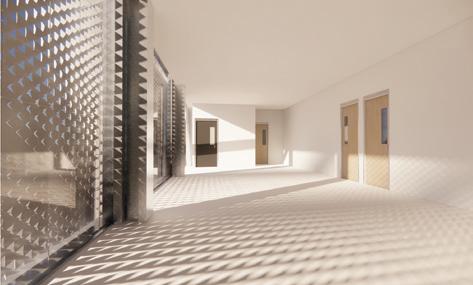

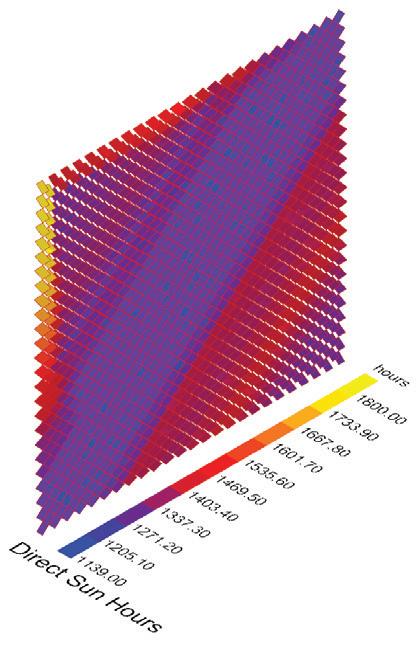

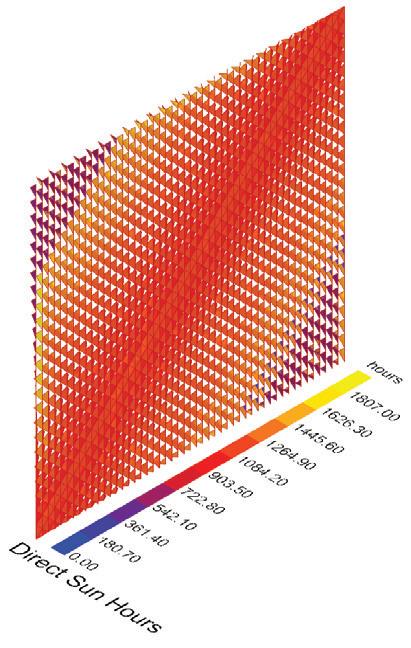

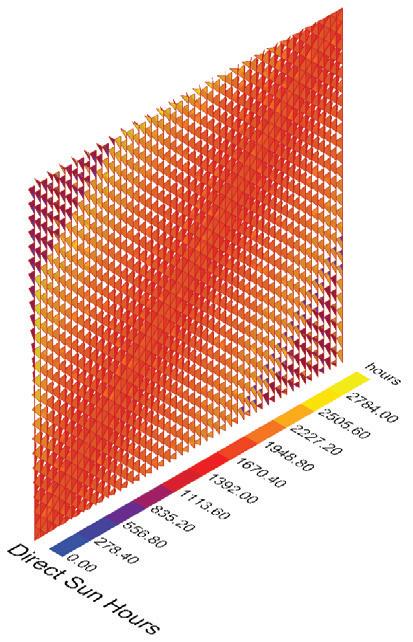

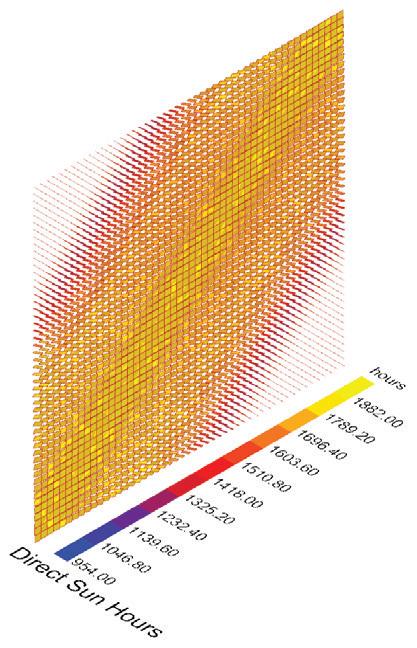

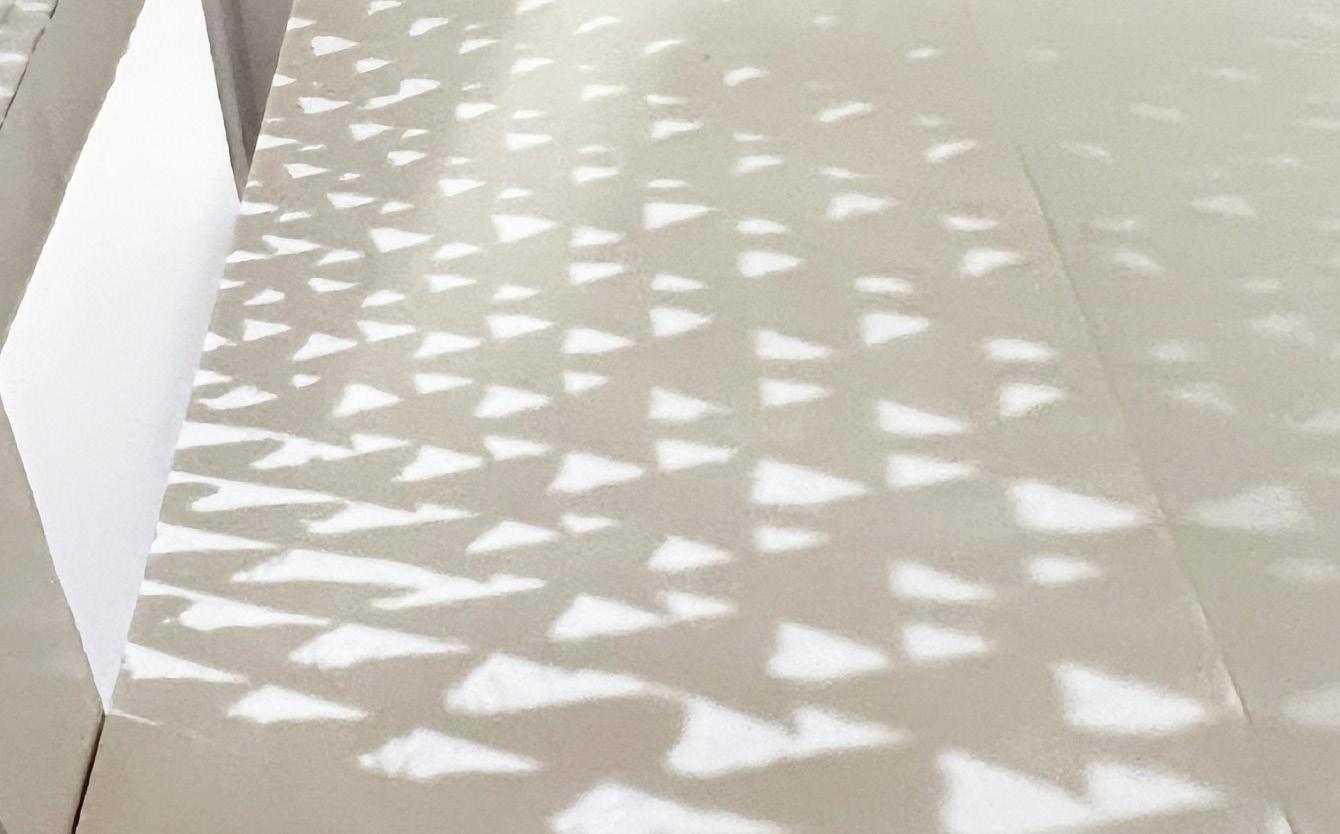

diamond panels Average sun hour: 2100 hours Average sun hour: 1250 hours Average sun hour: 1750 hours Average sun hour: 1020 hours Average sun hour: 1790 hours Average sun hour: 1100 hours Average sun hour: 1800 hours Average sun hour: 990 hours Diamond panels give good interior shading with decent level of opening in the facade for natural light to come in so the interior space can benefit from natural lighting, create visual comfort. The facade gives view to the exterior, but not as much as the triangular panel facade. Quad panels give good shading but at the same time block quite a lot amount of natural light, making the transition between non-shaded and shaded area sudden. The facade does not allow much view to the exterior, and the interior space does not benefit much from natural lighting. Square panels give good shading but at the same time block quite a lot amount of natural light, making the transition between non-shaded and shaded area sudden. The facade does not allow much view to the exterior, and the interior space does not benefit much from natural lighting. Triangular panels give good interior shading yet allow most view to the exterior. Openings in the facade are adequate for natural light to come in, create visual comfort for the interior. Daylight can reach to the entire width of the corridor so the space can still benefit from natural lighting. Triangular panels iteration gives the least sun hour in winter means most sunlight can reach the interior, efficient for passive heating and daylighting Most hour of sunlight obtained means most solar energy could be generated, and most efficient in preventing the interior space from being overheated when using the diamond shape panels

sized rectangular panels

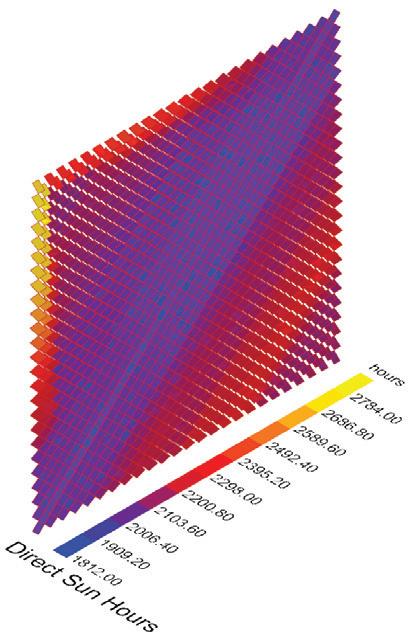

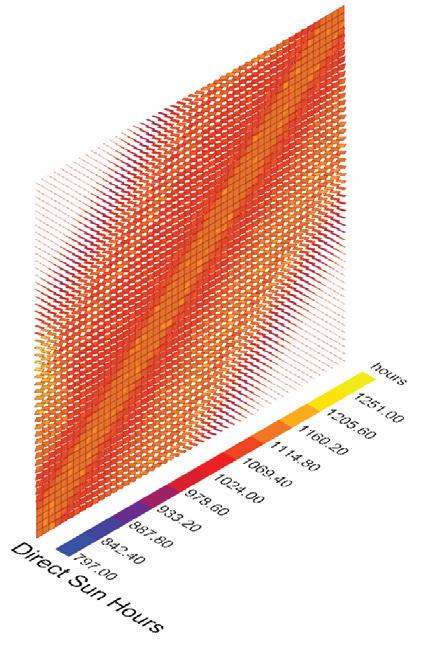

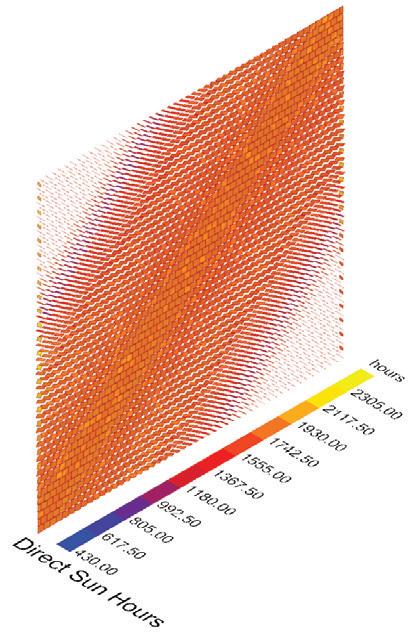

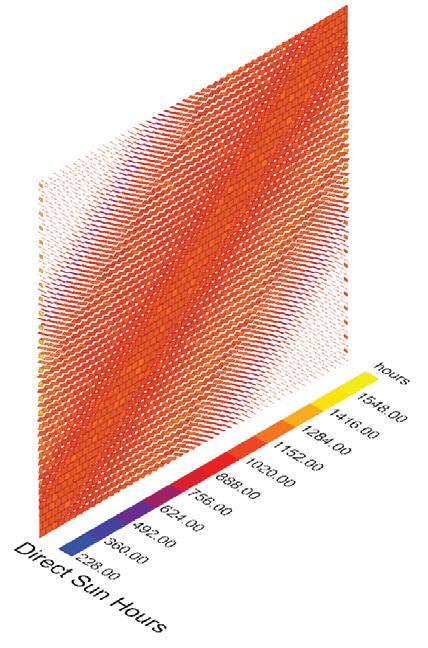

Modelled in Rhino Analysed with Grasshopper & Ladybug Diamond

500mmx500mm

Variable

square panels

(half of the diamond) panels

Isosceles triangle

panels staggered Square panels Triangle panels

WINTER SOLTICE SUMMER SOLTICE 6

Quad

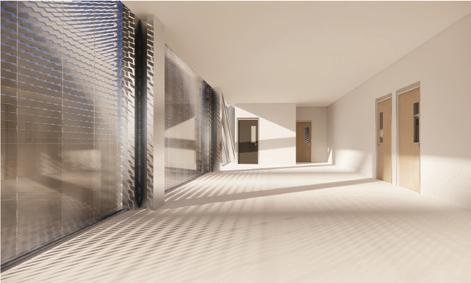

Facade design iterations

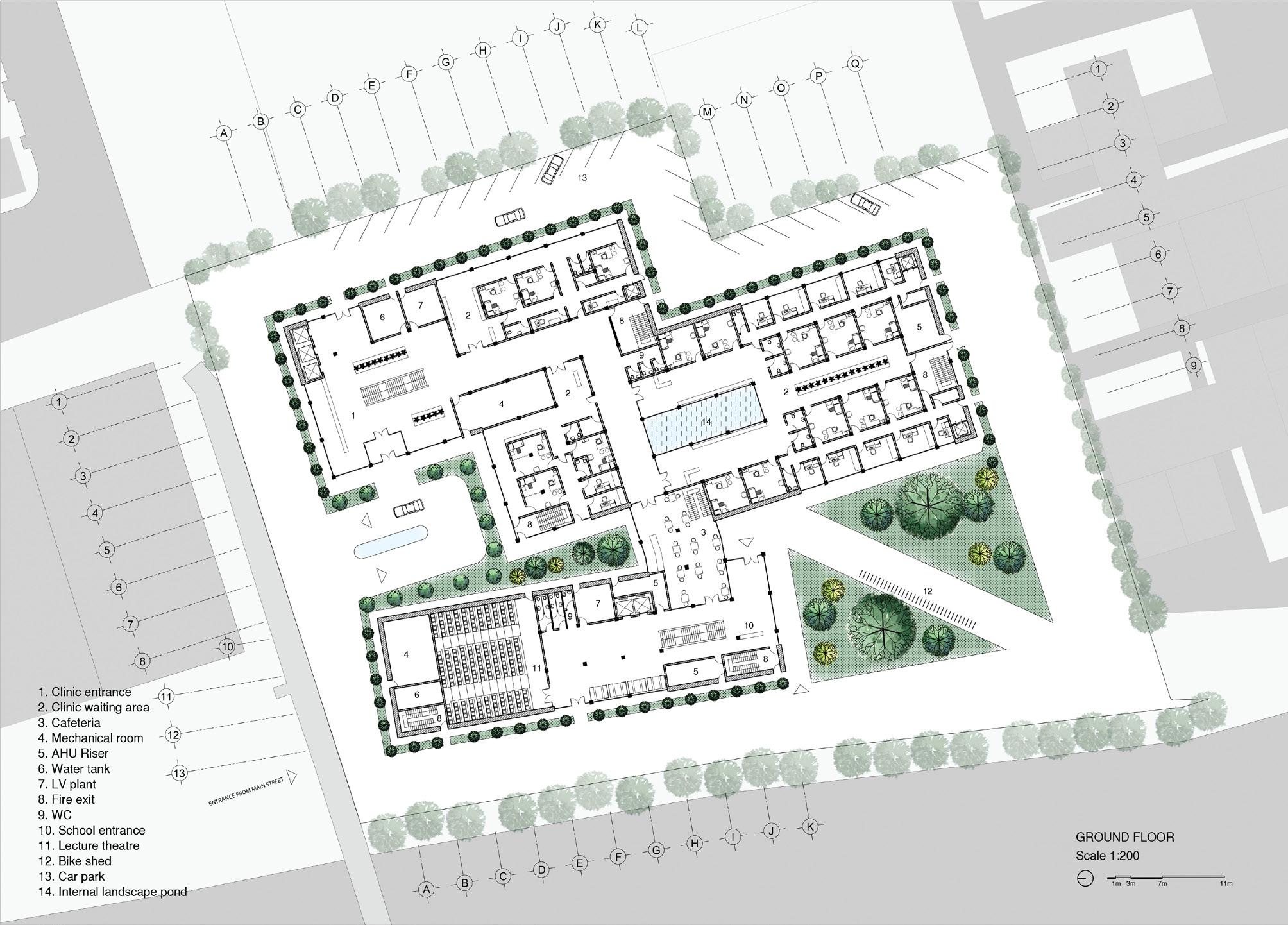

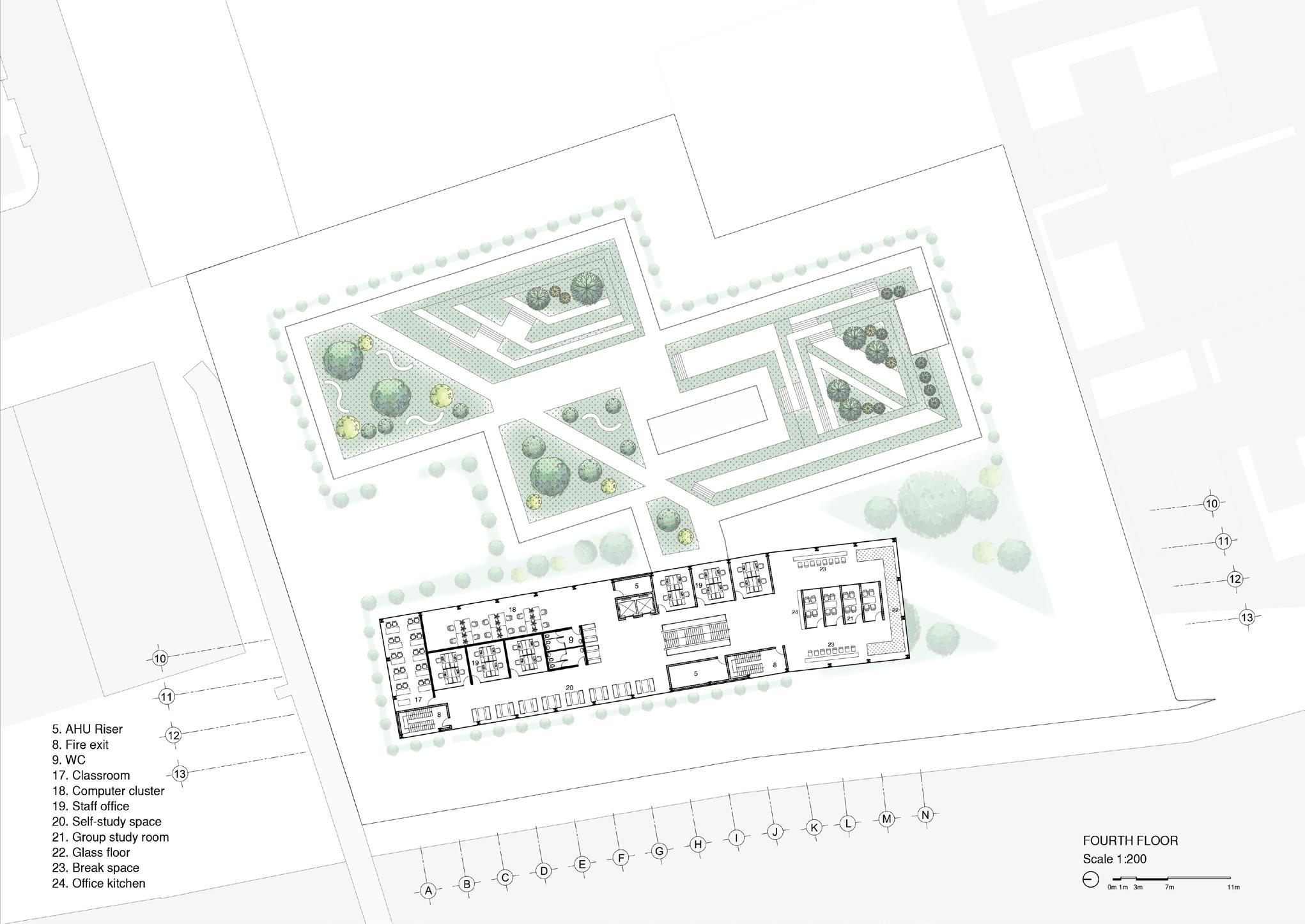

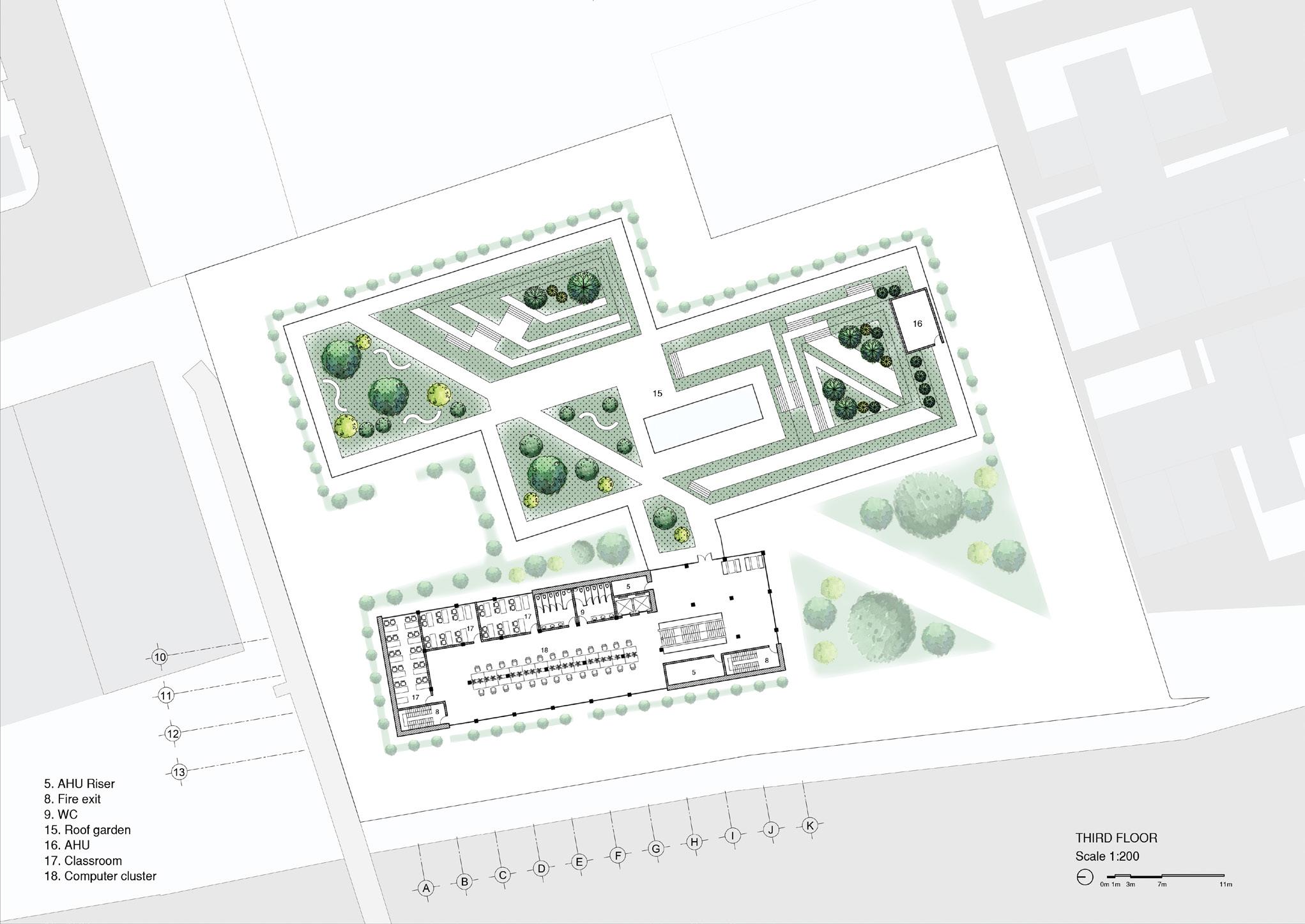

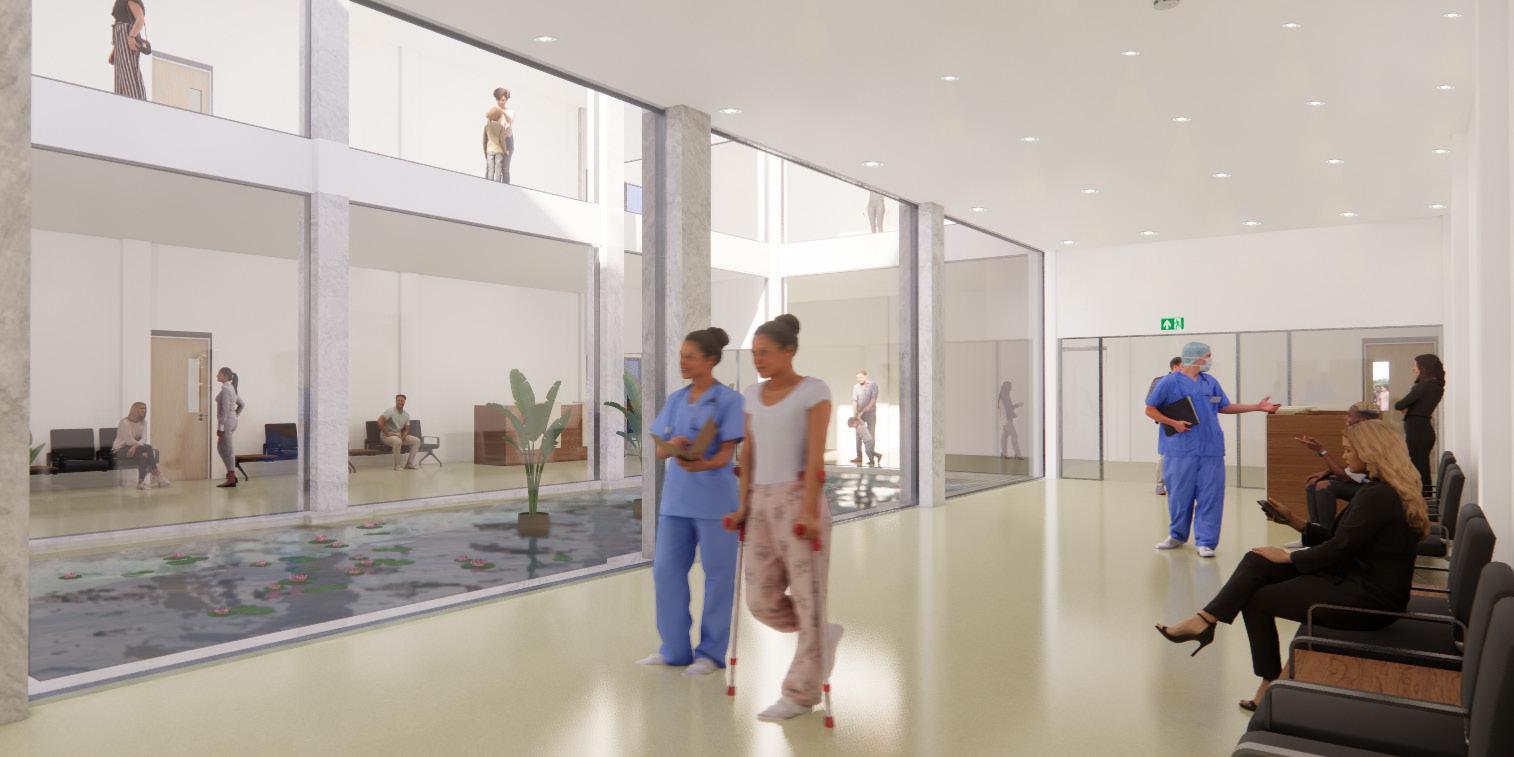

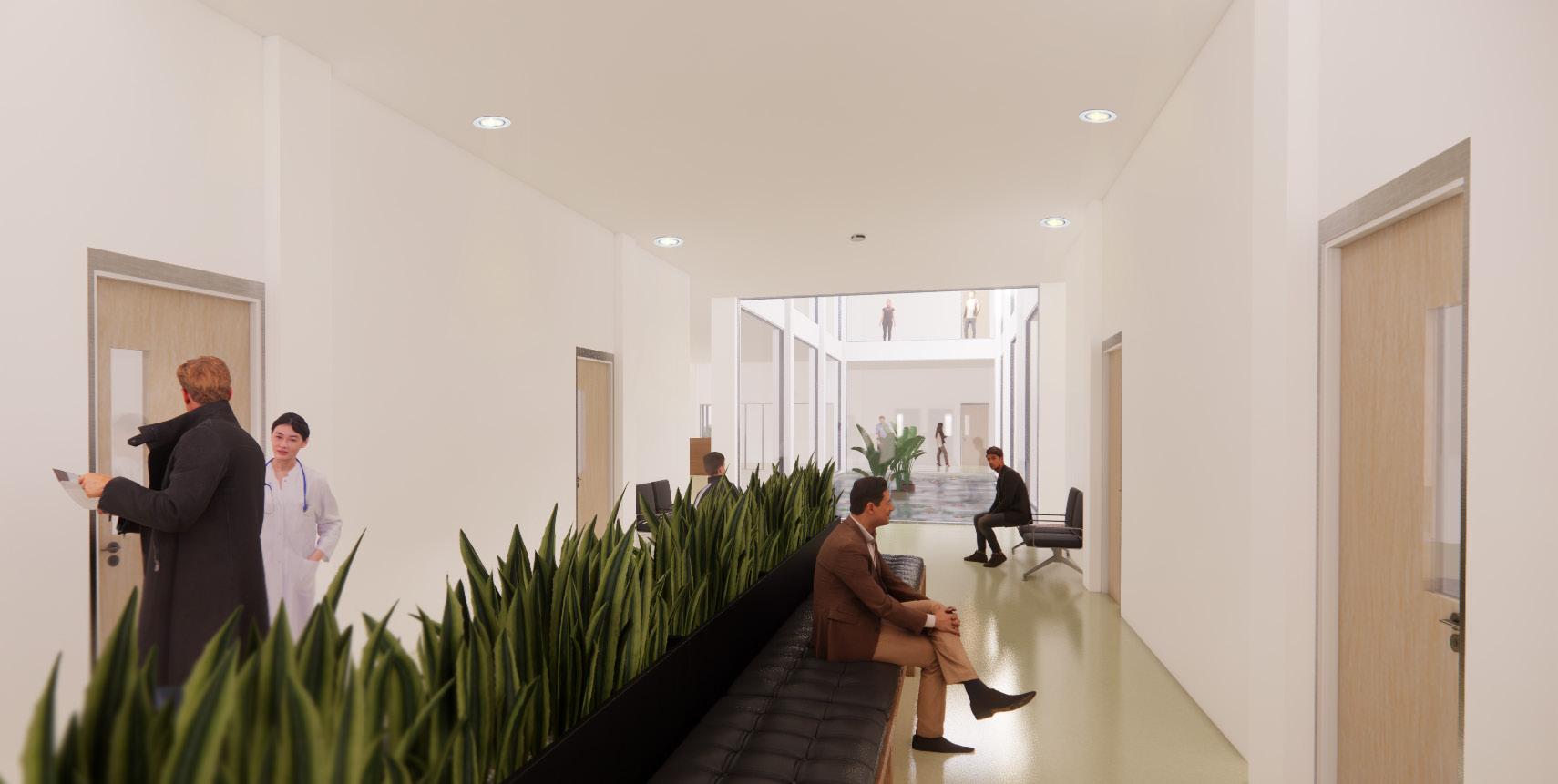

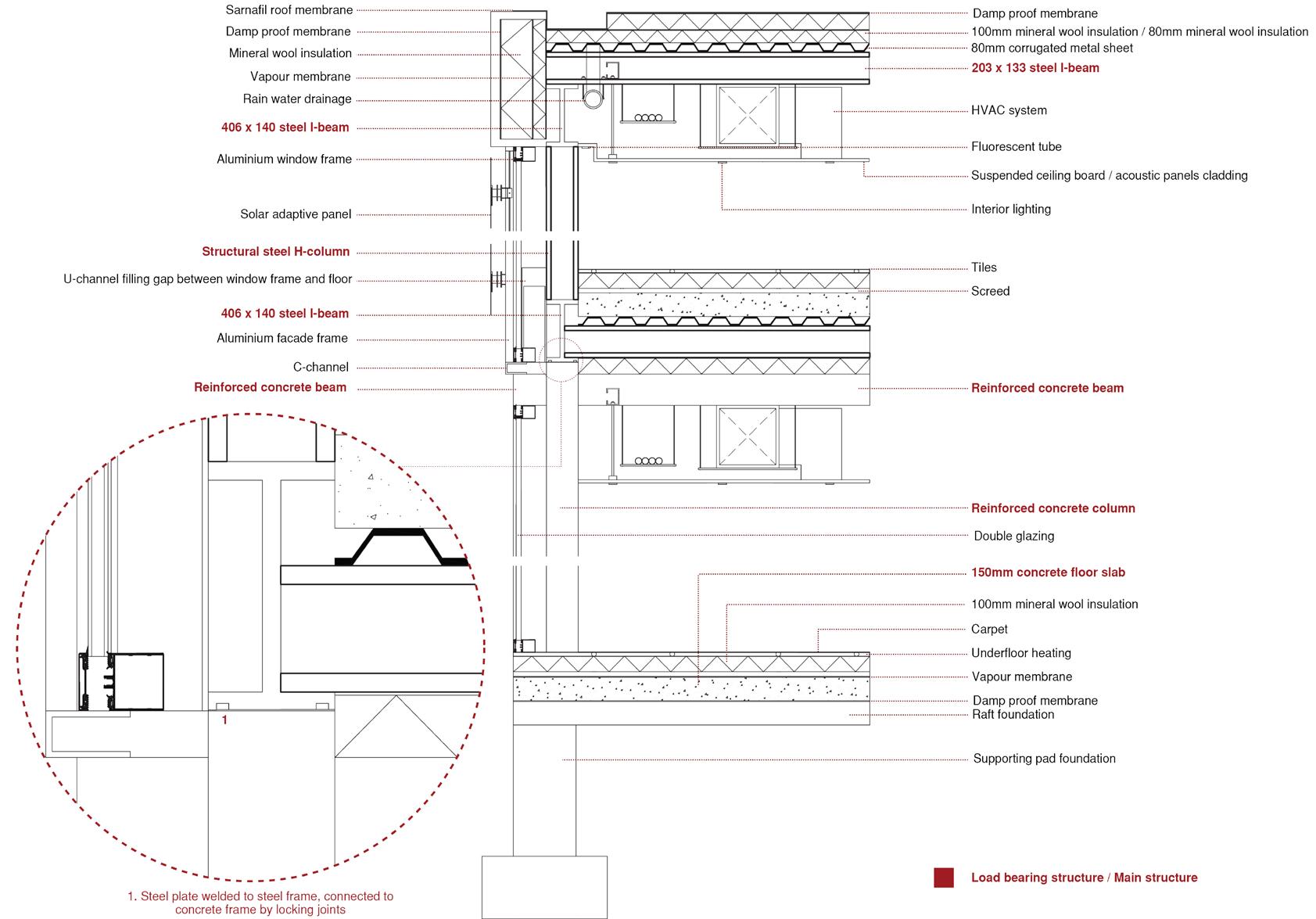

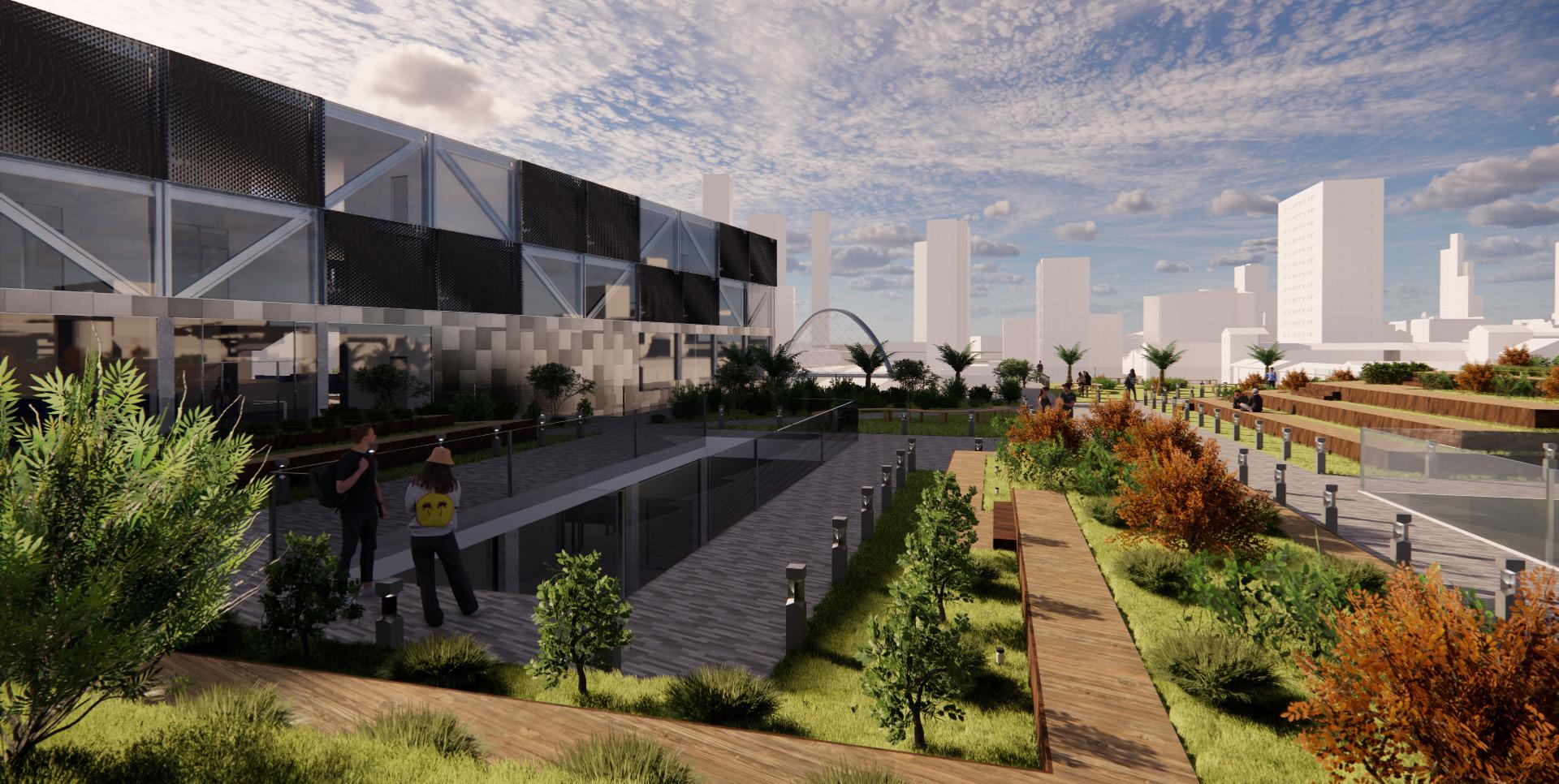

Roof garden Clinic reception Clinic waiting area Original drawn at scale 1:20 Rendered in Twinmotion Rendered in Enscape

Rendered in Enscape

sculpt studio 2022

Project 2 Y2 | Ancoats, Manchester

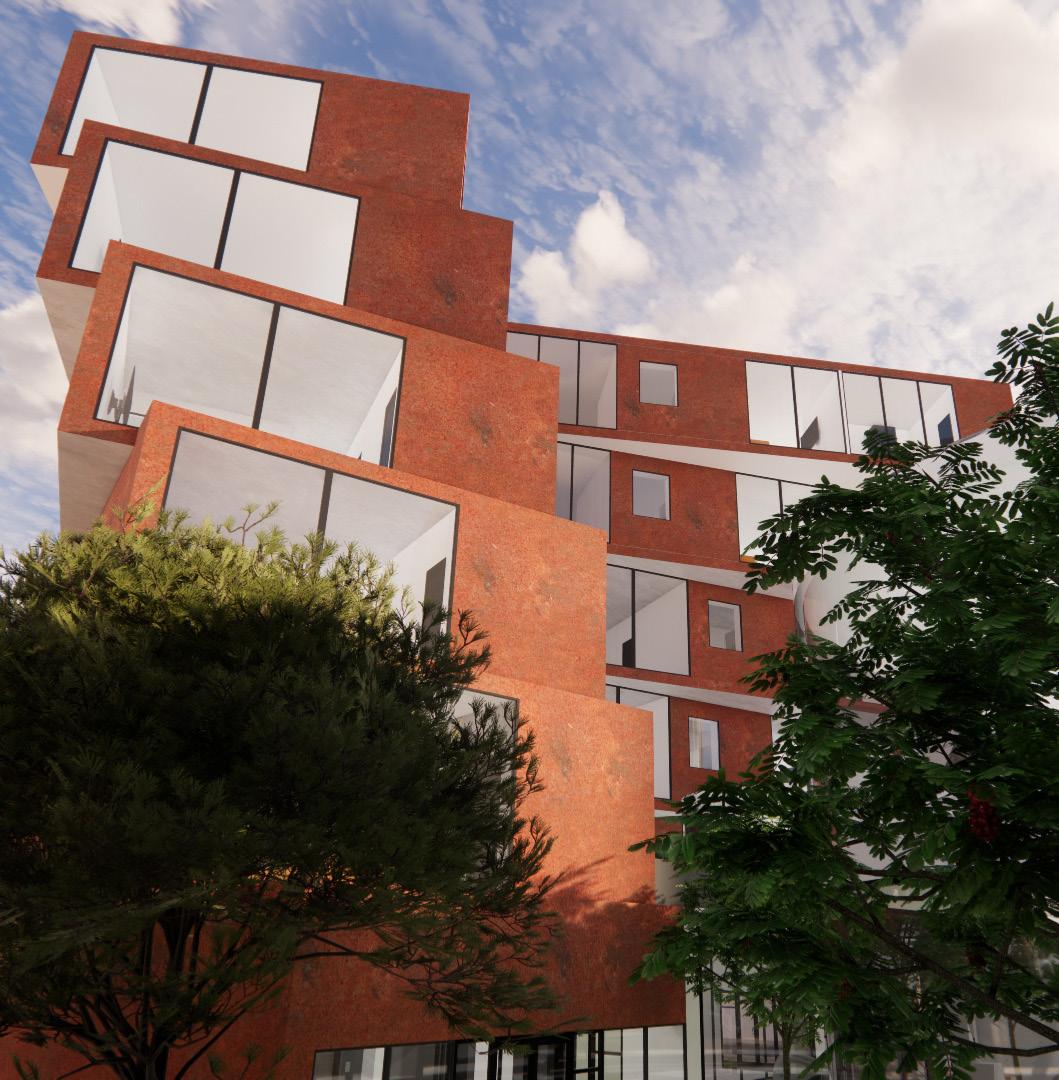

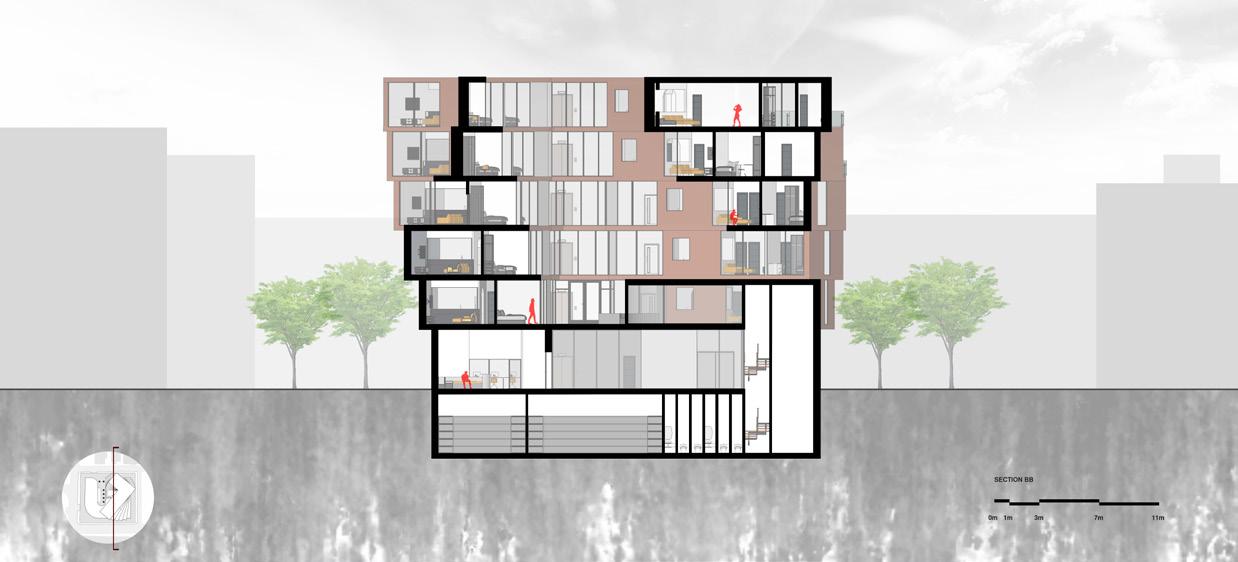

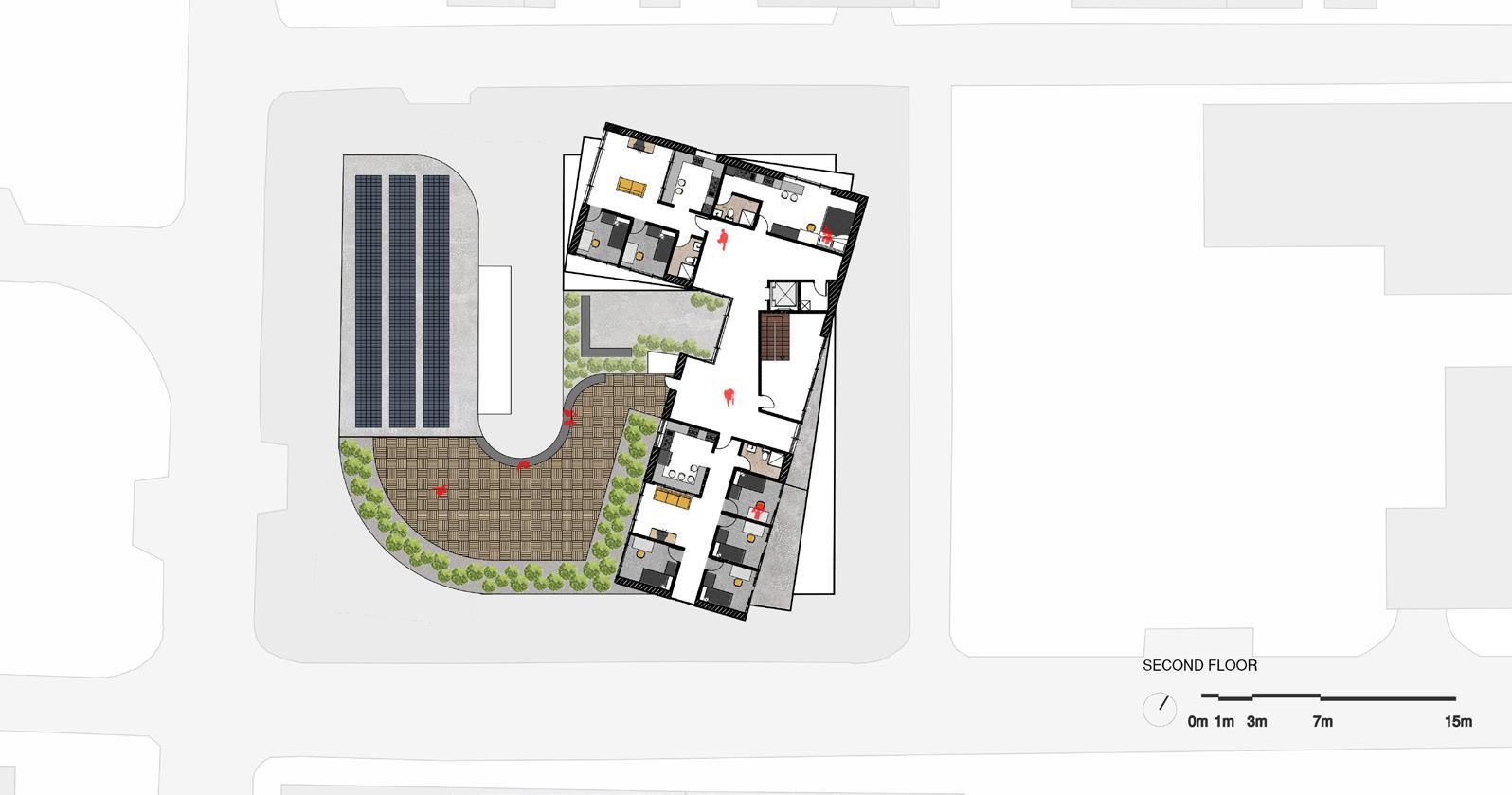

Ancoats - Manchester has a rich industrial history, now becomes a friendly neighbourhood with a mix of residential and business areas. Responding to the brief asking for a communal living space for a group of artists, the scheme proposed an apartment building dedicate for sculptors. The concept was to turn the building into an attraction spot - a twisting form that could be seen from almost any directions. Greenery was chosen to be one of the main design driver that acts as both the attracting element, bringing people to the site, and as a connecting element of the three main programmes: residence, public and performaning space.

Modelled in SketchUp Rendered in Enscape

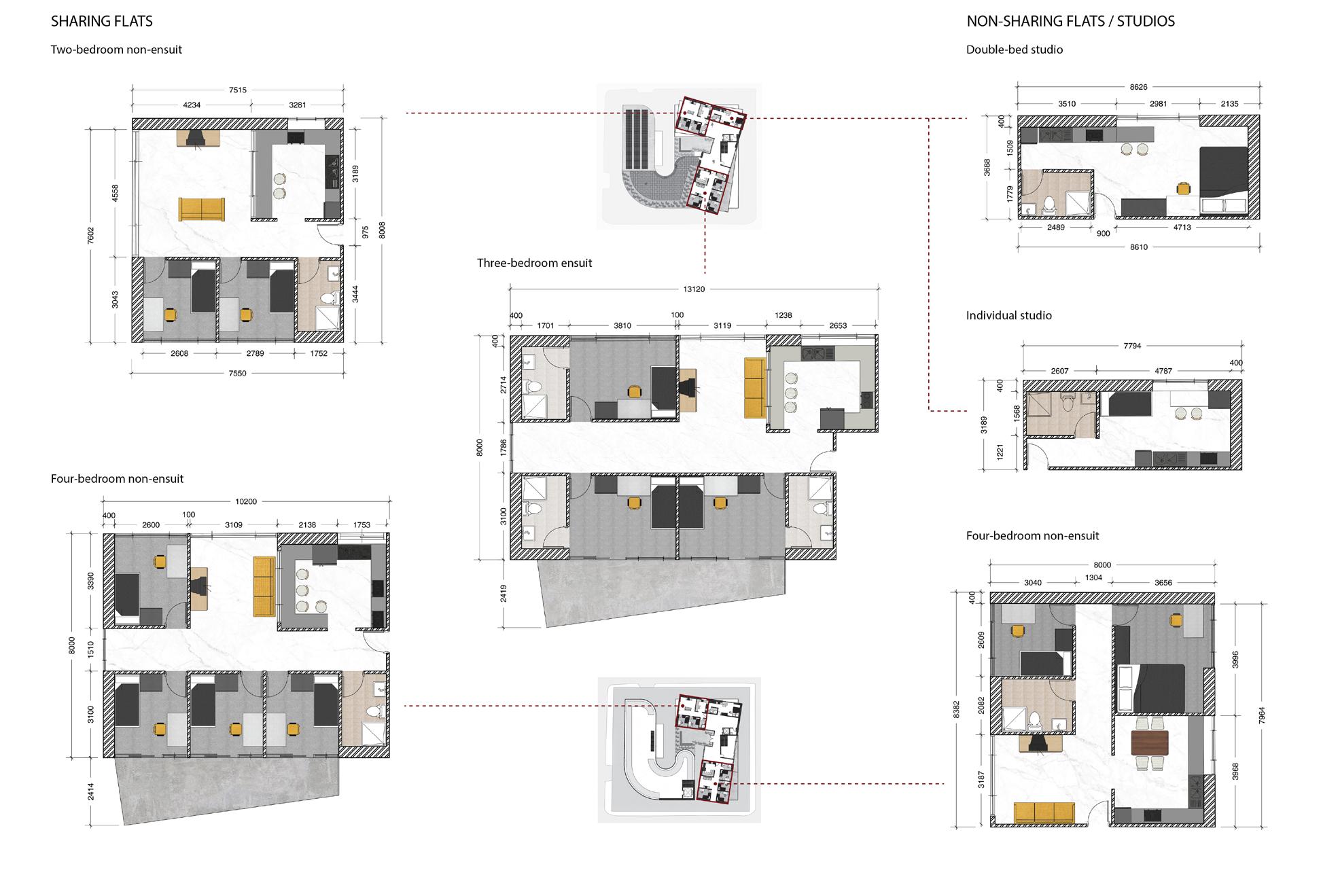

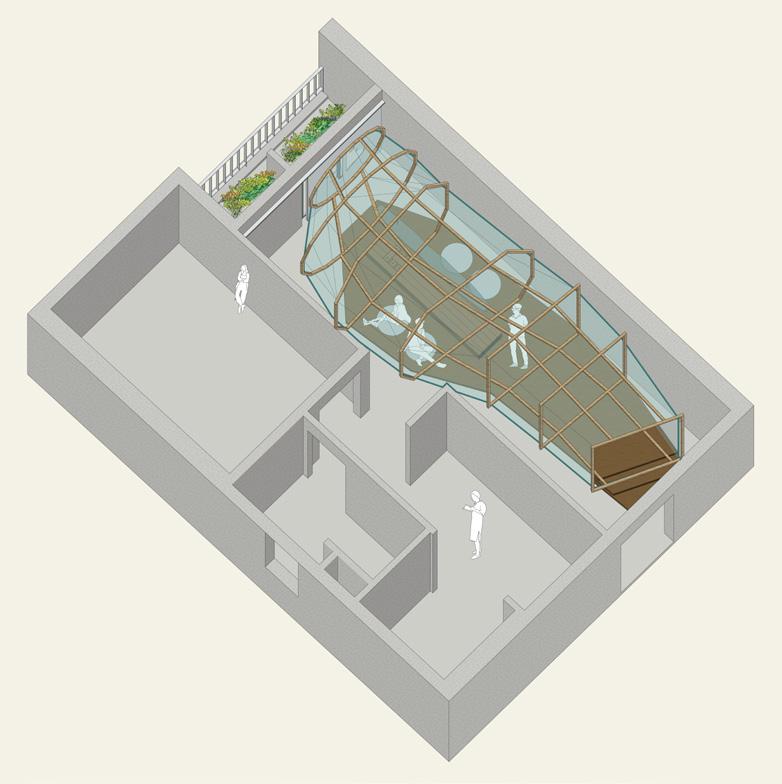

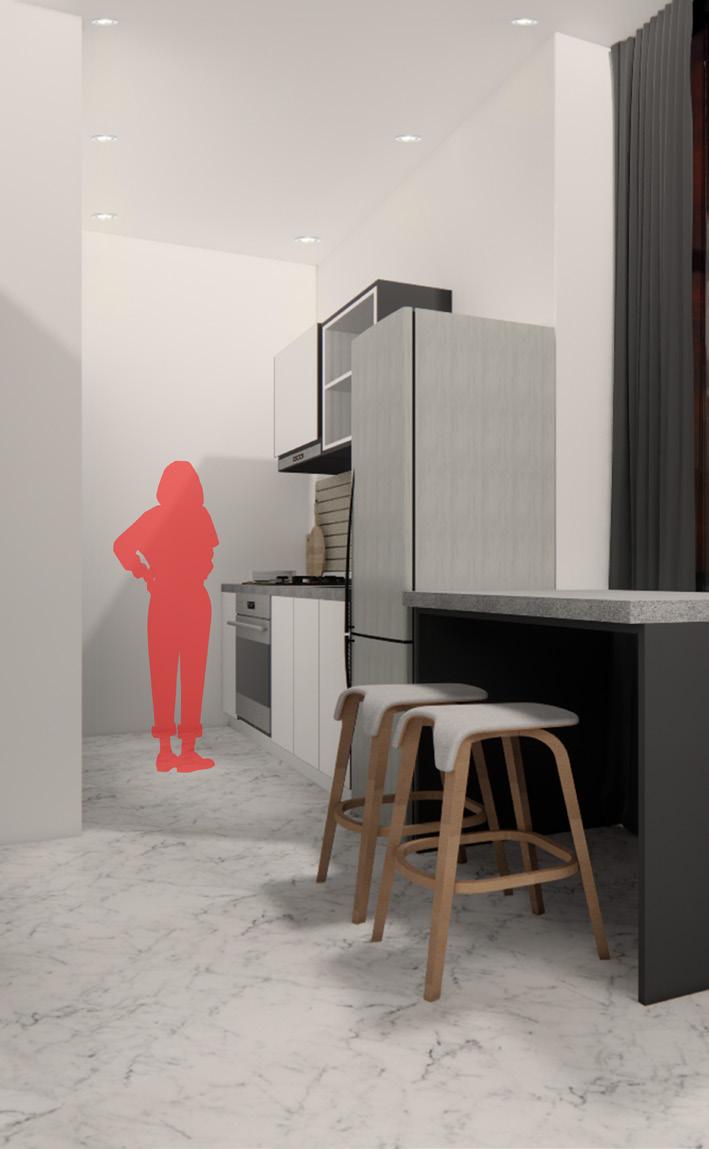

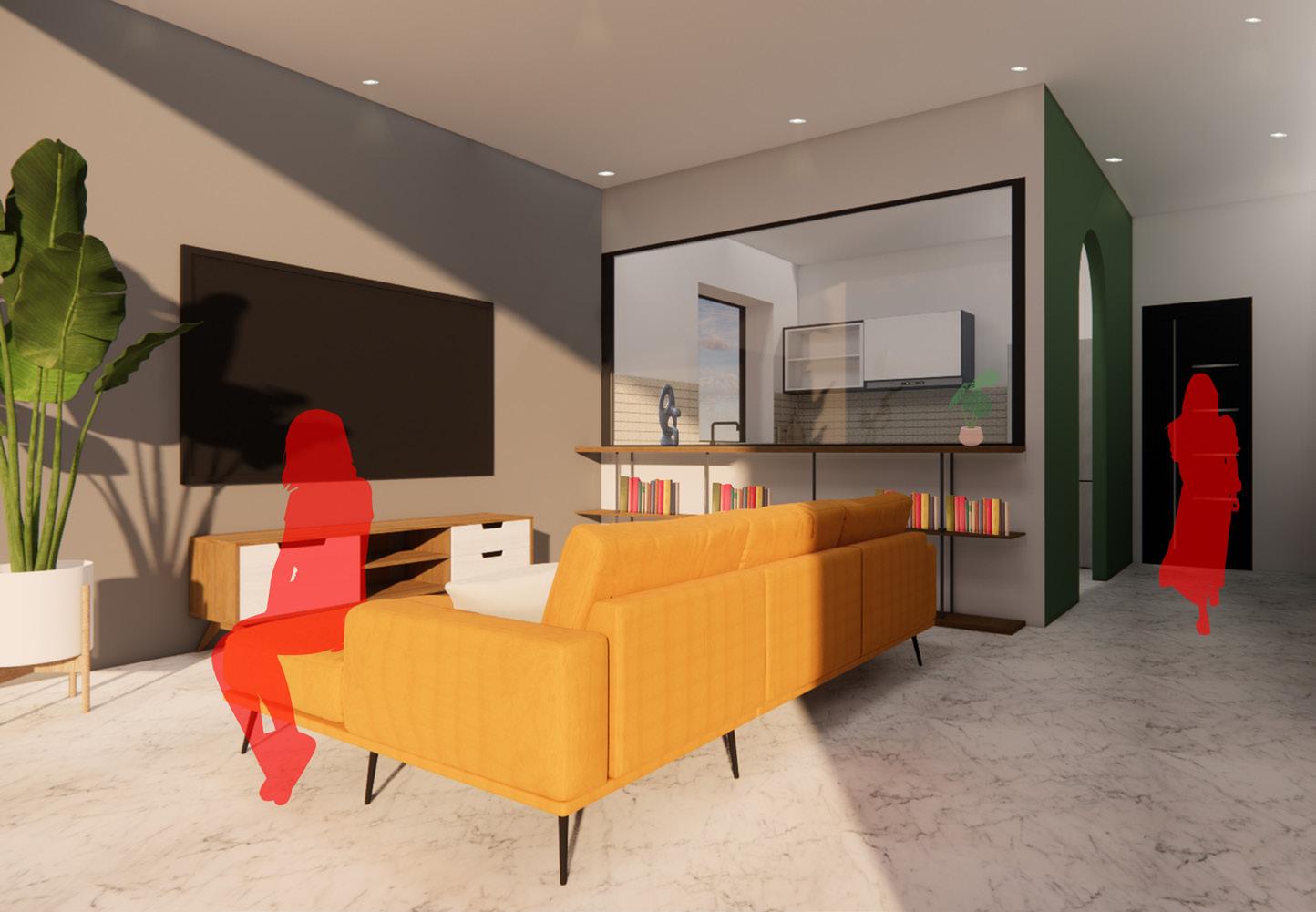

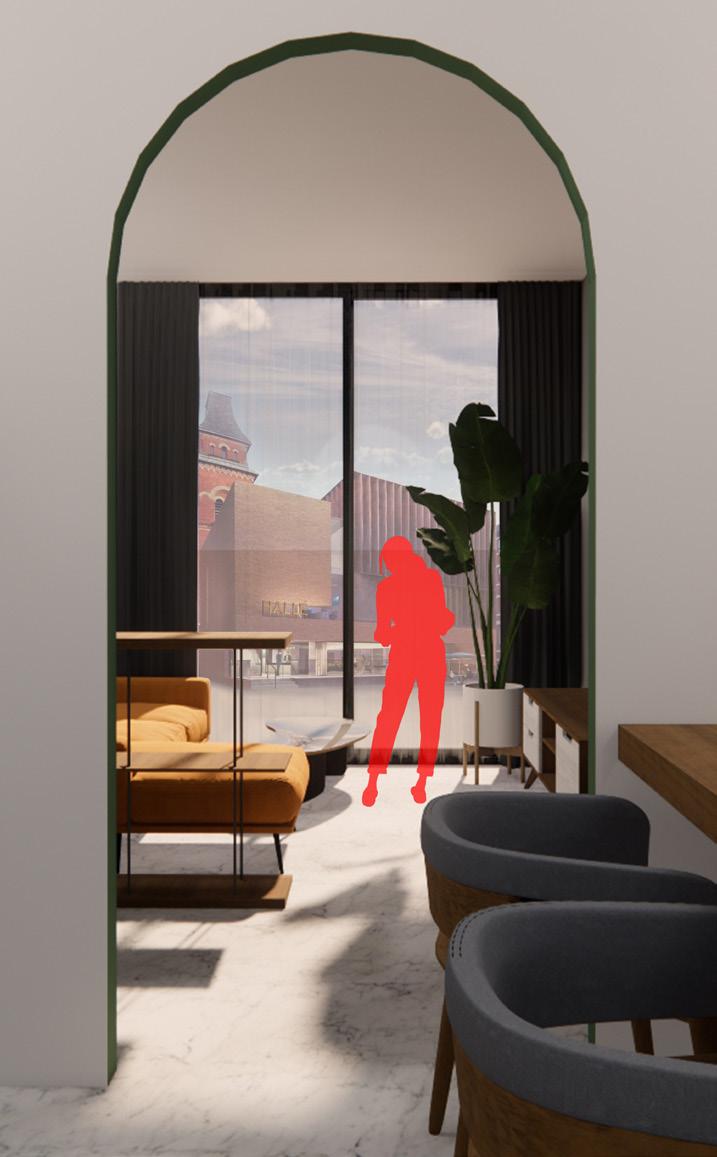

Private flat dining space Living room Studio

Rendered

in Enscape Rendered in Enscape

Rendered

in Enscape

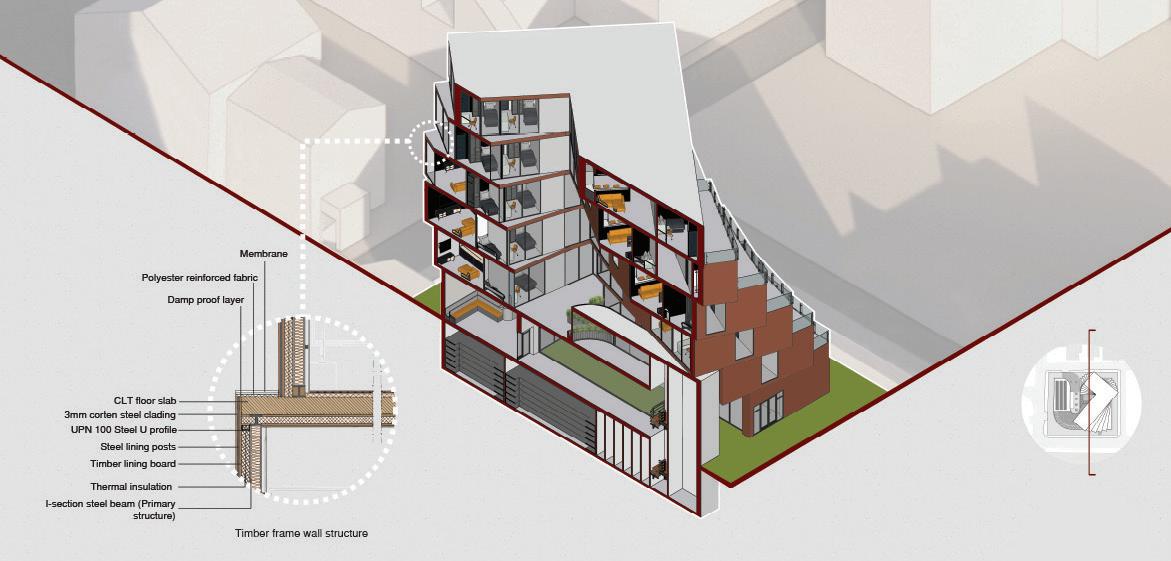

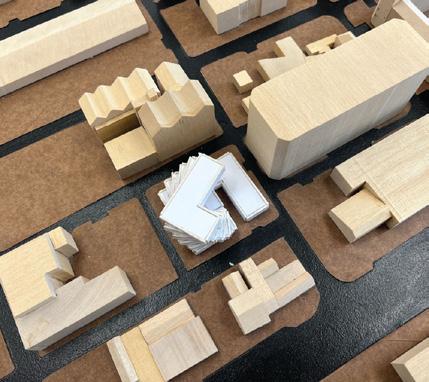

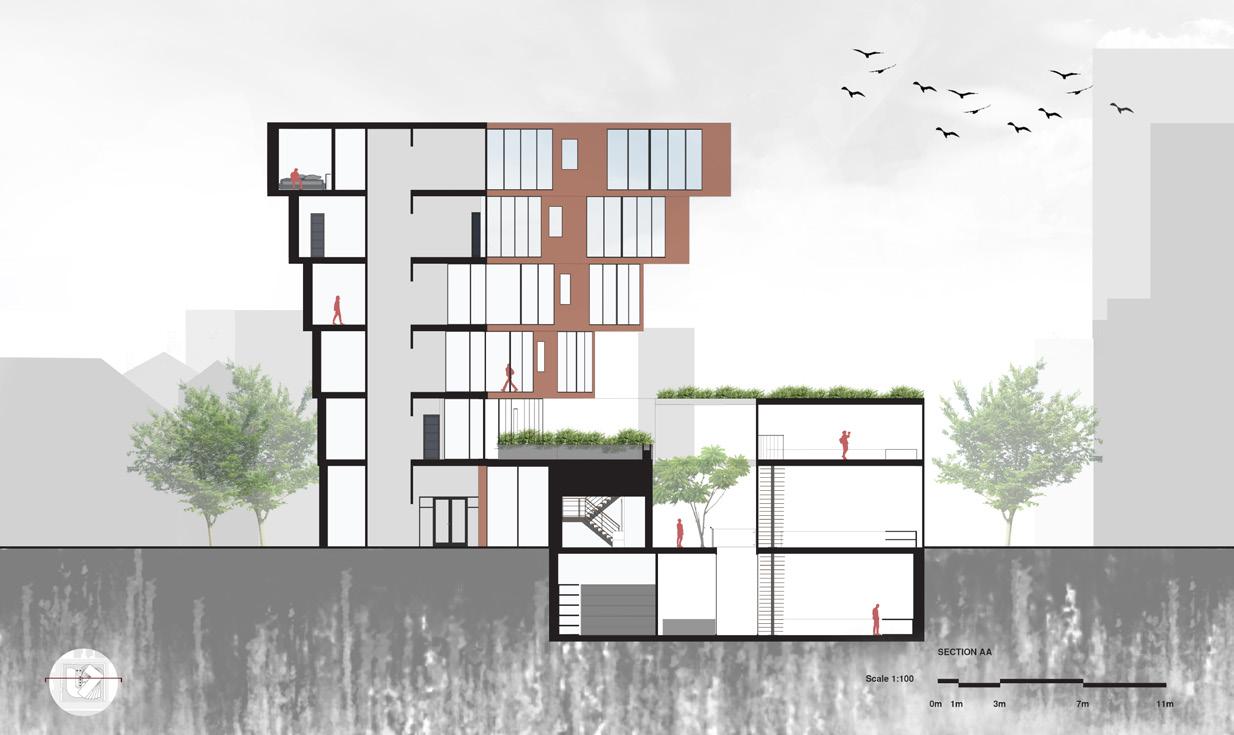

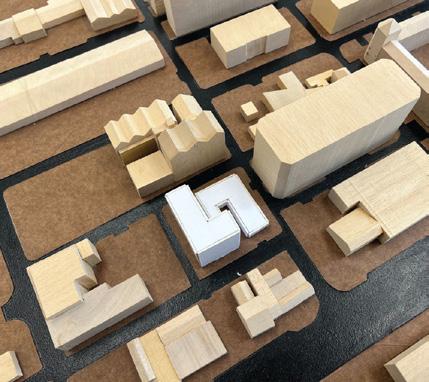

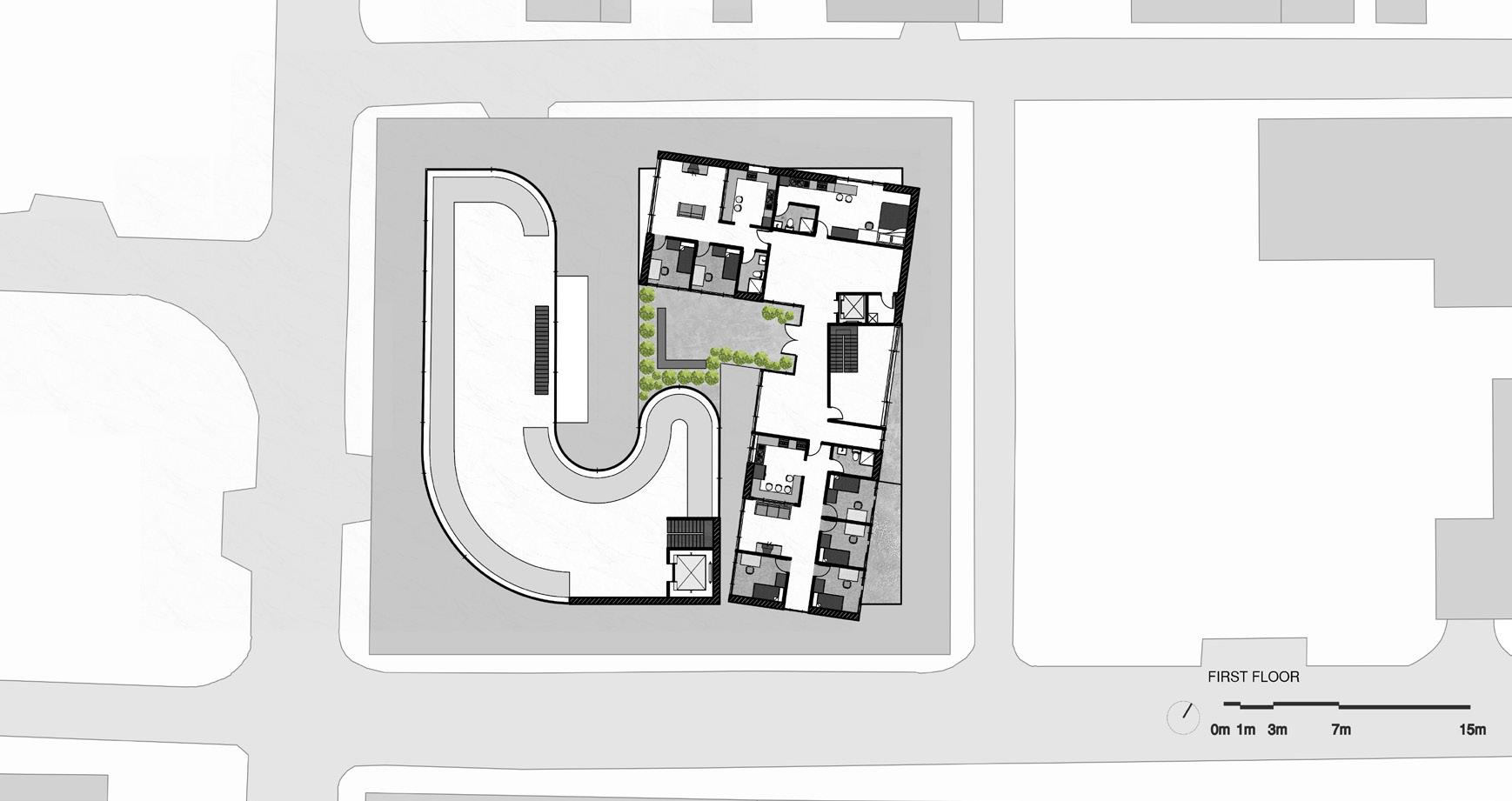

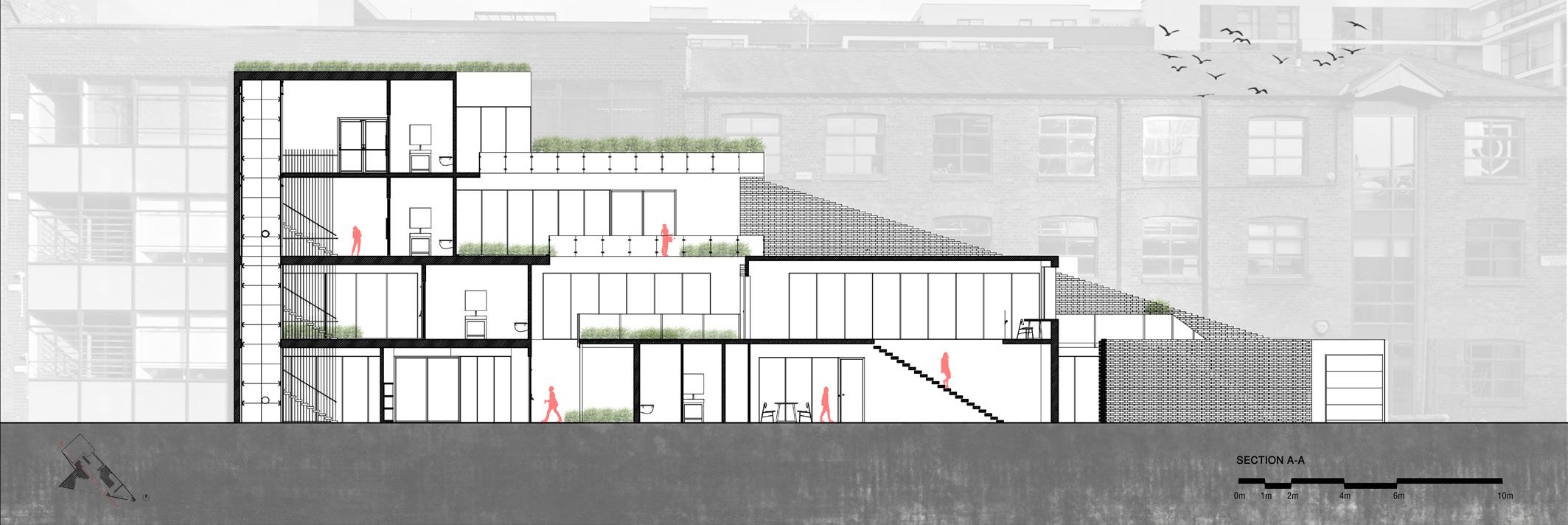

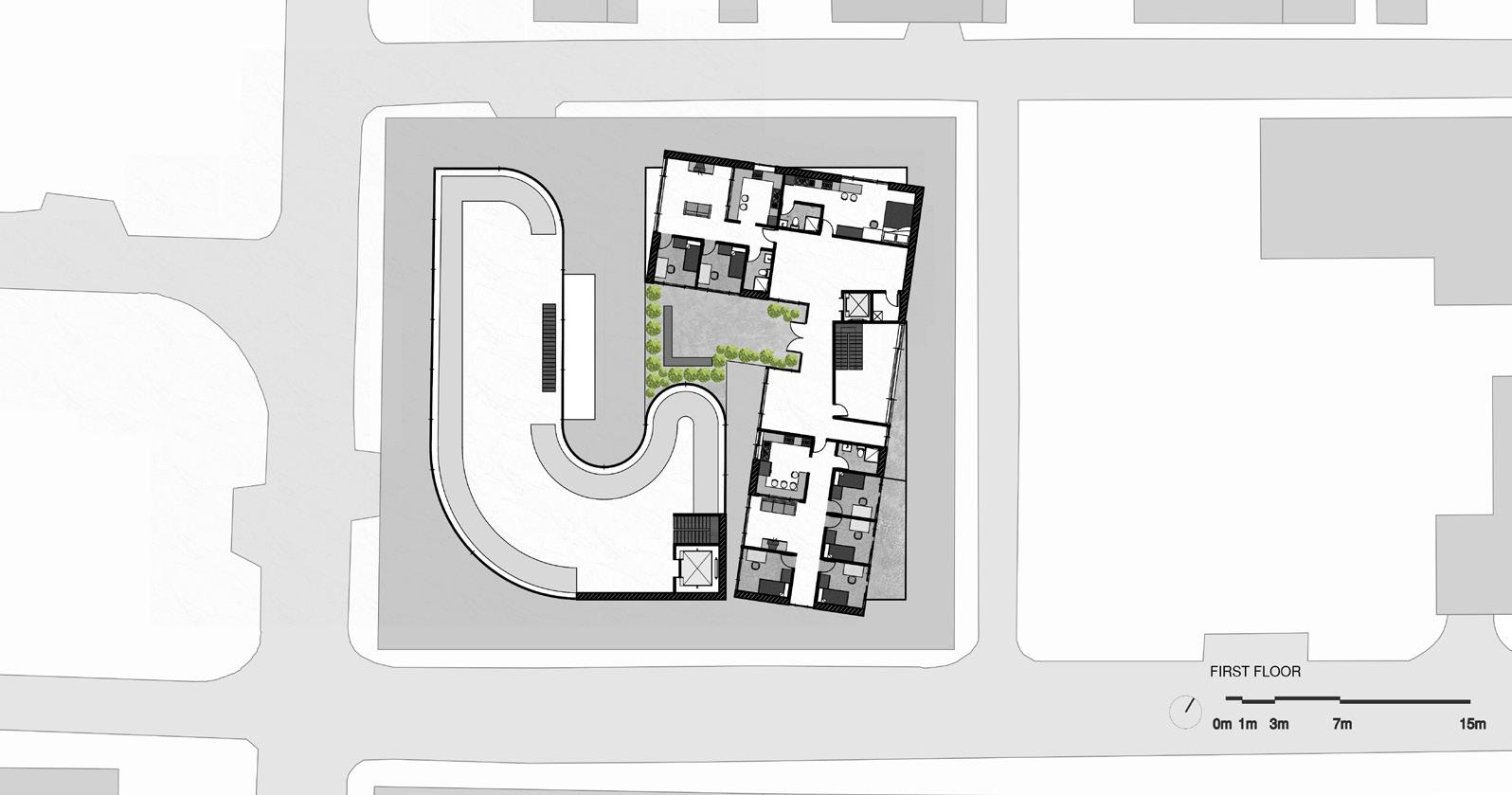

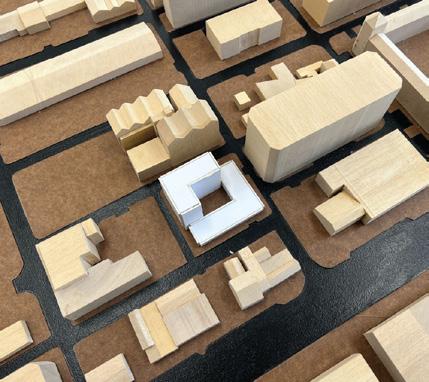

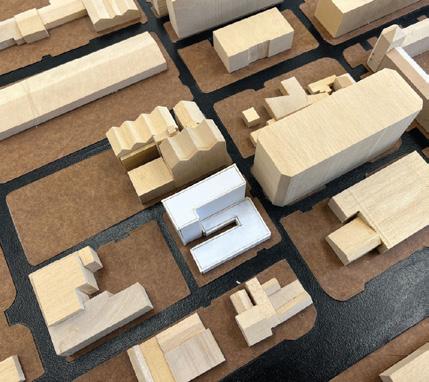

Model at scale 1:200 Drawing in AutoCAD Post production in Photoshop

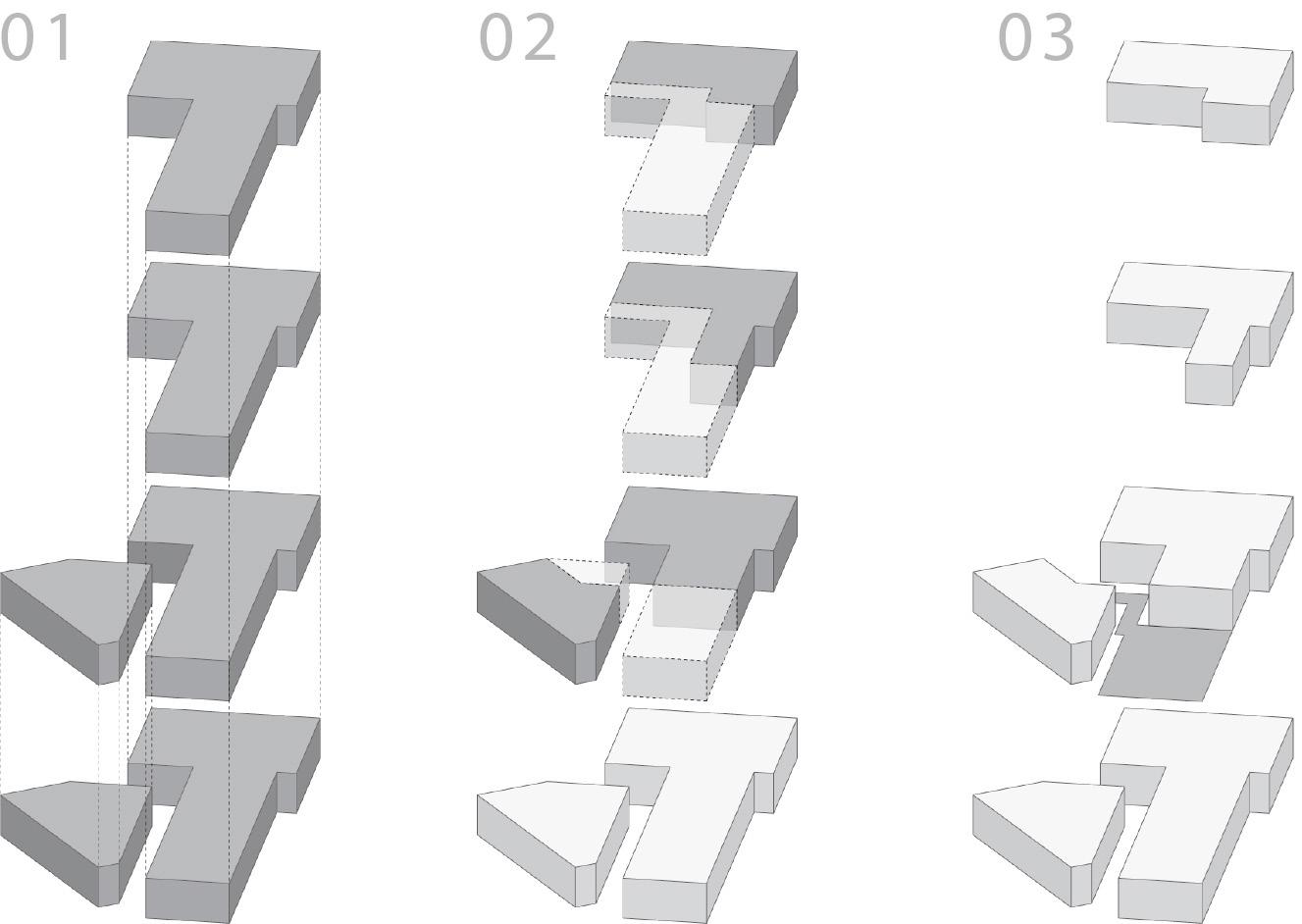

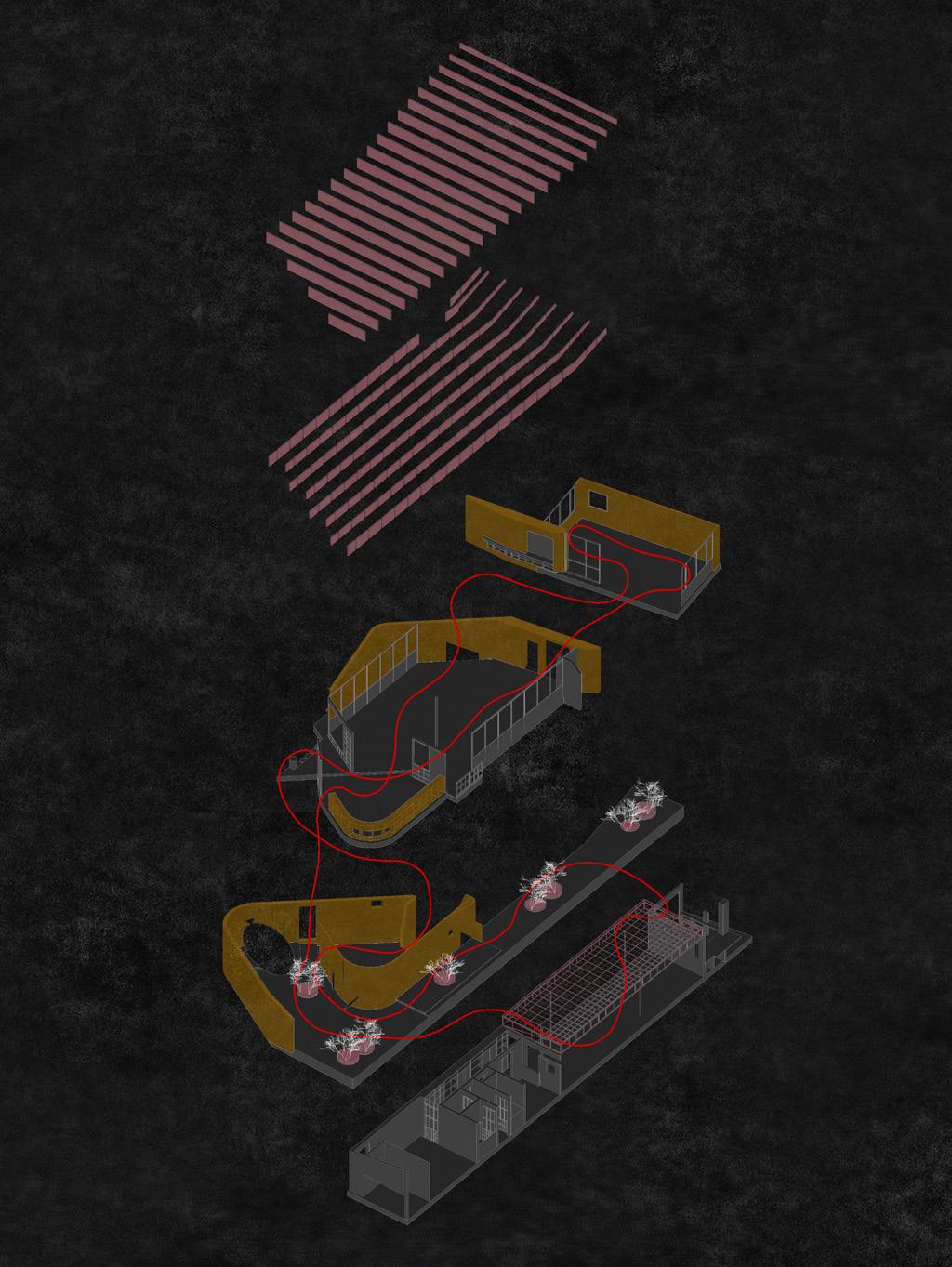

Model in SkechUp Diagram in Illustrator

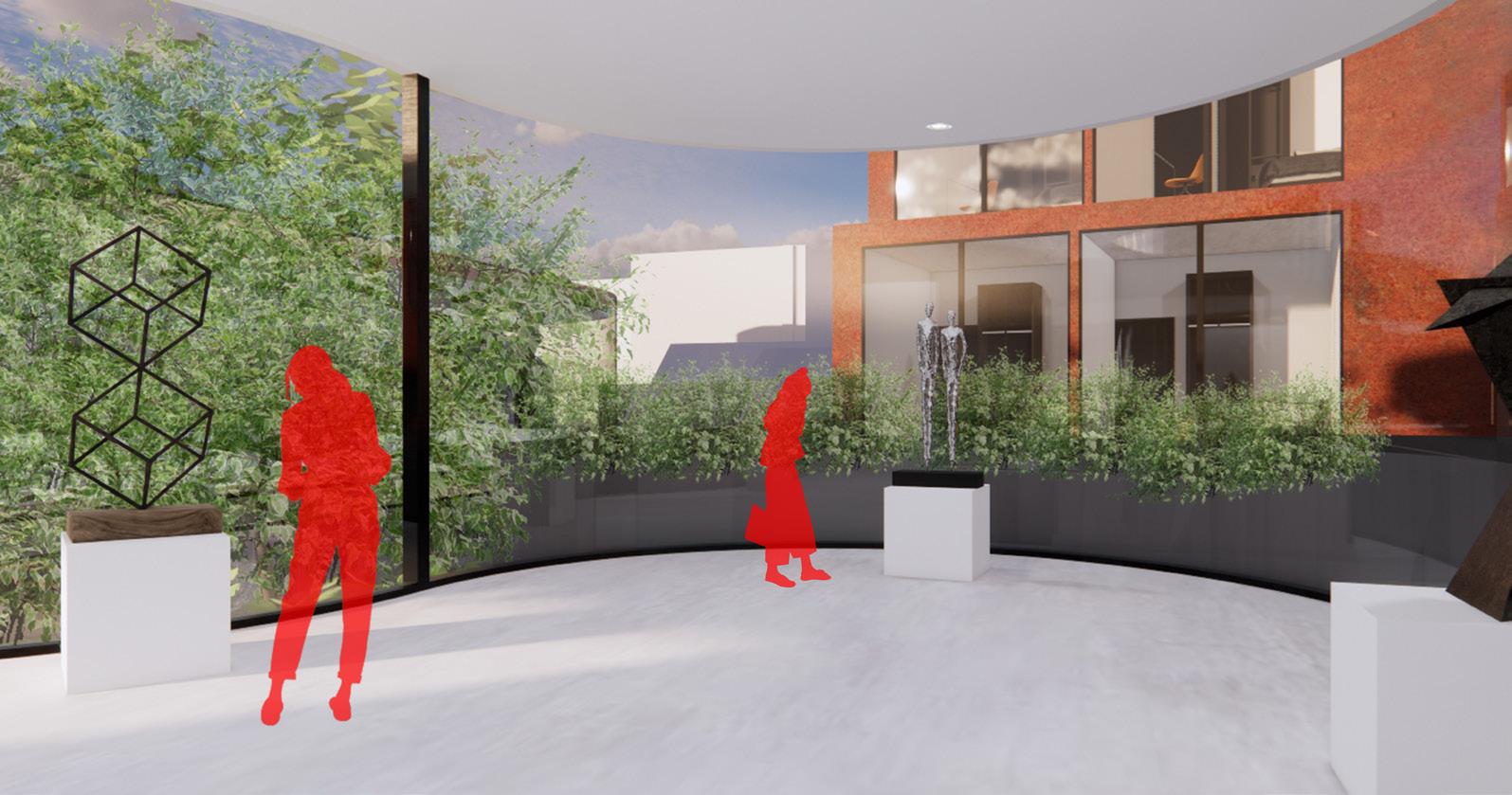

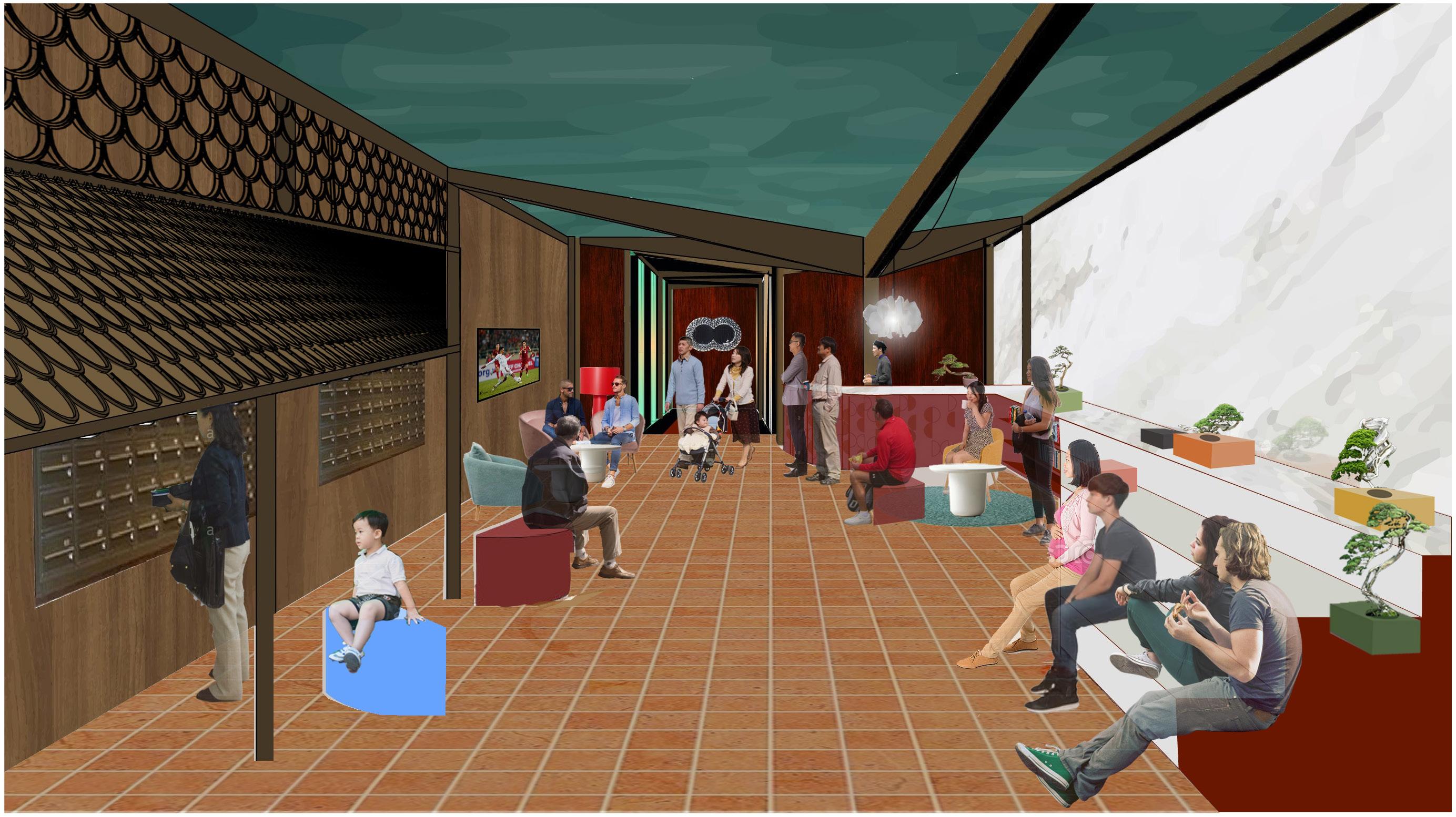

Exhibition space Rendered in Enscape

Drawing in AutoCAD Post production in Photoshop

nourish studio 2021

Project 1 Y2 | Castlefield, Manchester

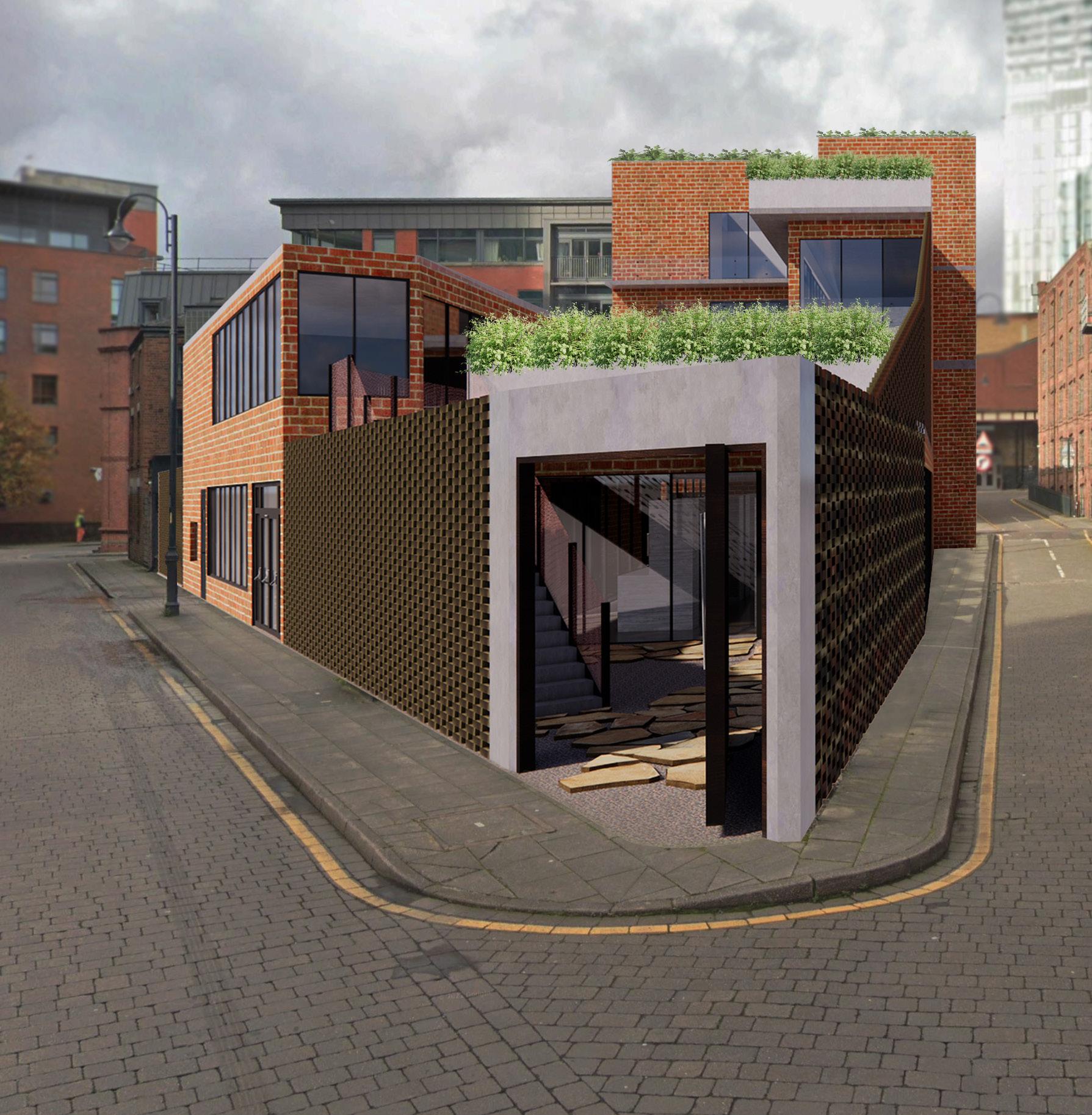

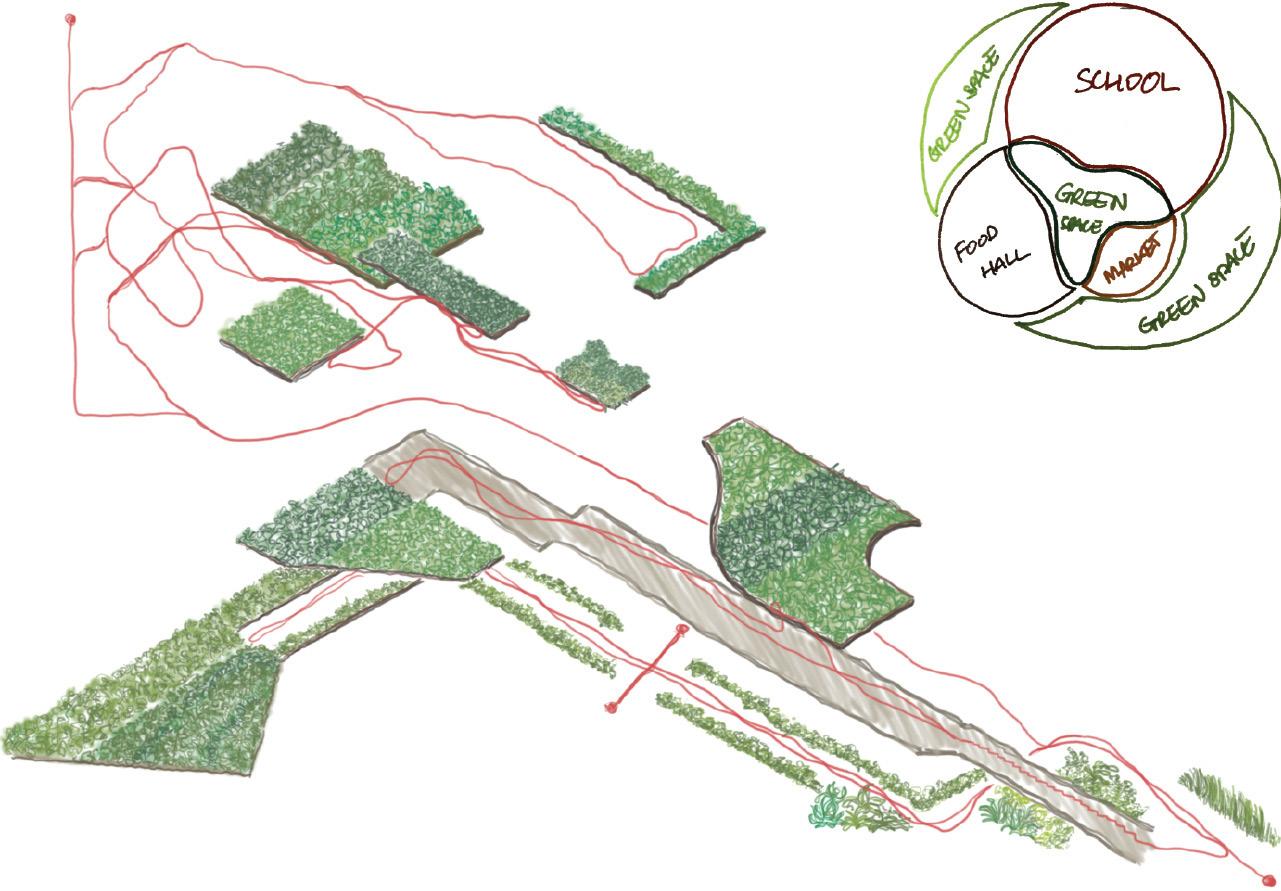

The concept was to make greenery the main concept, putting it forward as the recognition point of the project. The acute corners of the traingular site was efficiently utilised as additional courtyard, bringing more green space to the scheme, and nourished the neighbourhood with these natural elements. The building acts as a cooking school and a place for planting education and fresh vegetables market. Plants were grown on-site and served as ingredients for the cooking classes and the small canteen of the school. Green spaces maximise the connection between human and nature within the programme, attracting the neighbourhood through an accessible route for the public.

Modelled

in SketchUp Rendered in Enscape

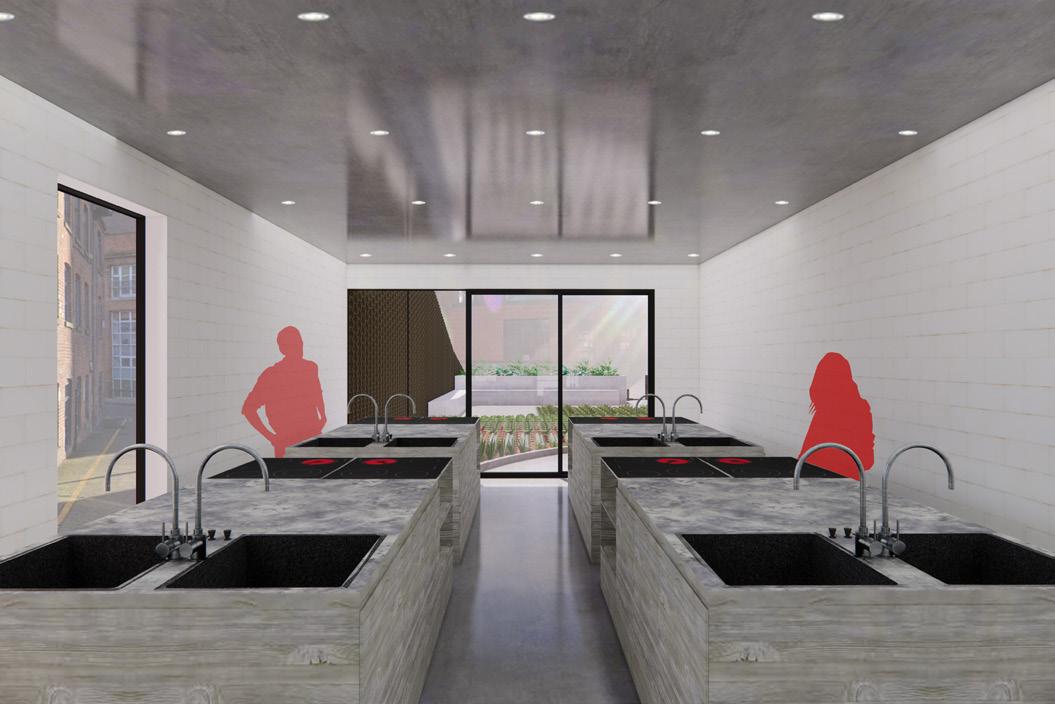

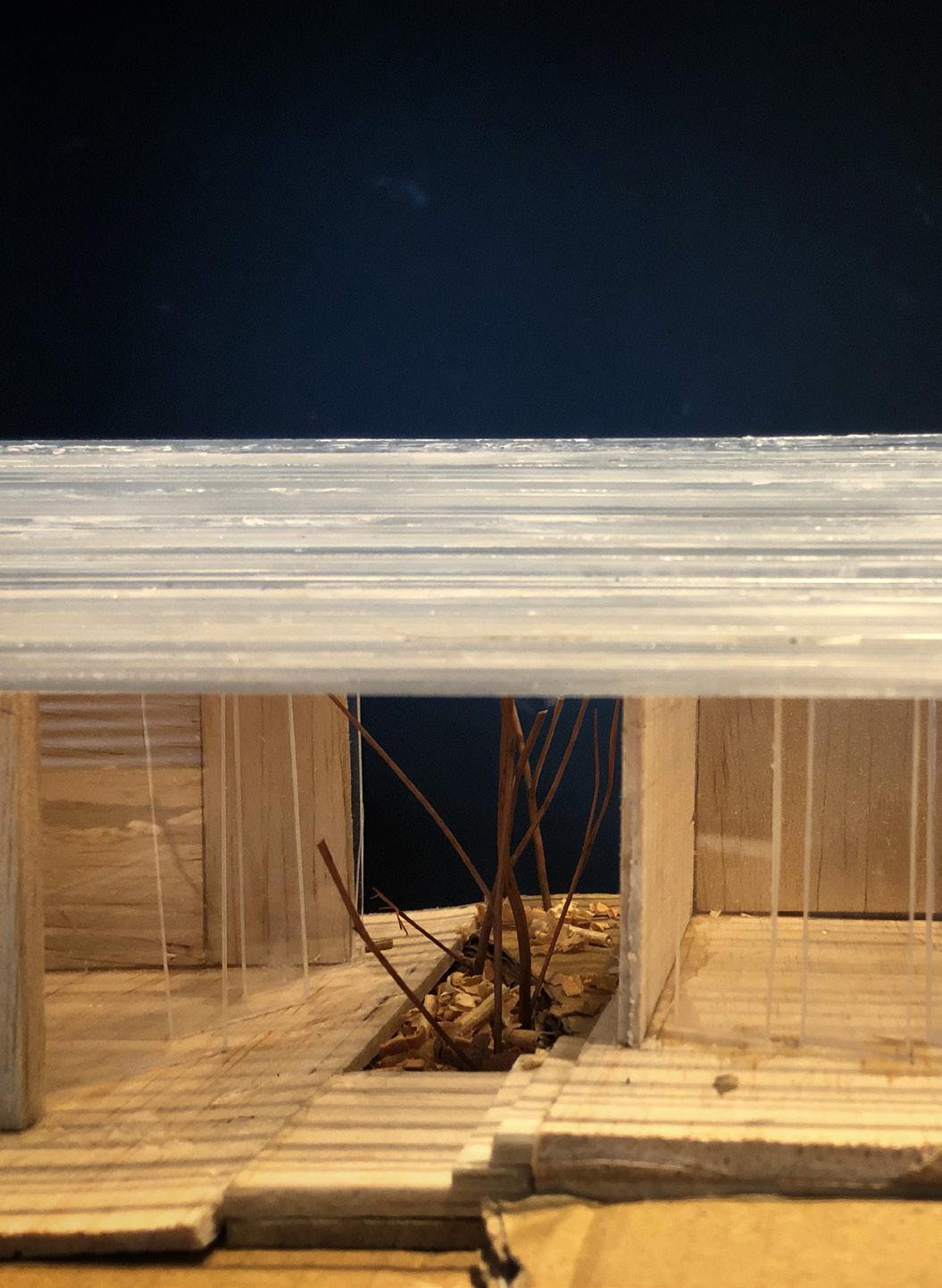

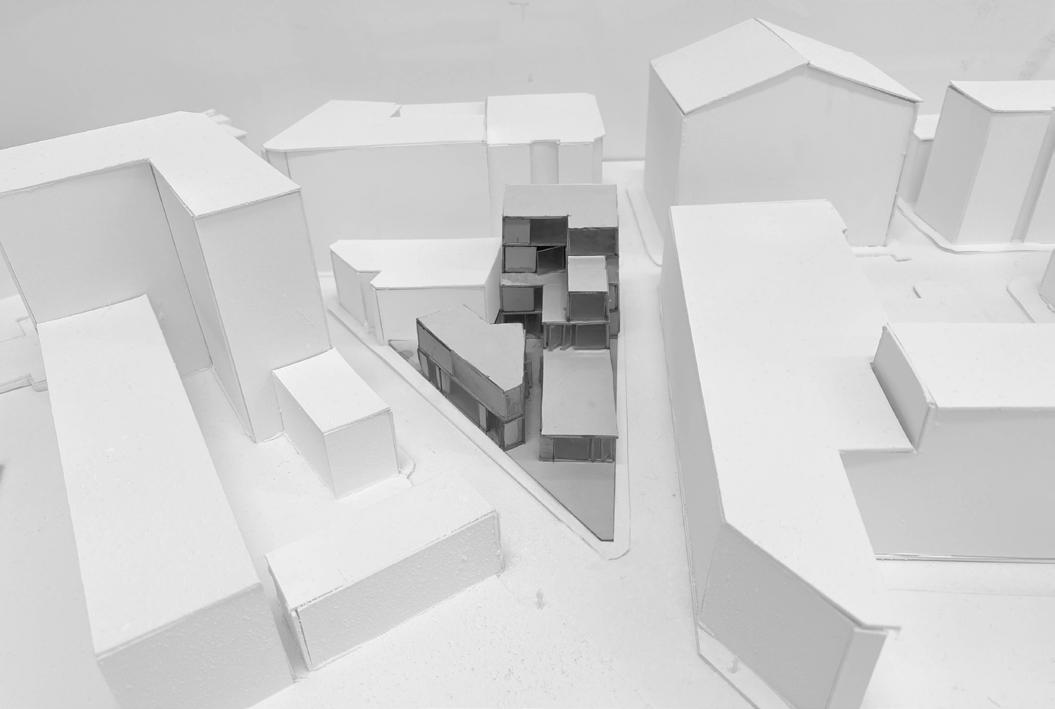

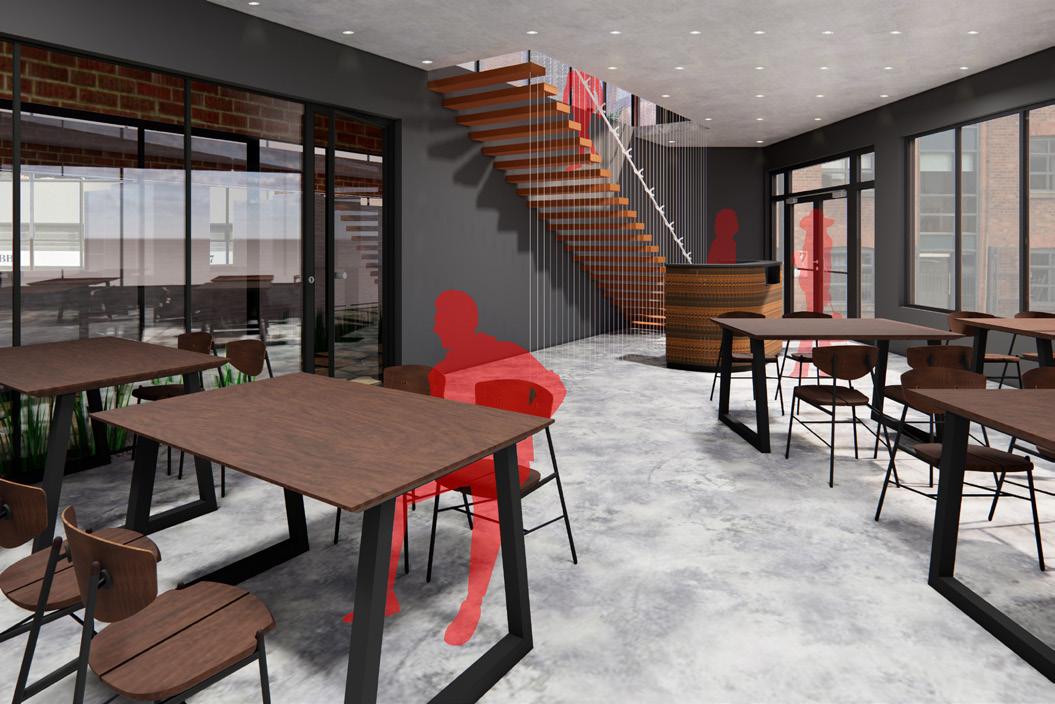

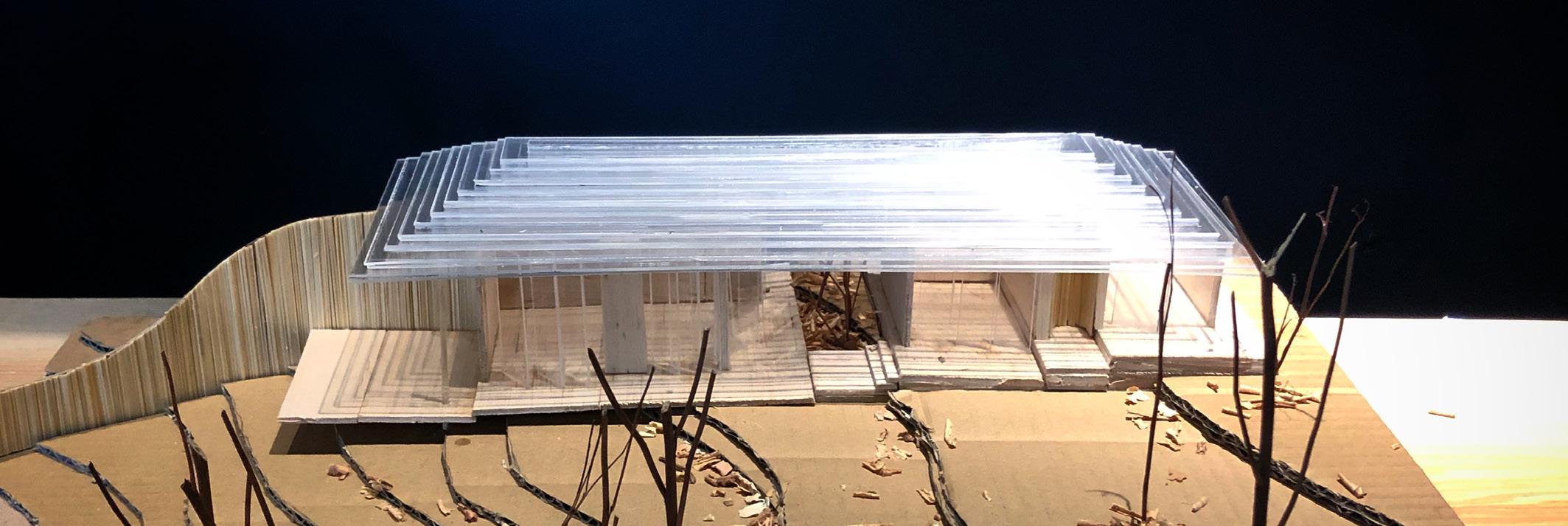

Cooking classroom Cafeteria Concept model Model at scale 1:200 Rendered in Enscape Rendered in Enscape Drawing in AutoCAD Post production in Photoshop

Drawing in AutoCAD Post production in Photoshop

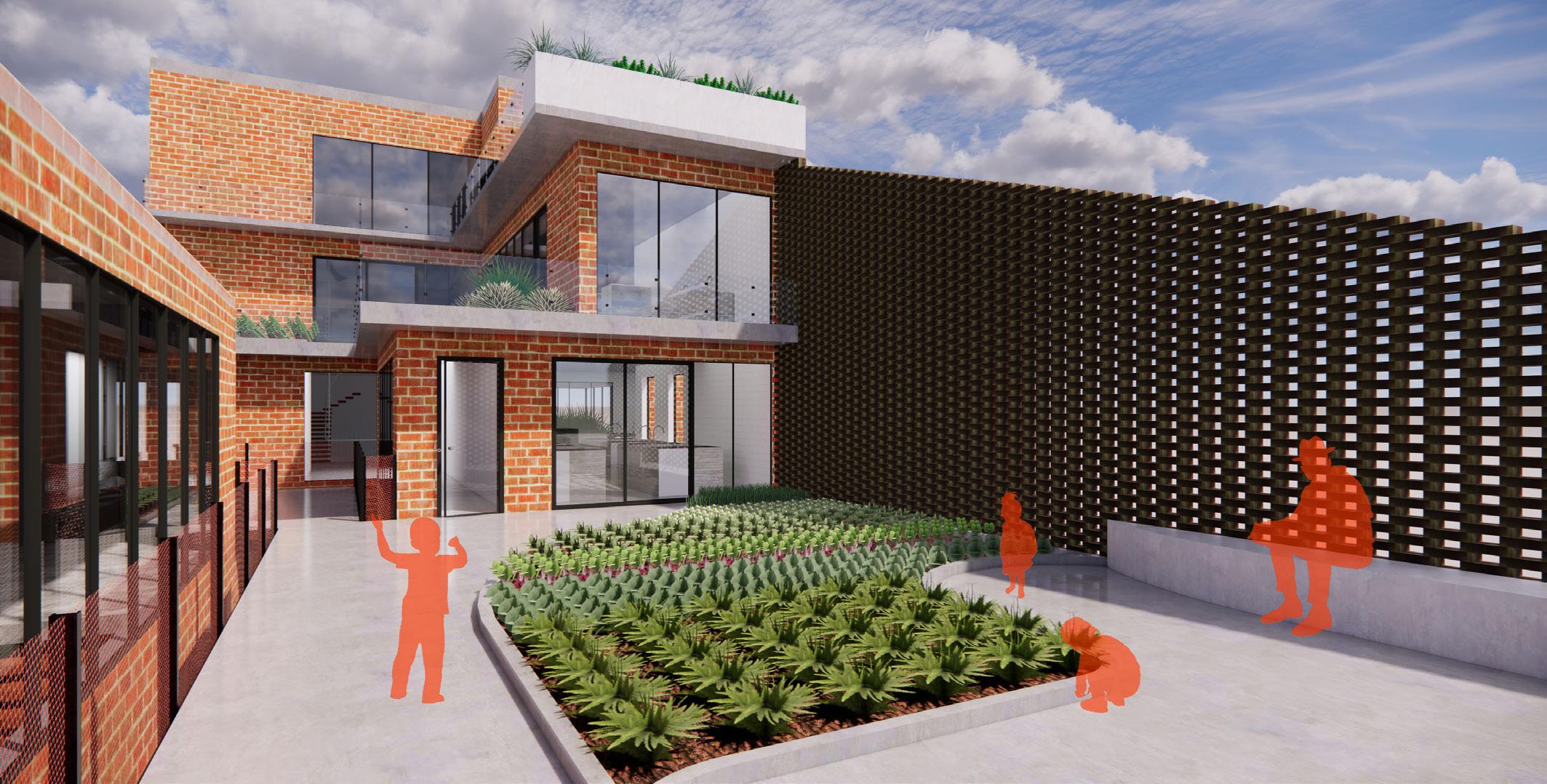

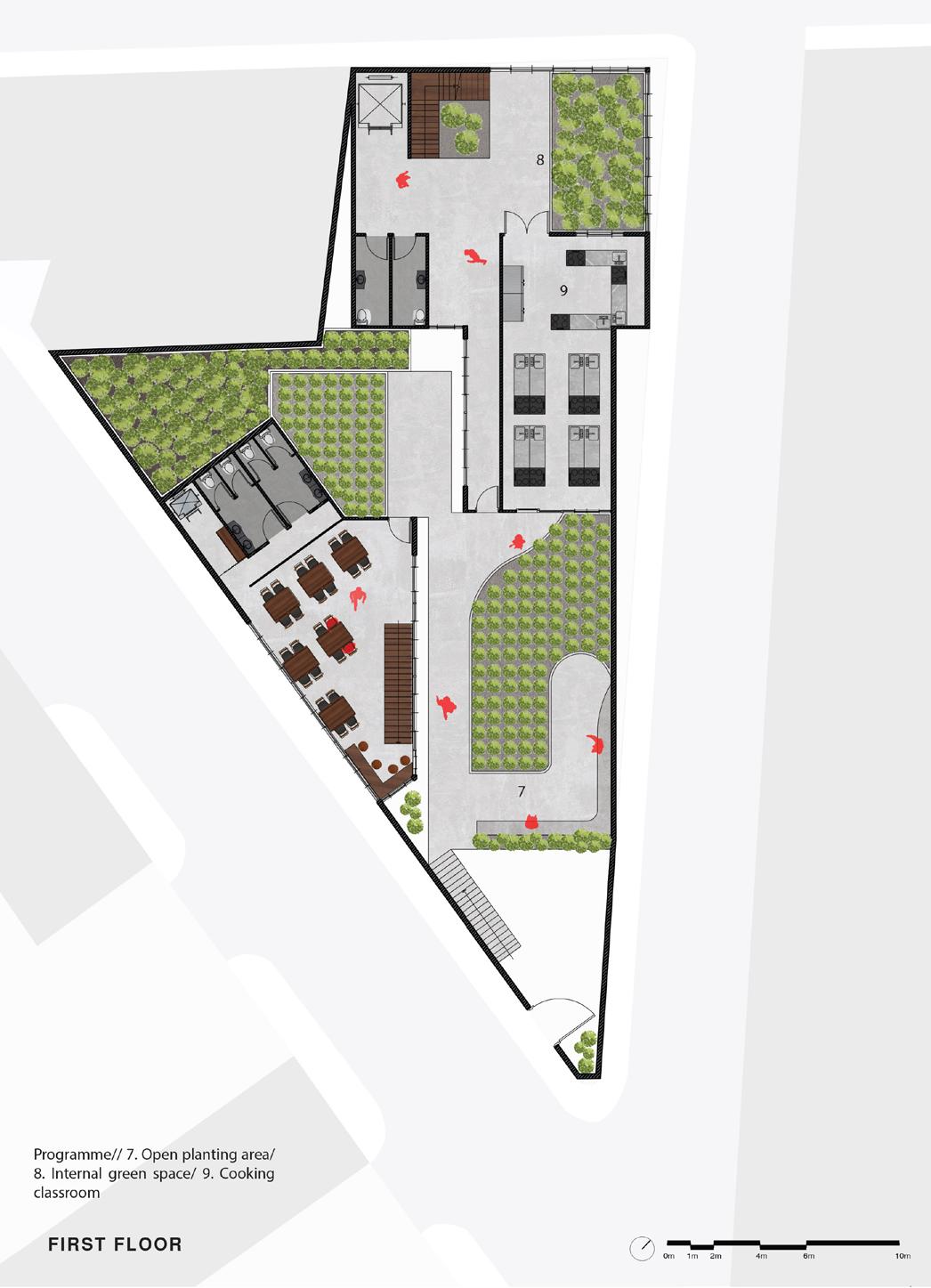

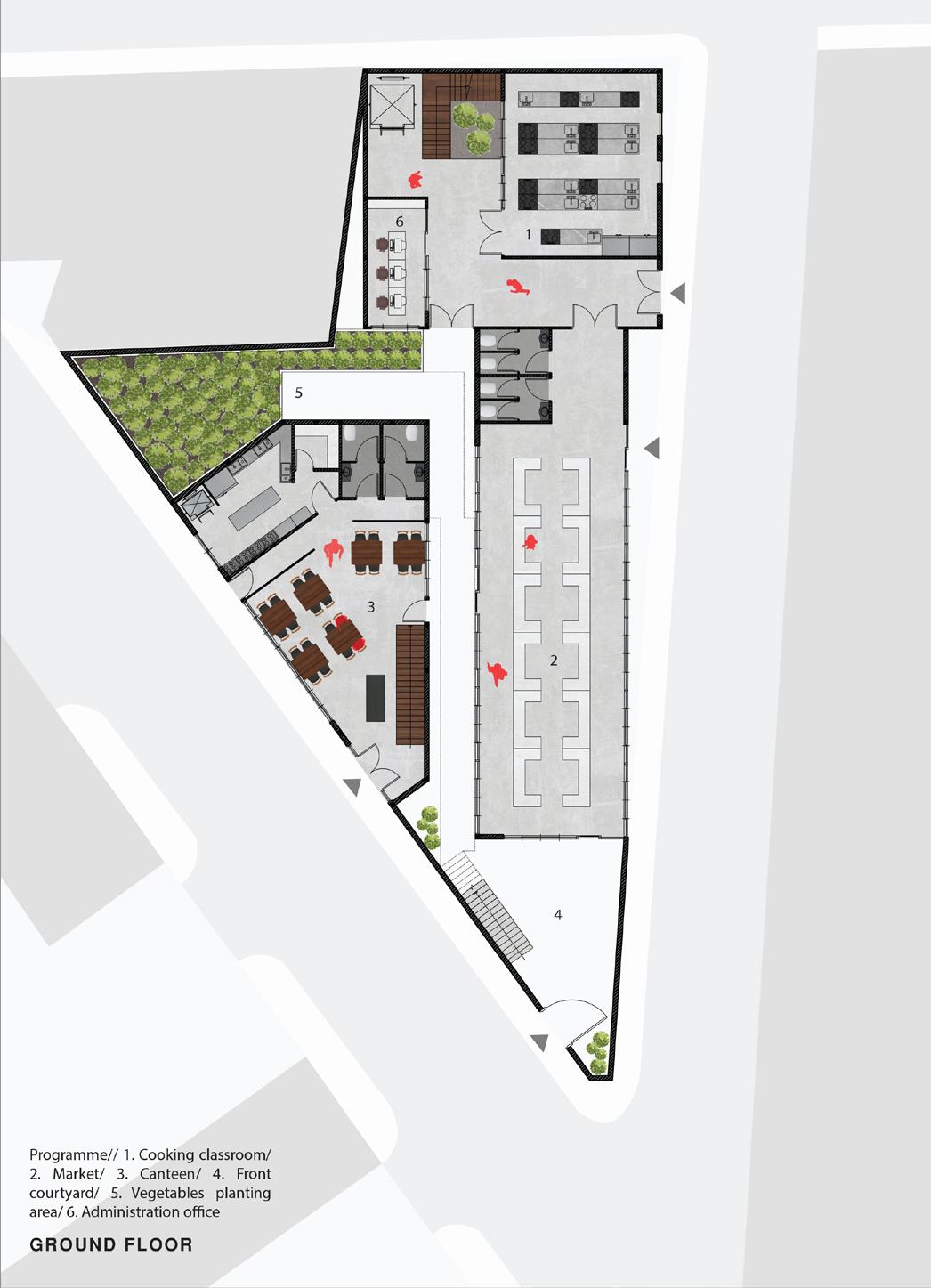

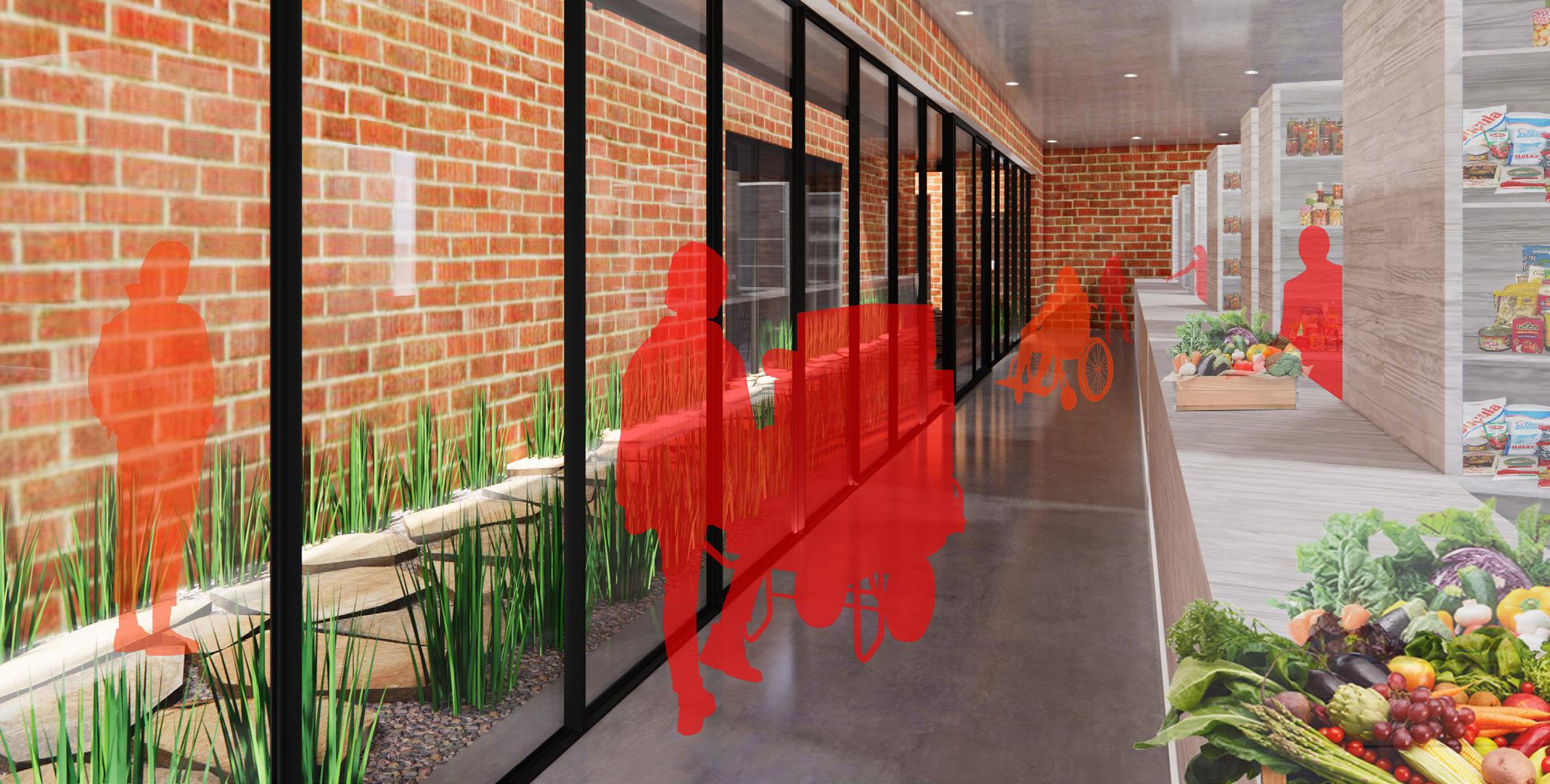

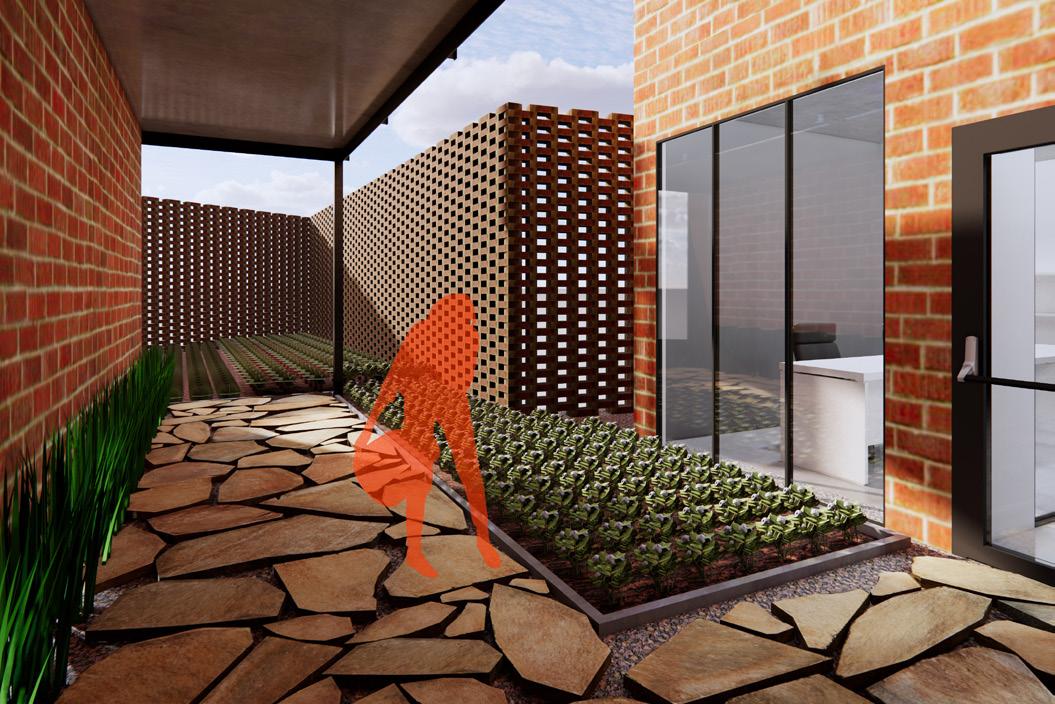

Market First floor planting area Ground floor planting area Rendered in Enscape Rendered in Enscape Rendered in Enscape Drawing in AutoCAD

Post production in Photoshop

WORKING EXPERIENCE

NFC New Office practice 2024

Private Project | Interior Design | Ho Chi Minh City, Vietnam

NFC - the company that I used to work as a part-time graphic designer in 2021 asked me to design the interior for their new office in District 1, Ho Chi Minh City, Vietnam. The brief was to design a modern workspace which could strongly delivers the company’s ethos of creative, devoted and innovative.

The work includes a set of 3D renders of the space, plans, furniture detail drawings and artworks for glazing deoration.

UP SER ER AR PR Lift Hall 605 Electrical room 604 Fire hose cabin net DOWN DOWN UP Fire escape staircase 2 Fire escape staircase 1 BALCONY STORAGE SERVER LARGE MEETING ROOM STUDIO MANAGER'S ROOM PANTRY RECEPTION SMALL MEETING ROOM Photocopy 804,86 1691,56 350,21 2780,3 350 500 600 1200 300 600 785 600 800 320 1350 1200,03 2189,01 4000 2000 2800,15 8700,15 3600 3085 1000 400 950 934,85 2415 400 2400 500 1400 710 782,72 800 Printing area Cabinet 1221,56 800,08 1221,56 1200 1000 600 760 603,68 600 1100 1345 600 685 1825 400 1000 900 1600 1200 5600 600 550 OFFICE PLAN Drawn in AutoCAD Scale 1:100 on A3 Modelled inSketchUp Rendered in Enscape

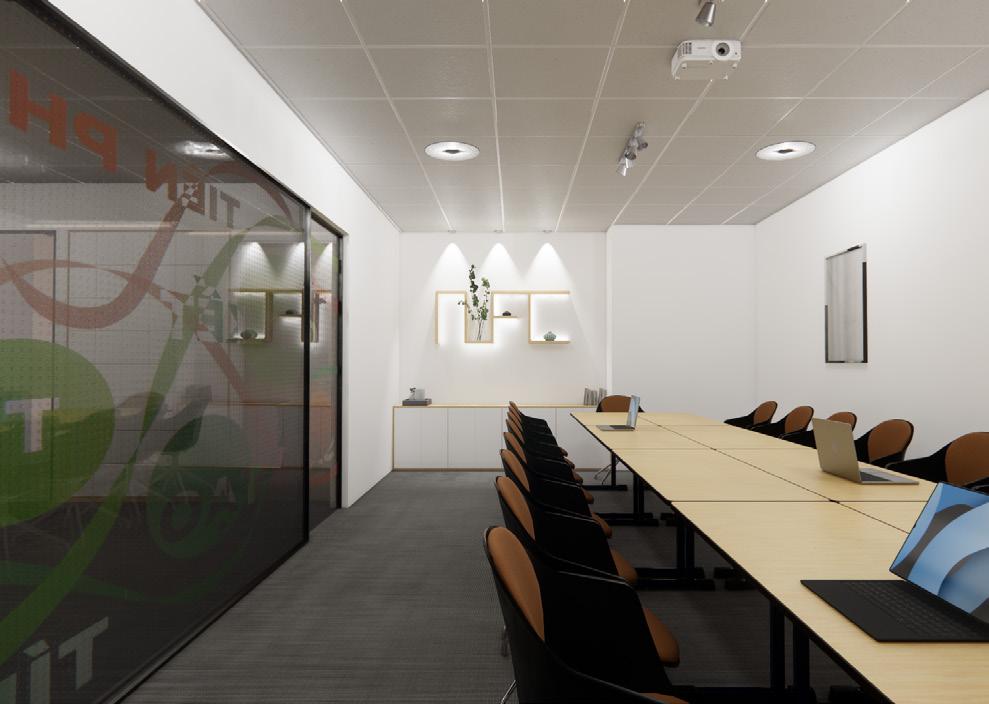

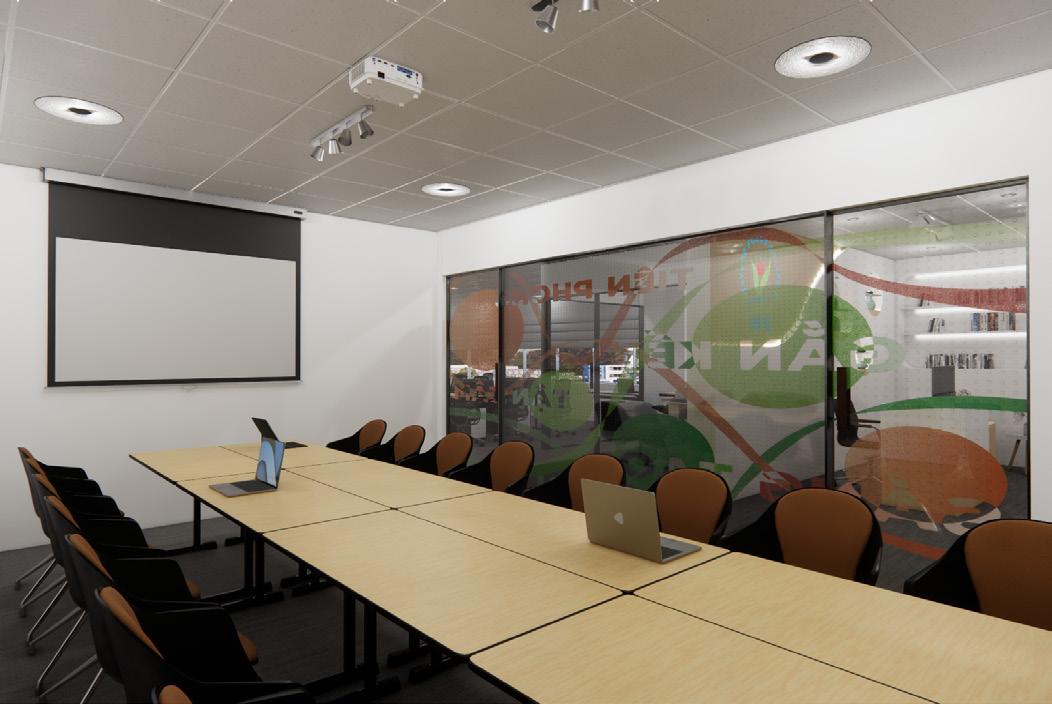

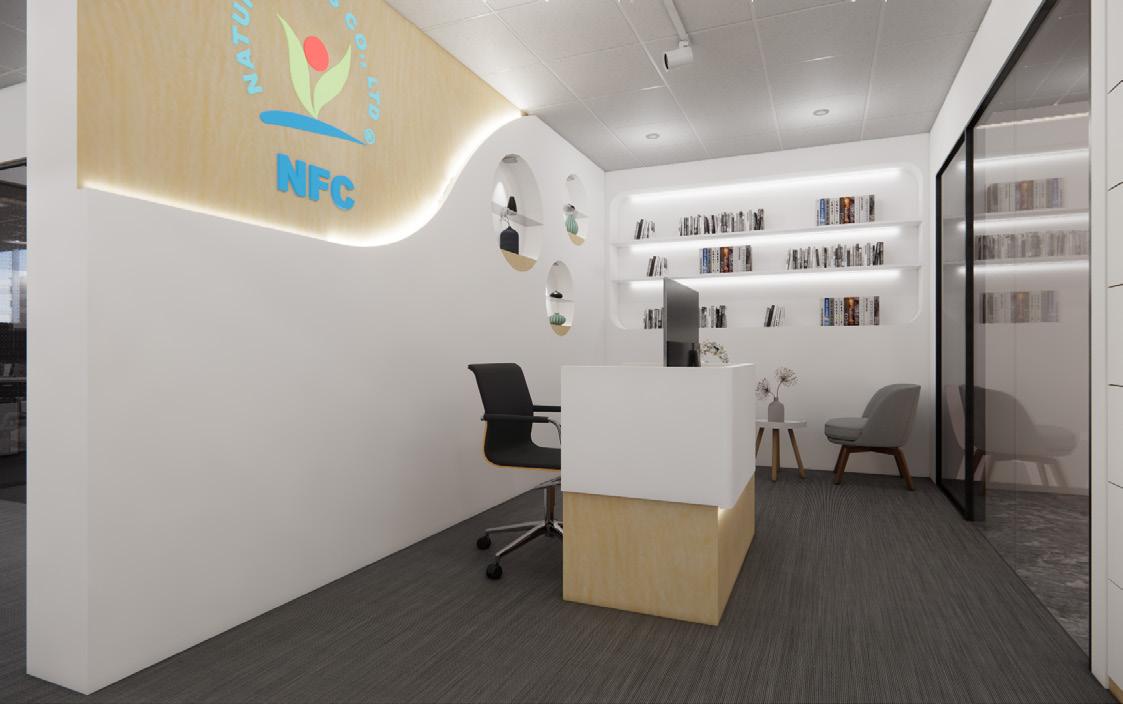

Reception and entrance Large meeting room Large meeting room

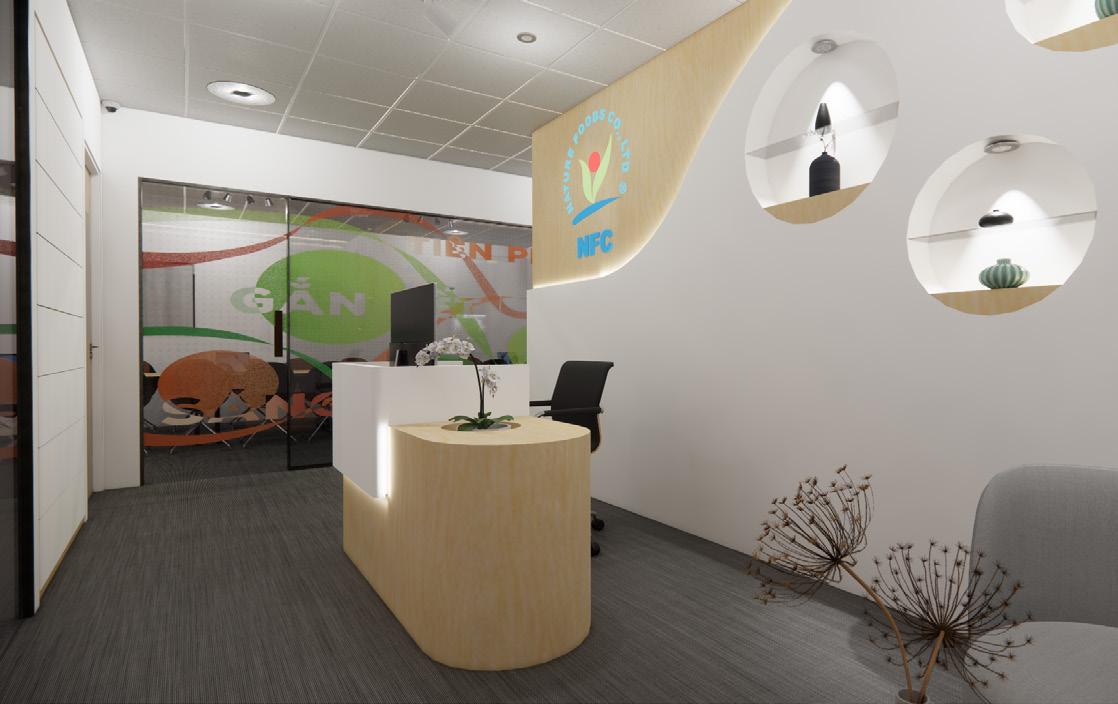

Reception

1000 895 890,7 1560 350,21 460 800 531 31 600 35 600 2700 565,37 424,53 424,53 10 10 150 20 20 2579,88 50

Wood Glass Space for LED (10mm) LEDs along the length Installation inside the wall (150mm) 2700 2779,88 LEDs along the length LEDs along the length 30 300 30 270 30 280 340 365 540 510 1491,21 2415 591,75 296,38 20 700 660 457,5 150 660 310 310

Wood LEFT SECTION FRONT ELEVATION 110 Glass door 3085 380,13 759,25 20 20 355,63 385,63 771,25 3085 20 10 20 20 350 700 490 500 305 305 40 Wood Glass FRONT ELEVATION RIGHT SECTION

RECEPTION ELEVATION

LARGE MEETING ROOM CABINET AND SHELF

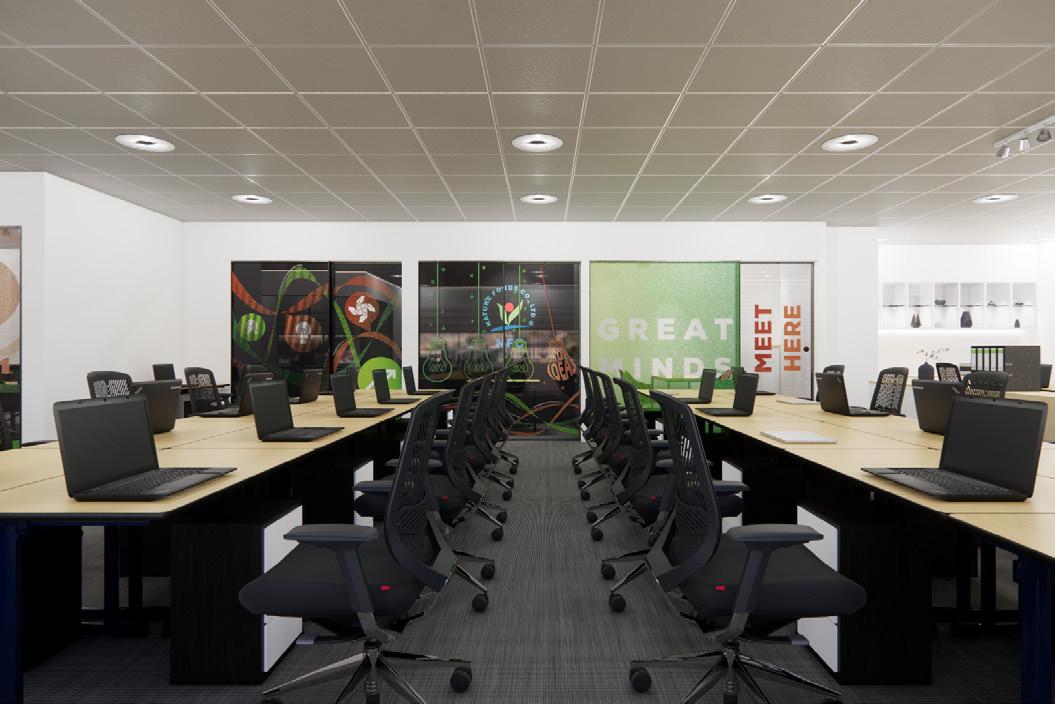

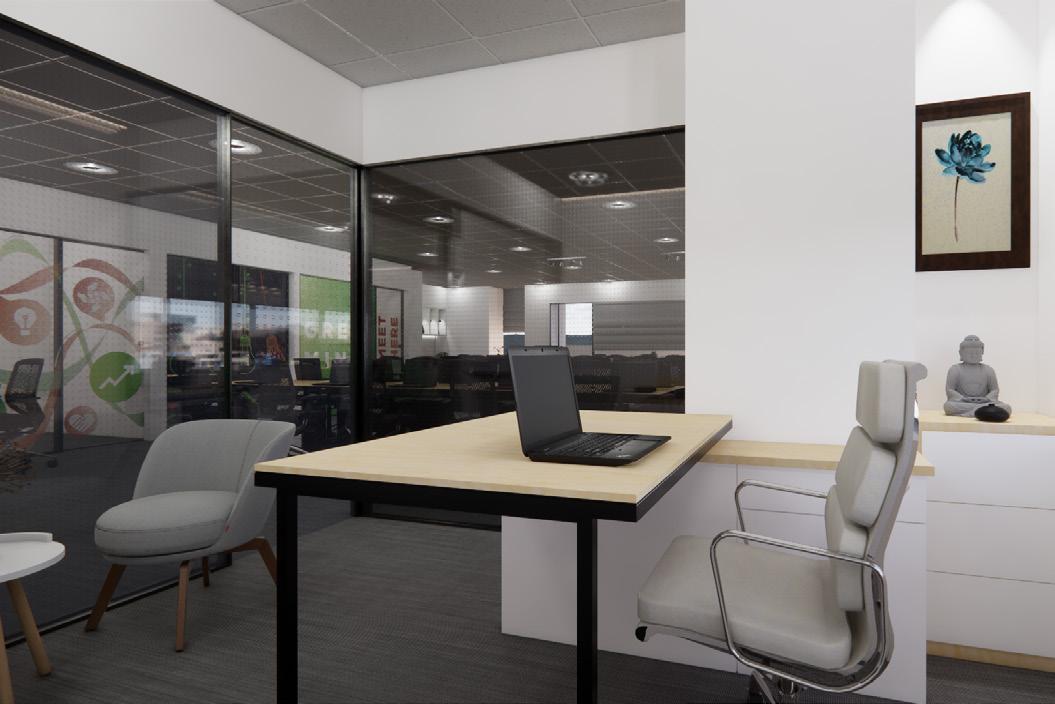

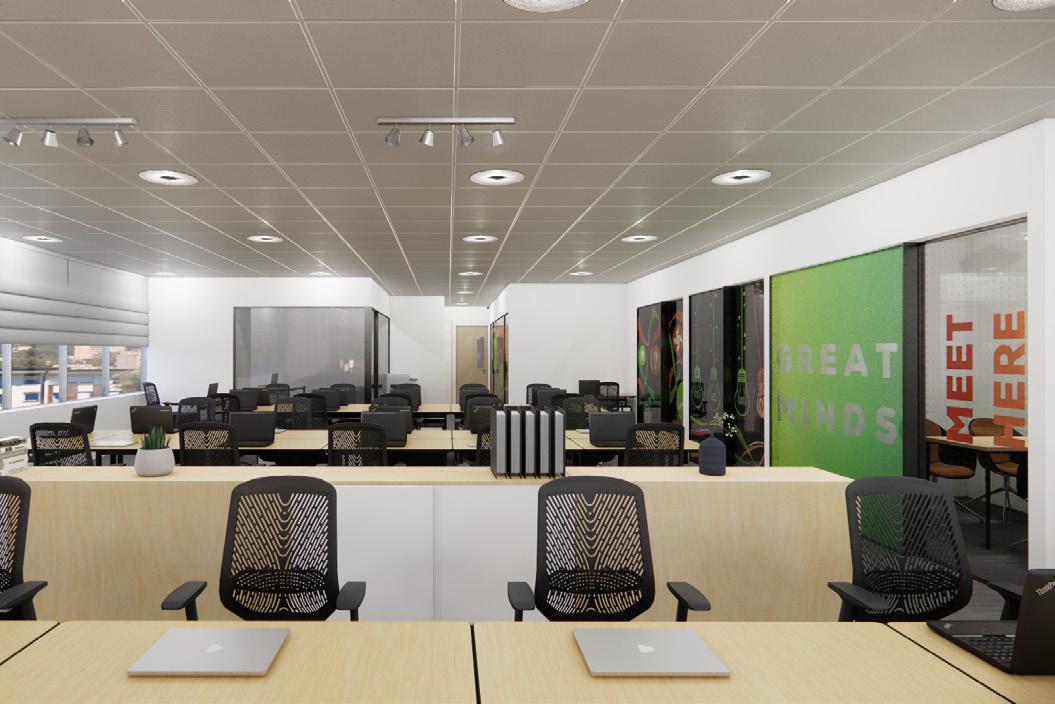

385,63 Laminate door 560 610 15 Drawn in AutoCAD Scale 1:20 on A3 Modelled inSketchUp Rendered in Photoshop Office view from Marketing team's area Office view from Sale Team's area General Manager's room

CABINET AND HANGING CABINET

Atelier Tho.A | Architectural Assistant | Ho Chi Minh City, Vietnam

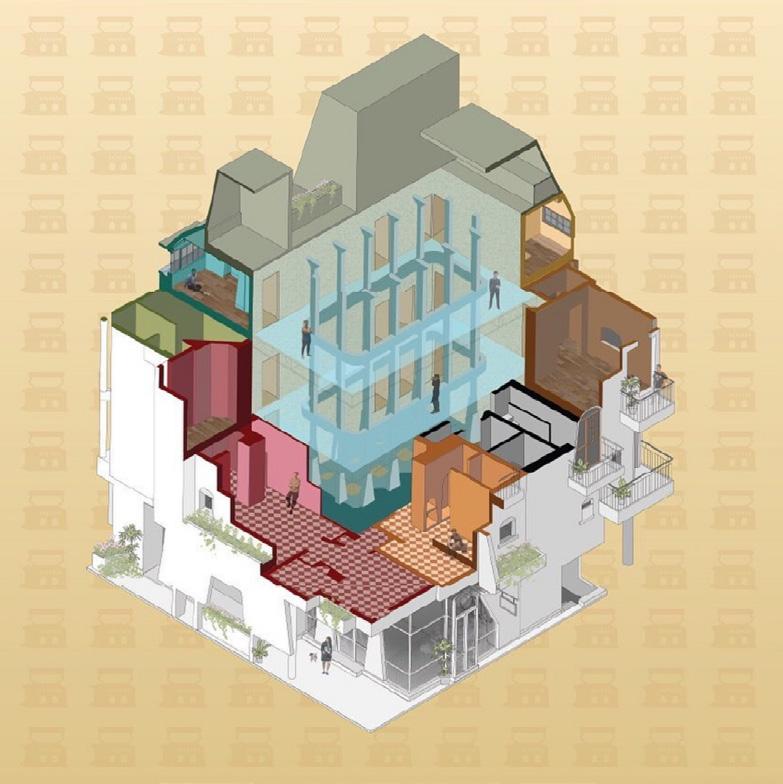

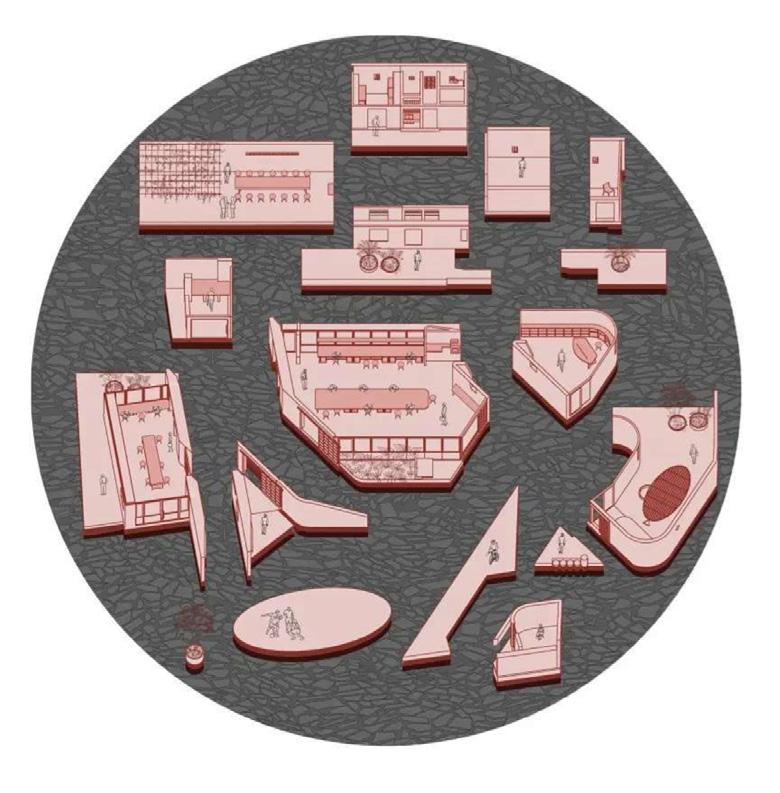

Book 35 is a picture-book by Atelier Tho.A - an architectural office based in Ho Chi Minh City - to celebrate their latest 35 projects through a series of illustrations. The reinterpretation of the architecture projects in the means of illustration language gives them a new breath and fresh approach to the viewers. My role in this project was to produce the illustrations and create the layout of the printing product.

16 Book 35 practice 2022

Modelled inSketchUp Rendered in Photoshop

Atelier Tho.A | Architectural Assistant | Yen Bai, Vietnam

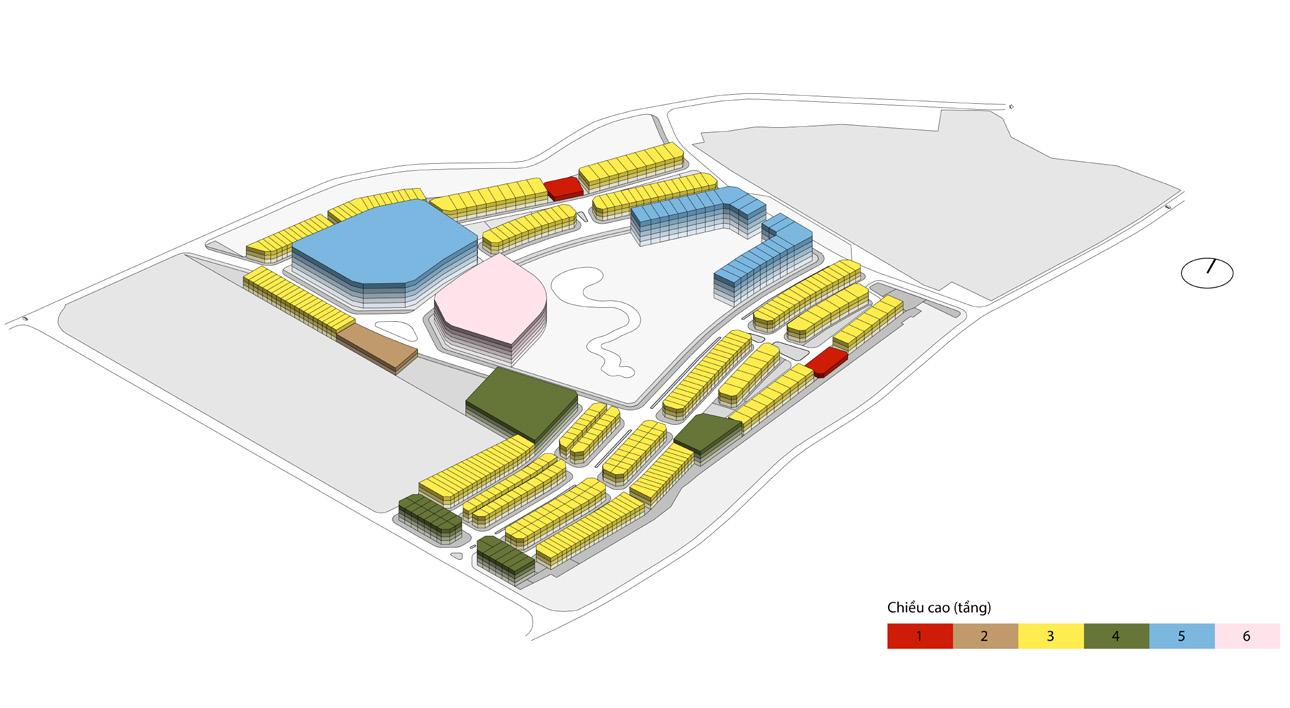

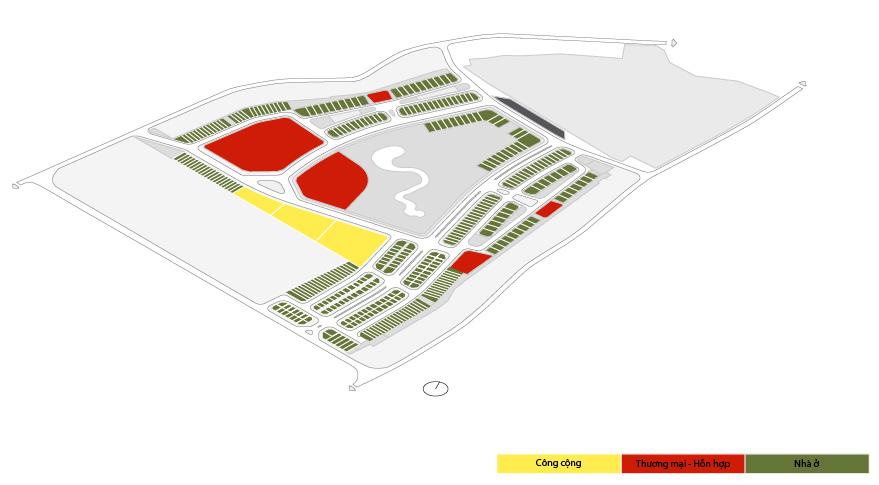

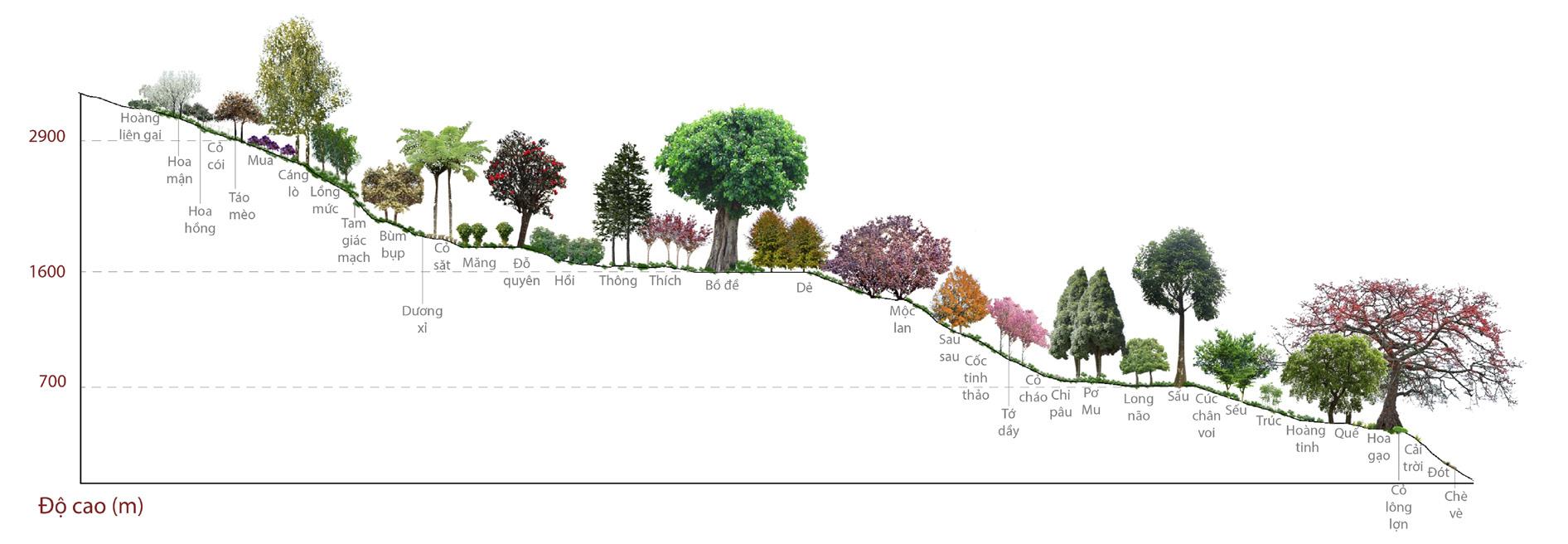

The whole project is to create a living complex with apartments, parks, hotels, shopping mall, schools, and other infrastructure. As a member of research team, my role was to carry out site and environment research, fucntion and typology analysis, and provide draft concept for interior spaces

17 APEC Muong Lo Valley practice 2021

H’ Mông 1.6 ha 22.7% 0.8 ha 11.6% 0.6 ha 8.7% 1.1 ha 16.4% 1.3 ha 18.9% 0.7 ha 11.1% 0.7 ha 10.6% Hà Nhì Sán Chay Mường Tày Thái Dao

Modelled in Rhino Rendered in Illustrator & Photoshop Modelled inSketchUp Rendered in Photoshop

house on hill practice 2019

TD Solutions | Internship | Bao Loc, Vietnam

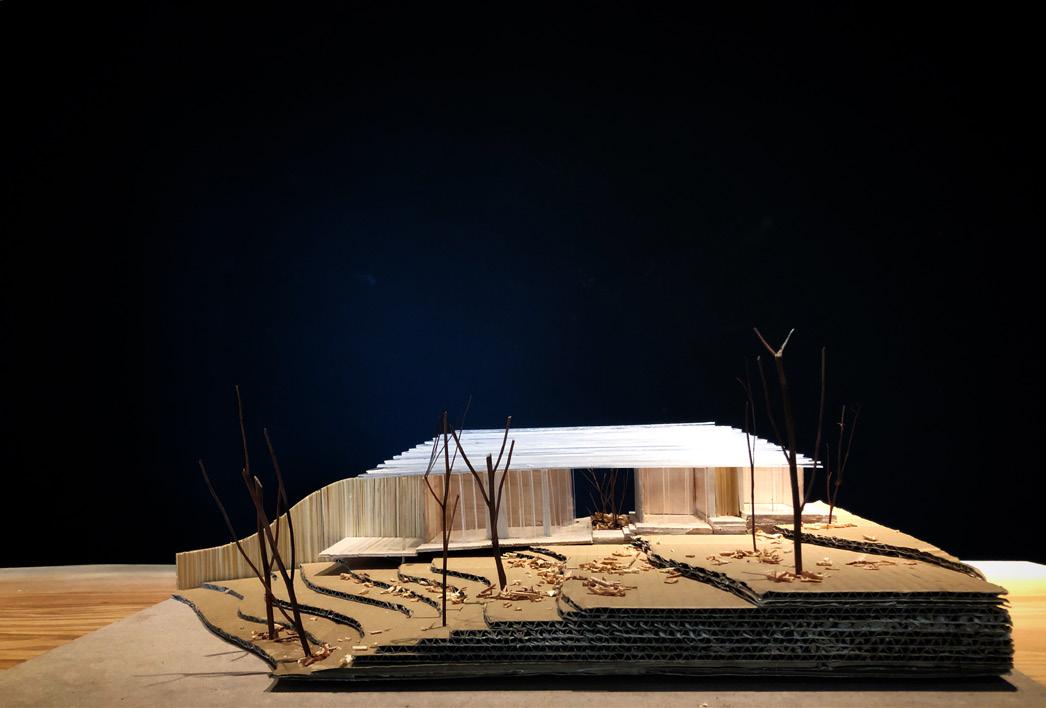

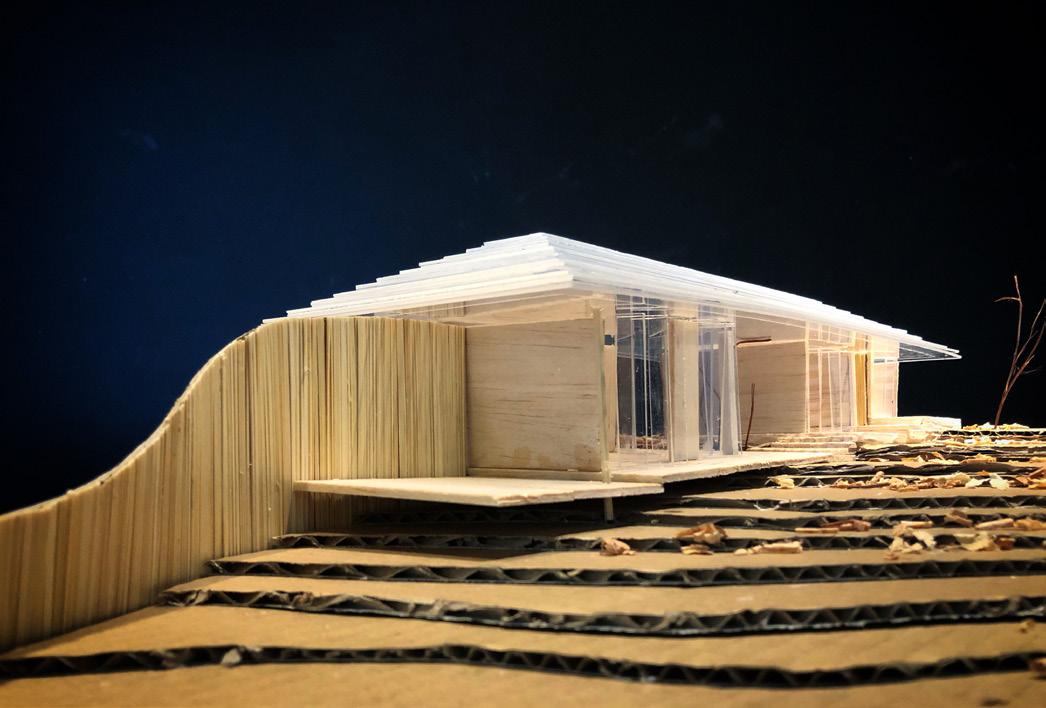

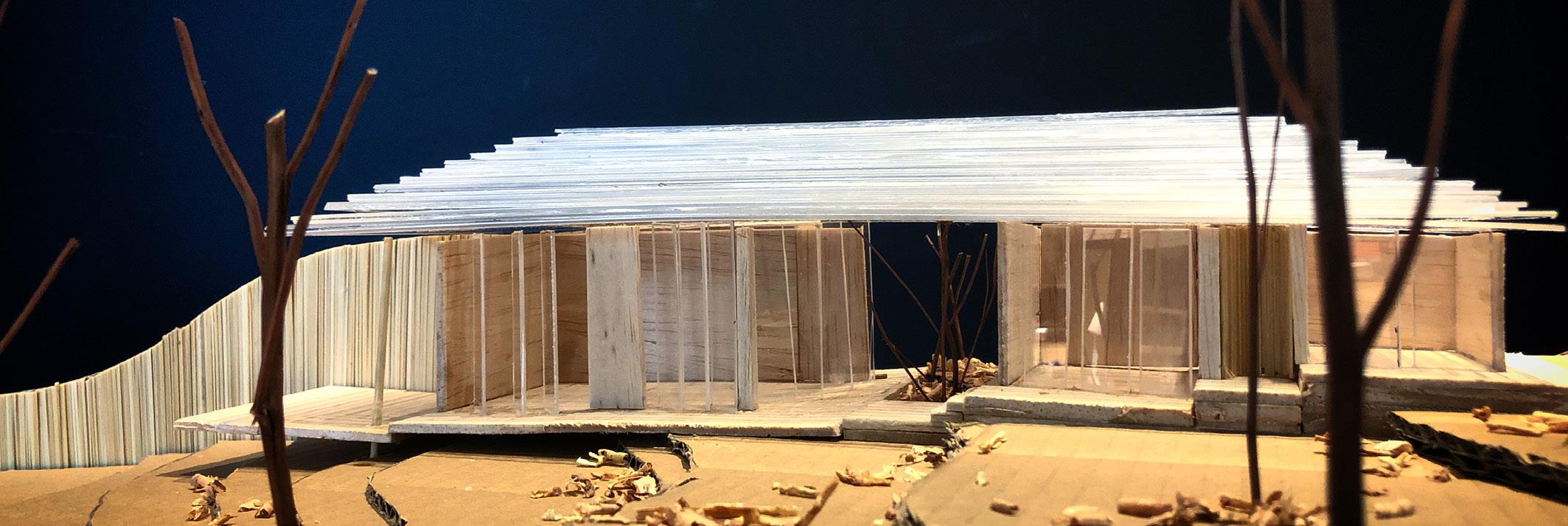

Located on a hill, the house was desiged as a get-away place at the weekend for a small family. The concept of the house was to integrate the form with the local topography, and overlook the lake at the foothills.
