ECG electrodes
Halbach Medical
Veerdijk 31, 1531 MS Wormer, The Netherlands +31 (0)75-6282957 info@halbachmedical.nl www.halbachmedical.nl
Table of contents
Short term applications ............................
XL/Rpositionable/TAB ...............................
Extra strong adhesive ...............................
Holter / Long term applications ..............
Pediatrics ...................................................
Neonatology .............................................
page 3 - 8
page 9 - 10
page 11 - 12
page 13 - 14
page 15 - 16
page 17

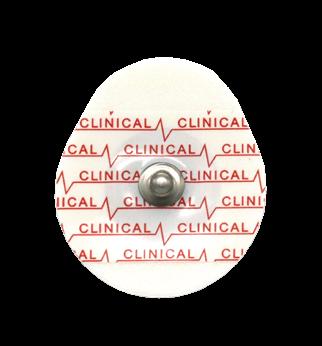

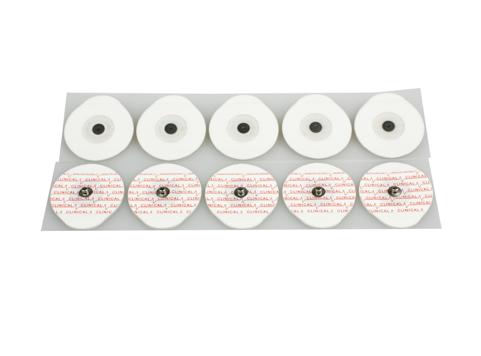

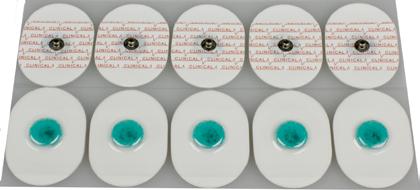

Clinical S32R
Article code
EC849759
Material Foam
Size (l x w)
44mm x 32mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit
100 /1200 /14400
(5 electrodes per strip)
Special features N/A
Application area
Universally applicable
Comparable with 3M™ Red Dot™ 2228, 2560
Cardinal Health 22450
Medi-Trace 450, Kendall 7300
Skintact F-RG, FS-RG

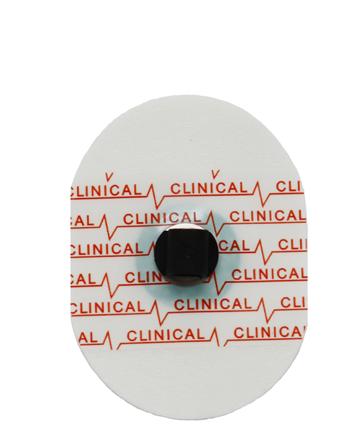

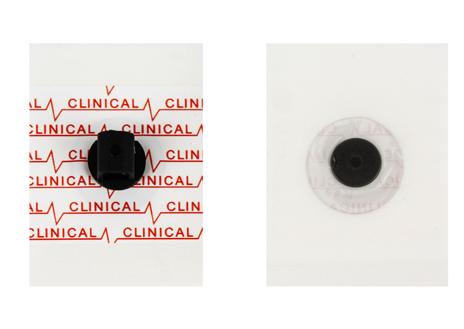

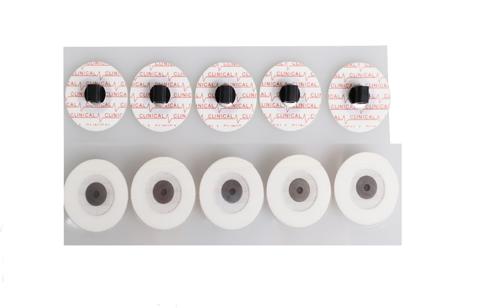

Clinical S32RC
Article code
EC849757
Material Foam
Size (l x w)
44mm x 32mm
Gel type Solid gel
Connector Carbon stud
Packing unit
100 /1200 /14400
(5 electrodes per strip)
Special features Radiolucent
Application area
Universally applicable
Comparable with 3M™ Red Dot™ 2244, 2570
Cardinal Health 850, 22850
Skintact F-REC
ECG electrodes - Adults Short term applications
Clinical S32RCB
Article code
EC849756
Material Foam
Size (l x w) 44mm x 32mm
Gel type Solid gel
Connector 4mm fitting
Packing unit 300 /450 /5400 (5 electrodes per strip)
Special features N/A
Application area Universally applicable
Comparable with 3M™ Red Dot™ 2228 BA Ambu WhiteSensor 4530, 4540
Clinical S40
Article code
EC849901
Material Foam
Size (l x w)
40mm x 36mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit
100 /1200 /14400 (5 electrodes per strip)
Special features N/A
Application area Universally applicable
Comparable with Cardinal Health Kendall 200, 31.0505.22; H135SG, 31.1355.21 Kendall™ Medi-Trace 200 Skintact F-TC1, FS-TC1
Clinical S40C
Article code
EC849902
Material Foam
Size (l x w)
40mm x 36mm
Gel type Solid gel
Connector Carbon stud
Packing unit
100 /1200 /14400 (5 electrodes per strip)
Special features Radiolucent
Application area
Universally applicable
Comparable with 3M™ Red Dot™ 2268 Cardinal Health Kendall H135TSG, 31.1355821 Kendall™ Medi-Trace 600
ECG electrodes - Adults Short term applications
Article code
Clinical S45
EC849903
Material Foam
Size (l x w)
45mm x 42mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 60 /900 /10800 (5 electrodes per strip)
Special features N/A
Application area Universally applicable
Comparable with 3M™ Red Dot™ 2237, 2245 Cardinal Health Kendall 530, 31.0139.26
Kendall™ Medi-Trace 530

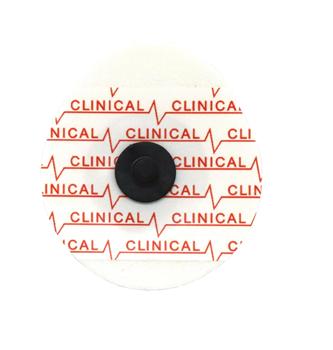

Clinical S45C
Article code
EC849904
Material Foam
Size (l x w)
45mm x 42mm
Gel type Solid gel
Connector Carbon stud
Packing unit 60 /900 /10800
(5 electrodes per strip)
Special features Radiolucent
Application area Universally applicable
Comparable with Cardinal Health SF3040.5 31.4523.89
Kendall™ Medi-Trace 530
Clinical S45B
Article code
EC849758
Material Foam
Size (l x w) 45mm x 42mm
Gel type Solid gel
Connector 4mm fitting
Packing unit 30/450/5400 (5 electrodes per strip)
Special features N/A
Application area E.g. diagnostics, cardiac stress tests
Comparable with 3M™ Red Dot™ 2228BA
Cardinal Health H914SG, 31.1941.21
Skintact FS-RB4

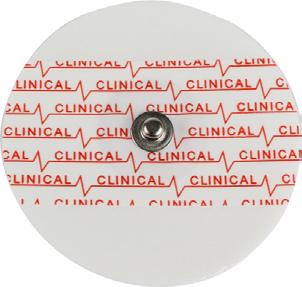

Clinical L50
Article code
EC849720
Material Foam
Size (l x w) 50mm
Gel type Liquid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 50 /600 /7200
(5 electrodes per strip)
Special features Extra high conductivity
Application area Universally applicable
Comparable with 3M™ Red Dot™ 2256
Cardinal Health Kendall H34LG, 31.1345.21
Skintact FS-50, F-55, F-TB
ECG electrodes - Adults Short term applications

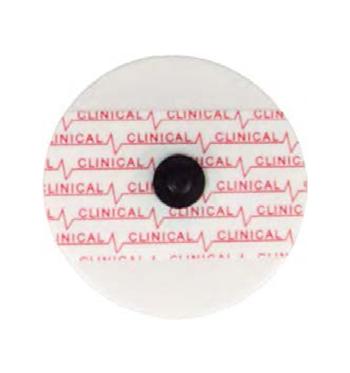

Clinical L50C
Article code
EC849723
Material Foam
Size (l x w)
Gel type
50mm
Liquid gel
Connector Carbon stud
Packing unit
50 /600/7200
(1 electrode per strip)
Special features Extra high conductivity Radiolucent
Application area Universally applicable
Comparable with Skintact FS-50C
Swaromed REF 1010
Article code
Clinical L50B
EC849721
Material Foam
Size (l x w)
Gel type
38mm x 50mm
Liquid gel
Connector 4mm fitting
Packing unit
50/400/4800
(5 electrodes per strip)
Special features N/A
Application area E.g. diagnostics, cardiac stress tests
Comparable with Skintact FS-RB4
Swaromed REF 1019
Clinical S55
Article code
EC849750
Material Foam
Size (l x w) 55mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 30/600/7200 (1 electrode per strip)
Special features Large surface area
Application area Universally applicable
Comparable with 3M™ Red Dot™ 2230
Cardinal Health Kendall H66LG, 31.1663.21 Skintact F-TB1
Clinical RE4032-5
Article code
EC849981
Material Fleece
Size (l x w) 40mm x 32mm
Gel type Hydrogel
Connector Carbon stud
Packing unit 5/600/7200 (5 electrodes per strip)
Special features Repositionable (up to 96 hours) Radiolucent
Application area Especially for intensive care
Comparable with 3M™ Red Dot™ 2260, 2670
Cardinal Health Kendall H49P; H59P, ES40076; H69P, ES40281; RR3305
ECG electrodes - Adults XL / Repositionable / TAB
Clinical TAB
Article code
EC849745
Material Paper
Size (l x w) 21mm x 34mm
Gel type Hydrogel
Connector TAB voor crocodile clamps
Packing unit 100/1000 (10 electrodes per strip)
Special features TAB connector
Application area Resting ECG /12-channel ECG
Comparable with 3M™ Red Dot™ 2330, 2360 Cardinal Health Kendall 5400, 31433538; 5500, 30807732 Skintact RT-34
Clinical RE4032-3
Clinical S33ST
Article code
EC849900
Material Foam
Size (l x w) 51 x 33 mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 60/900/10800 (5 electrodes per strip)
Special features Extra strong adhesive
Application area Universally applicable but mainly used for stresstests
Comparable with Cardinal Health Kendall H92SG, 31.1925.21, H93SG
Clinical L38ST
Article code
EC849906
Material Foam
Size (l x w)
50 x 38 mm
Gel type Liquid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit
50/600/7200 (5 electrodes per strip)
Special features Extra strong adhesive
Application area Mainly used for stresstests
Comparable with Skintact FS-21, FS-524 Swaromed REF 1036, 1066
ECG electrodes - Adults Extra strong adhesive
Clinical S40ST
Article code
EC849910
Material Foam
Size (l x w) 40mm x 36mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 60/900/10800 (1 electrode per strip)
Special features Extra strong adhesive
Application area Universally applicable
Comparable with Cardinal Health Kendall H135SG, 31.1355.21
Clinical S48C-ST
Article code
EC849929
Material Foam
Size (l x w) 48 x 45 mm
Gel type Solid gel
Connector Carbon stud
Packing unit 60/600/7200 (1 electrode per strip)
Special features Extra strong adhesive Radiolucent
Application area Universally applicable
Comparable with Cardinal Health Kendall H34SG, 31.1946.21
Clinical S30H
Article code
EC849763
Material Fleece
Size (l x w) 30 mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit
30/600/7200 (1 electrode per strip)
Special features N/A
Application area Universally applicable
Comparable with Skintact W-W130C/3
Clinical S55H
Article code
EC849765
Material Fleece
Size (l x w) 55 mm
Gel type Solid gel
Connector
Packing unit
Special features
Stainless steel stud, Ag/AgCl
30/600/7200 (1 electrode per strip)
Breathable fleece
Application area Especially used for diagnostics
Comparable with 3M RedDot 2231, 2238, 2239, 2249, 2271
Cardinal Health Kendall H99SG, 31.1996.21
Skintact W-601
ECG electrodes - Adults Holter / long-term applications
Article code
Clinical L55H
EC849722
Material Fleece
Size (l x w)
55 mm
Gel type Liquid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit
30/600/7200
(1 electrode per strip)
Special features Breathable fleece
Application area Especially used for diagnostics
Comparable with Cardinal Health Kendall H99LG, 31.1995.21
Skintact F-55, W-60
Article code
Clinical S2400H
EC849996
Material Foam
Size (l x w)
57 x 38 mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit
30/600/7200
(5 electrodes per strip)
Special features Cable slot
Application area Long-term applications (Holter monitoring)
Comparable with Ambu 4560M, 4570M
Clinical S30 Dino
Article code
EC849755
Material Foam
Size (l x w) 30 mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit
30/600/7200
(1 electrode per strip)
Special features With Dino print
Application area
Universally applicable
Comparable with 3M™ Red Dot™ 2248
Cardinal Health Kendall 100, 31118733; 133, 31439725-; H124SG, 31.1245.21 Skintact F-301
Clinical S30C
Article code
EC849998
Material Foam
Size (l x w)
30 mm
Gel type Solid gel
Connector Carbon stud
Packing unit
30/600/7200
(5 electrodes per strip)
Special features Radiolucent
Application area
Universally applicable
Comparable with 3M™ Red Dot™ 2268 Skintact W-130C /3
ECG electrodes
Clinical S40 Dino
Article code
Clinical S30B
EC849905
Material Foam
Size (l x w) 30mm
Gel type
Solid gel
Connector 4mm fitting
Packing unit
50 /5000 /6000
(5 electrodes per strip)
Special features High level of patient comfort
Used for children and adults
Application area Universally applicable
Comparable with 3M™ Red Dot™ 2268
Clinical L40 Dino
Article code
EC849726
Material Foam
Size (l x w)
Gel type
40 mm
Liquid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit
50/600/7200
(5 electrodes per strip)
Special features With Dino print
Application area Universally applicable
Comparable with Swaromed REF 1008 Diddle Skintact F-40C

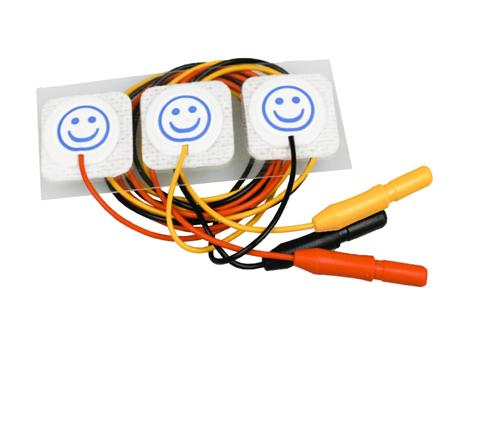

Clinical P22DR
Article code
EC849923
Material Fleece
Size (l x w)
Gel type
22mm, with cable 60 cm
Hydrogel
Connector 1,5mm DIN connector
Packing unit 3 /300 /3600 (3 electrodes per strip)
Special features Repositionable Radiolucent
Application area e.g. Incubators
Comparable with 3M™ Red Dot™ 2269, 2282
Cardinal Health Kendall 1051NPSM, 31424743

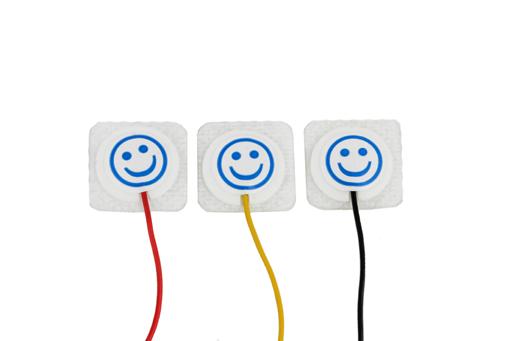

Clinical P22BR
Article code
EC849925
Material Vlies
Size (l x w)
Gel type
22mm, with cable 60 cm
Hydrogel
Connector 4mm fitting
Packing unit 3 /300 /3600 (3 electrodes per strip)
Special features Repositionable Radiolucent
Application area e.g. Incubators
Comparable with Cardinal Health Kendall H203GT Skintact PD-50-F4C
Veerdijk 31 1531 MS Wormer (NL) +31 (0)75 628 29 57 info@halbachmedical.nl
www.halbachmedical.nl
