MAHFOUZE ZIANY MOSQUE
LOCATION janabya,Bahrain.
Advertisement
PROJECT BRIEF Dome & Mehrab interior Parametric design
Role
• Using Parametric design tools I managed to design and 3d model a dome panel that scales down along the dome creating dramatic diamond I have been able to execute the job within 2 days creating clean model ready for fabrication.

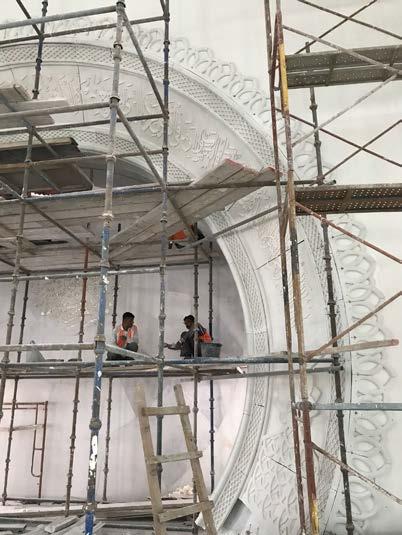

• Executed construction drawings for the Mehrab, the challenge was to divide it into small parts which creates a circle scales down in two Rhino I have been able to smash the 3d model into it is real 2d dimensions which was difficult and not accurate doing in traditional cad methods.
diamond based pattern. directions. Using methods.
This pavilion has been digitally designed and fabricated using parametric modelling and digital fabrication technology. Morphing norms 2013 .
2013-2018
