GWorks Brochure January 2024

GWORKS EXPEDITION TRAYS, CANOPIES & TOURING

FITOUTS COMING SOON

GWORKS is a TRAY AND CANOPY company located on the Mid North Coast in PORT MACQUARIE.

All items in this booklet are manufactured by OUR TEAM. We work with key suppliers to deliver the BEST PRODUCTS to go with our WORK’N’PLAY setups!

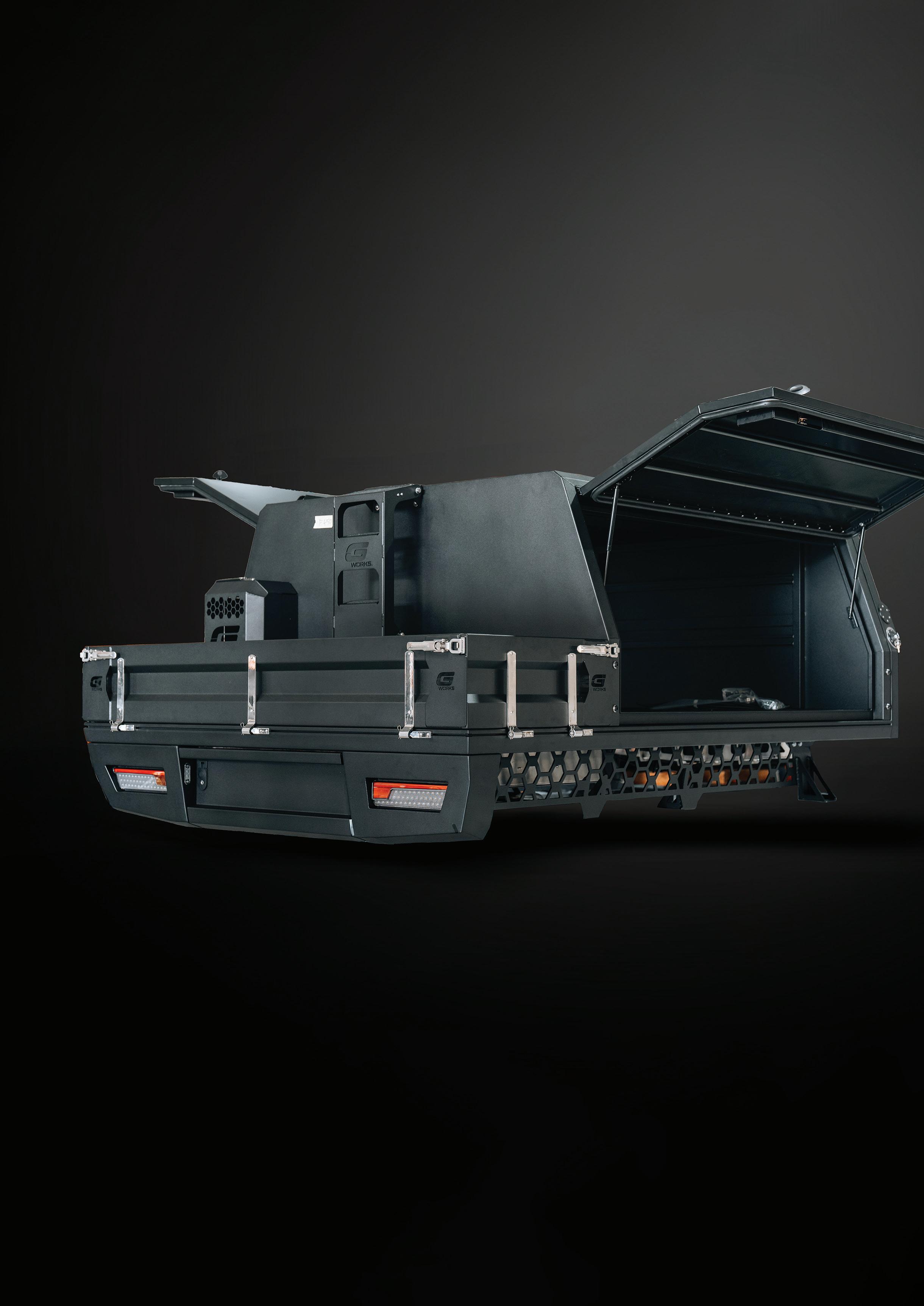

INTRODUCING THE NEW

WORK & PLAY

PRO

FEATURES

Tray - Work & Play Pro (Gworks Extrusion Tray)

• CNC Cut & Folded Headboard with relocated filler points

• Overall Tray size: Vehicle dependent

• Relocated Fuel filler point, Billet aluminum machined product

• Gworks Extrusion Tray Subframe

• 3mm 5052 Aluminum flat sheet floor

• Modular Design, Interchangeable parts via Unistrut system

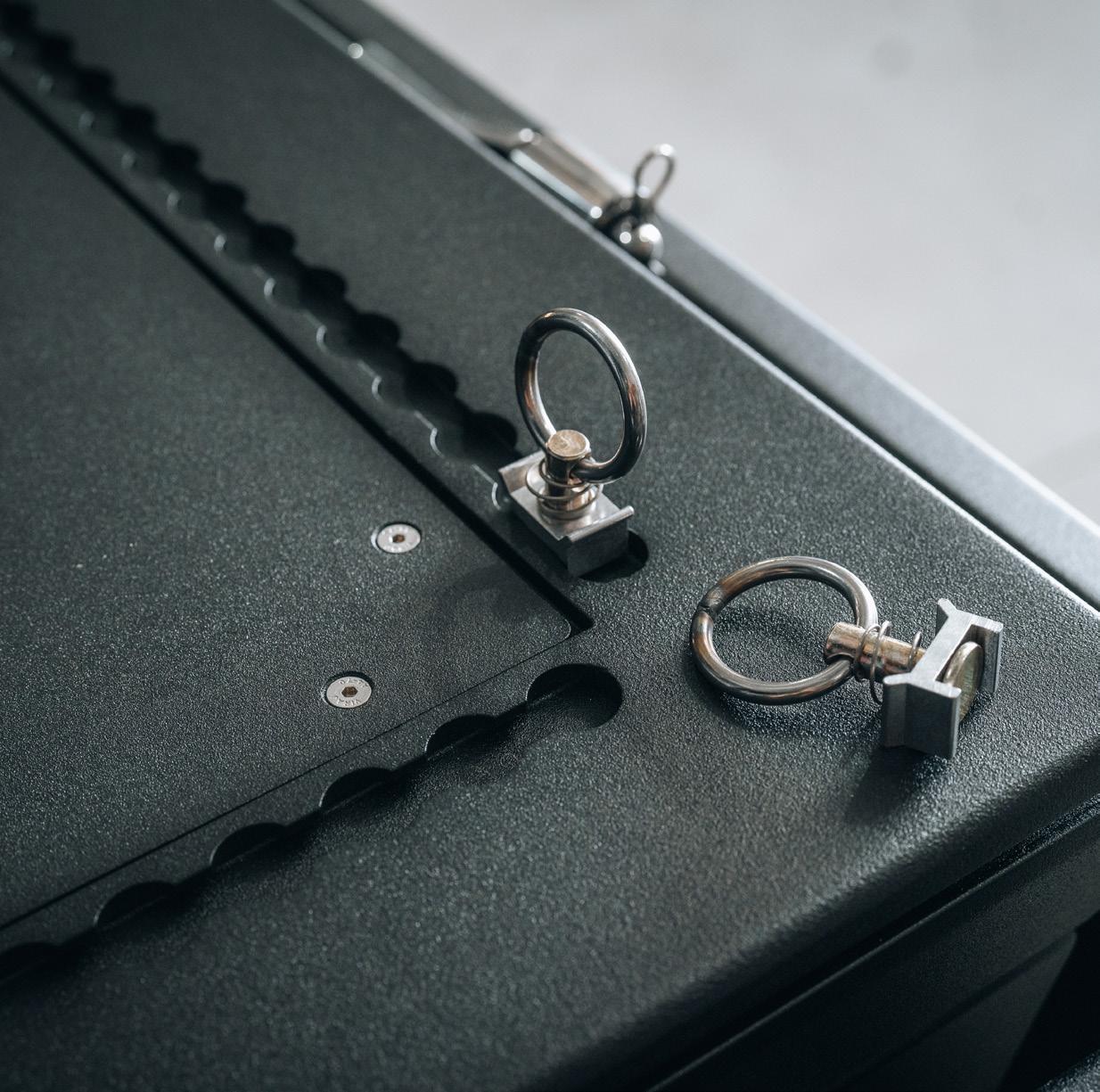

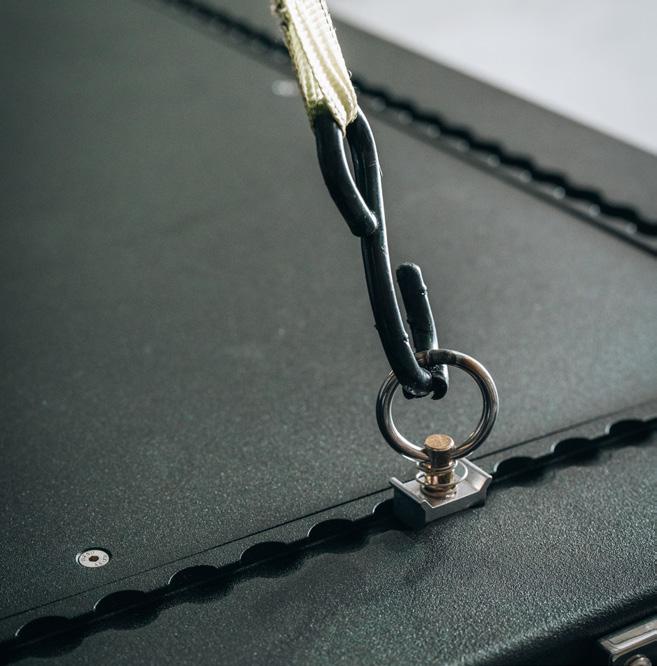

• Internal Track Tie Downs, Adjustable Locations

• Full window protector

• 6mm Steel Backbone Mounting System

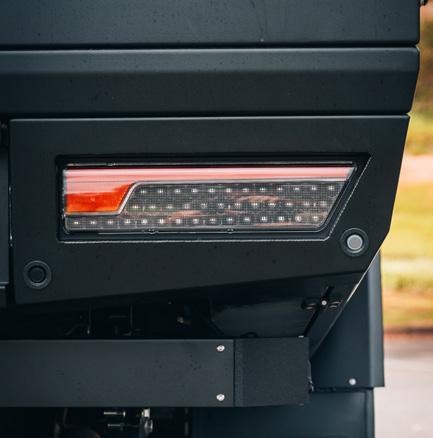

• Led Technologies 355 Tail lamps with flush-mounted number plate lights & Vehicle patch looms

• Ability to transfer to multiple vehicle platforms

Rear Underbody Toolboxes Tapered + Front Infill Panels (Pair)

• Quality automotive side bulb rubber seal

• Heavy Duty Hinges

• 3mm CNC Cut & Folded Design

• Door strap

• Suitable for ARB compressors

• Compression locks as standard, Whale Tail locks available on American pickup or truck builds

NO DRILL TRAY PLATFORM

50L Headboard Water Tank

• Gravity Feed Tank

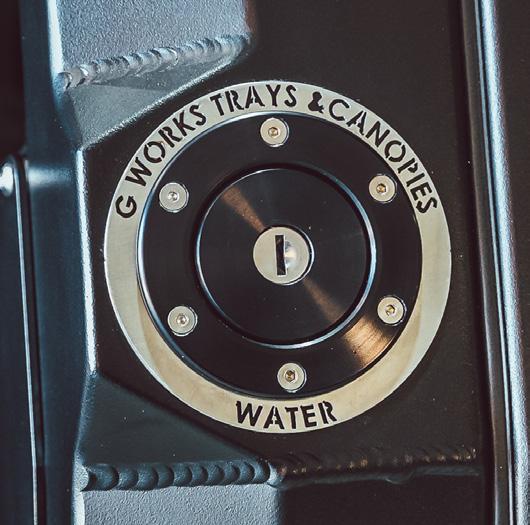

• Includes Billet Aluminum Filler Point

• Bolt-in Poly Tank

• John Guest Fittings, Food Grade Hoses & Breather

• Includes Tap at Rear

• Water pump upgrade available

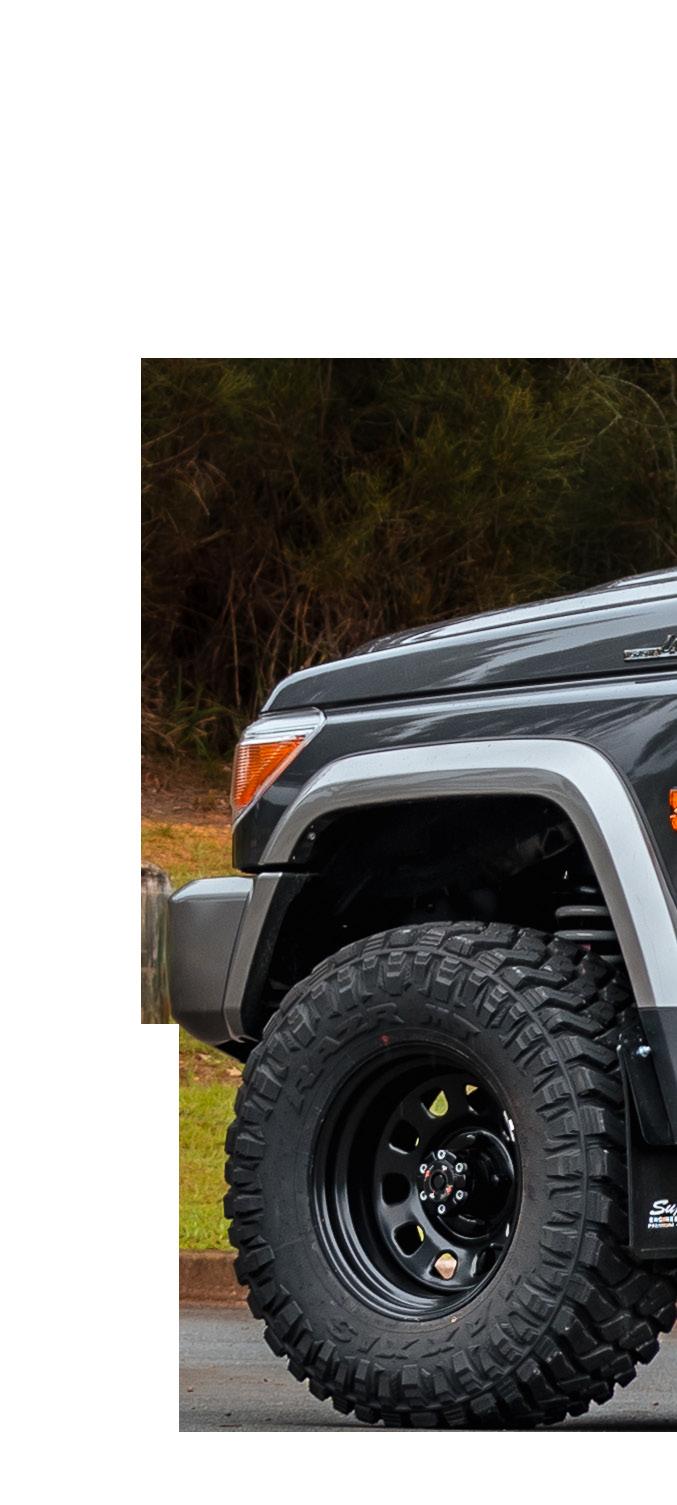

Mud Guards Flared

• CNC Cut & Folded flared Design.

• Adjustable offset 40mm of adjustment

• Gworks Rubber Mud Flaps Included

• Suit up to a 35inch tyre

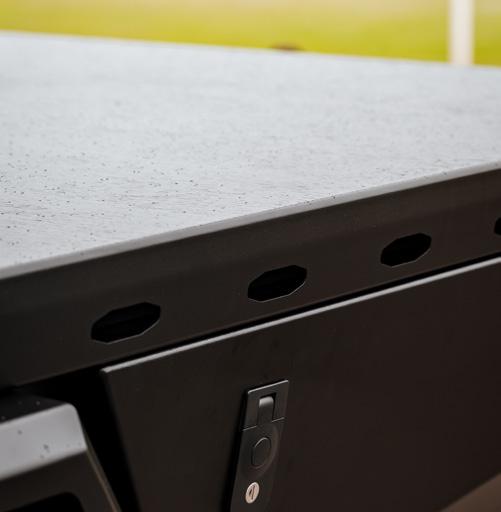

Trundle Drawer 1400mm

• Approximate dimensions 1400mm Long x 800mm Wide x 125mm Deep (Internal Measurements 600mm Wide x 1390mm Long x 120mm Deep)

• 3mm CNC Cut & folded

• Centre support rib

• Quality automotive side bulb rubber seal

• 225kg Heavy duty drawer slides

• Quality compression locks

• Removable 800mm Trundle Lid

• Water & Dust Proof

Total Approximate Weight: 200kg

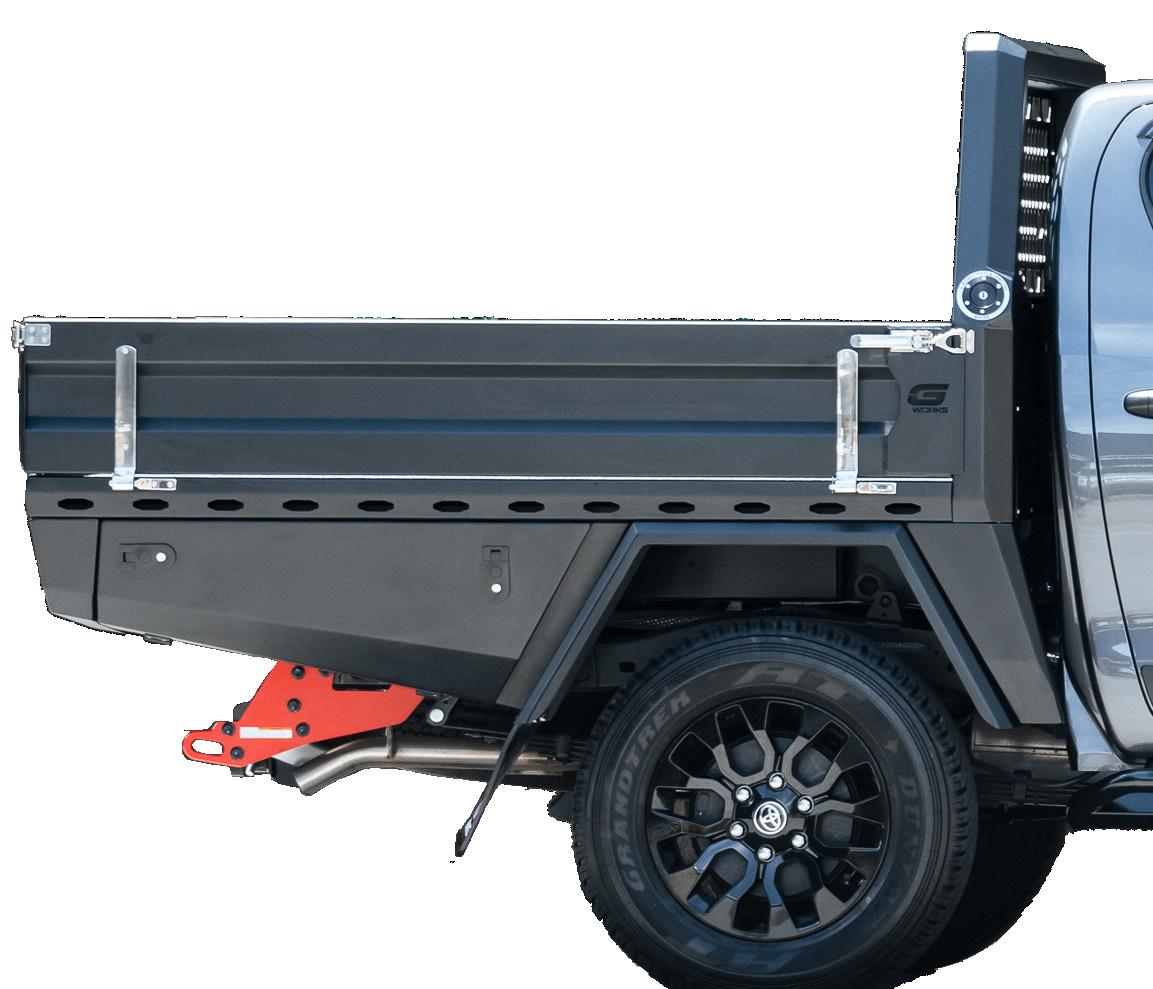

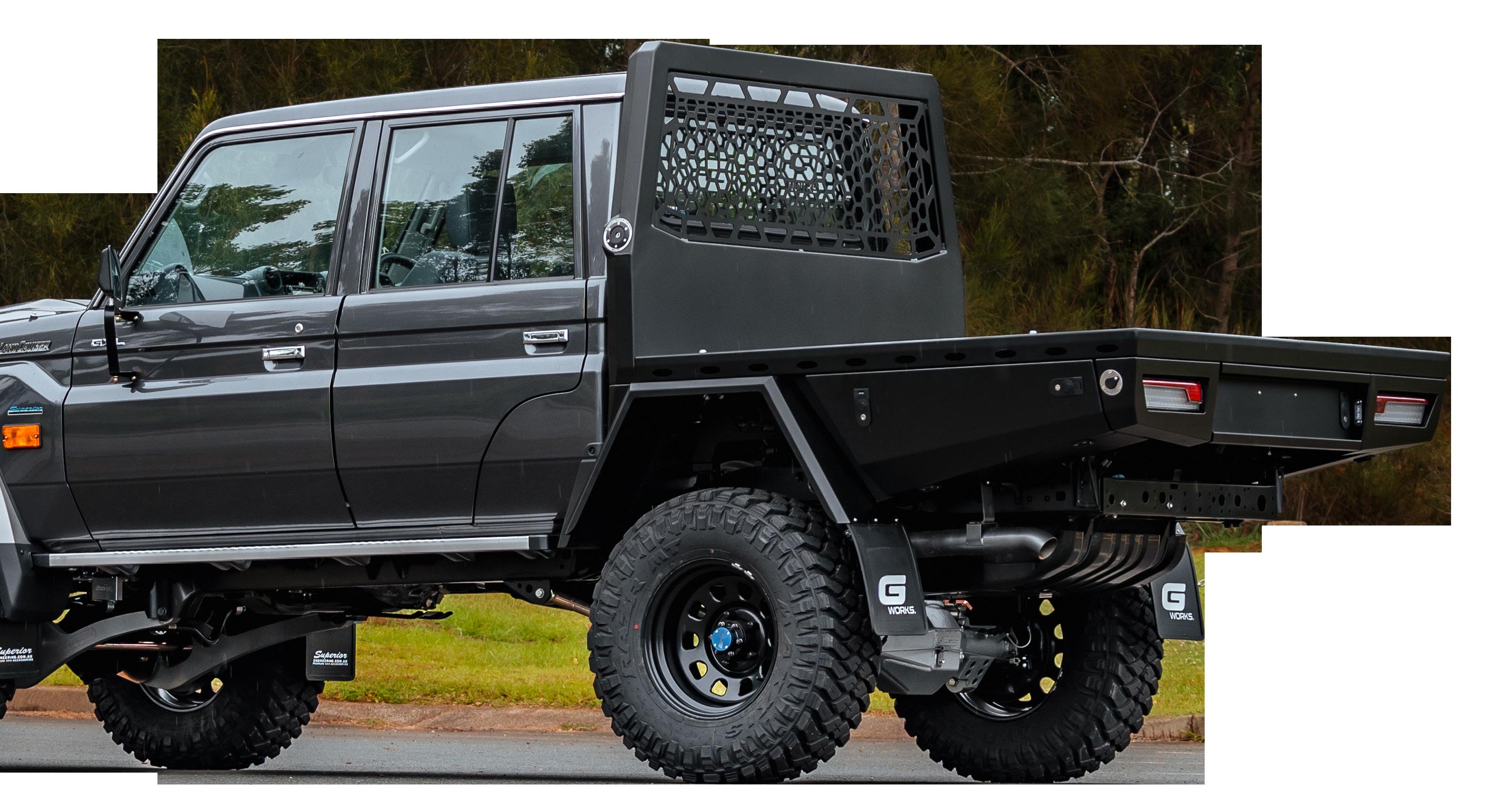

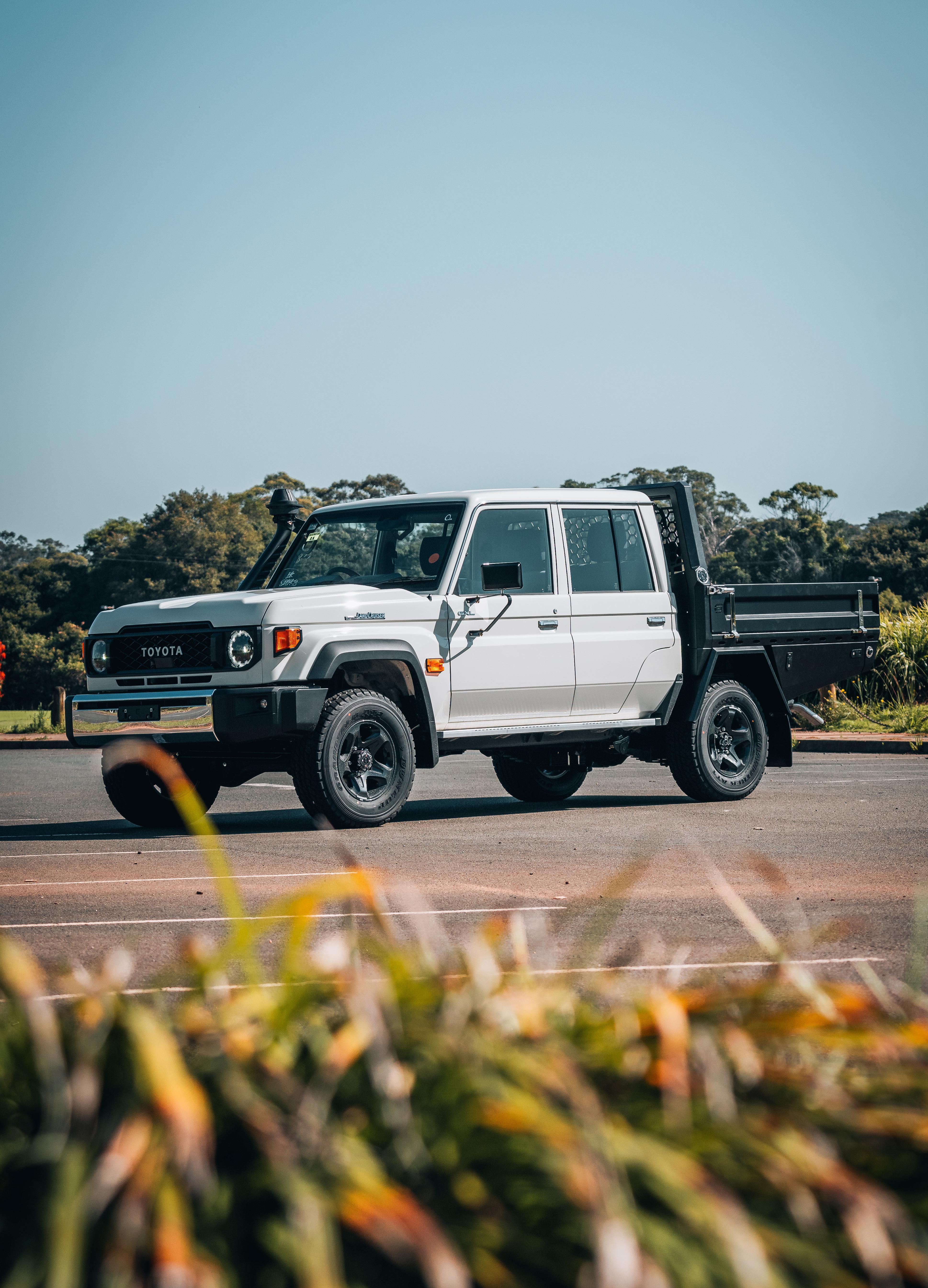

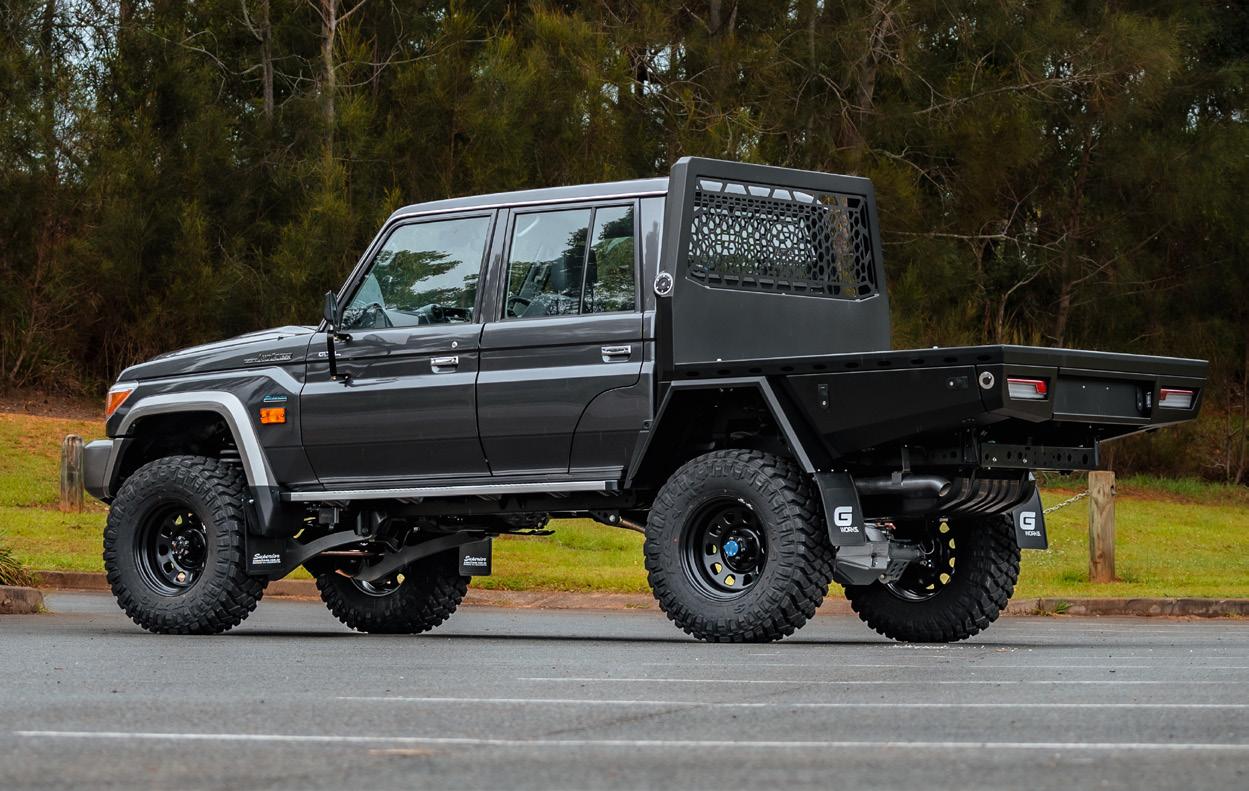

WORK & PLAY DUAL CAB TRAY PACKAGE

Stainless Fixings

Reverse Camera Relocation

TRUNDLE DRAWER 1400MM

Dimensions are 1400mm x 800mm x 125mm

Internal measurments are 600mm x 1390mm x 120mm

Centre Support Rib

225kg Heavy Duty Drawer Slides

Removable 800mm Trundle Lid

3mm CNC Cut & Folded

Quality Automotive Side Bulb Rubber Seal

Quality Compression Locks

Water & Dust Proof

UPGRADES

» Powered Water Pump & Flush Mounted Stainless Desk Wash Tap

WEIGHT

» Total approx Weight 210kg

1700MM TRAY FEATURES

Usable Tray Top Size 1700mm Long X 1850mm Wide

Overall Tray Size Including Headboard 1815mm Long X 1850mm Wide

MUD GUARDS FLARED

CNC Cut & Folded Flared Design

Adjustable Offset 40mm Of Adjustment

Relocated Fuel Filler Point, Billet Aluminum Machined Product Gworks Rubber Mud Flaps Included

4mm 5052 Aluminum Flat Sheet Floor

Interlocking Subframe

Full Window Protector

Raptor-Coated Tray Top

Ability To Transfer To Multiple Vehicle Platforms

Suit Up To A 35 Inch Tyre

REAR UNDERBODY Toolboxes Tapered + Front Infill Panels (Pair)

Quality Automotive Side Bulb Rubber Seal

Heavy Duty Hinges

3mm CNC Cut & Folded Design

CNC Cut & Folded Headboard With Relocated Filler Points Compression Locks

Headboard Height 865mm (Vdj79/Patrol 900mm)

Full Welded Flat Sheet Design CNC Cut & Folded Design

Modular Design, Interchangeable Parts Via Unistrut System

Door Strap

Suitable For ARB Compressors

50L HEADBOARD WATER TANK

Rope Rail Tie-Downs Are Integrated Into The Design. Gravity Feed Tank

CNC Cut & Folded Tray Mounts

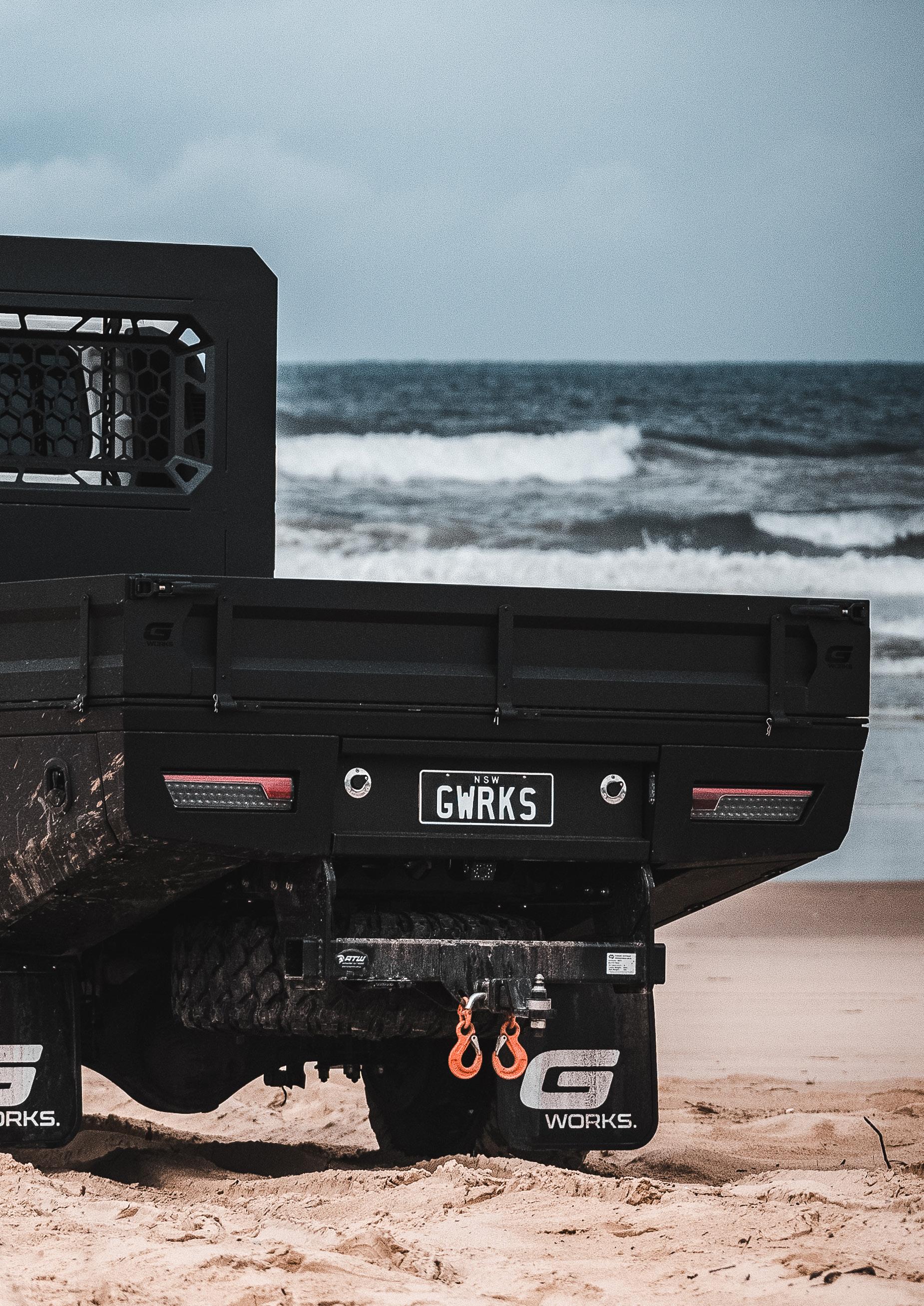

Led Technologies 355 Tail Lamps With Flush-Mounted Number Plate Lights & Vehicle Patch Looms

Industry Leading Tray Mount Design

Includes Billet Aluminum Filler Point

Bolt-In Poly Tank

John Guest Fittings, Food Grade Hoses & Breather

Regular Tap Located At The Rear Of The Vehicle

Note: *Additional charges apply if you would like us to mount your compressor inside your toolbox (not all brand compressors will fit). Compression locks are not central locking capable. We do not fit whale tail locks in our toolboxes.

WORK & PLAY SINGLE / EXTRA CAB TRAY PACKAGE

2000MM TRAY FEATURES

Usable Tray Top Size 2000mm Long X 1850mm Wide

CNC Cut & Folded Headboard With Relocated Filler Points

Overall Tray Size Including Headboard 2015mm Long X 1850mm Wide

Headboard Height 865mm (Vdj79/Patrol 900mm)

Relocated Fuel Filler Point, Billet Aluminum Machined Product

Full Welded Flat Sheet Design CNC Cut & Folded Design

4mm 5052 Aluminum Flat Sheet Floor

Modular Design, Interchangeable Parts Via Unistrut System

Interlocking Subframes

MUD GUARDS FLARED

CNC Cut & Folded Flared Design.

Adjustable Offset 40mm Of Adjustment

Gworks Rubber Mud Flaps Included

Suit Up To A 35 Inch Tyre

FRONT & REAR UNDER BODY TOOLBOXES*

Quality Automotive Side Bulb Rubber Seal

Heavy Duty Hinges

3mm CNC Cut & Folded Design

Compression Locks

Rope Rail Tie-Downs Are Integrated Into The Design Door Strap

Full Window Protector

CNC Cut & Folded Tray Mounts

Raptor-Coated Tray Top

Led Technologies 355 Tail Lamps With Flush-Mounted Number Plate Lights & Vehicle Patch Loom

Ability To Transfer To Multiple Vehicle Platforms Mud Guards Flare

Suitable For ARB Compressors

50L HEADBOARD WATER TANK

Gravity Feed Tank

Includes Billet Aluminum Filler Point

Bolt-In Poly Tank

John Guest Fittings, Food Grade Hoses & Breather

Regular Tap Located At The Rear Of The Vehicle

Note: *Additional charges apply if you would like us to mount your compressor inside your toolbox (not all brand compressors will fit). Compression locks are not central locking capable. We do not fit whale tail locks in our toolboxes.

TRUNDLE DRAWER 1400MM

Dimensions are 1400mm x 800mm x 125mm

Internal measurments are 600mm x 1390mm x 120mm 3mm CNC Cut & Folded

Centre Support Rib

225Kg Heavy Duty Drawer Slides Quality Compression Locks

Removable 800mm Trundle Lid

UPGRADES

» Powered Water Pump & Flush Mounted Stainless Desk Wash Tap

& Dust Proof

WEIGHT » Total approx Weight 210kg

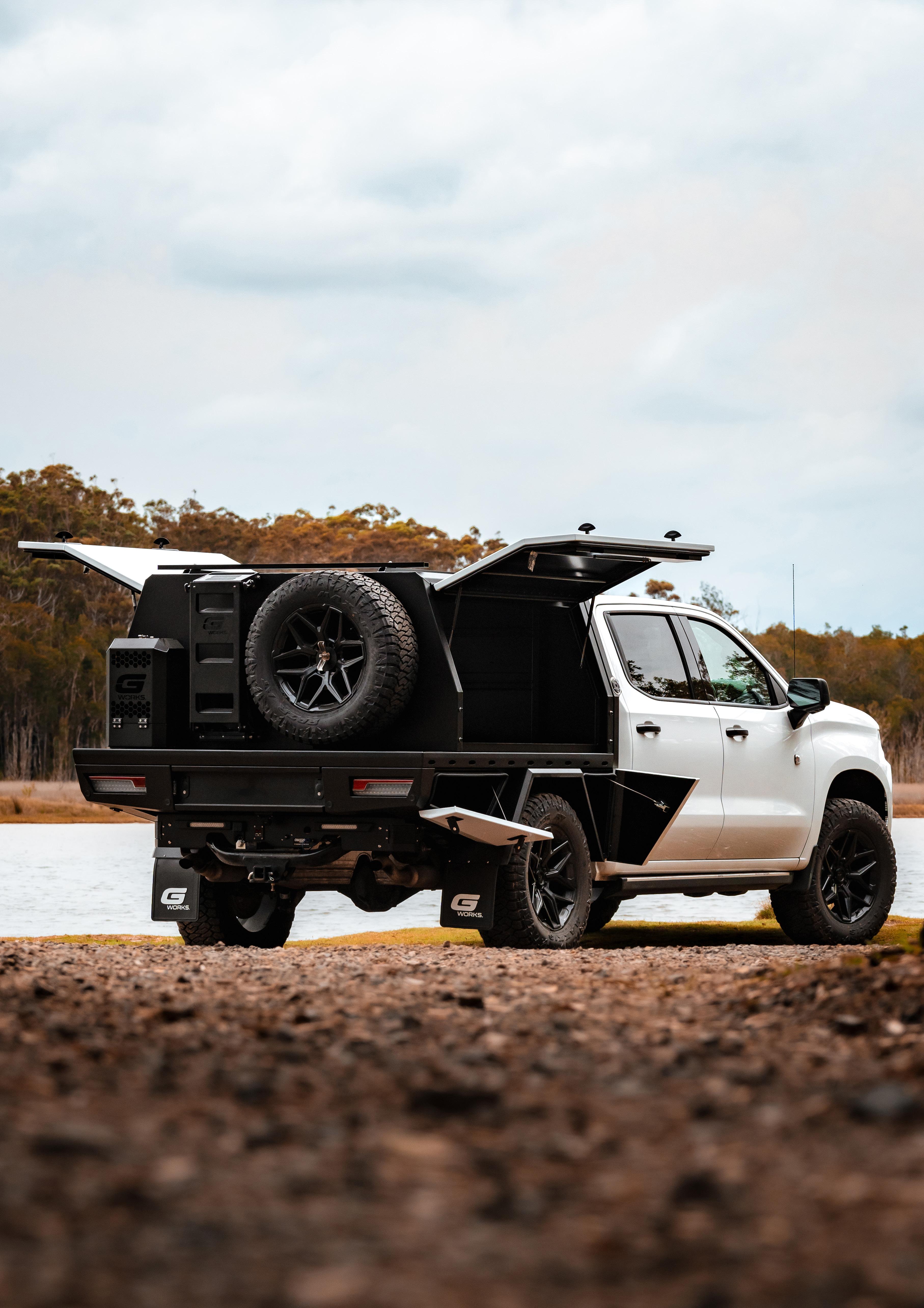

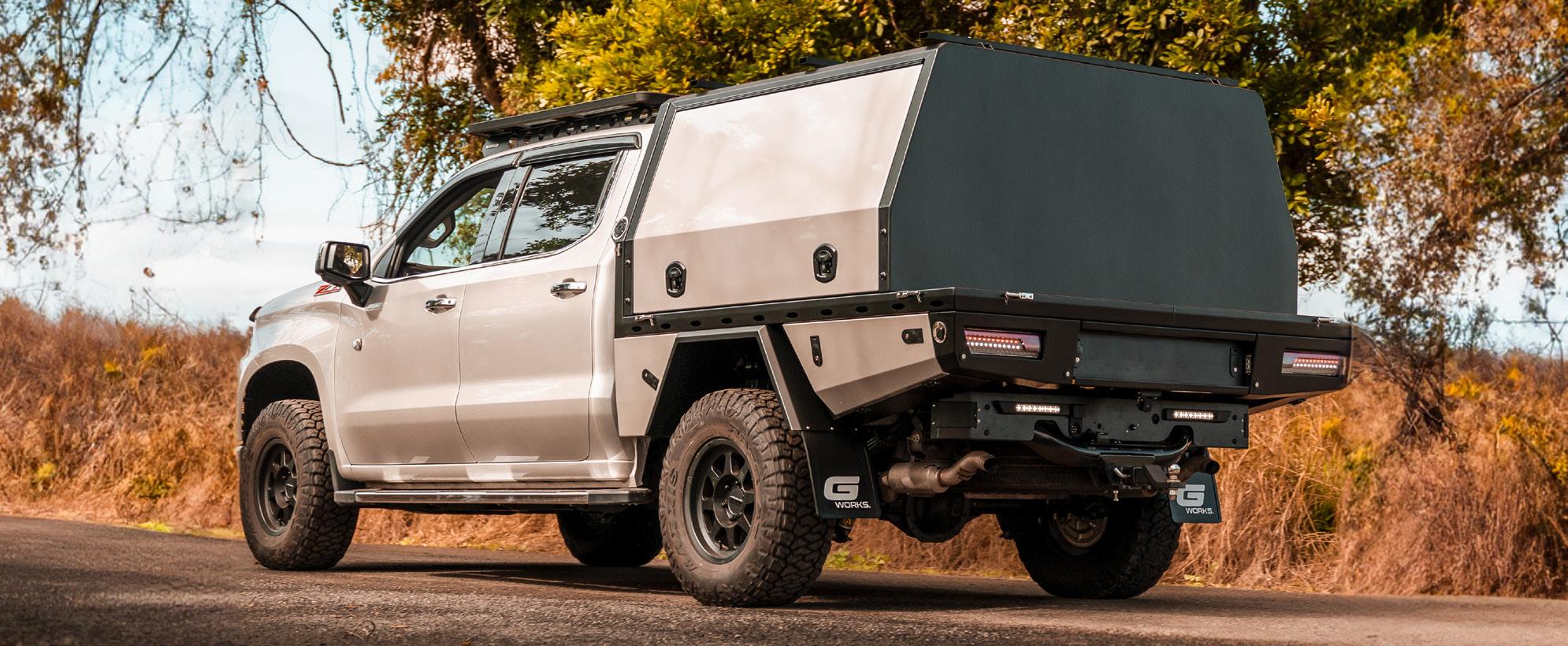

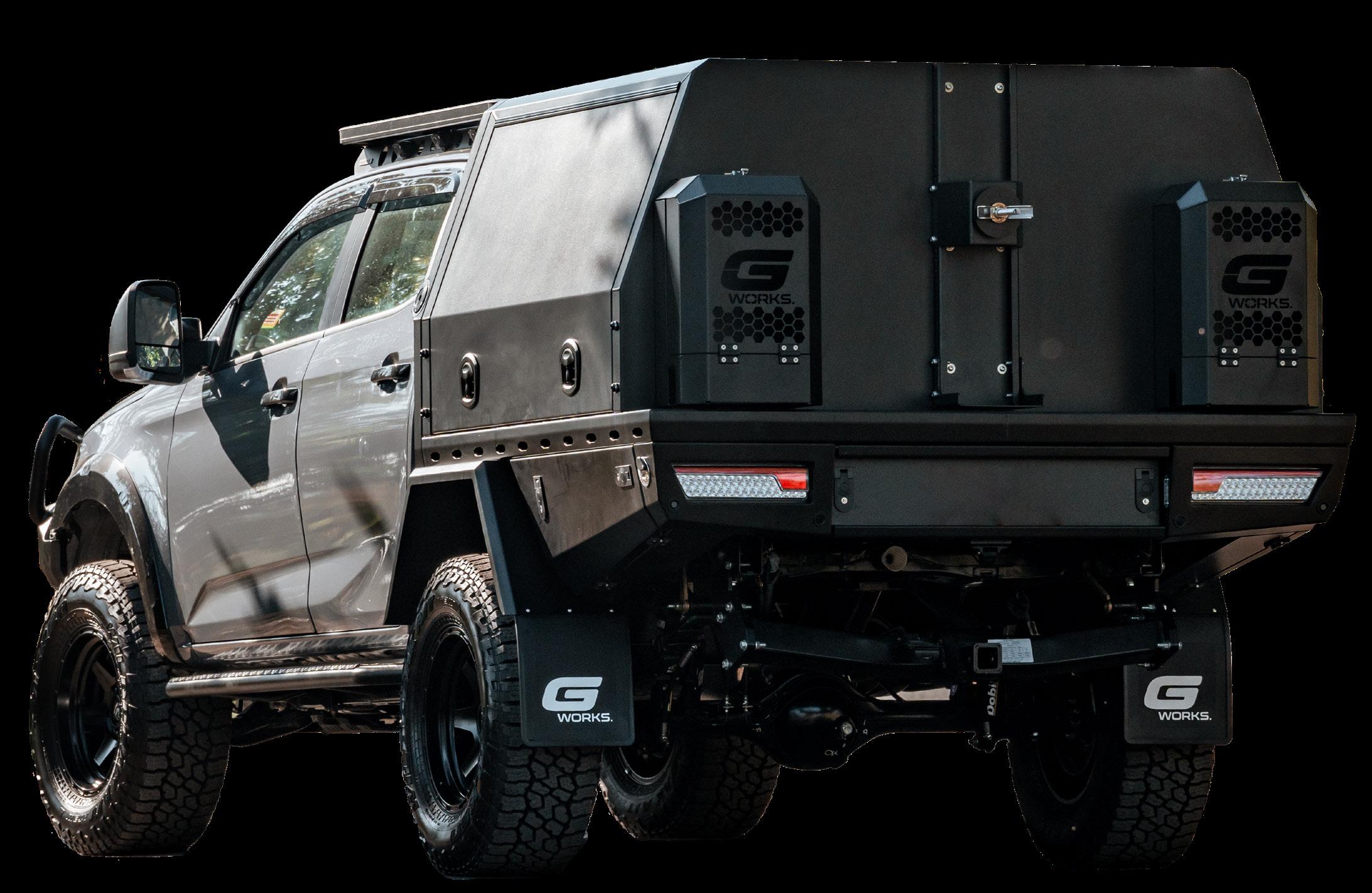

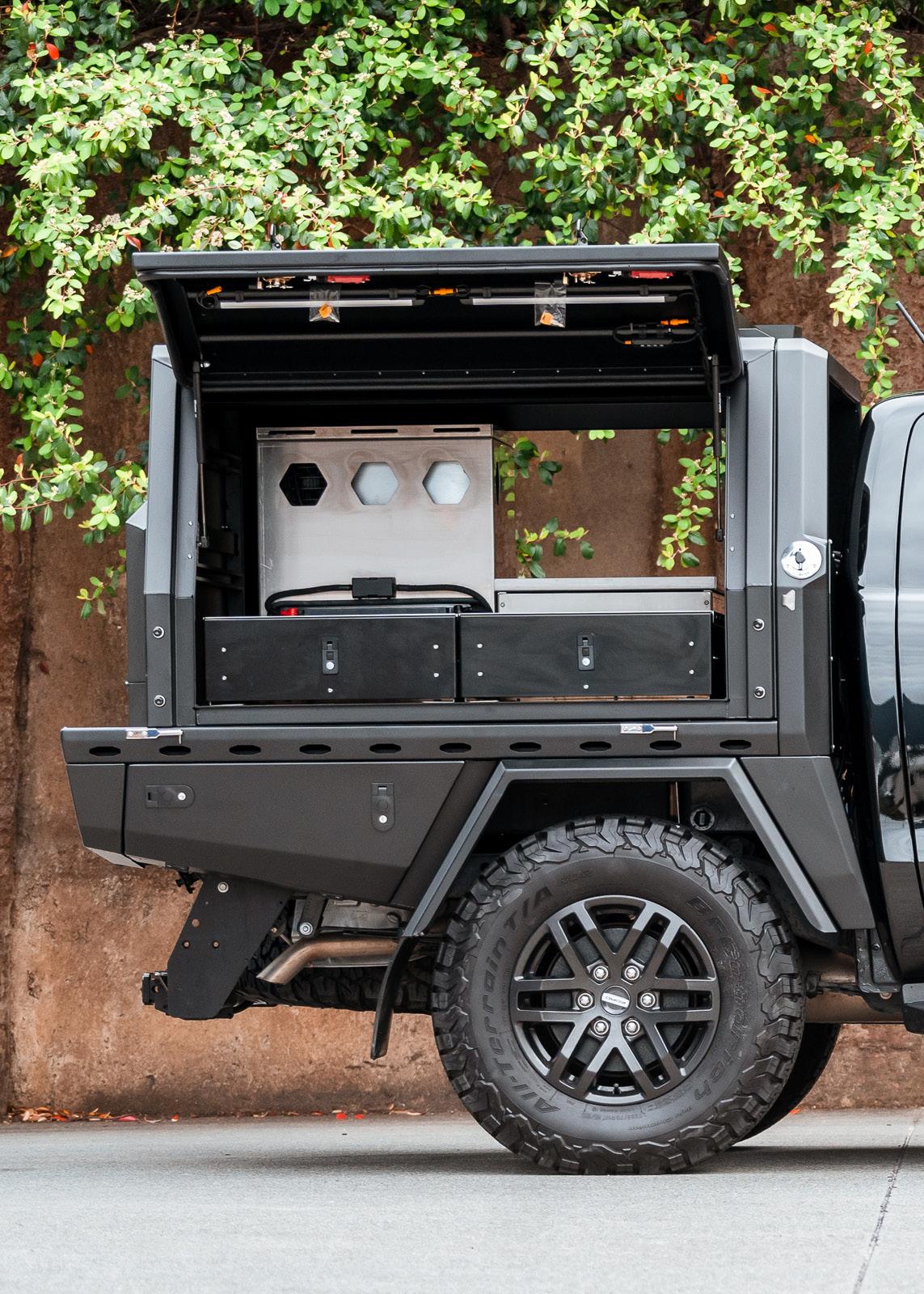

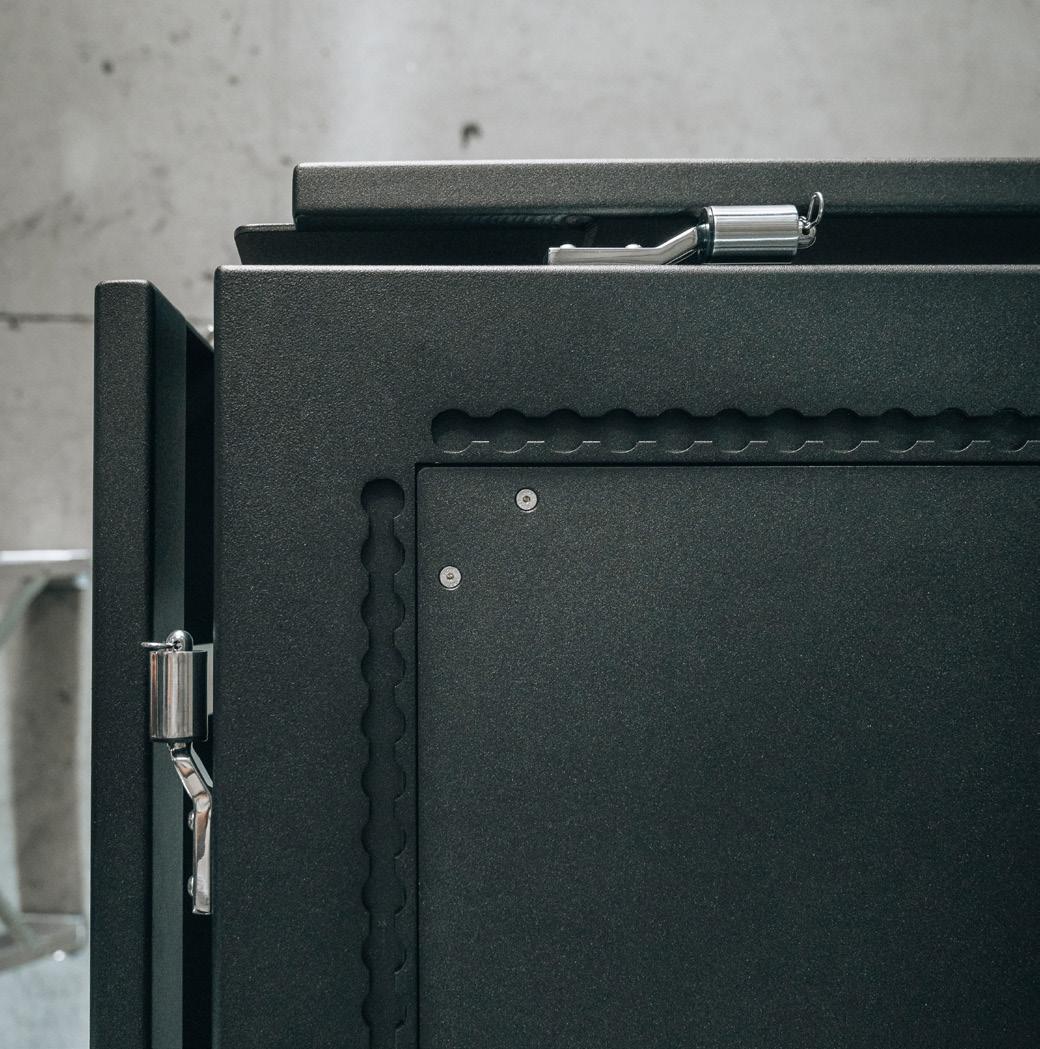

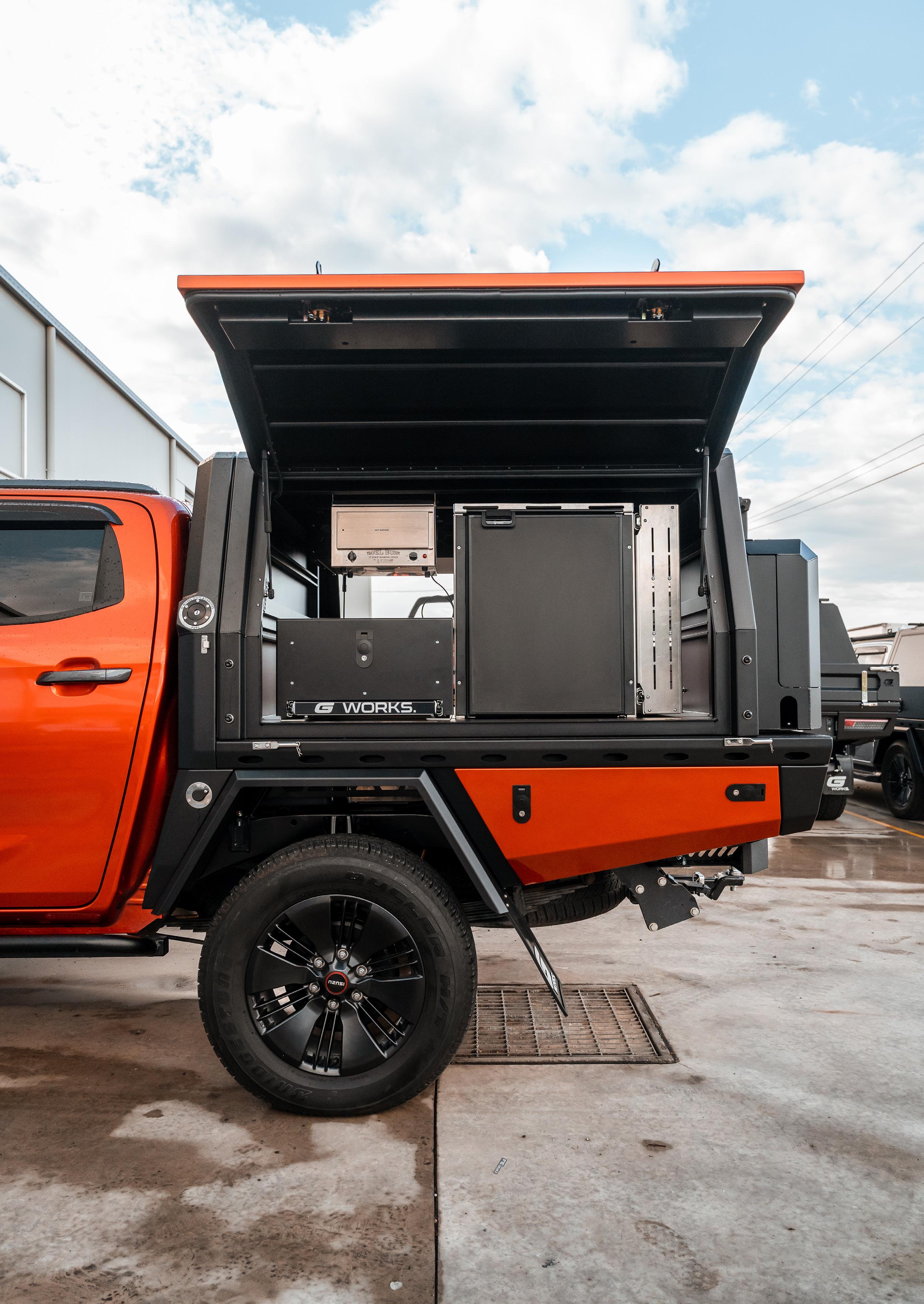

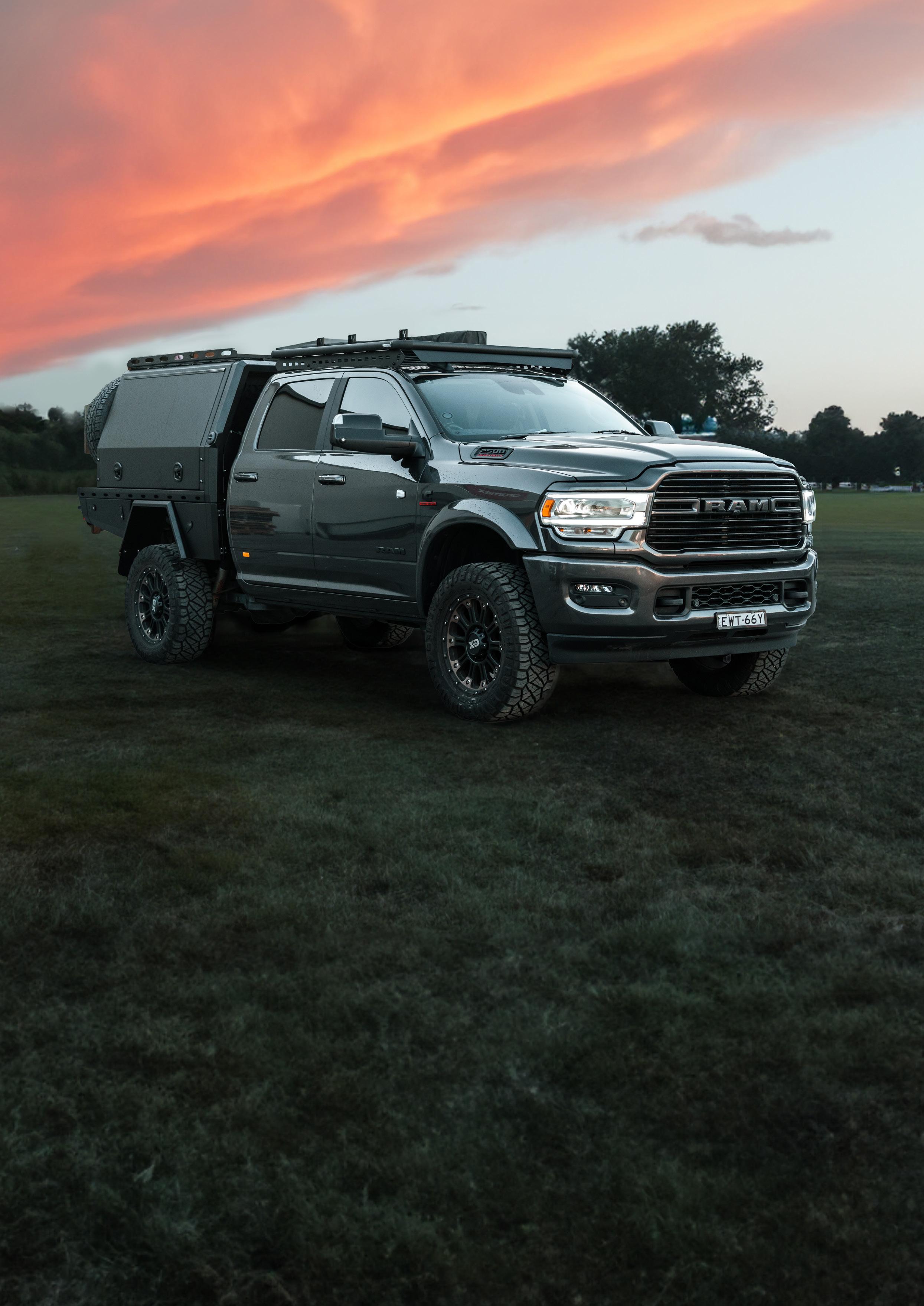

ALL CANOPIES ARE MANUFACTURED WITH THE ABILITY FOR LIFT OFF, SO IF YOU DECIDE LATER YOU WANT TO TAKE IT OFF, YOU DON’T HAVE TO STRESS

1000 mm Canopy 1000mm Dog Box 1250mm Canopy 1500mm Canopy

Made adventure tough with 3mm aluminium, Gworks canopies give you the key to any adventure! While keeping water and dust out with flush doors, quality automotive seals and waterproof hinges, while added security from electronically actuated locks ensure your tools are only ever in the right hands.

STANDARD CANOPY FEATURES

Flush Closing Doors Whale Tail Locks With Electronic Actuators (Central Locking Units) 3mm Aluminum 5052 Shell

New Interlocking Flush floor design

CNC Cut & Folded Internal Structural Frame using a Mixture of 3mm Extrusion & Unistrut

865mm Standard Height for Australian Vehicles Dust and Waterproof Hinges

Quality Automotive Side Bulb Rubber located on the Door for perfect Water and Dust Seal

4mm Door Bracing

900mm Height For USA, Land Cruiser & Patrols

Unistrut Channel on the roof for multiple Load Carrying Options

Adjustable Gas Strut Mounting, Over 12 Points of Adjustment Powdercoat Finish Inside & Out

12v Travel Buddy Oven With Stainless Steel Travel Buddy Mounts

GWorks canopies are built your way - durable, secure, and ready for anything. Using a structural support frame made of heavy-duty 3mm aluminium construction, our canopies are designed to keep dust and water out, your belongings secure, and easy to move on to your next Ute or truck - that’s the GWorks way.

All our canopies are designed and fabricated with a 3mm aluminium 5052 shell, cut and moulded by CNC machining using a mix of unistrut and 3mm extrusion. All canopies feature waterproof hinges, a flush internal floor, and seamless doors to keep out water and dust. Electronically actuated locks provide added security and greater peace of mind.

Customisable Paint Options To Match Your Canopy Doors And Tool Box Doors To Your Vehicle

GWorks Mudflaps and GWorks (Extendable Out To 40mm) Mudguards

Fuel

Gen2

Spare

Spare Wheel (Passengers Side)

/Water Jerry Holder (Passengers Side)

Fuel /Water Jerry Holder (Drivers Side)

Double Pivot Ladder (Middle)

Wheel (Drivers Side)

Spare Wheel (Middle)

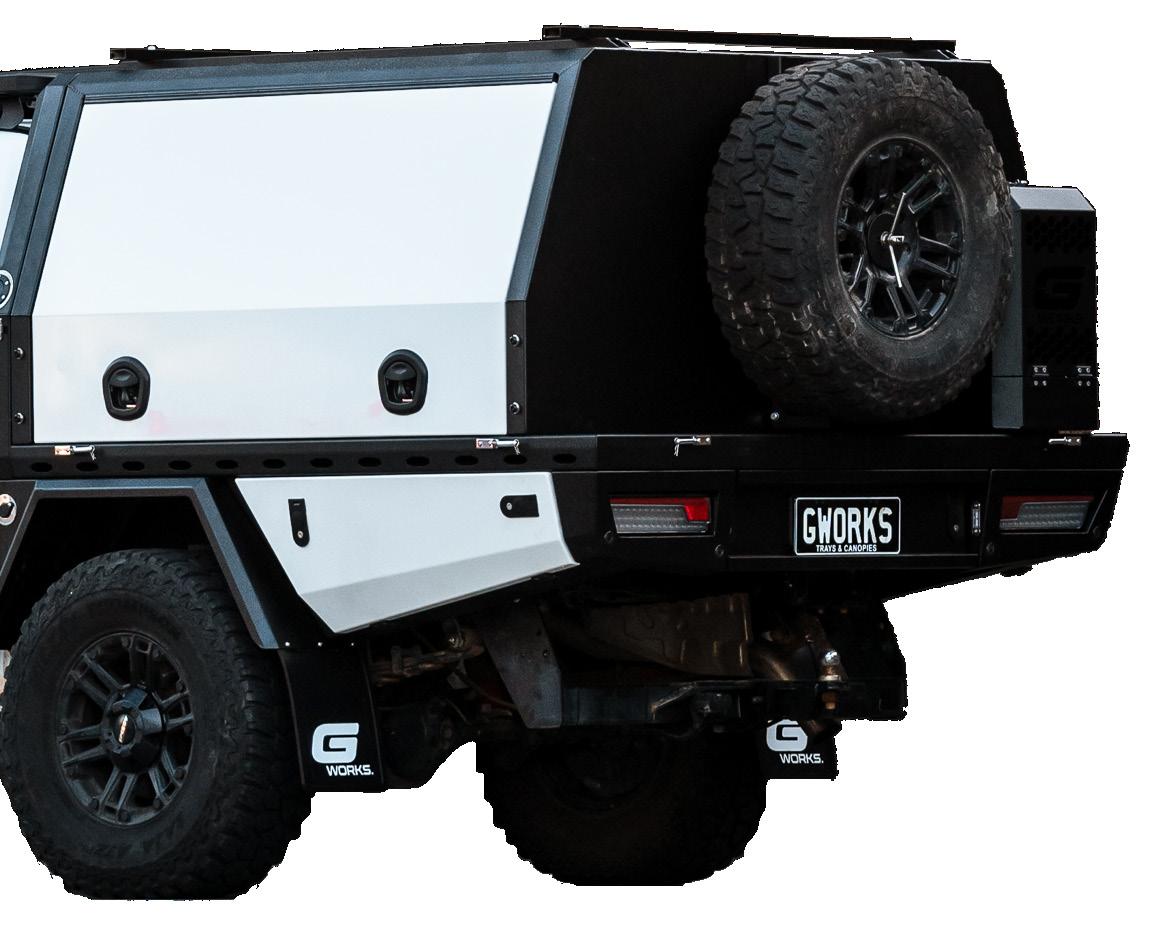

Picture displays Rear Wall Package Three

Picture above displays Rear Wall Package One

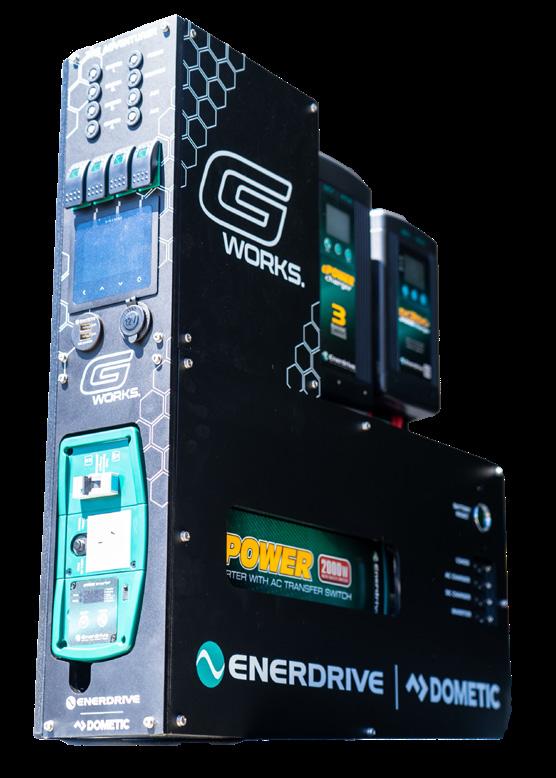

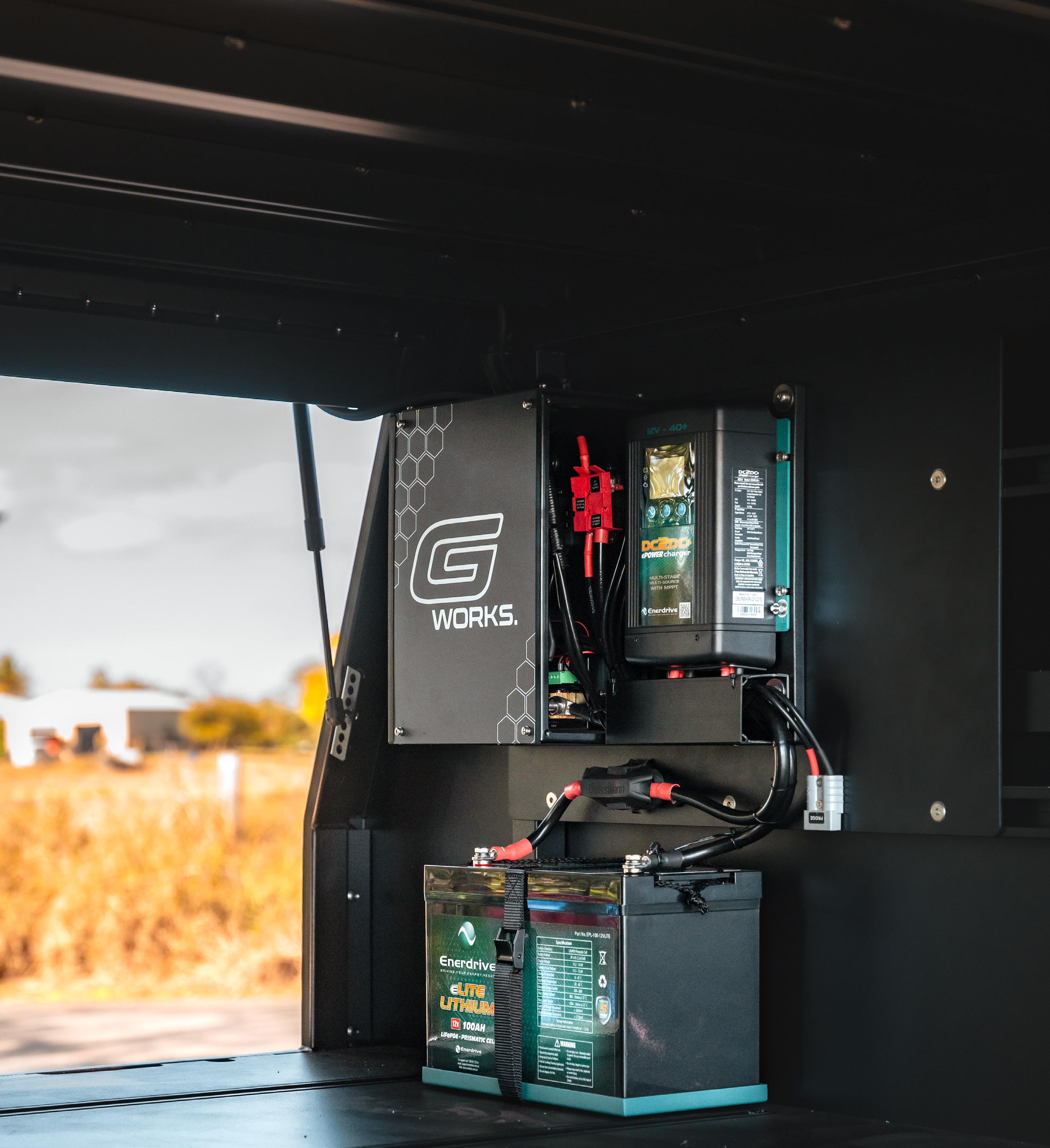

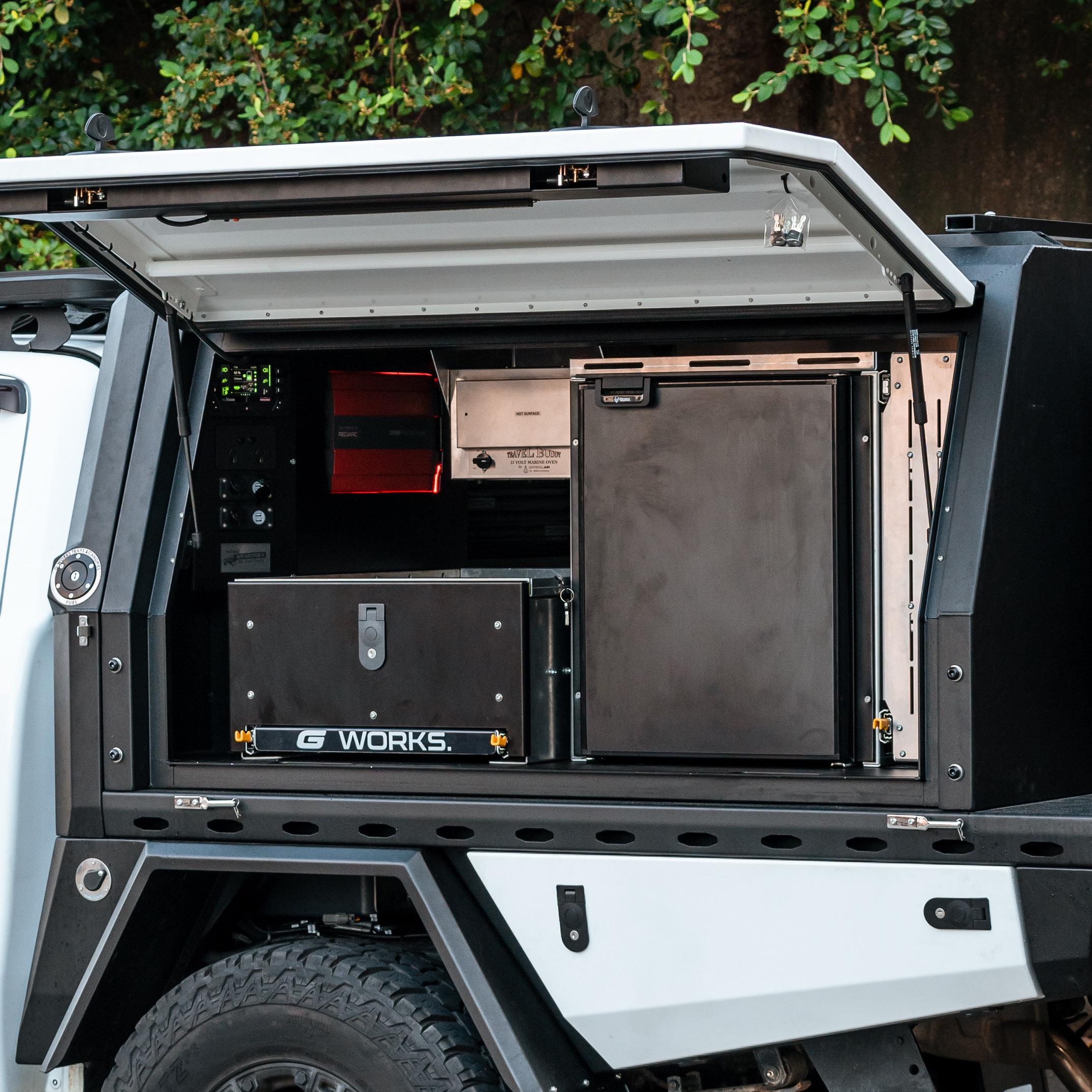

ELECTRICAL PACKAGES

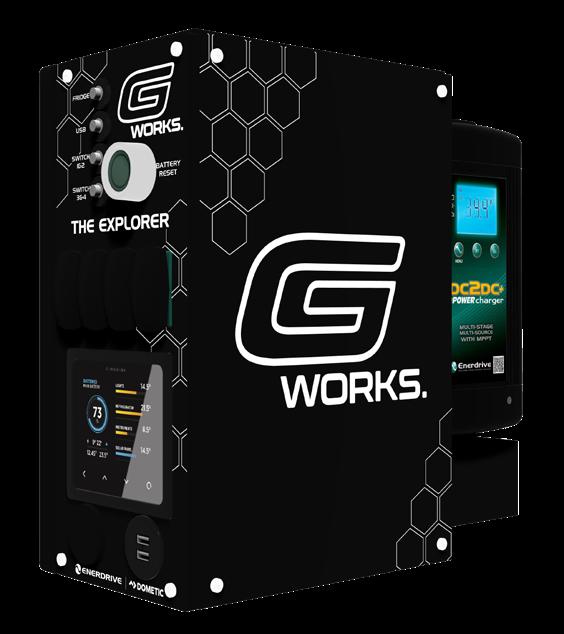

THE EXPLORER

» 1x PRO Plus Battery Monitor Enerdrive

» POWER DC2DC40+ Vehicle/Solar Charger

» 4X Pre-wired Circuit Breakers for Main Power Equipment

» 4X Contura Switches for Lights & Auxiliary Loads

» Pre-wired & Battery & Fridge Anderson Plugs

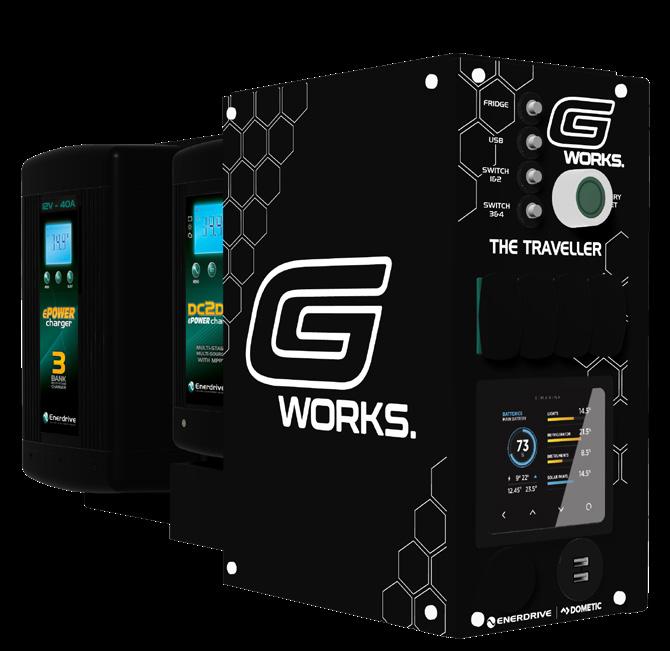

THE TRAVELLER

» Simarine LCD Battery WIFI Monitoring System with Option to Incorporate Individual Load/Charge Information (Optional Water/Fuel Tank module also available)

» Enerdrive POWER DC2DC40+ Vehicle/Solar Charger

» Enerdrive POWER 40A AC Charger

» 4X Pre-wired Circuit Breakers for Main Power Equipment

» 4X Contura Switches for Lights & Auxiliary Loads

» Pre-wired & Battery & Fridge Anderson Plugs

THE ADVENTURER

» Simarine LCD Battery WIFI Monitoring System with Option to Incorporate Individual Load/Charge Information (Optional Water/Fuel Tank module also available)

» Enerdrive POWER DC2DC40+ Vehicle/Solar Charger

» Enerdrive POWER 40A AC Charger

» 4X Pre-wired Circuit Breakers for Main Power Equipment

» 4X Contura Switches for Lights & Auxiliary Loads

» Pre-wired & Battery & Fridge Anderson Plugs

» Battery Reset Button for kick starting your Flat Battery from the DC2DC Charger

» Choice of Lithium Battery 100ah/125ah/200ah

» Your choice of Twin USB 2.4A Hi AMP Sockets to Charge your Mobile Devices or mix it up with a 12v Output Socket

» POWER DC2DC40+ Vehicle/Solar Charger

» Battery Reset Button for kick starting your Flat Battery from the DC2DC Charger

» Choice of Lithium Battery 100ah/125ah/200ah

» Your choice of Twin USB 2.4A Hi AMP Sockets to Charge your Mobile Devices or mix it up with a 12v Output Socket

» POWER DC2DC40+ Vehicle/Solar Charger

» Battery Reset Button for kick starting your Flat Battery from the DC2DC Charger

» Choice of Lithium Battery 200ah/300ah

» Your choice of Twin USB 2.4A Hi AMP Sockets to Charge your Mobile Devices or mix it up with a 12v Output Socket

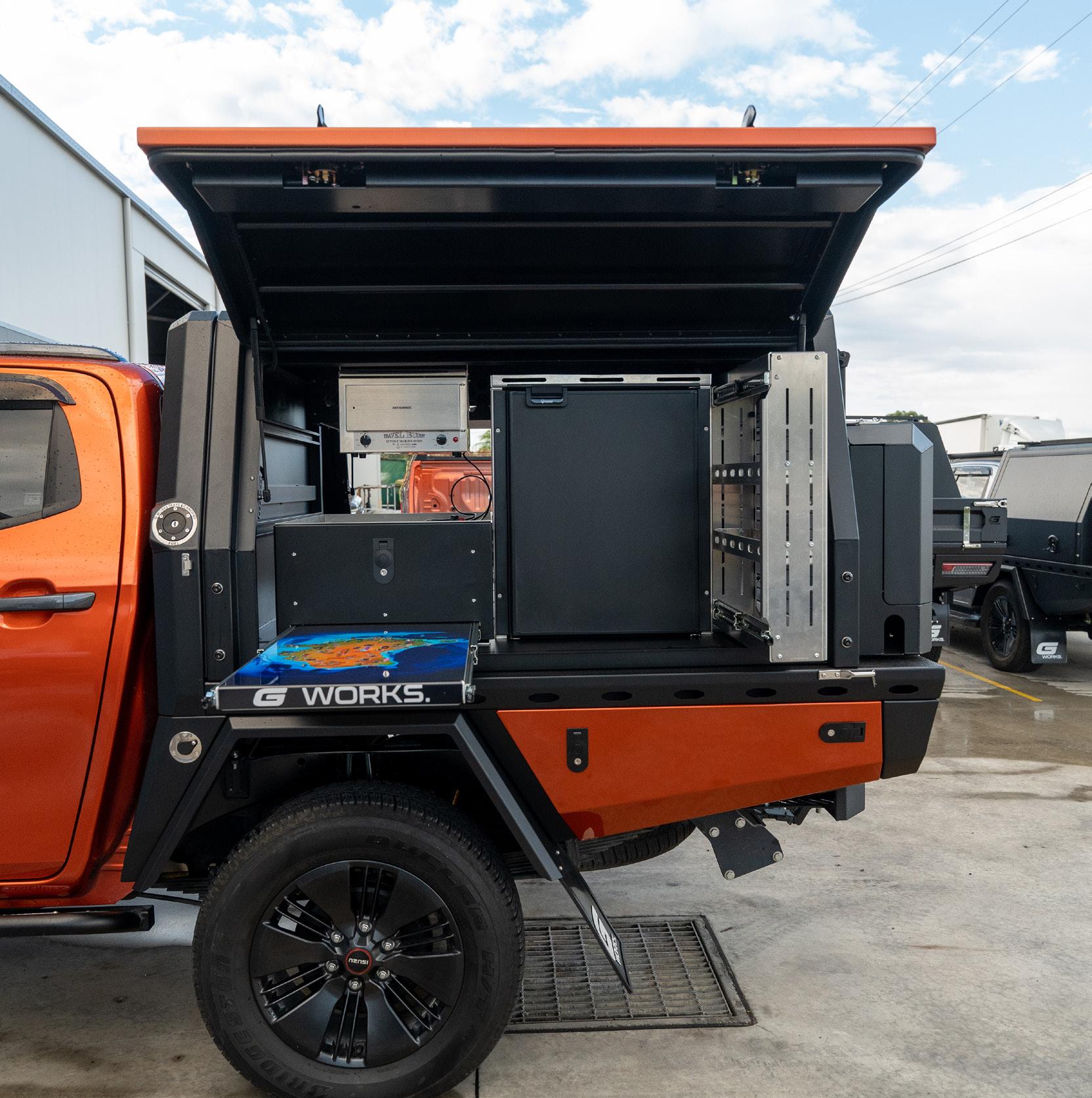

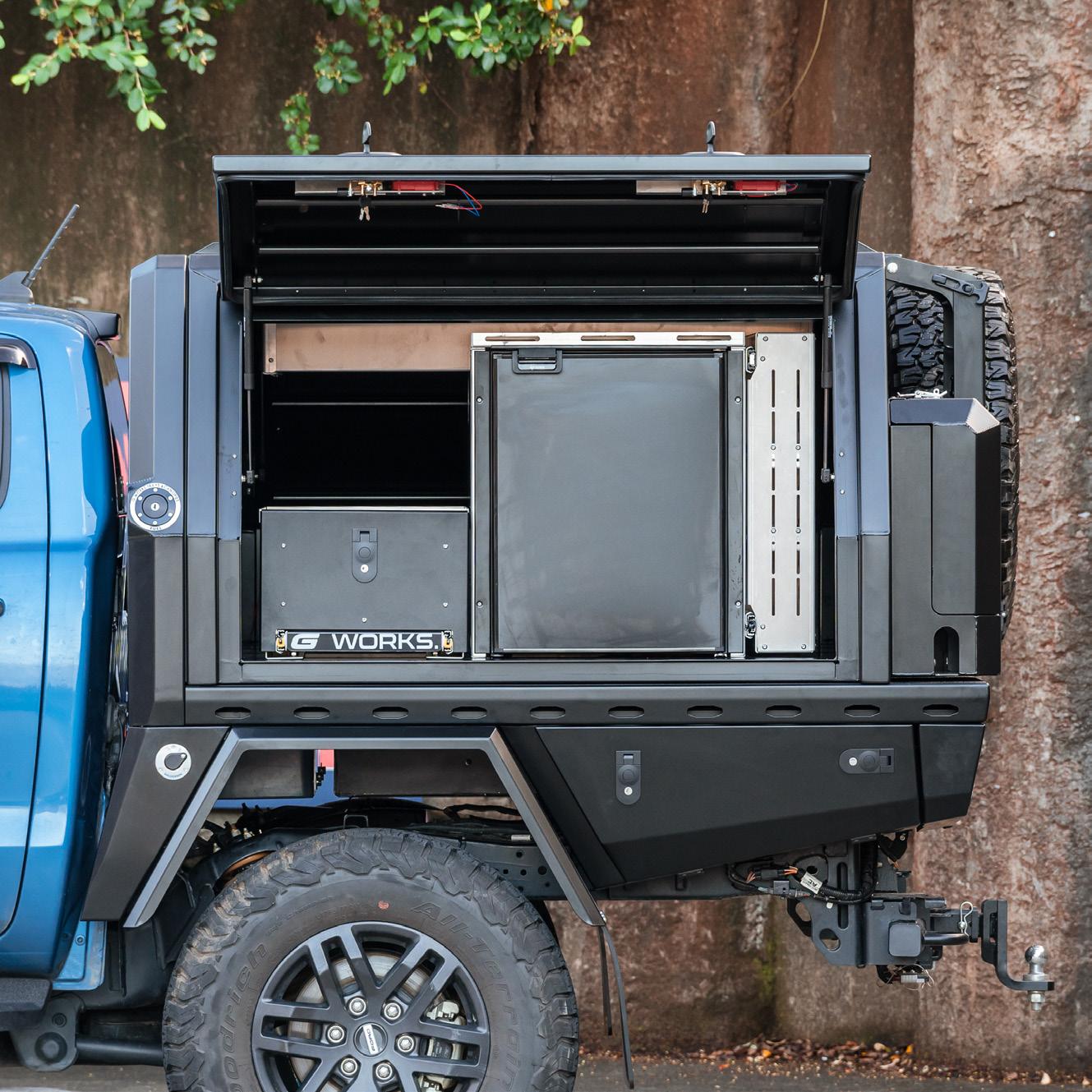

FRIDGE & PANTRY

WE HAVE DESIGNED OUR PANTRY TO HOLD A SUMO JET BOIL. THE SHELVES ARE ADJUSTABLE SO YOU CAN CUSTOMIZE IT TO YOUR LIKING

Everyone at GWorks is an outdoor enthusiast, and there are plenty of good ideas thrown around the shed and office. Some of them even get designed, manufactured and put into the mix for our touring setups!

A perfect example of this is our slide out pantry that bolts straight into the GWorks Fridge surround, and our slide out drawer with the custom made map of Australia highlighting iconic points of interest!

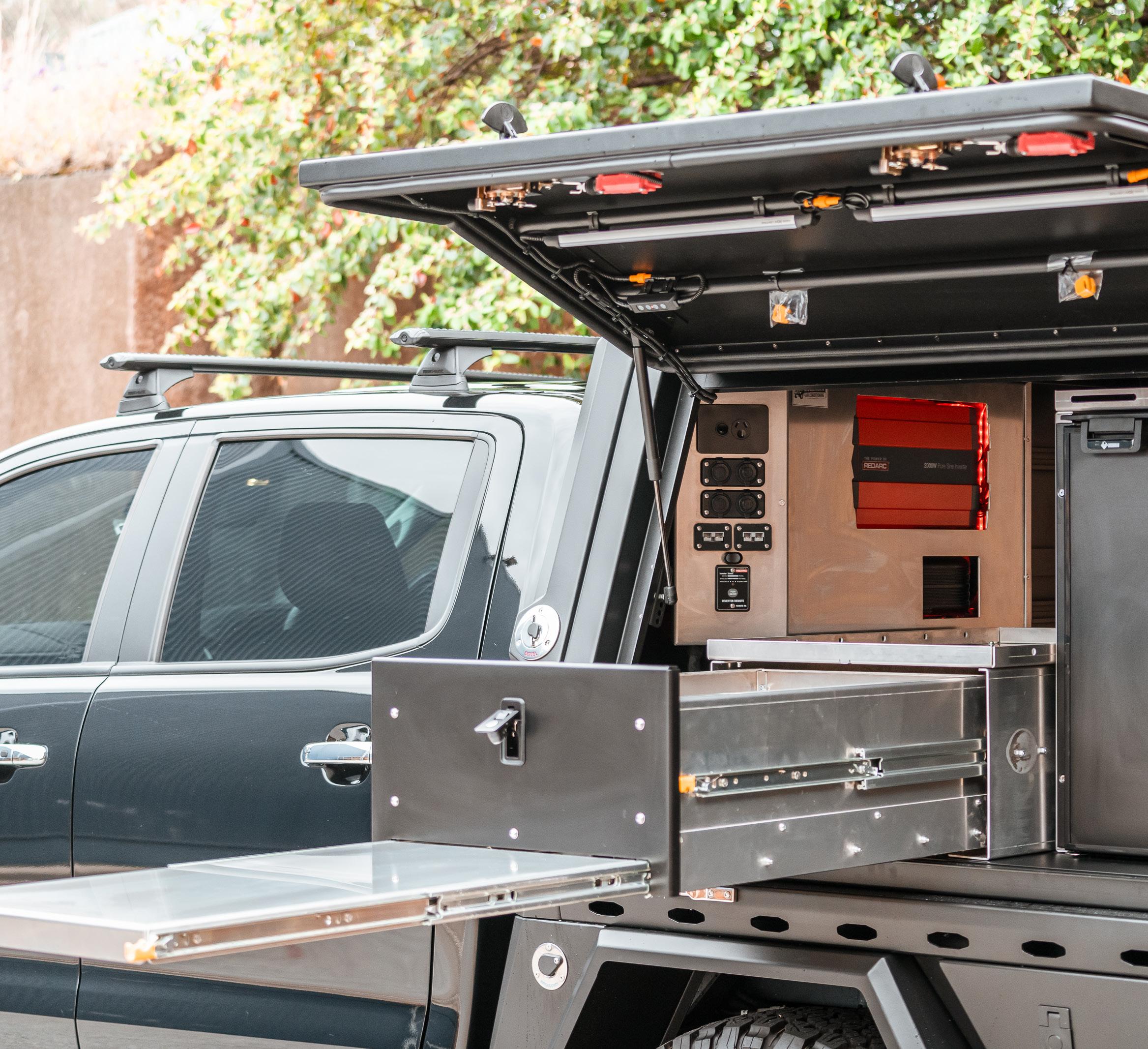

Slide out table with our GWorks Map of Australia. Our slide out Drawers can fit into any Canopy on the market

above displays Internal LayoutPackage Two (Excluding Travel Buddy)


Bushmans 85ltr Standup Fridge, with GWorks Protective Fridge Surround

Slimline Pantry

Roof Mounted 12v Travel Buddy

DRAWERS

The GWorks fixed top drawer is strong and durable, designed to keep your belonging safe while traveling on any terrain. It uses strong alloy frame with a heavy-duty rails supporting the draws. The drawer is lockable to prevent the opening while the vehicle is in use and an extra layer of security. These draws are perfect for storage and organisation.

THE GWORKS DRAWERS ARE SIMPLE AND EASY TO USE WITH A ONE HANDED OPENING

800mm Deep Drawers

AVAILABLE SIZES FOR DRAWER SLIDE OUT

Standard Width

Twin Draw Without Table

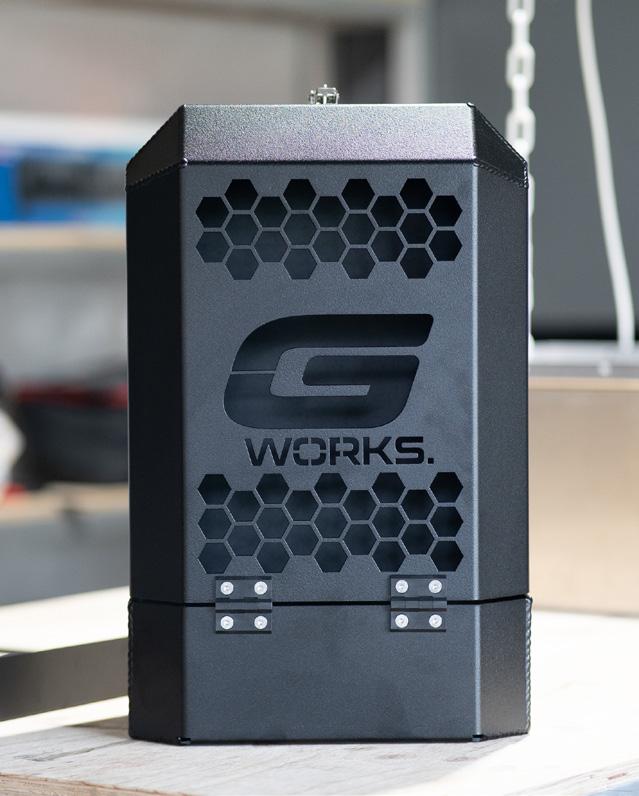

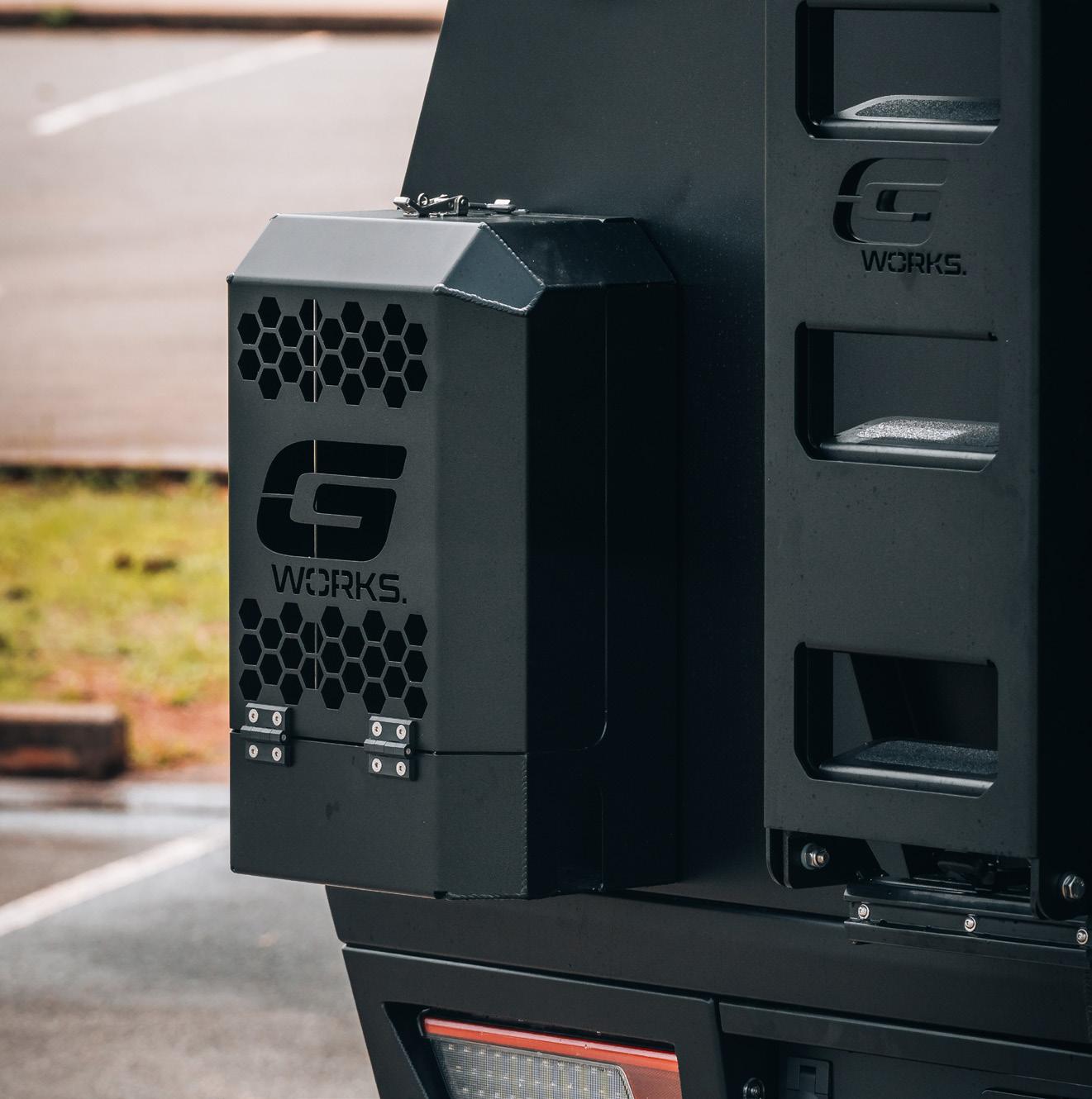

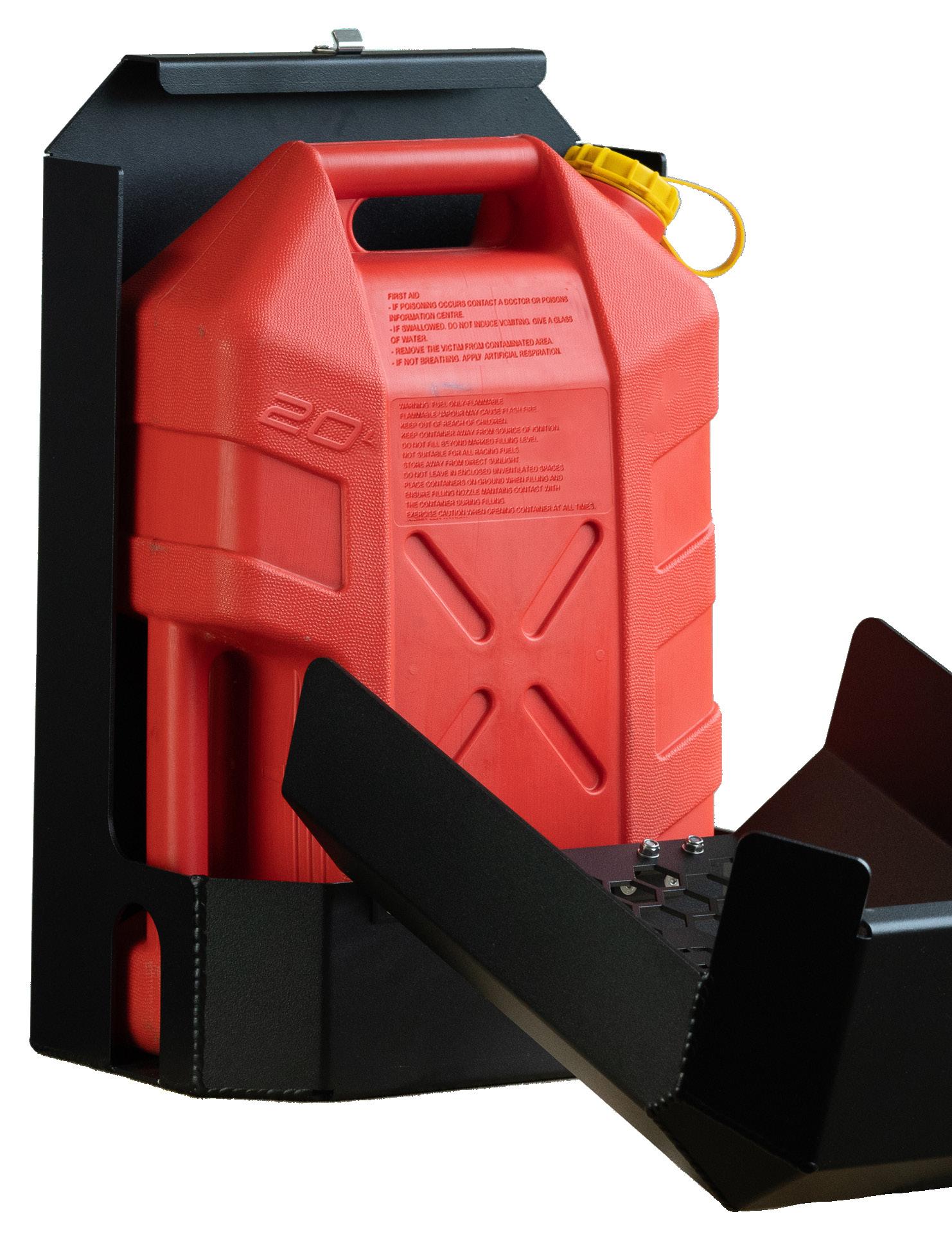

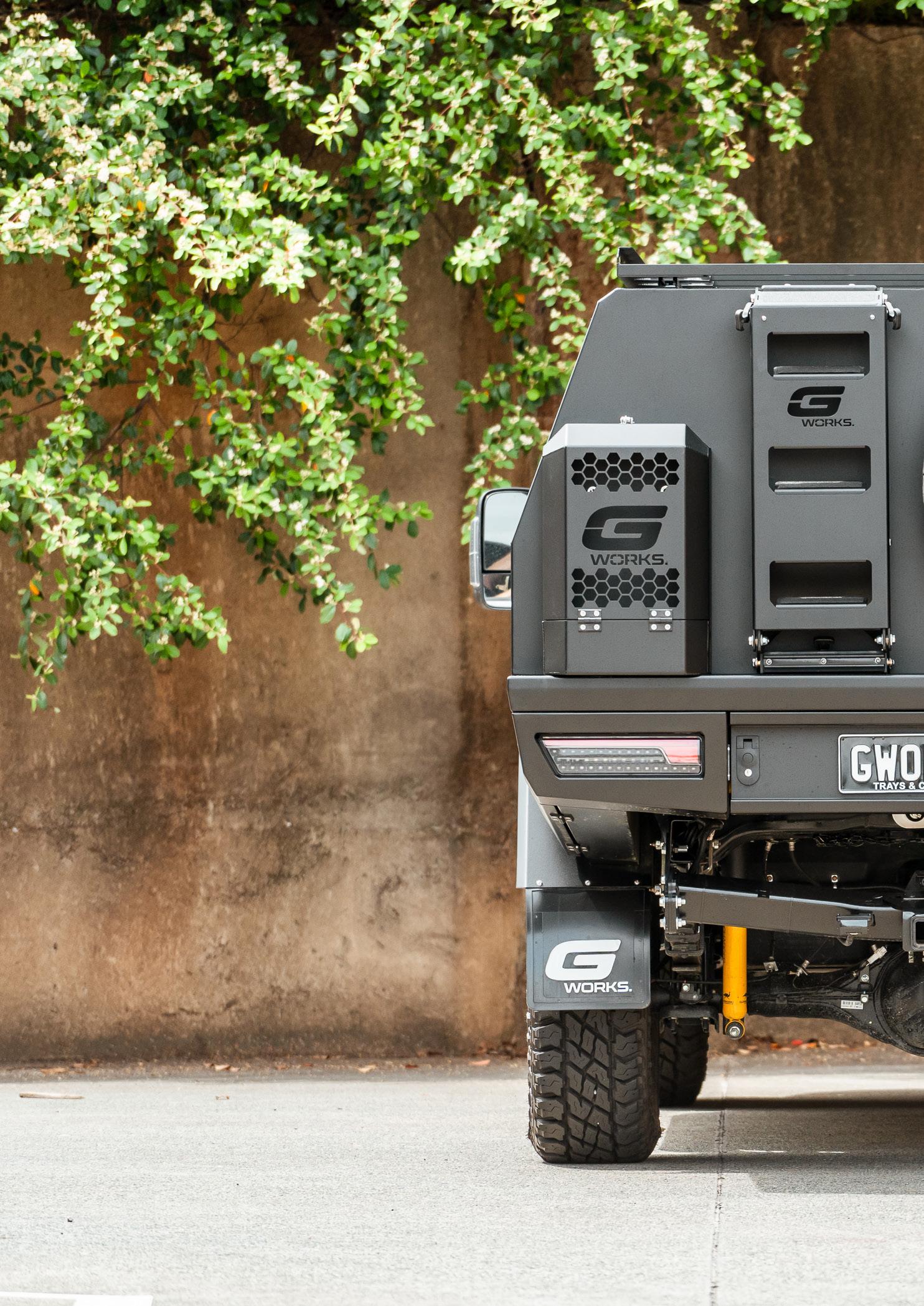

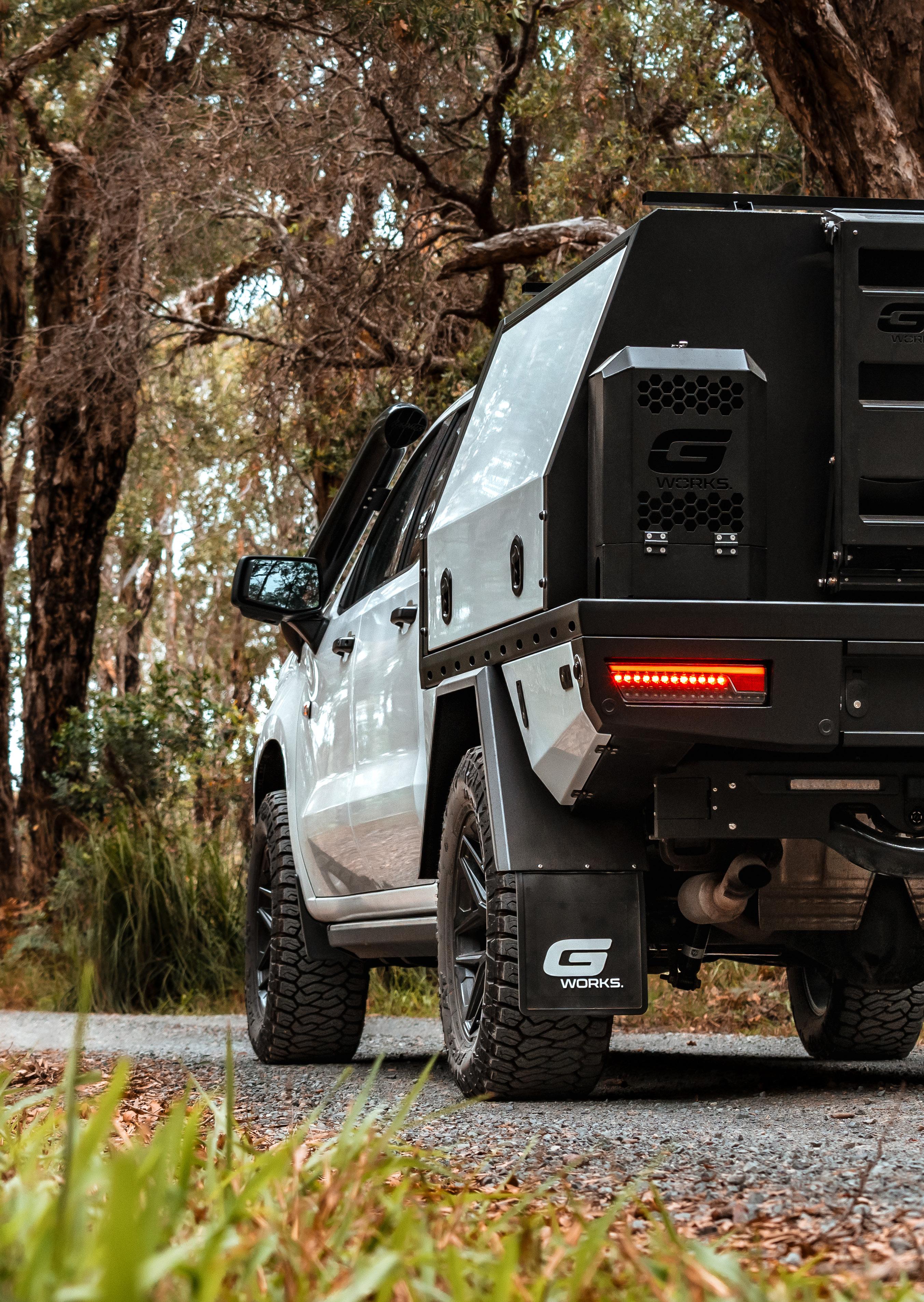

WATER & FUEL JERRY HOLDERS

STANDARD FEATURES

Lockable with padlock

Secure storage for dirty items

Mountable to any canopy

3mm 5052

AVAILABLE SIZES

Standard size range to fit up to a 20LTR Water & Fuel Jerry Holder

GWorks Water & Fuel Jerry Holders are tried and tested - our Brand Ambassadors use and abuse their cars, so we know they can withstand the toughest terrain!

The Water & Fuel Jerry Holders have opening water tap previsions on both sides for true convenience of being able to access water easily when you’re on the road.

Side Holes For Easy Access Water Taps

GWORKS » PRODUCT » WATER & FUEL JERRY HOLDER

GWORKS LOCKABLE WATER AND FUEL JERRY HOLDER ARE TRIED AND TESTED

GWORKS PRODUCT

Gen2 Foldout Ladder

Double pivoting ladder for easy climbing up and down with anti-slip protection steps.

Platform Rack

Perfect for mounting of Awnings, Maxtraxx, Solar Panels and Ladders

Spare Wheel

Mount

Suitable up to a 35inch Tyre

Gworks is an Australian owned and operated business using the latest technology to drive the highest quality results.

We’re a family business run by 4x4 and camping fanatics Adam and Nic. Growing up with an aim to work in fabrication and automotive, GWorks is an expression of our passion for the outdoors and fine workmanship. GWorks uses tough and durable 3mm aluminium construction and structural frames built to withstand whatever Australia’s weather can throw at it.

That’s the reason GWorks are Port Macquarie's and the Mid-North Coast’s most trusted choice for canopies. Because GWorks means quality!

GWorks canopies are future-proof canopies. Vehicles change, tastes mature, but the elements remain the same.

We work to that goal – ensuring trays and canopies go the distance.

We understand that a tray and canopy is an investment. To get the most value out of your GWorks tray and canopy, we fabricate a modular platform that you can take off and affix to another vehicle of your choice when the time comes. Only a few bolts and alterations are required to make the switch.

OUR STORY. THE DIFFERENCE. THE GWORKS DIFFERENCE. CANOPIES BUILT TO LAST AND LAST.

Better yet, our innovative designs mean minor repairs are based on components, making it a breeze to fix –and it costs much less than outright replacement if an unfortunate event occurs.

We build our solid structural frames from the ground up before sheeting. This ensures maximum strength and durability for whatever Australia’s weather can throw at it – now and into the future.

EXTENDED WARRANTY

At Gworks, we take pride in building the best trays and canopies in Australia. Our commitment to quality is reflected in every aspect of our manufacturing process, from the latest equipment we use to the attention to detail we apply to every product we create. We believe that a great product not only performs well, but also looks great, which is why we pay close attention to aesthetics as well.

We are a 100% Australian-owned company and all of our products are made right here in Australia. We are passionate about supporting local businesses and contributing to the Australian economy.

At Gworks, we believe in the quality of our products, which is why we back them with an extended warranty. This means that you can have peace of mind knowing that you are investing in a high-quality product that is built to last.

Choose Gworks for the best trays and canopies in Australia. We are committed to providing you with a product that is both functional and visually appealing, and we

Australia is known for its high-quality products, and our trays and canopies are no exception. We take pride in producing locally made trays and canopies that are built to withstand the tough Australian conditions.

Our team of skilled tradesman use the latest technology and equipment to ensure that each tray and canopy is manufactured to the highest standards. From design to production, we ensure that every detail is carefully considered and executed.

We understand the importance of supporting Australian businesses and creating local jobs. That's why we are committed to sourcing all our materials from local suppliers and manufacturing our products here in Australia.

By choosing our Australian-made trays and canopies, you are not only supporting the local economy but also getting a product that is built to last. We back our products with our extended warranty to ensure peace of mind for our customers now & in the future.

Our trays and canopies are designed to handle the rigours of everyday use, from the harsh Australian climate to the demands of heavy-duty work.

So, whether you're a tradie looking for a reliable tray or canopy for your work vehicle or an outdoor enthusiast looking for a tough and durable canopy for your 4x4, you can trust our Australian-made products to deliver the quality and performance you need.

Port Macquarie, the birthplace of Gworks. This vibrant coastal town has provided the perfect backdrop for Gworks to establish itself as a trusted brand along the Mid-North coast.

WHAT'S INVOLVED

USING THE LATEST TRAY AND CANOPY DESIGN TECHNOLOGY FOR SUPERIOR RESULTS
