Contents Professional Work 2022 01 - Freelance Contractor: As-Built Work Sample • 5000 sq. ft. 1-Story Single-Family Dwelling 2021

02 - LMCAD Services: Residential Interior Remodel and Addition • 874 sq. ft. 1-Story Single Family Dwelling

Academic Work 2019 03 - The Wall (School) House • Grade 6-8 Pasadena Micro-School 2017

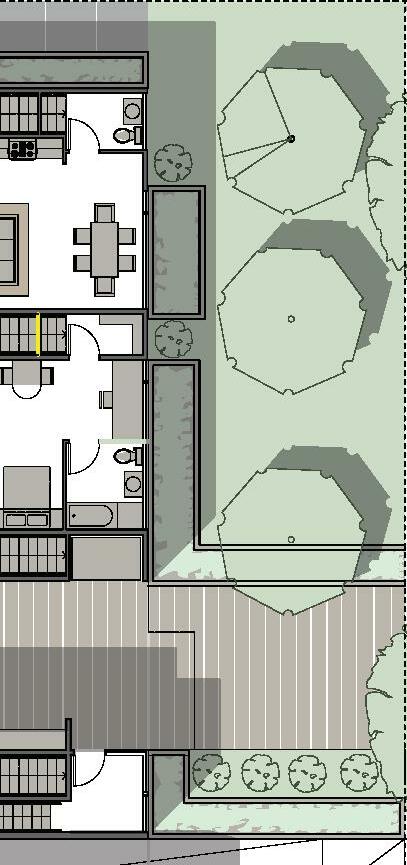

04 -West Hollywood Multi-Family Housing • 12-Unit Multi-Family Housing Project

Professional Work

01- Freelance Contractor : As-Built Work Sample Single-Family Dwelling Located in Arcadia,CA Early 2022 I was contracted to create as-built drawings for an existing 1-Story 5000 sq.ft. Single-Family home that was to be remodeled with a 1-Story Addition.

I was tasked to create an existing site plan, floor plan, elevations and roof plan for the home. Presented here, are the initial hand-drawn measurements taken for the home by me and the CAD drawings presented to the client.

Software: AutoCAD

Professional Work •01 - Freelance Contractor : As-Built Work Sample

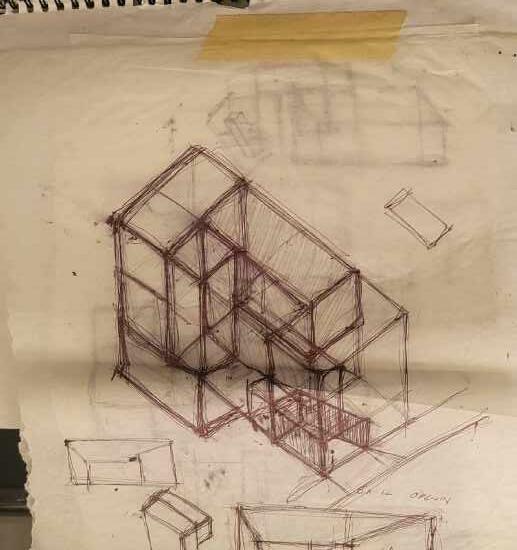

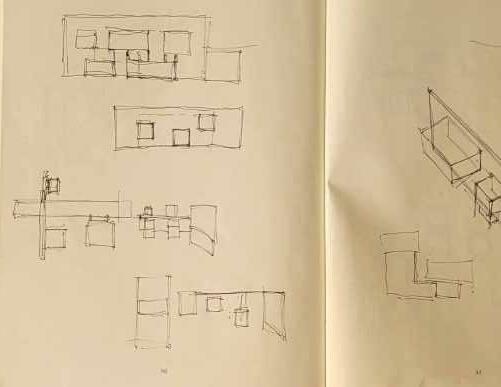

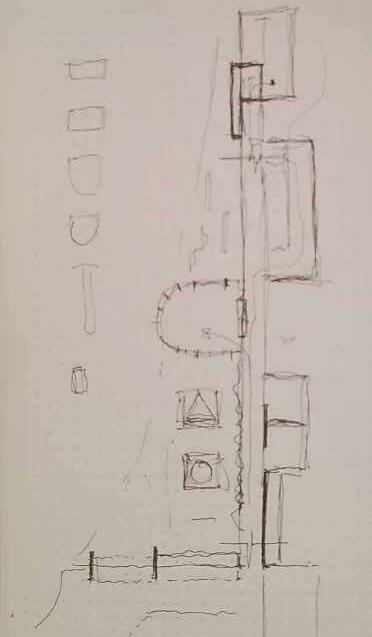

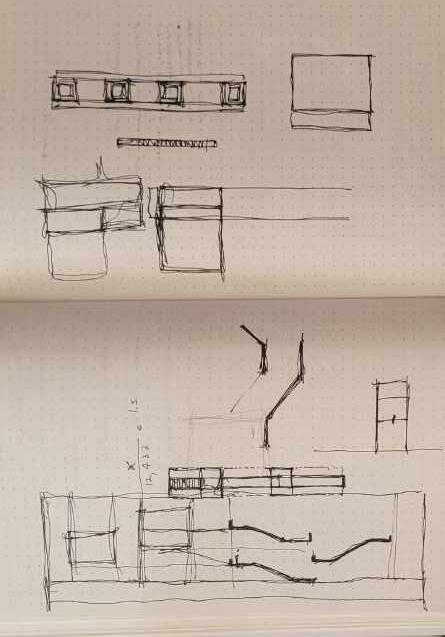

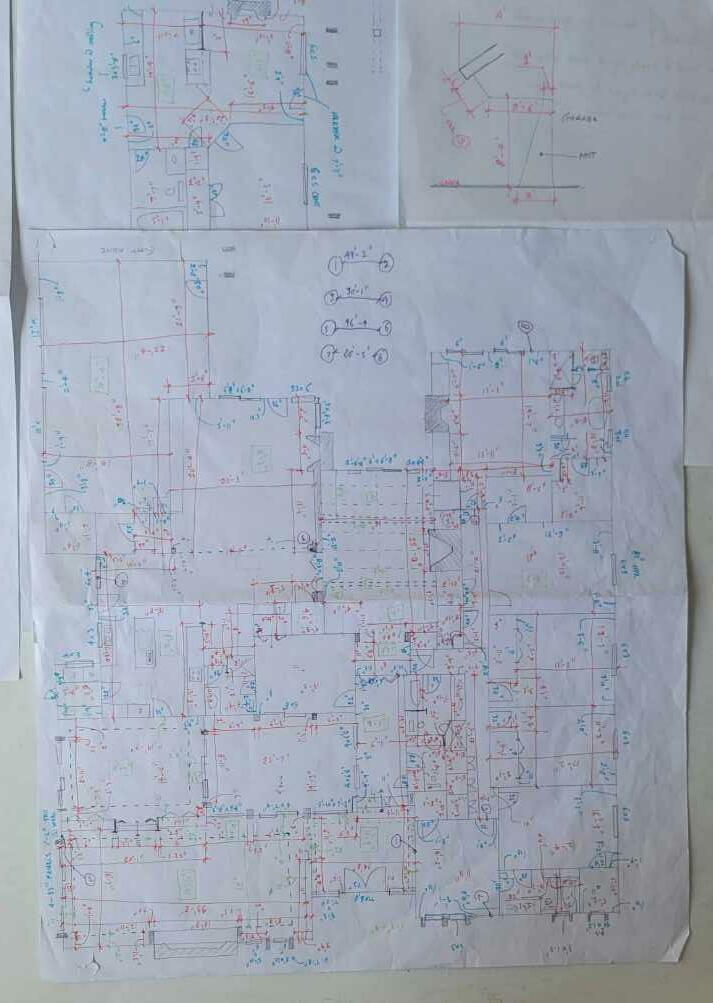

Hand-drawn sketch and measurements of existing home

Professional Work •01 - Freelance Contractor : As-Built Work Sample

Existing Site Plan

Professional Work •01 - Freelance Contractor : As-Built Work Sample

W/H

Existing Floor Plan

Professional Work •01 - Freelance Contractor : As-Built Work Sample

Existing Roof Plan

Professional Work •01 - Freelance Contractor : As-Built Work Sample

Existing Elevations

Professional Work •02 - LMCAD Services : Residential Interior Remodel and Addition

02- LMCAD Services : Residential Interior Remodel and Addition Single-Family Dwelling Located in Los Angeles, Ca Scope of Work: -New 1-Story Addition to Existing Single-Family Dwelling and Interior Remodel and Removal and Relocation of Existing Carport Project Analysis - Lot Area: 5,945.7 SF - Existing S.F.D. : 874.0 SF - Existing Front Porch: 59.0 SF - Existing Carport to Be Removed: 171.0 SF R.F.A. / BUILD AREA -Proposed Addition to (E) S.F.D. 404.0 SF / 423.0 SF Design Criteria -2020 CITY OF LOS ANGELES BUILDING CODE -2019 CALIFORNIA RESIDENTIAL BUILDING CODE, CMC, CEC & CPC -2019 CALIFORNIA ENERGY STANDARDS -2020 LOS ANGELES GREEN BUILDING CODE Project Responsibilities: -Design by: Luis Mauricio, Alan Ramirez, Gustavo Trochez (Myself) - My Responsiblities: Completion of all Architectural Drawings and Project analysis to be submitted to LADBS. Software: AutoCAD

Professional Work •02 - LMCAD Services : Residential Interior Remodel and Addition

SITE LOCATION =WEATHER- OR SOIL- BASED AUTOMATIC IRRIGATION SYSTEM CONTROLLERS

42.50' DISCLAIMER VICINITY MAP

WRITTEN DIMENSIONS SHALL BE VERIFIED ON THE JOB SITE. DISCREPANCIES SHALL BE BROUGHT TO THE ATTENTION OF THE DRAFTER PRIOR TO THE COMMENCEMENT OF ANY WORK.

(E) LANDSCAPE

D

DESIGN CRITERIA 57'-5"

130 GAL RAIN TANK

scends from the street, 30:1, 3', with a 2:1 . If proposed work extends into the 2:1 & 18, If retaining walls are required, #2,

or major additions to buildings on sites located in any of the slide or Alquist-Priolo Fault Zone) will require a geology and/or all (213) 482-0480.

33'-4"

5'-0"

21'-2"

PLYWOOD PS-1-95 PER APA STANDARD. PL 32/16

4'-2"

12'-2"

5%

5%

5%

CONCRETE STRENGTH @ 28 DAYS PER ACI 318 SPECIFICATIONS FOUNDATION : f'c=2500 psi NON CONTINUOUS INSPECTION REQUIRED

5% (N) OPEN DECK

R.F.A.: 404 SF B. AREA: 423 SF

5%

5%

2'-0"

44'-7"

3'-0" 11'-0"

(E) KITCHEN TO BE REMODELED

6'-7"

9'-0"

9'-10"

8'-0"

140.00'

4'-0"

TRACE OF (E) CARPORT TO BE REMOVED AND RELOCATED 171 SF

5'-0"

11'-0"

2"

(N) ADDITION TO (E) S.F..D 5%

(E) 1-STORY S.F.D. NON-FIRE SPRINKLED

9'-8"

(N) CARPORT 2'-0" 185 SF

(E) DRIVEWAY

9'-10" (E) WALKINGWAY

42.50' RABER ST.

PROPOSED SITE PLAN

6'-0" 6'-2"

Proposed SCALE: Site Plan 1/8":1-0"

SOIL: ALLOWABLE SOIL BEARNING VALUE (FBRG) = 1500psf.

PER SOILS REPORT BY: CBC TABLE 1804.2 (EXPANSIVE SOIL CONDITION) ALL FRAMING CONNECTORS TO BE SIMPSON STRONG TIE OR EQUAL

LEGAL DESCRIPTION Zoning: Site Address ZIP Code PIN Number Lot/Parcel Area (Calculated) Thomas Brothers Grid Assessor Parcel No. (APN) Tract Map Reference Block Lot Arb (Lot Cut Reference) Map Sheet

R1-1 5632 E RABER ST 90042 157-5A227 156 5,945.7 (sq ft) PAGE 565 - GRID C7 5485001010 ST. FRANCIS HEIGHTS M B 11-138/139 S 10 1 157-5A227

-LOT AREA: -EXISTING S.F.D. -EXISTING FRONT PORCH -EXISTING CARPORT TO BE REMOVED 27'-0"

8'-5"

4" Ø OVERFLOW PIPE

18'-1"

EPOXY BOLTS LARR#: 25744 (WITH CONDITIONS OF APPROVAL)

PROJECT ANALYSIS

4'-0"

(E) PORCH COVERED 59 SF

21'-0"

2'-0"

6'-0"

11'-0"

21'-0"

4" Ø OVERFLOW PIPE

5'-0"

APPLICABLE CODES: 2020 CITY OF LOS ANGELES BUILDING CODE 2019 CALIFORNIA RESIDENTIAL BUILDING CODE, CMC, CEC & CPC 2019 CALIFORNIA ENERGY STANDARDS 2020 LOS ANGELES GREEN BUILDING CODE TIMBER: DOUGLAS FIR LARCH (PER GRADING RULES 16) 2X4 AND 4X4 STANDAR GRADE (VERTICAL MEMBERS) NO. 2 (HORIZONTAL MEMBERS) 2X6 AND LARGER NO. 2 GRADE (HORIZ. AND VERT. MEMBERS) 4X6 AND LARGER NO. 1 GRADE (HORIZ. AND VERT. MEMBERS)

DOWNSPOUT

140.00'

(4) 130.00 GAL = 520.00

167.00 SF

8'-2"

506.10 GAL

18'-0"

X .42 =

6'-0"

REQUIRED 1046 SF

REQUIREDLANDSCAPING 76.09 SF 34.37 SF 25.08 SF 31.46 SF

23'-6"

REQUIRED GALLONS 549 SF X .42 = 230.58 GAL 248 SF X .42 = 104.16 GAL 181 SF X .42 = 76.02 GAL 227 SF X .42 = 95.34 GAL

57'-5"

RAIN TANKS AND LANDSCAPING

-PROPOSED ADDITION TO S.F.D. -(N) CARPORT

5,945.7 SF 874.0 SF 59.0 SF 171.0 SF R.F.A. / BUILD. A. 404.0 SF / 423.0 SF 185.0 SF

RESIDENTAIL FLOOR AREA -MAX. ALLOWED R.F.A. = 5,945.7 X 0.45 -PROPOSED R.F.A. = (874 + 59 -171 + 404 + 185) SF SCHOOL FEE AREA=423.0 SF

= 2,675.57 SF = 1,351.00 SF

Professional Work •02 - LMCAD Services : Residential Interior Remodel and Addition

REVISIONS

L

25'-6" 4'-11"

2X4

LUIS MAURICIO 9819 Beachy Ave. Arleta, CA 91331 (818) 433-9805 / 590-3125 lmcadservices@gmail.com

2X4

10'-6"

10'-4"

12'-9"

2X3

4:12

W/CLOSET

BEDROOM

(E) CARPORT

2'-8"

KITCHEN 3X4 S.H.

46'-9"

30"X24"

(TO BE REMODELED)

3X4 S.H.

3'-9"

3'-9" 3'-2"

PWDR

21'-8"

(2) 2'X2'6" S.H.

5'-7"

DINING

F.P.

2'-0"

4:12

9'-3"

LIVING CL. BEDROOM

OF PLAN

SCALE: 1/4"=

om clearance. ) h. (1011.2, R311.7.1) 38" high above tread O BE REMOVED 311.7.8.1) of handrail shall not be nd no more than 2" ension having a no sharp corners 8.3) r spacing opening 5.4, R312.1.3) under interior stairs stive construction on /8" Type X gypsum board)

ELECTRICAL SYMBOLS

EXISTING FLOOR PLAN

SYMBOL

DESCRIPTION

SD

SMOKE DETECTOR HARDWIRED,INTERCONNECTED W/ BATTERY BACK-UP. 120 V

CO

CARBON MONOXIDE DETECTOR (INTERCONECTED TO SMOKE ALARMS)

EF

EXHAUST FAN. 50 CFM (ENERGY STAR, HUMID STAT)

DRAWN

33

CHECKED DATE

1'-0"

B A-5

B A-5

8/27/2021 SCALE

16'-10"

6'-0"

with less than 4" spacing r R-3 occupancies and 2 occupancies, guards as a handrail shall have a " measured vertically from air nosing tread.

2.1) way details on plans: a.

10" run. (1011.5,

3X4 3X4 I NOTES ON PLANS: LAUNDRY ROOM 1. The construction shall not restrict a five-foot clear and A MIN. 4" EXHAUST DUCT MUST BE PROVIDED. A FLEXIBLE DUCT unobstructed access to any water or power distribution CANNOT EXTEND MORE THAN 6' AND CANNOT BE CONCEALED. COVERED facilities (Power poles, pull-boxes, transformers, vaults, DRYER EXHAUST CANNOT EXCEED 14' PORCH W/ MAX OF TWO 90° pumps, valves meters, appurtenances, etc) or to the ELBOWS. location of the hook-up. The construction shall not be within ten feet of any power lines-whether or not the lines are 2X4 that supply 125 volt, single phase, located on the property. Failure to comply may cause All branch(2) circuits 11'-7" 2'-1"15 and 207'-5" construction delays and/or additional expenses. ampere outlets installed in dwelling units 2.An approved Seismic Gas Shut Off Valve or Excess shall be protected by an arc-fault circuit interrupter(s).

Flow Shut Off Valve will be installed on the fuel gas line (CEC 210.12) for entire22'-6" circuit, not just the outlets. on the down-stream side of the utility meter and be rigidly connected to the exterior of the building or structure containing the fuel gas piping. (Per Ordinance 170,158 = (E) WALL (2X4 WOOD STUD @ 16" O.C.) TO REMOVE and 180,670) Separate plumbing permit is required. = (E) WALL (2X4 WOOD STUD @ 16" O.C.) TO REMAIN 3.Provide ultra-flush water closets for all new construction.

Existing shower heads and toilets must be adapted for 1'-0" = (N) WALL (2X4 WOOD STUD SCALE: @ 16" O.C.) 1/4"= low water consumption.

4.Provide (70) (72) inch high non-absorbent wall adjacent to shower and approved shatter-resistant materials for shower enclosure. (1210.2.3, 2406.4.5, R307.2, R308.4) 5.Water heater must be strapped to wall. (507.3 & LAPC) 6.Sprinkler system must be approved by the Mechanical Existing Floor Plan Division prior to installation.

7.A fire alarm (visual and audible) system is required. The alarm system must be approved by the Fire Department and Electrical Plan Check prior to installation.

(LAMC 57.122)

6'-0"

ss from sleeping rooms ls on plans. Required 4" clear height, 20" clear 4:12 . ft. at grade level) and ning.(1030.2, R310.2) have a length measured in o less than (36") (44").

Scope of Work: New 1-Story Addition to Existing Single-Family Dwelling and Interior Remodel and Removal and Relocation of Existing Carport 5632 RABER ST. LOS ANGELES, CA, 90042

44'-7"

10'-0"

6'-3"

10'-9"

W/D

(2) 2X4 S.H.

4'-9"

2'-9"

(TO BE REMOVED & RELOCATED )

Owner: Ian Rebello 5632 Raber St. Los Angeles, CA 90042 Phone #: E-mail:

LEGAL DISCLAIMER

BATHROOM

W/H

SERVICES

JOB NO. TRACE OF (N) TRELLIS ABOVE SHEET

A-2

(N) DECK

1.5"

OF

1 TEMPERED EGRESS

SHEETS

"

9'-11"

M CAD

THESE DRAWINGS ARE COPYRIGHTED INSTRUMENTS OF SERVICE AS DEFINED BY THE CALIFORNIA ADMINISTRATIVE CODE. THEY ARE OWNED BY LM CAD. THEY ARE FOR THE EXCLUSIVE USE OF THE OWNER NOTED AT THE EXCLUSIVE SITE INDICATED IN THE DRAWING(S) ONLY THIS DESIGN AND DRAWINGS ARE SUBMITTED AS RESTRICTIVE AND CONFIDENTIAL DISCLOSURE THAT MAY NOT BE USED OR REPRODUCED WITHOUT THE WRITTEN CONSENT OF MC. THIS DRAWING REPRESENTS A PRELIMINARY DESIGN UNTIL SUCH TIME THE ARCHITECT HAS AFFIXED HIS SEAL AND SIGNATURE. MC DRAFTING SERVICES SHALL NOT BE RESPONSIBLE FOR COMPLETENESS OF DRAWINGS FOR BIDDING PURPOSES PRIOR TO ISSUANCE OF BUILDING PERMITS.

5'-11"

2'-6"

BY

SD

Professional Work •02 - LMCAD Services : Residential Interior Remodel and Addition

5'-11

2'-6"

2'-6"

4:12

10'-6"

4:12

BATH

(E) CARPORT 4:12

(TO BE REMOVED & RELOCATED )

2'-9"

10'-6"

4:12

(E) CARPORT

W/D

W/H

(TO BE REMOVED & RELOCATED )

30"X24"

46'-9"

(2) 2'X2'6" S.H.

10'-0"

5'-7"

(2) 2'X2'6" S.H.

46'-9" 5'-7"

PWDR

CL. 2'-0"

4:12

4:12

EXISTING ROOF PLAN

SCALE: 1/4"= 1'-0"

= PORTION OF (E) ROOF TO BE REMOVED

EXISTING ROOF PLAN

SCALE: 1/4"= 1'-0"

= PORTION OF (E) ROOF TO BE REMOVED

Existing Roof Plan

6'-0"

4:12

4:12

C

6'-0"

4:12

3'-

3'-9"

9'-3"

4:12

3'-9"

2'-0"

4:12

(TO

PWDR

9'-3"

4:12

W/H

30"X24"

10'-0"

2'-9"

6'-3

2'-1"

2'E

REVISIONS

LAUNDRY ROOM

BY

ELECTRICAL SYMBOLS

Professional •02DUCT - LMCAD Services : Residential Interior Remodel and Addition AUST DUCT MUST BE PROVIDED.Work A FLEXIBLE DESCRIPTION SYMBOL ND MORE THAN 6' AND CANNOT BE CONCEALED. ST CANNOT EXCEED 14' W/ MAX OF TWO 90° SMOKE DETECTOR HARDWIRED,INTERCONNECTED CO EF

EXHAUST FAN. 50 CFM (ENERGY STAR, HUMID STAT)

33'-4"

L

11'-2"

) WALL (2X4 WOOD STUD @ 16" O.C.) TO REMOVE

B A-5

22"X 30" ATTIC ACCESS

3'-0"

BATHRM

1 A-3

11'-4"

3'-6"

W/CLOSET

A TEMP.

3

EF

LEGAL DISCLAIMER

8'-5" 5'-0"

CLOSET

CO

2'-1" 3

6

SD

BUILT-IN

4

9'-11"

8'-0"

2'-0" 55'-7"

9'-10"

3X4 S.H.

11'-7"

21'-8"

3'-9"

F.P.

2'-0" LIVING

BUILT-IN

(N) CARPORT

A MIN. 4" EXHAUST DUCT MUST BE PROVIDED. A FLEXIBLE DUCT CANNOT EXTEND MORE THAN 6' AND CANNOT BE CONCEALED. DRYER EXHAUST CANNOT EXCEED 14' W/ MAX OF TWO 90° ELBOWS.

ELECTRICAL SYMBOLS DESCRIPTION

SYMBOL

CO

SMOKE DETECTOR HARDWIRED,INTERCONNECTED W/ BATTERY BACK-UP. 120 V 1.5" CARBON MONOXIDE DETECTOR (INTERCONECTED DINING TO SMOKE ALARMS)

EF

EXHAUST FAN. 50 CFM (ENERGY STAR, HUMID STAT)

SD

11'-1"

All branch circuits that supply 125 volt, single phase, 15 and 20 ampere outlets installed in dwelling units shall be protected by an arc-fault circuit interrupter(s).

(CEC 210.12) for entire circuit, not just the outlets. = (E) WALL (2X4 WOOD STUD @ 16" O.C.) TO REMOVE

2'-1"

= (E) WALL (2X4 WOOD STUD @ 16" O.C.) TO REMAIN = (N) WALL (2X4 WOOD STUD @ 16" O.C.)

6'-0"

B

7.75" MAX

7'-5"

3X4

DRAWN CHECKED DATE

33'-4"

8/27/2021

11'-2" 11'-7"

7.75" MAX

B

B 22'-6" 16'-10" 3'-6" TRACE OF (N) TRELLIS ABOVE PROPOSED FLOORA-5 PLAN

Proposed Floor Plan

all. (507.3 & LAPC) y the Mechanical

3X4

COVERED PORCH

(2) 2X4

rbent wall adjacent ant materials for 4.5, R307.2,

m is required. The Fire Department ation.

1'-0" 3'-2"

6'-10"

5'-7"

EF

32'-1"

18'-0" LAUNDRY ROOM

3'-2"

PWDR

9'-3"

0.25

BEDROOM

4'-7"

6'-0"

0.320

0.320 clear 0.25 ive-foot and ower distribution 0.320 0.25 sformers, vaults, 0.320 etc) or to the0.25 on shall not be within 0.320 0.25 not the lines are ply may cause 0.320 0.25 penses. alve or Excess the fuel gas line meter and be rigidly g or structure inance 170,158 it is required. all new construction. be adapted for

4'-4"

KITCHEN

6'-11"

3'-9"

4'-11"

2'-8"

E

9'-0"

SGHC

SD

Owner: Ian Rebello 5632 Raber St. Los Angeles, CA 90042 Phone #: E-mail:

7'-1"

F

U-FACTOR

CO

Scope of Work: New 1-Story Addition to Existing Single-Family Dwelling and Interior Remodel and Removal and Relocation of Existing Carport 5632 RABER ST. LOS ANGELES, CA, 90042

D TEMP.

11'-0"

A A-5

4

1'-0"

D TEMP.

10'-6" 11'-0"

SD

9'-0"

D TEMP.

3'-0"

SCALE

9'-11"

14'-9"

3'-6"

-6 2' Ø

CAL TOILET CLEARANCE

3'-1"

5X3 TUB

CLOSET

3

"

BATHRM

LINEN

(2) 2X4 S.H.

3'-11"

2'-2"

W/D EF 3

3X4 S.H.

1 A-3

EF

3'-0"

8'-8"

15" MIN. 15" MIN.

24" MIN.

D TEMP.

3'-6"

5 3

SERVICES

2"

11'-2"

3

SD 5'-11"

5'-0"

13'-5" 23'-6"

SD

3

10'-6"

7'-1"

BEDROOM

2 TEMP.

BEDROOM

3'-0"

1.5"

M CAD

LUIS MAURICIO 9819 Beachy Ave. Arleta, CA 91331 (818) 433-9805 / 590-3125 lmcadservices@gmail.com

10'-7"

6'-0"

1 TEMPERED EGRESS

C

3'-6"

(N) DECK

1.5"

B

2'-0"

16'-10" TRACE OF (N) TRELLIS ABOVE

B

6'-5"

) WALL (2X4 WOOD STUD @ 16" O.C.)

B A-5

7.75" MAX

5'-0"

) WALL (2X4 WOOD STUD @ 16" O.C.) TO REMAIN

1.5"

1 TEMPERED EGRESS

A-3 OF

1.5"

2 TEMP. 3

JOB NO. SHEET

SCALE: 1/4"= 1'-0" (N) DECK

SCALE

B

BEDROOM

SD

SHEETS

10'-7"

W/ BATTERY BACK-UP. 120 V CARBON MONOXIDE DETECTOR (INTERCONECTED TO SMOKE ALARMS)

THESE DRAWINGS ARE COPYRIGHTED INSTRUMENTS OF SERVICE AS DEFINED BY THE CALIFORNIA ADMINISTRATIVE CODE. THEY ARE OWNED BY LM CAD. THEY ARE FOR THE EXCLUSIVE USE OF THE OWNER NOTED AT THE EXCLUSIVE SITE INDICATED IN THE DRAWING(S) ONLY THIS DESIGN AND DRAWINGS ARE SUBMITTED AS RESTRICTIVE AND CONFIDENTIAL DISCLOSURE THAT MAY NOT BE USED OR REPRODUCED WITHOUT THE WRITTEN CONSENT OF MC. THIS DRAWING REPRESENTS A PRELIMINARY DESIGN UNTIL SUCH TIME THE ARCHITECT HAS AFFIXED HIS SEAL AND SIGNATURE. MC DRAFTING SERVICES SHALL NOT BE RESPONSIBLE FOR COMPLETENESS OF DRAWINGS FOR BIDDING PURPOSES PRIOR TO ISSUANCE OF BUILDING PERMITS.

rcuits that supply 125 volt, single phase, ampere outlets installed in dwelling units tected by an arc-fault circuit interrupter(s).

12) for entire circuit, not just the outlets.

SD

Professional Work •02 - LMCAD Services : Residential Interior Remodel and Addition ATTIC VENTILATION (423.0 SF)

LID COMPLIANCE METHOD

(4) 130.00 GAL = 520.00

BY

50.4 SQIN.EA.

428.4 SQIN PROPOSED > 406.08 SQIN REQUIRED OPENINGS SHALL HAVE 1/8" CORROSION RESISTANT METAL MESH COVERING.

167.00 SF

17'-4"

DOWNSPOUT 130 GAL RAIN TANK

4:12

4:12

7'-6"

TRIBUTARY ROOF AREA 2 [ (19'-3" X 7'-6") + (17'-4" + 6'-0")] 144 + 104 SF 248 SF

19'-3"

TRIBUTARY ROOF AREA 1 (19'-3" X 28'-6") 549 SF

4:12

L

M CAD

SERVICES

LUIS MAURICIO 9819 Beachy Ave. Arleta, CA 91331 (818) 433-9805 / 590-3125 lmcadservices@gmail.com

4:12

LEGAL DISCLAIMER

THESE DRAWINGS ARE COPYRIGHTED INSTRUMENTS OF SERVICE AS DEFINED BY THE CALIFORNIA ADMINISTRATIVE CODE. THEY ARE OWNED BY LM CAD. THEY ARE FOR THE EXCLUSIVE USE OF THE OWNER NOTED AT THE EXCLUSIVE SITE INDICATED IN THE DRAWING(S) ONLY THIS DESIGN AND DRAWINGS ARE SUBMITTED AS RESTRICTIVE AND CONFIDENTIAL DISCLOSURE THAT MAY NOT BE USED OR REPRODUCED WITHOUT THE WRITTEN CONSENT OF MC. THIS DRAWING REPRESENTS A PRELIMINARY DESIGN UNTIL SUCH TIME THE ARCHITECT HAS AFFIXED HIS SEAL AND SIGNATURE. MC DRAFTING SERVICES SHALL NOT BE RESPONSIBLE FOR COMPLETENESS OF DRAWINGS FOR BIDDING PURPOSES PRIOR TO ISSUANCE OF BUILDING PERMITS.

506.10 GAL

= 378 SQIN (1) 14"X6" VENT. = 50.4 SQIN .

21'-0" 19'-3"

Owner: Ian Rebello 5632 Raber St. Los Angeles, CA 90042 Phone #: E-mail:

TRIBUTARY ROOF AREA 3 (8'-8" X 21'-0") 181 SF

8'-8"

12'-7"

1:12

Scope of Work: New 1-Story Addition to Existing Single-Family Dwelling and Interior Remodel and Removal and Relocation of Existing Carport 5632 RABER ST. LOS ANGELES, CA, 90042

RAIN TANK 1 =

X .42 =

126 SQIN EA

6'-0"

TOTALS GALLONS & LANDSCAPING REQUIRED 1046 SF

REQUIREDLANDSCAPING 76.09 SF 34.37 SF 25.08 SF 31.46 SF

13'-6"

REQUIRED GALLONS 549 SF X .42 = 230.58 GAL 248 SF X .42 = 104.16 GAL 181 SF X .42 = 76.02 GAL 227 SF X .42 = 95.34 GAL

TRIBUTARY ROOF AREA 4 (12'-7" X 18'-0") 227 SF

18'-0"

IMPERVIOUS TRIBUTARY AREA 1 = IMPERVIOUS TRIBUTARY AREA 2 = IMPERVIOUS TRIBUTARY AREA 3 = IMPERVIOUS TRIBUTARY AREA 4 =

REVISIONS

PROVIDE (3) 14" x18" TOP GABLE LOUVRE

RAIN TANKS AND LANDSCAPING

28'-6"

LID COMPLIANCE METHOD:

423 SQFT /150 = 2.82 SQFT =406.08 SQIN

4:12

4:12

4:12

4:12

1:12

DRAWN CHECKED DATE

PROPOSED ROOF PLAN

SCALE: 1/4"= 1'-0"

= NEW ROOF AREA =569 SF

ROOFING MATERIAL BY: GAF (30 YRS ASPHALT SHIGNLES) ESR-1475 (CLASS A)

8/27/2021

Timberline Cool Antique Slate (gray) INITIAL SRI: 29, 3-YR SRI: 22 CRRC PROD ID: 0676-0043a

ROOFING MATERIAL BY: GAF (ENERGYCAP MINERAL-SURFACED CAP SHEET ) ESR-1475

SCALE JOB NO. SHEET

BUILT-UP AND MODIFIED BITUMEN SHEET ROOFING INITIAL SRI: 89, 3-YR SRI: 81 CRRC PROD ID: 0676-0021a

A-4 OF

Proposed Roof Plan

SHEETS

1

(N) HORIZ. SIDING TO MATCH (E)

F.F.

R-38Services BATT INSULATION: Residential Interior Remodel and Addition Professional Work •02 - LMCAD (N) (E)

BEDROOM

(N)2X4 STUD @ 16" O.C.

R-15 INSULATION

HALLWAY

N.G. (N) HORIZ. SIDING TO MATCH (E)

(E) HORIZONTAL SIDING TO REMAIN

8'-0"

(N) HORIZ. SIDING TO MATCH (E)

Scope of Work: New 1-Story Addition to Existing Single-Family Dwelling and Interior Remodel and Removal and Relocation of Existing Carport 5632 RABER ST. LOS ANGELES, CA, 90042

ATTIC

EXI

(E) SHEATHING

6'-8"

6'-8"

(N) HORIZONTAL SIDING 12(E) TO MATCH 4

BEDROOM

COVERED 5'-0" PORCH A.L.G.

(N)2X4 STUD @ 16" O.C.

EAST (LEFT)R-15ELEVATION INSULATION

SCALE: 1/4"= 1'-0"

FJ PER PLAN

F.F.

NG 5% (N) HORIZ. SIDING TO MATCH (E)

A.L.G. 16'-1"

14'-3"

EXISTING

EXISTING

13'-6"

SHEET

A.L.G.

SCALE: 1/4"= 1'-0"

North (Front) Elevation (E)2X4 STUD @ 16" O.C.

(E) F.J.

(N) CARPORT

OF

(N) HORIZONTAL SIDING TO MATCH (E)

(N) HORIZONTAL SIDING TO MATCH (E)

F.F.

NG

NG 5%

ROOFING MATERIAL BY: GAF (30 YRS ASPHALT SHIGNLES) ESR-1475 (CLASS A)

1'-6"

N.G.

5'-0"

SECTION A

A.L.G.

SCALE: 1/4":1'-0"

TEMP.

SHEETS

6'-8"

LIVING / DINING

(E)2X4 STUD @ 16" O.C.

SIDING

A-5

5'-0"

NORTH (FRONT) ELEVATION (E) HORIZ.

A.L.G.

(E) HORIZ. SIDING

JOB NO.

130 GAL

R-38 BATT INSULATION

PROPOSED

5'-0"

SCALE N.G.

(E) HORIZONTAL SIDING TO REMAIN

(N) (E)

8/27/2021

130 GAL

16'-1"

ATTIC

PROPOSED

5'-0"

130 GAL

4

130 GAL

DATE (E) R.R. TO REMAIN

12'-6"

N.G.

/4"= 1'-0"

TimberlineDRAWN Cool Antique Slate (gray INITIAL SRI: 29, 3-YR SRI: 22 CHECKED CRRC PROD ID: 0676-0043a

(N) CARPORT

(E) R.R. TO REMAIN (N) HORIZONTAL SIDING TO MATCH (E) F.F. 12

8'-0"

N.G.

ROOFING MATERIAL BY: GAF (30 YRS ASPHALT SHIGNLES) ESR-1475 (CLASS A)

(E) SHEATHING TO REMAIN OR: 1/2" CDX PLYWOOD SHEATING W/8d @ 6-6-12 O/C

8'-0"

9'-0"

PROPOSED

Timberline Cool Antique Slate (gray) INITIAL SRI: 29, 3-YR SRI: 22 CRRC PROD ID: 0676-0043a

NO. 26 G AT STUC 2-INCHE

Building address shall be provided on the building in such a position as to be plainly visible and legible from the street. Address numbers shall contrast with their background, 4" high minimum and with a minimum stroke width of 0.5 - (Section R319.1)

A CORR THE STU

WHERE S GRADE "D (N)TRELLIS PER OWNER

(N) HORIZ. SIDING TO MATCH (E)

N.G.

N.G.

R-38 BATT INSULATION

BEDROOM

A.L.G. (N)2X4 STUD

8'-0"

(N) HORIZONTAL SIDING TO MATCH (E)

(N) HORIZ. SIDING 5'-0" TO MATCH (E)

HALLWAY

SOUTH (REAR) ELEVATION

@ 16" O.C.

R-15 INSULATION

FJ PER PLAN

South (Rear) Elevation

130 GAL

(N) C

(N) HORI TO F.F.

N.G. (N) HORIZ. SIDING TO MATCH (E)

5'-0" BEDROOM A.L.G.

9'-0"

130 GAL

1'-5"

ATTIC MAX

7.75"

MAX

44"

44"

F.F.

MAX

5'-0" COVERED PORCH A.L.G.

(N)2X4 STUD @ 16" O.C.

R-15 INSULATION

SCALE: 1/4"= 1'-0"

F.F.

NG 5%

1'-6"

NG 5%

N.G.

SECTION B

(E) HORIZONTAL SIDING TO REMAI

5'-0" A.L.G.

SCALE: 1/4":1'-0"

(N) ROOF TO MATCH (E

ROOFING MATERIAL BY: GAF (30 YRS ASPHALT S ESR-1475 (CLASS A)

(E) SHEATHING TO REMAIN OR: 1/2" CDX PLYWOOD SHEATING W/8d @ 6-6-12 O/C (E) R.R. TO REMAIN

(E) R.R. TO REMAIN

(E) HORIZ. SIDING (E)2X4 STUD @ 16" O.C.

(N) HORIZONTAL SIDING TO MATCH (E)

(E) F.J.

(N) CARPORT

F.F.

NG

1'-6"

NG 5%

SECTION A

Section A

SCALE: 1/4":1'-0"

N.G.

5'-0" A.L.G.

(N)TRELLIS PER OWNER

(N) HORIZ TO M

130 GAL

LIVING / DINING

(E)2X4 STUD @ 16" O.C.

130 GAL

16'-1" R-38 BATT INSULATION (E) HORIZ. SIDING

12'-6"

ATTIC

4

PROPOSED

12

PROPOSED

130 GAL

12 4

(E) R

PROPOSED

9'-9"

(E) SHEATHING

PROPOSED

16'-1" (E) RR

PROPOSED

4

TEMPERED RR PER PLAN

TEMP. 1/2" CDX PLYWOOD SHEATING W/8d @ 6-6-12 O/C

PROPOSED

PROPOSED

12'-6"

16'-1"

12

8'-0"

9'-9"

(N) ROOF TO MATCH (E)

PROPOSED

16'-1"

5'-0"4

SCALE: 1/4":1'-0"

PROPOSED

(E) HORIZONTAL SIDING TO REMAIN

12

SECTION B

12 1

A.L.G.

N.G.

PROPOSED

(N) HORIZ. SIDING TO MATCH (E)

4

130 GAL

12

1'-6"

ER

NG 5%

8'-0"

F.F.

130 GAL

130 GAL

(N) HORIZONTAL SIDING TO MATCH (E)

LEGAL DISCLAIMER

F.F.

NG 5%

N.G.

B

N.G.

Professional Work •02 - LMCAD Services : Residential Interior Remodel and Addition

(E) HORIZONTAL SIDING TO REMAIN

5'-0"

(E)

A.L.G.

E: 1/4":1'-0"

(N)

5'-0" A.L.G.

WEST (RIGHT) ELEVATION

(N) ROOF TO MATCH (E)

ROOFING MATERIAL BY: GAF (30 YRS ASPHALT SHIGNLES) ESR-1475 (CLASS A)

THESE DRAWINGS ARE COPYRIGHTED INSTRUMENTS OF SER AS DEFINED BY THE CALIFORNIA ADMINISTRATIVE CODE. TH ARE OWNED BY LM CAD. THEY ARE FOR THE EXCLUSIVE

6'-

@ 16" O.C.

R-15 INSULATION

SCALE: 1/4"= 1'-0"

Timberline Cool Antique Slate (gray) INITIAL SRI: 29, 3-YR SRI: 22 CRRC PROD ID: 0676-0043a

(N) CARPORT (E) ROOF TO REMAIN

5'-0"

EAST (LEFT) ELEVATION

A.L.G.

N.G.

F.F.

N.G.

N.G.

5'-0"

5'-0"

A.L.G.

A.L.G.

(E) HORIZONTAL SIDING TO REMAIN

(N) (E)

PROPOSED

L

6'-8"

(N) HORIZONTAL SIDING TO MATCH (E)

LEGAL DISCLAIMER

N.G.

N.G. (E) HORIZONTAL SIDING TO REMAIN

(E)

(N)

ROOFING MATERIAL BY: GAF (30 YRS ASPHALT SHIGNLES) ESR-1475 (CLASS A)

A.L.G.

WEST (RIGHT) ELEVATION

West (Right) Elevation

SCALE: 1/4"= 1'-0"

A CORROSION RES THE STUCCO A MIN

Building address shall be provided on the building in such a position as to be plainly visible and legible from the street. Address numbers shall

contrast with their background, 4" high minimum and with a minimum stroke (N) CARPORT width of 0.5 - (Section R319.1)

13'-6"

6'-8"

6'-8"

(E) ROOF TO REM

(E) RR

(N) HORIZ. SIDING TO MATCH (E)

ATTIC

12

EXISTING

14'-3" 130 GAL

130 GAL

(N) HORIZONTAL SIDING TO MATCH (E)

F.F.

(E) SHEATHING F.F.

4

N.G.

N.G.

R-38 BATT INSULATION

(N) HORIZONTAL SIDING (E) SHEATHING TOMATCH REMAIN (E) OR: TO F.F.

1/2" CDX PLYWOOD SHEATING W/8d @ 6-6-12 O/C

F.F. 4

N.G.

SECTION B Section B

5'-0" A.L.G.

SCALE: 1/4":1'-0"

16'-1"

12

NG 5%

PROPOSED

1'-6" N.G.

(N) CARPORT 130 GAL

8'-0"

9'-0"

PROPOSED

9'-9" 1'-5"

130 GAL

N.G.

PROPOSED

16'-1"

TEMPERED

12 1

14'-3"

NG 5%

(N) HORIZ. SIDING TO MATCH (E)

13'-6"

4

COVERED PORCH

SCALE: 1/4"= 1'-0"

(N)2X4 STUD @ 16" O.C.

R-15 INSULATION

FJ PER PLAN (N) HORIZ. SIDING TO MATCH (E)

PROPOSED

12

BEDROOM

A.L.G.

(E) HORIZONTAL SIDING TO REMAIN DRAWN CHECKED

(N) ROOF TO MATCH (E) DATE

ROOFING MATERIAL BY: 8/27/2021 GAF (30 YRS ASPHALT SHIGNLES) SCALE ESR-1475 (CLASS A)

130 GAL

R-15 INSULATION

HALLWAY

8'-0"

BEDROOM

(N)2X4 STUD @ 16" O.C. (N)TRELLIS PER OWNER

5'-0" (N) HORIZ. SIDING EAST (LEFT) ELEVATION TO MATCH (E)

(N) HORIZ. SIDING TO MATCH (E)

EXISTING

5'-0" A.L.G.

(E) HORIZONTAL SIDING TO REMAIN

(N) (E)

EXISTING

NG 5%

RR PER PLAN

TEMP.

1/2" CDX PLYWOOD SHEATING W/8d @ 6-6-12 O/C

EXISTING

WHERE STUCCO / SI GRADE "D" PAPER UN

PROPOSED PROPOSED

)2X4 STUD @ 16" O.C.

12'-6"

16'-1"

(E) ROOF TO REMAIN

(N) HORIZONTAL SIDING TO MATCH (E)

NO. 26 GALVANIZED AT STUCCO / SIDING 2-INCHES ABOVE PA

Owner: Ian Rebello 5632 Raber St. Los Angeles, CA 90042 Phone #:

Timberline Cool Antique Slate (gray) INITIAL SRI: 29, 3-YR SRI: 22 CRRC PROD ID: 0676-0043a

5'-0"

Timberline Cool Antique Slate (gray) A.L.G. INITIAL SRI: 29, 3-YR SRI: 22 CRRC PROD ID: 0676-0043a

Scope of Work: New 1-Story Addition to Existing Single-Family Dwelling and Interior Remodel and Removal and Relocation of Existing Carport

(N) ROOF TO MATCH (E)

ROOFING MATERIAL BY: GAF (30 YRS ASPHALT SHIGNLES) ESR-1475 (CLASS A)

) HORIZ. IDING

8

SERVI

TEMP.

F.F.

5'-0"

M CA

A

A.L.G.

SCALE: 1/4"= 1'-0"

R-15 INSULATION

:1'-0"

C

LUIS MAURIC 9819 Beachy A Arleta, CA 91 (818) 433-9805 / 5 OF lmcadservices@gm

5'-0"

NORTH (FRONT) ELEVATION

COVERED PORCH

(N)2X4 STUD @ 16" O.C.

16'-1"

13'-6"

TO MATCH (E)

Timberline Cool Antique Slate (gray) INITIAL SRI: 29, 3-YR SRI: 22 CRRC PROD ID: 0676-0043a

SCALE: 1/4"= 1'-0"

(N) HORIZ. SIDING TO MATCH (E)

4

B

THESE DRAWINGS ARE COPYRIGHTED INSTRUMENTS OF SERVICE AS DEFINED BY THE CALIFORNIA ADMINISTRATIVE CODE. THEY ARE OWNED BY LM CAD. THEY ARE FOR THE EXCLUSIVE USE OF THE OWNER NOTED AT THE EXCLUSIVE SITE INDICATED IN THE DRAWING(S) ONLY THIS DESIGN AND DRAWINGS ARE SUBMITTED AS RESTRICTIVE AND CONFIDENTIAL DISCLOSURE THAT MAY NOT BE USED OR REPRODUCED WITHOUT THE WRITTEN CONSENT OF MC. THIS DRAWING REPRESENTS A PRELIMINARY DESIGN UNTIL SUCH TIME THE ARCHITECT HAS AFFIXED HIS SEAL AND SIGNATURE.

TH (REAR) ELEVATION

(N) CARPORT ROOFING MATERIAL BY: GAF (30 YRS ASPHALT SHIGNLES) ESR-1475 (CLASS A) (N) HORIZONTAL SIDING

130 GAL

(E) ROOF TO REMAIN

(E) SHEATHING

12

(N) ROOF TO MATCH (E)

8'-0"

9'-0"

PROPOSED

9'-9" 130 GAL

1'-5"

MAX

PROPOSED

16'-1"

PROPOSED

TEMPERED

(N) HORIZ. SIDING TO MATCH (E)

12 1

14'-3"

TO MATCH (E)

REVISIONS

EXISTING

A CORROSION RESISTANT WEEP SCREED IS REQUIRED BELOW THE STUCCO A MIN OF 4" ABOVE EARTH OR 2"(N)ABOVE HORIZ.PAVED SIDING AREA. WHERE STUCCO / SIDING IS APPLIED OVER PLY SHEATING, GRADE "D" PAPER UNDER LATH SHALL BE PROVIDED.

SCALE: 1/4"= 1'-0"

Elevation

EXISTING

NO. 26 GALVANIZED SHEET GAGE WEEP SCREED WITH 3-1/2" FLANGE AT STUCCO / SIDING PLACED A MINIMUM OF 4-INCHES ABOVE EARTH OR 2-INCHES ABOVE PAVED AREAS. (CBC 2512.1.2) East (Left)

A.L.G.

130 GAL

Timberline Cool Antique Slate (gray) INITIAL SRI: 29, 3-YR SRI: 22 CRRC PROD ID: 0676-0043a

Building address shall be provided on (N)TRELLIS the buildingPER in such a position as to OWNER be plainly visible and legible from the street.

Address numbers shall contrast with their background, 4" high minimum and with a minimum stroke 12 width of 0.5 - (Section R319.1) 4

NG 5%

Owner: Ian Rebello Scope of Work: New 1-Story Addition to Existing Single-Family Dwelling and Interior

N.G. (E) HORIZONTAL SIDING TO REMAIN

(N) (E)

5'-0"

ROOM

EXISTING

14'-3" 13'-6" F.F.

N.G.

0" ROOFING MATERIAL BY: GAF (30 YRS ASPHALT SHIGNLES) ESR-1475 (CLASS A)

EXISTING

6'-8"

(N) HORIZ. SIDING TO MATCH (E)

130 GAL

(N) HORIZONTAL SIDING TO MATCH (E)

F.F.

NG 5%

6'-8"

TEMP. (N) HORIZONTAL SIDING TO MATCH (E)

130 GAL

12'-6"

(E)2X4 STUD @ 16" O.C.

PROPOSED

16'-1" (E) HORIZ. SIDING

PROPOSED

O REMAIN

N.G.

JOB NO.

ACADEMIC WORK

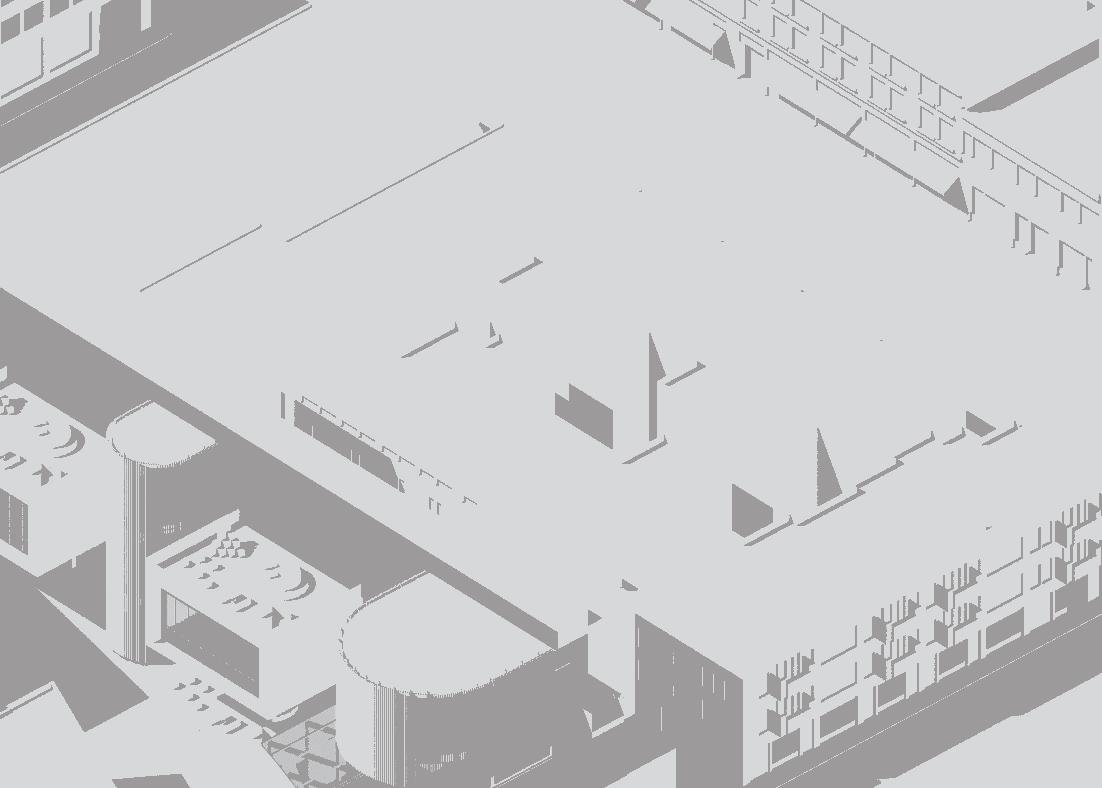

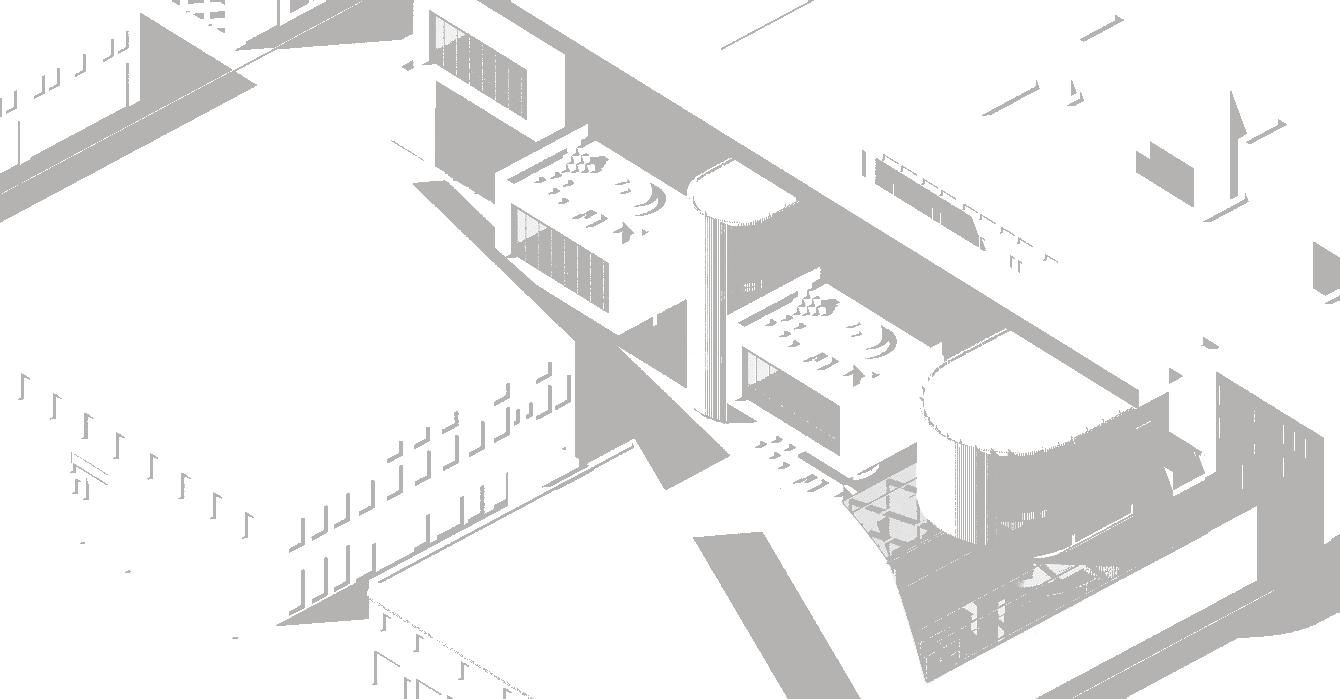

03- The Wall School House Grade 6-8 Pasadena Micro-School WINNER OF HMC'S MERIT AWARD FOR PASADENA MICRO-SCHOOL EDUCATION DESIGN STUDIO Location: Old Town Pasadena Concept: -Circuluation spine/wall with attached "extroverted" and "introverted" programatic elements Project Features: -The site contains two historic brick buildings that become a vital part of the project narrative. These two building would essentially be programmatic anchors for the micro-school which was specifically for grades 6-8.

-Volumes containing laboratories and classroom components are attached to circulation spine.

Software: Rhino,Vray,AutoCAD, Illustrator, Photoshop

Academic Work •03 - The Wall (School) House : Grade 6-8 Pasadena Micro-School

Academic Work •03 - The Wall (School) House : Grade 6-8 Pasadena Micro-School

Academic Work •03 - The Wall (School) House : Grade 6-8 Pasadena Micro-School

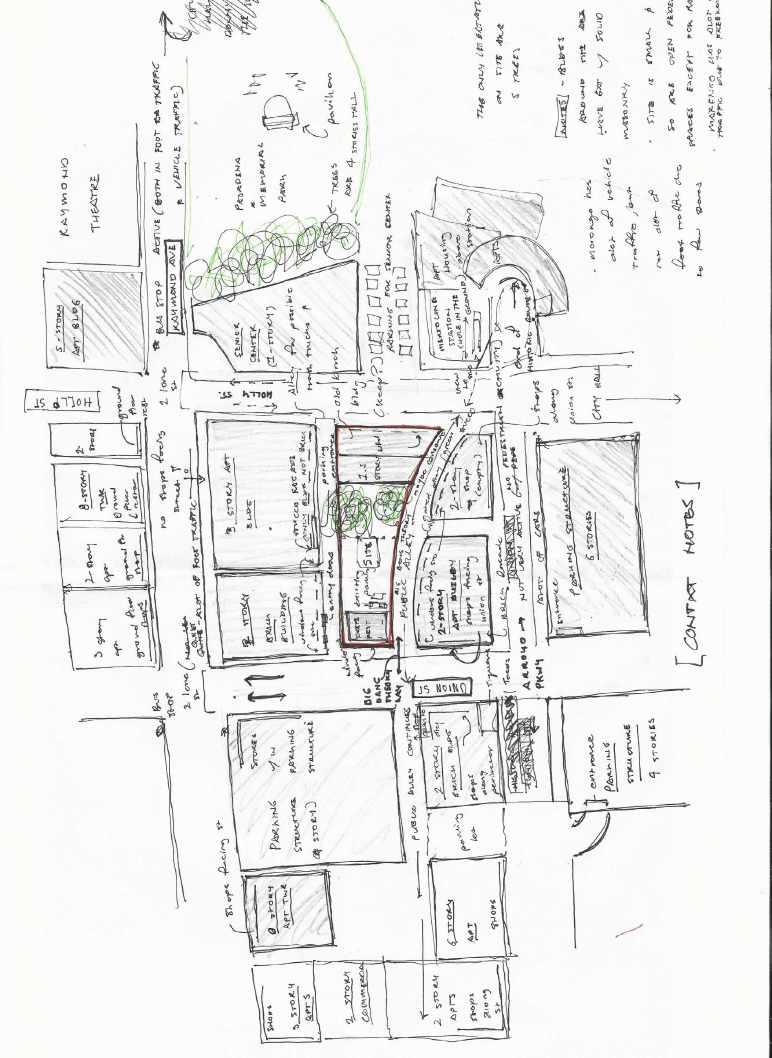

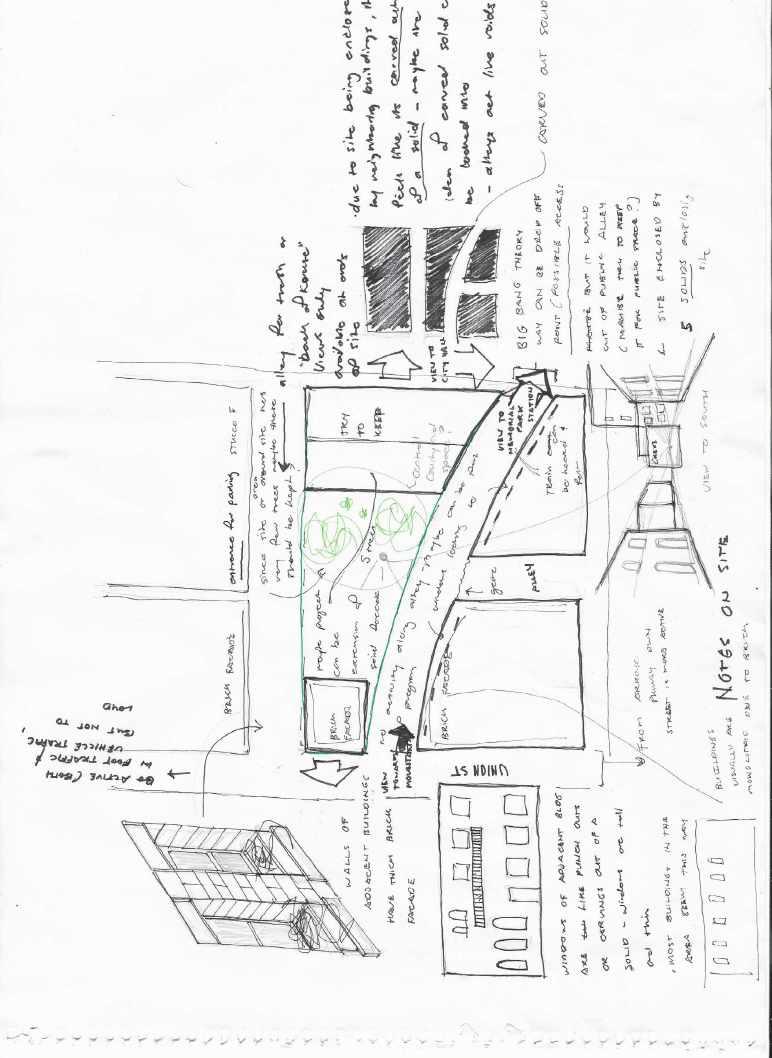

Site Analysis/ Sketches

Academic Work •03 - The Wall (School) House : Grade 6-8 Pasadena Micro-School

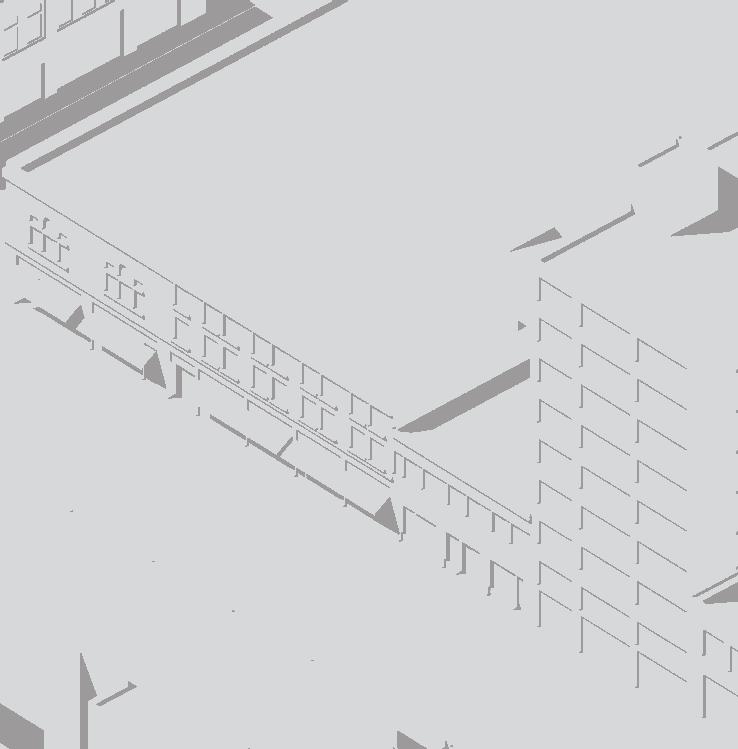

Site Analysis/ Sketches

Academic Work •03 - The Wall (School) House : Grade 6-8 Pasadena Micro-School

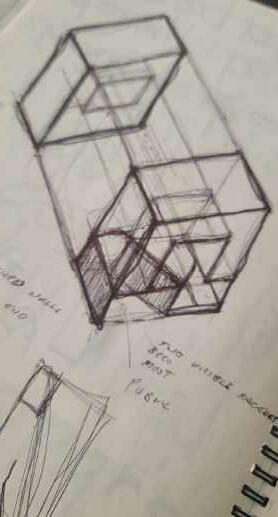

Preliminary Sketches

Academic Work •03 - The Wall (School) House : Grade 6-8 Pasadena Micro-School

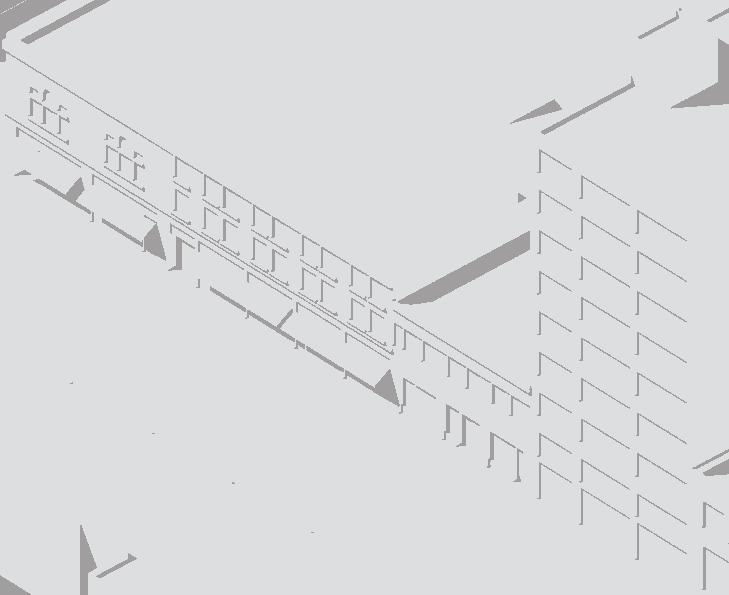

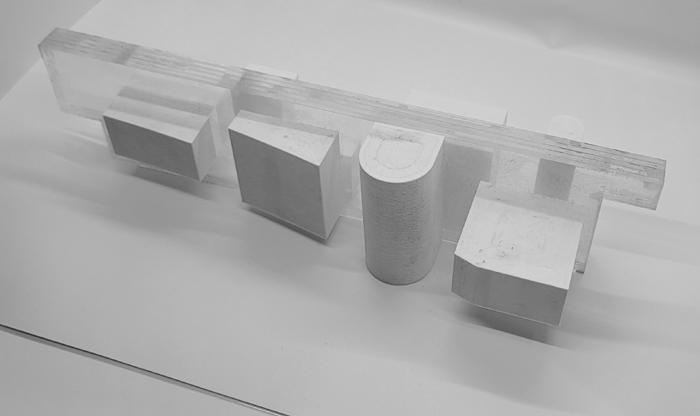

Initial Concept/Massing Models

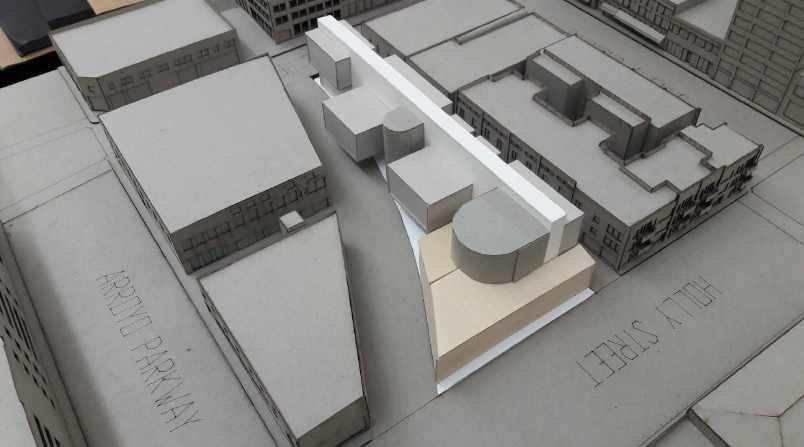

Final Site Model

Academic Work •03 - The Wall (School) House : Grade 6-8 Pasadena Micro-School

14

14

18 10 17

17

16

3rd Plan 3rdFloor Floor

14

15

12

14

10

13 4

2ndFloor Floor 2nd Plan

11

10 1 Lab Lab 11_Drop - Drop Off/Courtyard Off/ Courtyard 12_Science 12 - Science 22_Lobby - Lobby 13 - Inventor 13_Inventor Lab Lab 33_Gallery - Gallery 14 - Collab Space 14_Collab Space 44_Great - Great Room Room 15 - Outdoor Terrace 15_Outdoor Terrace 55_Conference - ConferenceRoom Room 16_Kinesthetics 16 - Kinesthetics Lab Lab 66_Admissions - Admissions 17 - Outdoor Terrace 17_Outdoor Terrace 77_Reception - Reception 18 - Media 18_Media Lab Lab 88_Secretary - Secretary 99_Principals - PrincipalsOffice Office 10 - Breat Out Space 10_Break Out Space 11 Faculty Lab 11_Faculty Lab 12_ Sciene Lab

3

5 4

2 0' 4' 8'

16'

7 6 8 9

1st Floor

1st Floor Plan

Academic Work •03 - The Wall (School) House : Grade 6-8 Pasadena Micro-School

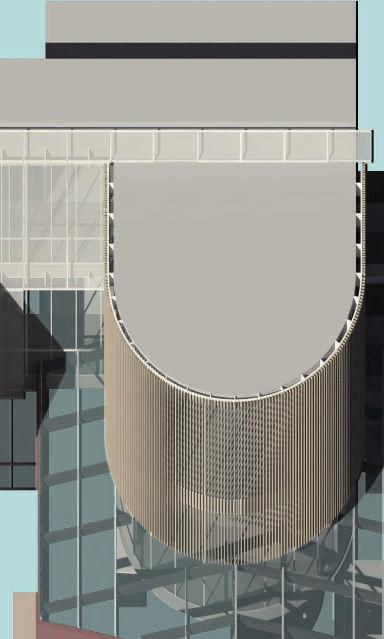

West Elevation

North Elevation

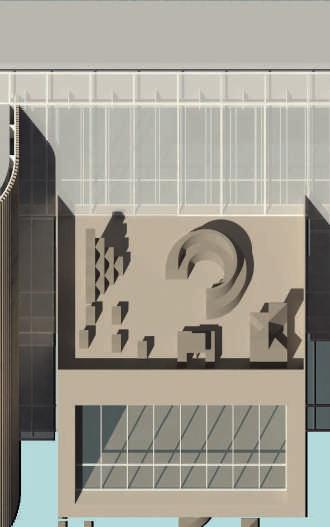

Cross Section

Project ProjectElements Elements

Existing Brick Brick Buildings Existing Buildings Laboratories/Classrooms Laboratories/Classrooms Circulation Spine Spine Circulation

2017

04 - West Hollywood Multi-Family Housing 12-Unit Multi-Family Housing Project Location: West Hollywood Concept: -Easily adaptable or modified modular system with varying unit types that can be arranged into linear bars Project Features: -Within the module, the units can be structured as a 1st floor studio unit with a 1-Bedroom unit on the 2nd and 3rd floors.

-Project was developed to construction document phase with rendered elevations and dimensioned architectural drawings.

Software: Rhino,Vray,AutoCAD, Illustrator, Photoshop

Academic Work •04 - West Hollywood Multi-Family Housing

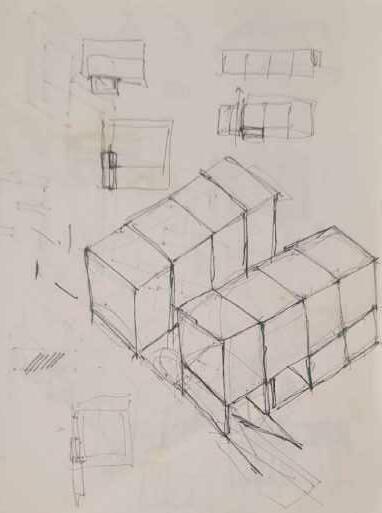

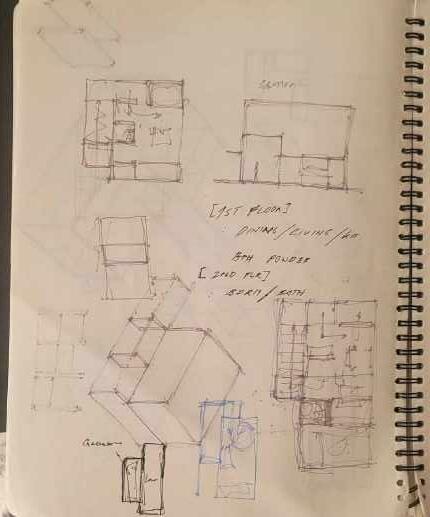

Preliminary Sketches

Academic Work •04 - West Hollywood Multi-Family Housing

Preliminary Sketches

Academic Work •04 - West Hollywood Multi-Family Housing

North Spaulding Ave.

North Spaulding Ave.

Santa Monica Blvd.

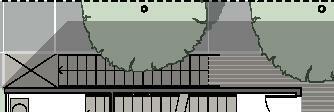

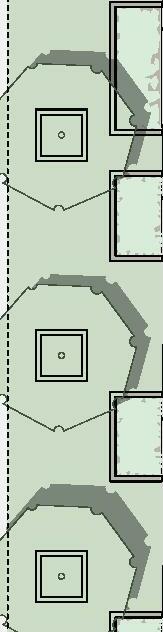

Site Plan/First Floor Plan

Academic Work •04 - West Hollywood Multi-Family Housing

0'

4'

8'

2nd Floor Plan

16'

Academic Work •04 - West Hollywood Multi-Family Housing

View Into 2nd Floor Balcony from 2nd Floor Units

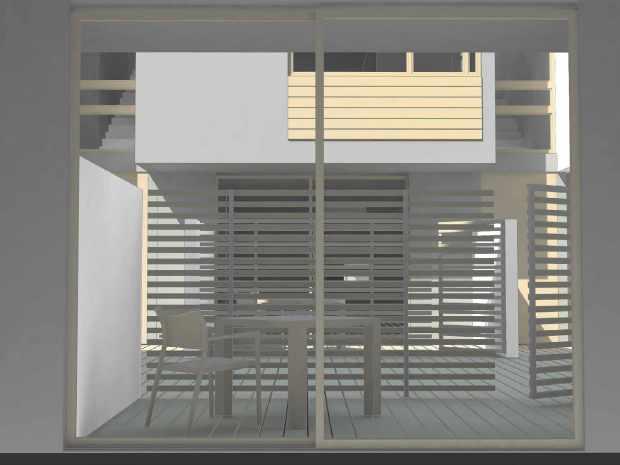

View Into Interior Courtyard from Studio Unit

Academic Work •04 - West Hollywood Multi-Family Housing

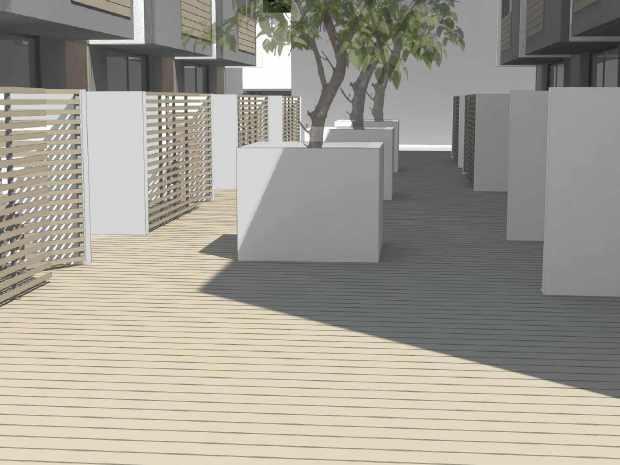

Interior Courtyard

View from 2nd Floor Unit

Academic Work •04 - West Hollywood Multi-Family Housing

2nd Floor Unit Terrace

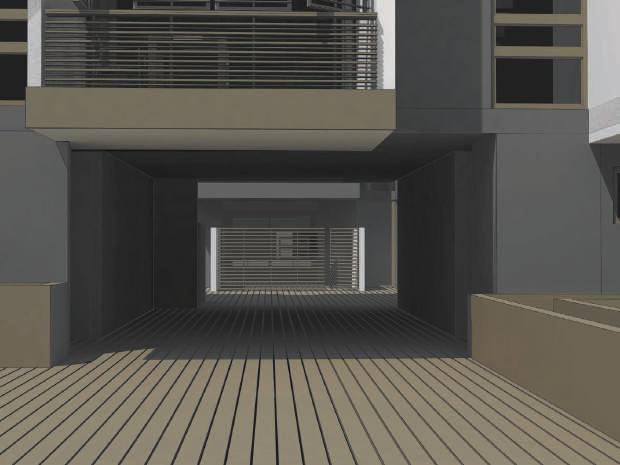

Project Entry

Academic Work •04 - West Hollywood Multi-Family Housing

ROOF ROOF TERRACE TERRACE WOOD WOOD DECKING DECKING WATER WATER PROOFING PROOFING MEMBRANE MEMBRANE RIGID RIGID INSULATION INSULATION SLOPE SLOPE @ @ 2% 2% 3/4” 3/4”PLYWOOD PLYWOOD SHEATHING SHEATHING 2X12 2X12 ROOF ROOF JOISTS JOISTS INSULATION INSULATION PLASTER PLASTER

HARDWOOD HARDWOOD FLOORING FLOORING 1-1/2” 1-1/2”GYP-CRETE GYP-CRETE 3/4” 3/4”PLYWOOD PLYWOOD 2X 2X SLEEPERS SLEEPERS 4X12 4X12 LEDGER LEDGER LOWERED LOWERED JOIST JOIST

EXTERIOR EXTERIOR BALCONY BALCONY WOOD WOOD DECKING DECKING RIPPED RIPPED SLEEPERS SLEEPERS WATER WATER PROOF PROOF MEMBRANE MEMBRANE RIGID RIGID INSULATION INSULATION 3/4” 3/4”PLYWOOD PLYWOOD SHEATHING SHEATHING

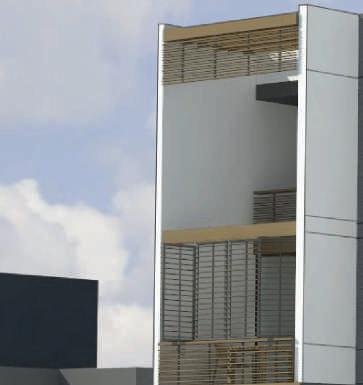

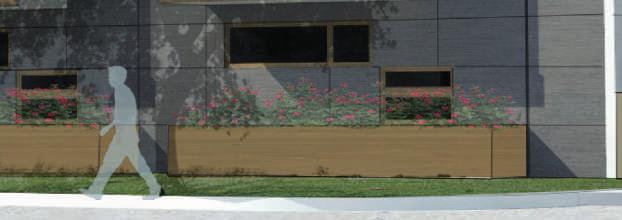

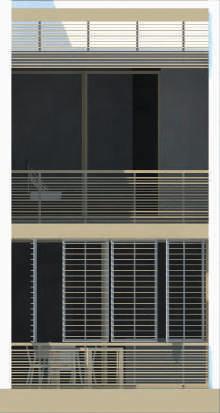

Partial Rendered Elevation

Key Section

END
