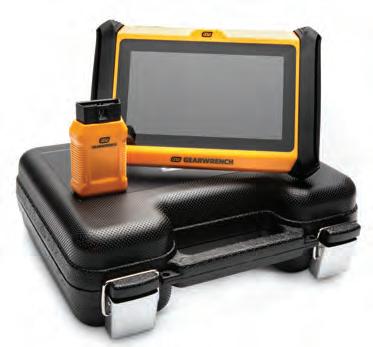

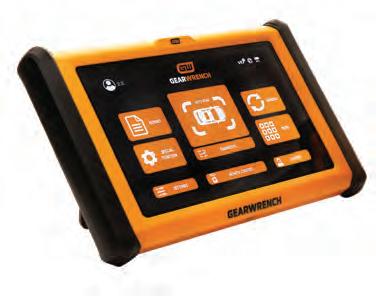

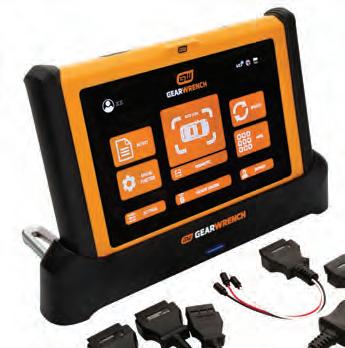

DIAGNOSTIC TABLETS

70+ POPULAR FUNCTIONS

■ Premium 254mm/10” Tablet

Engineered for full-time shop use, powerful processor, fast 5GHz Wi-Fi, long-life battery & rugged housing

■ 51 Pro Vehicle Reset/Relearn Functions

ABS bleeding, steering angle calibration, injector coding, battery resets, throttle matching, transmission adaptations, TPMS reset & more

■ Fully AutoAuth/Secure Gateway-Ready Allows full-system diagnostics, bidirectional tests & service functions on secure platforms with proper authentication

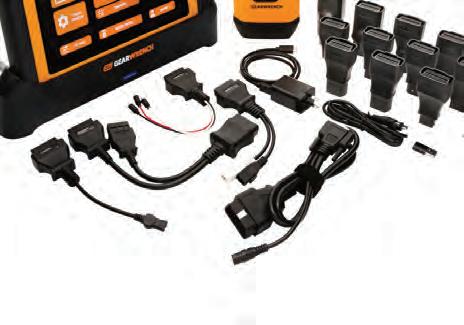

■ Hi-Speed Wireless VCI, Rapid-Charge Dock, OBDII Main Cable, & Full 16 Pc. Global OBD Connector Set Included

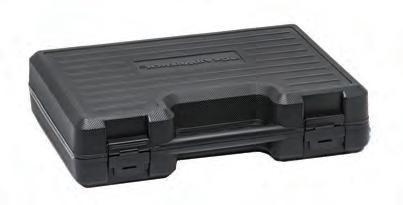

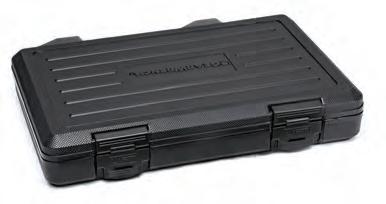

Stored in blow mould carrying case with designated space for all components

POPULAR FUNCTIONS

■ Read & Clear Codes

For all available systems

■ OE Level Diagnostics

Enables full system scans, showing manufacturer fault codes & definitions

■ Innovative Built-In WiFi System

Easily connect to vehicle without needing cumbersome wires

■ 3-Year FREE Software Updates

Only $150(USD)/year after first 3 years

■ Built-In 8 Megapixel Camera With auto-focus and flashlight

FUNCTIONS

■ 31+ Pro Vehicle Reset/Relearn Functions

Throttle matching, ABS bleeding, steering angle calibration, injector coding, battery resets, transmission adaptations, TPMS resets & more

■ View, Graph, Compare Critical Sensor Data

Quickly identify irregularities & confirm system status, helping technicians isolate issues in real time

■ Fully AutoAuth/Secure Gateway-Ready Allows full-system diagnostics, bidirectional tests & service functions on secure platforms with proper authentication

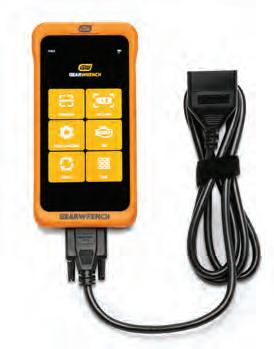

DIAGNOSTIC SCANNERS NEW INSPECTION CAMERA

■ Read & Clear Codes

■ OE Level Diagnostics

■ Continuous Vehicle Monitoring ■ OBDII Mode $06

■ FREE Lifetime Software Updates

■ 1080p HD Camera with 4 Brightness Levels

■ Read & Clear Codes

■ OE Level Diagnostics

■ Full Bidirectional Control

■ 23 Pro Vehicle Reset/Relearn Functions

■ FREE Lifetime Software Updates

NEW TYRE PRESSURE MONITORING TOOLS

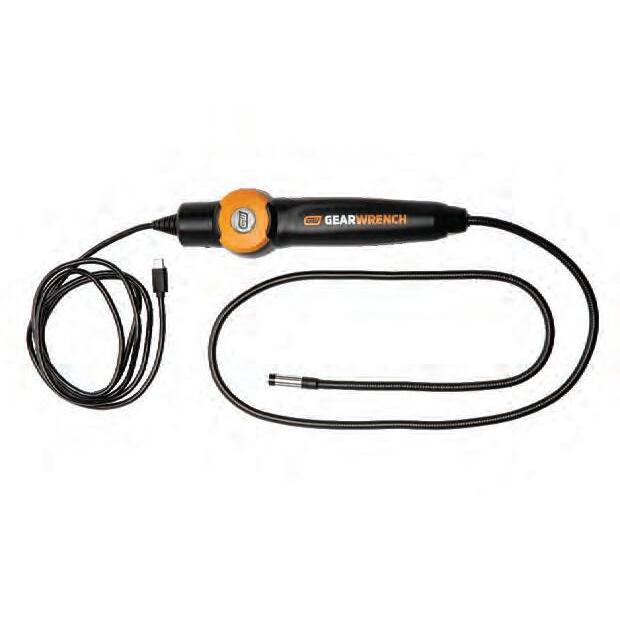

■ 8.5mm x 1000mm Flexible Semi-Rigid Probe

Reaches deep & narrow areas with ease

■ USB Type-C Interface

Compatibility with GEARWRENCH Diagnostics tools, smartphones, tablets & computers

■ Heat Resistant Up To 90°C Reliable protection in extreme working conditions

■ Photo & Video Capture

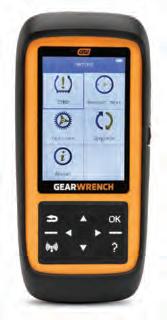

■ Clear TPMS warning lights on nearly any vehicle

■ Program Up To 8 Sensors Simultaneously Seamlessly programs all GEARWRENCH branded TPMS sensors

■ Read/Clear TPMS Codes/Relearn all known TPMS sensors

Check sensor ID, position, pressure, temperature, and battery status with easy-to-follow on-screen procedures

■ Full ECU-ID verification

Confirms sensor matching status and OE data accuracy

■ Flexible USB Type-C or Wi-Fi Connection

■ Includes GWTPMSAU Tool, OBD Cable, USB-A to USB-C Charger & Adapter

Record images and videos for detailed inspections (GWTPMSM4PK)

(GWTPMSR4PK)

■ Compatible with 99% of Vehicles Worldwide

■ Activates, Relearns & Programs 315 MHz & 433 MHz Sensors

Compatible with GEARWRENCH, OE & aftermarket sensors for universal coverage

■ 100% ID Cloneable Sensor

Replicates OE sensor IDs so no relearn is required

P c . 3/8" DRIVE

SET INCLUDES:

» 1 3/8" Extension Bar: 125mm

» 1 3/8" Ratchet Wrench

» 1 6" Long Nose Plier

» 2 Screwdrivers: SL5.5x125mm & PH2x100mm

» 4 3/8" Sockets with Hex Bit: 4-6 & 8mm

» 7 3/8" Sockets: 8, 10-14 & 17mm

» 4 3/8" Sockets with Tamper Torx: TT20, TT25, TT27 & TT30

» VDE certified and IEC 60900 compliant

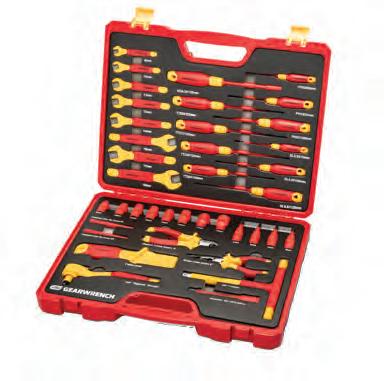

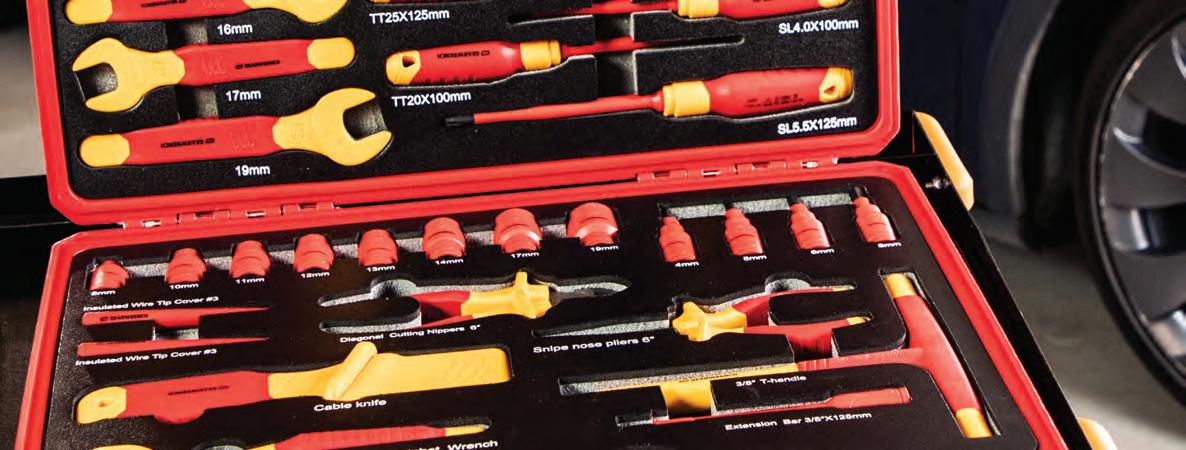

SET INCLUDES:

» 1 3/8" Extension Bar 125mm

» 1 3/8" Ratchet Wrench

» 1 3/8" T-Handle Wrench

» 1 Cable Knife

» 1 6" Long Nose Plier

» 1 6" Diagonal Cutter

» 1 Nut Driver: 6.0x125mm

» 2 Insulated Wire Tip Cover #3

» 8 Open Wrenches: 8, 10-17 & 19mm

» 4 3/8" Sockets with Hex Bit: 4-6 & 8mm

» 8 3/8" Sockets: 8, 10-17 & 19mm

» 3 Slotted Screwdrivers: SL2.5x75, SL4.0x100 & SL5.5x125mm

» 3 Phillips Screwdrivers: PH0x60, PH1x80 & PH2x100mm

» 4 Tamper Torx Scrwdrivers: TT20x100, TT25x125, TT27x125 & TT30x125mm

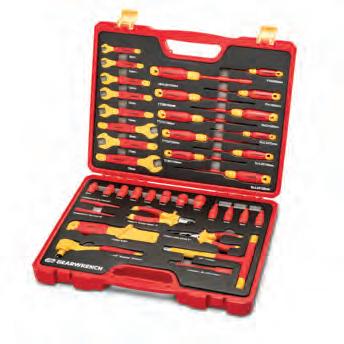

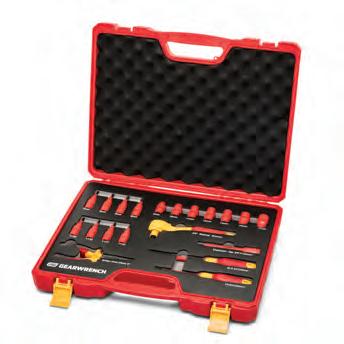

» Each tool is rated safe for use up to 1,000V and tested to withstand 10,000V, providing maximum protection

» Ergonomic design ensures a secure grip and reduces hand fatigue for greater comfort and control

» Drop forged from chrome vanadium alloy steel (Cr-V) for exceptional strength and durability

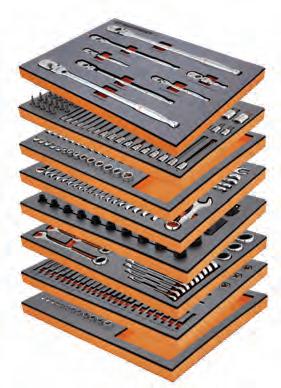

» Includes foam inserts to keep each tool organised and accounted for

» Slim insulation profile allows better access in tight spaces without sacrificing safety

SET INCLUDES:

» 1 1/4" Extension Bar: 75mm

» 2 3/8" Extension Bar: 125 & 250mm

» 1 1/4" Ratchet Wrench

» 1 3/8" Ratchet Wrench

» 1 Cable Knife

» 1 6" Long Nose Plier

» 1 6" Diagonal Cutter

» 1 8" Adjustable Wrench

» 1 Scraper: 320mm

» 3 Insulated Wire Tip Cover: #1, 10 & 20mm

» 1 Voltage Tester

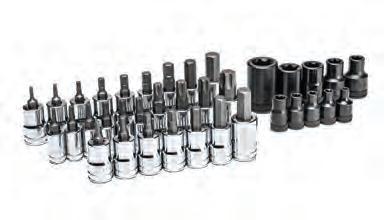

» 4 1/4" Sockets with Hex Bit: 3, 5-6 & 8 mm

» 5 3/8" Sockets with Hex Bits: 4-6, 8 & 10mm

» 4 1/4" Sockets with Tamper Torx: TT20, TT25, TT27 & TT30

» 7 3/8" Sockets with Tamper Torx: TT20, TT25, TT27, TT30, TT40, TT45 & TT50

» 5 1/4" Sockets: 8, 10 & 12-14mm

» 13 3/8" Sockets: 8-19 & 21mm

» 14 Box-End Wrenches: 8, 10-19, 21, 22 & 24mm

» 3 Slotted Screwdrivers: SL2.5x75, SL4.0x100 & SL5.5x125mm

» 3 Phillips Screwdrivers: PH0x60, PH1x80 & PH2x100mm

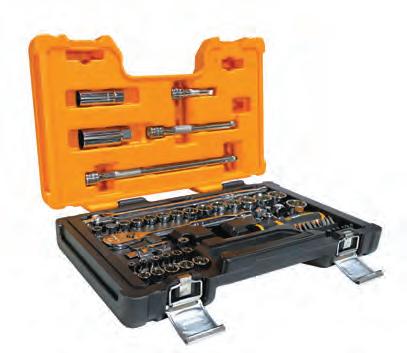

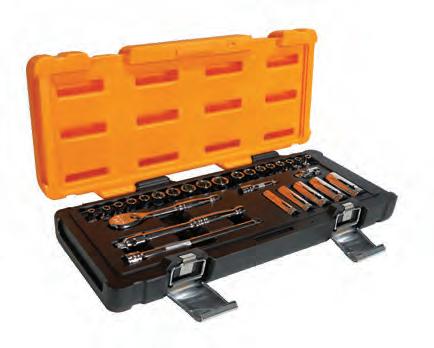

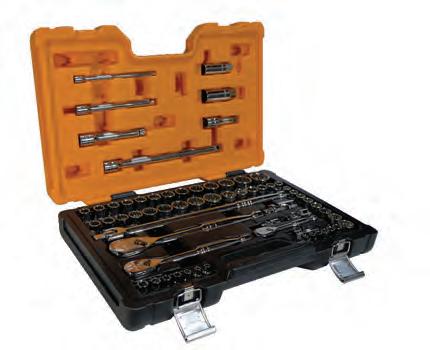

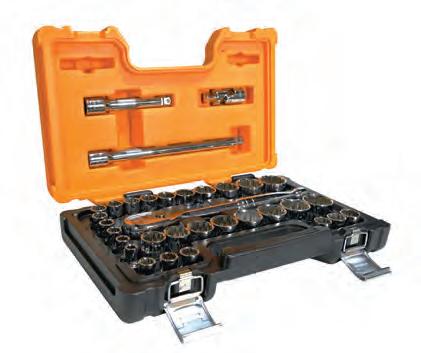

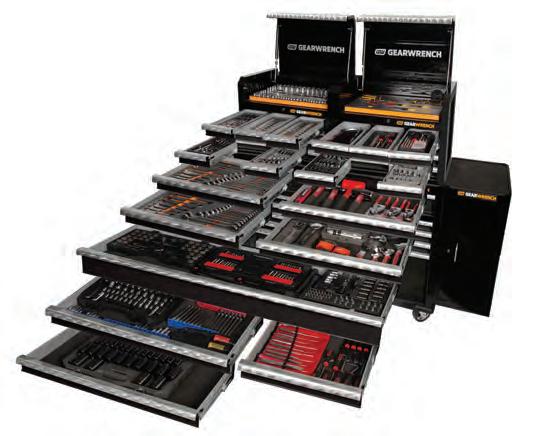

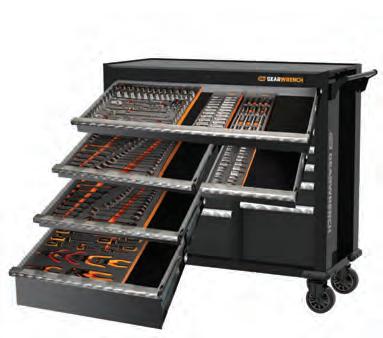

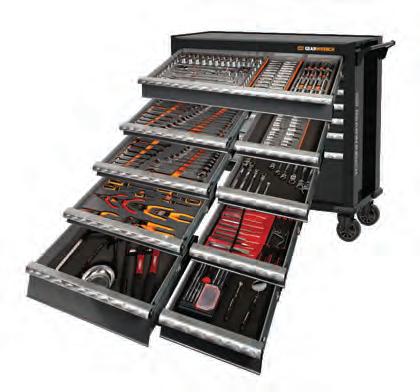

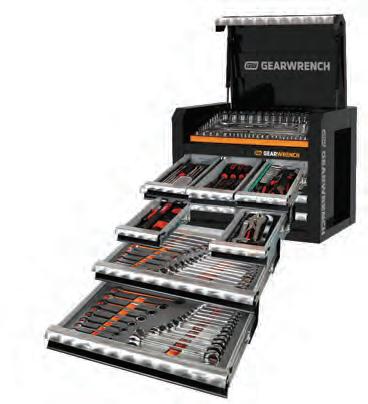

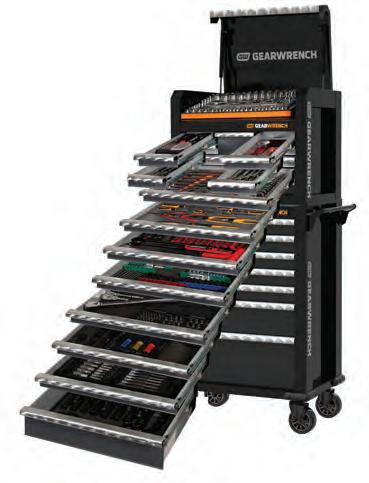

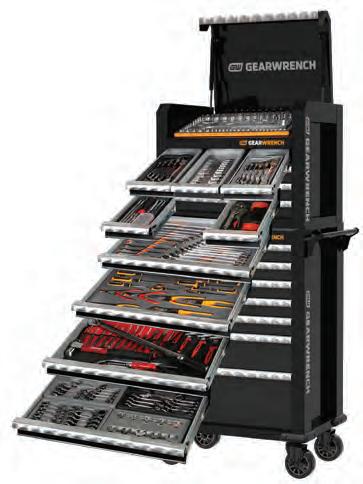

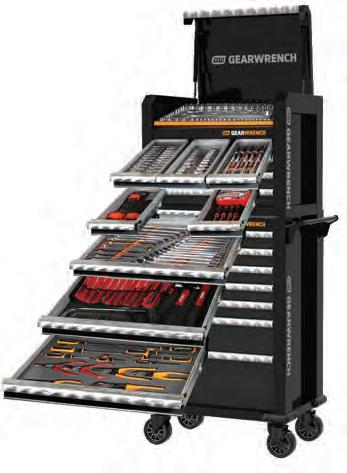

TOOL KITS FULLY LOADED

DIMENSIONS:

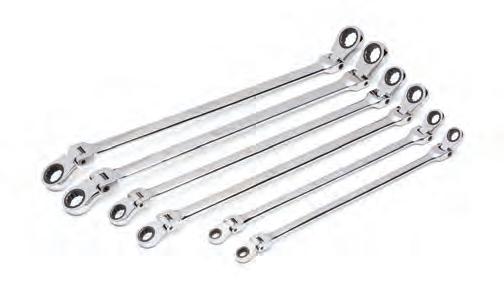

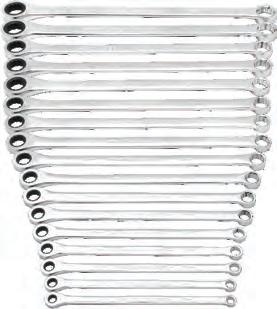

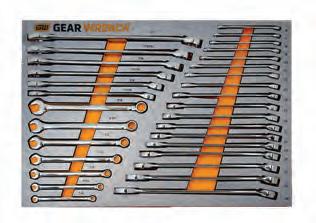

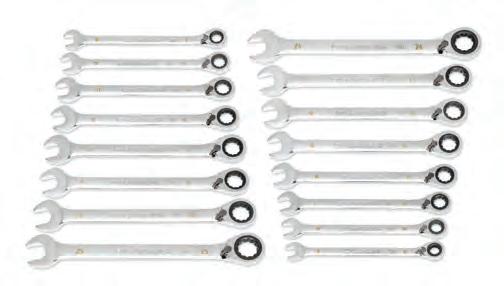

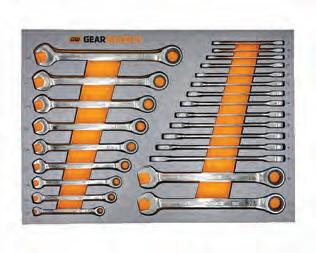

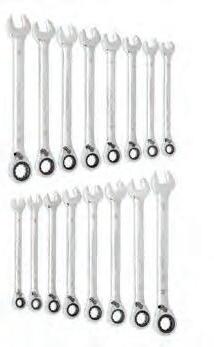

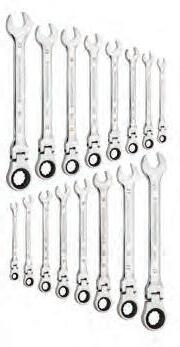

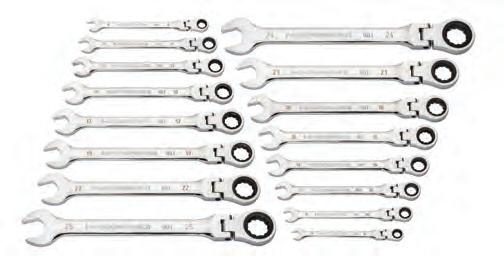

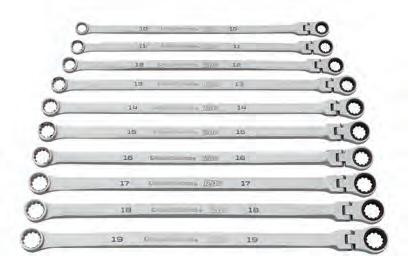

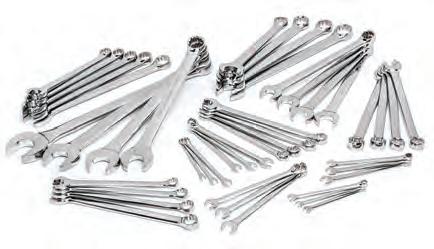

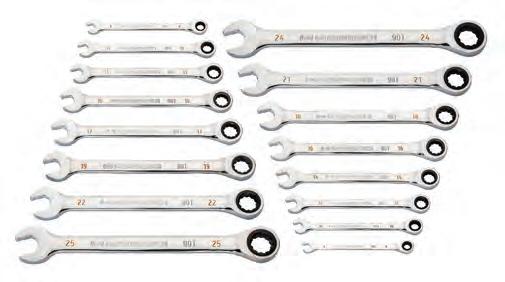

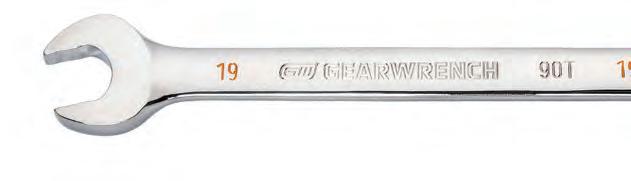

90T RATCHETING WRENCHES

90T ratcheting wrenches are perfect for tight situations technicians face everyday. Available in standard & stubby lengths and standard & reversible styles in the most common METRIC & SAE sizes.

> 12 point ratcheting box end turns 6 and 12 point fasteners

> Dual-direction off-corner loading reduces fastener rounding

> Longer beam for greater reach and leverage

> Only requires 4 degrees of swing

INCLUDES: » 1/4, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16 & 1”

SET INCLUDES:

» 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24 & 25mm

ALSO AVAILABLE IN

14 P c . SAE SET - 86759

SET INCLUDES: » 1/4, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16 & 1”

21, 22, 24 & 25mm

SET INCLUDES: » 1/4, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16 & 3/4”

SET INCLUDES: » 8 x 10, 9 x 11, 12 x 14, 13 x 15, 16 x 18 & 17 x 19mm

ALSO AVAILABLE IN

4 P c . SAE SET - 86831

SET INCLUDES: » 5/16 x 3/8, 7/16 x 1/2, 9/16 x 5/8 & 11/16 x 3/4”

9/32, 5/16,11/32, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16 & 1” SET INCLUDES:

» 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24 & 25mm

SET INCLUDES:

» 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30 & 32mm

» 1/4, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1-1/16, 1-/18, 1-1/4, 1-5/16 & 1/1/2"

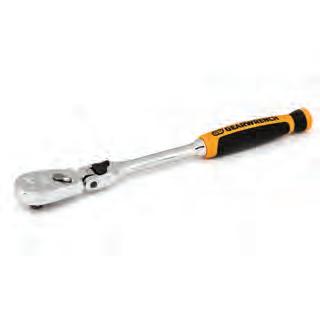

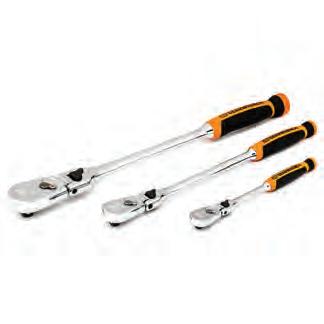

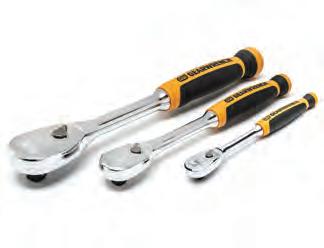

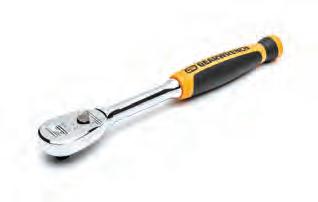

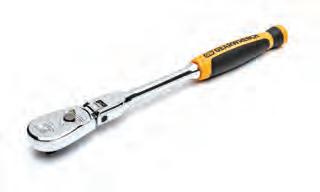

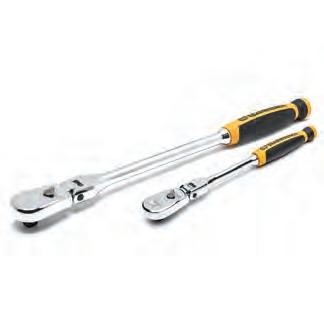

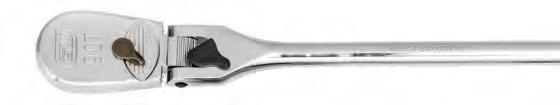

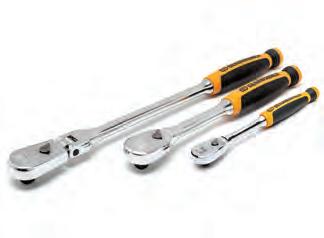

RATCHETS

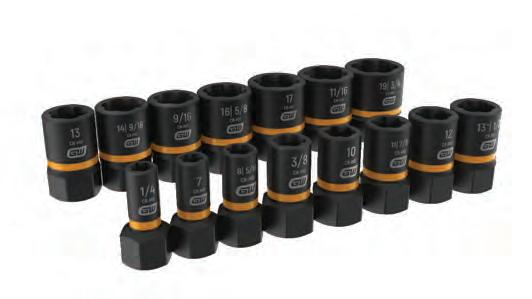

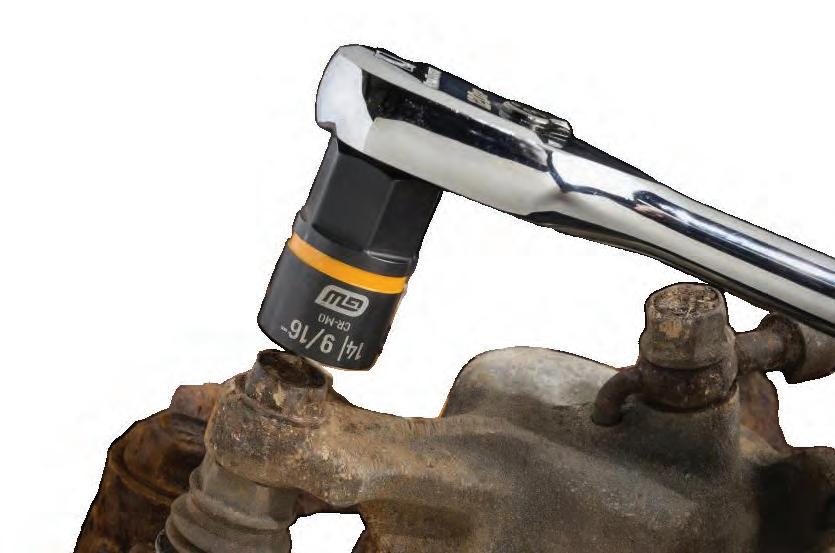

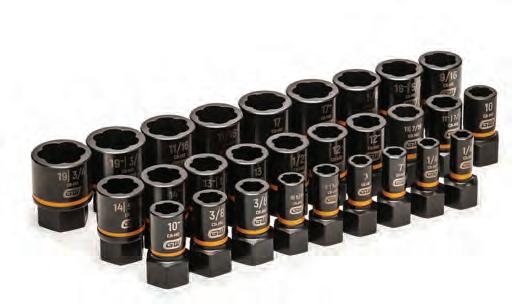

TURN ANY RUSTED OR ROUNDED FASTENER WITH BOLT BITERTM

Whether you’re faced with a rounded, rusted bolt or a stripped screw head, Bolt Biter fastener extraction tools are the solution. Bolt Biter Extraction Sockets reliably remove stubborn nuts and bolts keeping fastener extraction problems from slowing you down.

» 1/4”, 7mm, 8mm (5/16”), 3/8”, 10mm, 11mm (7/16”), 12mm, 13-mm (1/2”), 13mm, 14mm (9/16-”), 9/16”, 16mm (5/8”), 17mm, 11/16” & 19mm (3/4”)

SET INCLUDES:

» 1/4-”, 1/4”, 7-mm, 7mm, 8-mm (5/16-”), 8mm (5/16”), 3/8-”, 3/8”, 10-mm, 10mm, 11-mm (7/16-”), 11mm (7/16”), 12-mm, 12mm, ½-”, 13-mm (1/2”), 13mm, 14-mm, 14mm (9/16-”), 9/16”, 16-mm (5/8-”), 16mm (5/8”), 17-mm, 17mm, 11/16-”, 11/16”, 19-mm (3/4-”) & 19mm (3/4”)

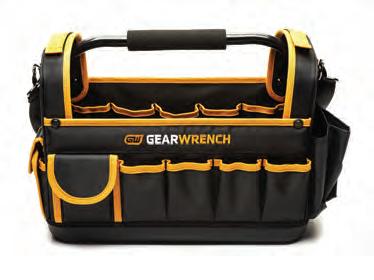

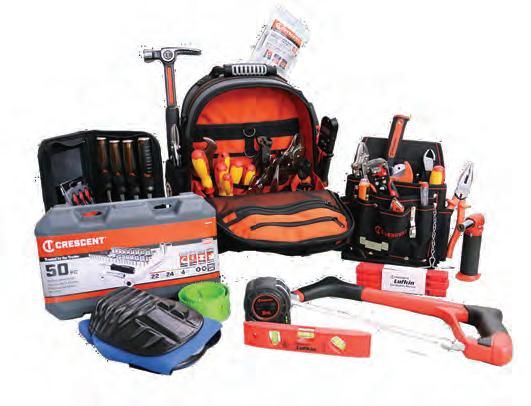

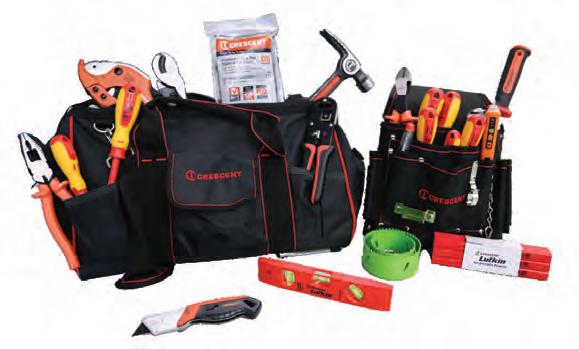

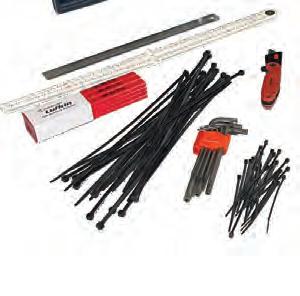

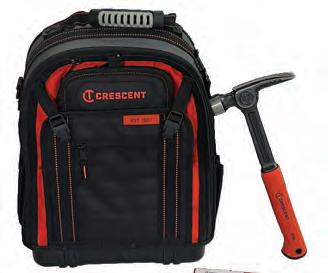

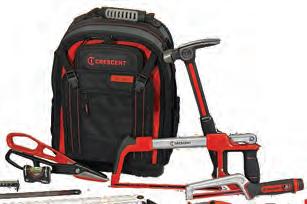

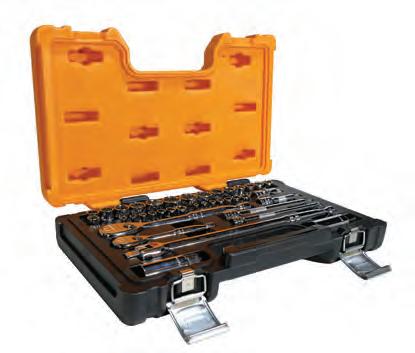

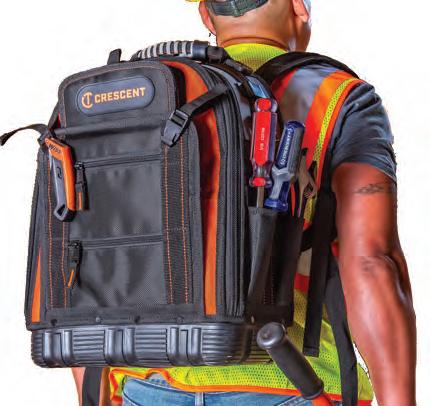

PORTABLE TOOL KITS

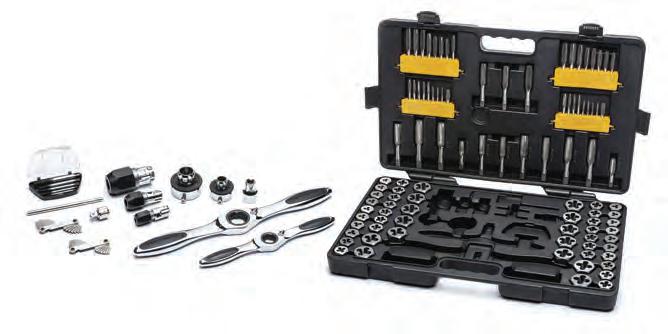

THREAD WITH SPEED & PRECISION. The GEARWRENCH ratcheting tap and die system makes cutting and chasing threads faster and easier. With a 5° ratcheting arc, Twist Lock guide, and extendable reach, they’re built for tight spaces and tough jobs. Secure storage and pro-grade performance - right out of the case.
