GTD GT45DD DRILL RIG

GTD GT45 DD GEOTHERMAL & WATER WELL DRILL RIG

IN COLLABORATION WITH

GTD GT45DD Spec Sheet Vs030

GTD GT45 DD DRILL RIG The GT45 DD builds on the trusted performance of our GT series, offering unparalleled efficiency in Geothermal drilling for both domestic and commercial applications. With the innovative double-headed design, the GT45 DD ensures borehole stability even in the most challenging formations.

30°

IN COLLABORATION WITH

Able to reach depths beyond 2300 feet (700 m) using mud, air, and hammer drilling methods, the GT45 DD comes complete with our unique rod rack and loading system, the most robust, reliable, and safest rod handling system on the market, ensuring maximum safety and efficiency in all drilling operations.

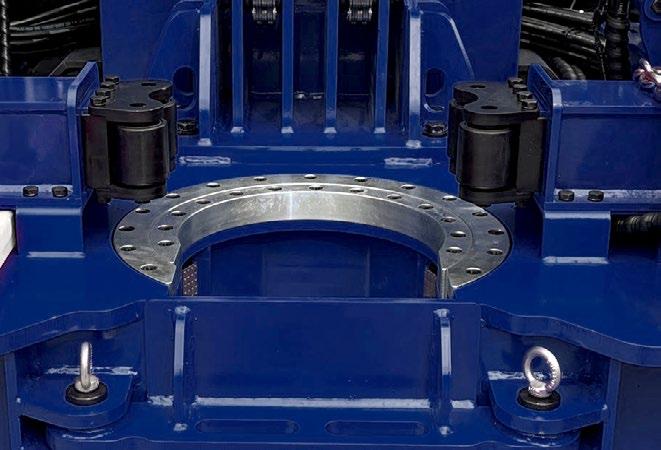

HYDRAULIC CHUCK 219MM MAX

HYDRAULIC CHUCK SK 219

30° TIP OUT SYSTEM TO LOAD CASING 2575 AND RODS RH 40 X

PREVENTER

GTD STANDARD FEATURES

DIMENSIONS & WEIGHT

X Sliding & Tilting Drill Head X Swivel & Floating Spindle Sub X Height adjustable working table X Triple Clamps – One rotating X Hydraulic Centralizing Rollers X Hydraulic Breakout Chain Wrench X Auxiliary Hydraulic Ports and Controls

X Length 39' 8" (12.1 m) X Width 7' 8" (2.4 m) X Height 10' 5" (3.2 m) X Weight 46,000 lbs - 60,000 lbs (21,000 kg - 27,000 kg) Actual weight will vary depending on the options selected and installed, e.g. Rods...

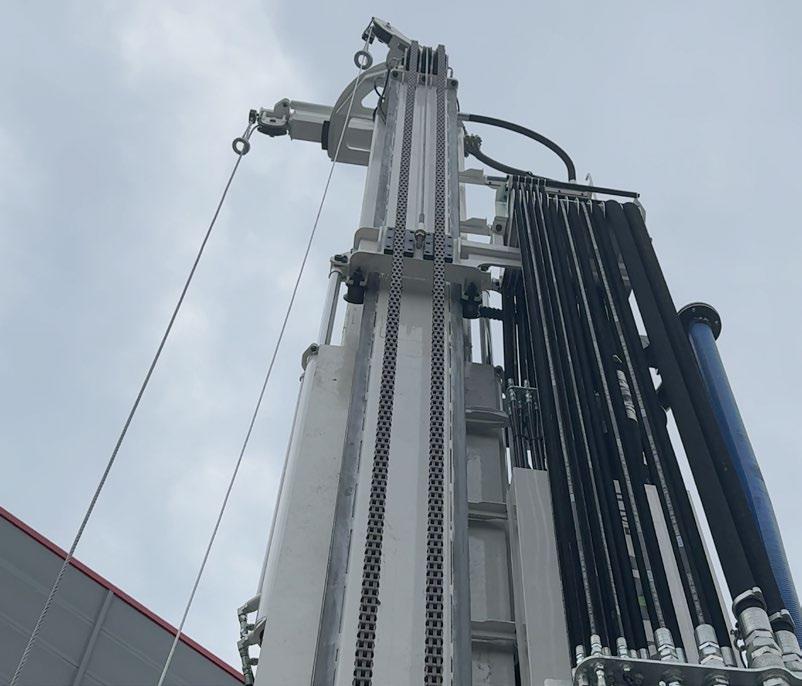

DERRICK & FEED SYSTEM

+/-15

X Main Winch - 11,000 lbs (5,000 kg)

X 45,194 lbs (20,500 kg) pull-back

X Wire/Sandline Winch

X 18,740 lbs (8,500 kg) push-down

X Water Injection Mist Pump X DTH Lube System X Rod Rack & Rod Loader X Hydraulic Welder & Generator (7.5 kW)

X 21' 4" (6.5 m) top head stroke

DRILL PIPE & CASING X 3½" (88.9 mm) x 15' (or 5 m) X 40 rod capacity - 600' (or 200 m)

X Self Loading Jacks/ Outriggers X Air Compressor: 24 cfm (673 lpm), 130 psi (9 bar)

X Max diameter 12½" (320 mm)

ROTARY DRILL HEAD

X Centrifugal Pump: 4x3x13 Single-stage X 5x6 Triplex Piston Pump:

X EA61V Head motors

317 gpm @ 580psi (1200 lpm @ 40bar)

X Swivel with 2" or 3" thru-hole

OPTIONS

X 220 rpm at 3,319 lb-ft (4,5 kNm) X 77 rpm at 9,293 lb-ft (12,6 kNm)

Winch Length 1,000' - 6,500' (300 m - 2,000 m)

X Floating Spindle (shock absorber)

Hydraulic Sliding Rod Wrench

CASING HEAD - EURODRILL RH40X

Angled Drilling

X Rotation: 164 rpm

Safety Cage

X Chuck: 3½" (89 mm), 5" (152 mm), 6" (168 mm), 7" (178 mm), 8" (219 mm)

)CDM_042_DE(ORCNIS

2 1/2" 2" TS061x07 x411 x001

TS061x07 x411 x001

TS061x07 x411 x001

태강 63x 73x 45x280st

SHC-8085 삼오하드웨어

100x 114x 70x160ST

PF 1/2"

100x 114x 70x160ST

PF 1/2"

PF 1/2"

100x 114x 70x160ST

X Dual Head Tip Out System

PF 1/2"

DP2 M30xP3.5

1 1/4

1 1/4

X Head 30° Angled Tip Out System

1 1/4

품정산두

1 1/4

D r3

삼오하드웨어 SHC-8085

)CDM_042_DE(ORCNIS

M30xP3.5

DP2 태강 63x 73x 45x280st

PF3/8

X Diverter: 4" (102 mm) with Hydraulic adjustable compression

PF3/8

W (Max) - 7' 8" (2.4 m)

X Torque 25,077 lb-ft (34 kNm)

X 319 HP (283 kW)

CRAWLER (TRACK) BASE

WWW.GTD-DESCO.COM

1 1/4

)CDM_042_DE(ORCNIS

)CDM_042_DE(ORCNIS

품정산두

2 1/2"

X Wireless remote travel

BR50 BR50

45x280st

2"

X Steel with rubber pads

05RB

태강 63x 73x

140x 165x3000st

76.Ø40xØ25x130ST

X Doosan Solar 130

Height (Max) - 10' 5" (3.2 m)

X Doosan DL08 Tier 4 (Stage 5)

ts054x06 x05 .07

ENGINE

2 1/2"

Length (Max) - 39' 8" (12.1 m)

Track Width 7' 2" (2.2 m)

NOTE: THE MEASUREMENTS ABOVE ARE THE BASE DIMENSIONS WHICH MAY BE SUBJECT TO VARIATION DEPENDENT ON FINAL DESIGN SPECIFICATIONS. SPECIFICATIONS SHOWN ARE ONLY INDICATIVE AND SUBJECTED TO CHANGE WITHOUT PRIOR NOTICE - TECHNICAL DRAWING IS FOR VISUALIZATION PURPOSES ONLY.

GTD GT45 DD DRILL RIG HYDRAULIC CHUCK

ALLOWS FOR QUICKER REMOVAL OF DRILL RODS. FOR CASING DIAMETER UP TO 219 MM

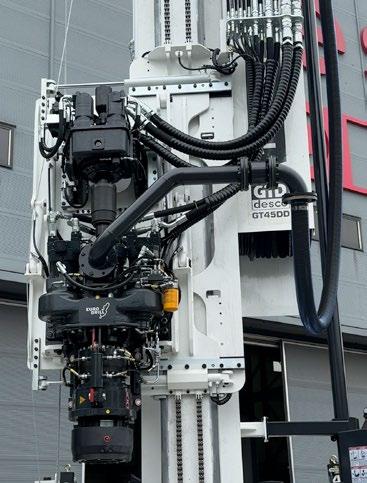

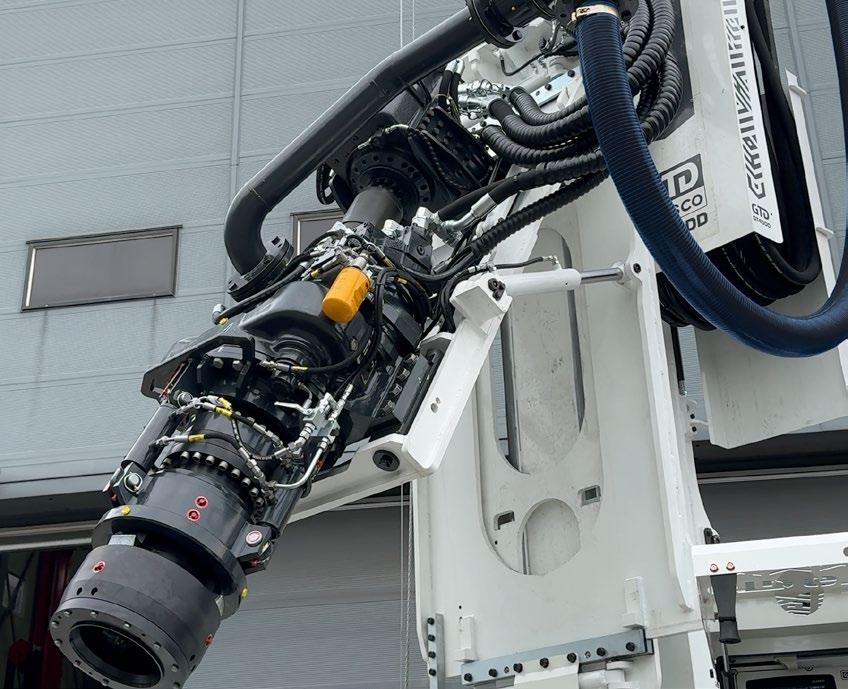

SLIDING & TILTING DRILL HEAD

RH 24 X FLUSHING HEAD

RH 40 X

CASING DRIVE WITH A VERY HIGH SPEED AND TORQUE RANGE, UP TO 40 kNm & 180 MIN-1

TIP OUT

OPTIMIZES THE INSTALLATION AND REMOVAL OF CASING

PREVENTER

EA61V HEAD MOTORS WITH 2" (52 MM) THRU-HOLE

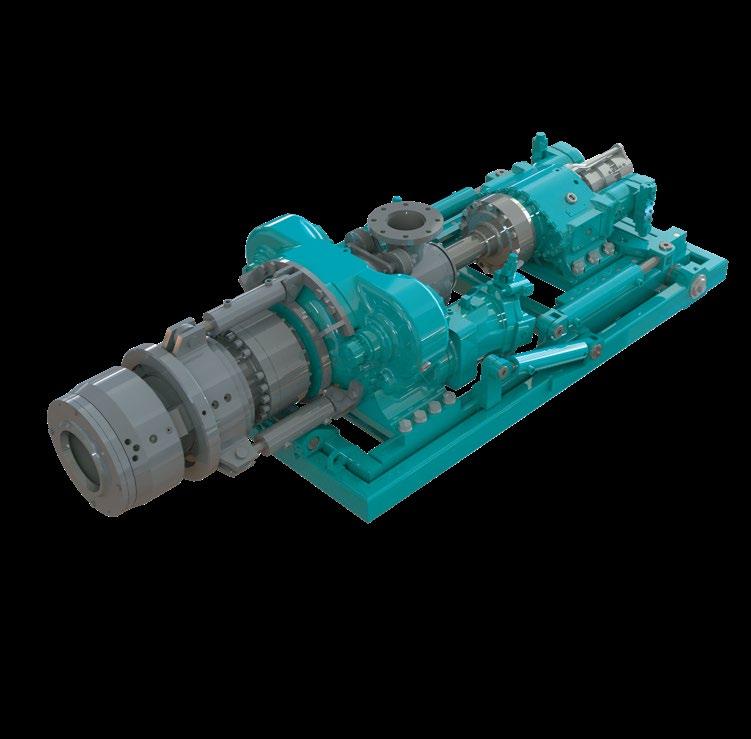

SPACE-SAVING - CENTER MOUNTED MATERIAL-FRIENDLY DESIGN

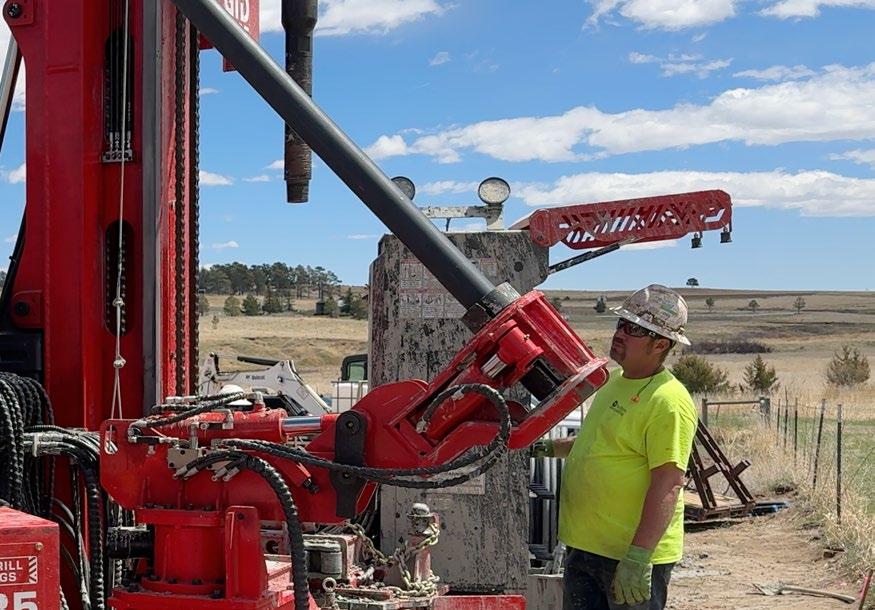

ROD LOADER

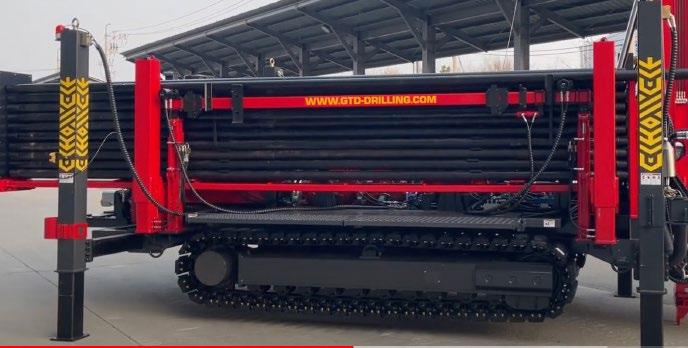

ROD RACK SYSTEM

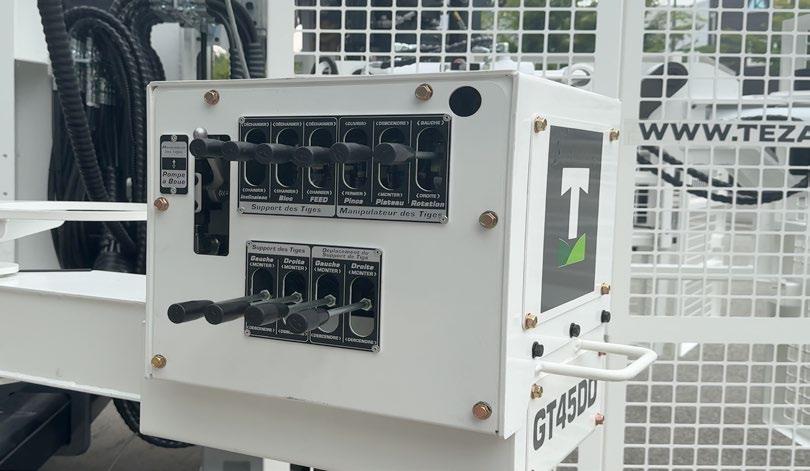

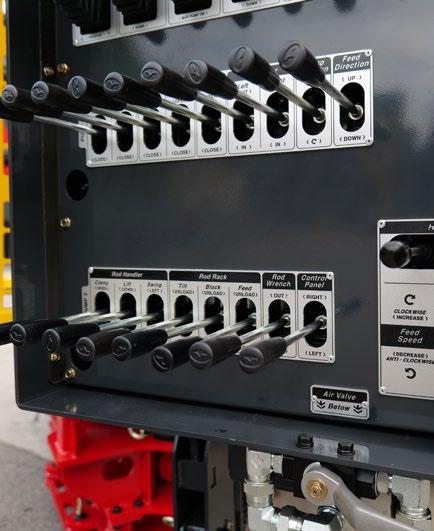

OPERATED BY THE LEAD DRILLER, SECOND MAN OR BOTH ON DUAL CONTROLS

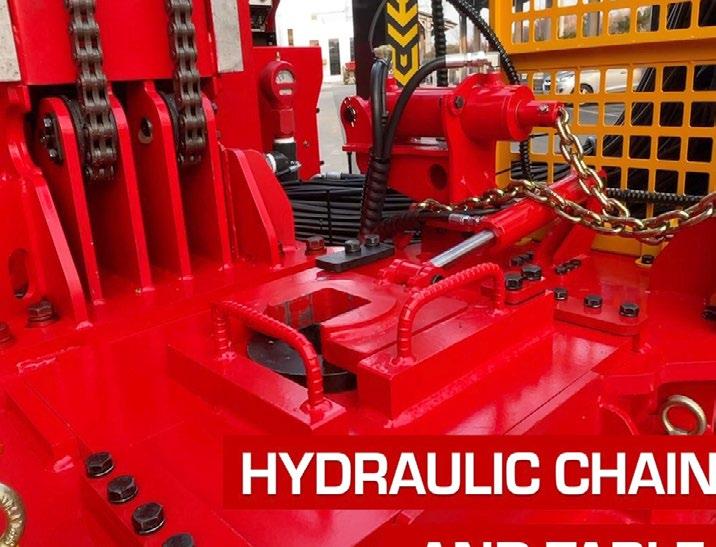

HYDRAULIC CHAIN WRENCH

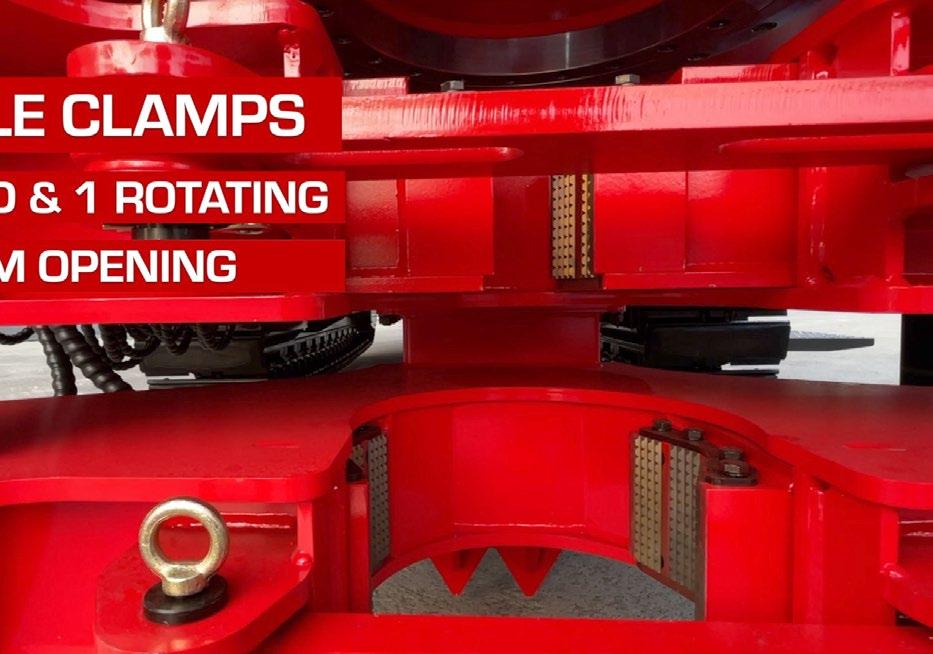

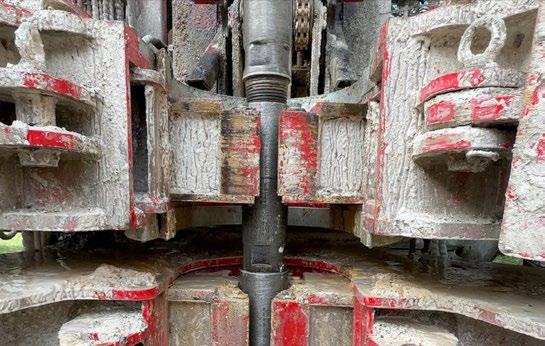

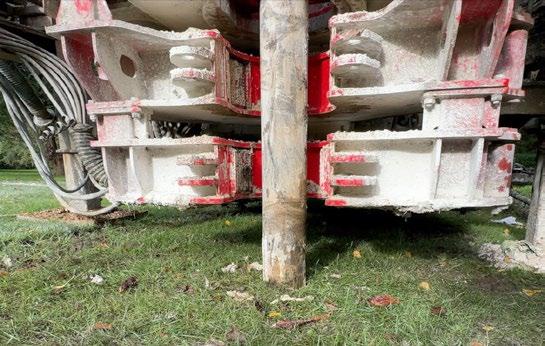

TRIPLE CLAMPS 1 ROTATING & 2 FIXED 12½" (320 mm) OPENING

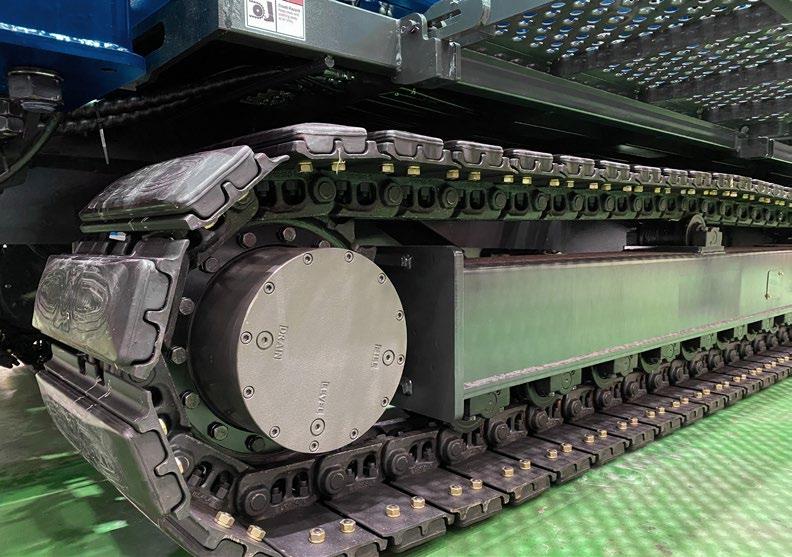

HYDRAULIC CENTRALIZING ROLLERS STEEL TRACKS WITH RUBBER PADS

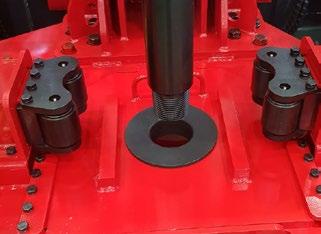

HYDRAULIC SLIDING ROD WRENCH SELF LOADING

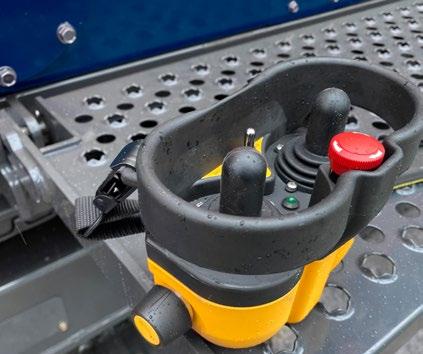

REMOTE CONTROL

ANGLED DRILLING

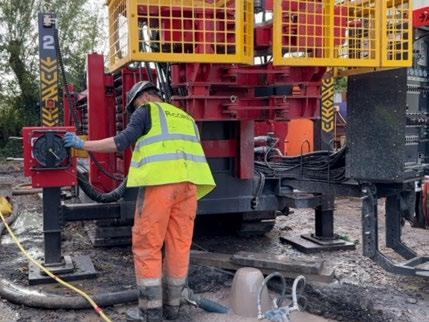

4 x HYDRAULIC LEGS TO LIFT & LEVEL THE RIG WWW.GTD-DESCO.COM

GTD GT45 DD DRILL RIG

HEIGHT ADJUSTABLE WORKING TABLE INDEPENDENT MAIN WINCH & WIRE/SANDLINE WINCH

CAN BE USED AS A CASING EXTRACTOR

ROTATING 90˚ AND EXTENDS

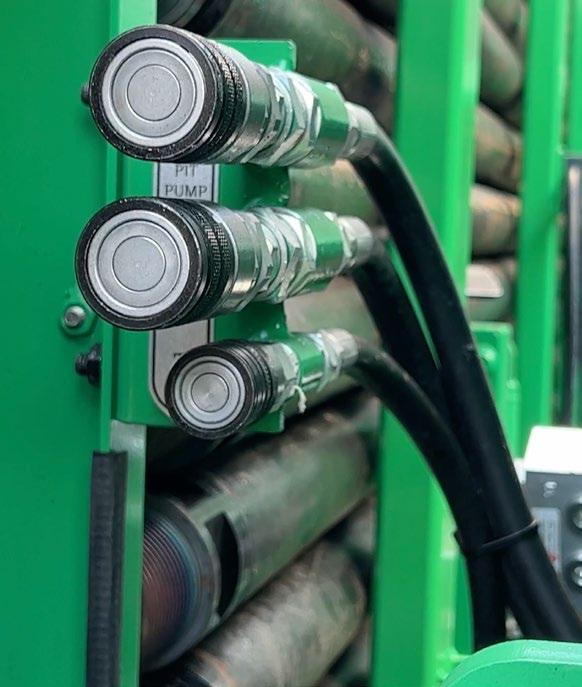

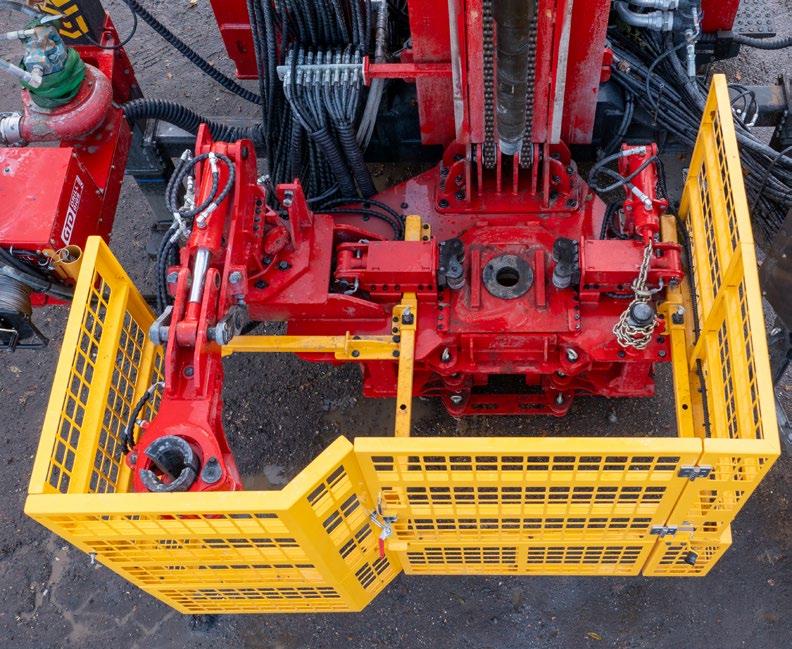

AUXILIARY HYDRAULICS SAFETY CAGE (OPTIONS AVAILABLE)

USEFUL FOR POWERING SAND GUZZLERS, GROUTERS, LOOP REELERS ETC.

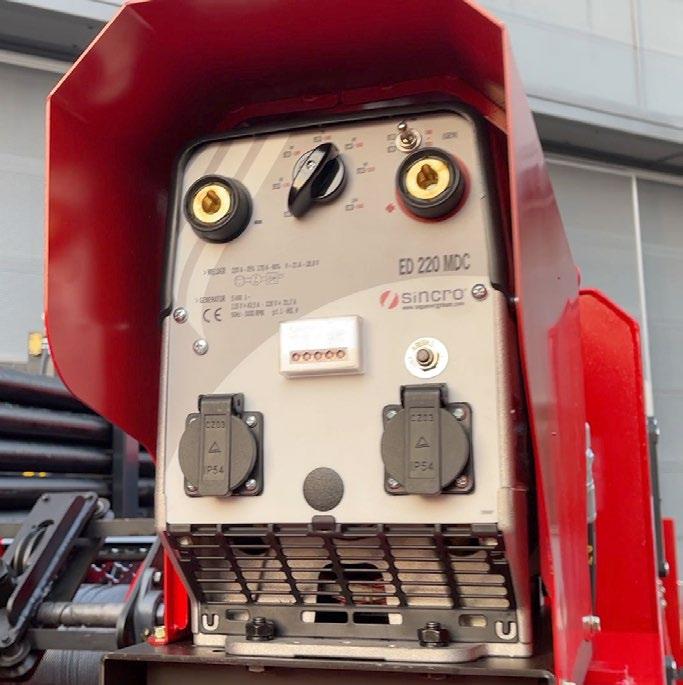

WELDER & GENERATOR

CONFIGURED FOR DUAL MUD PUMPS...

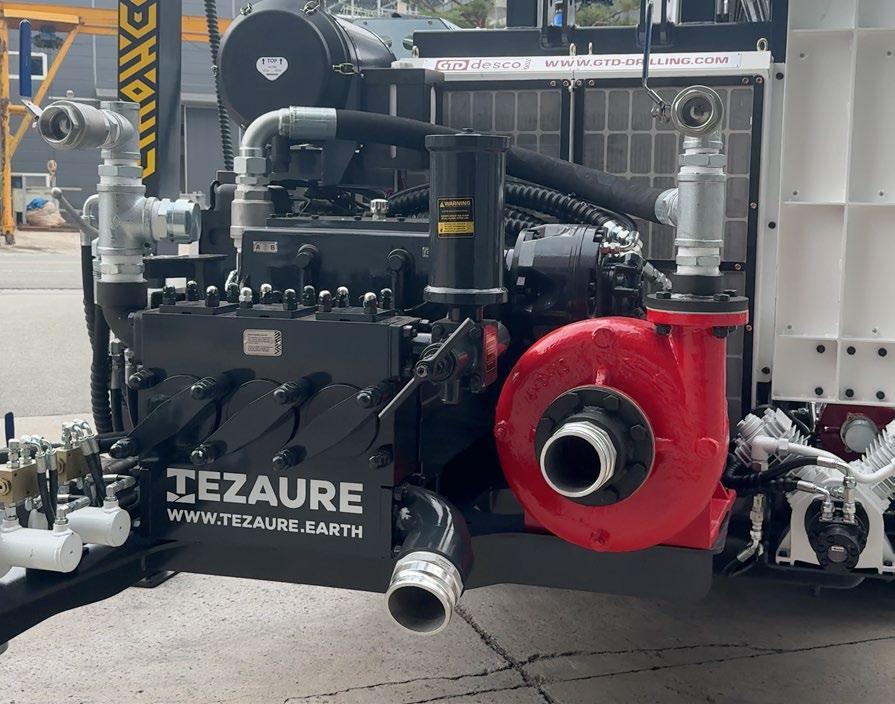

TRIPLEX MIST PUMP FOR AIR DRILLING

COMPRESSOR ...4x3x13 CENTRIFUGAL & HIGH PRESSURE PISTON PUMP

WWW.GTD-DESCO.COM

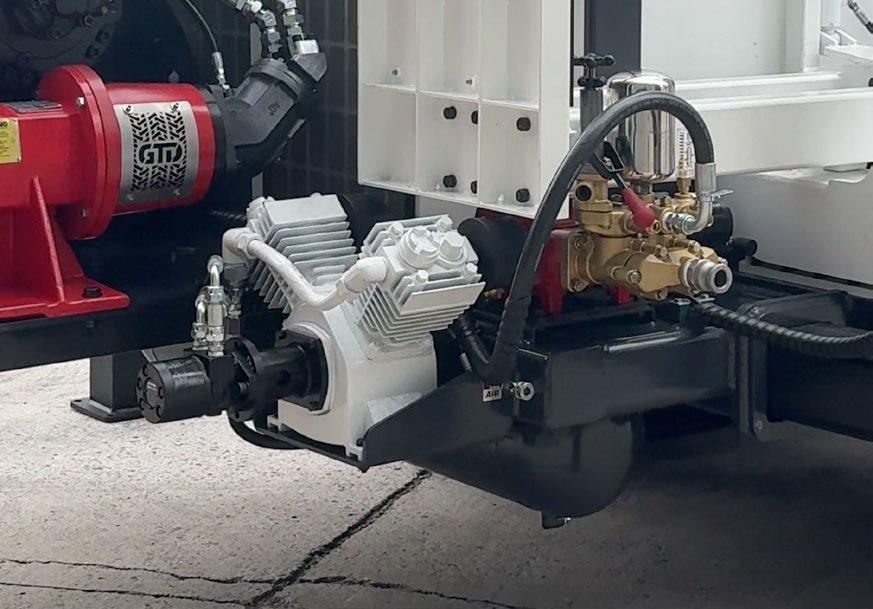

USEFUL FOR PNEUMATIC TOOLS, PRIMING CENTRIFUGAL PUMPS, CLEARING HOSES/PUMPS, ETC.
