GTD GT20 DRILL RIG

GTD GT20 GEOTHERMAL & WATER WELL DRILL RIG

GTD GT20 Spec Sheet Vs017

GTD GT20 DRILL RIG This is our most compact rig in the GT series. It might be small in size but it packs many of the features of its bigger stable mates.

Most suitable for typical domestic and smaller projects, with a cabability to drill up to 650ft (200m) using mud, air, and hammer drilling methods.

“THE RIG HAS SLASHED OUR FUEL COSTS & MASSIVELY INCREASED PRODUCTIVITY!” QC GEOTHERMAL, (USA)

Arguably the rig’s most defining feature is the rod rack and loading system, it’s the most robust, reliable, and safe rod handling system on the market.

“IT’S A MEGA RIG – IT DOES EXACTLY WHAT IT SAYS ON THE TIN”

SPECIFICATION

ACE DRILLING SERVICES (UK)

DIMENSIONS & WEIGHT

ROTARY DRILL HEAD

X Length 27ft 3” (8.3m)

X Variable 2-speed/torque with 2” (52mm) thru-hole

X Width 7ft 3” (2.2m)

“GTD EQUIPMENT HAVE ENABLED US TO SET

NEW STANDARDS IN PRODUCTIVITY NEVER

X 0-100rpm @ 3617 lb-ft

X Height 8ft 3” (2.5m) X Weight 23,000 lbs (11.5 ton) without rods

ACHIEVABLE BEFORE!”

X 0-200rpm @ 1808 lb-ft

GEOTECH BV (HOLLAND)

DRILL PIPE & CASING

DERRICK & FEED SYSTEM

X 3½” (88.9mm) x 15ft or 4.5m

X 13ft (4m) top head stroke

X 36 rod capacity - 540ft (162m)

X 22,000 lbs (10 ton) pull-back

X Max diameter 10” (254mm)

X 11,000 lbs (5 ton) push-down

ENGINE

CRAWLER (TRACK) BASE

X Doosan DM03 Stage V

X Doosan Solar 55

X 110 HP

X Steel with rubber pads

“THE RIG MAKES LIGHT WORK OF THE CHANGING & CHALLENGING GEOLOGY” SYNERGIE FORAGE (FRANCE)

X Wireless remote travel

GT Series rigs are known for their record-breaking productivity because they come with huge specifications as standard.

GTD STANDARD FEATURES

OPTIONS (AT ADDITIONAL COST)

X Sliding Drill Head

Mud Pump:

X Swivel & Floating Spindle Sub X Height adjustable working table X Double Clamps – One rotating

Custom Color

X Choice of Hydraulic Centralizing Rollers or Hydraulic Sliding Rod Wrench

Safety Cage (Option for sensors)

X Hydraulic Breakout Chain Wrench X Main Winch - (65ft /11,000 lbs x ½”) X Water Injection Mist Pump 30 gpm @ 500 psi (114lpm @ 35bar) X DTH Lube System X Rod Rack & Rod Loader X Self Loading System X Comprehensive Service Spares Package WWW.GTD-DRILLING.COM

MP-320PP Triplex Piston Pump: 85gpm @ 580psi (320lpm @ 40bar)

Rods 3½” (88.9mm) OD x 15ft or 4.5m Air Compressor (5HP)

*DON’T BASE YOUR DECISION ON SPECS ALONE, COME & SEE THE RIG IN ACTION...

GET IN TOUCH AT INFO@GTD-DRILLING.COM

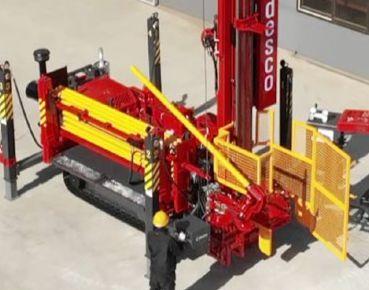

GTD GT20 DRILL RIG ROD LOADER

ROD RACK SYSTEM

OPERATED BY THE LEAD DRILLER, SECOND MAN OR BOTH ON DUAL CONTROLS

HEIGHT ADJUSTABLE WORKING TABLE SLIDING HEAD CAN BE USED AS A CASING EXTRACTOR ADJUSTABLE HIGH / LOW ROTATION & TORQUE

HYDRAULIC CHAIN WRENCH

DOUBLE CLAMPS 1 ROTATING & 1 FIXED 10” (254mm) OPENING

HYDRAULIC CENTRALIZING ROLLERS

HYDRAULIC SLIDING ROD WRENCH

REMOTE CONTROL

4 x HYDRAULIC LEGS TO LIFT & LEVEL THE RIG

STEEL TRACKS WITH RUBBER PADS

SELF LOADING ANGLED DRILLING WWW.GTD-DRILLING.COM

GTD GT20 DRILL RIG MAIN WINCH ROTATING 90˚ AND EXTENDS

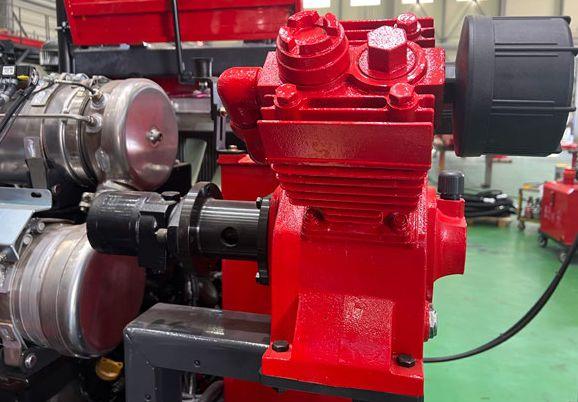

COMPRESSOR

USEFUL FOR PNEUMATIC TOOLS, PRIMING CENTRIFUGAL PUMPS, CLEARING HOSES/PUMPS, ETC.

(PREVENTS COLD WEATHER OVER NIGHT FREEZING)

SAFETY CAGE OR SENSORS

TRIPLEX MIST PUMP FOR AIR DRILLING & PRESSURE WASHER

(OPTIONS AVAILABLE)

HIGH PRESSURE PISTON PUMP

Track Width

Height (Max)

8ft 3” (2.5m)

7ft 2” (1.9m)

Length (Max)

DIMENSIONS

27ft 3” (8.3m)

Width (Max)

7ft 3” (2.2m)

NOTE: THE MEASUREMENTS ABOVE ARE THE BASE DIMENSIONS WHICH MAY BE SUBJECT TO VARIATION DEPENDENT ON FINAL DESIGN SPECIFICATIONS.

WWW.GTD-DRILLING.COM
