Cabinet Suspension System
Libra H7 is the latest development in the cabinet hanger program. Especially conceived for wall-mounted suspended cabinets with heavy loads or particularly deep drawers.
Ideal and versatile system for your new kitchen cabinet projects, vanity and commercial displays.
Advantages & Benefits
• Safe: Locking device included.
• Flexible: Vertical adjustment: 13mm In-Depth adjustment: 12mm
• Robust: Each mechanism can support up to 210kg (462 lbs).
• Ingenious: The slim side brackets wings never interfere with the slides for drawers.
• Mounting hardware + 2 wall plates included.
• Optional: Aluminium profile can be recut and drilled.
• Distributes weight evenly on the wall.
• Allows the installation of a rear panel of 4mm or 8mm.
• Exclusive to Richelieu.
Application Item
(Canada) 1 866 832-4040 (US) 1 800 619-5446 www.richelieu.com
No. Description 670802032G DOWEL FIXING (Sold in Pairs)
SCREW FIXING (Sold in Pairs)
ALUMINUM PROFILE L: 2000mm (6,5 ft)
670502032G
6702004010
Technical Drawing
SCREW FIXING: 670502032G
LIBRA H7
Cabinet Suspension System

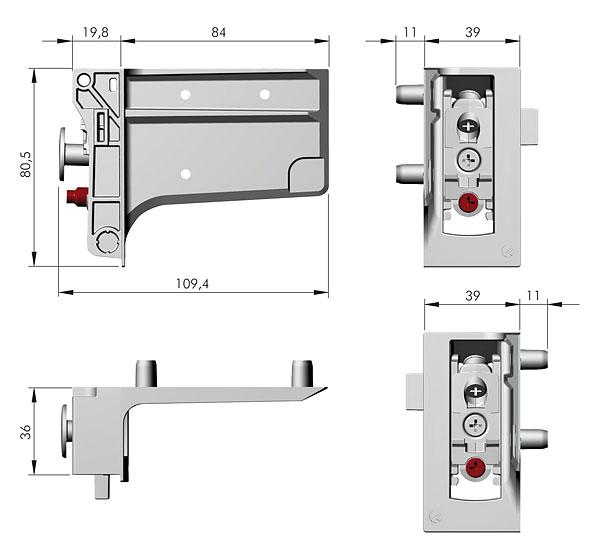

Technical Drawing
DOWEL FIXING: 670802032G
Technical Drawing
ALU. PROFILE: 6702004010
www.richelieu.com
4-8mm back panel
Cabinet Suspension System
www.richelieu.com Load capacity ! LIBRA H7
Parts included
Installation Guide
www.richelieu.com
!
Suspension System
information for LIBRA H7 – DOWEL Fixing
Cabinet
Additional
!
Assembly visual
!
Installation Guide
Additional information for LIBRA H7 – DOWEL Fixing
Drilling Guide for Profile
Lengend
Y = Dimension to be defined in accordance to side panel thickness
Responsibility of the customer:
-To ensure that the wall is suitable.
-To use the proper hardware fittings.
STEP 1
Automatically stops screwing the red bolt when it touches the wall plate
STEP 2 : Extra hanging points reduce the load stress of the side plates
Suggested combinations
www.richelieu.com
!
Cabinet Suspension System
!
!
!
Parts included
Assembly visual
Installation Guide
www.richelieu.com
!
Suspension
information for LIBRA H7 – SCREW Fixing
Cabinet
System Additional
!
!
Installation Guide
Additional information for LIBRA H7 – SCREW Fixing
Drilling Guide for Profile
Lengend
Y = Dimension to be defined in accordance to side panel thickness
Responsibility of the customer:
-To ensure that the wall is suitable.
-To use the proper hardware fittings.
STEP 1
Automatically stops screwing the red bolt when it touches the wall plate
STEP 2 : Extra hanging points reduce the load stress of the side plates
Suggested combinations
www.richelieu.com
!
Cabinet Suspension System
!
!
!
41 11 43 41 Th Top Panel 16 32 TOP PANEL LATERAL VIEW CABINET back panel Structural FRONT VIEW CABINET CABINET back panel Structural R max 2,5 mm BACK PANEL 38 38 NECESSARY TO MAKE A CUT OUT IN THE UPPER CORNER PAY ATTENTION Back panel No thicker than 16,0 mm Hanger LIBRA BS Wall bar With ALU PROFILE 40,2 mm BACK PANEL STRUCTURAL LIBRA H7 H7 Alu profile 40,2 mm 32 64 MAX Th 16mm
80 11 43 Th 16mm 80 Th Top Panel LATERAL VIEW CABINET back panel Structural FRONT VIEW CABINET CABINET back panel Structural TOP PANEL LIBRA H7 BACK PANEL Hanger STRUCTURAL LIBRA BS Wall bar 32 64
