VISIBLE SLIDING BARN DOOR SYSTEMS

Form and function come together for this fashion-forward range of products. Celebrating mechanical hardware in its purist form with visible trolleys and working parts.

I EVO + glass

EVO + wood

EVO +

For Wood or Glass Door

• The EVO + SLIM KIT 40/60 is an elegant "BarnDoor" style sliding system engineered for wood and glass doors for two different weight capacities, up to 40 kg (88 lbs.) and 60 kg (132 lbs.).

• The EVO + SLIM compliments a wide variety of design styles and trends with four durable anodized finishes to choose from Chrome, Champagne, Titanium and Black.

• Includes upper track with mounts, hardware set with soft close mechanisms for one door and a matching pull handle.

• Installation is simple and flexible with adjustable mounts that can be positioned for best structural support. The soft close mechanisms can be fitted to multiple positions to accommodate a wide range of door widths and control where to start and stop the door.

• The EVO + SLIM is an ideal solution for a feature door in residential and commercial applications to access bedrooms, toilets, office, closets, and pantry.

Single Box Track Hardware Kit

Complete set of hardware for hanging a single sliding door.

Includes:

• Single Box Track Brackets - Wall Mount

• 1 x Heavy Duty Box Track

• 2 x Double Axle Box Track Hangers with Apron

• 2 x End Caps

• 2 x Track Mount Door Stops

• 2 x Floor Guides

• Mounting Screws

ITEM NO FINISH TRACK LENGTH # OF BRACKETS CAPACITY PER DOOR PK UPC 24661008BC Flat Black 8' 3 250 lb 1 0 62703-02703 6 24661010BC Flat Black 10' 4 250 lb 1 0 62703-02705 0 24661012BC Flat Black 12' 5 250 lb 1 0 62703-02707 4
Kits
Loft Sliding Door Hardware
Onward Hardware Division of

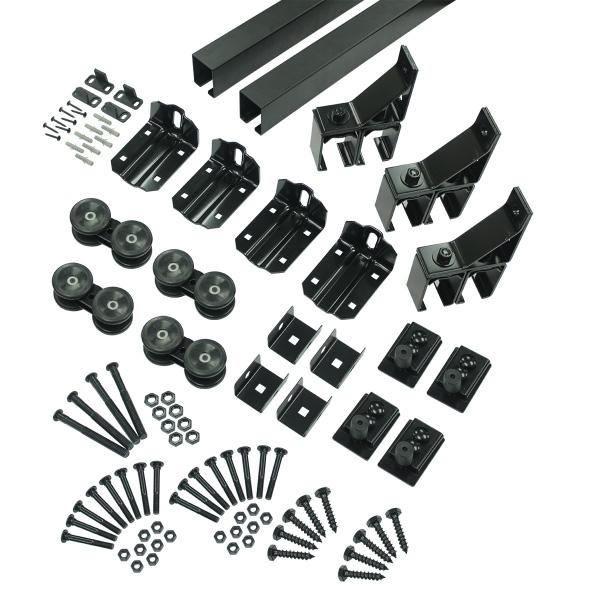

Double Box Track Hardware Kit

Complete set of hardware for hanging two bypassing sliding doors.

Loft Sliding Door Hardware Kits

Includes:

• Double Box Rail Brackets - Wall Mount

• 2 x Heavy Duty Box Track

• 4 x Double Axle Box Rail Hangers with Apron

• 4 x End Caps

• 4 x Track Mount Door Stops

• 4 x Floor Guides

• Mounting Screws

ITEM NO FINISH TRACK LENGTH # OF BRACKETS CAPACITY PER DOOR PK UPC 24661208BC Flat Black 8' 3 250 lb 1 0 62703-02709 8 24661210BC Flat Black 10' 4 250 lb 1 0 62703-02711 1 24661212BC Flat Black 12' 5 250 lb 1 0 62703-02713 5
Onward Hardware Division of

ALBERGO PRO SERIES BARN DOOR SYSTEM, TOP MOUNT

DOOR MOVEMENT/FUNCTION

Wall mount sliding

WEIGHT CAPACITY PER DOOR: Max. 176 lb (80 kg)

FEATURES

PRO SERIES ALBERGO TM is a commercial grade system designed for hospitality and commercial projects. Made of type 304 stainless steel with sturdy wall mount fasteners and additional wall support discs for sheetrock installations. Recommended installation by a professional contractor.

5
ROLLER TYPE Ball bearing ROLLER POSITION Upper DOOR THICKNESS 1 3/8" to 1 3/4" (35 to 45 mm) DOOR POSITION Wall front
VISIBLE SLIDING BARN DOOR SYSTEMS
Door thickness 1 3/8" to 1 3/4" (35 to 45 mm) Door width 24" to 50" (610 to 1270 mm)
HARDWARE SET FOR 1 WOOD DOOR FINISH PRODUCT Albergo TM, commercial grade hardware set, top mount trolley Stainless steel 89TY032170 REQUIRED PRODUCTS RAIL LENGTH FINISH PRODUCT Track set with 4 mounts 78" (2000 mm) Stainless steel 89TY030170 Track set with 5 mounts 98" (2500 mm) Stainless steel 89TY031170 Internal wall support disc set of 5 - Stainless steel 89TY033170 PRO SERIES ALBERGO TM

PRO

ALBERGO PRO SERIES BARN DOOR SYSTEM, TOP MOUNT, SOFT CLOSE

DOOR MOVEMENT/FUNCTION

Wall mount sliding

WEIGHT CAPACITY PER DOOR: Max. 176 lb (80 kg)

Door thickness 1 3/8" to 1 3/4" (35 to 45 mm)

Door width 35" to 50" (890 to 1270 mm)

Soft-close mechanismAvailable, integrated

FEATURES

PRO SERIES ALBERGO TM-SC is a commercial grade system designed for hospitality and commercial projects. Track features two integrated soft-close mechanisms. Made of type 304 stainless steel with sturdy wall mount fasteners and additional wall support discs for sheetrock installations. Recommended installation by a professional contractor.

6
ROLLER TYPE Ball bearing ROLLER POSITION Upper DOOR THICKNESS 1 3/8" to 1 3/4" (35 to 45 mm) SOFT-CLOSE MECHANISM Integrated DOOR POSITION Wall front
VISIBLE SLIDING BARN DOOR SYSTEMS
HARDWARE SET FOR 1 WOOD DOOR FINISH PRODUCT ALBERGO TM-SC, commercial grade hardware set, top mount trolley with integrated activator for soft-close option Stainless steel 89TY050S2560170
SERIES ALBERGO TM-SC REQUIRED PRODUCTSRAIL LENGTH FINISH PRODUCT Track with 2 soft-close mechanisms and 5 wall mounts 78" (2000 mm) Stainless steel 89TY482MSF170S Track with 2 soft-close mechanisms and 6 wall mounts 94 1/2" (2400 mm) Stainless steel 89TY4724MSF170S Internal wall support disc1/8" (3 mm) Plastic 89TY90042630090 Internal wall support disc 13/32" (12 mm) Plastic 89TY90042640090

ALBERGO PRO SERIES BARN DOOR SYSTEM, STRAP STYLE, SOFT-CLOSE OPTIONAL

DOOR MOVEMENT/FUNCTION

Wall mount sliding

WEIGHT CAPACITY PER DOOR: Max. 176 lb (80 kg)

Door thickness 1 3/8" to 1 3/4" (35 to 45 mm)

Door width 35" to 50" (890 to 1270 mm)

Soft-close mechanismAvailable, integrated

FEATURES

PRO SERIES ALBERGO STP-SC is a commercial grade system designed for hospitality and commercial projects. Can be used with or without soft-close. Made of type 304 stainless steel with sturdy wall mount fasteners and additional wall support discs for sheetrock installations. Recommended installation by a professional contractor.

7
ROLLER TYPE Ball bearing ROLLER POSITION Upper DOOR THICKNESS 1 3/8" to 1 3/4" (35 to 45 mm) SOFT-CLOSE MECHANISM Integrated
VISIBLE SLIDING BARN DOOR SYSTEMS
HARDWARE SET FOR 1 WOOD DOOR FINISH PRODUCT ALBERGO STP-SC, commercial grade, hardware set, strap style trolley (works with or without soft-close) Stainless steel 89TY049S2561170
SERIES ALBERGO STP-SC DOOR POSITION Wall front REQUIRED PRODUCTSRAIL LENGTH FINISH PRODUCT Track set with 4 mounts 78" (2000 mm) Stainless steel 89TY030170 Track set with 5 mounts 98" (2500 mm) Stainless steel 89TY031170 Track with 2 soft-close mechanisms and 5 wall mounts 78" (2000 mm) Stainless steel 89TY482MSF170S Track with 2 soft-close mechanisms and 6 wall mounts 94 1/2" (2400 mm) Stainless steel 89TY90042630090 Internal wall support disc1/8" (3 mm) Plastic 89TY033170 Internal wall support disc13/32" (12 mm) Plastic 89TY90042640090
PRO

ROBUSTE PRO SERIES BARN DOOR SYSTEM, RUSTIC STRAP STYLE

DOOR MOVEMENT/FUNCTION

Wall mount sliding

WEIGHT CAPACITY PER DOOR: Max. 220 lb (100 kg)

FEATURES

PRO SERIES ROBUSTE is a commercial grade system designed for hospitality and commercial projects. Available in stainless steel and powder-coated steel finishes. Trolley set includes adjustable floor guide. Track sets include sturdy wall mount fasteners and wall support discs. Each track is pre-drilled to accept optional soft-close mechanism and extension connector. Recommended installation by a professional contractor.

8
VISIBLE SLIDING BARN DOOR SYSTEMS
Door thickness 1 3/8" to 1 3/4" (35 to 45 mm) Door width 24" to 60" (610 to 1525 mm)
HARDWARE SET FOR 1 WOOD DOOR FINISH PRODUCT ROBUSTE hardware set Stainless steel 89TSQ131170 ROBUSTE hardware set Black 89TSQ04190 ROBUSTE hardware set Bronze/dark brown 89TSQ631137
ROLLER TYPE Ball bearing ROLLER POSITION Upper DOOR THICKNESS 1 3/8" to 1 3/4" (35 to 45 mm) DOOR POSITION Wall front
PRO SERIES ROBUSTE STAINLESS STEEL BRONZE/DARK BROWN BLACK

ROBUSTE PRO SERIES TRACKS AND ACCESSORIES

SOFT-CLOSE

SOFT-CLOSE

PRO SERIES ROBUSTE

NOTE: All tracks are pre-drilled for mounting optional soft-close mechanism and connector plates.

Connector

9 VISIBLE SLIDING BARN DOOR SYSTEMS DESCRIPTION RAIL LENGTH FINISH PRODUCT Flat track set with mounts 78" (2000 mm) Stainless steel 89TSQ132170 Flat track set with mounts 98" (2500 mm) Stainless steel 89TSQ133170 Flat track set with mounts 118" (3000 mm) Stainless steel 89TSQ134170 Flat track set with mounts 78" (2000 mm) Black 89TSQ04290 Flat track set with mounts 98" (2500 mm) Black 89TSQ04390 Flat track set with mounts 118" (3000 mm) Black 89TSQ04490 Flat track set with mounts 78" (2000 mm) Bronze/dark brown 89TSQ632137 Flat track set with mounts 98" (2500 mm) Bronze/dark brown 89TSQ633137 Flat track set with mounts 118" (3000 mm) Bronze/dark brown 89TSQ634137
soft-close mechanism one side
Stainless steel 246014170
Optional
-
Black 24600490
Optional soft-close mechanism one side -
Stainless steel 89TY20450069217
Connector plate for extending tracks -
Black 89TY20450032690
plate for extending tracks -
ROLLER TYPE Ball bearing ROLLER POSITION Upper DOOR THICKNESS 1 3/8" to 1 3/4" (35 to 45 mm) DOOR POSITION Wall front
CONNECTOR PLATE 89TY20450069217
CONNECTOR PLATE 89TY20450032690
24600490
246014170

WOOD DOOR BARN DOOR SLIDING SYSTEM

DOOR MOVEMENT/FUNCTION

Wall mount sliding

WEIGHT CAPACITY PER DOOR: Max. 33 to 165 lb (15 to 75 kg)

FEATURES

The ONWARD URBAN is an aluminum sliding door system for a contemporary style wall mount door application. Intended for residential applications, the tube track is mounted to a very sturdy wall mount profile for simple installations.

10
VISIBLE SLIDING BARN DOOR SYSTEMS
Door thickness 1 3/8" to 1 3/4" (35 to 45 mm) Door width 24" to 36" (610 to 915 mm)
HARDWARE SET FOR 1 DOOR RAIL LENGTH FINISH PRODUCT ONWARD URBAN hardware set and track 78" (2000 mm) Anodized aluminum silver 2460202ALPVC SUGGESTED PRODUCTS PRODUCT Optional wall mount bottom steel guide 246204110192 URBAN ROLLER TYPE Ball bearing ROLLER POSITION Upper DOOR THICKNESS 1 3/8" to 1 3/4" (35 to 45 mm) DOOR POSITION Wall front

Blends perfectly with any style of decor

The ZENITUDE

246016170

INCLUDES:

 2 roller units

 2 end bumpers

Wood-door single-roller hardware set / Stainless Steel

REQUIRED PRODUCT: Stainless Steel Rail (sold separately):

 2 anti-derailer units

 1 floor-level guide for wood door

246016BORB Complete wood-door single-roller hardware set / Brushed Oil-rubbed Bronze

INCLUDES:

 2 x 39 3/8" (1 m) rails

 2 roller units

 2 end-bumpers

 4 wall-mount brackets

 2 anti-derailment devices

 1 connector plate

 1 floor-level door guide

See pages 9 to 11 for a complete listing of rustic pulls and accessories.

7
Max. capacity per door 33 to 220 lb (15 to 100 kg) Door thickness 1 3/8" - 1 3/4" (35 mm - 45 mm) Door width 24" - 60" (61 cm - 152 cm) Door installation In front of wall Max. capacity per door 33 to 220 lb (15 to 100 kg) Door thickness 1 3/8" - 1 3/4" (35 mm - 45 mm) Door width 24" - 40" (61 cm - 102 cm) Door installation In front of wall
78 3/4" (2 m) 98 3/8"
m) 9'-10"
(2.5
(3 m) 246011170246012170246003170

RUSTIC SINGLE WOODEN-DOOR HARDWARE SETS

For sliding doors

The GEMINI The DIAMOND

INCLUDES:

 2 x 59" (1.5 m) rails

 2 roller-units

 2 end bumpers

 6 wall-mount brackets

 2 anti-derailer devices

 1 rail connector

 1 floor-level door guide

INCLUDES:

 1 x 78 3/4" (2 m) rail

 2 roller units

 2 end bumpers

 5 wall-mount brackets

 2 anti-derailer devices

 1 floor-level door guide

8
Max. capacity per door 33 to 220 lb (15 to 100 kg) Door thickness 1 3/8" - 1 3/4" (35 mm - 45 mm) Max. capacity per door 33 to 220 lb (15 to 100 kg) Door thickness 1 3/8" - 1 3/4" (35 mm - 45 mm) Door width 40" - 60" (102 cm - 152 cm) Door installation In front of wall Door width 24" - 36" (61 cm - 91 cm) Door installation In front of wall Screws included
2460014177 Complete wood-door single-roller hardware set / Brushed Steel 24608160 Complete wood-door single-roller hardware set / Satin Brass

RUSTIC BARN DOOR HARDWARE

For interior sliding doors

Hardware Sets | Pulls

Accessories | Custom Barn Doors

RUSTIC SINGLE WOODEN-DOOR HARDWARE SETS For sliding doors

The CAVALIER

24600790 Wood-door double-roller hardware set / Black

INCLUDES:

 2 roller units

 2 end bumpers

 2 anti-derailer units

 1 floor-level guide for wood door

REQUIRED PRODUCT: Black Rail (sold separately):

2
78 3/4" (2 m) 98 3/8" (2.5 m) 9'-10" (3 m)
246001902460029024600390
Max. capacity per door 33 to 220 lb (15 to 100 kg) Door thickness 1 3/8" - 1 3/4" (35 mm - 45 mm) Door width 24" - 60" (61 cm - 152 cm) Door installation In front of wall

Ideal for closets, kitchen pantries, storage rooms and all other interior door applications

The FERRIS WHEEL

24602090 Wood-door single-roller hardware set / Black

INCLUDES:

 2 roller units

 2 end bumpers

 2 anti-derailer units

 1 floor-level guide for wood door

REQUIRED PRODUCT: Black Rail (sold separately):

 8 spacers (for installation between the wall and the rail brackets)

See pages 9 to 11 for a complete listing of rustic pulls and accessories.

3
33 to 220 lb (15 to 100 kg) Door thickness 1 3/8" - 1 3/4" (35 mm - 45 mm) Door width 24" - 60" (61 cm - 152 cm)
Max. capacity per door
Door installation In front of wall
78 3/4" (2 m) 98 3/8" (2.5 m) 9'-10" (3 m) 246001902460029024600390

RUSTIC SINGLE WOODEN-DOOR HARDWARE SETS

For sliding doors

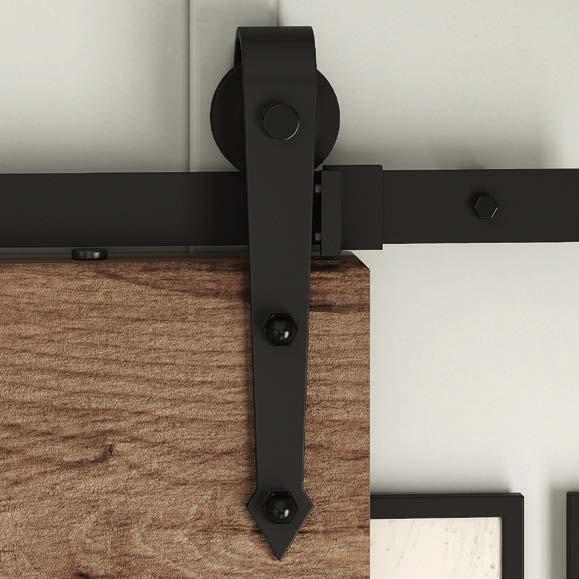

The ARROW

INCLUDES:

 2 roller units

 2 end bumpers

 2 anti-derailer units

 1 floor-level guide for wood door

REQUIRED PRODUCT: Black Rail (sold separately):

4
3/4" (2 m) 98 3/8" (2.5 m) 9'-10" (3 m)
78
246001902460029024600390
Max. capacity
33 to 220 lb (15 to 100 kg) Door thickness 1 3/8" - 1 3/4" (35 mm - 45 mm) Door width 24" - 60" (61 cm - 152 cm)
wall
24600890 Wood-door single-roller hardware set / Black
per door
Door installation In front of

Easy to install – Additional accessories and hardware available Possibility to install two bypass doors

The RUSTIC

24600590 Wood-door single-roller hardware set / Black

INCLUDES:  2 roller units  2 end bumpers  2 anti-derailer units  1 floor-level guide for wood door

REQUIRED PRODUCT: Black Rail (sold separately):

2460302MATPVC Complete wood-door single-roller hardware set / Matte Black

INCLUDES:

 1 x 78 3/4" (2 m) rail

 2 roller units

 2 end-bumpers

 5 wall-mount brackets

 2 anti-derailment pieces

 1 floor guide for wood door

See pages 9 to 11 for a complete listing of rustic pulls and accessories.

5
Max. capacity per door 33 to 220 lb (15 to 100 kg) Door thickness 1 3/8" - 1 3/4" (35 mm - 45 mm) Door width 24" - 60" (61 cm - 152 cm) Door installation In front of wall Max. capacity per door 33 to 220 lb (15 to 100 kg) Door thickness 1 3/8" - 1 3/4" (35 mm - 45 mm) Door width 24" - 40" (61 cm - 102 cm) Door installation In front of wall
78 3/4"
(2 m) 98 3/8" (2.5 m) 9'-10" (3 m) 246001902460029024600390

RUSTIC SINGLE WOODEN-DOOR HARDWARE SETS For

sliding doors

 2 roller units

 2 end bumpers

Wood-door

 2 anti-derailer units

door 24600690 Wood-door single-roller hardware set / Black 246015170

REQUIRED PRODUCTS: Rails (sold separately):

Black 246001902460029024600390 Stainless Steel 246011170246012170246003170

6
The CLASSIC 78 3/4" (2 m) 98 3/8" (2.5 m) 9'-10" (3 m)
INCLUDES:
1 floor-level guide for wood
single-roller hardware set / Stainless Steel
Max. capacity per door 33 to 176 lb (15 to 80 kg) Door thickness 1 3/8" - 1 3/4" (35 mm - 45 mm) Door width 24" - 60" (61 cm - 152 cm) Door installation In front of wall

DECORATIVE PULLS

For sliding doors

Rustic black pulls

Contemporary pulls and knobs

10 A B C D E F A C I H J B F G D E
Ref. No. C.C. Overall Dimensions (L × D) ABP9469220900 220 mm 9 1/4" × 3 11/32" (235 × 85 mm) BBP9463280900 280 mm 17 7/32" × 3 5/32" (437 × 80 mm) C BP9547384900 384 mm 16 13/16" × 2 17/32" (427 × 64 mm) BP9547224900 224 mm 10 1/2" × 2 17/32" (267 × 64 mm) BP9547160900 160 mm 8" × 2 17/32" (203 × 64 mm) D BP9465305900 305 mm 13 1/8" × 2" (333 × 51 mm) BP9465205900 205 mm 8 29/32" × 1 7/8" (226 × 48 mm) BP9465150900 150 mm 6 11/16" × 1 13/16" (170 × 46 mm) E BP9466320900 320 mm 13 7/32" × 1 21/32" (336 × 42 mm) BP9466192900 192 mm 8 3/16" × 1 21/32" (208 × 42 mm) BP9466128900 128 mm 5 23/32" × 1 21/32" (145 × 42 mm) F BP9464305900 305 mm 13 3/8" × 1 3/8" (340 × 35 mm) BP9464128900 128 mm 6 1/4" × 1 5/32" (159 × 29 mm) GBP9468207900 207 mm 10 1/32" × 2 5/16" (255 × 59 mm) HBP9462162900 162 mm 7 3/4" × 1 1/2" (197 × 38 mm) IBP95495900 98 mm 5" × 2 15/32" (127 × 63 mm) JBP954880900 N/A Ø 3 5/32" (80 mm) A 246207020090 300 mm 14" × 1 1/2" (356 × 39.5 mm) Black 2462070200170 Stainless steel 2462070200BORB Brushed oil-rubbed bronze 2462070200160 Satin brass 2462070200177 Brushed steel B 246207020290 300 mm 14" × 1 1/2" (356 × 39.5 mm) Black 2462070202170 Stainless steel 2462070202BORB Brushed oil-rubbed bronze 2462070202160 Satin brass 2462070202177 Brushed steel
246207020190 300 mm 14" × 1 1/2" (356 × 39.5 mm) Black 2462070201170 Stainless steel 2462070201BORB Brushed oil-rubbed bronze 2462070201160 Satin brass 2462070201177 Brushed steel
24620700270090 300 mm 19 11/16" × 2 1/4" (500 × 56.5 mm) Black 246207002792170 Acier inoxydable
24620700910090 300 mm 19 11/16" × 2 1/4" (500 × 56.5 mm) Black 246207009192170 Stainless steel
24620710230090 N/A Ø 2'' x 3/8'' (50 mm x 10 mm) Black 246207102392170 Stainless steel Ref No. C.C. Overall Dimensions (L × D) Finish
C
D
E
F
