Social Housing Project The Terrace
Project Type: High-Rise Building
Project Location: Din-Daeng district, Bangkok, Thailand
Advertisement
Project Year: 2022
IDEA:
The main criteria of the project is to design new social housing for low income users in Din Daeng. As GFA limitation is required not to exceed 20,000 sqm, the design shall focuses on the unit design. The former building provides 47 sqm. area per unit while the new one’s requirement providing only 33 sqm.
CONCEPT:
The concept of the design is to connect the units to solve the problem of the number of users in the room and to solve the size of the unit. As most of the users have 3 to 6 members, there won’t be any problem about connecting the unit. Moreover, Grasshopper scripting is used to help generating the parametric design based on the view of the site context.
Grasshopper Script
The main idea of the scripting is the sequence of visibility. Using scripting to defy the position for the duplex unit to gain the most visibility in each floor as duplex unit has more openings than other units. Then, the second priority to gain more view shall be the triple unit. Then, use the script to defy the position of couple and single unit.
Concept Development
The concept foccuses on connecting the units as users mentioned that the former unit they lived has more area, 47 sqm. The requirement of unit’s size of the new project is maximum at 33 sqm, so the idea of create shared terrace helps increase the size of the unit for the big family type, which has 3 - 6 family members.
Mass Development
The mass building starts from spliting blocking blocking programs based on GFA. Then, uses Grasshopper to help defy the position of duplex and other units. The last step is adding the details of the building, such as rooftop, the overall form, and shared amenity area.
7th - 16th Floor Plan
From the 7th up to 16th plan, the shape of the floor plan will be full.
17th - 20th
Floor Plan
The number of the unit on these floor will be decreased.
Accessibility
The building can be accessed from the East side to convenient both users from Din-Daeng and Mit Mitri road.
Juristic Office
Juristic office is located at the front space, so it allows grab or postal service to drop the stuffs at the main lobby.
21th - 22th Floor Plan
On the 21th floor, there is an extensive green roof.
Shared Amenity
Shared amenity is located on the 7th Floor near elevators.
Public Garden
The public garden is located on the South side of the building.
Car Park Area
Car park is put at the backside of the building next to the backside entrance.
Convenience Store
It is located at the outdoor space near the main entrance.
Main elevator
The main public stair and the elevators are located at the center of the building
Roof Water Tank Room
Roof water tank, collecting water from public tank, is put on the rooftop.
Roof PV Panel
PV panels are installed on the rooftop for long-term benefit.

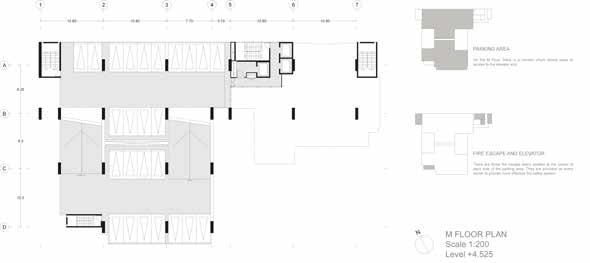

M FLOOR PLAN
Scale 1:200 Level +4.525
Parking Area
On the M Floor, there is a corridor that conects to the elevators.
Fire Escape and Elevators
There are three fire escape stairs located at the corner of each side of parking area.
Parking Area
On the M Floor, there is a corridor that conects to the elevators.
Fire Escape and Elevators
There are three fire escape stairs located at the corner of each side of parking area.
2ND - 5TH FLOOR PLAN
Scale 1:200
Level +7.625, 10.675, 13.725, 16.775, 19.795
Parking Area
On the M Floor, there is a corridor that conects to the elevators.
Fire Escape and Elevators
There are three fire escape stairs located at the corner of each side of parking area.
6TH FLOOR PLAN
Scale 1:200
Level +19.795
Residential Area
The units will be arranged in different position based on the Galapagos result of the visibility analysis on each floor.
Shared Amenity
Shared amenity is located on the 7th floor.The shape of the shared amenity is designed based on the shape of the shared balcony.
7TH FLOOR PLAN
Scale 1:200
Level +22.845
Shared Balcony
There are three connected units and two connected units on every floor.
Single Unit Balcony
On every floor, single unit is provided for the private users.
8TH FLOOR PLAN Scale 1:200 Level +25.895
Fire Escapes and Elevators
The number of the fire escape stair is decreased based on the form of the building.
Extensive Green Roof
The extensive green roof, which is not accessible is provided on the 17th Floor of the building on the East.
17TH FLOOR PLAN
Scale 1:200
Level +53.345
Fire Escapes and Elevators
The elevators are located at the end of the East corridor, near the extensive green roof.
Extensive Green Roof
Another extensive green roof on the 21th Floor. It cannnot be accessed.
21TH FLOOR PLAN
Scale 1:200
Level +65.545
Fire Escape Stairs
On the rooftop floor, there is only one fire escape that allows the staff to access, not for residents.
Roof Water Tank Room
The roof water tank is located next to the void near the fire escape stair.
ROOFTOP PLAN
Scale 1:200
Level +65.545
Extensive Green Roof
Most of the area on the rooftop will be used as extensive green space, which residents cannot access.
Solar Panel System
Solar panels system are put on the leftover space on the rooftop for the energy saving.
ROOFTOP PLAN
Scale 1:200
Level +65.545
