BEVERAGE FRIDGE

BEVERAGE FRIDGE

Milestones of HCK Beverage Fridge Create COOL Cabinets for World Wide Drink Brands

1971

1997 · Set Up Global Marketing Center and Manufacturing Center in China · HCK × Coca Cola, Household Fridges in Europe

· Prototype Refrigerator · Set Up Company and Manufacture in Finland, Europe

· 1st UV Printing Beverage Fridge in Europe

· Full Range of Sub-Zero Beer Fridges and Design Exclusive for Corona Beer

2004

2006

2009

· 1st Outdoor Fridge in Australia

2012 · HCK × Heineken TLCD Fridge in UK & lreland · TLCD Fridges Mass Production

2017 · Full Range of 2017 DOE Compliant Commercial Refrigerators

2019 · ECA Lab Approved, the only One in the Industry · Full Range of Refrigerators Upgradde to New ERP (EU), MEPS (AU), DOE (USA)

2022 · 1st Beverage Fridge with Intelligent Decision Data Support in the Industry

2022 2022

· 1st Beverage Fridge with Cyberpunk Laser Design

· 1st Rounded Door Beverage Fridge with Freezer Box

59

60

Milestones of HCK Beverage Fridge Create COOL Cabinets for World Wide Drink Brands

1971

1997 · Set Up Global Marketing Center and Manufacturing Center in China · HCK × Coca Cola, Household Fridges in Europe

· Prototype Refrigerator · Set Up Company and Manufacture in Finland, Europe

· 1st UV Printing Beverage Fridge in Europe

· Full Range of Sub-Zero Beer Fridges and Design Exclusive for Corona Beer

2004

2006

2009

· 1st Outdoor Fridge in Australia

2012 · HCK × Heineken TLCD Fridge in UK & lreland · TLCD Fridges Mass Production

2017 · Full Range of 2017 DOE Compliant Commercial Refrigerators

2019 · ECA Lab Approved, the only One in the Industry · Full Range of Refrigerators Upgradde to New ERP (EU), MEPS (AU), DOE (USA)

2022 · 1st Beverage Fridge with Intelligent Decision Data Support in the Industry

2022 2022

· 1st Beverage Fridge with Cyberpunk Laser Design

· 1st Rounded Door Beverage Fridge with Freezer Box

59

60

Beverage Fridge - Product Features

Retro Design

Patented Shelf

Patented Design

Level 1 Energy Saving

Non-Metallic Ion Nano Sterilization

Belgian Eco-Friendly Ink

Anti-Vibration

30w Door Open Test

Stable Humidity Maintain

Triple Glazed Door Optional

180° Door Open

Odourless

One Piece Metal Cabinet

Stable Temperature Contro

Low dB Operation

Fridge Freezer

LED Interior Light

One Piece Metal Cabinet

Engraved Light Up Logo

Widely Temperature Control

High Efficient Compressor

Triple Glazed Door Option

Glass Shelf Option

60

Beverage Fridge - Product Features

Retro Design

Patented Shelf

Patented Design

Level 1 Energy Saving

Non-Metallic Ion Nano Sterilization

Belgian Eco-Friendly Ink

Anti-Vibration

30w Door Open Test

Stable Humidity Maintain

Triple Glazed Door Optional

180° Door Open

Odourless

One Piece Metal Cabinet

Stable Temperature Contro

Low dB Operation

Fridge Freezer

LED Interior Light

One Piece Metal Cabinet

Engraved Light Up Logo

Widely Temperature Control

High Efficient Compressor

Triple Glazed Door Option

Glass Shelf Option

60

Beverage Fridge - Rounded Door Features · Reversible Door for Left / Right Open · 4 Sizes Available · Household and Commercial Approval · 99.9% Anti-Bacterial Liner · Adjustable Thermostat · Double Clear Glass · Wire Shelves

Options (Subject to Model) SC-130RD-S

· Triple Glass / LOW-E Glass · Digital Control · Glass Shelves

MODEL Description Colour Options

SC-46RG 48lt Rounded Door Beverage fridge N/A

BC-70RG 70lt Rounded Door Beverage fridge N/A

SC-130RG 115lt Rounded Door Beverage fridge N/A

CAPACITY Net Litres / CU.FT Frozen Food 12 oz Can

48L / 1.7CU.FT N/A 60 Cans

70L / 2.5CU.FT N/A 80 Cans

115 L / 4.1CU.FT N/A 162 Cans

PERFORMANCE Temp.Range Frozen Food Energy Consumption

0 to10°C / 32 to 50°F N/A 0.28Kw·h / 24h

0 to 10°C / 32 to 52°F N/A 0.4Kw·h / 24h

0 to 10°C / 32 to 52°F N/A 1.1Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E Standard:1star;4star Optional DOE

E Standard:1star;4star Optional DOE

E Standard:1star;4star Optional DOE

N-T R600a Glass Door, Plastic Door Frame No No Mechanical Standard Digital with Touch Panel Option Option 1 Black Wire

N-T R600a Glass Door, Plastic Door Frame No No Mechanical Standard Digital with Touch Panel Option Option 3 Wire shelves

N-T R600a Glass Door, Plastic Door Frame No No Mechanical Standard Digital with Touch Panel Option Yes 3 Glass Shelves,1 Bottom Bracket

500 H x 440 W x 475 D mm 19.7" H x 17.3" W x 18.7" D 16Kgs / 35Lbs 573

680 H x 440 W x 475 D mm 26.7" H x 17.3" W x 18.7" D 22Kgs / 48.5Lbs 345

840 H x 550 W x 555 D mm 33" H x 21.7" W x 21.8" D 31Kgs / 68Lbs 238

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Control Light Shelf DIMENSIONS HxWxD Nett Weight Container Quantity 40'HQ APPROVAL

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Beverage Fridge - Rounded Door Features · Reversible Door for Left / Right Open · 4 Sizes Available · Household and Commercial Approval · 99.9% Anti-Bacterial Liner · Adjustable Thermostat · Double Clear Glass · Wire Shelves

Options (Subject to Model) SC-130RD-S

· Triple Glass / LOW-E Glass · Digital Control · Glass Shelves

MODEL Description Colour Options

SC-46RG 48lt Rounded Door Beverage fridge N/A

BC-70RG 70lt Rounded Door Beverage fridge N/A

SC-130RG 115lt Rounded Door Beverage fridge N/A

CAPACITY Net Litres / CU.FT Frozen Food 12 oz Can

48L / 1.7CU.FT N/A 60 Cans

70L / 2.5CU.FT N/A 80 Cans

115 L / 4.1CU.FT N/A 162 Cans

PERFORMANCE Temp.Range Frozen Food Energy Consumption

0 to10°C / 32 to 50°F N/A 0.28Kw·h / 24h

0 to 10°C / 32 to 52°F N/A 0.4Kw·h / 24h

0 to 10°C / 32 to 52°F N/A 1.1Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E Standard:1star;4star Optional DOE

E Standard:1star;4star Optional DOE

E Standard:1star;4star Optional DOE

N-T R600a Glass Door, Plastic Door Frame No No Mechanical Standard Digital with Touch Panel Option Option 1 Black Wire

N-T R600a Glass Door, Plastic Door Frame No No Mechanical Standard Digital with Touch Panel Option Option 3 Wire shelves

N-T R600a Glass Door, Plastic Door Frame No No Mechanical Standard Digital with Touch Panel Option Yes 3 Glass Shelves,1 Bottom Bracket

500 H x 440 W x 475 D mm 19.7" H x 17.3" W x 18.7" D 16Kgs / 35Lbs 573

680 H x 440 W x 475 D mm 26.7" H x 17.3" W x 18.7" D 22Kgs / 48.5Lbs 345

840 H x 550 W x 555 D mm 33" H x 21.7" W x 21.8" D 31Kgs / 68Lbs 238

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Control Light Shelf DIMENSIONS HxWxD Nett Weight Container Quantity 40'HQ APPROVAL

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Beverage Fridge - Rounded Door Features

Features

· Reversible Door for Left / Right Open · 4 Different Size to Suit Your Home · Household and Commercial Approval · 99.9% Anti-Bacterial Liner · Adjustable Thermostat · Double Clear Glass · Wire Shelves

· Reversible Door for Left / Right Open · 4 Sizes Available · Household and Commercial Approval · 99.9% Anti-Bacterial Liner · Adjustable Thermostat · Double Clear Glass · Wire Shelves

Options (Subject to Model)

Options (Subject to Model)

· Triple Glass / LOW-E Glass · Digital Control · Glass Shelves

· Triple Glass / LOW-E Glass · Digital Control · Glass Shelves

SC-208R

SC-130RD-S

SC-208R

CAPACITY Net Litres / CU.FT Frozen Food 12 oz Can

116L / 4.1CU.FT N/A 66 Cans

208L / 7.3CU.FT N/A 245 Cans

PERFORMANCE Temp.Range Frozen Food Energy Consumption

0 to10°C / 32 to 50°F -25 to -15°C / -13 to 5°F 1.1Kw·h / 24h

0 to 10°C / 32 to 52°F N/A 0.33Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E DOE

G DOE

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Control Light Shelf

N-T R600a Glass Door, Plastic Door Frame No No Digital with Touch Panel Yes 3 Wire Shelves, 1 Bottom Bracket

N-T R600a Glass Door, Plastic Door Frame No No Digital with Touch Panel Yes 5 Wire shelves

835 H x 550 W x 555 D mm 33" H x 21.7" W x 21.8" D 31Kgs / 68Lbs 238

1524 H x 610 W x 430 D mm 60" H x 24" W x 16.9" D 58Kgs / 127.8Lbs 100

MODEL Description

107lt Rounded Door Beverage fridge with freezer box

DIMENSIONS HxWxD Nett Weight Container Quantity 40'HQ APPROVAL

35

ETL

CETL

CE

CB

DOE2017 ROHS

208lt Rounded Door Beverage fridge N/A

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Beverage Fridge - Rounded Door Features

Features

· Reversible Door for Left / Right Open · 4 Different Size to Suit Your Home · Household and Commercial Approval · 99.9% Anti-Bacterial Liner · Adjustable Thermostat · Double Clear Glass · Wire Shelves

· Reversible Door for Left / Right Open · 4 Sizes Available · Household and Commercial Approval · 99.9% Anti-Bacterial Liner · Adjustable Thermostat · Double Clear Glass · Wire Shelves

Options (Subject to Model)

Options (Subject to Model)

· Triple Glass / LOW-E Glass · Digital Control · Glass Shelves

· Triple Glass / LOW-E Glass · Digital Control · Glass Shelves

SC-208R

SC-130RD-S

SC-208R

CAPACITY Net Litres / CU.FT Frozen Food 12 oz Can

116L / 4.1CU.FT N/A 66 Cans

208L / 7.3CU.FT N/A 245 Cans

PERFORMANCE Temp.Range Frozen Food Energy Consumption

0 to10°C / 32 to 50°F -25 to -15°C / -13 to 5°F 1.1Kw·h / 24h

0 to 10°C / 32 to 52°F N/A 0.33Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E DOE

G DOE

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Control Light Shelf

N-T R600a Glass Door, Plastic Door Frame No No Digital with Touch Panel Yes 3 Wire Shelves, 1 Bottom Bracket

N-T R600a Glass Door, Plastic Door Frame No No Digital with Touch Panel Yes 5 Wire shelves

835 H x 550 W x 555 D mm 33" H x 21.7" W x 21.8" D 31Kgs / 68Lbs 238

1524 H x 610 W x 430 D mm 60" H x 24" W x 16.9" D 58Kgs / 127.8Lbs 100

MODEL Description

107lt Rounded Door Beverage fridge with freezer box

DIMENSIONS HxWxD Nett Weight Container Quantity 40'HQ APPROVAL

35

ETL

CETL

CE

CB

DOE2017 ROHS

208lt Rounded Door Beverage fridge N/A

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Beverage Fridge - Sub-Zero

SC-98ZZ BC-46E-ZZ

MODEL Description

SC-46ZZ 38lt free-standing Sub-zero beverage fridge

BC-46E-ZZ 38lt free-standing Sub-zero beverage fridge

SC-70ZZ 98lt free-standing beverage fridge,cyberpunk

CAPACITY Net Litres / CU.FT 12 oz Can

38L / 1.4CU.FT 60 Cans

48L / 1.7CU.FT 45 Cans

88L / 3.1CU.FT 105 Cans

PERFORMANCE Temp.Range Energy Consumption

-5 to 10°C / 23 to 50°F 0.3Kw·h / 24h

-5 to 10°C / 23°C to 50°F 0.29Kw·h / 24h

0 to 10°C / 32°C to 52°F 0.32Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E DOE

E DOE

E DOE

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Contro Light Shelf

N-T R600a Glass Door Option Option Digital Option 1 Black Wire

T R600a Glass Door No No Touch Panel on Door No 1 Black Wire

N-T R600a Glass Door Option Option Digital Option 3 Black Wire

515 H x 430 W x 495 D mm 27.2" H x 16.9" W x 18.7" D 26Kgs / 57.3Lbs 460

845 H x 470 W x 472 D mm 33.3" H x 16.9" W x 18.6" D 30Kgs / 66.1Lbs 460

690 H x 430 W x 495 D mm 20.1" H x 16.9" W x 19.5" D 16.8Kgs / 35.3Lbs 345

DIMENSIONS HxWxD Nett Weight Container Quantity 40'HQ APPROVAL

37

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Beverage Fridge - Sub-Zero

SC-98ZZ BC-46E-ZZ

MODEL Description

SC-46ZZ 38lt free-standing Sub-zero beverage fridge

BC-46E-ZZ 38lt free-standing Sub-zero beverage fridge

SC-70ZZ 98lt free-standing beverage fridge,cyberpunk

CAPACITY Net Litres / CU.FT 12 oz Can

38L / 1.4CU.FT 60 Cans

48L / 1.7CU.FT 45 Cans

88L / 3.1CU.FT 105 Cans

PERFORMANCE Temp.Range Energy Consumption

-5 to 10°C / 23 to 50°F 0.3Kw·h / 24h

-5 to 10°C / 23°C to 50°F 0.29Kw·h / 24h

0 to 10°C / 32°C to 52°F 0.32Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E DOE

E DOE

E DOE

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Contro Light Shelf

N-T R600a Glass Door Option Option Digital Option 1 Black Wire

T R600a Glass Door No No Touch Panel on Door No 1 Black Wire

N-T R600a Glass Door Option Option Digital Option 3 Black Wire

515 H x 430 W x 495 D mm 27.2" H x 16.9" W x 18.7" D 26Kgs / 57.3Lbs 460

845 H x 470 W x 472 D mm 33.3" H x 16.9" W x 18.6" D 30Kgs / 66.1Lbs 460

690 H x 430 W x 495 D mm 20.1" H x 16.9" W x 19.5" D 16.8Kgs / 35.3Lbs 345

DIMENSIONS HxWxD Nett Weight Container Quantity 40'HQ APPROVAL

37

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Beverage Fridge - Sub-Zero

SC-98ZZ

SC-98ZZ

MODEL Description

SC-98ZZ 88lt free-standing Sub-zero beverage fridge

EX-108B 100lt free-standing Sub-zero beverage fridge

SC-130ZZ 115lt free-standing sub-zero beverage fridge

CAPACITY Net Litres / CU.FT 12 oz Can

38L / 1.4CU.FT 60 Cans

48L / 1.7CU.FT 45 Cans

119L / 4.2CU.FT 163 Cans

PERFORMANCE Temp.Range Energy Consumption

-5 to 10°C / 23 to 50°F 0.3Kw·h / 24h

-5 to 10°C / 23°C to 50°F 0.29Kw·h / 24h

-5 to 10°C / 23°C to 50°F 0.56Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E 3star DOE

E standard:2.5star;5.5star optional DOE

E standard:2.5star;5.5star optional DOE

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Contro Light Shelf

N-T R600a Glass Door Option Option Digital Option 1 Black Wire

N-T R600a Glass Door No No Touch Panel on Door Yes 3 Black Wire

N-T R600a Glass Door Option Option Touch Panel Yes 4 Black Wire

847 H x 470 W x 492 D mm 27.2" H x 16.9" W x 19.4" D 26Kgs / 57.3Lbs 460

850 H x 560 W x 526 D mm 33.4" H x 22" W x 20.7" D 40Kgs / 88.2Lbs 227

690 H x 430 W x 495 D mm 20.1" H x 16.9" W x 19.5" D 16.8Kgs / 35.3Lbs 220

DIMENSIONS HxWxD Nett Weight Container Quantity 40'HQ APPROVAL

37

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Beverage Fridge - Sub-Zero

SC-98ZZ

SC-98ZZ

MODEL Description

SC-98ZZ 88lt free-standing Sub-zero beverage fridge

EX-108B 100lt free-standing Sub-zero beverage fridge

SC-130ZZ 115lt free-standing sub-zero beverage fridge

CAPACITY Net Litres / CU.FT 12 oz Can

38L / 1.4CU.FT 60 Cans

48L / 1.7CU.FT 45 Cans

119L / 4.2CU.FT 163 Cans

PERFORMANCE Temp.Range Energy Consumption

-5 to 10°C / 23 to 50°F 0.3Kw·h / 24h

-5 to 10°C / 23°C to 50°F 0.29Kw·h / 24h

-5 to 10°C / 23°C to 50°F 0.56Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E 3star DOE

E standard:2.5star;5.5star optional DOE

E standard:2.5star;5.5star optional DOE

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Contro Light Shelf

N-T R600a Glass Door Option Option Digital Option 1 Black Wire

N-T R600a Glass Door No No Touch Panel on Door Yes 3 Black Wire

N-T R600a Glass Door Option Option Touch Panel Yes 4 Black Wire

847 H x 470 W x 492 D mm 27.2" H x 16.9" W x 19.4" D 26Kgs / 57.3Lbs 460

850 H x 560 W x 526 D mm 33.4" H x 22" W x 20.7" D 40Kgs / 88.2Lbs 227

690 H x 430 W x 495 D mm 20.1" H x 16.9" W x 19.5" D 16.8Kgs / 35.3Lbs 220

DIMENSIONS HxWxD Nett Weight Container Quantity 40'HQ APPROVAL

37

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Beverage Fridge - Free Standing Options (Subject to Model)

Features (Subject to Model)

· ERP E / 4 Star Rating / E-Star · Sub-Zero -3 °C / 27 °F · Meet Coca Cola Commercial Requirements · Fan-Assisted Fast Pull-Down Time for Fast Moving

· ERP F / 3 Star Rating · True Compressor-Driven Refrigerators · Adjustable Thermostat · Wire Shelf / Shelves · Compact, Quiet and Energy Efficient: · Branding Available

SC-23A 23lt free-standing beverage fridge

SC-35A 35lt free-standing beverage fridge

SC-46 48lt free-standing beverage fridge

BC-46D 37lt free-standing beverage fridge with freezer box

CAPACITY Net Litres / CU.FT 12 oz Can

23L / 0.8CU.FT 24 Cans

32L / 1.1CU.FT 50 Cans

48L / 1.7CU.FT 60 Cans

48L / 1.7CU.FT 38 Cans

PERFORMANCE Temp.Range Energy Consumption

0 to 10°C / 32°C to 50°F 0.28Kw·h / 24h

0 to 10°C / 32°C to 50°F 0.28Kw·h / 24h

0 to 10°C / 32°C to 50°F 0.28Kw·h / 24h

0 to 10°C / 32°C to 50°F 0.28Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E E standard: 1 star; 4 star optional DOE -

E E Standard: 1 star; 4 star optional DOE -

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Control Light Shelf

N-T R600a Glass Door Option Option Mechanical Option 1 Black Wire

N-T R600a Glass Door Option Option Mechanical Option 1 Black Wire

T R600a Glass Door Option Option Mechanical Option 1 Black Wire

T R600a Solid Door No No Mechanical Yes No

500 H x 350 W x 440 D mm 19.7" H x 13.8" W x 17.3" D 15Kgs / 33Lbs Nett Weight Container Quantity 40'HQ 580

635 H x 430 W x 382 D mm 25" H x 16.9" W x 15" D 18Kgs / 39.6Lbs 393

510 H x 430 W x 475 D mm 20.1" H x 16.9" W x 18.7" D 16.8Kgs / 37Lbs 573

510 H x 430 W x 475 D mm 20.1" H x 16.9" W x 18.7" D 16.8Kgs / 35.3Lbs 573

APPROVAL

DOE2017 ROHS

MODEL Description

DIMENSIONS HxWxD

39

ETL

CETL

CE

CB

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Beverage Fridge - Free Standing Options (Subject to Model)

Features (Subject to Model)

· ERP E / 4 Star Rating / E-Star · Sub-Zero -3 °C / 27 °F · Meet Coca Cola Commercial Requirements · Fan-Assisted Fast Pull-Down Time for Fast Moving

· ERP F / 3 Star Rating · True Compressor-Driven Refrigerators · Adjustable Thermostat · Wire Shelf / Shelves · Compact, Quiet and Energy Efficient: · Branding Available

SC-23A 23lt free-standing beverage fridge

SC-35A 35lt free-standing beverage fridge

SC-46 48lt free-standing beverage fridge

BC-46D 37lt free-standing beverage fridge with freezer box

CAPACITY Net Litres / CU.FT 12 oz Can

23L / 0.8CU.FT 24 Cans

32L / 1.1CU.FT 50 Cans

48L / 1.7CU.FT 60 Cans

48L / 1.7CU.FT 38 Cans

PERFORMANCE Temp.Range Energy Consumption

0 to 10°C / 32°C to 50°F 0.28Kw·h / 24h

0 to 10°C / 32°C to 50°F 0.28Kw·h / 24h

0 to 10°C / 32°C to 50°F 0.28Kw·h / 24h

0 to 10°C / 32°C to 50°F 0.28Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E E standard: 1 star; 4 star optional DOE -

E E Standard: 1 star; 4 star optional DOE -

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Control Light Shelf

N-T R600a Glass Door Option Option Mechanical Option 1 Black Wire

N-T R600a Glass Door Option Option Mechanical Option 1 Black Wire

T R600a Glass Door Option Option Mechanical Option 1 Black Wire

T R600a Solid Door No No Mechanical Yes No

500 H x 350 W x 440 D mm 19.7" H x 13.8" W x 17.3" D 15Kgs / 33Lbs Nett Weight Container Quantity 40'HQ 580

635 H x 430 W x 382 D mm 25" H x 16.9" W x 15" D 18Kgs / 39.6Lbs 393

510 H x 430 W x 475 D mm 20.1" H x 16.9" W x 18.7" D 16.8Kgs / 37Lbs 573

510 H x 430 W x 475 D mm 20.1" H x 16.9" W x 18.7" D 16.8Kgs / 35.3Lbs 573

APPROVAL

DOE2017 ROHS

MODEL Description

DIMENSIONS HxWxD

39

ETL

CETL

CE

CB

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Beverage Fridge - Free Standing Options (Subject to Model)

Features (Subject to Model)

· ERP E / 4 Star Rating / E-Star · Sub-Zero -3 °C / 27°F · Commercial Specifications Up to Coke Conditions · Fan-Assisted Fast Pull-Down Time for Fast Moving Lines Such as Chocolate Snacks and Soft Drinks

· ERP F / 3 Star Rating · True Compressor-Driven Refrigerators · Adjustable Thermostat · Wire Shelf / Shelves · Compact, Quiet and Energy Efficient: Perfect for Impulse Sales · Branding Available

SC-98CTA

NEW

MODEL Description

SC-70 70lt free-standing beverage fridge

SC-98B 98lt free-standing beverage fridge

SC-98CTA 98lt free-standing beverage fridge,cyberpunk

SC-130B 115lt free-standing beverage fridge

CAPACITY Net Litres / CU.FT 12 oz Can

70L / 2.5CU.FT 85 Cans

98L / 3.5CU.FT 105 Cans

88L / 3.1CU.FT 105 Cans

115L / 4.1CU.FT 162 Cans

PERFORMANCE Temp.Range Energy Consumption

0 to 10°C / 32°C to 50°F 0.28Kw·h / 24h

0 to 10°C / 32°C to 50°F 0.5Kw·h / 24h

0 to 10°C / 32°C to 52°F 0.32Kw·h / 24h

0 to 10°C / 32°C to 52°F 0.56Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E E E E Standard:1 star; 4 star optional Standard:1 star; 4 star optional Standard: 1 star; 4 star optional Standard:1 star; 4 star optional DOE DOE DOE DOE

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Contro

N-T R600a Glass Door Option Option Mechanical

N-T R600a Glass Door Option Option Mechanical

N-T R600a Glass Door No No Mechanical

Light Shelf

Option 3 Black Wire

Yes 4 Black Wire

No 4 Black Wire

N-T R600a Glass Door Option Option Mechanical Touch Panel on Door Option Yes 4 Black Wire,1 Bottom Bracket

845 H x 470 W x 472 D mm 33.3" H x 16.9" W x 18.6" D 30Kgs / 66.1Lbs 276

510 H x 430 W x 475 D mm 20.1" H x 16.9" W x 18.7" D 16.8Kgs / 35.3Lbs 276

510 H x 430 W x 475 D mm 20.1" H x 16.9" W x 18.7" D 16.8Kgs / 35.3Lbs 268

DIMENSIONS HxWxD

500 H x 440 W x 498 D mm 27.2" H x 16.9" W x 18.7" D 26Kgs / 57.3Lbs Nett Weight Container Quantity 40'HQ 352 APPROVAL

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Beverage Fridge - Free Standing Options (Subject to Model)

Features (Subject to Model)

· ERP E / 4 Star Rating / E-Star · Sub-Zero -3 °C / 27°F · Commercial Specifications Up to Coke Conditions · Fan-Assisted Fast Pull-Down Time for Fast Moving Lines Such as Chocolate Snacks and Soft Drinks

· ERP F / 3 Star Rating · True Compressor-Driven Refrigerators · Adjustable Thermostat · Wire Shelf / Shelves · Compact, Quiet and Energy Efficient: Perfect for Impulse Sales · Branding Available

SC-98CTA

NEW

MODEL Description

SC-70 70lt free-standing beverage fridge

SC-98B 98lt free-standing beverage fridge

SC-98CTA 98lt free-standing beverage fridge,cyberpunk

SC-130B 115lt free-standing beverage fridge

CAPACITY Net Litres / CU.FT 12 oz Can

70L / 2.5CU.FT 85 Cans

98L / 3.5CU.FT 105 Cans

88L / 3.1CU.FT 105 Cans

115L / 4.1CU.FT 162 Cans

PERFORMANCE Temp.Range Energy Consumption

0 to 10°C / 32°C to 50°F 0.28Kw·h / 24h

0 to 10°C / 32°C to 50°F 0.5Kw·h / 24h

0 to 10°C / 32°C to 52°F 0.32Kw·h / 24h

0 to 10°C / 32°C to 52°F 0.56Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E E E E Standard:1 star; 4 star optional Standard:1 star; 4 star optional Standard: 1 star; 4 star optional Standard:1 star; 4 star optional DOE DOE DOE DOE

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Contro

N-T R600a Glass Door Option Option Mechanical

N-T R600a Glass Door Option Option Mechanical

N-T R600a Glass Door No No Mechanical

Light Shelf

Option 3 Black Wire

Yes 4 Black Wire

No 4 Black Wire

N-T R600a Glass Door Option Option Mechanical Touch Panel on Door Option Yes 4 Black Wire,1 Bottom Bracket

845 H x 470 W x 472 D mm 33.3" H x 16.9" W x 18.6" D 30Kgs / 66.1Lbs 276

510 H x 430 W x 475 D mm 20.1" H x 16.9" W x 18.7" D 16.8Kgs / 35.3Lbs 276

510 H x 430 W x 475 D mm 20.1" H x 16.9" W x 18.7" D 16.8Kgs / 35.3Lbs 268

DIMENSIONS HxWxD

500 H x 440 W x 498 D mm 27.2" H x 16.9" W x 18.7" D 26Kgs / 57.3Lbs Nett Weight Container Quantity 40'HQ 352 APPROVAL

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Global Co-Branding - Product Features

Retro Design

Patented Design

Patented Shelf

30 000 Door Open Test

Triple Glazed Door Optional

One Piece Metal Cabinet

180 Door Open

Anti-Bacterial

Double Coating for Uv Protection

Anti-Vibration

L SC-46

Stable Humidity Control

Stable Temperature Control

TPE Door Seal

LED Light

Imported Environmental ink

Odourless

Anti-Vibration System, Quiet Operation

Stable Humidity Maintain

Recessed Handle

Quiet Operation

Nano Anti-Bacterial Patent

Adjustable Shelves

80° Curved Corner

Fridge Freezer

Global Co-Branding - Product Features

Retro Design

Patented Design

Patented Shelf

30 000 Door Open Test

Triple Glazed Door Optional

One Piece Metal Cabinet

180 Door Open

Anti-Bacterial

Double Coating for Uv Protection

Anti-Vibration

L SC-46

Stable Humidity Control

Stable Temperature Control

TPE Door Seal

LED Light

Imported Environmental ink

Odourless

Anti-Vibration System, Quiet Operation

Stable Humidity Maintain

Recessed Handle

Quiet Operation

Nano Anti-Bacterial Patent

Adjustable Shelves

80° Curved Corner

Fridge Freezer

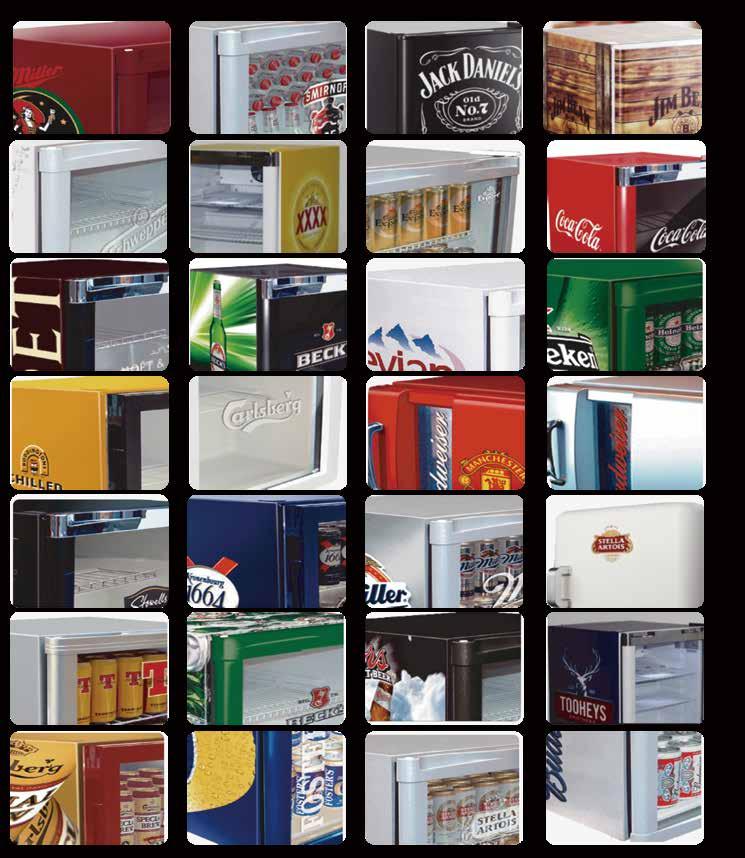

Global · Co-Branding

BC-46R Fridge solid door N/A

BC-46 Fridge solid door N/A

48L / 1.7CU.FT N/A 41 Cans

48L / 1.7CU.FT N/A 41 Cans

PERFORMANCE Temp.Range Frozen Food Energy Consumption

0 to 10°C / 32°C to 50°F N/A 0.28Kw·h / 24h

0 to 10°C / 32°C to 50°F N/A 0.28Kw·h / 24h

E Standard: 1 star; 4 star optional DOE

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E Standard: 1 star; 4 star optional DOE

E standard: 2.5 star; 5.5 star optional DOE

T R600a Glass Door Option No Mechanical Option 1 Black Wire

T R600a Glass Door No No Mechanical Option 1 Black Wire

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Control Light Shelf

T R600a Solid Door No No Mechanical Option 1 Black Wire

T R600a Solid Door No No Mechanical Option 1 Black Wire

510 H x 460 W x 475 D mm 20.1" H x 16.9" W x 18.7" D 16Kgs / 35.3Lbs 573

510 H x 460 W x 475 D mm 20.1" H x 16.9" W x 18.7" D 16Kgs / 35.3Lbs 573

500 H x 440 W x 498 D mm 19.7" H x 17.3" W x 19.6" D 16Kgs / 35.3Lbs 549

510 H x 430 W x 475 D mm 20.1" H x 16.9" W x 18.7" D 16Kgs / 35.3Lbs 573

MODEL Description

SC-46BBA Fridge glass door

SC-46 Fridge glass door

MODEL Description

CAPACITY Net Litres / CU.FT Frozen Food 12 oz Can

48L / 1.7CU.FT N/A 41 Cans

48L / 1.7CU.FT N/A 41 Cans

CAPACITY Net Litres / CU.FT Frozen Food 12 oz Can

PERFORMANCE Temp.Range Frozen Food Energy Consumption

0 to 10°C / 32 to 52°F N/A 0.3Kw·h / 24h

0 to 10°C / 32 to 52°F N/A 0.45Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E Standard: 1 star; 4 star optional DOE

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Control Light Shelf DIMENSIONS HxWxD Nett Weight Container Quantity 40'HQ APPROVAL

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

DIMENSIONS HxWxD Nett Weight Container Quantity 40'HQ FSC

CCC

APPROVAL

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Global · Co-Branding

BC-46R Fridge solid door N/A

BC-46 Fridge solid door N/A

48L / 1.7CU.FT N/A 41 Cans

48L / 1.7CU.FT N/A 41 Cans

PERFORMANCE Temp.Range Frozen Food Energy Consumption

0 to 10°C / 32°C to 50°F N/A 0.28Kw·h / 24h

0 to 10°C / 32°C to 50°F N/A 0.28Kw·h / 24h

E Standard: 1 star; 4 star optional DOE

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E Standard: 1 star; 4 star optional DOE

E standard: 2.5 star; 5.5 star optional DOE

T R600a Glass Door Option No Mechanical Option 1 Black Wire

T R600a Glass Door No No Mechanical Option 1 Black Wire

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Control Light Shelf

T R600a Solid Door No No Mechanical Option 1 Black Wire

T R600a Solid Door No No Mechanical Option 1 Black Wire

510 H x 460 W x 475 D mm 20.1" H x 16.9" W x 18.7" D 16Kgs / 35.3Lbs 573

510 H x 460 W x 475 D mm 20.1" H x 16.9" W x 18.7" D 16Kgs / 35.3Lbs 573

500 H x 440 W x 498 D mm 19.7" H x 17.3" W x 19.6" D 16Kgs / 35.3Lbs 549

510 H x 430 W x 475 D mm 20.1" H x 16.9" W x 18.7" D 16Kgs / 35.3Lbs 573

MODEL Description

SC-46BBA Fridge glass door

SC-46 Fridge glass door

MODEL Description

CAPACITY Net Litres / CU.FT Frozen Food 12 oz Can

48L / 1.7CU.FT N/A 41 Cans

48L / 1.7CU.FT N/A 41 Cans

CAPACITY Net Litres / CU.FT Frozen Food 12 oz Can

PERFORMANCE Temp.Range Frozen Food Energy Consumption

0 to 10°C / 32 to 52°F N/A 0.3Kw·h / 24h

0 to 10°C / 32 to 52°F N/A 0.45Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E Standard: 1 star; 4 star optional DOE

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Control Light Shelf DIMENSIONS HxWxD Nett Weight Container Quantity 40'HQ APPROVAL

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

DIMENSIONS HxWxD Nett Weight Container Quantity 40'HQ FSC

CCC

APPROVAL

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Global - Co-Branding

MODEL Description Colour Options

BC-130RDA 107lt retro fridge with freezer box N/A

BC-130RA 72lt retro all freezer N/A

MODEL Description Colour Options

BC-70 Fridge solid door N/A

BC-130RA Fridge solid door N/A

BC-130RA Fridge solid door N/A

CAPACITY Net Litres / CU.FT Frozen Food 12 oz Can

92L / 3.2CU.FT 15L / 0.6CU.FT, 4 star 66 Cans

N/A 72L / 2.5CU.FT N/A

CAPACITY Net Litres / CU.FT Frozen Food 12 oz Can

70L / 2.4CU.FT N/A 80 Cans

115 L / 4.1CU.FT N/A 110 Cans

115 L / 4.1CU.FT N/A 100 Cans

PERFORMANCE Temp.Range Frozen Food Energy Consumption

0 to 10°C / 32 to 50°F -25 to -15°C / -13 to 5°F 0.39Kw·h / 24h

N/A -25 to -15°C / -13 to 5°F 0.39Kw·h / 24h

PERFORMANCE Temp.Range Frozen Food Energy Consumption

0 to10°C / 32 to 52°F N/A 0.32Kw·h / 24h

0 to 10°C / 32 to 52°F N/A 0.45Kw·h / 24h

0 to 10°C / 32 to 52°F N/A 0.45Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E 3 star DOE

D standard: 2.5 star; 5.5 star optional DOE

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E D Standard: 1 star ; 4 star Optional Standard: 2.5 star; 5.5 star optional DOE DOE

D Standard: 1 star; 4 star Optional DOE

T R600a Solid, Plastic Panel No Option Mechanical Yes 3 Glass Shelves, 1 Salad Drawer 3 Wire Retainers On Door

T R600a Solid, Plastic Panel No Option Mechanical No 3 Drawersr

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Control Light Shelf

T R600a Solid Door No No Mechanical No 3 Black Wire

T R600a Solid, Plastic Panel No Option Mechanical Yes 3 Glass Shelves,1 Small Wine Shelf,1 Salad Drawer 3 Wire Retainers on Door

T R600a Solid, Plastic Panel No Option Mechanical Yes 3 Glass Shelves,1 Small Wine Shelf,1 Salad Drawer 3 Wire Retainers on Door

835 H x 550 W x 583 D mm 33.1" H x 21.7" W x 23" D 31Kgs / 68Lbs 227

835 H x 550 W x 583 D mm 33.1" H x 21.7" W x 23" D 31Kgs / 68Lbs 227

835 H x 550 W x 583 D mm 34.1" H x 21.7" W x 23" D 31Kgs / 68Lbs 227

835 H x 550 W x 583 D mm 34.1" H x 21.7" W x 23" D 31Kgs / 68Lbs 227

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Control Light Shelf DIMENSIONS HxWxD Nett Weight Container Quantity 40'HQ APPROVAL

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

DIMENSIONS HxWxD

690 H x 430 W x 475 D mm 27.2" H x 16.1" W x 13.8" D Nett Weight 23.5Kgs / 51.8Lbs Container Quantity 40'HQ 352 WEEE PAHS

FSC

CCC

APPROVAL

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

Global - Co-Branding

MODEL Description Colour Options

BC-130RDA 107lt retro fridge with freezer box N/A

BC-130RA 72lt retro all freezer N/A

MODEL Description Colour Options

BC-70 Fridge solid door N/A

BC-130RA Fridge solid door N/A

BC-130RA Fridge solid door N/A

CAPACITY Net Litres / CU.FT Frozen Food 12 oz Can

92L / 3.2CU.FT 15L / 0.6CU.FT, 4 star 66 Cans

N/A 72L / 2.5CU.FT N/A

CAPACITY Net Litres / CU.FT Frozen Food 12 oz Can

70L / 2.4CU.FT N/A 80 Cans

115 L / 4.1CU.FT N/A 110 Cans

115 L / 4.1CU.FT N/A 100 Cans

PERFORMANCE Temp.Range Frozen Food Energy Consumption

0 to 10°C / 32 to 50°F -25 to -15°C / -13 to 5°F 0.39Kw·h / 24h

N/A -25 to -15°C / -13 to 5°F 0.39Kw·h / 24h

PERFORMANCE Temp.Range Frozen Food Energy Consumption

0 to10°C / 32 to 52°F N/A 0.32Kw·h / 24h

0 to 10°C / 32 to 52°F N/A 0.45Kw·h / 24h

0 to 10°C / 32 to 52°F N/A 0.45Kw·h / 24h

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E 3 star DOE

D standard: 2.5 star; 5.5 star optional DOE

ENERGY RATING ERP(EU) MEPS(OZ) DOE(US)

E D Standard: 1 star ; 4 star Optional Standard: 2.5 star; 5.5 star optional DOE DOE

D Standard: 1 star; 4 star Optional DOE

T R600a Solid, Plastic Panel No Option Mechanical Yes 3 Glass Shelves, 1 Salad Drawer 3 Wire Retainers On Door

T R600a Solid, Plastic Panel No Option Mechanical No 3 Drawersr

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Control Light Shelf

T R600a Solid Door No No Mechanical No 3 Black Wire

T R600a Solid, Plastic Panel No Option Mechanical Yes 3 Glass Shelves,1 Small Wine Shelf,1 Salad Drawer 3 Wire Retainers on Door

T R600a Solid, Plastic Panel No Option Mechanical Yes 3 Glass Shelves,1 Small Wine Shelf,1 Salad Drawer 3 Wire Retainers on Door

835 H x 550 W x 583 D mm 33.1" H x 21.7" W x 23" D 31Kgs / 68Lbs 227

835 H x 550 W x 583 D mm 33.1" H x 21.7" W x 23" D 31Kgs / 68Lbs 227

835 H x 550 W x 583 D mm 34.1" H x 21.7" W x 23" D 31Kgs / 68Lbs 227

835 H x 550 W x 583 D mm 34.1" H x 21.7" W x 23" D 31Kgs / 68Lbs 227

FEATURES Climate Type Refrigerant Door Lock Handle Temp. Control Light Shelf DIMENSIONS HxWxD Nett Weight Container Quantity 40'HQ APPROVAL

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

DIMENSIONS HxWxD

690 H x 430 W x 475 D mm 27.2" H x 16.1" W x 13.8" D Nett Weight 23.5Kgs / 51.8Lbs Container Quantity 40'HQ 352 WEEE PAHS

FSC

CCC

APPROVAL

ETL

CETL

CE

CB

DOE2017 ROHS

SAA

MEPS

GS

REACH SVHC

POP

WEEE PAHS

FSC

CCC

+32 38 66 00 11 info@grenache.com

Mob: +1(916)800-4969 Email: info@hck-cool.com Web: www.hck-cool.com Copyright HCK Version January 2023 China Models may be subject to modification without prior notice.

We reserve the right to make, at anytime, changes deemed necessary to improve production.

California | Melbourne | Cambridge | Dublin | Guangzhou

2023 12
