Mitsubishi Sensia EM

Page 1

Authorised dealer ANDOVER FORK TRUCK SERVICES Walworth Business Park,  3 North Way, Andover, SP10 5AZ grant@andoverforktruckservices.co.uk  |  www.andover-mitsubishi.co.uk  |  07867803041 RB14-25N2Series REACH TRUCK 1.4–2.5  TONNES  | 48 VOLTS  | AC POWER

REACH NEW HEIGHT... OF PERFORMANCE AND PRODUCTIVITY

RB14-25N2 SERIES

Model

SENSiA EM is designed for effective and efficient operations Its highly sensitive control system and progressive, modulated fingertip response curves allow operators to work with complete accuracy and confidence

A choice of two operating modes means SENSiA EM can be adapted for different operators. PRO mode is ideal for experienced warehouse staff looking for optimum performance, while ECO mode puts novice operators at ease with natural handling. SENSiA EM can even be customised by a service engineer to ensure that the truck's settings suit specific needs

The generous cabin space and ergonomic armrest ensure operators stay comfortable, safe and focused, even through the longest shifts

Load Capacity RB14N2HS 1400 kg RB14N2S 1400 kg RB16N2 1600 kg RB16N2C 1600 kg RB16N2H 1600 kg RB16N2HC 1600 kg RB16N2HS 1600 kg RB16N2S 1600 kg RB20N2H 2000 kg RB20N2X 2000 kg RB25N2X 2500 kg

THE MITSUBISHI SENSiA RANGE

REACH TRUCKS AND MULTI-WAY REACH TRUCKS WITH UNRIVALLED PERFORMANCE AND PRECISION

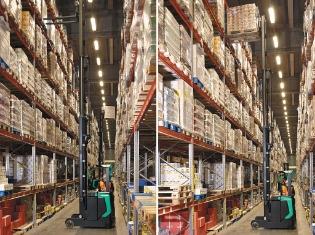

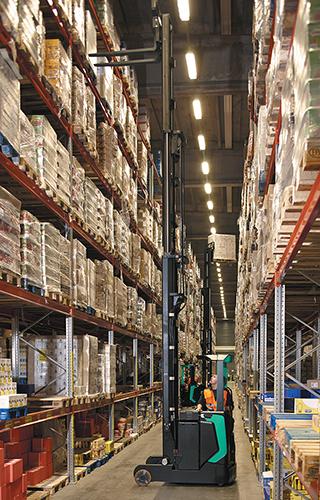

Working fast in a tight space A tricky load from 13 metres racking A high pressure deadline with no room for error One thing's for certain: driving a reach truck takes concentration That's why Mitsubishi Forklift Trucks designed its SENSiA range a high performance family of reach and multi way trucks where every aspect helps your operators to stop thinking about the controls, so they can focus on the task at hand Literally

Our industry leading controls respond naturally to the pressure of touch, while our spacious easy access cabin is free from distractions and offers exceptional visibility. Our progressive steering feels perfect at every speed, while acceleration, mast and cornering are familiar and smooth It's simply instinctive

Act on instinct

The smoothest load handling comes from a reach truck that adapts to the operator in a natural way

POPULAR FEATURES

POPULAR FEATURE #1

SENSITIVE DRIVE SYSTEM

An intuitive driver assist system for increased safety Performance is managed according to steer angle and the velocity of foot and finger controls

POPULAR FEATURE #2

PASSIVE SWAY CONTROL

No delay waiting for the mast to stop swaying Combined with the industry's most rigid mast, SENSiA delivers the highest cycling times available

POPULAR FEATURE #3

PATENTED MITSUBISHI VISIONMAST

Its patented design creates a very strong, light and compact mast that offers industry leading lifting capacities and visibility: ensuring clear views to fork tips at all times

POPULAR FEATURE #4

SPACIOUS OPERATOR COMPARTMENT

Leading the class on size and safety, it's 75 mm wider than competitors and is the only machine which fully protects your driver's left shoulder.

POPULAR FEATURE #5

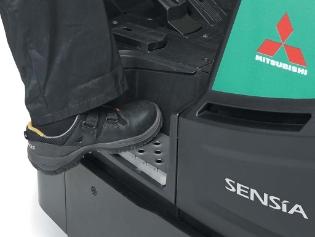

ULTRA-LOW STEP HEIGHT

100 mm lower step height than normal reduces the amount of knee strain. It also allows easy entry and exit of the machine enhanced productivity.

MULTIFUNCTION

360-DEGREE STEERING

LED WORKING LIGHTS

FIXED-POSITION BATTERY

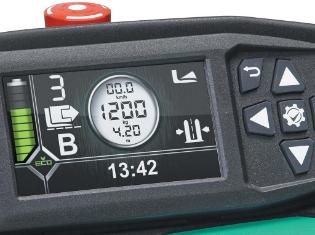

HI-VISIBILITY COLOUR DISPLAY

Fully

POPULAR FEATURE #6
PALM/ARMREST Fully supports the whole wrist, forearm, shoulder and back for maximum comfort, while ensuring optimal control of hydraulics POPULAR FEATURE #7
Delivers slick, smooth and controlled operation POPULAR FEATURE #8
Simply the brightest and longest lasting available Uses a fraction of the power consumed by alternatives for long shift life POPULAR FEATURE #9
This ensures battery checks and maintenance are kept safe, quick and easy POPULAR FEATURE #10
anti glare, this serves as the machine's information hub. It's clear and easy to read and provides details of performance levels, operational indicators, battery discharge and usage hours

FEATURES

BRAKES

High-efficiency regenerative braking

This gives more effective control and reduces brake wear

Load wheel brakes

These give extra braking power (H and X models only)

DRIVE

Powerful AC drive motor

High torque, even at faster speeds Efficient, smooth, and quiet performance which lowers service costs

Mitsubishi SDS (Sensitive Drive System)

An intuitive driver assist system for increased safety Performance is managed according to steer angle and the velocity of foot and finger controls

Choice of two driving modes (ECO and PRO)

The truck's performance can be tailored for enhanced performance or extended shift life

High efficiency drive motors and hydraulic systems

Exceptional shift length between charges or changes

ELECTRICAL AND CONTROL SYSTEMS

Award winning Active Sway Control (ASC) (option)

Delays caused by mast sway are reduced and performance is smoother and more stable

CAN bus system

Less wiring for quick and easy fault finding.

Maintenance interval calculator

This helps to encourage correct regular servicing to minimise potential downtime

Temperature control

This prevents motors and controllers from sustaining damage from overheating

Tilting battery cover Quick, easy access for maintenance and charging

MAST AND FORK ASSEMBLY

Passive Sway Control

The chassis moves slightly to compensate for elevated load motion and dampen it Revolutionary VisionMast

The operator gets unrivalled forward vision.

Clear-view fork carriage

This has integral side shift and offers optimal visibility of forks at the first stacking level

Exceptionally smooth 'no knock' transition between mast stages

Exact performance is ensured throughout lift range

Cornering control

Even at fast travel speeds cornering is efficient and stable

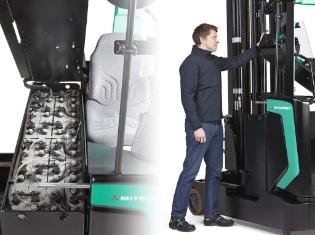

Battery rollers

Changes are quick, easy and safe

FRAME AND BODY

Clear-view overhead guard

Great visibility while still offering high levels of overhead protection

HYDRAULICS

Powerful AC hydraulic motor with extra strength pump (H models)

Lifting and lowering is fast and controlled

OPERATOR ENVIRONMENT AND CONTROLS

Ergonomic armrest

Adjustable and matches natural operating position to reduce fatigue

Fingertip control system

Patented with modulated response curves and optimised for natural movement with effortless control

Clear information display

The driver is given key information such as guidance, warning, and alarms

Spacious and comfortable cabin, clear view and fast, accurate fork positioning

This all helps to increase productivity and reduce risks of driver fatigue even on the longest shifts.

Easy access compartment This features ergonomic hand bars, low non slip step and entry provides safe and effortless entry and exit

STEERING SYSTEM

Unlimited 360 degree progressive electric steering

Manoeuvring is easy at low speeds and offers effortless control at higher speeds

OPTIONS INCLUDE

Extra hydraulic valve and hosing to fork carriage

Telescopic forks Camera with monitor

Lifting height indicator and pre height selector

Side shift and tilt centering

Choice of suspension seats (air or mechanical)

Audio system with AUX input

Fork positioner

Scale (tolerance +/ 25 kg)

Quick battery locking system, foot operated

Cold store modification package

Hot environment modification

DC/DC converter with USB power supply for mobile or PC

Customer name/logo/artwork on side panels

Company or brand designed side covers

Low-noise technology

The sound level at the driver's ear is no louder than a typical conversation

Folding steering wheel console

Length and angle of column are adjustable to give each operator the optimal driving position Lifts up for easy exit and entry of the cabin.

Multifunctional armrest controls

Operators' arm is well supported and cuts down on unnecessary movement Controls for reach, lift, tilt, fork positioning, direction and horn all within easy reach

Full suspension, fully adjustable seat

Drivers are kept safe, comfortable, and alert through long shifts

Cold store cabin (Not available for compact 'C' models)

KEY TECHNOLOGIES

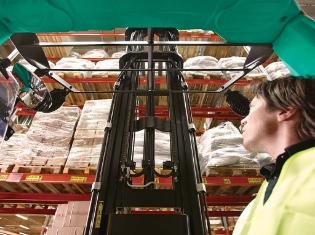

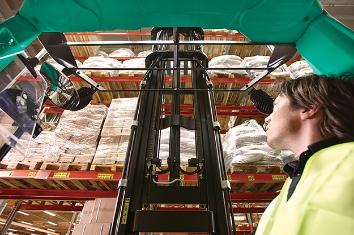

VISIONMAST

The Mitsubishi VisionMast is a development made possible by hot extrusion manufacturing technology Its revolutionary design offers maximum visibility and much, much more

Typically, hydraulic cylinders obstruct forward vision while travelling By enclosing them within the first stage of the mast, designers have achieved an unrivalled quality of forward view

This design also offers a structure that is stiffer than its competitors and at the same time, lighter and more compact When you raise the mast, it is very firm And compared to others in the marketplace it offers greater stability, with much less swaying With its low weight and high strength, the VisionMast has substantially increased residual capacities

VisionMast' s benefits include:

a compact profile providing unrivalled forward views improved visibility allowing for safer and more precise operations

tougher, but lighter, mast construction resulting in superb residual capacities

rigid, non sway design offering enhanced truck stability more efficient heat dissipation extending the life of the hydraulic oil and pump enclosed hydraulic cylinders resulting in less damage to hydraulic hoses and sealing

VisionMast is standard on this series

AC POWER

Our multi functional centralised system for AC control uses advanced intelligence to get the best performance from operator and machine

Offering high power for excellent traction and ramp performance, it provides smooth, quiet and controlled operation, extended shift lengths and reduced maintenance requirements

Functions in detail:

latest MOSFET and heat dissipation technology for maximum performance and energy efficiency

Standard on this range

SENSITIVE DRIVE SYSTEM

The revolutionary SDS (Sensitive Drive System) employs ground breaking software that allows the truck to sense from the very first touch exactly how a driver wishes to operate

Standard on this range

ADVANCED FINGERTIP CONTROL ARM/PALM REST

The revolutionary rest, which is full length and fully adjustable, uniquely supports the arm and palm to keep operators safe, comfortable and productive

Uniquely, the ergonomic design minimises elbow strain reducing the risk of RSIs associated with intensive operations

Standard on this range

PASSIVE SWAY CONTROL

To ensure maximum productivity at any height, this model is equipped with Passive Sway Control

This feature dampens the elevated load motion that can occur when carrying loads at height

Standard on this range

WHEN RELIABILITY IS EVERYTHING...

Like any product bearing the Mitsubishi name, our materials handling equipment benefits from the tremendous heritage, huge resources and cutting edge technology of one of the world's largest corporations Mitsubishi Heavy Industries Group

Engineering spacecraft, jet planes, power plants and more, MHI specialises in those technologies where performance, dependability and superiority decide your success or failure

So when we promise you quality, reliability and value for money, you know it's a guarantee we have the power to deliver

That's why every model in our award winning and comprehensive range of lift trucks and warehouse equipment is built to a high specification to ensure it keeps working for you Day after day Year after year Whatever the job Whatever the conditions

As your local authorised dealer, we are here to keep your trucks working through our extensive experience, our technical excellence and our commitment to customer care

We are your local experts, backed by efficient channels to the entire organisation of Mitsubishi Forklift Trucks

No matter where you are, we are close by with the capability to meet your needs.

Mitsubishi Logisnext Europe B V Hefbrugweg 77,

AM Almere, The Netherlands

Performance specifications may vary depending on standard manufacturing tolerances vehicle condition types of tyres floor or surface conditions applications or operating environment Trucks may be shown with non standard options Specific performance requirements and locally available configurations should be discussed with your distributor We follow a policy of continual product improvement For this reason, some materials, options and specifications could change without notice
1332
Tel +31 36 54 94 311 QUALITY | RELIABILITY | VALUE FOR MONEY Created 25 August 2022, 01:52:18 PM © 2022 MLE B V (registration no 33274459) All rights reserved
