ELEMENTS

Elements is our mainstream product range providing the full concept for Roller, Pleated and Venetian Blinds. Systems are available in selection of colours to seamlessly match any window setting.

This product range covers everything needed from a simple, easy to use roller blind up to the smartest Matter enabled motorised blind. Child safe solutions are also available throughout the entire offer.

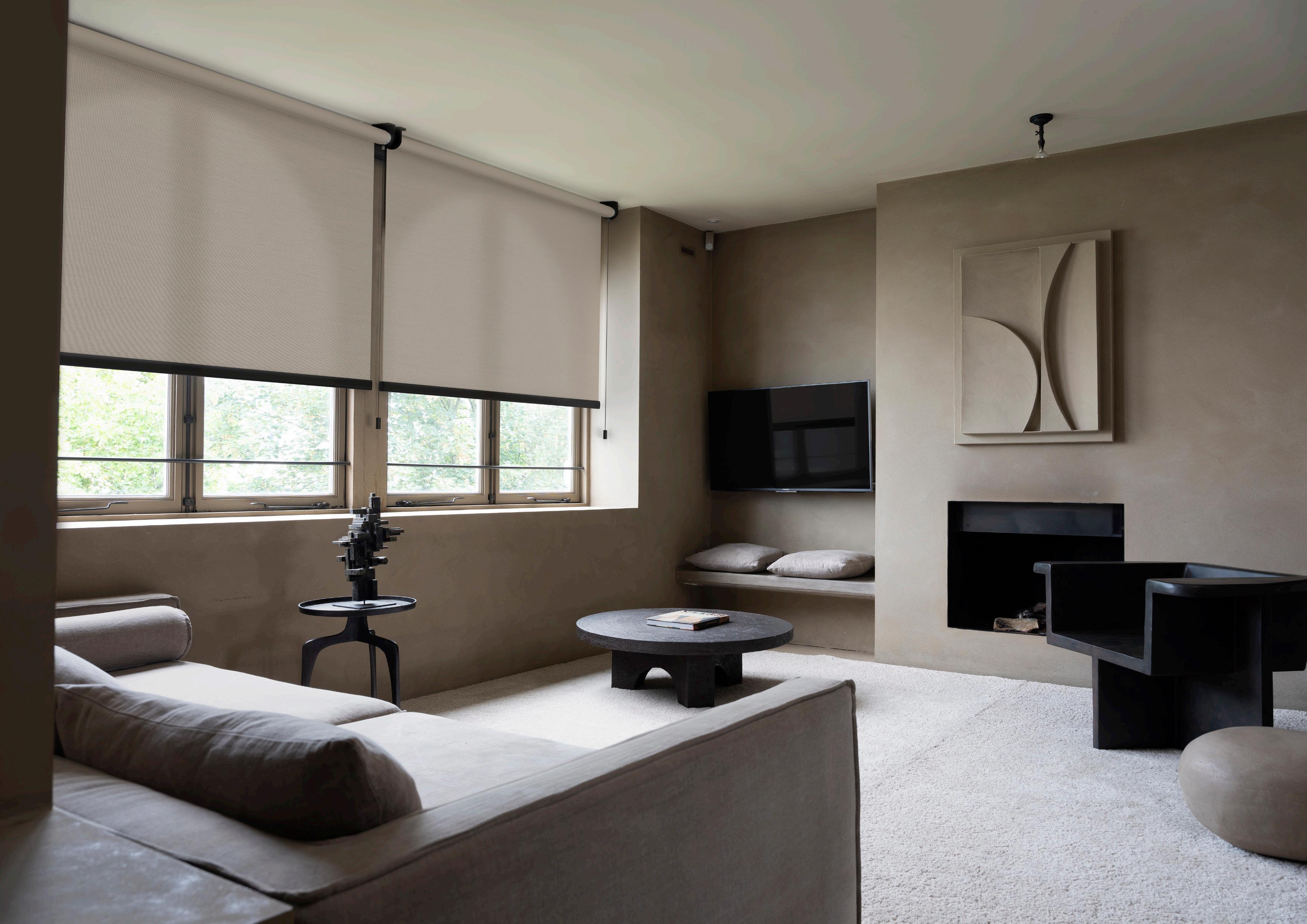

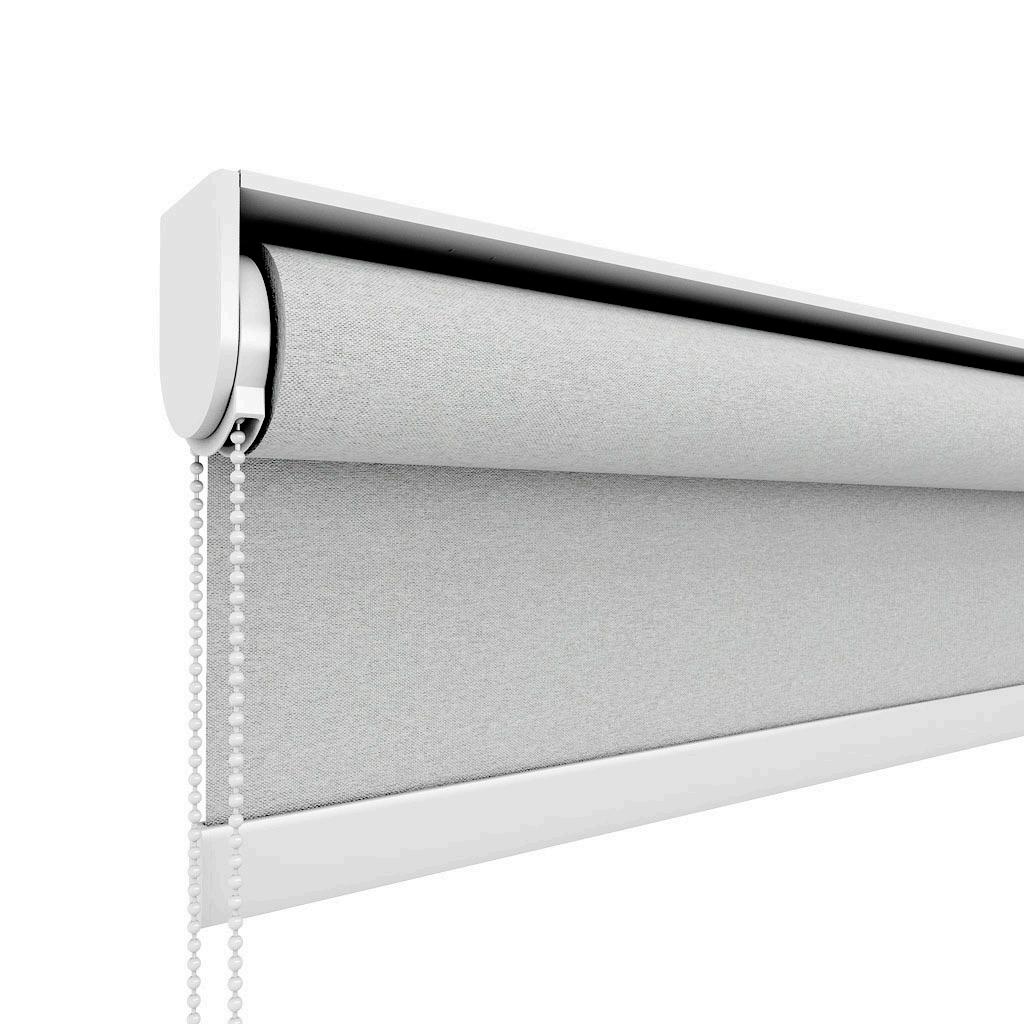

Roller Systems

Roller and Day and Night

Pleated Systems

25mm and 45mm Pleated

Venetian Systems

Aluminium and Wood Venetian

CONTENTS

4 36 60

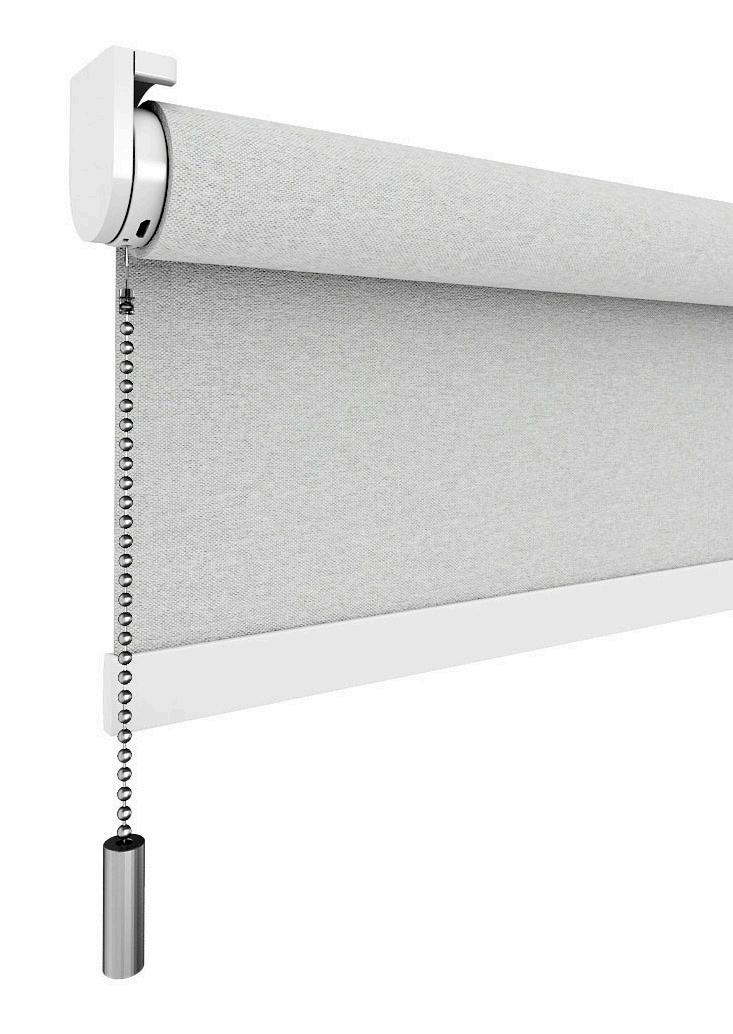

ROLLER SYSTEMS

A guide for all Roller & Day and Night Systems

ELEM

Our Elements Roller is available in 5 sizes.

ø26.8mm ø26.8mm ø36mm ø39.5mm ø39.5mm ø35mm ø38mm ø42mm ø50mm

ø28mm

ENTS Tube Sizes

Tube Overview S M-L Outer diameter mm 28 2 / 1.8 35 38 2.3 2.6 2 / 2.2 3 42 3 / 4 50 3.5 3 6 m m kg Max. Width fabric Max. Width screen Max. Weight fabric + Bottom rail (kg)

ELEM

Elements Roller is our most advanced roller. We offer 6 profiles in 5 colours which assure to seamlessly match your window frame. All can be configured with our wide range of operations.

* Subject to min/max limitations according to tube and control type.

-Primarily used for Spring and Twin Pull (add motors too if it is relevant)

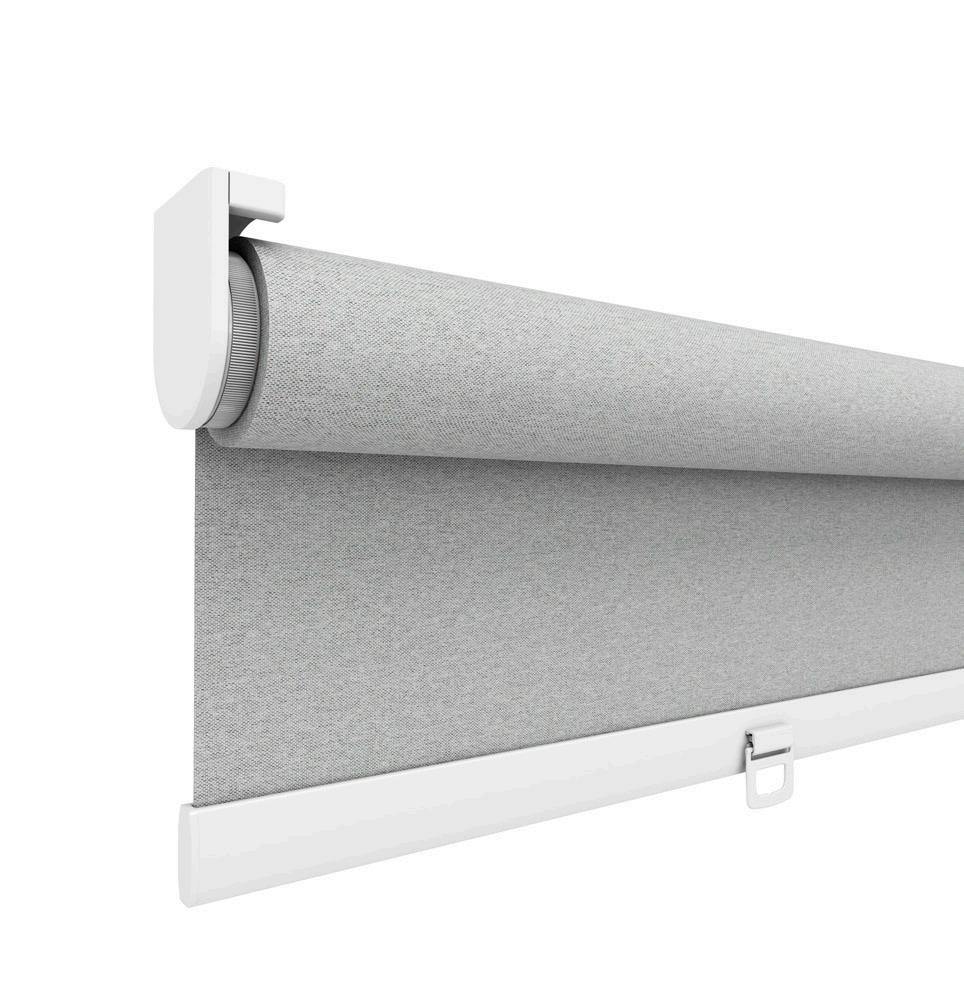

Bracket

Tube sizes:

• 28mm

• 35mm

• 38mm*

• 42mm

• 50mm

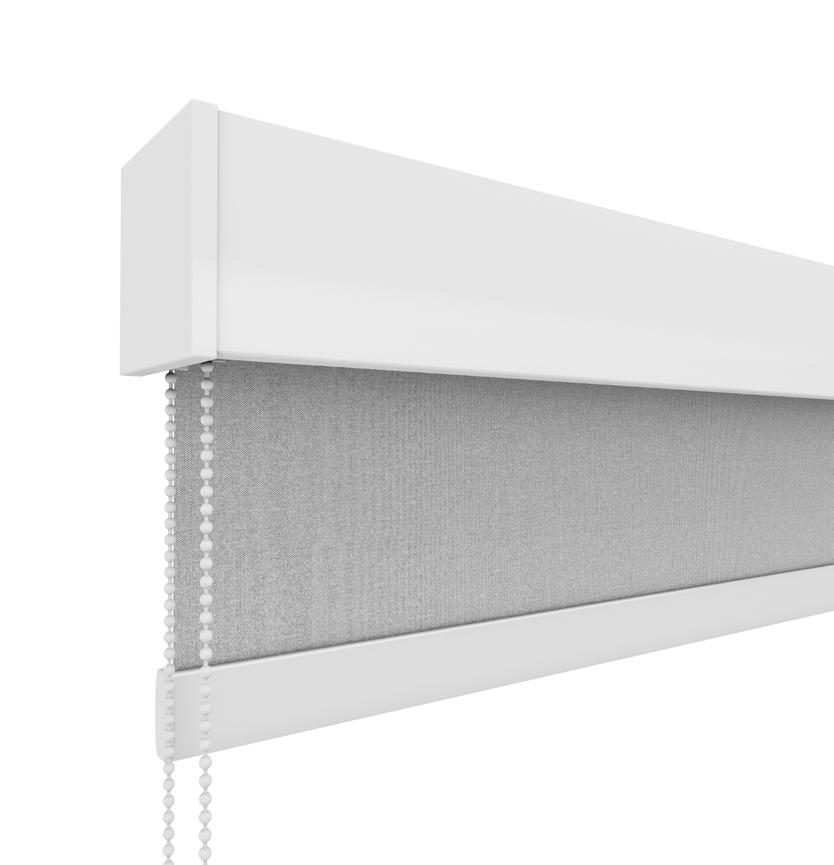

Mounting Profile

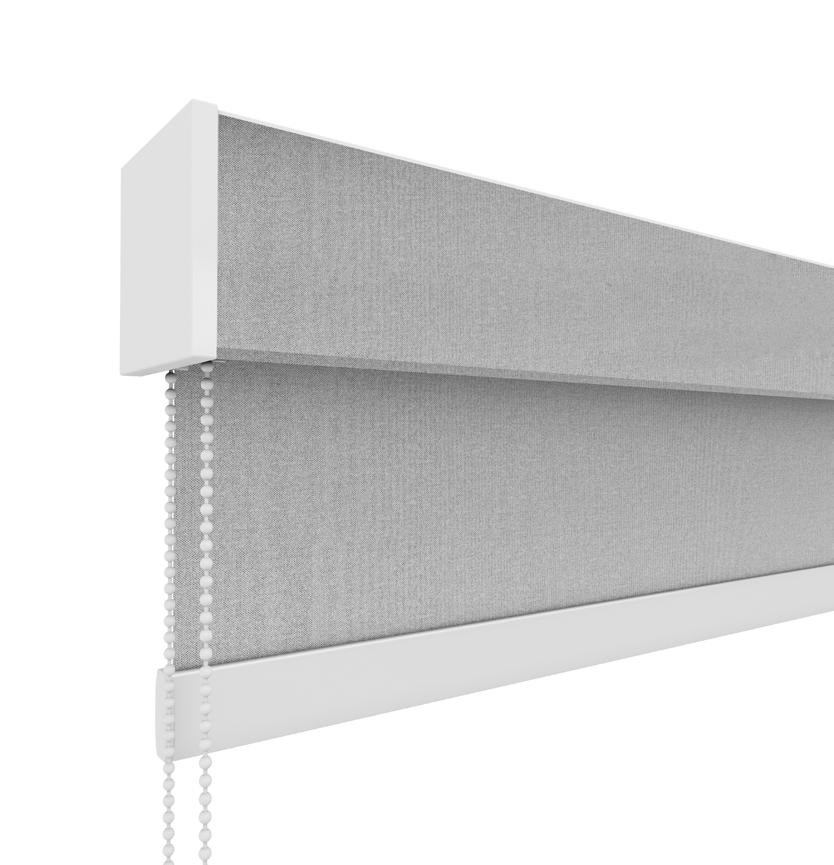

Semi Open Cassette

Tube sizes: • 28mm • 35mm • 38mm* • 42mm • 50mm

Tube sizes: • 28mm • 35mm

38mm* • 42mm

50mm

•

ENTS

Hardware

Hardware colours:

Tube sizes:

• 38mm*

• 42mm

• 50mm

Tube sizes:

• 28mm

• 35mm

• 38mm*

• 42mm

• 50mm

Tube sizes:

• 38mm*

• 42mm

• 50mm

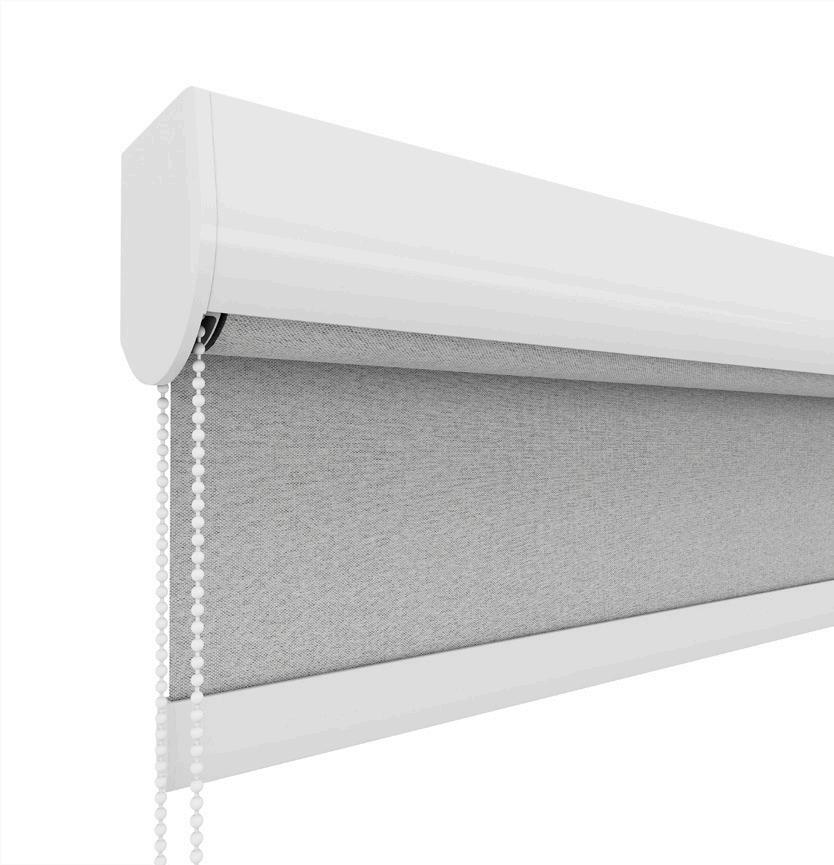

Semi Open Cassette Wrapped Semi Open Square Cassette Semi Open Square Cassette Wrapped

ELEM

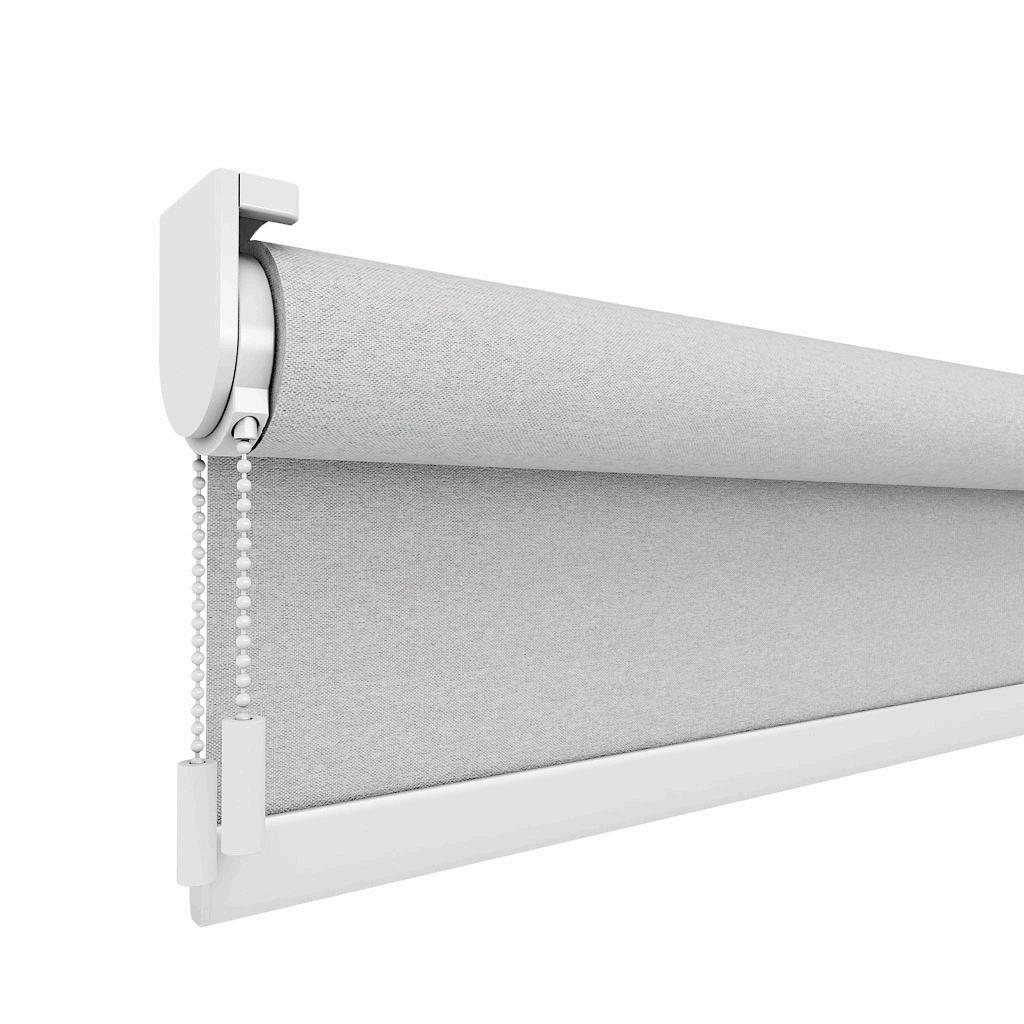

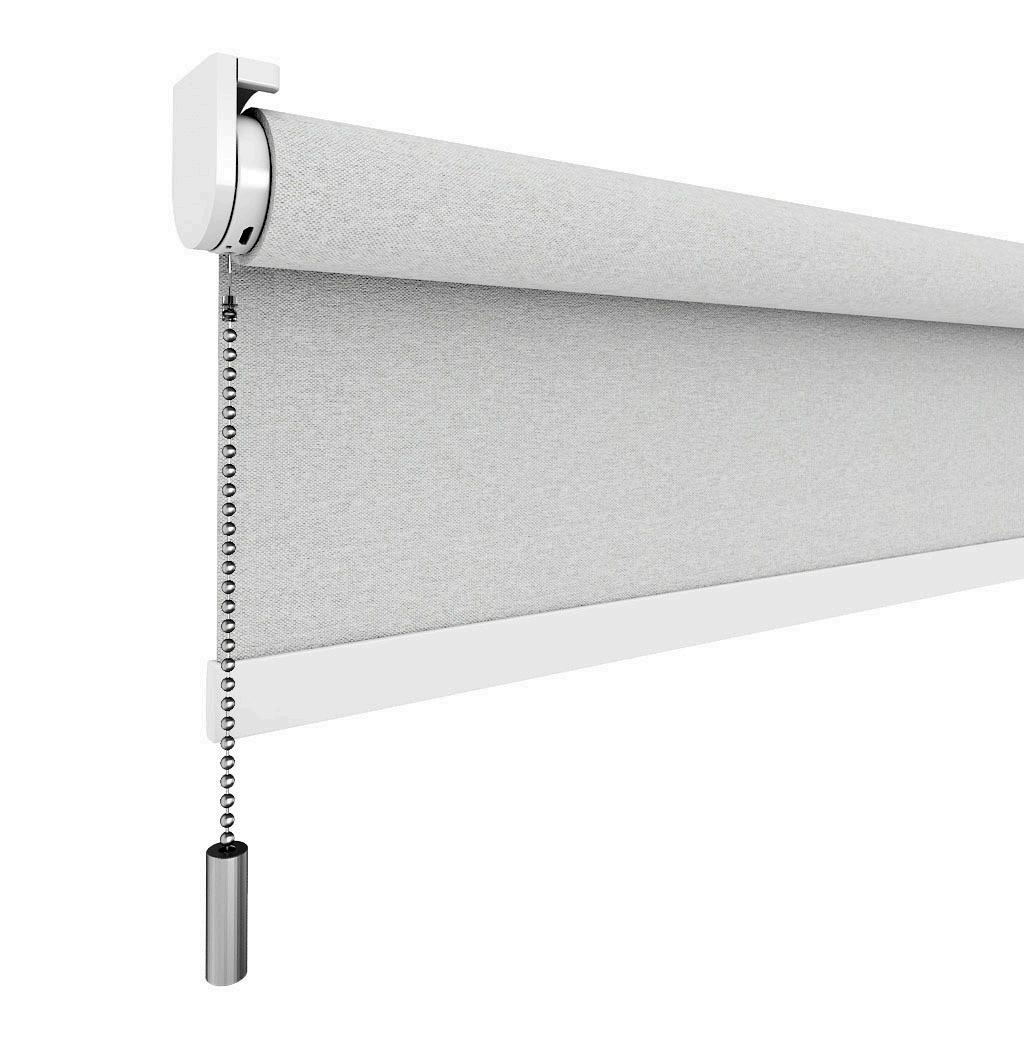

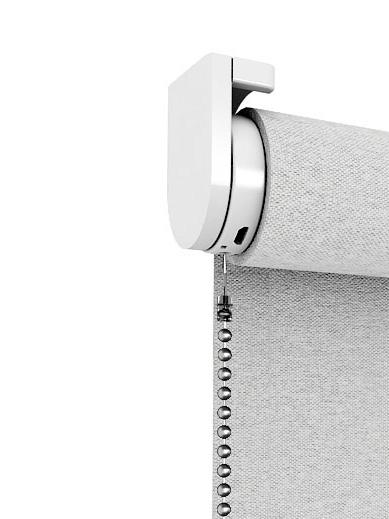

The standard operation type for our Elements Roller is chain. Premium options such as spring, twin pull and motorised are available.

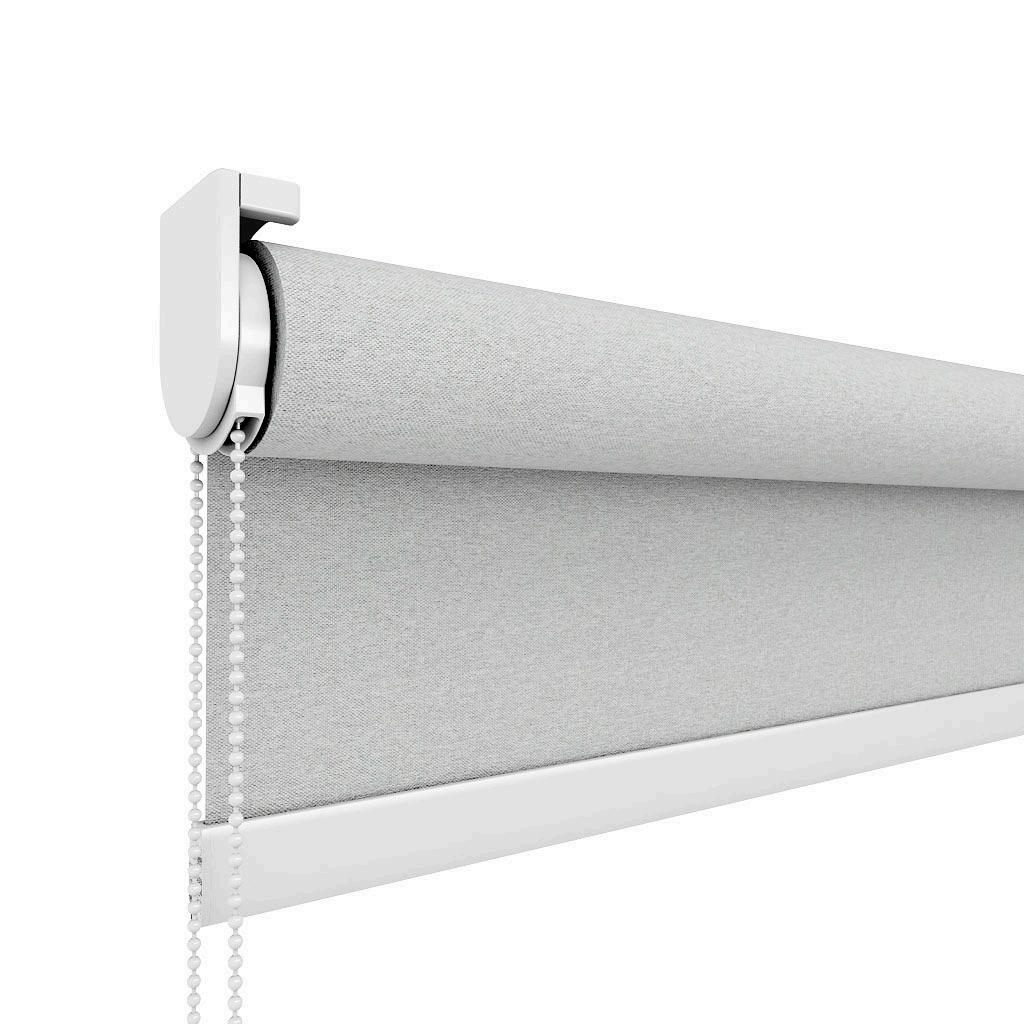

Chain Spring Twin Pull

ENTS

Operation types

Plastic/Alumiunium component colours:

Metal component colours:

Motorised

ELEM

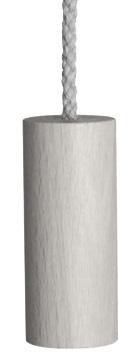

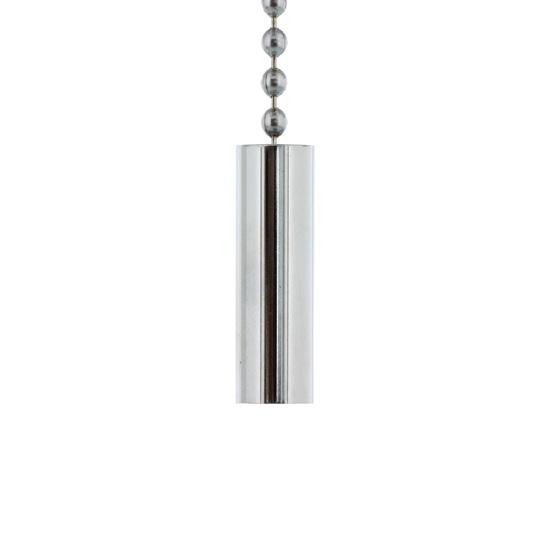

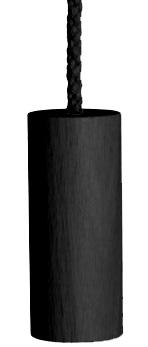

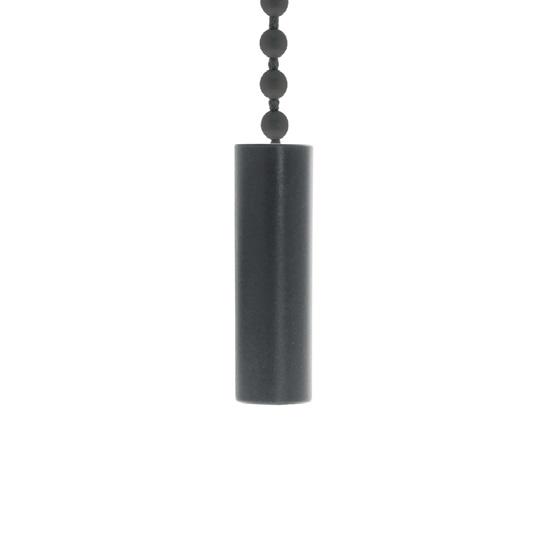

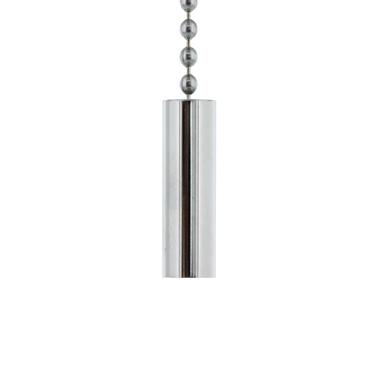

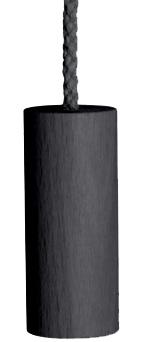

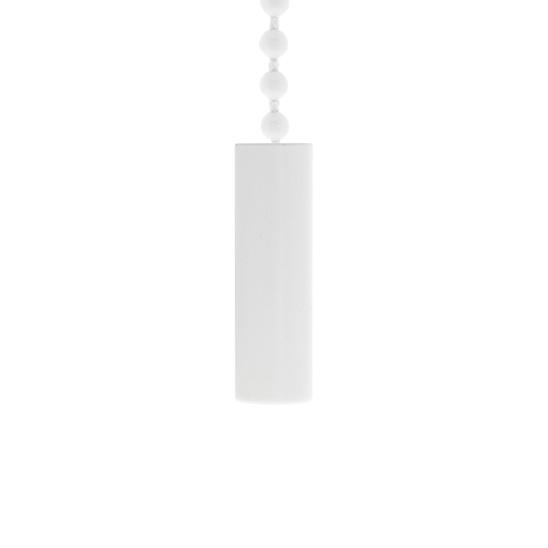

All accessories are colour matched to system to provide a top quality finish. Optional upgrade to a metal chain and toggle is available. We offer a choice of Stitched Heavyweight, Wrapped and Exposed bottom bars.

Standard Options:

Chain and toggles are colour matched to system.

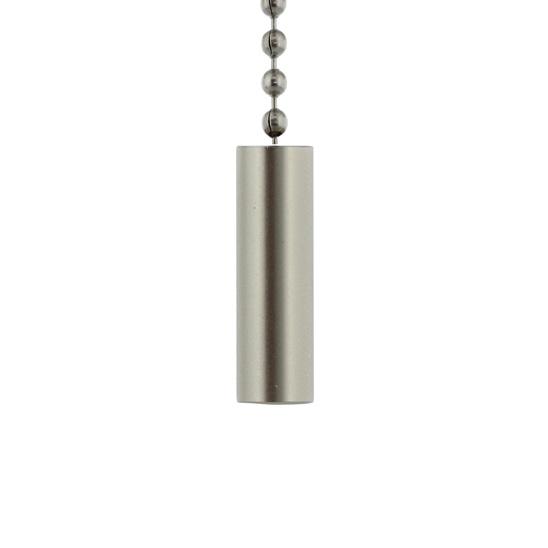

Premium Options:

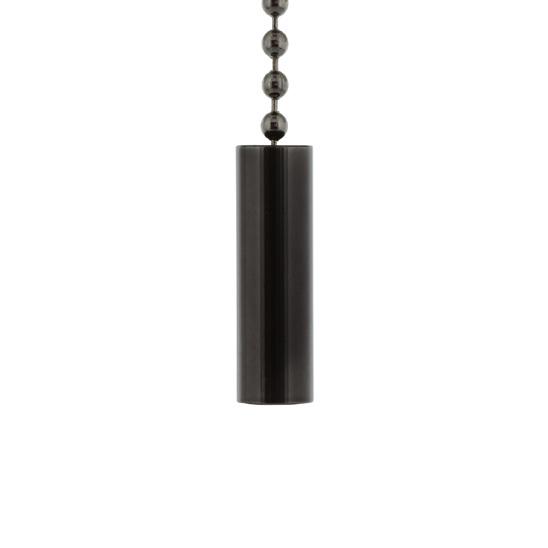

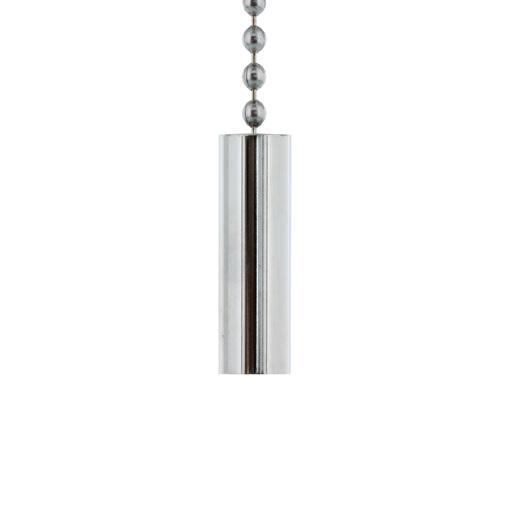

White Chrome Stainless Steel Black Nickel Off White Grey Anthracite Black

ENTS

Accessories

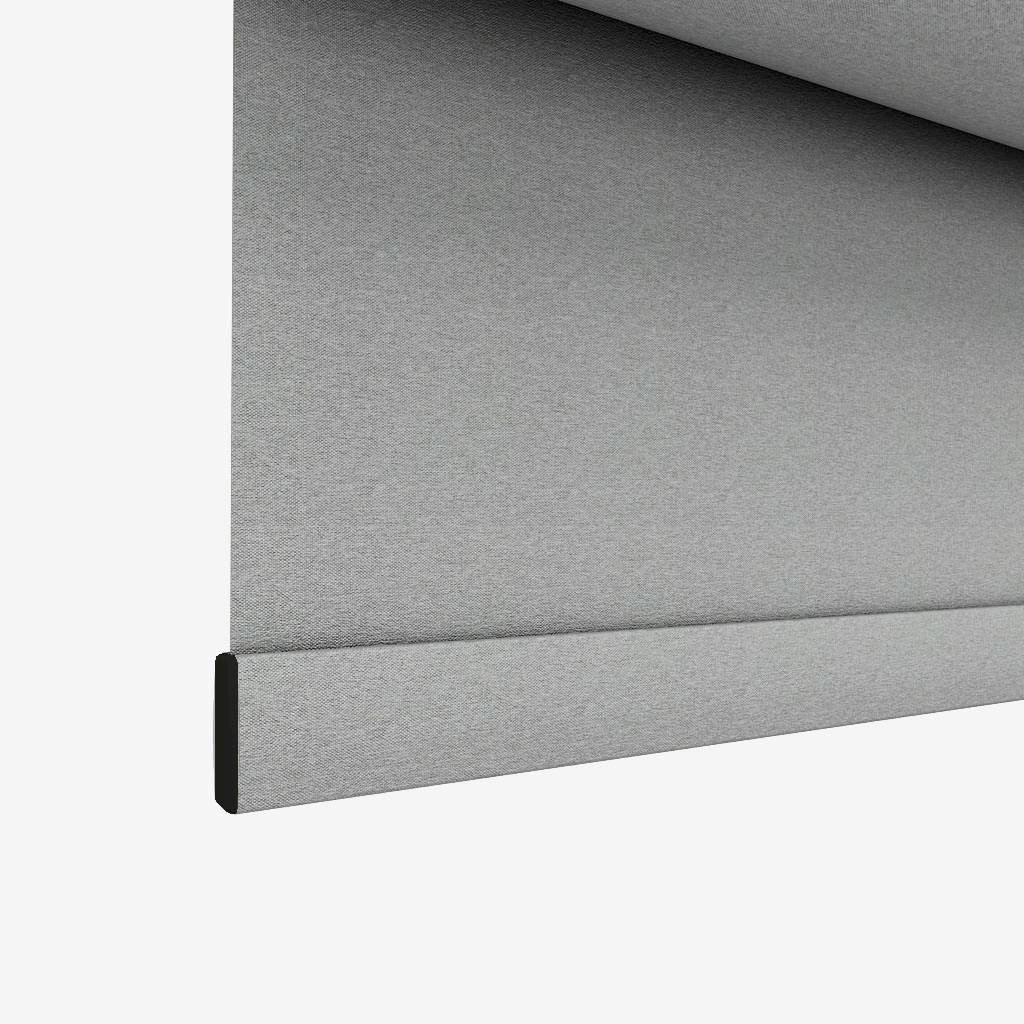

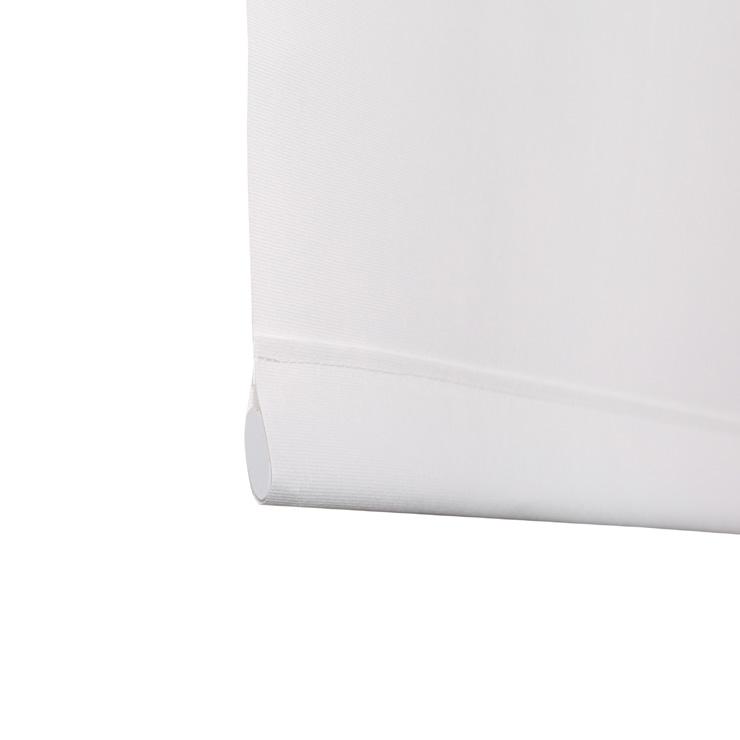

Bottom Bars:

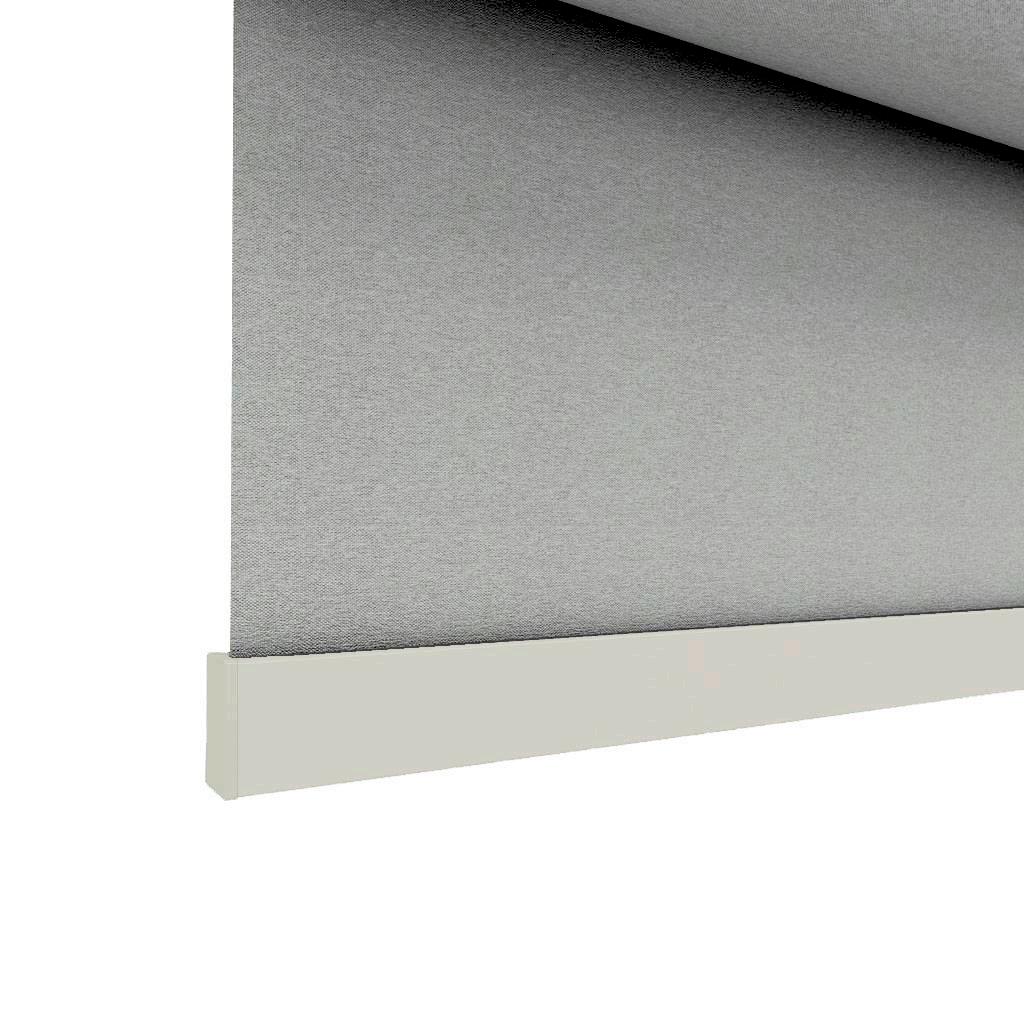

Stitched Heavyweight Bottom Bar Colours Available: Colours Available: Side Profile: Side Profile: Colours Available: Wrapped Bottom Bar Exposed Flat Bottom Bar

ELEM

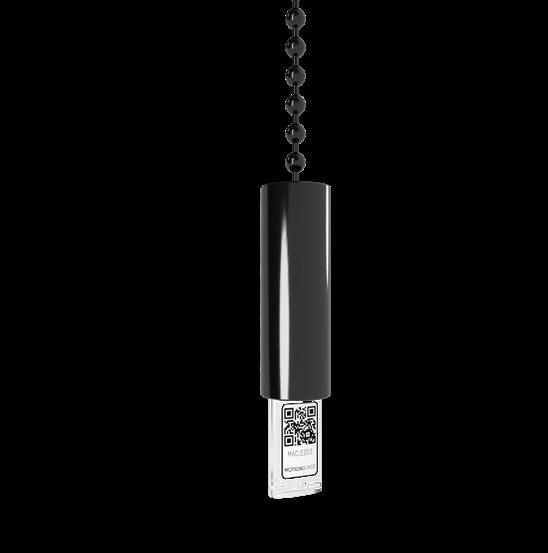

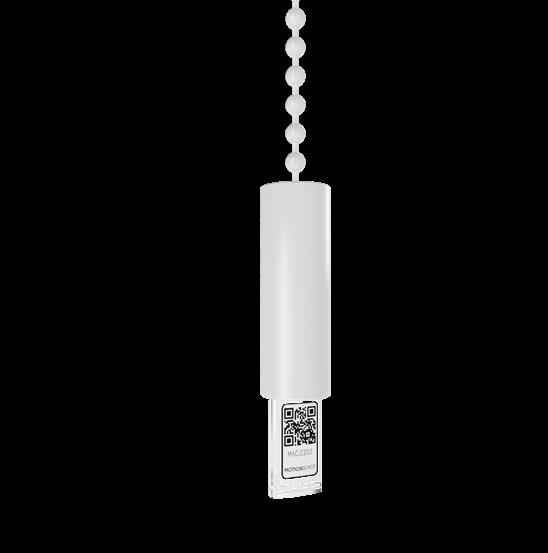

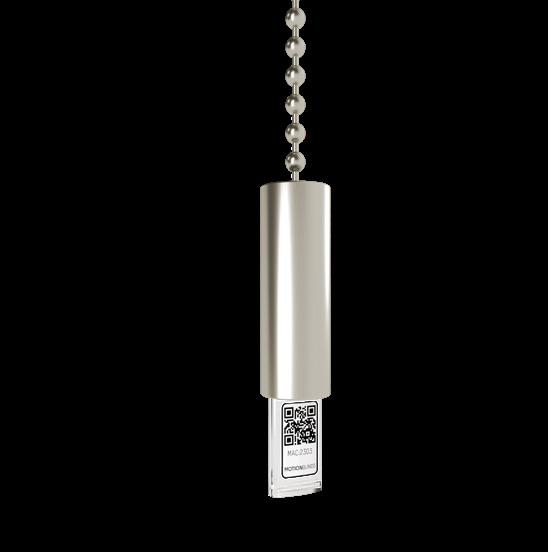

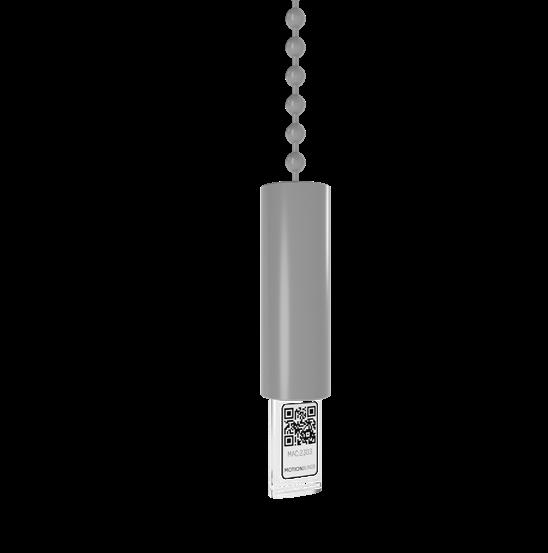

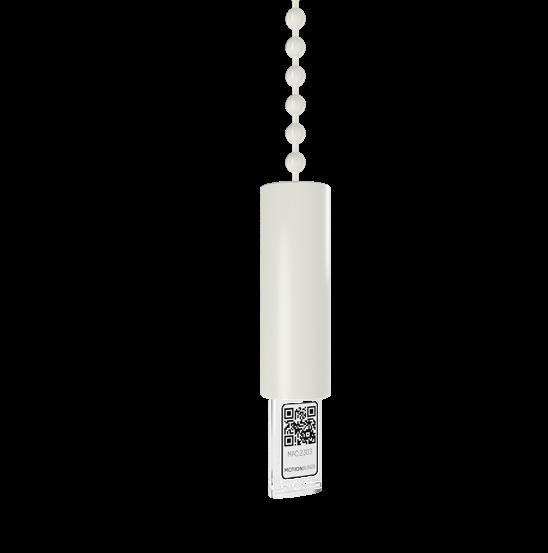

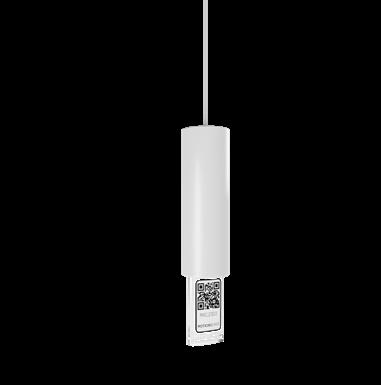

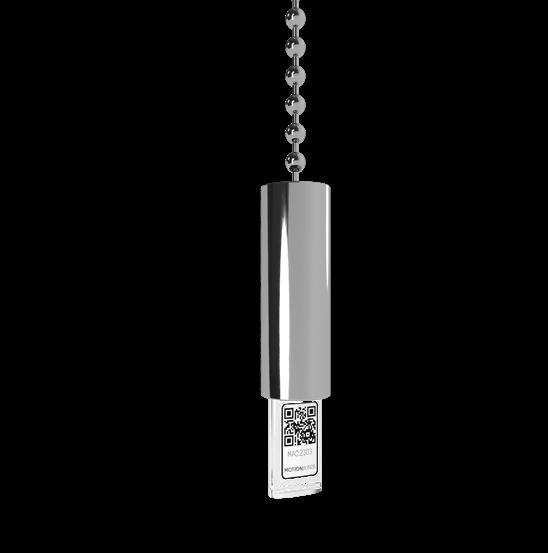

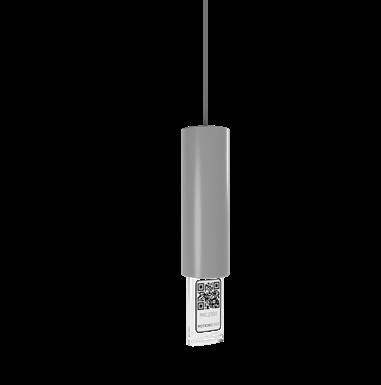

Motorised Elements Roller are equipped with toggles which innovatively hide a QR code necessary to pair your blinds with your phone.

Standard Options:

Chain and toggles are colour matched to system.

Premium Options:

Chrome Stainless Steel Black Nickel White Off White Grey Anthracite Black

ENTS

Motorised Accessories

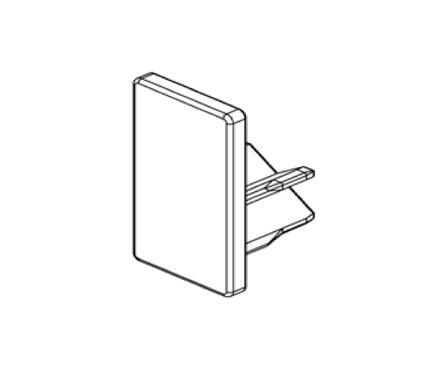

To ensure sleek and seamless design, cover caps for tubular motors are available in 5 shades.

Cover cap colours:

ELEM

ENTS

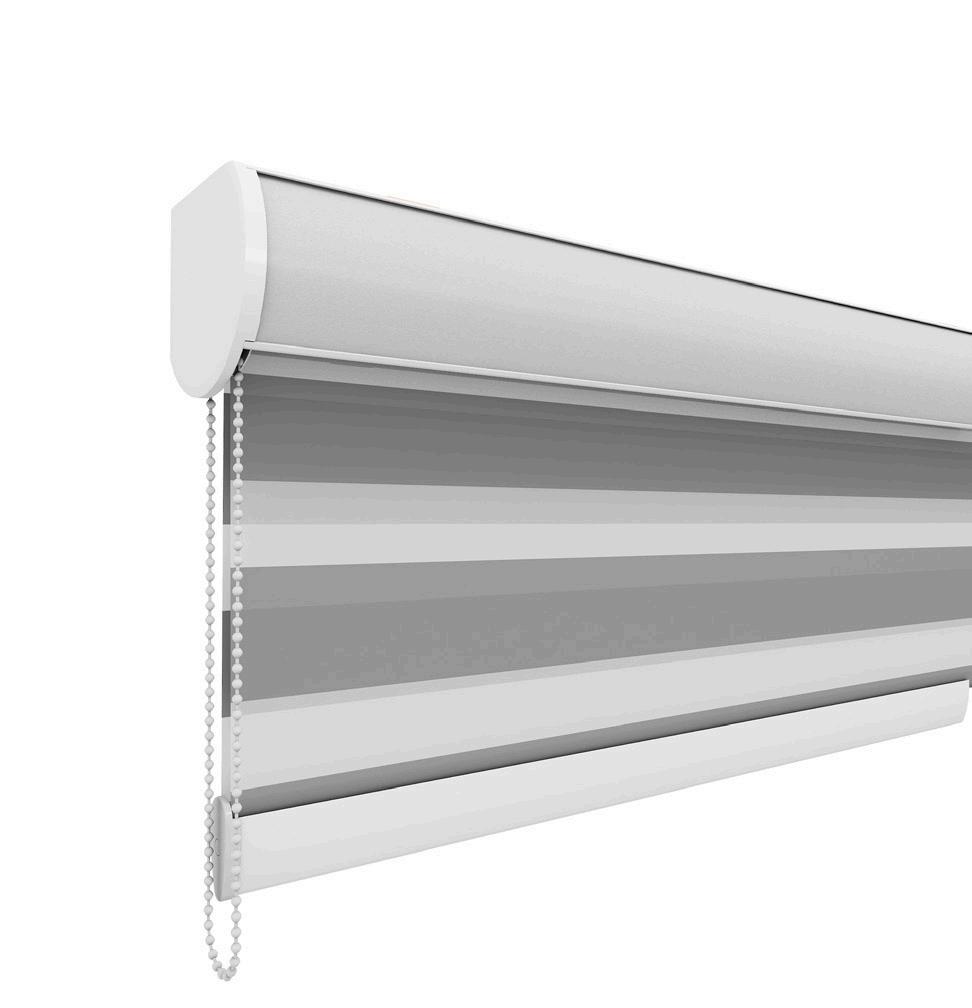

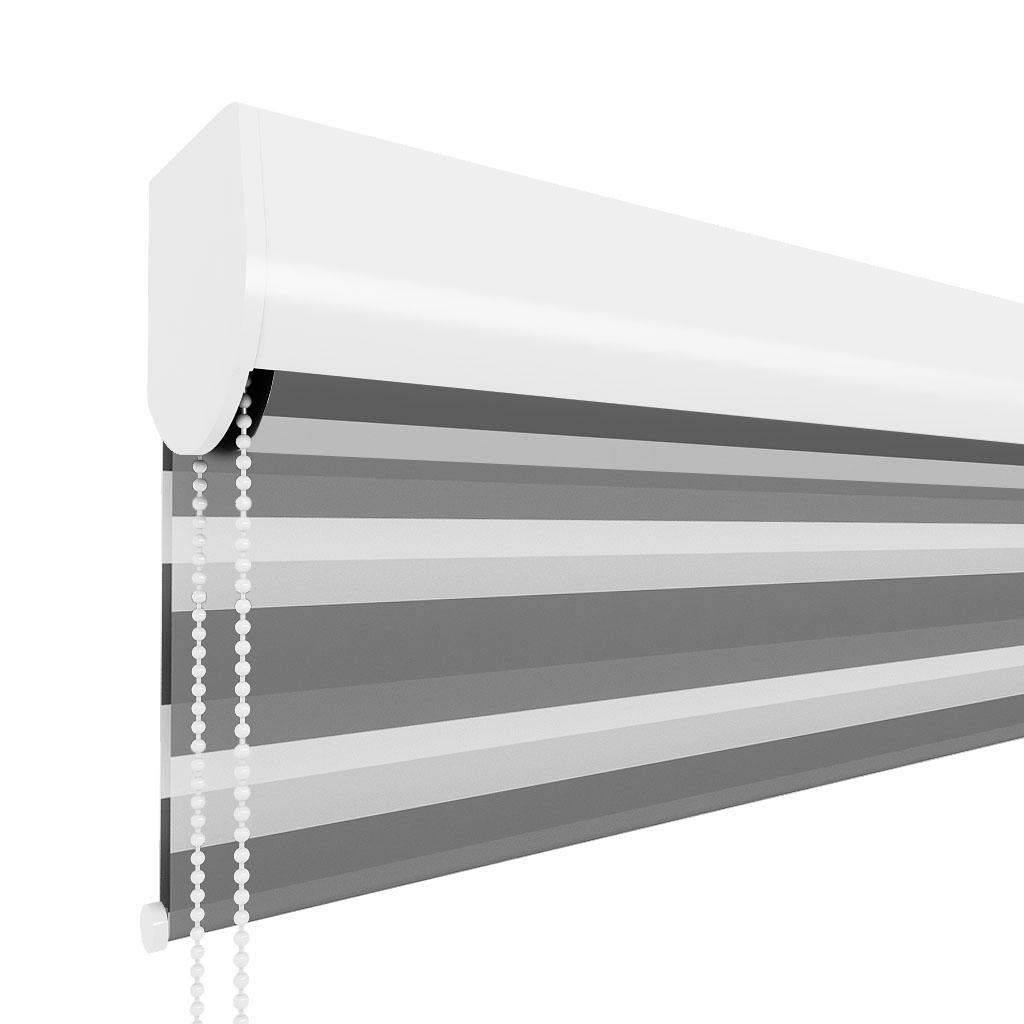

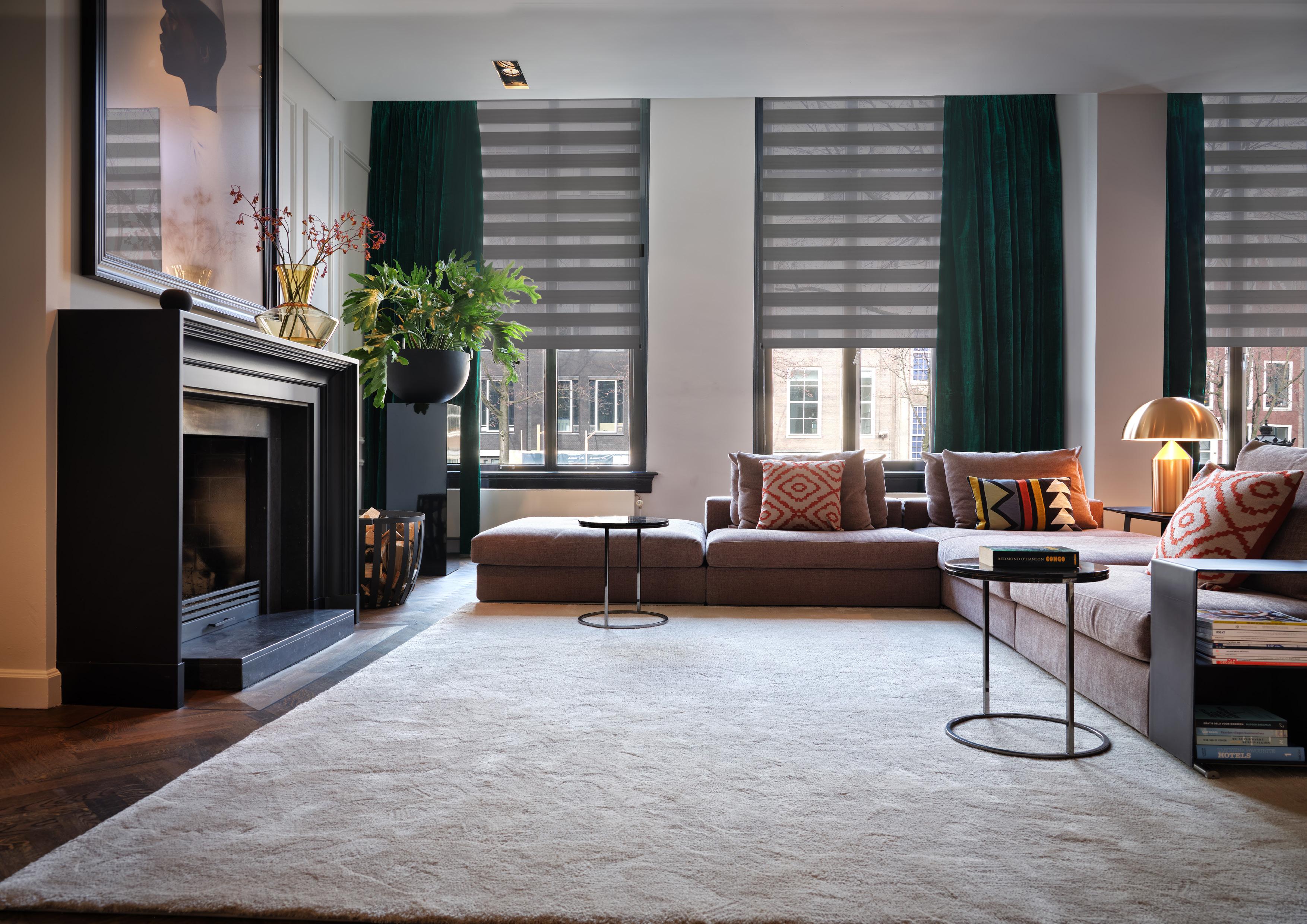

DAYANDNIGHT

ELEM

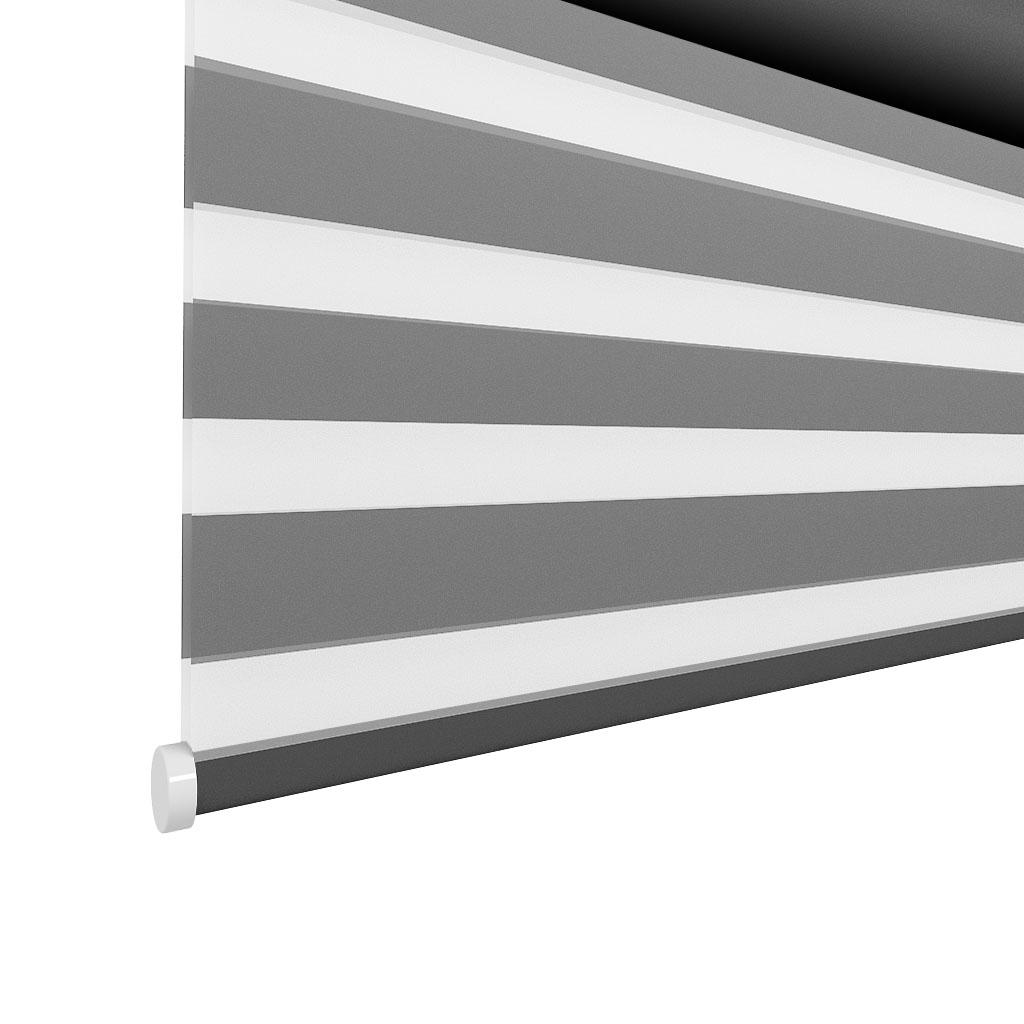

Our Elements Day&Night Roller is available in 3 profiles:

* Subject to min/max limitations according to tube and control type.

Profile

Tube sizes:

• 28mm

• 35mm

• 38mm*

• 42mm

• 50mm

Tube sizes:

• 28mm

• 35mm

• 38mm*

• 42mm

• 50mm

Tube sizes:

• 38mm*

• 42mm

• 50mm

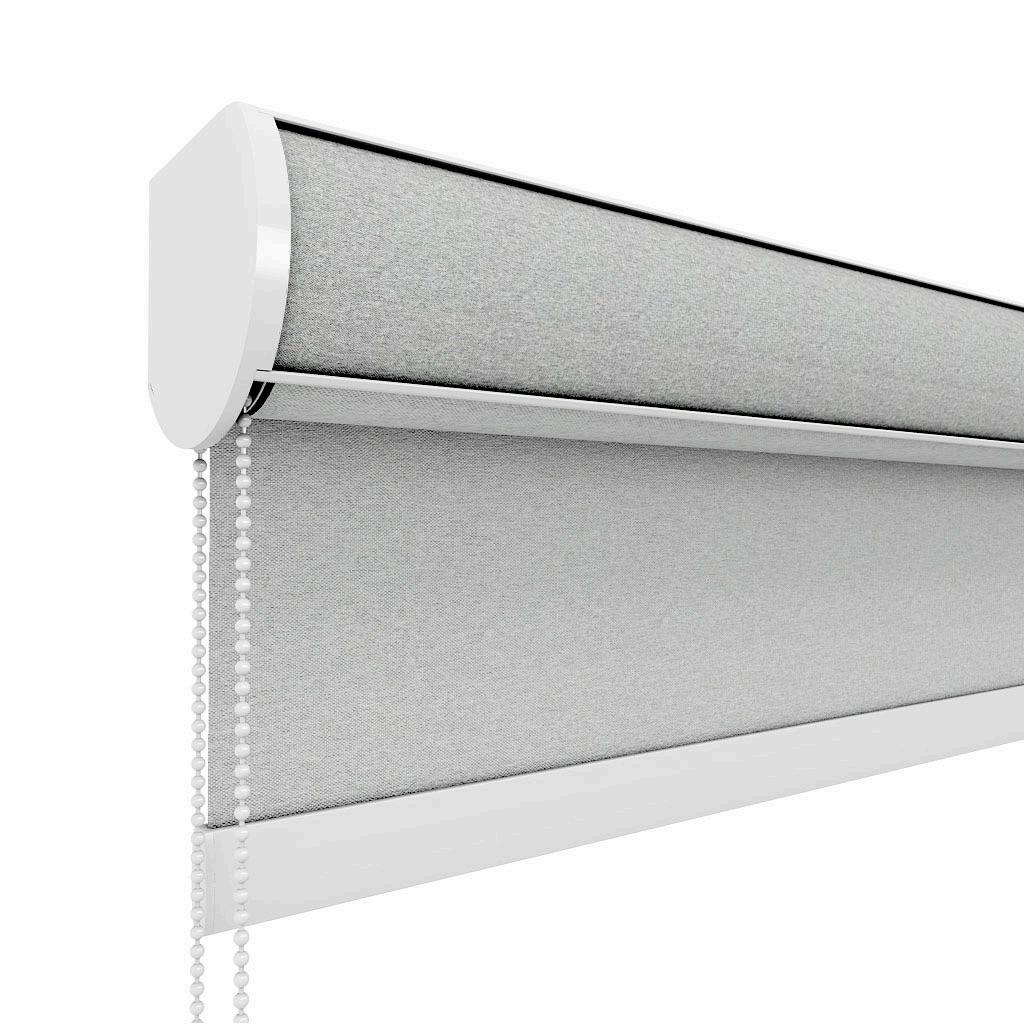

Mounting Semi Open Cassette Semi Open Cassette Wrapped

ENTS

Hardware colours:

Hardware

ELEM

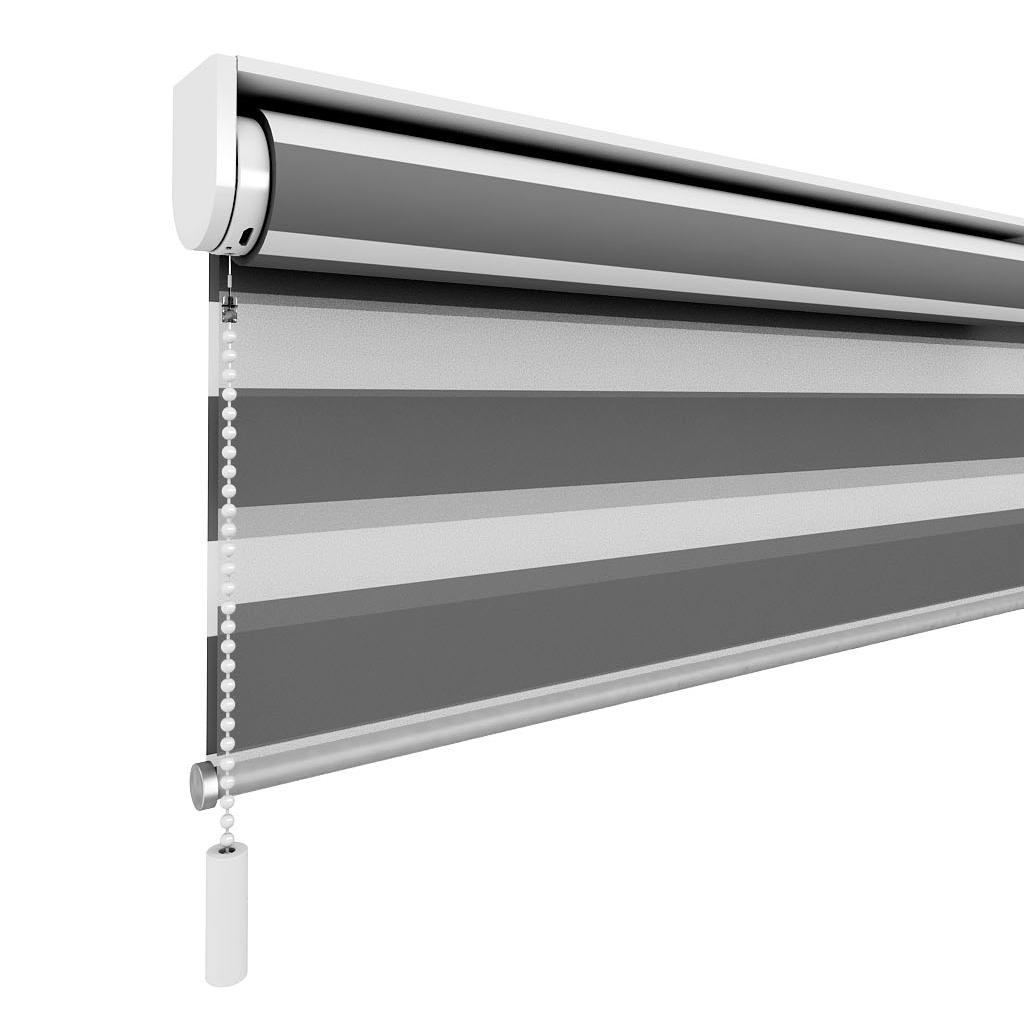

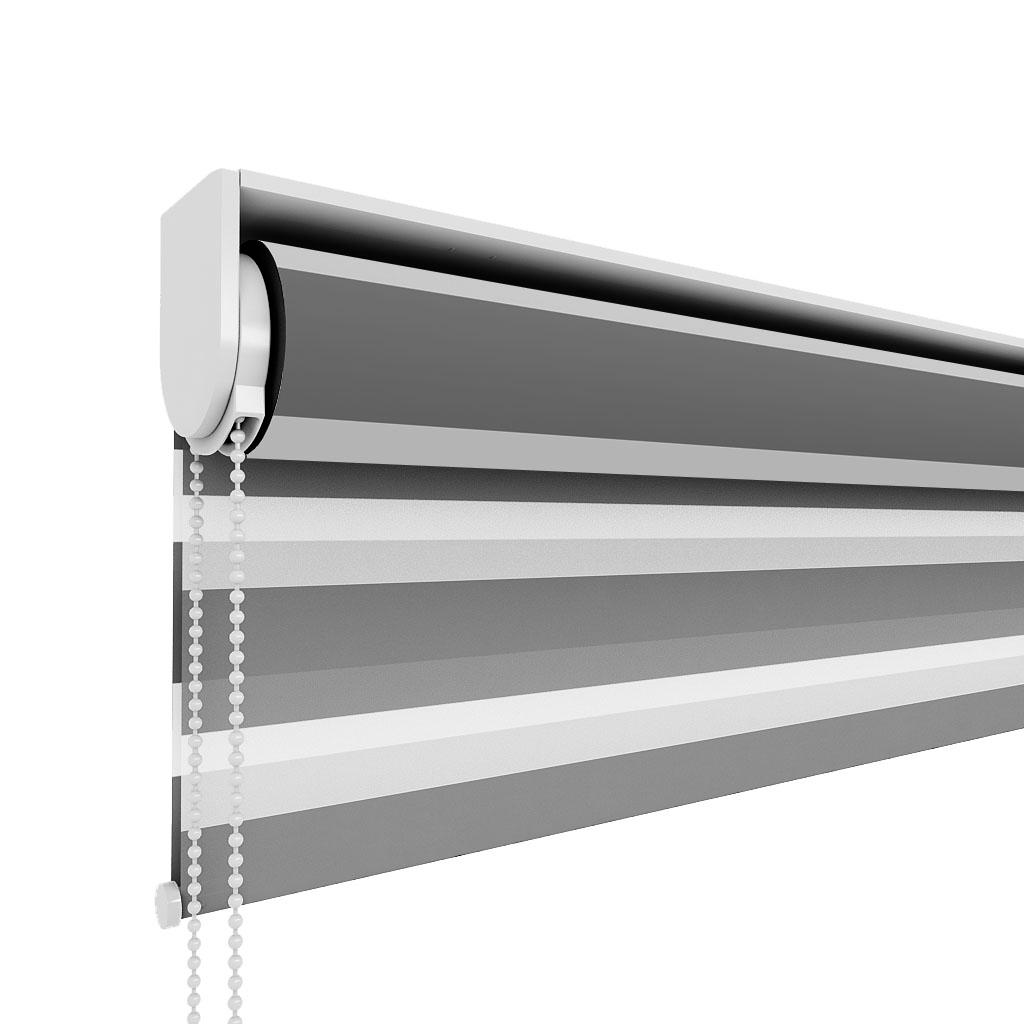

As standard, Elements Day and Night comes with chain operation type. Uplift to Twin Pull and Motorised are available to make your blind fully child safe.

Chain Twin Pull Motorised

ENTS

Operation Type

Plastic/Alumiunium component colours:

Metal component colours:

ELEM

All components are colour matched to system. Upgrade to metal components is available to enhance the product.

Standard Options:

Chain and toggles are colour matched to system.

Premium Options:

White Chrome Stainless Steel Black Nickel Off White Grey Anthracite Black

ENTS

Accessories

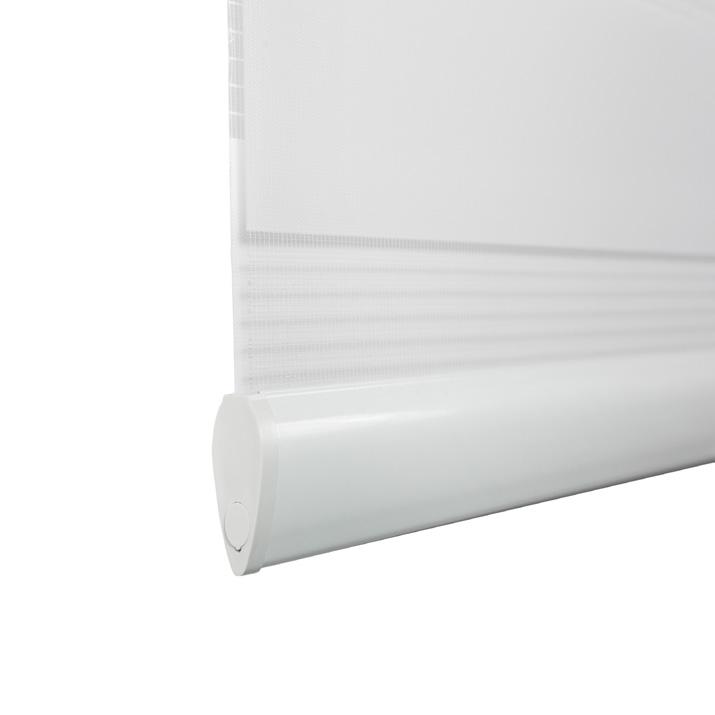

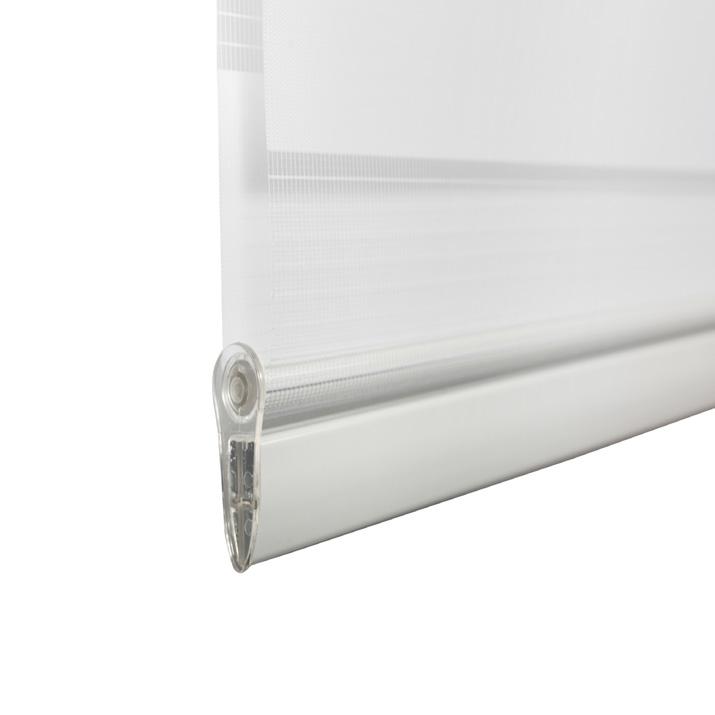

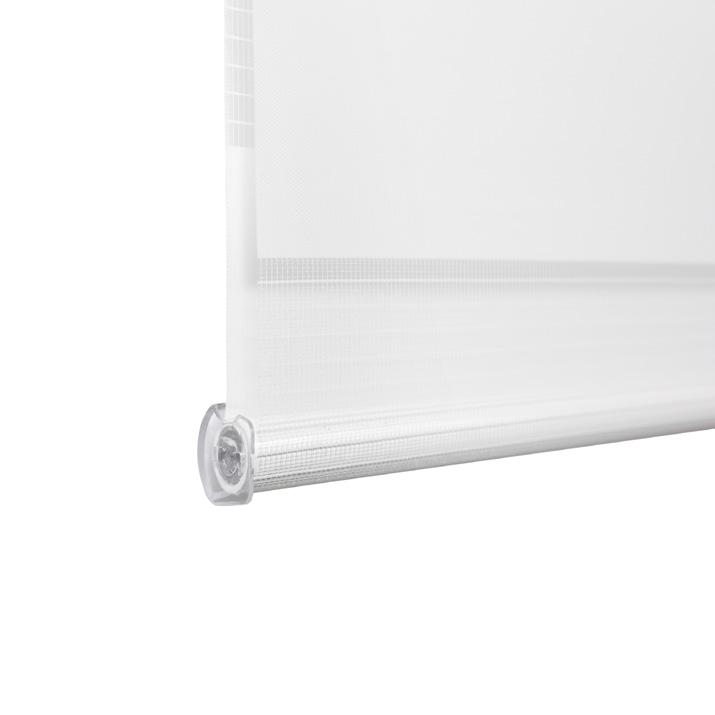

Single Round Bottom Bar Round Bottom Bar with Plastic End Caps Double Bottom Bar Tear Drop Bottom Bar

TECHNICAL SPECIFICATIONS

ELEM

Dimensions for small profiles.

Bracket Mounting Profile

ENTS

Profile Specifications Size S

Semi Open Cassette Semi Open Square Cassette

ELEM

Dimensions for medium/large profiles.

Bracket Mounting Profile Semi Open Cassette

ENTS

Profile Specification Size M/L

Semi Open Cassette Wrapped Semi Open Square Cassette

Light gap dimensions for small systems.

BRACKETS

chain 18 mm / 0.71 in motor 18 mm / 0.71 in spring 15 mm / 0.59 in

12 mm / 0.47 in *

15 mm / 0.59 in

ELEM

ENTS

Light Gaps

Light gap dimensions for medium/large systems.

BRACKETS

12 mm / 0.47 in *

mm / 0.47 in * motor 18 mm / 0.71 in chain 20 mm / 0.79 in spring 15 mm / 0.59 in twin pull 22 mm / 0.86 in 15 mm / 0.59 in

mm / 0.59 in

TECHNICAL

Bracket + Chain Bracket + Twin Pull

DRAWINGS

Bracket + Spring Motion

TECHNICAL

Mounting Profile Semi Open Cassette

DRAWINGS

Semi Open Cassette Wrapped Semi Open Square Cassette

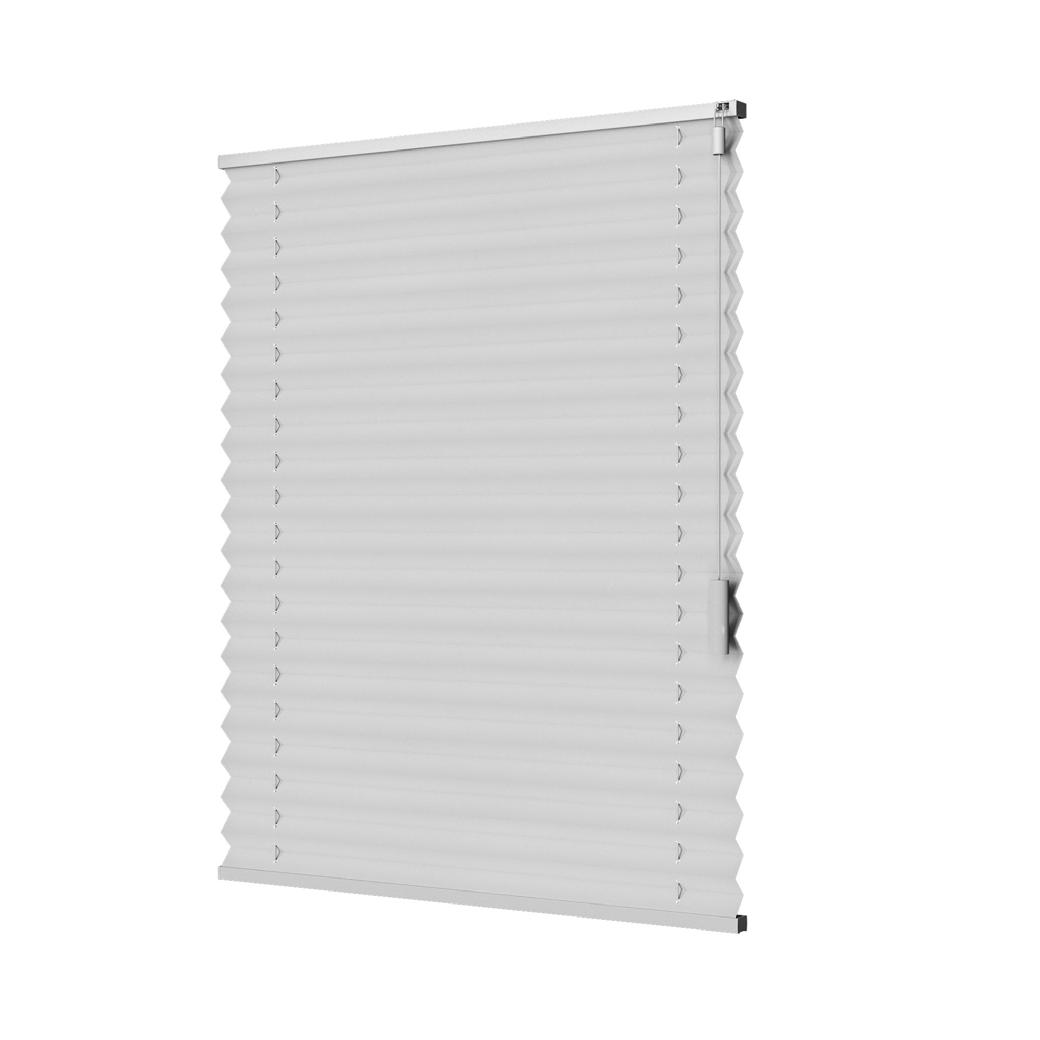

PLEATED SYSTEMS

A guide for all Pleated & Honeycomb Systems

ELEM

ENTS

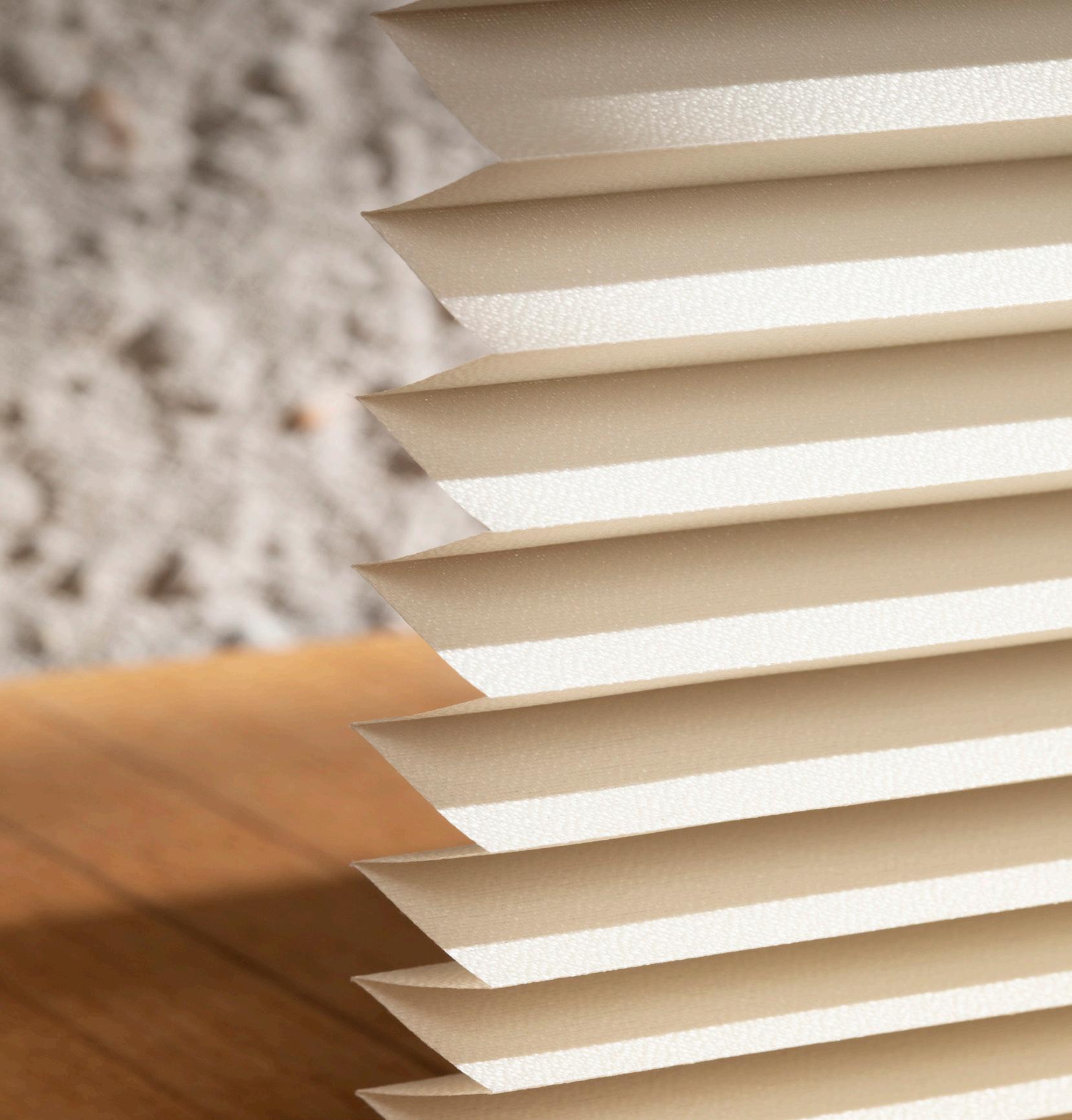

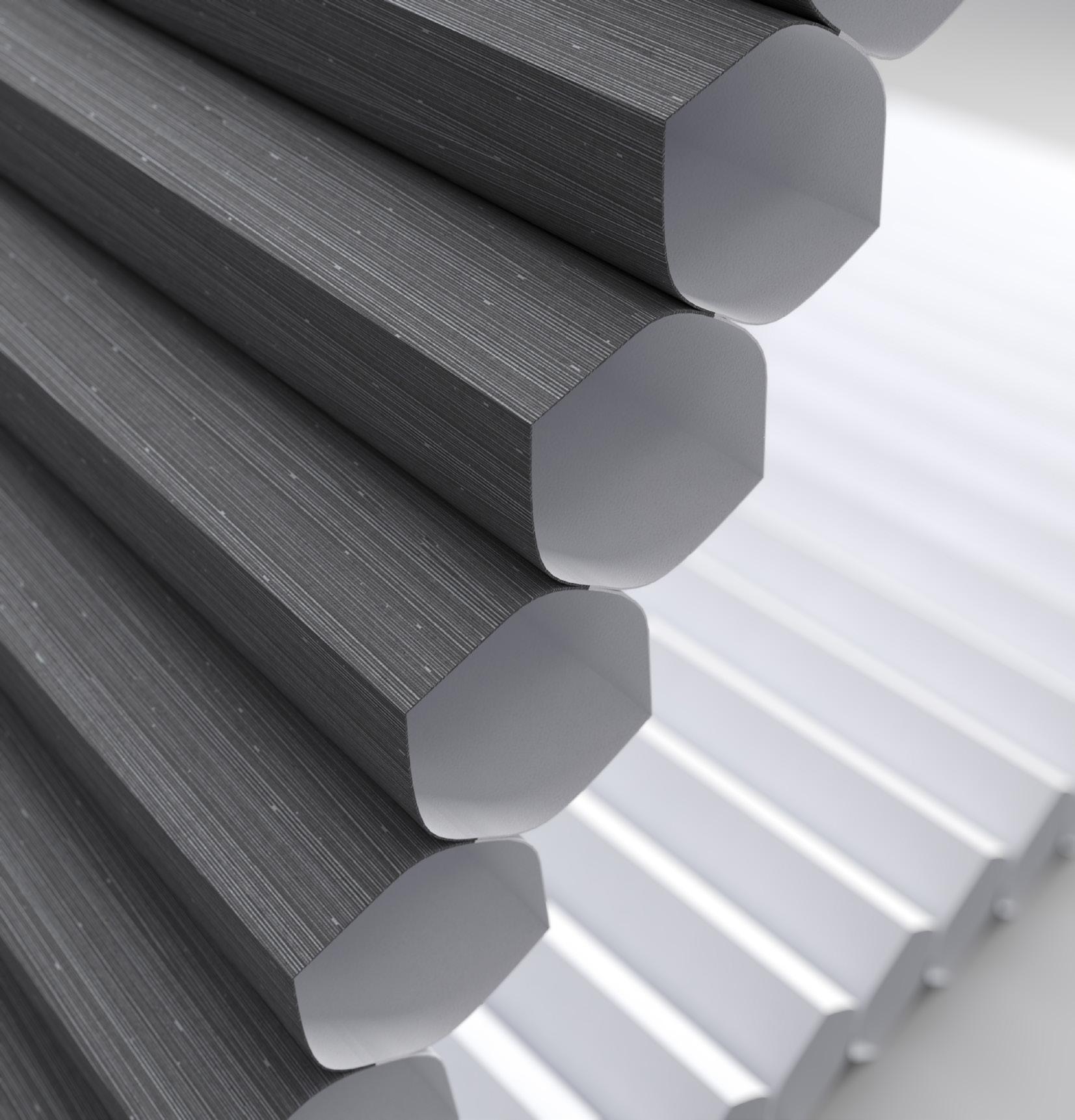

We offer a wide range of 20mm Pleated fabrics as well as an excellent range of 25mm, 32mm and 45mm honeycomb fabrics. Visit our website for more information.

ELEM

Our range of 25mm Pleated Systems. All can be configured with either pleated or honeycomb fabrics.

Tensioned Cordlock Top Down Bottom Up

ENTS

25mm Systems

Cordlock Top Down Perfect Fit

ELEM

Our range of 45mm systems is perfect for large windows. All of our Elements 45mm Pleated systems are fully child safe, meaning no additional safety device is required. Only available with 45mm honeycomb fabrics.

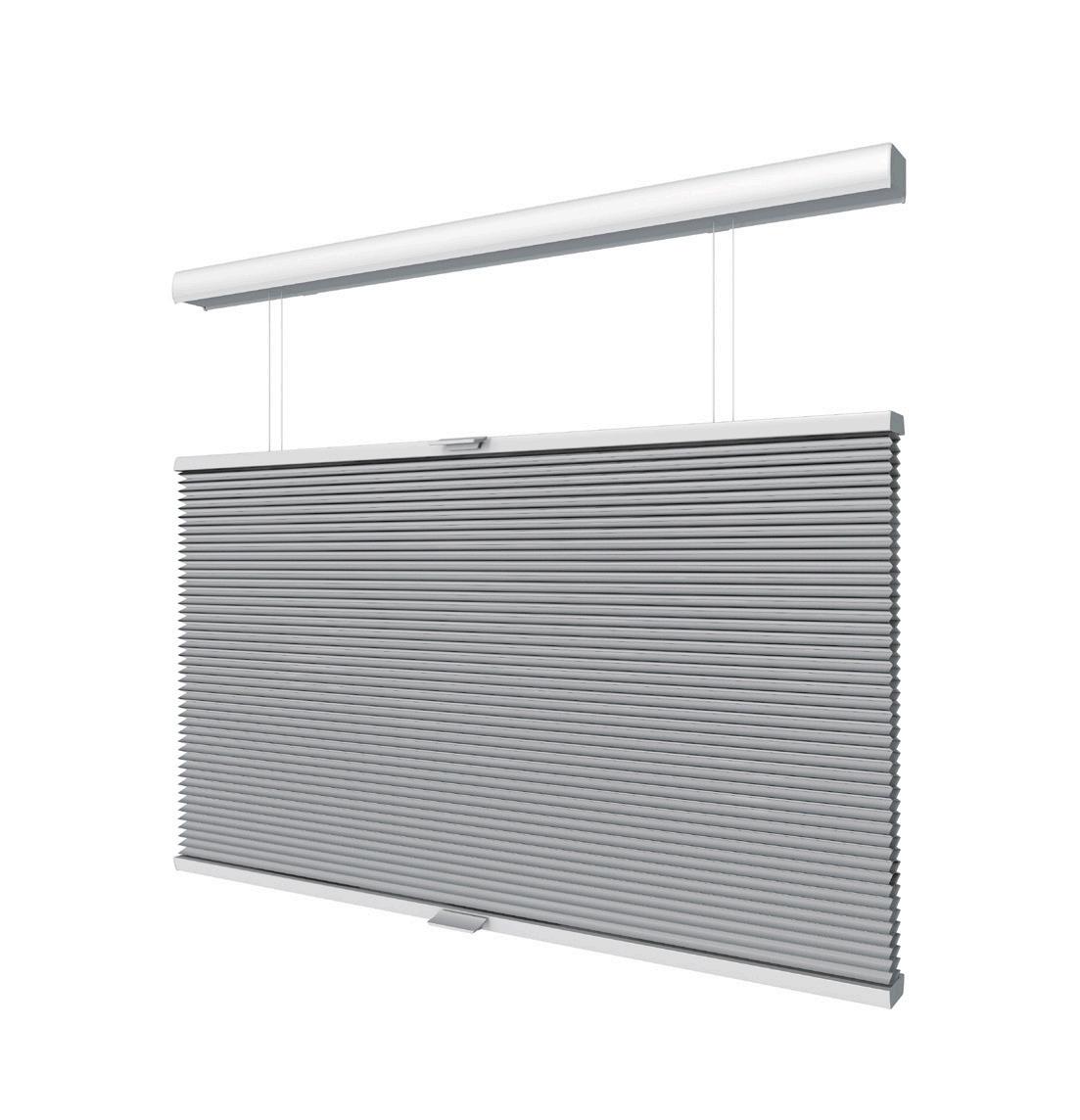

Cordless Top Down Cordless Top Down Bottom Up

ENTS

45mm Systems

Motorised Top Down Motorised Top Down Bottom Up

ELEM

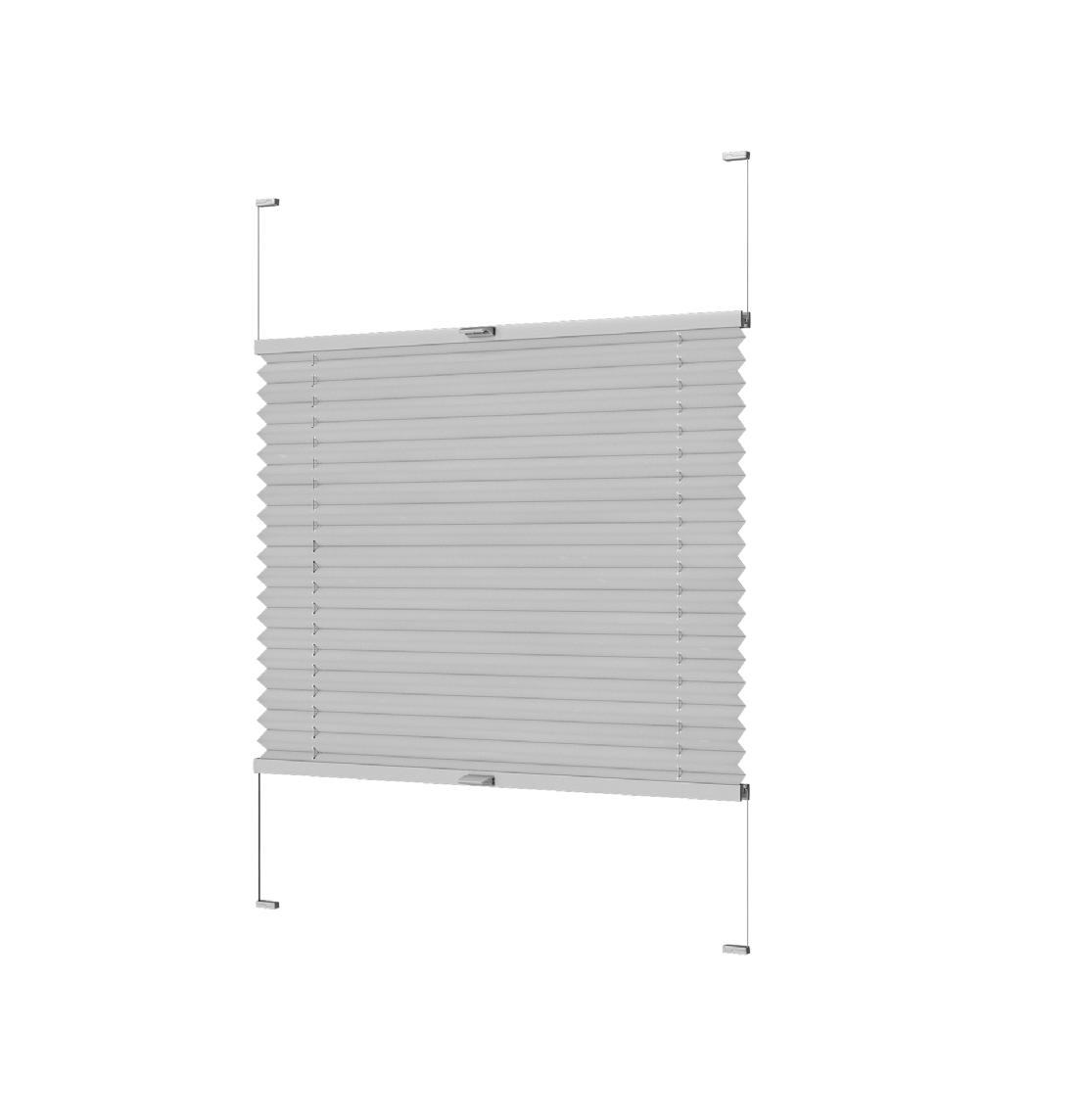

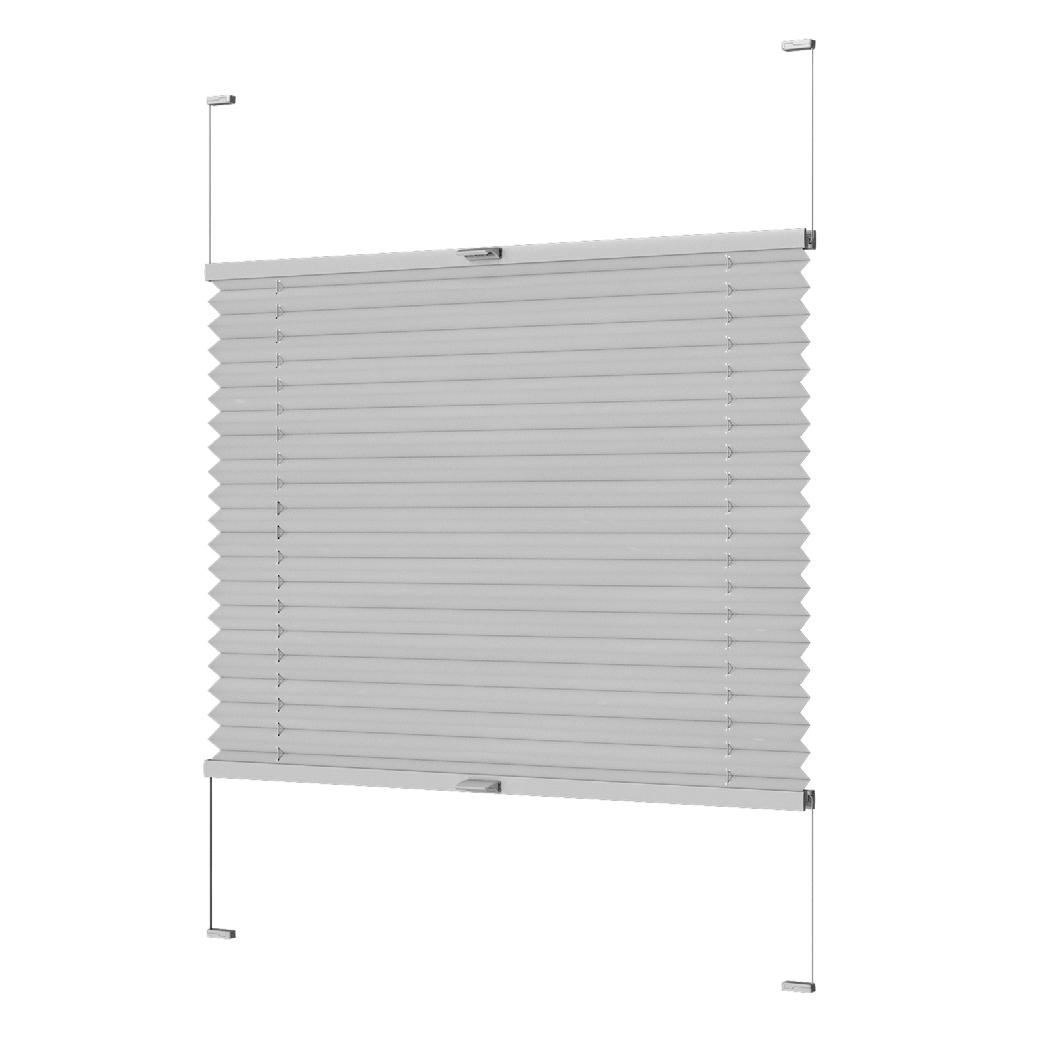

Tensioned pleated blinds are the ideal solution for small windows conservatories, ceilings and any other window that is both vertical and tilted. The fabric of the blind folds in a concertina design to give a compact stacking height so that you achieve maximum view out of your window when the blind is open.

Technical Information:

Min Width: 200mm

Max Width: 1200mm

Min Drop: 200mm Max Drop: 2200mm

Colour Options:

Brackets:

Tensioning shoe (Standard bracket)

Wall Brackets (For outside recess)

Tilt and Turn Brackets (For tilt and turn windows)

25mm

ENTS

Tensioned

Technical Drawing:

Accessories:

The design of the blind makes it safe by design. Safe by design means the hazards have been identified early in the design process to eliminate or minimise the risk of harm throughout the life of the product.

ELEM

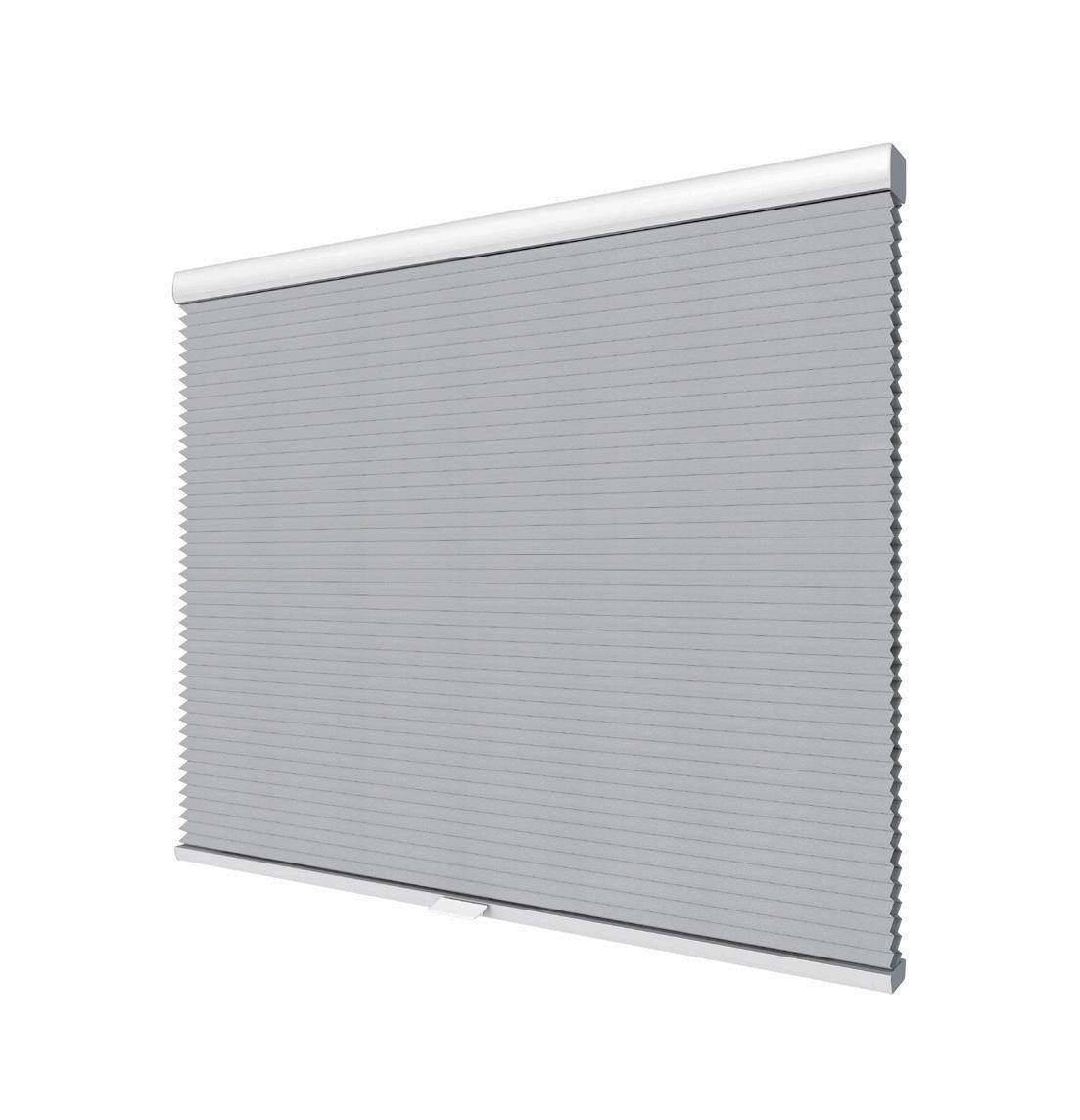

The narrow and elegant design of our Elements Top Down Pleated blind allows it to sit neatly within your window. Toggle and consolidator are colour matched to system.

Technical Information:

Min Width: 200mm Max Width: 1700mm

Min Drop: 200mm Max Drop: 2900mm

Colour Options:

Brackets:

25mm

Wall Brackets Extendable brackets*

ENTS

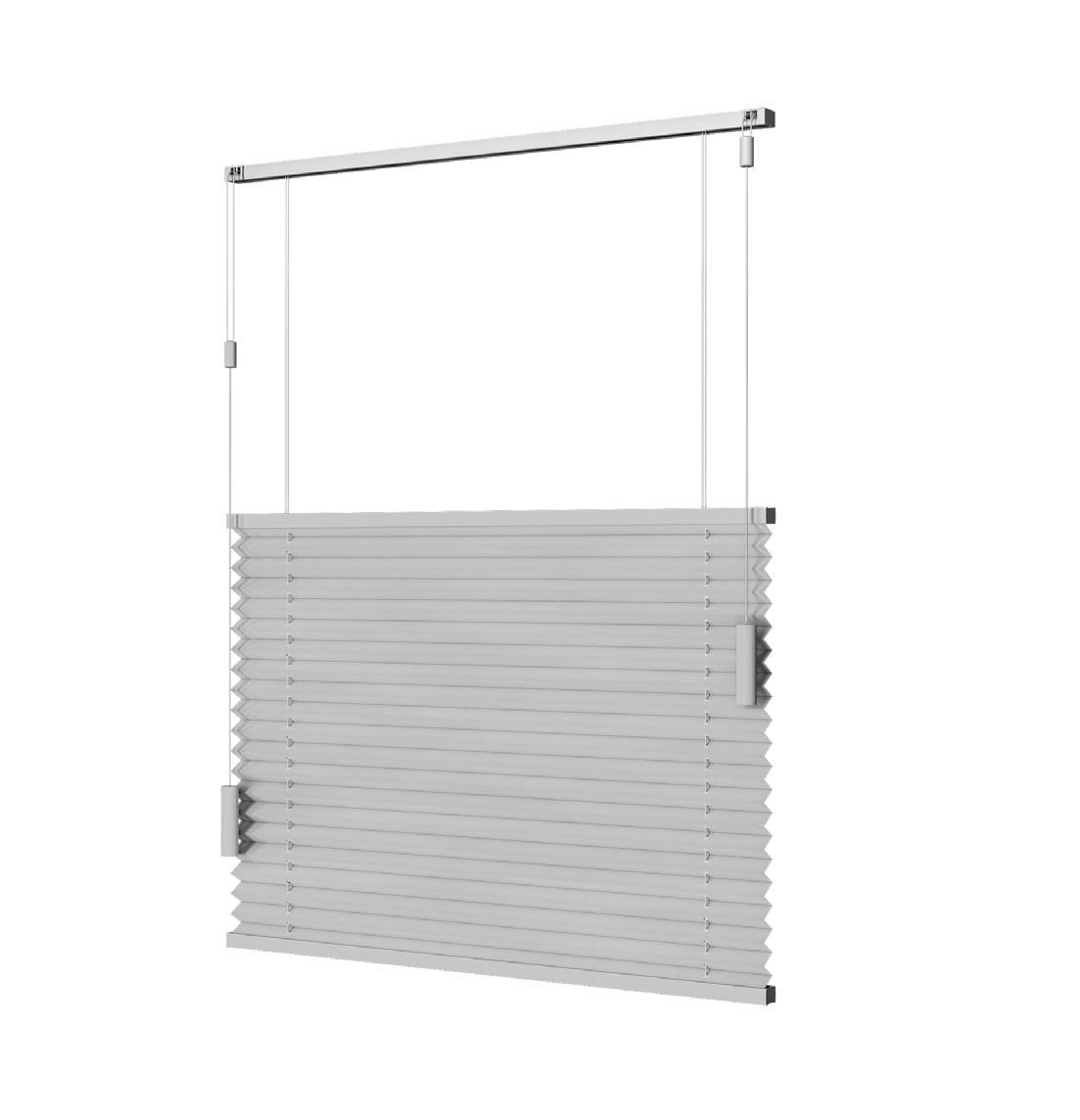

Top Down

Technical Drawing: Accessories:

Toggles are colour matched to system.

White Chrome Premium Options: Stainless Steel Black Nickel Grey Anthracite Black

ELEM

Top Down, Bottom Up: This configuration for either pleated or honeycomb fabrics requires two cord locks on a single blind (one at each end) and an additional mid-rail. This allows the blind to be stacked in any position, between the top and bottom of the window frame.

Technical Information:

Min Width: 200mm Max Width: 1700mm

Min Drop: 200mm Max Drop: 2900mm

Colour Options:

Brackets:

25mm

Wall Brackets Extendable brackets*

ENTS

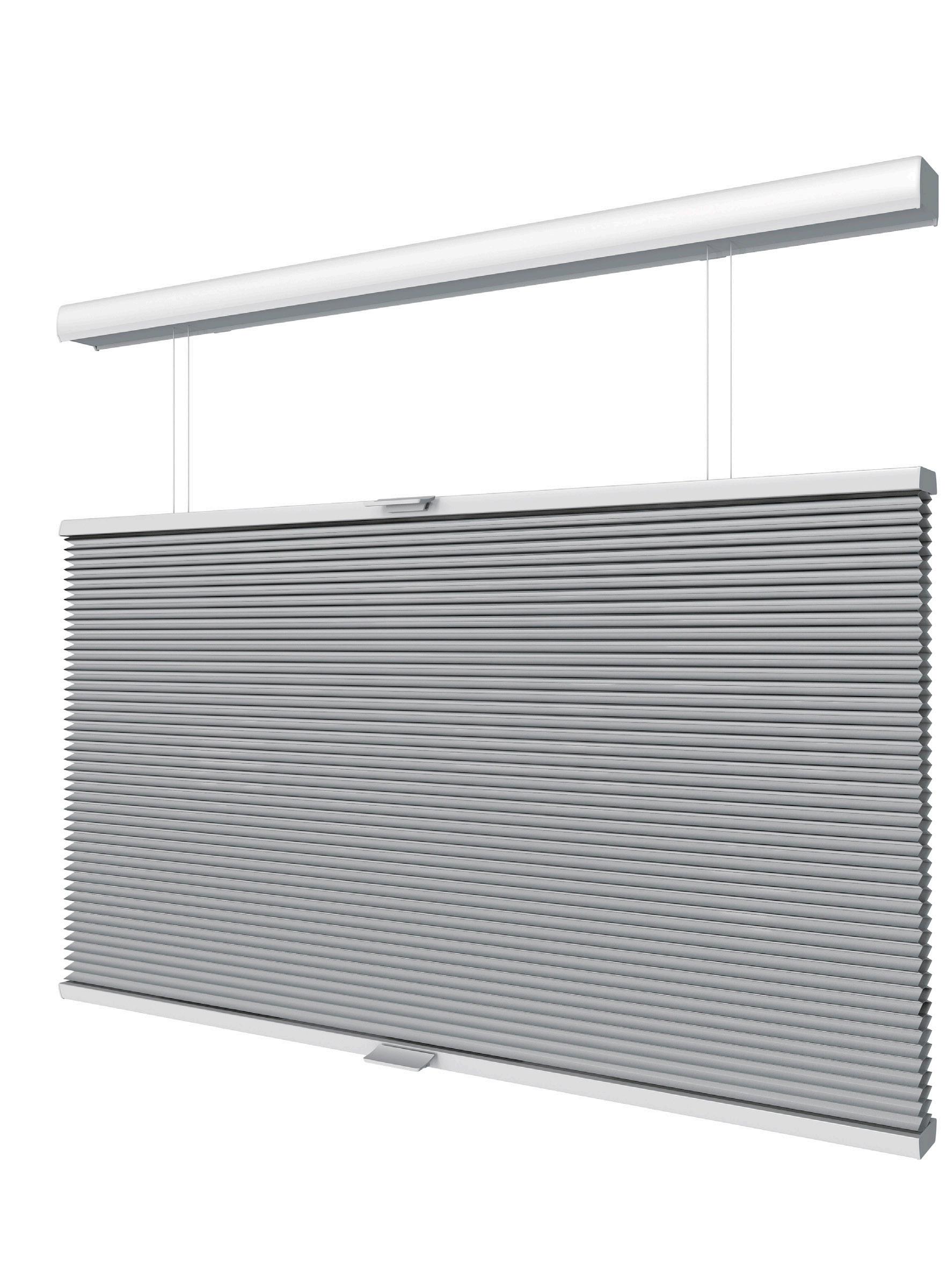

Top Down Bottom Up

Technical Drawing: Accessories:

Toggles are colour matched to system.

White Chrome Premium Options: Stainless Steel Black Nickel Grey Anthracite Black

ELEM

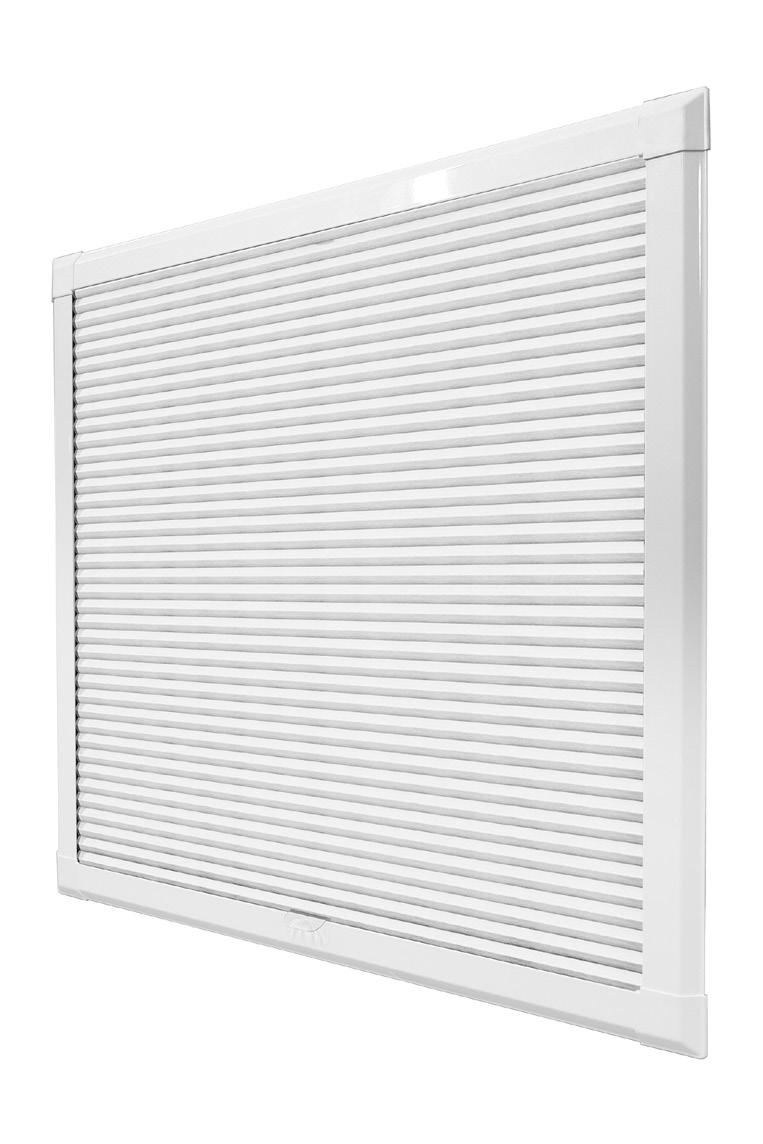

The insulating and soundproofing benefits of pleated blinds are complemented by the Perfect Fit system. Our Perfect Fit does not require a drill, providing an effortless installation. The snug design of the blind offers a long-term environmental and economical benefits. Available as a Top Down and Top Down and Bottom Up.

Technical Information:

Min Width: 200mm Max Width: 1500mm

Min Drop: 200mm Max Drop: 2200mm

Colour Options:

Brackets:

Installation Bracket

25mm

ENTS

Perfect Fit

Technical Drawing:

IMAGE COMING SOON

Accessories:

ELEM

With safety and design in mind, we are delighted to offer a 45mm Cordless Top Down blind. A greater version of our 25mm Cordlock Top Down. Ideal for large windows and only available with our 45mm honeycomb fabrics which provide an additional thermal insulation.

Min Width: 400mm Max Width: 2500mm

Min Drop: 400mm Max Drop: 2500mm

Colour Options:

Brackets:

45mm

Wall Brackets Extendable brackets*

ENTS

Cordless Top Down

Technical Drawing: Accessories:

ELEM

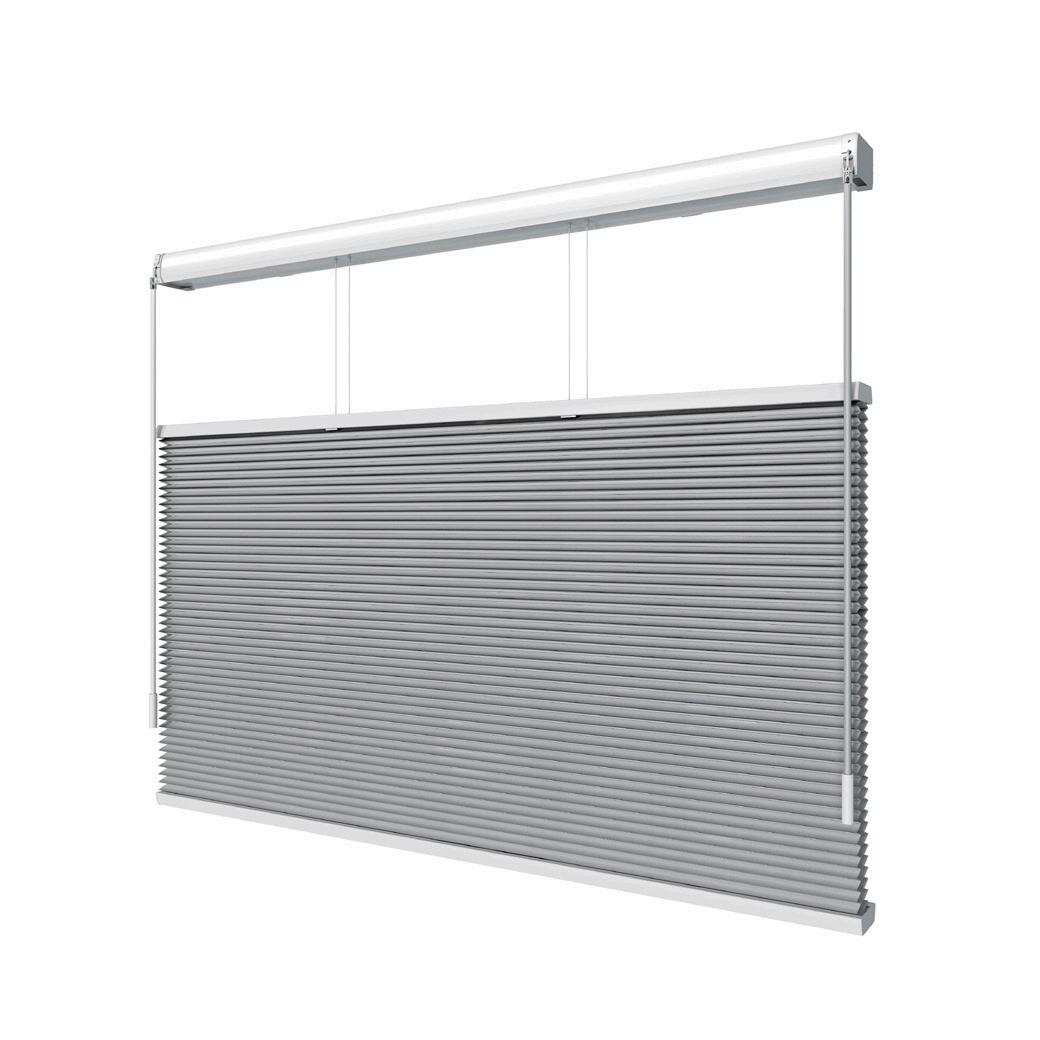

Elements Cordless Top Down Bottom Up is an ultimate choice for perfect light control. Only available with 45mm honeycomb fabrics which provide an additional thermal insulation.

Min Width: 600mm Max Width: 2500mm

Min Drop: 600mm Max Drop: 2500mm

Colour Options:

Brackets:

Wall Brackets Extendable brackets* 45mm

ENTS

Cordless Top Down Bottom Up

Technical Drawing: Accessories:

ELEM

The Motorised option is our ultimate Top Down Configuration. Elements Motorised Top Down provides utmost luxury and ease. Advanced technology allows this blind to be operated through your phone.

Min Width: Max Width:

Min Drop: Max Drop:

Colour Options:

Brackets: Wall Brackets

Extendable brackets*

45mm

ENTS

Motorised Top Down

Technical Drawing: Accessories:

Toggles are colour matched to system.

White Chrome Premium Options: Stainless Steel Black Nickel Grey Anthracite Black

ELEM

The Motorised option is our ultimate Top Down Bottom Up Configuration. Elements Motorised Top Down provides utmost luxury and ease. Advanced technology allows this blind to be operated through your phone.

Min Width: Max Width:

Min Drop: Max Drop:

Colour Options:

Brackets:

Wall Brackets

Extendable brackets*

45mm

ENTS

Motorised Top Down Bottom Up

Technical Drawing:

Accessories:

Toggles are colour matched to system.

Premium Options:

White Chrome Stainless Steel Black Nickel Grey Anthracite Black

VENETIAN SYSTEMS

A guide for Aluminium and Venetian Systems

ELEM

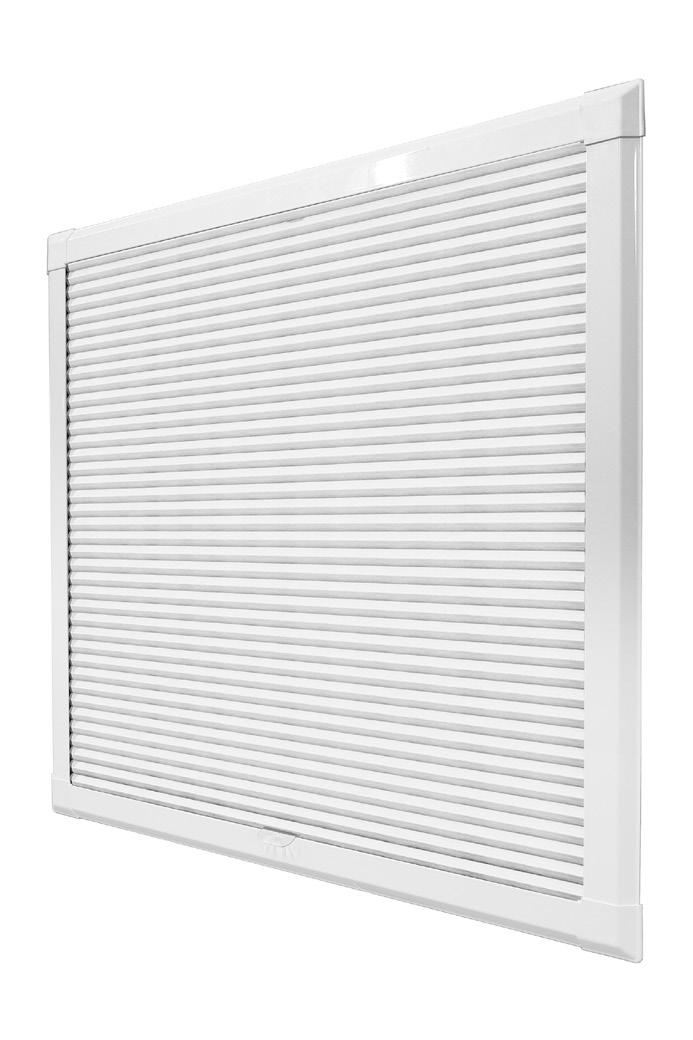

The frame of our Elements Perfect Fit blind becomes part of your UPVC window or door frame. No fuss, easy installation guaranteed, with no drilling and no tools required, simply click the frame and blind into place on your uPVC frame. Slats give a sleek, on trend, contemporary look and the perfect finish. No cords, to operate lift the handle and twist the wand to tilt.

Technical Information:

Min Width: 250mm Max Width: 1500mm

Min Drop: 150mm Max Drop: 2400mm 25mm

Frame Colour Options:

Brackets:

Installation Bracket

ENTS

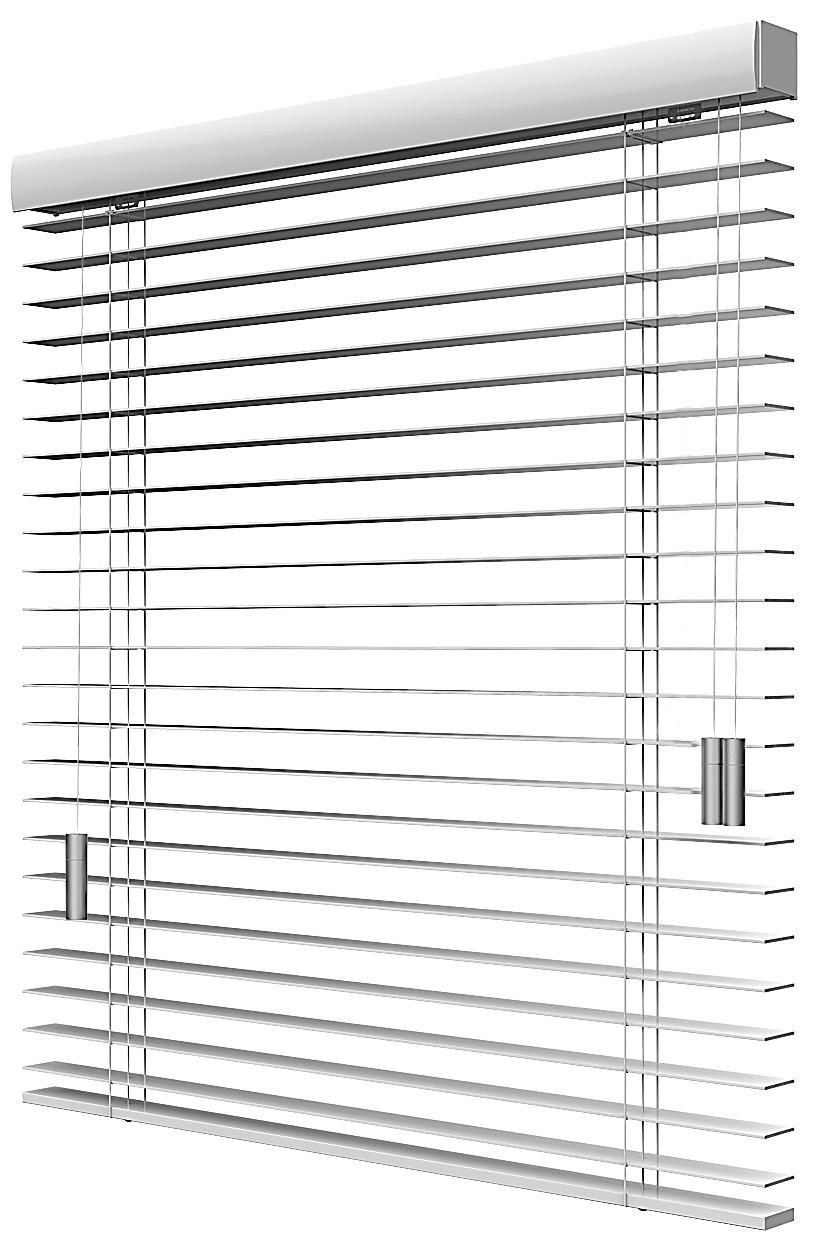

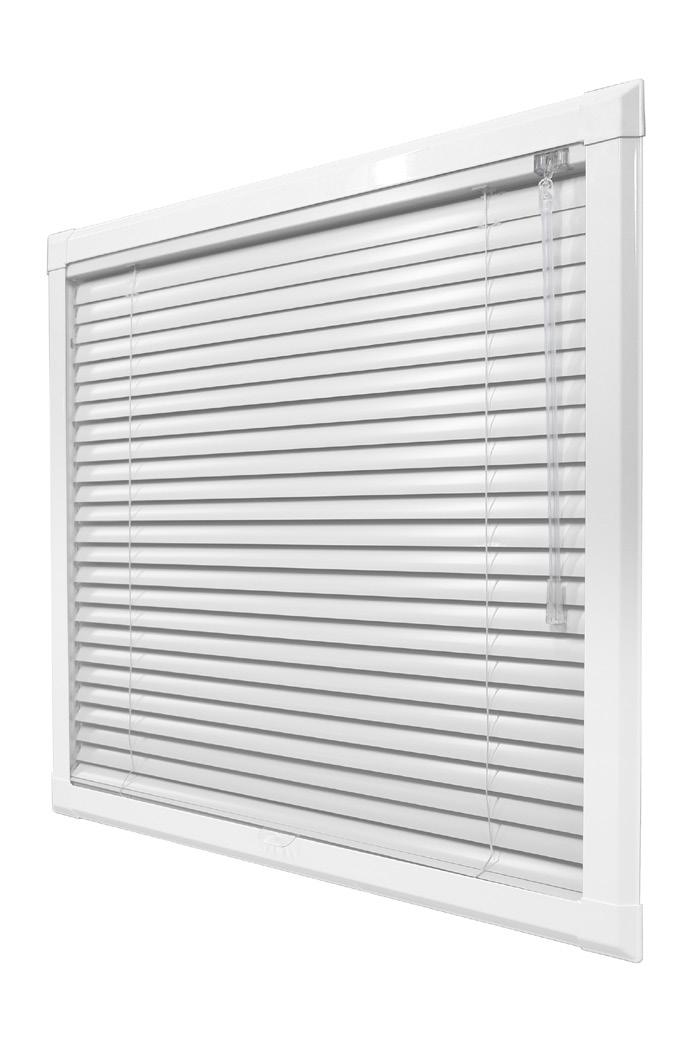

25mm Aluminium Venetian

Technical Drawing:

Accessories:

IMAGE COMING SOON

60cm Transparent Wand

90cm Transparent Wand

ELEM

ENTS

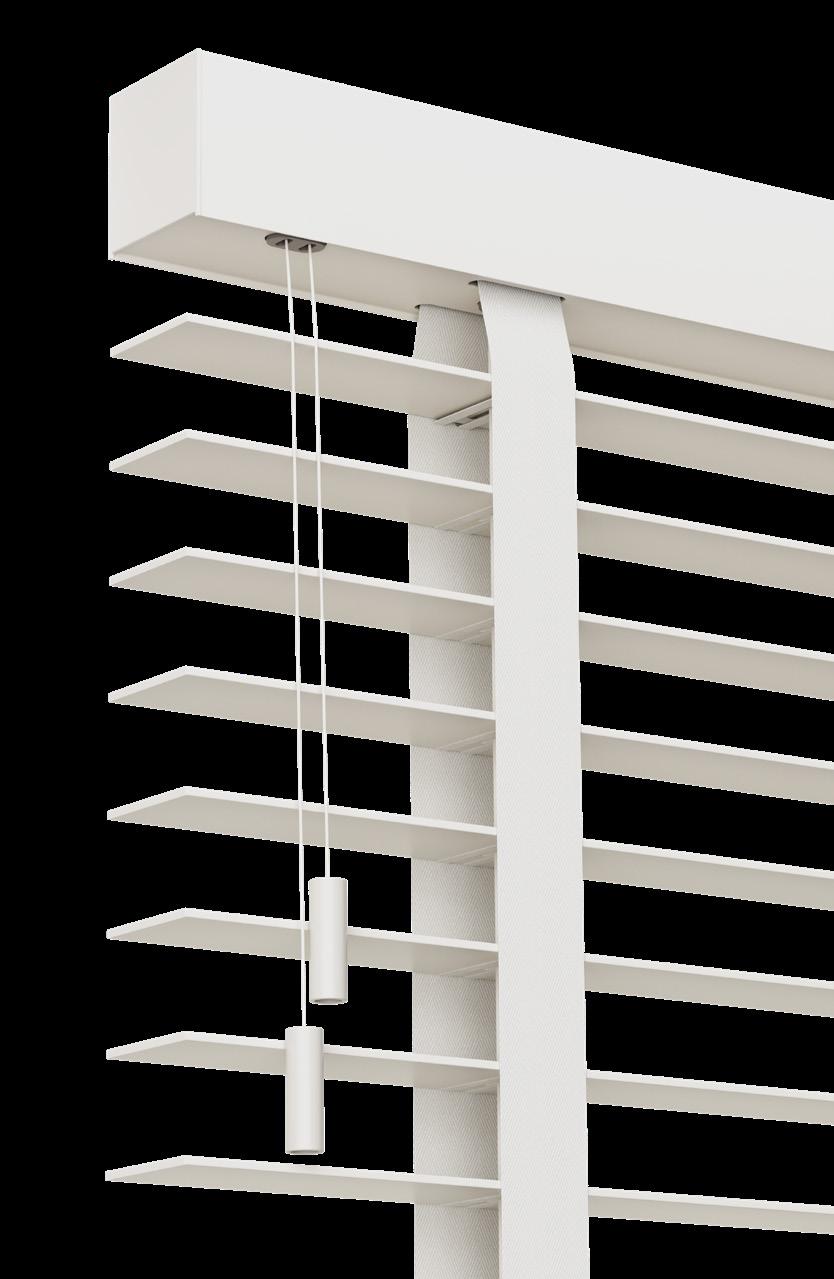

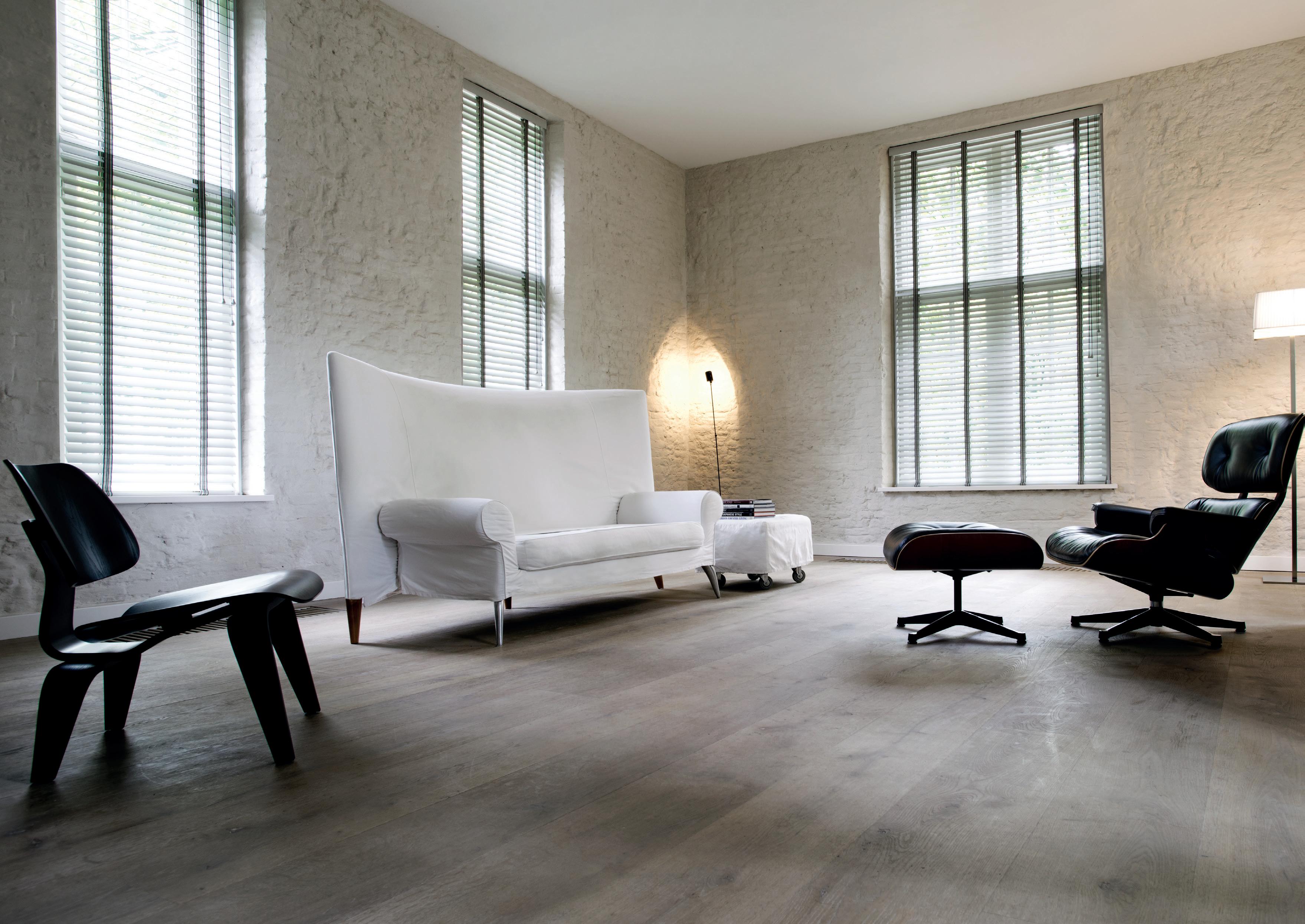

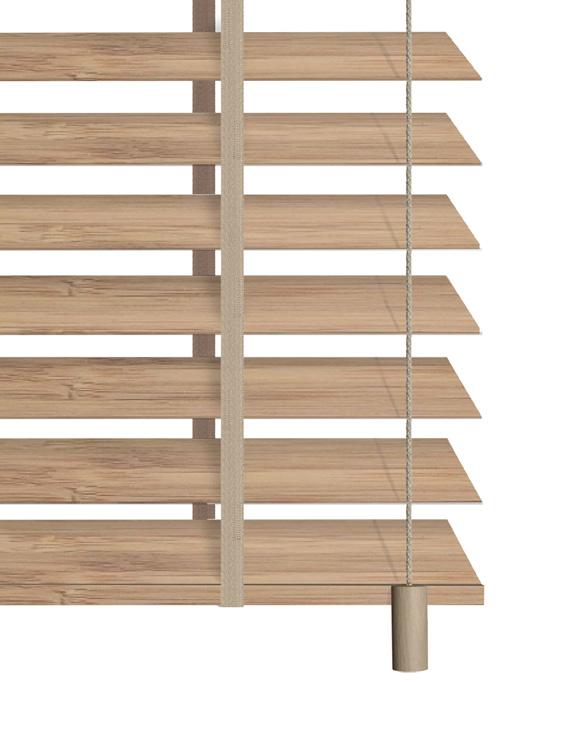

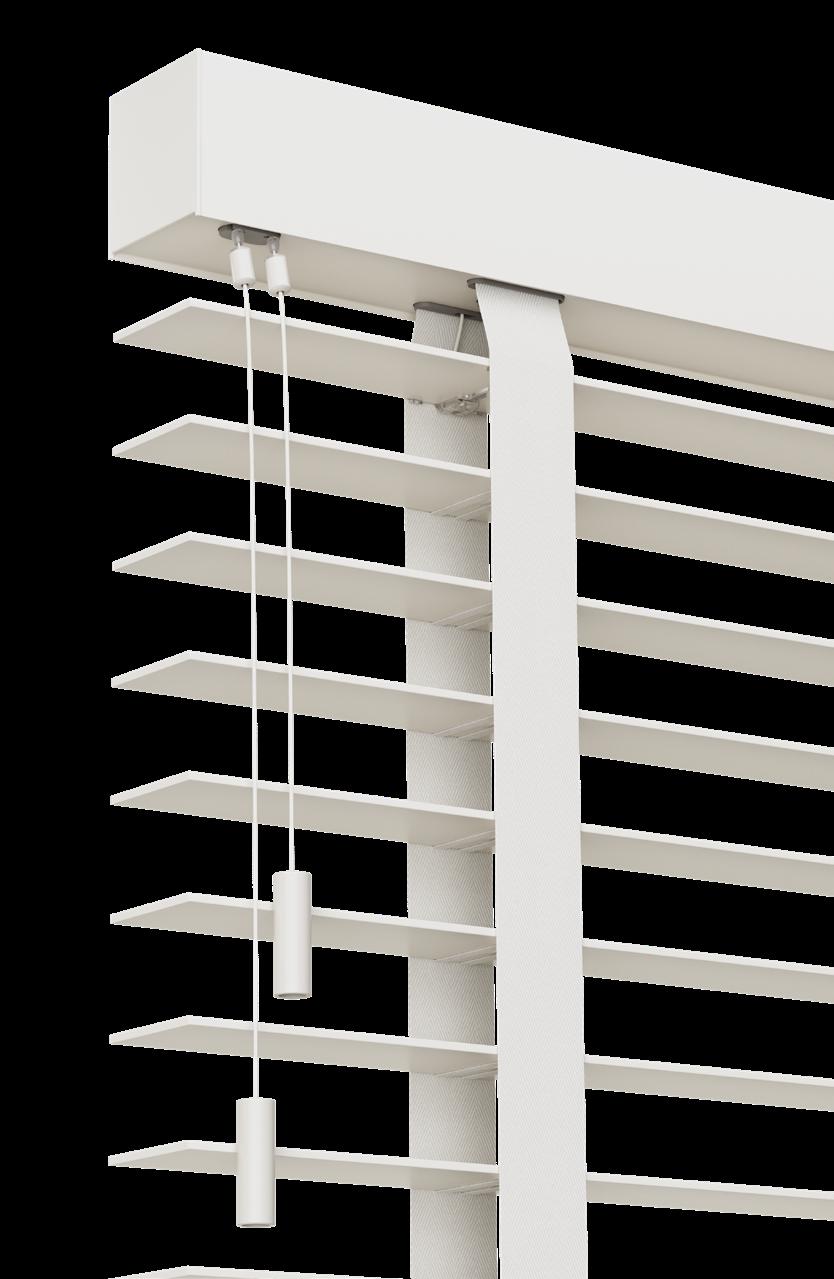

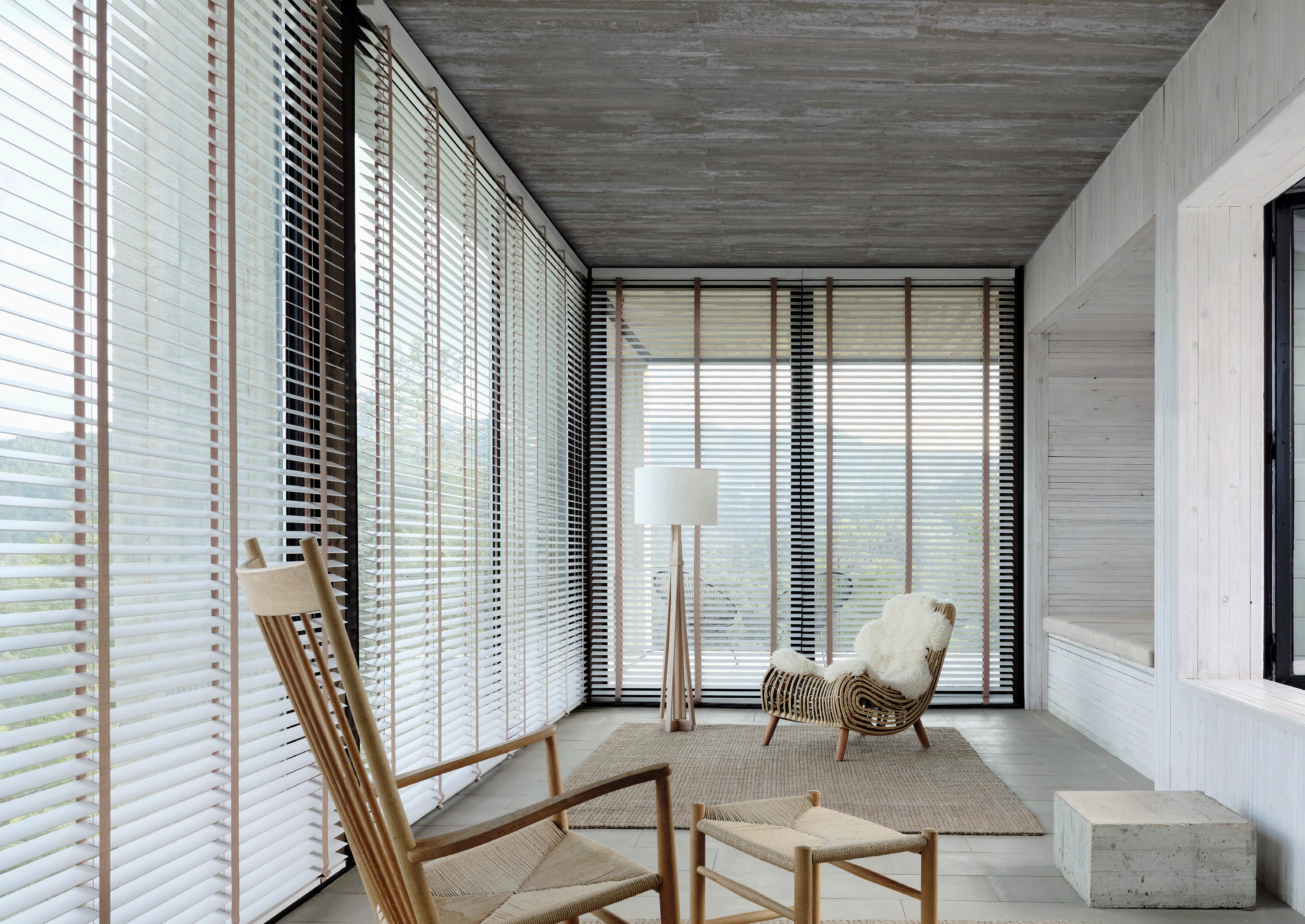

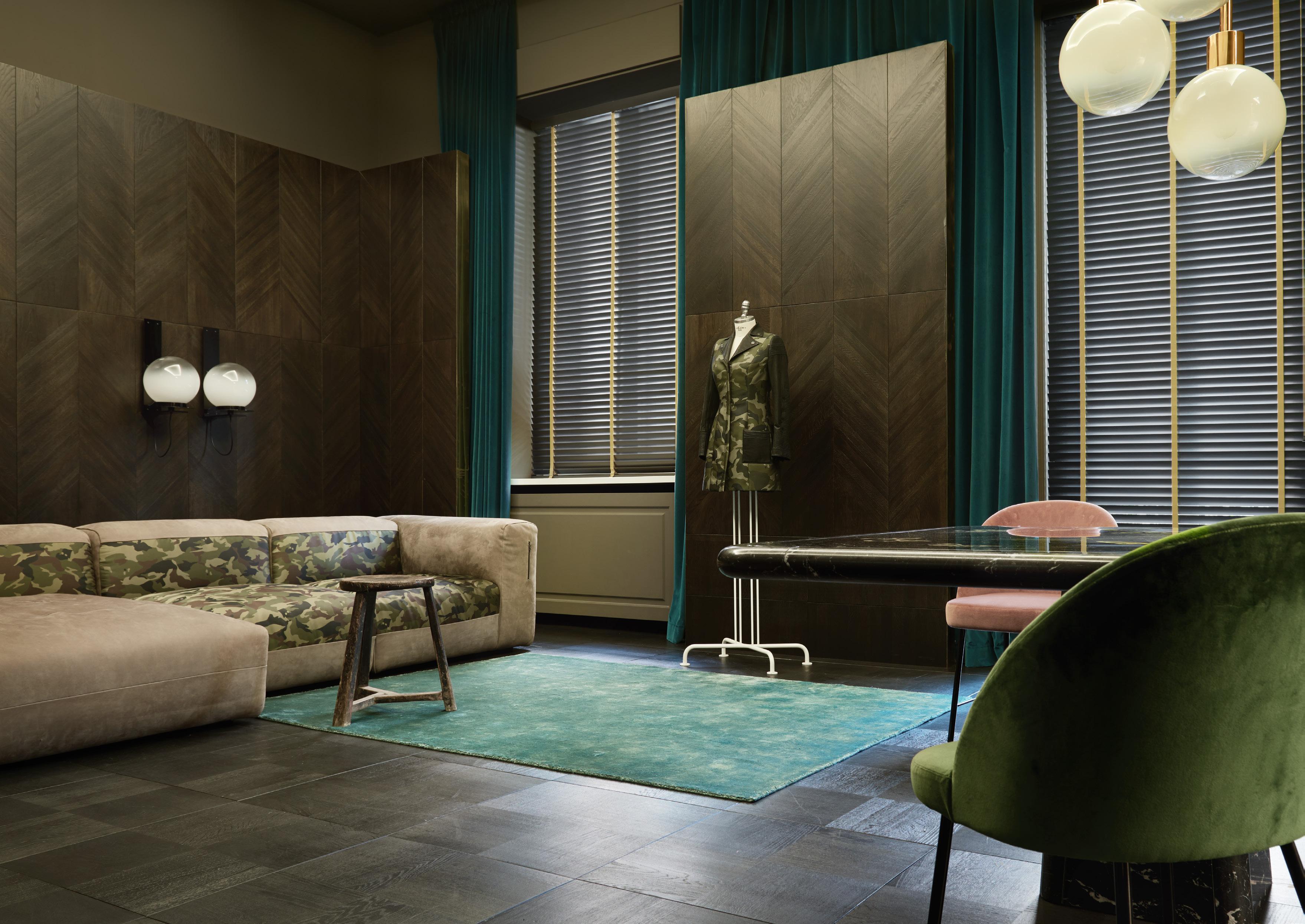

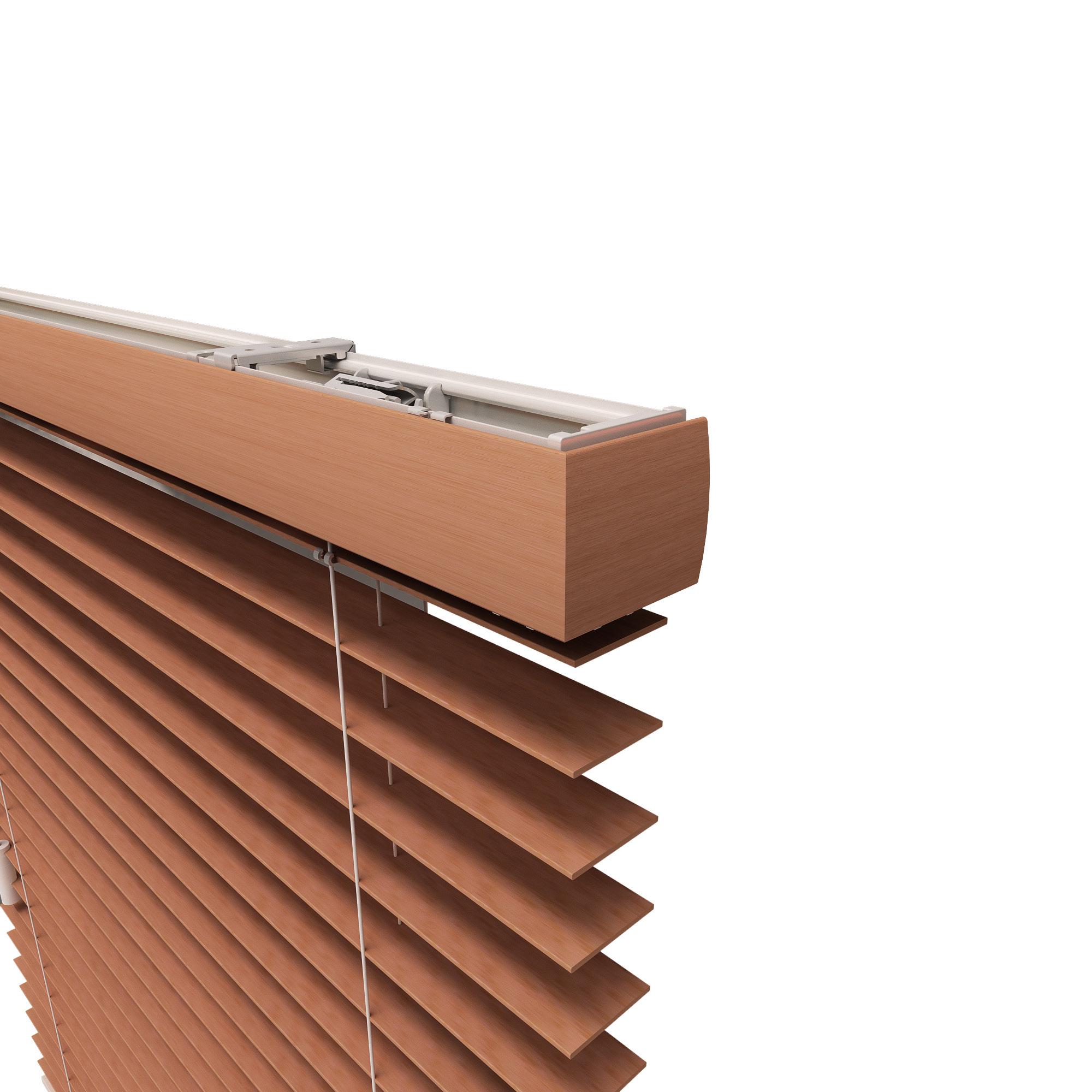

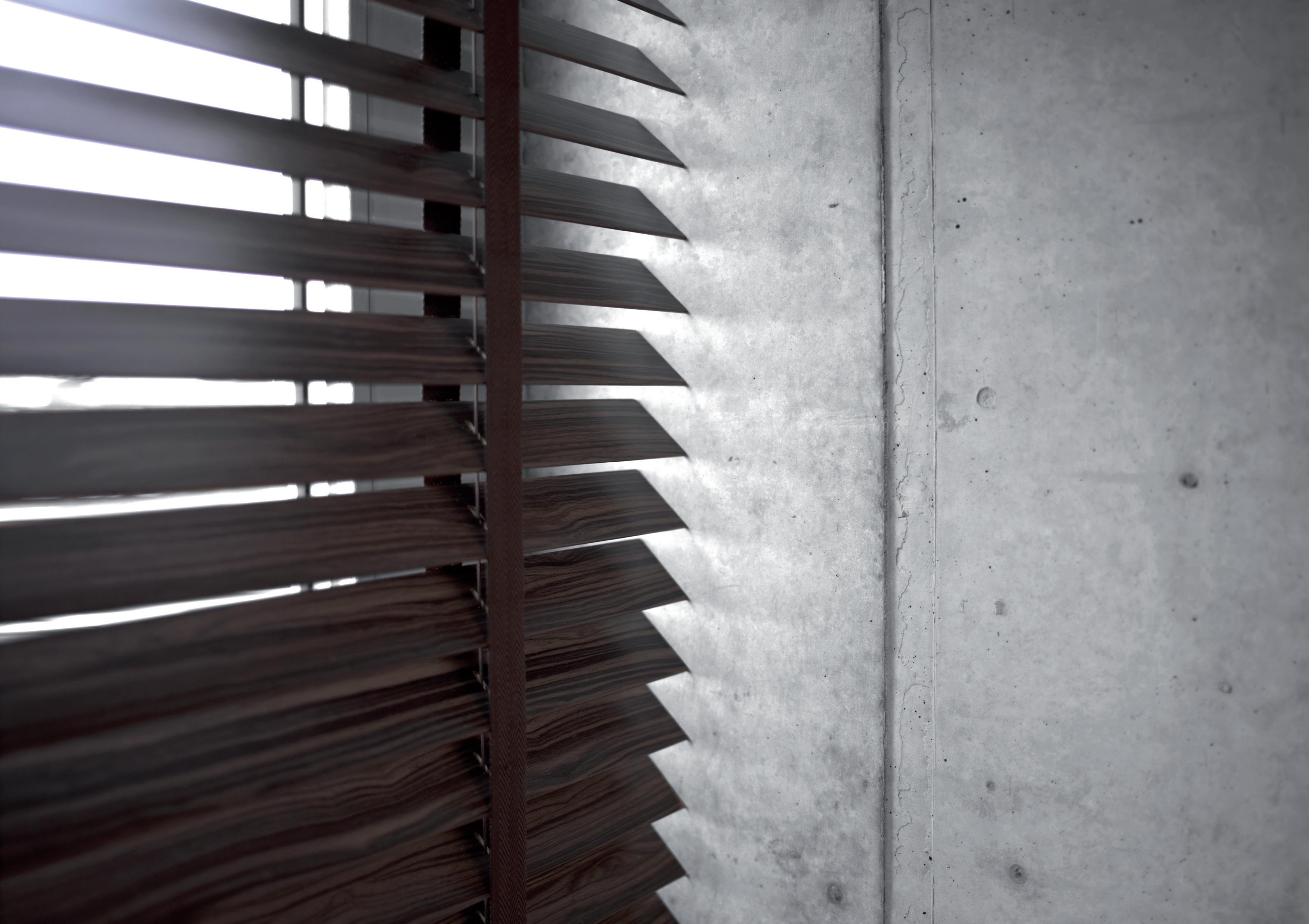

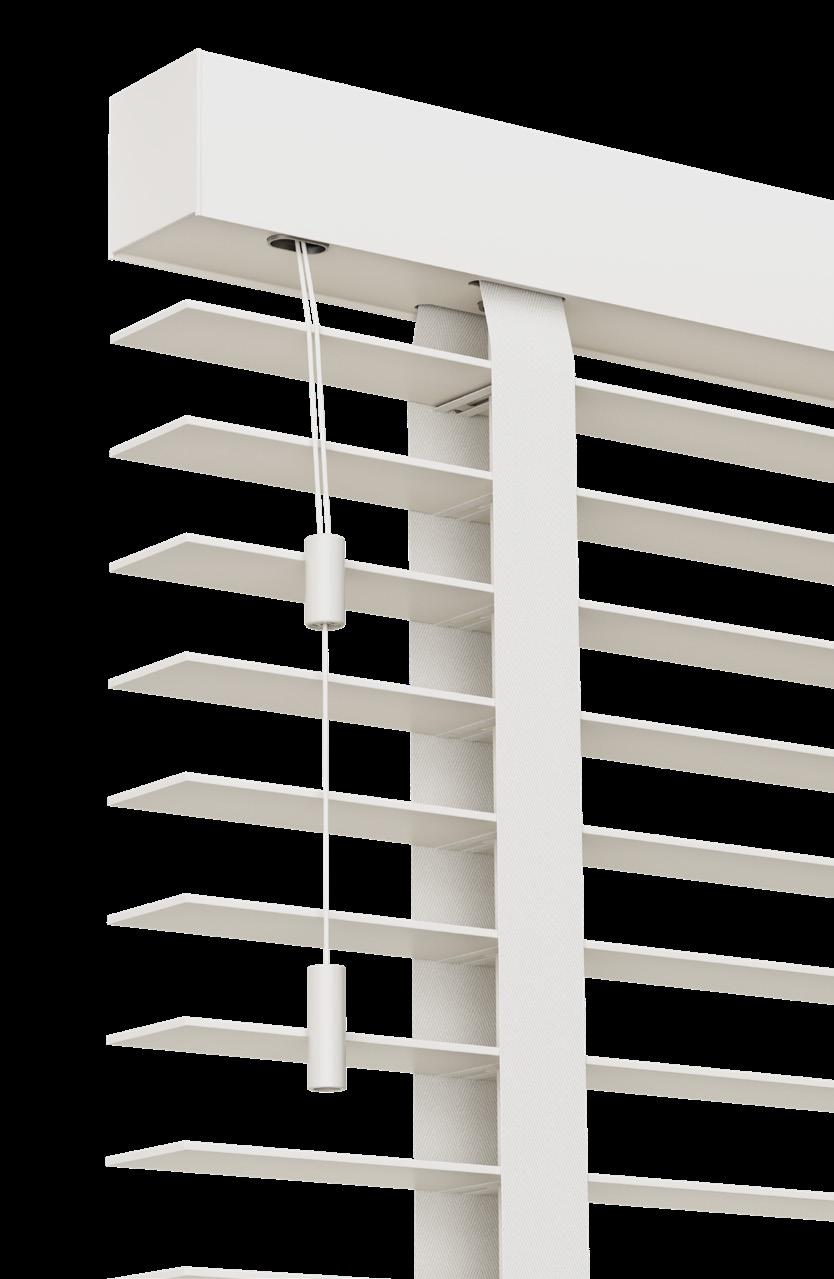

Wood Venetian

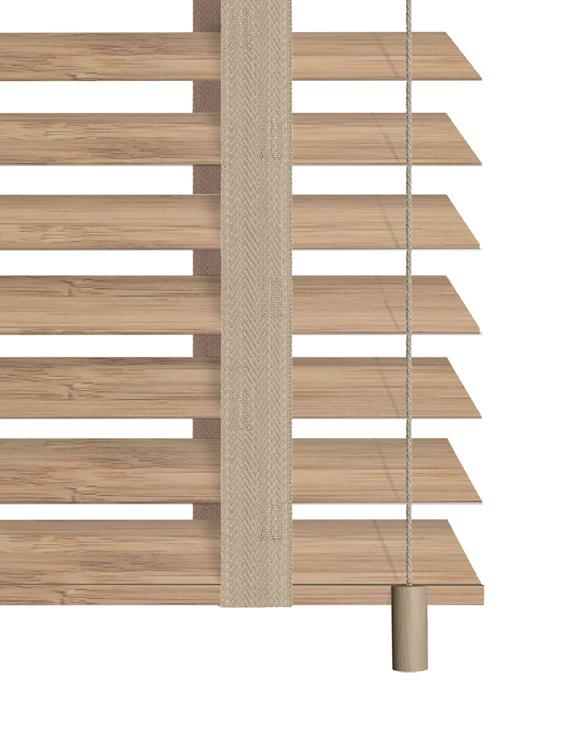

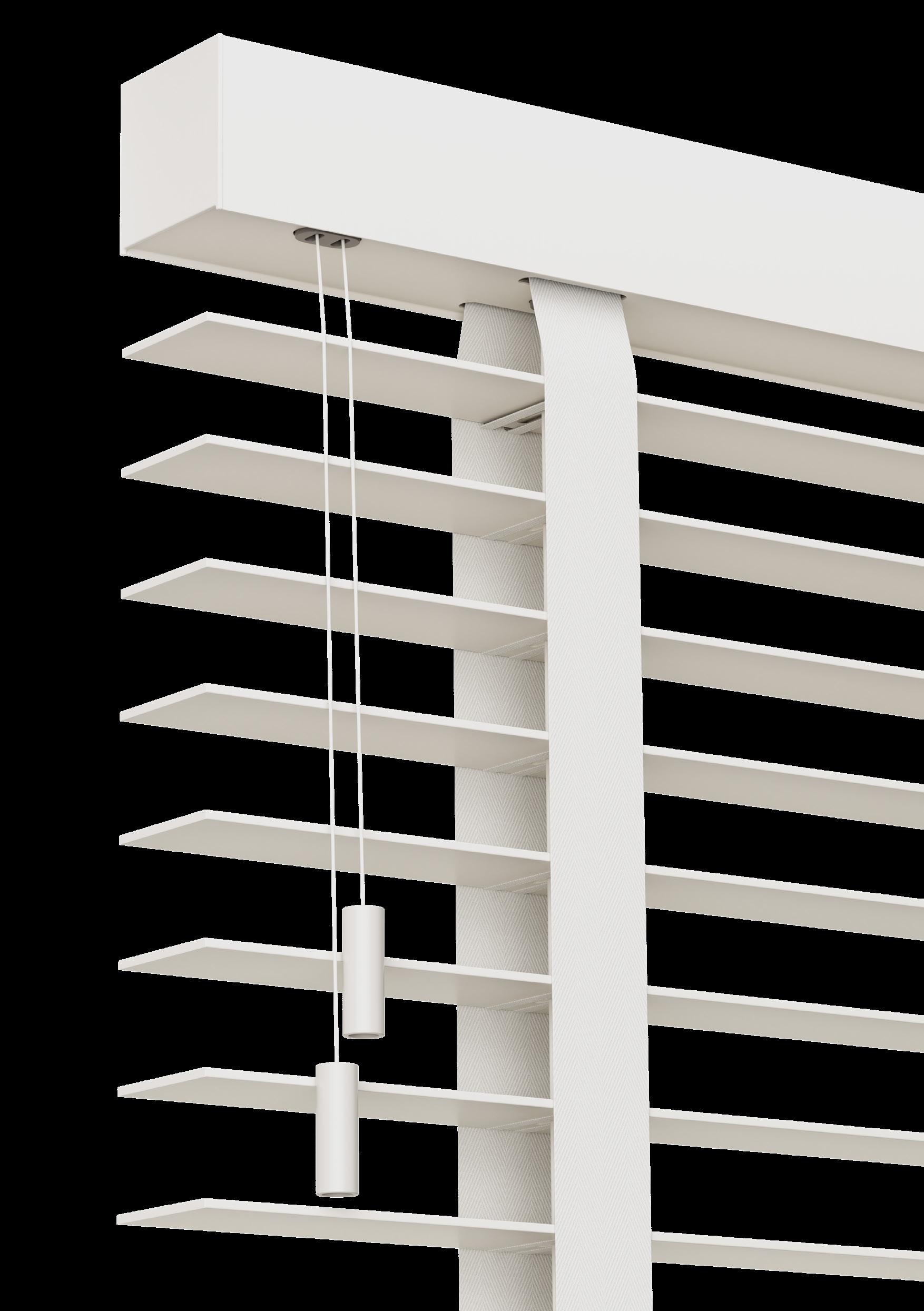

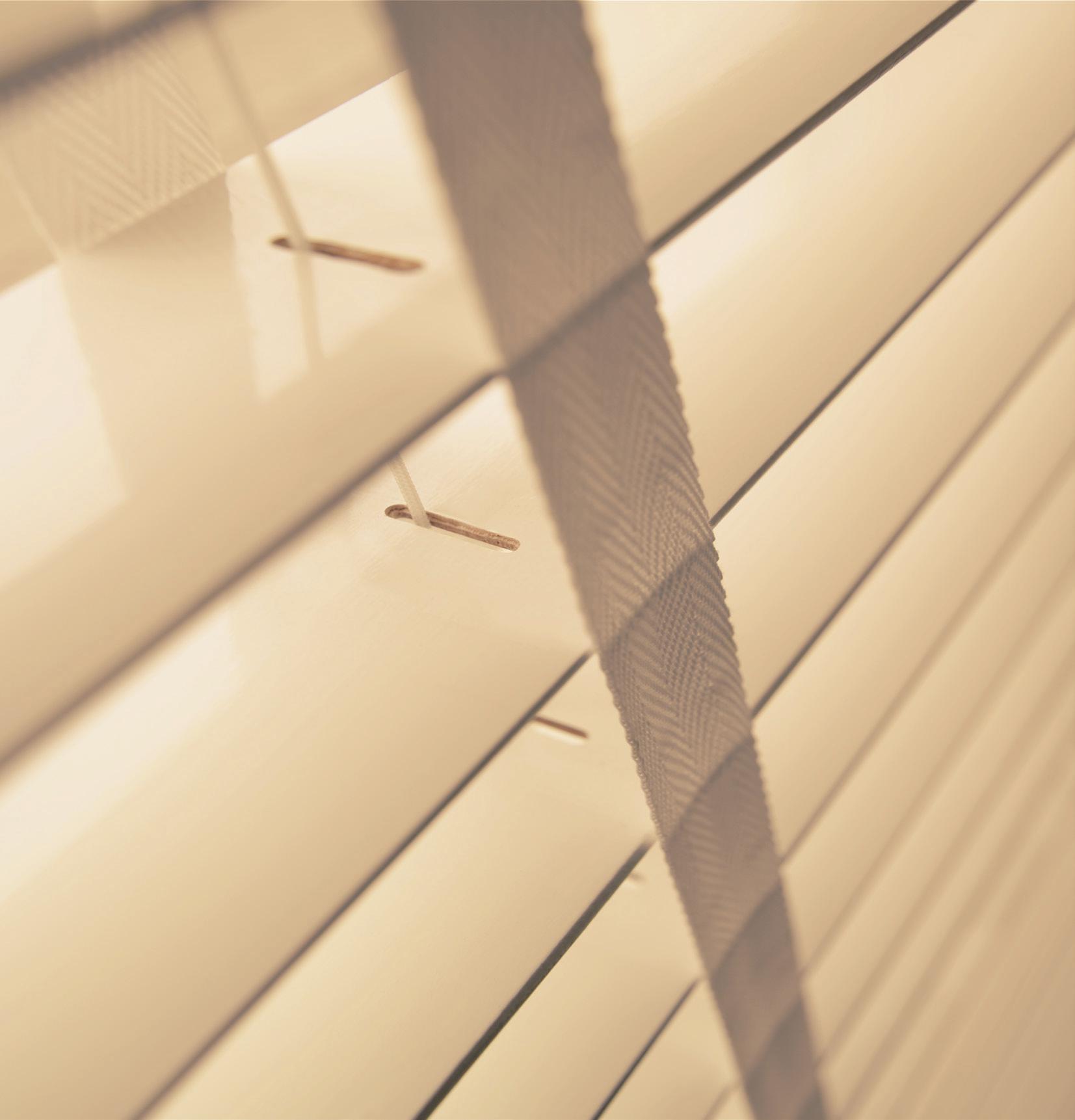

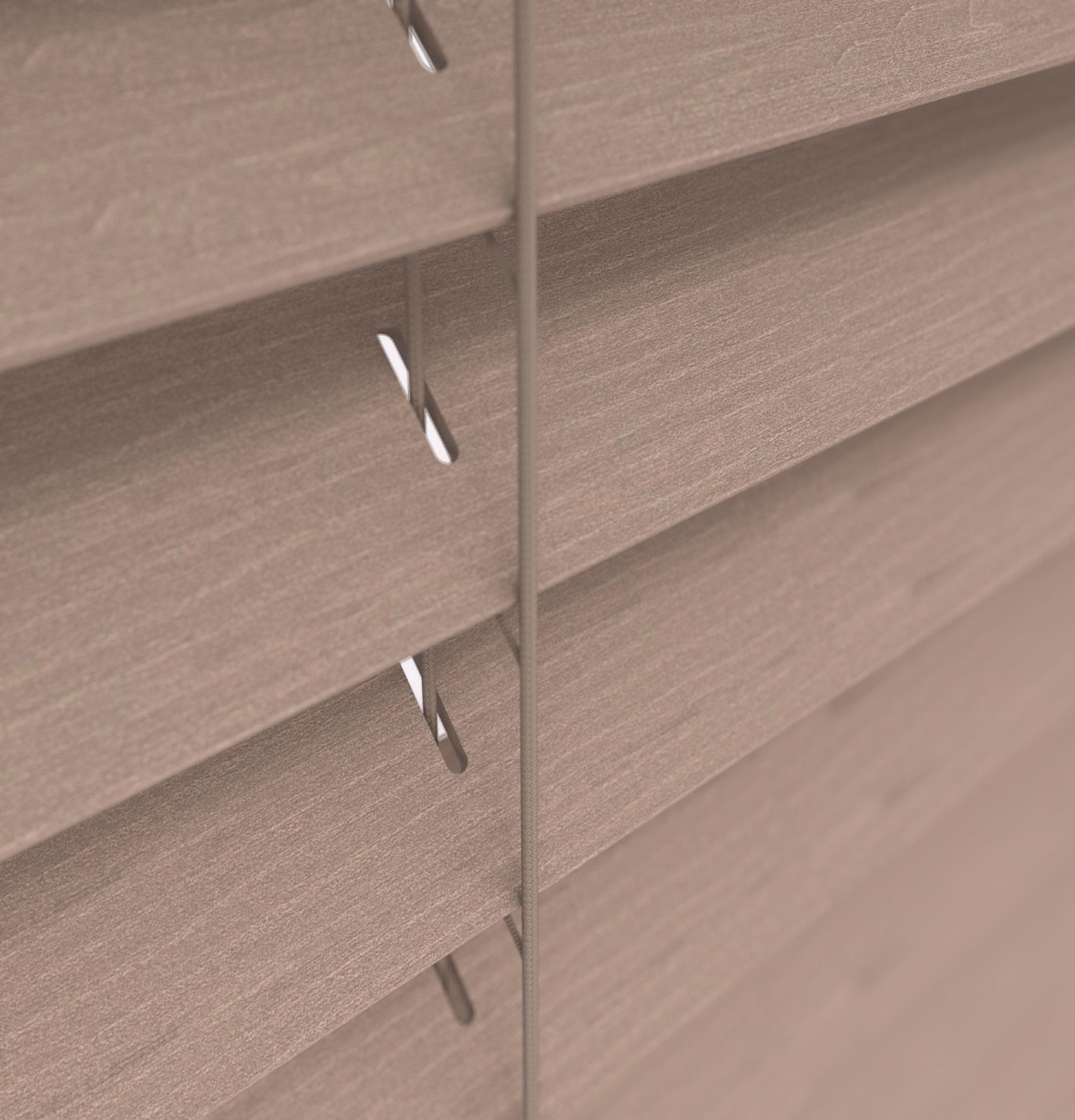

For medium to large windows, our 50 and 65mm Venetian blind is ideal. Because of its qualities, Elements Venetian allow for perfect control of the light streaming in while also preventing the room from overheating. Our Venetian blinds offer a touch of elegance to any room while also providing convenience and practicality. Play with light and create any desired privacy.

50mm Wood Venetian 65mm Wood Venetian

ELEM

ENTS

Operation Types

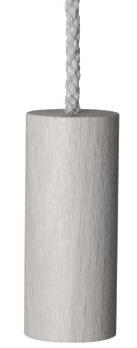

The cord lock tilt and lift option is the standard operation type for Elements Wood Venetian. Twin Pull and Motorised operation types are available as an uplift to make this product fully child safe.
