Butler 732- Electric Wardrobe lift 2025-USA

Butler 732- Electric Wardrobe lift

2025

The story began as early as 1870 in Ringarum, Sweden, when Otto Granberg built his first chairs. He sold these chairs at the local market. Business went well and Otto’s joinery began mass-producing furniture. The factory soon relocated to Norrköping and expanded their range with windows, doors and staircases.

After almost 30 years, Otto’s son, Frans, took over the company. He followed in his father’s footsteps, but also produced school furniture and interior joinery products.

Just over thirty years later, Frans handed over the company to his sons, Nils, Bängt, Oscar and Erik. They continued to run the company the way their father and grandfather had.

Granberg quickly became known for the lifetime guarantee of its products. The quality was high and if anything were to break, the sons ensured it was repaired or replaced. A promise that still applies to this day. Personal service and reliable products.

90 years after Otto began making chairs, the company changed direction and Granberg’s modern history began in 1960. The company started to develop products for the disabled and today is a world leader within this sector.

MADE IN SWEDEN

Quality has been an important

For your safety , we work

part of our brand ever since Otto

solely with CE marked lifting sys-

Granberg founded our company back

tems that have undergone risk

in 1870. As a family business we are

analyses and tests.

proud of the products we create.

Our lifting systems are based on

We therefore only supply quality

proven technology and have a built-

products that we know well and

in safety system that stops the

with which we have been working

moving parts if anything is in the

for many years. We always provide

way.

a 2 year warranty for our products in order to make our customers feel even more secure.

2

SINCE 1870 GRANBERG

3

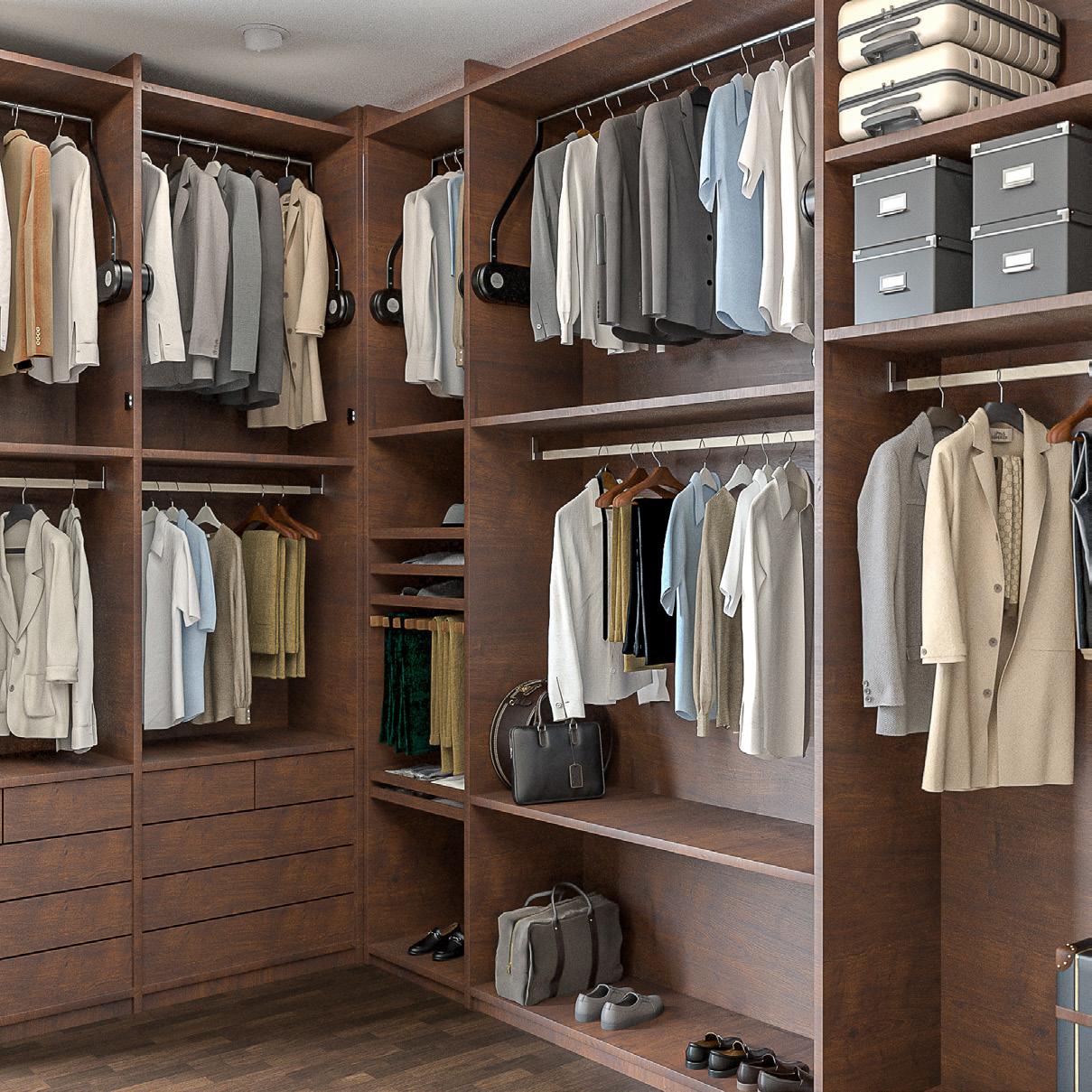

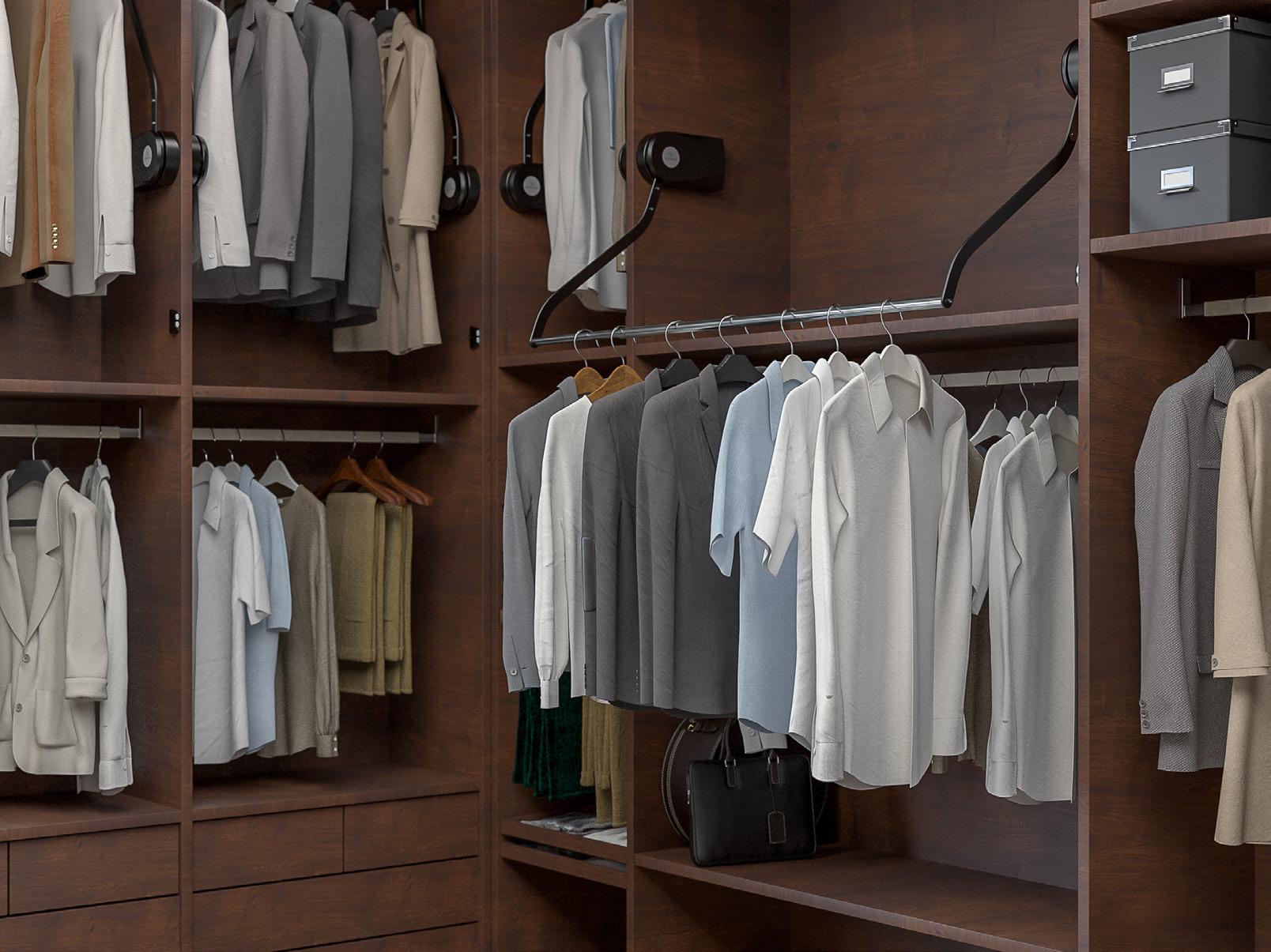

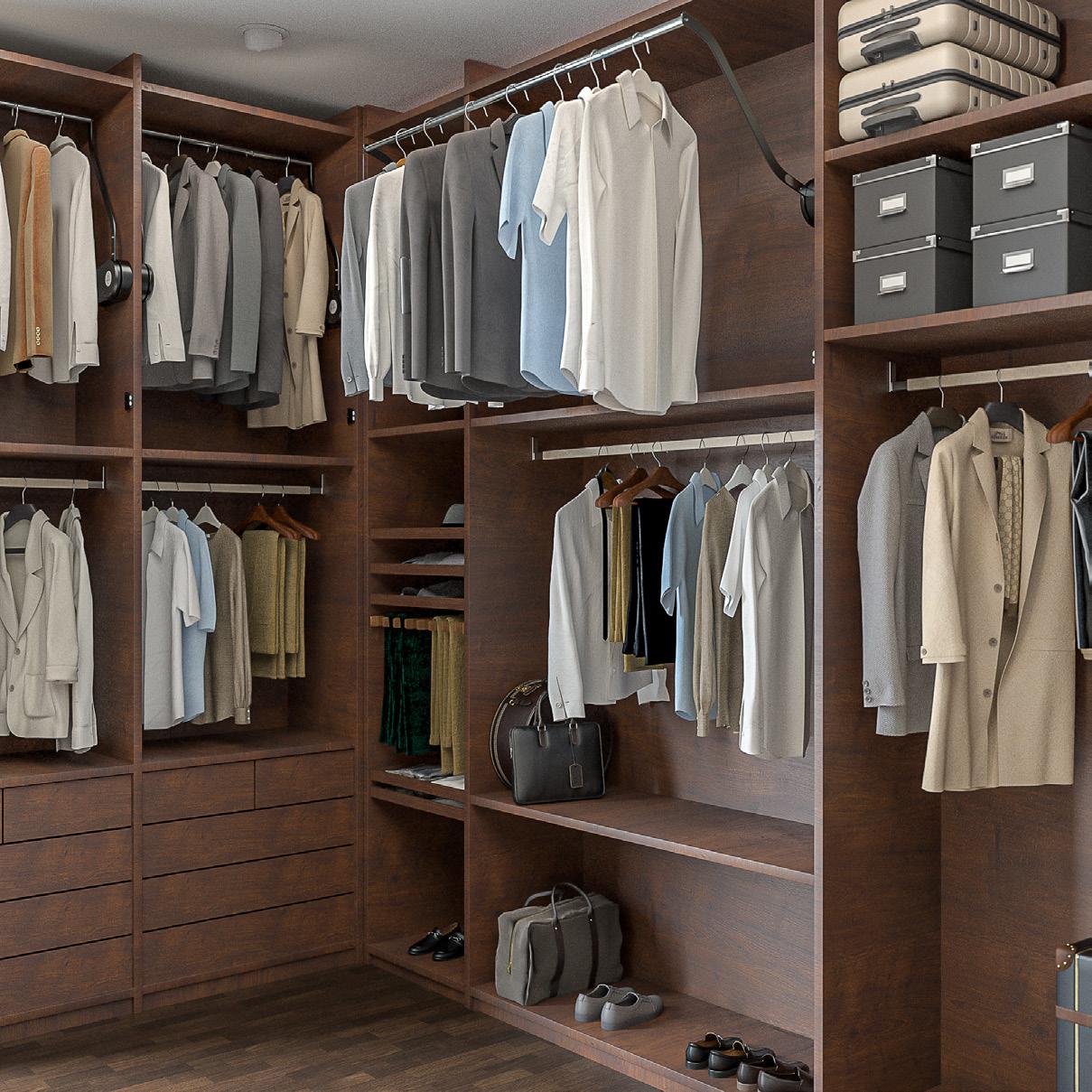

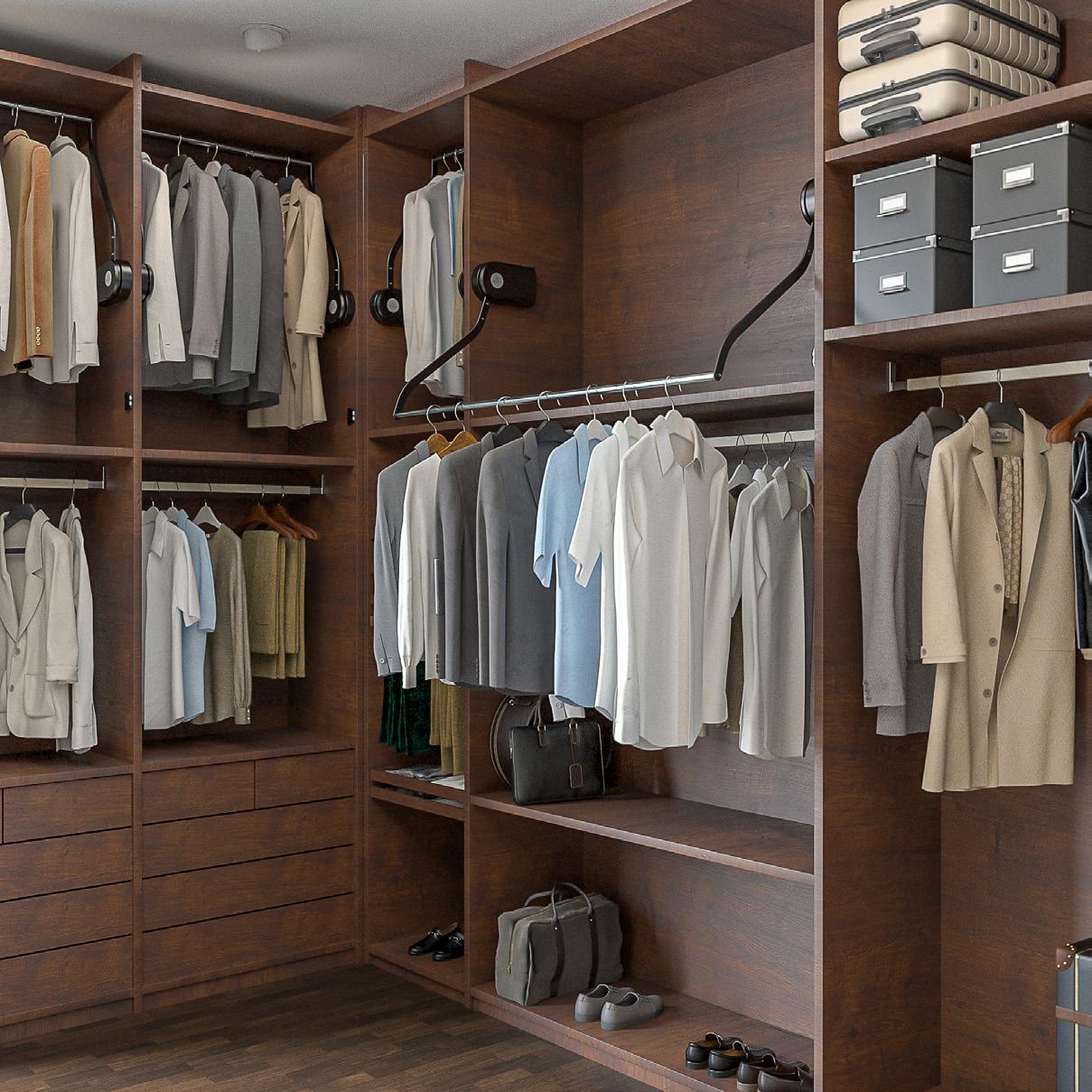

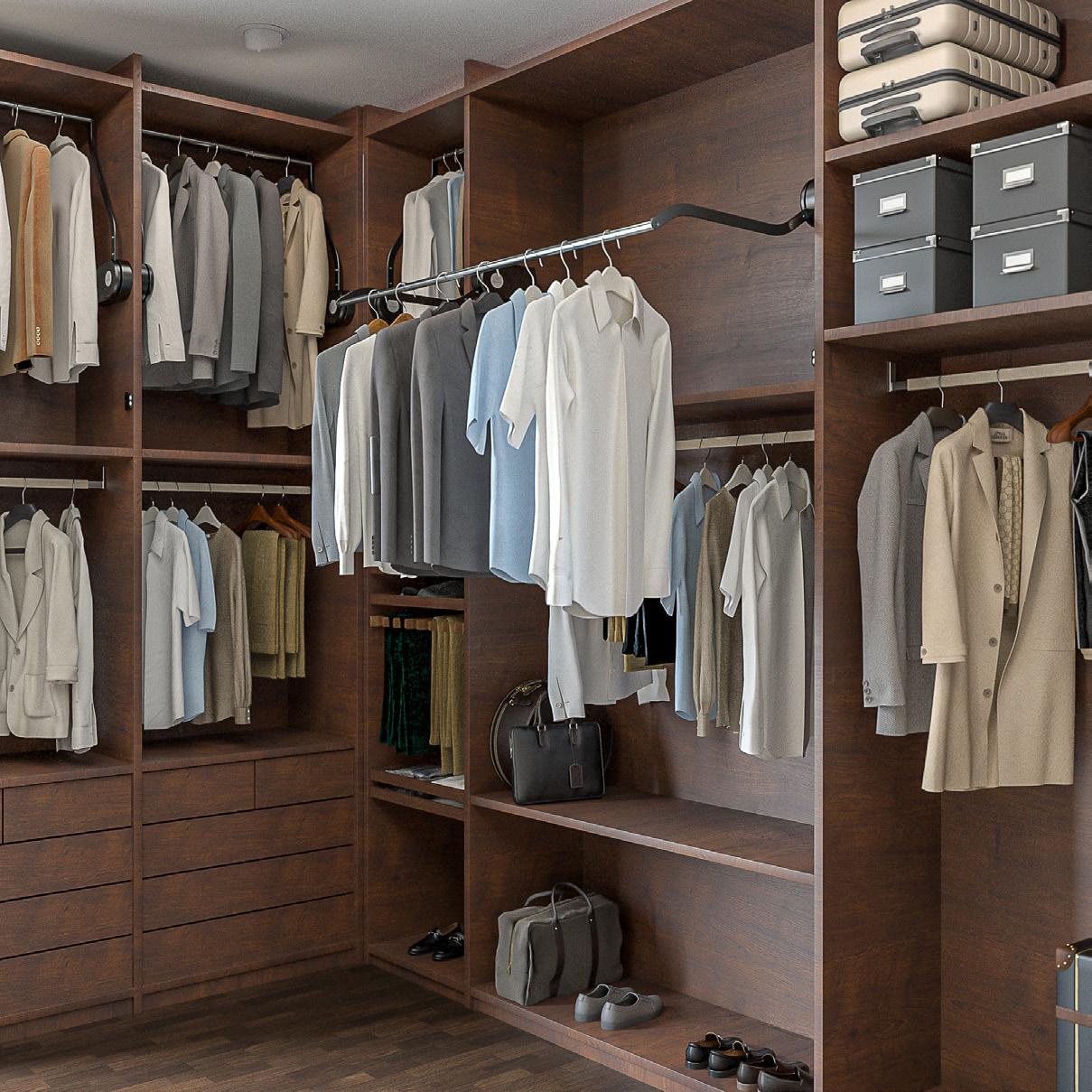

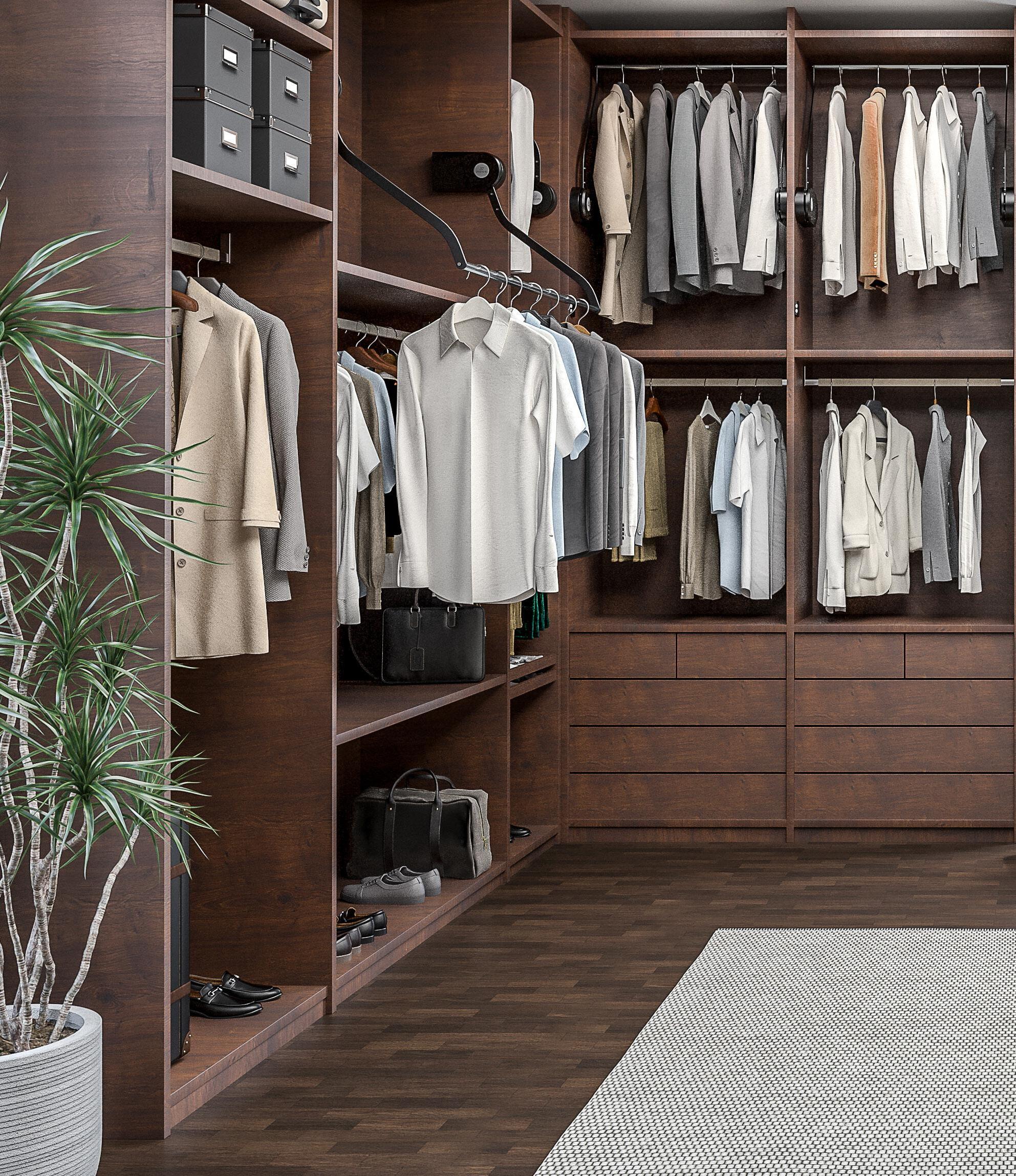

Butler 732 Electric wardrobe lift With BUTLER 732, the height of the wardrobe can be used to the full. A simple push of a button lowers the clothes rod by 44.1“ (1120 mm).

A person of normal height can easily reach up to 74.8“ (1900 mm) which means the clothes rod in its upper position can be 118.1“ (3000 mm) above the floor. Thus, the lower part of the wardrobe can be used for another clothes rod or other form of storage.

4

5

Electric wardrobe lift

Butler 732

Functions and advantages

Specifications

• Motorised adjustable clothes rod, 44.0” (1118 mm) downwards

Type of lift Adjustability

• Maximum load 66lb (30 kg) • Telescopic clothes rod for cabinet with inner dimensions 21.5”-61.7” (545 to 1568 mm) • Modern and discreet design • Collision protection stops the lowering of the wardrobe rail if it comes into contact with any object • Silent motors that take up little space

Electric wardrobe lift that lowers the clothes rod in front of the wardrobe Motorised clothes rod, steplessly adjustable 44.0” (1118 mm) downwards, 24.6” (626 mm) outwards 1.9” (47 mm) / sec.

Remote control or wired manoeuvre device Plug for 100-240VAC, 50/60hz, 2.0 A

Speed Manoeuvring Electricity connection Maximum load on clothes rod Fits cabinets with width Materials Noise level Warranty

66lb (30 kg) 23.6”-35.4” / 39.4”- 63.0” 600-900 mm / 1000-1600 mm Powder-lacquered steel parts, plastic cover, chromed clothes rod 52 dB 2 year

(mm)

Measurement data

24.6”

18.7” - 31.4” / 34.4” - 58.9” (474 - -797 / 874 - 1497 mm) 18.7” - 31.4” / 34.4” 58.9” (474 - 797 / 874 - 1497 mm)

1.2” (30 mm)

(545 - 688 / 945 - 1568 mm)

6

5.6”

5.6” 21.5” - 27.1” / 37.2” - 61.7” (545 - -688 / 945 - 1568 mm) 21.5” - 27.1” / 37.2” 61.7”

(143 mm)

2.4” (60 mm) 10.1”

(256 mm)

10.1”

44.0” (1118 mm)

0.2” (6 mm) 44.0” (1118 mm)

0.2” (6 mm)

1.5” (36,9 mm)

(143 mm)

2.4” (60 mm)

1.0” (25 mm)

1.0” (25 mm)

1.5” (36,9 mm)

(626 mm) 24.6” (626 mm) 11.3” 13.4” (286 mm) (340 mm) 11.3” 13.4” (286 mm) (340 mm) 1.2” (30 mm)

(256 mm)

SE SECTIO

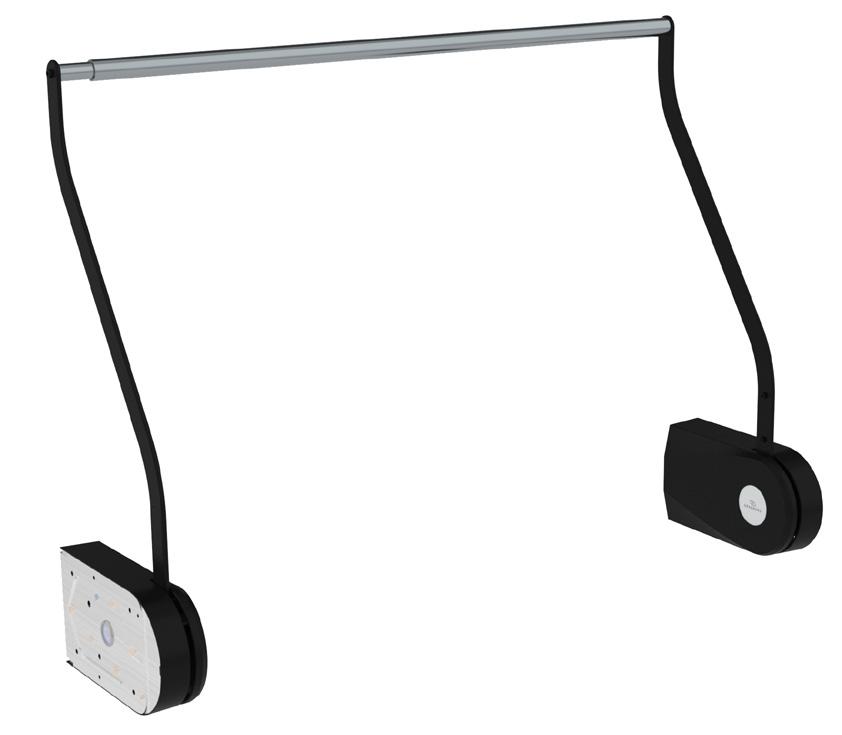

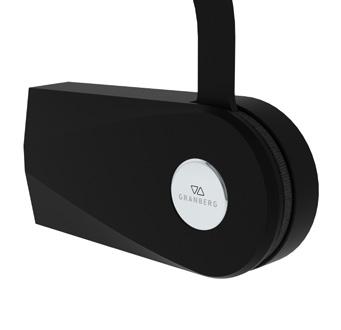

Electric wardrobe lift Butler 732-Black -Cover of black plastic RAL 9005, powder-lacquered arms RAL 9005, chromed clothes rod

Control button in ALU-design

Butler 732 Cabinet width 23.6” - 63.0” (600 - 1600 m m)

732-ETL-160-10

61251

Wired, for recessed mounting Dimensions: 3.2”x3.2”x0.7” (82x82x17 mm)

Extension frame for aluminium button

61355

Enables surface mounting of aluminium buttons.

Colour: White Dimensions: 3.2”x3.2”x2.0” (82x82x52 mm)

Cable Hand control

61253

Dimensions: 5.8”x2.2”x0.9” (147x56x23 mm)

7

SINCE 1870

MADE IN SWEDEN

MADE IN SWEDEN

Butler 732 - 2025

GRANBERG INTERIOR AB Importgatan 30 602 28 Norrköping Sweden Tel: +46 (0)11-19 77 50 Email: info@granberg.se Internet: www.granbergusa.com
