Introduction

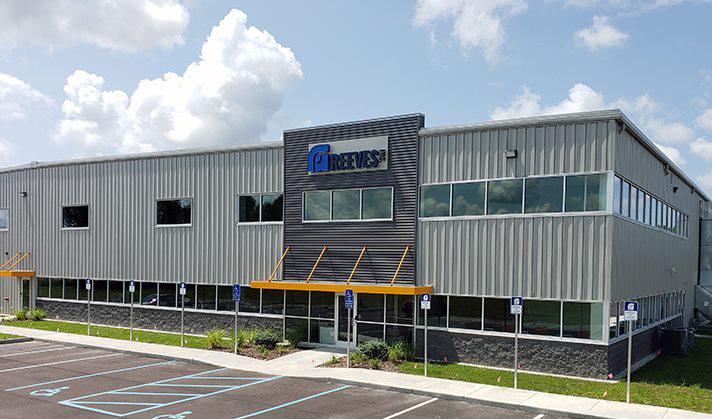

ABOUT US Since 1971, GP Reeves dispensing systems have helped thousands of companies improve their products. We do this by accurately measuring and dependably depositing precise amounts of oil, grease, and other assembly fluids.

Our customers are involved in almost every manufacturing industry including rubber, plastics, appliances, auto, electronics, aerospace, medical and oil exploration.

A few of our customers are listed below: – Stryker – UroLift – Kohler – Johnson & Johnson – Bombardier – Nexteer – BWI – ITW

4 | gpreeves.com

By partnering with Poly Dispensing Systems to be the exclusive distributor of PreciFluid® in North America, GP Reeves is able to combine our dispensing expertise with the precision of the PreciFluid® system to bring our customers increasing levels of accuracy.

In addition to distributing the PreciFluid® system, we will also be engineering and producing several accessories to be used along side of the PreciFluid®.

DISPENSER TYPES Recommended:

Timed dispensers function like a faucet and require frequent re-adjustment and constant monitoring.

Timed dispensers cannot be trusted to repeatedly dispense identical amounts. Adding an expensive gear type flow meter causes very little improvement.

Positive displacement dispensers can be adjusted and set once. Their positive displacement piston stroke dispenses like a syringe. Positive displacement dispensers can be trusted to repeatedly dispense identical amounts.

Timed Dispensers

How Timed Dispensers Work:

Material under pressure is moved through an “Off-On” valve that is opened and closed by a solenoid valve controlled by a PLC or electronic timer. Pressure regulators and adjustable orifices are sometimes added to control flow rate.

Due to the fact that some material's flow characteristics are unpredictable, timed dispensers are not capable of accuracy and repeatability. The volume of how much is on the part is an unknown unless a weight is measured of each part before and after.

Positive Displacement Dispensers

How Positive Displacement Dispensers Work A powered piston controls the transfer volume and the transfer (dispense) is directly proportional to the piston area and piston travel.

When accuracy and repeatability are important, a positive displacement dispense system is necessary for materials that change viscosity, such as grease.

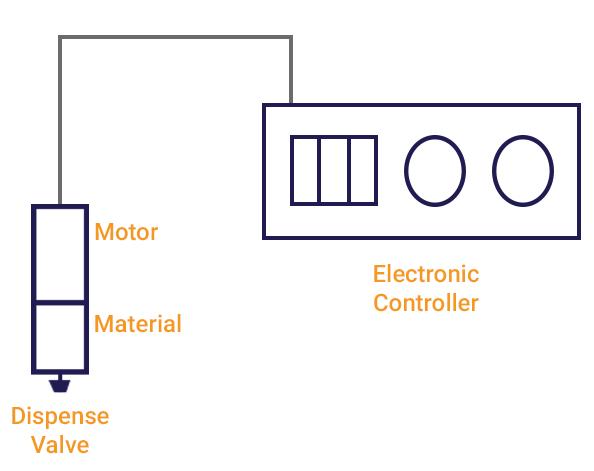

Typical Positive Displacement Dispense System

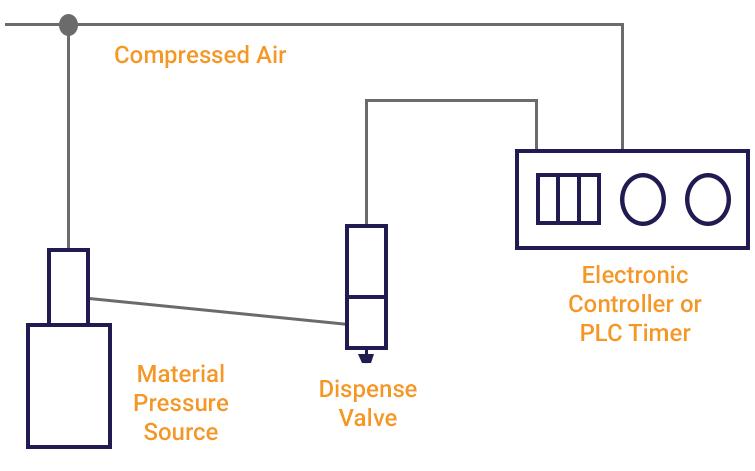

Typical Timed Dispense System

© 2019 | 5

Introduction

Not Recommended:

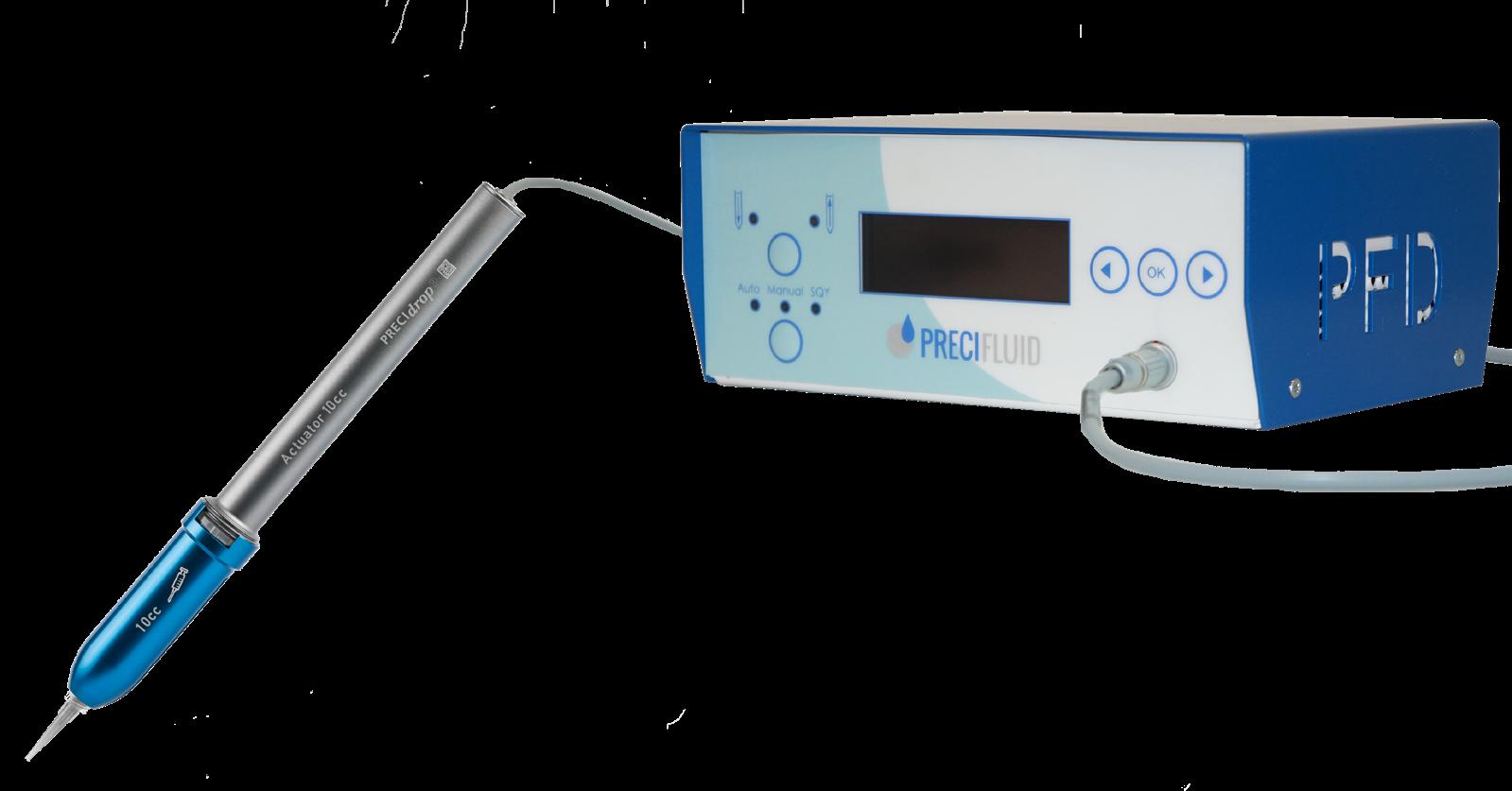

DESCRIPTION Operation

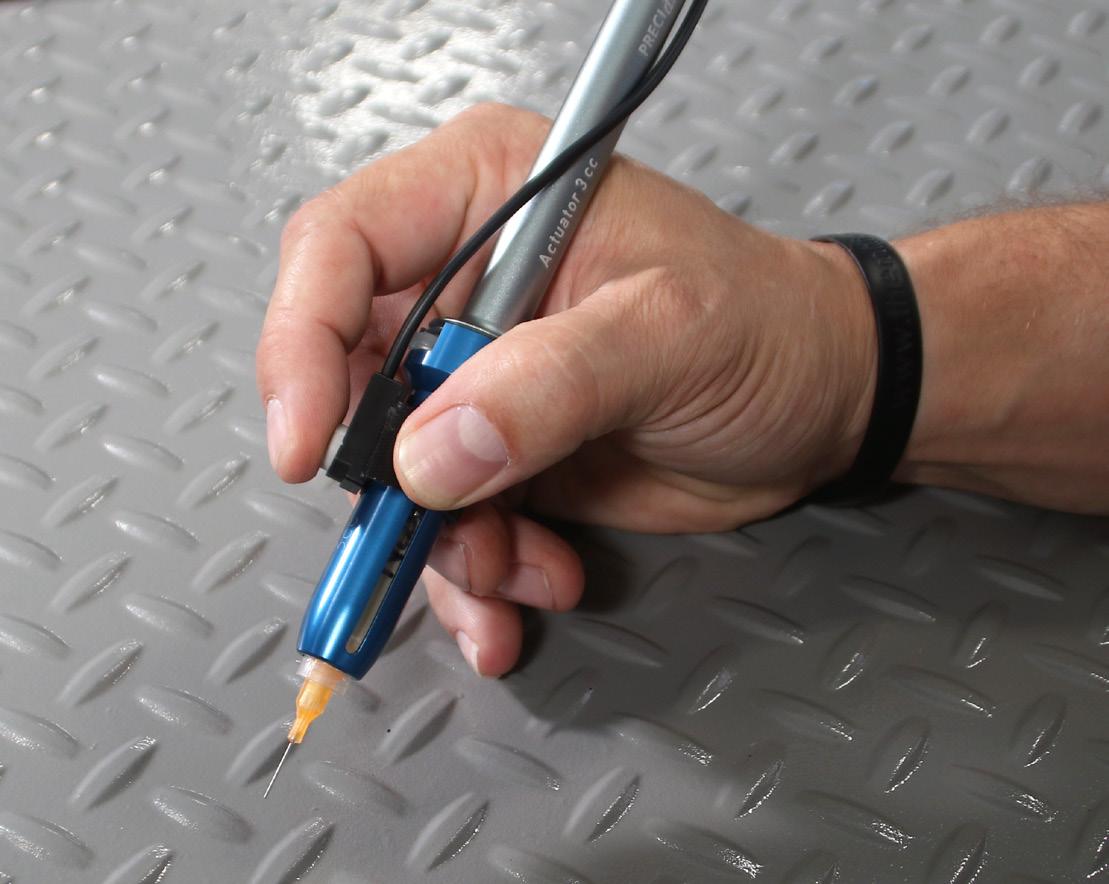

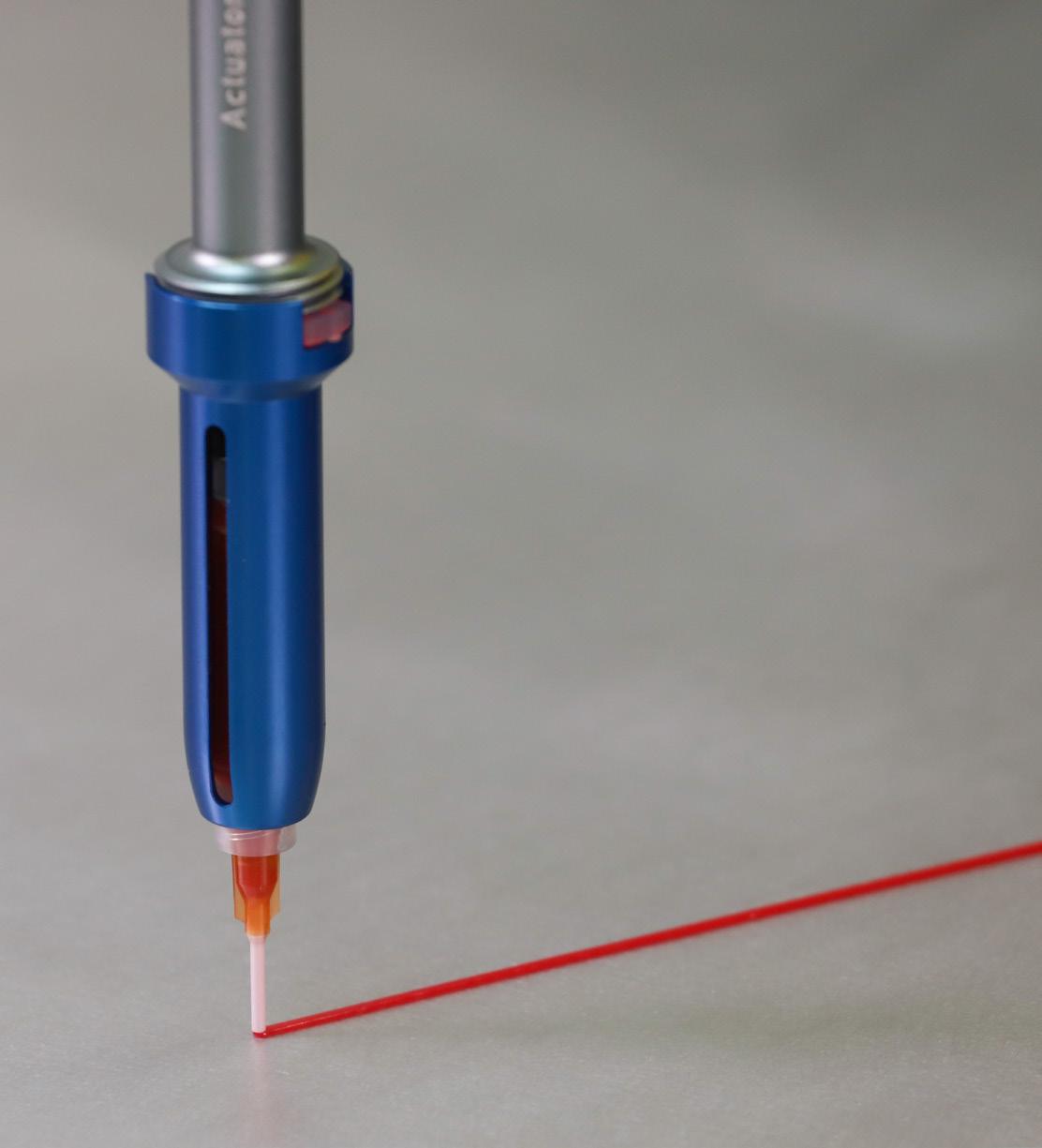

The micro-drive system operates by moving a linear stepper motor driving the precise displacement of the material contained in the syringe. Thus, unlike the pneumatic dispensers actuated by the air pressure, the dispensing from the PreciFluid® electronic fluid meter is more effective in terms of accuracy, speed and repeatability.

Utilization

In addition to its outstanding performance, the use of PreciFluid® is very intuitive. Sequenced by previously recorded programs, its thrust is regular and constant.

Simply enter the digital volume and speed at which you want the dispenses, and the electronic fluid meter loads calculations.

Characteristics

The PreciFluid® metering dispenser performs a linear progression of the piston when in contact with the fluid. The screw activated by the step-by-step motor has high precision machining and is linked to the piston with a patented connection system.

The system also offers a high pushing displacement force with capabilities up to 500,000 cps for thick materials. The dispensing cycle uses the forward movement of the piston for a defined volume and speed, and the parameterized mechanical drawback which performs a backward movement of the PistonDrop.

A pause can be programmed between the forward and the backward movement. Working delay can be programmed in order to be alerted at the end of the process (this can be useful during the application of a two-component product with a limited operating time).

6 | gpreeves.com

MATERIAL APPLICATION

Actual Size

Pa s uid Liq

ic rob An ae

e cti t Lo

c sti Ma

ive he s Ad

Oi l

se Gr ea

te

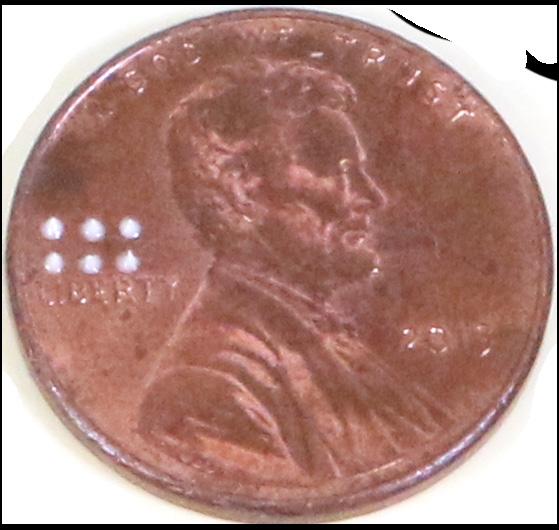

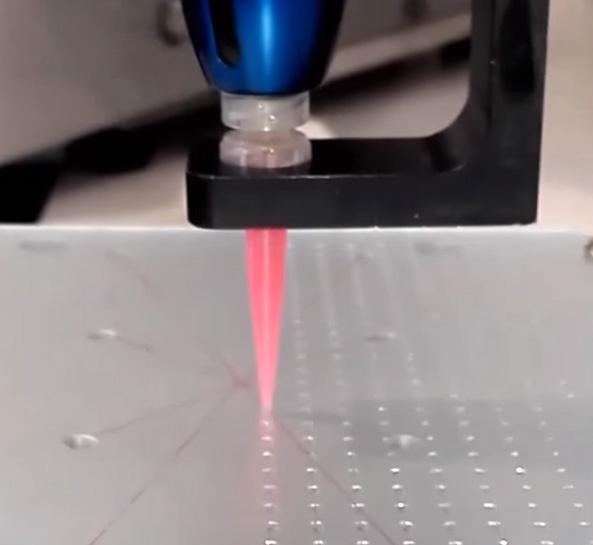

0.000057cc dots on a US penny

Pa s

1-5 cps (Water) 10 cps (Blood) 50-100 cps (Corn Syrup) 150-200 cps (Maple Syrup) 250-500 cps (Castor Oil) 2-3,000 cops (Honey) 5-10,000 cps (Molasses) 10-25,000 cps (Chocolate Syrup) 50-70,000 cps (Ketchup) 150-200,000 cps (Peanut Butter) 1-2,000,000 cps (Crisco/Lard) 5-10,000,000 cps (Silicone Sealant) 100,000,000 cps (Window Putty)

– Programmable dispensing speed with regular and smooth linear movement – Consistent volumetric dispensing compensates for variations in viscosity – Patented system with no separation of complex fluids – Ultra-precise deposits with a minimum volume of 0.000057cc – Push capacity higher than 500,000 cps – Ergonomic design with a weight less than 100gr – Easy set up – Three main operating modes: manual, automatic, and sequential.

te

Range of Viscosity

The stepping motor motion, which performs a repetitive and controlled movement of a volume allows PreciFluid® to be 7 times more accurate than other pneumatic dispensers. This means remarkably smaller dispenses than volumetric dispensers, with its minimum volume starting at 0.00006ml. This patented dispenser is the only one which guarantees you a volumetric deposit with such accuracy.

Features

So lid

PreciFluid® is a high developed technology offering quality dispensing. This volumetric dispenser, which is compatible with almost all types of fluids (from the most liquid to the most viscous types), combines speed and accuracy in a simple and ergonomic structure.

Through comprehensive testing on a wide variety of materials with the PreciFluid® system, we have found that it is compatible with nearly every material. There have been only two material categories that haven’t been successful; liquid and solid pastes.

© 2019 | 7

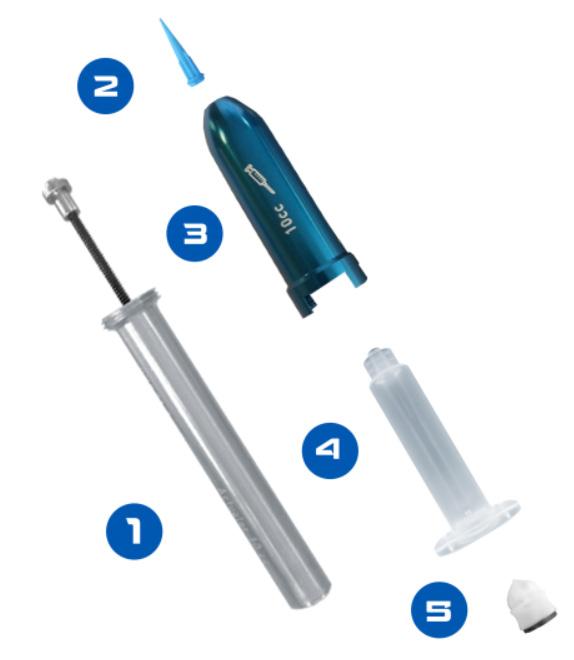

GUN SPECIFICATIONS Specifications SIZE

3cc

5cc

10cc

30cc

Number of steps per revolution of the motor

20

20

24

24

Ratio of the gearbox

64

64

51.84

75.98

Screw size (mm)

1

1

3

4.24

Forward screw (mm)

40

30

50

70

Linear displacement steps (mm)

0.000781

0.000781

0.002411

0

Section of the syringe (mm2)

70.88

124.69

196.07

401.15

Usable volume max (cc)

2.84

4.11

9.80

28.08

Volume by steps (mm3)

0.055

0.097

0.473

0.933

Volume by steps (cc)

0.000055

0.000097

0.000473

0.000933

Cable Length (m)

1

1

1

1

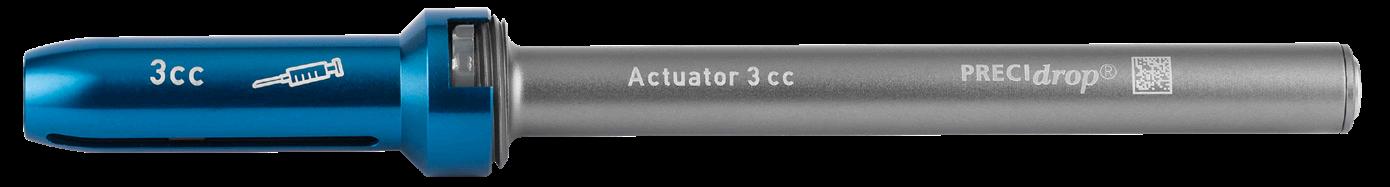

3cc Gun Measurements 206.9 mm (8.15 in) 26 mm (1.02 in)

14 mm (.55 in)

18 mm (.71 in) 74.2 mm (2.92 in)

8 | gpreeves.com

5cc Gun Measurements 201.4 mm (7.93 in) 26 mm (1.02 in)

21 mm (.83 in)

14 mm (.55 in) 68.7 mm (2.70in)

10cc Gun Measurements 226.2 mm (8.91 in) 29 mm (1.14 in)

26 mm (1.02 in)

20 mm (.79 in) 90.2 mm (3.55 in)

30cc Gun Measurements 289.9 mm (11.41 in) 40 mm (1.57 in)

34 mm (1.34 in)

20 mm (.79 in) 117.7 mm (4.63 in)

A 75cc gun is available as a special request lead time which may cause a longer lead time.

© 2019 | 9

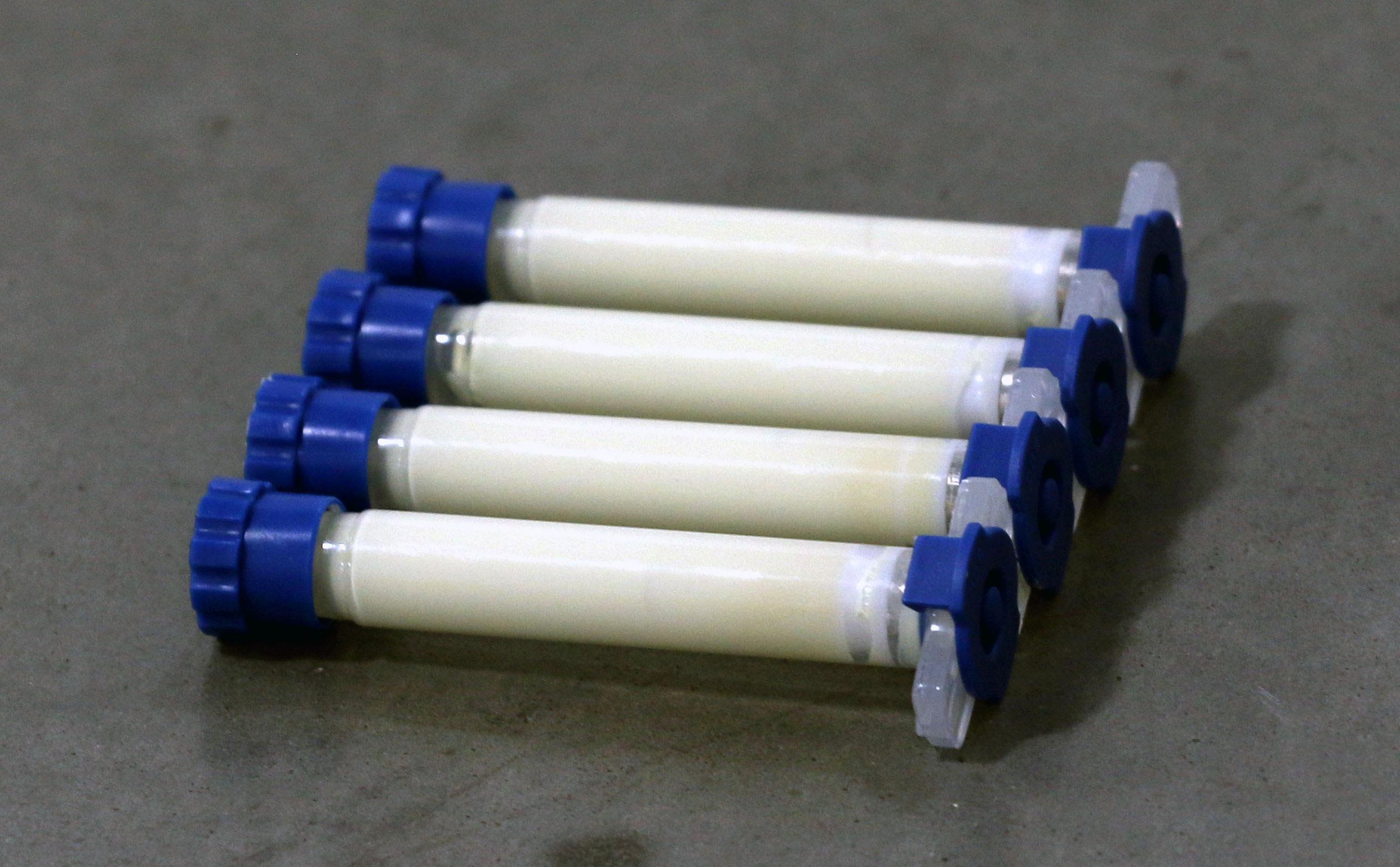

SYRINGES Air Powered Standard Premium Syringes BARREL TYPE

3 cc

5cc

10cc

30cc

Clear Barrel Reservoir

A012051

A013051

A014051

A016051

Black Barrel Reservoir

A012021

A013021

A014021

A016021

UV Amber Barrel Reservoir

A012091

A013091

A014091

A016091

DripFlow - Plastic Piston

A512401

A513401

A514401

A516401

SW Flow - Plastic Piston

A522401

A523401

A524401

A526401

Large Rubber Piston

A502202

A503202

A504202

A506202

Slim Rubber Piston

A502101

A503101

A504101

A506101

Standard Orange End Cap

A6420C1

A6430C1

A6440C1

A6460C1

Clear Tip Cap

A600031

A600031

A600031

A600031

Black Tip Cap

A600021

A600021

A600021

A600021

PreciFluid® Premium Syringes & Air Powered Opti BARREL TYPE

3 cc

5cc

10cc

30cc

Clear BarrelDrop OPTI Reservoir

BP03-CL

BP05-CL

BP10-CL

BP30-CL

Black BarrelDrop OPTI Reservoir

BP03-BLK BP05-BLK BP10-BLK BP30-BLK

UV Amber BarrelDrop OPTI Reservoir

BP03AMBR

BP05AMBR

BP10AMBR

BP30AMBR

PistonDrop for PreciFluid®

BMP-03

BMP-05

BMP-10

BMP-30

Air Powered OPTI Piston

B-OPTI03

B-OPTI05

B-OPTI10

B-OPTI30

OPTI Blue End Cap

A647003

A647005

A647010

A647030

Blue OPTI Tip Cap Three seal

A600051

A600051

A600051

A600051

10 | gpreeves.com

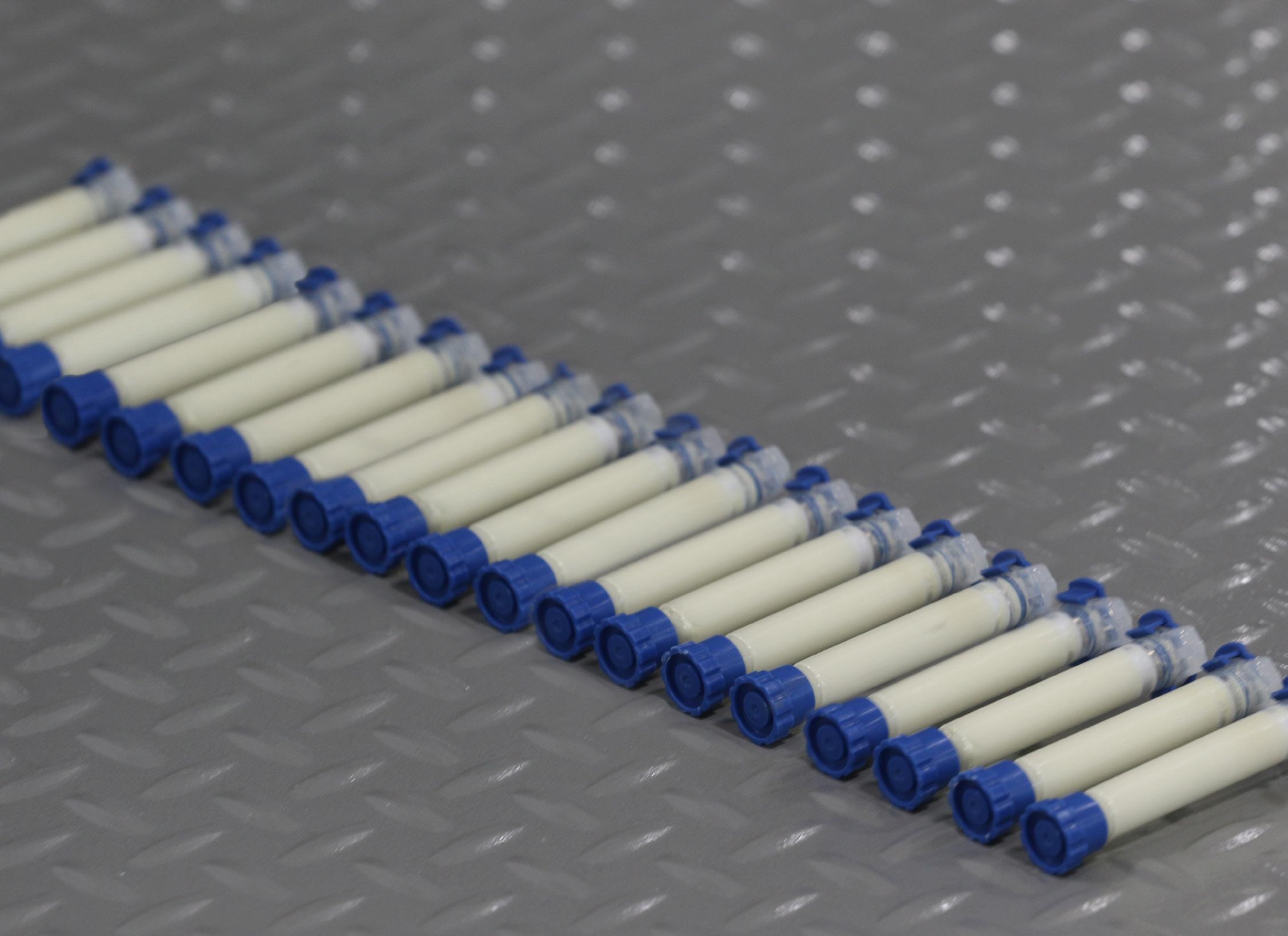

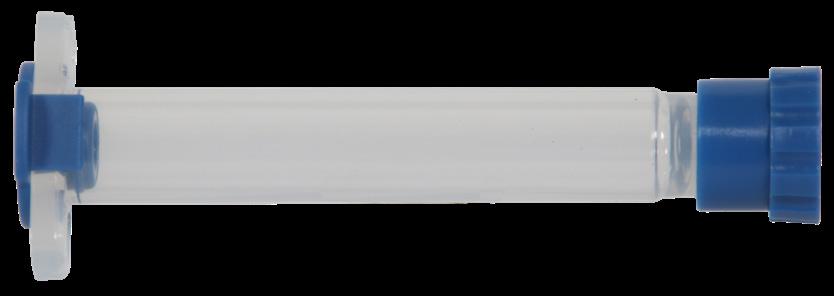

BarrelDrop Syringe: The walls of BarrelDrop dispensing syringes have completely homogeneous diameters, allowing a perfect fit with the PistonDrop. The fluid is then dispensed precisely and evenly.

The high quality polymer from which the syringes are molded provides transparency and outstanding chemical compatibility.

Having no imperfections or contaminants, the perfectly smooth cylinder BarrelDrop dispensing syringe provides a quick and precise release with no product waste.

As for the rounded design, it improves fluid flow and minimizes turbulence during filling and removal. The fluid deposition is thus free and laminar, without voids that could hold air. This conical shape eliminates product loss during application removal and filling.

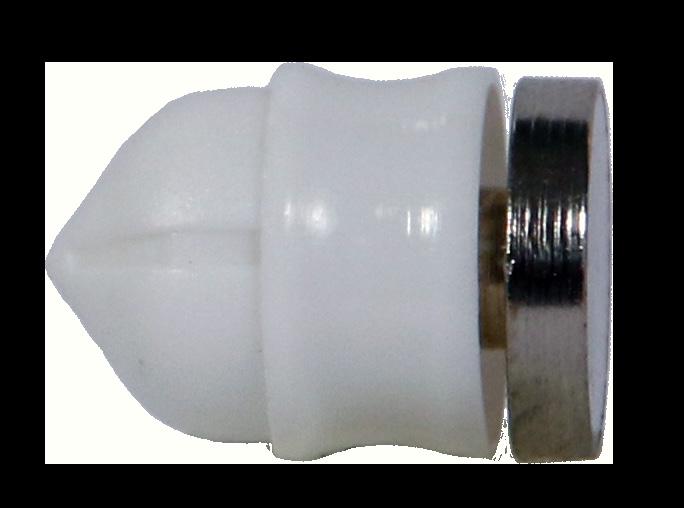

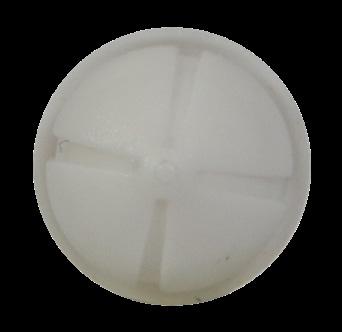

PistonDrop: In opposition with standard pistons, the PistonDrop pistons with metallic inserts are molded with accuracy in order to obtain a regular flow and a uniform movement. In addition, these are equipped with a metal nozzle which guarantees a fixation with the magnetic screw of the gun.

Manual Syringes Complete (Hand Plunger & Syringe) TYPE

1ml

2ml

3ml

Non-Scaled PDS01NSP

PDS02NSP

PDS03HSY

Scaled

SERHYP2ml

SHN3NSP

SH01NSP

5ml

10ml

20ml

30ml

–

PDS10NSP

PDS20NSP

PDS30SNP

–

–

SH5NSP

SH10NSP

SH20NSP

SY30HSY

SY50HSY

SERHYP60

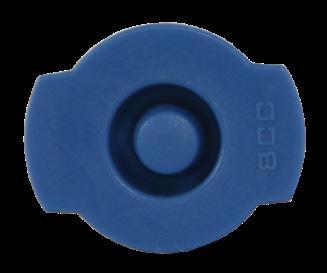

Cap: Caps availables in 3cc, 5cc, 10cc and 30cc. Available in blue, orange and green.

50ml

60ml

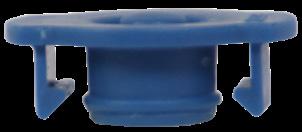

TipCap: Tip caps for contaminant proof sealing. Available in blue, orange and green.

© 2019 | 11

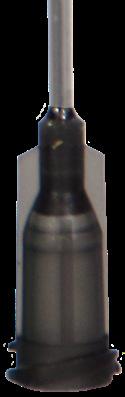

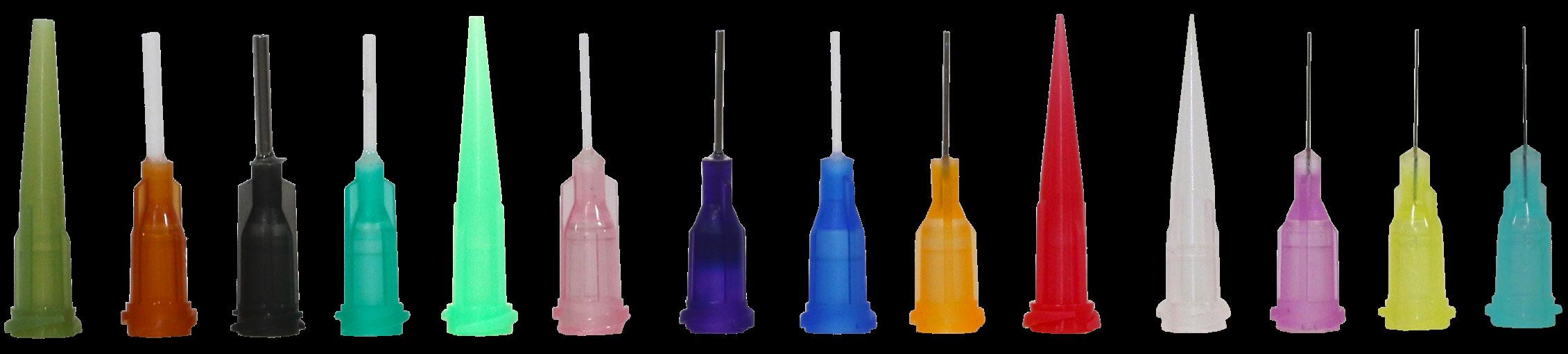

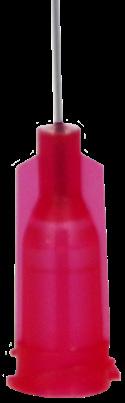

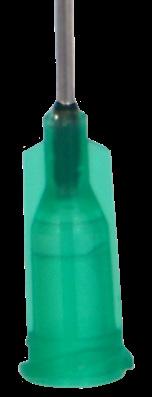

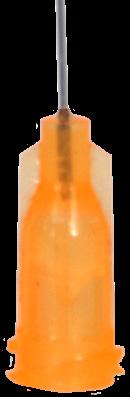

TIPS Needle Tips Reference COLOR

Olive

Brown

Grey

Green

Light Green

Pink

Purple Blue

Orange

Red

Clear

Lavender Yellow

Cyan

GAUGE

14

15

16

18

19

20

21

22

23

25

27

30

32

34

1.37

1.19

0.84

0.69

0.61

0.51

0.41

0.33

0.25

0.21

0.16

0.11

0.06

ID (mm) 1.55 ID (in)

0.0610 0.0539

0.0469 0.0331

0.0271 0.0240 0.0201 0.0161 0.0130 0.0098 0.0083 0.0063

0.0043 0.0023

Part Number Builder

LLN-[Needle Type][Gauge]-[Length in inches]-[Bend]* *Optional based on needle type Perfectly Straight Stainless Steel (PS) GAUGE

LENGTH 0.25” / 6.35mm

0.5” / 12.7mm

1” / 25.4mm

1.5” / 38.1mm

14

LLN-PS14-.25

LLN-PS14-.5

LLN-PS14-1

LLN-PS14-1.5

15

LLN-PS15-.25

LLN-PS15-.5

LLN-PS15-1

LLN-PS15-1.5

16

LLN-PS16-.25

LLN-PS16-.5

LLN-PS16-1

LLN-PS16-1.5

18

LLN-PS18-.25

LLN-PS18-.5

LLN-PS18-1

LLN-PS18-1.5

19

LLN-PS19-.25

LLN-PS19-.5

LLN-PS19-1

LLN-PS19-1.5

20

LLN-PS20-.25

LLN-PS20-.5

LLN-PS20-1

LLN-PS20-1.5

21

LLN-PS21-.25

LLN-PS21-.5

LLN-PS21-1

LLN-PS21-1.5

22

LLN-PS22-.25

LLN-PS22-.5

LLN-PS22-1

LLN-PS22-1.5

23

LLN-PS23-.25

LLN-PS23-.5

LLN-PS23-1

LLN-PS23-1.5

25

LLN-PS25-.25

LLN-PS25-.5

LLN-PS25-1

LLN-PS25-1.5

27

LLN-PS27-.25

LLN-PS27-.5

LLN-PS27-1

LLN-PS27-1.5

30

LLN-PS30-.25

LLN-PS30-.5

–

–

32

LLN-PS32-.25

LLN-PS32-.5

–

–

34

LLN-PS34-.25

LLN-PS34-.5

–

–

12 | gpreeves.com

Conical (C)

Conical Hi-Flow (CHF)

Flexible (F)

GAUGE

STANDARD

GAUGE

HIGH FLOW

14

LLN-C14-1.24

14

LLN-CHF14-1.24

16

LLN-C16-1.24

16

LLN-CHF16-1.24

18

LLN-C18-1.24

18

LLN-CHF18-1.24

20

LLN-C20-1.24

20

LLN-CHF20-1.24

22

LLN-C22-1.24

22

LLN-CHF22-1.24

25

LLN-C25-1.24

25

27

LLN-C27-1.24

27

GAUGE

LENGTH .5” / 12.7mm

1” / 25.4mm

1.5” / 38.1mm

15

LLN-F15-.5

LLN-F15-1

LLN-F15-1.5

18

LLN-F18-.5

LLN-F18-1

LLN-F18-1.5

20

LLN-F20-.5

LLN-F20-1

LLN-F20-1.5

LLN-CHF25-1.24

22

LLN-F22-.5

LLN-F22-1

LLN-F22-1.5

LLN-CHF27-1.24

25

LLN-F25-.5

LLN-F25-1

LLN-F25-1.5

Luer Metal Reusable Tips / Laboratory Tips (LM) LENGTH GAUGE

0.5” / 12.7mm

1” / 25.4mm

1.5” / 38.1mm

2” / 50.8mm

8

LLN-LM8-.5

LLN-LM8-1

LLN-LM8-1.5

LLN-LM8-2

10

LLN-LM10-.5

LLN-LM10-1

LLN-LM10-1.5

LLN-LM10-2

11

LLN-LM11-.5

LLN-LM11-1

LLN-LM11-1.5

LLN-LM11-2

12

LLN-LM12-.5

LLN-LM12-1

LLN-LM12-1.5

LLN-LM12-2

13

LLN-LM13-.5

LLN-LM13-1

LLN-LM13-.15

LLN-LM13-2

14

LLN-LM14-.5

LLN-LM14-1

LLN-LM14-1.5

LLN-LM14-2

15

LLN-LM15-.5

LLN-LM15-1

LLN-LM15-1.5

LLN-LM15-2

16

LLN-LM16-.5

LLN-LM16-1

LLN-LM16-1.5

LLN-LM16-2

17

LLN-LM17-.5

LLN-LM17-1

LLN-LM17-1.5

LLN-LM17-2

18

LLN-LM18-.5

LLN-LM18-1

LLN-LM18-1.5

LLN-LM18-2

19

LLN-LM19-.5

LLN-LM19-1

LLN-LM19-1.5

LLN-LM19-2

20

LLN-LM20-.5

LLN-LM20-1

LLN-LM20-1.5

LLN-LM20-2

21

LLN-LM21-.5

LLN-LM21-1

LLN-LM21-1.5

LLN-LM21-2

22

LLN-LM22-.5

LLN-LM22-1

LLN-LM22-1.5

LLN-LM22-2

23

LLN-LM23-.5

LLN-LM23-1

LLN-LM23-1.5

LLN-LM23-2

24

LLN-LM24-.5

LLN-LM24-1

LLN-LM24-1.5

LLN-LM24-2

25

LLN-LM25-.5

LLN-LM25-1

LLN-LM25-1.5

LLN-LM25-2

26

LLN-LM26-.5

LLN-LM26-1

LLN-LM26-1.5

LLN-LM26-2

27

LLN-LM27-.5

LLN-LM27-1

LLN-LM27-1.5

LLN-LM27-2

30

LLN-LM30-.5

LLN-LM30-1

LLN-LM30-1.5

LLN-LM30-2

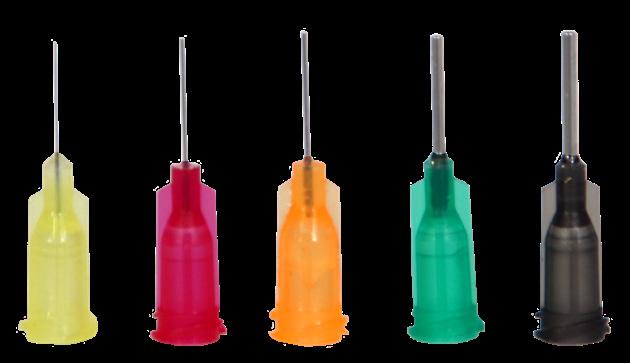

Perfectly Straight Stainless Steel: Standard stainless steel metering needles are intended for dispensing a wide variety of fluids and applications.

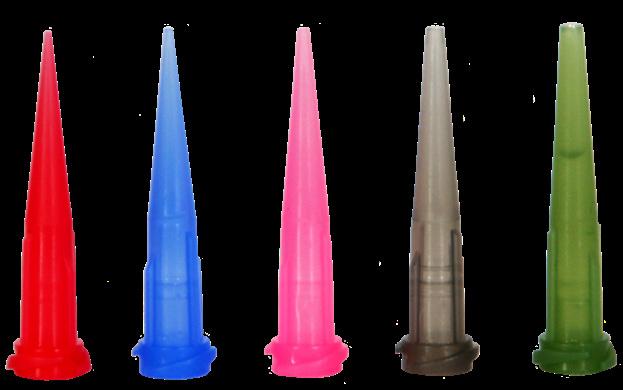

Conical Needles: Designed for medium viscosity fluids with high flow, conical needles enable fast and consistent deposits products. They are especially recommended for the removal of thick products or charged particles.

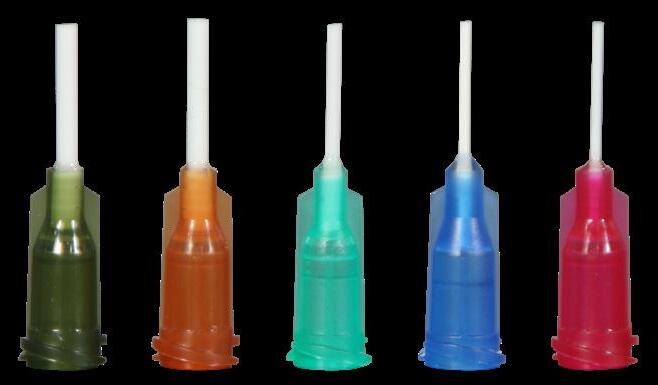

Flexible Needles: These needles have flexible rods made of polypropylene that can be cut to size for accessing hard to reach areas.

© 2019 | 13

TIPS Precisely Bent (PB) GAUGE

.5” / 12.7mm LENGTH

1” / 25.4mm LENGTH

1.5” / 38.1mm LENGTH

45° BEND

90° BEND

45° BEND

90° BEND

45° BEND

90° BEND

14

LLN-PB14-.5-45

LLN-PB14-.5-90

LLN-PB14-1-45

LLN-PB14-1-90

LLN-PB14-1.5-45

LLN-PB14-1.5-90

15

LLN-PB15-.5-45

LLN-PB15-.5-90

LLN-PB15-1-45

LLN-PB15-1-90

LLN-PB15-1.5-45

LLN-PB15-1.5-90

16

LLN-PB16-.5-45

LLN-PB16-.5-90

LLN-PB16-1-45

LLN-PB16-1-90

LLN-PB16-1.5-45

LLN-PB16-1.5-90

18

LLN-PB18-.5-45

LLN-PB18-.5-90

LLN-PB18-1-45

LLN-PB18-1-90

LLN-PB18-1.5-45

LLN-PB18-1.5-90

20

LLN-PB20-.5-45

LLN-PB20-.5-90

LLN-PB20-1-45

LLN-PB20-1-90

LLN-PB20-1.5-45

LLN-PB20-1.5-90

21

LLN-PB21-.5-45

LLN-PB21-.5-90

LLN-PB21-1-45

LLN-PB21-1-90

LLN-PB21-1.5-45

LLN-PB21-1.5-90

22

LLN-PB22-.5-45

LLN-PB22-.5-90

LLN-PB22-1-45

LLN-PB22-1-90

LLN-PB22-1.5-45

LLN-PB22-1.5-90

23

LLN-PB23-.5-45

LLN-PB23-.5-90

LLN-PB23-1-45

LLN-PB23-1-90

LLN-PB23-1.5-45

LLN-PB23-1.5-90

25

LLN-PB25-.5-45

LLN-PB25-.5-90

LLN-PB25-1-45

LLN-PB25-1-90

LLN-PB25-1.5-45

LLN-PB25-1.5-90

27

LLN-PB27-.5-45

LLN-PB27-.5-90

–

–

–

–

30

LLN-PB30-.5-45

LLN-PB30-.5-90

–

–

–

–

Precisely Bent Stainless Steel: Bent stainless steel dispensing needles are available with 45º and 90º bends.

14 | gpreeves.com

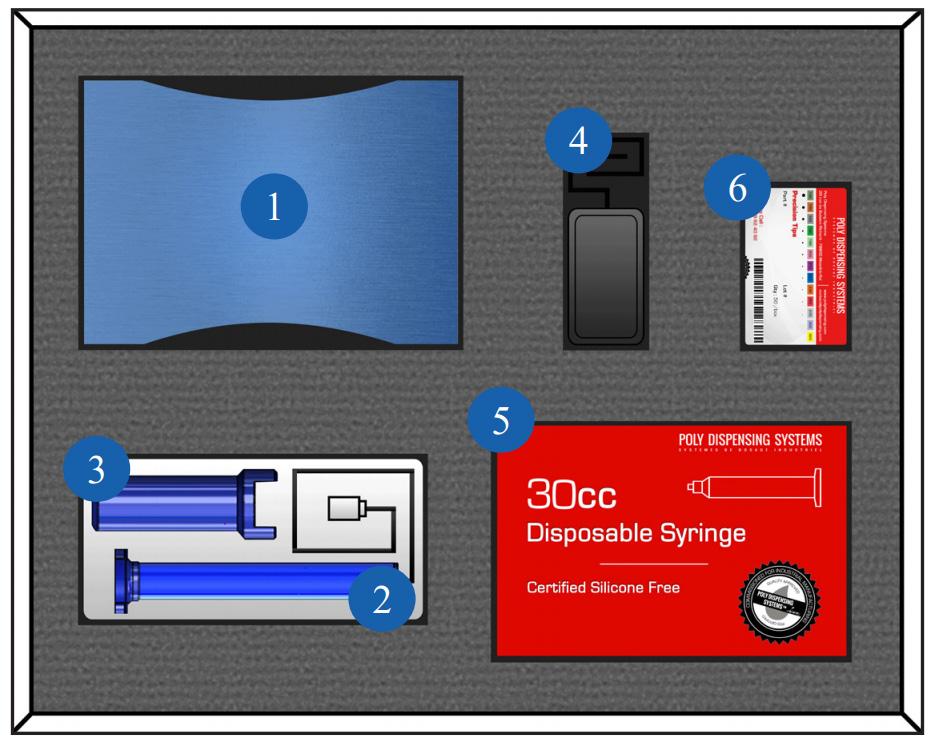

SYSTEMS AND KITS Mechanical PreciFluid® Dispenser PART NUMBER

DESCRIPTION

PDS-DRU3CC

PreciFluid® Dispenser 3cc - Complete Box

PDS-DRU5CC

PreciFluid® Dispenser 5cc - Complete Box

PDS-DRU10CC

PreciFluid® Dispenser 10cc - Complete Box

PDS-DRU30CC

PreciFluid® Dispenser 30cc - Complete Box

PDS-DRU75CC*

PreciFluid® Dispenser 75cc - Complete Box

DISPENSER GUN ONLY PDS-PDT3CC

PreciDrop Gun 3cc complete

PDS-PDT5CC

PreciDrop Gun 5cc complete

PDS-PDT10CC

PreciDrop Gun 10cc complete

PDS-PDT30CC

PreciDrop Gun 30cc complete

PDS-PDT75CC*

PreciDrop Gun 75cc complete

CONTROL UNIT ONLY PDS-DRC

Control Unit Standard DropUnit PreciFluid®

PDS-DRC75*

Control Unit 75cc DropUnit PreciFluid®

PreciFluid® ACCESSORIES PDS-KD3/5CC

Starter Kit for PreciFluid® 3 & 5 cc

PDS-KD10CC

Starter Kit for PreciFluid® 10 cc

PDS-KD30CC

Starter Kit for PreciFluid® 30cc

PDS-KD75CC

Starter Kit for PreciFluid® 75 cc

PDS-RPC1

Extend Cable 1 Meter for PreciFluid®

PDS-SDP

Stand for Gun PreciFluid®

PDS-PDC

Foot Pedal for PreciFluid®

PDS-KA

Starter Kit Needle Tips for PreciFluid®

PDS-CAD

Finger Switch HQ for PreciFluid®

PDS-AEXT

Power Supply for PreciFluid®

BDET003

DropTube 3cc

BDET005

DropTube 5cc

BDET010

DropTube 10cc

BDET030

DropTube 30cc

BDET075

DropTube 75cc

* Special order upon request

© 2019 | 15

EQUIPMENT Example kit, other configurations are available upon request.

4

1 – Case DropUnit: Control Unit

6

1

2 – DropGun: Linear Distribution System 3 – DropTube Case: Adaptable size and stablizing magnet

5 3

4 – 9V Battery Pack 5 – Starter Kit: Syringes & Pistons

2

6 – Needles DropTips: Sizes 14G to 32G

1 – PreciFluid® Gun

2

The system of linear distribution with a stepping motor and a magnetic feeding augur guarantees an identical movement for each deposit until the syringe is empty. Stability is the most important factor to get a consistent deposit of the fluid.

3

2 – DropTips Needles

Size from 14g to 32g, coded and colored nozzles, silicone free certified

3 – DropTube

Adaptable size, stabilization magnet, aluminum conception

4

4 – BarrelDrop Syringe

Sizes: 3, 5, 10, 30cc, UV protection, certified silicone free

1 5

16 | gpreeves.com

5 – PistonDrop

Magnetic holding, without dripping, straight walls

CONTROL ACCESSORIES

FingerDrop Finger Switch (PDS-CAD)

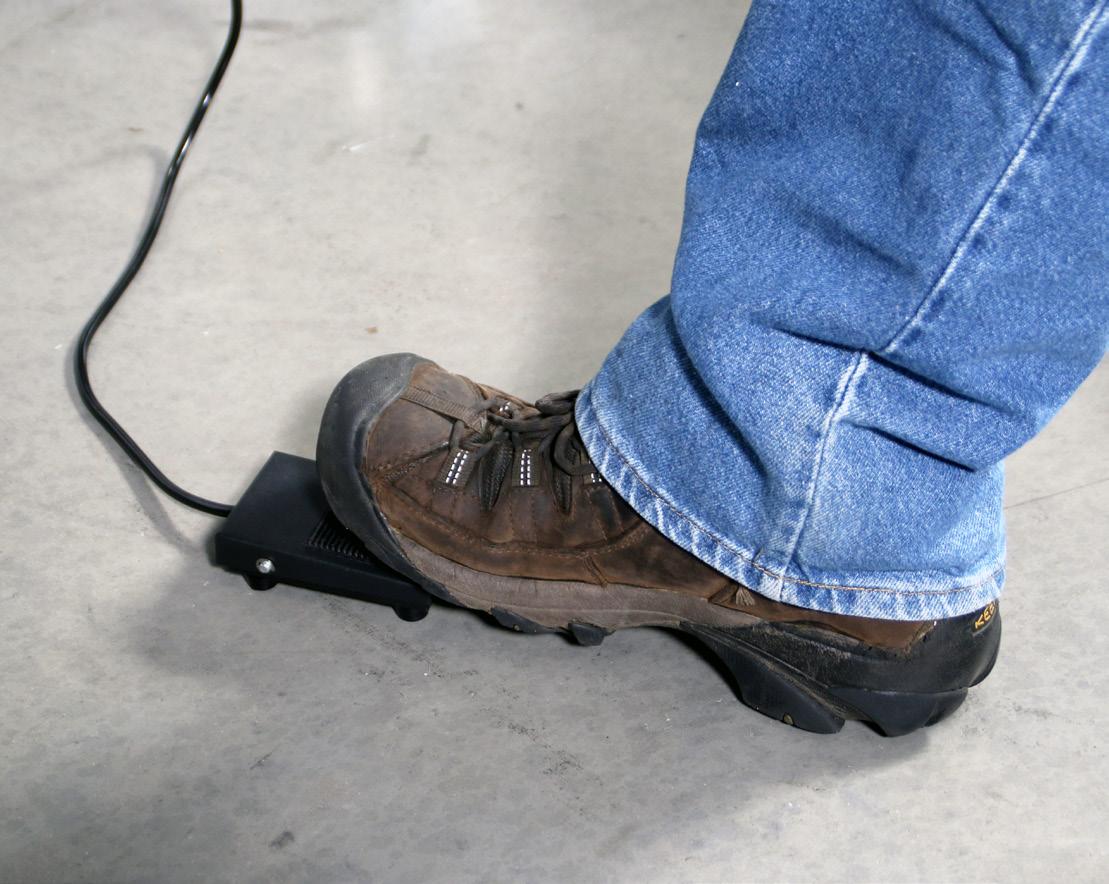

Foot Pedal (PDS-PDC)

When purchasing a kit, the foot pedal option is included. An alternate option for tabletop use is the FingerDrop Finger Switch, which allows you to control the dispensing through a button on the pen.

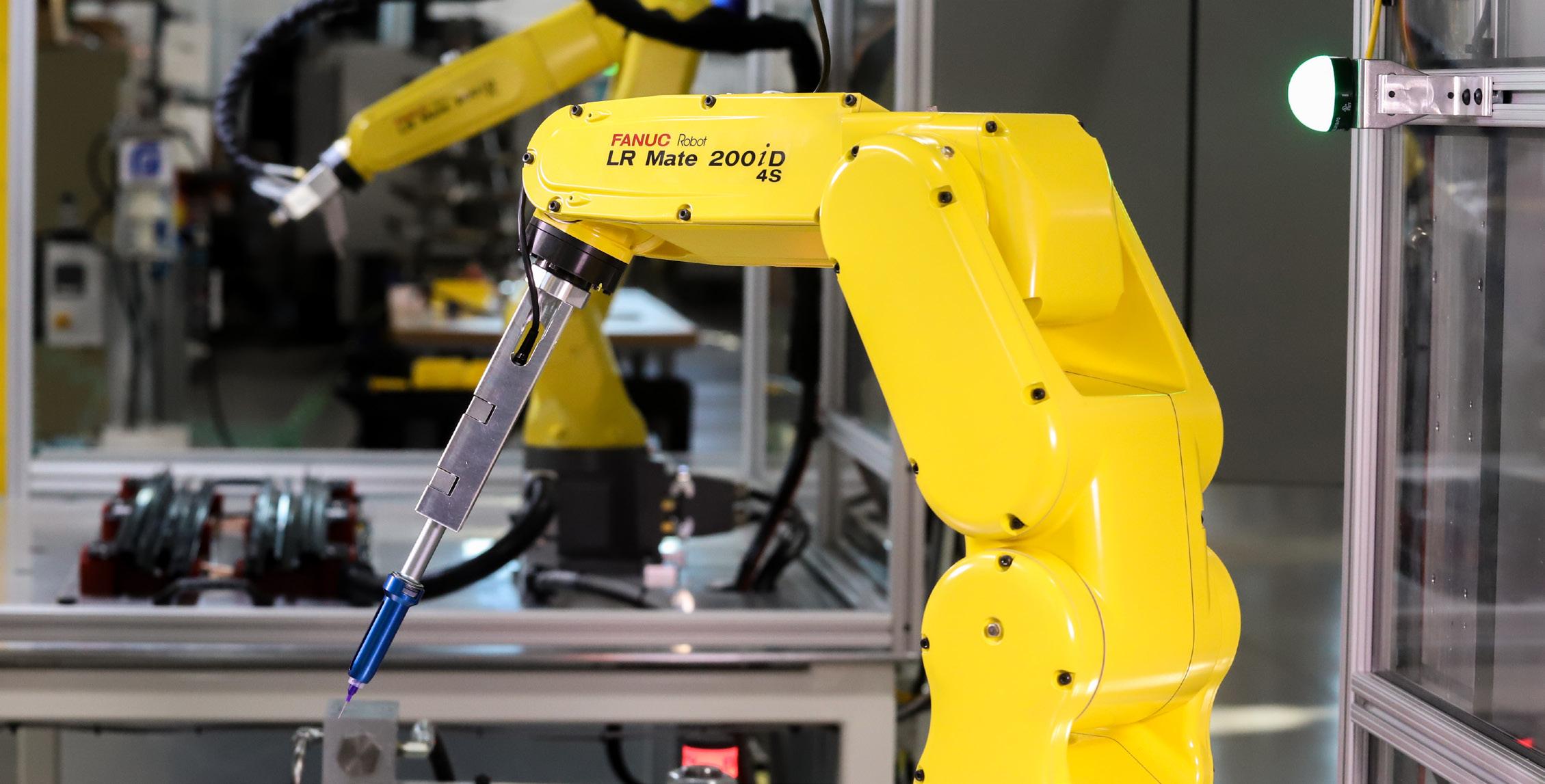

Robot Adapter Mount (PDS-ROB1)

In addition to the options provided by Poly Dispensing Systems, GP Reeves can engineer custom mounts, including the Robot Adapter mount, allowing the PreciFluid® System to become even more precise and automated.

© 2019 | 17

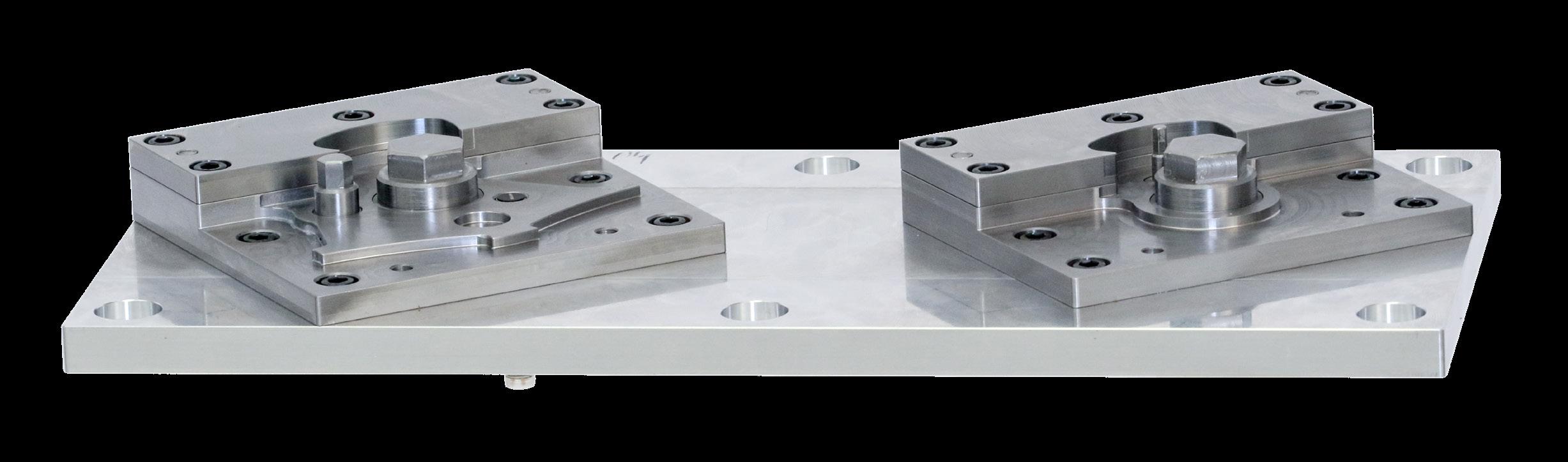

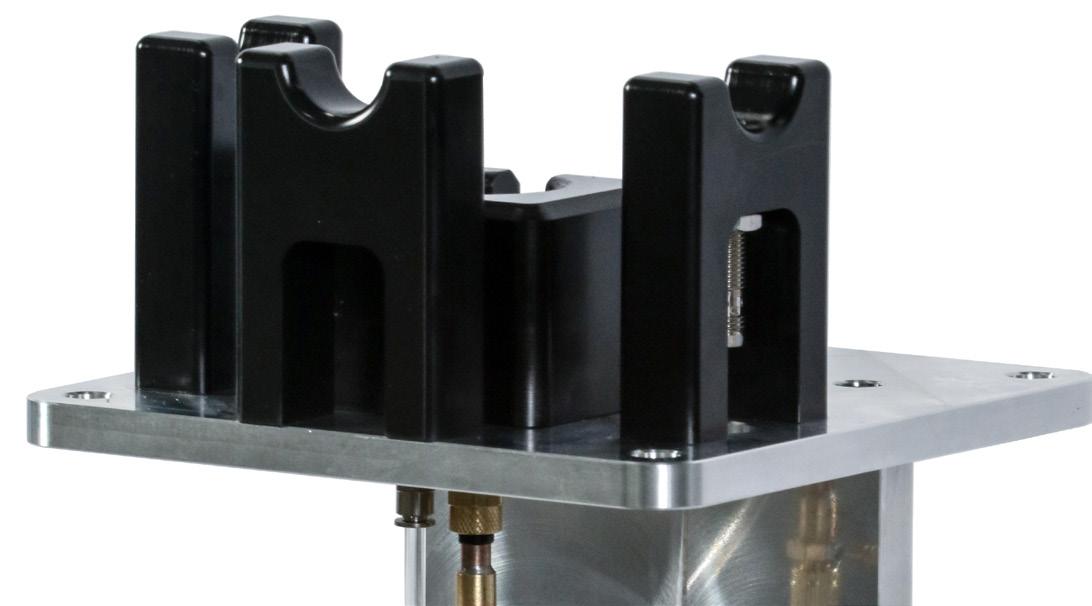

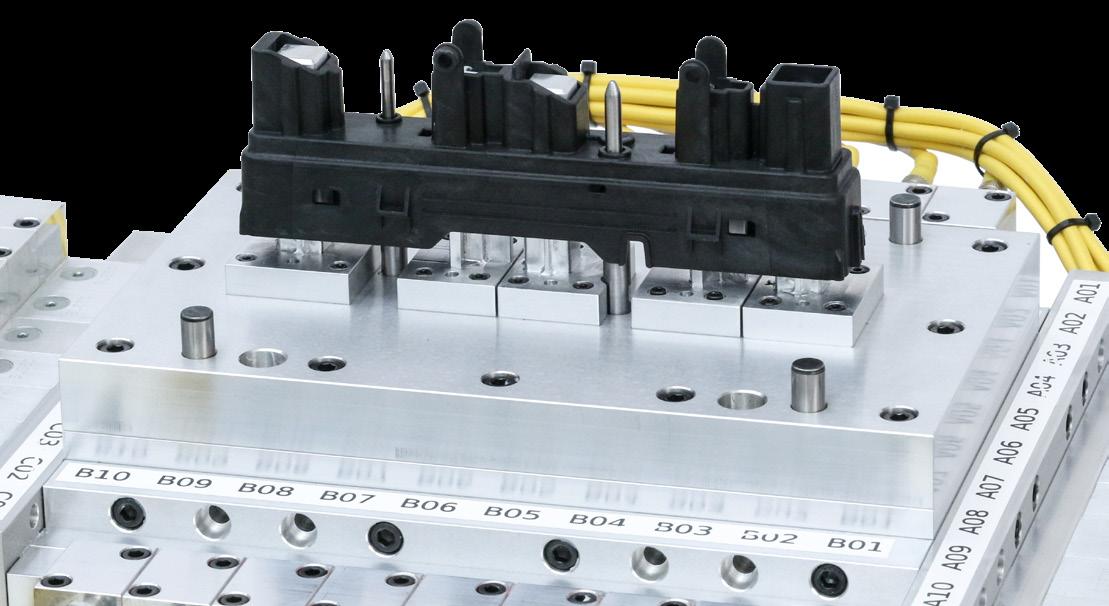

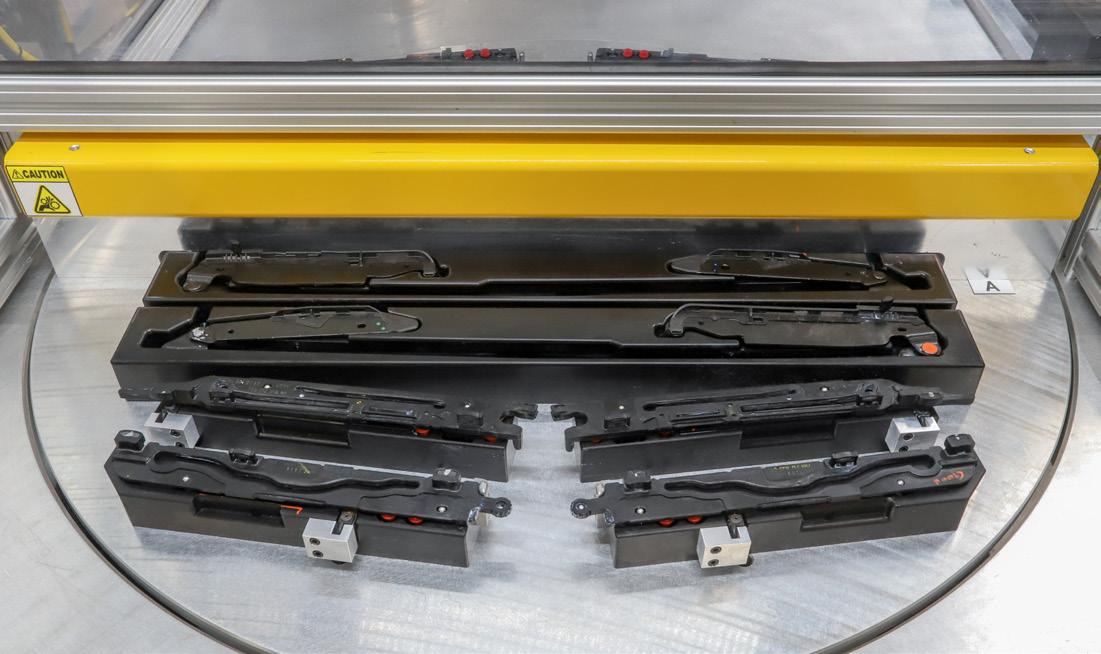

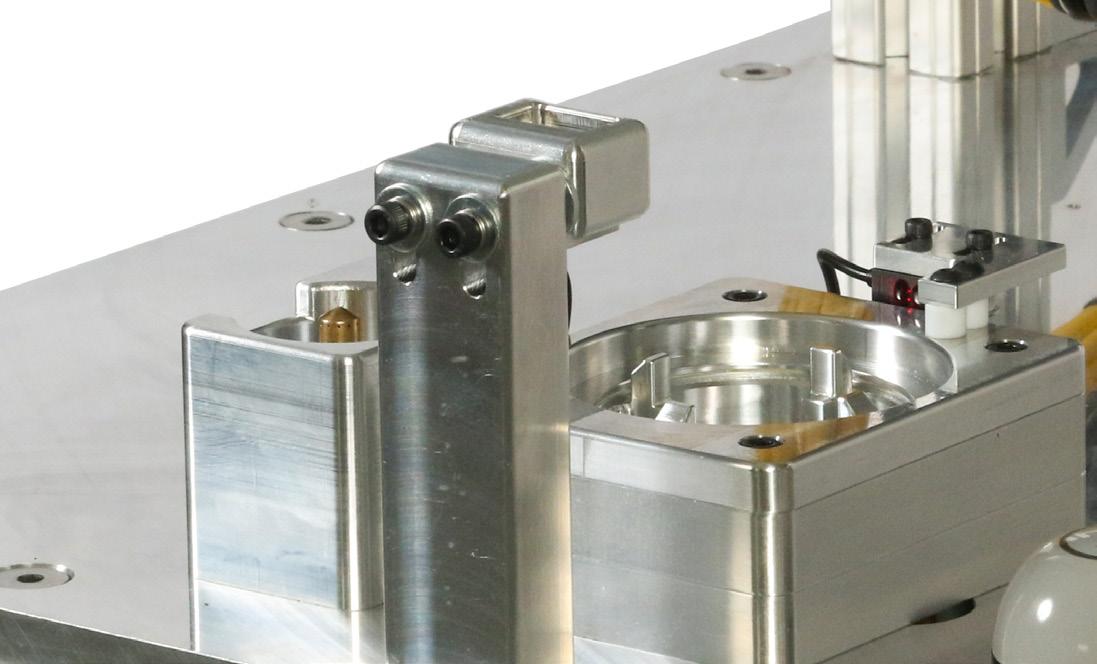

CUSTOM PART NESTS We design and fabricate a wide variety of custom nests design to fit your part and production process. Precise fluid dispensing deserves a precision fit nest custom made just for your part.

18 | gpreeves.com

FILL & SHIP Would you prefer to let us manage the storing and filling of the cartridges? We can buy and fill in bulk to pass the convenience on to our customers. Our team will fill, pack, and ship the ready to dispense cartridges as you need them and just when you need them. We use the same rapid and robust dispensing technology that we have supplied for decades to our customers to dispense and pack PreciFluid® cartridges for you.

© 2019 | 19

GP Reeves Inc. 4551 Holland Ave. Holland MI 49424

20190920

gpreeves.com Phone: 888-399-8893 Fax: 616-399-8867
