UNDERGRADUATE B.ARCH THESIS RESEARCH

SITE ANALYSIS:

LOCATION

CLIMATOLOGICAL DATA

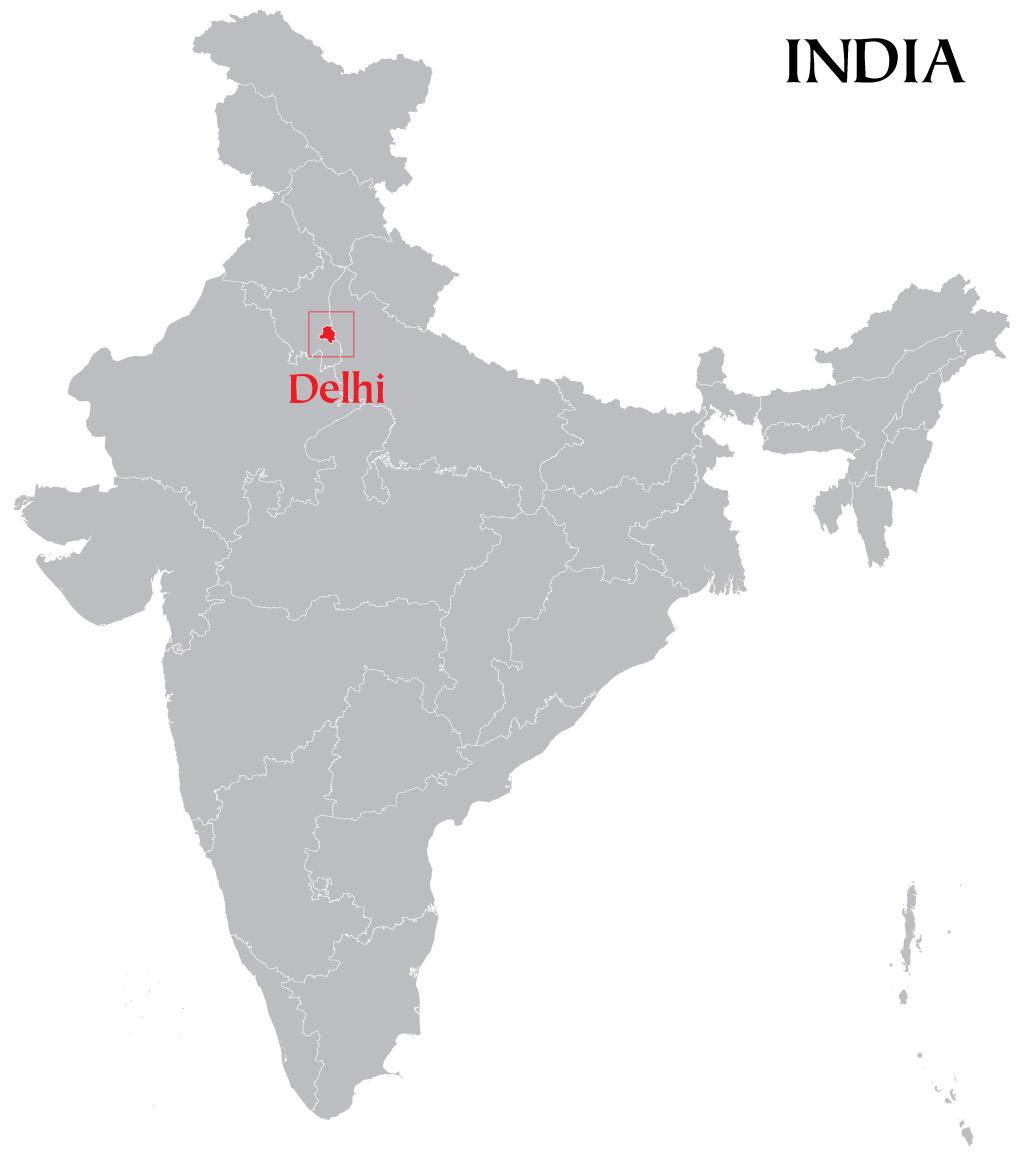

INDIA

POTENTIAL ENTRY/ EXIT POINT ON SITE

TO

AU RO

DELHI

BIN

DO

LADO SARAI

MA

RG

Source- alamy.com/Self

INTRODUCTION

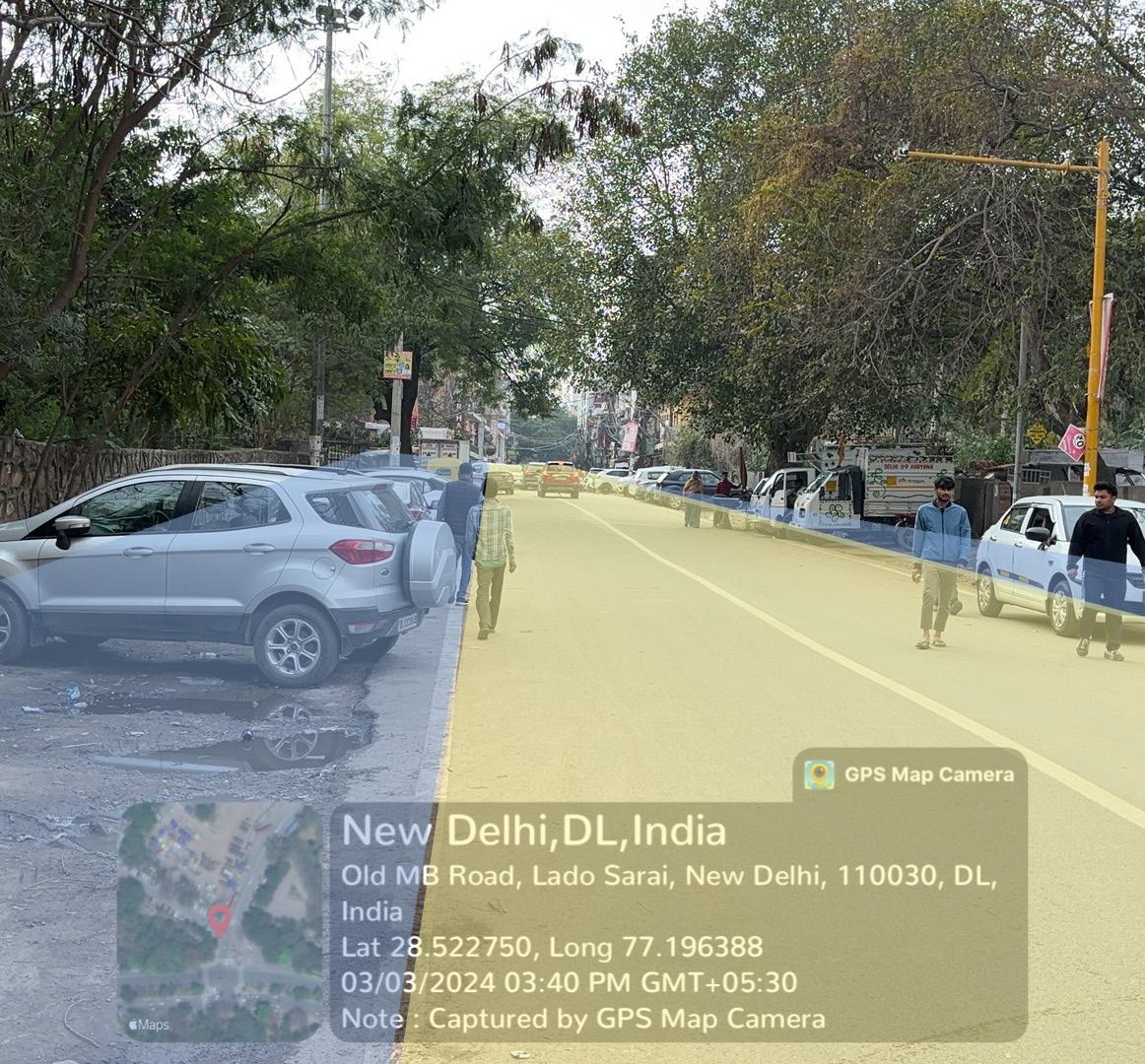

EXISTING INFORMAL ROAD

3 2

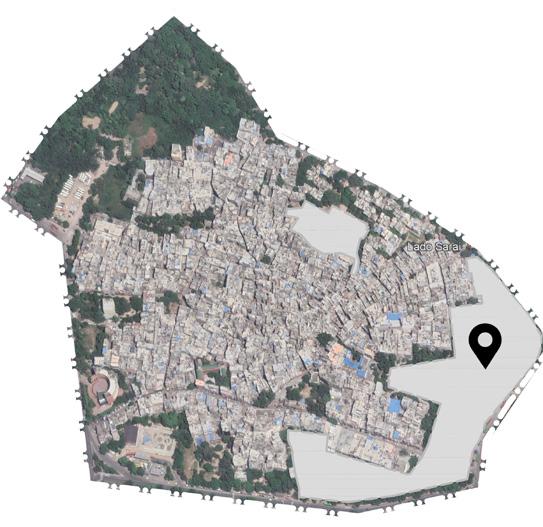

PROPOSED SITE 15 ACRES

Source- Self

• Site is an underutilized edges of vacant DDA land located at lado sarai, New Delhi.

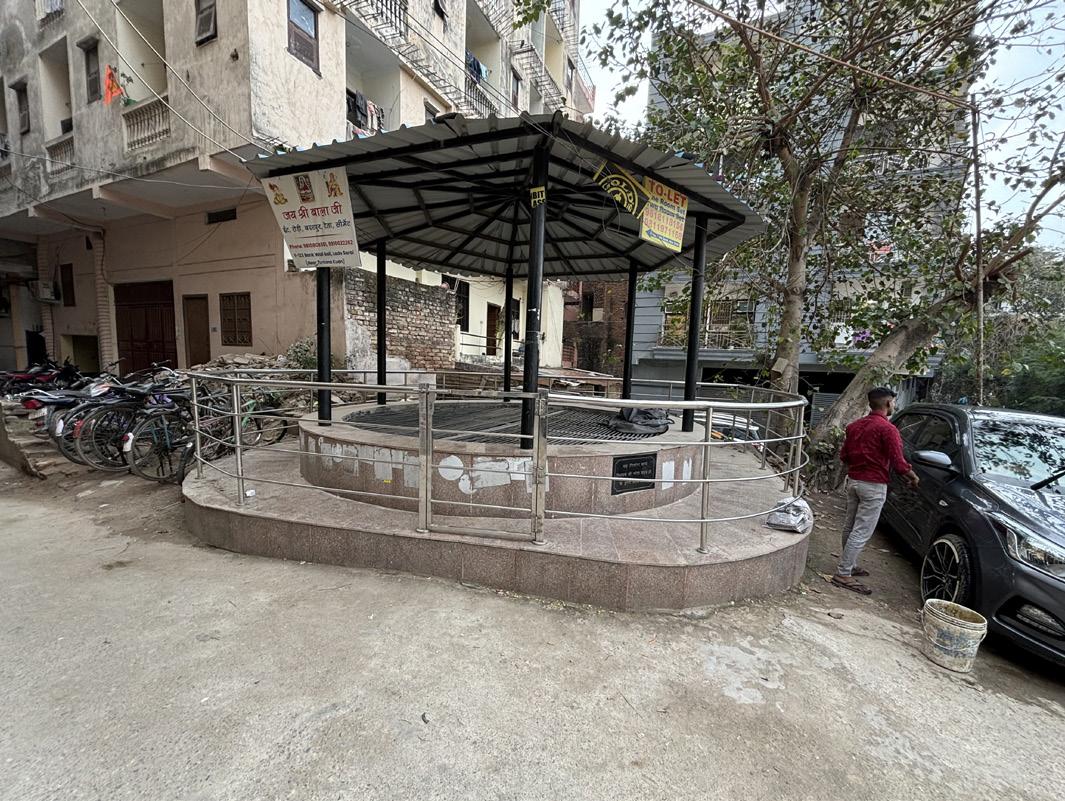

• Site consist of informal road, unofficial car parking, existing MCD school etc.

• Lado Sarai is located within a large green area containing many important historical monuments.

• The immediate surroundings include forested areas, an archaeological park, traces of historic cities, a golf course and neighbourhood parks maintained by the Delhi Development Authority.

• Important roads connect Lado Sarai and Mehrauli with New Delhi, Shahjahanabad, Badarpur, Gurgaon and the adjoining states of Up, Punjab and Rajasthan.

• The unregulated edges of the existing habitation are proposed for planned development which can form the urban interface and help in de-congesting the existing built environment.

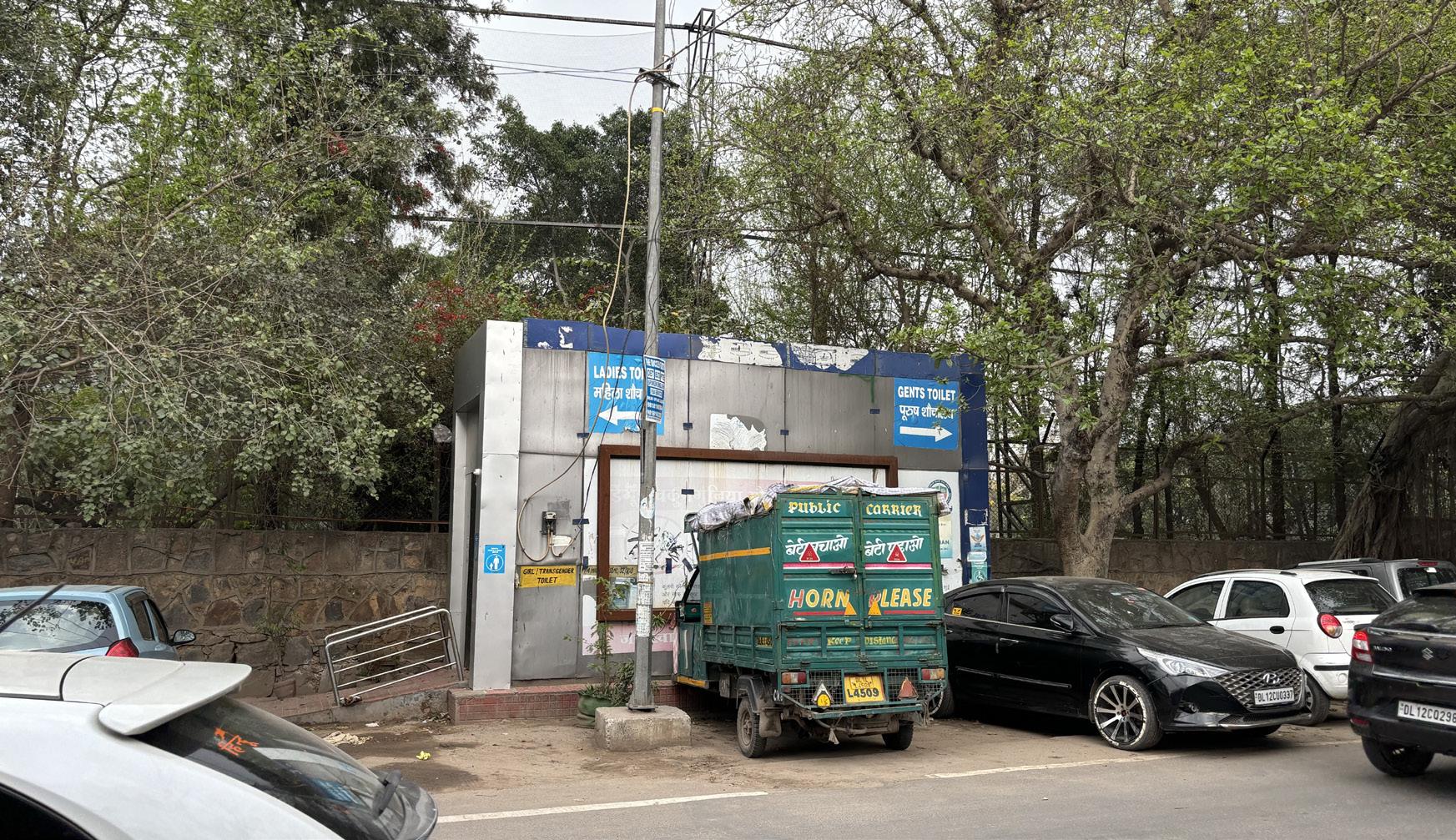

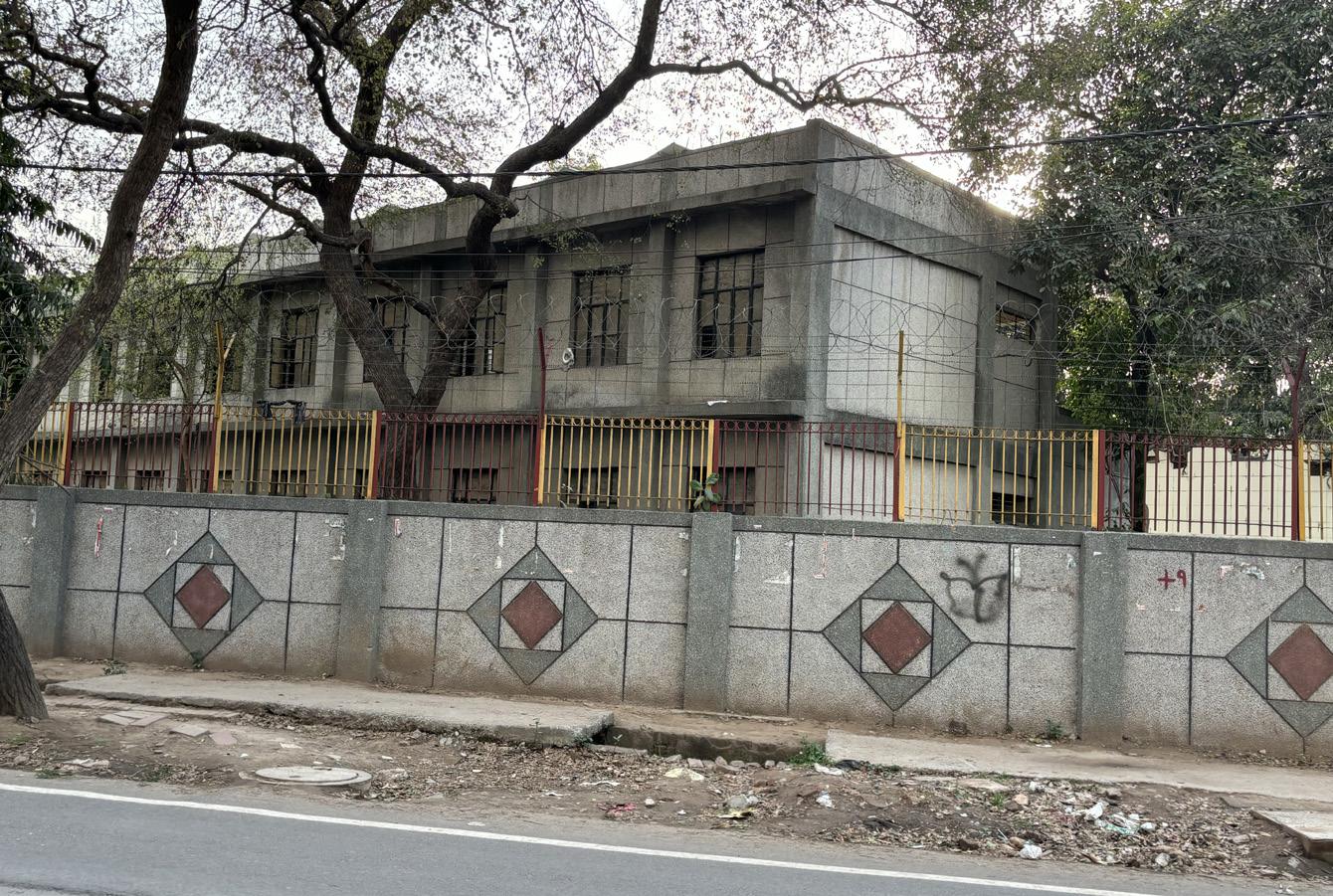

EXISTING MCD SCHOOL

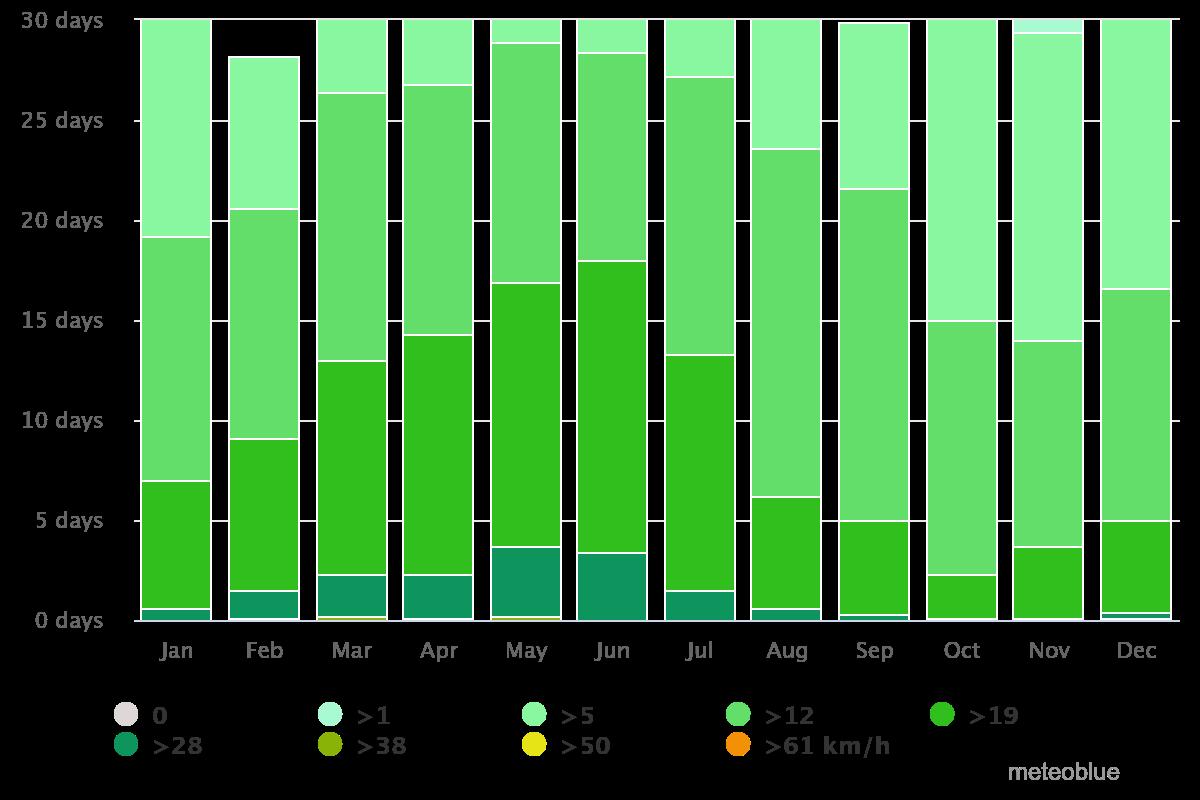

Yearly wind Speed Source- meteoblue

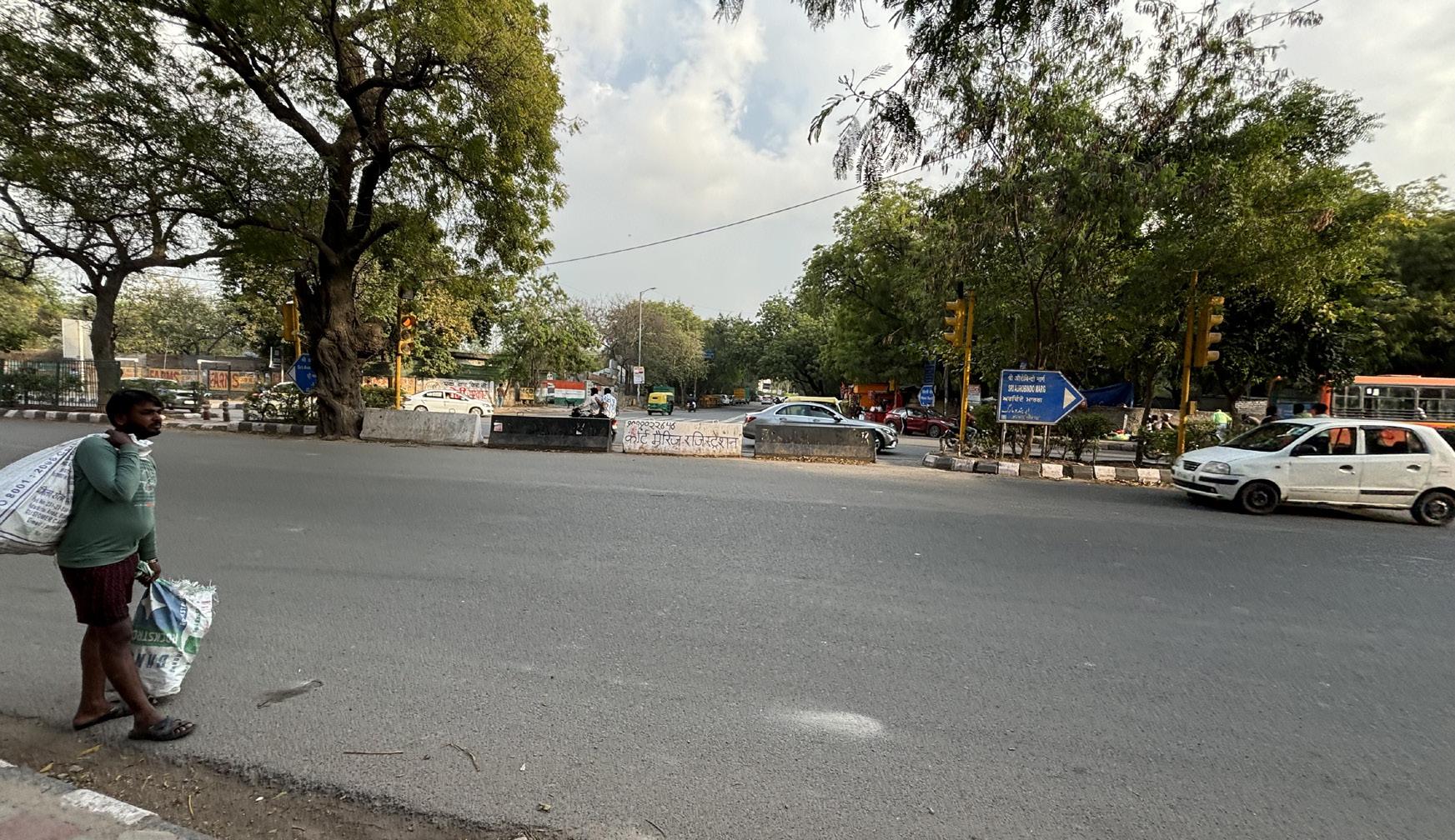

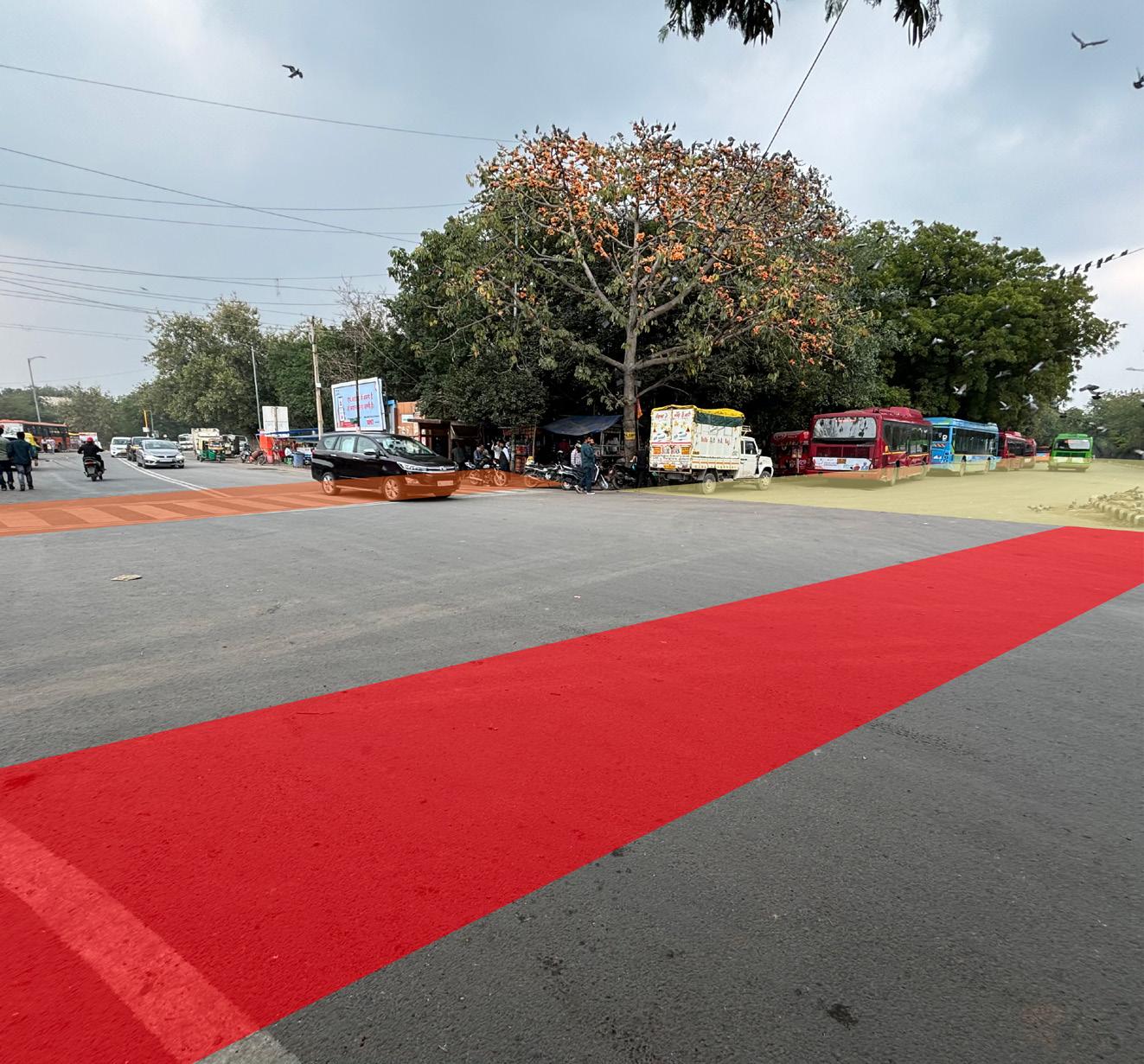

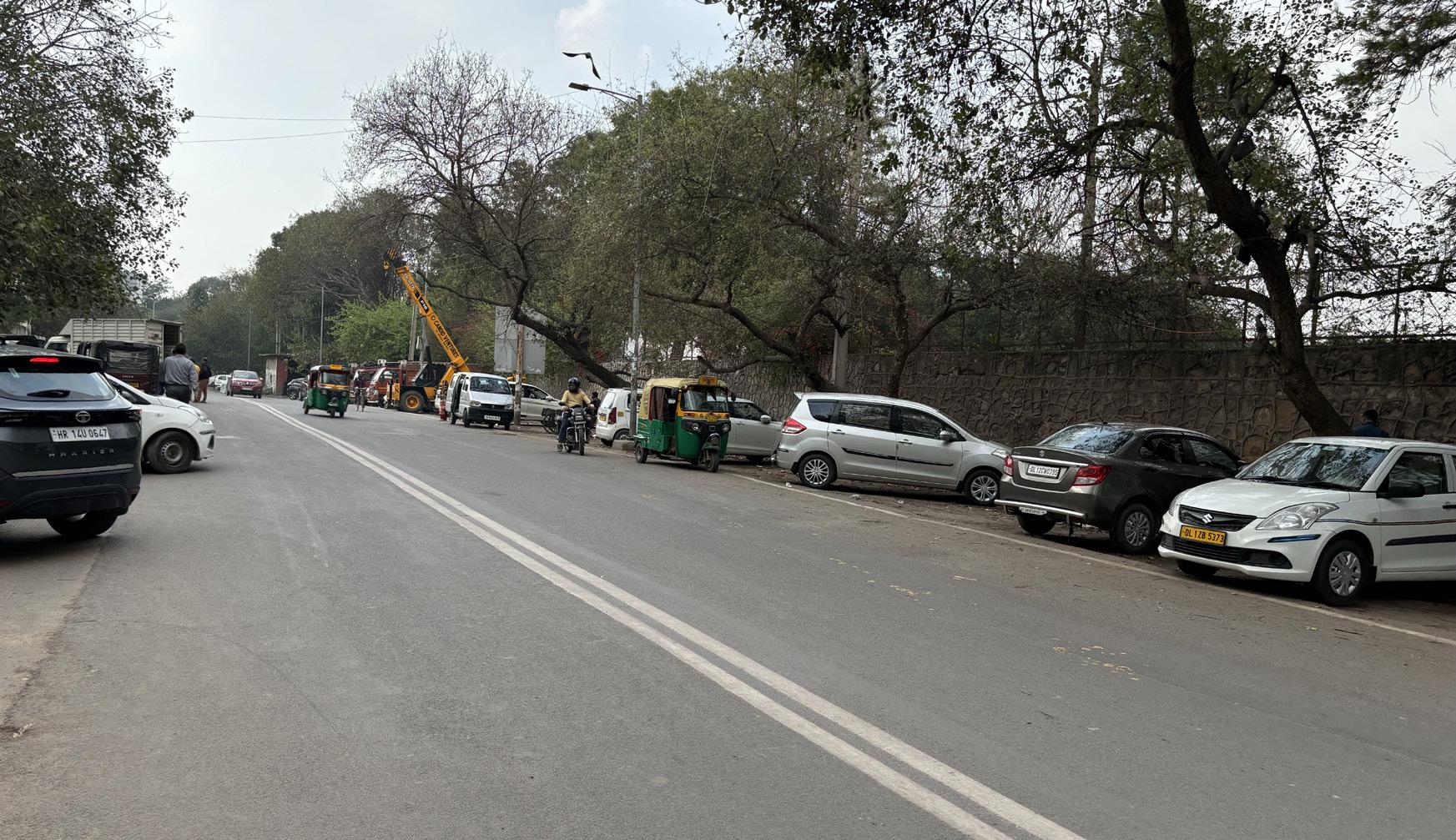

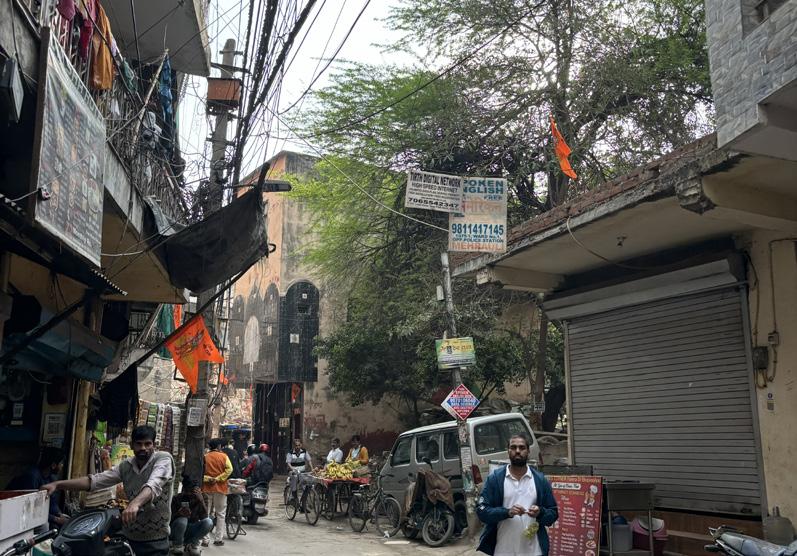

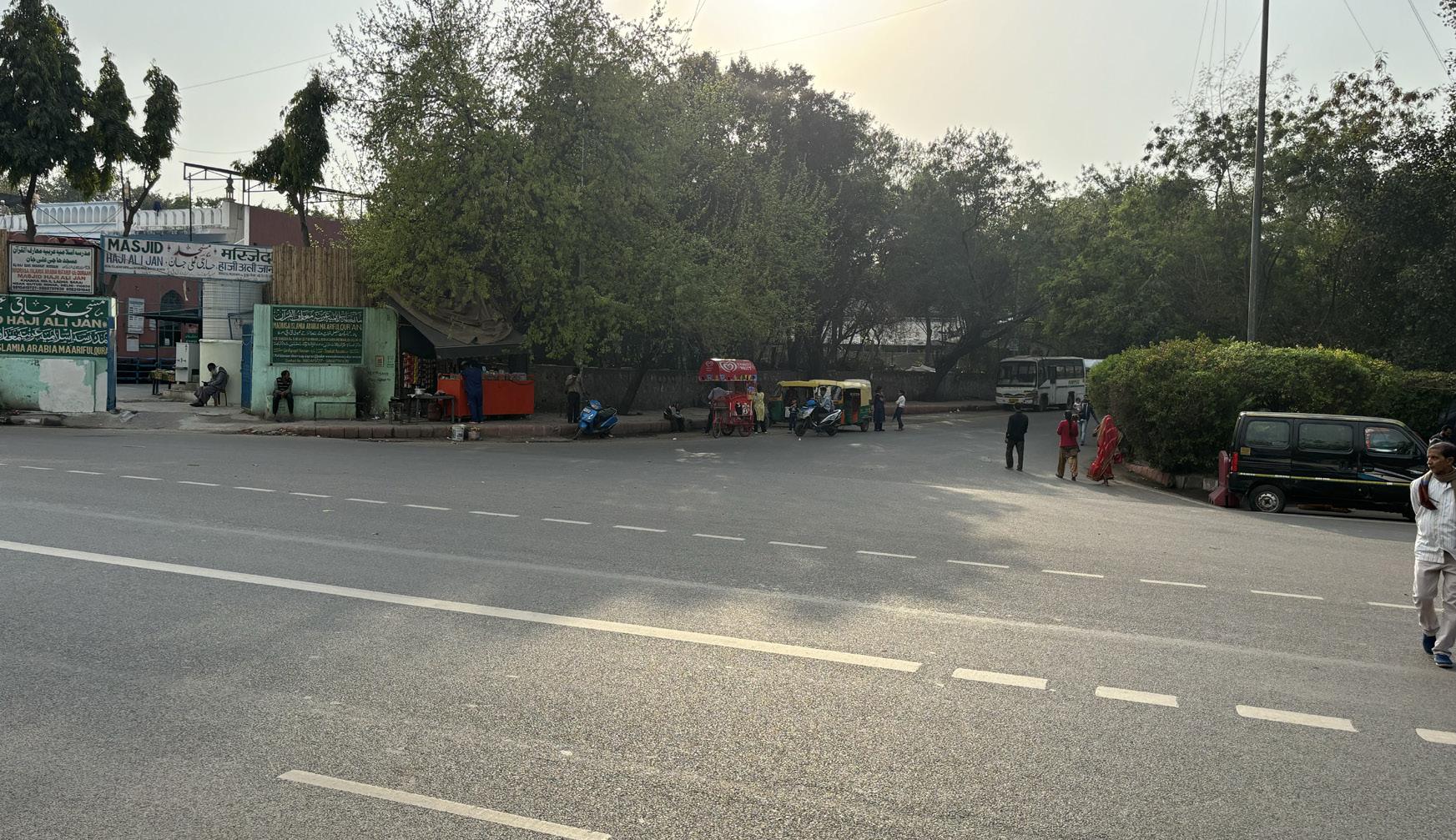

1. ROAD END WITH SITE

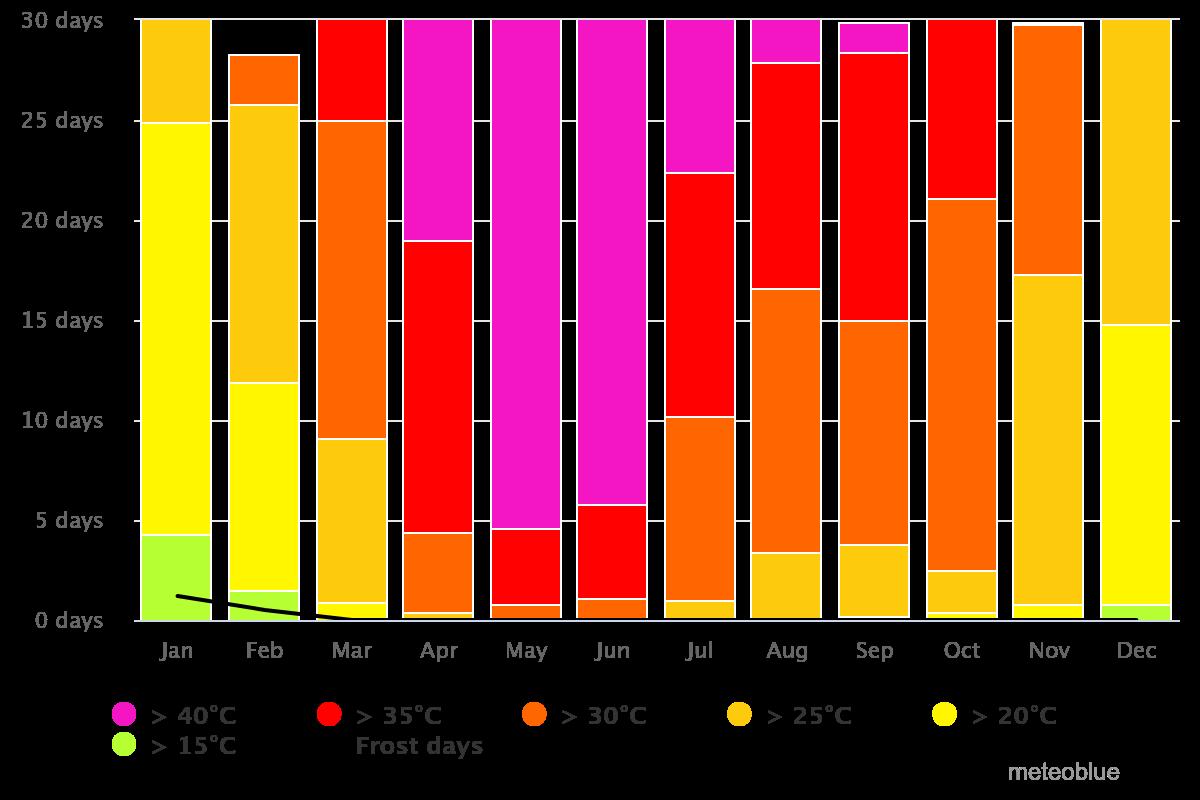

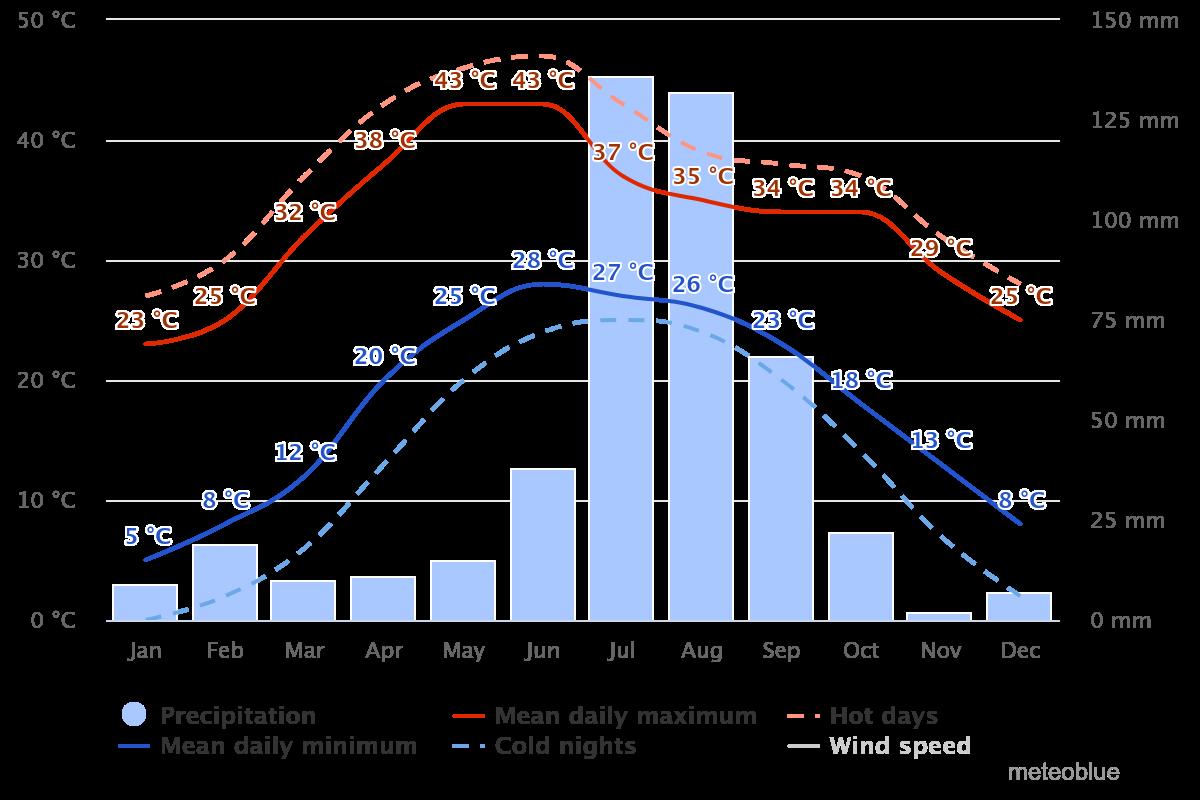

Monthly Average Temperature

Source- meteoblue

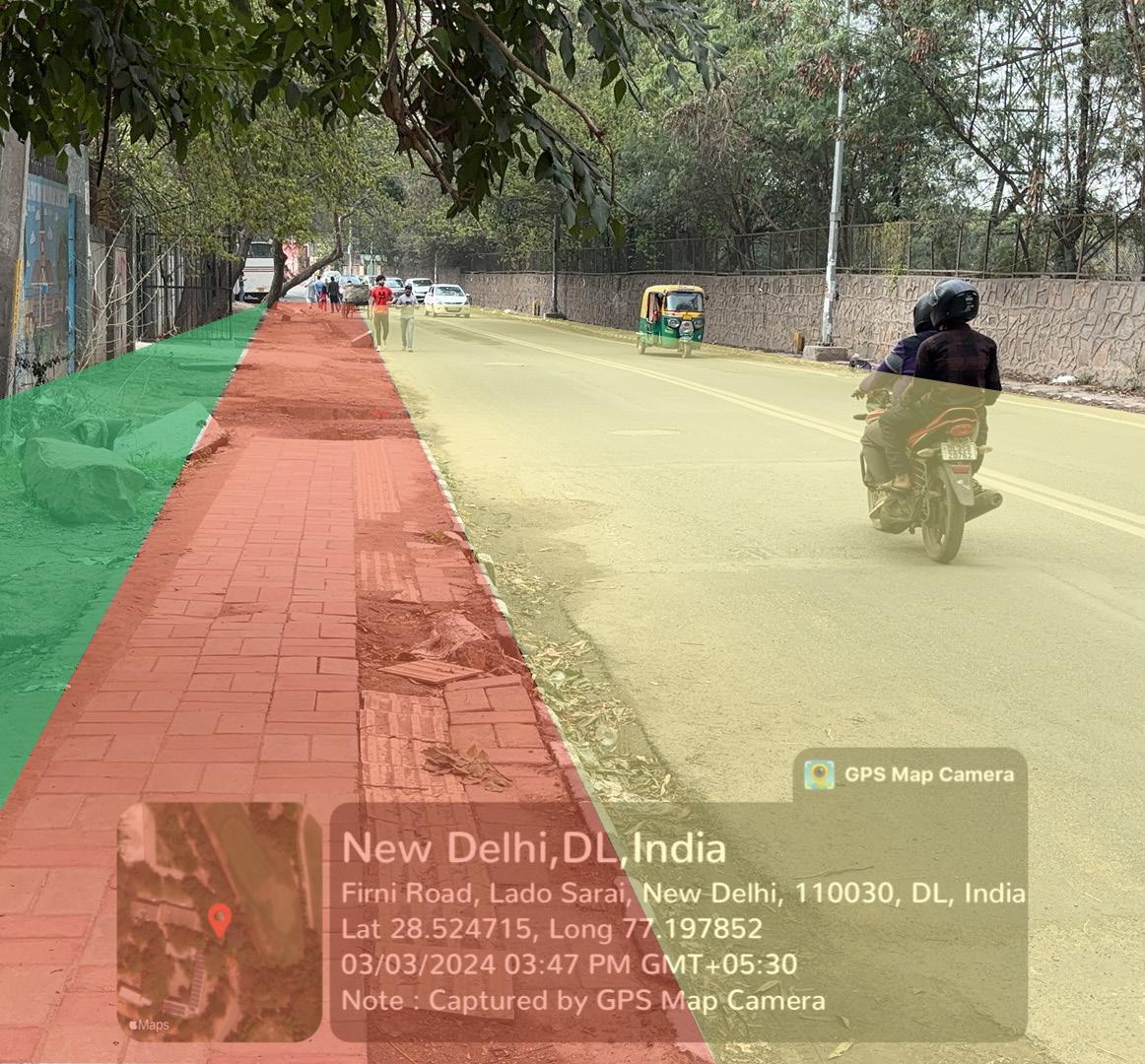

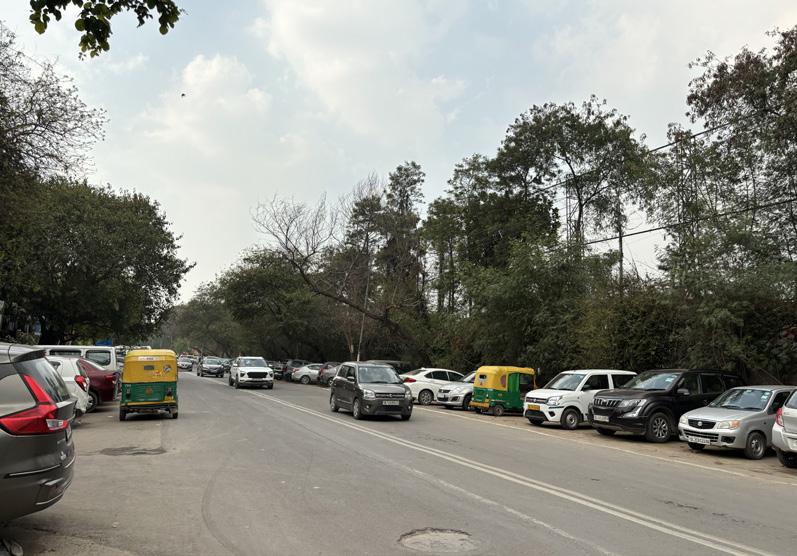

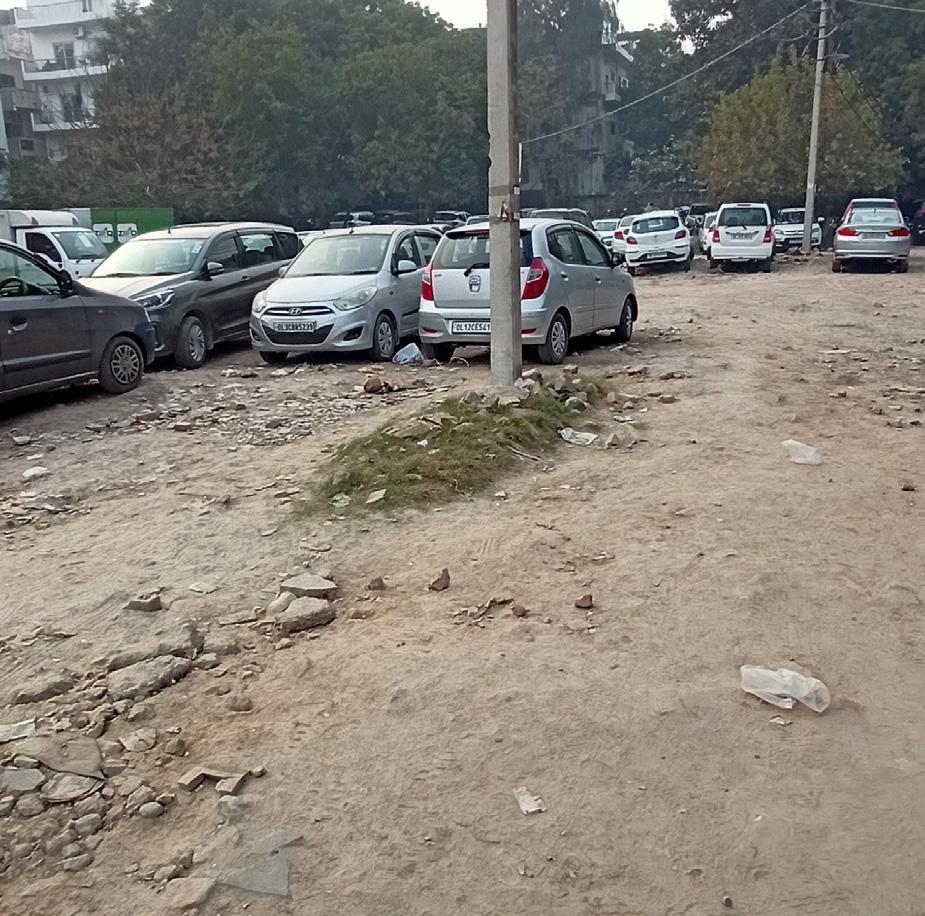

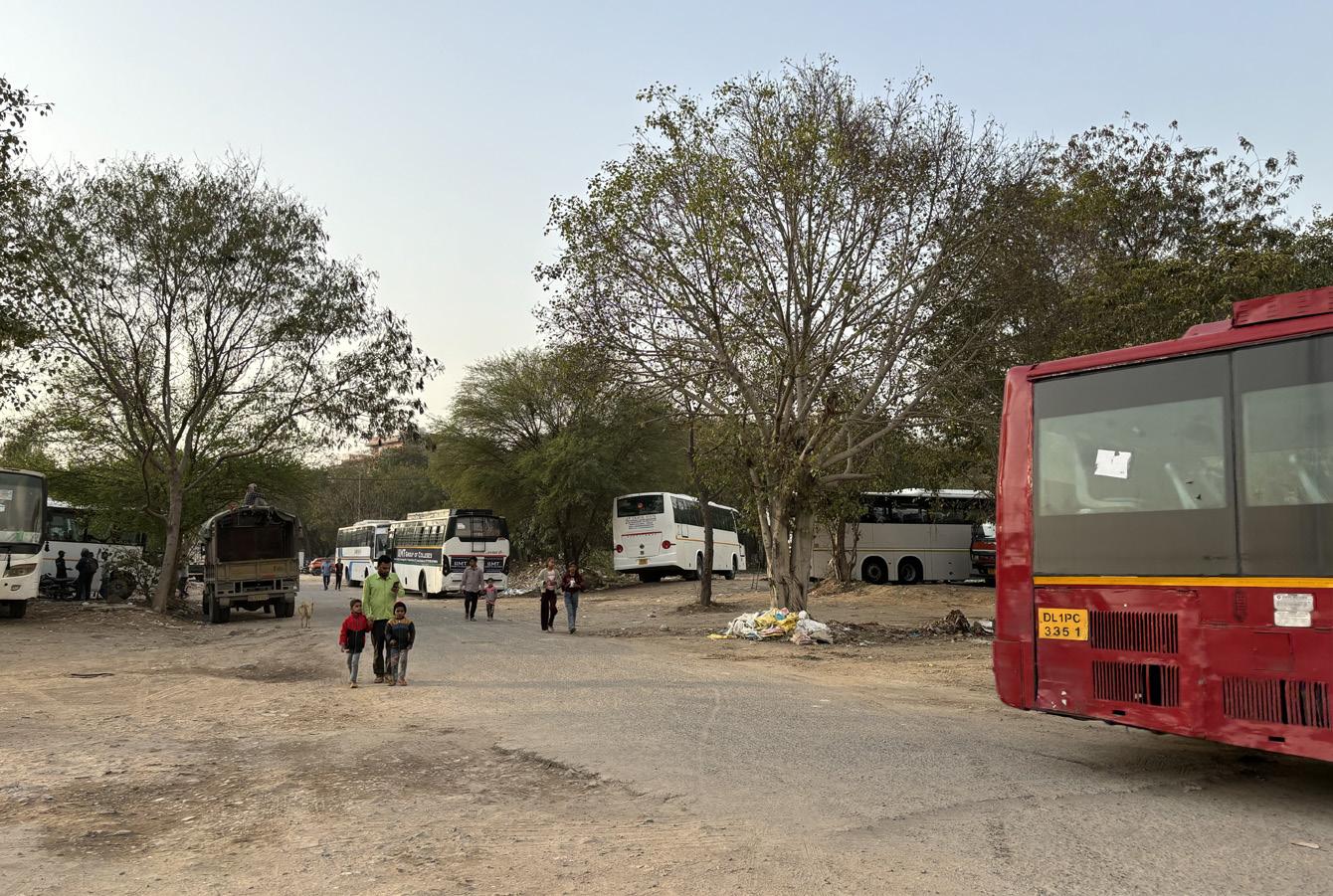

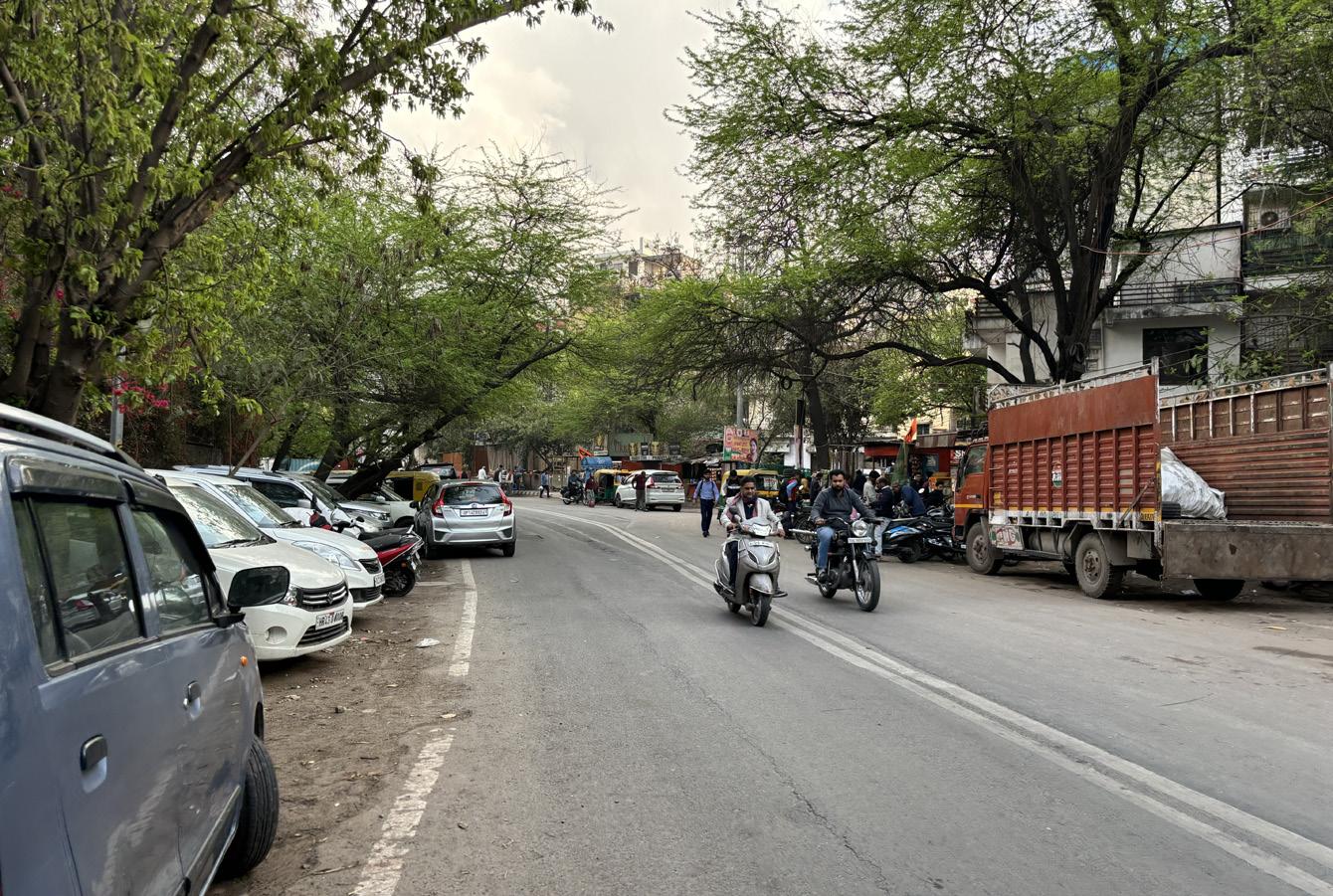

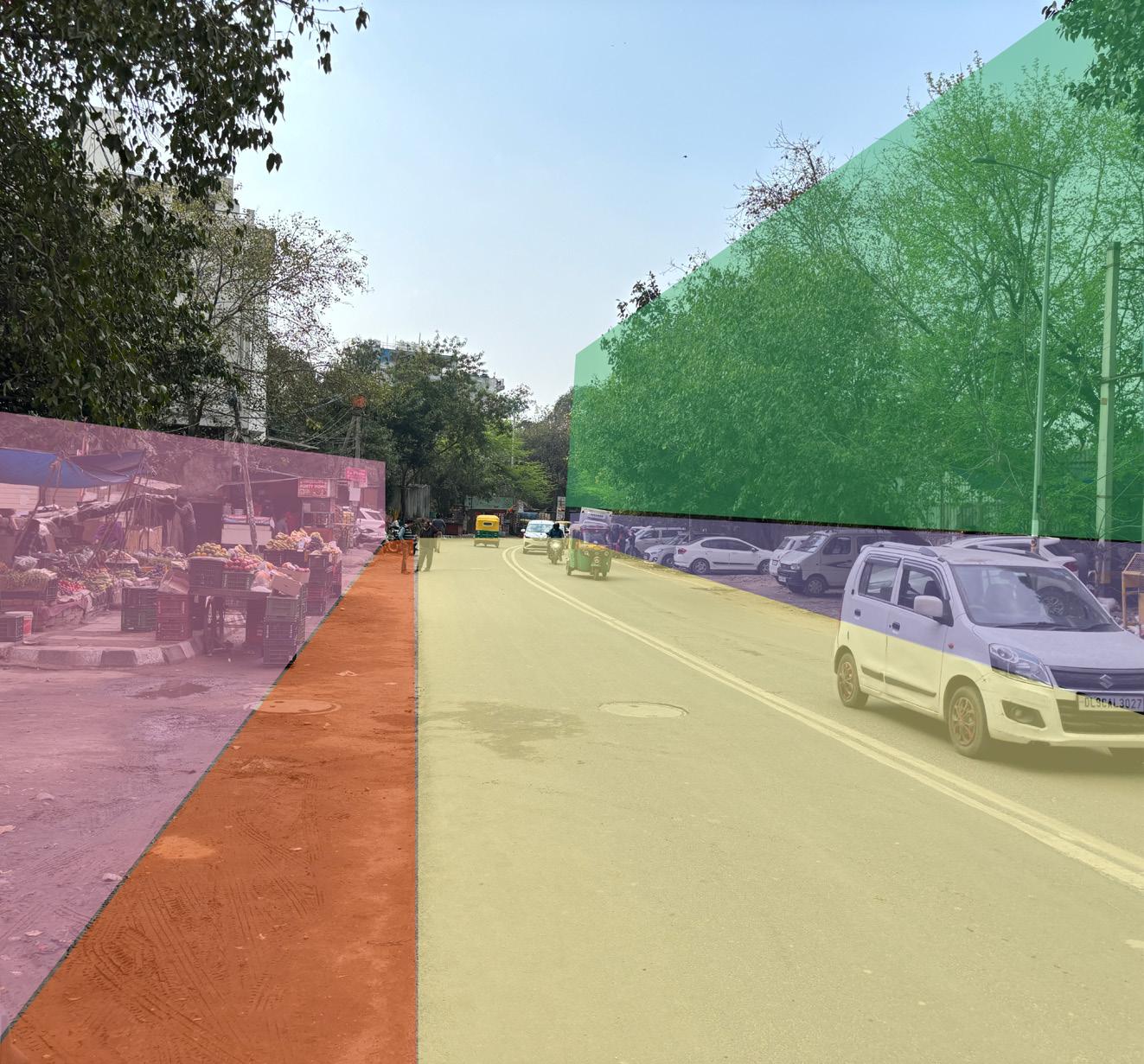

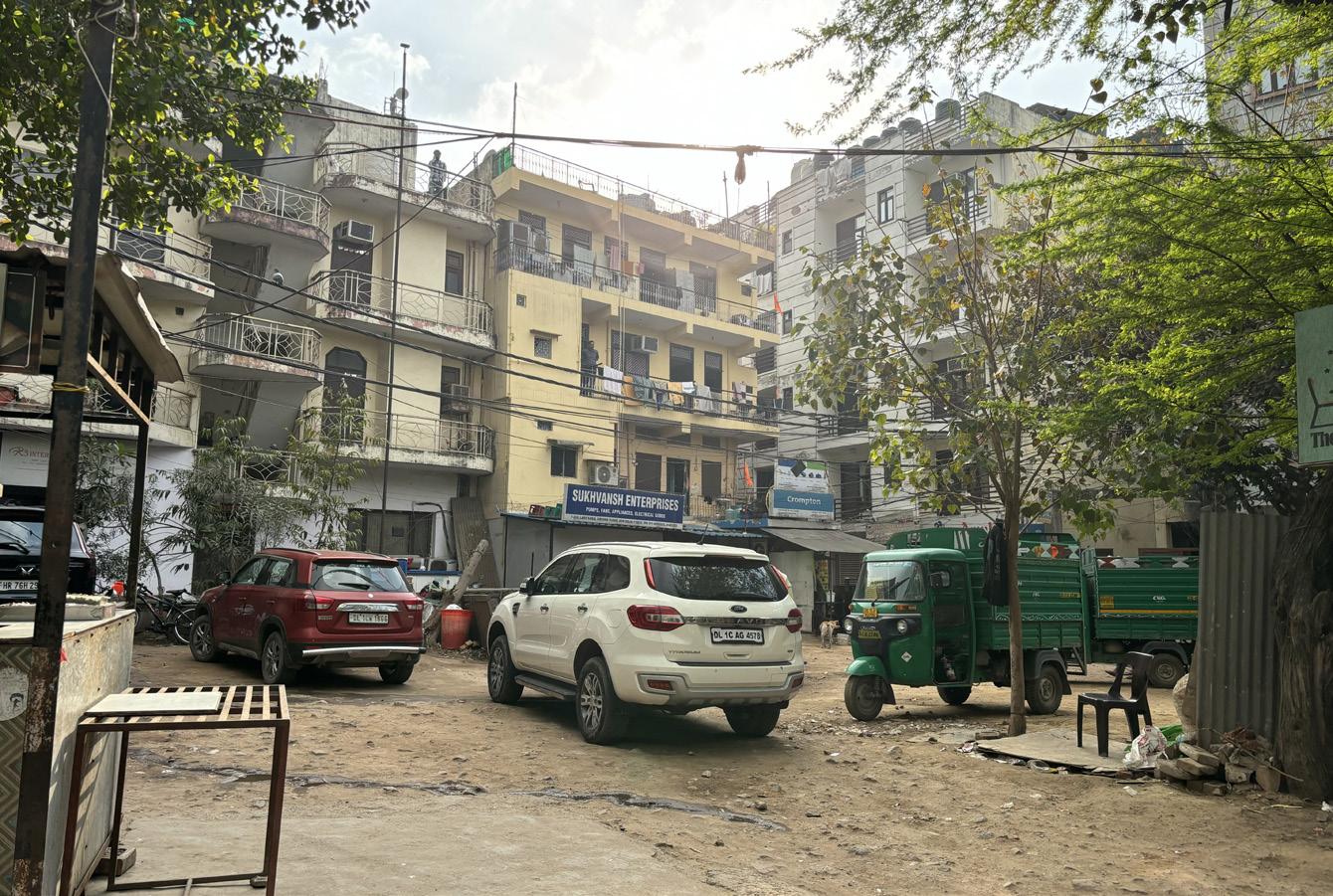

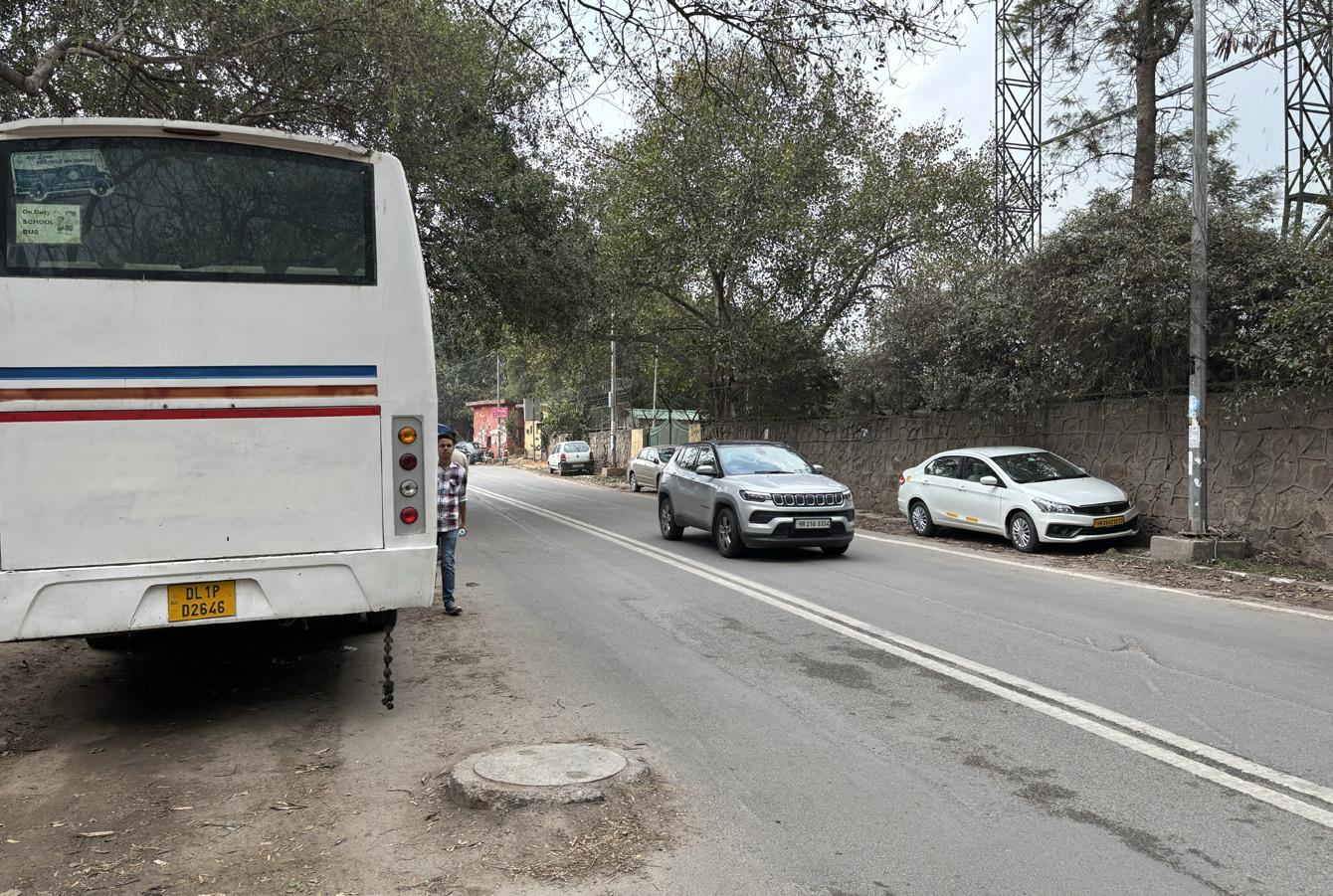

2. INFORMAL ROAD AND PARKING

CONNECTIVITY

• 2.1 KM away from Qutub Minar Metro Station.

• 12 KM away from Indira Gandhi International Airport Terminal 3.

• 14.9 KM away from New Delhi Railway Junction.

EXISTING INFORMAL • 20.1 KM away from Kashmere Gate ISBT. ROAD

Source- Self

Monthly Average Precipitation

Source- meteoblue

CLIMATE 1 TO B A

• Macro-Climate: Composite.

• Average Temperature: 25.0 ° C .

• Maximum Temperature: 47.0 ° C. • Minimum Temperature: -2.2 ° C. • Annual Precipitation: 886 mm.

• Prevailing Wind Direction: 18KM/H North-West.

PHIRNI ROAD

DAR PU

R

TO MEHRAULI MB ROAD

SOIL TYPOLOGY • The proposed site has alluvial soil with undifferentiated soil. The alluvial soil is formed due to the yamuna river basin near to the site.

The soil has also an abundant amount of silt contained in it.

Source- Self

EXISTING FORMAL ROAD

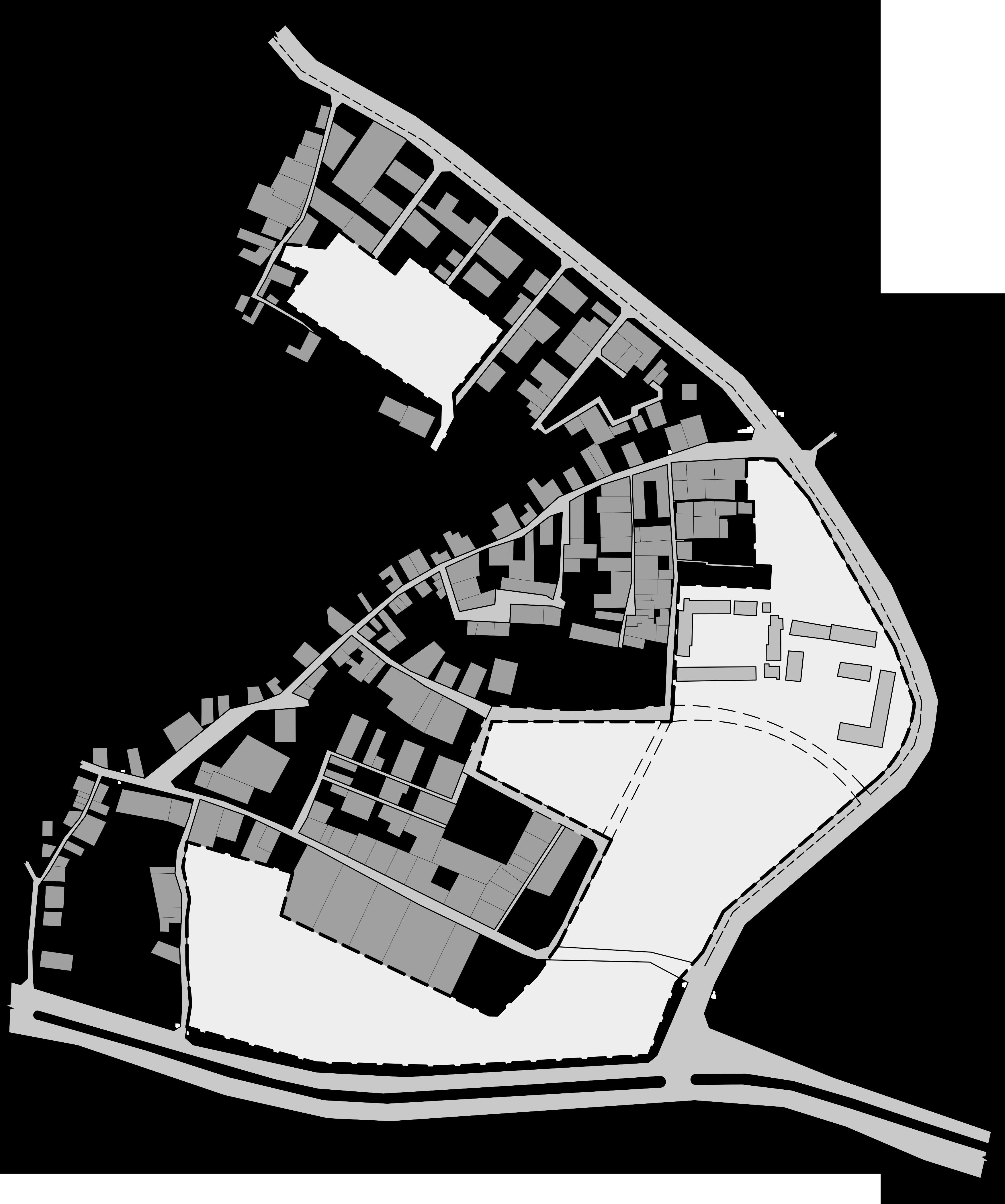

SITE PLAN 1:2000

VEHICULAR PARKING EXISTING MCD SCHOOL VENDORS

METRO LINE(Y) ELECTRICITY SUPPLY SEWER LINE

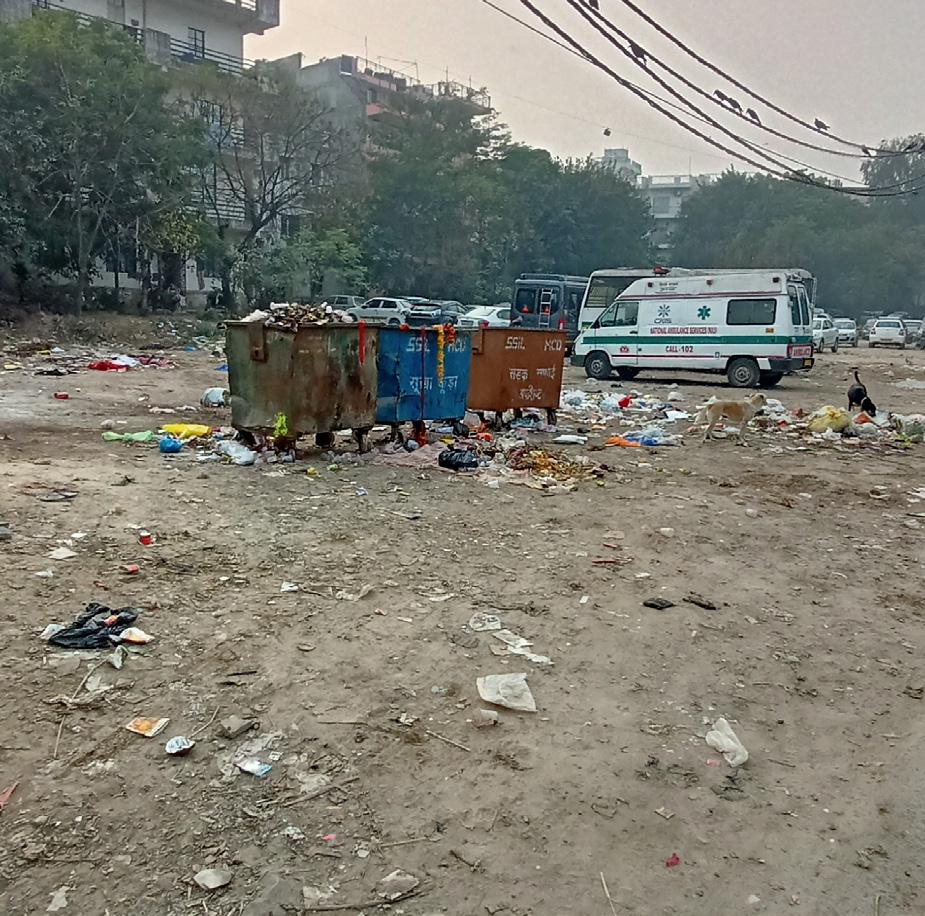

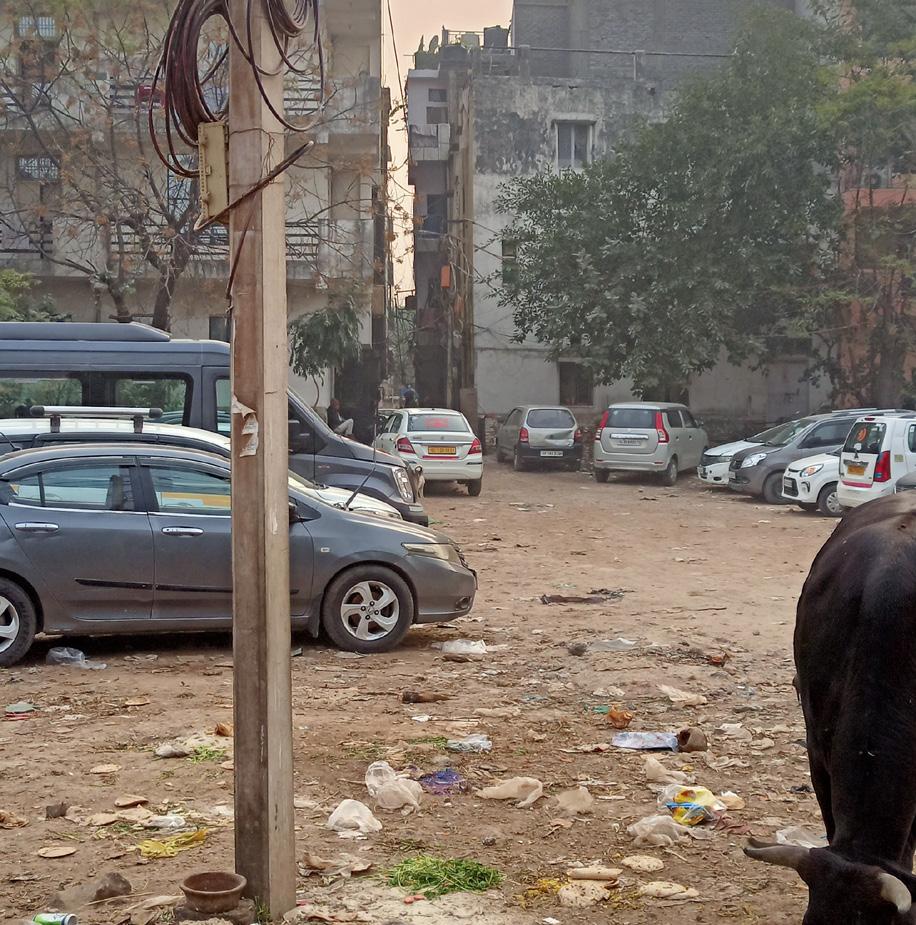

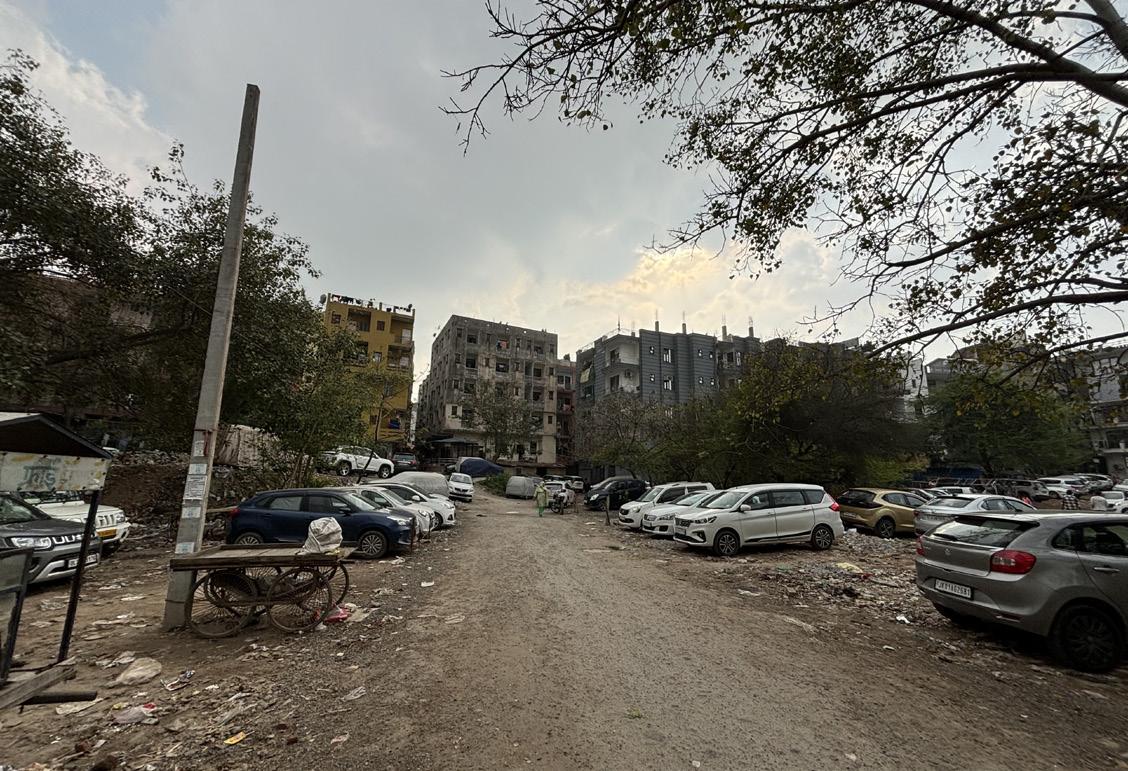

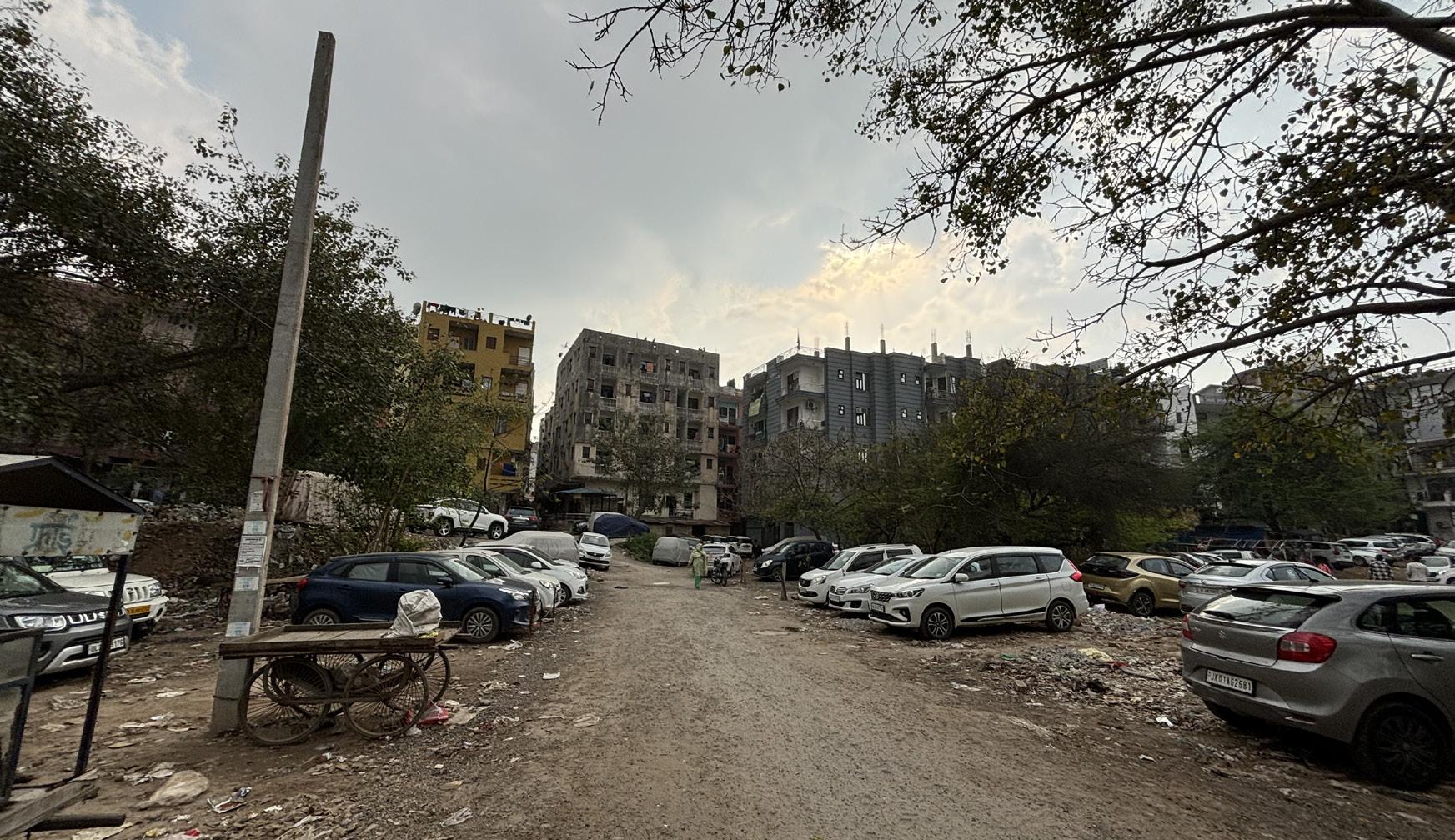

3. VACANT LAND USED AS DUMP Source- Self

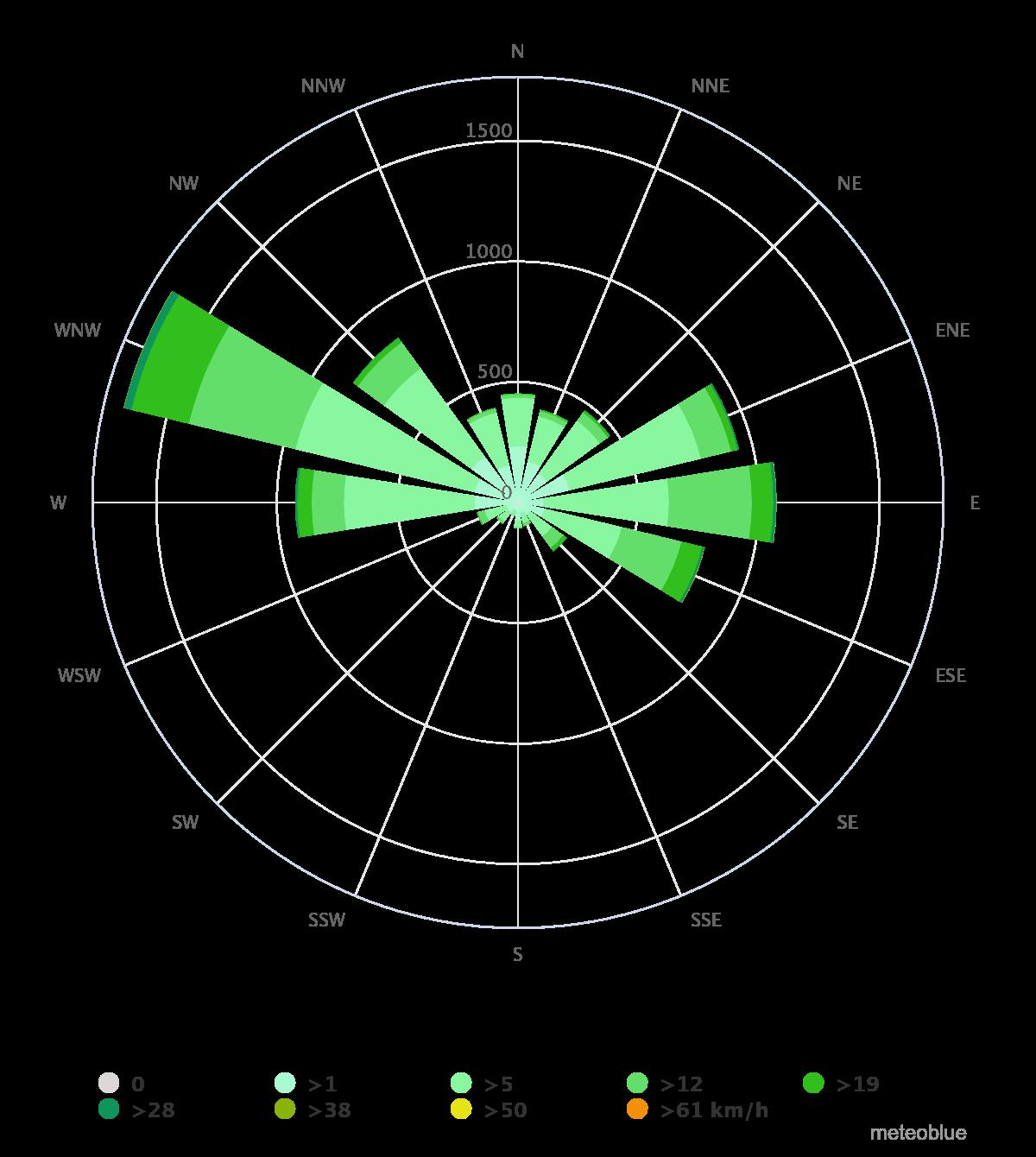

Wind Rose Diagram Lal Kot Qila National Institute of TB and Respiratory Diseases 1000 M

Shivaji Park 500M

GB School Golf Course

Saket Park

LADO SARAI

DDA Flats

1500M

Tehsil Mehrauli

SITE ACCESSIBILITYSource- Self BATCH 2019-2024 UNDERGRADUATE THESIS

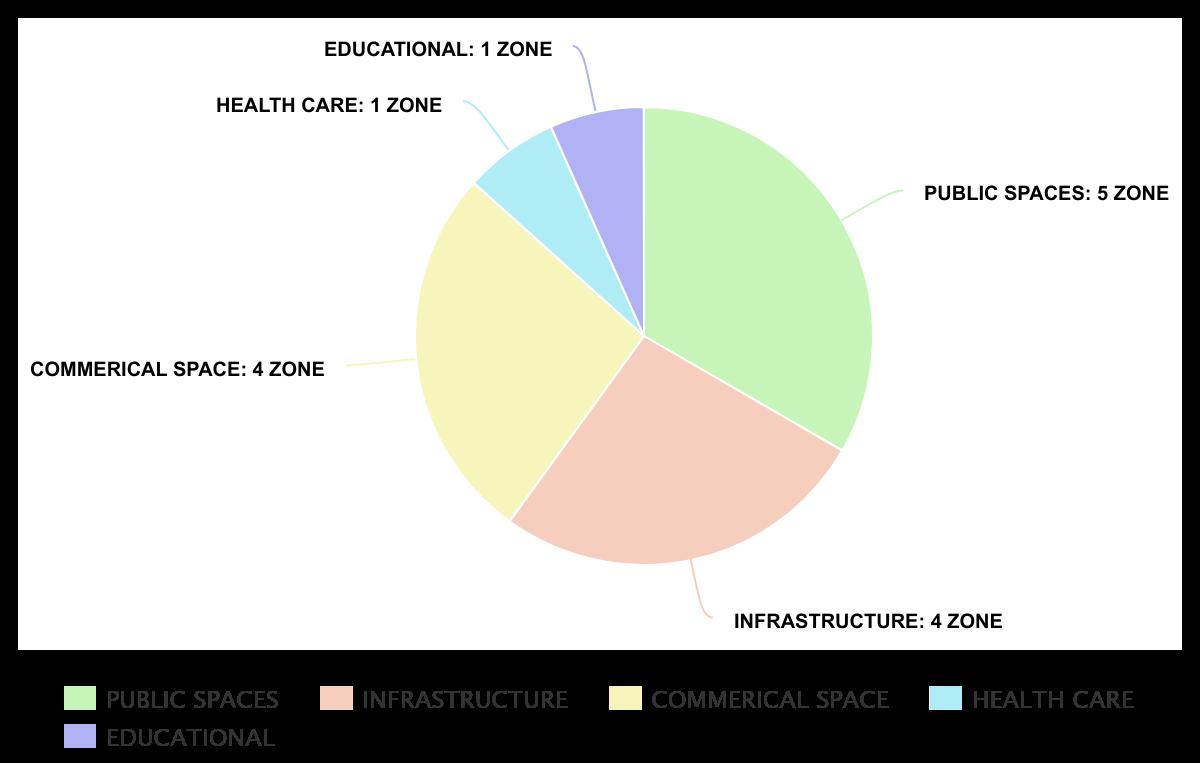

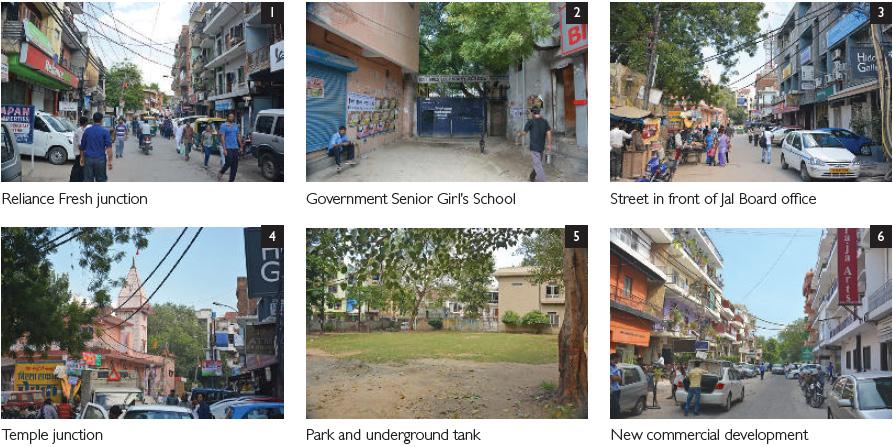

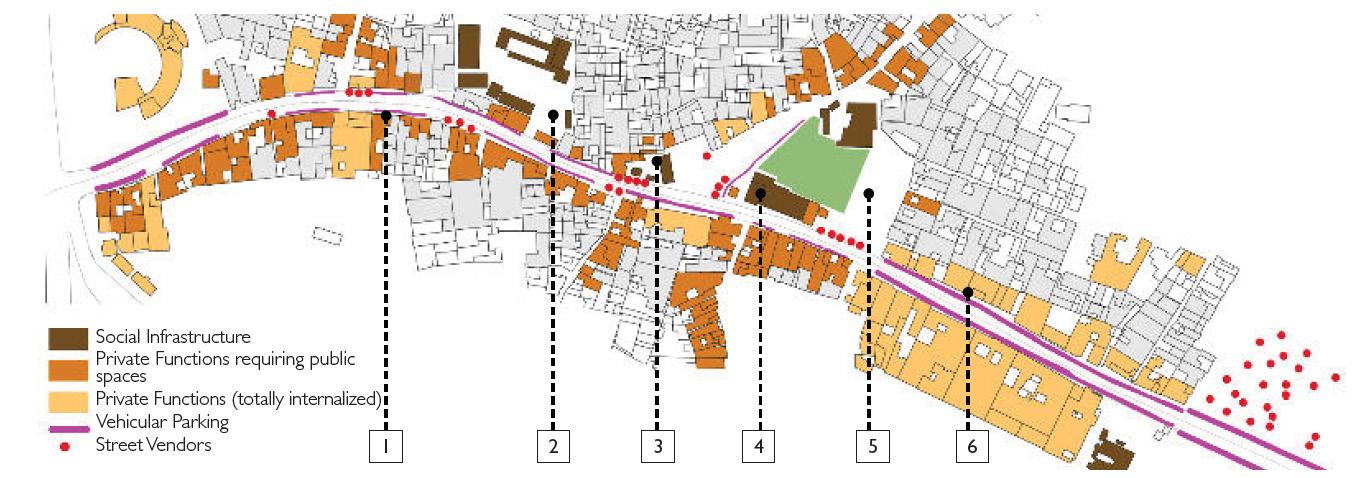

ACTIVITY MAPPING Source- Self

Source- Self

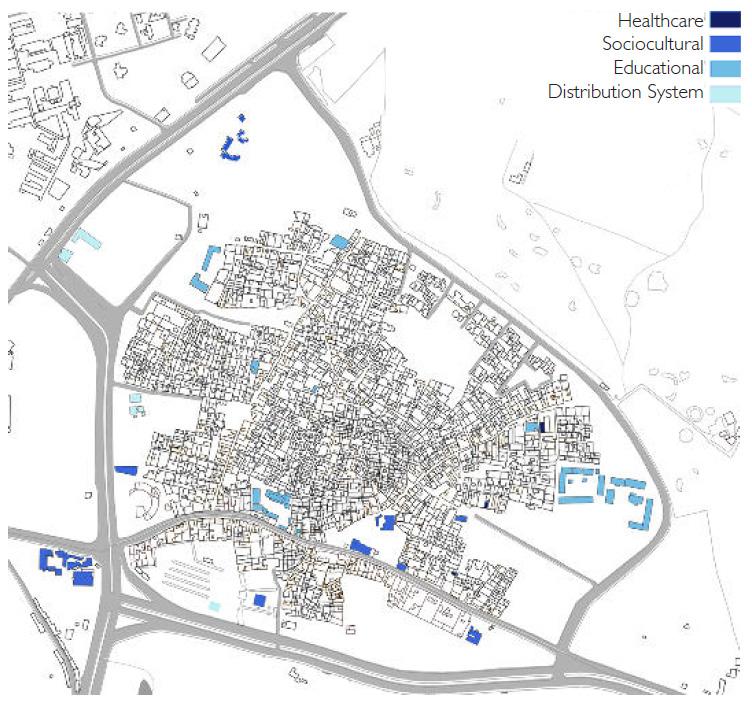

PUBLIC INFRASTRUCTURE

URBAN DEVELOPMENT LADO SARAI SITE ANALYSIS

Mehrauli

DDA Park

Qutub Minar

Butterfly Park

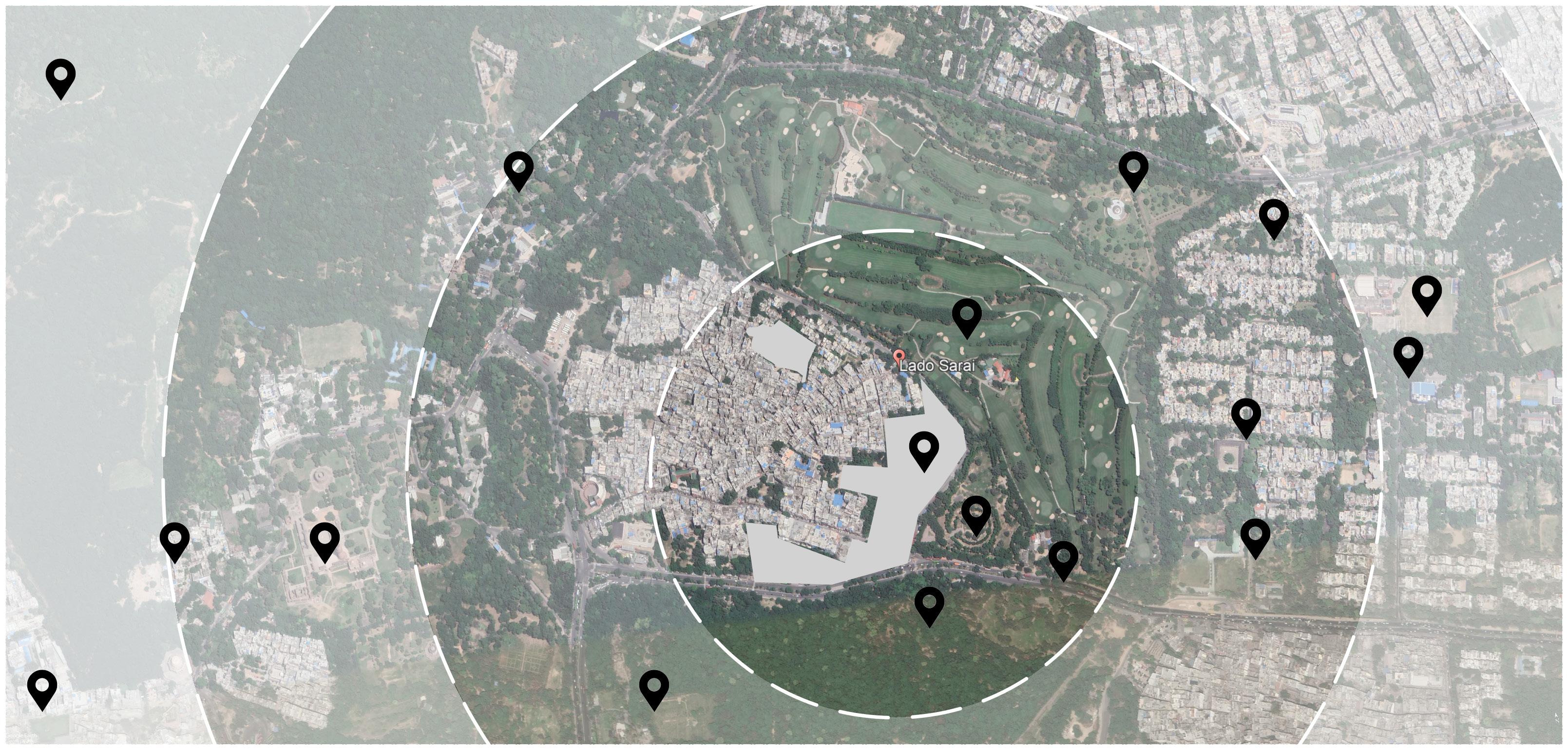

SITE PROXIMITY

GBS Cricket Ground

Sheetla Mata Mandir

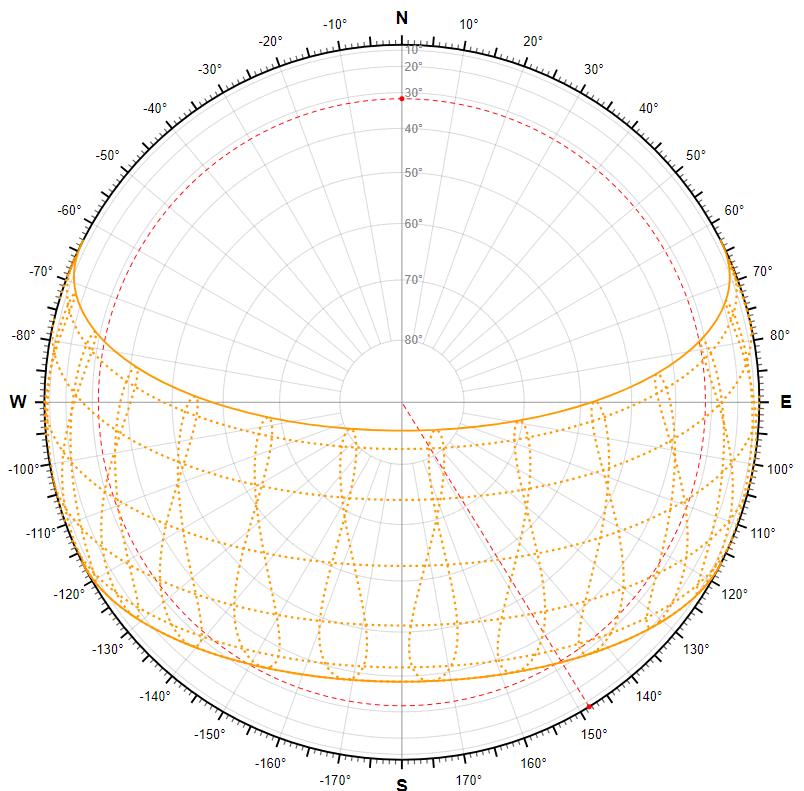

Sun-path Diagram

Saket Metro Station

Source-andrewmash.com

Jain Mandir

Source- Self

SUBMITTED BY

THESIS COORDINATOR

THESIS GUIDE

GORESH SAINI 1999005

AR. SUKHMANJIT SINGH

AR. VIVEK SEHGAL

REMARK & SIGN

Source- meteoblue

SITE ANALYSIS:

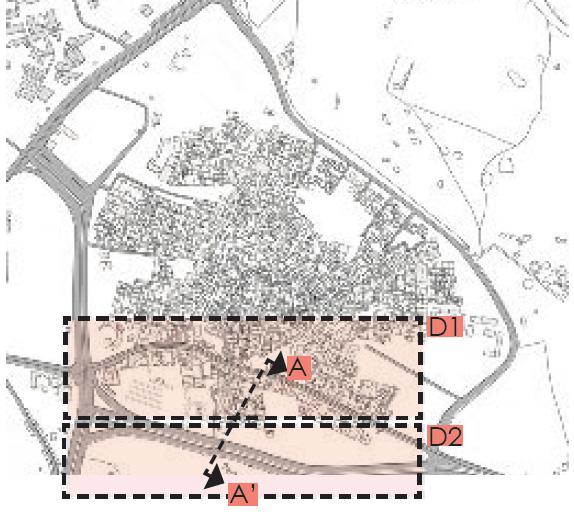

DEVELOPMENT PERIMETERS

POTENTIAL ENTRY/ EXIT POINT ON SITE UNDERPASS

POTENTIAL SITE FOR EXTENSION

COMMUNITY CENTRE

EXISTING COMMERICAL DEVELOPMENT OF OLD MB ROAD

• MUSEUM - NATIONAL MUSEUM OF ARCHITECTURE Site Area-13,414.1 SQM FAR- 1.2 Permissible Ground coverage- 30% Permissible Built-up Area- 16,096.92 SQM Parking- 312 ECS • MIXED-USE DEVELOPMENT- RETAIL + OFFICES Site Area-18,211.5 SQM FAR- 1.875 Permissible Ground coverage- 40% Permissible Built-up Area- 34,146.56 SQM Parking- 3 ECS/ 100SQM • COMMUNITY CENTRE Site Area-7,476.4 SQM FAR- 1.2 Permissible Ground coverage- 30% Permissible Built-up Area- 8,971.7 SQM • SCHOOL EXTENSION- MCD SCHOOL (SENIOR SECONDARY) Site Area-14,536.4 SQM FAR- 1.5 Permissible Ground coverage- 30% + 5% (Extension) Permissible Built-up Area- 21,804.6 SQM Parking- 204 ECS • PUBLIC PARK Site Area-4,624.1 SQM • UNDERPASS WITH AMPHITHEATRE Site Area-1,347.9 SQM • BUS STOP Site Area-1,245.3 SQM

INFERENCES EXISTING MCD SCHOOL

A A’ MUSEUM

B

B’

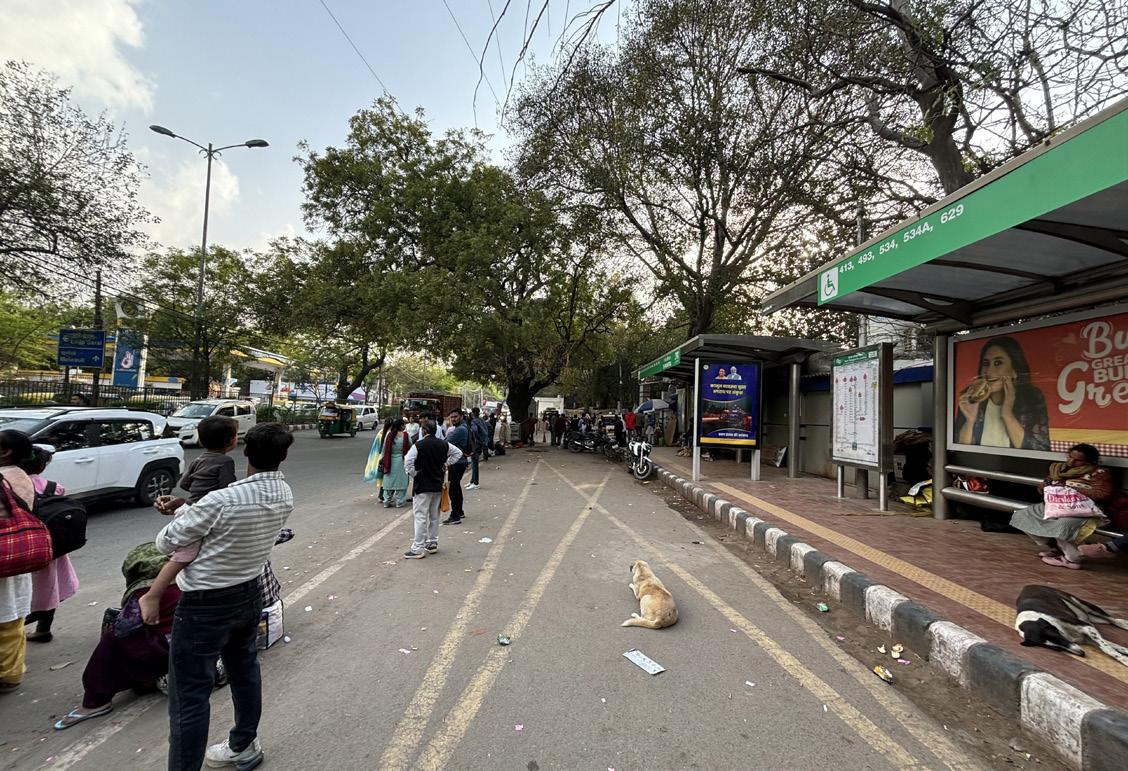

BUS STOP

PUBLIC PARK

MIXED-USE DEVELOPMENT

PROPOSED LOCATION FOR UNDERPASS

Source- Self

10.7

13

23.6

.1

SITE MASTER PLAN 1:2000

90°

42

.2

.2°

.9 13

89.7°

71

22 .0

18.0

122

.8

87.2°

88.82°

11

.2

17.8

.6 29

24.9

6.5

24

14

.5 11.5

14.6

48

.4

0.5

Source- Self

4.5

SITE DISTRIBUTION 24M Wide Phirni Road

37.9

71.9

12.9

1.3

10

9.4 53.5

• Informal roads should converted to paved formal road to provide circulation in and around the site.

• The urban village have informal development pattern which leads to non-vechicular access in inner zones of settlement.

• To counter the Shortage and issue of Illegal parking formal Parking spaces are required.

• Mixed-use Development is helpful to micro economy, the location is ideal due to the presence of existing commercial zone at Old MB road.

• The location of Museum is also significant due the location of lado sarai near to historical Monuments like Qutub minar,etc • The sky line of Lado Sarai consist of Mid-Rise development block which restrict the new development to go beyond that i.e. G+6 around.

• MCD school have vacant land in the northern part of the site which can be used to develop Senior secondary school extension with a separate entrance.

• Underpass is proposed to develop on phirni-MB road junction which also help to provide accessibility between Mixed use development and DDA park.

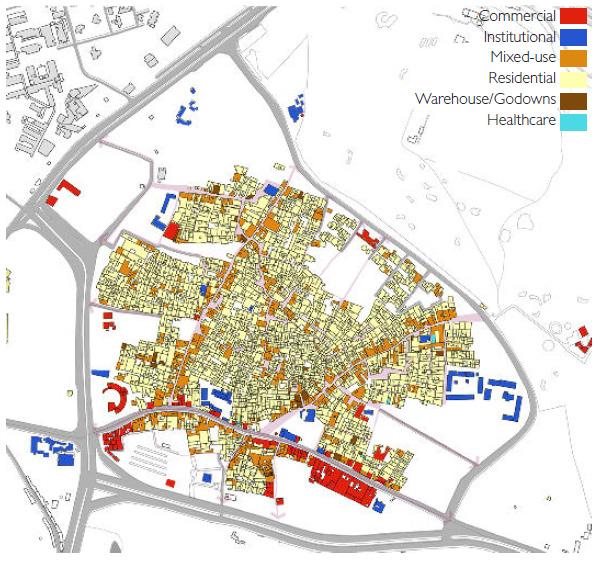

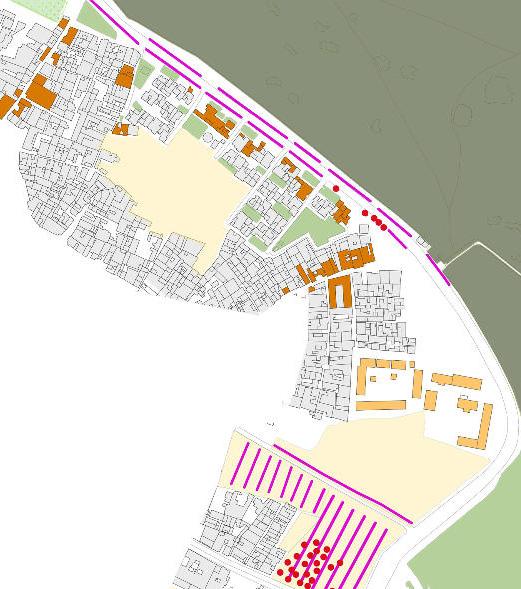

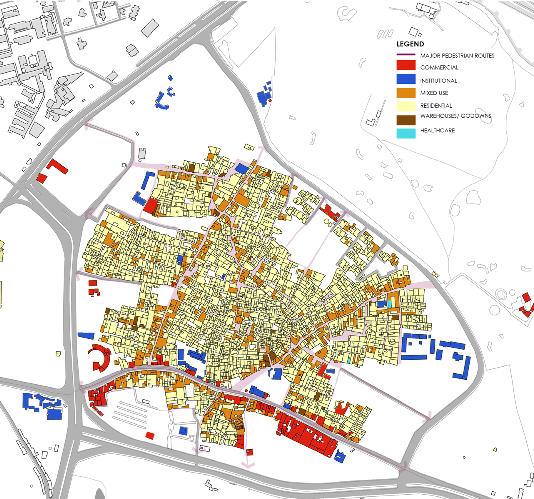

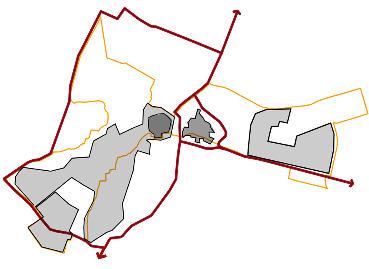

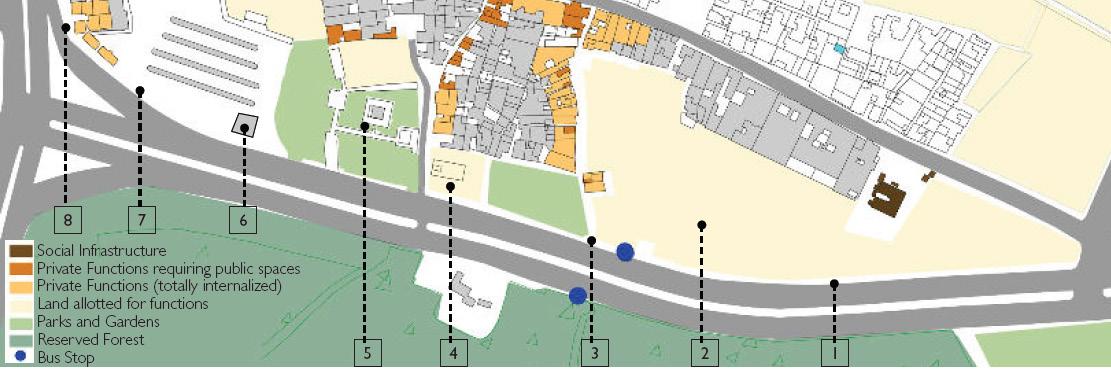

BUILDING USE PLAN

• The predominant use of the buildings is residential.

• Major roads have mixed-use development.

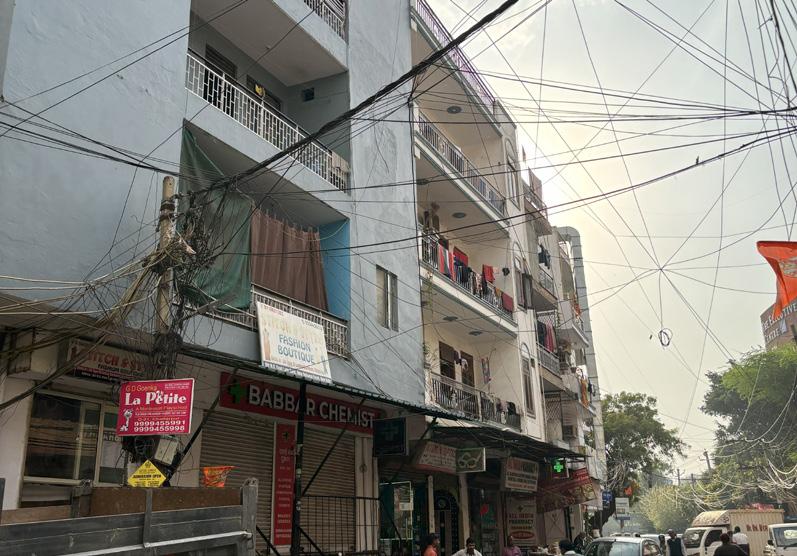

• Old MB Road has seen a major transformation in recent times, with the introduction of new art galleries, showrooms and designer studios.

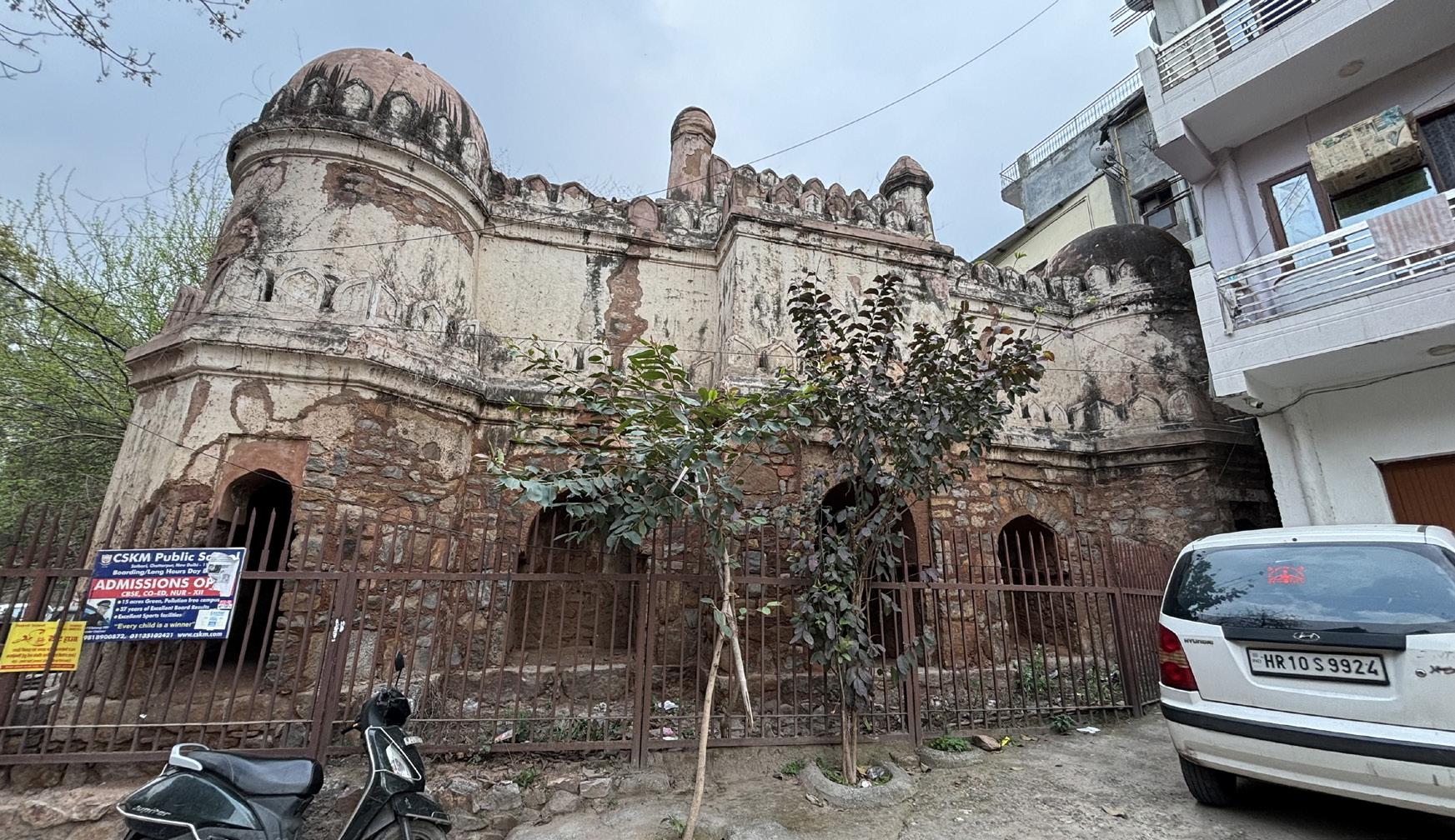

• The few public buildings are schools, a mosque, temples and tombs.

BUILDING USE PLAN

Source- DUAC

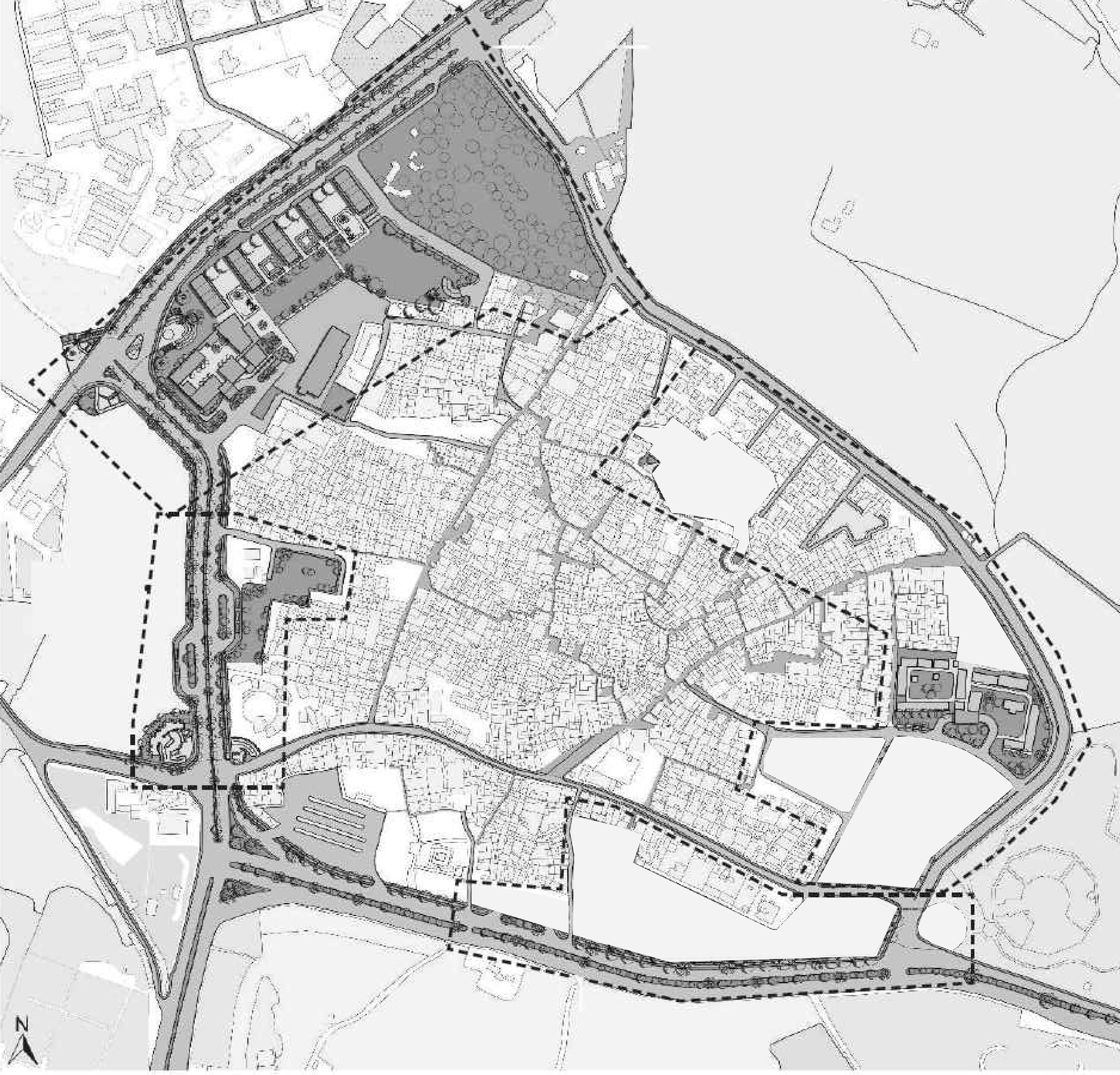

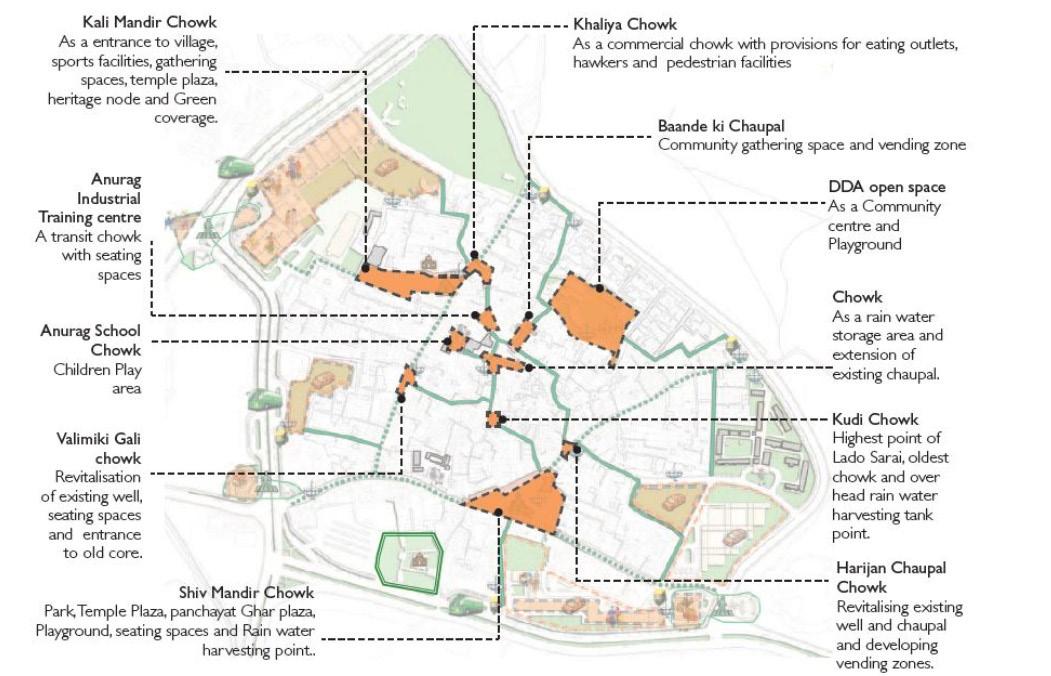

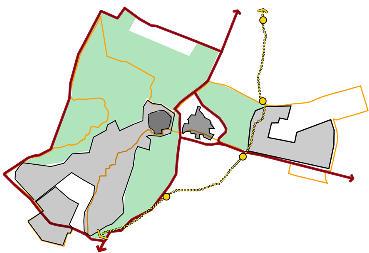

OPEN SPACES

Source- DUAC

OPEN SPACES

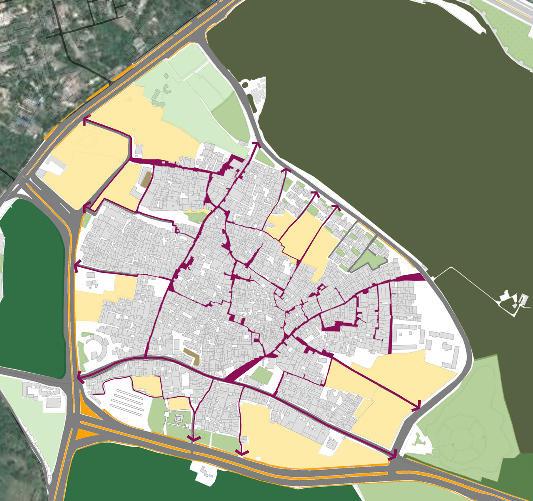

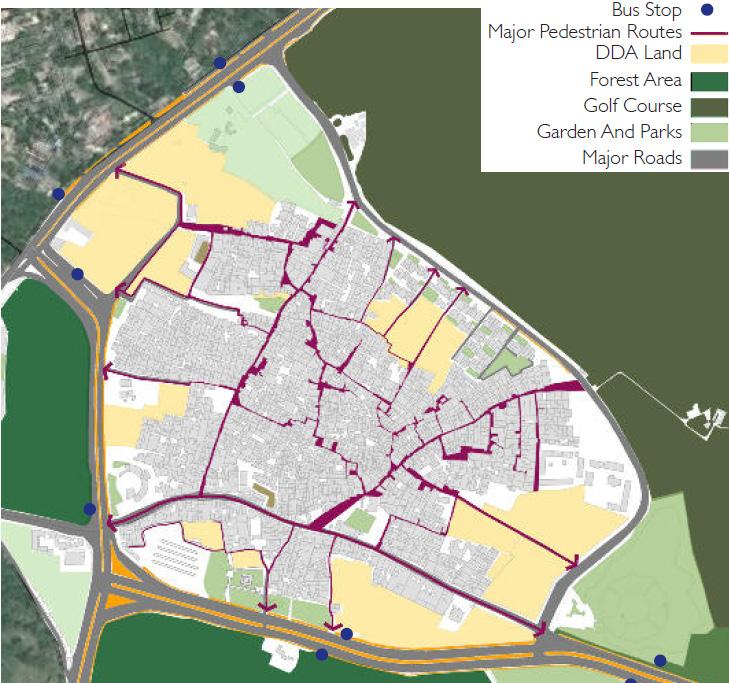

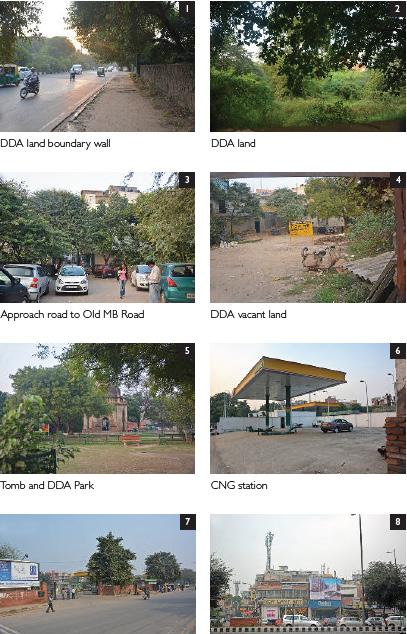

• Lado Sarai is surrounded by large city level green open spaces such as a golf course, Sanjay Van and Qila Rai Pithora Park.

• Most of the vacant lands around Lado Sarai are under the DDA and are of uncertain use.

• These open spaces are used as bus and car parking spaces by the community.

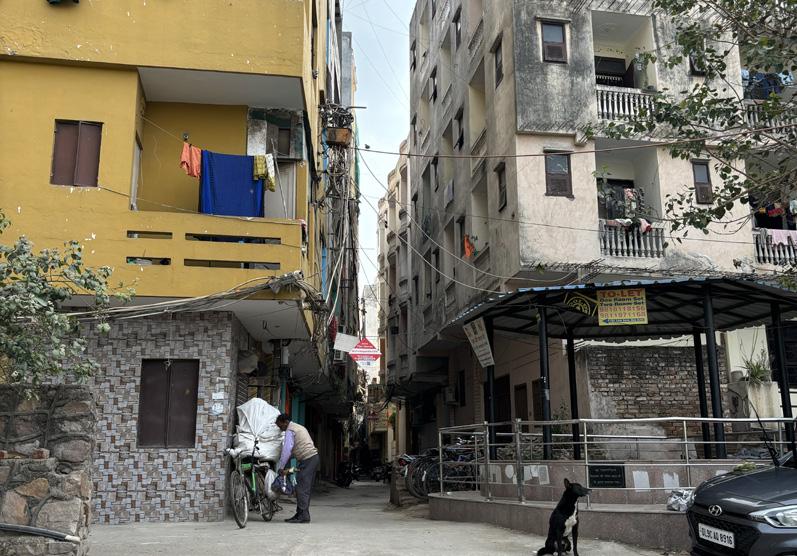

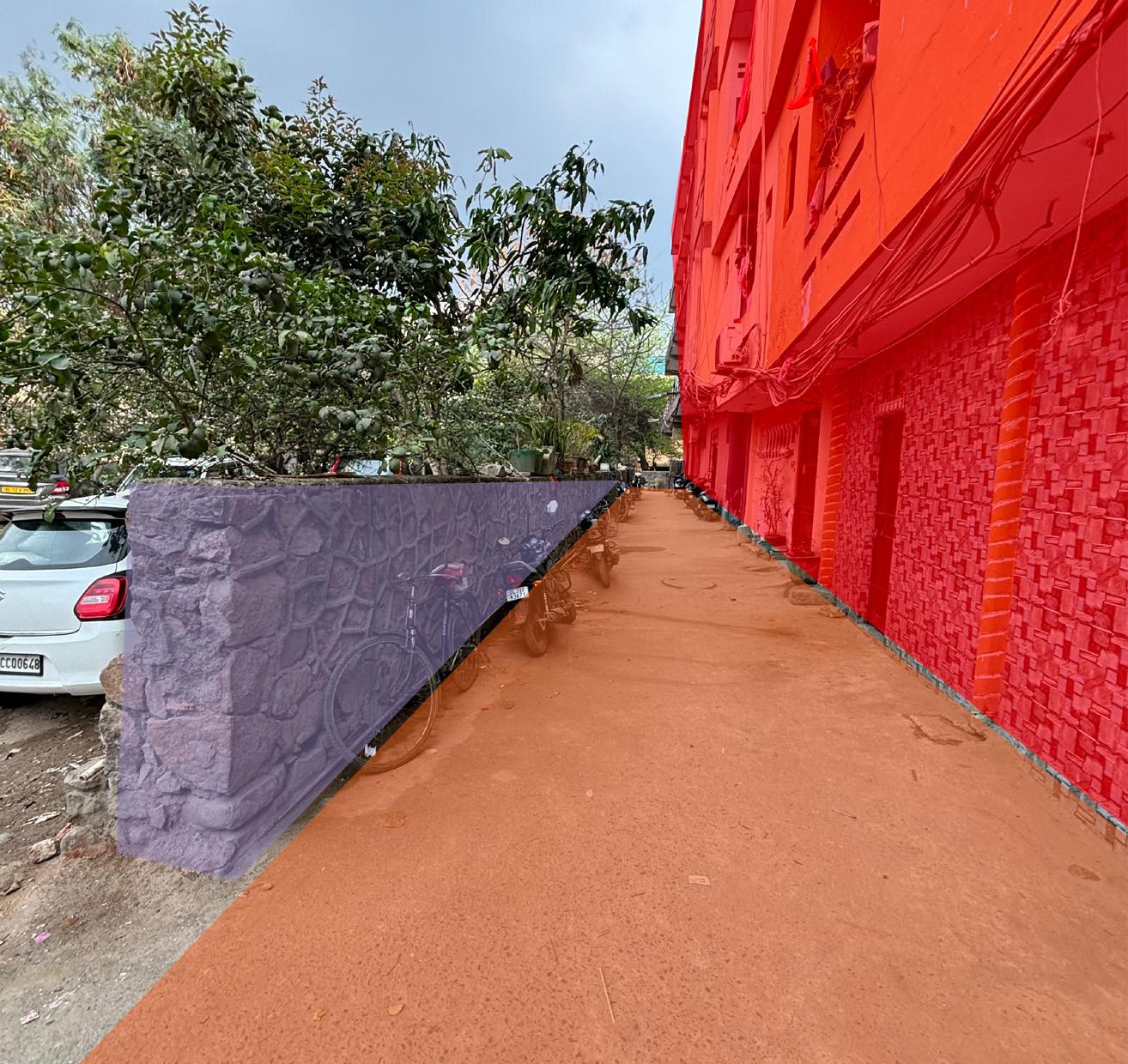

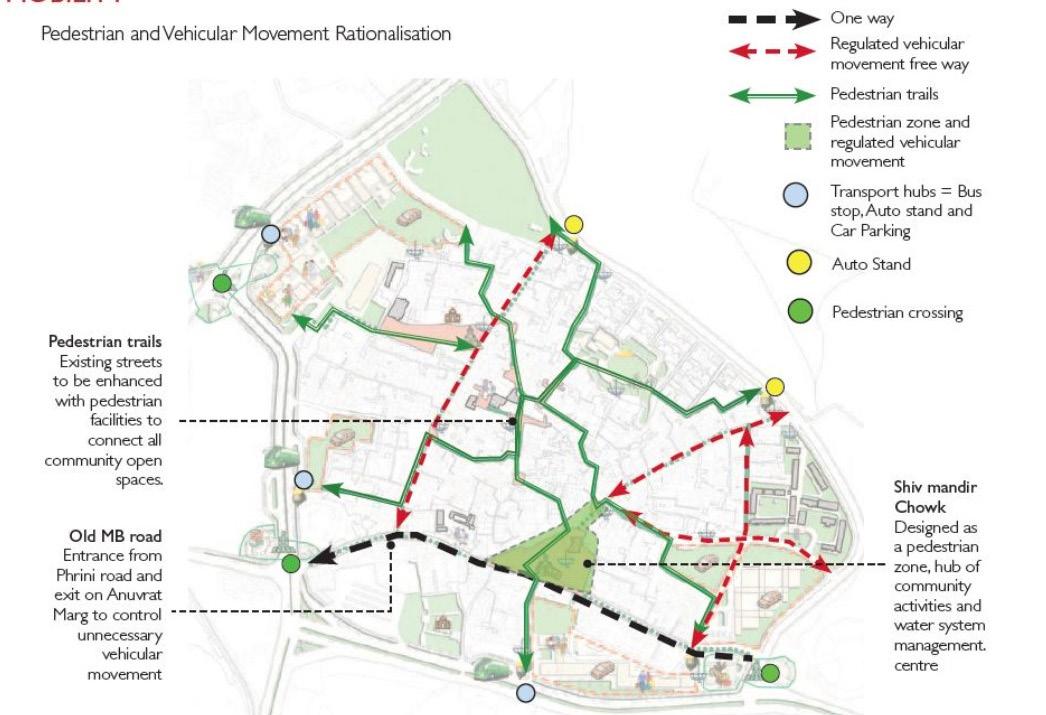

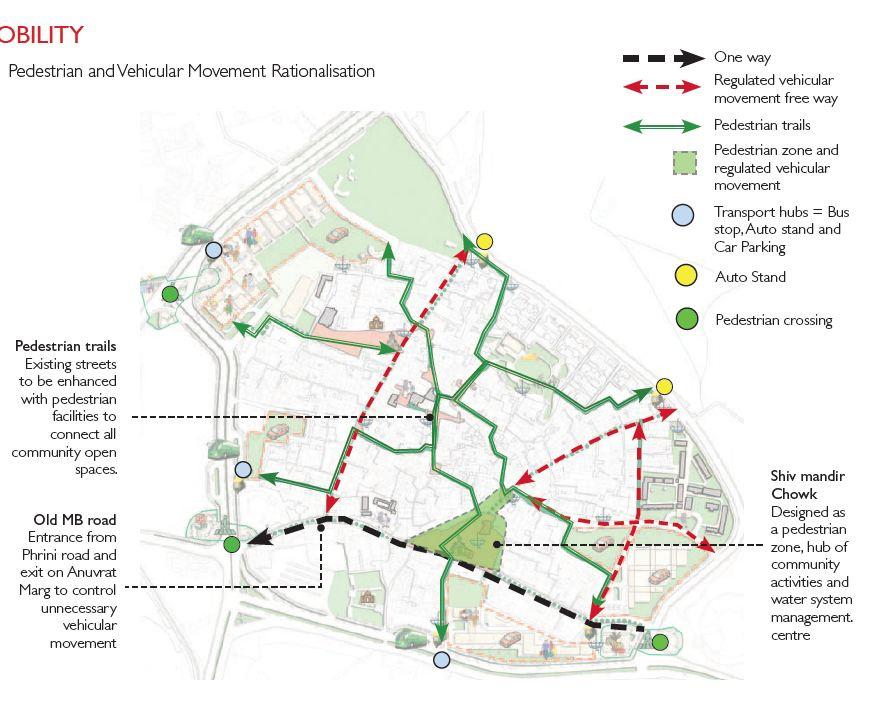

• The pedestrian network is part of the organic development of the village and is now subject to vehicular traffic causing distress among the pedestrians

• Lado Sarai may have a strategic or desirable location, providing easy access to residents and visitors.

• The site proximity helping the institutional dvelopment like museum, school etc.

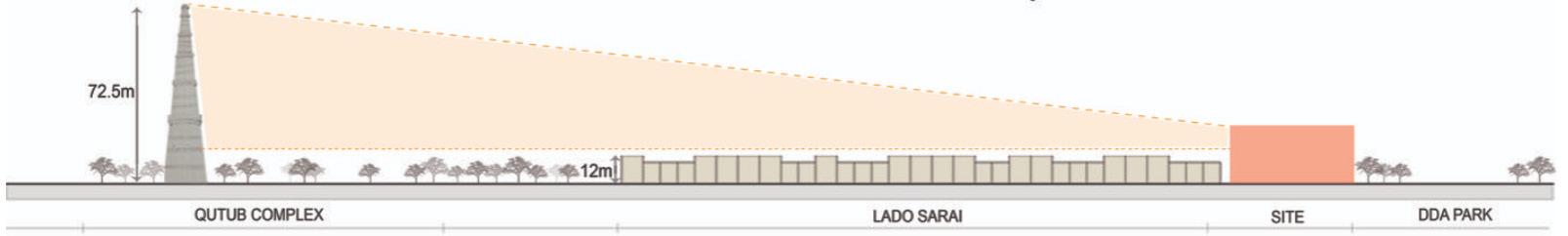

• The Skyline of lado sarai consist of mid-rise and low rise buildings leads to constrain the new development building height.

• Lack of adequate infrastructure (roads, utilities, etc.) can decrease the development’s functionality • Lado Sarai has a rich cultural history, incorporating it into the project help Architecture Design.

• The development help to create a urban precinct for the residents of lado sarai which help in social harmony • Lack of vehicular accessibility in the internal areas of lado sarai.

• Presence of alluvial soil due to yamuna basin leads to various structure constrain and special consideration for structure like raft foundation etc.

40M Wide Mehruli-Badarpur Road

35.3

Side-way Row Parking

123.

8

.1° 62

123.

2

56 76

°

.4

.39

30.0

101

.3

100.7

4°

6.4

10

83

5.6

7°

90.0

15.2

65.0

10

32

90°

24.3

.4

4.7

5°

3.5

11

45.4

7°

13.8

44.7

34

26.2

° .56 66

43°

116.

25.9 22.7

53.0 16.7

.7 96

24.9

72.1

3.1

.2

.7

26.0

18.8

11.7

° 90

136

46.7

.7

3.1

°

.87

82

24

14

7.7

.0

24M

79.1 75.4

121.6

SITE MEASUREMENTS Source- Self BATCH 2019-2024 UNDERGRADUATE THESIS

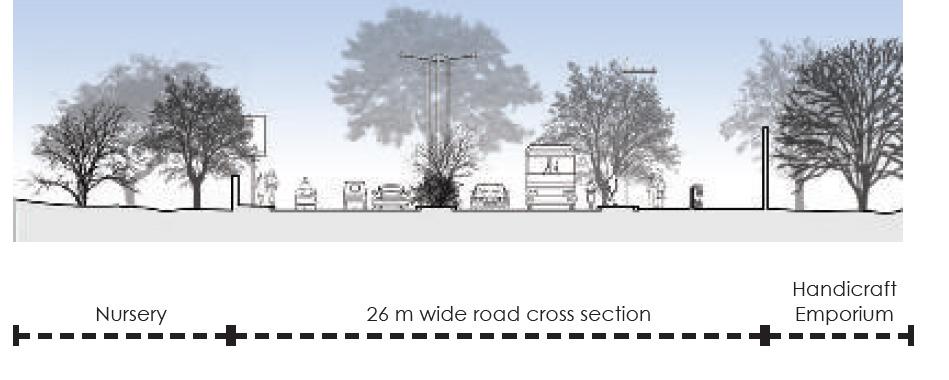

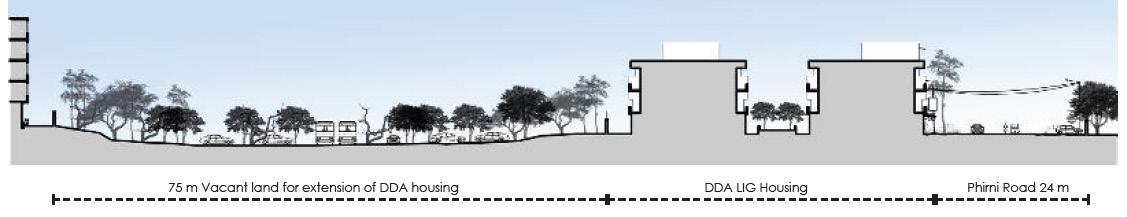

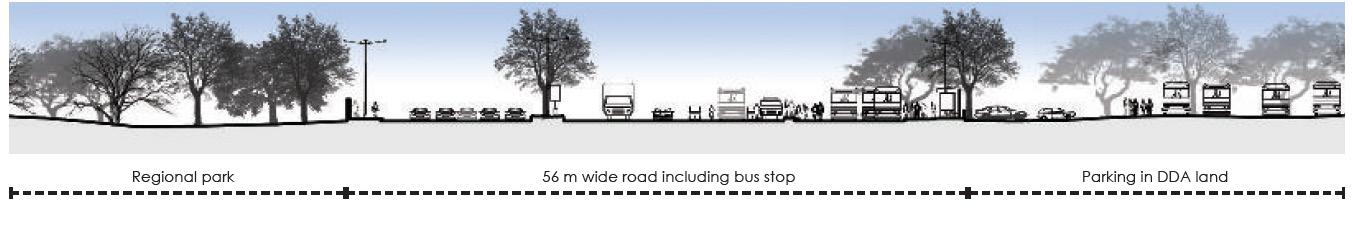

ROAD SECTION BB’ URBAN DEVELOPMENT LADO SARAI SITE ANALYSIS

15M Source- Self

15M

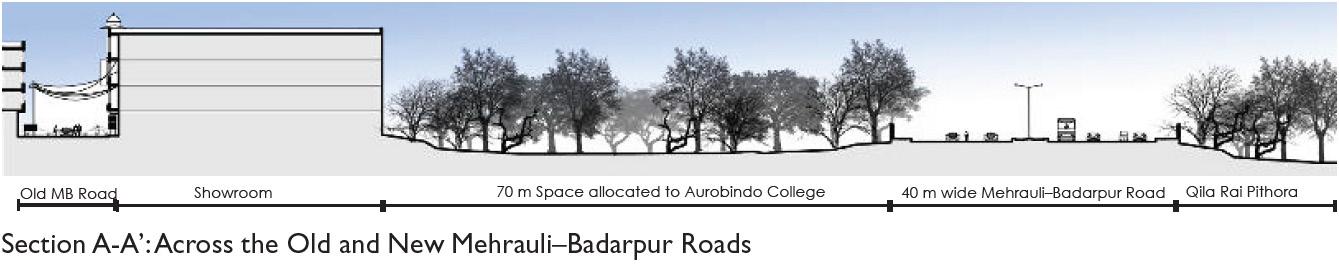

ROAD SECTION AA’

Source- Self

SUBMITTED BY

THESIS COORDINATOR

THESIS GUIDE

GORESH SAINI 1999005

AR. SUKHMANJIT SINGH

AR. VIVEK SEHGAL

REMARK & SIGN

CONCEPT:

BACKGROUND STUDY

Lado Sarai is a vibrant urban village located in South Delhi, India.

While primarily known for its cultural significance and commercial activities, it also offers a unique glimpse into the architectural heritage of the region.

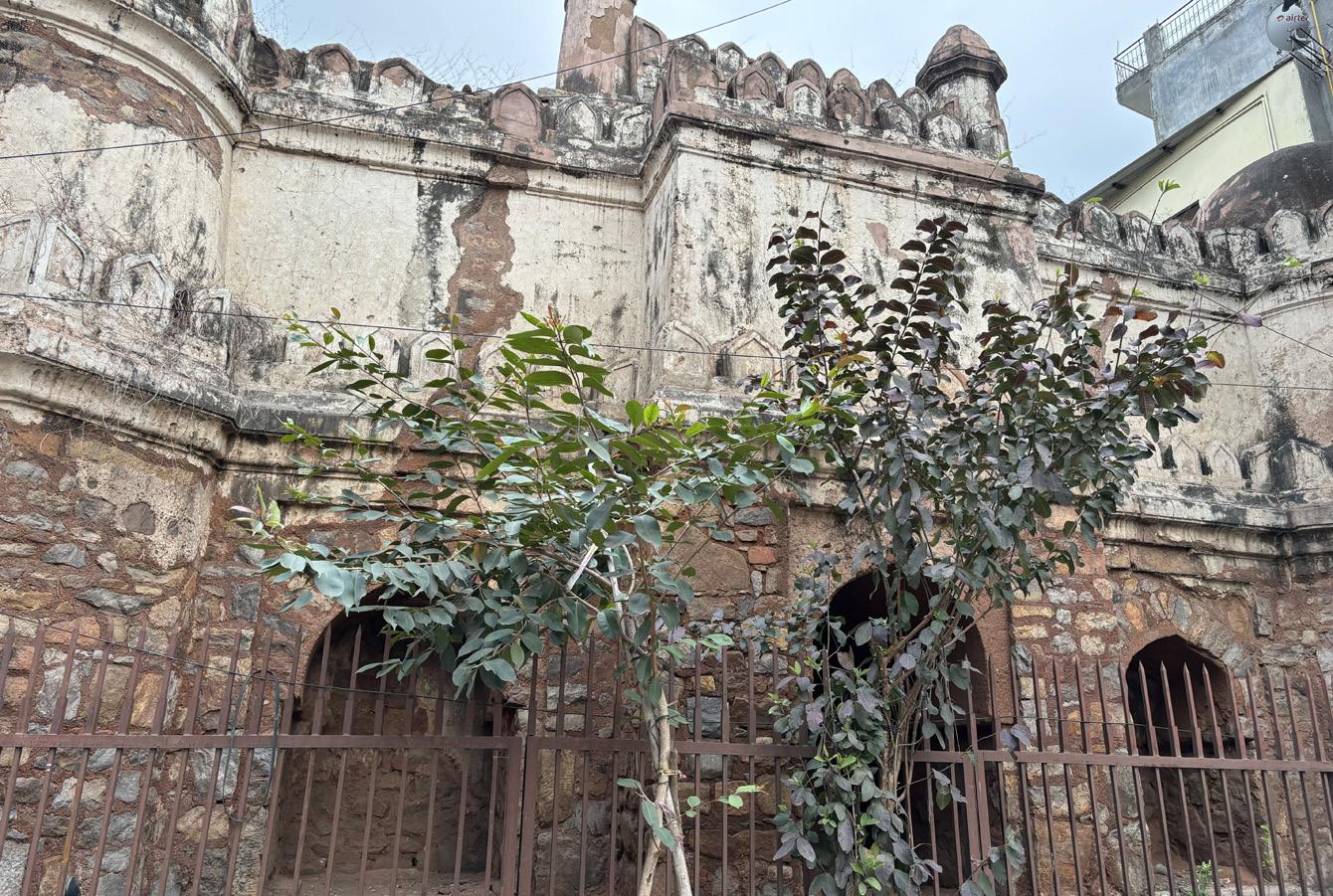

• Historical Context: Lado Sarai’s architectural landscape is deeply rooted in history. The area was traditionally inhabited by farming communities and later developed into a bustling village.

• Vernacular Architecture: Like many urban villages in Delhi, Lado Sarai features vernacular architecture characterized by its simplicity and functionality.

• Contemporary Development: In recent years, Lado Sarai has witnessed significant urban development and gentrification.

This has led to the construction of modern buildings, including commercial complexes, residential apartments, and upscale restaurants.

ENTRY/ EXIT POINT ON SITE UNDERPASS

GR

EE

COMMUNITY CENTRE

N

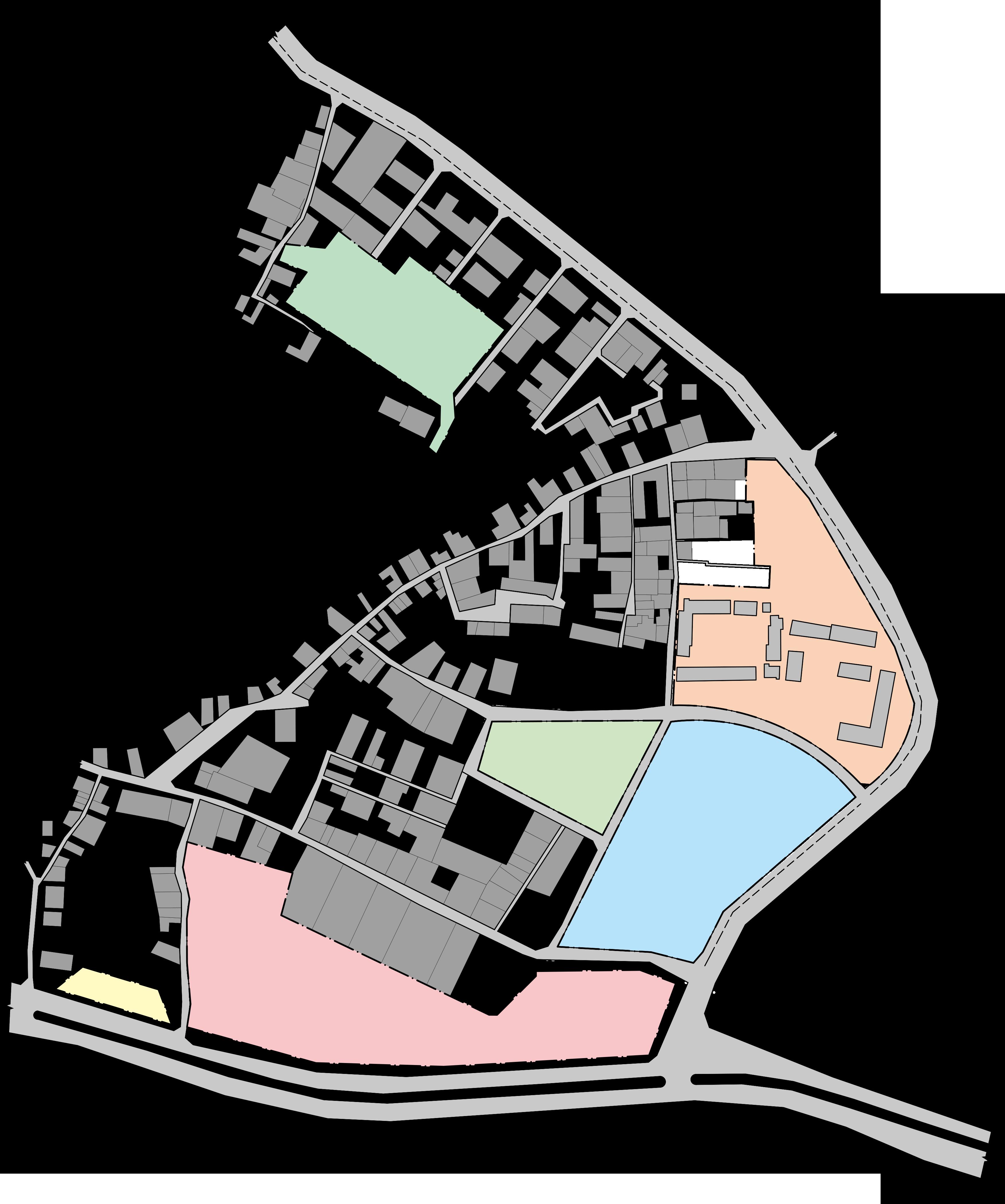

SITE DISTRIBUTION

SCHOOL EXTENSION

AR

• • • • • • • • • • • • • • • • • •

PA RK IN

G

OA T

EA

COMMUNITY CENTRE • Admin Area • Dispensary • Workshop • Banquet Hall • Senior Citizen Centre • Exhibition Area • Open Air Theatre • Public Washrooms • Public Park

EXISTING MCD SCHOOL GREEN AREA PARKING

GR

PARK IN

G

EEN

AR

EA

EN

A E R

PUBLIC PARK

A

RE

G

PARK I

Source- Self

SCHOOL EXTENSION Classrooms Labs Physics Laboratory Chemistry Laboratory Biology Laboratory Domestic Science Laboratory Social Science Room Art Room Crafts Room Activity Room Science Theory Room NCC Staff room Admin Area Wash-room Student Club Multi Purpose Hall Book Shop

PUBLIC PARK • Underground Parking is proposed to resolve the issue of shortage of defined parking space for residents.

NG

PAR

KIN

G

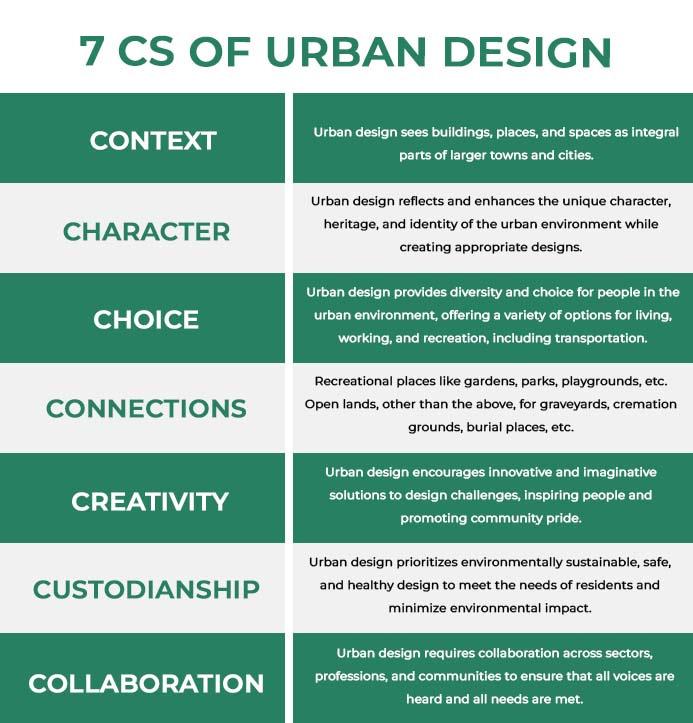

URBAN DESIGN

• The urban design of Lado Sarai, like many urban villages in Delhi, is characterized by a mix of traditional and contemporary elements. Here’s an overview of the urban design aspects of Lado Sarai: • Street Layout: Lado Sarai features a maze-like network of narrow streets and alleyways, typical of traditional Indian urban settlements. The layout has evolved organically over time, reflecting the village’s historical development.

• Mixed Land Use: One of the defining characteristics of Lado Sarai’s urban design is its mixed land use.

• Public Spaces: These include open courtyards, chowks (squares), and neighbourhood parks where residents gather for social activities and cultural events.

• Gentrification and Redevelopment: In recent years, Lado Sarai has experienced gentrification and redevelopment, leading to changes in its urban fabric.

DERIVATION OF CONCEPT OA T

VENDORS MARKET

MUSEUM

GREEN AREA

BUS STOP

Source- GREHA

UNDERPASS MIXED-USE DEVELOPMENT

Source- Self

SITE MASTER PLAN 1:2000

• • • • • • • • • • •

MUSEUM

Entrance Administration Exhibition gallery Workshop Laboratory Auditorium Library Amenities Services Art & craft centre Open spaces

India Gate

Red Fort

Qutub Complex

Source- UDL Labs

• The Concept for the development deviated from the phase “Harmony Within Diversity” which is related to diversity in building typology but have a common relation between.

• This concept can also be related with the Urban village settlement of lado sarai consist of diversities within itself.

PARKING

GREEN AREA OAT VENDORS MARKET

• • • • •

MIXED-USE DEVELOPMENT Retail area(G+1 floors) Offices area( 5 floors) Basement parking Lift lobby Services

• • • • •

UNDERPASS Sunken court Vendors market Art gallery Informal shops Amphitheatre

Source- Self

Source- Younidarchitects

• • • • •

MIXED-USE DEVELOPMENT Site Area: 18,211.5 SQM Pro. Built up Area: 34,100 SQM Pro. Ground coverage: 30% FAR:1.875 Parking: 1023ECS

• • • • •

MUSEUM Site Area: 13,414 SQM Pro. Built up Area: 15,990 SQM Pro. Ground coverage: 25% FAR: 1.2 Parking: 320 ECS

• • • • •

SCHOOL EXTENSION Site Area: 14,536.4 SQM Pro. Built up Area: 3,030 SQM Pro. Ground coverage: 35% FAR:1.5 Parking: 204 ECS

• • • • •

COMMUNITY CENTRE Site Area: 7,476.4 SQM Pro. built up Area: 3,250 SQM Pro. Ground coverage: 15% FAR: 1.2 Parking: N/A

• The architectural and urban design elements are dervied from the existing context of the lado Sarai and Delhi.

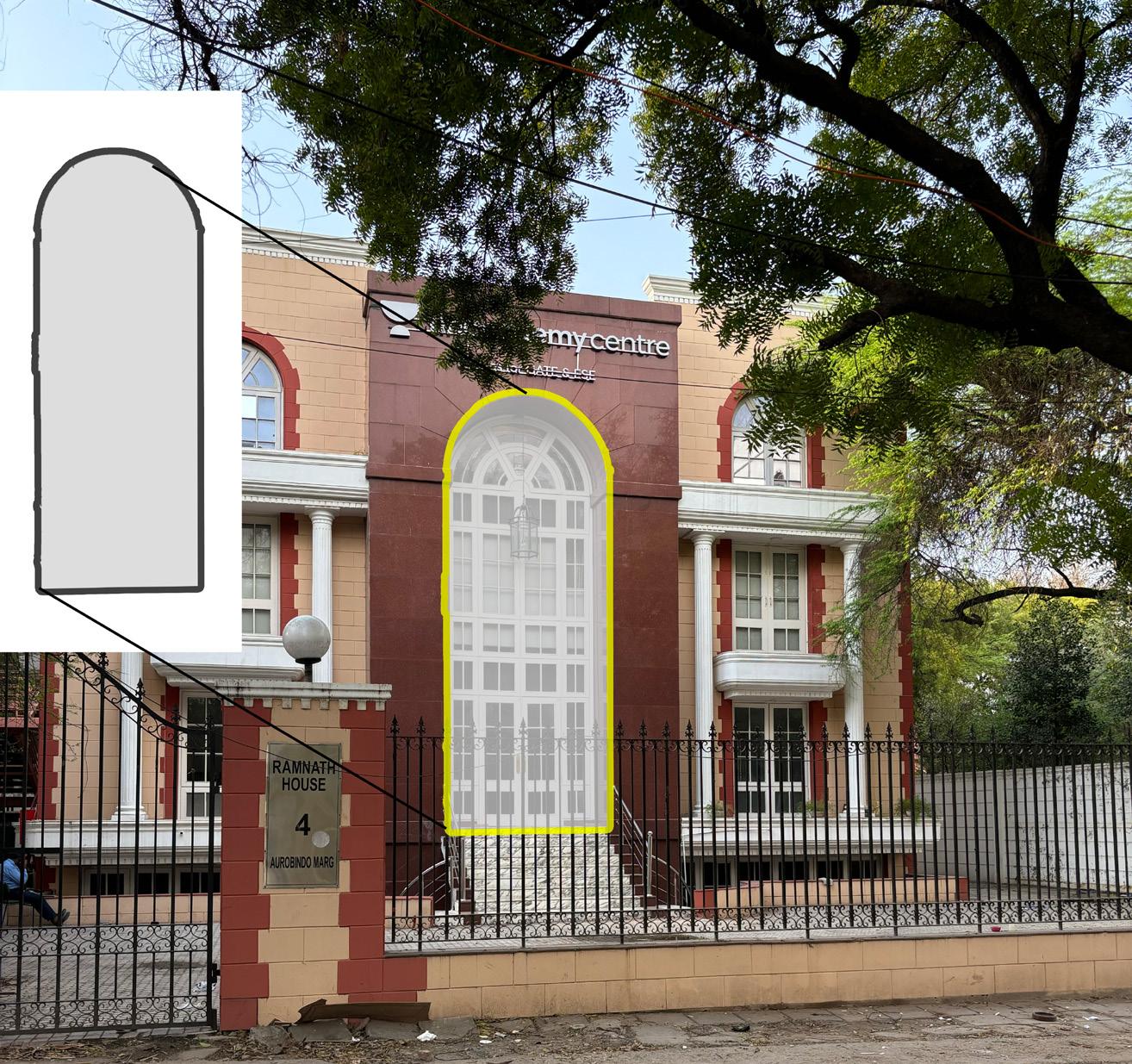

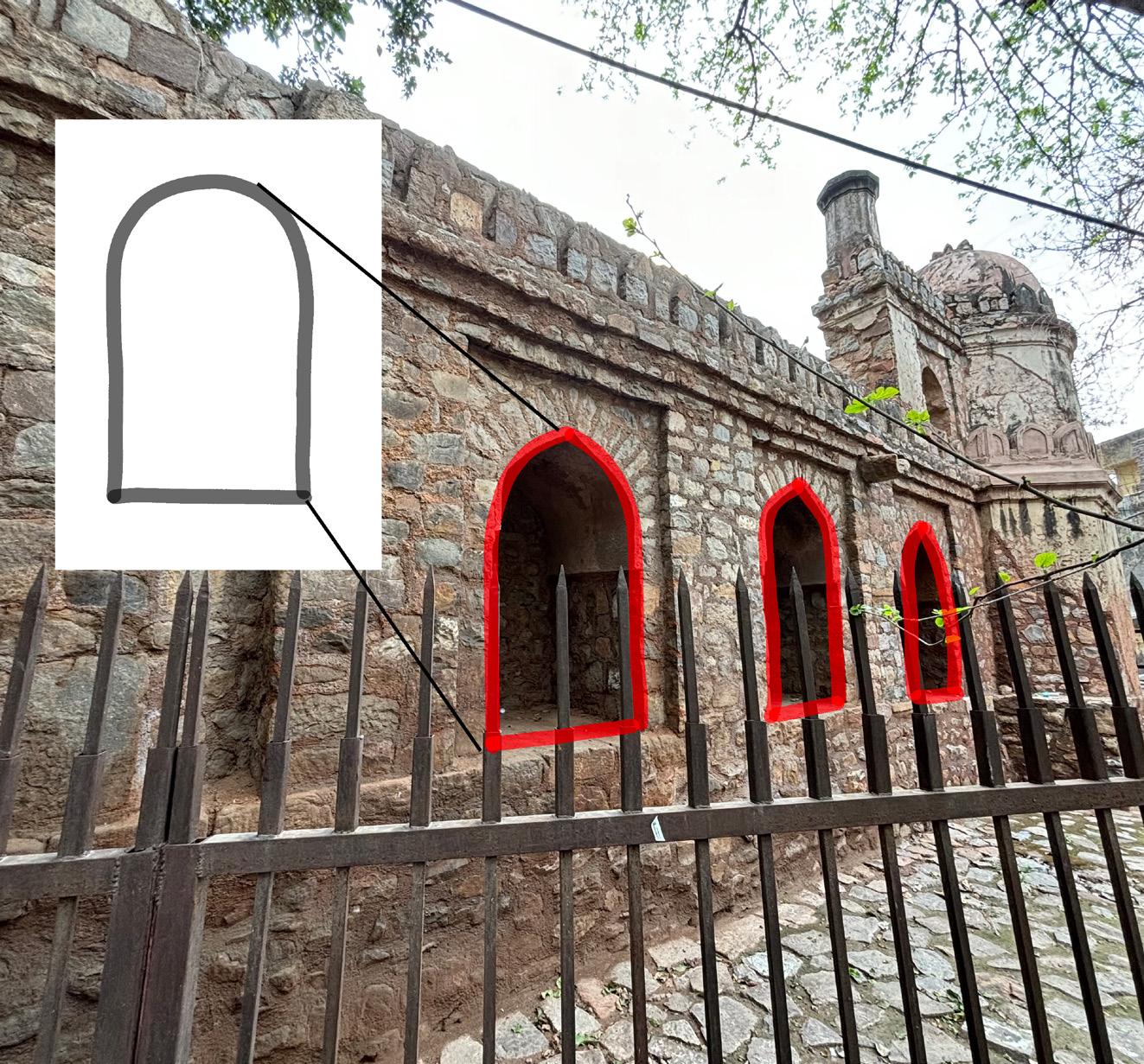

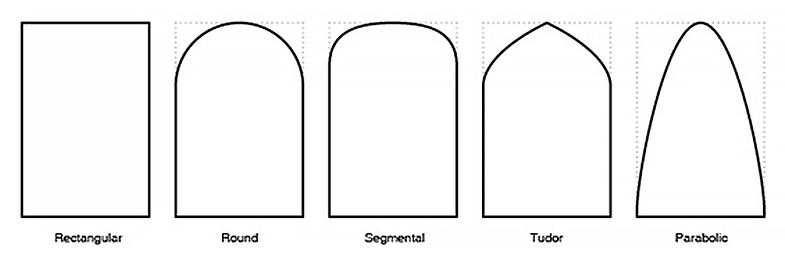

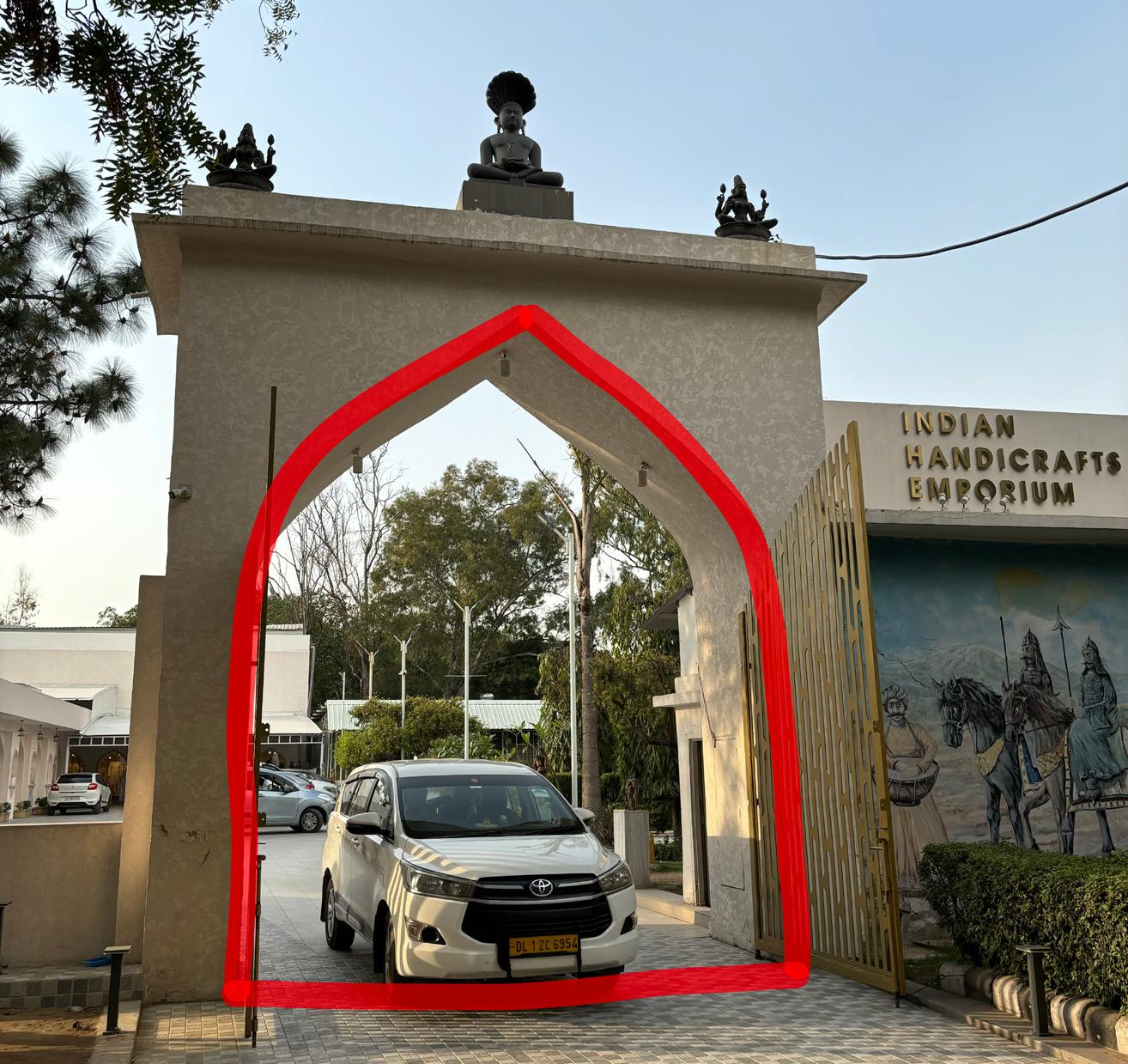

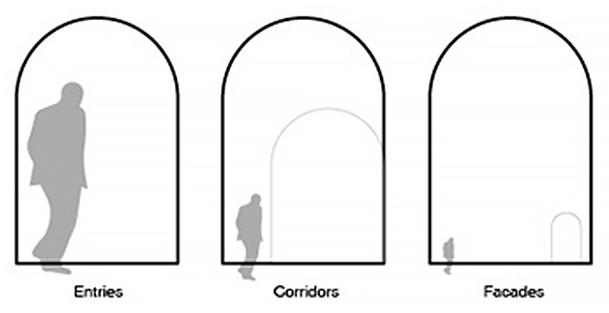

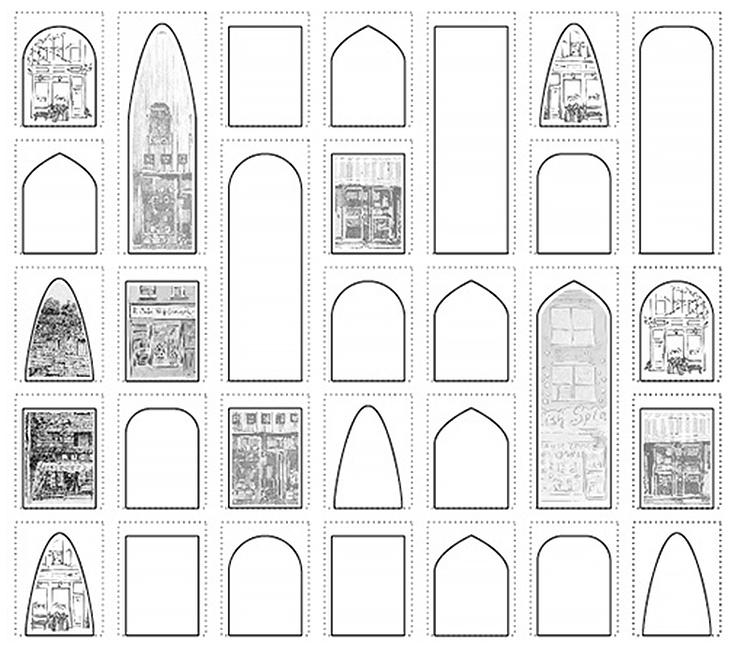

• Prominent element common in all spaces is Arch which work to link spaces dervied from Historical monuments like Qutub Complex, India Gate, Red fort, etc..

• The Red Stone is used as the external facade material in all the buildings which is already used in abundant in Delhi gives a urban context.

• Other traditional Indian planing concept like building orientation, courtyard planing etc.. are used along the development which help to develop concept functionality.

BATCH 2019-2024

URBAN DEVELOPMENT LADO SARAI

SUBMITTED BY

THESIS COORDINATOR

THESIS GUIDE

UNDERGRADUATE THESIS

CONCEPT SHEET

GORESH SAINI 1999005

AR. SUKHMANJIT SINGH

AR. VIVEK SEHGAL

REMARK & SIGN

CONCEPT:

ZONING OPEN AIR THEATRE

CLASSROOMS

O.T.S

CLASSROOMS

OPEN SPACES

SERVICES

SERVICES

WORKSHOPS

AUDITORIUM

LIBRARY

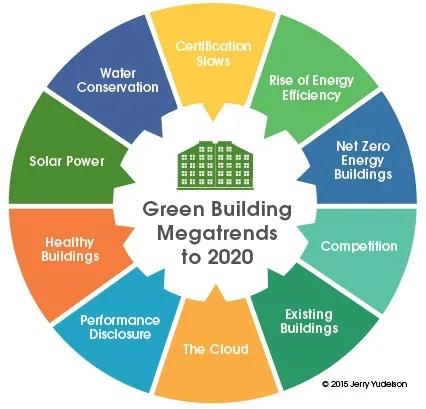

• NATIONAL MUSEUM OF ARCHITECTURE is part of proposal of Green Rating For Integrated Habitat Assessment (GRIHA).

• The Design proposal aim to design Museum building GRIHA rated as a Green building to attain sustainability and energy efficiency.

• Other buildings are also aim to achieve Sustainability and Energy Efficiency with use of different methodology while have building typology as a constrain.

OPEN SPACES BANQUET HALL

EXHIBITION AREA

OPEN SPACES

LABS

MULTI- PURPOSE HALL

OFFICES

RETAIL GALLERY

STAFF ROOM

SENIOR CITIZEN CENTRE AMENITIES

COURTYARD

TECHNOLOGY

EXHIBITION

AMENITIES

ADMIN

ADMIN

VERTICAL CIRCULATION

LOBBY

AMENITIES

ADMIN

Source- GREHA

MATERIALS

• Use of Red Sandstone is proposed in design which is derived from the existing Historical structures like Qutub complex, Red Fort, etc.

• It help to create connectivity with existing of old Delhi.

• The extraction and processing of red sandstone have evolved to become more environmentally friendly.

• Using sandstone in construction projects promotes ethical sourcing and resource conservation, increases energy efficiency, and lowers carbon emissions.

ENTRANCE

ENTRANCE

ENTRANCE

ENTRANCE

COMMUNITY CENTRE BUILDING

SCHOOL BUILDING

MIXED-USE BUILDING

MUSEUM BUILDING

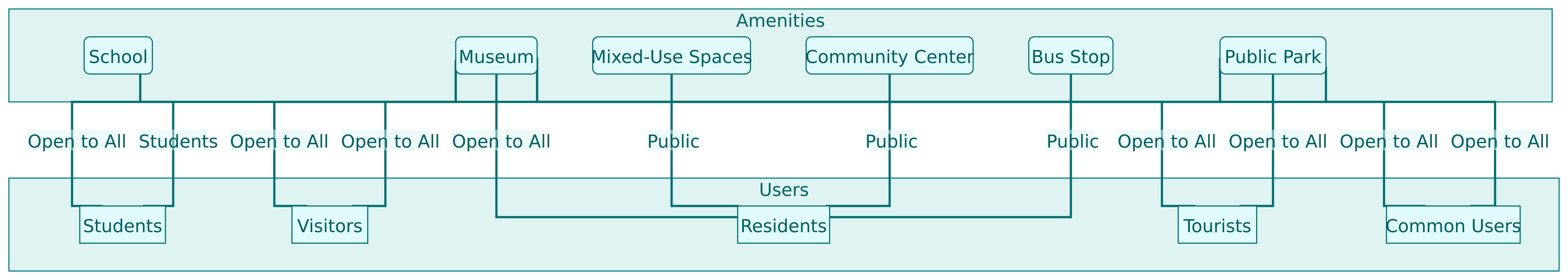

USER

SCHEMATIC DESIGN SECTIONS MIXED-USE BUILDING

Source- Self

MUSEUM BUILDING

SCHOOL BUILDING

VERTICAL CIRCULATION

OFFICES

COMMUNITY CENTRE BUILDING

OFFICES OFFICES

GALLERY

OFFICES

GALLERY

OFFICES

GALLERY

RETAIL

GALLERY

RETAIL

GALLERY

CLASSROOMS CLASSROOMS CLASSROOMS

ADMIN

PARKING SERVICES SKYLINE PARKING PARKING PARKING • The Settlement of Lado Sarai consist of mid-rise development which consist of building blocks up-to G+6 level.

• To attain Maximum Utilization of FAR in Mixed use development the building is proposed of G+6 with 3 Basement levels • Due to the Presence of Alluvial soil due to Yamuna Basin Raft foundation is proposed for Structural stability.

Source- Self

DESIGN STRATEGY

• The design strategy is based on the typology of building although some basic principle like orientations, etc. is used collectively.

• The Red sandstone and Arched Facade is the main concept of theme “Harmony within Diversity”. Hence used in all the buildings.

• Museum: Linear with loop Genetic planning is used. To order to maximize the Diffused light in interior courtyard planing is also integrated. Sky light are also used to inchance user experience of museum. National museum of architecture is proposal of GRIHA which means its a GRIHA rated Green building, hence the aim is to design building as per GRIHA specifications.

• Mixed use building: The G+1 floor consist of retail areas and from 2nd level offices are proposed. The main aim of articulation is increase the perimeter of the block in order to have larger facade which help to inchance natural lighting conditions in the office hours.

• School Extension: 3 blocks with classrooms with OTS is designed for a Healthy and User friendly Learning space • Community centre: The community centre is planed with the Indian courtyard planing concept consist of courtyard working as OAT.

Source- Self

Source- DUAC

BATCH 2019-2024 UNDERGRADUATE THESIS

URBAN DEVELOPMENT LADO SARAI

SUBMITTED BY

THESIS COORDINATOR

THESIS GUIDE

GORESH SAINI 1999005

AR. SUKHMANJIT SINGH

AR. VIVEK SEHGAL

REMARK & SIGN

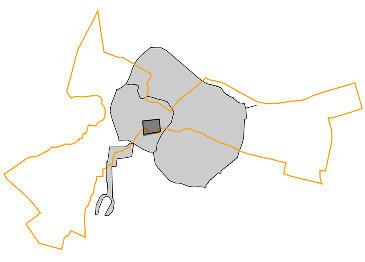

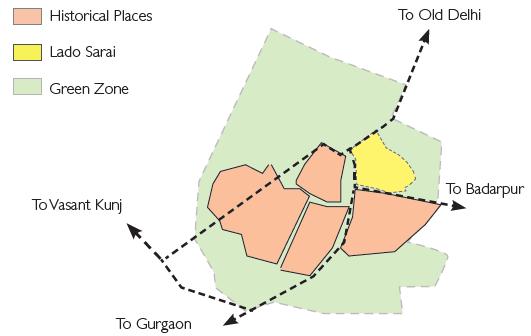

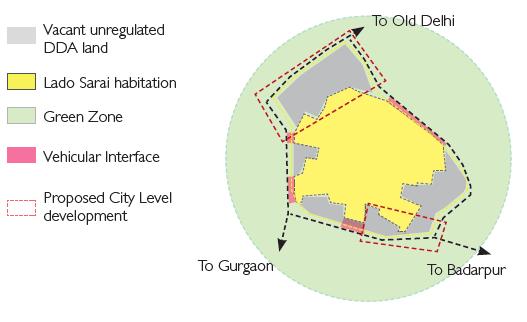

CITY LEVEL INTERFACE

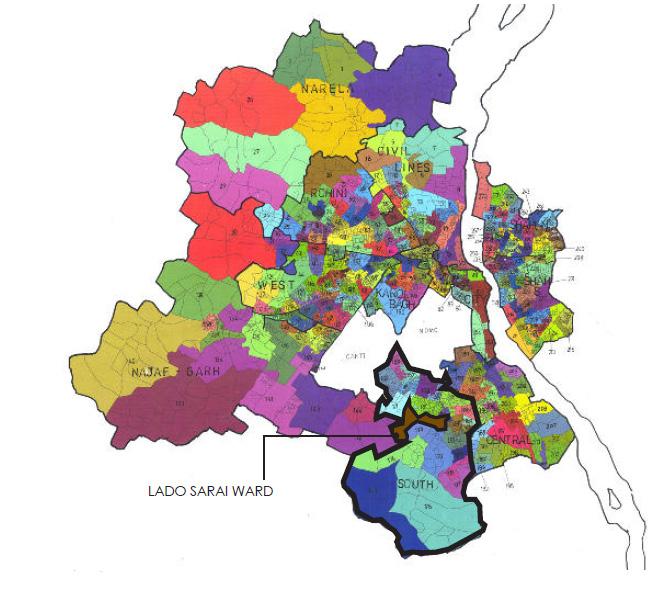

PRELIMINARY RESEARCH: Ward Boundary Major Road

Lado Sarai Habitation Green Zone

8th-11th Century

• Delhi was under the Tomar dynasty who ruled as generals of the Pratihara kingdom of Kannauj.

• Before the formation of the fortified city of Lalkot as the new capital in the 11th century, the Tomars ruled from Suraj Kund.

Lalkot

8-11th Century

12th Century

13 th Century

Mehrauli 13th Century

To Tughlaqabad

Lado Sarai

14-18th Century

To Hauz Khas

Aurobindo marg

Saket

Qutub Complex Mehrauli Lado Sarai

MB Road 1962-1980

Vasant Kunj

To Hauz Khas

Sanjay Van

Aurobindo marg

Qutub Golf Course To Gurgoan

1980-2010

Metro Station Metro line

Source- Delhi: A Thousand Years of Building, Lucy Peck, Roli Books, 2005/SELF

1

To Gurgoan

Historical Places

URBAN CONTEXT

To Old Delhi

Lado Sarai Green Zone

To Vasant Kunj

• Delhi was under the rule of the Slave dynasty. The Qutub complex was built during this period.

To Gurgoan • The village of Mehrauli grew around the shrine of Saint Qutubuddin Bakhtiyar Kaki, LADO SARAI URBAN VILLAGE who was active and buried in Delhi in 1235 CE.

Qutub Complex

Mehrauli

Proposed City Level development

• The Chauhan Rajputs under the leadership of Prithvi Raj Chauhan defeated the Tomars in 1160 CE and established the Qila Rai Pithora as a new city extension of Lalkot.

• Mohammad Gohri defeated the Chauhans in 1192 CE and captured Delhi.

Lalkot

• Lado Sarai is located within a large green area containing many important historical monuments.

• The immediate surroundings include forested areas, an archaeTo Badarpur ological park, traces of historic cities, a golf course and neighbourhood parks maintained by the Delhi Development Authority.

Source- SELF

Commercial Institutional Mixed-Use Residential Warehouse/Godowns Healthcare

14 th-18th Century TIMELINE

Qutub Complex

Vehicular Interface

12 th Century

Qila Rai Pithora

To Shahjahanabad

• The Delhi Master Plan proposed arterial roads which, while providing city level accessibility, enclosed the habitation to make it an urban island.

• These roads generated open spaces on the edge of the built fabric which have become areas To Badarpur of unregulated urban growth.

• The urban habitation interfaces with the city at only a few places through vehicular traffic junctions.

Source- SELF

To Old Delhi

Vacant Unregulated DDA Land

CHRONOLOGICAL DEVELOPMENT

Bus Stop Major Pedestrian Routes DDA Land Forest Area Golf Course Garden And Park Major Roads

• Lado Sarai was built as a night shelter/inn north of the city’s important thoroughfare (Mehrauli–Badarpur Road) to Tughlaqabad.

• It was the period during which Mehrauli grew in size and new monuments were built.

• The population around Lado Sarai and Mehrauli increased during the late Mughal period as a new thoroughfare from Shahjahanabad to Mehrauli (present Aurobindo Marg) was built.

4 Healthcare Sociocultural Educational Distribution System

3

5 2

20th Century- Till date

6

• The DDA formulated its Master Plan in 1962, and Mehrauli–Badarpur Road and Aurobindo Marg were established as major inter-city movement arteries.

• Planned areas of Saket and Vasant Kunj were colonized and built during the 1970s and 80s.

• During this period DDA also acquired the agricultural lands around Lado Sarai and Mehrauli and earmarked them as the Qutub Golf Course, Mehrauli Archaeological Park and Sanjay Van to conserve heritage monuments as well as the flora and fauna of the precinct.

• The Yellow Line of Delhi Metro came up in the area in the year 2010.

2

3

4

• Lado Sarai is surrounded by large city level green open spaces such as a golf course, Sanjay Van and Qila Rai Pithora Park.

• Most of the vacant lands around Lado Sarai are under the DDA and are of uncertain use.

• These open spaces are used as bus and car parking spaces by the community.

• The pedestrian network is part of the organic development of the village and now vehicular traffic causing distress among the pedestrians.

Source- DUAC

BUILDING USE PLAN

• The predominant use of the buildings is residential.

• Three major roads, that is Old MB Road, Gali Numbers 1 and 2, have mixed-use development.

• Old MB Road has seen a major transformation in recent times, with the introduction of new art galleries, showrooms and designer studios.

• The few public buildings are schools, a mosque, temples and tombs.

Source- DUAC

SOCIAL INFRASTRUCTURE

• There is a deicit of healthcare facilities in the area.

• There are temples, a mosque, a tomb and a community centre which constitute the sociocultural facilities.

• Education facilities include a MCD primary school, a senior girl’s school and a play school.

• Two CNG stations and a petrol pump are distribution facilities located on the road around Lado Sarai.

Source- DUAC

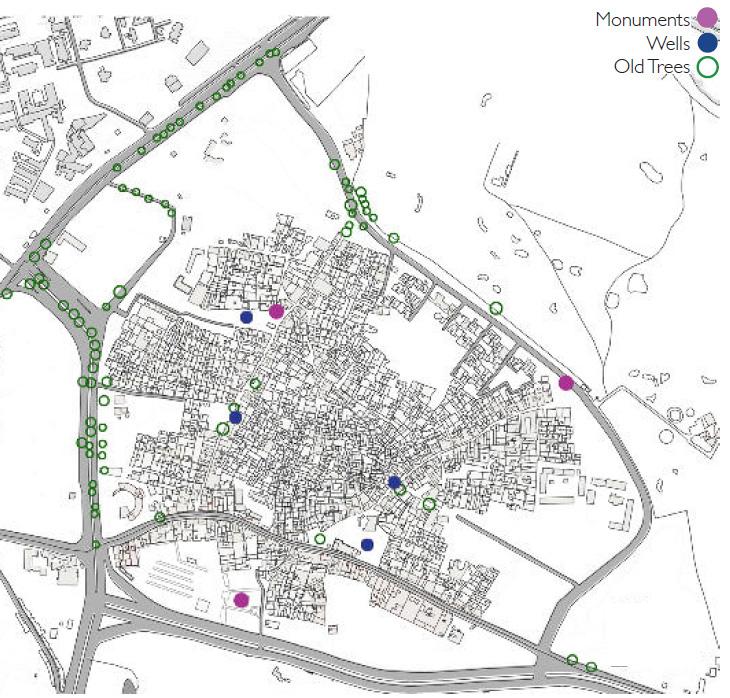

7 Monuments Wells Old Trees

1

Source- SELF

6

5

OPEN SPACES

7

Source- SELF

HISTORICAL MONUMENTS

• Lado Sarai has one state protected monument along the MB Road and two unprotected monuments in a dilapidated state within the habitation.

• Wells have generally being co ered by steel nets but are still visible in the urban fabric.

• A number of old trees serve as community spaces and sacred places within the urban fabric.

Source- DUAC

BATCH 2019-2024

URBAN DEVELOPMENT LADO SARAI

SUBMITTED BY

THESIS COORDINATOR

THESIS GUIDE

UNDERGRADUATE THESIS

PRELIMINARY DESIGN RESEARCH

GORESH SAINI 1999005

AR. SUKHMANJIT SINGH

AR. VIVEK SEHGAL

REMARK & SIGN

TO HAUZ KHAS

LANDMARKS

3

1

AUROBINDO MARG 26M WIDE

LADO SARAI WARD

Source- DDA

16

AUROBINDO MARG JUNCTION

2 PHIRNI ROAD 24M WIDE

Phirni Road with Parking

CAMPA COLA GALI 18

TO CO Q M UT PL U EX B

15

WEST LADO SARAI ZONE 4

14

Open Area for community Centre

MAJOR ROADS

13

1. MEHRAULI-BADARPUR ROAD40M WIDE 2. PHIRNI ROAD-24M WIDE 3. CRESCENT ROAD- 26M WIDE 4. AUROBINDO MARG-26M WIDE 5. OLD MB ROAD 6. CAMPA COLA GALI 7. HIMMAT SINGH MARG 8. HANUMAN MANDIR WALI GALI.

17 CRESCENT ROAD

CENTRAL LADO SARAI ZONE 2

HANUMAN MANDIR WALI GALI

19

TO CO Q M UT PL U EX B

4

EASTERN LADO SARAI ZONE 3

OLD MB ROAD ZONE 1 9

OLD MB ROAD

1. NATIONAL INSTITUTE OF TB AND RESPIRATORY DISEASES. 2. BHARAT PETROLEUM, PETROL PUMP. 3. THE NEST- QUTUB GOLF COMPLEX. 4. CRESCENT MALL. 5. LADO SARAI RTO TEST TRACK. 6. GUMBAD PARK. 7. FOUNDATION FOR INDIAN CONTEMPORARY ART. 8. MCD COMMUNITY CENTRE. 9. SHIV MANDIR. 10. DDA PARK 11. DDA CHILDREN PARK 12. MCD PRIMARY SCHOOL [BOYS].

13. HANUMAN MANDIR 14. MITHUN PARK 15. DDA JANTA FLATS 16. QUTUB NURSERY DDA 17. MEHRAULI COMPLEX PARK PHASE 2.

18. HARE KRISHNA CENTRE LADO SARAI 19. BUS STOP- LADO SARAI CROSSING 20. BUTTERFLY PARK LADO SARAI.

11

lodhi Era Mosque

12

HIMMAT SINGH MARG

5

MAJOR CHOWKS [JUNCTIONS]

6 7

SOUTHERN LADO SARAI ZONE 5

8

10

Public Washroom at Phirni Road

20

1. KALI MANDIR CHOWK 2. KHALIYA CHOWK 3. BAANDE KI CHAUPAL 4. KUDI CHOWK 5. HARIJAN CHAUPAL CHOWK 6. SHIV MANDIR CHOWK 7. VALIMIKI GALI CHOWK 8. ANURAG SCHOOL CHOWK

TO MEHRAULI MB ROAD 40M WIDE

TO BAD A

RPU

SCALE 1 : 2000

R MB Road

Source- SELF

BATCH 2019-2024

URBAN DEVELOPMENT LADO SARAI

SUBMITTED BY

THESIS COORDINATOR

THESIS GUIDE

UNDERGRADUATE THESIS

PRELIMINARY DESIGN RESEARCH

GORESH SAINI 1999005

AR. SUKHMANJIT SINGH

AR. VIVEK SEHGAL

Source- SELF

REMARK & SIGN

AMENITIES

SETTLEMENT PATTERNS Khaliya Chowk As a Commercial chowk with provisions for eating outlets, hawkers and pedestrian facilities.

Kali Mandir Chowk As a Entrance to the village, sports facilities, gathering spaces, temple plaza, heritage node and green coverage.

Baande ki Chaupal Community gathering space and vending zone

Anurag Industrial Training centre A transit chowk with seating spaces.

DDA open space Open green space used for parking.

Chowk Extension of existing chaupal.

Anurag School Chowk Children Play area.

Kudi Chowk Highest point of Lado Sarai and oldest chowk.

Valimiki Gali Chowk Existing well, seating spaces and entrance to old core.

Harijan Chaupal Chowk Existing well, chaupal and vending zone.

Shiv Mandir Chowk Park, Temple Plaza, Panchyat Ghar plaza, Playground, seating spaces.

Source- SELF

MOBILITY

One way Regulated vehicular movement free way Pedestrian Trails Pedestrian Zones and regulated vehicular moment

• Lado sarai consist of 4 abandoned water well which were previously used for fresh water for daily need.

• According to the existing pattern of settlement the development of the village begin around the well as they are in the oldest part of it.

• Wells are centrally focused with a plaza which is used for community activity and serve as a public space till now.

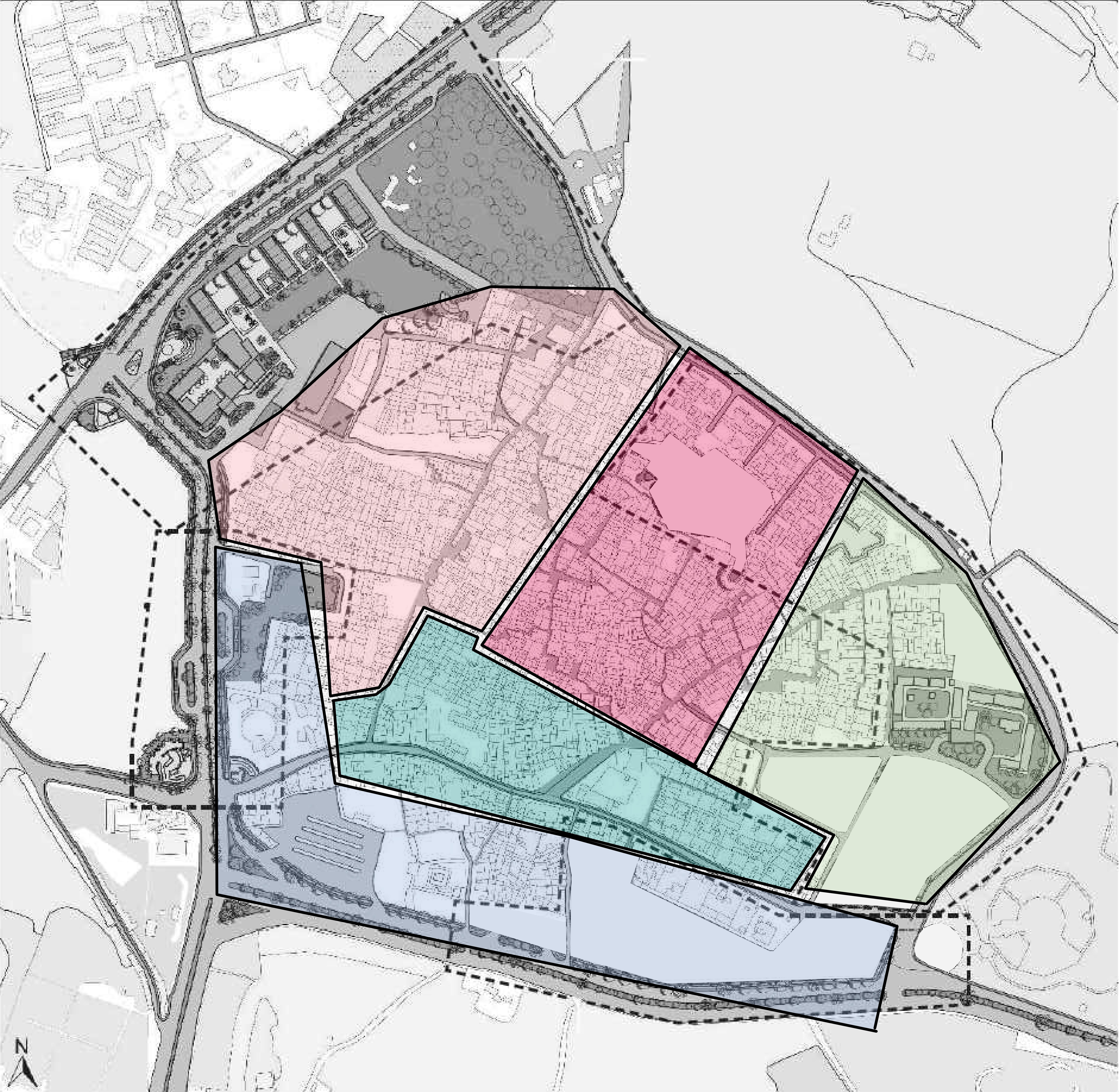

ZONE-WISE MOBILITY MAPPING

BUILDING Building consist of Mid-Rise blocks with narrow streets.

PLAZA AREA Open area[chowk]

PODIUM Raised level from road level

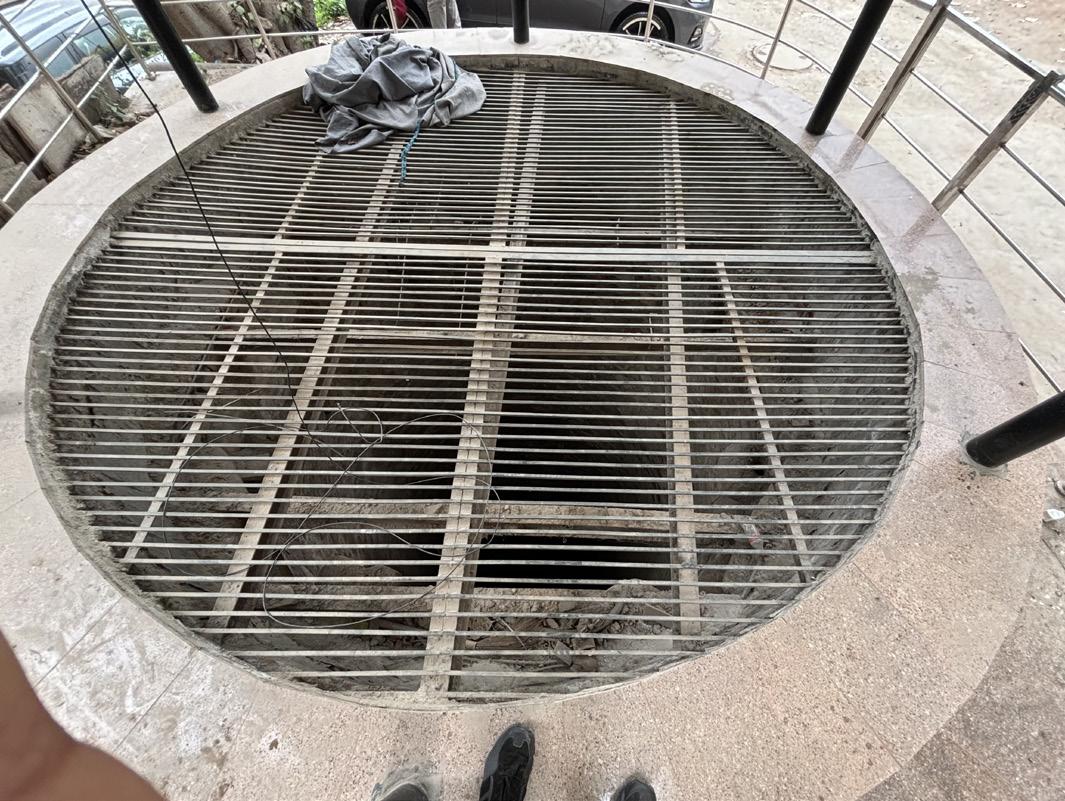

WELL Used as source foe water earlier now dried and covered with iron mesh lid.

WELL Radius of 2m-2.5m.

ROAD Street network emerging from chowks Source- SELF

IRON MESH COVER Used for safety concerns.

PUBLIC PARTICIPATION

Source- SELF

• Survey and observations are conducted in the Urban village to Track and • A survey with public participation is performed to map need and redocument the mobility, major travel routes and prime road at different zone. quirement of different zones of lado sarai and what is their need for • Four Destination are marked MCD School, nearest Bus Stop route, Way to development parameters in the designing of the urban development nearest metro station and nearest auto stand location for transit. planned on the nodes at the Phirni road consist of community centre, • The Result of this mobility mapping shows and explain primary routes for Mixed-use building, National museum of architecture and extension transit according to zone of the user. of MCD School.

• For many route overlap each other either for a same function or for a different • According to the survey need for Public green spaces is most and which make them more important to provide circulation inside the settlement common among all the zones along for Physical infrastructure and Areas.

Commercial spaces . While healthcare and Educational is avoided.

Transport Hubs: Bus stop, Auto Stand, and car parking

Way to MCD School

Auto Stand

Way to Nearest Bus stop

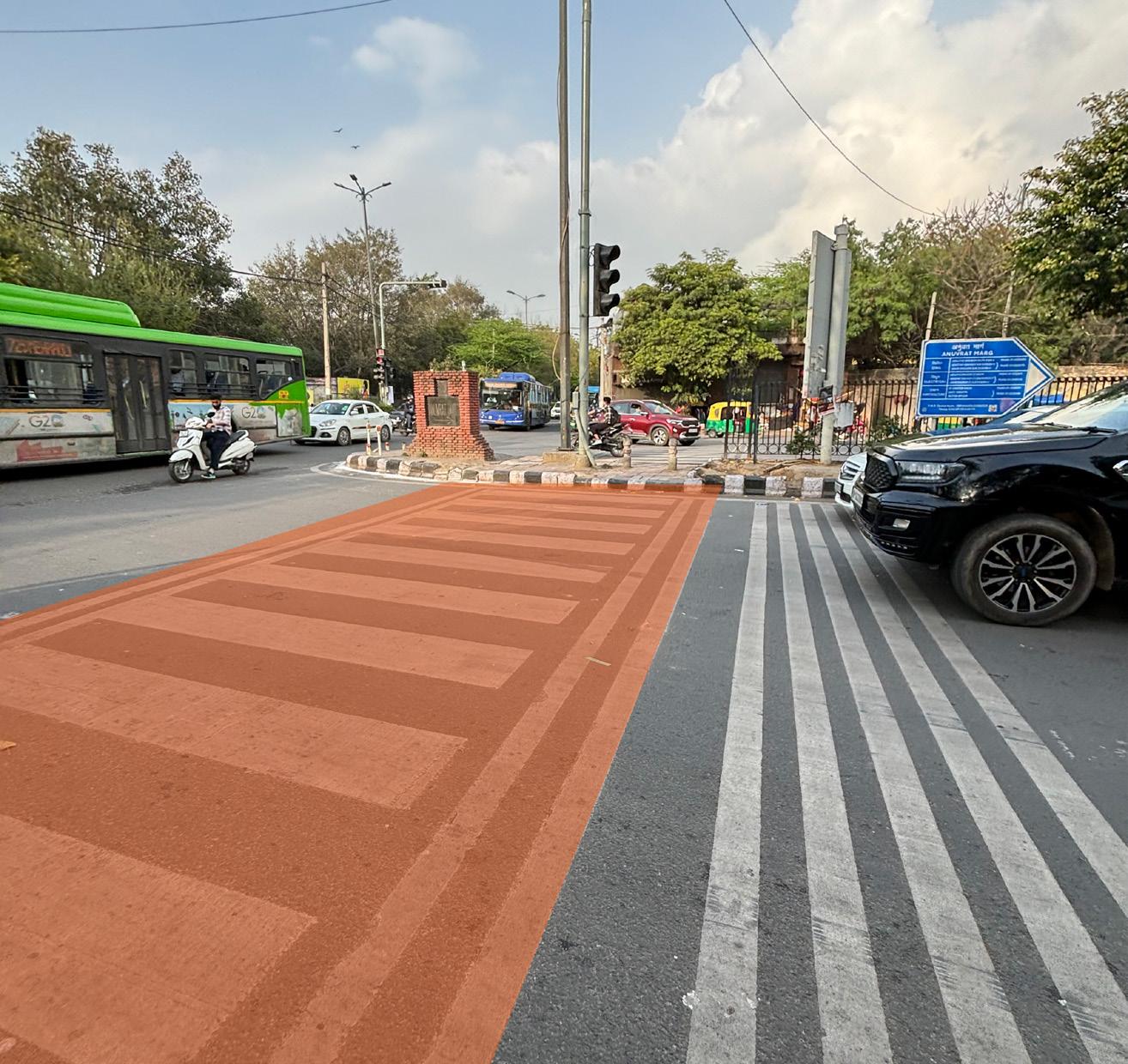

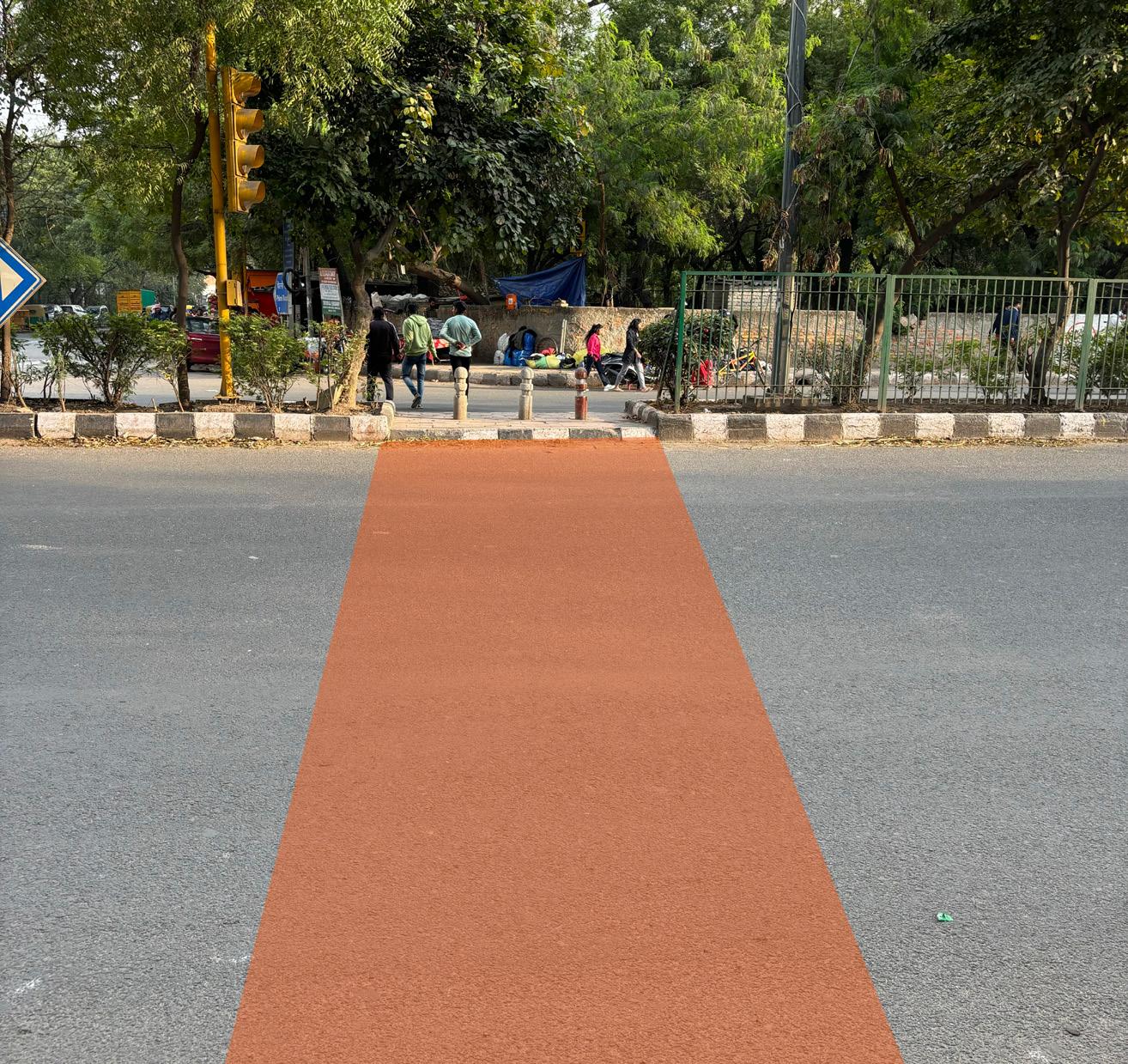

Pedestrian Crossing Pedestrian trails Existing streets to be enhanced with pedestrian facilities to connect all community open spaces.

COVER STRUCTURE Shed is constructed for covering.

Way to Nearest Metro station Way to Nearest Auto Stand

SPACE PUBLIC SPACE AND GREEN AREAS INFRASTRUCTURE COMMERCIAL SPACES HEALTH CARE EDUCATIONAL

ZONE 1

ZONE 2

ZONE 3

ZONE 5

X X X

X X

X

X X

X X Source- SELF

Shiv Mandir Chowk Hub of community activity and pedestrian zone, Hence need to be redesigned as public space.

Old MB road Entrance from Phirni road and exit on Anuvart marg to control Unnecessary vehicular movement.

ZONE 4

Source- SELF

ROAD HIERARCHY

ENTRANCE Collector road entrance junction are wide .

NARROW STREET Street become more narrower inside.

Source- SELF

Source- SELF

Main Road

Source- SELF

Inner Road Source- SELF

BATCH 2019-2024

URBAN DEVELOPMENT LADO SARAI

SUBMITTED BY

THESIS COORDINATOR

THESIS GUIDE

UNDERGRADUATE THESIS

PRELIMINARY DESIGN RESEARCH

GORESH SAINI 1999005

AR. SUKHMANJIT SINGH

AR. VIVEK SEHGAL

REMARK & SIGN

EXISTING STREETS AND PHYSICAL ENVIRONMENT OLD MB ROAD AT D1

MB ROAD AT D2

8

Public Functions [commercial]

1

2

3

4

5

6

Social Infrastructure Public Functions [commercial] Private Functions [commercial] Land allotted for functions Parks and Gardens Reserved Forest Bus Stop

Social Infrastructure Private Functions [commercial] Vehicular Parking Street Vendors

7

6

5

3

4

Source- SELF/DUAC

2

1

INFERENCES AND FINDINGS

Reliance Fresh Junction

Government Senior Girl’s School

Street in front of jal board office

DDA land boundary wall

DDA land

Temple Junction

Park and underground tank

New commercial development

Approach road to MB road

DDA vacant land

Tomb and DDA park

CNG station

• This edge of Lado Sarai has three distinct built environment conditions.

• The First one is the section containing a bus depot with a CNG station, which is not in use currently.

• The entrance of the depot is located very near a major traffic junction thereby creating conflict with traffic movement.

• The second condition is in the middle which has a public garden from where the local people access MB Road. It consists of the DDA Park, a tomb protected by the State Archaeological Department and parking space.

• The third condition has a boundary wall around vacant DDA land allotted to Aurobindo College which is used as a garbage dumping ground.

• Right of Way of MB Road is mentioned as 60 m in the DDA Zonal Plan, but only about 40 m is currently in use as a road. It acts as an arterial road and carries through traffic towards Faridabad.

Source- SELF

INFERENCES AND FINDINGS

• This is the heart of the community which connects and encourages interaction between inhabitants and the rest of the city.

• It is a major source of revenue for the local people and can be considered as the urban public face of Lado Sarai.

• This zone mostly consist of Mixed-use mid-rise blocks with have commercial spaces in the lower levels and office or residential spaces.

• The physical infrastructure of this zone is also not in good state the road is previous used as the major route to connect Mehrauli with badarpur hence have organic development along the road.

• The Mixed-Use building is planned in this zone which can be design to enhance and counter the challenges of the infrastructure.

KEY PLAN

COMMERCIAL USE Old MB Road

Commercial building

70m vacant land

40m wide Mehrauli-Badarpur Road Qila Rai Pithora

SECTION AA’: Across the Old MB road and new Mehrauli- Badarpur roads

Source- DUAC

RESIDENTIAL USE

Bus Depot Entrance

Market

Source- SELF/DUAC

Source- SELF

BATCH 2019-2024

URBAN DEVELOPMENT LADO SARAI

SUBMITTED BY

THESIS COORDINATOR

THESIS GUIDE

UNDERGRADUATE THESIS

PRELIMINARY DESIGN RESEARCH

GORESH SAINI 1999005

AR. SUKHMANJIT SINGH

AR. VIVEK SEHGAL

REMARK & SIGN

INFERENCE AND FINDINGS

PHIRNI ROAD AT D3

6

2

3

4

VACANT DDA LAND

5

INSTITUTIONAL MIXED-USE

1

VEHICULAR PARKING VENDORS

1

• The Phirni Road edge of the village is most active as it opens up on to the village bypass. It has the maximum activities as Old MB Road connect the community with the city through this road.

• There are small streets like Chowdhary Prem Singh Marg and many other pedestrian connections opening on to Phirni Road.

• The street is active due to the vegetable market, MCD Primary School, vehicular parking spaces, entrance to the DDA children’s park and DDA housing.

• The Phirni road have being used in illegal parking which leads to traffic conflict point.

• On the other side Phirni road consists of major city level green spaces like Qutub Golf course and DDA park which invite hight no. Of visitors which face parking issues due to absence of designated parking spaces. This also provide a opportunity to generate revenue and have a scope of commercial spaces which help the Micro-economic.

• Alot of street vendors are also their which are having illegal encroachment of phirni road and create congestion points we can plan a designated market place for them to enhance the urban design of the zone.

• The infrastructure also need improvement the road have a opportunity for construction of designated cycle tracks and Pedestrian Trails due to the presence of neighbourhood green areas.

• The site for Museum, School extension and community centre is also located in this zone hence the Architecture design and site planning should help to reduce the Zonal issues.

• Site also have a informal market and illegal parking at the site of museum which should be relocated and planned.

• Public park is also the part of the development to be designed with UG parking space to counter parking issue of the zone have also help to generate revenue.

Phirni Road

2

Lodhi Era Mosque

3

Parking along Phirni Road

4

MCD Primary School for Boys

5

Himmat Singh Marg

6

DDA Housing Apartments Source- SELF

Source- SELF

Phirni Road 24M wide

Space Allocated to Aurobindo Collage

Section BB’- Across Vacant Land on Lado Sarai Edge and DDA Park

Source- DUAC

2

DDA vacant Land for Community Centre along DDA housing

DDA LIG housing

Phirni Road 24M

DDA Nursery

Source- DUAC

Section CC’- Across Vacant Land on Lado Sarai Village and DDA Housing

Handicraft Emporium

26M wide road Cross Section

Section DD’- Aurobindo Marg in front of Handicraft Emporium Road

Source- DUAC

1

2

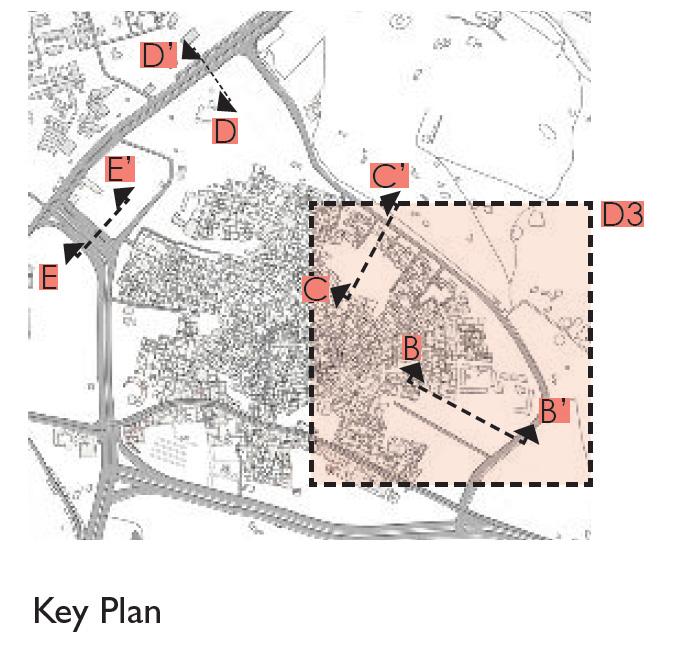

KEY PLAN

1

DDA Regional Park

56M wide Road including Bus Stop

Section EE’- Lado Sarai Crossing bus stop

Source- SELF

Parking in vacant DDA land

Source- DUAC

Source- SELF

BATCH 2019-2024

URBAN DEVELOPMENT LADO SARAI

SUBMITTED BY

THESIS COORDINATOR

THESIS GUIDE

UNDERGRADUATE THESIS

PRELIMINARY DESIGN RESEARCH

GORESH SAINI 1999005

AR. SUKHMANJIT SINGH

AR. VIVEK SEHGAL

REMARK & SIGN

ARCHITECTURE ELEMENT AND HISTORICAL PRESENCE

EXISTING CONDITIONS

ROAD WAY ROW for vehicular circulation

ZEBRA CROSSING Pedestrian cross MB road.

FOOTPATH Pedestrian Trail.

Source- SELF

MEHRAULI- BADARPUR ROAD One of the busiest road in the zone connect Mehrauli with Badarpur and Delhi with faridabad.

• Different type of arches are used in the village in different phase of time.

• Round Arch is prominently used in the village in various structures, work as a identity of the place.

• Not only in Lado sarai but this element is commonly noticed in qutub complex, Qila Rai Pithora, India Gate,etc used abundantly in whole Delhi region.

CRESCENT ROAD Lack of planning and execution of urban design strategies leads to poor infrastructure.

PATHWAY

DDA HOUSING

WALL

SITE FOR COMMUNITY CENTRE

COMPOUND WALL Wall between housing and DDA vacant land.

PATHWAY

EDGE AT COMMUNITY CENTRE SITE

DDA HOUSING Mid-rise DDA housing Block.

DDA HOUSING

PEDESTRIAN CROSSING Crossing provided for pedestrian

ROAD IN SETBACK Setback area used as road.

WALL

SCHEMATIC PLAN SITE FOR COMMUNITY CENTRE

SCHEMATIC SECTION

FOOTPATH Pedestrian Trail.

ROAD ROW for vehicular circulation GREEN BELT

CROSSING Absence of zebra crossing.

SLIP ROAD Service road at Aurobindo marg.

Source- SELF

PEDESTRIAN CROSSING AT AUROBINDO MARG Pedestrian crossing is provided in the divider and green belt but Zebra crossing is absent on the road same for the Traffic light.

GREEN AREA

PARKING

ROAD

STREET VENDORS Street Vendor on road sideways.

FOOTPATH

STREET PARKING Road sideways used as illegal parking.

VENDOR

PHIRNI ROAD

DDA PARK

SCHEMATIC PLAN Source- SELF

PEDESTRIAN TRAIL Space left for pedestrian circulation.

ROAD Road for Vehicular circulation.

AUROBINDO MARG Aurobindo marg connect MB road with Hauz khas and have Slip road for accessibility to joining secondary streets and roads.

PHIRNI ROAD Phirni road originate from this point at MB road.

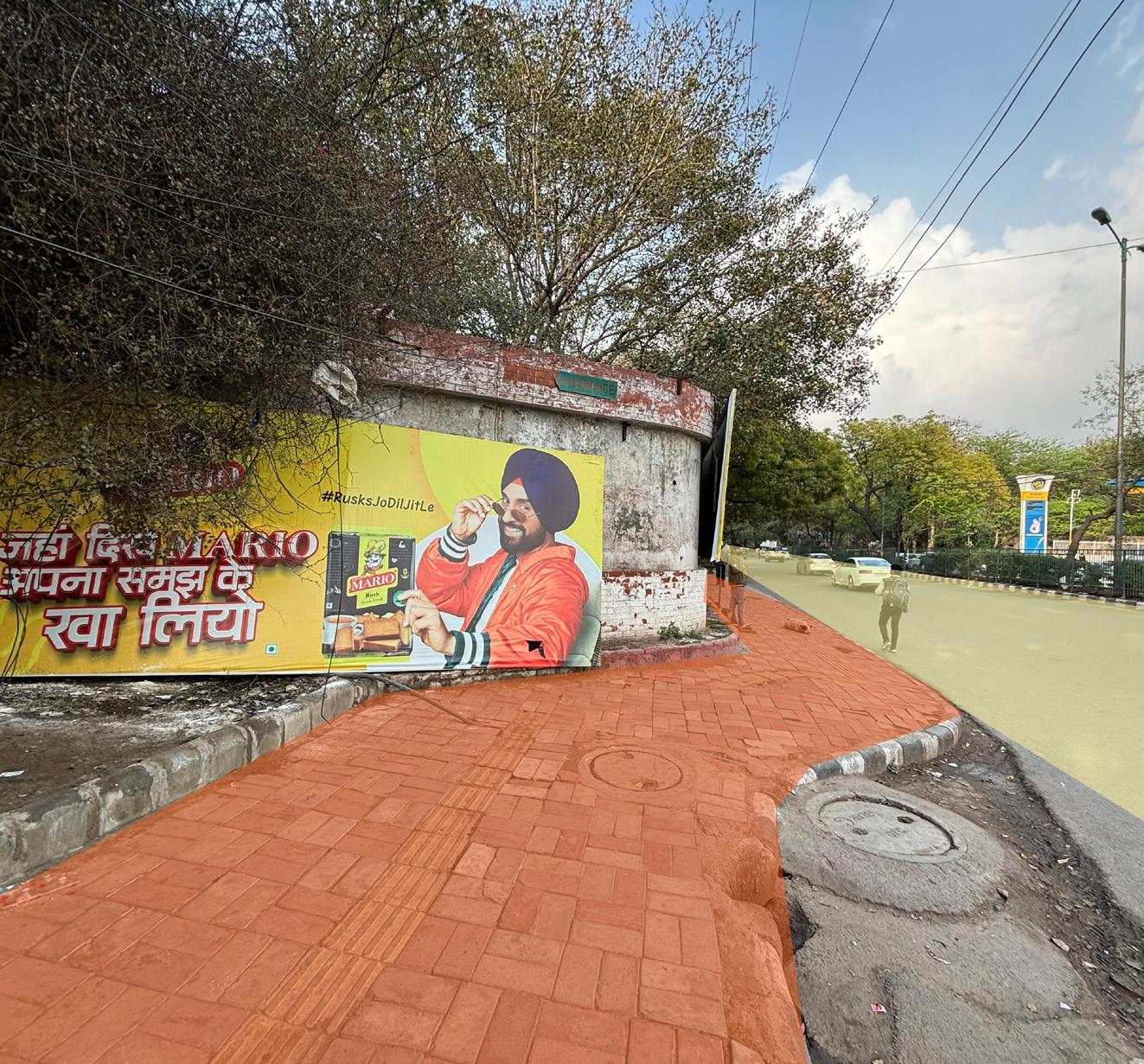

FOOTPATH Pedestrian Trail is provided for circulation with joining streets.

ZEBRA CROSSING Pedestrian crossing.

PEDESTRIAN TRIAL Space left for pedestrian circulation.

SIDEWAYS PARKING Vehicles are Illegally parked on Road sideways

SCHEMATIC PLAN

GREEN AREA

CROSSING Zebra crossing is absent for other side Pedestrians.

ROAD

GREEN BELT

ROAD Road for Vehicular circulation

PHIRNI ROAD

FOOTPATH

GREEN BELT Green area left for road extension.

ROAD

Source- SELF

MB ROAD AND PHIRNI ROAD JUNCTION This Junction is proposed with underpass to provide better Pedestrian circulation between the DDA park and residents of lado sarai. Due to heavy Traffic MB road is unsafe and difficult to cross with weak infrastructure.

PHIRNI ROAD Phirni road is congested with illegal parking on both side of the road. Footpath is encroached with vehicles leads to pedestrians way to road.

Street vendors are also their with temporary structures on road.

BATCH 2019-2024

URBAN DEVELOPMENT LADO SARAI

SUBMITTED BY

THESIS COORDINATOR

THESIS GUIDE

UNDERGRADUATE THESIS

PRELIMINARY DESIGN RESEARCH

GORESH SAINI 1999005

AR. SUKHMANJIT SINGH

AR. VIVEK SEHGAL

Source- SELF

REMARK & SIGN
