PROJECT 01
ARC401: SHIRAKAWA-GO CUTURAL CENTER
SHIRAKAWA-GO, JAPAN
MODUL PHOTOGRAPHY
PROJECT PLAN

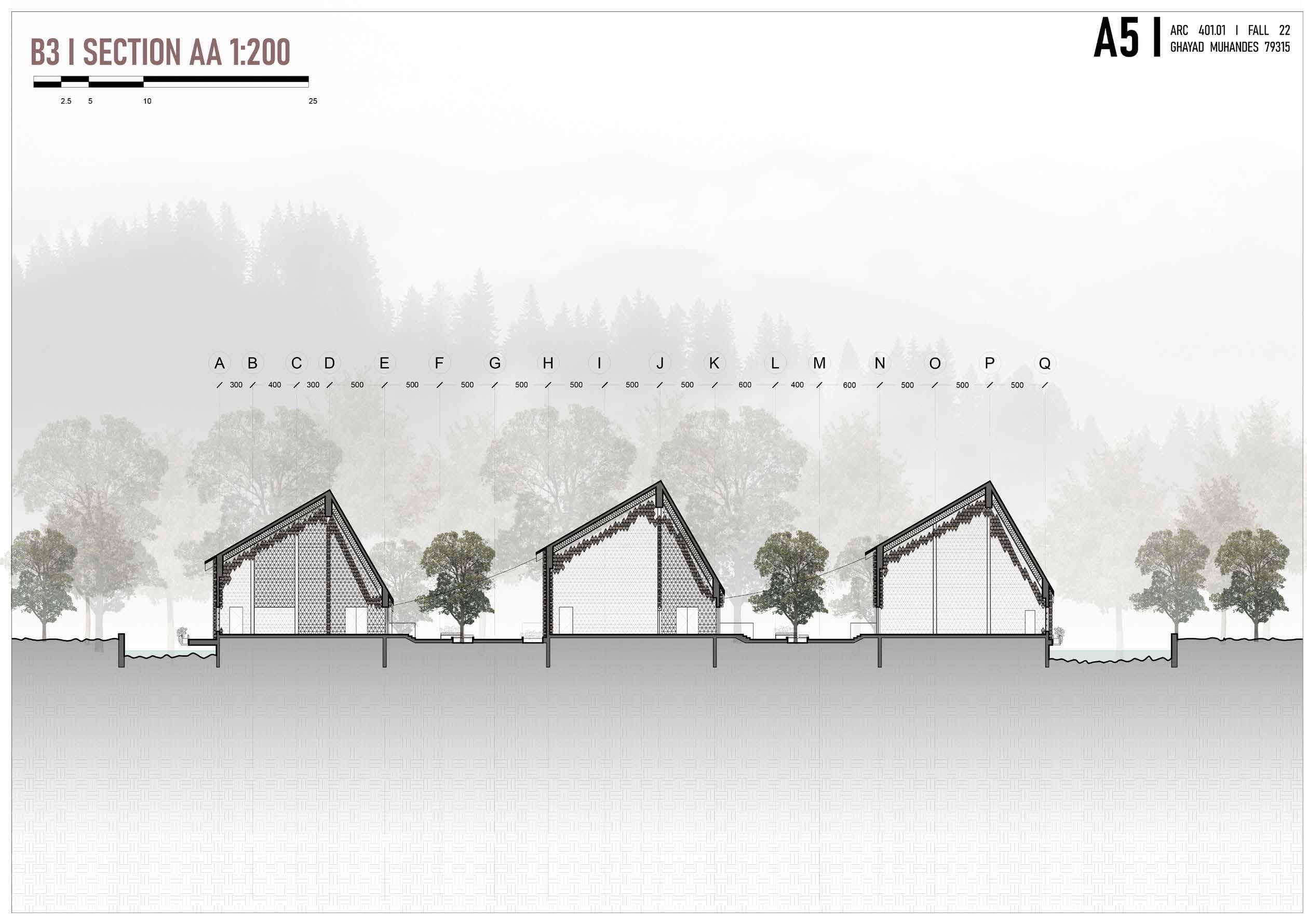

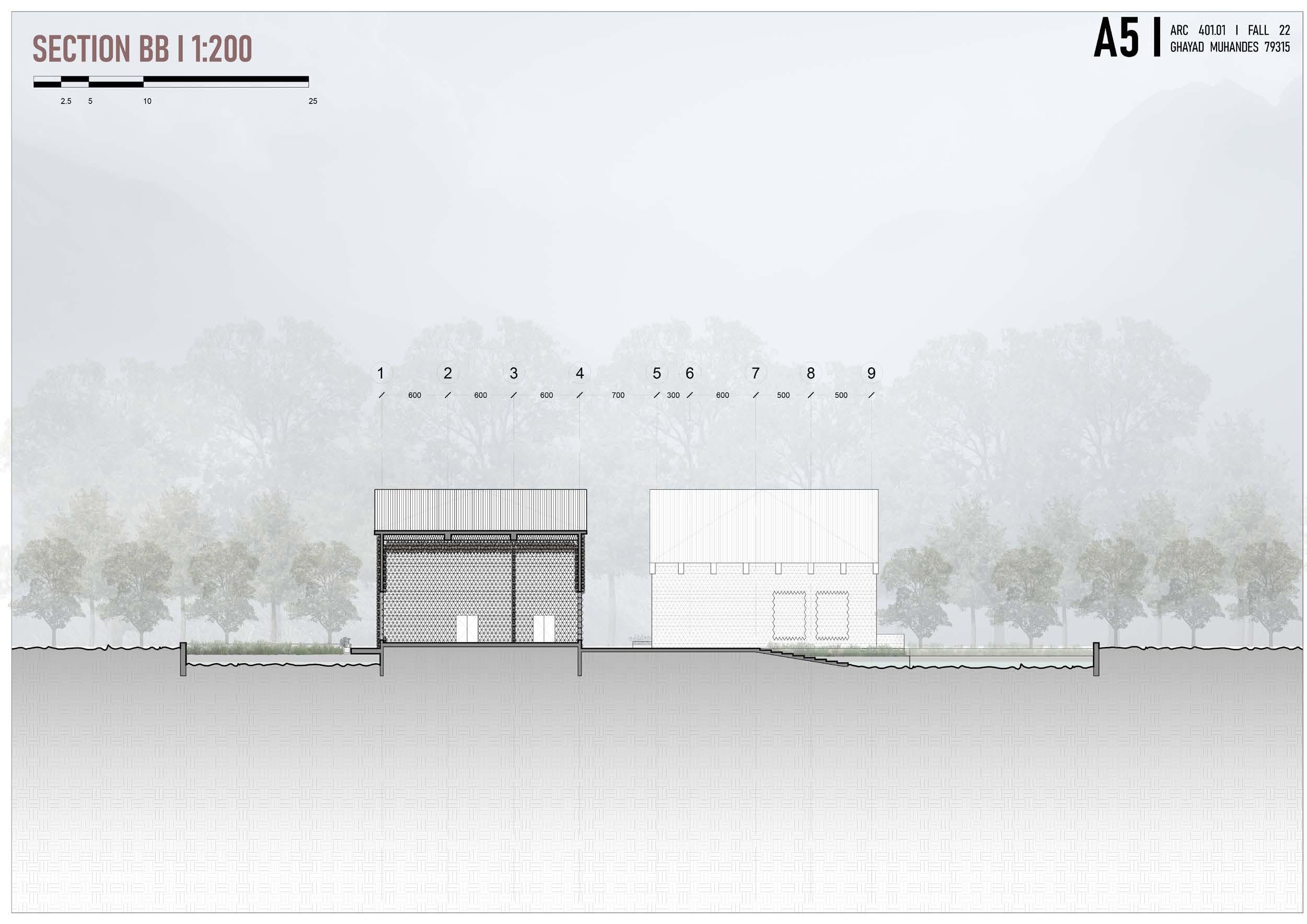

SECTION BB SECTION AA
EXTERIOR LAKE VIEW
INTERIOR EXHIBITION

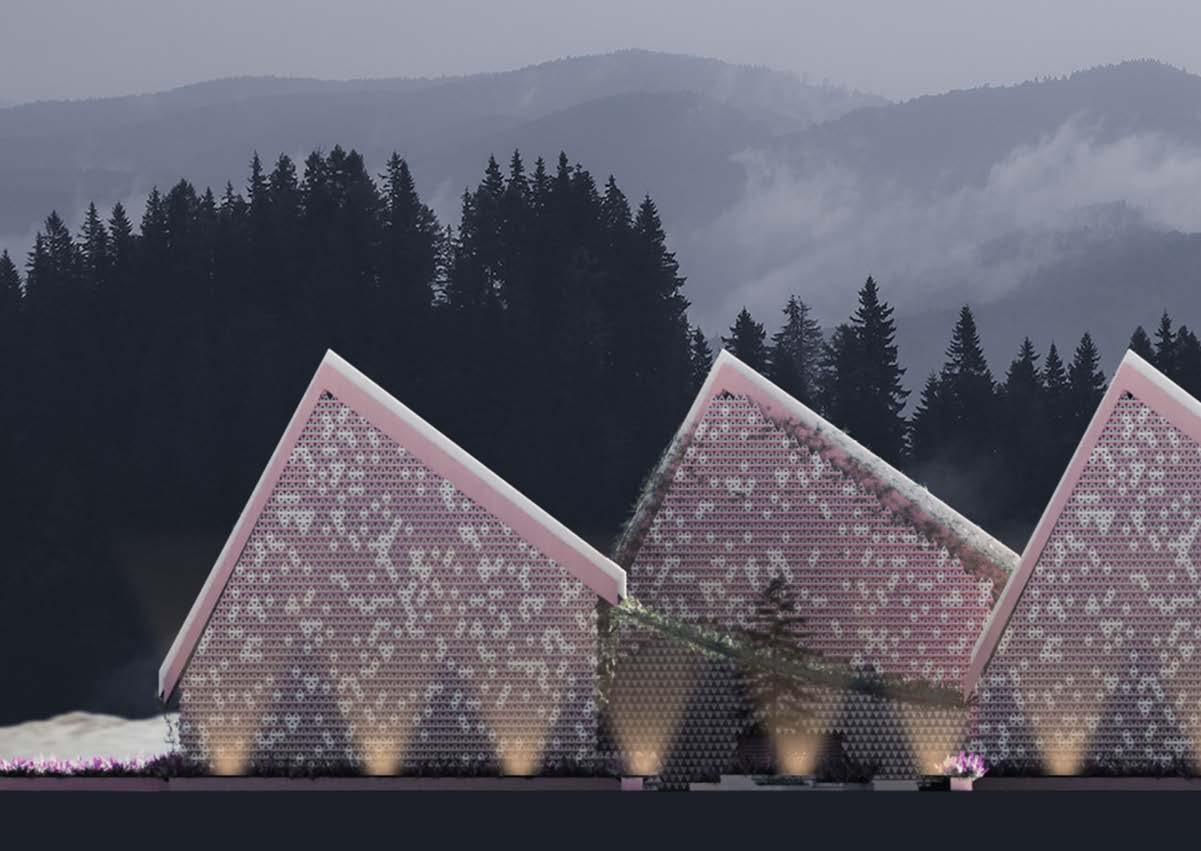

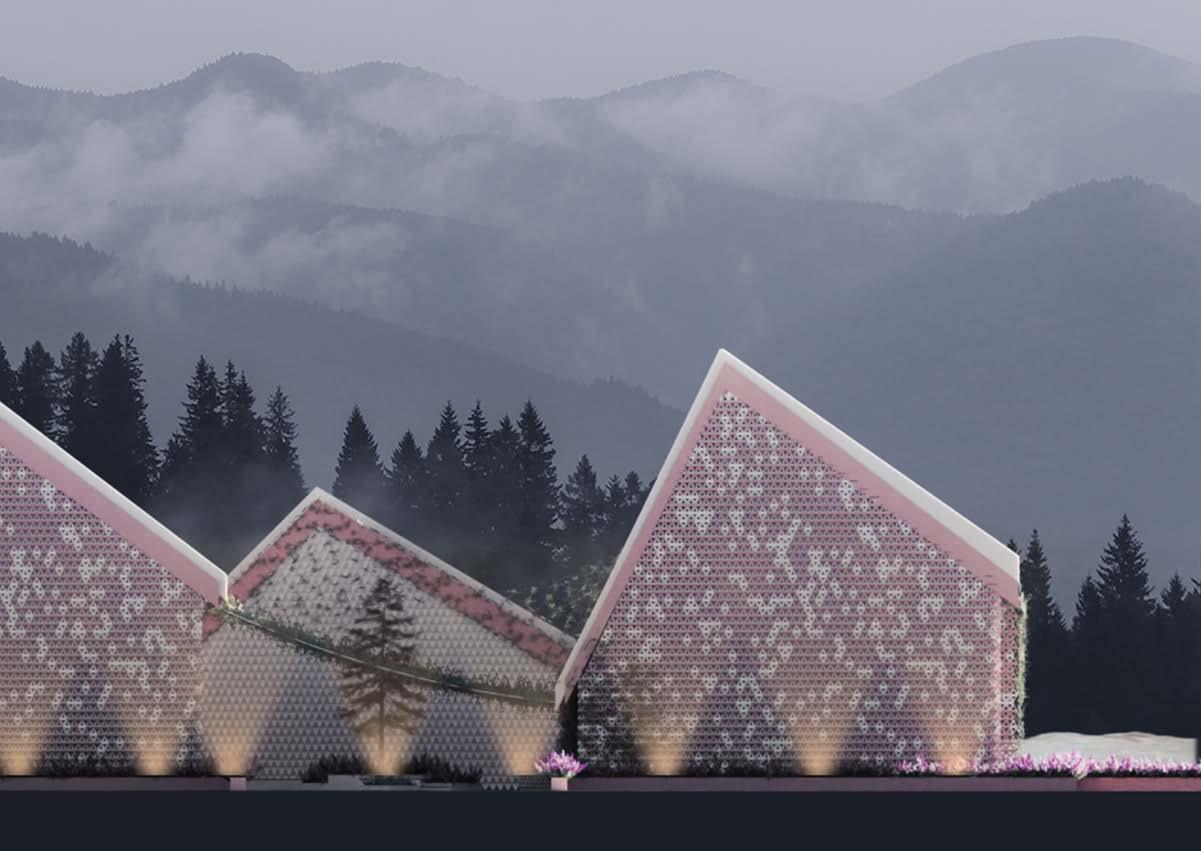

SOUTH ELEVATION
EXTERIOR DAY VIEW
PROJECT 02
ARC402: CENTER OF FILM AND MEDIA
SHARJAH, UNITED ARAB EMIRATES
DONE IN A PARTNERSHIP
AUDITORIUM 2 OUTDOOR AUDITORIUM FIRE EGRESS FIRE EGRESS 2 A301 BASEMENT 2 GROUND FLOOR FIRST FLOOR FIRST ROOF ROOF SECOND ROOF THIRD ROOF +0.00m +7.00 +9.00 +10.00m +16.60m +20.20m +1.00m SECTION B 1:200 A B C D E F G H I J 23700 3550 5650 2000 2000 6000 4500 58180 8000 4000 4100 4490 6240 13770 5040 6560 5980 25msq LOADING DOCK 25msq 50msq 215msq AUDITORIUM HALLWAY QUMRA OUTDOOR AUDITORIUM OUTDOOR EXHIBITION Auditorium 1 LOUNGE OFFICES J I H G F E D C B A 1 A301 BASEMENT 1 GROUND FLOOR FIRST FLOOR FIRST ROOF ROOF SECOND ROOF THIRD ROOF -3.5m +7.00 +9.00 +10.00m +16.60m +20.20m +1.00m SECTION A 1:200 23700 5100 2500 2000 6000 4500 58180 10000 6100 4490 6240 13770 5040 6560 5980 3600 LIBRARY 175msq 39.7msq 175msq 322msq 97msq 97msq
2 A201 SOUTH ELEVATION 1:200 A B C D E F G H I J BASEMENT 2 GROUND FLOOR FIRST FLOOR FIRST ROOF ROOF SECOND ROOF THIRD ROOF +0.00m +7.00 +9.00 +10.00m +16.60m +20.20m +1.00m 1 A201 BASEMENT 1 GROUND FLOOR FIRST FLOOR FIRST ROOF ROOF SECOND ROOF THIRD ROOF -3.5m +7.00 +9.00 +10.00m +16.60m +20.20m +0.00m NORTH ELEVATION 1:200 J I H G F E D C B A
Roof Slanted Metal Columns First Floor Auditoriums Ground Floor Foundations Vertical Circulation 2 A150 4 A150 3 A150 5 A150 400 4000 300 245 1633 735 245 245 1633 2737 600 600 2483 816 816 1555 766 686 669 1 A150 2 A150 3 A150 4 A150 5 A150 1:500 Exploded Structural Axonometric 1:30 Auditorium Footing 1:30 Wall Footing 1:30 Auditorium Trusses 1:30 RC Beam and LB Wall
1:15 I Structural Wall Step Footing 1:30 I Wall Section B
1:5 I Concrete Slab
BASEMENT 2 GROUND FLOOR FIRST FLOOR ROOF 1 MAIN ROOF + 0.0m +1.0m +7.0m +9.0m +11.0m 750 750 750 700 750 750 750 5200 5850 6010 1100 14mm TEMPERED GLAZING GLASS GLAZING BOLT CLAMP 400mm STRUCTURAL FACADE GLASS FIN SUPPORT STRIP FOOTING FOUNDATIONS EARTH 1 A502 2 A502 3 A502 5 A502 15mm HEXAGONAL CERAMIC TILES 600*600 150mm CONCRETE SLAB 50mm BATT INSULATION SAND 4 A502 R80 500 70 200 HEXAGONAL CORTEN STEEL SHADING PANEL RIGHT 2900mm OUTDOOR STAIRCASE STEEL STRUCTURAL COLUMN SUPPORTING CANOPY HEXAGONAL COPPER SHADING PANEL LEFT 650mm*300mm REINFORCED CONCRETE BEAM WITH REBAR 100mm REINFORCED CONCRETE SLAB 50mm BATT INSLUATION ROOFING PEDESTAL SUPPORTING TILING 15mm HEXAGONAL CERAMIC TILES 600*600 1500mm PANEL GLASS RAILING 70mm CROSSING STEEL BEAMS 200mm STEEL CANOPY 200mm STEEL CANOPY R250mm HVAC DUCT R50mm STORM WATER PIPE 650 160 500 100 50 50 U-SHAPE COPPER STAND 10mm ADHESIVE SILICON 14mm TEMPERED GLASS 50 120 120 290 400 10 90 30 30 10 40 20 FOLDED METAL CORTEN STEEL SHADING L SHAPED METAL EDGE SECONDARY HEXAGON GRID BRACING SYSTEM PRIMARY ORTHOGONAL BRACING SYSTEM 300 300 300 300 900 300 600 1:15 I Wall to Slab Joint 1:5 I Glazing Bolt Clamp
to Stairs
1:5 I Louver
Joint

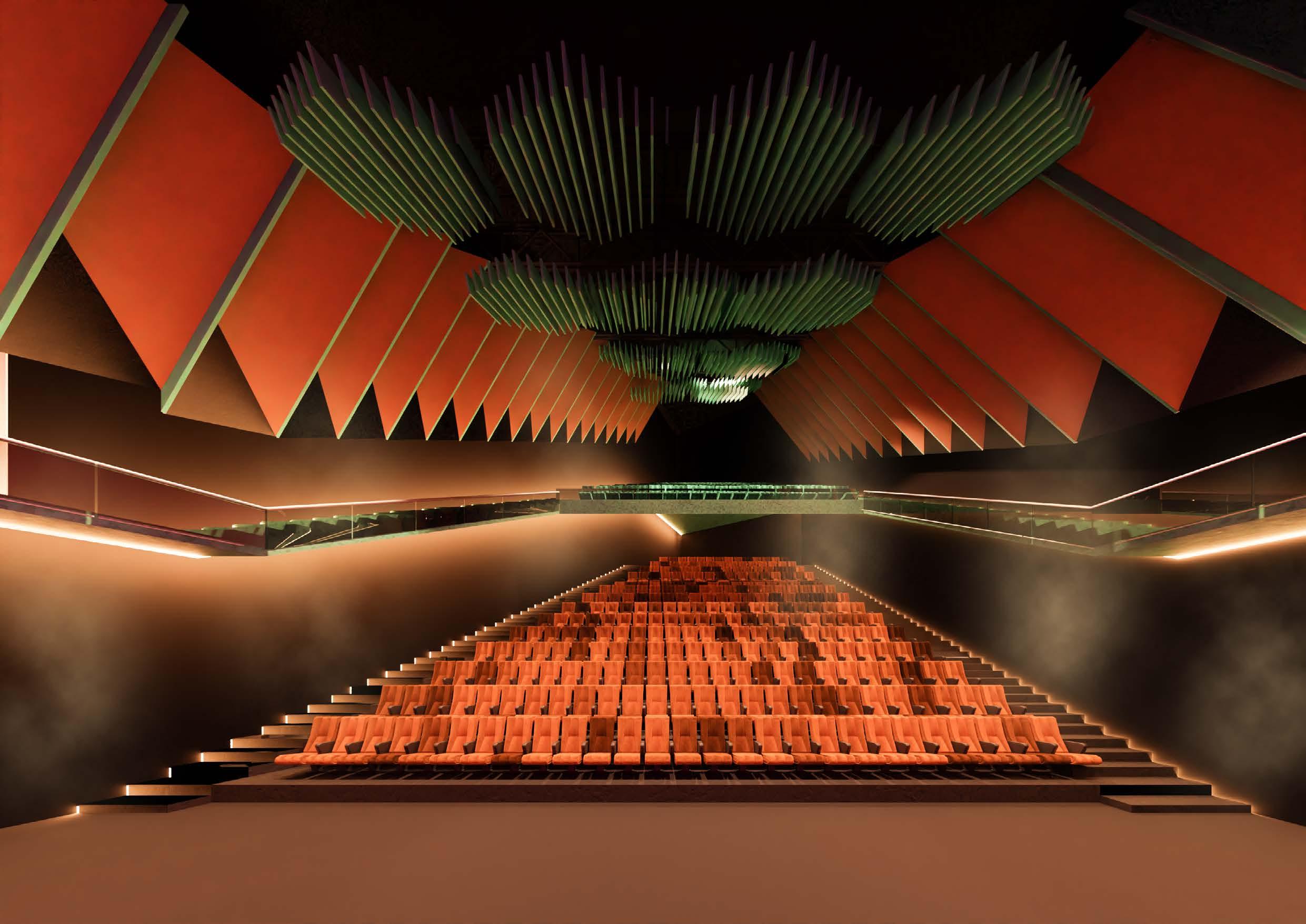

THEATER 1

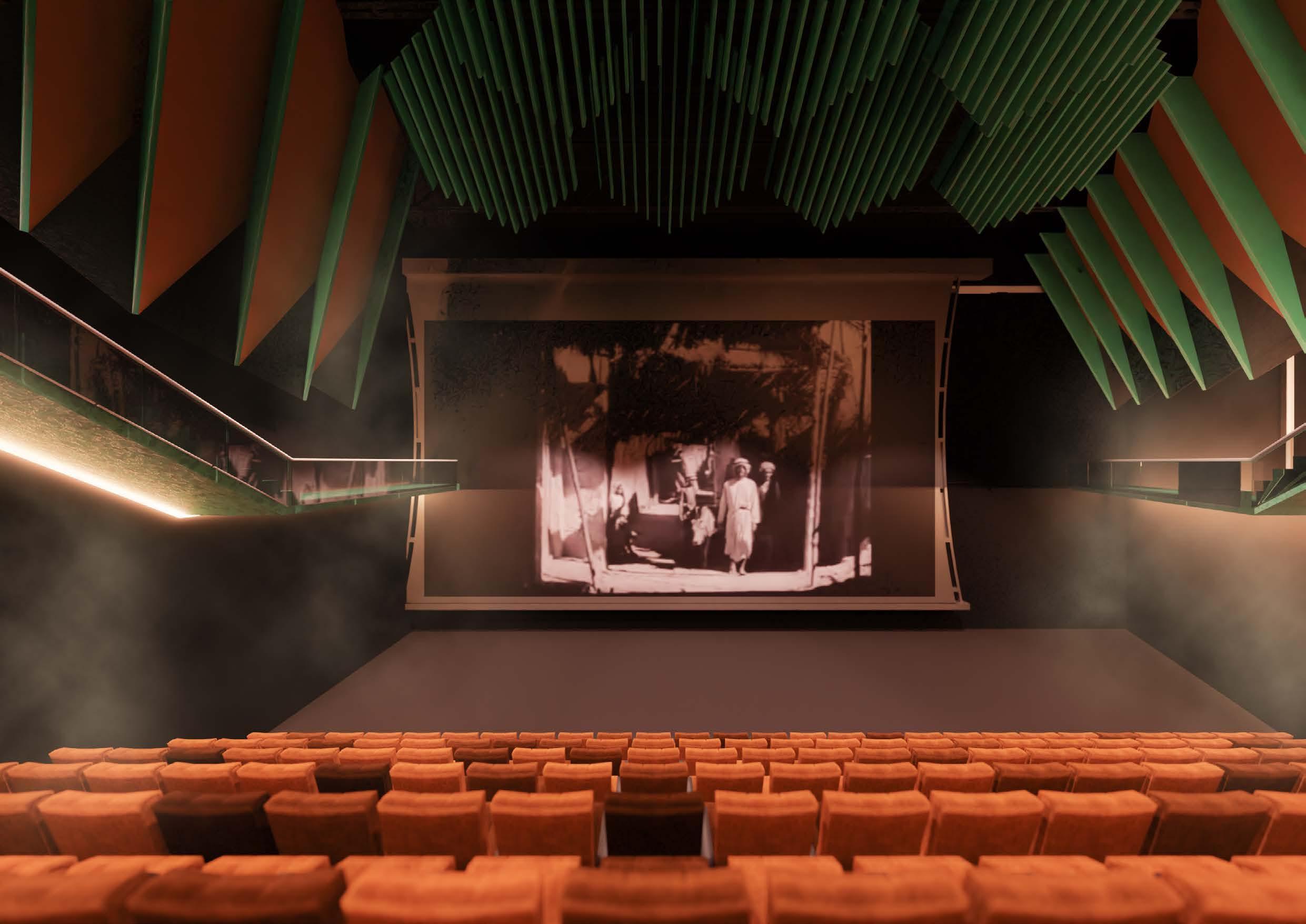

THEATER 1

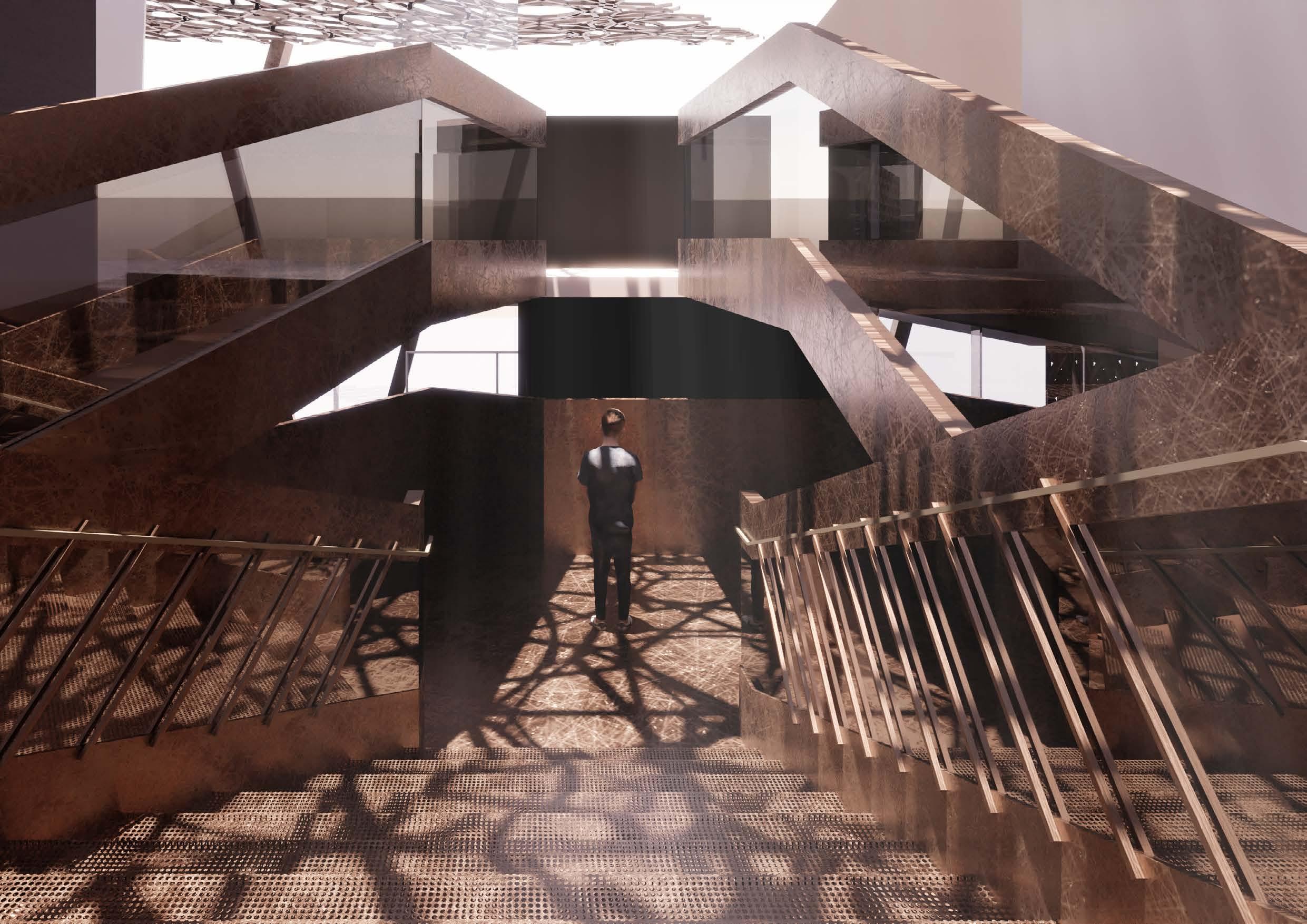

MAIN STAIRCASE

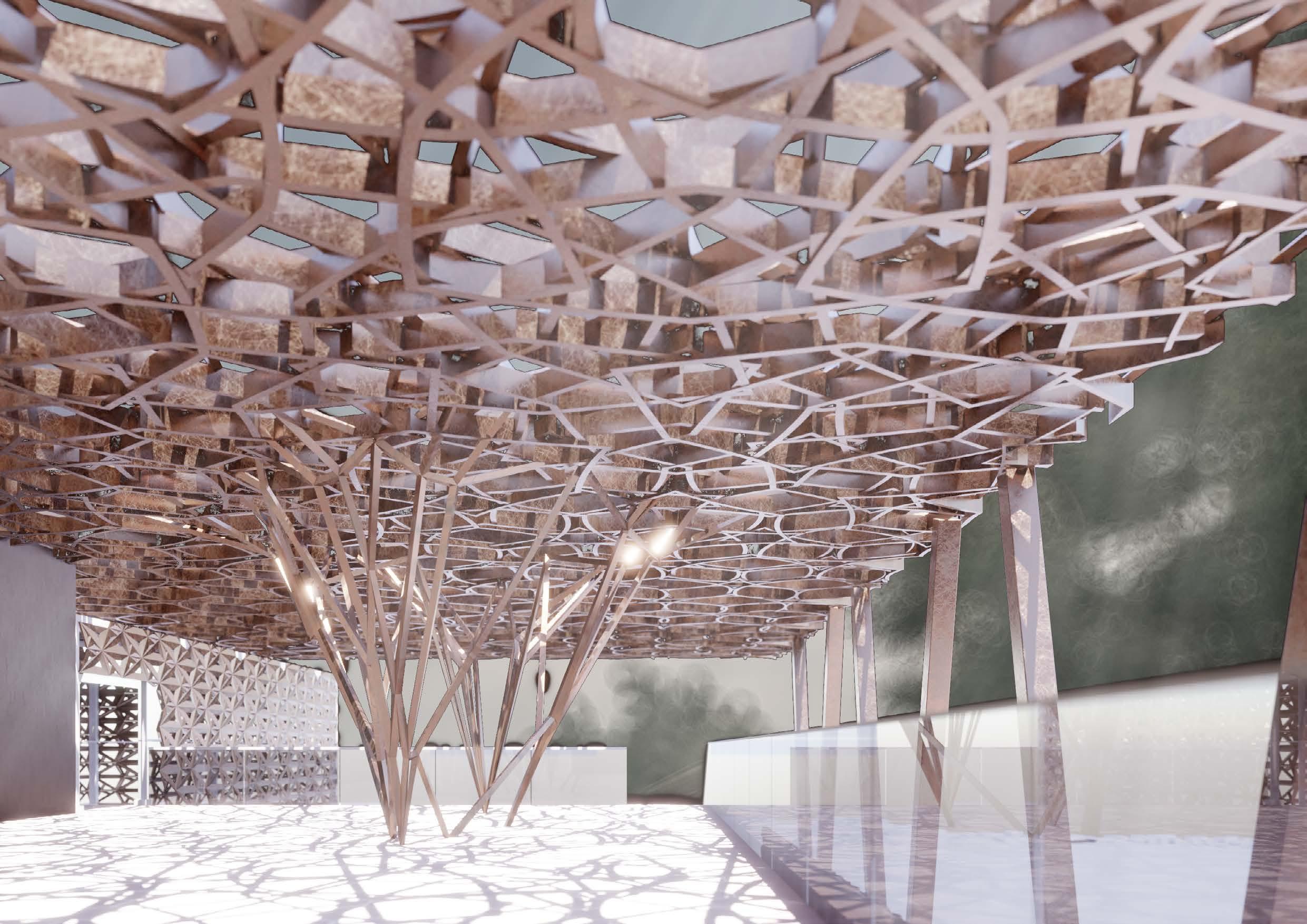

EXTERIOR EXHIBITION

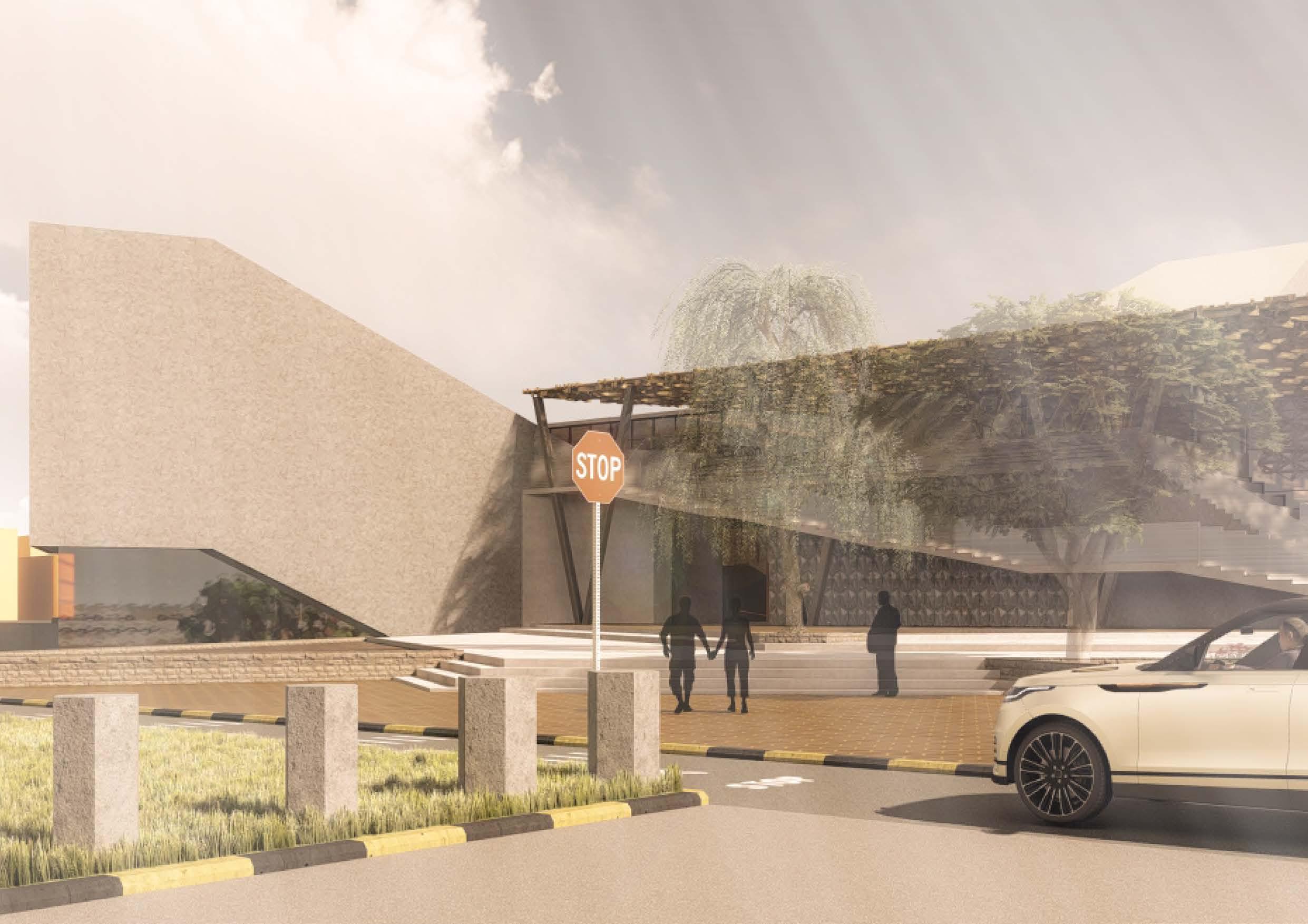

EXTERIOR DAY VIEW

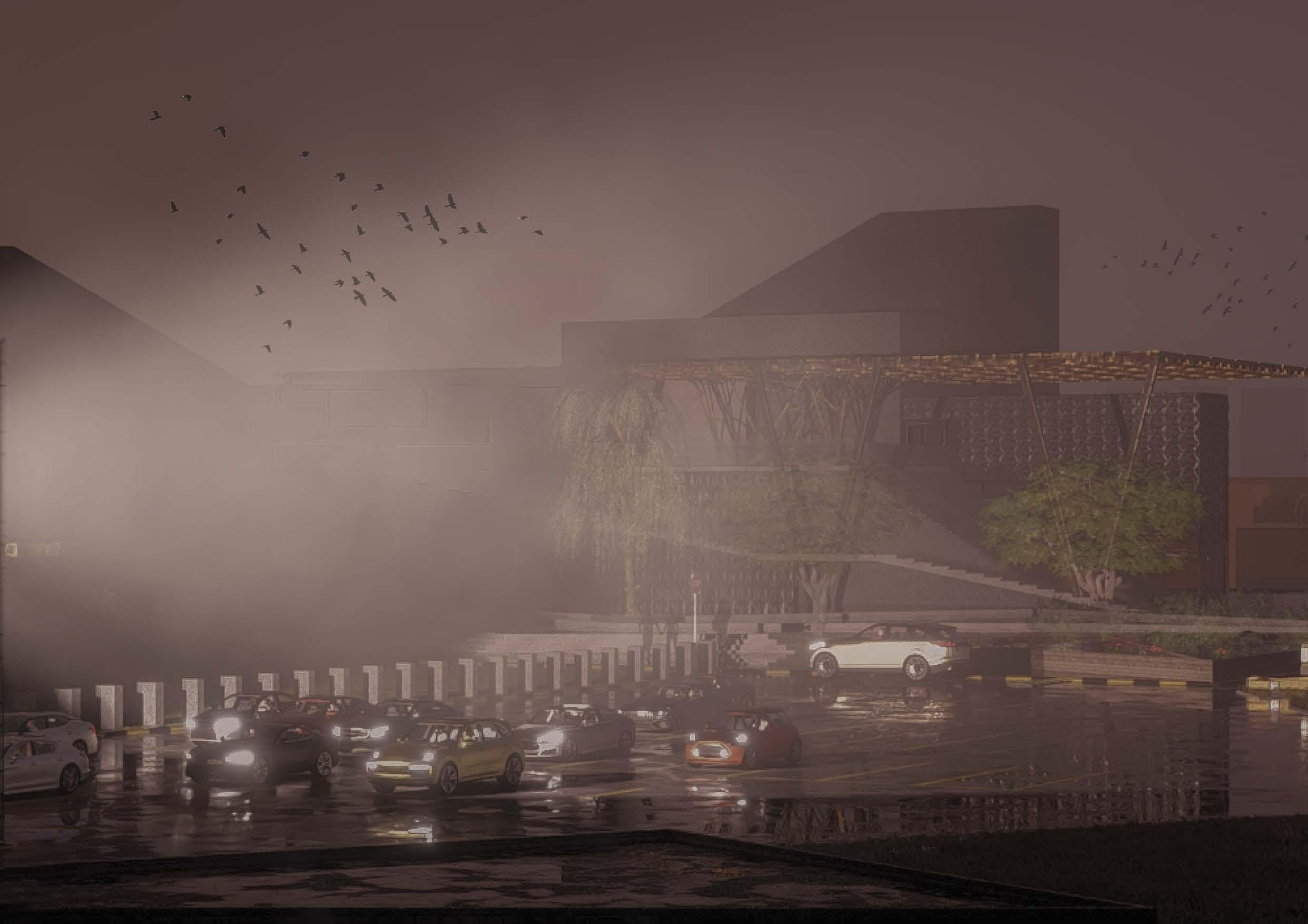

EXTERIOR NIGHT VIEW
SPACE NEBULAS
OTHER ATTRIBUTIONS
ARC366: REVIT EXPERTISE
3D MODELING AND RENDERING

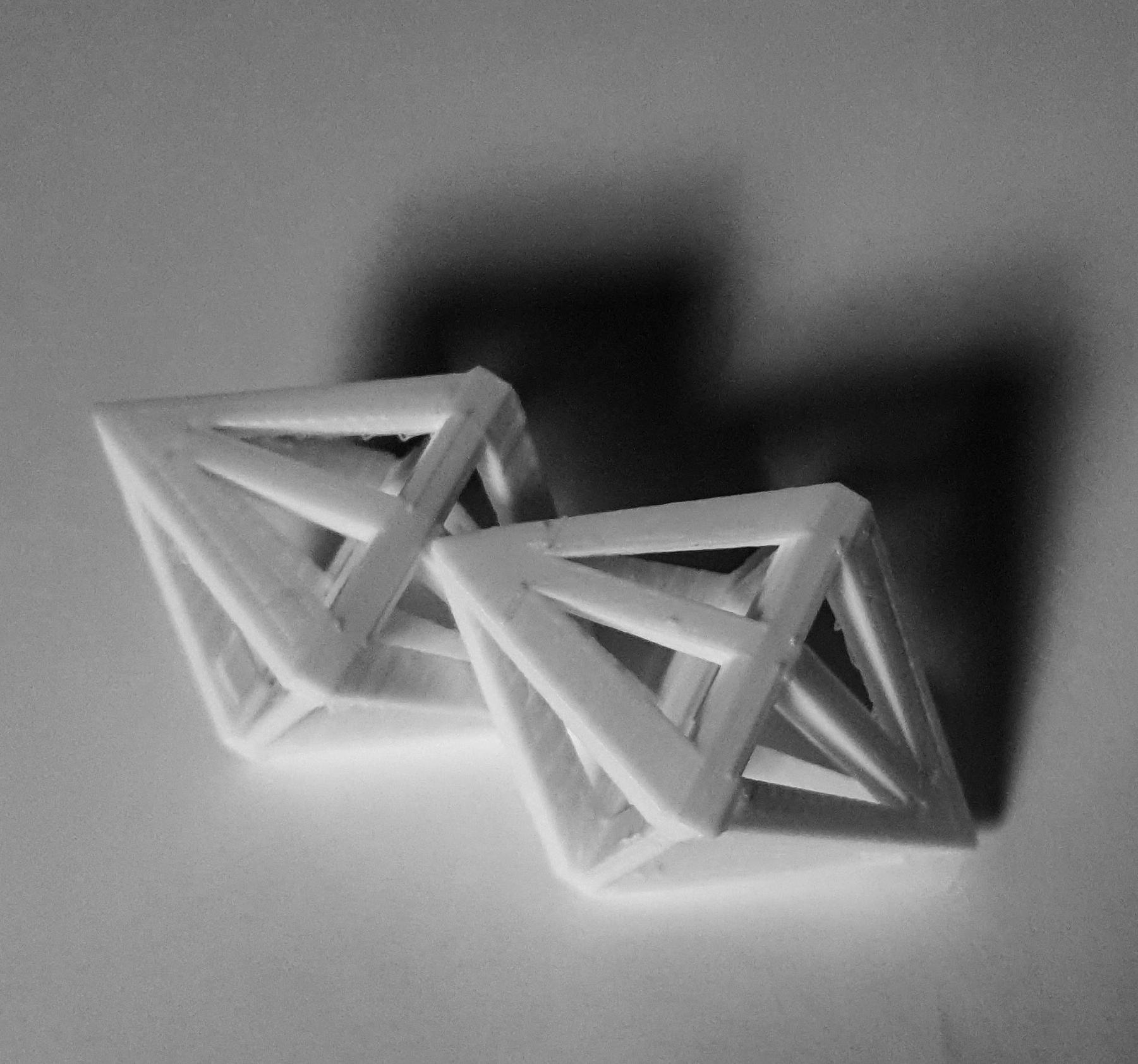

LASER CUTTING
PHOTOGRAPHY

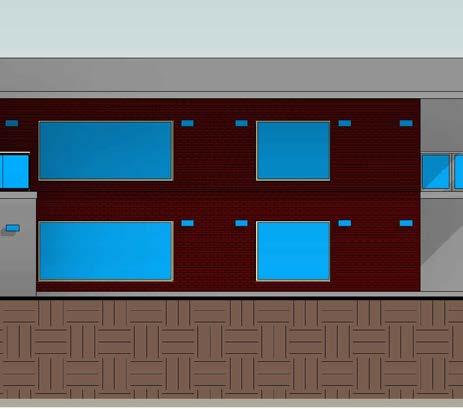

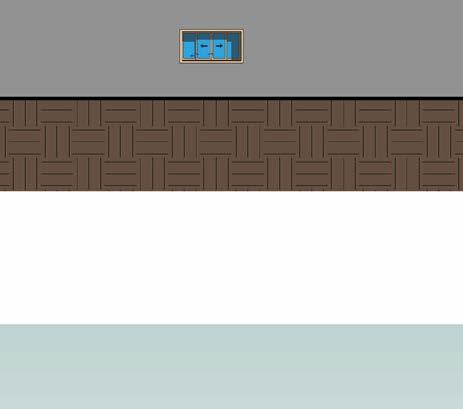

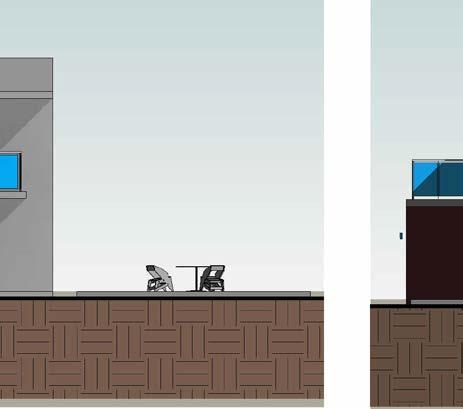

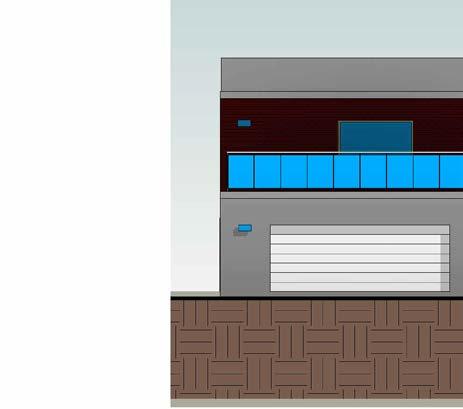

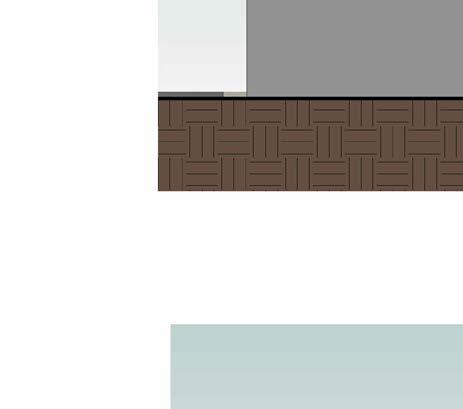

A B C 1 23 A108 15760 8760 7000 7000 7950 1540 6410 8325 1485 5385 1470 Garage 1 Master Bedroom 2 4270 4340 ARC 366 5/15/2023 11:21:56 PM Construction Ground Plan Ghayad Muhandes 05/15/23 Ground Floor Level 200 First Floor Level 3200 Site Level Roof Level 6200 Foundations Level -2000 Date www.aus.edu ARC 366 Structural Axonometric 2 Final Project Ghayad Muhandes 05/15/23 STR AXON 2 1 Ground Floor Level 200 First Floor Level 3200 Site Level Roof Level 6200 Ground Floor Level 200 First Floor Level 3200 Site Level 0 Roof Level 6200 1 2 3 4 Foundations Level -2000 Ground Floor Level 200 First Floor Level 3200 Site Level 0 Roof Level 6200 1 2 3 4 Foundations Level -2000 1 : 150 East 1 2 3 West 4 ARC366: REVIT EXPERTISE
3D MODELING AND RENDERING

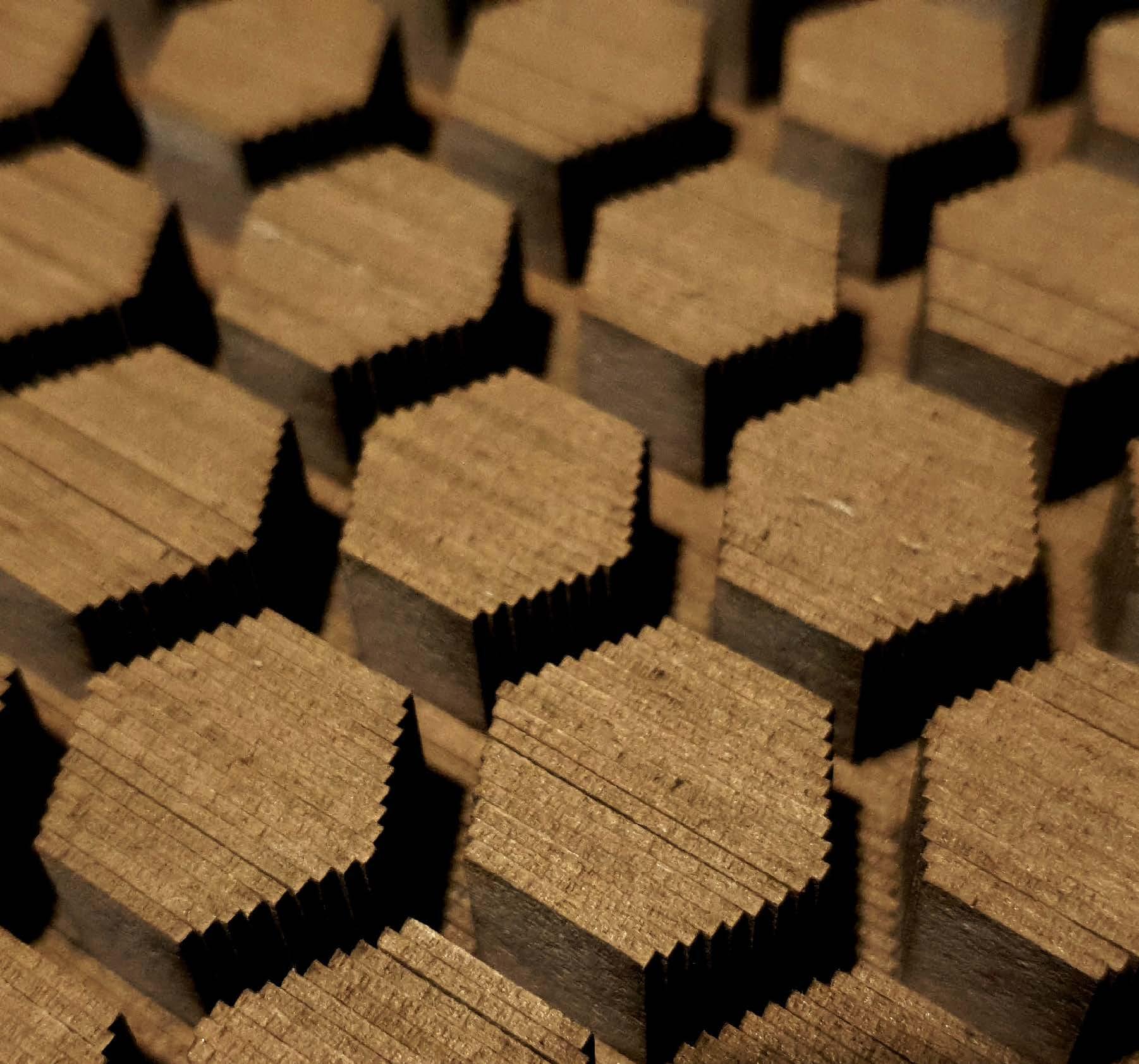

LASER CUTTING EXPERTISE
PHOTOGRAPHY
